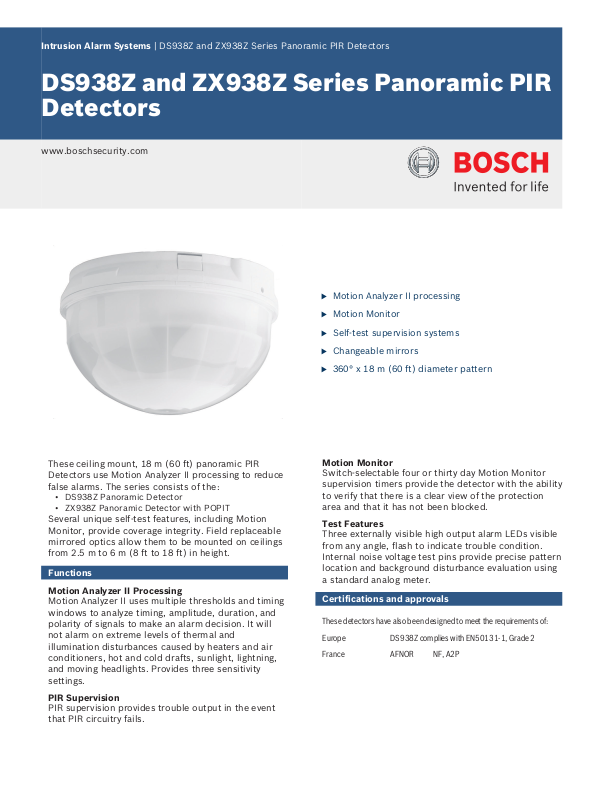

DS938Z and ZX938Z Series Panoramic PIR Detectors
www.boschsecurity.com
u Motion Analyzer II processing
u Motion Monitor
These ceiling mount, 18 m (60 ft) panoramic PIR Detectors use Motion Analyzer II processing to reduce false alarms. The series consists of the:
• DS938Z Panoramic Detector
• ZX938Z Panoramic Detector with POPIT
Several unique self-test features, including Motion Monitor, provide coverage integrity. Field replaceable mirrored optics allow them to be mounted on ceilings from 2.5 m to 6 m (8 ft to 18 ft) in height.
Functions
Motion Analyzer II Processing
Motion Analyzer II uses multiple thresholds and timing windows to analyze timing, amplitude, duration, and polarity of signals to make an alarm decision. It will not alarm on extreme levels of thermal and illumination disturbances caused by heaters and air conditioners, hot and cold drafts, sunlight, lightning, and moving headlights. Provides three sensitivity settings.
PIR Supervision
PIR supervision provides trouble output in the event that PIR circuitry fails.
u Changeable mirrors
u 360° x 18 m (60 ft) diameter pattern
Motion Monitor
Switch-selectable four or thirty day Motion Monitor supervision timers provide the detector with the ability to verify that there is a clear view of the protection area and that it has not been blocked.
Test Features
Three externally visible high output alarm LEDs visible from any angle, flash to indicate trouble condition. Internal noise voltage test pins provide precise pattern location and background disturbance evaluation using a standard analog meter.
Certifications and approvals
These detectors have also been designed to meet the requirements of:
Europe DS938Z complies with EN50131‑1, Grade 2
France AFNOR NF, A2P
0 m
9 m
9 m
0 ft
30 ft
30 ft
30 ft
0 ft
10 ft
9 m
0 m
3 m
30 ft
9 m
0 ft
0 m
0 ft
30 ft
30 ft
0 ft
10 ft
15 ft
0 m
9 m
9 m
0 m
3 m
4.5 m
2 | DS938Z and ZX938Z Series Panoramic PIR Detectors
Region Certification
Australia RCM [DS938Z]
Europe CE 2004/108/EC EMC Directive (EMC);
2006/95/EC Low-Voltage Directive (LVD); 2011/65/EU Restriction of the [DS938Z][DS938Z-FRA]
EN50131EN50131-2-4, Grade 2 [DS938Z-FRA]
USA UL DS938Z: ANSR: Intrusion Detection
Units (UL639)
UL ZX938Z: ANSR: Intrusion Detection
Units (UL639)
France AFNOR 260001760A1 [DS938Z-FRA]
China CCC DS938Z: 2002031901000002
CCC DS938Z-CHI: 2004031901000036
Sweden INTYG DS938Z only: 04-683
Installation/configuration notes
AR13-18 Side View 360° x 18 m (60 ft) diameter
Technical specifications
Enclosure Design
Material: High impact ABS plastic enclosure
Dimensions: 8.4 cm x 13.3 cm
(3.3 in. x 5.25 in.)
Environmental Considerations
Operating Temperature: -29°C to +49°C (-20°F to +120°F)
For UL Listed Applications, 0°C to + 49°C (+32°F to +120°F)
Top View 360° x 18 m (60 ft) diameter
Radio Frequency Interference (RFI) Immunity:
No alarm or setup on critical frequencies in the range from 26 MHz to 950 MHz at 50 V/m.
DS938Z: Complies with Environmental Class II
(EN50130-5)
Mounting
Height (recommended): 2.5 m to 6 m (8 ft to 18 ft)
Location: Mounts directly to ceiling or to standard
octagonal electrical box.
Internal Pointability: Coverage is adjustable ±10° horizontally,
+2° to -18° vertically.
Outputs (DS models)
Alarm: Form C reed relay at 3.0 W, 125 mA at 28 VDC for
resistive loads
Tamper: Normally-closed. Contacts rated at 28 VDC, 125 mA
maximum.
Outputs (ZX model)
Alarm: Signal through POPEX data bus.
Tamper: Signal through POPEX data bus. Signaled as missing.
Trouble: Signal through POPEX data bus.
AR8-13 Side View 360° x 18 m (60 ft) diameter
Power Requirements (DS models)
Current: 18 mA at 12 VDC
Voltage: 6 VDC to 15 VDC
