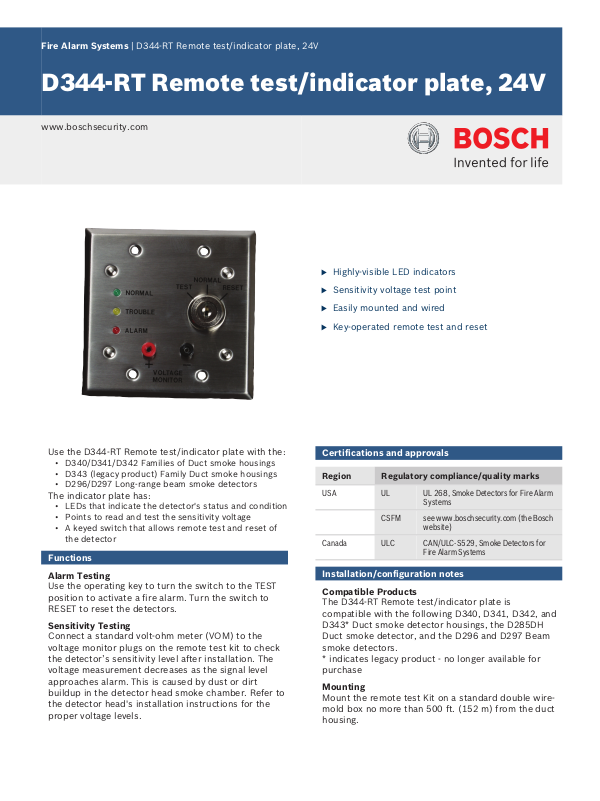

D344-RT Remote test/indicator plate, 24V

www.boschsecurity.com

u Highly‑visible LED indicators

u Sensitivity voltage test point

u Easily mounted and wired

Use the D344‑RT Remote test/indicator plate with the:

• D340/D341/D342 Families of Duct smoke housings

• D343 (legacy product) Family Duct smoke housings

• D296/D297 Long‑range beam smoke detectors

The indicator plate has:

• LEDs that indicate the detector's status and condition

• Points to read and test the sensitivity voltage

• A keyed switch that allows remote test and reset of
the detector

Functions

Alarm Testing

Use the operating key to turn the switch to the TEST
position to activate a fire alarm. Turn the switch to
RESET to reset the detectors.

Sensitivity Testing

Connect a standard volt‑ohm meter (VOM) to the
voltage monitor plugs on the remote test kit to check
the detector’s sensitivity level after installation. The
voltage measurement decreases as the signal level
approaches alarm. This is caused by dust or dirt
buildup in the detector head smoke chamber. Refer to
the detector head's installation instructions for the
proper voltage levels.

u Key-operated remote test and reset

Certifications and approvals

Region Regulatory compliance/quality marks

USA UL UL 268, Smoke Detectors for Fire Alarm

Systems

CSFM see www.boschsecurity.com (the Bosch

website)

Canada ULC CAN/ULC-S529, Smoke Detectors for

Fire Alarm Systems

Installation/configuration notes

Compatible Products

The D344‑RT Remote test/indicator plate is
compatible with the following D340, D341, D342, and
D343* Duct smoke detector housings, the D285DH
Duct smoke detector, and the D296 and D297 Beam
smoke detectors.
* indicates legacy product - no longer available for
purchase

Mounting

Mount the remote test Kit on a standard double wire­mold box no more than 500 ft. (152 m) from the duct
housing.

2 | D344-RT Remote test/indicator plate, 24V

Represented by:

Europe, Middle East, Africa: Germany: North America: Asia-Pacific:

Bosch Security Systems B.V.
P.O. Box 80002
5600 JB Eindhoven, The Netherlands
Phone: + 31 40 2577 284
[e-mail]
emea.boschsecurity.com

Bosch Sicherheitssysteme GmbH
Robert-Bosch-Ring 5
85630 Grasbrunn
Germany
www.boschsecurity.com

Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.us

Robert Bosch (SEA) Pte Ltd, Security Systems
11 Bishan Street 21
Singapore 573943
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.asia

© Bosch Security Systems 2018 | Data subject to change without notice
2696647819 | en, V8, 30. Nov 2018

Wiring Considerations

Connect the power card in the D340/D341/D342 or
D343 (legacy product) housing to the D344-RT using
eight wires. Use 18 AWG (ISO 0.75 mm2) wire or
larger. The supplied test coil with wiring harness
connects to the detector head and the power card of
the housing.

Parts included

Quantity Component

1 D344-RT Remote test/indicator plate, 24V

1 Test coil with wiring harness

1

1 Hardware pack

1 Literature pack

1

The test coil and wiring harness are not used with

the beam smoke detectors.

Technical specifications

Environmental Considerations

Temperature (operating): 0°F to +130°F (-17.8°C to +54°C)

For UL Listed requirements, the operating temperature range is +32°F to
+100°F (0°C to 37.8°C).

Power Requirements

Voltage: 10 VDC to 32 VDC, 24 VDC nominal

Current:

• Alarm: 15 mA at 24 VDC

• Standby: 5 mA at 24 VDC

• Test mode: 140 mA at 24 VDC

Ordering information

D344-RT Remote test/indicator plate, 24V

Use with a D340/D341/D342 or D343 (legacy product)
Duct smoke housing or D296/D297 Long‑range beam
smoke detector.

Order number D344-RT
