MARCH 20, 2006 1 MARK V XCEL

MARK V XCEL SERIES

ELECTRIC CONVECTION OVEN

REPLACEMENT P ARTS LIST

EFFECTIVE MARCH 20, 2006

BLODGETT OVEN COMPANY, 44 Lakeside Avenue, Burlington, Vermont 05401 USA

Telephone: [phone] [phone] Fax: [phone]

www.blodgett.com

Superseding All Previous Parts Lists.
The Company reserves the right to make substitution in the event that items specified are not available.
ERRORS: Descriptive and/or typographic errors are subject to correction.

www.blodgett.com

MARCH 20, 2006 2 MARK V XCEL

SERIAL NUMBER LOCATION / KEY:

IMPORTANT: When ordering parts, please provide the model,
voltage, phase and serial number of the oven. The identification
plate is located above the right hand door under the ledge.

SERIAL NUMBER IDENTIFICATION CODE:

PF = MARK V XCEL

SERIAL NUMBER EXAMPLES

060103PF001T (NEW STYLE)

06/01/03 = DATE

PF = LETTER CODE FOR MARK V XCEL

001 = FACTORY SEQUENCE

T = TOP OVEN

TO OBTAIN LITERATURE:

Blodgett Literature Department

800-331-5842, x6157

Fax: [phone]

Email: [e-mail]

or

www.blodgett.com

MARCH 20, 2006 3 MARK V XCEL

TABLE OF CONTENTS

t Doors Are Not Returnable

SOLID STATE INFINITE CONTROLS ................................................... PAGE 4

SOLID STATE DIGITAL CONTROLS, 5 KEY ....................................... PAGE 5

SOLID STATE CHPRO3 CONTROLS, 14 KEY ..................................... PAGE 6

SOLID STATE IQ2 CONTROLS, 23 KEY.............................................. PAGE 7

SOLID STATE DIGITAL CONTROLS WITH HUMIDAIRE, 5 KEY ........ PAGE 8

HUMIDAIRE COMPONENTS ................................................................ PAGE 9

EXPLODED INTERIOR VIEW................................................................ PAGE 10

INTERIOR COMPONENTS W/EXTERIOR VIEW .................................. PAGE 11

DOOR COMPONENTS .......................................................................... PAGE 12

LOWER DOOR SUPPORT COMPONENTS.......................................... PAGE 13

ACCESSORIES...................................................................................... PAGE 14

MARCH 20, 2006 4 MARK V XCEL

SOLID STATE INFINITE CONTROLS

10

11

7

4

6

5

1

3

9

8

12

Ref. Part
No. No. Description

1 36546 Controller, Temperature, Solid State Modular
2 36506 Probe, Temperature, Solid State
3 18226 Timer, 60 Minute, 240V, 60 HZ
4 21068 Mode Selector Switch, 4 pos
5 36616 Knob, Replacement, all functions Qty 3
6 16037 Indicator Light, Round, Red 28V
7 36124 Buzzer, 120V
8 36429 Circuit Breaker

30503 Terminal Block
9 30662 Momentary Light Switch Kit
10 36651 Plug, for Light Switch

NOTE: For units without lights only, use this plug piece
.

36505 Harness, Wiring, Inf.

23034 Axial Fan, Low Velocity, 230V, 60 HZ

16326 Test Cord
11 37146 Control Panel & Decal Assy, Infinite
12 36701 Module Assy, Infinite 2 SP

36518 Harness, Rear Connecting

NOTE: Modules include EVERYTHING pictured

above, except probe.

38122 Contactor Upgrade Kit, 24V Mechanical, Qty 2

2

** FOR OVENS BUILT AFTER 10/22/03- THESE
PARTS WERE ADDED/ CHANGED DUE TO A
CHANGE IN VOLTAGE.

Ref. Part
No. No. Description

13 M6899 Transformer, 208/240 to 24V
14 37317 Timer, 60 Min 24V 60Hz
15 18265 Light, Indicator 28V Red Round
16 37315 Buzzer, 24V
17 37335 Harness, Module, Inf
18 37058 Relay, DPST 24V 25A
19 R3984 Relay, DPST 24V Coil

37334 Harness, Infinite, add in
37340 Module Assy, Infinite 2SP- includes everything

4

(SAME)

15

1

(SAME)

14

9

(SAME)

19

17

18

17

13

pictured below.

38081 Contactor, 40amp 24V Mechanical

8

(SAME)

16

MARCH 20, 2006 5 MARK V XCEL

SOLID STATE DIGITAL CONTROLS

TIME & TEMPERATURE

5 KEY DIGITAL

9

4

3

5

8

10

Ref. Part
No. No. Description

1 30658 Controller, Temperature, Solid State Digital
2 36506 Probe, Temperature, Solid State
3 21068 Mode Selector Switch, 4 pos
4 36616 Knob, Replacement, Mode
5 36617 Knob, Replacement, Adjust Temperature
6 36429 Circuit Breaker
7 30662 Momentary Light Switch Kit
8 36651 Plug, for Light Switch

NOTE: For units without lights only, use this plug piece.

30503 Terminal Block, interconnecting, at rear of unit
36517 Harness, Wiring SSD
23034 Axial Fan, Low Velocity, 230V, 60 HZ

16326 Test Cord
9 37147 Control Panel & Decal Assy, SSD
10 37337 Module Assy, SSD 2 SP

36518 Harness, Rear Connecting

NOTE: Modules include EVERYTHING pictured

above, except probe.

38122 Contactor Upgrade Kit, 24V Mechanical, Qty 2

38081 Contactor, 40amp 24V Mechanical

1

7

6

2

** FOR OVENS BUILT AFTER 10/22/03­THESE PARTS WERE ADDED/ CHANGED
DUE TO A CHANGE IN VOLTAGE.

Ref. Part
No. No. Description

11 M6899 Transformer, 208-240V/24V
12 37335 Harness, Control
13 37058 Relay 24VAC
14 R3984 Relay, DPST 24V

37336 Module Assy, SSD- includes everything

14

3

(SAME)

1

(SAME)

7

(SAME)

6

(SAME)

pictured below.

12

13

12

11

MARCH 20, 2006 6 MARK V XCEL

SOLID STATE CONTROLS

CH PRO 3 CONTROL

14 KEYS

10

5

6

4

3

1

8

7

9

11

Ref. Part
No. No. Description

1 37087 Controller, CH Pro 3
2 36720 Probe, Temperature, CH Pro 3
3 21068 Mode Selector Switch, 4 pos
4 36616 Knob, Replacement, Mode
5 R10043 Relay, 240V
6 31558 Relay, 240V
7 30662 Momentary Light Switch Kit
8 36651 Plug, for Light Switch

NOTE: For units without lights only, use this plug piece.

9 36429 Circuit Breaker

30503 Terminal Block, interconnecting, at rear of unit
10 37148 Control Panel & Decal Assy, CHPro

36517 Harness, Wiring

23034 Axial Fan, Low Velocity, 230V, 60 HZ

16326 Test Cord
11 36518 Harness, Rear Connecting

38122 Contactor Upgrade Kit, 24V Mechanical, Qty 2

38081 Contactor, 40amp 24V Mechanical

2

** FOR OVENS BUILT AFTER 10/22/03- THESE
PARTS WERE ADDED/ CHANGED DUE TO A
CHANGE IN VOLTAGE.

Ref. Part
No. No. Description

12 M6899 Transformer, 208-240/24V
13 37058 Relay, 24VAC
14 R3984 Relay, DPST 24VAC
15 37335 Harness, Control

37338 Module Assy, CHPRO 3

14

3

(SAME)

1

(SAME)

7

(SAME)

9

(SAME)

15

13

15

12

MARCH 20, 2006 7 MARK V XCEL

SOLID STATE CONTROLS

IQ2 CONTROL

23 KEYS

6

10

11

1

12

3

2

Ref. Part
No. No. Description

1 37035 Controller w/Decal Assy, IQ2
2 32999 Control Retainer
3 33169 Gasket, Rubber
4 33151 Gasket, Control back
5 36720 Probe, IQ2
6 19619 Rocker Switch, DPST, Black
7 36446 Relay, 24V Qty 2 per oven
8 36628 Relay, 24V, Qty 1 per oven

30503 Terminal Block
9 20356 Transformer, 115/230V to 24V Step Down
10 36429 Circuit Breaker
11 XXXXX Panel & Decal Assy, Circuit Breaker On/Off
12 36651 Plug, for Light Switch

7

8

9

4

1

13

5

** FOR OVENS BUILT AFTER 10/22/03- THESE
PARTS WERE ADDED/ CHANGED DUE TO A
CHANGE IN VOLTAGE.

Ref. Part
No. No. Description

9 M6899 Transformer, 208-240/24V

37361 Harness, Control
37362 Module Assy, IQ2

NOTE: For units without lights only, use this plug piece.

36986 Harness, Control

36978 Harness Kit, IQ2

23034 Axial Fan, Low Velocity, 230V, 60 HZ

16326 Test Cord
13 36518 Harness, Rear Connecting

38122 Contactor Upgrade Kit, 24V Mechanical, Qty 2

38081 Contactor, 40amp 24V

MARCH 20, 2006 8 MARK V XCEL

SOLID STATE DIGITAL CONTROLS WITH HUMIDAIRE

5 KEYS

9

1

8

10

11

2

3

4

5

Ref. Part
No. No. Description

1 36616 Knob, Mode
2 36617 Knob, Adjust
3 30662 Momentary Light Switch Kit
3 36651 Plug, for LIght Switch

NOTE: For units without lights only, use this plug piece.

4 19014 Light, Ind. 28 VAC Amber
5 37232 Push Button, Flush
6 36429 Circuit Breaker
7 30658 Controller, Temperature

36506 Probe, Temperature
8 21068 Switch, Rotary 4 Position
9 36854 Timer, Preset Humidaire
10 R3984 Relay, DPST 24 VAC
11 37335 Harness, Control

36853 Harness, Humidaire

37098 Harness, Rear Humidaire
12 37058 Relay, 24 VAC
13 M6899 Transformer, 208-240/24

38122 Contactor Upgrade Kit, Mechanical 24 V

7

12

11

3

4

5

6

13

6

36706 Module Assy, SSD w/ Humidaire

NOTE: Modules include EVERYTHING pictured

above, except probe.

MARCH 20, 2006 9 MARK V XCEL

HUMIDAIRE COMPONENTS

1

2

3

1

4

5

6

4

Ref. Part
No. No. Description

36911 Regulator and Solenoid Assy 24VAC (includes everything pictured above)
1 M0959 Fitting, Compression 1/4 x 1/8
2 R10837 Valve, Solenoid
3 R10838 Coil, Solenoid 24VAC
4 18312 Nipple, Brass Hex 1/4 x 1.38
5 18410 Tee, Brass 11/16 x 1-9/16
6 36910 Regulator, Pressure
7 18309 Elbow, Brass 1/4 Pipe 90 DEG
8 R7329 Screw, 8-32 X.5 SS PANHEAD PHIL
9 37231 Bracket, Regl & Solenoid
10 18473 Bushing, 3/4 x 1/4 Hex

18314 Thermal Switch, SPNO

32875 Tape, Gore-tex gasket

37215 Dam, Liner Bottom

18339 Cap, End

19086 Grommet, Rubber 5/8

19087 Grommet, Nylon Split

21928 Terminal, Female .250 SPA

33488 Tube, Flex 1/4 x 12"

36623 Cover, Element Opening

36909 Fitting, Compression

36931 Tube, Water Inject

4817 Clip, Thermostat Bulb

4

10

9

7

8

MARCH 20, 2006 10 MARK V XCEL

EXPLODED INTERIOR VIEW

Ref. Part
No. No. Description

4

3

2

NOT REPLACEABLE

LINER

1

1 5001 Blower Wheel

33147 Wheel Puller
2 37875 Motor Mount & Panel Assy
3 37023 Motor, 230V, 1PH, 3/4 HP, 2 SP
4 37223 Element Assy, 208V
4 37224 Element Assy, 240V
4 37225 Element Assy, 440V
4 37226 Element Assy, 480V

MARCH 20, 2006 11 MARK V XCEL

INTERIOR COMPONENTS & EXTERIOR VIEW

3

2

5

1

10

4

16

12

13

14

LINER

8

NOT

REPLACEABLE

15

7

6

11

9

Ref. Part
No. No. Description

1 36968 Interior Baffle, Porcelain, Blower Wheel Cover
1 36969 Interior Baffle, S/S, Blower Wheel Cover
2 5001 Blower Wheel

33147 Wheel Puller
3 37023 Motor, 230V, 3/4 HP, 2 SP
4 37875 Motor Mount & Panel Assy
5 15637 Lamp, Qty 2 per oven 40 Watt 230-250 V

4922 Socket, for Lamp Qty 2 per oven

36435 Housing, for Socket & Lamp
6 18768 Racks, Each, Qty 5 per oven
7 36900 Rack Support Kit, Set of 2
8 36620 Stops, Rack Each Qty 2 per oven
9 36431 Combustion Compartment Cover

Ref. Part
No. No. Description

10 37223 Element Assy, 208V
10 37224 Element Assy, 240V
10 37225 Element Assy, 440V
10 37226 Element Assy, 480V

38248 Transformer, 480V to240V 1.5 KVA
37316 Transformer Harness

38263 Transformer Kit, 1.5 KVA
11 36512 Cover, Access Panel
12 23034 Axial Fan, Qty 1
13 22718 Fan Guard Assy
14 36621 Bodytop, with opening for flue box
15 36407 Bodyside, RH
16 37205 Bodyside, LH

MARCH 20, 2006 12 MARK V XCEL

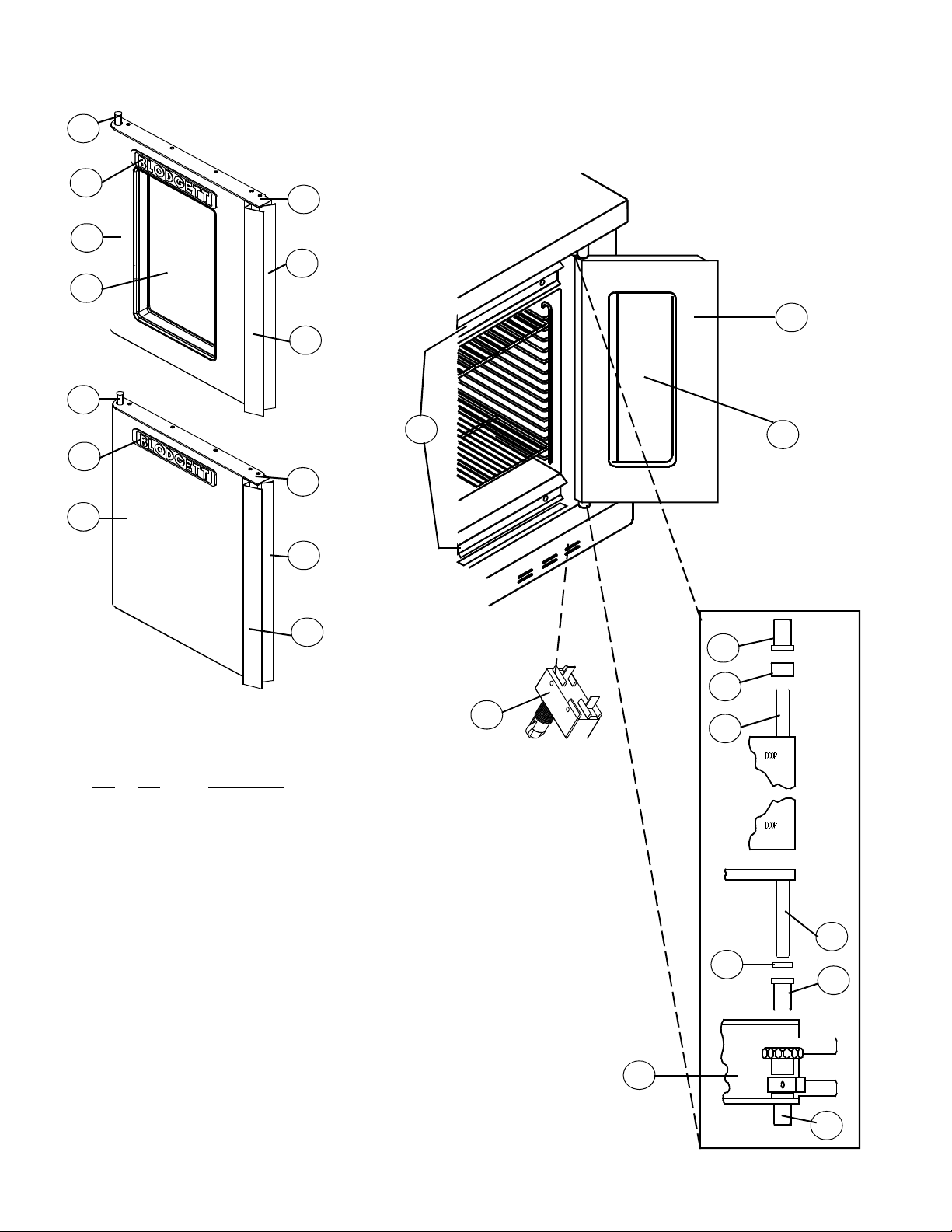

DOOR COMPONENTS

8

14

5

2

10

4

Right Hand Door -

Attached to unit

Left Hand Door

8

14

1

Left Hand Door

Ref. Part
No. No. Description

5

10

2

9

11

4

DOOR HINGE

COMPONENTS

9

6

7

13

8

t 37240 Door Assy Sld, RH
1 t 37241 Door Assy, Sld LH
2 t 37242 Door Assy, Gls RH
3 t 37243 Door Assy, Gls LH

9035 Window Tool, for installation and removal of

window assy

4 9036 Window Assy, Drop In (10-1/8" x 17-1/8")

17558 Door Handle, Porcelain
5 18081 Top Plate, Door Handle
15 90017 Washers, Door (Set of 2)
6 90004 Bushings, Door Hinge (Set of 2)
7 16657 Sleeve, Upper Door Bushing
8 17557 Hinge Pin, Upper Door
9 17311 Center Trim, Door
10 36606 Pressure Lock
11 36876 Gasket Assy, Perimeter
12 36037 Lower Door Support Assy
13 35193 Microswitch, Door
14 16470 Nameplate
16 90076 Arm Assy, RH

20359 Arm Assy, w/welded hinge pin, LH

12

Side View,

Lower Door

Support Assy

16

15

6

6

MARCH 20, 2006 13 MARK V XCEL

LOWER DOOR SUPPORT COMPONENTS

3

4

2

1

Ref. Part
No. No. Description

1 36037 Lower Door Support Assy

NOTE: Lower Door Support Assy includes the hinge pins, arms,

chain & turnbuckles, sprocket assys, cam assy, and microswitch.

2 35193 Microswitch, Door
3 90076 Arm Assy, RH
4 20359 Arm Assy, w/welded hinge pin, LH

NOTE: IF YOU NEED TO REPLACE THE SPROCKETS, CHAIN & TURNBUCKLE, OR THE

HINGE PIN WE STRONGLY SUGGEST ORDERING THE ENTIRE LOWER DOOR SUPPORT.

IT WILL INCLUDE ALL OF THESE COMPONENTS AND WILL GREATLY REDUCE YOUR

LABOR COSTS AND TIME INVESTED.

MARCH 20, 2006 14 MARK V XCEL

ACCESSORIES

1

A

2

B

3

VIEW FROM

FRONT OF OVEN

C

5

6

Ref. Part
No. No. Description

1 7840 Draft Diverter, Canopy Vent, S/S

Mark V Xcel Sgl

2 36687 Flue Connector Assy, 3 Piece

Mark V Xcel Dbl

NOTE: Pieces A, B & C make up Kit 36687

3 36686 Flue Box Single Oven Mark V Xcel

31803 Clips, Stacking Double Oven
4 8600 Legs, 6" w/ Bolts, S/S Set of 4
5 8598 Legs, 25" w/ Bolts, S/S Set of 4
6 36532 Legs, 19" w/Bolts, S/S Set of 4

with feet

NOTE: 25" and 19" Legs look the same.

36533 Legs, 19" w/Bolts, S/S Set of 4

no feet, for use with casters
33196 Seismic Legs, 6", S/S Set of 4
92000 Studs, Leg Set of 4
7847 Bolts, Leg Set of 8

CASTER,

FRONT VIEW

CASTER,

UNDER SIDE VIEW

7

4

Ref. Part
No. No. Description

7 5779 Casters w/ Plate Set of 4 Dbl Oven

16002 Casters Set of 4 Sgl Oven Only
19528 Casters, Low Profile Set of 4 Dbl Oven
31013 Casters, Heavy Duty Low Profile

Set of 4 (Jarvis & Jarvis) Dbl Oven
6486 Open Stand w/ Feet, S/S Mark V Xcel
11416 Open Stand w/ Casters,S/S MarkVXCE

7
