Blodgett KTT-6E, KTT-12E Operation Manual

KTT-E Series

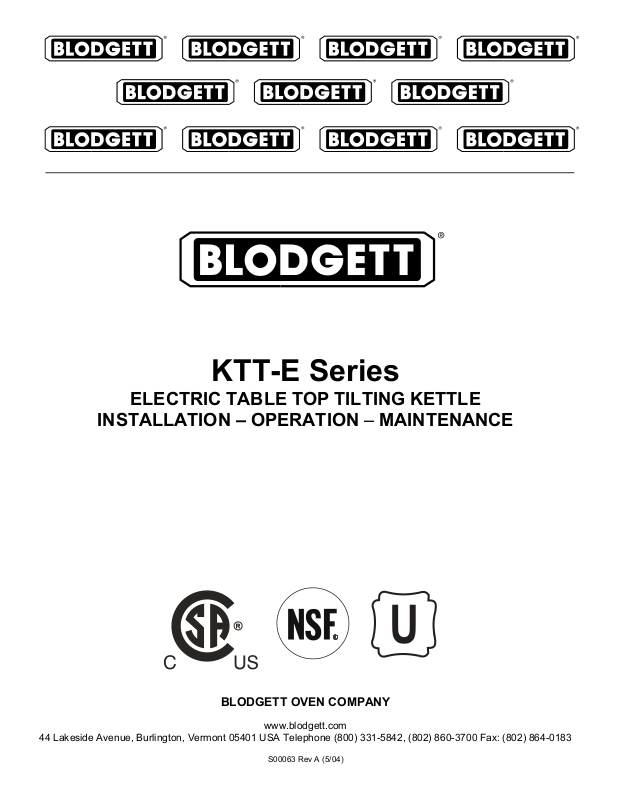

ELECTRIC TABLE TOP TILTING KETTLE INSTALLATION – OPERATION – MAINTENANCE

BLODGETT OVEN COMPANY

www.blodgett.com

44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone [phone] Fax: [phone]

S00063 Rev1 A (5/04)

IMPORTANT NOTES FOR INSTALLATION AND OPERATION

It is recommended that this manual be read thoroughly and that all instructions be followed carefully.

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

WARNING: Improper installation, operation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installing, operating or servicing this equipment.

This manual should be retained for future reference.

ADEQUATE CLEARANCES MUST BE MAINTAINED FOR SERVICING AND

PROPER OPERATION.

DO NOT ATTEMPT TO OPERATE THIS UNIT IN THE EVENT OF A POWER

FAILURE.

NOTICE: Contact the factory, the factory representative or local service company to perform maintenance and repairs.

Intended for commercial use only. Not for household use.

2

	TABLE OF CONTENTS
DESCRIPTION		PAGE
IMPORTANT NOTES FOR INSTALLATION AND OPERATION		......................................... 2
SERVICE CONNECTIONS ...................................................................................................		4
1.0	INSTALLATION INSTRUCTIONS .................................................................................	5
2.0	INTRODUCTION ...........................................................................................................	7
3.0	OPERATION INSTRUCTIONS ......................................................................................	8
4.0	CLEANING INSTRUCTIONS .......................................................................................	10
5.0	TROUBLESHOOTING .................................................................................................	11
APPENDIX A Material Safety Data Sheet ............................................................................		12

3

SERVICE CONNECTIONS

ELECTRICAL CONNECTION TO BE AS SPECIFIED ON DATA PLATE

ELECTRICAL CHARACTERISTICS

MODEL				kW			PHASE									AMPS PER LINE
											208V			220V		240V				380V			415V			480V
KTT-6E				7.5			1				36.0			34.1		31.3				N/A			N/A			N/A
							3				20.8			19.7		18.1				11.4			10.4			9.0
KTT-10E & KTT-12E				12.0			1				57.6			54.6		50.0				N/A			N/A			N/A
							3				33.3			31.5		28.9				18.3			16.7			14.5
															DIMENSIONS
MODEL		CAPACITY				UNITS			A		B		C		D	E		F		G	H		J		K		L
KTT-6E		6 gallons				inches			12		14.38	24			33.5	15.25		22.25		4.50	27		4.25	12.38			10
		23 litres				mm			305		365	610			851	387		565		114	686		108	314			254
KTT-10E		10 gallons				inches					15	26			34.88					4.62	28						12.75
		38 litres				mm			16		381	660			886	17.25		26.25		117	711		6.12	14.75			324
KTT-12E		12 gallons				inches			406		17	28			36.88	438		667		4.12	30		156	375			12.75
		45 litres				mm					432	711			937					105	762						324

SAFETY RELIEF VALVE		4 [102]
<![if ! IE]> <![endif]>E			DIMENSIONS ARE IN INCHES [MM]
	F
A ID
<![if ! IE]> <![endif]>B		<![if ! IE]> <![endif]>D
<![if ! IE]> <![endif]>C
					<![if ! IE]> <![endif]>K
			<![if ! IE]> <![endif]>G
4X WELD NUTS	14.50 [368]	2.25 [57]	L	10 [254]	1.25 [32]
5/16-18UNC	18 [457]			12.5 [318]
				H	J
			4

1.0 INSTALLATION INSTRUCTIONS

Immediately after unpacking, check for possible shipping damage. If the kettle is found to be damaged, save the packaging materials and contact the carrier within 15 days of delivery.

1.The kettle must be installed in accordance with:

2.State and/or local codes.

3.In the USA, the National Electrical Code, ANSI/NFPA-70 (latest edition). In Canada, the Canadian Electrical Code, Part 1, CSA Standard C22.1 (latest edition).

4.Position appliance on counter allowing sufficient rear clearance from wall to tilt freely and completely without obstruction.

5.Mark four corner locations of appliance base.

6.Remove appliance from counter and locate position of 4 holes as per Figure 1. Drill four 7/16" diameter holes.

7.Apply a continuous bead of Silastic or other equivalent sealant along the complete perimeter edge of the appliance base.

8.Use 5/16-18 Hex Cap Screws with suitable flat washers to bolt down. Screw length must be 1-1/4 long plus counter top thickness.

9.Wipe off excess sealant.

10.A control box with power supply equivalent to Electrical Rating of appliance should be located conveniently nearby.

WARNING

ELECTRICAL AND GROUNDING CONNECTIONS MUST COMPLY WITH THE APPLICABLE PORTIONS OF THE NATIONAL ELECTRICAL CODE AND/OR OTHER LOCAL ELECTRICAL CODES.

5

1.0 INSTALLATION INSTRUCTIONS (Continued)

1.A waterproof electrical connection for power supply to console housing must be provided.

2.Ground appliance to terminal provided inside console housing.

WARNING

DISCONNECT ELECTRICAL POWER SUPPLY AND PLACE A TAG AT THE DISCONNECT SWITCH TO INDICATE YOU ARE ON THE CIRCUIT.

3. Turn power ON and check for proper operation.

FIGURE 1
