12V/24V
DIGITAL VIDEO RECORDER
BP 3.1 A
Operating and Installation Instructions
CAUTIONS
Please insert the micro SD card in the right
•
direction to avoid damage to the card or the
device. If device shows error message, please
format the micro SD card from device menu.
Please reset device or change micro SD card
if similar error continues.
Note : All les will be deleted when formatting
micro SD card or rmware update, please
backup the important les prior to that.
When reset function is selected, the device
will return to default setting.
Assign mounting location that will not
•
obstruct driver in any circumstances. Or cause
injuries to drivers and passengers in case of
emergency brake or accident.
Blaupunkt does not warrant the performance
•
of device if used with other Micro SD card
other than Blaupunkt Micro SD card
New Micro SD card must be formatted for
•
rst use. Micro SD must be formatted once
every 6-month.
Ensure bracket is installed correctly & rmly
•
on windscreen to avoid damage to device
and for better recording angle.
Please do not use product under wet
•
environment as device is not waterproofed/
water resistant.
Please do not record or take picture facing
•
sunlight.
To obtain clear image, please clean
•
windscreen and device lens regularly. Avoid
using device in dusty environment.
Handle device with care and avoid direct
•
impact on the device. Avoid using device in
high electromagnetic environment.
•
Please operate the product within the
temperature of -20°C ~ 80°C. Continuous
exposure to sunlight, especially when locked
in cabin where temperature exceeds 80°C
may result to device malfunction, colour
change, housing and image distortion.
Disclaimer :
Blaupunkt is not liable for any loss or damage
•
caused or resulting from unauthorized
disassembly or modication to the product.
In no event shall Blaupunkt be liable for any
•
direct, indirect, punitive, incidental, special
consequential damages, to property or life,
improper storage, whatsoever arising out of
or connected with the use or misuse of our
products.
USA & CANADA : Products not intended for
•
sales in the United States and Canada. If
purchased in the U.S. or Canada, this product
is purchased as-is. No warranty, expressed or
implied is provided in the U.S. and Canada.
This device is NOT intended to be used for
•
illegal purpose, surveillance and shall not be
used in any form as evidence for claim
purposes.
Some countries prohibit drivers from mounting
•
anything on the windshield, or restrict
mounting to specic areas of the windshield.
It is the owner’s responsibility to mount the
device in compliance with local laws.
Error may occur depending on the surrounding
•
environment and the voltage of the car.
Blaupunkt is not liable/responsible for
•
non-recorded event, missing les, etc.
1
STRUCTURE
1
2
3
5 6 7 8
12V-24V mini USB power supply
1.
Reset
2.
Power
3.
•
Press once to turn on
•
Press once to turn o (at standby mode)
Recording indicator light
4.
•
Flashes when recording
Menu / SOS
5.
•
Work as SOS during recording
•
Enter into Menu at standby mode
Up
6.
Down / Voice recording shortcut-key
7.
Mute & unmute during recording
•
Features
Resolution : 2MP FHD 1920 x 1080 30 fps
•
Wide viewing angle : 140°
•
Mode : Video, camera, playback
•
2” LCD display
•
Wireless app control available at App Store
•
& Play Store
G-sensor, loop recording
•
Built-in microphone & speaker
•
4
9
10
11
8.
Mode / Record / Stop record
•
Press to recording or stop record
•
Press, hold & release to switch between
Video - Photo - Playback mode
•
Press to select Menu option
9.
Micro SD card slot
•
Support up to 64gb Class 10 microSD
10.
Microphone
11.
Start / Stop recording
12.
Bracket slot
13.
Speaker
14.
Lens
•
Language : English, Chinese Simplied,
Chinese Traditional, Japanese, Thailand
Night vision supported by WDR & HDR
•
Super capacitor technology
•
Support up to 64GB microSD Class 10
•
2
12
13
14
FUNCTIONS - APP
Wireless Connection (Wi-Fi)
Enable Wi-Fi & Location on Smartphone
before beginning (Refer to the instruction
manual of the smartphone on how to operate
Wi-Fi & Location)
Ensure to download Blaupunkt DVR
•
BP3.1A from App Store (iOS) or Play Store
(Android).
At standby mode, press 5 (Menu) twice then
•
select Wi-Fi to turn on.
Go to smartphone Wi-Fi connection setting,
•
search for BP3.1A, then key-in password
12345678
BP3.1A will indicated successful connection
•
when connected
•
Go to the download BP3.1A app, and select
Connect to device.
•
App will began recording automatically when
BP3.1A is connected.
Repeat Wireless Connection steps whenever
smartphone is disconnected
Download Video or Photo
•
Go to app recording screen to select Video or
Photo gallery.
•
Press and hold preferred video/photo to select
then press to download le.
3
FUNCTIONS - DVR
Car Plate Number
At standby mode, press 5 (Menu) twice then
•
select Car No
Press 8 (Mode) to change digit location.
•
Press, hold & release 8 to switch between
•
Alphabet and Numeric.
Press 5 (Menu) when complete to exit the
•
setting.
Emergency Recording
The device begins saving recording when
•
the assigned sensitivity intensity is detected.
will appear on the LCD display. Video
le (le size based set loop recording) will
be saved under Emeregency le.
Adjust sensitivity in Menu > G-sensor
SOS (Manual Mode)
During recording, press 5 (Menu) to
•
manually save le as Emergency le.
will appear on the LCD display. Video le
(le size based set loop recording) will be
saved under Emeregency le.
Auto Power O
The device will automatically shut down if
•
microSD card is not inserted within the set
time.
Super Capacitor Technology
This technology ensure video les are saved
•
even if sudden power cut-o.
4
FUNCTIONS
Setting
Video
Playback
WiFi
Date/Time
Auto Power O
Beep Sound
Language
Car NO
Screensavers
Frequency
Format
Default setting
Version
Resolution
Loop Recording
HDR
Exposure
Record Audio
Date Stamp
G-sensor
Capture Mode
Resolution
Sequence
Quality
Sharpness
White Balance
Color
ISO
Exposure
Anti-shaking
Quick Review
Date Stamp
Delete/Protect/Slideshow
ON/OFF
YY/MM/DD, MM/DD/YY, DD/MM/YY
O/1-min/3-min/5-min
ON/OFF
English, Chinese Simplied, Chinese Traditional,
Japanese, Thailand
10-alphanumeric
O/30-sec/1-min/2-min
50Hz/60Hz
All data will be deleted. Backup data to prevent
unwanted les from being deleted
Restore setting to default setting
BP3.1A version
1080P 1920x1080 30FPS
720P 1280x720 30FPS
VGA 640x480 30FPS
O/1-min/3-min/5-min
ON/OFF
-2.0, -5/3, -4/3, -1.0, -2/3, -1/3, 0, 1/3, 2/3, 1, 4/3, 5/3, 2
ON/OFF
ON/OFF
O/Low/Medium/High
Single/2s Timer/5s Timer/10s Timer
12M/10M/8M/5M/3M/2MGD/VGA/1.3M
ON/OFF
Fine/Normal/Economy
Strong/Normal/Soft
Auto/Daylight/Cloudy/Tungsten/Fluorescent
Color/Black&White/Sepia
Auto/100/200/400
-2.0, -5/3, -4/3, -1.0, -2/3, -1/3, 0, 1/3, 2/3, 1, 4/3, 5/3, 2
ON/OFF
O/2-sec/5-sec
O/Date/Date&Time
5

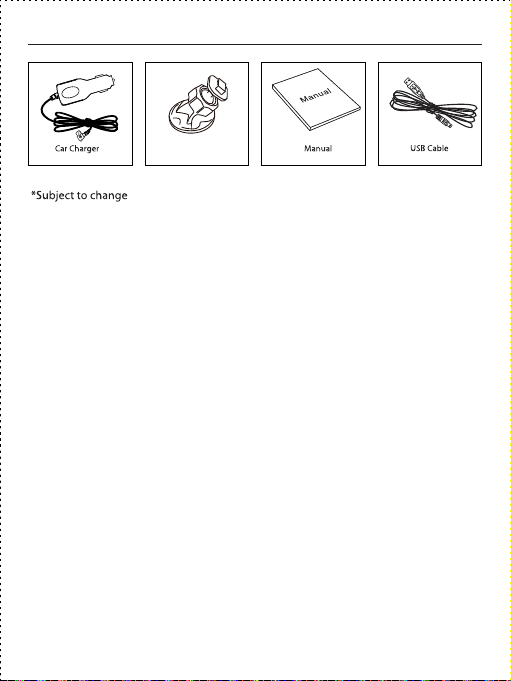

ACCESSORIES
Bracket
6
Designed and engineered by Blaupunkt Competence Centre 1 301 19 014 31 01
