Operating and Installation Instructions

DIGITAL VIDEO RECORDER

BP 10.0A/AG FHD 2-CHANNEL

Page 2

Please insert the micro SD card in the right direction to avoid damage to the card or the device. If device shows error message, please format the micro SD card from device menu. Please reset device or change micro SD card if similar error continues. Note : All les will be deleted when formatting micro SD card. Please backup the important les before formatting takes place. When reset function is selected, the settings will return to default setting.

Blaupunkt does not warrant the performance of device if with use of other Micro SD card other than Blaupunkt Micro SD card.

New Micro SD card must be formatted for rst use.

Ensure bracket is installed correctly & rmly on windscreen to avoid damage to device and for better recording angle.

Please do not use product under wet environment as device is not waterproofed/water resistant.

Please do not record or take pictures facing sunlight.

To obtain clear image, please clean windscreen and device lens regularly. Avoid using device in dusty environment.

Handle device with care and avoid direct impact on the device. Avoid using device in high electromagnetic environment.

Operating temperature of the device is -10°C ~ 60°C, storage temperature is -30°C ~ 80°C. Continuous exposure to sunlight, especially when locked in cabin where temperature exceeds 80°C

•

may result to device malfunction, colour change, housing and image distortion.

In no event shall Blaupunkt be liable for any direct, indirect, punitive, incidental, special consequential damages, to property or life, improper storage, whatsoever arising out of or connected with the use or misuse of our products.

USA & CANADA : Products not intended for sales in the United States and Canada. If purchased in the U.S or Canada, this product is purchased as-is. No warranty, expressed or implied is provided in the U.S. and Canada.

This device is NOT intended to be used for illegal purpose, surveillance and shall not be used in any form as evidence for claim purposes.

Some countries prohibit drivers from mounting anything on the windshield, or restrict mounting to specic areas of the windshield. It is the owner’s responsibility to mount the device in compliance with local laws.

Error may occur depending on the surrounding environment and the voltage of the car.

Blaupunkt is not liable/ responsible for non-recorded event, missing les, etc.

If the power discharge protection is set ‘ON’, motion detection will work as park recording mode. If the car battery voltage is lesser than the setting value of cut-o voltage, device will stop recording even at park recording mode.

CAUTIONS

Page 3

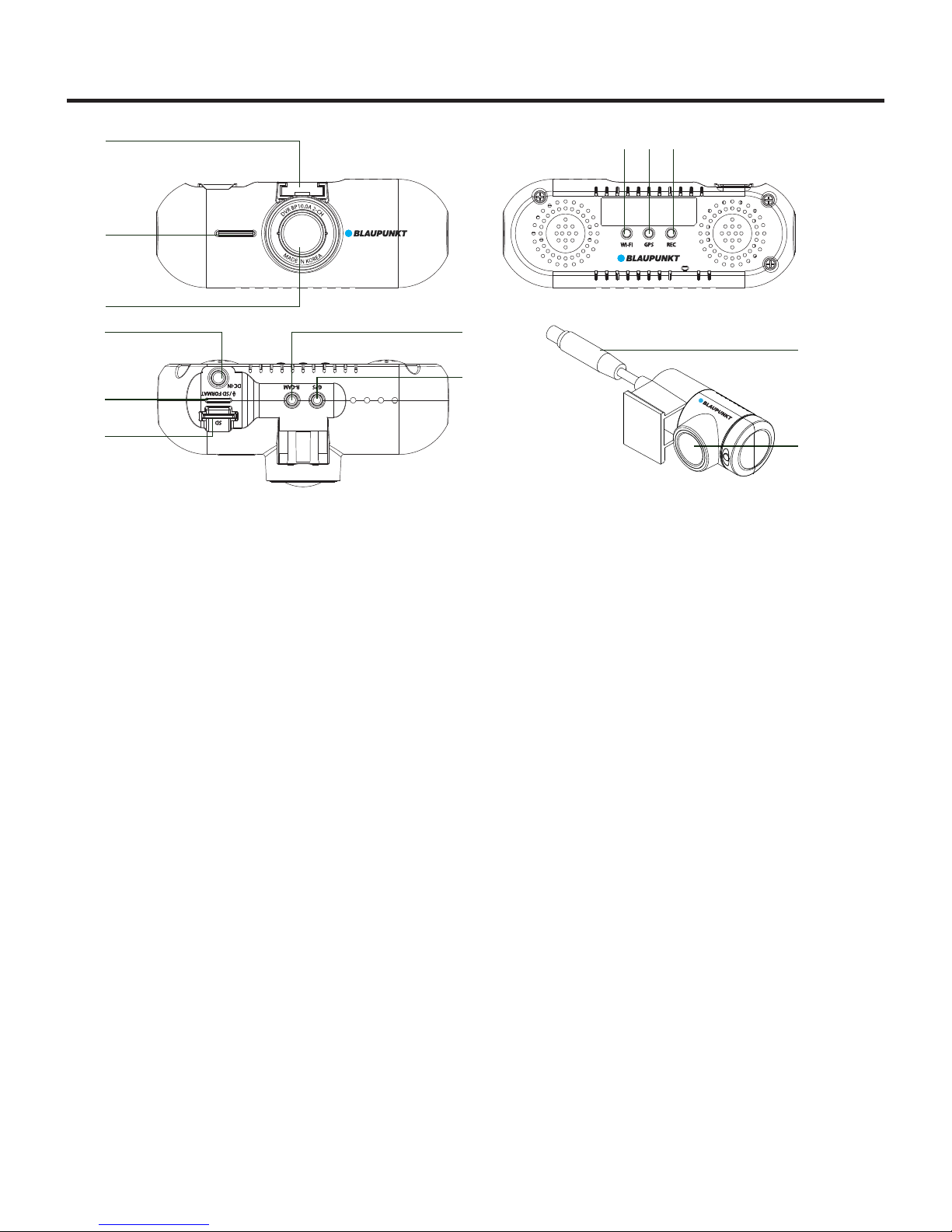

STRUCTURE

1. Bracket slot

2. Operation indicator light

3. Lens

4. Wireless connection indicator light

5. GPS connection indicator light

6. Recording indicator light

7. Power cable input

8. Mute/unmute (Press once), SD format (Press & hold)

9. MicroSD card slot

10. Rear DVR cable input

11. GPS cable input

12. Rear cable

13. Rear lens

4 5 6

3 7

Features

•

Compact & screenless driving video recorder Resolution : Front 2MP FHD 1920x1080 30fps, Rear 1MP HD 1280x720 25fps Wide viewing angle : Front – 120°, Rear – 110° Preview, download, playback Videos & Setting Conguration via Smartphone Wireless Control App Instant le sharing to social networks (Selected Apps only) Format-free technology Low car battery voltage cut-o Automatic park recording with smart motion (24-hour park monitoring) G-sensor, loop recording Built-in microphone & speaker Language : English Storage : Support up to 128GB MicroSD, class 10 & above Power supply : DC 12V ~ 24V Temperature : 10° ~ +60° (Operating), -30° ~ +80° (Storage) Weight : Front 64g, Rear 120g (with cable) Includes : Micro SD Card & Reader, Cable Holder, 3M Bracket, Hardwire Cable, Manual (Global Positioning Tracker Module for BP10.0AG model Only)

Page 4

FUNCTION

System Setup

System setup is accessible only via smartphone application.

Wi-Fi

Change Password Default : 12345678

DVR

Video Quality FHD+HD

HD+HD

Bitrate Maximum

High

Average

Impact Sensitivity 1~10

Volume 1~5

Voice Record ON/OFF

White Balance Auto

Daylight/Sunny

Cloudy

Domestic Lighting

Fluorescent

Contrast 0 ~ 6

Exposure -3 ~ +3

Date Time DD/MM/YYYY, HH:MM

Impact Alert ON/OFF

Cut-o Voltage 11.5V(23.5V)

11.7V(23.7V)

11.9V(24.1V)

12.1V(24.1V)

12.3V(24.3V)

Park Mode Impact Sensitivity 1~10

Park Mode Recording Time 6hr/12hr/ 24hr/ 36hr/ 48hr/ OFF

GMT -11 ~ +12

Voice Guide ON/OFF

LED ON/OFF

Format SD Card Delete all memory data

Adjust Memory Ratio A-Type

B-Type

C-Type

Reset Reset device to default setting

Page 5

FUNCTION

Mobile Application

Search “Blaupunkt DVR BP10.0A” on Google Play and App Store to download. Mobile App device OS version requirement : Android 4.4 (KitKat) or higher, iOS 10.0.2 or higher.

Pair DVR and Smartphone

The range of distance between the DVR (with Wireless Control dongle) and smartphone is approximately 10 meters (33ft) in an open eld environment.

After successful pairing, enter into mobile app to start.

a. Go to smartphone setting to search for available Wi-Fi

b. Select BP10.0A Wi-Fi “BP10.0_.......” to connect

c. Enter default password 12345678 for rst time connection

Google Play Store App Store

1. Full screen

2. Mute/unmute

3. Switch between front & rear DVR

4. Live view

5. Download File

6. Car DVR (Video File)

7. Settings

8. Reect (Rear DVR only)

8. Snapshot (Photo)

2 9

Page 6

1. Go to CAR DVR

2. Click to download le

3. Press & hold the downloaded le for sharing option

4. Select the preferred sharing option (Applicable for selected social networks only)

Instant File Sharing to Social Network

FUNCTION

Page 7

Settings

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

Go to Setting to change setup Change Password (Default Password : 12345678) Video Resolution Impact Sensitivity (G-sensor) Volume Voice Record White Balance Contrast Exposure Date/Time Impact Alert Cut-o Voltage (Low car battery cut-o setting) Park Mode Impact Sensitivity (G-sensor) Park Mode Recording Time (Set power supply duration) GMT (Standard time setting) Voice Guide Format SD Card (Delete all memory data) Adjust Memory Ratio (All data will be deleted when ratio setting is adjusted, backup data before changing the setting) Reset (Reset setting to default setting)

FUNCTION

Page 8

FUNCTION

Blaupunkt DVR BP10.0A PC Viewer - Visit www.blaupunkt.com/ase to download PC Viewer

File Search Extract le to play

front/rear video le in normal video player

Note :

Older les will be overwritten when memory card is full and requires new storage space. Files will be overwritten according to le arrangement DRIVE/EVENT/PARK/PHOTO. Backup recordings regularly to prevent import les from being overwritten.

Map

Page 9

INSTALLATION

SAFETY

•

Power Cable Hardwiring

•

Assign a mounting location that will not obstruct driver in any circumstances or cause injuries to drivers and passengers in case of emergency brake or accident. Ensure all wires are connected properly, and that the device is functioning well before installation. Any unauthorized installation and modication may cause malfunction to the device and void warranty of product. Always use the parts that are included with the device only. Please contact Blaupunkt dealer or vehicle’s manufacturer if information provided here does not t your specic requirement.

Use the hardwire power cable. BATT (+) : Connect the wire cable to permanent power fuse box. (Ex.: Hazard light, dome light, tail light etc) ACC (+) : Connect the wire cable to the fuse that receive power through ignition. (Ex.: Cig lighter, audio system) GND : Connect the cable to the vehicle chassis or vehicle bolts.

BATT (+)

ACC (+)

GND

CABLE
