Black Widow BW FM 5 User Manual

Arm -

The display will show icon
and the animated icon to
confirm arming. Lights will
flash once.

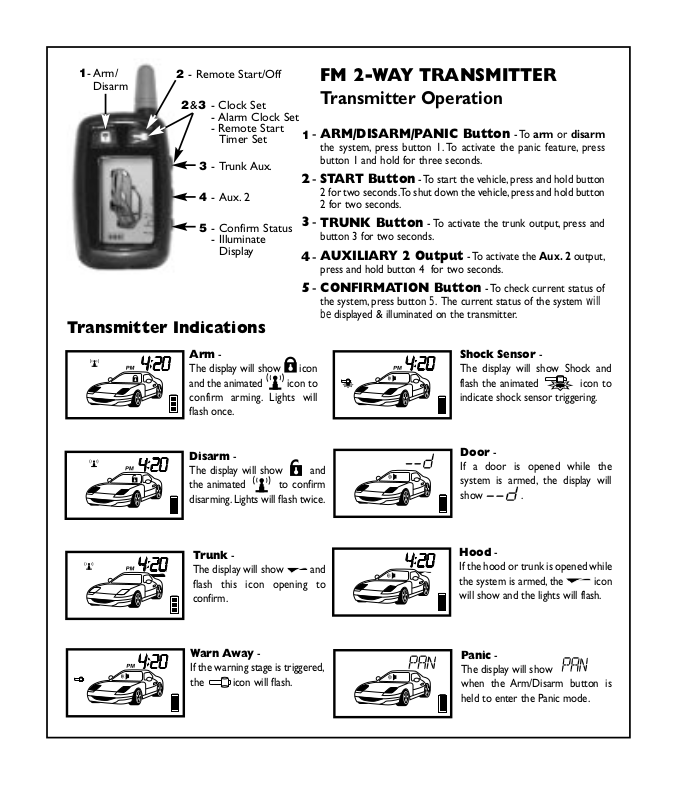

FM 2-WAY TRANSMITTER

Transmitter Operation

ARM/DISARM/PANIC Button - To arm or disarm

the system, press button 1. To activate the panic feature, press
button 1 and hold for three seconds.

START Button - To start the vehicle, press and hold button

2 for two seconds.To shut down the vehicle, press and hold button
2 for two seconds.

CONFIRMATION Button - To check current status of

the system, press button 5. The current status of the system will
be displayed & illuminated on the transmitter.

TRUNK Button - To activate the trunk output, press and

button 3 for two seconds.

AUXILIARY 2 Output - To activate the Aux.2 output,

press and hold button 4 for two seconds.

1

-

2 -

3 -

4 -

5 -

Arm/
Disarm

1-

2 - Remote Start/Off

2 &3 - Clock Set

2 &3 - Alarm Clock Set
2 &3 - Remote Start
2 &3 Timer Set

3 - Trunk Aux.

4 - Aux. 2

5 - Confirm Status

5 - Illuminate
5 - Display

Transmitter Indications

Shock Sensor -

The display will show Shock and
flash the animated icon to
indicate shock sensor triggering.

Door ­If a door is opened while the
system is armed, the display will
show .

Hood ­If the hood or trunk is opened while
the system is armed, the icon
will show and the lights will flash.

Panic ­The display will show
when the Arm/Disarm button is
held to enter the Panic mode.

Disarm ­The display will show and
the animated to confirm
disarming. Lights will flash twice.

Trunk ­The display will show and
flash this icon opening to
confirm.

Warn Away ­If the warning stage is triggered,
the icon will flash.

Transmitter Indications Continued

Start -

The display will indicate the
ignition is turned on and the
engine is going to crank.

Set Clock ­Press and hold buttons 2 & 3 for
2 seconds. The transmitter will
beep twice and the display will
show . Change hour by

pressing button 2; change minute
by pressing button 3.Press button #5 (Confirm Status) to set.The
transmitter will play a tune to indicate new time is set.

Engine Run ­When the engine starts and
continues to run, the icon
will be displayed, and the icon
will remain displayed.

Valet Mode ­The display will show to
confirm entering the Valet mode.

Lock (Valet) ­If the doors are locked with the
transmitter in Valet mode, the
display will show to confirm
locking.

Unlock (Valet) ­If the doors are unlocked with
the transmitter in Valet mode, the
display will show the icon to
confirm unlock.

Low Battery ­When the transmitter battery
needs replacement, the display
will flash the icon.

Aux. 2 Output ­The display will show to
confirm the Auxiliary 2 Output.

Set Alarm Clock ­Press and hold buttons 2 & 3 until
the transmitter beeps three times
and the alarm clock icon ( )
appears. Confirm the same way as
setting clock.

Turning Off Alarm Clock ­Press and hold buttons 2 & 3 until the transmitter beeps three
times and the alarm clock icon appears. Press transmitter button

1.The icon will disappear and the alarm will be turned off.

Set Start Timer ­Press and hold buttons 2 & 3 until
the transmitter beeps four times
and the fan icon ( ) appears. Set
the start timer the same way as
setting the clock. The fan icon will

remain displayed when set.
Turning Off Start Timer -

Press and hold buttons 2 & 3 until the transmitter beeps four
times and the alarm clock icon appears. Press transmitter button

1.The icon will disappear and the alarm will be turned off.

Continue to hold buttons 2 & 3 to:

Continue to hold buttons 2 & 3 to:

64-FM5 Rev.1 09-02
