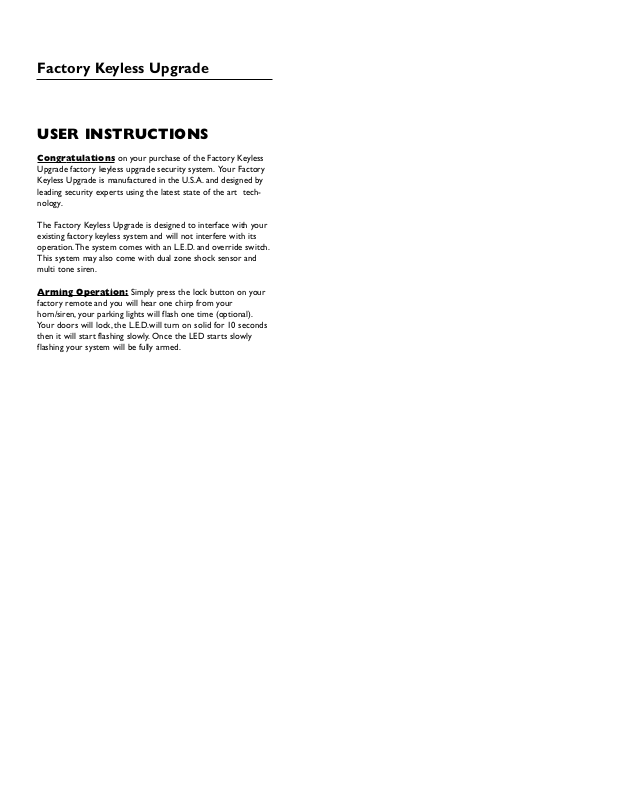

Page 1
Factory Keyless Upgrade
USER INSTRUCTIONS
Congratulations on your purchase of the Factory Keyless
Upgrade factory keyless upgrade security system. Your Factory
Keyless Upgrade is manufactured in the U.S.A. and designed by
leading security experts using the latest state of the art technology.
The Factory Keyless Upgrade is designed to interface with your
existing factory keyless system and will not interfere with its
operation.The system comes with an L.E.D. and override switch.
This system may also come with dual zone shock sensor and
multi tone siren.
Arming Operation: Simply press the lock button on your
factory remote and you will hear one chirp from your
horn/siren, your parking lights will flash one time (optional).
Your doors will lock, the L.E.D.will turn on solid for 10 seconds
then it will start flashing slowly. Once the LED starts slowly
flashing your system will be fully armed.
Page 2
Disarming Operation: Press the unlock button on your
factory remote, the siren/horn will chirp twice, your parking
lights will flash twice (optional).The L.E.D. will stop flashing, the
doors will unlock and your system is disarmed. (See Security
Modes)
Passive Arming: If your installing dealer installed the system
to passive arm, the system will arm 30 seconds after the last
door has been closed. It will not lock the doors. To disarm the
system simply follow the disarming operation above. When the
system is in the pre-arm mode the led will flash rapidly to let
you know that it ready to arm the system in 30 seconds.
Valet Mode:Valet mode will keep your alarm system from
passive arming (if programmed to be passive arming), if you need
to have your vehicle serviced, or run it through a car wash etc.
To put your vehicle in Valet Mode, turn the ignition key on and
press and hold your valet/override switch in for approximately 5
seconds, the L.E.D. will turn on solid.You vehicle’s system is in
Valet Mode. Deactivate Valet Mode:It will stay in Valet until you
repeat the procedure and the L.E.D. will turn off.
Security Modes: Your system can be programmed 3 different ways depending on the vehicle and the additional security
components that are added to it.
Security level 1:The alarm system will simply turn off when you
press unlock button on your remote.
Security level 2: If you return to your vehicle and press the
unlock button to disarm the system and hear 4 double chirps
2
Page 3
from your siren or horn it means the system has been triggered.
To disarm the system once it has been triggered you must open
the door (the siren/horn will sound) and you must turn the ignition key on and press the override/valet switch.
Security level 3: If you return to your vehicle and press the
unlock button to disarm the system and hear 4 double chirps
from your siren or horn it means the system has been triggered.
When you open the door, the siren/horn
will chirp to let you know that you have 10 seconds to turn the
ignition key on and press the override switch.
LED Status Modes:
Valet= Solid
Pre Arm Active=Solid for 10 seconds
Armed=Slow flash
Disarmed=Off
Pre Arm Passive= Rapid flash
System triggered while away=Slow double flash
Operating Override/Valet Switch
Valet=Ignition switch on, press override/valet switch for
5 seconds.
Disengage Valet=repeat above process.
Manual Override System=Ignition On press switch
3
Page 4
4
12753 MOORE ST., CERRITOS, CA 90703
Limited Lifetime Warranty
DLC, Inc.warrants to the original purchaser that the vehicle alarm system
purchased will be free from defects in workmanship. If it is determined that a
defect exists, at our option, we will repair defective parts or replace the sys-
tem. If product is defective within one (1) year from date of purchase, item
will be repaired or replaced at no cost to original purchaser. If product is
defective after one (1) year from date of purchase, ship defective unit prepaid
to DLC, Inc.along with $20.00 U.S. ($30.00 Canadian) cashier’s check or
money order to cover cost of handling.
Proof of purchase by the original owner must accompany warranty
request before service is rendered.
This warranty covers normal use. It does not cover damage from alteration,
misuse, abuse,accident, improper installation or maintenance.Warranty does
not cover transmitter batteries or cases.This warranty gives you specific legal
rights and you may have rights which vary from state to state. If you have any
questions, contact your authorized dealer.
690/3 Rev.1090997
