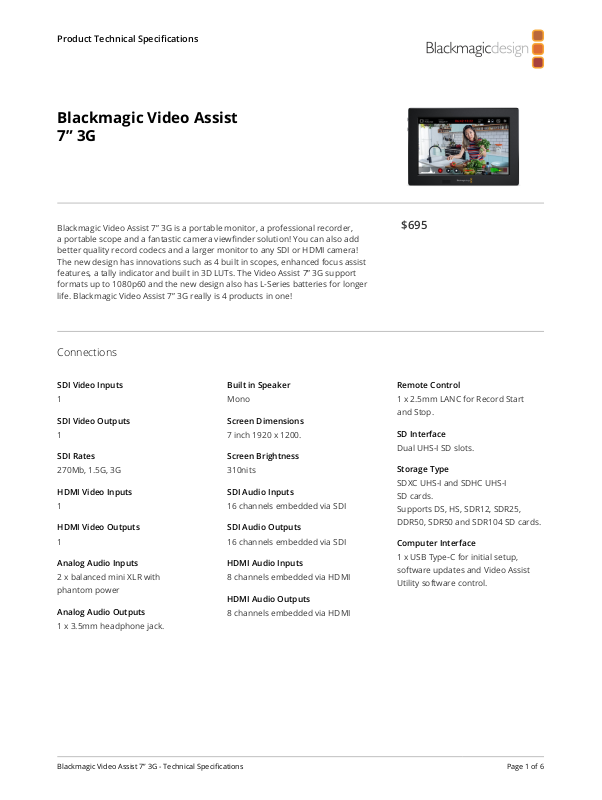

Product Technical Specifications
Blackmagic Video Assist 7” 3G
Blackmagic Video Assist 7” 3G is a portable monitor, a professional recorder, |
$695 |
a portable scope and a fantastic camera viewfinder solution! You can also add |
|
better quality record codecs and a larger monitor to any SDI or HDMI camera! |
|
The new design has innovations such as 4 built in scopes, enhanced focus assist |
|
features, a tally indicator and built in 3D LUTs. The Video Assist 7” 3G support |
|
formats up to 1080p60 and the new design also has L-Series batteries for longer life. Blackmagic Video Assist 7” 3G really is 4 products in one!
Connections
SDI Video Inputs |
Built in Speaker |
1 |
Mono |
SDI Video Outputs |
Screen Dimensions |
1 |
7 inch 1920 x 1200. |
SDI Rates |
Screen Brightness |
270Mb, 1.5G, 3G |
310nits |
HDMI Video Inputs |
SDI Audio Inputs |
1 |
16 channels embedded via SDI |
HDMI Video Outputs |
SDI Audio Outputs |
1 |
16 channels embedded via SDI |
Analog Audio Inputs |
HDMI Audio Inputs |
2 x balanced mini XLR with |
8 channels embedded via HDMI |
phantom power |
HDMI Audio Outputs |
|
|
Analog Audio Outputs |
8 channels embedded via HDMI |
1 x 3.5mm headphone jack. |
|
Remote Control
1 x 2.5mm LANC for Record Start and Stop.
SD Interface
Dual UHS-I SD slots.
Storage Type
SDXC UHS-I and SDHC UHS-I SD cards.
Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
Computer Interface
1 x USB Type C for initial setup, software updates and Video Assist Utility software control.
Blackmagic Video Assist 7” 3G - Technical Specifications |
Page 1 of 6 |
Blackmagic Video Assist 7” 3G - Technical Specifications |
Page 2 of 6 |
