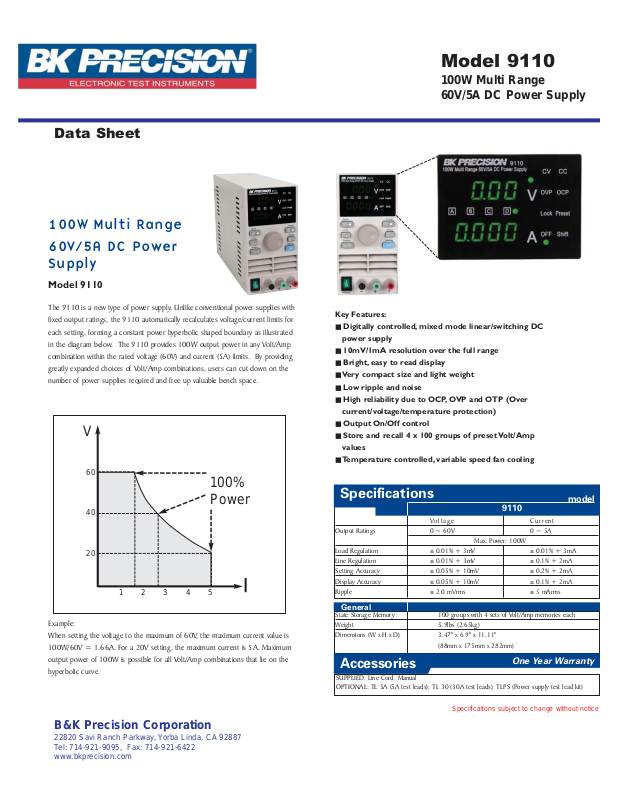

BK Precision 9110 Data Sheet

Model 9110

100W Multi Range
60V/5A DC Power Supply

Specifications subject to change without notice

Data Sheet

Model 9110

The 9110 is a new type of power supply. Unlike conventional power supplies with

fixed output ratings, the 9110 automatically recalculates voltage/current limits for

each setting, forming a constant power hyperbolic shaped boundary as illustrated

in the diagram below. The 9110 provides 100W output power in any Volt/Amp

combination within the rated voltage (60V) and current (5A) limits. By providing

greatly expanded choices of Volt/Amp combinations, users can cut down on the

number of power supplies required and free up valuable bench space.

Example:

When setting the voltage to the maximum of 60V, the maximum current value is

100W/60V = 1.66A. For a 20V setting, the maximum current is 5A. Maximum

output power of 100W is possible for all Volt/Amp combinations that lie on the

hyperbolic curve.

Key Features:

■ Digitally controlled, mixed mode linear/switching DC

power supply

■ 10mV/1mA resolution over the full range

■ Bright, easy to read display

■Very compact size and light weight

■ Low ripple and noise

■ High reliability due to OCP, OVP and OTP (Over

current/voltage/temperature protection)

■ Output On/Off control

■ Store and recall 4 x 100 groups of preset Volt/Amp

values

■Temperature controlled, variable speed fan cooling

Voltage Current

Output Ratings 0 ~ 60V 0 ~ 5A

Max. Power: 100W

Load Regulation ≤ 0.01% + 3mV ≤ 0.01% + 3mA

Line Regulation ≤ 0.01% + 3mV ≤ 0.1% + 2mA

Setting Accuracy ≤ 0.05% + 10mV ≤ 0.2% + 2mA

Display Accuracy ≤ 0.05% + 10mV ≤ 0.1% + 2mA

Ripple ≤ 2.0 mVrms ≤ 5 mArms

State Storage Memory 100 groups with 4 sets of Volt/Amp memories each

Weight 5.9lbs (2.65kg)

Dimensions (W x H x D) 3.47" x 6.9" x 11.11"

(88mm x 175mm x 282mm)

model

9110

Specifications

General

12345

60

40

20

100%
Power

V

SUPPLIED: Line Cord, Manual
OPTIONAL: TL 5A (5A test leads), TL 30 (30A test leads), TLPS (Power supply test lead kit)

One Year Warranty

Accessories

B&K Precision Corporation

22820 Savi Ranch Parkway, Yorba Linda, CA92887
Tel: [phone], Fax: [phone]
www.bkprecision.com

100W Multi Range
60V/5A DC Power

Supply
