B&K Precision 878B, 879B User manual

Model 878B, 879B

Dual Display LCR
METER

INSTRUCTION MANUAL

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Safety Summary

The following safety precautions apply to both
operating and maintenance personnel and
must be observed during all phases of
operation, service, and repair of this
instrument.

DO NOT OPERATE IN AN EXPLOSIVE

ATMOSPHERE

Do not operate the instrument in the presence
of flammable gases or fumes. Operation of
any electrical instrument in such an
environment constitutes a definite safety
hazard.

KEEP AWAY FROM LIVE CIRCUITS

Instrument covers must not be removed by
operating personnel. Component
replacement and internal adjustments must be
made by qualified maintenance personnel.

DO NOT SUBSTITUTE PARTS OR MODIFY

THE INSTRUMENT

Do not install substitute parts or perform any
unauthorized modifications to this instrument.
Return the instrument to B&K Precision for

1

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

service and repair to ensure that safety
features are maintained.

WARNINGS AND CAUTIONS

WARNING and CAUTION statements, such

as the following examples, denote a hazard
and appear throughout this manual. Follow all
instructions contained in these statements.

A WARNING statement calls attention to an
operating procedure, practice, or condition,
which, if not followed correctly, could result in
injury or death to personnel.

A CAUTION statement calls attention to an
operating procedure, practice, or condition,
which, if not followed correctly, could result in
damage to or destruction of part or all of the
product.

Safety Guidelines

To ensure that you use this device safely,
follow the safety guidelines listed below:

2

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

This meter is for indoor use, altitude up to



2,000 m.

The warnings and precautions should be



read and well understood before the
instrument is used.

When measuring in-circuit components, first



de-energize the circuits before connecting to
the test leads.

Discharge capacitor before testing.



The meter is safety-certified in compliance



with EN61010 (IEC 1010-1) Installation
Category II (CAT. II) 50 V, Pollution Degree
2 environment.

Use the meter only as specified in this



manual. Otherwise, the protection provided
by the meter may be impaired.

The power for the meter is supplied with a



single standard 9V battery. But also a line
operation is possible using a 12V AC to DC
adaptor. If a power adaptor is selected,
please be sure it fulfills the safety
requirements of a relevant IEC standard.

3

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

DC Current

Indicates inside pin is positive (+),
outside is negative (-)

Safety Symbols

This symbol is a warning and
indicates that the user should refer to
the operating instructions located in
the manual.

Compliance Statements

Disposal of Old Electrical & Electronic Equipment
(Applicable in the European
Union and other European countries with separate
collection systems)

4

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

This product is subject
to Directive 2002/96/EC
of the European
Parliament and the
Council of the European
Union on waste
electrical and electronic
equipment (WEEE) , and
in jurisdictions
adopting that Directive,
is marked as being put
on the market after
August 13, 2005, and
should not be disposed
of as unsorted
municipal waste. Please
utilize your local WEEE
collection
facilities in the
disposition of this
product and otherwise
observe all applicable
requirements.

Find Quality Products Online at: [e-mail]

5

www.GlobalTestSupply.com

Operating Environment

0 °C to 40 °C

Storage Humidity

0 – 80% R.H.

Storage Environment

-20 °C to +50 °C

Pollution degree

Pollution degree 2

Environmental Conditions

6

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

TABLE OF CONTENTS

Safety Summary ........................................................ 1

Safety Guidelines ...................................................... 2

Compliance Statements ........................................... 4

INTRODUCTION ....................................................... 10

PACKAGE CONTENTS ........................................... 11

FRONT PANEL OVERVIEW .................................... 12

Front Panel Display Descriptions .................................. 13

Front Panel Buttons ...................................................... 15

LCD DISPLAY OVERVIEW ...................................... 17

LCD Display Descriptions ............................................. 17

Special Display Indicators ............................................. 19

POWERING INSTRUMENT ...................................... 20

Installing Battery ........................................................... 20

Connecting External Power Source .............................. 22

Low Battery Indication .................................................. 24

Backlit Display (model 879B only) ................................ 25

OPERATION INSTRUCTIONS ................................. 27

Data Hold ...................................................................... 27

Static Recording ........................................................... 27

7

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

L/C/R/Z Select Mode .................................................... 30

D/Q/θ/ESR Select Mode ............................................... 31

Test Frequency ............................................................. 31

Relative Mode ............................................................... 50

Tolerance ...................................................................... 52

Utility Menu ................................................................... 56

Parallel and Series Measurement Mode ....................... 67

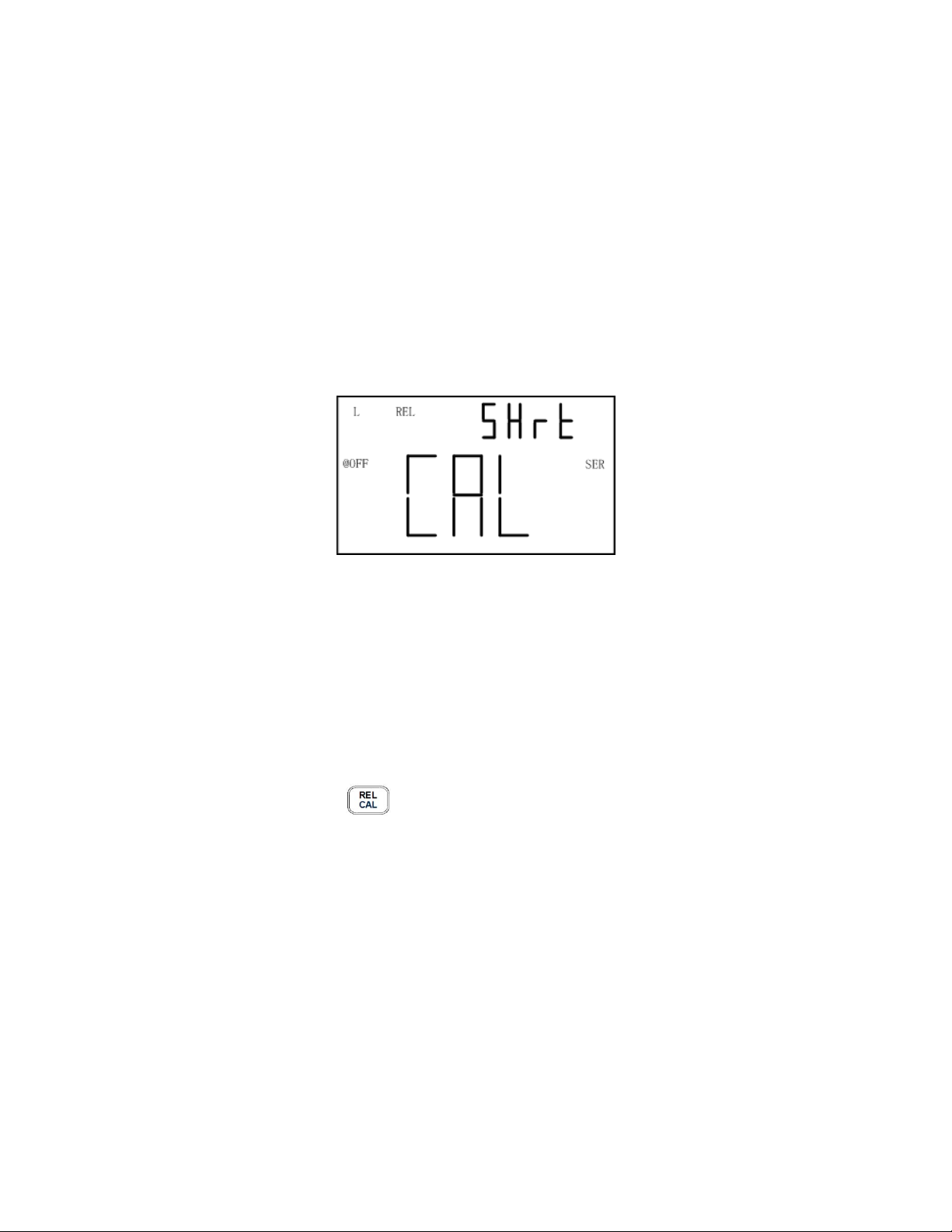

Calibration .................................................................... 85

USB .............................................................................. 90

Automatic Fuse Detection ............................................. 91

QUICK START GUIDE ............................................. 93

CAUTION ..................................................................... 93

Inductance Measurement ............................................. 94

Capacitance Measurement ........................................... 96

Resistance Measurement ............................................. 98

Impedance Measurement (Model 879B only) ............... 99

REMOTE COMMUNICATION ................................ 101

Connecting Instrument to PC ...................................... 101

USB (Virtual COM) Configuration ............................... 103

USB Operation ........................................................... 103

Command Protocols ................................................... 105

8

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

SUPPLEMENTAL INFORMATION ........................ 118

Selecting Test Frequency ........................................... 118

Selecting Series or Parallel Mode ............................... 120

Accuracy Discrepancies ............................................. 121

Guard Terminal ........................................................... 123

SPECIFICATIONS .................................................. 125

General Specifications ................................................ 126

Accuracy Specifications .............................................. 127

MAINTENANCE ...................................................... 133

Service ........................................................................ 133

Cleaning ..................................................................... 133

SERVICE INFORMATION ...................................... 135

LIMITED WARRANTY ............................................ 136

9

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

INTRODUCTION

B&K Precision’s 878B and 879B 40,000-count L/C/R
hand-held meter is designed ideally for measuring
inductance, capacitance and resistance components.
Simple to operate, the instrument not only takes
absolute parallel mode measurements, but also series
mode measurement. The meter provides direct and
accurate measurements with selectable testing
frequencies.

Front panel push buttons maximize the convenience
of function and feature selection such as data hold,
maximum, minimum and average record mode,
relative mode, tolerance sorting mode, frequency and
L/C/R selection.

The test data can be transferred to PC through a Mini
USB connection, great for applications that require
data logging

A tilt stand provides position flexibility for viewing and
operating the meter. The over-molding rubber case
protects the meter for better durability. Additionally,
top rubber visor molding above the screen is designed
to prevent scratches on the display when meter is
positioned upside down.

10

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

A single 9V battery or the included DC 12V power
adaptor (model 879B only) can be used to power the
meter. This gives user flexibility for portable or bench­top use.

PACKAGE CONTENTS

Each 878B and 879B LCR meters are shipped with
the following contents.

 878B or 879B LCR meter
 Instruction Manual
 Mini USB Interface Cable
 Red & Black Banana to Alligator Test Leads
 9V Battery
 *AC Adapter (model 879B only)

*This can be purchased as an optional accessory for
model 878B.

Please locate them from the original packaging to
ensure nothing is missing. If in the case that an item
is missing, please contact B&K Precision immediately.

11

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

+ -

R

!

LCR

R EL

ES R

M AX

AVG

M IN

¦ÈQ

AU T O

D

1% 5 % 1 0% 2 0 %

deg
%
kH z

PAL
SE R

¦ÌH

p F

¦Ì

R M T

M k

TO L

DH

n

n

@

OF F

Z

1

2

4

5

3

6

7

8

9

10

13

12

11

U SB

D /Q /

/E S R

L/ C /R /Z

PO W E R

R EC

R EL

H OL D

CAL

P

S

FR E Q

TO L

U TI L

L CR M et er

87 9 B

FRONT PANEL OVERVIEW

Figure 1 - Front Panel Display (model 879B shown)

Find Quality Products Online at: [e-mail]

12

www.GlobalTestSupply.com

Front Panel Display Descriptions

1. LCD Display

2. Power ON/OFF Button

3. USB Communication / *Back light button

4. Secondary Display mode (for dissipation
factor(D), quality factor (Q), *phase angle (θ),
*equivalent series resistance (ESR)
measurement) selection button

5. Primary Display mode (for inductance,
capacitance, resistance, and *impedance
measurements) / Parallel or Series
measurement method selection button

6. Tolerance mode / Utility down arrow selection
button

7. Hold Display mode / Record mode selection
button

8. Utility menu button

9. Test Frequency / Utility up arrow selection
button

10. Relative mode / Calibration mode selection
button

11. 12V DC adapter input (use with an external
power adapter (rated 12VDC, 150mA, 4mm
power plug))

Note: Use with included power adapter only.

Use with improper power adapters may
damage instrument.

13

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

WARNING: Before connecting an external
power adapter, please check the battery
compartment in the rear side of the unit. If
a battery is installed, be sure that the
polarity matches the (+) and (-) labels as
indicated inside the battery compartment.
If it is not installed correctly, please
remove the battery and install it with
correct matching polarity as indicated in
the compartment. See “Installing Battery”
section for details. DO NOT, at any time,
connect an external power adapter when a
battery is installed incorrectly. Doing so
will damage the instrument and void its
warranty.

Input sockets (banana jack inputs) and terminals for
positive, negative, and guard (see “Guard Terminal” in
“

14

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

12. SUPPLEMENTAL INFORMATION” section for
details)

13. Standard mini USB port (for remote
controllability)

*For model 879B only. Not included on model 878B.

Front Panel Buttons

All front panel buttons have specific colored labels on
them. They are all marked in white, blue, or yellow
color. Each color has a specific representation, as
described below:

White – With the exception of the

button, all white colored labels
represent the primary function of that
button; meaning that function will be
set or configured upon pressing it.

Blue – Some of the buttons have a blue label

underneath a white label. This means
the function indicated by the blue
label will be set or configured if that
button is pressed and hold down for 2

seconds.

Yellow – There are total of 3 buttons with

yellow labels. They are

15

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

exclusively for use when entering
UTIL menu only. See “Utility Menu”
section for details.

. These functions are

16

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

LCR

R E L

ESR

M A X

AVG

M IN

¦ÈQ

A U TO

D

1 % 5% 1 0 % 20 %

d eg

k Hz

PAL
SER

¦ÌH

p F

¦Ì

R M T

M k

T O L

DH

n

n

@

OFF

Z

1

2 5 9 10

12

14

16

202126

27

28

83

232425

4

15

11

13

6 7

22

17
18

19

%

29

LCD DISPLAY OVERVIEW

Figure 2 - LCD Indicator Display

LCD Display Descriptions

1. LCRZ – Primary display function indicator (*Z
display)

2. MAX – Maximum reading indicator

3. AVG – Average reading indicator

4. MIN – Minimum reading indicator

5. REL – Relative mode indicator

17

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

6. Θ – *Phase angle indicator for secondary
display

7. Q – Quality factor indicator

8. ESR – *Equivalent series resistance indicator

9. – Secondary display

10. – Beeper tone indicator for tolerance
mode

11. deg – *Phase angle degree indicator

12. Ω – *ESR(ohm) units indicator

13. % - Tolerance percentage indicator

14. kHz – Frequency units indicator

15. PAL – Parallel mode indicator

16. SER – Series mode indicator

17. – Inductance units (Henry) indicator

18. – Capacitance units (Farad) indicator

19. MkΩ – Resistance units (Ohm) indicator

20. RMT – Remote mode indicator

21. – Primary display

22. D – Dissipation factor indicator

23. DH – Data hold indicator

24. AUTO – Auto-ranging indicator

25. TOL – Tolerance mode indicator

26. – Low battery indicator

27. @OFF – Auto power-off indicator

28. 1%5%10%20% - Tolerance sorting
percentage indicator

18

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

29. MAX AVG MIN – Recording mode indicators

*For model 879B only. Not included on model 878B.

Special Display Indicators

Indicates short connectors

Indicates open connectors

Error indication

Indicates calibration mode

Indicates damaged or open fuse

AD converter error

AD converter error

19

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

POWERING INSTRUMENT

Before beginning to operate the instrument, a power
source is necessary for it to turn on. There are two
methods to power the instrument: Battery and
external source.

Installing Battery

The 878B and 879B LCR meters can use a battery to
provide power to the instrument so that it can be
portable.

The meters use a standard 9V size battery (or
NEDA 1604, JIS006P, IEC6F22 carbon-zinc or
alkaline battery).

To install the battery:

1. Place the meter upside down. Open up the
back-flip stand, and locate the screw that
tightens the battery compartment cover as
indicated in Figure 3. Use a screwdriver to
unscrew and remove the cover.

20

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Figure 3 - Back Cover

2. Insert 9V battery into compartment. Note the
positive (+) and negative (-) terminals as
indicated inside the battery compartment (See
Figure 4). Be sure to insert the battery with
matching polarity.

21

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Figure 4 - Battery Compartment

3. Place the battery compartment cover piece by
sliding it into the top slid first. Place screw at
the bottom of the cover piece and tighten
down with a screw driver.

4. Push and hold down the button for 2
seconds to turn on the instrument.

Connecting External Power Source

The 878B and 879B can also be powered using an
external AC adapter. The model 879B comes with
this adapter included in the package, while it is
optional for model 878B.

22

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

For external power, use AC adapter rated for
output 12VDC, 150mA, with a standard 4mm
connector only.

WARNING: Use of incorrect adapters may damage

the instrument. Please use B&K Precision’s adapter
only.

To connect the adapter, do the following:

1. If a battery is installed, please check the
battery compartment again that the polarity of
the battery matches the polarity as indicated
by the labels inside the compartment. If it is
not, please remove and insert the battery with
matching polarity. If a battery is not installed,
continue to the next step.

WARNING: DO NOT, at any time, connect
an external power adapter when a battery
is installed incorrectly (reverse polarity or
non-matching polarity to indicator of
battery compartment). Doing so will
damage the instrument and void its
warranty.

2. Connect the AC adapter connector into the
right side panel of the instrument. See Figure
5 below.

23

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

12VDC Input

AC Adapter

Figure 5 - Connecting AC Adapter to Meter

3. Now, connect the AC Adapter socket into an
electrical outlet.

4. Push and hold down the button for 2
seconds to turn on the instrument.

Note: The meter can be operated with a battery

installed while an AC adapter is plugged in at the
same time (As long as the battery is inserted properly
with correct polarity). In this event, the meter will
automatically switch to consume power from the AC
adapter instead of the battery to preserve battery life.

Low Battery Indication

The LCR meter has a low battery indicator to notify
the user when to replace battery. When the display

24

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

starts flashing the indicator, the battery voltage
is below normal working voltage. In this case,
accuracy of the meter will also decrease. It is
recommended that the battery be replaced as soon as
possible before continuing operation. See “Installing
Battery” for instructions.

Backlit Display (model 879B only)

Model 879B LCR meter has a backlit display that
allows you to see the LCD display in dark conditions.

To turn on the back light, press and hold down
button for 2 seconds. Back light will turn on and
brighten the LCD display.

To turn off the back light at any time, press and hold

down button for 2 seconds again. Back light
will turn off and return to normal display.

When Using Battery Power

When the meter is powered using 9V battery, the back

light display will turn on upon holding down the
button for 2 seconds. It will stay at maximum

25

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

brightness for 15 seconds. After another 15 seconds
(30 seconds total from the time of turning on), the
back light will automatically turn off to conserve
battery power.

When Using External Power

When the meter is powered using an external AC
adapter, the back light display will turn on upon

holding down the button for 2 seconds. It will
stay at maximum brightness continuously until the

user presses and holds down the button for 2
seconds again.

Note: If a battery is installed while using an AC

adapter simultaneously, unplugging the AC adapter
will automatically turn off the back light after it has
been lit for 30 seconds.

26

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

OPERATION INSTRUCTIONS

Data Hold

The data hold function allows the user to freeze the display
when pressed, holding the measured value until data hold is
turned off.

Turn On Data Hold

To use data hold, press the button once. The “DH”
indicator will display on the screen when data hold is active.

Turn Off Data Hold

To disable the data hold, press again. The “DH”
indicator will disappear on the screen, and meter will remain
in normal operation mode.

Note: Changing the primary function, secondary function,

or test frequency will automatically turn off the data hold.

Static Recording

This mode is used for recording maximum, minimum, and
average values. It is often useful for testing the range of
values in which a component is expected to fall within upon
measurement.

27

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Enable Static Recording

Press and hold down the button for two seconds to
enter the static recording mode. The display should indicate
“MAX AVG MIN” simultaneously. This indicates the meter is
in static recording mode and recording is performed
immediately.

Using Static Recording

There are four different modes that can be selected in
static recording. They are indicated by the
descriptions below. These modes can be changed

with each button press. Per each press of the

button, the modes will change and repeat in

the following order:

Recording Mode Maximum Mode Minimum
Mode Average Mode

Recording Mode

This is the default mode when first enabling static
recording. In this mode, the screen will display “MAX
AVG MIN” indicator. At this point, the meter will start
making recordings based on measured values from

28

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

the input sockets or terminals. As recording is
performed, maximum, minimum, and average values
will be stored after a brief moment. A beep tone will
sound once a recording has been stored.

Note: Subsequent beep tones may occur in this mode if

there are new values that are recorded. For example, if a
new maximum is detected, it will beep once again to indicate
that the new value has been stored. Any previously stored
values will be overwritten with the new recorded values.

Maximum Mode

In this mode, the “MAX” indicator will be shown on display.
This indicates that the value in the primary display
represents the recorded maximum value.

Minimum Mode

In this mode, the “MIN” indicator will be shown on display.
This indicates that the value in the primary display
represents the recorded minimum value.

Average Mode

In this mode, the “AVG” indicator will be shown on display.
This indicates that the value in the primary display
represents the recorded average value. This average value
is obtained by taking the maximum and minimum recorded
values and taking the average of the two values.

29

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Disable Static Recording

To exit this mode, press and hold the button for two
seconds. The “MAX AVG MIN”, “MAX”, “MIN”, or “AVG”
indicator will disappear on screen.

Note: Changing the primary function, secondary function,

or test frequency will automatically turn off static recording.

L/C/R/Z Select Mode

The primary display of the LCR meter is used to
indicate measured values under four different modes
(three modes for model 878B, which excludes Z
(impedance) measurements). These modes are:
L (inductance), C (capacitance), R (resistance), and Z
(impedance).

To change between these four primary modes of

measurement, press the (or for model
878B) button. The modes will change and repeat
upon each button press. On the screen, the indicators
“L”, “C”, “R”, or “Z” (model 879B only) will be
displayed to indicate which mode the meter is in.

30

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

D/Q/θ/ESR Select Mode

The secondary display of the LCR meter is used to
indicate measured values for four various parameters
(two for model 878B, which excludes θ and ESR
measurement mode), which provide additional
information of the component being tested and is
supplementary to the primary mode measurements.
These modes are: D (Dissipation factor), Q (Quality
factor), θ (Phase angle), and ESR (Equivalent series
resistance).

To change between these measurement parameters,

press the (or for model 878B) button.
The parameters for measurement will change and
repeat upon each button press. On the screen, the
indicators “D”, “Q”, “θ” (model 879B only), or “ESR”
(model 879B only) will be displayed to indicate which
secondary mode the meter is in.

Test Frequency

The 879B and 878B LCR meters use an AC signal to test
and measure components at the input sockets or terminals.
With this measurement method, a test frequency must be
selected. The test frequency can affect the accuracy of the
results depending on what frequency is selected and what
type and value of a component is being measured or tested.

31

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

For details on selecting the optimal test frequency for
measurement, refer to the “

32

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

REMOTE COMMUNICATION

The meter has the capability to communicate with a
PC over the mini USB interface. Upon installation of a
USB driver, the PC can control the instrument over
virtual COM (RS-232). The mini USB communication
interface of the meter is designed in full duplex and
has a 64-byte input and output buffer, making it
reliable and efficient for data transmission.

Connecting Instrument to PC

Follow the below procedures for connection setup.

1. Download the USB drivers

2. With the included mini USB cable, connect the
mini USB end to the LCR meter and the other
end to an available USB port on the PC (see
Figure 14).

3. When Windows recognize the USB
connection, do not follow the default Windows
driver installation wizard. Simply run the
setup file from the downloaded USB drivers
and follow the prompt to install drivers.

4. When completed, the computer will recognize
the instrument as a USB (virtual COM) device,

33

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

meaning it will be detected as a serial COM
port. Windows will automatically assign a
COM port to the instrument. Please verify
which COM port Windows has assigned by
going into “Device Manager”.

Figure 14 - USB Connection

34

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

USB (Virtual COM) Configuration

The USB will be recognized as a virtual COM on the
PC, thus serial port settings must be configured
properly for remote communication to be successful.
Below are the settings used by the 878B and 879B
meters.

 Baudrate: 9600
 Data bits: 8
 Parity: None
 Stop bits: 1
 Flow Control: None

USB Operation

There are two modes that describe the operation of
the meter when it is setup for remote communication.
They are remote mode and auto fetching mode.

Remote Mode

Upon connecting to the instrument, sending any
commands listed in the “Command Protocols” section
will automatically set the LCR meter into remote
mode. In remote mode, the LCD display will show the

RMT indicator. When this is shown, all front panel

35

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

buttons will be disabled, except for the (or

for model 878B) button.

To exit remote mode and go back to local mode,

press the (or for model 878B) button
once. The RMT indicator will disappear on the LCD
display. Pushing the same button once more will put

the meter into auto fetching mode, which is described
in the next section.

Auto Fetching Mode

When connected to a PC, the meter can be
configured to auto-fetching mode. This means, the
meter will continuously fetch data to the PC after
every measurement cycle is completed. It fetches
data from measured readings of primary display and
secondary display, as well as tolerance compared
results. This mode is useful when doing quick data
logging using PC.

36

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Enable/Disable Auto Fetching

To toggle between enabling and disabling auto

fetching, press the (or for model
878B) button. When enabled, data will be fetched
constantly after every measurement cycle is
completed. When disabled, no fetched data will be
available.

Note: Alternatively, auto fetching mode can be

disabled when a remote command is sent to the
instrument, turning it back into remote mode. In this

event, the RMT indicator will appear on the LCD
display, and auto fetching will be disabled
automatically. To re-enabled auto fetching again in

this state, first press the (or for model
878B) button once to exit out of remote mode and
return to local mode. Then, press the button once
more to have it set to auto fetching mode again.

Command Protocols

Overview of Command Type and Format

All commands are entered in either the upper case or
the lower case. There are two types of the meter
programming commands: IEEE 488 common

37

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

commands and Standard Commands for
Programmable Instruments (SCPI). Some commands
are device-specific to the meter. They are not included
in the version 1999.0 of the SCPI standard. However,
these commands are designed with the SCPI format
in mind and they follow the syntax rules of the
standard.

Common Command Format

The IEEE 488 standard defines the common
commands as commands that perform functions like
reset and system query. Common commands usually
come with the asterisk “*” character, and may include
parameters. Some examples of Common command
like: *IDN?, *GTL, *LLO.

SCPI Command Format and Query Format

The SCPI commands control instrument
functions. A subsystem command has a hierarchical
structure that usually consists of a top-level (or root)
keyword, one or more lower level keywords, and
parameters. The following example shows a
command and its associated query:

A. FUNCtion:impa L
Select L as primary parameter

B. FUNCtion:impa?

Return primary parameter

38

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

function is a root level keyword with the second level
keyword, impa, and L is the command parameter. The
query command ends with a question mark “?”.

Note: SCPI stems from IEEE488.1 and IEEE 488.2.

Although the IEEE 488.2 standard addressed some
instrument measurements, it principally dealt with
common commands and syntax or data formats.
Please refer to the IEEE488.2 and SCPI reference
manual for more information.

Termination Character

A terminator is a character sent by a host, which
identifies the end of a command string. A valid
terminator consists of two-byte data:
<CR> (Carriage Return, ASC(&H0D)) or <LF> (Line
Feed, ASC(&H0A)) or <CR><LF>

Responding Message

Returned result

After the meter executes a query command, the return
of the result will be in the following format:

<Result> + <CR> <LF>

For example, in auto fetching mode, the meter will
send the measured data automatically when the

39

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Data Type

Explanation

Example

<NR1>

An integer

+800,-200,100,-50

<NR2>

This numeric
representation has
an explicit radix
point

+1.56,-0.001,10.5

<NR3>

This representation
has an explicit
radix point and an
exponent

+2.345678E+04

-1.345678E-01

<Boolean>

A parameter for
Boolean setting.
Always return “0”
or “1” for Boolean

ON or OFF

measurement cycle is completed. The format of the
printed data will be shown as the following:

<Primary measured data, Secondly measured
data, Tolerance Result > + <CR> <LF>

Data Types

Returned message is an ASCII string from the meter
responding to a query. A query is a command
accompanied a “?” mark. Table 4 below explains the
different data types.

Table 4 - Data Type of Responded Messages

40

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

query command

<Literal>

A string is used as
command
parameters with
short literal form

HOLD

Text Symbol

Meaning

[ ]

Option; can be omitted

|

Exclusive OR

< >

Defined element

( )

Comment

?

Question mark

:

Separated two command
keywords

SCPI Commands

This section described all the SCPI commands
supported by the meter. The meter can accept both
upper case and lower case commands.

Table 5 - SCPI Symbol Conventions

41

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Description: Queries the instrument ID.
Response: <instrument model>, <firmware
version>, <serial number>

Description: Set measurement frequency
Parameters: Parameters are 100, 120, 1000,

10000 (879B only) or
100hz,120hz,1khz,10khz (879B

only)
Example: FREQuency 100hz
Set 100Hz frequency

Description: Query the measurement frequency
Response: 100hz, 120hz, 1khz, 10khz (879B
only)

*IDN?

*LLO

Local Lockout. This means that all front panel
buttons, including the "USB" key is not available.

*GTL

Go to local. Puts the meter into the local state,

clearing the remote state and front panel lockout.

FREQuency Subsystem

FREQuency <value>

FREQuency?

42

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Description: Select primary parameter
Example: FUNCtion:impa L
Selects L as primary parameter

Description: Query primary parameter
Response: Return L, C, R, Z (879B
only),NULL

Description: Select secondly parameter
Example: FUNCtion:impb D
Select D as secondly parameter

Description: Query secondly parameter
Response: Return D, Q, THETA (879B only),
ESR (879B only), NULL

FUNCtion subsystem

FUNCtion:impa < L | C | R | Z >

(Z for model 879B only)

FUNCtion:impa?

FUNCtion:impb < D | Q | THETA | ESR >

(THETA and ESR for model879B only)

FUNCtion:impb?

43

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Description: Set equivalent mode
Parameters: SERies — serial mode
Parallel — parallel mode

Pal — parallel mode
Example: FUNCtion:EQUivalent SERies
Set series mode

Description: Query the equivalent mode
Response: Return “SER” or “PAL” format
string

Description: Enable or disable relative
function
Example:
CALCulate:RELative:STATe ON

Description: Query the relative state
Response: Return ON or OFF

FUNCtion:EQUivalent < SERies | parallel |
PAL >

FUNCtion:EQUivalent?

CALCulate subsystem

CALCulate:RELative:STATe < ON | OFF >

CALCulate:RELative:STATe?

44

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Description: Query the relative value
Response: Return <NR3> or “-----” format string

Description: Enable or disable tolerance function
Example: CALCulate:TOLerance:STATe ON

Description: Query the tolerance state
Response: Return ON or OFF

Description: Query the nominal value of
tolerance
Response: Return <NR3> or “-----” format string

Description: Query the percent value of
tolerance
Response: Return <NR3> or “-----” format string

Description: Set tolerance range
Parameters: 20 (879B only)
Example: CALCulate:TOLerance:RANGe 1
Set 1% tolerance range

CALCulate:RELative:VALUe?

CALCulate:TOLerance:STATe < ON | OFF >

CALCulate:TOLerance:STATe?

CALCulate:TOLerance:NOMinal?

CALCulate:TOLerance:VALUe?

CALCulate:TOLerance:RANGe < 1 | 5 | 10 |
20 >

45

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Description: Query the tolerance range
Response: Return “BIN1”, “BIN2”, “BIN3”,
“BIN4” or “----” format string

Description: Enable or disable recording
function
Example: CALCulate:RECording:STATe
ON

Description: Query the recording state
Response: Return ON or OFF

Description: Query the maximum value of
recording function
Response: Return <NR3, NR3> or “-----” format
string

Description: Query the minimum value of
recording function
Response: Return <NR3, NR3> or “-----” format
string

CALCulate:TOLerance:RANGe?

CALCulate:RECording:STATe < ON | OFF >

CALCulate:RECording:STATe?

CALCulate:RECording:MAXimum?

CALCulate:RECording:MINimum?

46

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Description: Query the average value of
recording function
Response: Return <NR3, NR3> or “-----” format
string

Description: Query the present value of
recording function
Response: Return <NR3, NR3> or “-----” format
string

Description: Returns the primary, secondary

display value and tolerance

compared result of device’s output

buffer.
Response: Return <NR3, NR3, NR1> format
string
Example: FETCh?

CALCulate:RECording:AVERage?

CALCulate:RECording:PRESent?

FETCh Subsystem

FETCh?

47

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Command

Parameter

Explanation

FREQuency

<Value>

Set Test Frequency

FREQuency?

Query Test Frequency

FUNCtion

:impa

<Literal>

Select primary display
parameter

:impa?

Query primary display
parameter

:impb

<Literal>

Select secondary display
parameter

:impb?

Query secondary display
parameter

:EQUivalent

<Literal>

Set equivalent mode

:EQUivalent?

Query equivalent mode

CALCulate

:RELative

:STATe

<Boolean>

Enable/disable relative
function

:STATe?

Query relative state

:VALUe?

Query relative value

:TOLerance

:STATe

<Boolean>

Enable/disable tolerance
function

:STATe?

Query tolerance state

:NOMinal?

Query nominal value of
tolerance

:VALUe?

Query percent of tolerance

:RANG

<Value>

Set tolerance range

:RANGe?

Query tolerance range

:RECording

Summary of Supported SCPI Commands

Table 6 - Summary of SCPI Commands

48

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

:STATe

<Boolean>

Enable/disable recording
function

:STATe?

Query recording state

:MAXimum?

Query max. value of
recording

:MINimum?

Query min. value of recording

:AVERage?

Query average value of
recording

:PRESent?

Query present value of
recording

FETCh?

Return data any time last
reading is valid

Error Codes

In certain situations, errors may occur, and an error
code will be displayed on the meter. Below defines
the error description based on the error code.

E10: Unknown command
E11: Parameter Error
E12: Syntax Error

49

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

SUPPLEMENTAL INFORMATION” section.

Selecting Frequency

To select or change the test frequency, push the

button once. With each press, the test
frequency will be indicated on the secondary display
of the meter. This will remain displayed until a
different function for the secondary display is selected.

The selectable test frequencies for 879B meter are:

100 Hz, 120 Hz, 1 kHz, and 10 kHz.

The selectable test frequencies for 878B meter are:
120 Hz and 1 kHz.

Relative Mode

Relative mode is used when the user wants to “zero”
the meter based on a reference value or wants to
obtain a reading that is relative to a reference value.
For example, if test leads are used in the
measurement, the user may want to set a reference
with the test leads inserted into the input terminals so
that any measurements taken will not take into
account the test leads.

50

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Setup Relative Mode

To setup the relative mode, simply press the
button once. The value that is on the display will
immediately be stored as the “reference” value. This
reference value will be used for all measurements so
as long as the meter is in relative mode, which is
indicated by the “REL” indicator on the display.

A common use of relative mode is to “zero” out the
meter. With nothing connected to the input sockets

and terminals, simply press the button once and
the meter will “zero” out, meaning all display reading
will become 0.

To make measurements within a specific test setup or
with test leads, it is recommended that the user first
have test leads or wires connected to the meter in the

fashion that they desire. Then, press the button
once to “zero” out the meter as reference. This way,
any measurements taken would not be affected by the
test leads or setup.

51

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Disable Relative mode

To disable relative mode, simply press the
button once more. The “REL” indicator will disappear,
which indicates the relative mode is disabled.

Note: Changing the primary function, secondary function,

or test frequency will automatically disable relative mode.

Tolerance

The tolerance mode feature is specifically used for
component sorting purposes. Users who need to test
and sort through a large number of components will
find this function quite helpful.

Tolerance Range

The tolerance function is configured primarily by range
in percentage, meaning a percentage is used to
define whether a measured value is within tolerance
or out of tolerance.

(for model 879B) Selectable tolerance range is: 1%,
5%, 10%, and 20%.

(for model 878B) Selectable tolerance range is: 1%,
5%, and 10%.

52

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Setup Tolerance

1. Select the primary measurement mode based
on the type of components to be measured.

This is done by pressing the (or
for model 878B) button to configure the
desired measurement mode.

Note: Be sure to select the correct

measurement mode, as tolerance mode
cannot be activated unless the correct mode
is selected. For example, if the component is
a capacitor, be sure to select “C” for
capacitance. If not, tolerance mode will not
be activated following the proceeding steps
below.

2. Insert the component to be used as the
“standard” reference value. Another words,
insert a known “good” component that will be
used for testing against all other components.

(See Figure 6 for illustration)

Note: The tolerance mode cannot be

activated unless the meter senses a
component is connected to either the input
sockets or terminals.

53

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

WARNING: If the component to be measured
is a capacitor, be sure that the capacitor is
fully discharged BEFORE inserting it into the
input sockets or terminals. For large
capacitors, it may take longer periods of time
for a full discharge. Inserting a charged or
partially charged capacitor into the meter’s
input sockets or terminals may produce an
electric hazard and may also damage the
instrument, making it unusable.

Figure 6 - Inserting Component to Inputs

54

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

3. Once the desired measured reading is

displayed, press the button once to
store the reading as the “standard” value or
test reference value. At this point, the “TOL”
will be displayed on the screen, indicating that
the tolerance mode is activated.

Note: Any value which appears on the LCD
display, such as DH (data hold) or
MAX/MIN/AVG, can also be used as the
“standard” value or test reference value for
sorting components.

4. To select the tolerance range, press the

button once more. For each button
press, the meter will cycle through the
tolerance range percentage in this order: 1%,
5%, 10%, 20% (model 879B only). These
percentage ranges will also be indicated on
the LCD display by the indicators “1%”, “5%”,
“10%”, or “20%” (model 879B only)
respectively. The component to be tested for
will be verified with the tolerance within the
selected % of the “standard” value or test
reference value (as configured from step 3).

5. Within a few seconds, an audible tone will be
heard.

55

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

One single “beep” or tone means the
component is within tolerance.

Three “beeps” or tone means the component
is out of tolerance.

Disable Tolerance Mode

To disable or exit out of tolerance mode, simply press

and hold down the button for two seconds. The
“TOL” and/or the percentage indicators “1%”, “5%”,
“10%”, or “20%” (for model 879B only) will disappear
on the LCD display.

Note: Changing the primary function, secondary function,

or test frequency will automatically disable tolerance mode.

Utility Menu

The LCR meter has a built-in utility menu that allows
you to configure some user preferences and settings.
The buttons used to set and control the menu are

colored in yellow. They are , , and

. User can configure the beep sound, auto

56

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

MENU OPTIONS

SETTINGS /

PARAMETERS

bEEP

ON / OFF

AoFF

5 / 15 / 30 / 60 / OFF

PuP

PrE / Set

dEF

yES / NO

power-off timing, power-up state, and reset instrument
to default settings.

Entering Utility Menu

Press and hold down the button for two
seconds or until the primary display shows “bEEP”.
This indicates the meter is currently in the utility menu.

Configuration and Settings

There are four different menu options and
configurable settings under each option. Below is a
table that lists these options and settings.

Table 1 - Utility Menu Options and Settings

57

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

The four menu options allow users to control the beep
sound setting (bEEP), auto power off setting (AoFF),
power-up state settings (PuP), and resetting
instrument to default settings (dEF).

By default, the first option after entering the utility
menu is “bEEP”. The primary display indicates the
menu option, and the secondary display indicates the
current settings or parameters configured for the
selected option. To change the settings or

parameters, use the and arrow keys. To
change or select a different menu option, press the

button once. For each button press, the
meter will traverse through each menu options and
will repeat itself in the following order:

bEEP AoFF PuP dEF

Note: The settings and parameters are temporarily

“remembered” once the button is pressed to
select a different menu option. To save all settings
permanently, exit the menu using the save and exit

method. With the exception of “bEEP” and “AoFF”

settings, in which case under these settings, changes
are temporarily saved even when exiting the menu
without saving. (See “Exit Utility Menu” section for
details).

58

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Beep Sound Setting (bEEP)

The “bEEP” menu option allows the user to enable or
disable the beep sound for every key press.

Note: This option only disables the beep sound for

each key press. It does not disable the beep sound

for “Static Recording” and “Tolerance” mode, as well
as the “auto power-off” warning.

To turn ON the beep, push either the or
arrow keys until the secondary display shows “ON”.

To turn OFF the beep, push either the or
arrow keys until the secondary display shows “OFF”.

Default Setting: ON

Auto power-off Setting (AoFF)

The “AoFF” menu option allows the user to select the
auto power-off timer. This timer is always counting
continuously. It resets every time a button is pressed
or if an action occurred. If the meter is left untouched
or unattended, the timer will count until the configured
time is up. This is particularly important if the user
wants to preserve battery life or run the meter
continuously without interruption.

59

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

SECONDARY

DISPLAY

REPRESENTATION

5

5 minutes

15

15 minutes

30

30 minutes

60

60 minutes

OFF

No timer. Manual

power off only

Note: When the timer has reached the configured

time, the meter will make an audible “beep” sound
continuously for 10 seconds before auto power-off.
To stop the “beep” sound, simply press any button to
resume operation and reset the timer count.

The available timer settings are: 5 minutes, 15
minutes, 30 minutes, 60 minutes, and off.

When the primary display shows “AoFF”, push the

or button to select the timer setting. The
settings will be shown on the secondary display as
follows:

Table 2 - Auto Power-off Options

Default Setting: 15

60

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

When the auto power-off option is set to any of the
configured settings in Table 2 (except for “OFF”),
upon exiting the utility menu the LCD display will have
a “@OFF” indicator. This means a timer has been set
for auto power-off.

Note: When an external 12VDC AC adapter is used

to power the instrument, the auto power-off feature
will automatically be disabled. This is indicated on the

LCD display when the “@OFF” indicator disappears.

Under this condition, the meter will remain powered
ON continuously. In this state, powering off the
instrument would require manually pushing and

holding down the button for 2 seconds.

When external power is removed, the meter will
automatically re-enable auto power-off again and

“@OFF” indicator will re-appear if a time has been set
from the “AoFF” option of the utility menu.

Power-up State (PuP)

The “PuP” menu option allows user to configure the
power-up state of the LCR meter, allowing user to
restore settings saved into internal EEPROM memory
at power-up.

61

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

In the utility menu, when the primary display shows
“PuP”, there are two settings selectable and shown on
the secondary display. “PrE” and “SEt”.

Default Setting: PrE

Storable Settings

 Primary function mode (i.e. L/C/R)
 Test frequency
 Secondary function mode (i.e. D/Q)
 Tolerance mode state
 Reference value for Tolerance mode
 Relative mode state
 Reference value for Relative mode

Configure and Save Power-up State

Follow the below procedure to setup and store a
power-up state into internal memory.

1. Before entering into the utility menu, configure
all the settings and parameters desired for
power up state. Do this by turning on any
modes and setting values as desired. (Only
the settings listed above in “Storage Settings”
are stored). If the meter is currently in the
utility menu, exit first and setup the desired

62

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

settings for recalling at power-up. (see “Exit
Utility Menu” for details)

2. Once settings are configured, enter/re-enter

the utility menu by holding down the
button for 2 seconds.

3. Traverse through the utility menu until you see
“PuP” on the primary display. The secondary
display should also show “PrE”.

4. In order to save the current meter settings for
power-up state into internal memory, use

either or button to change the
settings so that the secondary display shows
“SEt”.

5. Press button to select the next menu
option. Once all other utility options are
configured, exit the utility menu by holding

down button for 2 seconds.

6. The meter has now saved all current settings
into internal memory. At next power-up, the
meter will turn on and recall the saved
settings.

Note: The meter allows one set of settings to be

stored into memory. Therefore, the same

63

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

procedure is used to overwrite previously stored
settings into memory.

Prevent Overwrite of Stored Settings

In the utility menu, the “PuP” option default setting is
always “PrE”. This represents “previous settings”.
Keeping this setting will prevent the meter from
overwriting previously stored settings for power-up
state. Therefore, when entering the utility menu, be
sure not to change to “SEt” to prevent overwriting any
previously stored power-up settings.

Reset Default Settings (dEF)

The last option in the utility menu allows you to reset
the meter to default settings. When the primary
display shows “dEF”, the secondary display will show
“NO” by default. The meter will also default this
setting to “NO” to prevent accidental reset of
instrument settings.

Default Setting: No

To reset the meter to default settings, first select the

“dEF” menu option by using the use button to
browse through the utility menu. When the primary

64

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Settings

Default Configuration

Primary Function

C (Capacitance)

Secondary Function

None

Measurement Method

SER (Series)

Test Frequency

1 kHz

Beep

On

Auto Power-off

15 (15 minutes)

Power-up State

PrE

Reset Default Settings

No

display shows “dEF”, either press or
button to change the setting so that the secondary
display shows “yES”. Upon saving and exiting the
utility menu, the instrument will automatically reset
back to its original settings. Below is a table of all the
settings that will be restored.

Table 3 - Instrument Default Settings

Note: In the case where under “PuP” option, “SEt” is
selected and “dEF” is set to “yES”, the “PuP” setting
has priority over the “dEF” setting. This means the

instrument will not be set back to default upon saving
and exiting the utility menu. Instead, the power-up
settings will be stored and will be recalled upon the
next power-up of the instrument.

65

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Exit Utility Menu

There are two methods for exiting the utility menu.
One saves all the changed settings before exiting, and
the other exits the menu without saving any changes.

Saving and Exiting

To save all utility menu option settings and to exit the

menu, press and hold down the button for 2
seconds. After this, the meter will exit the menu, and
all settings will be saved.

Exiting without Saving

If user decides to exit the utility menu without making
any changes or saving any changes to “PuP” or
“dEF”, it can be done by simply pressing any front

panel buttons except , , , and

. Note that settings that are changed under
“bEEP” and “AoFF” options are still temporarily set
until the next power-up of the instrument.

66

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Parallel and Series Measurement Mode

The LCR meter offers the option to select between parallel
or series measurement mode. Depending on which mode is
selected, the method to measure the component will be
different. Additionally, one measurement mode may provide
better accuracies over the other measurement mode
depending on the type of component and the value of the
component to be tested.

67

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

REMOTE COMMUNICATION

The meter has the capability to communicate with a
PC over the mini USB interface. Upon installation of a
USB driver, the PC can control the instrument over
virtual COM (RS-232). The mini USB communication
interface of the meter is designed in full duplex and
has a 64-byte input and output buffer, making it
reliable and efficient for data transmission.

Connecting Instrument to PC

Follow the below procedures for connection setup.

5. Download the USB drivers from

6. With the included mini USB cable, connect the
mini USB end to the LCR meter and the other
end to an available USB port on the PC (see
Figure 14).

7. When Windows recognize the USB
connection, do not follow the default Windows
driver installation wizard. Simply run the
setup file from the downloaded USB drivers
and follow the prompt to install drivers.

8. When completed, the computer will recognize
the instrument as a USB (virtual COM) device,

68

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

meaning it will be detected as a serial COM
port. Windows will automatically assign a
COM port to the instrument. Please verify
which COM port Windows has assigned by
going into “Device Manager”.

Figure 14 - USB Connection

69

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

USB (Virtual COM) Configuration

The USB will be recognized as a virtual COM on the
PC, thus serial port settings must be configured
properly for remote communication to be successful.
Below are the settings used by the 878B and 879B
meters.

 Baudrate: 9600
 Data bits: 8
 Parity: None
 Stop bits: 1
 Flow Control: None

USB Operation

There are two modes that describe the operation of
the meter when it is setup for remote communication.
They are remote mode and auto fetching mode.

Remote Mode

Upon connecting to the instrument, sending any
commands listed in the “Command Protocols” section
will automatically set the LCR meter into remote
mode. In remote mode, the LCD display will show the

RMT indicator. When this is shown, all front panel

70

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

buttons will be disabled, except for the (or

for model 878B) button.

To exit remote mode and go back to local mode,

press the (or for model 878B) button
once. The RMT indicator will disappear on the LCD
display. Pushing the same button once more will put

the meter into auto fetching mode, which is described
in the next section.

Auto Fetching Mode

When connected to a PC, the meter can be
configured to auto-fetching mode. This means, the
meter will continuously fetch data to the PC after
every measurement cycle is completed. It fetches
data from measured readings of primary display and
secondary display, as well as tolerance compared
results. This mode is useful when doing quick data
logging using PC.

71

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Enable/Disable Auto Fetching

To toggle between enabling and disabling auto

fetching, press the (or for model
878B) button. When enabled, data will be fetched
constantly after every measurement cycle is
completed. When disabled, no fetched data will be
available.

Note: Alternatively, auto fetching mode can be

disabled when a remote command is sent to the
instrument, turning it back into remote mode. In this

event, the RMT indicator will appear on the LCD
display, and auto fetching will be disabled
automatically. To re-enabled auto fetching again in

this state, first press the (or for model
878B) button once to exit out of remote mode and
return to local mode. Then, press the button once
more to have it set to auto fetching mode again.

Command Protocols

Overview of Command Type and Format

All commands are entered in either the upper case or
the lower case. There are two types of the meter
programming commands: IEEE 488 common

72

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

commands and Standard Commands for
Programmable Instruments (SCPI). Some commands
are device-specific to the meter. They are not included
in the version 1999.0 of the SCPI standard. However,
these commands are designed with the SCPI format
in mind and they follow the syntax rules of the
standard.

Common Command Format

The IEEE 488 standard defines the common
commands as commands that perform functions like
reset and system query. Common commands usually
come with the asterisk “*” character, and may include
parameters. Some examples of Common command
like: *IDN?, *GTL, *LLO.

SCPI Command Format and Query Format

The SCPI commands control instrument
functions. A subsystem command has a hierarchical
structure that usually consists of a top-level (or root)
keyword, one or more lower level keywords, and
parameters. The following example shows a
command and its associated query:

A. FUNCtion:impa L
Select L as primary parameter

B. FUNCtion:impa?

Return primary parameter

73

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

function is a root level keyword with the second level
keyword, impa, and L is the command parameter. The
query command ends with a question mark “?”.

Note: SCPI stems from IEEE488.1 and IEEE 488.2.

Although the IEEE 488.2 standard addressed some
instrument measurements, it principally dealt with
common commands and syntax or data formats.
Please refer to the IEEE488.2 and SCPI reference
manual for more information.

Termination Character

A terminator is a character sent by a host, which
identifies the end of a command string. A valid
terminator consists of two-byte data:
<CR> (Carriage Return, ASC(&H0D)) or <LF> (Line
Feed, ASC(&H0A)) or <CR><LF>

Responding Message

Returned result

After the meter executes a query command, the return
of the result will be in the following format:

<Result> + <CR> <LF>

For example, in auto fetching mode, the meter will
send the measured data automatically when the

74

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Data Type

Explanation

Example

<NR1>

An integer

+800,-200,100,-50

<NR2>

This numeric
representation has
an explicit radix
point

+1.56,-0.001,10.5

<NR3>

This representation
has an explicit
radix point and an
exponent

+2.345678E+04

-1.345678E-01

<Boolean>

A parameter for
Boolean setting.
Always return “0”
or “1” for Boolean

ON or OFF

measurement cycle is completed. The format of the
printed data will be shown as the following:

<Primary measured data, Secondly measured
data, Tolerance Result > + <CR> <LF>

Data Types

Returned message is an ASCII string from the meter
responding to a query. A query is a command
accompanied a “?” mark. Table 4 below explains the
different data types.

Table 4 - Data Type of Responded Messages

75

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

query command

<Literal>

A string is used as
command
parameters with
short literal form

HOLD

Text Symbol

Meaning

[ ]

Option; can be omitted

|

Exclusive OR

< >

Defined element

( )

Comment

?

Question mark

:

Separated two command
keywords

SCPI Commands

This section described all the SCPI commands
supported by the meter. The meter can accept both
upper case and lower case commands.

Table 5 - SCPI Symbol Conventions

76

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Description: Queries the instrument ID.
Response: <instrument model>, <firmware
version>, <serial number>

Description: Set measurement frequency
Parameters: Parameters are 100, 120, 1000,

10000 (879B only) or
100hz,120hz,1khz,10khz (879B

only)
Example: FREQuency 100hz
Set 100Hz frequency

Description: Query the measurement frequency
Response: 100hz, 120hz, 1khz, 10khz (879B
only)

*IDN?

*LLO

Local Lockout. This means that all front panel
buttons, including the "USB" key is not available.

*GTL

Go to local. Puts the meter into the local state,

clearing the remote state and front panel lockout.

FREQuency Subsystem

FREQuency <value>

FREQuency?

77

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Description: Select primary parameter
Example: FUNCtion:impa L
Selects L as primary parameter

Description: Query primary parameter
Response: Return L, C, R, Z (879B
only),NULL

Description: Select secondly parameter
Example: FUNCtion:impb D
Select D as secondly parameter

Description: Query secondly parameter
Response: Return D, Q, THETA (879B only),
ESR (879B only), NULL

FUNCtion subsystem

FUNCtion:impa < L | C | R | Z >

(Z for model 879B only)

FUNCtion:impa?

FUNCtion:impb < D | Q | THETA | ESR >

(THETA and ESR for model879B only)

FUNCtion:impb?

78

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Description: Set equivalent mode
Parameters: SERies — serial mode
Parallel — parallel mode

Pal — parallel mode
Example: FUNCtion:EQUivalent SERies
Set series mode

Description: Query the equivalent mode
Response: Return “SER” or “PAL” format
string

Description: Enable or disable relative
function
Example:
CALCulate:RELative:STATe ON

Description: Query the relative state
Response: Return ON or OFF

FUNCtion:EQUivalent < SERies | parallel |
PAL >

FUNCtion:EQUivalent?

CALCulate subsystem

CALCulate:RELative:STATe < ON | OFF >

CALCulate:RELative:STATe?

79

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Description: Query the relative value
Response: Return <NR3> or “-----” format string

Description: Enable or disable tolerance function
Example: CALCulate:TOLerance:STATe ON

Description: Query the tolerance state
Response: Return ON or OFF

Description: Query the nominal value of
tolerance
Response: Return <NR3> or “-----” format string

Description: Query the percent value of
tolerance
Response: Return <NR3> or “-----” format string

Description: Set tolerance range
Parameters: 20 (879B only)
Example: CALCulate:TOLerance:RANGe 1
Set 1% tolerance range

CALCulate:RELative:VALUe?

CALCulate:TOLerance:STATe < ON | OFF >

CALCulate:TOLerance:STATe?

CALCulate:TOLerance:NOMinal?

CALCulate:TOLerance:VALUe?

CALCulate:TOLerance:RANGe < 1 | 5 | 10 |
20 >

80

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Description: Query the tolerance range
Response: Return “BIN1”, “BIN2”, “BIN3”,
“BIN4” or “----” format string

Description: Enable or disable recording
function
Example: CALCulate:RECording:STATe
ON

Description: Query the recording state
Response: Return ON or OFF

Description: Query the maximum value of
recording function
Response: Return <NR3, NR3> or “-----” format
string

Description: Query the minimum value of
recording function
Response: Return <NR3, NR3> or “-----” format
string

CALCulate:TOLerance:RANGe?

CALCulate:RECording:STATe < ON | OFF >

CALCulate:RECording:STATe?

CALCulate:RECording:MAXimum?

CALCulate:RECording:MINimum?

81

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Description: Query the average value of
recording function
Response: Return <NR3, NR3> or “-----” format
string

Description: Query the present value of
recording function
Response: Return <NR3, NR3> or “-----” format
string

Description: Returns the primary, secondary

display value and tolerance

compared result of device’s output

buffer.
Response: Return <NR3, NR3, NR1> format
string
Example: FETCh?

CALCulate:RECording:AVERage?

CALCulate:RECording:PRESent?

FETCh Subsystem

FETCh?

82

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Command

Parameter

Explanation

FREQuency

<Value>

Set Test Frequency

FREQuency?

Query Test Frequency

FUNCtion

:impa

<Literal>

Select primary display
parameter

:impa?

Query primary display
parameter

:impb

<Literal>

Select secondary display
parameter

:impb?

Query secondary display
parameter

:EQUivalent

<Literal>

Set equivalent mode

:EQUivalent?

Query equivalent mode

CALCulate

:RELative

:STATe

<Boolean>

Enable/disable relative
function

:STATe?

Query relative state

:VALUe?

Query relative value

:TOLerance

:STATe

<Boolean>

Enable/disable tolerance
function

:STATe?

Query tolerance state

:NOMinal?

Query nominal value of
tolerance

:VALUe?

Query percent of tolerance

:RANG

<Value>

Set tolerance range

:RANGe?

Query tolerance range

:RECording

Summary of Supported SCPI Commands

Table 6 - Summary of SCPI Commands

83

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

:STATe

<Boolean>

Enable/disable recording
function

:STATe?

Query recording state

:MAXimum?

Query max. value of
recording

:MINimum?

Query min. value of recording

:AVERage?

Query average value of
recording

:PRESent?

Query present value of
recording

FETCh?

Return data any time last
reading is valid

Error Codes

In certain situations, errors may occur, and an error
code will be displayed on the meter. Below defines
the error description based on the error code.

E10: Unknown command
E11: Parameter Error
E12: Syntax Error

84

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

SUPPLEMENTAL INFORMATION” section.

Default Settings

For Capacitance and Resistance measurements, the
default measurement mode is parallel.

For Inductance measurements, the default
measurement mode is series.

Selecting Measurement Mode

The measurement mode of the meter is displayed by
the indicators “SER” or “PAR” on the LCD screen.
“SER” means meter is in series measurement mode.
“PAR” means meter is in parallel measurement mode.
To toggle between the two modes, press and hold

down (or for model 878B) button for 2
seconds. The indicators on the display should toggle
between “SER” and “PAR”.

Calibration

Calibration is available on all modes. It is
recommended that to achieve optimal readings,

85

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

calibration should be done before making any
measurements.

To enter calibration mode, simply press and hold

down the button for 2 seconds. A calibration
prompt will be displayed. There are two types of
calibration available. One is the open circuit
calibration. The other is the short circuit calibration.
To exit calibration mode, simply press and hold down

the button for 2 seconds again.

Open Calibration

Open calibration can be done when meter first enters
into calibration mode. If the input sockets or terminals
have nothing connected, the display should show
Figure 7. Also, “REL” indicator will be blinking on the
display. This is to prompt the user that the meter is
waiting for an action. At this point, open calibration

will be done when the button is pressed once.
Within a few seconds, the meter will return to normal
display and meter will be calibrated based on the test
frequency and settings selected prior to entering the
calibration mode.

86

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Figure 7 - Open Calibration

Short Calibration

Short calibration can be done when meter first enters
into calibration mode. If the input sockets or terminals
have nothing connected, the display will be like Figure

7. For short calibration, simply put a shorting bar or a
short piece of conductive metal (i.e. paper clip) across
the “+” and “-“ input sockets or terminals. Within 2
seconds, the meter will display the same screen as
Figure 8, which prompts for a “short”. Also, “REL”
indicator will be blinking on the display. This is to
prompt the user that the meter is waiting for an action.
At this point, short calibration will be done when the

button is pressed once. Within a few seconds,

the meter will return to normal display and meter will

87

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

be calibrated based on the test frequency and settings
selected prior to entering the calibration mode.

Figure 8 - Short Calibration

Quick Procedure

Below is an example of steps to follow to do both
open and short calibration.

1. Select the primary function mode for
measurement (i.e. L/C/R/Z).

2. Select the test frequency for measurement.

3. Select the measurement mode (i.e. Series or
Parallel)

4. Once all settings are configured, hold down

button for 2 seconds to enter into

calibration mode.

5. First, do open calibration. Follow instructions
under “Open Calibration” section.

88

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

6. Next, do short calibration. Follow instructions
under “Short Calibration” section.

7. Now, the meter should go back to normal
display and user may proceed to take
measurements of components.

Recommendations

To achieve optimal measurement results, both open
and short calibration should be done. It is highly
recommended to calibrate extremely high or low
values for L, C, R and Z before making precision
measurements.

Notes:

1. If test frequency is changed, calibration
should be done again before making precision
measurements. Once calibration is done on a
selected test frequency, calibration data will
remain until power off.

2. Either open or short calibration is not
associated with measurement function,
therefore changing the test function does not
require re-calibration.

3. Re-calibration may be necessary depending
on many factors such as prolonged use,
changing environments, and contact variation
(i.e. alligator test leads or socket contacts).

89

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

USB

The USB button (or for model 878B) are
used for remote communication. See “

90

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

REMOTE COMMUNICATION” section for details.

Automatic Fuse Detection

The LCR meter has an internal fuse that protects the
inputs from severely damaging the instrument. When
the meter detects that the protective fuse is open, the
“FUSE” indicator will appear on the primary display
(see Figure 9) and an internal “beep” will sound
continuously. In this situation, none of the function
buttons can be operated and all other meter functions
will be disabled.

Figure 9 - Fuse Display

In the event that the above screen is displayed, a fuse
replacement is required. Turn off the meter by

91

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

pressing and holding down the button for 2
seconds. If this does not power off the meter, remove
external AC adapter if that is used and/or remove the
battery from the battery compartment. Refrain from
further operation until fuse is replaced. Please
contact B&K Precision for assistance.

92

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

QUICK START GUIDE

CAUTION

 Do not measure a capacitor that is not fully

discharged. Connecting a charged or partially
charged capacitor to the input terminals will
damage the instrument.

 When measuring within a circuit, the circuit must be

de-energized before connecting the test leads.

 When used in a dusty environment, the instrument

should be wiped and cleaned regularly.

 Do not leave the instrument exposed to direct heat

from the sun for long periods of time.

 Before removing the cover, ensure that the

instrument is disconnected from any circuit and is
powered OFF.

93

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Note:

To achieve optimum precision for all L, C, and R
measurements at either the highest or lowest
ranges, calibrate the meter before testing. See
“Calibration” section for details.

Inductance Measurement

1. Press down button for one second to turn
on the meter.

2. Press (or for model 878B) button
until “L” is displayed on the screen to select
inductance measurement.

3. Insert an inductor into either the input sockets or
connect alligator leads into the banana jack input
terminals and connect the clips to the component
leads as illustrated in Figure 10.

4. Press button until the desired test
frequency is displayed on screen.

5. Press (or for model 878B) button
to select between D factor, Q factor, θ angle, or

94

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

ESR measurement for secondary display. (θ and
ESR function for model 879B only)

6. Read the display readings for inductance
measured values and selected measured values
on secondary display.

Figure 10 - Inductance Measurement Setup

95

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Capacitance Measurement

WARNING Fully discharge capacitor BEFORE

inserting it into the instrument. Failure to do this may
result in damage to the meter and may cause
electrical hazards.

1. Press down button for one second to turn
on the meter.

2. Press (or for model 878B) button
until “C” is on the screen to select capacitance
measurement.

3. CAUTION: BEFORE inserting a capacitor or

capacitive component into the input sockets
or terminals, be sure to fully discharge the
component. Some larger capacitive
components may take longer to discharge. In
these cases, please allot enough time for a full
discharge. If proper discharging of the
component is not done correctly, it will
damage the input terminals of the meter.

4. Insert the DISCHARGED capacitor or capacitive
component into the input sockets or connect
alligator leads into the banana jack input terminals
and connect the clips to the component leads as
illustrated in Figure 11.

96

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

5. Press button until the desired test
frequency is displayed on screen.

6. Press (or for model 878B) button
to select between D factor, Q factor, θ angle, or
ESR measurement for secondary display. (θ and
ESR function for model 879B only).

7. Read the display readings for capacitance
measured values and selected measured values
on secondary display.

Figure 11 - Capacitance Measurement Setup

97

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Resistance Measurement

1. Press down button for one second to turn
on the meter.

2. Press (or for model 878B) button
until “R” is on the screen to select resistance
measurement.

3. Insert resistor or resistive component into the
input sockets or connect alligator leads into the
banana jack input terminals and connect the clips
to the component leads as illustrated in Figure 12.

4. Press button until the desired test
frequency is displayed on screen.

Note: This meter does not provide a DC

resistance measurement of the component. It
uses an AC signal for measurement. For this
reason, some applications or device under test
may not give correct readings if they are designed
for measurement in DC.

5. Read the display readings for resistance

measured values.

98

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Figure 12 - Resistance Measurement Setup

Impedance Measurement (Model 879B only)

1. Press down button for one second to turn
on the meter.

2. Press button until “Z” is on the screen to
select impedance measurement.

99

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com
