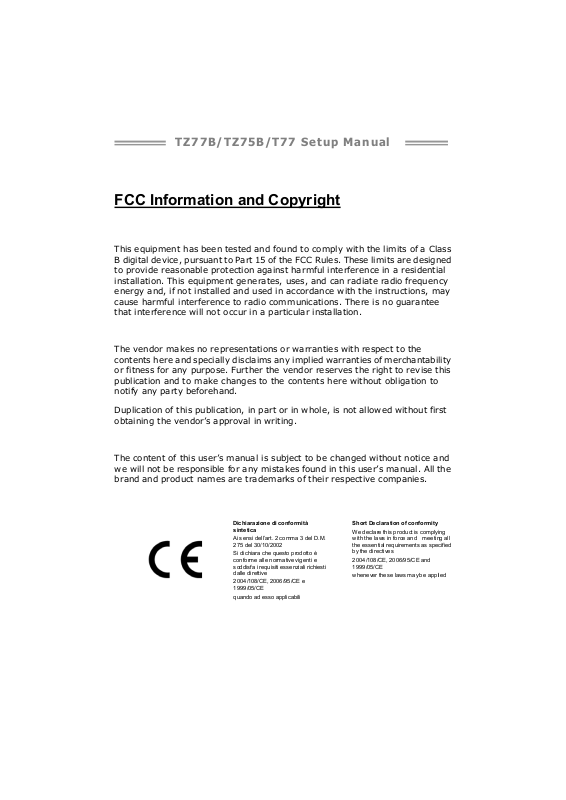

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. There is no guarantee
that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the
contents here and specially disclaims any implied warranties of merchantability
or fitness for any purpose. Further the vendor reserves the right to revise this
publication and to make changes to the contents here without obligation to
notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first
obtaining the vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and
we will not be responsible for any mistakes found in this user’s manual. All the
brand and product names are trademarks of their respective companies.

Dichiar azione di confor mità
sintetica

Ai sensi dell’art. 2 comma 3 del D.M.
275 del 30/10/2002

Si dichiara che questo prodotto è
conforme alle normative vigenti e
soddisfa i requisiti essenziali richiesti
dalle direttive

2004/108/CE, 2006/95/CE e
1999/05/CE

quando ad esso applicabili

Short De clar ation of c onform ity

We declare this product is complying
with the laws in force and meeting all
the essential requirements as specified
by the directives

2004/108/CE, 2006/95/CE and
1999/05/CE

whenever these laws may be applied

Table of Contents

Chapter 1: Introduction ........................................ 1

1.1 Before You Start......................................................................................... 1

1.2 Package Checklist..................................................................................... 1

1.3 Motherboard Features.............................................................................. 2

1.4 Rear Panel Connectors.............................................................................. 4

1.5 Motherboard Layout................................................................................. 5

Chapter 2: Hardware Installation .......................... 6

2.1 Installing Central Processing Unit (CPU) ............................................... 6

2.2 FAN Headers .............................................................................................. 8

2.3 Installing System Memory ........................................................................ 9

2.4 Connectors and Slots................................................................................ 11

Chapter 3: Headers & Jumpers Setup .................. 15

3.1 How to Setup Jumpers............................................................................. 15

3.2 Detail Settings .......................................................................................... 15

Chapter 4: RAID / AHCI Functions....................... 20

4.1 Operating System.................................................................................... 20

4.2 Raid Arrays............................................................................................... 21

4.3 How RAID Works..................................................................................... 22

4.4 Intel Smart Response Technology.......................................................... 26

Chapter 5: T-Series UEFI BIOS & Software........... 27

5.1 T-Series UEFI BIOS ................................................................................... 27

5.2 T-Series Software...................................................................................... 30

Chapter 6: Useful Help ........................................ 40

6.1 Driver Installation Note.......................................................................... 40

6.2 Extra Information.................................................................................... 41

6.3 AMI BIOS Post Code................................................................................. 42

6.4 Troubleshooting....................................................................................... 44

Appendix: SPEC In Other Languages ................... 46

German.................................................................................................................. 46

French .................................................................................................................... 48

Italian..................................................................................................................... 50

Spanish ................................................................................................................... 52

Portuguese ............................................................................................................ 54

Polish...................................................................................................................... 56

Russian ................................................................................................................... 58

Arabic..................................................................................................................... 60

Japane se ................................................................................................................ 62

CHAPTER 1: INTRODUCTION

TZ77B/TZ75B/T77

1.1 B

EFORE YOU START

Thank you for choosing our product. Before you start installing the
motherboard, please make sure you follow the instructions below:

 Prepare a dry and stable working environment with

sufficient lighting.

 Always disconnect the computer from power outlet

before operation.

 Before you take the motherboard out from anti-static

bag, ground yourself properly by touching any safely
grounded appliance, or use grounded wrist strap to
remove the static charge.

 Avoid touching the components on motherboard or the

rear side of the board unless necessary. Hold the board
on the edge, do not try to bend or flex the board.

 Do not leave any unfastened small parts inside the

case after installation. Loose parts will cause short
circuits which may damage the equipment.

 Keep the computer from dangerous area, such as heat

source, humid air and water.

 The operating temperatures of the computer should be

0 to 45 degrees Celsius.

1.2 PACKAGE CHECKLIST

Serial ATA Cable X 4
Rear I/O Panel for ATX Case X 1
User’s Manual X 1
Fully Setup Driver DVD X 1

Note: The package contents may be different due to area or your motherboard version.

1

Motherboard Manual

1.3 MOTHERBOARD FEATURES

Socket 1155

CPU

Chipset

Super I/O

Main

Memory

SATA 2 & 3 Integrated Serial ATA Controller

LAN Realtek RTL 8111E

Sound

Codec

USB3.0

Slots

On Board

Connectors

Int e l Cor e i7 / i5 / i3 / Pent ium / Celer on

processor

Intel Z77 (TZ77B), Intel Z75 (TZ75B)

Intel H77 (T77)

IT8728

Prov ides the most common ly used legacy

Super I/O functionality.

Low Pin Count Interface

DDR3 DIMM Slots x 4

Max Memory Capacity 32GB

Each DIMM supports 512MB/

1GB/2GB/4GB/8GB DDR3

ALC892

Z77 (TZ77B) / Z75 (TZ75B) / H77 (T77) Data transfer rates up to 600 MB/s

PCI slot x2 Supports PCI expansion cards

PCI Express Gen3 x 16 slot x1 Supports PCI-E Gen3 x16 expansion card

PCI Express Gen2 x 16 slot(x4) x1 Supports PCI-E Gen2 x16 expansion card

PCI Express Gen2 x 1 slot x2 Supports PCI-E Gen2 x1 expansion cards

SATA3 Connector x2 Each connector supports 1 SATA3 devices

SATA2 Connector x4 Each connector supports 1 SATA2 devices

Front Panel Connector x1 Supports front panel facilities

Front Audio Connector x1 Supports front panel audio function

CPU Fan Header x1 CPU Fan power supply (with Smart Fan funct ion)

SPEC

Supports Execute D isab le Bit / Enh anced Intel

SpeedStep® / Int el Arch ite cture-64 / Ext ended

Memory 64 Technology / V irtualization Techno logy /

Hyp er Thr ead ing

En viro nment Con tro l init iatives,

Hardware Monitor Controller

Fan Sp eed Contro ller

ITE's "S mart Guard ian " funct ion

Dual Channe l Mode DD R3 memory mod u le

Supports DDR3 1066/1333/1600

Supports DDR3(OC) 1800/2000/2200/2400

Supports DDR3(OC) 1866/2133 (for TZ77B, TZ75B)

Register ed D IMM and ECC DIMM is not supported

Data transfer rates up to 3.0 Gb/s / 6.0 Gb/s.

SATA Version 2.0 / 3.0 specification compliant

RAID 0,1,5,10, SRT (TZ77B, T77) support

10 / 100 Mb/s / 1Gb/s auto negotiation

Half / Full duplex capability

7.1 channels audio out

High Definition Audio

2

System Fan Header x2 System Fan Power supply

Clear CMOS H eader x1 Res tore CMOS dat a to factory def au lt

USB2.0 Connector x2 Each connector supports 2 front panel USB2.0 ports

USB3.0 Connector x1 Each connector supports 2 front panel USB3.0 ports

Consumer IR Connector x1 Supports infrared function

Serial Port Connector x1 Connects to RS-232 Port

S/PD IF out Connector x1 Supports digital audio out function

Power Connector (24pin) x1 Connects to Power supply

Power Connector (8pin) x1 Connects to Power supply

PS/2 Keyboard x1

HDMI Port x1

VGA Port x1

Back Panel

I/O

Board Size

OS Support Windows XP / Vista / 7

DVI Port x1

LAN port x1

USB2.0 Port x4

USB3.0 Port x2

Audio Jack x6

220 (W) x 295 (L) mm ATX

TZ77B/TZ75B/T77

SPEC

Connects to PS/2 Keyboard

Connects to HDMI cable

Connect to D-SUB monitor

Connect to DVI monitor

Connect to RJ-45 ethernet cable

Connect to USB2.0 devices

Connect to USB3.0 devices

Provide Audio-In/Out and Mic. connection

Biostar reserves the right to add or remove support

for any OS with or without notice

3

Motherboard Manual

1.4 REAR PANEL CONNECTORS

PS/2

Keyboard

VGA

LAN

USB2.0X2

NOTE: USB3.0 ports (only supported by Windows 7) are backward compatible with

USB2.0/USB1.X de vices.

NOTE: Maximum resolution:

HDMI: 1920 x 1200 @60Hz, compliant with HDMI 1.4a
DVI: 1920 x 1200 @60Hz
VGA: 2048 x 1536 @75Hz

NOTE: This motherboard supports dual video output:

HDMI

Display Devices

VGA

DVI-D

Center

Rear

Side

VGA

X A A

USB3.0X2 USB2.0X2

Line I n

Line Out

Mic In

DVI-D HDMI

DVI-D A X S1, C, E

HDMI A S1, C, E X

z A = Single Pipe Single Display, Intel® Dual Display Clone (Only 24-bpp), or

Extended Desktop Mode

z C = Clone Mode
z E = Extended Desktop Mode

1

z S

= Single Pipe Single Display With One Display Device Disabled

z X = Unsupported / Note Applicable

4

1.5 MOTHERBOARD LAYOUT

TZ77B/TZ75B/T77

USB_KBMS1

HDMI1

DVI1

VGA1

USB3_0

RJ45USB1

AUDIO1

CODEC

F_AUDIO1

ATXPWR2

SYS_FAN2

PEX1_1

Socket 1155

PEX16_1

LAN

JFRONT_USB3_1

CPU1

CPU_FAN1

Intel

Z77/Z75

H77

DDR3 _A1

DDR3 _A2

DB2DR3 _

DDR3 _B1

ATXPWR1

JCMOS1

BIOS

JSPDIFOUT1

CIR1

Note: represents the 1■

PEX1_2

PEX16_2

PCI1

PCI2

J_COM1

st

pin.

Super

I/O

F_USB1F_USB2

SYS_FAN1

SATA1
SATA3

SATA6 SATA5

SW_PWR1

PAN E L1

SATA2
SATA4

BAT1

SW_RST1

5

Motherboard Manual

CHAPTER 2: HARDWARE INSTALLATION

2.1 I

NSTALLING CENTRAL PROCESSING UNIT (CPU)

Notice:

1. Remove Pin Cap before installation, and make good preservation for future use.
When the CPU is removed, cover the Pin Cap on the empty socket to ensure pin
legs won’t be damaged.

2. The motherboard might equip with two different types of pin cap. Please refer
below instruction to remove the pin cap.

Step 1: Pull the socket locking lever out from the socket and then raise

the lever up.

Step 2: Remove the Pin Cap.

6

TZ77B/TZ75B/T77

Step 3: Hold processor with your thumb and index fingers, oriented as

shown. Align the notches with the socket. Lower the processor
straight down without tilting or sliding the processor in the socket.

Step 4: Close the load plate. Pressing down on the load plate, close and

engage the socket lever.

Step 5: Put the CPU Fan and heatsink assembly on the CPU and buckle it

on the retention frame. Connect the CPU FAN power cable into
the CPU_FAN1 to complete the installation.

7

Motherboard Manual

2.2 FAN HEADERS

These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different according to the fan manufact urer.
Connect the fan cable to the connector while matching the black wire to
pin#1.

CPU_FAN1: CPU Fan Header

Pin

Assignment

1 Ground

41

2 +12V
3

FAN RPM r at e
sense

4 Smart Fan

Control

SYS_FAN1/SYS_FAN2: System Fan Headers

Pin

Assignment

1 Ground

SYS_FAN2

2 +12V
3 FAN RPM rate

sense

13

SYS_FAN1

Note:

The SYS_FAN1/SYS_FAN2 support 3-pin head connectors; the CPU_FAN1 supports
4-pin head connector. When connecting with wires onto connectors, please note that the
red wire is the positive a nd should be connected to pin#2, and the black wire is Ground
and should be co nnected to GND.

8

TZ77B/TZ75B/T77

2.3 INSTALLING SYSTEM MEMORY

A. Memory Modules

DDR3_A1

DDR3_B1

DDR3_A2

DDR3_B2

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a
DIMM on the slot such that the notch on the DIMM matches the
break on the Slot.

2. Insert the DIMM vertically and firmly into the slot until the retaining
chip snap back in place and the DIMM is properly seated.

Note:

If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

9

Motherboard Manual

B. Memory Capacity

DIMM Socket

Location

DDR3_A1 512MB/1GB/2GB/4GB/8GB

DDR3_A2 512MB/1GB/2GB/4GB/8GB

DDR3_B1 512MB/1GB/2GB/4GB/8GB

DDR3_B2 512MB/1GB/2GB/4GB/8GB

DDR3 Module

C. Dual Channel Memory Installation

Please refer to the following requirements to activate Dual Channel function:

Install memory module of the same density in pairs, shown in the table.

Dual Channel Status DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2

Enabled O X O X

Enabled X O X O

Enabled O O O O

Enabled O X X O

Enabled X O O X

(O means memory installed, X means memory not installed.)

The DRAM bus width of the memory module must be the same (x8 or
x16)

Total M emory

Size

Max is 32GB.

10

2.4 CONNECTORS AND SLOTS

SATA1/SATA2: Serial ATA3 Connectors

The motherboard has a PCI to SATA Controller with 2 channels SATA interface,
it satisfies the SATA 3.0 spec and with transfer rate of 6.0Gb/s.

SATA3 ~ 6: Serial ATA2 Connectors

The motherboard has a PCI to SATA Controller with 4 channels SATA2 interface,
it satisfies the SATA 2.0 spec and with transfer rate of 3.0Gb/s.

S ATA 1 SATA 2

147

S ATA 3 SATA 4
S ATA 5 SATA 6

TZ77B/TZ75B/T77

Pin

Assignment

1 Ground
2 TX+
3 TX­4 Ground
5 RX­6 RX+
7 Ground

Pin

Assignment

1 Ground
2 TX+
3 TX­4 Ground
5 RX­6 RX+
7 Ground

147

11

Motherboard Manual

PEX16_1: PCI-Express Gen3 x16 Slot

- PCI-Express 3.0 compliant.

- Maximum theoretical realized bandwidth of 16GB/s simultaneously per

direction, for an aggregate of 32GB/s totally.

- PCI-E 3.0 is supported by Core i7-3xxx / i5-3xxx CPU.

PEX16_2: PCI-Express Gen2 x4 Slot

- PCI-Express 2.0 compliant.

- Maximum theoretical realized bandwidth of 2GB/s simultaneously per

direction, for an aggregate of 4GB/s totally.

PEX1_1/PEX1_2: PCI-Express Gen2 x1 Slot

- PCI-Express 2.0 compliant.

- Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total.

PEX16_1

PEX1_1

PEX16_2

12

PEX1_2

TZ77B/TZ75B/T77

PCI1/PCI2: Peripheral Component Inte rconnect Slots

This motherboard is equipped with 2 standard PCI slots. PCI stands for
Peripheral Component Interconnect, and it is a bus standard for expansion
cards. This PCI slot is designated as 32 bits.

PCI1

ATXP W R2: AT X P ower Source Connectors

These connectors provide +12V to CPU power circuit. If the CPU power plug is

4-pin, please plug it into Pin 1-2-5-6 of ATXPWR2.

PCI2

48

5

1

Pin

Assignment

1 +12V
2 +12V
3 +12V
4 +12V
5 Ground
6 Ground
7 Ground
8 Ground

13

Motherboard Manual

ATXP W R1: AT X P ower Source Connector

This connector allows user to connect 24-pin power connector on the AT X
power supply.

12

1

Pin Assignment Pin Assignment

13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground 3 Ground
16 PS_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 NC 8 PW_OK
21 +5V 9 Standby Voltage+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V

24

13

Note:

Before you power on the system, please make sure that ATXPWR1 and ATXPWR2
connectors have been we ll plugged-in.

14

TZ77B/TZ75B/T77

CHAPTER 3: HEADERS & JUMPERS SETUP

3.1 H

OW TO SETUP JUMPERS

The illustration shows how to set up jumpers. When the jumper cap is
placed on pins, the jumper is “close”, if not, that means the jumper is
“open”.

Pin opened Pin closed Pin1-2 closed

3.2 D

PANEL1: Front Panel Header

ETAIL SETTINGS

This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and
speaker connection. It allows user to connect the PC case’s front panel switch
functions.

POW_LED

9
1

SPK

++

HLED

+

On/Off

-

-

RST

16

8

Pin Assignment Function Pin Assignment Function

1 +5V 9 N/A
2 N/A 10 N/A
3 N/ A 11 N/A N/A
4 Speaker
5 HDD LED (+) 13 Power LED (+)
6 HDD LED (-)
7 Ground 15 Power button
8 Reset control

Speaker
Connector

Hard drive
LED

Reset button

12 Power LED (+)

14 Power LED (-)

16 Ground

N/A

Power LED

Power-on button

15

Motherboard Manual

F_USB1/F_USB2: Headers for USB 2.0 Ports at Front Panel

These headers allow user to connect additional USB cable on the PC front panel,
and also can be connected with internal USB devices, like USB card reader.

F_ USB1USB2 F_

2

10

1

9

JFRONT_USB3_1: Header for USB 3.0 Ports at Front Panel

This header allows user to connect additional USB cable on the PC front panel,
and also can be connected with internal USB devices, like USB card reader.

Assignment

Pin

1 +5V (fused)
2 +5V (fused)
3 USB­4 USB­5 USB+
6 USB+
7 Ground
8 Ground
9 Key

10 NC

16

1

20 11

10

Pin Assignment Pin Assignment

1 VBUS0 11 D2+
2 SSRX1- 12 D2­3 SSRX1+ 13 Ground

4 Ground 14 SSTX2+
5 SSTX1- 15 SSTX2-

6 SSTX1+ 16 Ground
7 Ground 17 SSRX2+
8 D1- 18 SSRX2-

9 D1+ 19 VBUS1

10 ID 20 Key

NOTE: USB3.0 is only supported by Windows 7.

TZ77B/TZ75B/T77

F_AUDIO1: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC front
panel. This header supports HD and AC’97 audio front panel connector.

Pin Assignment

1 Mic Left in
2 Ground
3 Mic Right in

910

4 GPIO
5 Right line in
6 Jack Sense
7 Front Sense

12

8 Key
9 Left line in

10 Jack Sense

JSPDIFOUT1: Digital Audio-out Connector

This connector allows user to connect the PCI bracket SPDIF output header.

Pin

Assignment

1 +5V
2 SPDIF_OUT
3 Ground

13

CIR1: Consumer IR Connector

This header is for infrared remote control and communication.

6

125

Pin Assignment

1 IrDA serial input
2 Ground
3 Ground
4 Key
5 IrDA serial output
6 IR Power

17

Motherboard Manual

JCMOS1: Clear CMOS Header

Placing the jumper on pin2-3 allows user to restore the BIOS safe setting and
the CMOS data. Please carefully follow the procedures to avoid damaging the
motherboard.

※ Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to “Pin 2-3 close” .

3. Wait for five seconds.

4. Set the jumper to “Pin 1-2 close” .

5. Power on the AC.

6. Reset your desired password or clear the CMOS data.

13

13

Pin 1-2 Close:

Normal Operation (default).

Pin 2-3 Close:

Clear CMOS data.

13

J_COM1: Serial Port Connector

The motherboard has a Serial Port Connector for connecting RS-232 Port.

18

210

19

Pin

Assignment

1 Carrier detect
2 Received data
3 Transmitted data
4 Data terminal ready
5 Signal ground
6 Data set ready
7 Request to send
8 Clear to send
9 Ring indicator

10 NC

BIOS POST Code/CPU Temperature Indicator

This indicator will show POST code while booting. After the booting sequence,
it will show current CPU temperature through hexadecimal figure. Please

refer to Chapter 6.3 for all the BIOS POST codes.

On-Board Buttons

There are 2 on-board buttons.

TZ77B/TZ75B/T77

SW_RST1: Reset button.
SW_PWR1: Power Switch button.

SW_RS T1

SW_PWR1

19

Motherboard Manual

CHAPTER 4: RAID / AHCI FUNCTIONS

4.1 O

PERATING SYSTEM

SATA

CHIP

Intel Z77/Z75/H77
SATA1/SATA2/
SATA3/SATA4/

SATA5/SATA6
Intel Z77/Z75/H77

SATA1/SATA2/
SATA3/SATA4/

SATA5/SATA6

Controller

Configuration

AHCI Windows XP SP2 (32 and 64 bit)

Windows Vista SP2 (32 and 64 bit)
Windows 7 (32 and 64 bit)

RAID Windows XP SP2 (32 and 64 bit)

Windows Vista SP2 (32 and 64 bit)
Windows 7 (32 and 64 bit)

Supporting OS

The 'F6 Method'+ to enable RAID / AHCI Driver when installing Windows XP

1. Before you start Windows installation, copy the proper files for the Windows
version on USB floppy.

Windows XP 32 Windows XP 64

SATA1/SATA2/
SATA3/SATA4/
SATA5/SATA6

AHCI/RAID Driver
Path

x:\Driver\Ch ipset\Intel\SATA\7
\F6flpy32\Driver\

x:\Driver\Ch ipset\Intel\SATA\7
\F6flpy64\Driver\

2. When the operating system installation starts, follow Windows indication by

pressing F6 to load the driver.

20

TZ77B/TZ75B/T77

Enable RAID / AHCI Driver when installing Windows 7/Vista

1. Before you start Windows installation, copy the proper files for the Windows
version to any USB storage.

Windows 7 32 Windows 7 64 Windows V ista 32 Windo ws Vista 64

SATA1/SATA2/
SATA3/SATA4/
SATA5/SATA6

AHCI/RAID
Driver Path

x:\Driver\Chipset\
Intel\S ATA\7\F6flpy

32\Driver\

x:\Driver\Chipset\
Intel\S ATA\7\F6flpy

64\Driver\

x:\Driver\Chipset\
Intel\S ATA\7\F6flpy

32\Driver\

x:\Driver\Chipset\
Intel\S ATA\7\F6flpy

64\Driver\

2. Follow Windows 7 / Vista indication to load the driver in the installation process.

4.2 R

AID ARRAYS

CONNECTOR BY CHIP SPEED Support

SATA1/SATA2 Intel Z77/Z75/H77 6 Gb/s. RAID 0 / 1 / 5 / 10

SATA3/SATA4/SATA5/SATA6 Intel Z77/Z75/H77 3 Gb/s. RAID 0 / 1 / 5 / 10

RAID supports the following types of RAID arrays:

RAID 0: RAID 0 defines a disk striping scheme that improves disk read and write

times for many applications.

RAID 1: RAID 1 defines techniques for mirroring data.
RAID 10: RAID 10 combines the techniques used in RAID 0 and RAID 1.
RAID 5: RAID 5 provides fault tolerance and better utilization of disk capacity.

21

Motherboard Manual

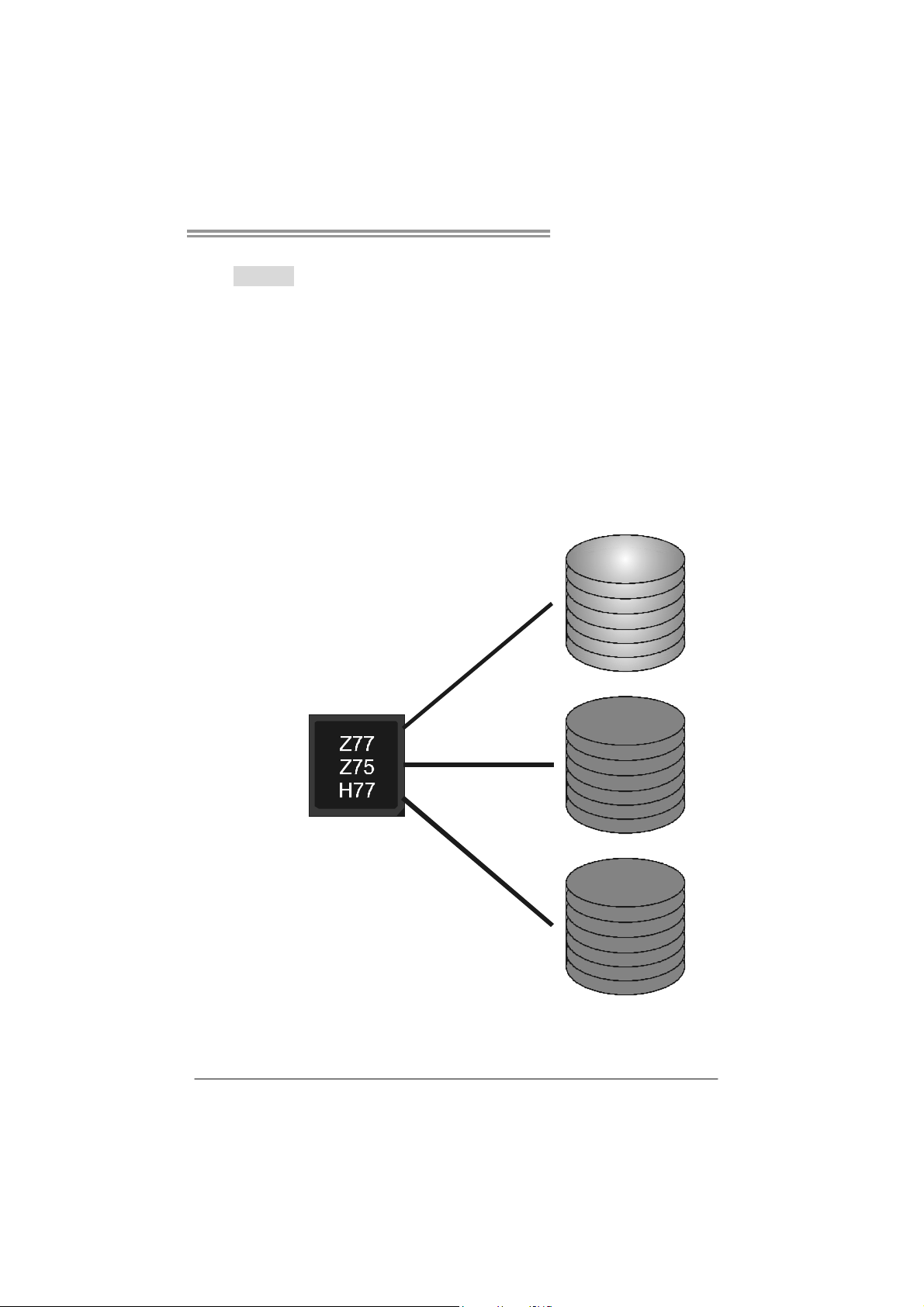

4.3 HOW RAID WORKS

RAID 0:

The controller “stripes” data across multiple drives in a RAID 0 array system. It breaks
up a lar ge file into smal ler blocks and pe rforms d isk reads a nd write s a cross multiple
drives in parallel. The size of each block is determined by the stripe size parameter,
which you set durin g the creation of the RAID set based on the system environment. This
technique reduces overall disk access time and offers high bandwidth.

Features and Benefits

 Drives: Minimum 2, and maximum is up to 6 or 8. Depending on the

platform.

 Uses: Intended for non-critical data requiring high data throughput, or any

environment that does not require fault tolerance.

 Benefits: provides increased data throughput, especially for large files. No

capacity loss penalty for parity.

 Drawbacks: Does not deliver any fault tolerance. If any drive in the array

fails, all data is lost.

 Fault Tolerance: No.

22

Block 1
Blo ck 3
Blo ck 5

Block 2
Blo ck 4
Blo ck 6

TZ77B/TZ75B/T77

RAID 1:

Every read and write is actua lly carried out in parallel across 2 disk drives in a RAID 1
array system. The mirrored (backup) copy of the data can reside on the same disk or on a
second redundant drive in the array. RAID 1 provides a hot-standby copy of data if the
active volume or drive is corrupted or becomes unavailab le because of a hardware failure.

RAID techniques can be applied for high-availability solut ions, or as a form of automatic
backup that eliminates tedious manual backups to more expensive and less reliable
media.

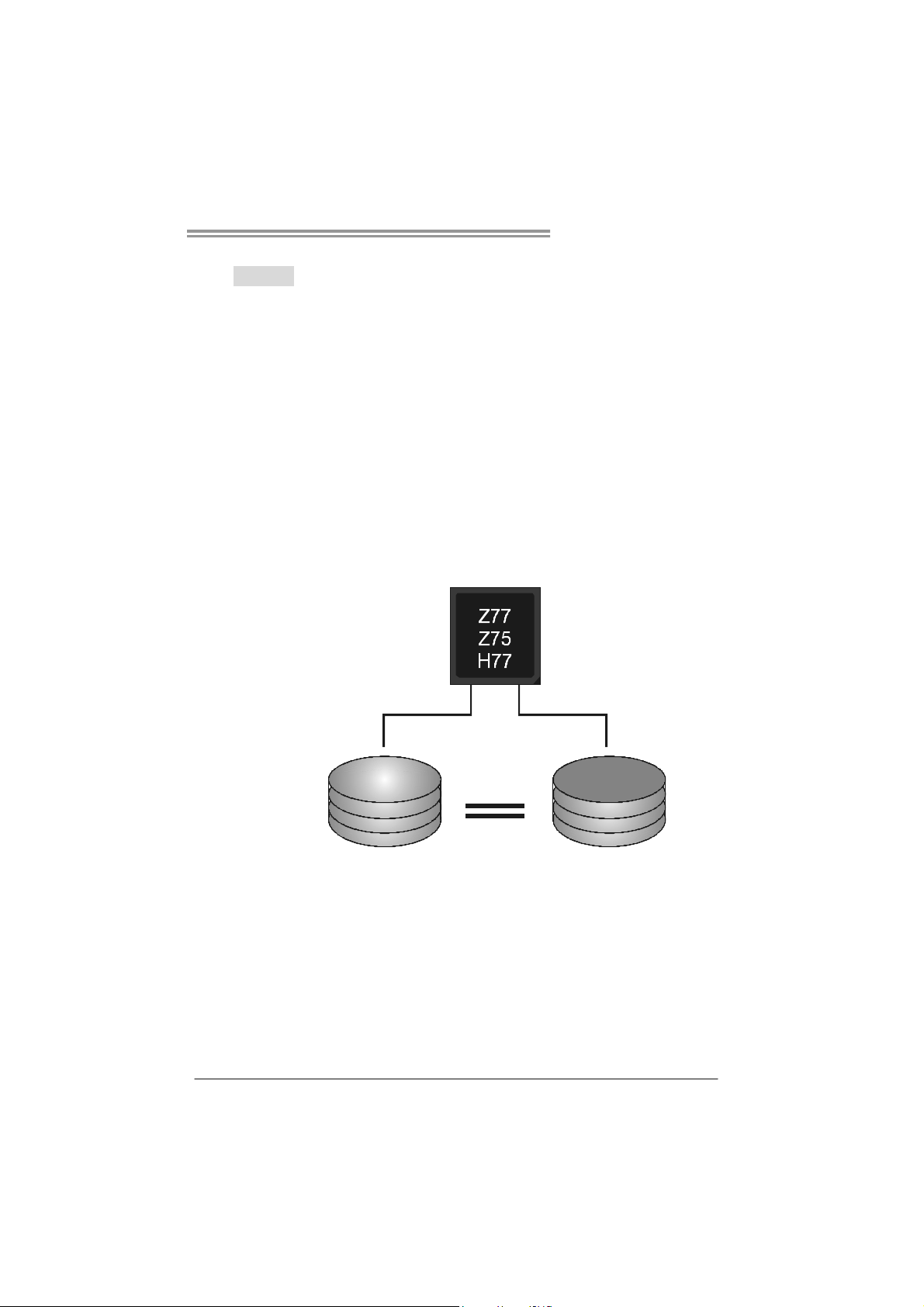

Features and Benefits

 Drives: Minimum 2, and maximum is 2.
 Uses: RAID 1 is ideal for small databases or any other application that

requires fault tolerance and minimal capacity.

 Benefits: Provides 100% data redundancy. Should one drive fail, the

controller switches to the other drive.

 Drawbacks: Requires 2 drives for the storage space of one drive.

Performance is impaired during drive rebuilds.

 Fault Tolerance: Ye s .

Block 1
Block 2
Block 3

Block 1
Block 2
Block 3

23

Motherboard Manual

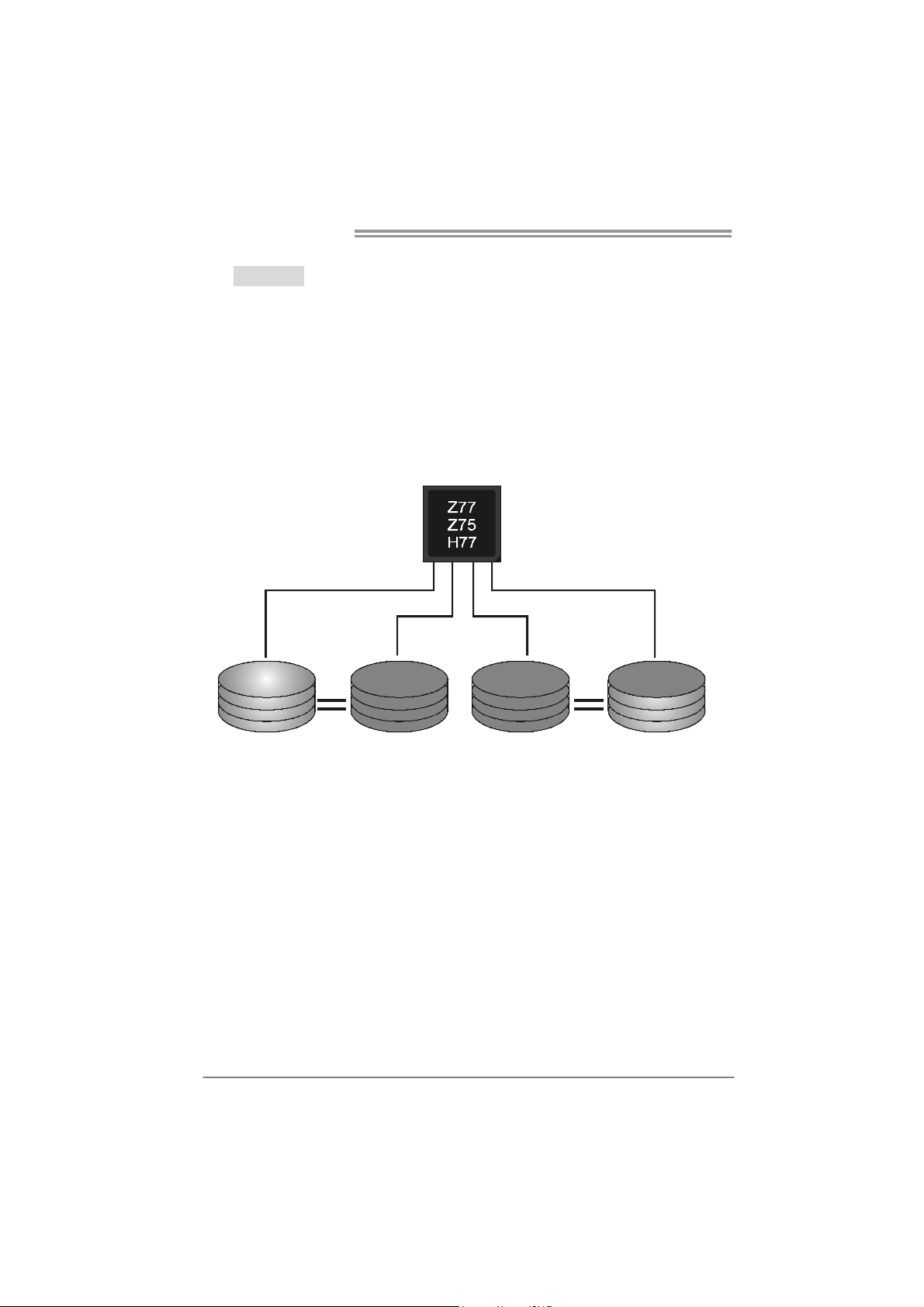

RAID 10:

RAID 1 drives can be stripped using RAID 0 techniques. Resulting in a RAID 10
solution for improved resiliency, performance and rebuild performance.

Features and Benefits

 Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.
 Benefits: Optimizes for both fault tolerance and performance, allowing for

automatic redundancy. May be si multaneously used with other RAID levels
in an array, and allows for spare disks.

 Drawbacks: Requires twice the available disk space for data redundancy,

the same as RAID level 1.

 Fault Tolerance: Ye s .

24

Block 1
Block 3
Block 5

Block 1
Block 3
Block 5

Block 2
Block 4
Block 6

Block 2
Block 4
Block 6

TZ77B/TZ75B/T77

RAID 5:

RAID 5 stripes both data and parity information across three or more drives. It writes
data and parity blocks across all the drives in the array. Fault tolerance is maintained by
ensuring that the parity information for any given block of data is placed on a different
drive from those used to store the data itself.

Features and Benefits

 Drives: Mi nimum 3.
 Uses: RAID 5 is recommended for transaction processing and general

purpose service.

 Benefits: An ideal combination of good performance, good fault tolerance,

and high capacity and storage efficiency.

 Drawbacks: Individual block data transfer rate same as a single disk. Write

performance can be CPU intensive.

 Fault Tolerance: Yes.

Disk 1

DATA 1

DATA 3
PA RI T Y

DATA 7
DATA 9
PA RI T Y

Disk 2

DATA 2

PA RI T Y

DATA 5

DATA 8
PA RI T Y
DATA 11

Disk 3

PA RI T Y

DATA 4

DATA 6

PA RI T Y

DATA 10
DATA 12

25

Motherboard Manual

4.4 INTEL SMART RESPONSE TECHNOLOGY

With Intel(R) Smart Response Technology, the performance of RAID with an Intel
SSD drive can be improved better. T his function is only for TZ77B and T77.

Installing Smart Response Technology

1. Install RAID drives (RAID 0, 1, 5) and an Intel SSD.

2. Activate RAID mode from BIOS, and install operating system.

3. Insert the Setup DVD to the optical drive, and Install all drivers (including
Intel(R) Smart Response Tec hnology Driver). After all processes finish,
reboot the system.

4. Intel(R) SRT service icon will show in notification area. Double click it to
open the main windows.

5. Select “Accelerate” page, and make sure the status of accelerated device
has been enabled accelerated.

26

TZ77B/TZ75B/T77

p

CHAPTER 5: T-SERIES UEFI BIOS & SOFTWARE

5.1 T-S

ERIES UEFI

BIOS

T-Series UEFI BIOS Features

Overclocking Navigator Engine (O.N.E.)

Self Recovery System (S.R.S)

Smart Fan Function

BIO-Flasher: Update UEFI BIOS file from USB Flash Drive

!! WARNING !!

For better system performance, the UEFI BIOS firmware is being
continuously updated. The UEFI BIOS information described below
in this manual is for your reference only and the actual UEFI BIOS
information and settings on board may be different from this
manual. For further information of setting up the UEFI BIOS,

lease refer to the UEFI BIOS Manual in the Setup DVD.

A. Overclocking Navigator Engine (O.N.E.)

O.N.E provides 4 systems allowing users to customize personal overclock
settings: Manual CPU System, Manual Memory System, Manual PWM
System, and Manual Voltage System.

Notice:

Not all types of Intel CPU perform above overclock setting ideally; the difference will be based on the
selected CPU model.

27

Motherboard Manual

NOTE

Overclock is an optional process, but not a “must-do” process; it is not
recommended for inexperienced users. Therefore, we will not be responsible
for any hardware damage which may be caused by overclocking. We also
would not guarantee any overclocking performance.

B. Self Recovery System (S.R.S.)

This function can’t be seen under UEFI BIOS setup, and is always on whenever
the system starts up.

However, it can prevent system hang-up due to inappropriate overclock
actions.
When the system hangs up, S.R.S. will automatically log in the default UEFI
BIOS setting, and all overclock settings will be re-configured.

C. Smart Fan Function

Smart Fan Function is under “Smart Fan Control” in “Advanced Menu”.
This is a brilliant feature to control CPU/System Temperature vs. Fan speed.
When enabling Smart Fan function, Fan speed is controlled automatically by

CPU/System temperature.
This function will protect CPU/System from overheat problem and maintain the

system temperature at a safe level.

28

↓

TZ77B/TZ75B/T77

CPU Smart FAN

This item allows you to control the CPU Smart Fan function.

CPU FAN Calibrate

Press [ENTER] to calibrate CPU FAN.

Control Mode

This item provides several operation modes of the fan.

Fan Ctrl OFF(℃)

When CPU temperature is lower than this value, the CPU fan will keep
lowest RPM. The range is from 0~127, with an interval of 1.

Fan Ctrl On(℃)

When CPU temperature is higher than this value, the CPU fan controller
will turn on. The range is from 0~127, with an interval of 1.

Fan Ctrl Start Value

This item sets CPU FAN Start Speed Value. The range is from 0~127, with
an interval of 1.

Fan Ctrl Sensitive

The bigger the numeral is, the higher the FAN speed is. T he range is from
0~127, with an interval of 1.

29

Motherboard Manual

5.2 T-SERIES SOFTWARE

Installing T-Series Software

1. Insert the Setup DVD to the optical drive. The driver installation

program would appear if the Auto-run function has been enabled.

2. Select Software Installation, and then click on the respective software

title.

3. Follow the on-screen instructions to complete the installation.

Launching T-Series Software

After the installation process is completed, you will see the software icon
showing on the desktop. Double-click the icon to launch it.

Due to the H77 chipset limitation, the most overclocking functions will
not be available for T77 motherboard.

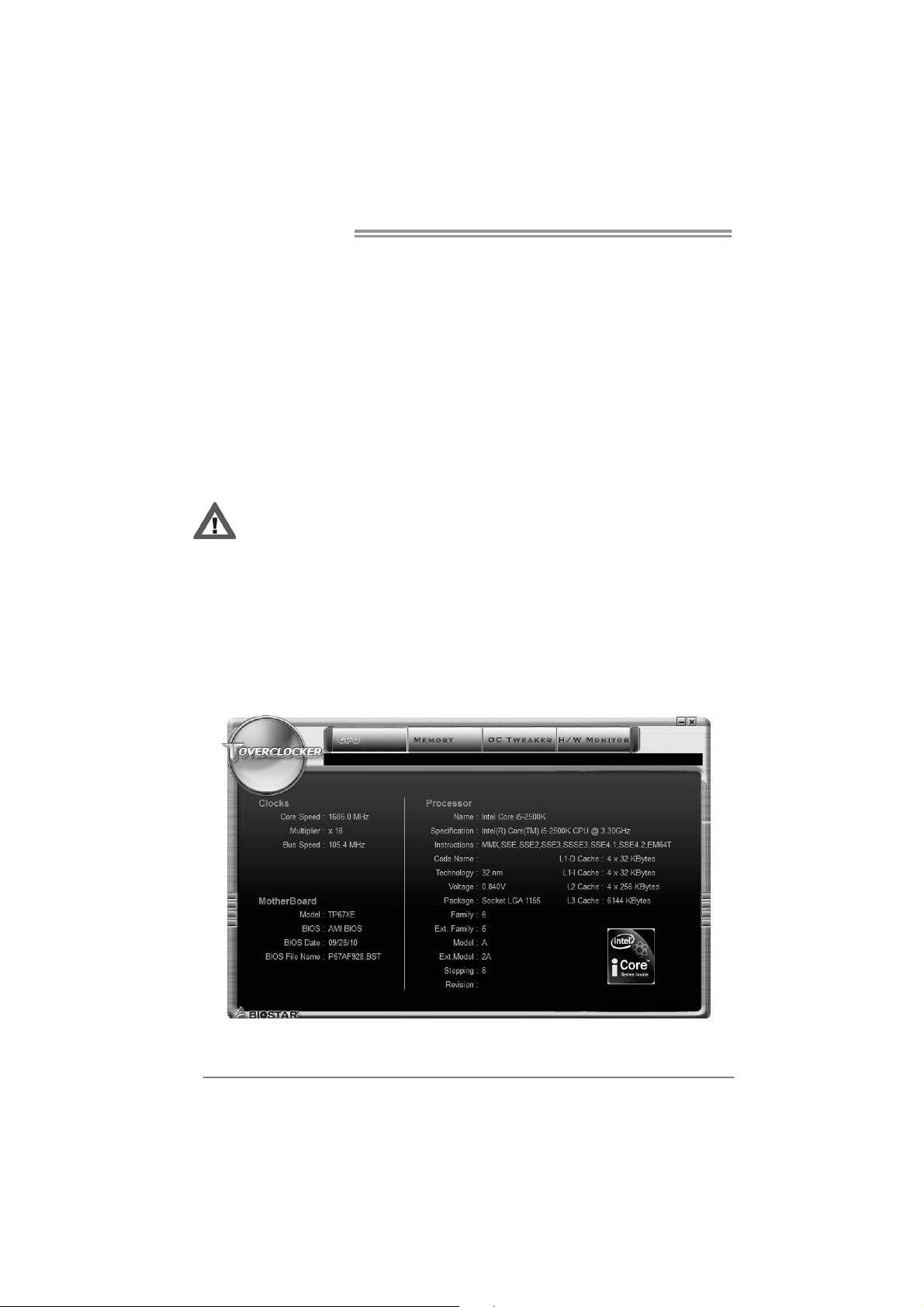

TOverclocker

TOverclocker presents a simple Windows-based system performance
enhancement and manageability utility. It features several powerful and easy
to use tools such as Overclocking for enhancing system performance, also for
special enhancement on CPU and Memory. Smart-Fan management and PC
health are for monitoring system status. This utility also allows you to make
overclocking profiles saving unlimitedly, and pre-set OC modes are for easy
OC. (The illustration below is for reference only)

30

TZ77B/TZ75B/T77

The CPU tab provides information on the CPU and motherboard.

The Memory tab provides information on the memory module(s).

You can select memory mod ule on a specific slot to see its information.

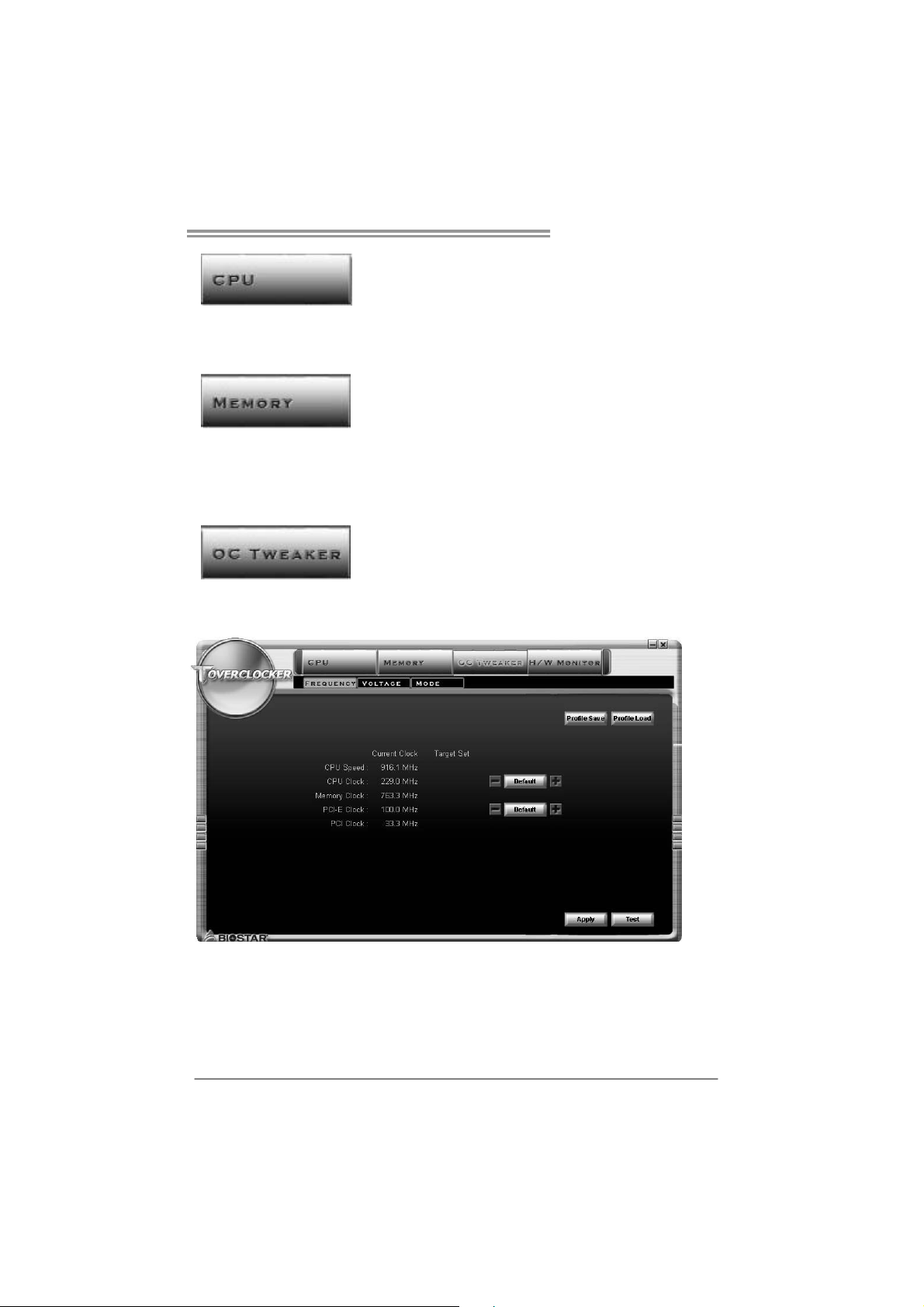

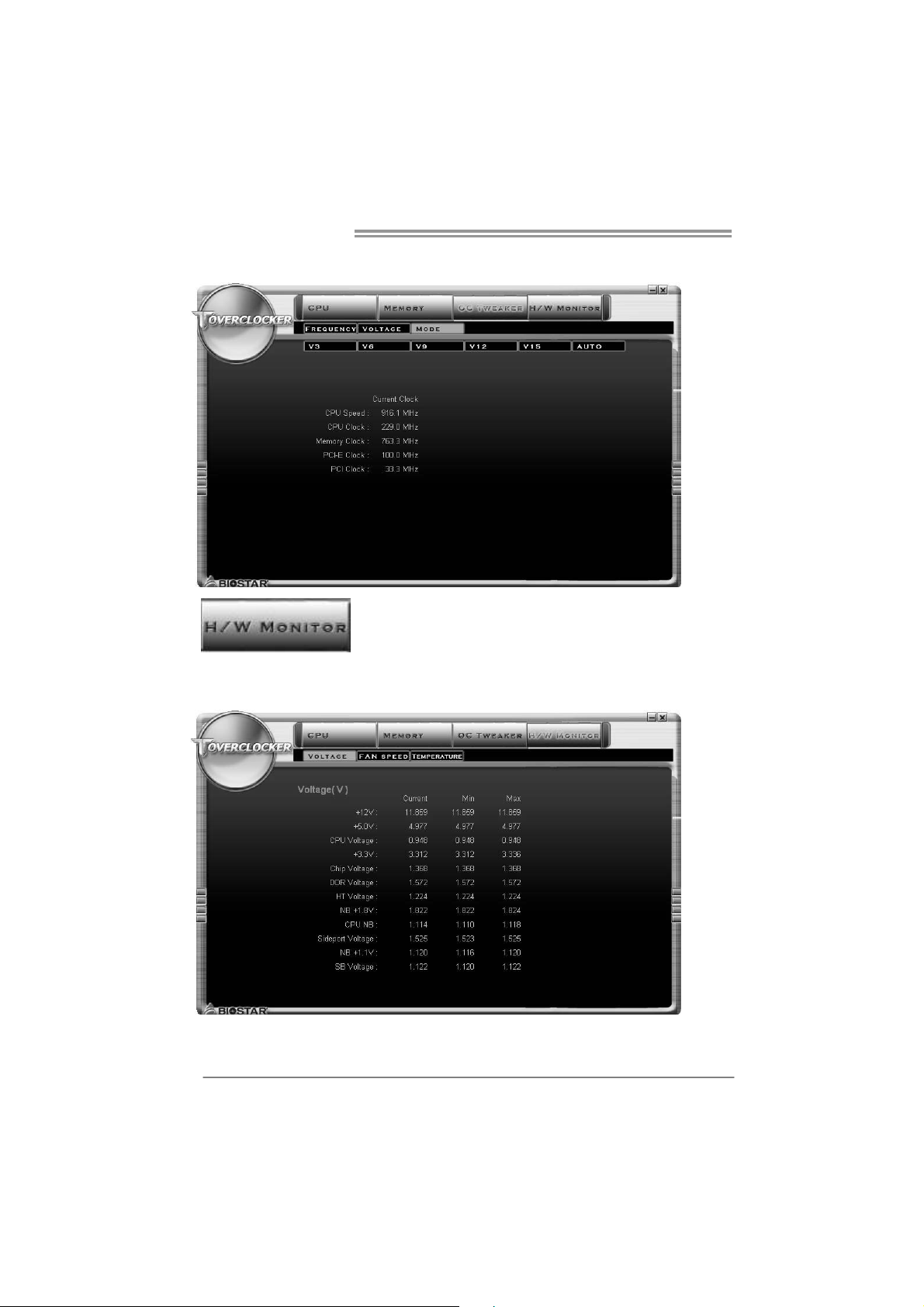

The OC Tweaker tab allows you to change system clock settings and voltages
settings. It also provides six pre-set modes for you:

31

Motherboard Manual

3 Pre-set Modes: V6, V12, AUTO for different overclocking experience.

The HW Monitor tab allows you to monitor hardware voltage, fan speed, and
temperature. Besides, you also can set related values for CPU Smart Fan.

32

TZ77B/TZ75B/T77

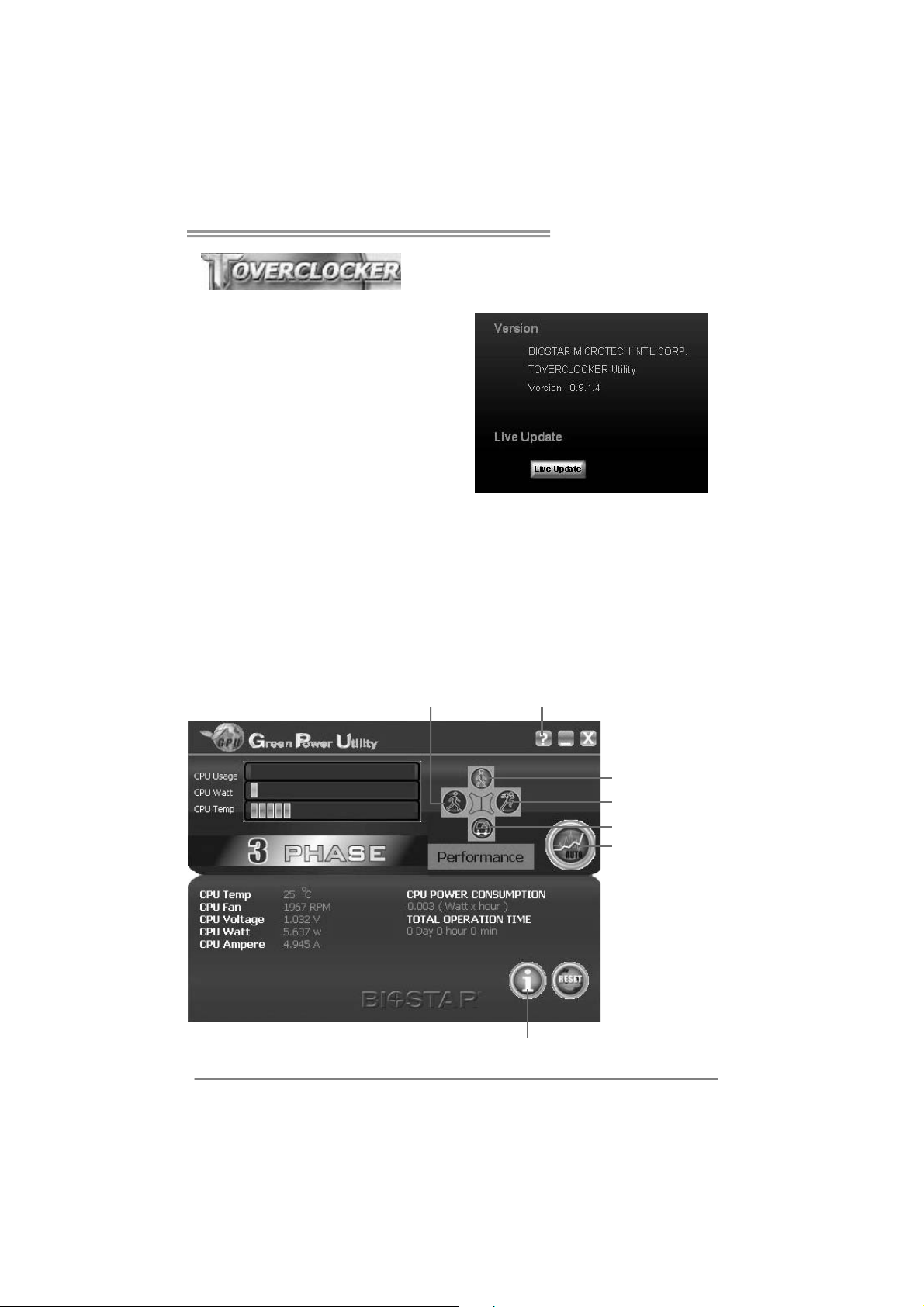

Pressing TOVERCLOCKER logo
displays information about
manufacturer and software version.
You can updat e cur r e nt version by
clicking the button “Live Update.”

Green Power II Utility

BIOSTAR G.P.U II (Green Power Utility) is a new function. The utility enhances
energy efficiency by disabling extra phases while CPU is on light loading; it
features 4+1 power phases, current power saving, and toal power saving. This
tool integrates a friendly GUI to monitor your CPU Usage, CPU Watt, and CPU
Temperature. Moreover, it optimizes power saving and best power efficiency
on your system. (The illustration below is for reference only)

Display manufacturer &

Typical Mode

software version information

Performance
Mode

Medium Mode

Maxi-Energy Mode

Auto Phase Mode

Re set Time &
Consum ptio n

Display CPU
information

33

Motherboard Manual

G.P.U Mode Setting

This utility provides five modes, upon your requirements, to improve
system performance or to save power consumption.

Note: Even if the modes saving more power consumption are chosen, the
system still can keep excellent performance.

 Auto Phase Mode

System switches the mode automatically according to current system
loading condition.

 Performance Mode

This is the mode saving power consumption most. Least energy will
be used in the system.

 Typical Mode

Compared with that in Performance Mode, energy consumption in this
mode is a little bit more.

 Medium Mode

This is the standard system power saving mode.

 Maxi-Energy Mode

This is the best system performance mode.

34

TZ77B/TZ75B/T77

e

eHot-Line (Optional)

eHot-Line is a convenient utility that helps you to contact with our
Tech-Support system. This utility will collect the system information which is
useful for analyzing the problem you may have encountered, and then send
these information to our tech-support department to help you fix the problem.

Before you use this uti lity, please set Outlook E xpress as your default e-mail client application progra m.

rep resents import ant

*

information that you
must provi de. Withou t
this informat ion, you may
not be able to s end out
the mail.

This block will show
the infor mation which
would be collected in
the mail.

Send the mail ou t.

Describe co ndition

*

of your syst em.

Save these information to a .txt fil

Exit this dialog.

Select your area or

*

the area clos e to yo u.

Provid e the e-mail
addres s that you woul d
like to send the copy to.

Provide t he name of

*

the memory module
manufactu rer.

Provid e the name of
the power supply
manufac turer and the
model no .

After filling up this information, click “Send”
to send the mail out. A warning dialog would
appear asking for your confirmation; click

“Send” to confirm or “Do Not Send” to cancel.

If you want to save this information to a .txt file, click “Save As…” and then you
will see a saving dialog appears asking you to enter file name.

35

Motherboard Manual

Enter the file name and then click
“Save”. Your system information

will be saved to a .txt file.

We will not share customer’s data with any other third parties,
so please feel free to provide your system information while using
eHot-Line service.

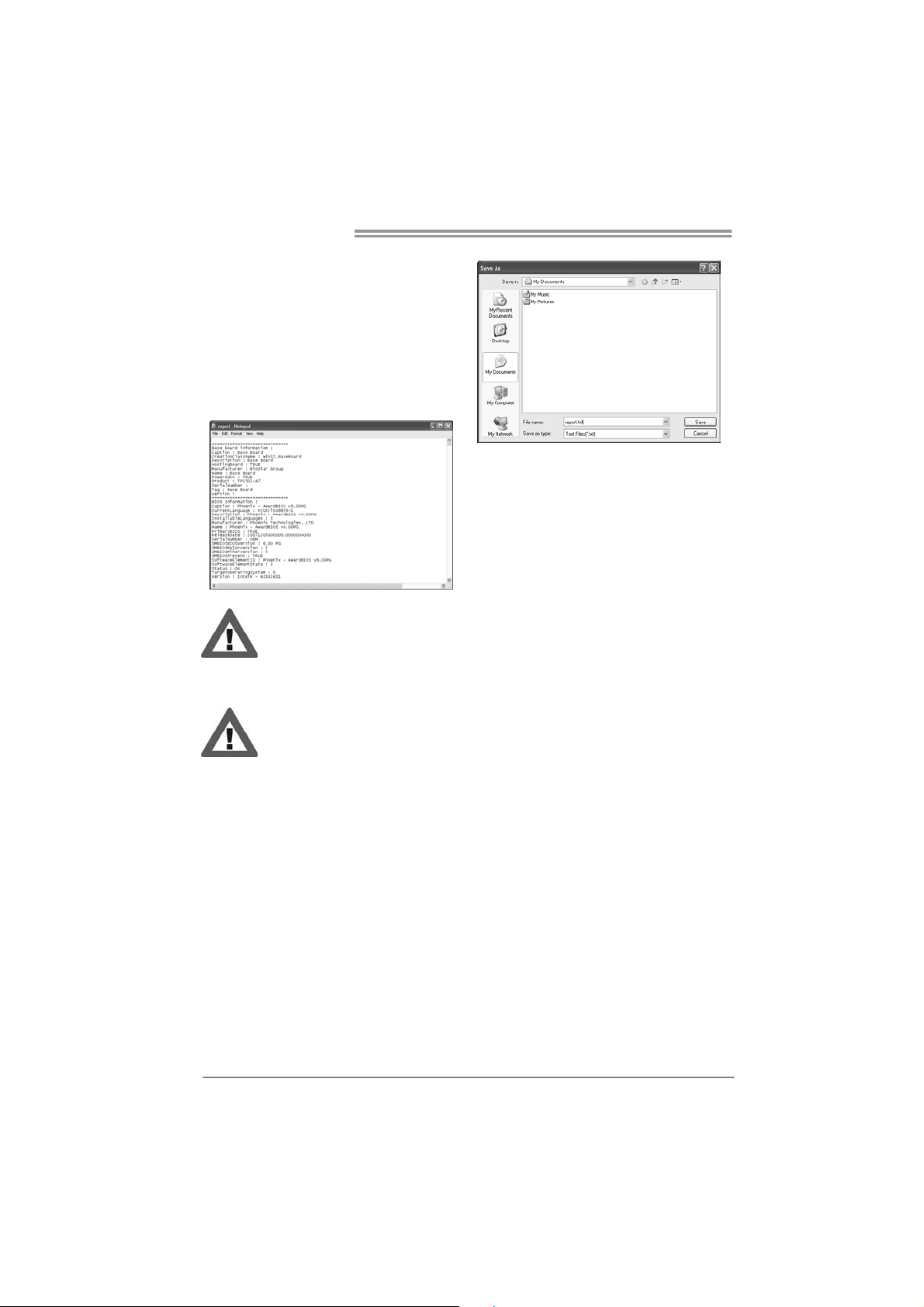

Open the saved .txt file, you will see
your system information including
motherboard/BIOS/CPU/video/
device/OS information. This
information is also concluded in the
sent mail.

36

If you are not using Outlook Express as your default e-mail client
application, you may need to save the system information to a .txt file
and send the file to our tech support with other e-mail application.

TZ77B/TZ75B/T77

BIOS Update

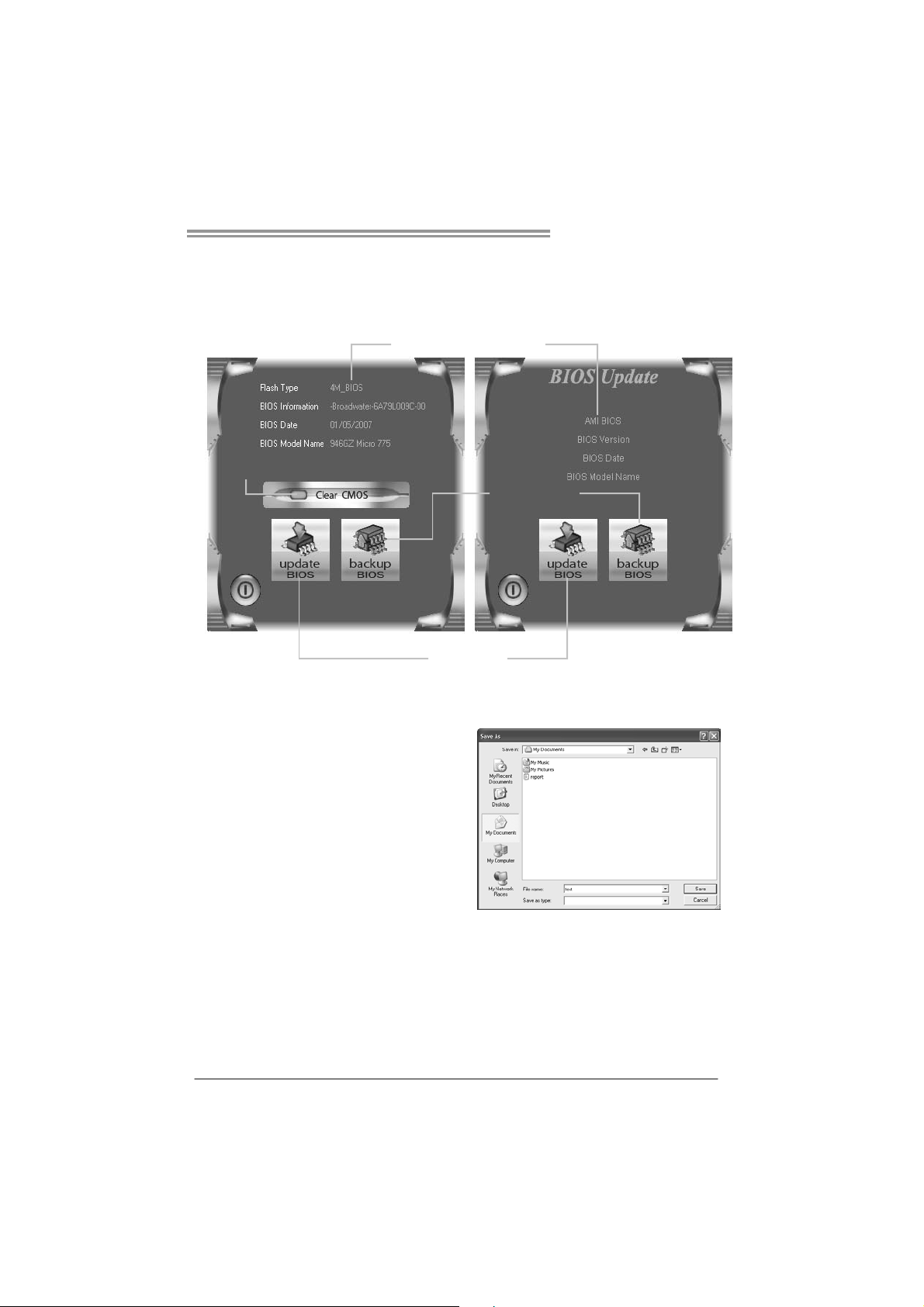

BIOS Update is a convenient utility which allows you to update your
motherboard BIOS under Windows system.

AWARD BIOS AMI BIOS

Clear CMOS function

(Only for AWARD BIOS)

Show c urrent BIOS information

Save cur rent B IOS

to a .bin file

Update BIOS

with a BIOS file

<Backup BIOS>

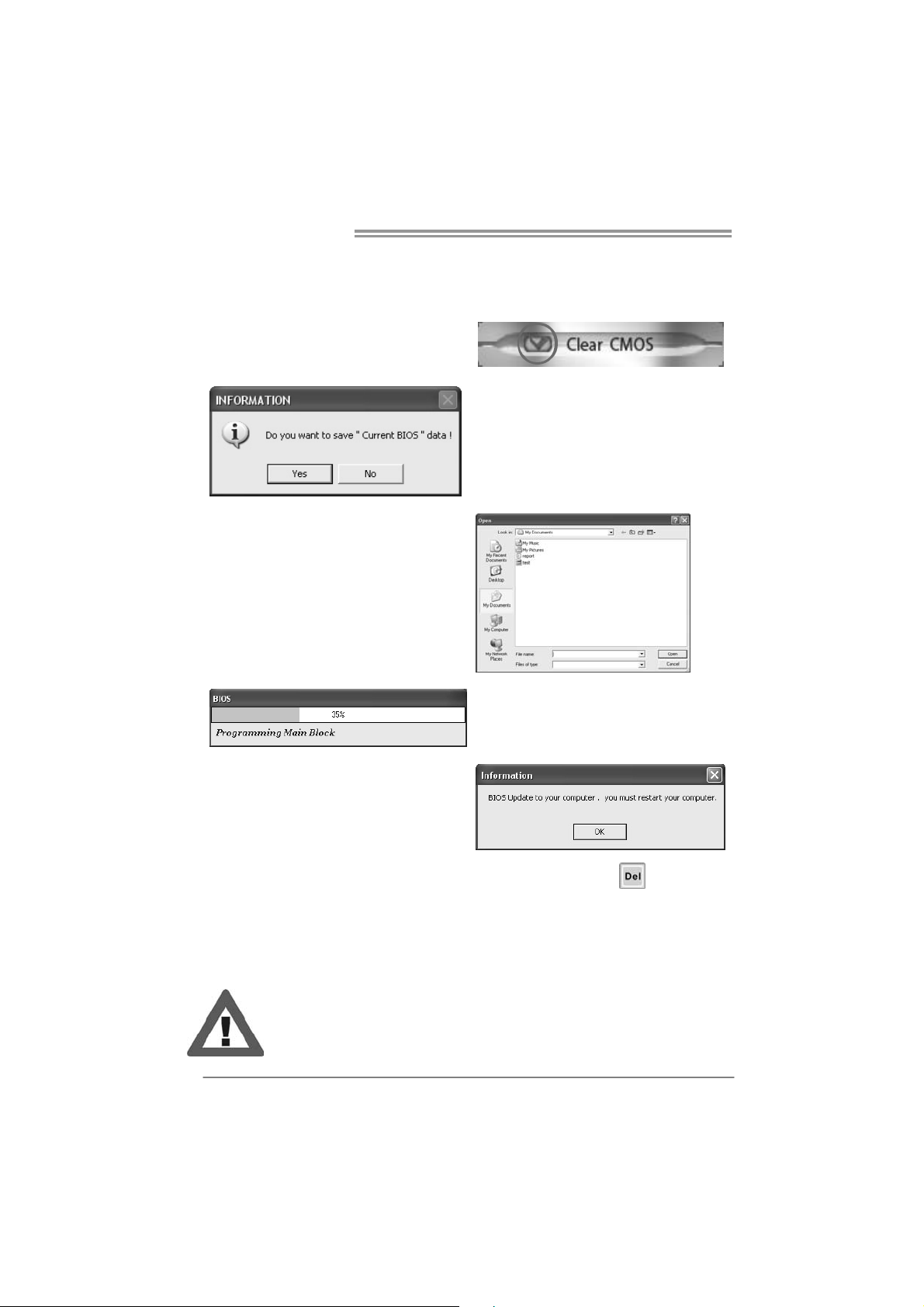

Once click on this button, the saving

dialog will show. Choose the

position to save file and enter file

name. (We recommend that the file

name should be English/number

and no longer than 7 characters.)

Then click Save.

37

Motherboard Manual

<Update BIOS>

Before doing this, please download the proper BIOS file from the website.

For AWARD BIOS, update BIOS procedure
should be run with Clear CMOS function, so
please check on Clear CMOS first.

Then click Update BIOS button, a
dialog will show for asking you backup
current BIOS. Click Yes for BIOS
backup and refer to the Backup BIOS
procedure; or click No to skip this
procedure.

After the BIOS Backup procedure, the
open dialog will show for requesting the
BIOS file which is going to be updated.
Please choose the proper BIOS file for
updating, then click on Open.

The utility will update BIOS with the
proper BIOS file, and this process may
take minutes. Please do not open any
other applications during this process.

After the BIOS Update process, click on
OK to restart the system.

While the system boots up and the full screen logo shows, press <Delete>
key to enter BIOS setup.

In the BIOS setup, use the Load Optimized Defaults function and then Save and
Exit Setup to exit BIOS setup. BIOS Update is completed.

All the information and content above about the T-Series software are subject to be
changed without notice. For better performance, the software is being continuously
updated. The information and pictures described above are for your reference only.
The actual i nformation and settings on board may be slightly different from this
manual.

38

TZ77B/TZ75B/T77

BIOScreen Utility (Optional)

This utility allows you to personalize your boot logo easily. You can choose
JPG or BMP as your boot logo so as to customize your computer.

Please follow the following instructions to update boo logo:

1. Load Image：Choose the picture as the boot logo.

2. Transform：Transform the picture for BIOS and preview the result.

3. Update Bios：Write the picture to BIOS Memory to complete the update.

39

Motherboard Manual

CHAPTER 6: USEFUL HELP

6.1 D

RIVER INSTALLATION NOTE

After you installed your operating system, please insert the Fully Setup
Driver DVD into your optical drive and install the driver for better system
performance.

You will see the following window after you insert the DVD

The setup guide will auto detect your motherboard and operating system.

Note:

If this window didn’t show up after you insert the Driver DVD, please use file browser to
locate and execute the file SETUP.EXE under your optical drive.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will
list the compatible driver for your motherboard and operating system.
Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide
will list the software available for your system, click on each software title
to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver
DVD. Click on the Manual icon to browse for available manual.

Note:

You will need Acrobat Reader to open the manual file. Please download the latest version
of Acrobat Reader software from
http://www.adobe.com/products/acrobat/readstep2 .html

40

6.2 EXTRA INFORMATION

CPU Overheated

If the system shutdown automatically after power on system for
seconds, that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown
automatically to avoid a damage of the CPU, and the system may not
power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.

2. CPU fan is rotated normally.

3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection
function.

1. Remove the power cord from power supply for seconds.

2. Wait for seconds.

3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data.
(See “Close CMOS Header: JCMOS1” section)

2. Wait for seconds.

3. Power on the system again.

TZ77B/TZ75B/T77

41

Motherboard Manual

6.3 AMI BIOS POST CODE

Checkpoint Description

Disable NMI, Parity, video for EGA, and DMA controllers. Initialize BIOS,

03

04

05

06

07 Fixes CPU POST interface calling pointer.

08

C0 Early CPU Init Start -- Disable Cache – Init Local APIC.
C1 Set up boot strap processor Information.
C2 Set up boot strap processor for POST.
C5 Enumerate and set up application processors.
C6 Re-enable cache for boot strap processor.
C7 Early CPU Init Exit.
0A Initializes the 8042 compatible Key Board Controller.
0B Detects the presence of PS/2 mouse.
0C Detects the presence of Keyboard in KBC port.

0E

13 Early POST initialization of chipset registers.
20 Relocate System Management Interrupt vector for all CPU in the system.

24

2A

2C

2E Initializes all the output devices.

31

33

POST, Runtime data area. Also initialize BIOS modules on POST entry a nd
GPNV area. Initialized CMOS as mentioned in the Kernel Variable
"wCMOSFlags."
Check CMOS diagnostic byte to determine if battery power is OK and
CMOS checksum is OK. Verify CMOS checksum manually by reading
storage area. If the CMOS checksum is bad, update CMOS with power-on
default values and clear passwords. Initialize status register A.
Initializes data variables that are based on CMOS setup questions.
Initializes both the 8259 compatible PICs in the system
Initializes the interrupt controlling hardware (generally PIC) and interrupt
vector table.
Do R/W test to C H-2 co unt reg. Initialize CH-0 as sys tem timer. Install t he
POSTINT1C h ha ndle r. E nable IRQ-0 in PIC for s ystem time r interr upt.
Traps INT1Ch vector to "POSTINT1ChHandlerBlock."

Initiali zes the CPU. The BAT test is bei ng do ne o n KBC. Program t he
keyboard controller command byte is being done after Auto detection of
KB/MS using AMI KB-5.

Testing and initializatio n of different Input Devices. Also, update the Kernel
Variables.
Traps the INT09h vecto r, so t hat the POST INT09h handler gets co ntrol for
IRQ1. Uncompress all available language, BIOS logo, and Silent logo
modules.

Uncompress and i nitialize a ny pla tfor m specific B IOS mod ules. GPNV is
initialized at this checkpoint.
Initializes different devices through DIM.
See DIM Code Checkpoints section of document for more information.
Initializes different devices. Detects and initializes the video adapter
installed in the s ystem that have optional ROMs.

Allocate memory for ADM mod ule and uncompress it. Give contro l to A DM
module for initialization. Initialize language and font modules for ADM.
Activate ADM module.

Initializes the silent boot module. Set the window for displaying text
informa tion.

42

TZ77B/TZ75B/T77

Checkpoint Description

37

38

39 Initializes DMAC-1 & DMAC-2.
3A Initialize RTC date/time.

3B

3C Mid POST initialization of chipset registers.

40

52

60 Initializes NUM-LOCK status and programs the KBD typematic rate.
75 Initialize Int-13 and prepare for IPL detection.
78 Initializes IPL devices controlled by BIOS and option ROMs.
7C Genera te and write conte nts o f ESCD in NVRam.
84 Log errors encountered during POST.
85 Display errors to the user and gets the user response for error.
87 Execute BIOS setup if needed / requested. Check boot password if installed.
8C Late POST initialization of chipset registers.
8D Build ACPI tables (if ACPI is supported).
8E Program the peripheral parameters. Enable/Disable NMI as selected.

90

A1 Clean-up work needed before booting to OS.

A2

A4 Initialize runtime language module. Display boot option popup menu.

A7

A9 Wait for user input a t config display if needed.
AA Uninstall POST INT1Ch vector and INT09h vector.
AB Prepare BBS for Int 19 boot. Init MP tables.

AC

B1

00 Passes control to OS Loader (typically INT19h).

Displaying sign-on message, CPU information, setup key message, and any
OEM speci fic information.

Initializes different devices through DIM. See DIM Code Checkpoints section
of document for more information. USB controllers are initialized at this
point.

Test for total memory insta lled in the system. Also, Check for DEL or ESC
keys to limit memory test. Display to tal memory in t he s ystem.

Detect different devices (Parallel ports, serial ports, and coprocessor in
CPU, etc.) successfully installed in the system and update the BDA,
EBDA…etc.
Updates CMOS memory size from memory found in memory test. Allocates
memory for Extended BIOS Data Area from base memory. Programming the
memory hole or any kind of implementation that needs an adjustment in
syste m RAM size if needed.

Initialization of system management interrupt by invoking all handlers.
Please note this checkpoint comes right after checkpoint 20h.

Takes care of runtime image preparation for different BIOS modules. Fill the
free area in F000h segment with 0FFh. Initializes the Microsoft IRQ Routing
Table. Prepares the runtime language module. Disables the system
configuration display if needed.

Displays the system configuration screen if enabled. Initialize the CPU’s
before boot, which includes the programming of the MTRR’s.

End of POST initialization of chipset registers. De-initializes the ADM
module.
Save system context for ACPI. Prepare CPU for OS boot including final
MTRR values.

43

Motherboard Manual

6.4 TROUBLESHOOTING

Probable Solution

1. There is no power in the system.
Power LED does not shine; the
fan of the power supply does not
work

2. Indicator light on keyboard does
not shine.

System is inoperative. Keyboard lights
are on, power indicator lights are lit,
and hard drives are running.

System does not boot from a hard disk
drive, but can be booted from optical
drive.

System only boots from an optical
drive. Hard disks can be read,
applications can be used, but system
fails to boot from a hard disk.

Screen message shows “Invalid
Configuration” or “CMOS Failure.”

System cannot boot after user installs a
second hard drive.

1. Make sure power cable is
securely plugged in.

2. Replace cable.

3. Contact technical support.

Using even pressure on both ends of
the DIMM, press down firmly until the
module snaps into place.

1. Check cable running from disk to
disk controller board. Make sure
both ends are securely plugged
in; check the drive type in the
standard CMOS setup.

2. Backing up the hard drive is
extremely important. All hard
disks are capable of breaking
down at any time.

1. Back up data and applications
files.

2. Reformat the hard drive.
Re-install applications and data
using backup disks.

Review system’s equipment. Make sure
correct information is in setup.

1. Set master/slave jumpers
correctly.

2. Run SETUP program and select
correct drive types. Call the drive
manufacturers for compatibility
with other drives.

44

TZ77B/TZ75B/T77

This page is intentionally left blank.

45

Motherboard Manual

APPENDIX: SPEC IN OTHER LANGUAGES

G

ERMAN

Sp ezif ika tio nen

Socket 1155

CPU

Chipsatz

Super E/A

Arbeitsspeich

er

SATA 2 & 3 Integrierter Serial ATA-Controller

LAN Realtek RTL 8111E

HD

Audio-Unters

tützung

USB3.0

Steckplätze

Onboard-Ans

chluss

Int e l Cor e i7 / i5 / i3 / Pent ium / Celer on

Prozessoren

Intel Z77 (TZ77B), Intel Z75 (TZ75B)

Intel H77 (T77)

IT8728

Biet et die h äuf ig verwendeten alten Super

E/A-Funktionen.

Low Pin Count-Schnittstelle

DDR3 DIMM-Steckplätze x 4

Max. 32GB Arbeitsspeicher

Jeder DIMM unterstützt 512MB/

1GB/2GB/4GB/8GB DDR3.

ALC892

Z77 (TZ77B) / Z75 (TZ75B) / H77 (T77) Datenübertragungsraten bis zu 600 MB / s

PCI-St eckplatz x2

PCI Express Gen3 x16 Steckplatz x1

PCI Express Gen2 x16 Steckplatz(x4) x1

PCI Express Gen2 x 1-Steckplatz x2

SATA3-Anschluss x2 Jeder Anschluss unterstützt 1 SATA3-Laufwerk

SATA2-Anschluss x4 Jeder Anschluss unterstützt 1 SATA2-Laufwerk

Fronttafelanschluss x1 Unterstützt die Fronttafelfunktionen

Unterstützt Execute Disable Bit / Enhanced Intel

SpeedStep® / Int el Arch ite cture-64 / Ext ended

Memory 64 Technology / V irtualization Techno logy /

Hyp er Thr ead ing

Umgebungskontrolle,

Hardware-Überwachung

Lüfterdrehzahl-Controller/-Überwachung

"Smart Guardian"-Funktion von ITE

Dual-Kanal DDR3 Speichermodul

Unterstützt DDR3 1066/1333/1600

Unterstützt DDR3(OC) 1800/2000/2200/2400

Unterstützt DDR3(OC) 1866/2133 (TZ77B, TZ75B)

registrierte DIMMs. ECC DIMMs werden nicht

unterstützt.

Datentransferrate bis zu 3.0Gb/s / 6.0Gb/s.

Konform mit d er SATA-Spezifikation Vers ion 2.0 / 3.0

Unterstützt RAID 0,1,5,10, SRT (TZ77B)

10 / 100 / 1000 Mb/s Auto-Negotiation

Halb-/ Vollduplex-Funktion

Unterstützt High-Definition Audio

7.1-Kanal-Audioausgabe

46

Rückseiten-E

/A

Platinengröße

OS-Unterstüt

zung

TZ77B/TZ75B/T77

Sp ezif ika tio nen

Front-Audioanschluss x1 Unterstützt die Fronttafel-Audioanschlussfunktion

CPU-Lüfter-Sockel x1

System-Lüfter-Sockel x2 System-Lüfter-Stromversorgungsanschluss

"CMOS lös chen"- Socke l x1

USB2.0-Anschluss x2 Jeder Anschluss unterstützt 2

USB3.0-Anschluss x1 Jeder Anschluss unterstützt 2

Verbraucher-IR Anschluss x1

Serieller Anschluss x1

S/PDIF Ausgangsanschluss x1 Unterstützt die digitale Audioausgabefunkt ion

Stromanschluss (24-polig) x1

St romans chlu s s (8-po lig) x1

PS/2-Tastatur x1

HDMI-Anschluss x1

VGA-Anschluss x1

DVI-Anschluss x1

LAN-Anschluss x1

USB2.0-Anschluss x4

USB3.0-Anschluss x2

Audioanschluss x6

220 mm (B) X 295 mm (L) ATX

Windows XP / Vista / 7

CPU-Lüfterstromversorgungsanschluss (mit Smart

Fan -F un ktion )

Fron tt afel-USB2 .0- Ans chlü ss e

Fron tt afel-USB3 .0- Ans chlü ss e

Biostar behält sich das Recht vor, ohne Ankündigung

die Unterstützung für ein Betriebssystem

hinzuzufügen oder zu entfernen.

47

Motherboard Manual

FRENCH

Socket 1155

UC

Chipset

Super E/S

Mémoire

principale

SATA 2 & 3

LAN Realtek RTL 8111E

Prise en

charg e

aud io HD

USB3.0

Fentes

Connecteur Connecteur SATA3 x2

Pro c es s eurs Inte l Core i7 / i5 / i3 / Pen t iu m /

Celeron

Intel Z77 (TZ77B), Intel Z75 (TZ75B)

Intel H77 (T77)

IT8728

Fournit la fonctionnalité de Super E/S

patrimoniales la plus utilisée.

Int e rf ace à f aib le co mpt e d e b roches

Fentes DDR3 DIMM x 4

Capacité mémo ire max imale de 32 Go

Chaque DIMM prend en charge des DDR3 de

512Mo/1Go/2Go/4Go/8Go

Contrô leur Serial ATA int ég r é :

ALC892

Z77 (TZ77B) / Z75 (TZ75B) / H77 (T77) Taux de transfert de données jusqu'à 600 Mo / s

Fente PCI x2

Fente PCI Express Gen3 x16 x1

Fente PCI Express Gen2 x16(x4) x1

Fente PCI Express Gen2 x1 x2

SPEC

Prend en charge les technologies d'exé cution d e b it

de désactivation / Intel SpeedStep® optimisée/

d'archit ectur e Inte l 64 / de mémoire étendue 64 / de

virtualisation / Hyper Threading

Initiatives de contrôle environnementales,

Mon iteur d e mat ériel

Contrôleur /moniteur de vitesse de ventilateur

Fonction "Gardien intelligent" de l'ITE

Module d e mémo ire DDR3 à mode à do ub le vo ie

Prend en charge la DDR3 1066 /1333/1600

Prend en charge la DDR3 (OC) 1800/ 2000/ 2200/

2400

Prend en charge la DDR3 (OC) 1866/2133 (TZ77B,

TZ75B)

Les DIMM à registres et DIMM avec code correcteurs

d'erreurs ne sont pas prises en charge

Taux de transfert jusqu'à 3.0Go/s / 6.0Go/s.

Conforme à la spécification SATA Version 2.0 / 3.0

Prise en charge RAID 0,1,5,10, SRT (TZ77B, T77)

10 / 100 / 1000 Mb/s négociation auto matique

Half / Full duplex capability

Prise en charge de l'audio haut e définition

Sortie aud io à 7 .1 voies

Chaque connecteur pr end en charge 1 pér iphérique

SATA3

48

embarqu é

E/S du

panneau

arrière

Dimensions

de la carte

Support SE Windows XP / Vista / 7

Connecteur SATA2 x4

Connecteur du panneau avant x1 Prend en charge les équipements du panneau avant

Connecteur Aud io du p anneau avant x1 Prend en ch arge la fonction audio du pann eau avant

Embase de vent ilateur UC x1

Embase de ventilateur système x2 Alimentation électrique du ventilateur système

Embase d'effacement CMOS x1

Connecteur USB2.0 x2

Connecteur USB3.0 x1

Connecteur de IR du consommateur x1

Port série x1

Connecteur de sortie S/PDIF x1

Connecteur d' aliment ation x1

(24 broches)

Connecteur d' aliment ation x1

(8 broch es)

Clavier PS/2 x1

Port HD MI x1

Port VGA x1

Port DV I x1

Port LA N x1

Port USB2.0 x4

Port USB3.0 x2

Fiche aud io x6

220 mm (l) X 295 mm (H) ATX

TZ77B/TZ75B/T77

SPEC

Chaque connecteur pr end en charge 1 pér iphérique

SATA2

Alimentation électrique du ventilateur UC (avec

fonction de ventilateur intelligent)

Chaque connecteur prend en charge 2 ports USB2.0

de panneau avant

Chaque connecteur prend en charge 2 ports USB3.0

de panneau avant

Prend en charge la fonction de sortie audio

numérique

Biostar se réserve le droit d'ajouter ou de supprimer

le support de SE avec ou sans préavis

49

Motherboard Manual

ITALIAN

Socket 1155

CPU

Chipset

Super I/O

Memor ia
principale

SATA 2 & 3

LAN

Supporto
audio HD

USB3.0

Allo g gi

Connettori
su scheda

Pro cessor e Intel Co re i7 / i5 / i3 /

Pentium / Celeron

Intel Z77 (TZ77B), Intel Z75 (TZ75B)

Intel H77 (T77)

IT8728

Fo rn is ce le f unz ionalit à legacy S uper I/O

usate più comunemente.

Interfaccia LPC (Low Pin Count)

Alloggi DIMM DDR3 x 4

Capacità massima della memoria 32GB

Ciascun DIMM supporta DDR3

512MB/1GB/2GB/4GB/8GB

Co ntro ller Ser ial ATA int eg rato

Realtek RTL 8111E

ALC892

Z77 (TZ77B) / Z75 (TZ75B) / H77 (T77) Velocità di trasferimento dati f ino a 600 MB / s

Alloggio PCI x2

Alloggio PCI Express Gen3 x16 x1

Alloggio PCI Express Gen2 x16(x4) x1

Alloggio PCI Express Gen2 x1 x2

Connettore SATA3 x2 Ciascun connettore supporta 1 unità SATA3

Connettore SATA2 x4 Ciascun connettore supporta 1 unità SATA2

Co nnetto re pannello fro ntale x1 Sup port a i s er viz i del pan nel lo fr ont ale

Connettore audio frontale x1 Supporta la funzione audio pannello frontale

SPECIFICA

Supporto di Execute Disable Bit / Enhanced

Intel SpeedStep® / Architettura Intel 64 /

Tecnologia Extended Memory 64 / Tecnologia

Virtualization / Hyper Threading

Funzioni di controllo dell’ambiente:

Monitoraggio hardware

Co ntro ller / Monitorag gio velocità ventol ina

Funzione "Smart Guardian" di ITE

Modulo di memoria DDR3 a canale doppio

Supporto di DDR3 1066/1333/1600

Supporto di DDR3(OC) 1800/2000/2200/2400

Supporto di DDR3(OC) 1866/2133 (TZ77B,

TZ75B)

DIMM registrati e DIMM ECC non sono

supportati

Velocità di trasferimento dei dati fino a 3.0Gb/s

/ 6.0Gb/s.

Compatibile specifiche SATA Versione 2.0/3.0

Supporto RAID 0,1,5,10, SRT (TZ77B, T77)

Negoziazione automatica 10 / 100 / 1000 Mb/s

Capacità Half / Full Duplex

Supporto audio High-Definition (HD)

Uscita audio 7.1 canali

50

I/O
pannello
posteriore

Dimension
i scheda

Sistemi
oper at ivi
supportati

TZ77B/TZ75B/T77

SPECIFICA

Co llet t ore vento lina C PU x1

Co llet t ore vento lina s istema x2 A limentazio ne vent olin a d i s is t ema

Co llet t ore cancellaz ione CMOS x 1

Connettore USB2.0 x2

Connettore USB3.0 x1

Connettore IR del consumatore x1

Porta seriale x1

Connettore output S/PDIF x1 Supporta la funzione d’output audio digitale

Connettore aliment azione x 1

(24 pin)

Connettore aliment azione x1

(8 pin)

Tas tiera P S / 2 x1

Porta HDMI x 1

Porta VGA x 1

Porta DV I x1

Porta LA N x1

Porta USB2.0 x4

Porta USB3.0 x2

Connettore audio x6

220 mm (larghezza) x 295 mm

(altez za)

Windows XP / Vista / 7

Alimentazione ventolina CPU (con funzione

Smart Fan)

Ciascun connettore supporta 2 porte USB2.0

pannello frontale

Ciascun connettore supporta 2 porte USB3.0

pannello frontale

ATX

Biostar si riserva il diritto di aggiungere o

rimuovere il supporto di qualsiasi sistema

operativo senza preavviso.

51

Motherboard Manual

SPANISH

Socket 1155

CPU

Conjunto de

chips

Súper E/S

Memoria

principal

SATA 2 & 3 Controlador ATA Serie Integrado

Red Local Realtek RTL 8111E

Soporte de

sonido HD

USB3.0

Ranuras

Conectores

en p laca

Pro c es ado r Int el Core i7 / i5 / i3 / Pen t iu m /

Celeron

Intel Z77 (TZ77B), Intel Z75 (TZ75B)

Intel H77 (T77)

IT8728

Le ofrece las funcionalidades heredadas de

us o más comú n Súp er E/S.

Interfaz de cuenta Low Pin

Ranuras DIMM DDR3 x 4

Capacidad máxima de memoria de 32GB

Cada DIMM admite DDR de

512MB/1GB/2GB/4GB/8GB

ALC892

Z77 (TZ77B) / Z75 (TZ75B) / H77 (T77) Tasas de transferencia de datos hasta 600 MB / s

Ranura PCI X2

Ranura PCI Express Gen3 x16 X1

Ranura PCI Express Gen2 x16(x4) X1

Ranura PCI Express Gen2 x 1 X2

Conector SATA3 X2 Cada conector soporta 1 dispositivos SATA3

Conector SATA2 X4 Cada conector soporta 1 dispositivos SATA2

Co nect or d e p ane l f ro ntal X1 So porta insta la ciones en e l pane l fron tal

Conector de sonido frontal X1 Soporta funciones de sonido en el panel frontal

Cabecera de ventilador de CPU X1 Fuente de alimentación de ventilador de CPU (con

Especificación

Admite Bit de deshabilitación de ejecución / Intel

SpeedStep® Mejorado / Intel Arch itecture- 64 /

Tecnolog ía Extended Memory 64 / Tecnolog ía de

virtualizac ión / Hyper Threading

In ic iativas de con tro l d e ent o rno ,

Monitor hardware

Controlador/monitor de velocidad de ventilador

Función "Guardia inteligente" de ITE

Módulo de memoria DDR3 de canal Doble

Admite DDR3 de 1066/1333/1600

Admite DDR3 de (OC) 1800/2000/2200/2400

Admite DDR3 de (OC) 1866/2133 (TZ77B, TZ75B)

No admite DIMM registrados o DIMM compatibles

con ECC

Tasas de transferencia de hasta 3.0 Gb/s / 6.0 Gb/s.

Co mp at ible con la versión SATA 2.0 / 3.0 .

Admite RAID 0,1,5,10, SRT (TZ77B, T77)

Negociación de 10 / 100 / 1000 Mb/s

Funciones Half / Full dúplex

Soporte de sonido de Alta Definición

Salida de sonido de 7.1 canales

función Smart Fan)

52

Panel

trasero de

E/S

Ta mañ o d e

la placa

Soporte de

sistema

operativo

TZ77B/TZ75B/T77

Especificación

Cabecera de ventilador de sistema X2 Fuente de alimentación de ventilador de sistema

Cabecera de borrado de CMOS X1

Conector USB2.0 X2 Cada conector s oporta 2 puertos USB2.0 frontales

Conector USB3.0 X1 Cada conector s oporta 2 puertos USB3.0 frontales

Conector de IR del consumidor X1

Puert o s er ie X1

Conector de salida S/PDIF X1 Soporta función de salida de sonido digital

Conector de alimentación X1

(24 patillas)

Conector de alimentación X1

(8 patillas)

Tec lad o P S /2 X1

Puert o HD MI x1

Puert o V GA X1

Puert o DV I X1

Puerto de red local X1

Puert o USB2.0 X4

Puert o USB3.0 X2

Conector de sonido X6

220 mm. (A) X 295 Mm. (H) ATX

Windows XP / Vista / 7

Biostar se reserva el derecho de añadir o retirar el

soporte de cualqu ier SO con o sin aviso previo.

53

Motherboard Manual

PORTUGUESE

Socket 1155

CPU

Chipset

Especificaçã

o Super I/O

Memória

principal

SATA 2 & 3

LAN

Suporte

para áudio

de alta

definição

USB3.0

Ranhuras

Pro c es s ad o r Int e l Cor e i7 / i5 / i3 / Pen t iu m /

Celeron

Intel Z77 (TZ77B), Intel Z75 (TZ75B)

Intel H77 (T77)

IT8728

Proporciona as funcionalidades mais

utilizadas em termos da especificação Super

I/O.

Interface L PC (Low Pin Count).

Ranhuras DIMM DDR3 x 4

Capacidad e máx ima de memó ria: 32 GB

Cada módulo DIMM suporta uma memória

DDR3 de 512MB/ 1GB/2GB /4GB/8GB

Controlador Serial ATA integrado

Realtek RTL 8111E

ALC892

Z77 (TZ77B) / Z75 (TZ75B) / H77 (T77) Taxas de transferência de dados até 600 MB / s

Ranhura PCI x2

Ranhura PCI Express Gen3 x16 x1

Ranhura PCI Express Gen2 x16(x4) x1

Ranhura PCI Express Gen2 x 1 x2

ESPECIFICAÇÕES

Suporta as tecnologias Ex ecut e D isab le B it /

Enhanced Intel Sp eedSt ep® / Intel Arqu ite cture -64

/ Extended Memor y 64 / Virt ualiz ation / Hyper

Thread ing

In ic iativas para co ntr o lo do a mb iente

Monitorização do hardware

Controlador/Monitor da velocidade da ventoinha

Função "Smart Guard ian" da ITE

Módulo de memória DDR3 de canal duplo

Suporta módulos DDR3 1066/1333/1600

Suporta módulos DDR3 (OC) 1800/ 2000 / 2200/

2400

Suporta módulos DDR3 (OC) 1866/2133 (TZ77B,

TZ75B)

Os módulos DIMM registados e os DIMM ECC não

são suportados

Velocidades de transmissão de dados até 3.0 Gb/s /

6.0 Gb/s.

Compat ibilidad e com a espec ificação SATA versão

2.0 / 3.0.

Suporta as funções RA ID 0,1,5,10, SRT (TZ77B,

T77)

Auto negociação de 10 / 100 / 1000 Mb/s

Capacidade semi/full-duplex

Suporta a especificação High-Definition Audio

Saída de áudio de 7.1 canais

54

Conectores

na placa

Entradas /S

aídas no

painel

traseiro

Tamanho

da placa

Sistemas

operativos

suportados

TZ77B/TZ75B/T77

ESPECIFICAÇÕES

Conector SATA3 x2 Cada conector suporta 1 dispositivo SATA3

Conector SATA2 x4 Cada conector suporta 1 dispositivo SATA2

Conector do painel frontal x1 Para suporte de várias funções no painel frontal

Conector de áudio fro ntal x1 Suporta a função de áudio no paine l frontal

Conector da ventoinha da CPU x1

Conector da ventoinha do s istema x2 Alimentação da ventoinha do s istema

Conector para limpeza do CMOS x1

Conector USB2.0 x2

Conector USB3.0 x1

Conector de IR do consumidor x1

Porta série x1

Conector de sa ída S/PDIF x1 Supo rta a sa ída de áud io d ig ital

Conector de alimentação x1

(24 pinos)

Conector de alimentação x1

(8 p inos )

Tec lad o P S /2 x 1

Porta HD MI x 1

Porta VGA x1

Porta DV I x 1

Porta LA N x1

Porta USB2.0 x4

Porta USB3.0 x2

Tomada de áudio x6

220 mm (L) X 295 mm (A) ATX

Windows XP / Vista / 7

Alimentação da ventoinha da CPU (com a função

Smart Fan)

Cada conector suporta 2 portas USB2.0 no painel

frontal

Cada conector suporta 2 portas USB3.0 no painel

frontal

A Biostar reserva-se o direito de adicionar ou

remover suporte para qualquer sistema operativo

com ou se m aviso prévio.

55

Motherboard Manual

POLISH

Socket 1155

Procesor

Chipset

Pamięć

główna

Super I/O

SATA 2 & 3 Zintegrowany kontroler Serial ATA

LAN Realtek RTL 8111E

Obsługa

aud io HD

USB3.0

Gniazda

Złącza

wbud owan e

Pro c es o r Inte l Core i7 / i5 / i3 / Pent iu m /

Celeron

Intel Z77 (TZ77B), Intel Z75 (TZ75B)

Intel H77 (T77)

Gniazda DDR3 DIMM x 4

Maks. wielkość pamięci 32GB

Każde gniazdo DIMM obs ługuje moduły

512MB/1GB/2GB/4GB/8GB DDR3

IT8728

Zapewn ia najbardziej powszechne funkcje

Super I/O.

Interfejs Low Pin Count

ALC892

Z77 (TZ77B) / Z75 (TZ75B) / H77 (T77) Cena transferu danych do 600 MB / s

Gniazdo PCI x2

Gniazdo PCI Express Gen3 x16 x1

Gniazdo PCI Express Gen2 x16(x4) x1

Gniazdo PCI Express Gen2 x 1 x2

Złącze SATA3 x2 Każde złącze obs ługuje 1 urządzenie SATA3

Złącze SATA2 x4 Każde złącze obs ługuje 1 urządzenie SATA2

Złącze panela przedniego x1 Obsługa elementów panela przedniego

Przedn ie z łącze audio x1 Obsługa funkcji audio na panelu przednim

Złącze głó wko we wenty latora

procesora x1

SPEC

Obsługa Execute D isable B it / Enhanced Inte l

SpeedStep® / Int el Arch ite cture-64 / Ext ended

Memory 64 Technology / V irtualization Techno logy /

Hyp er Thr ead ing

Mod uł pamięci DDR3 z trybem podwójnego kanału

Obsługa DDR3 1066/1333/1600

Obsługa DDR3(OC) 1800/2000/2200/2400

Obsługa DDR3(OC) 1866/2133 (TZ77B, TZ75B)

Brak obsługi Register ed DIMM oraz ECC D IMM

Funkcje kontroli warunków pracy,

Mon itor H /W

Kontroler/Mon itor prędkości wentylatora

Funkcja ITE "Smart Guardian"

Transfer danych do 3.0 Gb/s / 6.0 Gb/s.

Zgodność ze specyfikacją SATA w wersji 2.0 / 3.0.

Obsługa RAID 0,1,5,10, SRT (TZ77B, T77)

10 / 100 / 1000 Mb/s z automatyczną negocjacją

szybkości

Działanie w trybie po łowicznego / pełnego dupleksu

Obsługa H igh- Def inition Aud io

7.1 kanałowe wyjście audio

Zasilanie wentylatora procesora (z funkcją Smart

Fan )

56

Back Panel

I/O

Wymiary

płyty

Obsluga

systemu

operacyjne

go

TZ77B/TZ75B/T77

SPEC

Złącze głó wko we wenty latora

systemowego x2

Złącze głó wkowe kasowan ia CMOS x1

Złącze USB2.0 x 2

Złącze USB3.0 x 1

Złącze Konsument IR x1

Port sz eregowy x1

Złącze wyjścia S/PDIF x1 Obsługa funkcji cyfrowego wyjścia aud io

Złącze zasilania (24 pinowe) x1

Złącze zas ilania (8 p ino we) x1

Klawiatura PS/2 x1

Port HD MI x1

Port VGA x1

Port DV I x1

Port LA N x1

Port USB2.0 x4

Port USB3.0 x2

Gniazdo audio x6

220 mm (S) X 295 mm (W) ATX

Windows XP / Vista / 7

Zasilanie wentylatora systemowego

Każde złącze obs ługuje 2 porty USB2.0 na panelu

przednim

Każde złącze obs ługuje 2 porty USB3.0 na panelu

przednim

Biostar zastrzega sobie prawo dodawania lub

odwoływania obs ługi do wo lnego s ys temu

operacyjnego b ez powiado mienia.

57

Motherboard Manual

RUSSIAN

CPU

(центральн

ый

процессор)

Набо р

микросхем

Основная

память

Super I/O

SATA 2 & 3

Локальна я

сеть

Звуко вая

поддержка

жесткого

диска

USB3.0

Слоты

Встроенны

й разъём

Socket 1155
Процессор Inte l Co re i7 / i5 / i3 / Pent iu m /
Celeron

Intel Z77 (TZ77B), Intel Z75 (TZ75B)

Intel H77 (T77)

Слоты DDR3 DIMM x 4
Максимальная ёмкость памяти 32 ГБ
Каждый модуль DIMM поддерживает

512МБ /1ГБ/2ГБ/4ГБ/8 ГБ DDR3

IT8728

Обеспечивает наиболее используемые
действующие фун кц и онал ьн ые
возможности Super I/O.
Интерфейс с низким количеством выводов

Встроенное последоват ельное устройство
управлени я ATA

Realtek RTL 8111E

ALC892

Z77 (TZ77B) / Z75 (TZ75B) / H77 (T77) скорости передачи данных до 600 МБ / с

Слот PCI x 2
Слот PCI Express Gen3 x16 x1
Слот PCI Express Gen2 x16(x4) x1
Слот PCI Express Gen2 x 1 x2
Разъ ём SATA3 x2 Каждый разъём поддерживает 1 устро йство SATA3
Разъ ём SATA2 x4 Каждый разъём поддерживает 1 устро йство SATA2
Разъ ём на лицевой панели x1 Поддержка устро йств на лицевой панели

СПЕЦ

Поддержка технологий Execute Disable B it /
Enhanced Intel Sp eedStep® / Int el Arch it ecture-64
/ Extended Memory 64 Technology / технологии

виртуализац ия / Hyper Threading

Мод ул ь памяти с двухканальным режимом DDR3
Поддержка DDR3 1066/1333/1600
Поддержка DDR3(OC) 1800/2000/2200/2400
Поддержка DDR3(OC) 1866/2133 (TZ77B, TZ75B)
Не поддерживает зарегистрированные модули

DIMM and ECC DIMM

Инициативы по охране окружающей среды,
Аппаратный монитор
Регул ятор скорости вентилятора/ монитор
Функция ITE "Smart Gu ard ian"
(Интеллектуальная защита)
скорость передачи данных до 3.0 гигабит/с /

6.0 гигабит/с.
Соответствие специ фикации SATA версия 2.0/3.0
Поддержка RAID 0,1,5,10, SRT (TZ77B, T77)
Автоматическое согласовани е 10 / 100 / 1000
Мб/с
Частичная / полная дупл ексная способность

Звуко вая поддержка High -Defin ition

7.1канальный звуковой выход

58

Задняя

панель

средств

ввода-выв

ода

Размер

панели

Поддержка

OS

TZ77B/TZ75B/T77

СПЕЦ

Входной звуковой разъём x1

Контактирующее приспособление
вентил ятора центрального процессора x1

Контактирующее приспособление
вентил ятора системы x2
Открытое контактирующе е
приспособление CMOS x1

USB2.0-разъём x2

USB3.0-разъём x1

Разъ ём едока ИКЫЙ x1
Последо вательный порт x1
Разъ ём вывода для S/PDIF x1 Поддержка вывода цифровой звуковой фун кц ии
Разъ ем питания (24 вывод) x1
Разъ ем питания (8 вывод) x1
Клавиатура PS/2 x1
Порт HD MI x1
Порт VGA x1
Порт DVI x1
Порт LAN x1

USB2.0-порт x4
USB3.0-порт x2

Гнездо для подключения
наушников x6

220 мм (Ш) X 295 мм (В) ATX

Windows XP / Vista / 7

Поддержка звуко вых функций на лицевой
панели
Источник питания для вентилято ра центрального
процессора (с функцией интеллектуального
вентил ятора)

Источник питания для вентилятор а системы

Каждый разъём поддерживает 2 USB2.0-порта на
лицевой панели
Каждый разъём поддерживает 2 USB3.0-порта на
лицевой панели

Biostar сохраняет за собой право добавлять или
удалять средства обеспечения для OS с или без
предварительного уведомления.

59

Motherboard Manual

ARABIC

تﺎﻴﻨﻘﺗ ﻢﻋﺪﺗExecute D isab le B it / Enh anc ed Inte l

SpeedStep® / Int el Arch ite cture-64 / Ext ended

Memory 64 Technology / Virtualization Technology /

Hyp er Thr ead ing

ﺔﺤﺘﻓDDR3 DIM M دﺪﻋ4

ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ32 ﺖیﺎﺑ ﺎﺠﻴﺝ

ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺗDIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺗ DDR3 ﺔﻌﺳ

ﺔﻔﻴﻇو"S mart Gu ardian" ﻦﻣ ITE

ﻞﻘﻧ ت ﺎﻧﺎ ﻴﺒﻟا تﺎﻋﺮﺴﺏ ﻞﺼﺗ ﻰﻟإ 3.0 ﺖﺏﺎﺠﻴﺟ/ﺔﻴﻧﺎﺛ / 6.0 ﺖﺏﺎﺠﻴﺟ/ﺔﻴﻧﺎﺛ.

تﺎﻔﺹاﻮﻤﻟ ﺔﻘﺑﺎﻄﻣSATA راﺪﺹﻹا 2.0 / 3.0.

ﺔﻴﻨﻘ ﺗ ﻢﻋﺪﺗRAID 0,1,5,10, SRT (TZ77B, T77)

تﻻﺪﻌ ﻣ ﻞﻘﻧ تﺎﻧﺎﻴﺏ ﻞﺼﺗ ﻰﻟإ 600 ﺎﻐﻴﻣ ﺖیﺎﺏ / ﺔﻴﻧﺎﺛ Z77 (TZ77B) / Z75 (TZ75B) / H77 (T77)

/512 ﺑ ﺎﺠﻴﻣ و ﺖیﺎ1/

ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:

ةﺰﻬﺝﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻣ

ﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻣ

ﻲﺋﺎﻘﻠﺗ ضو ﺎﻔﺗ10/100 ﺖیﺎﺑ ﺎﺠﻴﻣ /و ﺔﻴﻥﺎﺙ1ﺖﺑ ﺎﺠﻴﺝ/ﺎﺙﺔﻴﻥ

ﻞﻣﺎﻜﻟا جودﺰﻤﻟا ﻞﻘﻨﻟا ﺔﻴﻥﺎﻜﻣإ/ﻲﻔﺼﻨﻟا

ﻦﻣ ﻒیﺮﻌﺘﻟا ﻲﻟ ﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗ

7.1 تﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗ

ةﺰﻬﺝأ ﻦﻣ ﺪﺣاو ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪیSATA3 ﺬﻔﻨﻣSATA3 دﺪﻋ2

ةﺰﻬﺝأ ﻦﻣ ﺪﺣاو ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪیSATA2 ﺬﻔﻨﻣSATA2 دﺪﻋ4

تﺎﻔﺻاﻮﻤﻟا

تﺎﺠﻟﺎﻌﻣInte l Co r e i7 / i5 / i3 / Pent iu m /

Intel Z77 (TZ77B), Intel Z75 (TZ75B)

عﻮﻥ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺗ DDR3 تﺎﻌﺳ1066 / 1333 / 1600

عﻮﻥ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺗ DDR3(OC) تﺎﻌﺳ1800 / 2000 /

عﻮﻥ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺗ DDR3(OC) تﺎﻌﺳ1866 / 2133 ﺎﺠﻴﻣ

و2/و 4/و 8 ﺎﺠﻴﺝﺖیﺎﺑ

ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺗ ﻻ DIMM ﻊﻣ ﻖﻓاﻮﺘﺗ ﻻ ﻲﺘﻟا ﻚﻠﺗو ECC

ﺔﻔﻴﻇ و ﺮﻓﻮﺗSuper I/O ًﺎ ﻣ ا ﺪ ﺨﺘﺳا ﺮﺜآﻷا .

ﺔﺤﺘﻓ PCI دﺪﻋ2

ﺔﺤﺘﻓGen3 x16 PCI Express دﺪﻋ1

ﺔﺤﺘﻓGen2 (x4)x16 PCI Express دﺪﻋ1

ﺔﺤﺘﻓPCI Express Gen2 x 1 دﺪﻋ2

Socket 1155

Celeron ﺑ ددﺮﺘ ی ﻰﻟإ ﻞﺼ

Intel H77 (T77)

ةﺮآاذ ةﺪﺣو DDR3 ةﺎﻨﻘﻟا ﺔﺝودﺰﻣ

ﺖیﺎﺑ ﺎﺠﻴﻣ

2200 / 2400ﺖیﺎﺑ ﺎﺠﻴﻣ

ﺖیﺎﺑ ( TZ77B, TZ75B)

IT8728

ﺗﻢﻋﺪ ﺔﻴﻨﻘ ﺗ Low Pi n Count Interface

ﻢﻜﺤﺘﻣSerial ATAﻞﻣﺎﻜﺘﻣ SATA 2 & 3

Realtek RTL 8111E ﺔﻴﻠﺥاد ﺔﻜﺒﺵ

ALC892

ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو

ﺔیﺰآﺮﻤﻟا

ﺢﺋاﺮﺸﻟا ﺔﻋﻮﻤﺠﻣ

ﺔﻴﺴﻴ ﺋﺮﻟا ةﺮآاﺬﻟا

Super I/O

ﻲﻟﺎﻋ تﻮﺼﻟا ﻢﻋد

ﻒیﺮﻌﺘﻟا

USB3.0

تﺎﺤﺘﻔﻟا

ﺬﻓﺎﻨﻤﻟا ﻰﻠﻋ ﺢﻄﺱ

60

ﻆﻔﺘﺤﺗ Biostar ﺎﻬﻘﺤﺏ ﻲﻓ ﺔﻓ ﺎﺿإ وأ ﺔﻟاز إ ﻢﻋﺪﻟا يﻷ مﺎﻈﻧ ﻞﻴﻐﺸﺗ رﺎﻄﺧﺈﺏ وأ

نوﺪﺏ رﺎﻄﺧإ.

تﺎﻔﺻاﻮﻤﻟا

ﻢﻋﺪیﺔﻴﻣﺎﻣﻷ ا ﺔﺣﻮﻠﻟا تاﺰﻴﻬ ﺠﺗ ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻣ دﺪﻋ1

ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟﺎﺑ تﻮﺼﻟا ﺔﻔﻴﻇو ﻢﻋﺪی ﻲﻣﺎﻣﻷا تﻮﺼﻟا ﺬﻔﻨﻣ دﺪﻋ1

ﺔﻔﻴﻇو ﻊﻣ ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺘﻟSmart Fan ﺔیﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ1

مﺎﻈﻨﻟا ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺘﻟ مﺎﻈﻨﻟا ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ2

ﺢﺴ ﻣ ﺔﻠﺹوCMOS دﺪﻋ1

ﻲﺘﺤﺘﻓ ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪیUSB2.0ﺔﻴﻣﺎﻣﻷ ا ﺔﺣﻮﻠﻟﺎﺑ ﺬﻔﻨﻣUSB2.0 دﺪﻋ2

ﻲﺘﺤﺘﻓ ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪیUSB3.0ﺔﻴﻣﺎﻣﻷ ا ﺔﺣﻮﻠﻟﺎﺑ ﺬﻔﻨﻣUSB3.0 دﺪﻋ1

ﺬﻔﻨﻣﺔﻜﻠﻬﺘﺴﻣ ﺖﺤﺗ ﺮﻤﺣﻷا دﺪﻋ1

ﻲﻠﺴﻠﺴﺗ ﺬﻔ ﻨﻣ دﺪﻋ1

ﻲﻤﻗﺮﻟا تﻮﺼﻟا جﺮﺥ ﺔﻔﻴﻇو ﻢﻋﺪی جﺮﺥ ﺬﻔﻨﻣS/PDIF دﺪﻋ1

ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻣ)24سﻮﺑد( دﺪﻋ1

ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻣ)8ﺲﻴﺑﺎﺑد( دﺪﻋ1

AT X 295 ﻢﻣ)ضﺮﻋ (X 220 ﻢﻣ)عﺎﻔﺗرا(

Windows XP / Vista / 7 ﻢﻋد ﺔﻤﻈﻧأ ﻞﻴﻐﺸﺘﻟا

TZ77B/TZ75B/T77

ﺔﺣﻮﻠﻟا

ﺢﻴﺗﺎﻔﻣ ﺔﺣﻮﻟPS/2 دﺪﻋ1

ﺬﻓﺎﻨﻣHDMI دﺪﻋ1

ﺬﻓﺎﻨﻣVGA دﺪﻋ1

ﺬﻓﺎﻨﻣDVI دﺪﻋ1

ﺔﻴﻠﺤﻣ لﺎﺼﺗا ﺔﻜﺒﺵ ﺬﻔﻨﻣ دﺪﻋ1

ﺬﻓﺎﻨﻣUSB2.0 دﺪﻋ4

ﺬﻓﺎﻨﻣUSB3.0 دﺪﻋ2

تﻮﺹ ﺲﺒﻘﻣ دﺪﻋ6

ﺬﻓﺎﻨﻣ ﻞﺧد/جﺮﺧ

ﺔﺣﻮﻠﻟا ﺔﻴﻔﻠﺨﻟا

ﻢﺠﺣ ﺔﺣﻮﻠﻟا

61

Motherboard Manual

JAPANESE

Socket 1155

CPU

チップセット

メインメモリ

Super I/O

SATA 2 & 3 統合シ リアルATA コントローラ

LAN Realtek RTL 8111E

HDオ ーディ

オのサポート

USB3.0

スロット

オンボードコ

ネクタ

Int e l Cor e i7 / i5 / i3 / P en t iu m / Celero n プロ

セッサ

Intel Z77 (TZ77B), Intel Z75 (TZ75B)

Intel H77 (T77)

DDR3 DIMMスロット x 4

最大メモリ容 量32GB

各DIMMは 512MB/1GB/2GB/4GB/8GB DDR3

をサポート

IT8728

もっとも一般 に使 用されるレ ガシーSuper I/O機

能を採用して いま す。

低ピンカウン トイ ンターフェ イス

ALC892

ハイデフィニ ショ ンオーディ オのサポー ト

7.1 チ ャンネルオ ーディ オアウト

Z77 (TZ77B) / Z75 (TZ75B) / H77 (T77) データ 転送速 度最大600 MB /秒の

PCIスロット x2

PCI Express Gen3 x16スロット x1

PCI Express Gen2 x16スロット(x 4) x1

PCI Express Gen2 x 1スロット x2

SATA3コネクタ x2 各コネクタは 1つのSATA3デバイス をサポート しま す

SATA2コネクタ x4 各コネクタは 1つのSATA2デバイス をサポート しま す

フロントパネ ルコ ネクタ x1 フロントパネ ル機 能をサポー トします

フロントオー ディ オコネクタ x1 フロン トパネルオ ーディ オ機能をサ ポートしま す

仕様

Execute D isable Bit / Enhanced Intel Sp eedStep® /

Intel Architecture-64 / Extended Memory 64

Technology / Virtualization Technology / Hyper

Thread ingをサポート します

デュアル チ ャン ネルモードDDR3メモリモジ ュール

DDR3 1066 / 1333 /1600 をサポート

DDR3(OC) 1800/2000/2200/2400 をサポート

DDR3(OC) 1866/2133 (TZ77B, TZ75B) をサポート

登録済みDIMMとECC D IMMはサポート されま せん

環境コントロ ール イニシアチ ブ、

H/Wモニター

ファン速度コ ント ローラ/ モニター

ITE の「スマート ガー ディアン」 機能

最高3.0 Gb/秒 / 6.0 Gb /秒のデー タ転送速度

SATAバージョン2 .0 / 3.0仕様に 準拠 。

RAID 0,1,5,10, SRT (TZ77B, T77)のサポート

10 / 100 / 1000 Mb/秒のオート ネゴシ エーション

半/全二重機能

62

CPUファンヘッダ x1 CPUファン電源装置(スマートフ ァン機能を 搭載 )

システムファ ンヘ ッダ x2 システムファ ン電源装置

CMOSクリアヘッダ x1

USB2.0コネ クタ x2

USB3.0コネ クタ x1

消費者IR コネクタ x1

シリアルポー ト x1

S/PDIFアウトコネ クタ x1 デジタルオー ディ オアウト機 能をサ ポートしま す

電源コネクタ (24 ピン) x1

電源コネクタ (8ピン) x1

PS/2キーボード x1

HDMIポート x1

VGAポート x1

背面パネル

I/O

ボードサイズ

OSサポー ト Windows XP / Vista / 7

DVI-Dポート x1

LANポート x1

USB2.0ポー ト x4

USB3.0ポー ト x2

オーディオジ ャッ ク x6

220 mm (幅) X 295 mm (高さ) ATX

TZ77B/TZ75B/T77

仕様

各コネクタは 2つのフロ ントパネル USB2.0ポー トをサポ

ートします

各コネクタは 2つのフロ ントパネル USB3.0ポー トをサポ

ートします

Biostarは事前の サポートな しにOSサ ポー トを追加ま たは

削除する権利 を留 保します。

2012/04/10

63
