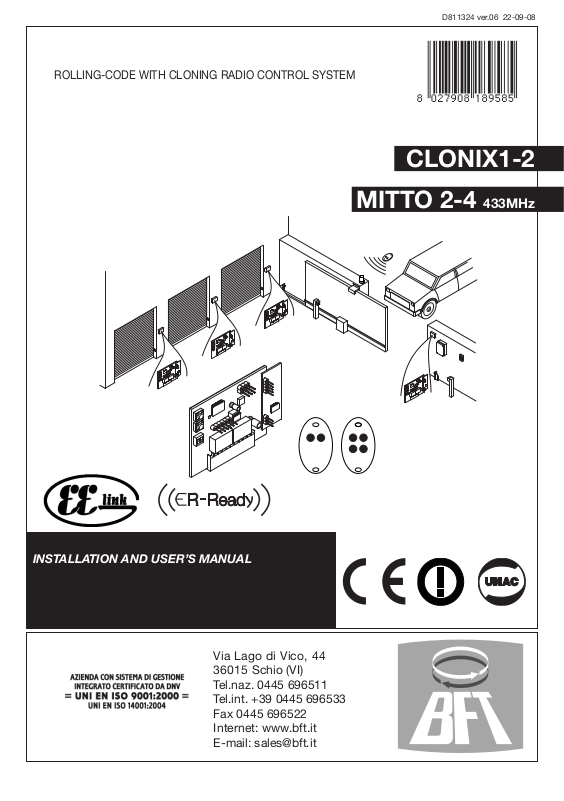

BFT Clonix User Manual

I

SISTEMA RADIOCOMANDO ROLLING-CODE CON CLONAZIONE

ROLLING-CODE WITH CLONING RADIO CONTROL SYSTEM

SYSTÈME RADIOCOMMANDE ROLLING-CODE AVEC CLONAGE
FERNSTEUERUNGSSYSTEM ROLLING-CODE MIT KLONIEREN
SISTEMA DE RADIOMANDO ROLLING-CODE CON CLONACIóN
SISTEMA RADIOCOMANDO ROLLING-CODE COM CLONAçãO

MITTO 2-4 433MHz

D811324 ver.06 22-09-08

CLONIX1-2

ISTRUZIONI D’USO E DI INSTALLAZIONE

INSTALLATION AND USER’S MANUAL

INSTRUCTIONS D’UTILISATION ET D’INSTALLATION

INSTALLATIONS-UND GEBRAUCHSANLEITUNG

INSTRUCCIONES DE USO Y DE INSTALACION

INSTRUÇÕES DE USO E DE INSTALAÇÃO

Via Lago di Vico, 44
36015 Schio (VI)
Tel.naz. 0445 696511
Tel.int. [phone]
Fax [phone]
Internet: www.bft.it
E-mail: [e-mail]

8 - CLONIX/MITTO - Ver. 06

D811324_06

ENGLISH

INSTALLATION MANUAL

Thank you for buying this product, our company is sure that you

will be more than satised with the product’s performance. The

product is supplied with a “Warnings” leaet and an “Instruction
booklet”. These should both be read carefully as they provide

important information about safety, installation, operation and
maintenance. This product complies with the recognised technical
standards and safety regulations. We declare that this product is
in conformity with the following European Directives: 2004/108/
EEC and 73/23/EEC (and subsequent amendments).

GENERAL SAFETY

WARNING! An incorrect installation or improper use of the
product can cause damage to persons, animals or things.

• The “Warnings” leaet and “Instruction booklet” supplied with

this product should be read carefully as they provide important
information about safety, installation, use and maintenance.

• Scrap packing materials (plastic, cardboard, polystyrene etc)

according to the provisions set out by current standards. Keep
nylon or polystyrene bags out of children’s reach.

• Keep the instructions together with the technical brochure for

future reference.

• This product was exclusively designed and manufactured for
the use specied in the present documentation. Any other use
not specied in this documentation could damage the product

and be dangerous.

• The Company declines all responsibility for any consequen­ces resulting from improper use of the product, or use which

is different from that expected and specied in the present

documentation.

• Do not install the product in explosive atmosphere.

• The construction components of this product must comply

with the following European Directives:It complies with
the 2004/108/EEC, 1999/5/CEE, European Directive and
subsequent amendments. As for all non-EEC countries, the
above-mentioned standards as well as the current national
standards should be respected in order to achieve a good
safety level.

• The Company declines all responsibility for any consequences

resulting from failure to observe Good Technical Practice when
constructing closing structures (door, gates etc.), as well as
from any deformation which might occur during use.

• The installation must comply with the provisions set out by the

following European Directives:It complies with the 2004/108/
EEC, 1999/5/CEE, European Directive and subsequent
amendments.

• Disconnect the electrical power supply before carrying out any

work on the installation. Also disconnect any buffer batteries,

if tted.

• The Company declines all responsibility with respect to the

automation safety and correct operation when other manu­facturers’ components are used.

• Only use original parts for any maintenance or repair opera­tion.

• Do not modify the automation components, unless explicitly

authorised by the company.

• Instruct the product user about the control systems provided

and the manual opening operation in case of emergency.

• Keep radio control or other control devices out of children’s

reach, in order to avoid unintentional automation activation.

• The user must avoid any attempt to carry out work or repair

on the automation system, and always request the assistance

of qualied personnel.

• Anything which is not expressly provided for in the present

instructions, is not allowed.

1) GENERAL OUTLINE

The Clonix receiver combines the characteristics of utmost safety
in copying variable code (rolling code) coding with the convenien­ce of carrying out transmitter “cloning” operations thanks to an
exclusive system.
Cloning a transmitter means creating a transmitter which can be
included automatically within the list of the transmitters memo­rised in the receiver, either as an addition or as a replacement of
a particular transmitter.
Therefore it will be possible to remotely program a large number of
additional transmitters, or for example, replacement transmitters
for those which have been lost, without making changes directly
to the receiver. Cloning by replacement is used to create a new
transmitter which takes the place of the one previously memorised

in the receiver; in this way the lost transmitter is removed from the

memory and will no longer be usable
When coding safety is not a decisive factor, the Clonix receiver

allows you to carry out xed code additional cloning, which

although abandoning the variable code, provides a high number
of coding combinations.
Using clones when there is more than one receiver (as in the case
of communal buildings),
and especially when a distinction is to be made between clones to
be added to or replaced in individual or collective receivers, could

turn out to be rather difcult. The Clonix receiver cloning system for

communal buildings makes it particularly easy to solve the problem
of clone storage for up to 250 individual receivers.

2) RECEIVER TECHNICAL SPECIFICATIONS

Power supply : range 12 to 28V= range 16 to 28V~

Antenna impedance : 50 Ohms (RG58)
Relay contact : 1A - 33V~, 1A - 24V=
Max. n° of radio transmitters that can be memorized:

Receiver version N° of radio

CLONIX single-channel 128 128

CLONIX twin-channel 128 128

CLONIX twin-channel 2048 2048

CLONIX EXTERNAL twin-channel 128 128

CLONIX EXTERNAL twin-channel 2048 2048

2.1) TECHNICAL SPECIFICATIONS OF MITTO RECEIVER:

Frequency : 433.92MHz
Operating temperature range : -20 / +55°C
Code by means of : Rolling-code algorithm
N° of combinations : 4 billion

Dimensions : see g.1

Power supply : 12V Alkaline battery 23A
Range : 50/100 metres
Transmitter versions : Twin-channel, 4-channel

3) ANTENNA INSTALLATION

Use an antenna tuned to 433MHz.
For Antenna-Receiver connection, use RG8 coaxial cable.

The presence of metallic masses next to the antenna can in­terfere with radio reception. In case of insufcient transmitter
range, move the antenna to a more suitable position.

4) PROGRAMMING

Transmitter storage can be carried out in manual mode, or by
means of the Universal palmtop programmer which allows
you to create installations in the “collective receivers” mode,

transmitters
