Touring Your Joybook
Power B utton Turns Joybook on or off.
Internet Hotkey
Starts up the Internet Explorer Web browser.
E-Mail Hotkey
Starts up the Outlook Express e-mail program.
Customizable Hotkey 1 and 2
Can be customized to open an application, docu­ment or file folder.
Caps Lock Indicator Lights up in green when the Caps Lock function is activated.
Num Lock Indicator Lights up in green when the Num Lock function is activated.
Scroll Lock Indicator Lights up in green when Scroll Lock function is activated.
Memory Card Reader/Floppy Disk Drive Indicator Flashes green when Joybook is accessing data on the memory card or floppy disk in the optional memory card reader or floppy disk drive.
Hard Disk Drive Activity Indicator Flashes green when Joybook is accessing data on the hard disk.
Optical Drive Activity Indicator Flashes green when Joybook is accessing data on the disc in the optical drive.
Power I ndicator
• Lights up in green when Joybook is turned on.
• Blinks green when Joybook enters standby mode.
Battery Indicator
• Lights up in green when Joybook is connected to AC power and the battery is fully charged.
• Blinks red when battery power is running low.
• Lights up in amber when Joybook is connected to AC power and the battery is being charged.
• Flashes amber when battery is malfunctioning. Remove the bat­tery and contact BenQ service personnel immediately.
For more information about how to configure the customizable hotkeys, please refer to "Configuring the Customizable Hotkeys" on page 11.
Touring Your Joybook 1
JB2000E.book Page 2 Tuesday, March 23, 2004 8:57 AM
Tou c h Pa d You can use the touch pad to conveniently control the cursor on the screen.
• To move the cursor, gently move your finger on the touch pad.
The cursor will move accordingly.
• Tap on the touch pad once to execute the same action as click-
ing on the left button of a mouse.
• Tap twice to execute the same action as double-clicking.
Up and Down Scroll Button Use this button to scroll windows up or down.
Left and Right Selection Buttons Equivalent to the left and right buttons on a mouse.
Touring Your Joybook2
JB2000E.book Page 3 Tuesday, March 23, 2004 8:57 AM
Kensington Lock Hole
For installing a Kensington type lock and preventing theft of the Joybook.
Modem Port
For connecting an analog tele­phone line for use with the internal modem.
LAN (Ethernet) Port
Allows Joybook to connect to a 10/100Mbps Ethernet net­work.
Microphone Jack
Can be used to connect to a microphone for recording sounds.
Earphone Jack
Can be used to connect to an earphone/headset or external speaker for playing audio.
PC Card Slot
This PC Card slot accepts one Type-I I PC Car d. Yo u ca n use i t and various PC Cards on the market to further expand the capabilities of your Joybook.
Insert the PC Card into the slots following the direction indicated on the card and complete related driver set­tings.
PC Card Ejection Button You can use this button to eject an inserted PC Card.
To e j e ct a P C C ar d :
1. Quit all PC Card applications and shut down all PC Card functions.
2. Press and then release the PC Card ejection button, causing it to pop out.
3. When the button has popped out, push it in again to eject the PC Card.
Four-in-One Memory Card Reader or Floppy Disk Drive (Optional) Allows you to access data on a floppy disk drive or a SD, MMC, SmartMedia or Memory Stick memory card.
Touring Your Joybook 3
JB2000E.book Page 4 Tuesday, March 23, 2004 8:57 AM
Optical Drive (Optional)
Supports multi-functional optical module for reading data or music CDs, VCDs and DVDs or burning CD-R/CD-RW discs. Discs can be inserted/ejected by pressing the small ejection button on the drive.
If you want to open the disc tray of the optical drive when your Joybook power is off, or it can't be opened using the ejection button, insert a pointed object into the tray ejection hole next to the ejection button to force open the disc tray.
Touring Your Joybook4
JB2000E.book Page 5 Tuesday, March 23, 2004 8:57 AM
Infrared Por t You can connect Joybook to your PDA, mobile phone or other Infrared compatible devices using this port.
Power Jack For connecting AC power sup­ply.
PS/2 Port For connecting to PS/2 devices such as a keyboard or mouse.
IEEE 1394 (FireWire) Port Can be used to connect to a digi­tal video camera and create your own movies. You can also use it to connect to a Firewire hard disk, printer and more.
USB 2.0 Port For connecting peripherals such as mice, digital cameras and MP3 players that use the USB interface.
Serial Port For connecting serial devices.
VGA Por t For connecting external display devices, such as monitors and projectors.
Parallel Port For connecting parallel devices such as printers.
Ventilation Holes For dissipating heat and keeping the computer at an optimal tem­perature.
Touring Your Joybook 5
JB2000E.book Page 6 Tuesday, March 23, 2004 8:57 AM
Function Hotkeys
You can use the function hotkeys to access commonly used functions or make quick settings. To use the hotkeys, press and hold the Fn key at the lower left corner of the keyboard, and then press the desired hotkey.
Fn + F1 Puts Joybook into standby mode (the
hard disk and screen will be tempo­rarily turned off to conserve power).
Fn + F2 Enables/disables wireless LAN func-
tion.
Fn + F3 Switches display between the screen
and an external monitor/projector, or allows simultaneous display.
Fn + F4 Decreases screen brightness. Fn + F10 Stops playing the CD in the optical
Fn + F5 Increases screen brightness. F2 Press the this key during startup to
Touring Your Joybook6
Fn + F6 Activates or deactivates the speakers. Fn + F11 Fast rewinds through the media con-
Fn + F7 Decreases speaker volume. Fn + F12 Fast forwards through the media con-
Fn + F8 Increases speaker volume.
Fn + F9 Plays/pauses the playback of the CD in
the optical drive.
drive.
enter the BIOS setup menu.
tent on the CD in the optical drive.
tent on the CD in the optical drive.
Esc Press this key during startup to open
the boot device menu.
JB2000E.book Page 7 Tuesday, March 23, 2004 8:57 AM
Windows Key
Functionally equivalent to click­ing the Start button on the Win­dows desktop.
+ Tab Makes the next item on the Win­dows Taskbar active.
+ E Opens the My Computer window
for browsing disks and files.
+ M
Minimizes all windows.
Shift + + M Cancels minimization of all win-
dows.
+ R
Activates the Run dialogue box.
+ M
Return to Windows Desktop.
Num Lock Activates the numeric keypad integrated in the keyboard.
Caps Lock Capitalizes all text entered.
Application Key
Provides the same function as the right touch pad button, bringing up a contextual pop-up menu.
Touring Your Joybook 7
JB2000E.book Page 8 Tuesday, March 23, 2004 8:57 AM
Getting Started with Windows XP
Your Joybook comes installed with Windows XP, Microsoft's latest operating system for consumer PCs. The first time you start up your Joy­book, Windows XP will ask you a few questions. Answer the questions to ensure that your full rights are protected. If you are asked to select the type of keyboard and you are not sure, please check the specification label on the packing carton to determine the correct keyboard type.
After you are done answering the questions, Joybook will restart and then you will enter Windows XP for the first time. Click Start and select Help and Support in the menu that appears. The Help and Support Center will appear and you can find more information on how to use
Windows XP here.
The operating system that comes with your Joybook may vary according to the Joybook model you purchased.
Getting Started with Windows XP8
JB2000E.book Page 9 Tuesday, March 23, 2004 8:57 AM
Next, please follow the steps below to setup the language for non­unicode programs settings in Windows XP.
1. Click Start and then Control Panel.
2. Click Date, Time, Language, and Regional Options.
3. Click Regional and Language Options in the window that appears.
4. Click the Advanced tab.
5. In the drop-down listbox, click to select your language and country.
6. Click Apply.
7. Click Ye s .
8. Click Ye s .
Getting Started with Windows XP 9
JB2000E.book Page 10 Tuesday, March 23, 2004 8:57 AM
Using the Q-Media Bar
The Q-Media Bar integrates a number of software applications to enhance the multimedia experience on your
Joybook. Click on the small triangle button and a rotating button bar will appear.
From the Q-Media Bar, you can:
Click to start up Internet Explorer and surf the Internet.
Click to open Outlook Express for accessing e-mail.
Click to open QMusic. You can use QMusic to listen to MP3 or CD music, burn MP3 music onto a CD (requires an optional Combo
drive or external CD burner), convert and save CD music into MP3 format, or create your personal favorite music album.
Click to start up Powe rDVD for playing DVD or movie clips.
Click to activate PowerDirect or with which you can create and edit your personal movie clips.
Click to open Photo Explorer. It allows you to easily create and share your online photo album.
Click to open Nero Express for burning your favorite music, photos and files onto CDs (needs optional CD burner).
Click to view the information about QMedia Bar.
The application programs that come with your Joybook may vary according to the Joybook model you purchased.
Using the Q-Media Bar10
JB2000E.book Page 11 Tuesday, March 23, 2004 8:57 AM
Setting Up QMedia Bar
Right-click on the QMedia Bar and a menu will appear on it.
You c an :
• Let QMedia Bar appear on top of all open programs by selecting Always on top.
• Close QMedia Bar by selecting Exit.
• Adjust the size of QMedia Bar on the screen by selecting Size and then select an appropriate size.
Configuring the Customizable Hotkeys
1. Click the Start button on Windows Taskbar located at the bot-
tom left side of the screen and then select Programs, Hot Key Manager, Configuration from the menus that appear. The fol­lowing window will pop up on the screen.
2. Click the button that represents the hotkey you want to config-
ure. For example, to configure the E-Mail Hotkey, click the Mail button. The following dialog will appear.
3. In the dialog, you can specify the program, document or folder to be opened when the hotkey is pressed by clicking the Open a document, application or folder on your computer button and then the Browse button to browse and select the document, folder or the executable (.exe) file of the desired application program.
If you want to make the hotkey a shortcut to a favorite web page, click the Open a web site (URL) button and then click the Favorites... button to pick up a website bookmark of from your favorites.
4. Click the OK button to close the dialog.
Using the Q-Media Bar 11
JB2000E.book Page 12 Tuesday, March 23, 2004 8:57 AM
Setting up Hotkey Onscreen Display
1. Click the Start button on Windows Taskbar located at the bot­tom side of the screen and then select Programs, Hot Key Man­ager, Configuration from the menus that appear. The following window will pop up on the screen. Click the Onscreen tab.
2. Check the Show text onscreen message checkbox to enable hot­key Onscreen Display. To enable onscreen volume control mes­sage, check the Show volume controls onscreen checkbox. Uncheck all checkboxes if you want to disable all Onscreen Dis­play functions.
• If the Onscreen Display functions are enabled, you can also cus­tomize the style of the onscreen messages by clicking the Start button and then select Programs, Hot Key Manager, OnScreen Dis­play.
• To close Hot Key Manager, click the Start button and then select Programs, Hot Key Manager, Close Hot Key Manager. The hotkey functions will also be disabled.
Using the Q-Media Bar12
JB2000E.book Page 13 Tuesday, March 23, 2004 8:57 AM
Your Digital Entertainment Center - BenQ Joybook
Send and receive e-mail.

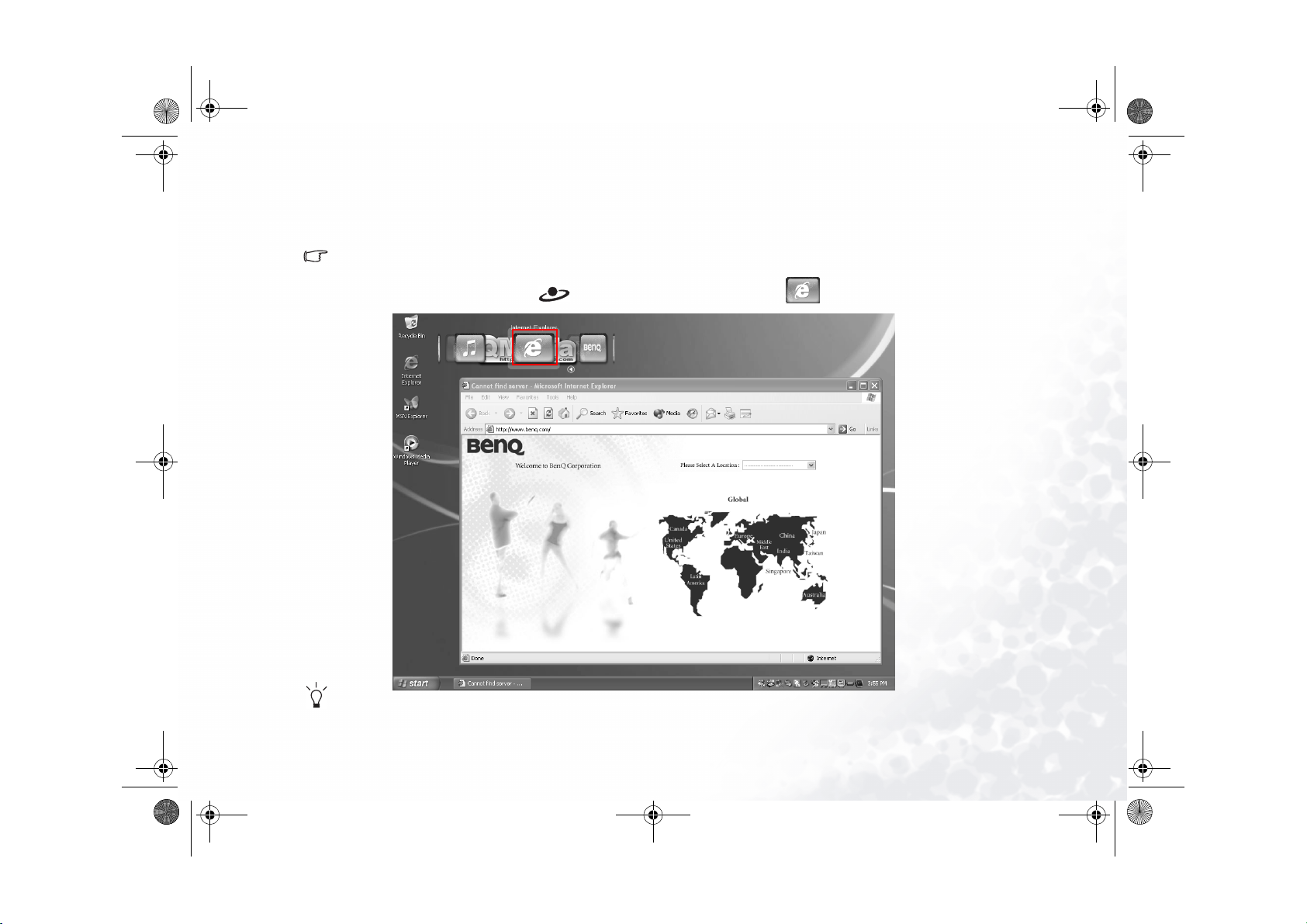

Browse the Web.
Listen to music and create your
own custom music collections.
Convert music into MP3 format
and take your favorite tunes
wherever you go.
Burn CDs quickly and reliably.
Create your own movies.
Browse and edit digital photo­graphs.
Watch DVD and VCD movies.
Your Digital Entertainment Center - BenQ Joybook 13
JB2000E.book Page 14 Tuesday, March 23, 2004 8:57 AM
Sending and Receiving E-mail
You can use Outlook Express to send and receive e-mail.
In order to use e-mail, you must have an account with an ISP (Internet service provider) and perform needed software configuration. For detailed information on accounts, passwords, e-mail servers and other settings, please consult your system administrator or ISP.
1. Open Outlook Express by pressing the hotkey on your Joybook or clicking on the button on the QMedia Bar.
2. After the Outlook Express application window opens, you can start to write,
For more information on how to use Outlook Express, please consult the on-line Help by clicking Help and then select Contents and Index.
Your Digital Entertainment Center - BenQ Joybook14
JB2000E.book Page 15 Tuesday, March 23, 2004 8:57 AM
Getting Online
You can use Internet Explorer to browse web pages on the Internet and access various on-line information.
In order to get online, you must have an account with an ISP (Internet service provider) and perform needed software configuration. For detailed information on accounts, passwords and other settings, please consult your system administrator or ISP.
1. Open Internet Explorer by pressing the hotkey on your Joybook or clicking on the button on the QMedia Bar
2. After the Internet Explorer applica­tion window opens, enter the address for the web page you wish to view in the
For more information on how to use Internet Explorer, please consult the on-line Help by clicking Help and then select Contents and Index.
Your Digital Entertainment Center - BenQ Joybook 15
r
t
JB2000E.book Page 16 Tuesday, March 23, 2004 8:57 AM
Listening to Music and Creating Custom Music Collections
QMusic is the perfect tool for managing your favorite music collections. You can use it to play music CDs and MP3 files, burn MP3 songs onto CDs, convert audio CD tracks to MP3 format for storage on your hard disk drive, or create custom music compilation. If you also have a BenQ Joybee MP3 digital audio player, you can also use QMusic to update songs in the player quickly and easily.
Click the button on the QMedia Bar to open QMusic.
Display the status of the action
currently being performed.
Used to execute certain actions
in QMusic, such as burning a
CD, converting songs, stopping
the current action, adding
Lists your music file collections.
This is where you can store the
songs to be updated to the Joy-
bee Digital Audio Player.
This is the place to store your
This is the location where you can arrange the directories for
your favorite MP3 music and
Display Area
Action Buttons
songs or playlists..., etc.
Media
Which contains:
Music Library
My Joybee
My Playli sts
own music playlists.
MP3 Disc Playlists
creation of CD.
For more information on how to use QMusic, please consult the on-line Help by clicking the button.
Your Digital Entertainment Center - BenQ Joybook16
Play Buttons Used to control the playback actions or adjust
volume when playing music.
Status Bar Displays the details of your song list.
System Buttons Controls the QMusic window or
opens the on-line Help.
Search Window Allows you to search for a song in you music collection.
Feature Buttons Allows you to customize sound effects setup QMusic o r change play modes... etc.
About QMusic Click to view detail information abou
QMusic.
JB2000E.book Page 17 Tuesday, March 23, 2004 8:57 AM
Viewing Digital Photographs and Creating Slide Shows
Photo Explorer can help you manage your digital photographs and other images, letting you easily view, print, and edit them, as well as cre­ate customized slide shows.
Click the button on the QMedia Bar to open Photo Explorer.
Customizable Toolbar
Directory Tree
Location
Preview Pane
Viewer
Browse Pane
Slide Show Storyboard
Your Digital Entertainment Center - BenQ Joybook 17
JB2000E.book Page 18 Tuesday, March 23, 2004 8:57 AM
Viewing Images
1. Locate the desired image files in the Directory Tree.
2. Files in the directory you selected will be shown as thumbnails or in a list in the Browse Pane. Select the image you wish to view.
3. The image you selected will be shown in the Preview Pane. Double-clicking in the Preview Pane will open the Viewer window for a closer look at the image.
Creating a Slide Show
1. Select To o l s , Slide Show to open the Slide Show Storyboard and create a new project.
Your Digital Entertainment Center - BenQ Joybook18
2. Select the image, video, and sound files you wish to use in your slide show, and drag them to the Slide Show Storyboard. These files may come from different directories.
To use a sound file as the soundtrack for your slide show, drag it to a position before the first slide on the Slide Show Storyboard.
3. Click Save . If you wish to make changes to
the slide show, open the .use file for the slide show and edit it on the Slide Show Storyboard.
The .use project file stores only file locations, sequences, names, and slide show options. It does not store the actual images, video, and sound files. If you wish to save a slide show to a CD for sharing with friends and family, or for archiving purposes, collect all its files in a sin­gle directory.
4. Click Slide Show Options to select transition
effects and other options. Choose to run the slide show automatically or control it manually. If you choose to run the slide show automatically, you should also set the duration each slide should be displayed. (This set­ting applies only to images, as video and sound files will play to completion.)
JB2000E.book Page 19 Tuesday, March 23, 2004 8:57 AM
Watching DVD/VCD Movies
You can watch DVD/VCD movies by using the PowerDVD video player with your Joybook. Click the button on the QMedia Bar to
open PowerDVD.
1. Insert the disc, and PowerDVD will automatically start up and begin playback.
2. If you wish, select full-screen mode for more comfortable viewing.
To view an explanation of the function for any button on the control panel, place the on-screen cursor over the button. A floating tool tip will appear.
For more information on how to use PowerDVD, please consult the on-line Help by clicking the icon.
Your Digital Entertainment Center - BenQ Joybook 19
JB2000E.book Page 20 Tuesday, March 23, 2004 8:57 AM
Making Your Own Movies
Your Joybook can help you edit video files to create a movie that you can share with family and friends. With a digital video camera or other source of digital video footage, you can take advantage of the PoweDirector to produce your very own cinematic masterpiece-or if you're less ambitious, just the coolest home video ever!
Click the button on the QMedia Bar to open PowerDirector.
Media Dat aba nk
Shows various types of
raw media files that can be
used in the storyboard
Displays previews of video
footage, transitions, and
various types of effects.
pane.
Preview Pane
i-Power Brings up the i-Power
online resources portal website. Minimize Minimizes the Power Director application win­dow. Close Closes the Power Director. Mode Whee l Used for switching between various editing modes.
For deleting items from
the Media Databank or
Provides area for manipu-
lating all the media seg-
ments, transitions, special
effects and user settings
needed to produce the
Trash Can
Storyboard pane.
Storyboard Pane
final movie.
For more information on how to use PoweDirector, please consult the on-line Help by clicking Help and selecting PowerDirector Pro Help.
Your Digital Entertainment Center - BenQ Joybook20
Vo l u m e Controls audio volume.
JB2000E.book Page 21 Tuesday, March 23, 2004 8:57 AM
Wireless Magic - Using the Built-In Wireless LAN Function
With the optional built-in wireless LAN card on your Joybook, you can access Ethernet network wirelessly without the constraints of network cables.
At home or in the office, you need an access point, which serves as an air station to make transmission possible. Outdoors in places such as in coffee shops or library, you can inquire the service per­sonnel about an account.
To connect to a wireless LAN network:
1. Make sure that you are located within the wireless network ser­vice area and you have already obtained the user name and password for accessing such network from the service provider.
2. Press the Fn + F2 hotkey combination to enable the wireless LAN function. If the onscreen display function is enabled (see "Setting up Hotkey Onscreen Display" on page 12), “Wireless LAN Enabled” will appear on the screen.
3. Double-click on the icon on Windows system tray located at the lower right corner of the Desktop.
4. Select a wireless network. Fill in the blank with your network key and click Connect.
5. After you are connected to the wireless network, the network status will appear on the screen.
Your Digital Entertainment Center - BenQ Joybook 21
JB2000E.book Page 22 Tuesday, March 23, 2004 8:57 AM
To access Internet, you may have to undergo another authoriza­tion process for entering username and password. For details, please consult your ISP.
If you are not to use the WLAN Card in your Joybook, dial-up con­nection using the modem port, ADSL and broadband transmission using the LAN port would also do. Please contact your local ISP to get more information.
When travelling by air, please be sure to turn off wireless networking to avoid any possible risks to flight safety.
If your Joybook is equipped with the Ethernet network and the wire­less network functions, the system will automatically optimize the working environment itself when you connect to the Internet.
Your Digital Entertainment Center - BenQ Joybook22
JB2000E.book Page 23 Tuesday, March 23, 2004 8:57 AM
Burning CDs
The Nero Express software that comes with your Joybook enables you to burn different types of data to CD by simply following the easy step-by-step instructions.
The CD-burning function also requires an optional Combo drive or external CD burner.
Click the button on the QMedia Bar to open Nero Express.
1. Insert a blank CD into the CD-burner.
2. Take burning an audio (music) CD that you can play on any audio CD players as an example, move the cursor onto the
icon , and then click the Make Audio CD item that appears underneath.
3. In the window that follows, click Add.
4. Browse to select the music files in the dialogue box that appears and then click Add. Repeat this step if you want to burn more music files onto the CD.
Your Digital Entertainment Center - BenQ Joybook 23
JB2000E.book Page 24 Tuesday, March 23, 2004 8:57 AM
5. When you are done selecting files, click Finished.
6. The total selected file size will be calculated and displayed by a blue bar at the bottom part of the window. If the blue bar goes over the dotted red line, you have to delete some files from the selected files list by right-clicking a file and select Delete. Click Next.
7. The following window will appear. Click Burn.
8. Nero Express will start burning files on to the CD.
Your Digital Entertainment Center - BenQ Joybook24
JB2000E.book Page 25 Tuesday, March 23, 2004 8:57 AM
9. When the burning process has been carried out successfully, the following dialogue box will appear. Click OK.
10. Click Next.
11. You can now choose to burn another CD with the same selec­tion of files again, burn a CD with different files, enter Cover Designer to design the cover for the CD you just burned or save
the setting of this CD for future use. Or, you can simply click Exit to exit Nero Express.
For more information on how to use Nero Express, please consult
the on-line Help by clicking the icon on the Nero Express wel-
come window and then select Help Topics.
Your Digital Entertainment Center - BenQ Joybook 25
JB2000E.book Page 26 Tuesday, March 23, 2004 8:57 AM
Attaching External Display Devices
When giving a presentation, you can output the Joybook’s video signal to an external display device, such as a projector or monitor. You can also press the Fn + F3 hotkey combination to switch between Joybook's own screen and the attached display device, or use simultaneous dis­play.
Monitor
Projector
Attaching External Display Devices26
JB2000E.book Page 27 Tuesday, March 23, 2004 8:57 AM
Installing Additional Memory
You can replace the existing memory module with a higher-capac­ity one. Before you upgrade or replace memory, please check on the BenQ web site to determine the module which can be used, or contact BenQ distributor or customer service center. It is recom­mended that you take your Joybook to the BenQ distributor or customer service center for the upgrade or memory replacement.
The memory of your Joybook can be extended to up to 1 GB.
1. Disconnect the AC adapter. Turn off your Joybook and turn it over.
Battery
Memory cover
Installing Additional Memory 27
JB2000E.book Page 28 Tuesday, March 23, 2004 8:57 AM
2. Slide the battery retainer to unlock the battery.
4. Use a screwdriver to remove the screw that secures the memory cover.
Installing Additional Memory28
3. While performing step 2, slide the battery in the direction shown to remove it from the Joybook.
5. Open the cover.
JB2000E.book Page 29 Tuesday, March 23, 2004 8:57 AM
6. Align the memory module with the slot, and then insert it. When inserting, pay attention to the direction of the memory module.
8. Replace the cover and use a screwdriver to secure it with the screw.
7. Gently push the free edge downwards until the module locks into place.
9. Slide the battery back to its original position until you hear a click. Connect the AC adapter and start up your Joybook. During the star­tup process, Joybook will automatically test and configure the newly installed memory.
Installing Additional Memory 29
JB2000E.book Page 30 Tuesday, March 23, 2004 8:57 AM
Recovering Your System
Before following any of the methods below to restore your system, you should try to use Microsoft Windows XP System Restore tool to restore under Windows. If you don't know where the System Restore tool is, you can just insert the Recovery CD Disc 1 into the optical drive under Windows, then Recovery CD will launch the Windows XP System Restore tool automatically.
System recovery is a data destructive process. You should backup all data and applications prior to restoring. Please make sure your system is connected to AC Power before continuing.
Recovering From Your Hard Disk
Your Joybook provides you with a quick recovery method from its hard drive.
To recover using the quick recovery method:
1. Restart your Joybook.
2. During the restart process, press the F10 key when you see the "<" symbol displayed on the upper-left part of the screen. The system will then enter the Quick Recovery mode.
3. Follow the instructions on the screen to complete the recovery process.
Recovering Using the Recovery CDs
You should receive a Recovery CD pack containing CDs that you can use to rebuild your system. These Recovery CDs will help you to restore the hard disk with the original content that was installed when you purchased your Joybook. Follow the steps below to rebuild your hard disk.
The Primary Partition (Drive C:) will be reformatted. The data files on Extended Partition (Drive D:) will not be erased.
To recover your system using the recovery CDs:
Recovering Your System30
1. When Joybook starts up, press the Esc key to enter the Boot Menu during Power-On Self-Test (POST) while the BenQ Joy­book logo is being displayed.
2. Insert the Recovery CD Disc 1 into the CD-ROM drive.
3. Select CD-ROM/DVD from Boot Menu and press the Enter key.
4. Then system will boot from CD-ROM and you will see the Quick Restore screen.
5. When you finish the recovery process, remember to remove the Recovery CD.
Reinstalling Software or Driver
To install/reinstall the software or driver that was installed when you purchased your Joybook, you could find the source files on the Recovery CD Disc 2.
After recovering your system using the Recovery CDs, please fol­low the steps below to re-install the wireless LAN driver and utility program.
1. Insert Recovery CD Disc 2 into the optical drive of your Joy­book.
2. Click the Start button on Windows Taskbar and then select
Run....
3. According to the operating system of your Joybook, enter the following path in the Run dialog that appears and then click OK:
For Windows 2000: E:\Drivers\Wlan\WIN2K\Driver\sinstall.exe For Windows XP: E:\Drivers\Wlan\WINXP\Driver\sinstall.exe
4. Follow the on-screen instructions to complete the installation process. When done, restart your Joybook.
5. Click the Start button on Windows Taskbar and then select
Run....
JB2000E.book Page 31 Tuesday, March 23, 2004 8:57 AM
6. According to the operating system of your Joybook, enter the following path in the Run dialog that appears:
For Windows 2000: E:\Drivers\Wlan\WIN2K\ProSet\sinstall.exe For Windows XP: E:\Drivers\Wlan\WINXP\ProSet\sinstall.exe
7. Follow the on-screen instructions to complete the installation process.
Recovering Your System 31
JB2000E.book Page 32 Tuesday, March 23, 2004 8:57 AM
Recommendations and Troubleshooting
The following are descriptions of situations that you may encoun­ter during use of the Joybook, along with basic troubleshooting steps. If you are not able to resolve the issue, immediately contact a BenQ service center for assistance.
Joybook will not start up, even though the power button was pressed.
Check the Power indicator.
• If it is not lit up, Joybook is not being supplied by power-either from an external power source via the AC adapter or from the battery. Make sure that the AC adapter is correctly inserted into the power jack of Joybook and a working electrical socket, and allow the battery to begin charging.
• If the power indicator is lit up in blue, the Joybook is being sup­plied normally with power, meaning that the problem lies else­where.
• If you have added any hardware (memory for example), check if it has been installed correctly.
• It is possible that certain operating system files are dam­aged or missing. If so, you may need to first back up all your data in the C:\ drive and then refer to "Recovering Your System" on page 30 to recover your system to its original state.
There is nothing visible on the screen.
Check the Power indicator.
• If it is not lit up, no power is being supplied to Joybook. Connect the AC adapter and restart Joybook.
• If it blinks green, Joybook has entered standby mode in order to conserve power. Simply pressing the power button should return Joybook to normal operating mode.
• If it is lit up in green, Joybook is being supplied normally with power. There are two possible causes for the problem.
Recommendations and Troubleshooting32
• The screen's brightness may be set too low. Use the Fn + F5 hotkey combination to increase the brightness.
• The display mode may be set to use an external display. Use the Fn + F3 hotkey combination to switch the dis­play mode to use Joybook's own LCD panel or to use simultaneous display.
There is no sound coming from the speakers.
Check the following:
• The speakers may have been muted. Look at the volume control (speaker icon) on the Windows Taskbar to see if mute has been set. If so, turn off the mute.
• The speakers may have been turned off. Use the Fn + F6 hotkey combination to turn them on.
• The volume may have been set too low. Use the Fn + F8 hotkey combination to increase the volume.
• An earphone or external speaker may be connected to the Ear­phone Jack, automatically turning off the computer's internal speakers.
Joybook is unable to use the infrared port to communicate with other devices.
Please confirm the following:
• Communication speeds for Joybook and the external device are identical.
• The infrared port is clean, and there are no objects blocking the path between Joybook and the external device.
• The distance and angle between Joybook and device do not exceed the effective range of the port.
• You are not attempting to establish the link under conditions of direct sunlight.
• There are no incompatibilities between the communications software that is attempting to establish the infrared link and any other communications software on the computer. For further
JB2000E.book Page 33 Tuesday, March 23, 2004 8:57 AM
information, please consult the manual for the particular soft­ware.
Joybook is unable to use the wireless LAN to connect to the wire­less LAN devices.
Please confirm the following:
• You have used the Fn + F2 hot key to enable the wireless LAN function.
• The reception of the wireless LAN is not too weak.
Recommendations and Troubleshooting 33
C°C
JB2000E.book Page 34 Tuesday, March 23, 2004 8:57 AM
Information on Safety, Cleaning, and Battery Maintenance
Safety
When setting up or operating your Joybook, please pay special attention to the following:
1. Keep this manual in a safe place for easy reference when needed.
2. Make sure to follow all instructions and warnings related to the system.
3. Place Joybook on stable, level surface, and ensure that the venti­lation holes are not obstructed.
4. Do not expose Joybook to rain or excess humidity, and keep it away from liquids (such as beverages, faucets, and so on).
5. Do not expose Joybook to direct sunlight, and keep it away from sources of heat (such as radiators, space heaters, stoves, and so on).
6. Do not expose Joybook to heavy impacts or strong vibrations. When closing the computer, do not use excessive force.
7. Do not place Joybook in environments where the temperature is below 0 or above 50 .
8. Do not place the computer in the area of strong magnetic fields.
9. Use an appropriate electrical outlet, and make sure that no
10. The AC adapter is a high-voltage component. Do not attempt
11. Make sure that the modem port is used only with a regular
°
heavy objects are placed on the AC adapter or power cord.
to repair it on your own. If it becomes damaged, please contact an authorized BenQ distributor or service center.
analog phone line. Do not connect a digital phone line to the modem port, as this will cause damage to the modem.
Battery Maintenance
1. Do not use AC adapters other than the one provided with the computer.
2. After an extended period of usage, the battery's ability to retain charge will gradually deteriorate-this is entirely normal. To replace an old battery, turn off the computer, and be sure to use a new battery from the same manufacturer.
3. Do not place the battery within reach of children, and keep well away from sources of fire.
4. Follow the local laws governing the disposal of batteries. As far as possible, submit used batteries to be recycled.
5. Use of improper batteries, or attempting to disassemble a bat­tery, may result in explosions. Follow vendor recommendations in using batteries of the identical or equivalent type as replace­ments for worn-out batteries.
Cleaning Your Joybook
When cleaning Joybook, follow these steps:
1. Turn off Joybook, disconnect the AC adapter, and remove the battery.
2. Use a damp cloth to wipe the outer surface of the computer. Do not apply liquid or spray cleaners directly on the Joybook.
Information on Safety, Cleaning, and Battery Maintenance34
Loading...
