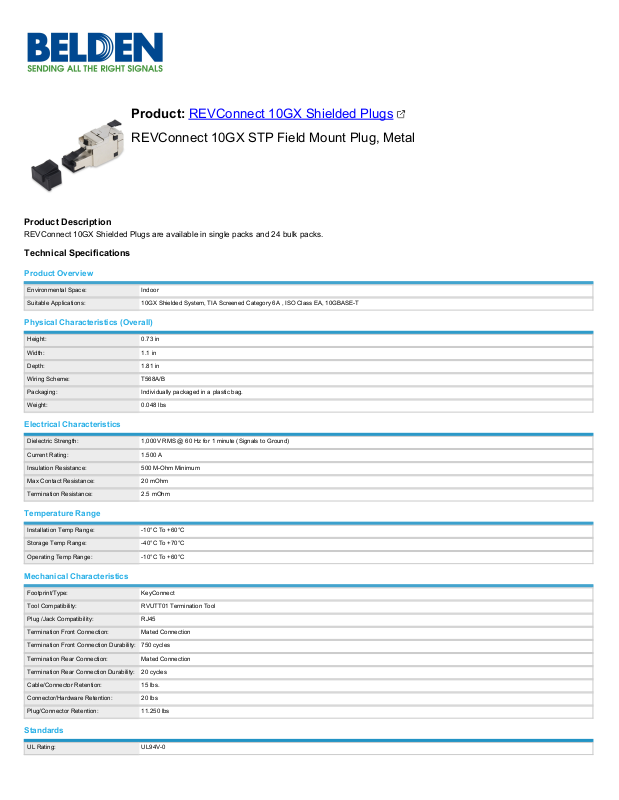

Belden RVAFPSME Data Sheet

Product: REVConnect 10GX Shielded Plugs

REVConnect 10GX STP Field Mount Plug, Metal

Product Description

REVConnect 10GX Shielded Plugs are available in single packs and 24 bulk packs.

Technical Specifications

Product Overview

Environmental Space: Indoor

Suitable Applications: 10GX Shielded System, TIA Screened Category 6A , ISO Class EA, 10GBASE-T

Physical Characteristics (Overall)

Height: 0.73 in

Width: 1.1 in

Depth: 1.81 in

Wiring Scheme: T568A/B

Packaging: Individually packaged in a plastic bag.

Weight: 0.048 lbs

Electrical Characteristics

Dielectric Strength: 1,000V RMS @ 60 Hz for 1 minute (Signals to Ground)

Current Rating: 1.500 A

Insulation Resistance: 500 M-Ohm Minimum

Max Contact Resistance: 20 mOhm

Termination Resistance: 2.5 mOhm

Temperature Range

Installation Temp Range: -10°C To +60°C

Storage Temp Range: -40°C To +70°C

Operating Temp Range: -10°C To +60°C

Mechanical Characteristics

Footprint/Type: KeyConnect

Tool Compatibility: RVUTT01 Termination Tool

Plug /Jack Compatibility: RJ45

Termination Front Connection: Mated Connection

Termination Front Connection Durability: 750 cycles

Termination Rear Connection: Mated Connection

Termination Rear Connection Durability: 20 cycles

Cable/Connector Retention: 15 lbs.

Connector/Hardware Retention: 20 lbs

Plug/Connector Retention: 11.250 lbs

Standards

UL Rating: UL94V-0

Data Category: Category 6A

Telecommunications Standards: Category 6A - TIA 568.C.2, Category 6A - ISO/IEC 11801:2002 Ed.2

IEEE Specification:

Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over
HDBaseTTM (up to 100W)

Other Specification: UL 1863, IEC 60603-7, FCC part 68-F

Applicable Environmental and Other Programs

EU Directive 2002/95/EC (RoHS): Yes

EU RoHS Compliance Date
(yyyy-mm-dd):

2006-07-01

MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

UL Flammability: UL2043 Air Handling Spaces

Safety Listing: c(UL)us Listed

Part Number

Related Parts: Refer to REVConnect WAP - CAMERA Compatibility Guide

Variants

Item # Color UPC

RVAFPSME-B24 Metal 611589205108

RVAFPSME-S1 Metal 611589205092

Product Notes

Notes: Please see Installation Guide PX106435.

History

Update and Revision: Revision Number: 0.156 Revision Date: 01-31-2020
