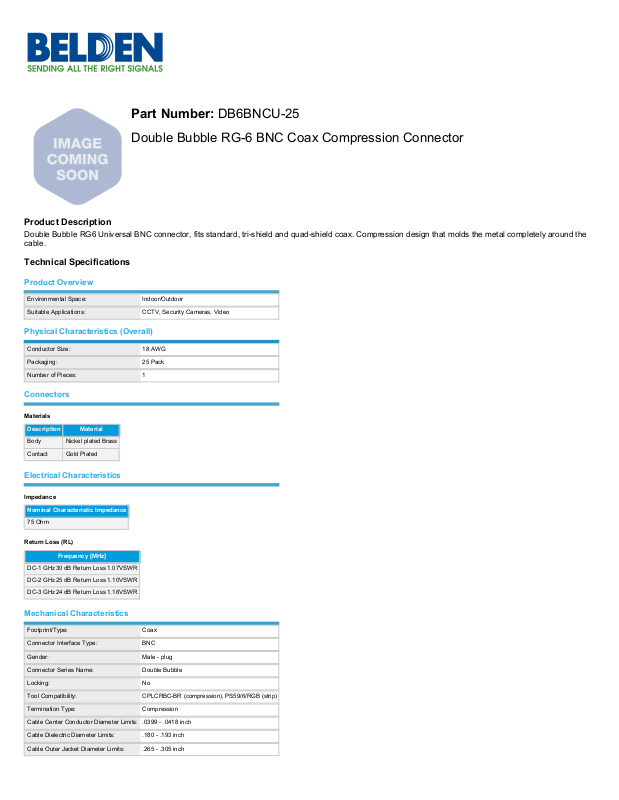

Belden DB6BNCU Datasheet

Part Number: DB6BNCU-25

Double Bubble RG-6 BNC Coax Compression Connector

Product Description

Double Bubble RG6 Universal BNC connector, fits standard, tri-shield and quad-shield coax. Compression design that molds the metal completely around the
cable.

Technical Specifications

Product Overview

Environmental Space: Indoor/Outdoor

Suitable Applications: CCTV, Security Cameras, Video

Physical Characteristics (Overall)

Conductor Size: 18 AWG

Packaging: 25 Pack

Number of Pieces: 1

Connectors

Materials

Description Material

Body Nickel plated Brass

Contact Gold Plated

Electrical Characteristics

Impedance

Nominal Characteristic Impedance

75 Ohm

Return Loss (RL)

Frequency [MHz]

DC-1 GHz30 dB Return Loss 1.07VSWR

DC-2 GHz25 dB Return Loss 1.10VSWR

DC-3 GHz24 dB Return Loss 1.16VSWR

Mechanical Characteristics

Footprint/Type: Coax

Connector Interface Type: BNC

Gender: Male - plug

Connector Series Name: Double Bubble

Locking: No

Tool Compatibility: CPLCRBC-BR (compression), PS59/6/RGB (strip)

Termination Type: Compression

Cable Center Conductor Diameter Limits: .0399 - .0418 inch

Cable Dielectric Diameter Limits: .180 - .193 inch

Cable Outer Jacket Diameter Limits: .265 - .305 inch

Standards

RG Type: 6/U Type

Applicable Environmental and Other Programs

EU CE Mark: Yes

Suitability

Suitability - Indoor: Yes

Suitability - Outdoor: Yes

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants

Item # Color

DB6BNCU-25 No Color
