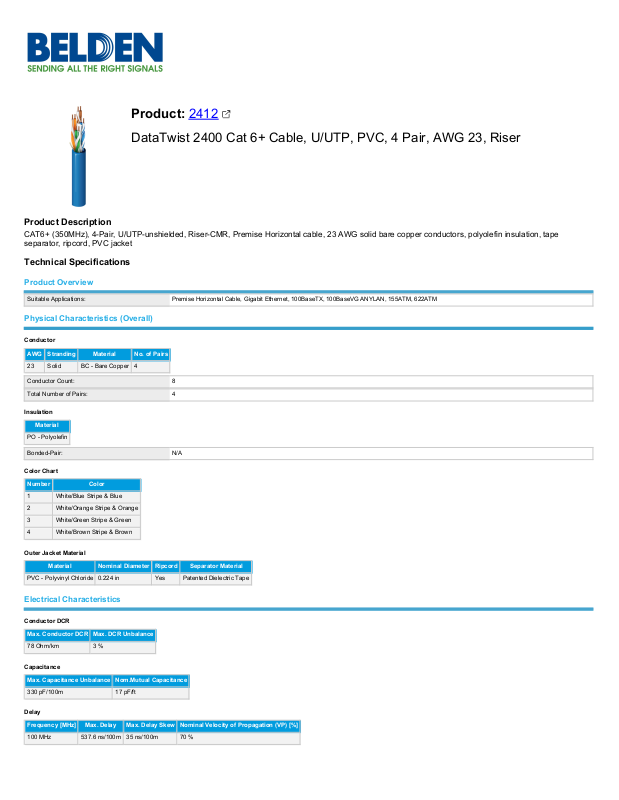

Belden 2412 Datasheet

Product: 2412

DataTwist 2400 Cat 6+ Cable, U/UTP, PVC, 4 Pair, AWG 23, Riser

Product Description

CAT6+ (350MHz), 4-Pair, U/UTP-unshielded, Riser-CMR, Premise Horizontal cable, 23 AWG solid bare copper conductors, polyolefin insulation, tape
separator, ripcord, PVC jacket

Technical Specifications

Product Overview

Suitable Applications: Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM

Physical Characteristics (Overall)

Conductor

AWG Stranding Material No. of Pairs

23 Solid BC - Bare Copper 4

Conductor Count: 8

Total Number of Pairs: 4

Insulation

Material

PO - Polyolefin

Bonded-Pair: N/A

Color Chart

Number Color

1 White/Blue Stripe & Blue

2 White/Orange Stripe & Orange

3 White/Green Stripe & Green

4 White/Brown Stripe & Brown

Outer Jacket Material

Material Nominal Diameter Ripcord Separator Material

PVC - Polyvinyl Chloride 0.224 in Yes Patented Dielectric Tape

Electrical Characteristics

Conductor DCR

Max. Conductor DCR Max. DCR Unbalance

78 Ohm/km 3 %

Capacitance

Max. Capacitance Unbalance Nom.Mutual Capacitance

330 pF/100m 17 pF/ft

Delay

Frequency [MHz] Max. Delay Max. Delay Skew Nominal Velocity of Propagation (VP) [%]

100 MHz 537.6 ns/100m 35 ns/100m 70 %

High Freq

Frequency

[MHz]

Max. Insertion Loss

(Attenuation)

Min.

NEXT [dB]

Min.

PSNEXT [dB]

Min.

ACR [dB]

Min.

PSACR [dB]

Min. ACRF

(ELFEXT) [dB]

Min. PSACRF

(PSELFEXT) [dB]

Min. RL (Return

Loss) [dB]

Max./Min. Input

Impedance (unFitted)

Max./Min. Fitted

Impedance

1 MHz 2.0 dB/100m 75.3 dB 75.3 dB 73.3 dB 73.3 dB 70.8 dB 67.8 dB 20.0 dB 100 ± 15 Ohm 102 ± 15 Ohm

4 MHz 3.7 dB/100m 66.3 dB 66.3 dB 62.6 dB 62.6 dB 58.8 dB 55.8 dB 23.0 dB 100 ± 15 Ohm 100 ± 15 Ohm

8 MHz 5.2 dB/100m 61.8 dB 61.8 dB 56.6 dB 56.6 dB 52.7 dB 49.7 dB 24.5 dB 100 ± 15 Ohm 100 ± 15 Ohm

10 MHz 5.8 dB/100m 60.3 dB 60.3 dB 54.5 dB 54.5 dB 50.8 dB 47.8 dB 25.0 dB 100 ± 15 Ohm 100 ± 15 Ohm

16 MHz 7.4 dB/100m 57.2 dB 57.2 dB 49.9 dB 49.9 dB 46.7 dB 43.7 dB 25.0 dB 100 ± 15 Ohm 100 ± 15 Ohm

20 MHz 8.3 dB/100m 55.8 dB 55.8 dB 47.5 dB 47.5 dB 44.8 dB 41.8 dB 25.0 dB 100 ± 15 Ohm 100 ± 15 Ohm

25 MHz 9.3 dB/100m 54.3 dB 54.3 dB 45.1 dB 45.1 dB 42.8 dB 39.8 dB 24.3 dB 100 ± 15 Ohm 100 ± 15 Ohm

31.25 MHz 10.4 dB/100m 52.9 dB 52.9 dB 42.5 dB 42.5 dB 40.9 dB 37.9 dB 23.6 dB 100 ± 15 Ohm 100 ± 15 Ohm

62.5 MHz 15.0 dB/100m 48.4 dB 48.4 dB 33.4 dB 33.4 dB 34.9 dB 31.9 dB 21.5 dB 100 ± 15 Ohm 100 ± 15 Ohm

100 MHz 19.3 dB/100m 45.3 dB 45.3 dB 26.0 dB 26.0 dB 30.8 dB 27.8 dB 20.8 dB 100 ± 15 Ohm 100 ± 15 Ohm

155 MHz 24.6 dB/100m 42.4 dB 42.4 dB 17.9 dB 17.9 dB 27.0 dB 24.0 dB 19.5 dB 100 ± 22 Ohm 100 ± 15 Ohm

200 MHz 28.3 dB/100m 40.8 dB 40.8 dB 12.5 dB 12.5 dB 24.8 dB 21.8 dB 18.7 dB 100 ± 22 Ohm 100 ± 15 Ohm

250 MHz 32.1 dB/100m 39.3 dB 39.3 dB 7.2 dB 7.2 dB 22.8 dB 19.8 dB 18.0 dB 100 ± 32 Ohm 100 ± 15 Ohm

300 MHz 35.6 dB/100m 38.1 dB 36.1 dB 2.5 dB 0.5 dB 21.3 dB 18.3 dB 17.5 dB 100 ± 32 Ohm 100 ± 15 Ohm

350 MHz 38.9 dB/100m 37.1 dB 35.1 dB -1.8 dB -3.8 dB 19.9 dB 16.9 dB 17.0 dB 100 ± 32 Ohm 100 ± 15 Ohm

400 MHz 42.0 dB/100m 36.3 dB 34.3 dB -5.7 dB -7.7 dB 18.8 dB 15.8 dB 16.6 dB 100 ± 32 Ohm 100 ± 15 Ohm

450 MHz 45.0 dB/100m 35.5 dB 33.5 dB -9.5 dB -11.5 dB 17.7 dB 14.7 dB 16.2 dB 100 ± 32 Ohm 100 ± 15 Ohm

500 MHz 47.9 dB/100m 34.8 dB 32.8 dB -13.1 dB -15.1 dB 16.8 dB 13.8 dB 15.9 dB 100 ± 32 Ohm 100 ± 15 Ohm

550 MHz 50.6 dB/100m 34.2 dB 32.2 dB -16.4 dB -18.4 dB 16.0 dB 13.0 dB 15.6 dB 100 ± 32 Ohm 100 ± 15 Ohm

Voltage

UL Voltage Rating

300 V RMS

Temperature Range

Installation Temp Range: 0°C To +50°C

UL Temp Rating: 75°C

Storage Temp Range: -20°C To +75°C

Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 22 lbs/1000ft

Max Recommended Pulling Tension: 25 lbs

Min Bend Radius During Installation: 2.25 in

Min Bend Radius/Minor Axis: 1.0 in

Standards

NEC Articles: 800

NEC/(UL) Specification: CMR

CEC/C(UL) Specification: CMR

ISO/IEC Compliance: 11801 ed 2.2 (2011) Class E

CPR Euroclass: Eca

Data Category: Category 6

ANSI Compliance: S-116-732-2013 Category 6, ANSI/NEMA WC-66 Category 6

Telecommunications Standards: ANSI/TIA-568-C.2 Category 6

IEEE Specification: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

Third Party Performance Verification: Category 6

Applicable Environmental and Other Programs

Environmental Space: Riser

EU Directive 2000/53/EC (ELV): Yes

EU Directive 2002/95/EC (RoHS): Yes

EU Directive 2002/96/EC (WEEE): Yes

EU Directive 2003/11/EC (BFR): Yes

EU Directive 2003/96/EC (BFR): Yes

EU Directive 2011/65/EU (ROHS II): Yes
