Behringer DR400 User Manual

DIGITAL REVERB/DELAY DR400

Digital St ereo Reverb/Delay E ects Pedal

Thank you for show ing your condence in us by purchasing the BEHRINGER DIGITAL REVERB/ DELAY DR400. This Reverb/Delay ee cts pedal delivers 24-bit high-resolution stereo rever b and delay eec ts. Experience st ate-of-the-art sounds compar able to studio processors in one compact pedal.

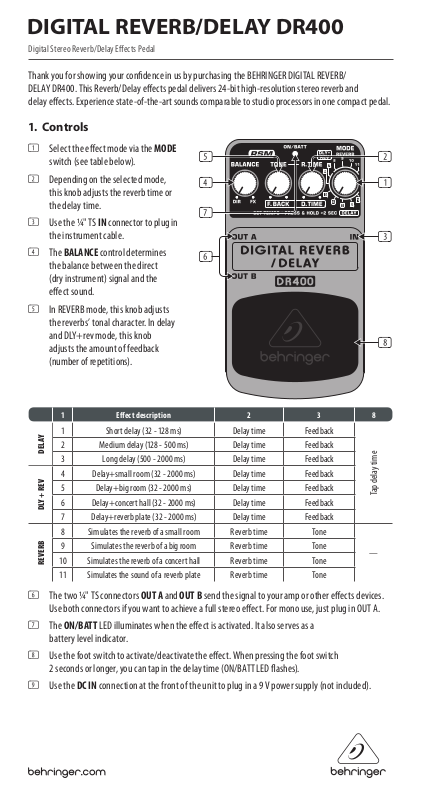

1. Controls

(1) Select the eec t mode via the MODE

switch (see table below).

(2) Depending on the selec ted mode,

this knob adjusts the reverb time or the delay time.

(3) Use the ¼" TS IN connecto r to plug in

the instrument cable.

(4) The BALANCE control determines

the balance bet ween the direct (dry instrument) signal and the eect sound.

(5) In REVERB mode, this knob adjus ts

the reverbs’ tonal charac ter. In delay and DLY+rev mode, this knob adjusts the amount of feedback (number of repetitions).

1 Eect description 2 3 8

1 Short de lay (32 - 128 m s) Delay time Feedback

2 Medium de lay (128 - 50 0 ms) Delay time Feedback

DELAY

3 Long delay (50 0 - 2000 ms) Delay time Feedback

4 Delay+small r oom (32 - 2000 ms) Delay time Feedback

5 Delay+big ro om (32 - 2000 ms) Delay time Feedback

6 Delay+concert hall (32 - 20 00 ms) Delay time Feedback

DLY + REV

7 Delay+rever b plate (32 - 2000 ms) Delay time Feedback

8 Simulates t he reverb of a small roo m Reverb time Tone

9 Simulates t he reverb of a big roo m Reverb time Ton e

10 Simulates t he reverb of a concer t hall Reverb time Ton e

REVERB

11 Simula tes the sound of a rever b plate Reverb time Ton e

(6) The two ¼" TS connec tors OUT A and OUT B send the signal to your amp or other e ects devices.

Use both connectors if you want to achieve a f ull stereo eect. For mono use, just plug in OUT A.

(7) The ON /BATT LED illuminates when the eect is activated. It also serves as a

batter y level indicator.

(8) Use the foot switch to activate/deact ivate the eect. When pressing the foot switch

2 seconds or longer, you can tap in the delay time (ON/BATT LED ashes).

(9) Use the DC IN connection at the front of the unit to plug in a 9 V power supply (not included).

(5) (2)

(4)

(7)

(6)

—

(1)

(3)

(8)

Tap delay time

DIGITAL REVERB/DELAY DR40 0

The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V bat tery (not included), press the hinges with a ballpoint pen and remove the pedal cover. Be caref ul not to scratch the unit.

◊ The DR400 has no On/O switch. It is operable as soon as you insert a plug into the

IN connec tor. Di sconnect the plug, if you don’t use the DR400. In doing so, you can extend the life time of the bat tery.

The SERIAL NUMBER is located at the underside.

◊ In rare cases interferences of the normal function may appear by external inuence

(e.g. elec trostatic discharge), as for example sound disturbances or malfunctions. If this occurs, please turn down the volume on subsequent amp liers and disconnect the input connector briey to restart the application.

2. Safety Instructions

Do not use near water, or install near heat s ources. Use only authorize d attachments/accessories. Do not service produc t yourself. Contact our qualied servicing personnel for servicing or rep airs, especially w hen power supply cord or plug is damaged.

3. Warranty

Please regis ter your new BEHRINGER equipment right after your purchas e by visiting http://behringer.com and read the terms and conditions of our warranty care fully.

4. Specications

Connec tor ¼" T S

Impedanc e 500 kΩ

Out A

Connec tor ¼" T S

Impedanc e 1 kΩ

Out B

Connec tor ¼" T S

Impedanc e 1 kΩ

Europe/ U.K./ 230 V~, 50 Hz Australia

Japan 100 V~, 50 - 60 Hz

Power connec tor 2 mm DC jack,

negative center

Batter y 9 V ty pe 6LR61

Power consumption 65 mA

Physical/Weight

Dimensio ns approx. 2 ⁄  x 2 ¾ x 4 ⁄" (H x W x D) approx. 5 4 x 70 x 123 m m

Weight app rox. 0.73 lbs / 0.33 kg

Power Supply

9 V𝌂, 100 mA re gulated

BEHRINGER PSU-SB

USA/Canad a 120 V~, 60 Hz

China/Ko rea 2 20 V~, 50/60 Hz
