CX2500-0070
USB 3.0 Module
2/10/2021 | Version: 1.1

Table of contents

Table of contents
1 Foreword ....................................................................................................................................................5
2 Product overview.......................................................................................................................................8
3 Mounting and wiring................................................................................................................................10
3.1 Unpacking, installation and transport ..............................................................................................10
3.2 Dimensions......................................................................................................................................11
3.3 Attaching the system interface to the CX20x0 system ....................................................................12
3.4 Installation on the mounting rail.......................................................................................................12
3.5 Mounting the module lock................................................................................................................15
3.6 USB connections .............................................................................................................................17
4 Commissioning / Configuration .............................................................................................................19
4.1 Switching on and off ........................................................................................................................19
5 Error handling and diagnostics..............................................................................................................20
5.1 Faults...............................................................................................................................................20
6 Decommissioning....................................................................................................................................21
6.1 Disassembly and disposal ...............................................................................................................21
7 Appendix ..................................................................................................................................................23
7.1 Certifications....................................................................................................................................23
7.2 Support and Service ........................................................................................................................24
CX2500-0070 3Version: 1.1
Table of contents
CX2500-00704 Version: 1.1
Foreword

1 Foreword

1.1 Notes on the documentation

This description is only intended for the use of trained specialists in control and automation engineering who are familiar with applicable national standards. It is essential that the documentation and the following notes and explanations are followed when installing and commissioning the components. It is the duty of the technical personnel to use the documentation published at the respective time of each installation and commissioning.
The responsible staff must ensure that the application or use of the products described satisfy all the requirements for safety, including all the relevant laws, regulations, guidelines and standards.
Disclaimer
The documentation has been prepared with care. The products described are, however, constantly under development. We reserve the right to revise and change the documentation at any time and without prior announcement. No claims for the modification of products that have already been supplied may be made on the basis of the data, diagrams and descriptions in this documentation.
Trademarks
Beckhoff®, TwinCAT®, EtherCAT®, EtherCAT G®, EtherCAT G10®, EtherCAT P®, Safety over EtherCAT®, TwinSAFE®, XFC®, XTS® and XPlanar® are registered trademarks of and licensed by Beckhoff Automation GmbH. Other designations used in this publication may be trademarks whose use by third parties for their own purposes could violate the rights of the owners.
Patent Pending
The EtherCAT Technology is covered, including but not limited to the following patent applications and patents: EP1590927, EP1789857, EP1456722, EP2137893, DE102015105702 with corresponding applications or registrations in various other countries.
EtherCAT® is a registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany
Copyright
© Beckhoff Automation GmbH & Co. KG, Germany. The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express authorization are prohibited. Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a patent, utility model or design.
CX2500-0070 5Version: 1.1
Foreword

1.2 Safety instructions

Safety regulations
Please note the following safety instructions and explanations! Product-specific safety instructions can be found on following pages or in the areas mounting, wiring, commissioning etc.
Exclusion of liability
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG.
Personnel qualification
This description is only intended for trained specialists in control, automation and drive engineering who are familiar with the applicable national standards.
Description of symbols
In this documentation the following symbols are used with an accompanying safety instruction or note. The safety instructions must be read carefully and followed without fail!
DANGER
Serious risk of injury!
Failure to follow the safety instructions associated with this symbol directly endangers the life and health of persons.
WARNING
Risk of injury!
Failure to follow the safety instructions associated with this symbol endangers the life and health of per­sons.
CAUTION
Personal injuries!
Failure to follow the safety instructions associated with this symbol can lead to injuries to persons.
NOTE
Damage to the environment or devices
Failure to follow the instructions associated with this symbol can lead to damage to the environment or equipment.
Tip or pointer
This symbol indicates information that contributes to better understanding.
CX2500-00706 Version: 1.1
Foreword

1.3 Documentation issue state

Version Changes
1.1 notes on max. power supply for the ports changed
1.0 updated Version
0.1 first Version
CX2500-0070 7Version: 1.1
Product overview

2 Product overview

2.1 Intended use

The CX20x0 device series is a modular control system designed for DIN rail installation. The system is scalable, so that the required modules can be assembled and installed in the control cabinet or terminal box as required.
Only switch the PC off after closing the software
Before the Embedded PC is switched off, the software currently running on it should be stopped properly in order to avoid data loss on the hard disk. Please read the section on “Switching off”.
Switch off all system components and uncouple the Industrial PC from the system if the PC is not used for control purposes, e.g. during a function test. To disconnect first pull the first terminal behind the power supply unit (optional), then pull the connectors of the fieldbus connections. System components that have been switched off must be secured against being switched on again.
The Embedded PC’s power supply unit must be supplied with 24VDC.
NOTE
Damage to the environment or devices
Do not exchange any parts when under power! The exchange of controller parts when live can lead to short-circuits or overvoltages. These can damage the controller itself and connected peripherals (terminals, monitors, input devices, etc.).
When components are being fitted or removed, the supply voltage must be switched off.
Software knowledge
NOTE
System malfunctions
Mandatory software knowledge! Every user must be familiar with any of the functions of the software in­stalled on the PC that he can reach.
CX2500-00708 Version: 1.1
Product overview

2.2 System overview

CX2500-00xx System modules
The system modules for the CX2000 family are connected to the CPU on the left-hand side via a multi-pin connector. Internally they are connected via PCI Express. Up to four modules can be connected in any order. The CX2500-0020 audio module has jack plug (5 x 3.5 mm) and cinch plug for digital signals (SPDIF). Up to 7.1 multi-channel audio can be used. Serial interfaces can be added with the modules CX2500-0030 (RS232) and CX2500-0031 (RS422/RS485). The CX2500-0060 module provides two further independent Gbit Ethernet interfaces. The CX2500-0070 module can be used to add up to four further USB 3.0 interfaces.
The expansion modules for the CX2000 family are connected to the CPU on the right-hand side via a multi­pin connector. Up to two CX2550-0010 CFast modules can be connected, so that a total of up to three CFast slots are available.

2.3 CX2500-0070 - Technical data

The system interface CX2500-0070 expands a CX20x0 by four further USB interfaces.
Technical data CX2500-0070
Interfaces 4 x USB 3.0, Type A
Power supply via system bus (via power supply module
CX2100-0xxx)
Current supply max. 900 mA each Port max. 2000 mA total current
max. Power loss 2.4 W
Dielectric strength 500 V (supply / internal electronics)
Dimensions (W x H x D) 24 mm x 99 mm x 54,5 mm
Weight approx. 195 g
Operating/storage temperature -25° C ... +60° C / -40° C ... +85° C
Relative humidity 95% no condensation
Vibration/shock resistant conforms to EN 60068-2-6 / EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protection class IP 20
Further Information: www.beckhoff.de/CX2000
CX2500-0070 9Version: 1.1
Mounting and wiring

3 Mounting and wiring

3.1 Unpacking, installation and transport

The specified storage conditions must be adhered to (see "Technical data").
Dimensions and weight of the individual modules
Dimensions (W x H x D): 24 mm x 100 mm x 55 mm
Weight: approx. 195 g (system interface)
Unpacking
Proceed as follows to unpack the unit:
1. Remove packaging.
2. Do not discard the original packaging. Keep it for transporting the device in the future.
3. Check the delivery for completeness by comparing it with your order.
4. Please keep the associated paperwork. It contains important information for handling the unit.
5. Check the contents for visible shipping damage.
6. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service.
NOTE
Danger of damage to the device!
During transport in cold conditions, or if the device is subjected to extreme temperature differences, con­densation on and inside the device must be avoided. Prior to operation, the device must be allowed to slowly adjust to room temperature. Should condensation occur, a delay time of approximately 12 hours must be allowed before the unit is switched on.
Installation
The devices are designed for installation in control cabinets.
Shipping and relocation
Despite the robust design of the unit, the components are sensitive to strong vibrations and impacts. During transport, your computer should therefore be protected from excessive mechanical stress. Therefore, please use the original packaging.
CX2500-007010 Version: 1.1

3.2 Dimensions

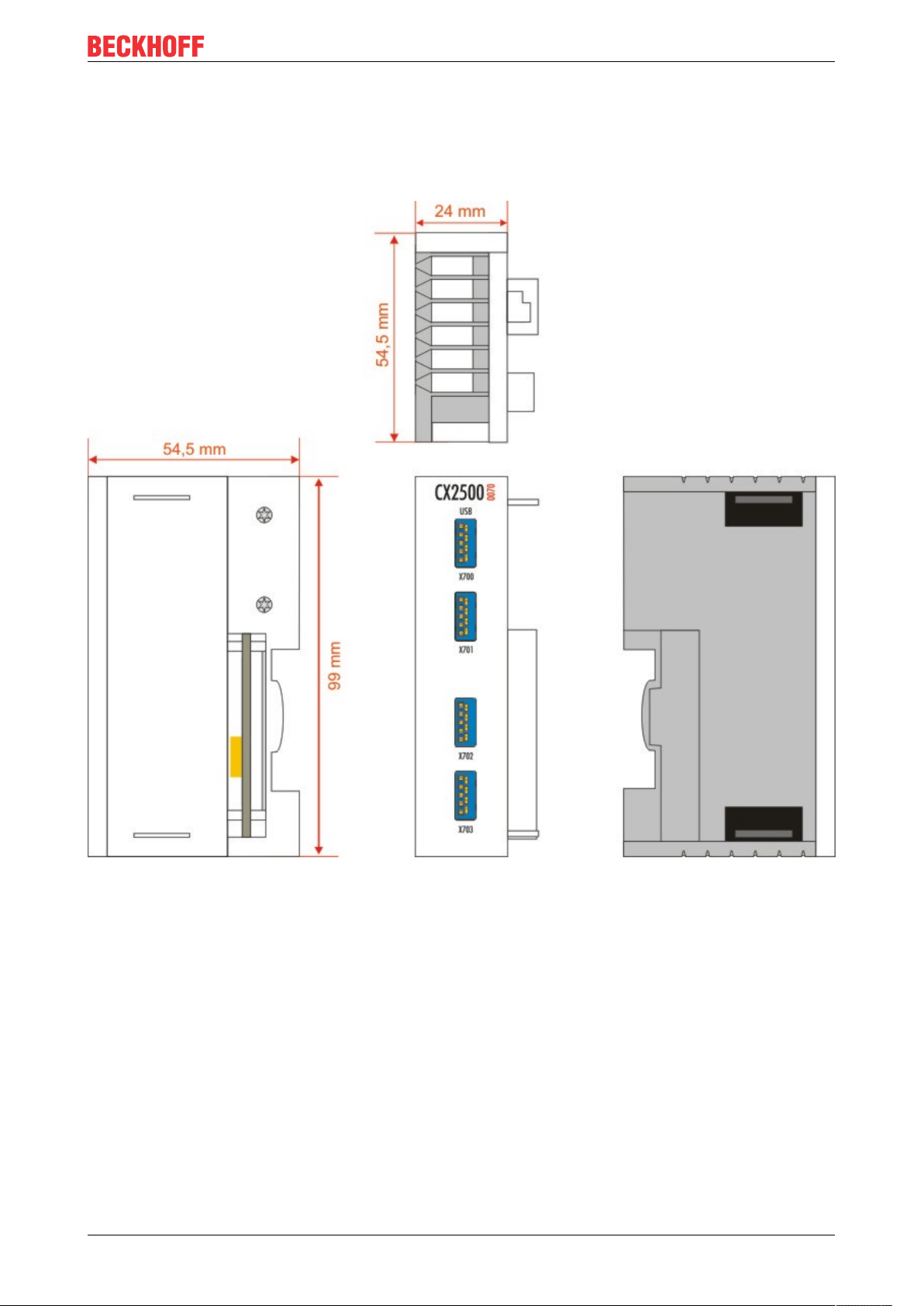

The following drawings show the dimensions of the CX2500-0070 interface.
Dimensions
Mounting and wiring
CX2500-0070 11Version: 1.1
Mounting and wiring

3.3 Attaching the system interface to the CX20x0 system

Opening the PCI Express bus cover

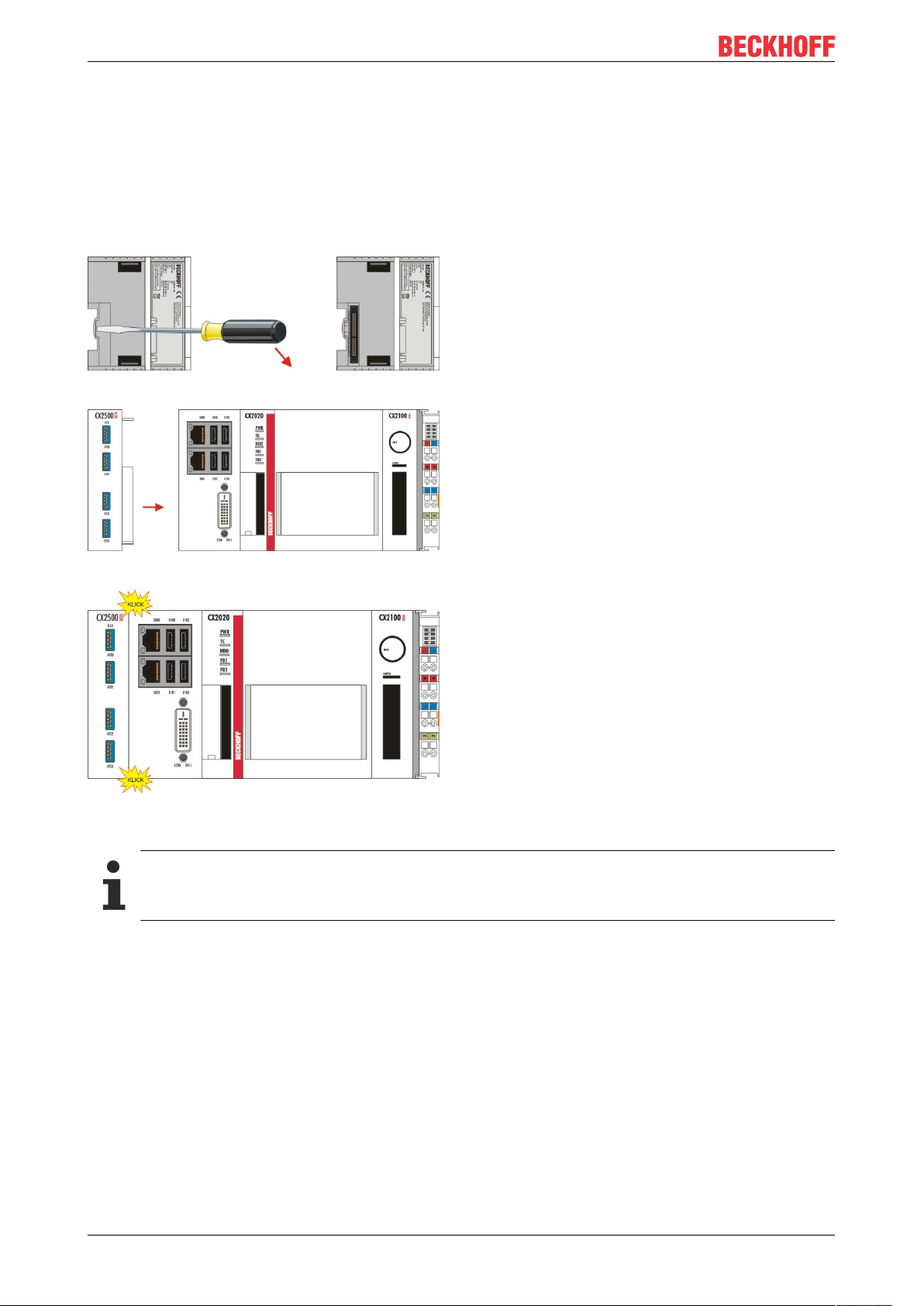

The system interfaces for the CX20x0 system are connected via the internal PCI Express bus, which has a protective cap. The cap can be removed with a screwdriver. To this end insert the screwdriver into the recess in the short side (see diagram) and lever off the cap. The bus connector is then accessible, as shown in the diagram.
Once the bus connector is accessible, the module can be attached on the left-hand side.
The module audibly locks into place.
Further modules can be connected to the system in the same way. Once all modules are connected, the system is placed on the DIN rail as a block. For details please refer to the section on DIN rail mounting.
Maximum number of system interfaces
Up to four system interfaces can be attached on the left-hand side of the system.

3.4 Installation on the mounting rail

Snapping onto the mounting rail
The CX20x0 can simply be snapped onto the mounting rail. The bar clips are inserted on the top side and underside Then simply position the block on the mounting rail and push it slightly until it engages on the right-hand side. This is indicated by a distinct click. The bars are then engaged again. The engagement of the individual bars is indicated by a distinct click.
CX2500-007012 Version: 1.1
NOTE
Avoid damage!
Do not force the module or apply excessive pressure!
Mounting and wiring
Installation position
NOTE
Comply with the permitted installation position and minimum distances!
The maximum ambient temperature for CPU modules mounted on a DIN rail is 60°C. The orientation in which the device is fitted must be selected in such a way that cooling air can flow vertically through the ven­tilation holes. The images below show the permitted and two incorrect installation positions. Mounting must provide a clearance of 30 mm both above and below a CX20x0 device combination to ensure adequate ventilation of the base CPU module and the power supply unit.
Correct installation position
The high performance and the compact design of the CX20x0 systems may result in increased heat generation. The heat is dissipated via a passive ventilation system. This system requires the unit to be mounted correctly. Ventilation openings are located at the top and bottom of the housing. The system therefore has to be installed horizontally. This ensures optimum air flow.
CX2500-0070 13Version: 1.1
Mounting and wiring
Incorrect installation positions
The CX20x0 system must not be operated vertically on the DIN rail. A vertical position would lead to insufficient CPU ventilation, since the ventilation openings are located on the top and bottom of the housing. Installation of the system on its side would also lead to inadequate ventilation.
CX2500-007014 Version: 1.1
Mounting and wiring

3.5 Mounting the module lock

Mounting the lock
The CX20x0 controller system is fully modular, i.e. all system interfaces of the system are field-configurable. As a rule the latching of the modules to each other is sufficiently strong. However, it is possible for the controller and its modules to be exposed to vibrations, shocks or impacts. The modules can be securely connected to one another with the aid of bar clips.

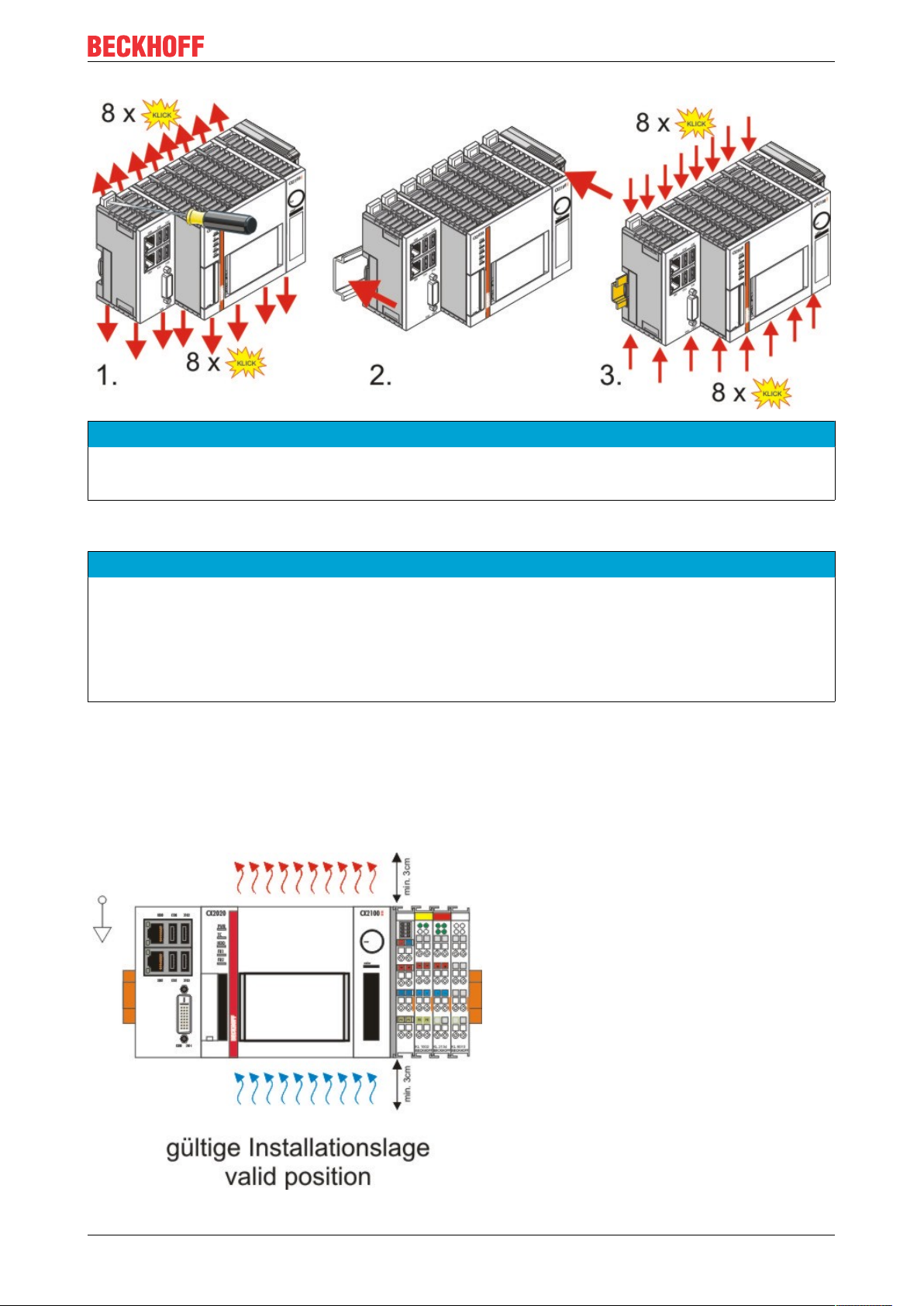

The bar clips are inserted on the top side and underside.
If all system interfaces are locked, then the entire assembly can be snapped onto the support rail.
CX2500-0070 15Version: 1.1
Mounting and wiring
Dismounting the lock
In order to dismantle the assembly it must first be removed from the support rail. Afterwards the bar clips can be removed with the aid of a screwdriver:
Once the bar clips have been raised they can be pulled out. Subsequently, the system interfaces can be separated again.
CX2500-007016 Version: 1.1

3.6 USB connections

Mounting and wiring
USB 3.0 interface (X700 / X701 / X702 / X703):
The CX2500-0070 devices extend the CX20x0 system with four further USB 3.0 interfaces. Each interface has a maximum power output of 900 mA. The maximum total power output is 2000 mA. The interfaces are backward compatible with the USB 2.0 and USB 1.1 standards.
The USB socket is a type A socket. The USB interface complies with the USB 3.0 specification.
Pin Assignment Description
1 VBus +5V Power
2 USB D- USB 2.0 data
3 USB D+
4 GND Ground
5 StdA_SSRX- SuperSpeed receiver
6 StdA_SSRX+ SuperSpeed receiver
7 GND_DRAIN Signal ground
8 StdA_SSTX- SuperSpeed transmitter
9 StdA_SSTX+ SuperSpeed transmitter
Maximum current output
The maximum total current over all four USB interfaces is 2000 mA. If this value is exceeded, the whole module (i.e. all interfaces) is switched off. Once the overload situation is resolved (i.e. once the consumer that caused the overload has been removed), the module restarts, and the other de­vices are once again available.
CX2500-0070 17Version: 1.1
Mounting and wiring
Notes regarding the cables used
In order to ensure trouble-free operation, only cables that comply with the USB 3.0 specification should be used. If the interface is operated in compatibility mode for USB 2.0 / 1.1, the cables must comply with this standard.
CX2500-007018 Version: 1.1
Commissioning / Configuration

4 Commissioning / Configuration

4.1 Switching on and off

Switching on
The power supply for the basic CPU module comes from the power supply unit. The basic CPU module starts automatically when the power supply unit is connected to the mains.
Switching on for the first time
When you switch on the PC for the first time, the pre-installed operating system (optional) will be started.
Switching off
The Embedded PC switches off when the power supply unit is switched off. The control software typically running on Embedded PCs should be shut down or stopped correctly. A user who may not close software may also not switch the Embedded PC off, since data can be lost from the hard disk by switching off while software is running.
Once the software has been stopped, the operating system can be shut down. Only then should the power supply be interrupted.
CX2500-0070 19Version: 1.1
Error handling and diagnostics

5 Error handling and diagnostics

5.1 Faults

Please also refer to the Safety instructions section.
Possible faults and their correction
Fault Cause Measures
no function after the Embedded PC has been switched on
Embedded PC does not boot fully Hard disk damaged (e.g. due to
Computer boots, software starts, but control does not operate correctly
CF card access error Faulty CFast card, faulty CFast slot Use a different CFast card to check
Embedded PC only works partially or temporarily
no power supply for the Embedded PC other causes
switching off while software is running), incorrect setup, other causes
Cause of the fault is either in the software or in parts of the plant outside the Embedded PC
Defective components in the Embedded PC
1.Check the fuse
2. Measure voltage at connection, check plug wiring, call Beckhoff support
Check setup Call Beckhoff Support
Call the manufacturer of the machine or the software.
the CFast slot Call Beckhoff Support
Call Beckhoff support
Please make a note of the following information before contacting Beckhoff service or support:
1. Precise device ID: CXxxxx-xxxx
2. Serial number
3. Hardware version
4. Any interfaces (N030, N031, B110, ...)
5. TwinCAT version used
6. Any components / software used
The quickest response will come from support / service in your country. Therefore please contact your regional contact. For details please refer to our website at www.beckhoff.de or ask your distribution partner.
CX2500-007020 Version: 1.1
Decommissioning

6 Decommissioning

6.1 Disassembly and disposal

The disassembly of a CX20x0 hardware configuration with system interfaces takes place in 3 steps
1. Switching off and disconnecting the power supply
Before a CX20x0 system can be dismantled, the system should be switched off, and the power supply should be disconnected.
2. Removing from the DIN rail
Before the individual modules are disconnected, the whole CX20x0 hardware block should be removed from the DIN rail. Proceed as follows:
2.1. Release and remove the first Terminal next to the power supply unit on the DIN rail.
First remove any wiring from power supply unit and then from the first terminal on the DIN rail next to the power supply unit. If the wiring is to be reused for another system, it is advisable to make a note of the connections. Then pull the orange terminal release (see arrow) to release the terminal and pull it out.
2.2. Releasing the CX20x0 systems
In order to release the CX20x0 block, the DIN rail fastening above and below the device must be released. To do this, press the hooks outwards using a screwdriver. An audible click indicates that the device is released.
CX2500-0070 21Version: 1.1
Decommissioning
After pulling on the terminal release of the power supply unit (see arrow) the block can be carefully removed from the DIN rail.
Disposal
The device must be fully dismantled in order to dispose of it.
Electronic parts must be disposed of in accordance with national electronics scrap regulations.
3. Disconnecting the system interface
Disconnecting the system modules from the basic module
If the modules are locked, i.e. attached with tie clips, the clips must be released. To this end lift the tie clips with a screwdriver and pull them out. Subsequently, the system interfaces can be separated again.
NOTE
Do not use force to open the device!
Opening the module housing by force would destroy it. The devices may only be opened by Beckhoff ser­vice personnel.
CX2500-007022 Version: 1.1
Appendix

7 Appendix

7.1 Certifications

All products of the Embedded PC family are CE, UL and EAC certified. Since the product family is continuously developed further, we are unable to provide a full listing here. The current list of certified
products can be found at www.beckhoff.com.
FCC Approvals for the United States of America
FCC: Federal Communications Commission Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
FCC Approval for Canada
FCC: Canadian Notice
This equipment does not exceed the Class A limits for radiated emissions as described in the Radio Interference Regulations of the Canadian Department of Communications.
CX2500-0070 23Version: 1.1
Appendix

7.2 Support and Service

Beckhoff and their partners around the world offer comprehensive support and service, making available fast and competent assistance with all questions related to Beckhoff products and system solutions.
Beckhoff's branch offices and representatives
Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products!
The addresses of Beckhoff's branch offices and representatives round the world can be found on her internet pages:
http://www.beckhoff.com
You will also find further documentation for Beckhoff components there.
Beckhoff Headquarters
Beckhoff Automation GmbH & Co. KG
Huelshorstweg 20 33415 Verl Germany
Phone: +49(0)5246/963-0 Fax: +49(0)5246/963-198 e-mail: info@beckhoff.com
Beckhoff Support
Support offers you comprehensive technical assistance, helping you not only with the application of individual Beckhoff products, but also with other, wide-ranging services:
• support
• design, programming and commissioning of complex automation systems
• and extensive training program for Beckhoff system components
Hotline: +49(0)5246/963-157 Fax: +49(0)5246/963-9157 e-mail: support@beckhoff.com
Beckhoff Service
The Beckhoff Service Center supports you in all matters of after-sales service:
• on-site service
• repair service
• spare parts service
• hotline service
Hotline: +49(0)5246/963-460 Fax: +49(0)5246/963-479 e-mail: service@beckhoff.com
CX2500-007024 Version: 1.1
More Information:
www.beckhoff.com/CX2500-0070
Beckhoff Automation GmbH & Co. KG Hülshorstweg 20 33415 Verl Germany Phone: +49 5246 9630 info@beckhoff.com www.beckhoff.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
