BECKHOFF CX1100-09xx UPS User Manual
Documentation for
UPS - Modules for CX10x0-Systems
CX1100-0900 (550 mA / 20 As)
CX1100-0910 (1.1 A / 20 As)
CX1100-0920 (1.1 A / 40 As)
Version: 1.2
Datum: 2007-01-16
Table of Contents
CX1100-09xx, UPS for CX10x0-Systems
1. Foreword
Notes on the documentation 2
Safety instructions 3
Documentation issue status 4
2. Product overview 5
Appropriate use 5
System overview 6
Technical data 8
Connections 11
Table of Contents
3. Transport 12
Unpacking, installation and transport 12
4. Fitting and wiring 13
Mechanical assembly 13
Dimensions 13

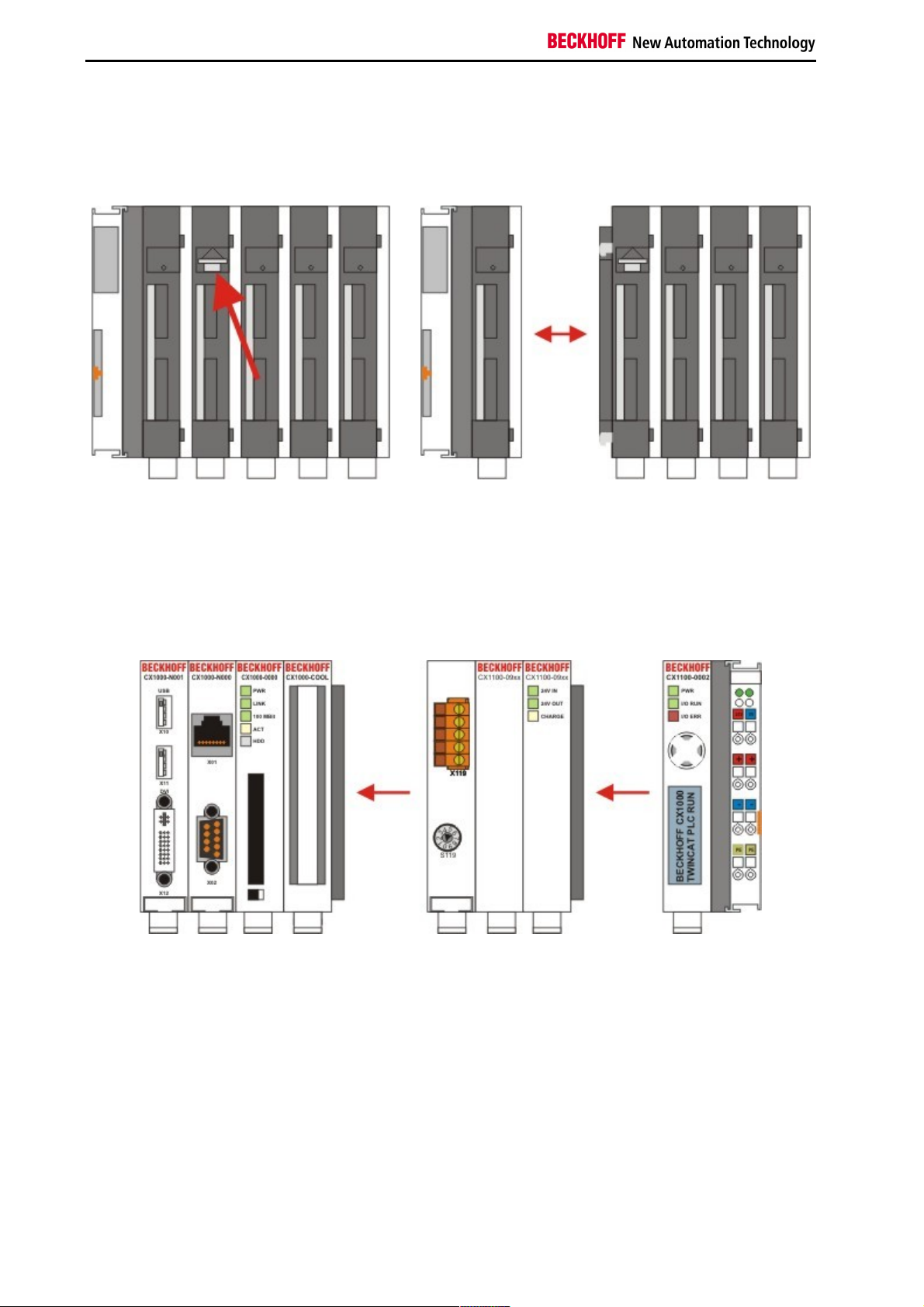

Mechanical installation of the UPS Module 15
5. Commissioning 18
Charging time 18

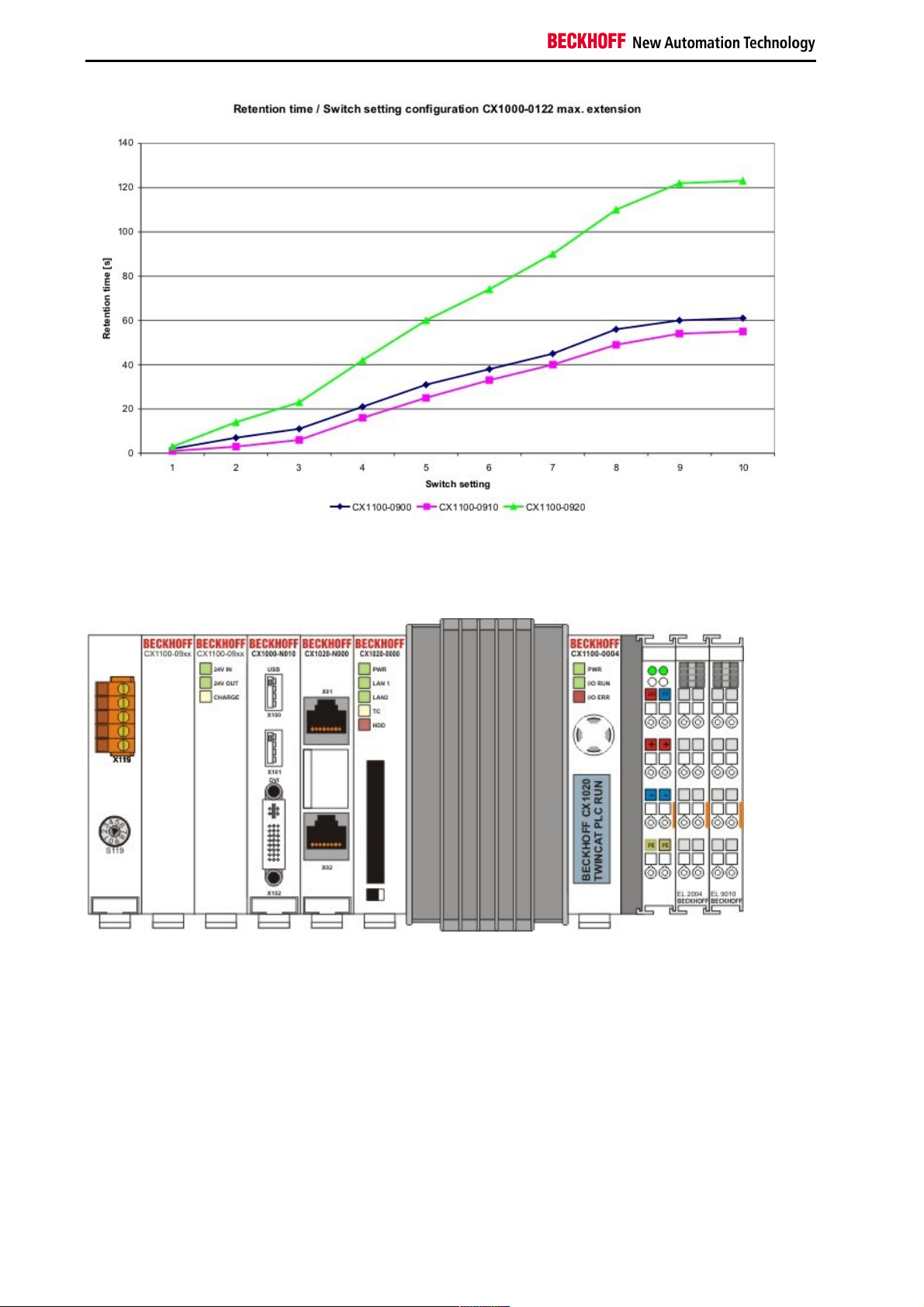

Discharging time 19
Setting retention time 28
Register settings 29
Settings in the System Manager 30
Controlling the UPS from the PLC 33
6. Error handling and diagnostics 38
LED 38
7. Decomissioning 39
Removal and disposal 39
8. Appendix 41
Certifications 41
Support 42
Embedded PC 1
Foreword
1. Foreword
Notes on the Documentation
This description is only intended for the use of trained specialists in control and automation engineering who are
familiar with the applicable national standards. It is essential that the following notes and explanations are followed
when installing and commissioning these components.
Liability Conditions
The responsible staff must ensure that the application or use of the products described satisfy all the requirements for
safety, including all the relevant laws, regulations, guidelines and standards.
The documentation has been prepared with care. The products described are, however, constantly under
development. For that reason the documentation is not in every case checked for consistency with performance data,
standards or other characteristics. None of the statements of this manual represents a guarantee (Garantie) in the
meaning of § 443 BGB of the German Civil Code or a statement about the contractually expected fitness for a
particular purpose in the meaning of § 434 par. 1 sentence 1 BGB. In the event that it contains technical or editorial
errors, we retain the right to make alterations at any time and without warning. No claims for the modification of
products that have already been supplied may be made on the basis of the data, diagrams and descriptions in this
documentation.
© This documentation is copyrighted. Any reproduction or third party use of this publication, whether in whole or in
part, without the written permission of Beckhoff Automation GmbH, is forbidden.
2 Embedded PC
Foreword
Safety Instructions
Safety Rules
The responsible staff must ensure that the application or use of the products described satisfy all the requirements for
safety, including all the relevant laws, regulations, guidelines and standards.
State at Delivery
All the components are supplied in particular hardware and software configurations appropriate for the application.
Modifications to hardware or software configurations other than those described in the documentation are not
permitted, and nullify the liability of Beckhoff Automation GmbH.
Personnel Qualification
This description is only intended for the use of trained specialists in control and automation engineering who are
familiar with the applicable national standards.
Description of safety symbols
The following safety symbols are used in this operating manual. They are intended to alert the reader to the
associated safety instructions.
Danger
This symbol is intended to highlight risks for the life or health of personnel.
Warning
This symbol is intended to highlight risks for equipment, materials or the environment.
Note
This symbol indicates information that contributes to better understanding.
Embedded PC 3
Foreword
Documentation Issue Status
Version Changes
1.2 technical data for charge capacity corrected
1.1 annotations to usage of CX1100-0900 and CX1020
1.0 released version
0.4 revision of discharge graphs
licenses added
0.3 resorting / small corrections
0.2 revised version
0.1 preliminarily version
4 Embedded PC
Product overview
2. Product overview
Appropriate Use
The CX1020 device series is a modular control system designed for top-hat rail installation. The system is scalable,
so that the required modules can be assembled and installed in the control cabinet or terminal box as required.
The UPS Modules are designed to supply CX10x0 Embedded PCs and their bus terminals.
Embedded PC 5
Product overview
System overview
UPS module is available in three variations:
CX1100-0900
CX1100-0910
CX1100-0920
The UPS module is used for the uninterruptible power supply of CX CPUs and any connected CX components. In the
event of a failure of the external supply, the module ensures that the application software can save important data, e.
g. on a Compact Flash card, NOVRAM or in a database via the network. During the UPS retention time, the machine
or process can be transferred into a defined state, and the operating system can be shut down. The retention time
can be set via a rotary switch or via software. The use of state of the art capacitors makes this UPS module – unlike
other battery powered techniques – absolutely maintenance-free and offers rapid charging. The module can simply
added to a CX system. Only a 24 V DC supply cable is needed. The 24 V DC output voltage of the UPS is protected
against short circuit and overload. The CX1100-09xx may be retrofitted on site. A DPRAM user interface provides
options for settings and UPS status messages. The functionality of the UPS is therefore independent of the operating
system to be used. No driver software is required. The TwinCAT System Manager recognizes the UPS module
automatically, and the UPS signals are available to the PLC programmer. A controlled 24 V DC power supply unit
with a minimum output current of 4 A is required.
Setup of UPS module:
sample configuration1:
6 Embedded PC
Product overview
sample configuration 2:
Embedded PC 7
Product overview
Technical Data CX1100-0900, CX1100-0910, CX1000-0920
The UPS-Modules are available in three versions. The user can choose the fitting version for his purpose. The table
shows differences and common properties:
Technical data CX1100-0900 CX1100-0910 CX1100-0920
Power supply 24 V DC (-15 %/+20 %)
Storage technology capacitive
Charge 20 As 20 As 40 As
Retention time adjustable, load-dependent
Output current max. 550 mA (24 V DC) 1.1 A (24 V DC) 1.1 A (24 V DC)
Charging current max. 4 A
Diagnostics LED 24 V DC-Input, 24 V DC-Output, CHARGE
System bus 16 Bit ISA (PC104 standard)
Max. power consumption 2 W
Dimensions (W x H x D) 57 mm x 100 mm x 91 mm76 mm x 100 mm x 91 mm95 mm x 100mm x 91
mm
weight app. 345 g app. 465 g app. 617 g
Operating temperature 0 °C ... +55 °C
Storage temperature -25 °C ... +85 °C
Relative humidity 95% no condensation
Vibration/Shock resistance conforms to EN 60068-2-6 / EN 60068-2-27/29
EMC resistance burst /
ESD
protection class IP 20
conforms to EN 61000-6-2 / EN 61000-6-4
Note
The maximal output current for UPS module CX1100-0900 is 550 mA!
For higher output current make use of the UPS modules (CX1100-0910 / CX1100-0920), with bigger
output current.
The maximal output current is not suitable for the CX1020 Embedded PCs. So it is strongly
recommended to make use of the UPS modules (CX1100-0910 / CX1100-0920), with bigger output
current.
8 Embedded PC
Product overview
CX1100-09xx Connections
The UPS-Modules are supplied with power by 5-pin "Open Pluggable Connector". The other components of the
embedded system are supplied via the PC 104 bus with 24V DC. (-15 % to +20 % tolerance)
Pin assignment "Open Pluggable Connector":
Pin Assignment
5 0 V DC OUT ( UPS output current)
4 24 V DC OUT ( UPS output current)
3 PWR FAIL (digital output)
2 0 V DC IN (UPS incoming power supply)
1 24 V DC IN (UPS incoming power supply)
Embedded PC 9
Product overview
Connection to power supply
For power supply units with K-bus / E-bus connection (CX1100-0002, CX1100-0003 und CX1100-004) the supply is
realized as follows:
Though the power supply CX1100-0001 has no terminal bus interface the module is connected to the upper input
connectors (24V). Older versions of the power supply are labeled with UPS -/+. These input are not used and more
and must not be connected. The figure shows the correct connection.
10 Embedded PC
Product overview
Power-Fail-Signal Connection
The UPS modules can also be used to supply other bus couplers. To use the UPS module with the bus coupler the
power supply has to be connected with the UPS. The power supply for the bus terminals has to be connected
seperaty. This depends on the terminal bus load. The Power-Fail connection should be connected to a digital input
terminal. (see picture below)
In case of power failure the UPS module rises the POWER-FAIL signal. The PLC program reads the input via the
terminal bus and can shutdown the application. In this mode the control of the UPS module is controlled by the torque
switch at the front side of the module.
Embedded PC 11
Transport
3. Transport
Unpacking, installation and transport
The specified storage conditions must be adhered to (see "Technical data").
Dimensions and weight of the individual modules:
Module CX1100-0900 CX1100-0910 CX1100-0920
Dimensions (W x H x D)57 mm x 100 mm x 91
mm
Weight 345 g 465 g 617 g
Unpacking
Proceed as follows to unpack the unit:
1. Remove packaging.
2. Do not discard the original packaging. Keep it for future relocation.
3. Check the delivery for completeness by comparing it with your order.
4. Please keep the associated paperwork. It contains important information for handling the unit.
5. Check the contents for visible shipping damage.
6. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify
Beckhoff Service.
76 mm x 100 mm x 91
mm
95 mm x 100 mm x 91
mm
Warning
Danger of damage to the unit!
During transport in cold conditions, or if the unit is subjected to extreme temperature swings, condensation on and
inside the unit must be avoided.
Prior to operation, the unit must be allowed to slowly adjust to room temperature. Should condensation occur, a delay
time of approximately 12 hours must be allowed before the unit is switched on.
Installation
The devices are designed for installation in control cabinets. You will find installation instructions in the chapter
mechanical mounting.
Shipping and relocation
Despite the robust design of the unit, the components are sensitive to strong vibrations and impacts. During
transport, your computer should therefore be protected from excessive mechanical stress. Therefore, please use the
original packaging.
12 Embedded PC
