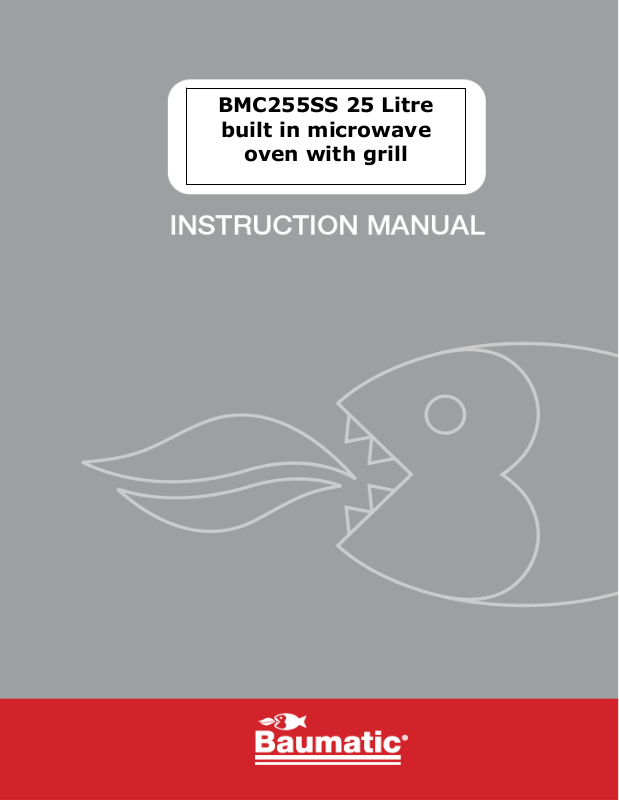

BMC255SS 25 Litre built in microwave oven with grill
User Manual for your Baumatic
BMC255SS
25 Litre built in microwave oven with grill
NOTE: This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference; for you or any person not familiar with the operation of the appliance.
DD 24/03/10
2
Contents
Environmental note |
4 |
|
Important safety information |
5 – 9 |
|
Specifications |
9 - 12 |
|
Product dimensions |
9 |
|
Aperture dimensions |
9 |
|
Product specifications |
9 - 10 |
|
Description of the appliance |
10 |
- 11 |
Control panel |
11 |
|
The turntable |
12 |
|
Using your microwave |
12 |
- 25 |
Setting the clock |
12 |
|
Before first use |
13 |
|
Cooking food (microwave mode) |
13 |
- 14 |
During operation |
14 |
|
Cooking food (grill/grill combi mode) |
15 |
- 16 |
Automatic defrost programmes |
16 |
|
Automatic cooking programmes |
17 |
- 18 |
Setting multiple cooking phases |
18 |
|
Setting a delay start |
19 |
|
Safety lock |
20 |
|
Microwave cooking guidelines |
21 |
|
Materials you can use in a microwave oven |
22 |
|
Materials not to be placed in a microwave oven |
23 |
|
Utensils table |
23 |
|
Defrosting guidelines |
24 |
|
Defrosting table |
25 |
|
Cleaning and maintenance |
26 |
- 27 |
The appliance exterior |
26 |
|
The appliance interior |
26 |
|
Rotating plate and rotating base |
26 |
|
General cleaning advice |
26 |
- 27 |
Installation |
27 |
– 31 |
Electrical connection |
28 |
|
Aperture and ventilation requirements |
29 |
|
Installing the microwave into the housing unit |
30 |
- 31 |
Troubleshooting |
31 |
- 33 |
Contact details |
34 |
|
3
Environmental note
oThe packaging materials that Baumatic uses are environmentally friendly and can be recycled.
oPlease discard all packaging material with due regard for the environment.
4
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Baumatic Advice Line.
General Information
oThis appliance is designed for domestic household use. It can NOT be used as a freestanding microwave and must be built in to a standard kitchen cabinet or housing unit (see the section entitled “Installation” below).
oYou should only operate the appliance when the turntable and turntable support are in position.
oYou should only use ovenware that is suitable for being used in a microwave.
oTo prevent corrosion occurring due to moisture/condensation, the cavity and the door of the microwave should be wiped dry after each use of the appliance.
oThe appliance must not be left unattended if you are heating or cooking food in containers that are made of paper, plastic or other flammable materials. If left unattended, they could pose a fire hazard.
oIf you notice smoke coming from the appliance, you should keep the door of the microwave closed and then disconnect it from your mains supply. DO NOT use your microwave oven, if you think it is not operating correctly.
Installation
o IMPORTANT: Only the built in installation sanctioned by Baumatic and outlined in this manual should be followed.
oA separate building in kit will be supplied with the microwave, to allow you to complete a built in installation.
o IMPORTANT: The adjacent furniture or housing and all materials used in the installation must be able to withstand a minimum temperature of 85°C above the ambient temperature of the room it is located in, whilst in use.
5
o Certain types of vinyl or laminate kitchen furniture are particularly prone to heat damage or discolouration at temperatures below the guidelines given above.
o Any damage caused by the appliance being installed in contravention of this temperature limit, or by placing adjacent cabinet materials closer than 4mm to the appliance, will be the liability of the owner.
oFor use in leisure accommodation vehicles, please refer to the appropriate information given in the installation instructions for this appliance.
oThe use of this appliance for any other purpose or in any other environment without the express agreement of Baumatic Ltd. will invalidate any warranty or liability claim.
o Your new appliance is guaranteed against electrical or mechanical defects, subject to certain exclusions that are noted in Baumatic’s Conditions Of Guarantee. The foregoing does not affect your statutory rights.
Service
oYour microwave complies with all relevant safety standards. In order for it to continue to operate safely, only an engineer that is approved by the Baumatic Customer Care Department should work on the appliance.
oIMPORTANT: It is dangerous for a non qualified person to work on the appliance, in particular if they remove the cover that provides protection against exposure to microwave energy.
oIf you notice that the door seal, door surfaces, power cord and plug are damaged. You should stop using the appliance, disconnect it from the mains supply and contact the Baumatic Customer Care Department.
oOnly genuine Baumatic spare parts should be fitted to your appliance. These can be obtained from the Baumatic Spares Department.
Warning and safety instructions
o This appliance complies with all current European safety legislation. Baumatic do wish to emphasise that this compliance does not remove the fact that the appliance surfaces will become hot during use and retain heat after operation.
6
o DO NOT place anything between the door and the door frame.
o DO NOT store anything that is flammable inside of the microwave. When it is switched on, the items could catch fire.
oDO NOT switch the appliance on if there is no food or liquid inside of the microwave. If you run the microwave whilst it is empty, there is a chance that it will overload.
oThe door seals and the door surfaces should ALWAYS be kept clean and free from debris.
Child Safety
oBaumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time.
oIf it is necessary for younger family members to be in the kitchen, please ensure that they are kept under close supervision at all times.
oIMPORTANT: This appliance should only be operated by adults. You SHOULD NOT allow young children to use the microwave without supervision. Older children should only operate the appliance if they have been thoroughly instructed on how to use the microwave and the consequences of improper usage.
General Safety
oDo not allow electrical fittings or cables to come into contact with areas on the appliance that get hot.
o Do not use the appliance to heat the room it is located in. o Do not use the appliance to dry paper, textiles or animals.
o Do not install the appliance next to curtains or soft furnishings. o Do not use the appliance to heat unopened bottles or cans etc.
oDo not heat cooking oil or liquid containing alcohol, as there is the chance of spontaneous combustion.
oDo not boil eggs or similar foods in their shells, otherwise they may burst. It is possible to poach eggs in your microwave, providing you prick the yolks first.
7
oDo not attempt to lift or move cooking appliances by using the oven door, as this may cause damage to the appliance or result in injury to the person lifting the appliance.
Cleaning
o Cleaning of the oven should be carried out on a regular basis.
oGreat care should be taken whilst using this appliance and when following the cleaning procedure.
oIMPORTANT: The appliance must be disconnected from the mains before following the cleaning procedure.
Installation
This appliance must be correctly installed by a suitably qualified person, strictly in accordance with the manufacturer’s instructions.
o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
oHeat, steam and moisture will be created during use of the appliance, take care to avoid injury and ensure that the room is adequately ventilated. If the appliance is going to be used for prolonged periods of time, then additional ventilation may be required.
oPlease consult with your qualified installer if you are in any doubt about the amount of ventilation that you will require.
8
Declaration of conformity
o CE: Appliance conforming to the European directives 89/336/EEC, 93/68/EEC, 73/23/EEC and subsequent revisions and “RoHS” directive 2002/95/CE.*
oThe manufacturer declares that the oven is built using certified materials and requires the appliance to be installed in accordance with the standards currently in force. This appliance must be used by a trained person for domestic purposes only.
*The RoHS directive stands for “the restriction of the use of certain hazardous substances in electrical and electronic equipment”. This directive bans the placing on the EU market of new electrical and electronic equipment containing more than the agreed levels of lead, cadmium, mercury, hexavalent chromium, polybrominated biphenyl (PBB) and polybrominated diphenyl ether (PBDE) flame retardants.
Specifications
Product dimensions
Height: 385 mm
Width: 594 mm
Depth: 383 mm
Aperture dimensions
Height: 360 mm
Width: 560 mm
Depth: 550 mm
Product specifications |
|
|
|
|
|
||
o |
5 power levels |
|
o |
Defrosting |
by |
weight |
|
o |
Push |
button |
control |
o |
mode |
|
|
o |
operation |
|
Grill mode |
|
|
||
Safety lock |
|
o |
Stainless |
steel |
exterior |
||
o |
Interior light |
|
o |
and interior |
|
||
o |
LED display |
|
Stainless steel frame |
||||
o |
LED full programmer |
o |
Viewing window |
|
|||
9
o |
Capacity: |
25 litres |
o |
Microwave output: |
800 W |
For future reference please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. The rating plate for your oven can be located by opening the microwave oven door and looking on the right hand side of the chassis and/or on the rear of the appliance.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….
Description of the appliance
1) |
Microwave door |
7) |
Door open button |
|
2) |
Door catches |
8) |
Control buttons |
|
3) |
Cavity |
9) |
LED display |
|
4) |
Slot for rotating base |
10) |
Microwave housing |
|
5) |
Rotating plate |
11) |
Wave guide cover |
|
6) |
Rotating base |
|
|
|
10
Control panel
A) Micro power button (power level button) B) Grill combi button C) Preset clock button (delayed start button) D) LED display
E) Stop clear button F) Instant start button (start button)
G) Auto defrost button H) Auto cooking button
I) Time weight button
NOTE: To access the programming buttons, you need to open the microwave door by pressing the door open button (7).
11
