Aztech HL129EP User Manual
HL129EP
SMARTLINK HOMEPLUG AV2
1200MBPS WITH PASS THROUGH
V1.0
User Manual
Page 2 of 40
© COPYRIGHT 2014 ALL RIGHTS RESERVED
No part of this document may be reproduced, republished, or retransmitted
in any form or by any means whatsoever, whether electronically or
mechanically, including, but not limited to, by way of photocopying,
recording, information recording, or through retrieval systems without the
express written permission. We reserve the right to revise this document at any
time without the obligation to notify any person and/or entity. All other
company or product names mentioned are used for identification purposes
only and may be trademarks of their respective owners.
LIMITATION OF LIABILITY AND DAMAGES
THE PRODUCT AND THE SOFTWARES WITHIN ARE PROVIDED "AS IS," BASIS. THE
MANUFACTURER AND MANUFACTURER’S RESELLERS (COLLECTIVELY REFERRED
TO AS “THE SELLERS”) DISCLAIM ALL WARRANTIES, EXPRESS, IMPLIED OR
STATUTORY, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF
NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, OR ANY WARRANTIES ARISING FROM COURSE OF DEALING, COURSE
OF PERFORMANCE, OR USAGE OF TRADE. IN NO EVENT WILL THE SELLERS BE
LIABLE FOR DAMAGES OR LOSS, INCLUDING BUT NOT LIMITED TO DIRECT,
INDIRECT, SPECIAL WILLFUL, PUNITIVE, INCIDENTAL, EXEMPLARY, OR
CONSEQUENTIAL, DAMAGES, DAMAGES FOR LOSS OF BUSINESS PROFITS, OR
DAMAGES FOR LOSS OF BUSINESS OF ANY CUSTOMER OR ANY THIRD PARTY
ARISING OUT OF THE USE OR THE INABILITY TO USE THE PRODUCT OR THE
SOFTWARES, INCLUDING BUT NOT LIMITED TO THOSE RESULTING FROM DEFECTS
IN THE PRODUCT OR SOFTWARE OR DOCUMENTATION, OR LOSS OR
INACCURACY OF DATA OF ANY KIND, WHETHER BASED ON CONTRACT, TORT
OR ANY OTHER LEGAL THEORY, EVEN IF THE PARTIES HAVE BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES. THE ENTIRE RISK AS TO THE RESULTS AND
PERFORMANCE OF THE PRODUCT OR ITS SOFTWARE IS ASSUMED BY
CUSTOMER. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF LIABLITY FOR DAMAGES, THE ABOVE LIMITATION MAY NOT
APPLY TO THE PARTIES. IN NO EVENT WILL THE SELLERS’ TOTAL CUMULATIVE
LIABILITY OF EACH AND EVERY KIND IN RELATION TO THE PRODUCT OR ITS
SOFTWARE EXCEED THE AMOUNT PAID BY CUSTOMER FOR THE PRODUCT.
User Manual
Page 3 of 40
Contents
About the Device ........................................................................................................ 4
How Does It Work? ....................................................................................... 5
Direct Connection ........................................................................................ 6
Device Design .............................................................................................................. 7
Getting Started ............................................................................................................. 9
Planning Your Network .............................................................................. 10
Pairing the Device ...................................................................................... 12
How to Use the Simple Connect Button ................................................. 13
Power Saving Mode ................................................................................... 23
Setup the HomePlug AV2s ........................................................................ 24
For Twin Pack ............................................................................................... 24
For Single Pack ............................................................................................ 24
About the HomePlug AV Utility ................................................................................ 25
Requirements .............................................................................................. 25
Installation .................................................................................................... 26
Opening HomePlug AV Utility ................................................................... 27
The User Interface ....................................................................................... 27
Home ............................................................................................................ 28
Private Network Name .............................................................................. 29
Quality of Service........................................................................................ 33
Devices ......................................................................................................... 34
Firmware Upgrade ...................................................................................... 35
Appendix ..................................................................................................................... 37
FCC Statement ........................................................................................... 37
User Manual
Page 4 of 40
About the Device
A common household problem nowadays focuses on one thing: Internet Access
availability. Bandwidth hungry devices often placed in separate rooms such as
HDTVs, game consoles, computers, and IP Set top boxes, demand unhindered high-
quality data transmissions to reach their optimum performance. These are often
resolved by using drastic lengths of cables which are often considered impractical
when considering today’s innovation. HL129EP, Aztech’s fastest and reliable
1200Mbps HomePlug AV2 compliant device, uniquely answers to this need. It
provides not only a lot of great networking benefits but is also a device which does
not involve complex configurations to setup, is easy to use, and at the same time
energy efficient as well.
The HL129EP was designed with the valued customers in mind. To maximize the
usage of power outlets, the HL129EP is built with its own pass through. In concept,
you are simply plugging in a power outlet into your power outlet. No power outlets
are wasted whenever you are using your HL129EP. It is truly innovation at its finest. In
addition, it is built with (2) Gigabit Ethernet ports. This allows you to connect two
Ethernet devices (e.g. computer, laptop) directly to your HomePlug.
HomePlug AV/AV2 devices unlike regular routers and access points that are easily
hindered by distance and walls, makes use of your home’s existing electrical wiring
as a path to create a secured network of computers and Ethernet devices. This
means that your internet connection is not easily hindered by walls and other
interferences emitted by regular household devices. Your network basically flows
within your walls! In addition, your HomePlug AV2 is a powerline networking
technology specifically made to meet bandwidth hungry multimedia devices within
your home, allowing it to become a great partner when doing HD A/V streaming,
online gaming, and other internet activities that are known for high bandwidth
consumption. HomePlug AV2 devices are also backward compatible to other
HomePlug AV technologies, allowing it to work with previous HomePlug AV
innovations as well.
User Manual
Page 5 of 40
How Does It Work?
HomePlug AV2 utilizes the existing electrical wiring in the house as a path to create a
secured network of computers and Ethernet devices. With a maximum data rate of
up to 1Gbps, HomePlug AV2 can reliably handle high requirement applications like
broadband Internet, high definition video streaming, and Voice over IP.
HomePlug AV2 converts digital signals to a complex analog signal that traverses
along the electrical wires. When receiving the analog signal, HomePlug AV2
converts the analog signal back to digital. To make the signal secured, a 128-bit AES
encryption is applied.
A HomePlug AV2 device can only communicate with other HomePlug AV2 devices
that use the same Private Network Name. The Private Network Name can be easily
changed in two ways. (1) is through the HomePlug AV2 Utility software. It can be
changed manually using the HomePlug AV2 Utility software on a computer with a
Windows operating system. When you use the software, you have to manually type
the Private Network Name for the device; (2) Is through the Simple Connect button.
The Simple Connect button automatically creates an encrypted Private Network
Name. It can also be used to reset the Private Network Name or to add a device
into an existing HomePlug AV2 network.
Note: HomePlug AV2 devices are effective when used in pairs. The Twin
packs are already configured to use a common Private Network Name
unique for that pair and are ready to use without involving any complex
configurations. The HomePlug AV2 from a Single Pack on the other hand,
uses a random Private Network Name. You still need to change its Private
Network Name to allow it to communicate with an existing HomePlug AV2
network.
When a HomePlug AV2 communicates with another device, the Powerline Activity
LED color will indicate the status of the connection rate it provides: Red means
below 30 Mbps; Amber means 30 to 80 Mbps; and Green means more than 80
Mbps.
User Manual
Page 6 of 40
Direct Connection
For best performance, connect the HomePlug AV2 directly to a wall outlet. Avoid
connecting it to a power strip where other electrical devices are connected. Other
devices produce electrical noise or interferences that may affect the overall
performance of your HomePlug AV2.
User Manual
Page 7 of 40

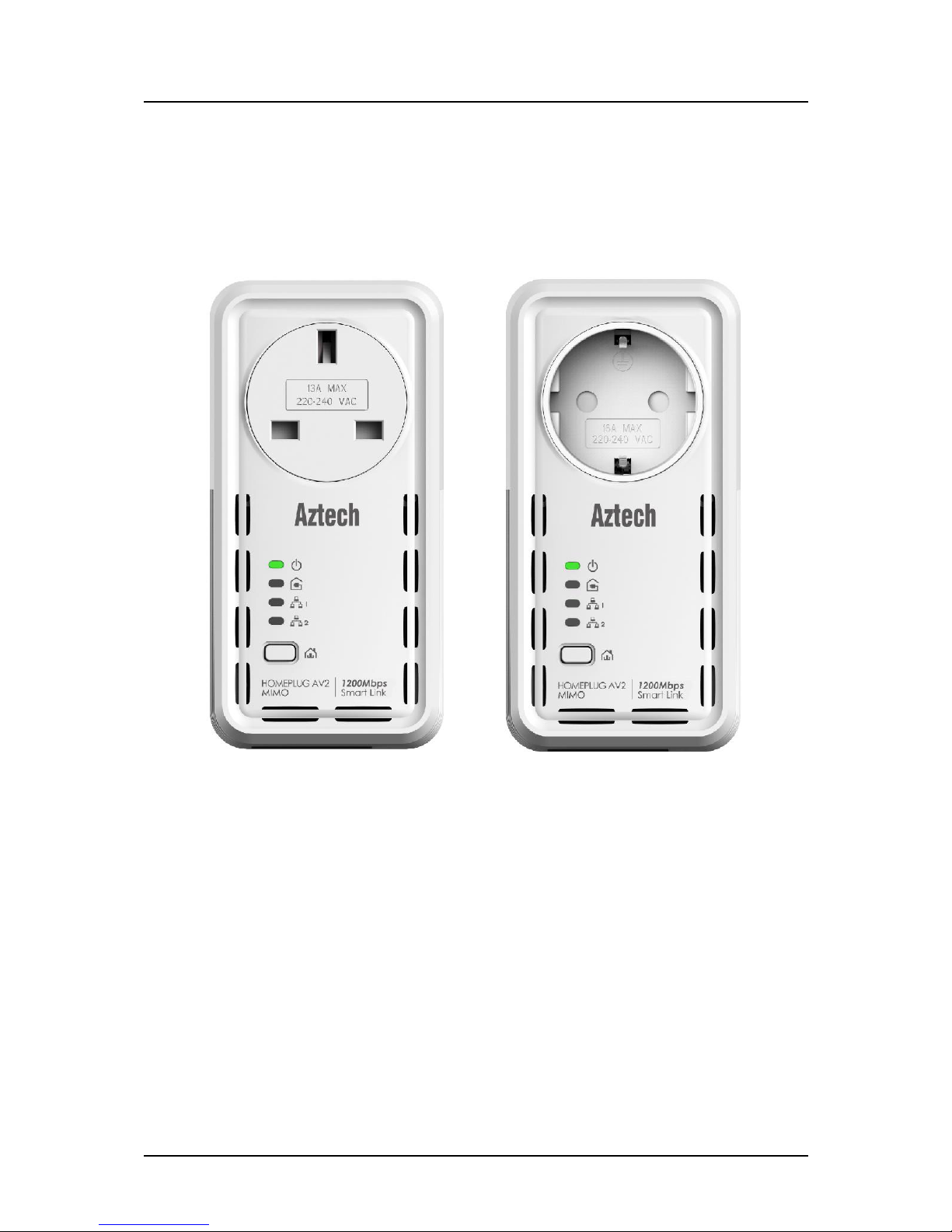

Device Design
Label
Status
Description/ Function
Power
LED
OFF
No power.
ON
HomePlug AV2 is on a Power Saving Status if the
Power LED is blinking slowly.
When Simple Connect is pressed for 10 seconds,
this LED will turn OFF and turn ON to confirm the
Private Network Name reset.
After Simple Connect is pressed for 2 seconds, this
LED will blink to confirm the button press.
Label
Description/ Function
Ethernet
Port
Accepts either cross or straight Ethernet cable.
Reset
Button
Press for 3 seconds then release button to reset to the factory
default settings. When you reset to the factory default, all your
configuration changes will be removed.
Simple
Connect
Button
When Simple Connect is pressed for 10 seconds, it will
randomize the Private Network Name.
Press 2 seconds to join or add to another network.
User Manual
Page 8 of 40
If Reset Button is pressed for 3 seconds, this LED will
turn OFF and turn ON.
Powerline
Activity
OFF
Device is not connected to a HomePlug AV2 network.
ON
When Simple Connect is pressed for 10 seconds,
this LED will turn OFF to confirm the Private
Network Name reset.
This LED is steady in color when the device is part
of a HomePlug AV2 network.
The LED colors represents the connection rate
within the HomePlug AV2 network whether it is
good (red), better (amber), or best (green).
Ethernet
Activity
LEDs
1 & 2
OFF
An Ethernet device is connected to the corresponding
port.
ON
The corresponding LED is steady when an
Ethernet device is connected.
When Simple Connect is pressed for 10 seconds,
this LED will turn OFF and turn ON to confirm the
Private Network Name reset. (Ethernet is
connected)
The LED flashes to indicate Ethernet activity.
User Manual
Page 9 of 40
Getting Started
Setting up the device is easy. The flowchart below provides an outline of the steps you need
to complete the installation. There are brief descriptions beside each step to help you along.
Detailed instructions are provided in the subsequent pages.
Setup the
HomePlug AV2
Plan your Network
Ready to Use
(Optional)
Install HomePlug
Use an Ethernet cable to
connect the HomePlug AV2 to
your computer or Ethernet
Install HomePlug AV2 Utility to
apply manual configuration
changes and monitor device
activity.
User Manual
Page 10 of 40
Planning Your Network
Before moving ahead to setup your network, it is a good idea to draw out a network
diagram to help identify your network devices and plan out how to connect these
devices.
Local Network
Share ultrafast Internet connection with any computer wherever it is in the house.
Gaming Network
Connect your gaming console to the Internet and compete with other online
players.
User Manual
Page 11 of 40
Entertainment Network
Experience IP TV streaming into your home entertainment system.
Media Network
Realize your high tech lifestyle by converging your IP devices into a single network.
User Manual
Page 12 of 40

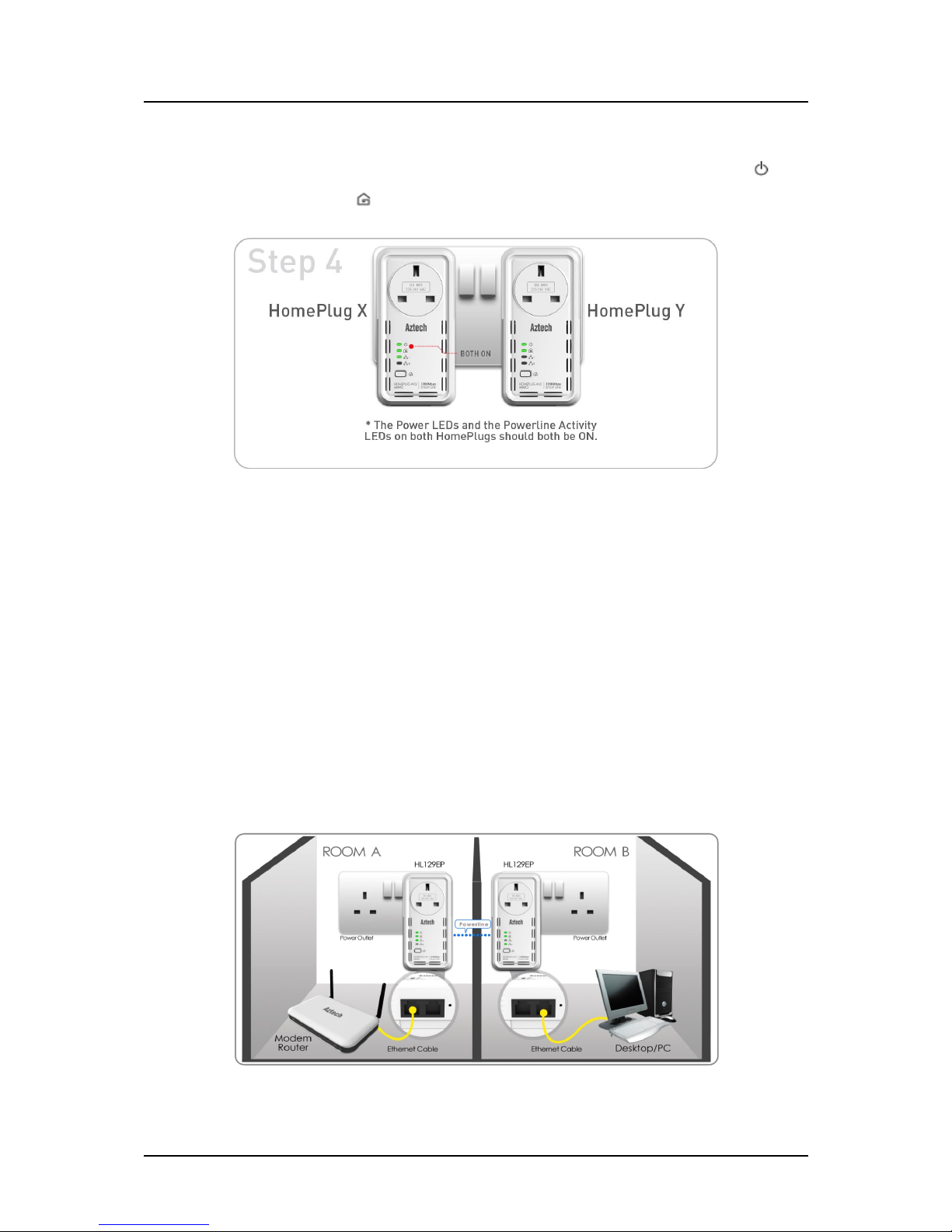

Pairing the Device
Your HomePlug AV2 devices by default are preconfigured to have a common
Private Network Name. Setting up your HomePlug AV2 network is as easy as 1,2 and
3.
1. It is advisable that you plug in your HomePlug AV2 devices side by side to easily
observe the LED behaviors of each HomePlug AV2. Wait until the Power and PL-
ACT LED turns ON to confirm that the connection has been established
2. In ROOM A plug in your HomePlug AV2 into the wall socket then connect it to
your modem router’s Ethernet port using an Ethernet cable.
3. In ROOM B plug in your HomePlug AV2 into the wall socket then connect it to
your computer’s Ethernet Port using an Ethernet cable. Your HomePlug AV2 is
now ready to use.
Loading...
