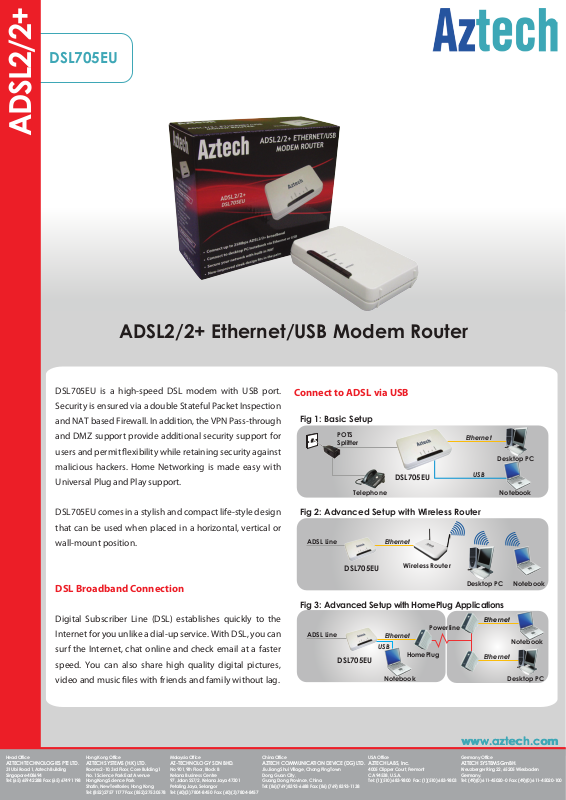

Aztech DSL705EU Product Datasheet

DSL705EU

ADSL2/2+

ADSL2/2+ Ethernet/USB Modem Router

DSL705EU is a high-speed DSL modem with USB port.

Security is ensured via a double Stateful Packet Inspection

and NAT based Firewall. In addition, the VPN Pass-through

and DMZ support provide additional security support for

users and permit exibility while retaining security against

malicious hackers. Home Networking is made easy with

Universal Plug and Play support.

DSL705EU comes in a stylish and compact life-style design

that can be used when placed in a horizontal, vertical or

wall-mount position.

DSL Broadband Connection

Digital Subscriber Line (DSL) establishes quickly to the

Internet for you unlike a dial-up service. With DSL, you can

surf the Internet, chat online and check email at a faster

speed. You can also share high quality digital pictures,

video and music les with friends and family without lag.

Connect to ADSL via USB

Fig 1: Basic Setup

POTS
Splitter

DSL705EU

Telephone

Fig 2: Advanced Setup with Wireless Router

ADSL Line

DSL705EU

Ethernet

Wireless Router

Fig 3: Advanced Setup with HomePlug Applications

ADSL Line

Ethernet

USB

DSL705EU

Notebook

Powerline

HomePlug

Ethernet

USB

Desktop PC

Ethernet

Ethernet

Desktop PC

Notebook

Notebook

Notebook

Desktop PC

Head Office

Head Office

AZTECH SYSTEMS LTD.

AZTECH TECHNOLOGIES PTE LTD.

31 Ubi Road 1, Aztech Building

31 Ubi Road 1, Aztech Building
Singapore 408694

Singapore 408694
Tel: [phone] Fax: [phone]

Tel: [phone] Fax: [phone]

Hong Kong Office

Hong Kong Office

AZTECH SYSTEMS (H.K) LTD.

AZTECH SYSTEMS (H.K) LTD.

Rooms 2-10, 3rd Floor, Core Building 1

Rooms 2-10, 3rd Floor, Core Building 1
No. 1Science Park East Avenue

No. 1 Science Park East Avenue
HongKong Science Park

HongKong Science Park
Shatin,New Territories, Hong Kong

Shatin, New Territories, Hong Kong
Tel: [phone] Fax: [phone]

Tel: [phone] Fax: [phone]

Malaysia Office

Malaysia Office

AZ-TECHNOLOGY SDN BHD.

AZ-TECHNOLOGY SDN BHD.

No 901, 9th Floor, Block B

No 901, 9th Floor, Block B
Kelana Business Centre

Kelana Business Centre
97, Jalan SS7/2, Kelana Jaya 47301

97, Jalan SS7/2, Kelana Jaya 47301
Petaling Jaya, Selangor

Petaling Jaya, Selangor
Tel: [phone] Fax: [phone]

Tel: [phone] Fax: [phone]

China Office

China Office

AZTECH COMMUNICATION DEVICE (DG) LTD.

AZTECH COMMUNICATION DEVICE (DG) LTD.

Jiu Jiang Shui Village, Chang Ping Town

Jiu Jiang Shui Village, Chang Ping Town
Dong Guan City,

Dong Guan City,
Guang Dong Province, China.

Guang Dong Province, China.
Tel: [phone] Fax: (86) (769) 8393-1138

Tel: [phone] Fax: (86) (769) 8393-1138

USA Office

USA Office

AZTECH LABS, Inc.

AZTECH LABS, Inc.

4005 Clipper Court, Fremont

4005 Clipper Court, Fremont
CA 94538, U.S.A.

CA 94538, U.S.A.
Tel: [phone] Fax: [phone]

Tel: [phone] Fax: [phone]

www.aztech.com

www.aztech.com

Germany Office

Germany Office

AZTECH SYSTEMS GmBH.

AZTECH SYSTEMS GmBH.

Kreuzberger Ring 22, 65205 Wiesbaden

Kreuzberger Ring 22, 65205 Wiesbaden
Germany.

Germany.
Tel: [phone] Fax: [phone]

Tel: [phone] Fax: [phone]

Features

• Stay connected to the Internet with the latest ADSL2/2+ standards

• More exibility of choice with either Ethernet or USB connection

• NAT Application Level Gateway for popular applications

• Multiple Session IP Sec and PPTP/L2TP VPN pass through

• Sleek, clean design that saves space in your apartment or oce

Specications

LED Indicators

Management Support

Network Support

Physical Interfaces

Operating Systems

Power Adaptor

Environment

Physical Dimensions

Package Includes

Ports

Button

Security

ADSL EthernetUSB Reset Power On/Off

1 x Power 1 x DSL 1 x USB port 1 x Ethernet

Reset On/O

1 x Power 1 x DSL 1 x USB 1 x Internet 1 x Ethernet

Web-based management GUI Save/Restore Router conguration Firmware Upgrades via Web GUI TR-069 support

Firewall: intrusion logging and reporting Mode of operation: Network Address Translation (NAT)

Static routing with TCP/ IP, VPN pass-through (IPSec, L2TP, PPTP) RIP PPPoE PPPoA DNS DHCP (client & server)

LAN Ports: 1 x 10/100 Mbps AutoMDI/MDIx ADSL Port: ADSL RJ-11, T1.413, G.DMT, G.Lite, ADSL2+, ITU Annex A 1 x USB 1.1

Microsoft Windows® Vista®, XP®, 7®

12VDC, 0.42A

Operating: 0˚C to 40˚C Storage: -25˚C to 70˚C Operating Humidity: 30% to 80% Humidity (Non-Condensing)

Storage Humidity: 30% to 95% Humidity (Non-Condensing)

Weight: 210g Dimensions: 126(L) x 86(W) x 28(H) mm

DSL705EU 1 x Power adapter 1 x RJ-45 1 x RJ-11 1 x ADSL splitter 1 x USB cable 1 x Resource CD 1 x Easy Start Guide

switch
