Aztech DSL605EW User Manual

4-Port Wireless G Router
User Manual
VERSION 1.0
User Manual
Contents
Page 2 of 116
User Manual
Page 3 of 116
User Manual
Page 4 of 116
User Manual
Page 5 of 116
User Manual
About this Manual
This manual provides a description of the components, basic operation, and advanced
configuration options of the router.
Scope
This manual provides the installation instructions, router components, and configuration
information through the Web Manager.
Target Audience
This manual is designed for users who are required to install and maintain the router. It
assumes the user of this manual has basic knowledge and experience in configuring
routers, computer networks, and computer systems.
Document Structure
The manual is divided into the following sections:
Chapter About
1 About this manual
2 About the router
3 Getting Started
4 About the Web Manager
5 Basic Manu
6 Advanced Menu
7 Help Menu
Page 6 of 116
User Manual
About the Router
Congratulations on the purchase of your router. This router provides advanced features
that allow you to converge your computer, Internet, and other network appliances into a
single network either through wired or wireless connection.
Requirements
Your computer must meet the following minimum requirements.
Software
Operating System:
Any operating system can be used
Browser:
Internet Explorer 4.0
Netscape Navigator 3.02
Hardware
233MHz processor
CD-ROM Drive
Ethernet network adapter
Page 7 of 116
User Manual
Package Contents
Package contents are listed below. For any missing items, please contact your dealer
immediately. Product contents vary for different models.
Base Stand
Easy Start Guide
Network Cable
POTS Splitter
Resource CD
Router
Power Adapter
Telephone Cable
Page 8 of 116
User Manual
Device Design
Front Panel
The LEDs on the front panel gives you an idea about the power and connection status.
Label Action Description
A POWER Off No power is supplied to the device
Steady light Connected to an AC power supply
B ETHERNET Off No Ethernet connection
Steady light Connected to an Ethernet port
Blinking light Transmitting/Receiving data
C WIRELESS Off Access point is disabled
Steady light Access point is enabled
Page 9 of 116
User Manual
Blinking light Transmitting/Receiving data
D DSL Off No DSL signal
Blinking light Establishing DSL signal
Steady light DSL signal is established
E INTERNET Off No Internet connection
Steady green light Connected to the Internet
Blinking green light Transmitting/Receiving data
Red Connection attempt failed
Back Panel
The back panel provides ports to power up and connect the router into the network.
Back Panel
Label Used for…
DSL Connecting the telephone cable
ETHERNET 1-4 Connecting with computers/devices through Ethernet cable
RESET Resetting the device. Press for 10 seconds to reset.
9V DC Connecting with the 9V power adapter
ON/OFF Switching the device on/off
Antenna Sending/receiving wireless signals
Page 10 of 116
User Manual
Getting Started
Setting up the device is easy. The flowchart below provides an outline of the steps you
need to complete the installation. There are brief descriptions beside each step to help
you along. Detailed instructions are provided in the subsequent pages.
Page 11 of 116
User Manual
Planning Your Network
Before moving ahead to setup your network, it is a good idea to draw out a network
diagram to help identify the devices you want to include in the network and plan out
how to connect these devices. This will help you estimate the number of power sockets
and network cable length you need.
Sample network diagram
To create a network diagram:
For wireless devices, identify the wireless devices you want to include in the
network.
For wired devices, identify which router port you want to use for each device.
Page 12 of 116
User Manual
Remove or Disable Conflicts
To make sure the router installation moves on smoothly, you need to remove or disable
conflicts that may interfere the installation. Probable conflicts may include:
Internet sharing applications
Proxy software
Security software
TCP/IP settings
Internet properties
Temporary Internet files
Internet Sharing, Proxy, and Security Applications
Internet sharing, proxy software, and firewall applications may interfere with the router
installation. These should be removed or disabled before you install and configure the
router.
If you have any of the following or similar applications installed on your computer,
remove or disable them according to the manufacturer’s instructions.
Internet Sharing Applications Proxy Software Security Software
Microsoft Internet Sharing WinGate Symantec
WinProxy Zone Alarm
Page 13 of 116
User Manual
Configuring TCP/IP Settings
Use the default TCP/IP settings to allow the router to provide a network address to the
computer,
To set the TCP/IP properties:
1. Select Start > Run. This opens the Run dialog box.
2. Enter control ncpa.cpl and then click OK. This opens the Network Connections in
your computer.
3. Right-click LAN and then select Properties. This opens the Local Area Connection
Properties dialog box.
4. Select Internet Protocol (TCP/IP) and then click Properties. This opens the Internet
Protocol (TCP/IP) dialog box.
5. Select Obtain an IP address automatically.
6. Click OK to close the Internet Protocol (TCP/IP) dialog box.
7. Click OK to close the Local Area Connection Properties dialog box.
Configuring Internet Properties
To set the Internet Properties:
1. Select Start > Run. This opens the Run dialog box.
2. Enter control inetcpl.cpl and then click OK. This opens the Internet Properties
dialog box.
3. Click Connections tab.
4. In the Dial-up and Virtual Private Network settings pane, select Never dial a
connection.
5. Click OK to close the Internet Properties dialog box.
Page 14 of 116
User Manual
Removing Temporary Internet Files
Temporary Internet files are files from Web sites that are stored in your computer. Delete
these filed to purge the Internet cache and remove footprints left by the Web pages you
visited.
To remove temporary Internet files:
1. Select Start > Run. This opens the Run dialog box.
2. Enter control and then click OK. This opens the Control Panel.
3. Double-click Internet Options. This opens the Internet Options dialog box.
4. In the Temporary Internet Files pane, click Delete Cookies.
5. Click Delete Files.
6. Click OK to close the Internet Properties dialog box.
Page 15 of 116
User Manual
Hardware Setup
When installing the router, the common practice is to have the router, the main
computer, and phone jack in the same room. The room should also have enough
electrical outlets to match your needs.
To setup the hardware:
1. Plug one end of the Ethernet cable from the router’s ETHERNET port and then plug
the other end into the Ethernet port in your computer.
2. If you have another device you need to connect through wire into the router, use
another piece of Ethernet cable. Plug one end of the Ethernet cable from the
computer’s Ethernet port and then plug the other end into an available Ethernet
port.
3. Plug one end of the telephone cable from the POTS Splitter’s ADSL port and then
plug the other end into the router’s DSL port
Page 16 of 116
User Manual
POTS Splitter
A phone line can carry phone call and Internet signals. When you enable the phone
line for high speed Internet, the connection produces high-pitched tones when using
the phone. Installing a Plain Old Telephone Service (POTS) splitter separates the two
signals and eliminates the noise.
To setup the telephone POTS Splitter:
1. Locate the phone jack in your house.
2. Insert the POTS Splitter into the phone jack.
3. Plug one end of the telephone cable from the POTS Splitter’s TEL port and then plug
the other end into the telephone.
4. Connect the power adapter from the router’s 9V DC port into the electrical outlet
and then press ON.
Page 17 of 116
User Manual
Connecting to the Internet
Use Quick Start to connect to the Internet. Quick Start allows you to connect to the
Internet in few is gives you a feature in the router’s Web Manager.
To use Quick Start:
1. Open your browser.
2. Enter 192.168.1.1 in the address field and then press Enter. This opens the Log In
page of Web Manager.
3. Enter the Username and Password for the Web Manager. The default Username
and Password is admin.
Log In Page
4. Click Log In.
Page 18 of 116
User Manual
5. From the Basic Menu, click Quick Start.
6. Enter the Username and Password for your Internet account and then click
Connect.
Quick Start
When the connection attempt is successful, the Basic Home page appears. When
the connection attempt is not successful, a message will ask you to verify the
Username and Password.
\
Basic Home
Page 19 of 116
User Manual
Connecting Wireless Devices
After you setup the device settings, you can connect other devices with wireless
capabilities. Wireless devices relieve you from the task of laying out cables and allow you
to use the Internet connection from your router.
Your router allows you to connect wireless devices into the network
To the connect wireless devices:
1. Enable the wireless client in your notebook or wireless device.
2. Open the software you use to detect a wireless connection. Enter the connection
settings. By default, yournetworkname is the name of the wireless network with
no security applied. You can modify these settings in the Wireless Menu of the
Web Manager.
Page 20 of 116
User Manual
About the Web Manager
The Web Manager is used to configure the router settings.
Accessing the Web Manager
To access the Web Manager:
1. Open a browser.
2. Enter the router’s IP Address. The default IP Address is 192.168.1.1.
3. When authentication is enabled, the log in page will appear. In the login page,
enter the Username and Password. The default Username and Password is admin.
Menus
The web interface includes the following menus:
Basic Menu
Advanced Menu
Help Menu
Page 21 of 116
User Manual
Basic Menu
The Basic Menu includes the Home and Quick Start links.
Basic Menu
Page 22 of 116
User Manual
Advanced Menu
The Advanced Menu provides advanced configuration settings for existing connections. At
least one WAN connection must be configured before implementing advanced WAN
configuration features. At least one LAN group must be defined before implementing
advanced LAN configuration features.
Advanced Menu
Page 23 of 116
User Manual
Help Menu
The Help Menu provides documentation about various router features.
Help Menu
Page 24 of 116
User Manual
Basic Menu
The options for the Basic Menu include:
Home
Quick Start
Home
The Home page provides a one-page summary about the Connection Information, Router
Information, Local Network, and Wireless Network settings.
Basic Home
Connection Information
The Connection Information pane gives you an idea about the status of your Internet
connection. This pane includes a Connect/Disconnect button. When clicked, the router
makes an attempt to connect to the Internet using the parameters saved in the router.
Page 25 of 116
User Manual
Router Information
This pane provides all the necessary information to determine the model, firmware
version, build, Ethernet MAC Address, Wireless MAC Address, NAT status, and Firewall
status.
Local Network Information
The Local Network pane displays the current IP address of the router. It also provides the
DHCP status, DHCP Range, and Ethernet status.
Wireless Network Information
This pane displays the current configuration settings for the router’s access point.
Quick Start
Quick Start gives you the ability to instantly connect to the Internet.
Quick Start
Page 26 of 116
Advanced Menu
The Advanced Menu provides advanced configuration options. These include:
WAN
LAN

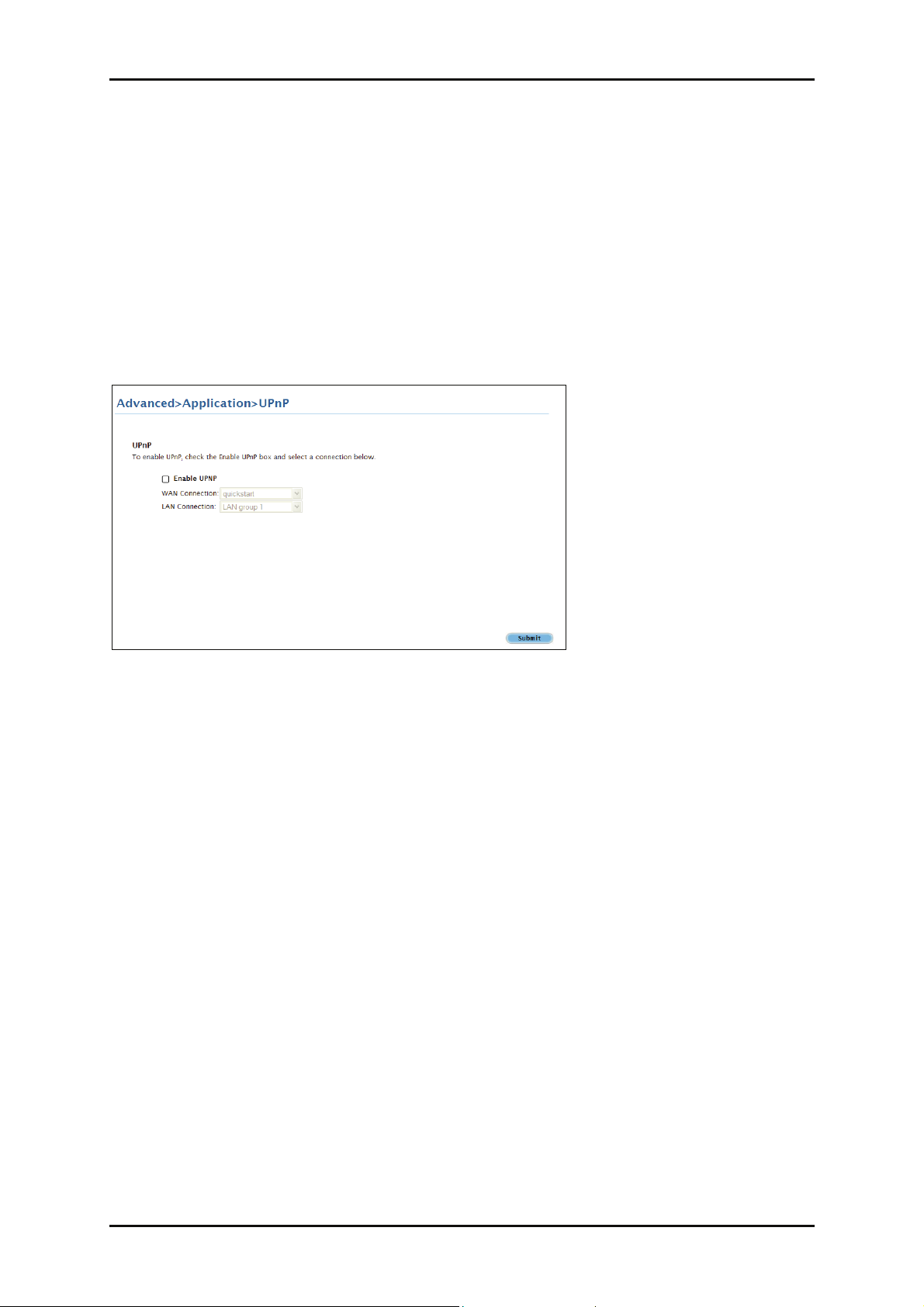

Application
QoS

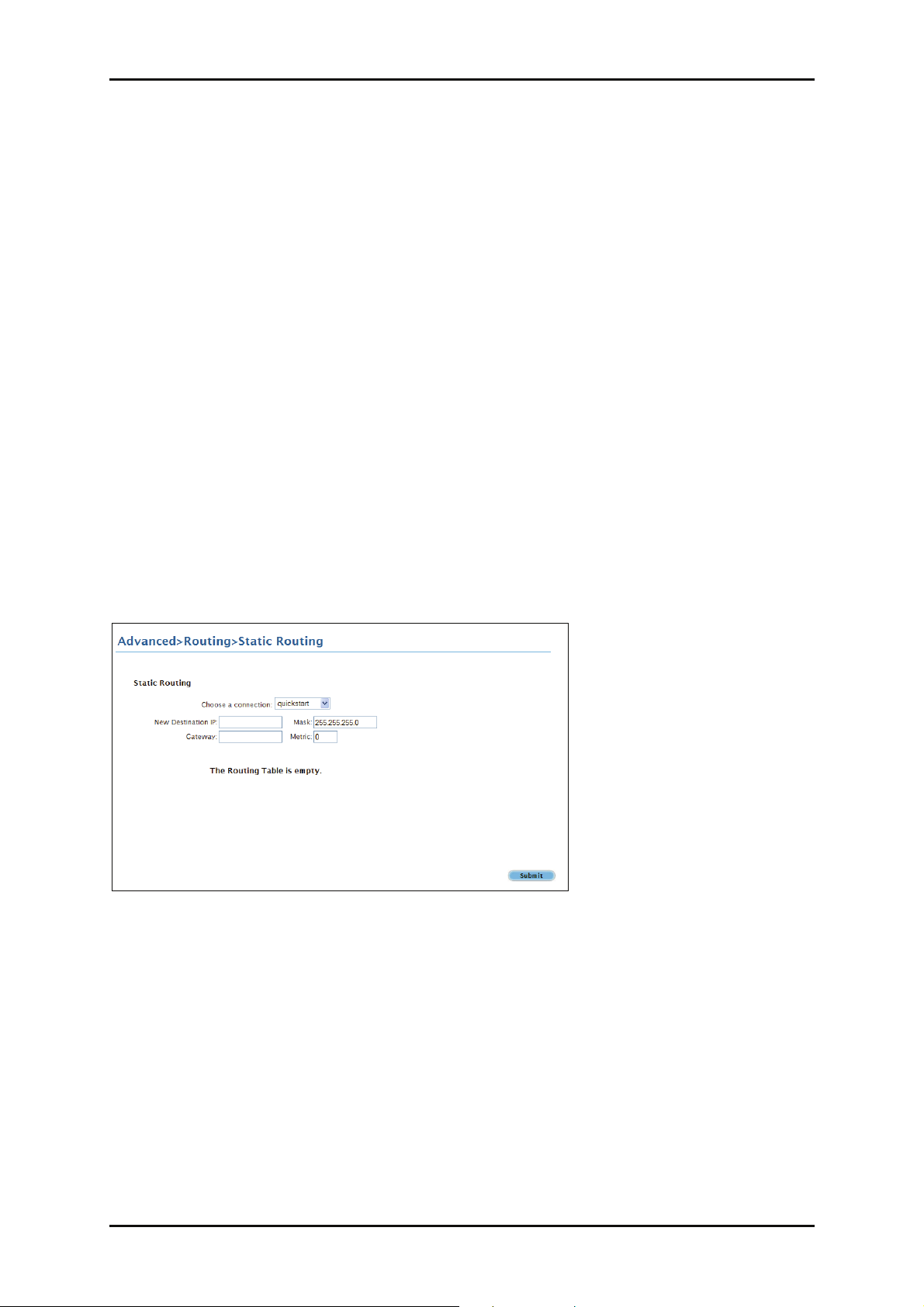

Routing
User Manual
Wireless
Security
Status
Diagnostics
System Password
Firmware Upgrade
Save Settings
Restart Access Point
Restart Router
Restore Default
Page 27 of 116
User Manual
WAN
Wide Area Network refers to the configurations you perform to establish an Internet
connection. There are several types of WAN connections that require different settings.
New Connection
Your router supports the creation of new connections. If you have multiple virtual
connections, you may need to utilize the static routing capabilities of the modem to pass
data correctly.
WAN connection types include:
PPPoE Connection
PPPoA Connection
Static Connection
DHCP Connection
Bridge Connection
CLIP Connection
Page 28 of 116
User Manual
PPPoE Connection
PPPoE is a common WAN connection type used to connect to the Internet. PPP, or point-
to-point protocol, is a method of establishing a network connection/session between
network hosts. PPPoE is a protocol for encapsulating PPP frames in Ethernet frames and
is described in RFC 2516. PPPoE provides the ability to connect to a network of hosts over
a simple bridging access device to a remote access concentrator. With this model, each
router uses its own PPP stack. Access control, billing, and type of service control can all
be done on a per-user rather than per-site basis.
New PPPoE Connection Setup
Page 29 of 116
User Manual
PPPoA Connection
Another commonly used WAN connection type is PPPoA. PPPoA is also known as RFC
2364. It is a method of encapsulating PPP packets in ATM cells that are carried over the
DSL line. PPP, or point-to-point protocol, is a method of establishing a network
connection/session between network hosts. It usually provides a mechanism of
authenticating users. Logical Link Control (LLC) and Virtual Circuit (VC) are two different
methods of encapsulating the PPP packet. Contact your service provider to determine
which encapsulation is being used on your Internet connection.
New PPPoA Connection Setup
Page 30 of 116
Loading...
+ 86 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
