Aztech DSL600EWR Easy Start

ADSL Wireless LAN 4­Port Ethernet Router

Easy Start

Version 0.1

Contents

Introduction............................................................. 3

Minimum System Requirements ................................ 3

ADSL Router Package............................................... 3

ADSL Router Overview ............................................. 4

Typical ADSL Router Connection................................ 6

Step 1: Connecting the ADSL Router to Your

Computer/Notebook ...................................... 7

Step 2: Configuring Your Ethernet Network Card ....... 10

Step 3: Configuring Your Internet Browser................. 12

Step 4: Connecting to the Internet............................ 13

• Product warranty does not apply to damage caused by lightning, power surges or

wrong voltage usage.

• This product is for use only in UL Listed computers.

Easy Start

Declaration of Conformity

Marking by the above symbol indicates compliance with the Essential Requirements of the
R&TTE Directive of the European Union (1999/5/EC). This equipment meets the following
conformance standards:

EN300 328, EN301 489-17, EN60950

Countries of Operation and Conditions of Use in the European
Community

This device is intends to be operated in all countries of the European Community.
Requirement is for indoors vs. outdoors operation, license requirements and allowed
channels of operation apply in some countries as described in this document.

Note: The user must use the configuration utility provided with this product to check
the current channel of operation and confirm that the devices operating in
conformance with the spectrum usage rules for the European Community countries as
described below.

If operation is occurring outside of the allowable channels as indicated in this guide, then the
user must cease operating the product and consult with the local technical support staff
responsible for the wireless network.

This device may be operated indoors or outdoors in all countries of the European
Community using the 2.4GHz band: Channels 1 – 13, except where noted below:

· In Italy the end-user must apply for a license from the national spectrum authority to

operate this device outdoors.

· In France outdoor operation is only permitted using the 2.4 – 2.454 GHz band: Channels

1 – 7.

1 of 13

Easy Start

Radio Frequency Interference Warnings &
Instructions

(FCC ID: I38-DSL600EWR)

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following methods:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and the receiver

• Connect the equipment into an electrical outlet on a circuit different from that which the radio
receiver is connected

• Consult the dealer or an experienced radio/TV technician for help.

Modifications made to the product, unless expressly approved by the party responsible, could
void the user’s right to operate the equipment.

RF Exposure

To comply with FCC RF exposure compliance requirements, the antenna used for this
transmitter must be installed to provide a separation distance of at least 20cm from all
persons and must not be co-located or operating in conjunction with any other antenna
or transmitter.

2 of 13

Easy Start

Introduction

Thank you on your purchase of the ADSL Wireless LAN 4-Port Ethernet Router! The Wireless
4-Port Router allows you to share high-speed broadband connection with multiple PC using a
single device wired or wireless.

The Wireless Broadband 4-Port Router can be connected to any computer/notebook with a
10/100 Base-T Ethernet card for wired connection or an IEEE 802.11g Wireless adapter. The
Ethernet ports have Auto MDI/MDIX feature which can allows both cross or straight UTP
cable to be utilized. The Wireless 4-port Ethernet Router has an in-built IEEE802.11g
Wireless LAN Access Point for wireless connectivity.
This documentation assumes that you have already installed an Ethernet card or a wireless
adapter on your computer/notebook

Minimum System Requirements

• Pentium

®

MMX 233MHz

• Ethernet card installed with TCP/IP Protocol (Required only if you are connecting to

the ETHERNET port of your ADSL Router)

• IEEE 802.11b Wireless adapter (Required if you are connecting to the Wireless

Access Point of the router)

• OS independent for Ethernet

• Web Browser support:

Microsoft Internet Explorer 4.0 (or later versions)
Netscape® Navigator 3.02 (or later versions)

ADSL Router Package

For any missing items, please contact your dealer immediately.

ADSL Ethernet Wireless Router Easy Start Telephone extension cable

Power adapter (DC 12V) CAT-5 UTP Straight Ethernet Network cable (RJ-45)

POTS-Splitter

1

(optional)

1 Depending on your country of purchase, your package may or may not come with a
POTS Splitter. The POTS Splitter is required if you are connecting a Telephone Set to the
Ethernet Modem. Please refer to Step 1.2 - Connecting to the ADSL Line for details.
POTS-Splitter can also be purchased from your dealer.

3 of 13

Easy Start

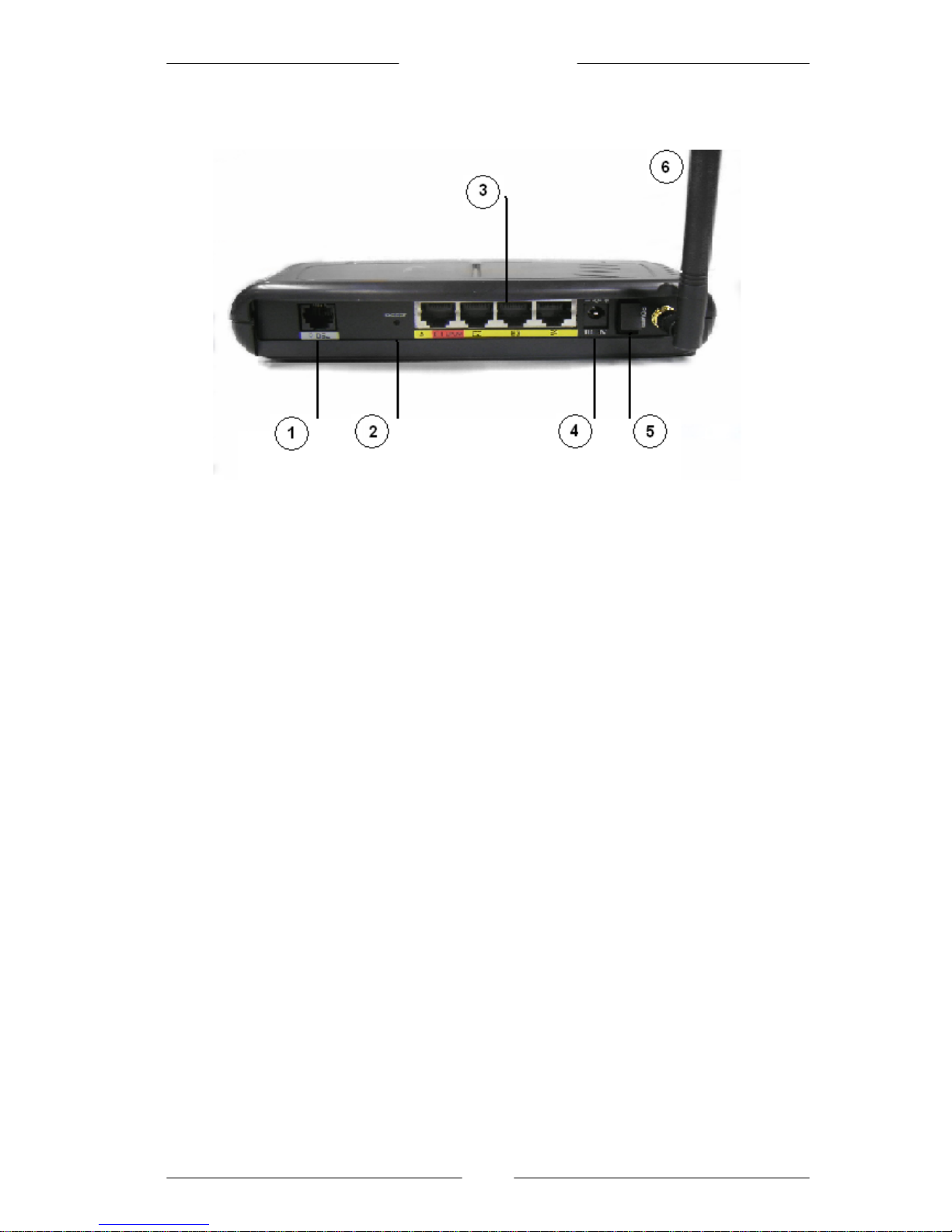

ADSL Router Overview

Front Indicators

l



POWER

Lights up when power is supplied to the ADSL Router.

m ETHERNET (E1 ~ E4)

Lights up when the Ethernet cable is properly connected from your ADSL Router to the
Ethernet Card.

Flickers when the ADSL is transmitting/receiving data.

n WIRELESS

Lights up when the Wireless LAN connection is established.

o DSL

Lights up when the DSL connection is established.
Flickers when the ADSL Router is trying to establish a connection with the ADSL Service

Provider.

p Internet

Lights up when the PPP connection is established.
