Aztech DSL600EW User Manual

ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide
Page 1 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide
Table of Contents
Preliminary Pages Page
Table of Contents .................................................................................................................2
List of Ilustrations................................................................................................................5
Chapter 1 - About this Manual ........................................................................................11
1.1 Introduction ....................................................................................11
1.3 Targeted Audience..........................................................................11
1.4 Manual Organization......................................................................11
Chapter 2 – ADSL Router Description............................................................................12
2.1 ADSL Router Overview.................................................................12
Chapter 3 - Your Gateway At A Glance..........................................................................13
3.1 Ports and Buttons............................................................................13
3.2 ADSL Router Overview.................................................................14
3.2.1 Front Indicators ..............................................................................14
3.2.2 Back Panel......................................................................................15
Chapter 4 - Setting Up the ADSL Router........................................................................16
4.1 Logging into your ADSL Router....................................................16
4.2 Quick Start......................................................................................18
4.4 Diagnostic Test...............................................................................20
4.4.1 Ping Test.........................................................................................21
4.4.2 Modem Test....................................................................................21
4.5 Advanced........................................................................................22
4.5.1 WAN Connection...........................................................................22
4.5.2 New Connection.............................................................................23
4.5.3 ADSL Modulation..........................................................................24
4.5.4 Connection Scan.............................................................................25
4.5.5 VCC List.........................................................................................25
4.5.6 Quickstart .......................................................................................26
4.5.7 LAN Configuration ........................................................................28
4.5.8 LAN Clients ...................................................................................29
4.5.9 Ethernet Switch Configuration.......................................................30
4.5.10 Application (UPnP)........................................................................31
Page 2 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide
4.5.11 SNTP ..............................................................................................32
4.5.12 SNMP.............................................................................................33
4.5.13 IGMP Proxy ...................................................................................34
4.5.14 TR-068 WAN Access.....................................................................36
4.5.15 TR-069............................................................................................37
4.5.16 NAT Services .................................................................................38
4.5.17 DNS Proxy .....................................................................................39
4.5.18 Dynamic DNS Client......................................................................40
4.5.19 Easy Connect Configuration...........................................................41
4.5.20 Port Triggering ...............................................................................42
4.5.21 Port Forwarding..............................................................................42
4.5.22 Bridge Filters..................................................................................44
4.5.23 Web Access Control.......................................................................45
4.5.23.1 Enable Web Access Control (WAN-Side) ....................45
4.5.24 SSH Access Control.......................................................................46
4.5.24.1 Enable SSH Access Control (WAN-Side) ....................46
4.5.25 QoS.................................................................................................47
4.5.26 Egress .............................................................................................48
4.5.26.1 No Egress Mode ............................................................48
4.5.26.2 Egress Layer 2 Configuration........................................49
4.5.26.3 Egress Layer 3 Configuration........................................50
4.5.27 Ingress ............................................................................................51
4.5.27.1 Ingress Untrusted Mode ................................................51
4.5.27.2 Ingress Layer 2 Configuration.......................................52
4.5.27.3 Ingress Layer 3 Configuration.......................................54
4.5.27.4 Ingress Static Configuration..........................................56
4.5.28 QoS Shaper Configuration .............................................................57
4.5.29 Policy Routing Configuration ........................................................61
4.5.30 Static Routing.................................................................................64
4.5.31 Dynamic Routing............................................................................65
4.5.32 Routing Table.................................................................................66
4.5.33 System Password............................................................................66
4.5.34 Firmware Upgrade..........................................................................67
4.5.35 Restore to Default...........................................................................67
4.6 Wireless..........................................................................................68
4.6.1 Wireless Setup................................................................................68
Page 3 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide
4.6.2 Wireless Configuration...................................................................69
4.6.3 Multiple SSID.................................................................................70
4.6.4 Wireless Security............................................................................71
4.6.4.1 WEP.................................................................................71
4.6.4.2 802.1x..............................................................................72
4.6.4.3 WPA................................................................................73
4.6.5 Wireless Management....................................................................74
4.6.5.1 Access List.......................................................................74
4.6.5.2 Associated Stations..........................................................74
4.6.6 WDS...............................................................................................75
4.7 Security...........................................................................................77
4.7.1 IP Filters .........................................................................................77
4.7.2 LAN Isolation.................................................................................78
4.7.3 URL Filters.....................................................................................78
4.8 Status ..............................................................................................79
4.8.1 Connection Status...........................................................................80
4.8.2 System Log.....................................................................................80
4.8.3 Remote Log Settings ......................................................................81
4.8.4 Network Statistics...........................................................................82
4.8.6 DHCP Clients.................................................................................83
4.8.7 QoS Status......................................................................................84
4.8.8 Modem Status.................................................................................84
4.8.9 Product Information........................................................................85
4.8.10 WDS Report ...................................................................................86
4.9 Help ................................................................................................87
Page 4 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide
List of Ilustrations
Figure Page
Figure 1-1 : Wireless-G System Configuration Diagram.....................................................12
Figure 1-2 : Front Indicators ................................................................................................14
Figure 1-3 : Back Panel Indicators.......................................................................................15
Figure 1-4 : Setup Page........................................................................................................16
Figure 1-5 : Internet Login Account Setting........................................................................17
Figure 1-6 : Basic Home ......................................................................................................17
Figure 1-7 : Quick Start Page...............................................................................................18
Figure 1-8 : LAN / DHCP Configuration.............................................................................19
Figure 1-9 : Diagnostics Test Screen ...................................................................................20
Figure 1-10 : Diagnostics Test Result Screen......................................................................20
Figure 1-11 : Ping Test Screen.............................................................................................21
Figure 1-12 : Modem Test....................................................................................................21
Figure 1-13 : Advanced Screen............................................................................................22
Figure 1-14 : New Connection (PPPoE Connection Setup).................................................23
Figure 1-15 : ADSL Modulation (Modem Setup)................................................................24
Figure 1-16 : Connection Scan.............................................................................................25
Figure 1-17 : VCC List.........................................................................................................25
Figure 1-18 : Quickstart (PPPoE Connection Setup)...........................................................27
Figure 1-19 : LAN Configuration ........................................................................................28
Figure 1-20 : LAN Clients ...................................................................................................29
Figure 1-21 : Ethernet Switch Configuration.......................................................................30
Figure 1-22 : UPnP...............................................................................................................31
Figure 1-23 : SNTP..............................................................................................................32
Figure 1-24 : SNMP Management.......................................................................................33
Figure 1-25 : IGMP Proxy ...................................................................................................34
Page 5 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide
Figure 1-26 : TR-068 WAN Access.....................................................................................36
Figure 1-27 : TR-069............................................................................................................37
Figure 1-28 : NAT Services.................................................................................................38

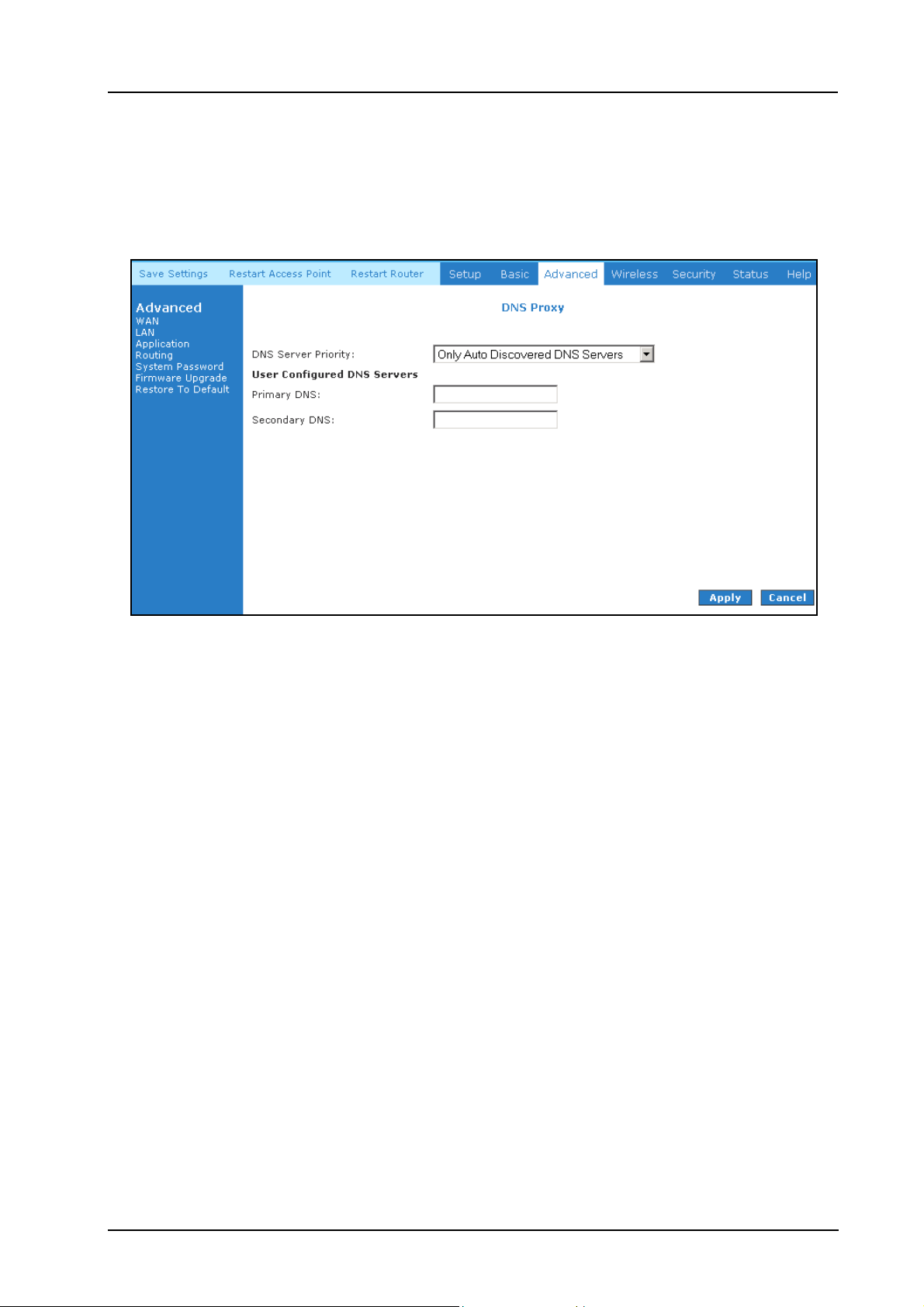

Figure 1-29 : DNS Proxy .....................................................................................................39
Figure 1-30 : Dynamic DNS Client......................................................................................40
Figure 1-31 : Easy Connect Configuration ..........................................................................41
Figure 1-32 : Port Triggering...............................................................................................42
Figure 1-33 : Port Forwarding..............................................................................................43
Figure 1-34 : MAC Filtering (Bridge Filters) ......................................................................44
Figure 1-35 : Web Access Control.......................................................................................45
Figure 1-36 : SSH Access Control.......................................................................................46
Figure 1-37 : No Egress .......................................................................................................48
Figure 1-38 : Egress Layer 2................................................................................................49
Figure 1-39 : Egress Layer 3................................................................................................50
Figure 1-40 : Ingress Untrusted Mode .................................................................................51
Figure 1-41 : Ingress Layer 2 Configuration........................................................................52
Figure 1-42 : Ingress Layer 3 Configuration........................................................................54
Figure 1-43 : Ingress Static Configuration...........................................................................56
Figure 1-44 : QoS Shaper Configuration .............................................................................57
Figure 1-45 : HTB Queue Discipline enabled......................................................................58
Figure 1-46 : Low Latency Queue Discipline enabled ........................................................59
Figure 1-47 : PRIOWRR enabled ........................................................................................60
Figure 1-48 : Policy Routing Configuration ........................................................................61
Figure 1-49 : Static Routing.................................................................................................64
Figure 1-50 : Dynamic Routing ...........................................................................................65

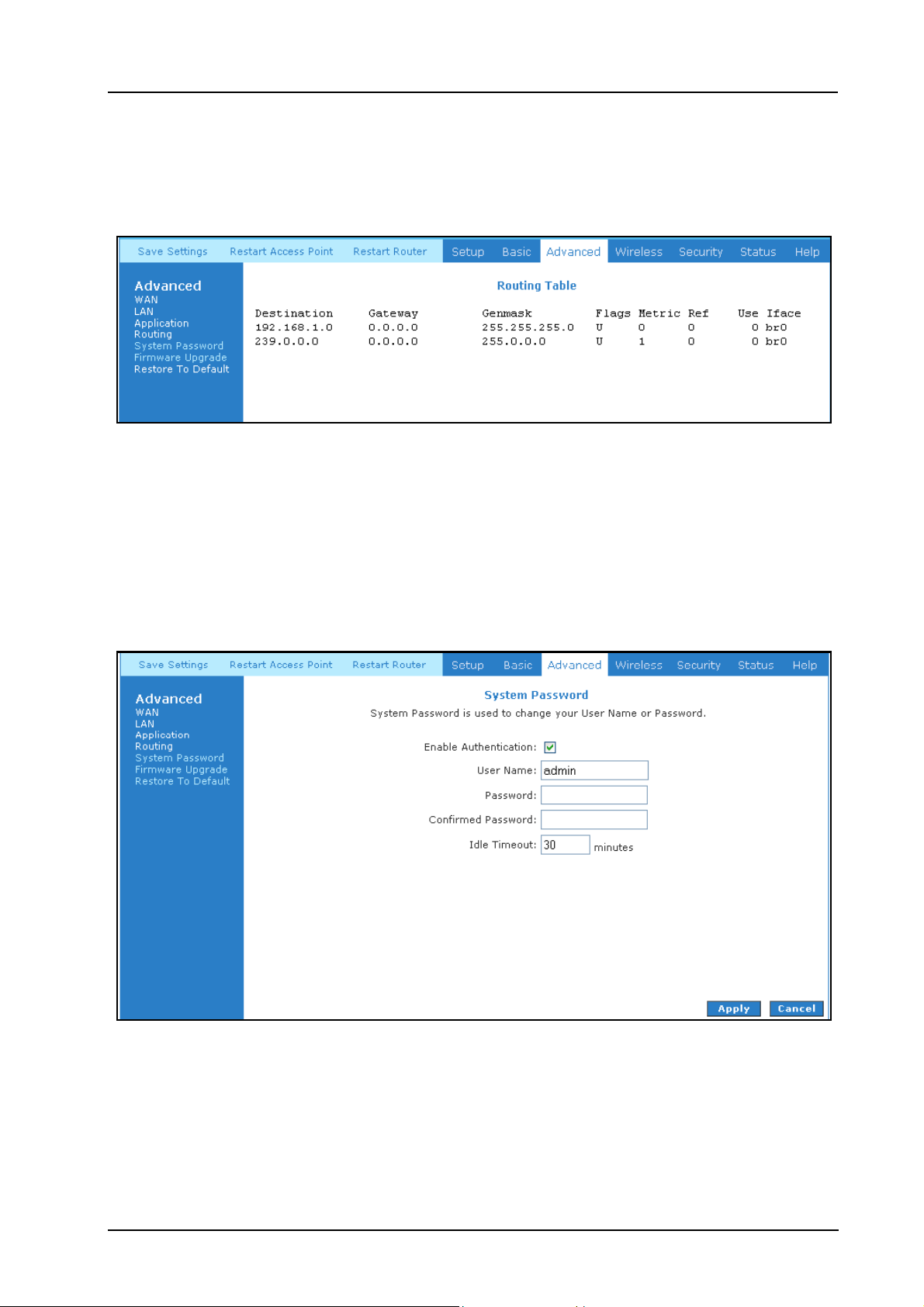

Figure 1-51 : Routing Table.................................................................................................66
Figure 1-52 : System Password............................................................................................66
Figure 1-53 : Firmware Upgrade..........................................................................................67
Page 6 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide
Figure 1-54 : Restore to Default prompt..............................................................................67
Figure 1-55 : Wireless Setup Page.......................................................................................68
Figure 1-56 : Wireless Configuration Page..........................................................................69
Figure 1-57 : Multiple SSID.................................................................................................70
Figure 1-58 : Wireless Security............................................................................................71
Figure 1-59 : Wireless Security – WEP...............................................................................72
Figure 1-60 : Wireless Security – 802.1x.............................................................................72
Figure 1-61 : Wireless Security - WPA ...............................................................................73
Figure 1-62 : Wireless Management....................................................................................74
Figure 1-63 : WDS...............................................................................................................75
Figure 1-64 : Security...........................................................................................................77
Figure 1-65 : IP Filters.........................................................................................................77
Figure 1-66 : LAN Isolation.................................................................................................78
Figure 1-67 : URL Filters.....................................................................................................78
Figure 1-68 : Status..............................................................................................................79
Figure 1-69 : Connection Status...........................................................................................80
Figure 1-70 : System Log.....................................................................................................80
Figure 1-71 : Remote Log Settings......................................................................................81
Figure 1-72 : Network Statistics...........................................................................................82
Figure 1-73 : DDNS Update Status......................................................................................82
Figure 1-74 : DDNS Status (DDNS Client Enabled) ..........................................................83
Figure 1-75 : DHCP Clients.................................................................................................83
Figure 1-76 : QoS Status......................................................................................................84
Figure 1-77 : Modem Status.................................................................................................84
Figure 1-78 : Product Information .......................................................................................85
Figure 1-79 : WDS Report...................................................................................................86
Figure 1-80 : Help Screen ....................................................................................................87
Page 7 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide
Declaration Of Conformity
Marking by the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the European Union (1999/5/EC). This equipment meets the following conformance standards:
EN300 328, EN301 489-17, EN60950
Countries of Operation and Conditions of Use in the European Community
This device is intend to be operated in all countries of the European Community. Requirement is for indoors vs. outdoors operation, license requirements and allowed channels of operation apply in some countries as described in this document.
Note… The user must use the configuration utility provided with this product to check the current channel of operation and confirm that the devices operating in conformance with the spectrum usage rules for the European Community countries as described below.
If operation is occurring outside of the allowable channels as indicated in this guide, then the user must cease operating the product and consult with the local technical support staff responsible for the wireless network.
This device may be operated indoors or outdoors in all countries of the European Community using the 2.4GHz band: Channels 1 – 13, except where noted below:
• In Italy the end-user must apply for a license from the national spectrum authority
to operate this device outdoors.
• In France outdoor operation is only permitted using the 2.4 – 2.454 GHz band:
Channels 1 – 7.
Page 8 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide
Radio Frequency Interference Warnings & Instructions
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following methods:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment into an electrical outlet on a circuit different from that
which the radio receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.
Modifications made to the product, unless expressly approved by the party responsible, could void the user’s right to operate the equipment.
RF Exposure
This device has been tested and complies with FCC RF Exposure (SAR) limits in typical laptop computer configurations and this device can be used in desktop or laptop computers with side mounted PCMCIA slots, which can provide 1 cm separation distance from the antenna to the body of the user or a nearby person. Thin laptop computers may need special attention to maintain antenna spacing while operating. This device cannot be used with handheld PDAs (personal digital assistants). Use in other configurations may not ensure compliance with FCC RF exposure guidelines. This device and its antenna must not be co-located or operate in conjunction with another antenna or transmitter.
Page 9 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide
Safety Summary Messages
WARNING
HIGH VOLTAGE is used in the equipment. Make sure equipment is properly grounded BEFORE opening. Failure to observe safety precautions may result in electric shock to user.
CAUTION Check voltages before connecting equipment to power supplies. Wrong voltages applied may result in damage to equipment.
Page 10 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide

Chapter 1 - About this Manual

1.1 Introduction

This manual provides a general product overview and description of its subsystems and components and basic operation and preventive maintenance instructions of the ADSL2+ 4 port Ethernet USB Wireless Router.

1.2 Scope and Purpose

This manual provides the following:
• An overview of the Wireless-G system configuration and connectiv ity ;
• General description and specifications of the Wireless-G system components;
• Operating instructions of the system and equipment;

1.3 Targeted Audience

This manual is designed and developed for the operators and users who are required to operate and perform first-level maintenance of the ADSL2+ 4 Port Ethernet USB Wireless Router. It assumes the user of this manual has basic knowledge and experience in operating similar modem configuration and computer systems equipment.

1.4 Manual Organization

The manual is divided into the following chapters:
1. Chapter 1 – About this Manual; this chapter provides an introduction to the manual’s
scope and purpose, targeted audience and contents organisation.
2. Chapter 2 – ADSL Router Description; this chapter provides the system description and
system configuration diagram of ADSL Router connection.
3. Chapter 3 – Your Gateway At A Glance; this chapter provides an overview of ports and
LEDs, Front and Back indicators of the 4-Port Ethernet ADSL Router.
4. Chapter 4 – Setting Up the ADSL Router; this chapter provides description of all function
within the Web User Interface.
Page 11 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide

Chapter 2 – ADSL Router Description

The ADSL2+ 4 port Ethernet USB Wireless Router is a high-speed WAN bridge/router. This full-featured product is specifically designed to allow maximum of 4 Ethernet-workstations to be connected to the Internet and directly connect to your local area network via high speed 10/100 Mbps Ethernet. Users using wireless workstations will be able to connect to the Internet using
802.11g wireless technology. The ADSL Router has also full NAT firewall and DMZ services to block unwanted users from accessing your network.
For game users, the ADSL Router had already pre configured for several low latency game ports. Just click on the game you are playing on line and the rest is done for you.
The ADSL Router is fully compatible with all PCs; as long as the PC supports an Ethernet interface and is running a TCP/IP protocol stack, your PC can have high-speed WAN access. So, plug in the ADSL Router (refer to easy start guide), configure it (per your ISP’s requirements) and enjoy the fast Internet access like never before.

2.1 ADSL Router Overview

Figure 1-1 shows the system configuration diagram of a typical Wireless-G router connection.
Computers or Notebooks with Ethernet Network Cards.
Computers or Notebooks with Wireless PC cards or USB Clients.
Figure 1-1 : Wireless-G System Configuration Diagram
Page 12 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide

Chapter 3 - Your Gateway At A Glance

The ADSL Wireless LAN 802.11g 4 Port Ethernet & USB Combo 4 Port Router may have different ports and LEDs. Let’s take a look at the different options. Depending on your model, it may have some or all of the features listed below.

3.1 Ports and Buttons

Reset and Restore to Factory Defaults: The restore to factory defaults feature will set the ADSL Router to its factory default configuration by resetting the ADSL Router. You may need to place the ADSL Router into its factory defaults if the configuration is changed; you lose the ability to interface to the ADSL Router via the web interface, or following a software upgrade. To reset the ADSL Router, simply press the reset button for about approximately 10 seconds. The ADSL Router will be reset to its factory defaults and after about 30 ~ 40 seconds the ADSL Router will become operational again.
LAN (local area network) E1 to E4 port(s): connects to Ethernet network devices, such as a PC, hub, switch, or routers. The ports are 10/100 Base-T Auto-MDI/MDIX (allows either cross or straight cable) Ethernet jack (RJ-45) to connect to your Ethernet Network card or Ethernet
Hub / Switch.
Power: This is where you connect the power. Make sure to observe the proper power requirements. The required power is 9 volts.
USB (universal serial port): connects to a PC’s USB port. The ADSL Router only supports Window’s based PCs via an RNDIS driver (included in the software).
DSL port: This is the WAN interface that connects directly to your phone line.
Page 13 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide

3.2 ADSL Router Overview

3.2.1 Front Indicators

Figure 1-2 shows the front indicators of the Wireless-G router.
4 6
1 2
3
5
Figure 1-2 : Front Indicators
LED Name Status & Meaning
1. Power
2. Ethernet(E1 - E4)
Lights up when power is supplied to the ADSL Router. Lights up when the Ethernet cable is properly connected
from your ADSL Router to the Ethernet Card. Flickers when the ADSL is transmitting/receiving data.
3. Wireless
4. USB
Flickers when the Wireless LAN is operational. Lights up when the USB cable is properly connected
from your ADSL Router to the USB slot. Lights Off when the USB cable is not connected or it is properly disconnected.
5. DSL
Lights off when no Telephone jack (RJ-11) is connected. Flickers when the ADSL Router is trying to establish a
connection with the ADSL Service Provider (Training). Steady Green LED. Lights up when the ADSL connection is established.
6. Internet
Green LED lights up when the PPP connection is established. Lights off when no PPP connection.
Page 14 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide

3.2.2 Back Panel

Figure 1-3 shows the back panel indicators of the Wireless-G router.
E1
4
7
1 2
3
5
6
Figure 1-3 : Back Panel Indicators
Label Description
1. DSL
Connect the telephone jack (RJ-11) to your Telephone Wall Socket (DSL line).
2. USB
3. RESET
Connect the USB jack to your PC’s USB slot. To reset the ADSL Router, simply press the reset button
for about 10 seconds (all customised settings that you
have saved will be lost!).
4. ETHERNET(E1-E4)
10/100 Base-T Auto-MDI/MDIX Ethernet jack (RJ-45) to connect to your PC’s Ethernet Network card or Ethernet Hub / Switch.
5. DC 9V
To connect to the Power Adapter that comes with your package.
6. POWER SWITCH
Push downwards to switch ON and lift upwards to switch OFF.
7. RF Antenna
180° 2.4Ghz Wireless Antenna.
Page 15 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide

Chapter 4 - Setting Up the ADSL Router

This section will guide you through your ADSL Router’s configuration. The ADSL Router is shipped with a standard PPP configuration.
The basic tabs consist of features which are catered for basic users.

4.1 Logging into your ADSL Router

To configure your ADSL Router, open your web browser. You may get an error message at this point; this is normal. Type the default IP address (192.168.1.1) or login.router on the web address bar.
NOTE: Before setting up your ADSL Router, make sure you have followed the
easy start guide. You should have your computers configured for DHCP mode and have proxies disabled on your browser. Upon accessing the ADSL Router, if the browser still displays a login redirection screen, you should check your browser's setting and ensure that the JavaScript support is enabled. If the screen shown in Figure 1-4 is not attainable, you must delete your temporary Internet files to clear the web cache.
Figure 1-4 : Setup Page
Page 16 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide
Upon entering the default IP address or the short-cut name (login.router), if the user is logging for the first time, the user will be brought to the “Internet Login Account Setting” page. See Figure 1-5. This page is meant for basic users whom only require easy connectivity to the Internet without worrying about any other advance configuration setting. If you are in doubt for what content to enter for the Protocol, VPI and VCI, please contact your Service Provider for assistance.
Figure 1-5 : Internet Login Account Setting
For those who have their routers configured, you will be directed to the “Basic Home” page. See Figure 1-6.
Figure 1-6 : Basic Home
Page 17 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide

4.2 Quick Start

If you have already configured your router and wish to change your current configuration, click on the ‘Quick Start’ link. Figure 1-7 will appear.
Figure 1-7 : Quick Start Page

4.3 LAN / DHCP Configuration

On one side of your ADSL Router, you have your own Local Area network (LAN) connections. This is where you plug in your local computers to the ADSL Router. The ADSL Router is normally configured to automatically provide all the PC's on your network with Internet addresses.
To enable or disable DHCP, click Basic, and then select LAN Configuration. The Start IP Address is where the DHCP server starts issuing IP addresses. This value must be greater than the ADSL Router IP address value. For example if the ADSL Router IP address is 192.168.1.1 (default) than the starting IP address must be 192.168.1. 2 (or higher).
The End IP Address is where the DHCP server stops issuing IP addresses. The ending address cannot exceed a subnet limit of 254. Hence the max value for our default gateway is
192.168.1.254. If the DHCP server runs out of DHCP addresses, users will not get access to network resources. If this happens you can increase the Ending IP address (to the limit of 255) or reduce the lease time.
The Lease Time is the amount of time a network user will be allowed connection to the ADSL Router with their current dynamic IP address. The amount of time is in units of minutes; the default value is 3600 minutes (60 hours).
Note: If you change the start or end values, make sure the values are still within the same subnet as the gateways IP address. In other words, if the gateways IP address is 192.168.1.1 (default) and you change the DHCP start/end IP addresses to be 192.128.1.2/192.128.1.100, you will not be able to communicate to the ADSL Router if your PC has DHCP enabled.
Page 18 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide
In addition to the DHCP server feature, the ADSL Router supports the DHCP relay function. When the ADSL Router is configured as DHCP server, it assigns the IP addresses to the LAN clients. When the ADSL Router is configured as DHCP relay, it is responsible for forwarding the requests and responses negotiating between the DHCP clients and the server.
By turning off the DHCP server and relay the network administrator must carefully configure the IP address, Subnet Mask and DNS settings of every computer on your network. Do not assign the same IP address to more than one computer and your ADSL Router must be on the same subnet as all the other computers. See Figure 1-8.
Figure 1-8 : LAN / DHCP Configuration
Page 19 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide

4.4 Diagnostic Test

Diagnostic Test is used for investigating whether the ADSL Router is properly connected to the WAN Network. See Figure 1-9. This test may take a few seconds to complete. To perform the test, select your connection from the list and press the Test button. Before running this test, make sure you have a valid DSL link.
Figure 1-9 : Diagnostics Test Screen
After running the Diagnostic Test, the screen will indicate that the portion which pass or fail the test. See Figure 1-10. Please click on the Help links, which will provide remedy to the problem.
Figure 1-10 : Diagnostics Test Result Screen
Page 20 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide

4.4.1 Ping Test

Once you have your ADSL Router configured, ensure you can ping the network. Type the target address that you want to ping. If your PC is connected to the ADSL Router via the default DHCP configuration, you should be able to ping the network address 192.168.1.1. See Figure 1-11. If your ISP has provided their server address, try to ping the address. If the pings for both the WAN and the LAN sides are complete and you have the proper protocols configured, you should be able to surf the Internet. By default when you select ping test, the ADSL Router will ping itself 3 times. The ADSL Router passed the Ping test; this basically means that the TCP/IP protocol is up and running. If the first Ping test does not pass, the TCP/IP protocol is not loaded for some reason; you should restart the ADSL Router.
Figure 1-11 : Ping Test Screen

4.4.2 Modem Test

This test can be used to check whether your Modem is properly connected to the Network. Select your connection from the list and press the ‘Test’ button. See Figure 1-12.
Figure 1-12 : Modem Test
Page 21 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide

4.5 Advanced

This mode is catered for advance users, a brief explanation of the links are listed as shown below. See Figure 1-13.
Figure 1-13 : Advanced Screen

4.5.1 WAN Connection

The Wide Area Network (WAN) connection exists on the other side of the ADSL Router, also referred to as a broadband connection. This WAN connection is different for every WAN supplier. Most of the configuration you will perform will be for WAN connection.
Page 22 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide

4.5.2 New Connection

A new connection is a virtual connection. Your ADSL Router can support up to 8 different (unique) virtual connections. If you have multiple different virtual connections, you may need to utilize the static and dynamic routing capabilities of the modem to pass data correctly.
Figure 1-14 : New Connection (PPPoE Connection Setup)
Page 23 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide

4.5.3 ADSL Modulation

To configure the DSL modulation type, Click WAN > ADSL Modulation. This will bring up the modem setup screen. Leave the default value if you are unsure or the DSL/ISP did not provide this information. In most cases, this screen should not be modified.
Figure 1-15 : ADSL Modulation (Modem Setup)
Page 24 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide
4.5.4 Connection Scan
This feature helps users to detect the PVC settings provided by the ISP. Before the router can begin scanning the connection, the telephone line has to be plugged into the router. Click on Scan to begin. See Figure 1-16.
Figure 1-16 : Connection Scan
4.5.5 VCC List
Users can configure multiple PVC settings using the VCC List feature. A maximum of 8 settings can be configured. See Figure 1-17.
Figure 1-17 : VCC List
Page 25 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide

4.5.6 Quickstart

PPPoE is also known as RFC 2516. It is a method of encapsulating PPP packets over Ethernet. PPP or Point-to-Point protocol is a method of establishing a network connection/session between network hosts. It usually provides a mechanism of authenticating users.
To configure the gateway for PPPoE, click on Advanced. Under WAN, select New Connection. The default PPPoE connection setup is displayed. At the Type field select PPPoE and the PPPoE connection setup page is displayed. Give your PPPoE connection a unique name; the name must not have spaces and cannot begin with numbers. In this case the unique name is called quickstart. Select the encapsulation type (LLC or VC); if you are not sure just use the default mode. Select the VPI and VCI settings; your DSL service provider or your ISP will supply these. In this case the DSL service provider is using 0, 100. Also select the quality of service (QoS); leave the default value if you are unsure or the ISP did not provide this information. See Figure 1-18.
Following is a description of the different options:
1. Username: The username for the PPPoE access; this is provided by your DSL service
provider or your ISP.
2. Password: The password for the PPPoE access; this is provided by your DSL service
provider or your ISP.
3. On-Demand: Enables on-demand mode. The connection will disconnect if no activity is
detected after the specified idle timeout value.
4. Idle Timeout: Specifies that PPPoE connection should disconnect if the link has no activity
detected for n seconds. This field is used in conjunction with the On-Demand feature. To ensure that the link is always active, enter a 0 in this field.
5. Keep Alive: When on-demand option is not enable, this value specifies the time to wait
without being connected to your provider before terminating the connection. To ensure that the link is always active, enter a 0 in this field.
6. Enforce MTU: Check this box if you experience problems accessing the Internet over a
PPPoE connection. This feature will force all TCP traffic to conform with PPP MTU by changing TCP Maximum Segment Size to PPP MTU.
Page 26 of 87
ADSL2+ 4-Port Ethernet USB Wireless-G Router - User Guide
Figure 1-18 : Quickstart (PPPoE Connection Setup)
Page 27 of 87
Loading...
