Aztech DSL600E User Manual

ADSL2+ Ethernet USB Combo Router - User Guide
Page 1 of 67
ADSL2+ Ethernet USB Combo Router - User Guide
Table of Contents
Preliminary Pages Page
Table of Contents .................................................................................................................2
List of Illustrations...............................................................................................................5
Chapter 1 - About this Manual ..........................................................................................9
1.1 Introduction ......................................................................................9
1.3 Targeted Audience............................................................................9
1.4 Manual Organization........................................................................9
Chapter 2 – ADSL Ethernet Router Description ...........................................................10
2.1 ADSL Router Overview.................................................................10
Chapter 3 - Your Gateway At A Glance..........................................................................11
3.1 Ports and Buttons............................................................................11
3.2 ADSL Router Overview.................................................................12
3.2.1 Front Indicators ..............................................................................12
3.2.2 Back Panel......................................................................................13
Chapter 4 - Setting Up the ADSL Router........................................................................14
4.1 Logging into your ADSL Router....................................................14
4.2 Quick Start......................................................................................15
4.4 Diagnostic Test...............................................................................18
4.4.1 Ping Test.........................................................................................19
4.4.2 Modem Test....................................................................................19
4.5 Advanced........................................................................................20
4.5.1 WAN Connection...........................................................................20
4.5.2 New Connection.............................................................................21
4.5.3 ADSL Modulation..........................................................................22
4.5.4 Connection Scan.............................................................................23
4.5.5 Quickstart .......................................................................................24
4.5.6 LAN Configuration ........................................................................26
4.5.7 LAN Clients ...................................................................................27
4.5.8 Application (UPnP)........................................................................28
4.5.9 SNTP ..............................................................................................29
4.5.10 IGMP Proxy ...................................................................................30
Page 2 of 67
ADSL2+ Ethernet USB Combo Router - User Guide
4.5.11 TR-068 WAN Access.....................................................................32
4.5.12 DNS Proxy .....................................................................................33
4.5.13 Dynamic DNS Client......................................................................34
4.5.14 Port Forwarding..............................................................................35
4.5.15 Bridge Filters..................................................................................36
4.5.16 Web Access Control.......................................................................37
4.5.16.1 Enable Web Access Control (WAN-Side)....................37
4.5.17 QoS.................................................................................................39
4.5.18 Egress .............................................................................................40
4.5.18.1 No Egress Mode............................................................40
4.5.18.2 Egress Layer 2 Configuration........................................41
4.5.18.3 Egress Layer 3 Configuration........................................42
4.5.19 Ingress ............................................................................................43
4.5.19.1 Ingress Untrusted Mode................................................43
4.5.19.2 Ingress Layer 2 Configuration.......................................44
4.5.19.3 Ingress Layer 3 Configuration.......................................46
4.5.19.4 Ingress Static Configuration..........................................48
4.5.20 QoS Shaper Configuration .............................................................49
4.5.21 Policy Routing Configuration ........................................................53
4.5.22 Static Routing.................................................................................56
4.5.23 Routing Table.................................................................................57
4.5.24 System Password............................................................................57
4.5.25 Firmware Upgrade..........................................................................58
4.5.26 Restore to Default...........................................................................58
4.6 Security...........................................................................................59
4.6.1 IP Filters .........................................................................................59
4.6.2 LAN Isolation.................................................................................60
4.7 Status ..............................................................................................61
4.7.1 Connection Status...........................................................................62
4.7.2 System Log.....................................................................................62
4.7.3 Remote Log Settings ......................................................................63
4.7.4 Network Statistics...........................................................................63
4.7.6 DHCP Clients.................................................................................65
4.7.7 QoS Status......................................................................................65
4.7.8 Modem Status.................................................................................66
Page 3 of 67
ADSL2+ Ethernet USB Combo Router - User Guide
4.7.9 Product Information........................................................................66
4.8 Help ................................................................................................67
Page 4 of 67
ADSL2+ Ethernet USB Combo Router - User Guide
List of Illustrations
Figure Page
Figure 1-1 : ADSL Router Configuration Diagram .............................................................10
Figure 1-2 : Front Panel Indicators (For Ethernet USB Combo Router).............................12
Figure 1-3 : Back Panel Indicators (For Ethernet USB Combo Router)..............................13
Figure 1-4 : Quick Start........................................................................................................14
Figure 1-5 : Basic Home ......................................................................................................15
Figure 1-6 : Quick Start Page...............................................................................................15
Figure 1-7 : LAN / DHCP Configuration.............................................................................17
Figure 1-8 : Diagnostics Test Screen ...................................................................................18
Figure 1-9 : Diagnostics Test Result Screen........................................................................18
Figure 1-10 : Ping Test Screen.............................................................................................19
Figure 1-11 : Modem Test....................................................................................................19
Figure 1-12 : Advanced Screen............................................................................................20
Figure 1-13 : New Connection (PPPoE Connection Setup).................................................21
Figure 1-14 : ADSL Modulation (Modem Setup)................................................................22
Figure 1-15 : Connection Scan.............................................................................................23
Figure 1-16 : Quickstart (PPPoE Connection Setup)...........................................................25
Figure 1-17 : LAN Configuration ........................................................................................26
Figure 1-18 : LAN Clients ...................................................................................................27
Figure 1-19 : UPnP...............................................................................................................28
Figure 1-20 : SNTP..............................................................................................................29
Figure 1-21 : IGMP Proxy ...................................................................................................30

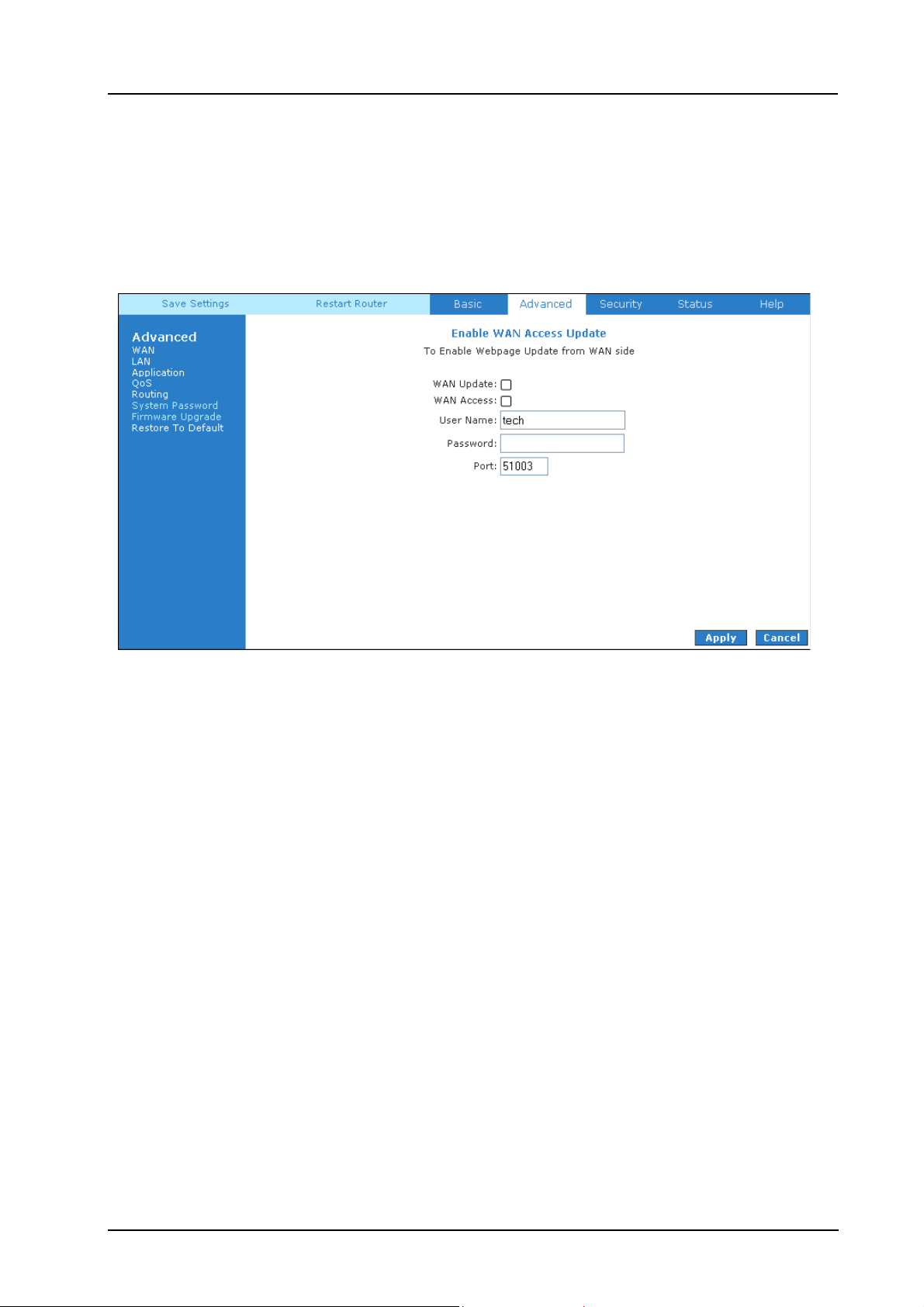

Figure 1-22 : TR-068 WAN Access.....................................................................................32

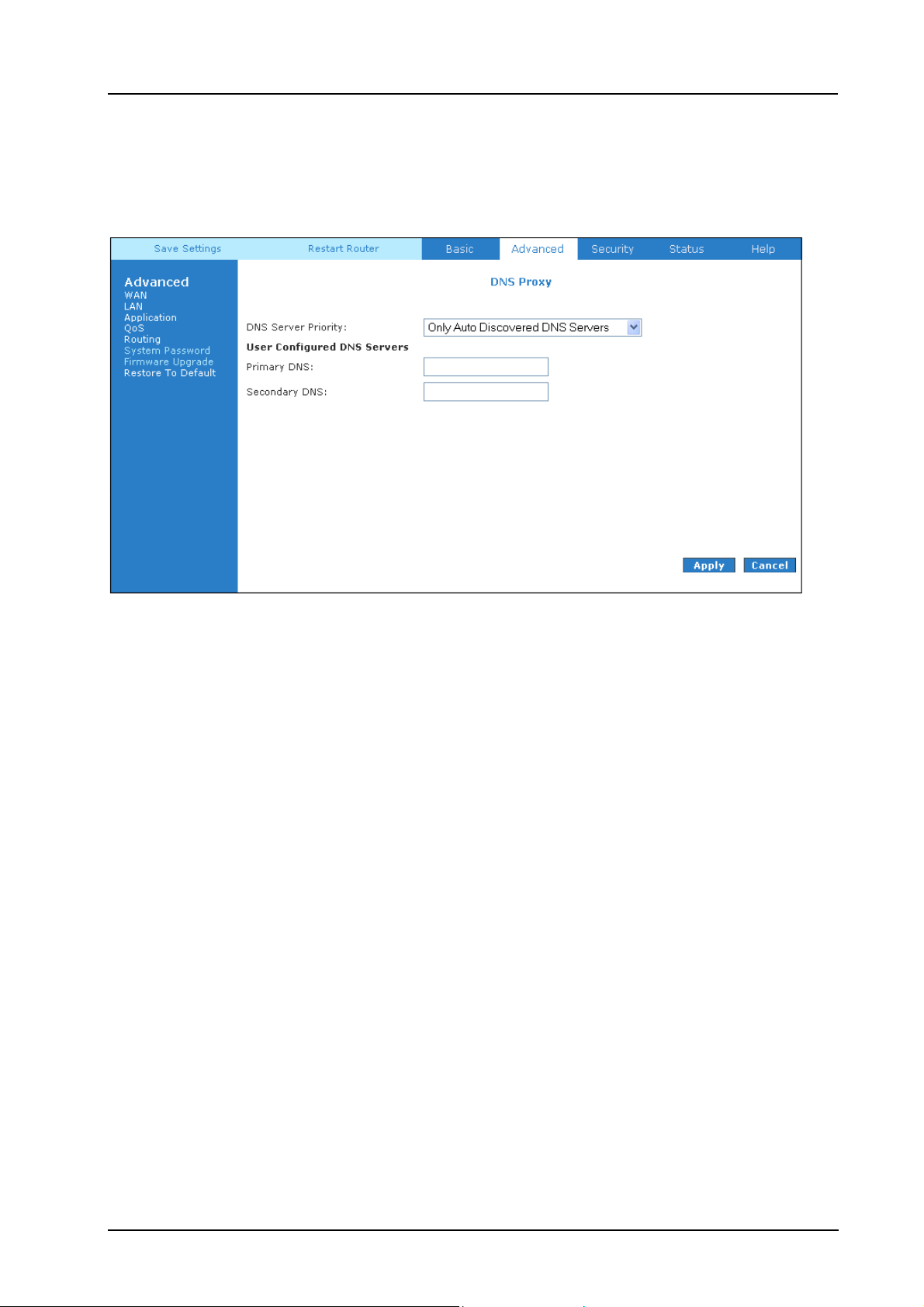

Figure 1-23 : DNS Proxy .....................................................................................................33

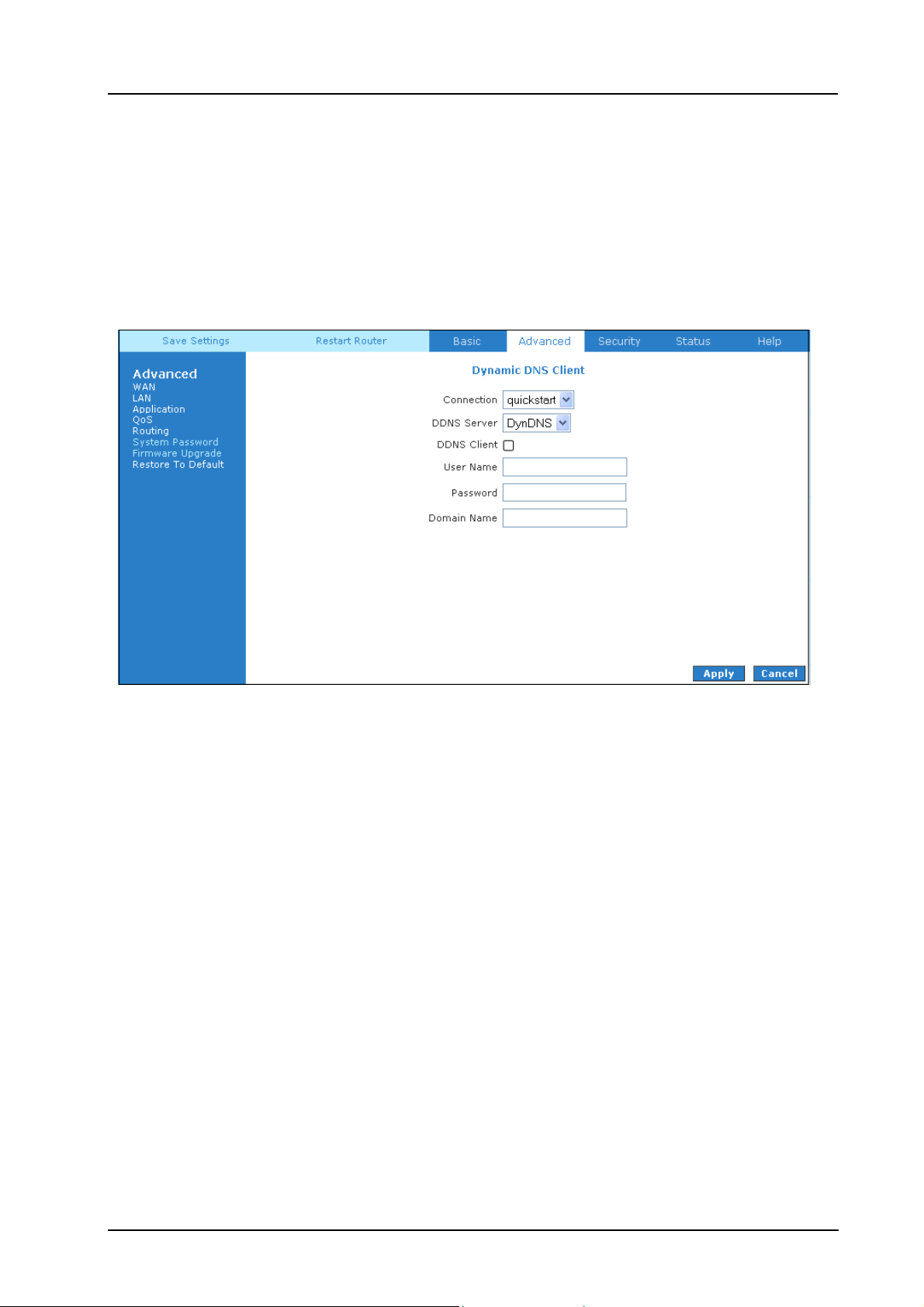

Figure 1-24 : Dynamic DNS Client......................................................................................34
Page 5 of 67
ADSL2+ Ethernet USB Combo Router - User Guide

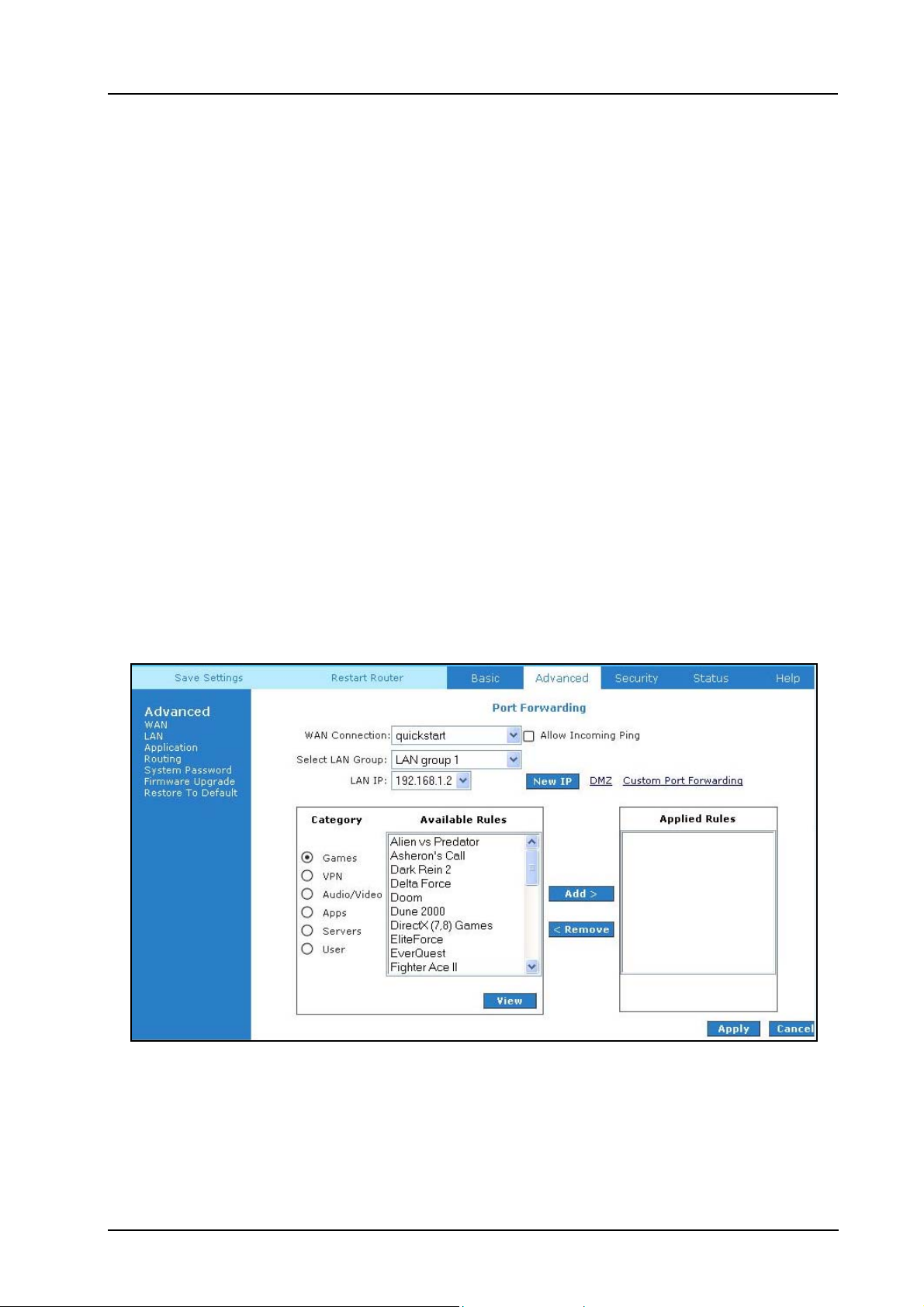

Figure 1-25 : Port Forwarding..............................................................................................35

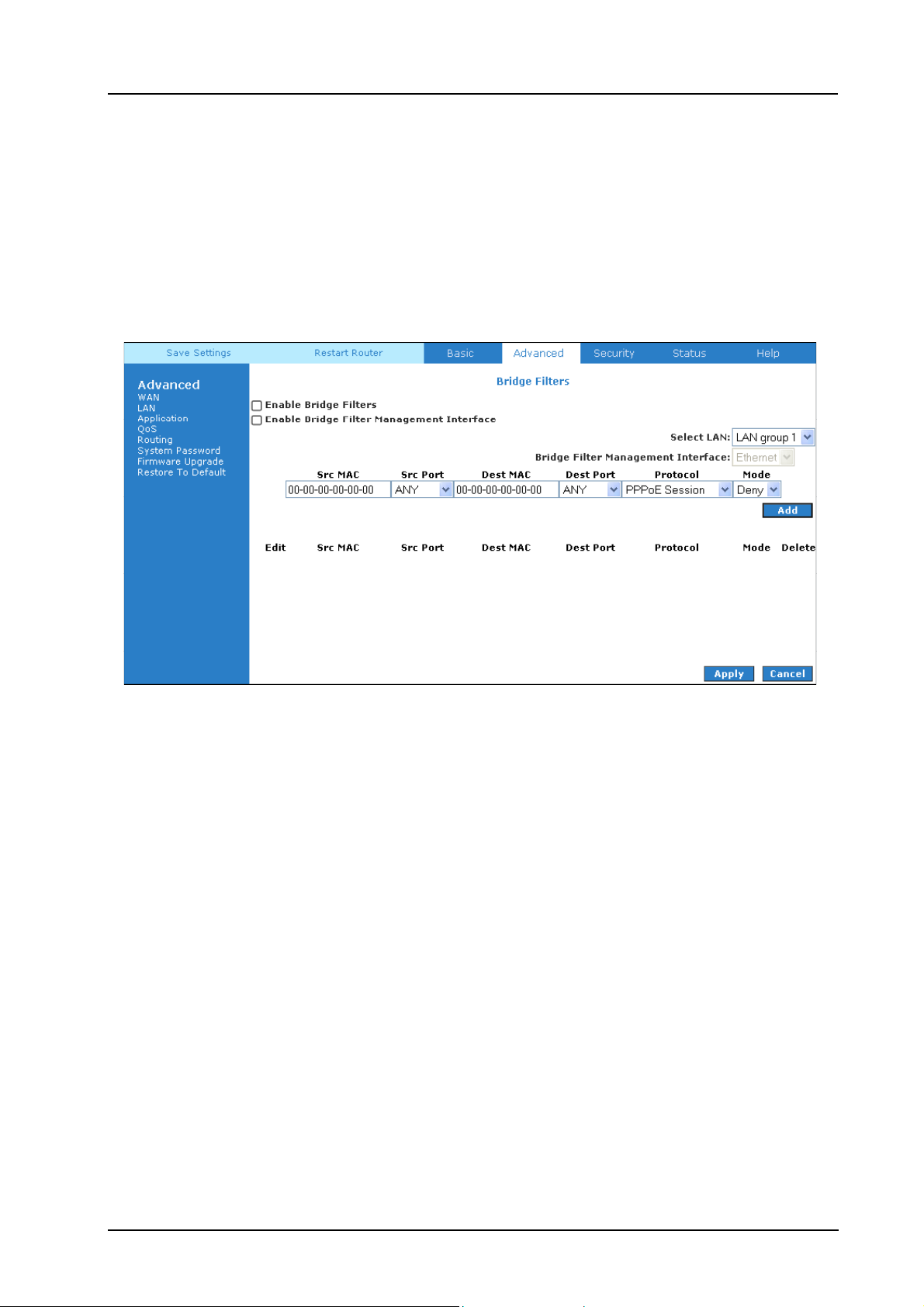

Figure 1-26 : Bridge Filters..................................................................................................36

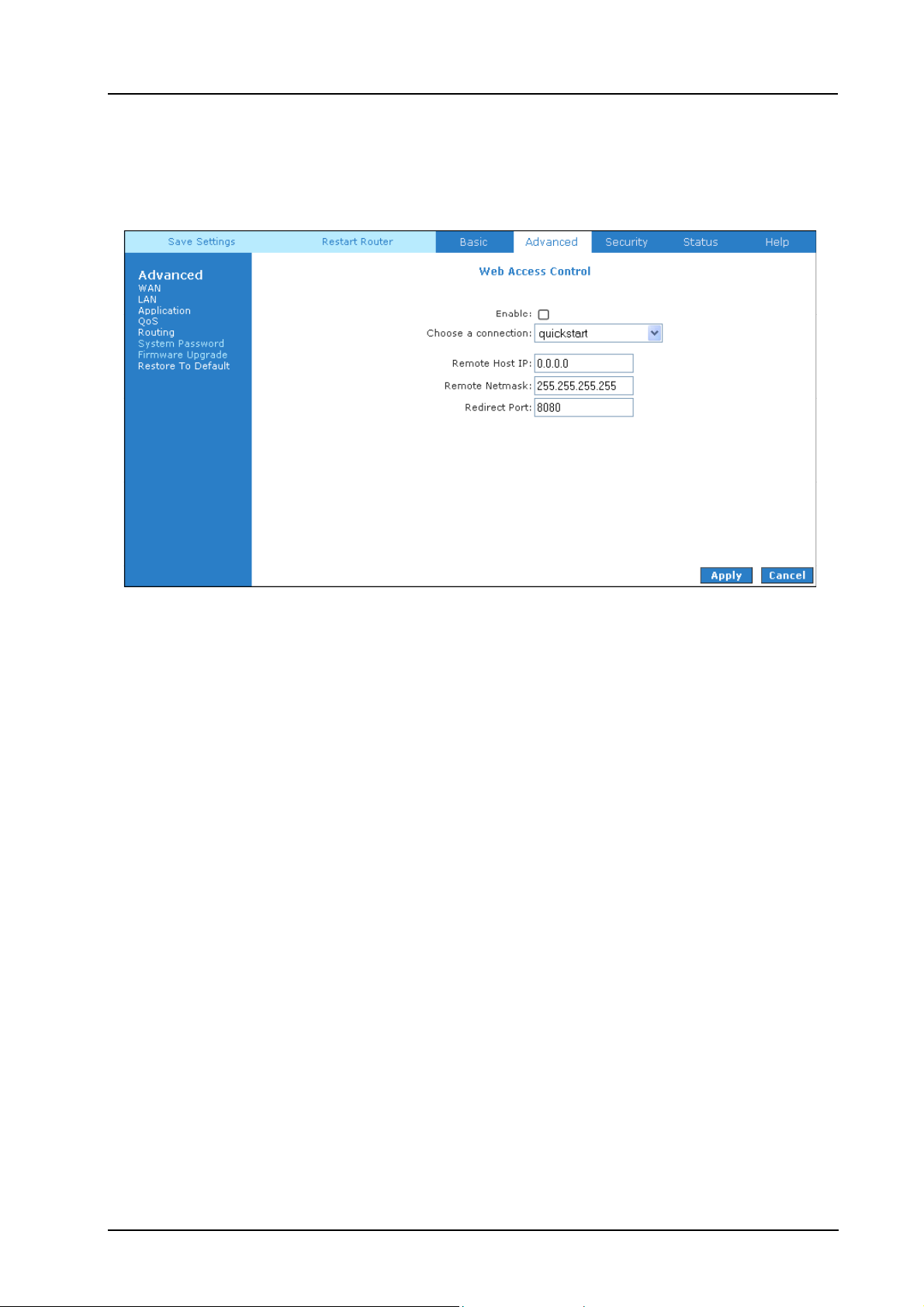

Figure 1-27 : Web Access Control.......................................................................................37

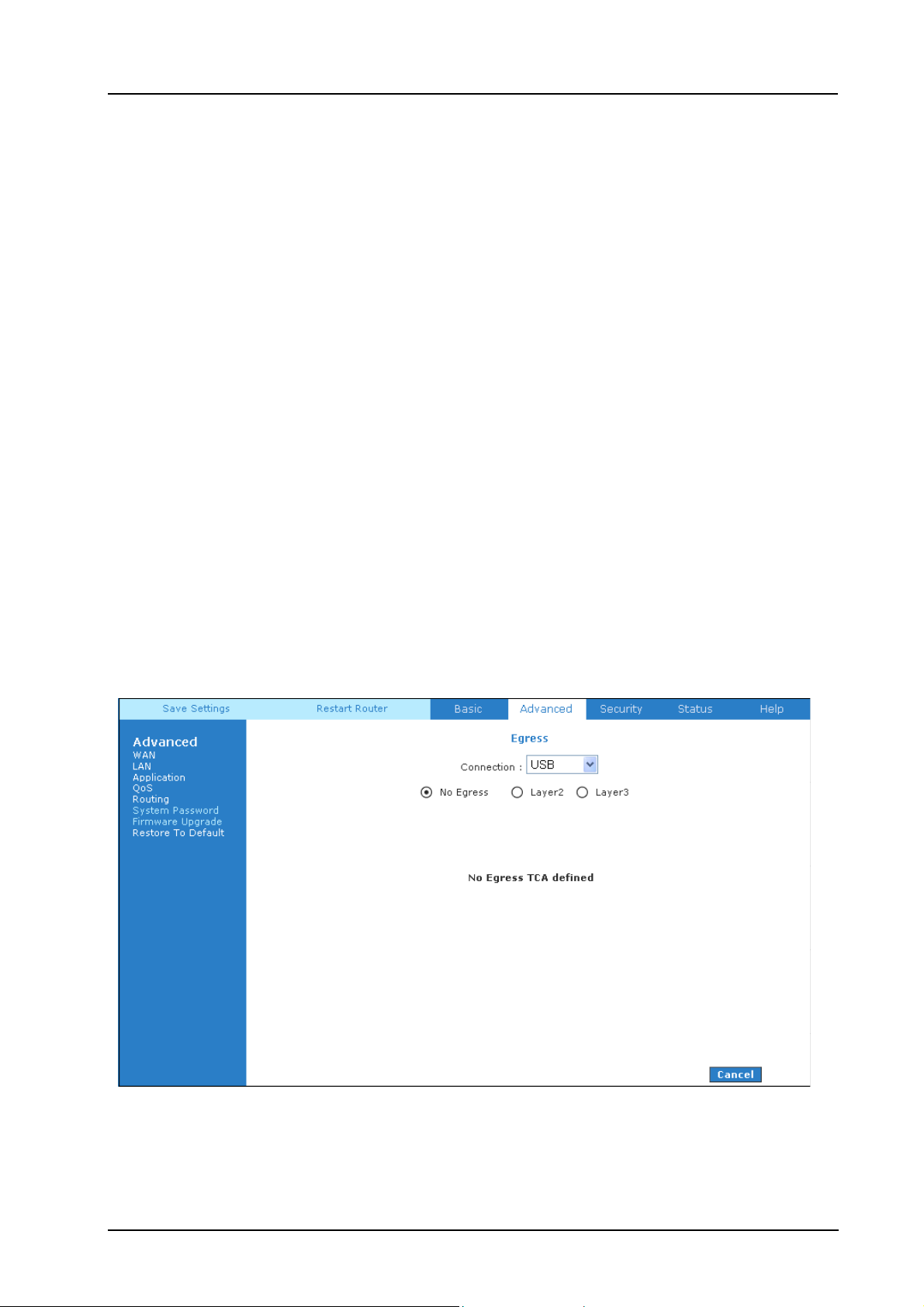

Figure 1-28 : No Egress .......................................................................................................40

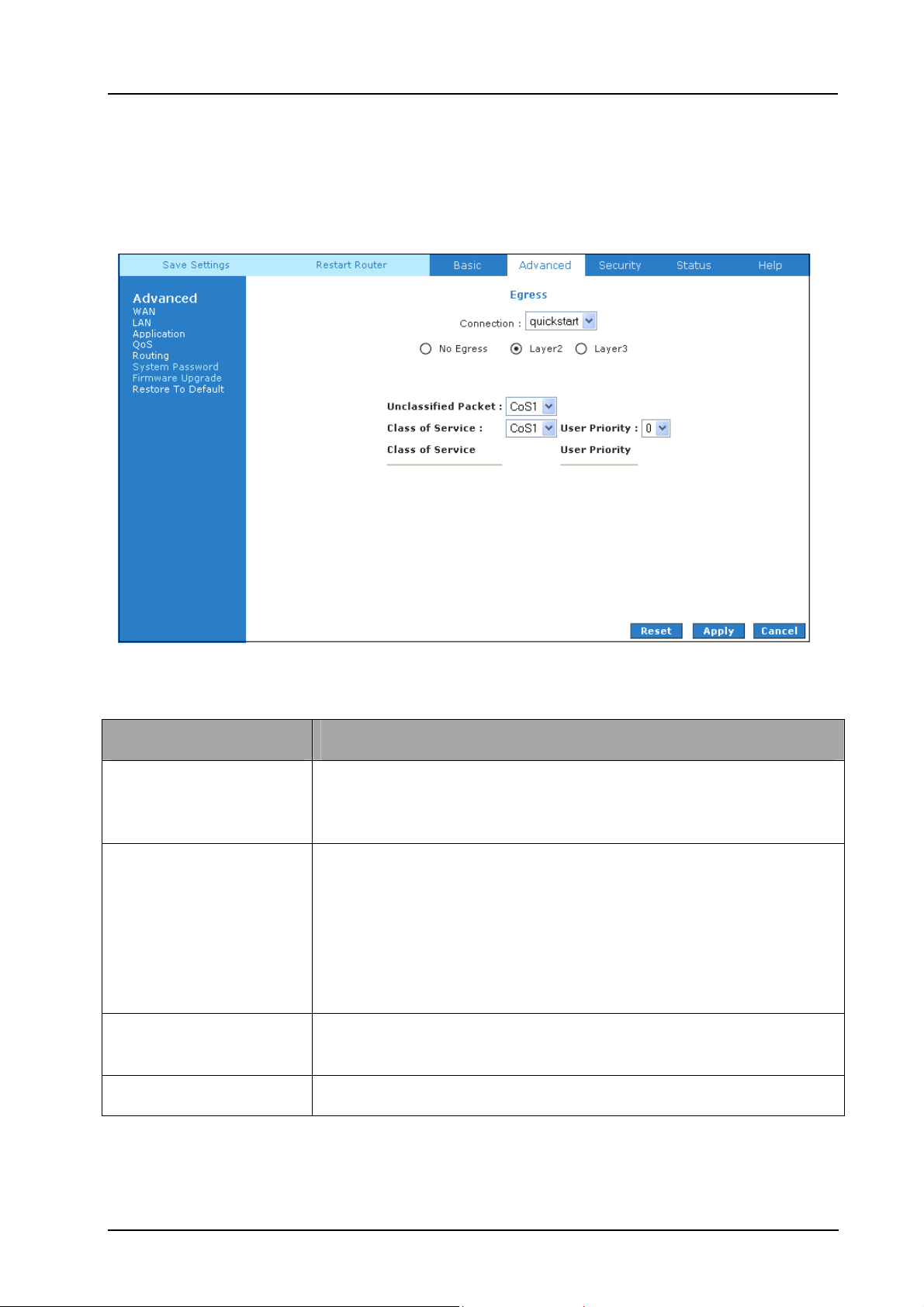

Figure 1-29 : Egress Layer 2................................................................................................41
Figure 1-30 : Egress Layer 3................................................................................................42
Figure 1-31 : Ingress Untrusted Mode .................................................................................43
Figure 1-32 : Ingress Layer 2 Configuration........................................................................44
Figure 1-33 : Ingress Layer 3 Configuration........................................................................46

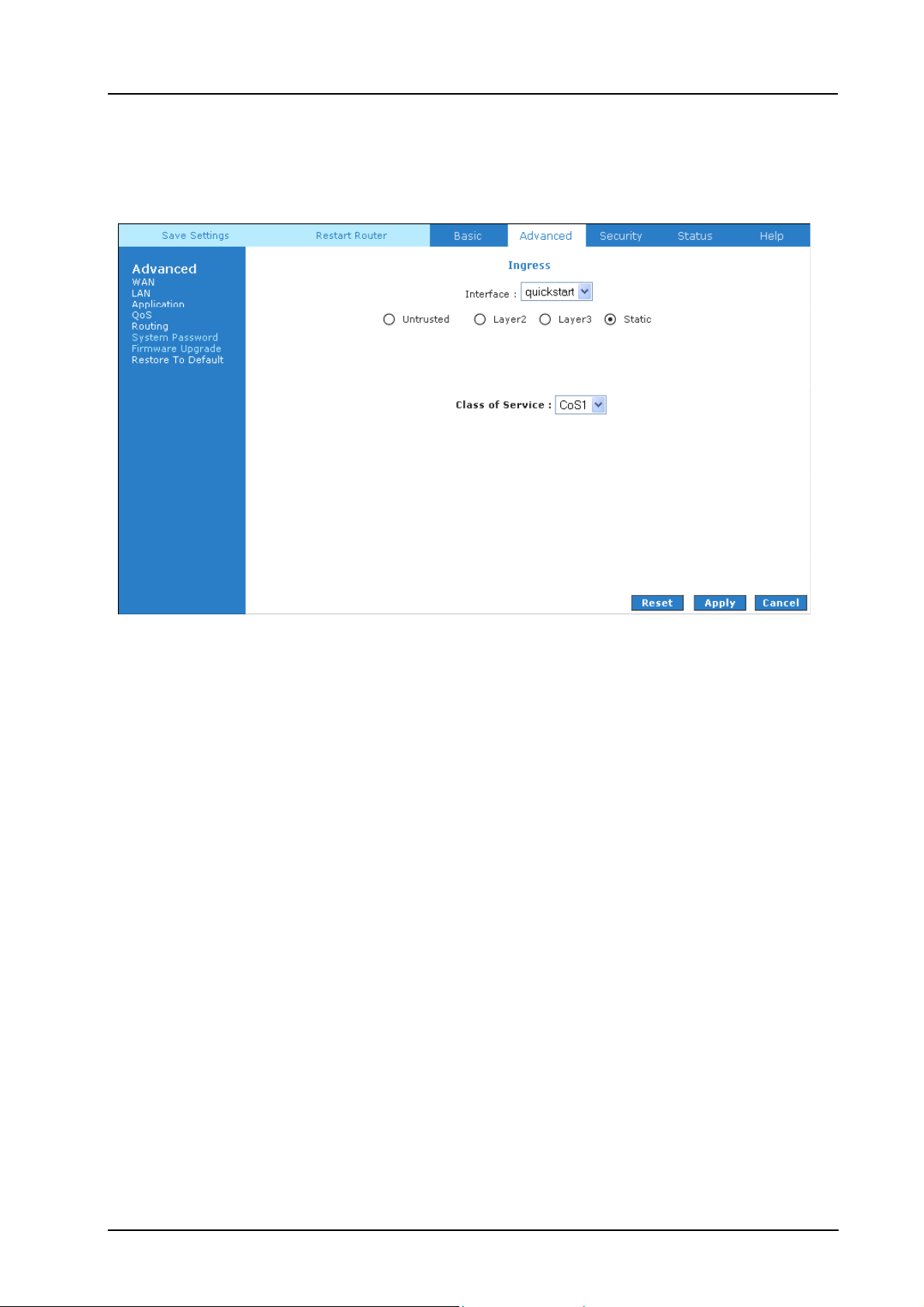

Figure 1-34 : Ingress Static Configuration...........................................................................48

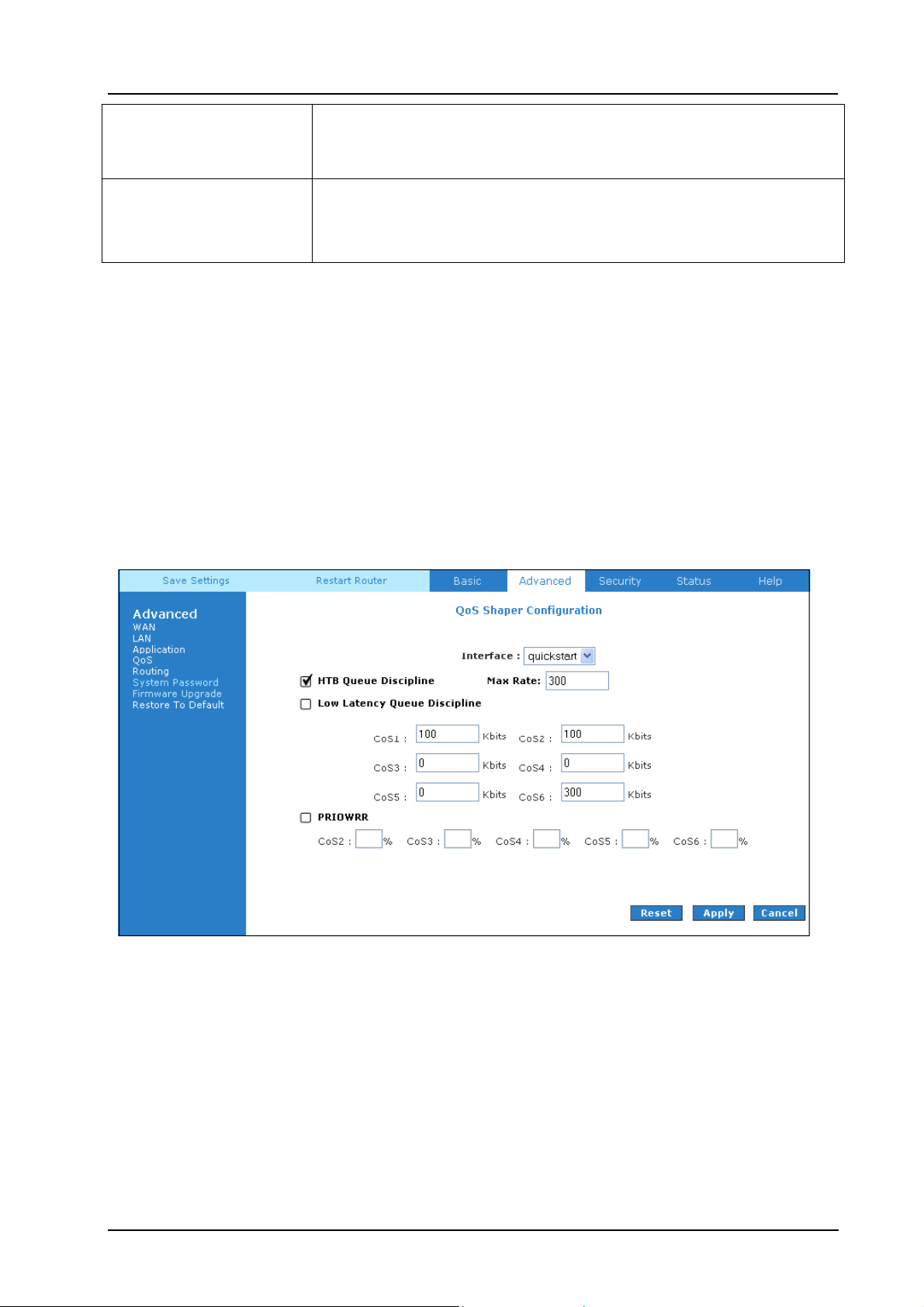

Figure 1-35 : QoS Shaper Configuration .............................................................................49
Figure 1-36 : HTB Queue Discipline enabled......................................................................50
Figure 1-37 : Low Latency Queue Discipline enabled ........................................................51
Figure 1-38 : PRIOWRR enabled ........................................................................................52
Figure 1-39 : Policy Routing Configuration ........................................................................53

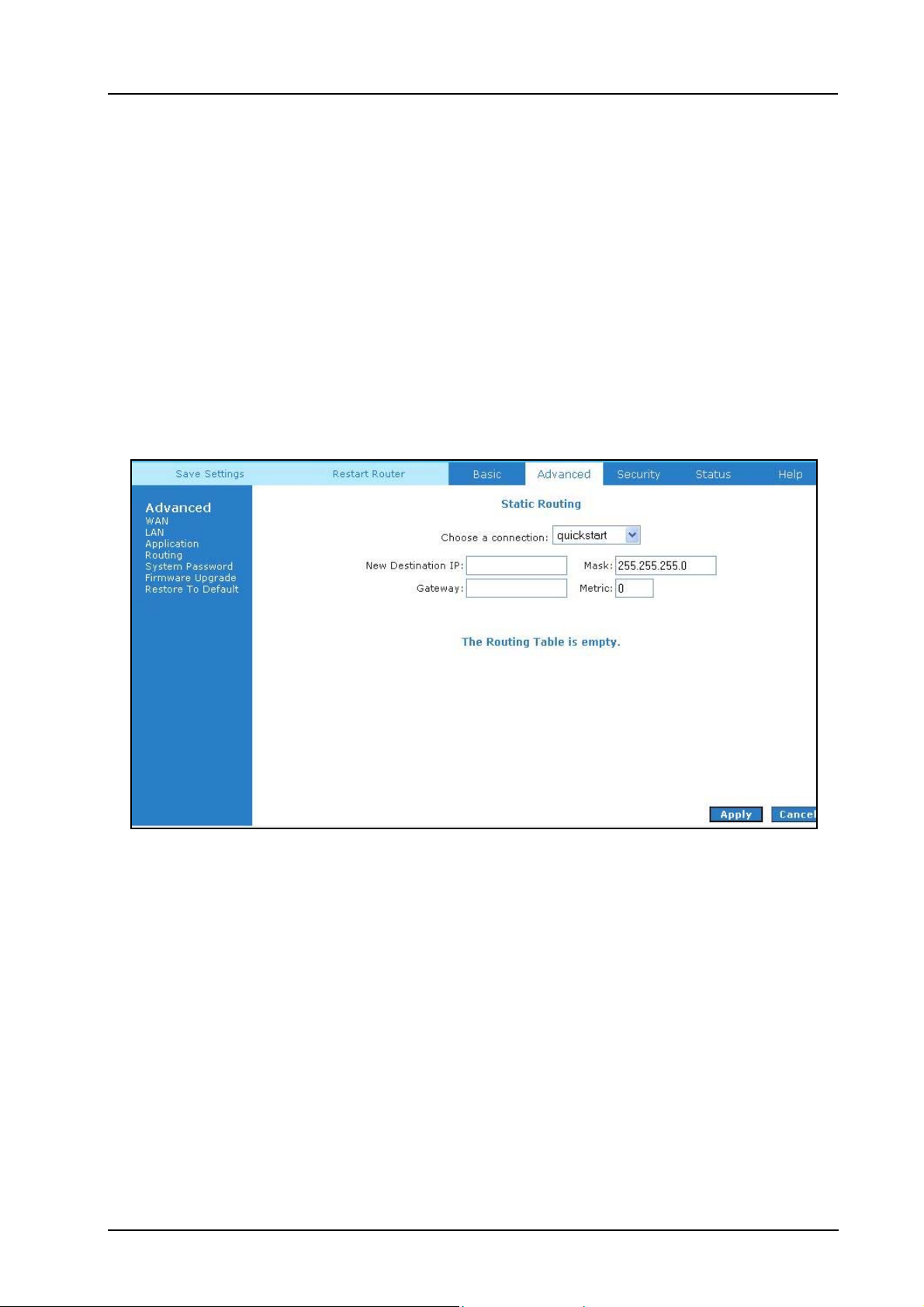

Figure 1-40 : Static Routing.................................................................................................56
Figure 1-41 : Routing Table.................................................................................................57
Figure 1-42 : System Password............................................................................................57
Figure 1-43 : Firmware Upgrade..........................................................................................58
Figure 1-44 : Restore to Default prompt..............................................................................58
Figure 1-45 : Security...........................................................................................................59
Figure 1-46 : IP Filters.........................................................................................................59
Figure 1-47 : LAN Isolation.................................................................................................60
Figure 1-48 : Status..............................................................................................................61
Figure 1-49 : Connection Status...........................................................................................62
Figure 1-50 : System Log.....................................................................................................62
Figure 1-51 : Remote Log Settings......................................................................................63
Figure 1-52 : Network Statistics...........................................................................................63
Page 6 of 67
ADSL2+ Ethernet USB Combo Router - User Guide

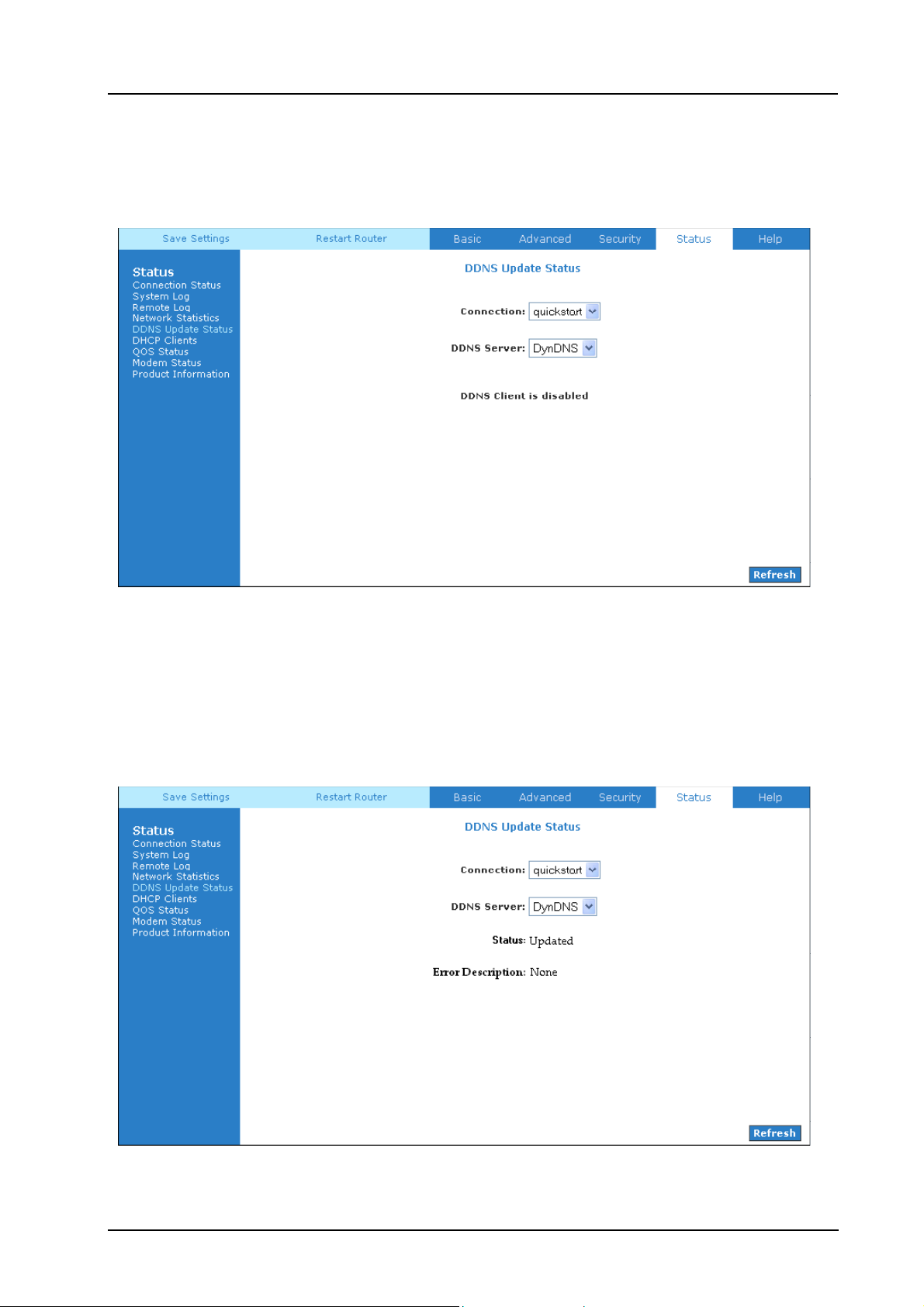

Figure 1-53 : DDNS Update Status......................................................................................64
Figure 1-54 : DDNS Status (DDNS Client Enabled)...........................................................64
Figure 1-55 : DHCP Clients.................................................................................................65
Figure 1-56 : QoS Status......................................................................................................65

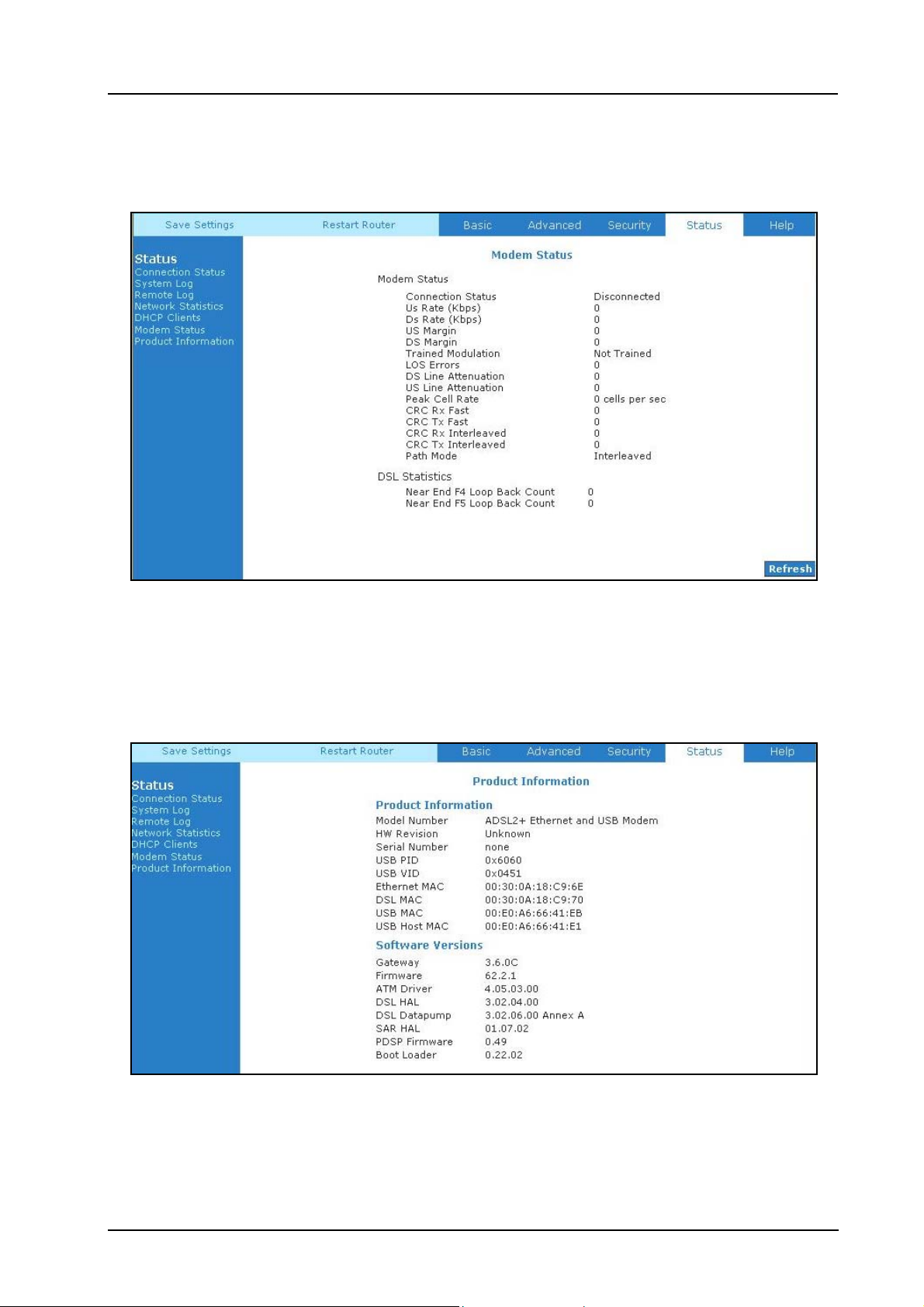

Figure 1-57 : Modem Status.................................................................................................66
Figure 1-58 : Product Information .......................................................................................66

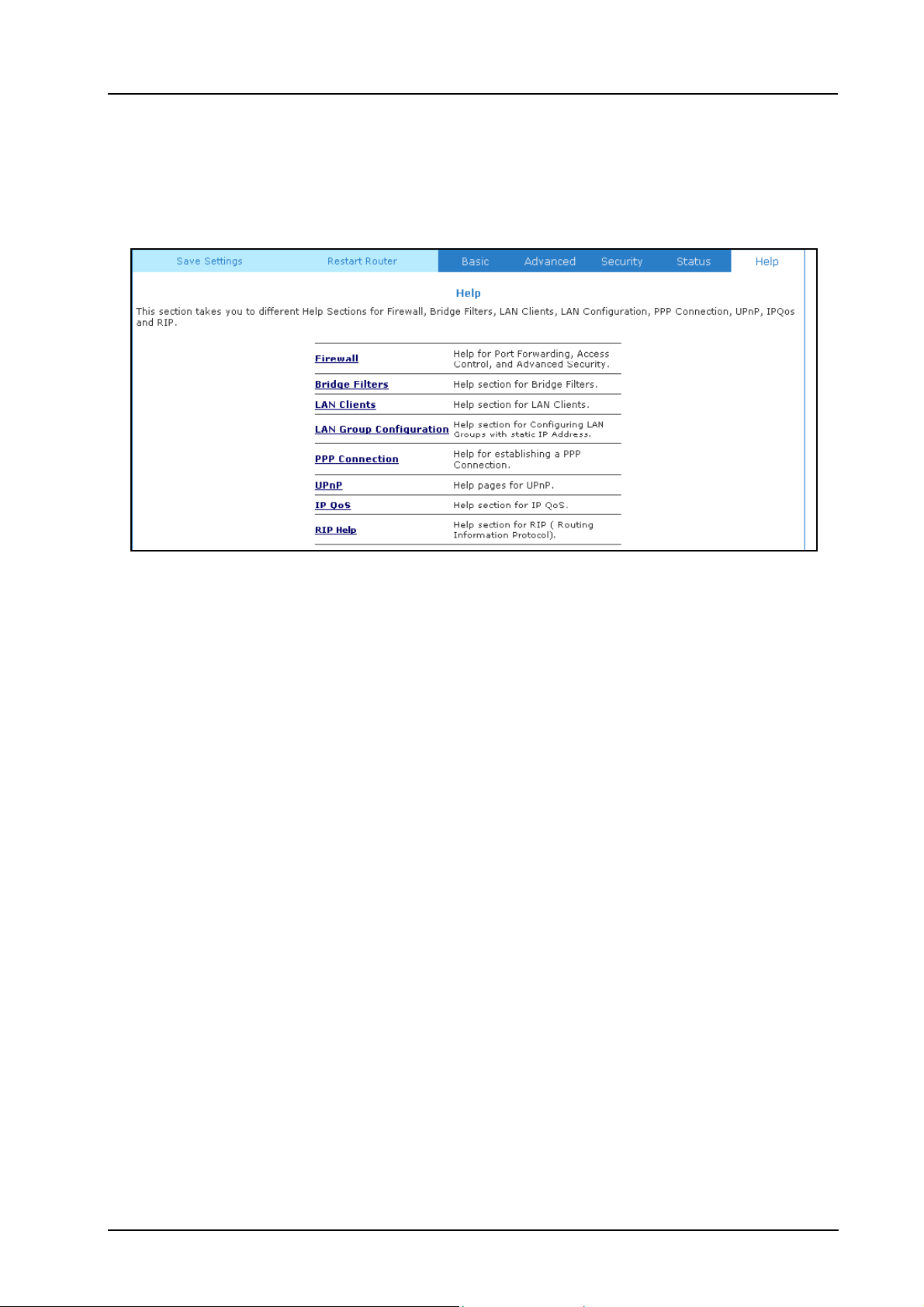

Figure 1-59 : Help Screen ....................................................................................................67
Page 7 of 67
ADSL2+ Ethernet USB Combo Router - User Guide
Safety Summary Messages
WARNING
HIGH VOLTAGE is used in the equipment. Make sure equipment is properly grounded BEFORE opening. Failure to observe safety precautions may result in electric shock to user.
CAUTION Check voltages before connecting equipment to power supplies. Wrong voltages applied may result in damage to equipment.
Page 8 of 67
ADSL2+ Ethernet USB Combo Router - User Guide

Chapter 1 - About this Manual

1.1 Introduction

This manual provides a general product overview and description of its subsystems and components and basic operation and preventive maintenance instructions of the ADSL2+ Ethernet & USB Combo Router.

1.2 Scope and Purpose

This manual provides the following:
• An overview of the ADSL2+ Ethernet & USB Combo Router system configuration and
connectivity;
• General description and specifications of the ADSL2+ Ethernet & USB Combo Router
system components;
• Operating instructions of the system and equipment;

1.3 Targeted Audience

This manual is designed and developed for the operators and users who are required to operate and perform first-level maintenance of the ADSL2+ Ethernet & USB Combo Router. It assumes the user of this manual has basic knowledge and experience in operating similar modem configuration and computer systems equipment.

1.4 Manual Organization

The manual is divided into the following chapters:
1. Chapter 1 – About this Manual; this chapter provides an introduction to the manual’s
scope and purpose, targeted audience and contents organisation.
2. Chapter 2 – ADSL Ethernet Router Description; this chapter provides the system
description and system configuration diagram of ADSL Router connection.
3. Chapter 3 – Your Gateway At A Glance; this chapter provides an overview of ports and
LEDs, Front and Back indicators of the ADSL Router.
4. Chapter 4 – Setting Up the ADSL Router; this chapter provides description of all function
within the Web User Interface.
Page 9 of 67
ADSL2+ Ethernet USB Combo Router - User Guide

Chapter 2 – ADSL Ethernet Router Description

The ADSL2+ Ethernet & USB Combo Router is the perfect high-speed WAN bridge/router. This full-featured product is specifically designed to connect to the Internet and directly connect to your local area network via high speed 10/100 Mbps Ethernet. The ADSL Router has also full NAT firewall and DMZ services to block unwanted users from accessing your network.
For game users, the ADSL Router had already pre configured for several low latency game ports. Just click on the game you are playing on line and the rest is done for you.
The ADSL Router is fully compatible with all PCs; as long as the PC supports an Ethernet interface and is running a TCP/IP protocol stack, your PC can have high-speed WAN access. So, plug in the ADSL Router (refer to easy start guide), configure it (per your ISP’s requirements) and enjoy the fast Internet access like never before.

2.1 ADSL Router Overview

Figure 1-1 shows the system configuration diagram of a typical ADSL Router connection.
Computer/Notebook with USB Port
USB
Computer/Notebook with Ethernet Network Card
Figure 1-1 : ADSL Router Configuration Diagram
Page 10 of 67
ADSL2+ Ethernet USB Combo Router - User Guide

Chapter 3 - Your Gateway At A Glance

The ADSL2+ Ethernet & USB Combo may have different ports and LEDs. Let’s take a look at the different options. Depending on your model, it may have some or all of the features listed below.

3.1 Ports and Buttons

Reset and Restore to Factory Defaults: The restore to factory defaults feature will set the ADSL Router to its factory default configuration by resetting the ADSL Router. You may need to place the ADSL Router into its factory defaults if the configuration is changed; you lose the ability to interface to the ADSL Router via the web interface, or following a software upgrade. To reset the ADSL Router, simply press the reset button for about ~ 10 seconds. The ADSL Router will be reset to its factory defaults and after about 30 ~ 40 seconds the ADSL Router will become operational again.
LAN (local area network) ETHERNET port: connects to Ethernet network devices, such as a PC, hub, switch, or routers. Some ADSL Router came with a single LAN connection and some come with four LAN connections. Depending on the connection, you may need a cross over cable or a straight through cable.
Power is where you connect the power. Make sure to observe the proper power requirements. The required power is 9 volts.
USB (universal serial port): connects to a PC’s USB port. The ADSL Router only supports Window’s based PCs via an RNDIS driver (included in the software). For model with USB port ONLY.
DSL port: This is the WAN interface that connects directly to your phone line.
Page 11 of 67
ADSL2+ Ethernet USB Combo Router - User Guide

3.2 ADSL Router Overview

3.2.1 Front Indicators
Figure 1-2 shows the front indicators of the ADSL Router.
2
4
1
3
5
Figure 1-2 : Front Panel Indicators (For Ethernet USB Combo Router)
LED Name Status & Meaning 1 PPP 2 PWR 3 DSL
Lights up when the PPP connection is established. Lights up when power is supplied to the Router. Lights up when the ADSL connection is established. Flickers when the ADSL Router is trying to establish a connection with
the ADSL Service Provider.
4 ETH/ACT
Lights up when the Ethernet cable is properly connected from your
ADSL Router to the Ethernet Card.
Flickers when the ADSL is transmitting / receiving data.
5 USB
Lights up when the USB device driver is successfully installed in your
Computer/ Notebook.
Page 12 of 67
ADSL2+ Ethernet USB Combo Router - User Guide

3.2.2 Back Panel

Figure 1-3 shows the back panel indicators of the ADSL Router.
1 DSL
2
1
Figure 1-3 : Back Panel Indicators (For Ethernet USB Combo Router)
3
4
5
Label Description
Telephone jack (RJ-11) to connect to your Telephone Wall Socket (ADSL line).
2 USB 3 ETHERNET
4 RESET
5 DC 9V
USB Port to connect to the USB port on your Computer/Notebook. 10/100 Base-T Auto-MDI/MDIX (allows either cross or straight
cable) Ethernet jack (RJ-45) to connect to your Ethernet Network card or Ethernet Hub/Switch.
To reset the ADSL Router, simply press the reset button for about 10 seconds (all customised settings that you have saved will be
lost!).
To connect to the Power Adapter that comes with your package.
Page 13 of 67
ADSL2+ Ethernet USB Combo Router - User Guide

Chapter 4 - Setting Up the ADSL Router

This section will guide you through your ADSL Router’s configuration. The ADSL Router is shipped with a standard PPP configuration.
The basic tabs consist of features which are catered for basic users.

4.1 Logging into your ADSL Router

To configure your ADSL Router, open your web browser. You may get an error message at this point; this is normal. Type the default IP address (192.168.1.1) or login.router on the web address bar.
NOTE: Before setting up your ADSL Router, make sure you have followed the
easy start guide. You should have your computers configured for DHCP mode and have proxies disabled on your browser. Upon accessing the ADSL Router, if the browser still displays a login redirection screen, you should check your browser's setting and ensure that the JavaScript support is enabled. If the screen shown in Figure 1-4 is not attainable, you must delete your temporary Internet files to clear the web cache.
Upon entering the default IP address or the short-cut name (login.router), if the user is logging for the first time, the user will be brought to the “Quick Start” page. See Start page is meant for basic users whom only require easy connectivity to the Internet without worrying about any other advance configuration setting. If you are in doubt for what content to enter for the Protocol, VPI and VCI, please contact your Service Provider for assistance.
Figure 1-4. The Quick
Figure 1-4 : Quick Start
Page 14 of 67
ADSL2+ Ethernet USB Combo Router - User Guide
For those who have their routers configured, you will be directed to the “Basic Home” page. See Figure 1-5.
Figure 1-5 : Basic Home

4.2 Quick Start

If you have already configured your router and wish to change your current configuration, click on the ‘Quick Start’ link. Figure 1-6 will appear.
Figure 1-6 : Quick Start Page
Page 15 of 67
ADSL2+ Ethernet USB Combo Router - User Guide

4.3 LAN / DHCP Configuration

On one side of your ADSL Router, you have your own Local Area Network (LAN) connections. This is where you plug in your local computers to the ADSL Router. The ADSL Router is normally configured to automatically provide all the PC's on your network with Internet addresses.
To enable or disable DHCP, click Basic, then select LAN Configuration. The Start IP Address is where the DHCP server starts issuing IP addresses. This value must be greater than the ADSL Router IP address value. For example if the ADSL Router IP address is 192.168.1.1 (default) than the starting IP address must be 192.168.1. 2 (or higher).
The End IP Address is where the DHCP server stops issuing IP addresses. The ending address cannot exceed a subnet limit of 254. Hence the max value for our default gateway is
192.168.1.254. If the DHCP server runs out of DHCP addresses, users will not get access to network resources. If this happens you can increase the Ending IP address (to the limit of 255) or reduce the lease time.
The Lease Time is the amount of time a network user will be allowed connection to the ADSL Router with their current dynamic IP address. The amount of time is in units of minutes; the default value is 3600 minutes (60 hours).
Note: If you change the start or end values, make sure the values are still within the same subnet as the gateways IP address. In other words, if the gateways IP address is 192.168.1.1 (default) and you change the DHCP start/end IP addresses to be 192.128.1.2/192.128.1.100, you will not be able to communicate to the ADSL Router if your PC has DHCP enabled.
In addition to the DHCP server feature, the ADSL Router supports the DHCP relay function. When the ADSL Router is configured as DHCP server, it assigns the IP addresses to the LAN clients. When the ADSL Router is configured as DHCP relay, it is responsible for forwarding the requests and responses negotiating between the DHCP clients and the server.
By turning off the DHCP server and relay the network administrator must carefully configure the IP address, Subnet Mask and DNS settings of every computer on your network. Do not assign the same IP address to more than one computer and your ADSL Router must be on the same subnet as all the other computers. See Figure 1-7.
Page 16 of 67
ADSL2+ Ethernet USB Combo Router - User Guide
Figure 1-7 : LAN / DHCP Configuration
Page 17 of 67
ADSL2+ Ethernet USB Combo Router - User Guide

4.4 Diagnostic Test

Diagnostic Test is used for investigating whether the ADSL Router is properly connected to the WAN Network. See test, select your connection from the list and press the Test button. Before running this test, make sure you have a valid DSL link.
Figure 1-8. This test may take a few seconds to complete. To perform the
Figure 1-8 : Diagnostics Test Screen
After running the Diagnostic Test, the screen will indicate that the portion which pass or fail the test. See
Figure 1-9. Please click on the Help links, which will provide remedy to the problem.
Figure 1-9 : Diagnostics Test Result Screen
Page 18 of 67
ADSL2+ Ethernet USB Combo Router - User Guide

4.4.1 Ping Test

Once you have your ADSL Router configured, ensure you can ping the network. Type the target address that you want to ping. If your PC is connected to the ADSL Router via the default DHCP configuration, you should be able to ping the network address 192.168.1.1. See
Figure 1-10. If your ISP has provided their server address, try to ping the address. If the pings for both the WAN and the LAN sides are complete and you have the proper protocols configured, you should be able to surf the Internet. By default when you select ping test, the ADSL Router will ping itself 3 times. The ADSL Router passed the Ping test; this basically means that the TCP/IP protocol is up and running. If the first Ping test does not pass, the TCP/IP protocol is not loaded for some reason; you should restart the ADSL Router.
Figure 1-10 : Ping Test Screen

4.4.2 Modem Test

This test can be used to check whether your Modem is properly connected to the Network. Select your connection from the list and press the
Figure 1-11 : Modem Test
‘Test’ button. See Figure 1-11.
Page 19 of 67
ADSL2+ Ethernet USB Combo Router - User Guide

4.5 Advanced

This mode is catered for advance users, a brief explanation of the links are listed as shown below. See
Figure 1-12.
Figure 1-12 : Advanced Screen

4.5.1 WAN Connection

The Wide Area Network (WAN) connection exists on the other side of the ADSL Router, also referred to as a broadband connection. This WAN connection is different for every WAN supplier. Most of the configuration you will perform will be for WAN connection.
Page 20 of 67
ADSL2+ Ethernet USB Combo Router - User Guide

4.5.2 New Connection

A new connection is a virtual connection. Your ADSL Router can support up to 8 different (unique) virtual connections. If you have multiple different virtual connections, you may need to utilize the static and dynamic routing capabilities of the modem to pass data correctly. Refer to Figure 1-13.
Figure 1-13 : New Connection (PPPoE Connection Setup)
Page 21 of 67
