AXIS 241S, 241Q Installation Guide

AXIS 241Q/S Blade - Rack Solution
Installation Guide
About This Document
2
This document is intended as an addendum to the video server User’s Manual. It includes instructions for installing the Axis Rack Mounted Video Server Solution on your network. Later versions of this document will be posted to the Axis Web site, as required.
Intellectual Property Rights - Axis AB has
intellectual property rights relating to technology embodied in the product described in this document. In particular, and without limitation, these intellectual property rights may include one or more of the patents listed at http://www.axis.com/patent.htm and one or more additional patents or pending patent applications in the US and other countries.
Legal Considerations - Camera surveillance can be
prohibited by laws that vary from country to country. Check the laws in your local region before using this product for surveillance purposes.
Electromagnetic Compatibility (EMC) - This
equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. Shielded cables should be used to ensure compliance with EMC standards.
US - This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
Europe - This digital equipment fulfills the
requirements for radiated emission according to limit B of EN55022, and the requirements for immunity according to EN55024 residential, commercial, and light industry.
Japan - This is a class B product based on the standard of
the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and
use the equipment according to the instruction manual
Australia - This electronic device meets the requirements of
the Radio communications (Electromagnetic Compatibility) Standard 1998 AS/NZS 3548. Compliance is not valid for unshielded network cables.
Liability - Every care has been taken in the preparation of
this manual; Please inform your local Axis office of any inaccuracies or omissions. Axis Communications AB cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. Axis Communications AB makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Axis Communications AB shall not be liable nor responsible for incidental or consequential damages in connection with the furnishing, performance or use of this material.
Trademark Acknowledgments - Acrobat, Adobe, Boa,
Ethernet, IBM, Internet Explorer, LAN Manager, Linux, Macintosh, Microsoft, Netscape Navigator, OS/2, UNIX, Windows, WWW are registered trademarks of the respective holders. Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and other countries. Axis Communications AB is independent of Sun Microsystems Inc.
Support Services - Should you require any technical
assistance, please contact your Axis reseller. If your questions cannot be answered immediately, your reseller will forward your queries through the appropriate channels to ensure a rapid response. If you are connected to the Internet, you can:
download user documentation and firmware updates
find answers to resolved problems in the FAQ database. Search by product, category, or phrases
report problems to Axis support staff by logging in to your private support area
Visit the Axis Support Web at www.axis.com/techsup
Battery Replacement - The Axis Rack Mounted Video
Server Solution uses a 3.0V CR2032 Lithium battery as the power supply for its internal real-time clock (RTC). This battery will, under normal conditions, last for a minimum of 5 years. Low battery power affects the operation of the RTC, causing it to reset at every power-up. A log message will appear when battery replacement is required.. The battery should not be replaced unless required! If the battery needs replacing, please observe the following points:
• Caution! Danger of explosion if battery is incorrectly replaced
• Replace only with the same or equivalent battery, as
recommended by the manufacturer
• Dispose of used batteries according to the manufacturer's
instructions
AXIS COMMUNICATIONS
<Product Name> Quick User’s Guide
AXIS 241Q/S Blade - Rack Solution Installation Guide
The Axis Video Server Rack will fit up to 12 rack mounted Axis Video Servers (Blade Servers). This installation guide describes the hardware installation of the Axis Rack Mounted Video Server Solution. The AXIS 241Q/S Video Server User’s Manual contains additional instructions on the following:
3
• Installing the video server
• Configuring the video server
• Using the video server
• Troubleshooting
• Updating the software
• Customizing the video server
Hardware Inventory - AXIS Video Server Rack
Please contact your dealer if anything is missing or damaged.
Qty Item Product Name/Title Country
1 Video server rack AXIS Video Server Rack 5 Cover plates Cover plate 12TE 1 Cover plate Cover plate 6TE 2 Connectors Terminal Connectors 6p 1 Power supply Power Supply 19” 100W 1 Power Cable
Country-specific: ensure that the cor­rect adapter is used
1 Warranty Document
Mains Cable IEC Europe
Hardware Inventory - Axis Blade Video Server
UK US / Japan Australia
Please contact your dealer if anything is missing or damaged.
Qty Item Title/Variants
1 Video servers AXIS 241Q Blade
AXIS 241S Blade 2 Connectors Terminal Connectors 14p 1 Warranty Document 1 User’s Manual AXIS 241Q/S User’s Manual 1 This Document AXIS 241Q/S Blade - Rack Solution Installation
Guide
Optional Accessory
ACC Y/C TO BNC CABLE (AXIS 241S Blade only)
4
AXIS 241Q/S Blade - Rack Solution Installation Guide
AXIS 241Q/S Blade Video Server
Read the following information to familiarize yourself with the AXIS 241Q/S Blade video server making particular note of where the connectors and indicators are located:
Control Button
See the AXIS 241Q/S User’s Manual for information on the use of the control button.

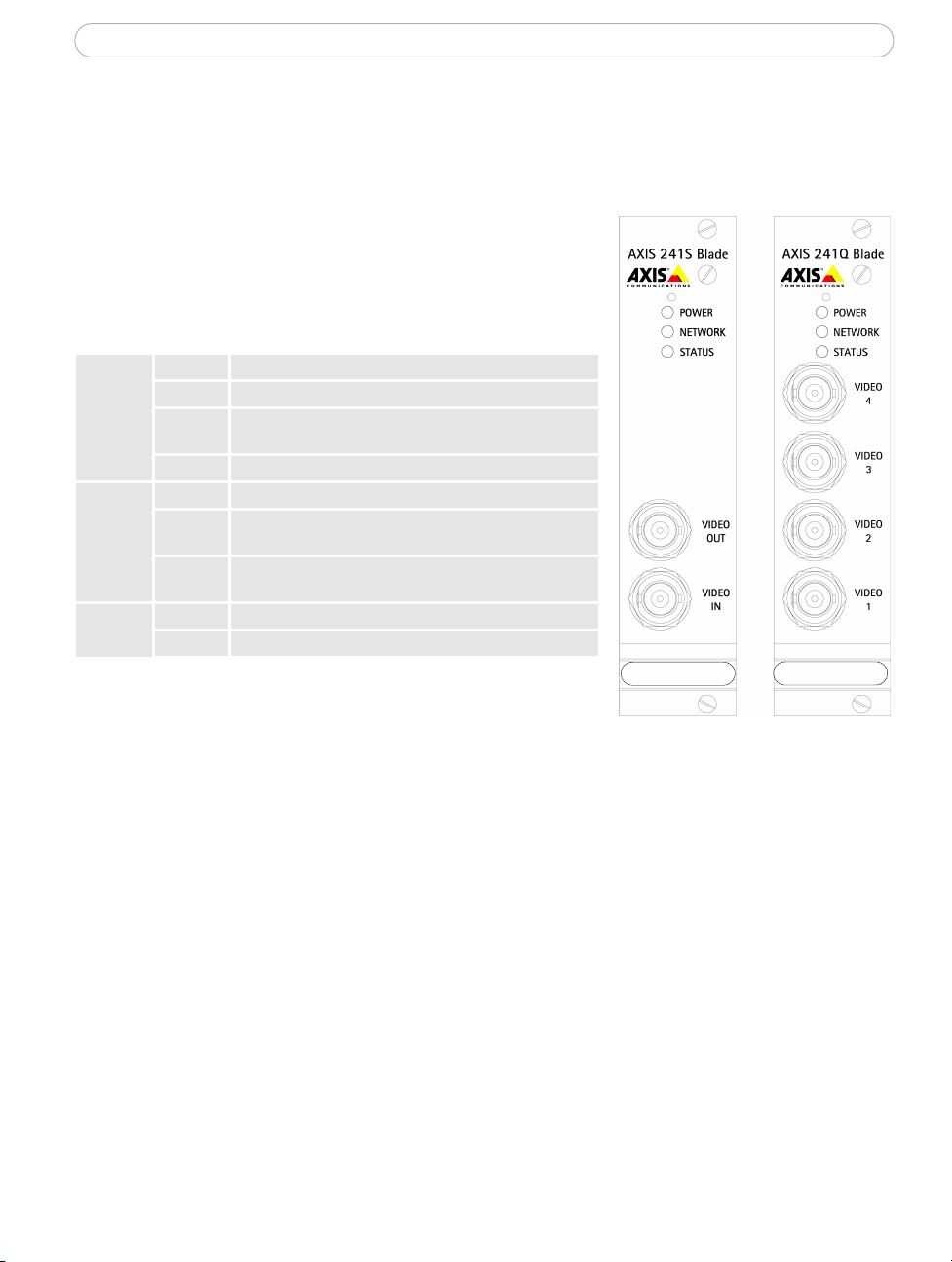

Indicators
Network Amber Flashes for activity on a 10 Mbit/s network
Green Flashes for activity on a 100 Mbit/s network Red Flashes rapid red for hardware error, together with
the Status indicator
None No connection
Status Green Normal operation
Amber Flashes during reset to factory default or at firm-
Red Flashes rapid red for a hardware error, together with
Power Green Normal operation
Amber Flashes green/amber during upgrade
Video In/Out
ware upgrade
the Network indicator
P/N: XXXX-YYY-ZZ S/N: 00408C1A2B3C
P/N: XXXX-YYY-ZZ S/N: 00408C1A2B3C
AXIS 241Q Blade - Accommodates up to 4 separate video sources (VIDEO 1- VIDEO 4) simultaneously. Each
Top and bottom screws are used to
secure the blade server in the rack
supported video input is terminated using a coax/BNC connector. Physical connections made using RG59 75 Ohm coax video cable have a recommended maximum length of 800 feet (250 meters).
AXIS 241S Blade - Coaxial BNC connector supporting a single video source. The physical connection is made using RG59, 75 Ohm coax video cable; with a recommended maximum length of 800 feet (250 meters).
• A single video loopthrough (VIDEO OUT) connected in parallel with VIDEO IN and terminated with a coax/BNC connector allows direct connection of an external monitor. Set dip switch to OFF when in use.
• The AXIS 241S Blade supports conversion between composite video and Y/C (s-video) using a Y/C to BNC cable (available as optional accessory). See the table on page 5 for DIP switch settings.
Product Label
S/N (serial number) is identical to the unit’s MAC/Ethernet address, e.g. 00408C1A2B3C = 00-40-8C-1A-2B-3C. P/N (part number) is the product model number.
AXIS 241Q/S Blade - Rack Solution Installation Guide

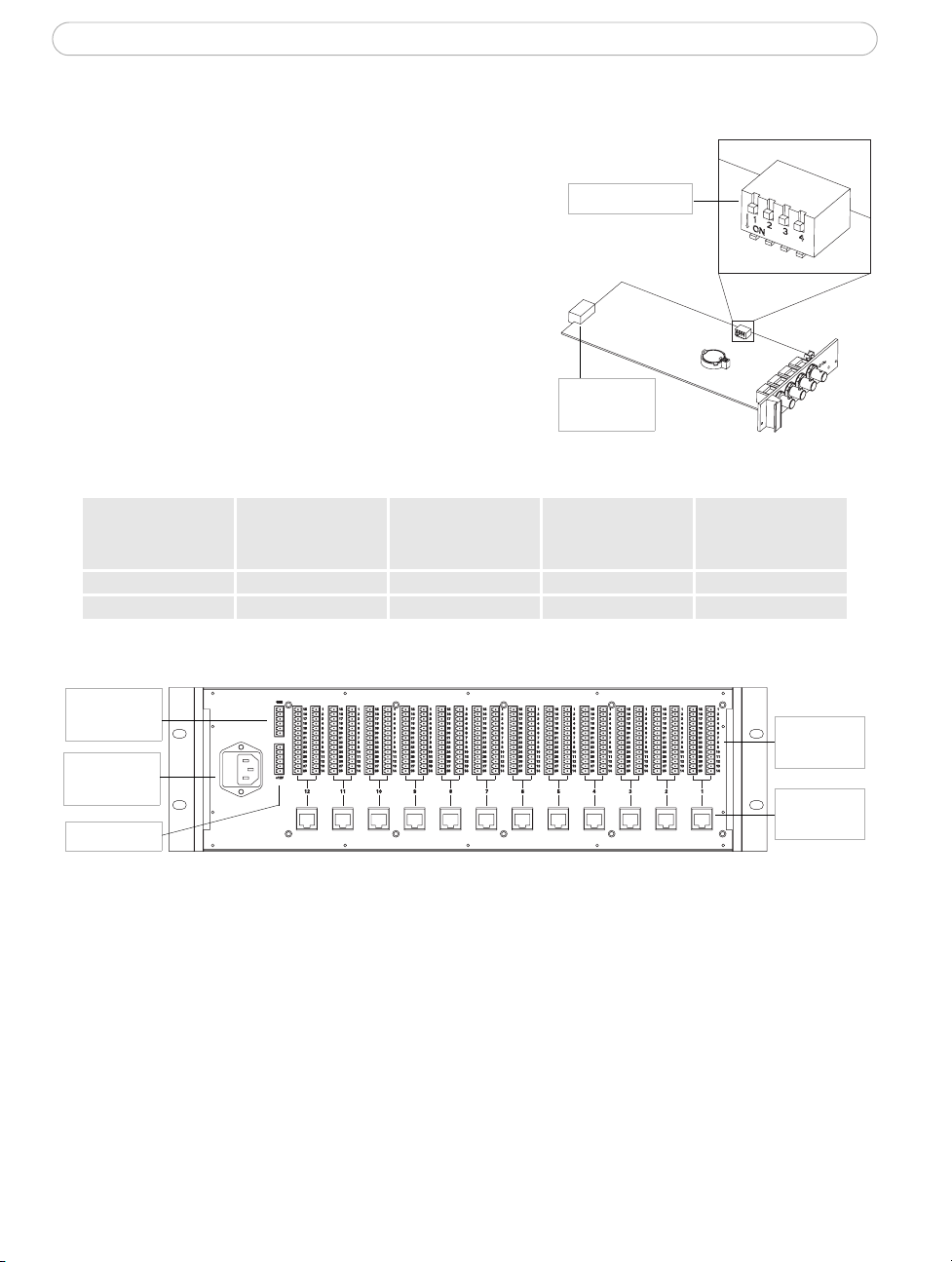

Bus Connector - Physical interface to the I/O Block Connector on the rack
DIP Switch(es) - A corresponding line termination
switch for each of the supported video outputs (1-4 video outputs depending on the model).
Dip Switch(es)
• All units are shipped with the line termination enabled for each supported video input; that is, with the DIP switches set to ON (Down position).
• If the AXIS 241Q Blade is to be connected in parallel with other equipment, disable the input termination by setting the corresponding DIP switch to OFF (Up position). Failure to do this can cause the picture quality to be impaired.
Bus Connector
• The AXIS 241S is delivered configured for composite video input:
5
Switch 1 2 3
Description
Composite video input on off on n/a
Y/C video input on on off n/a
75 ohm video in
termination
75 ohm video out
termination
connects video in and
video out
4
Not used
Axis Video Server Rack
DC-Power (GND)
Power Connector
DC+Power
The I/O Terminal Block - the physical interface to a relay switch output and four digital photo-coupled inputs; also providing an RS-485 interface and an RS-232 serial connection.
Network Connector - Axis blade video servers are designed for 10 Mbps Ethernet /100 Mbps Fast Ethernet networks and connect to the network via a standard RJ 45 connector.
DC + Power 12VDC Power (output) - This connector can drive the photo coupler inputs or other equipment such as an IR-sensor. A maximum current (for all pins) of 1000mA can be sourced from the DC output.
I/O Terminal Blocks
Network Connectors
Power Connector - Input power: 100-240 VAC, 50-60 Hz, 1.6A
6
AXIS 241Q/S Blade - Rack Solution Installation Guide
The I/O Terminal Block
Axis Blade Video Servers connect to an I/O terminal block used for transmitting data over multi-drop communication lines:
• RS-485 Pan/Tilt devices
• RS-232 Pan/Tilt devices
• External triggering (typically associated with CCTV equipment)
The Axis Blade Video Servers support several Pan/Tilt device drivers that are available from the Axis Web site at www.axis.com
Connector Pinout
The pinout for the I/O Terminal Block and the signaling details for each pin:
Pin Function Description Pin Function Description
1 RS-232 RI 15 RS-485 - A
(non-inverting)
2 RS-232 CTS 16 RS-485 - B
(inverting)
3 RS-232 RTS 17 Transistor Output 4 With a maximum load of 100mA and
4 RS-232 DSR 18 GND 5 GND 19 Transistor Output 3 See Transistor Output 4 (above) 6 RS-232 DTR 20 Transistor Output 2 See Transistor Output 4 (above) 7 RS-232 TXD 21 GND 8 RS-232 RXD 22 Transistor Output 1 See Transistor Output 4 (above) 9 RS-232 CD 23 Digital Input 4 Connect to GND to activate or leave
10 GND 24 GND 11 n/a 25 Digital Input 3 See Digital Input 4 (above) 12 n/a 26 Digital Input 2 See Digital Input 4 (above) 13 n/a 27 GND 14 n/a 28 Digital Input 1 See Digital Input 4 (above)
A half-duplex RS-485 interface for con­trolling auxiliary equipment, e g. PTZ devices
maximum voltage of 24V DC, this output has an open-collector NPN transistor with the emitter connected to GND. If it is to be used with an external relay, a diode must be connected in parallel with the load for protectionagainst any volt­age transients
floating (or unconnected) to deactivate
For compatible replacement connectors, contact http://www.phoenixcontact.com, quoting: MC1.5/14-ST-3.81 (art no 1803691)
For further information, please refer to the Unit Connections section in the AXIS 241Q/S User’s Manual.
AXIS 241Q/S Blade - Rack Solution Installation Guide
Connecting the video server to the rack
Please read through the instructions below before beginning the installation.
1. Connect the power cable to the power connector on the rack. Make sure that the green power indicator is lit.
2. Note the Serial number (S/N) on the front panel
Power
Indicator
3. Now refer to Installing on a Network in the AXIS 241Q/S Video Server User’s Manual
supplied with the Axis Blade Video Server, keeping in mind the following details:
Network - connect the Ethernet cable to the Ethernet connector on the rack, in the position where the video server is to be connected.

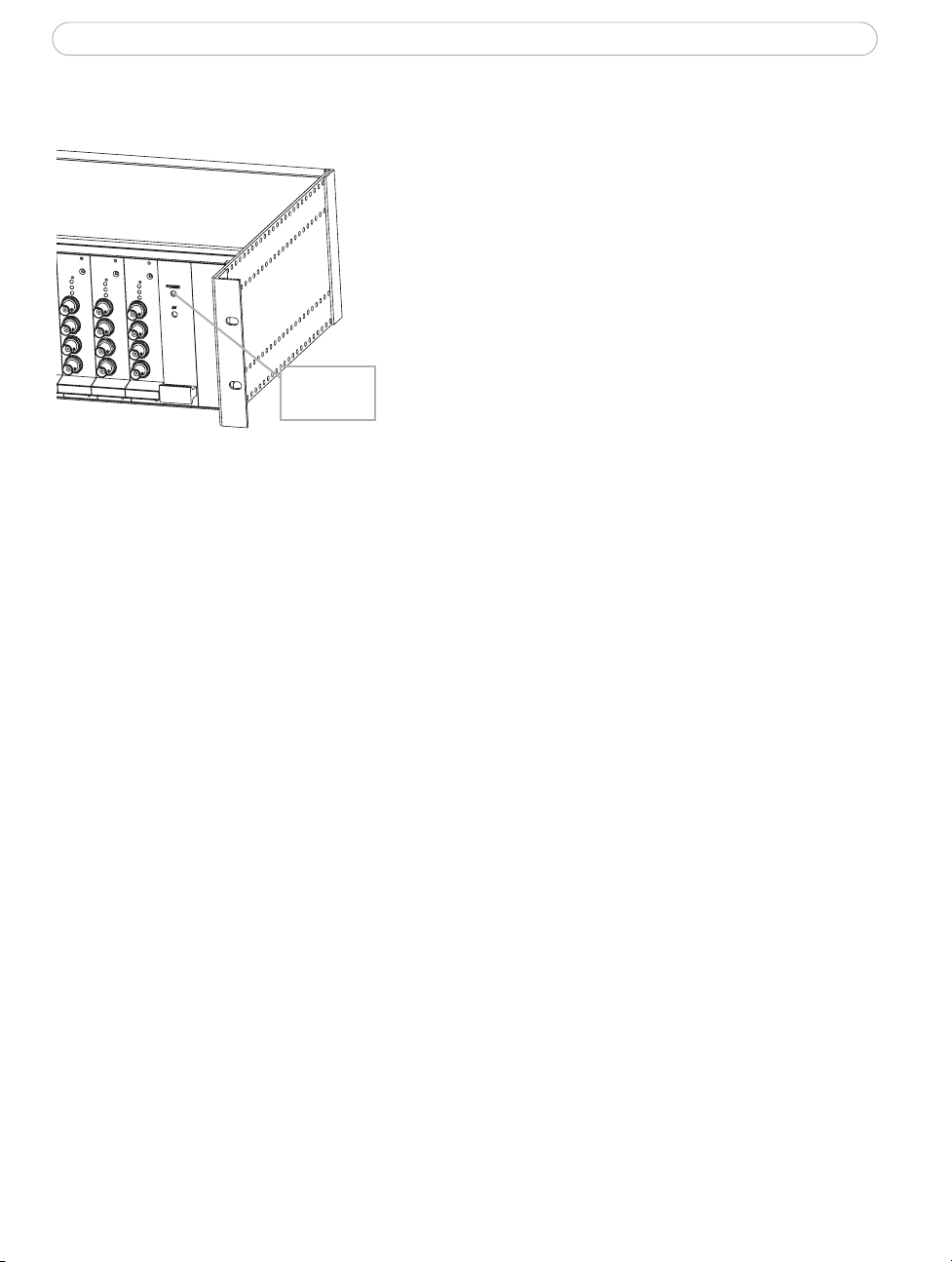

Power is supplied via the Bus Connector, slide the blade video server into the slot. Make sure that the bus connector is securely connected to the I/O terminal block connector at the back of the rack. When repeating the installation procedure for each individual blade video server, simply disconnect the blade video server from the rack (i.e. do not disconnect the power cable).
• Secure the video server to the rack using the screws on the front panel. The rack accommodates up to 12 individual Axis Video Servers. To comply with EMC regulations, ensure that all empty slots are covered using the supplied cover plates.
on the video server. You need to know this to set the IP address.
7
AXIS 241Q/S Video Server User’s Manual
The functionality of the Axis Blade Video Servers is the same as in the standalone versions. For more information on how to install and configure your video server rack on your network, please refer to the relevant sections in the AXIS 241Q/S Video Server User’s Manual available in printed format with your AXIS 241Q/S Video Server or on the Axis Web site at www.axis.com
8
AXIS 241Q/S Blade - Rack Solution Installation Guide
Technical Specifications
The following specifications are applicable for the complete Axis Rack Mounted Video Server Solution i.e. an AXIS Video Server Rack with a mounted AXIS 241Q/S Blade Video Server.
Safety Approvals -
EN60950
EMC Approvals -
• EN 55 024:1998 + A1
• EN 55 022:1998 + A1 (CISPR 22:1997 + A1) Class B
• EN 61000-3-2:2000
• EN 61000-3-3:1995 + A1
• VCCI:2002 Class B ITE (CISPR 22:1997 + A1:2000, Class B)
• C-tick AS/NZS 3548
• FCC part 15, subpart B, Class B, demonstrated by compliance with EN 55022:1998 (CISPR 22:1997) Class B
Metrics -
Rack: Height: 5.2" (13.2 cm), Width: 19.0" (48.2 cm), Length: 11.8" (30.0 cm), Weight: 7.3 lb (3.3 kg). Video Server: Height: 1.2" (3.1 cm), Width: 5.1" (12.9 cm), Length: 10.0" (25.5 cm), Weight: 0.5 lb (0.23 kg)
Power - Input Power: 100-240 VAC, 50-60 Hz, 1.6A Operating Conditions - Temp: 40
o to
125oF (5o to 50oC), Humidity: 20-80% RHG
All specifications are subject to change without prior notice.
Additional Technical Details
For additional technical details see the Technical Specifications section in the AXIS 241Q/S User’s Manual. The manual is available in printed format with your AXIS 241Q/S Blade Video Server or on the Axis Web site at http://www.axis.com
AXIS 241Q/S Blade - Rack Solution Installation Guide Revision 1.00 Date: April 2004 Copyright © Axis Communications AB, 2004 Part No: 21841
