DATASHEET
A full 140° eld of view provides video of the entire
monitored area. Conventional PTZ cameras can view
only one part of the whole video scene at a time.
Zooming in from full overview to close-up is instant, in
one-step clicks. There’s no delayed reaction. Pan and tilt
functions work in the same way.
Many cameras cannot deliver an overview with sharp
resolution, nor maintain resolution when zooming.
AXIS 212 PTZ network cameras, with their 3x zoom,
maintain sharp images at all times.
AXIS 212 PTZ/212 PTZ-V are no ordinary PTZ cameras. They are the only PTZ network cameras that
provide full overview, and instant, one-click pan/tilt/zoom - with maintained sharp image resolution.
And it’s all done without moving parts, so there’s no wear and tear. In short, it’s a whole new
denition of PTZ.

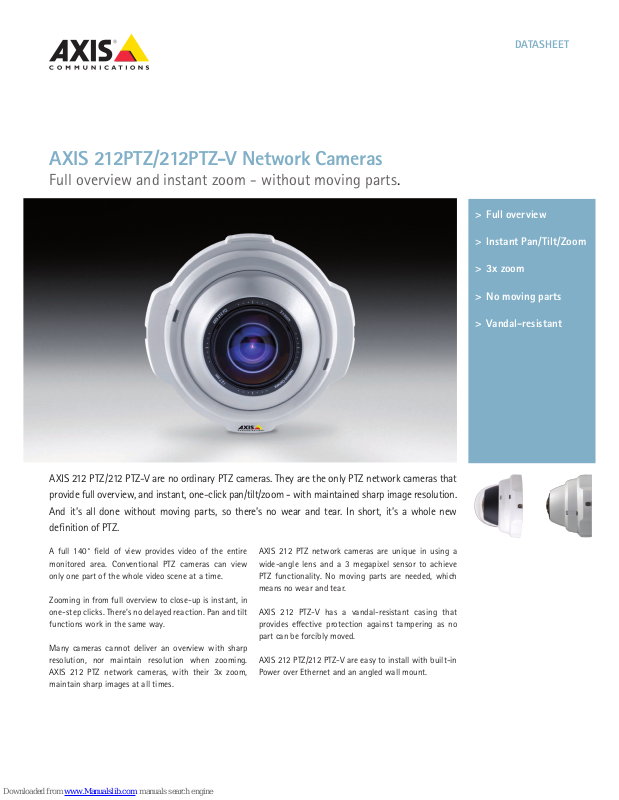

AXIS 212PTZ/212PTZ-V Network Cameras
Full overview and instant zoom - without moving parts.
> Full overview
> Instant Pan/Tilt/Zoom
> 3x zoom
> No moving parts
> Vandal-resistant
AXIS 212 PTZ network cameras are unique in using a
wide-angle lens and a 3 megapixel sensor to achieve
PTZ functionality. No moving parts are needed, which
means no wear and tear.
AXIS 212 PTZ-V has a vandal-resistant casing that
provides eective protection against tampering as no
part can be forcibly moved.
AXIS 212 PTZ/212 PTZ-V are easy to install with built-in
Power over Ethernet and an angled wall mount.
Technical specications – AXIS 212PTZ/212PTZ-V Network Cameras
www.axis.com
©200 8 Axis Communications AB. AXIS COMMUNICATIONS, AXIS, E TRAX, A RTPEC and VAPIX are re gistered trademark s or trademark app lications of A xis AB
in variou s jurisdict ions. All other company names and products are tr ademark s or registered trademarks of their respec tive companies. We reserve the right
to introduce modic ations witho ut notice.
34 051/EN/ R1/0812
Camera
Models AXIS 212 PTZ: Tamper-resistant casing
AXIS 212 PTZ-V: Vandal-resistant casing
Image sensor 1/2” progressive scan CMOS 3.1 Megapixel
Lens F1. 8, fixed iris, focal length: 2.7 mm
Angle of view, horizontal: 44° – 140°
vertical: 35° – 105°
Minimum
illumination
10 lux wide mode, 20 lux tele mode
Shutter time 1/10000 s to 1/5 s
Pan/Tilt/Zoom 3x zoom, 0.1 s from wide to tele
20 preset positions
± 70° pan
± 52° tilt
Max speed 400°/s
Guard Tour
Designed for continuous movement
Video
Video
compression
MPEG-4 Part 2 (ISO/IEC 14496-2)
Motion JPEG
Resolutions 160x90 to 640x480
Frame rate
MPEG- 4
Up to 30 fps in VGA at max. zoom
Frame rate
Motion JPEG
Up to 30 fps in VGA at max. zoom
Video streaming Simultaneous MPEG-4 and Motion JPEG
Controllable frame rate and bandwidth
VBR/CBR MPEG-4
Image settings Compression, color, brightness, sharpness, white balance,
exposure control, fine tuning of behavior at low light
Text and image overlay
Audio
Audio streaming Two-way, half-duplex
Audio
compression
AAC LC 8 kHz 32 kbit/s
G.711 PCM 64 kbit/s
G.726 ADPCM 32 or 24 kbit/s
Audio input/
output
Built-in microphone, external microphone input or line input,
line level output
Network
Security Password protection, IP address filtering, HTTPS encryption,
IEEE 802.1X network access control
Supported
protocols
IPv4/v6, HT TP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour,
UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP,
TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
System integration
Application
Programming
Interface
Open API for software integration, including VAPIX®
from Axis Communications available at www.axis.com
Intelligent video Video motion detection, audio detection
Alarm triggers Intelligent video and external input
Alarm events File upload via FTP, HTTP and email
Notification via email, HTTP and TCP
External output activation
Video buffer 9 MB pre- and post alarm
General
Casing AXIS 212 PTZ-V: 1000 kg (2200 lb) impact-resistant casing
Processors and
memory
ARTPEC-A, 32MB RAM, 8MB Flash
Power 4.9 – 5.1 V DC max 3.6 W
Power over Ethernet IEEE 802.3af Class 1
Connectors RJ-45 Ethernet 10BaseT/100BaseTX PoE, DC jack
Terminal block for 1 alarm input and 1 output
3.5 mm mic/line in, 3.5 mm line out
Operating
conditions
5 – 40 °C (41 – 104 °F)
Humidity 20 – 80% RH (non-condensing)
Approvals EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3,
FCC Part 15 Subpart B Class BVCCI Class B, ICES-003 Class B,
C-tick AS/NZS CISPR 22, EN 60950
Power supply: UL, CSA
Weight AXIS 212 PTZ: 504 g (1.1 lb.)
AXIS 212 PTZ-V: 660 g (1.5 lb.)
Included
accessories
Power supply, mounting and connector kits, angled wall mount,
Installation Guide, CD with installation tools, recording software
and User’s Manual, Windows decoder 1-user license
Dimensions
More information is available at www.axis.com
94 mm (3.7")
144 mm (5.7")89 mm (3.5")
127 mm (5")
132 mm (5.2")
144 mm (5.7")
77 mm (3.0")
212 PTZ-V
212 PTZ
Optional accessories
For information on AXIS Camera Station and
video management software from
Axis’ Application Development Partners, see
www.axis.com/products/video/software/
AXIS 295
Video Surveillance Joystick
Vertical tilt adaptor
