AVer FC1320-P, FC1320-PW User Manual
/PW
AVer FC1320-P
User Manual
Table of Contents
PREFACE ............................................................................................................................ 1
PRODUCT SPECIFICATIONS ............................................................................................. 1
PACKAGE CONTENTS ....................................................................................................... 5
PRODUCT INSTALLATION ................................................................................................. 6
MONITOR SETTING ............................................................................................................. 6
HARDWARE INSTALLATION AND I/O PIN ASSIGNMENT .............................................................. 7
POWER OVER ETHERNET (POE) ........................................................................................ 10
IP ASSIGNMENT ................................................................................................................ 11
FINDING IP CAMERA BY USING “NXU LITE RECORDING SOFTWARE”........................................ 11
FINDING IP CAMERA BY USING “AVER IPCAM UTILITY” ......................................................... 14
USING NON-DHCP SERVER/ROUTER NETWORK ................................................................ 16
INSTALL ACTIVEX CONTROL ............................................................................................... 18

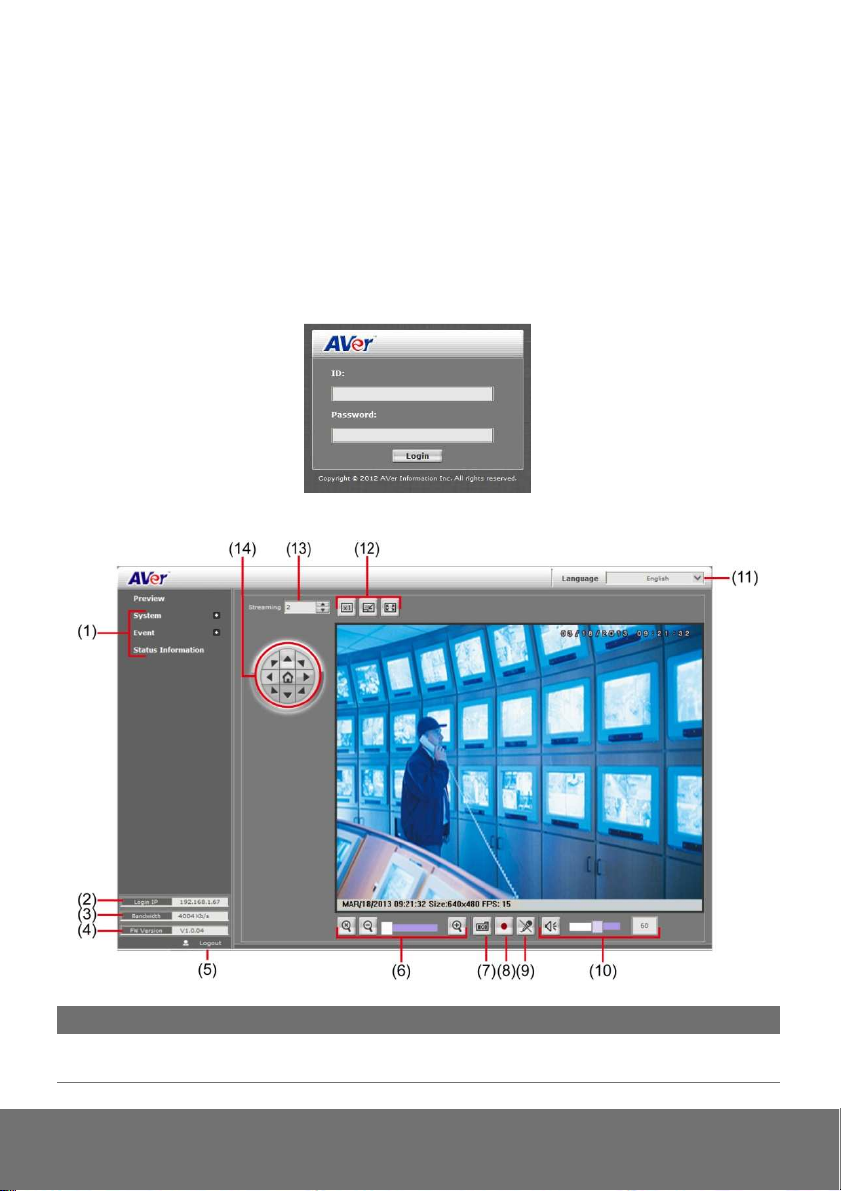

USING THE IP CAMERA BROWSER INTERFACE .......................................................... 20
PREVIEW ......................................................................................................................... 20
SYSTEM > GENERAL ......................................................................................................... 23

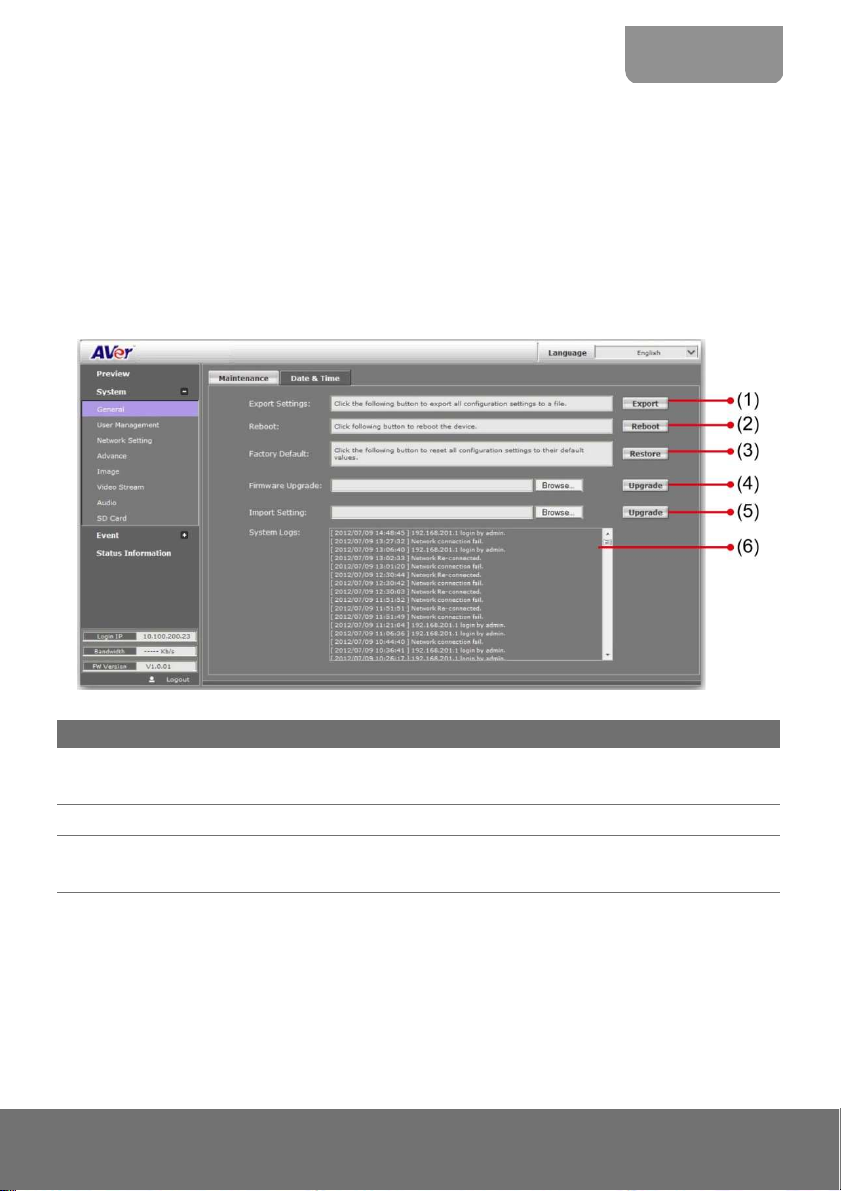

SYSTEM > GENERAL > MAINTENANCE ................................................................................. 23

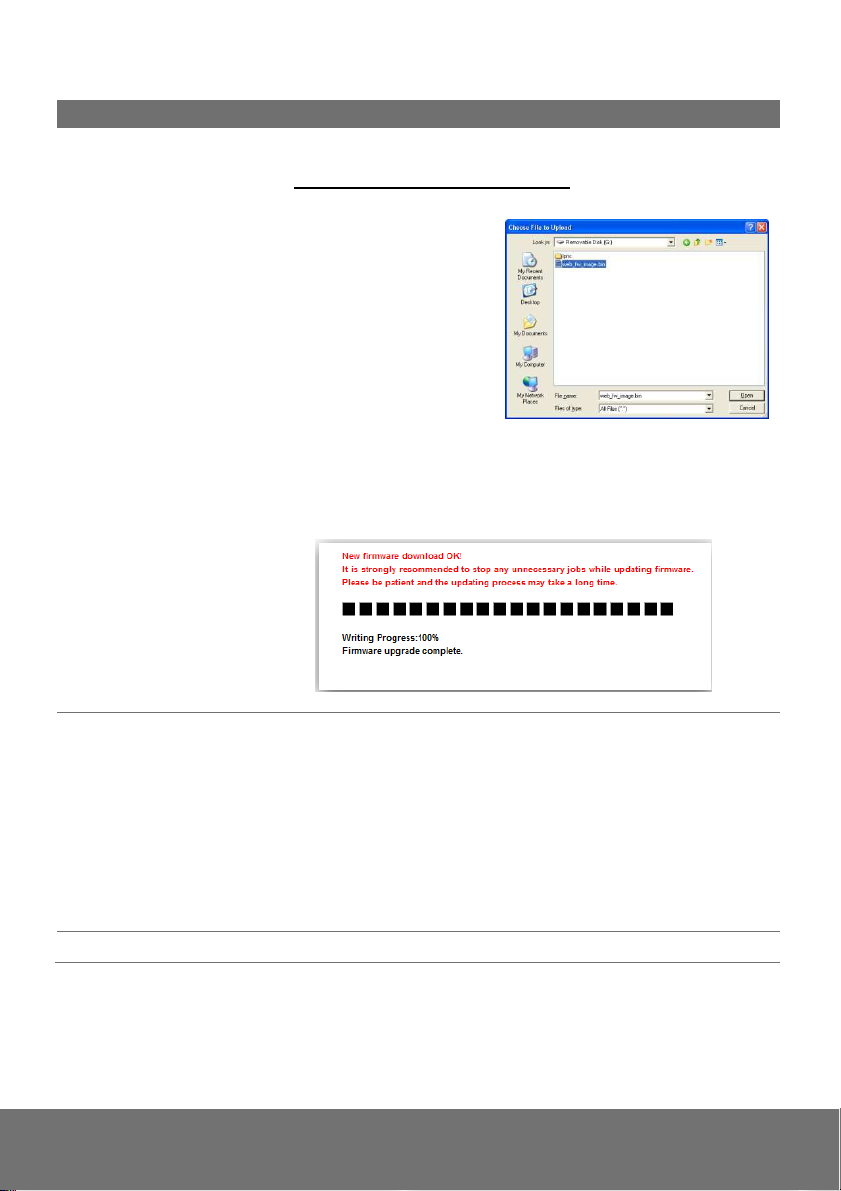

To Upgrade the IP Camera Firmware ....................................................................... 24

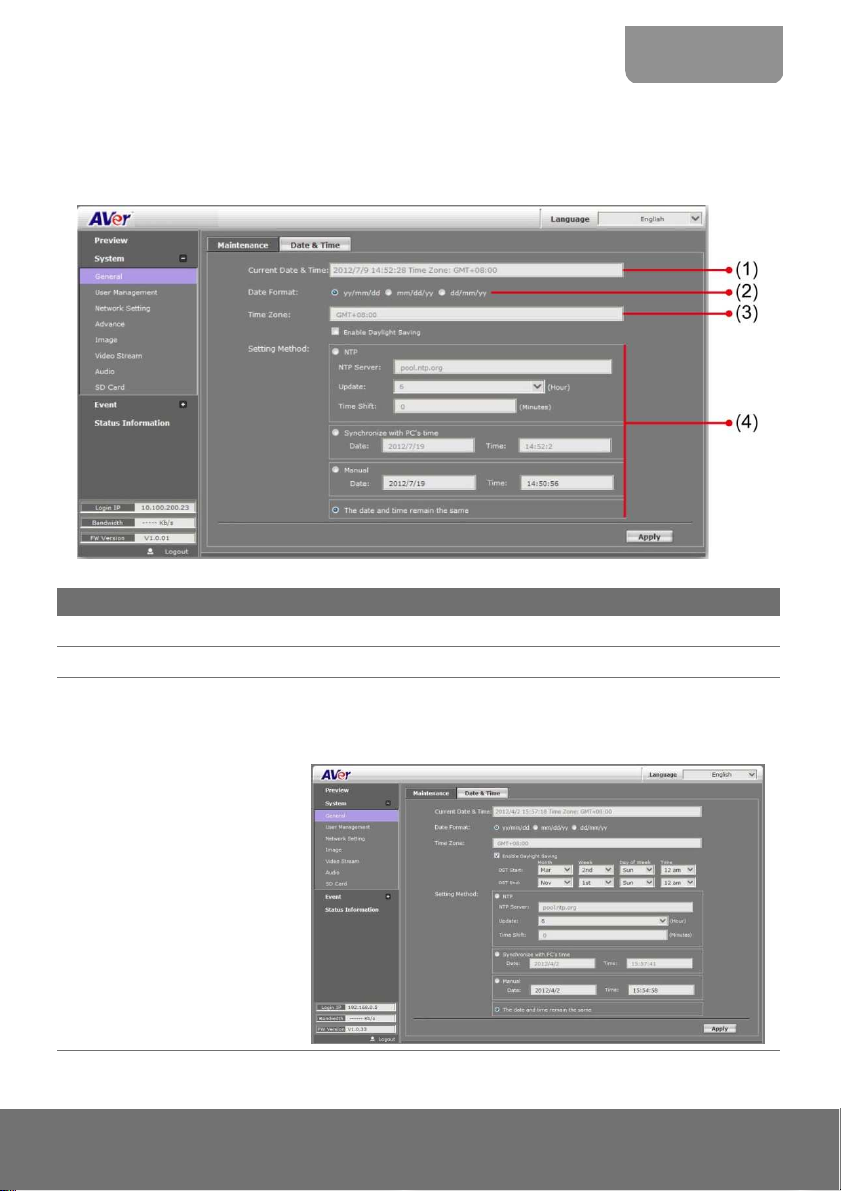

SYSTEM > GENERAL > DATE & TIME ................................................................................... 25

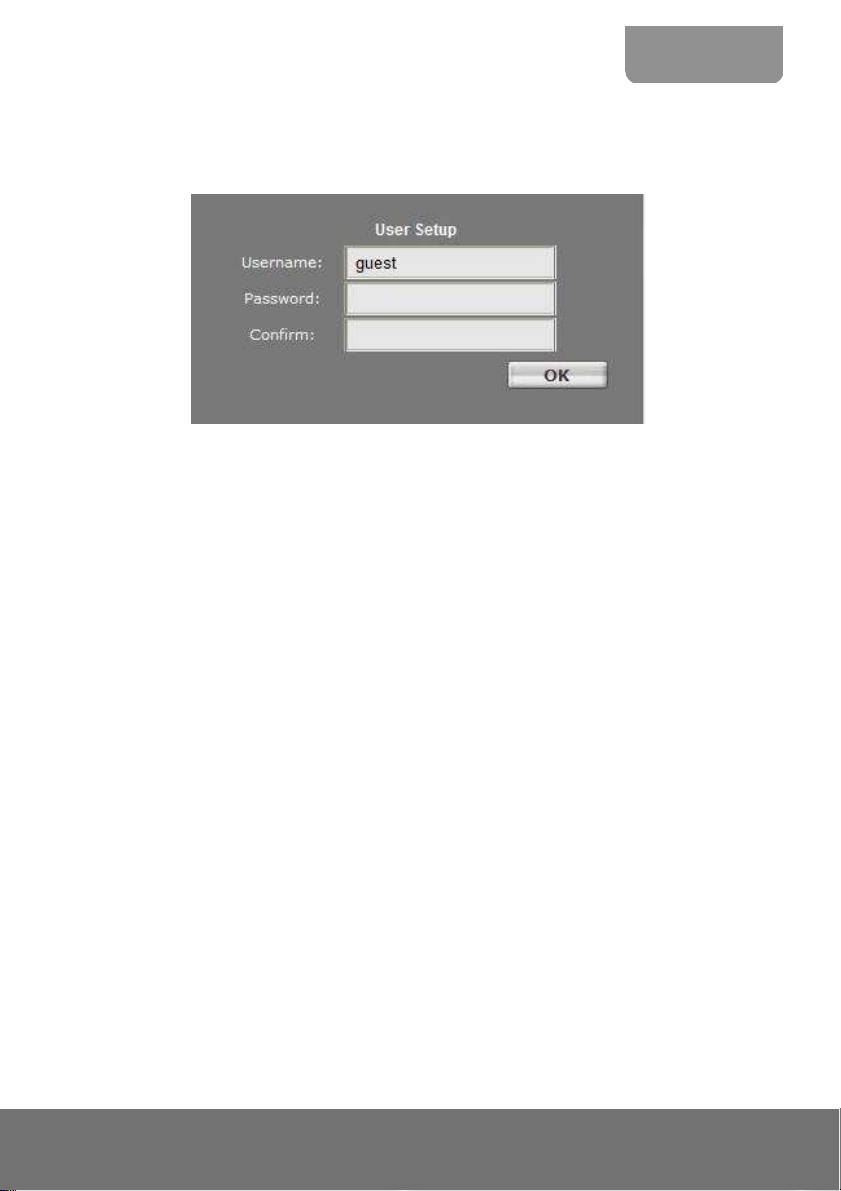

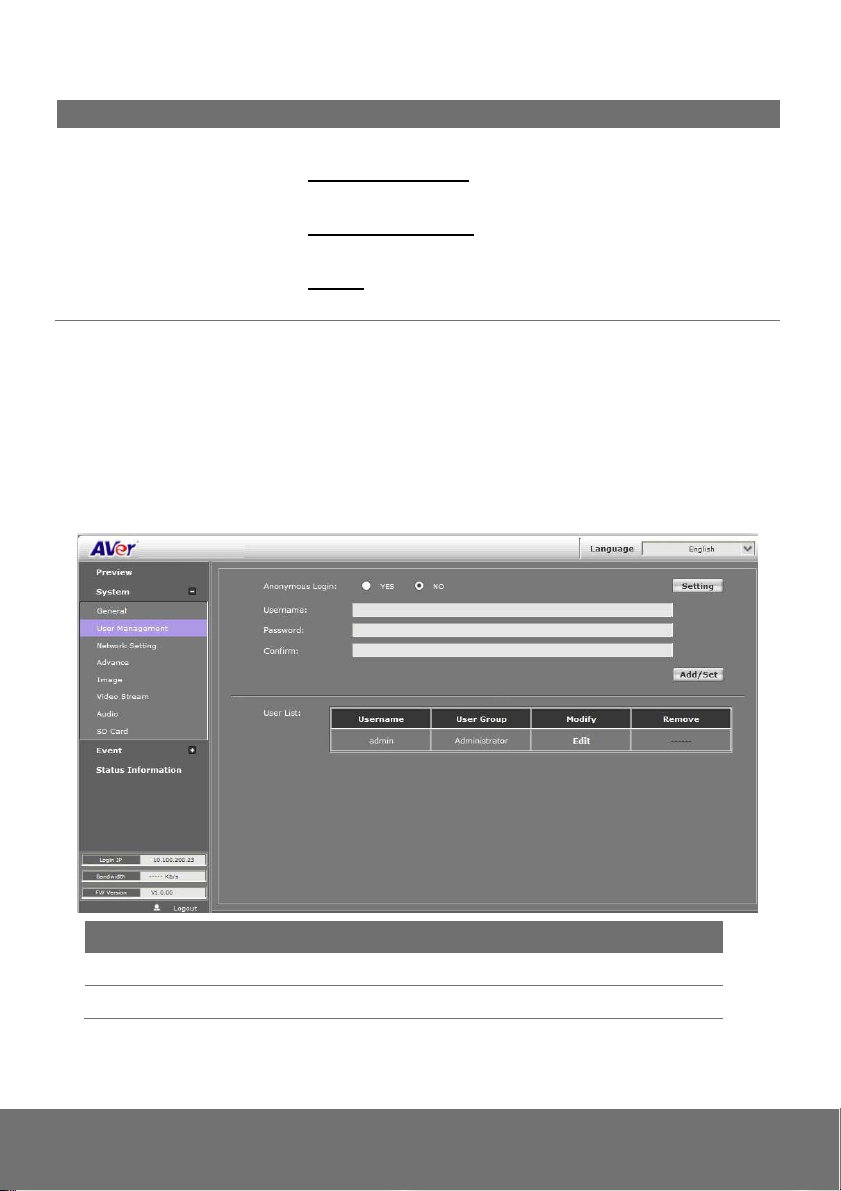

SYSTEM > USER MANAGEMENT ......................................................................................... 26
SYSTEM > USER MANAGEMENT ......................................................................................... 26

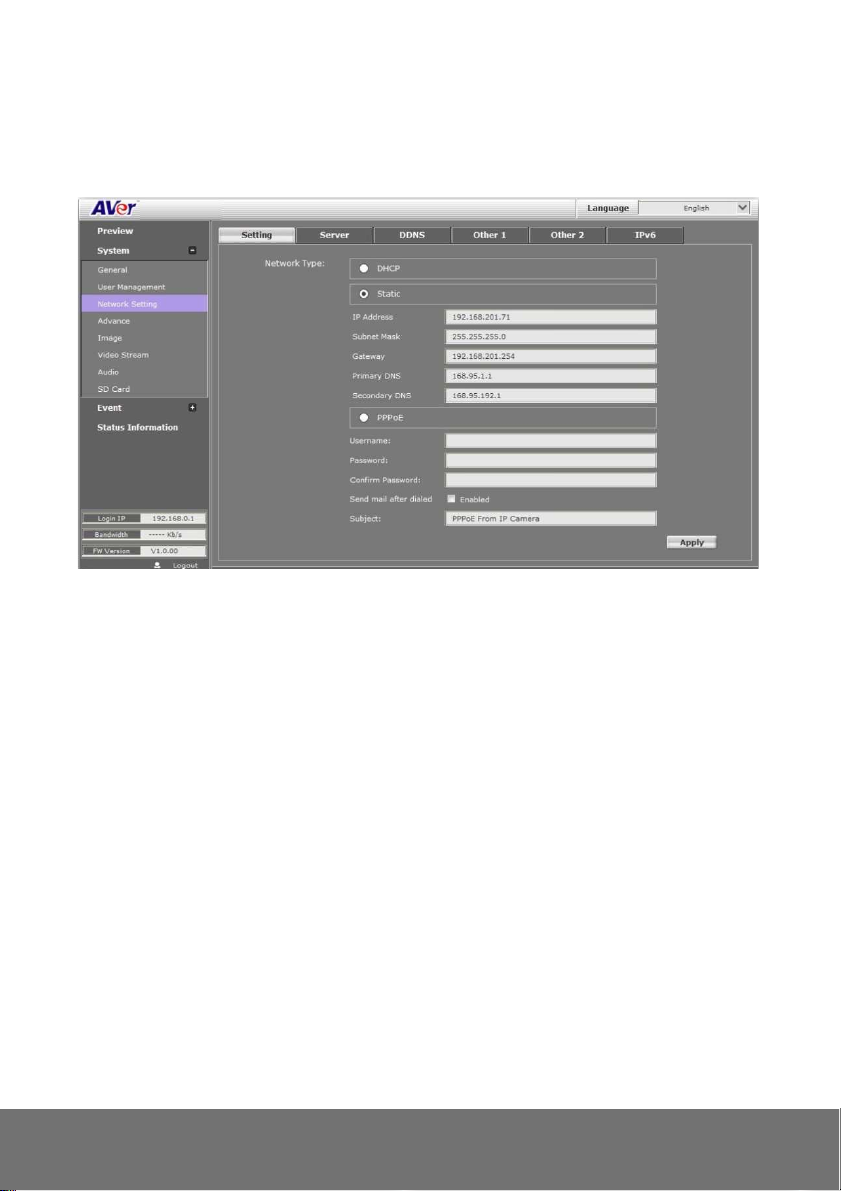

SYSTEM > NETWORK SETTING > SETTING ........................................................................... 28
S

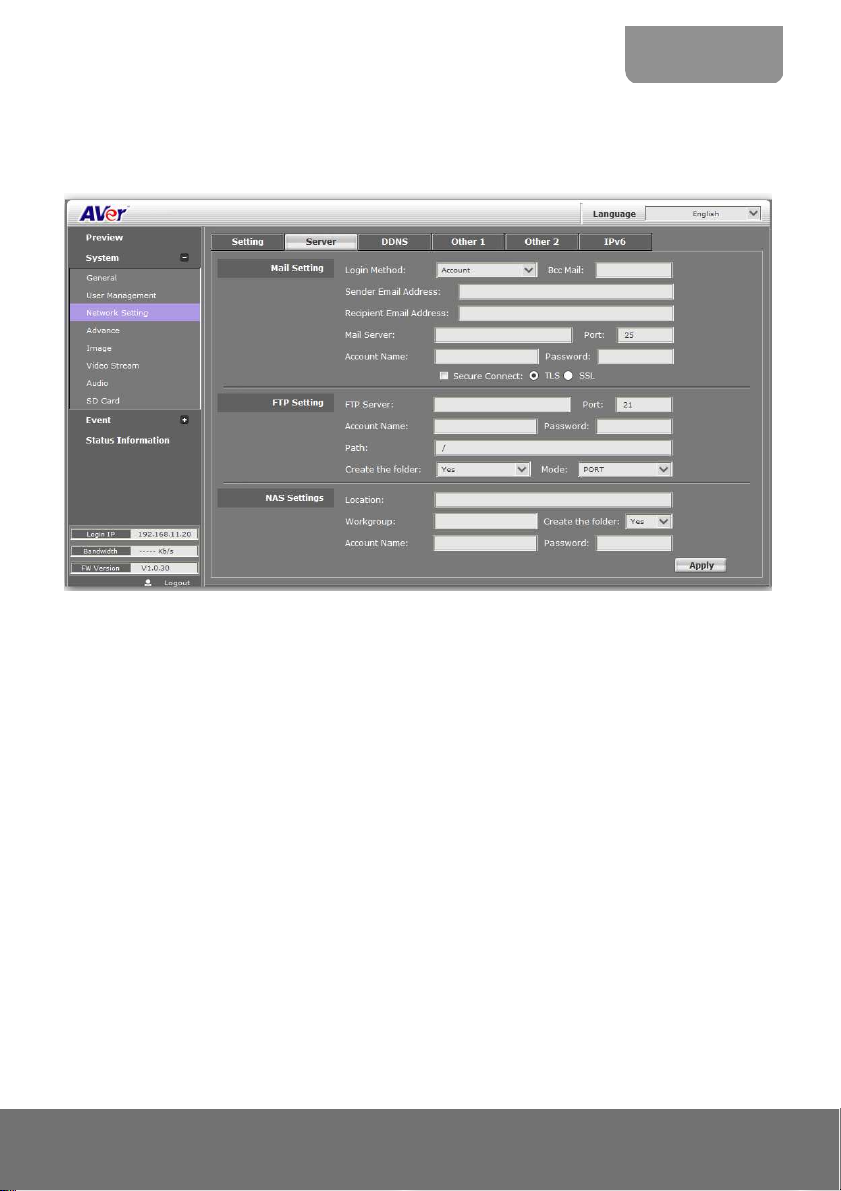

YSTEM > NETWORK SETTING > SEVER ............................................................................. 29

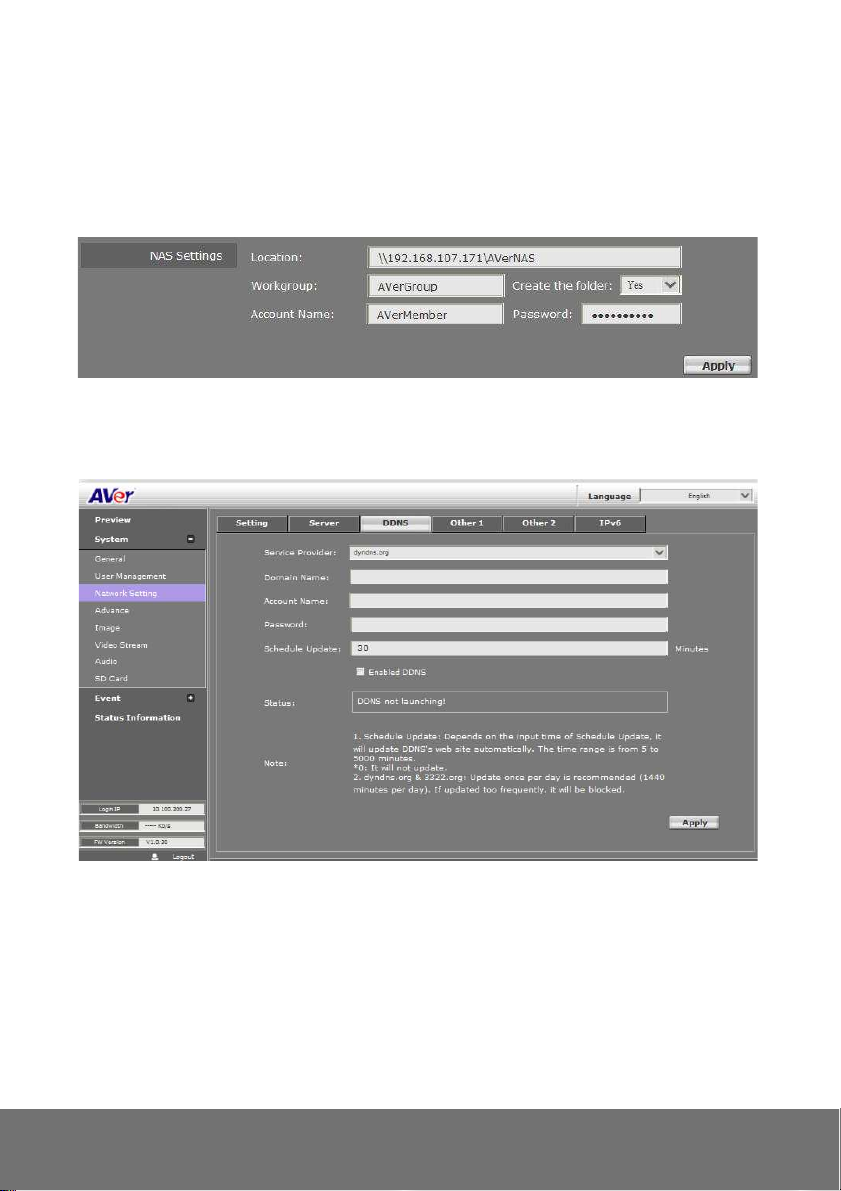

SYSTEM > NETWORK SETTING > DDNS ............................................................................. 30

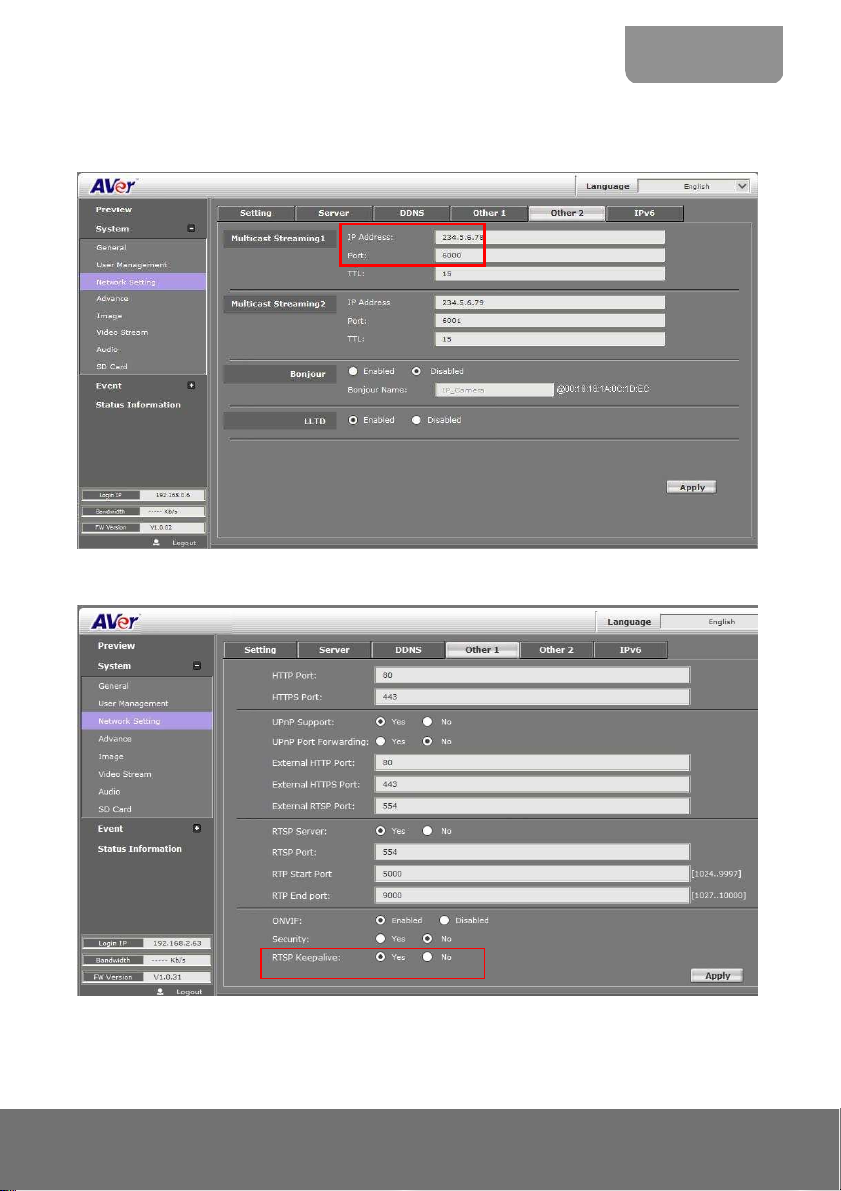

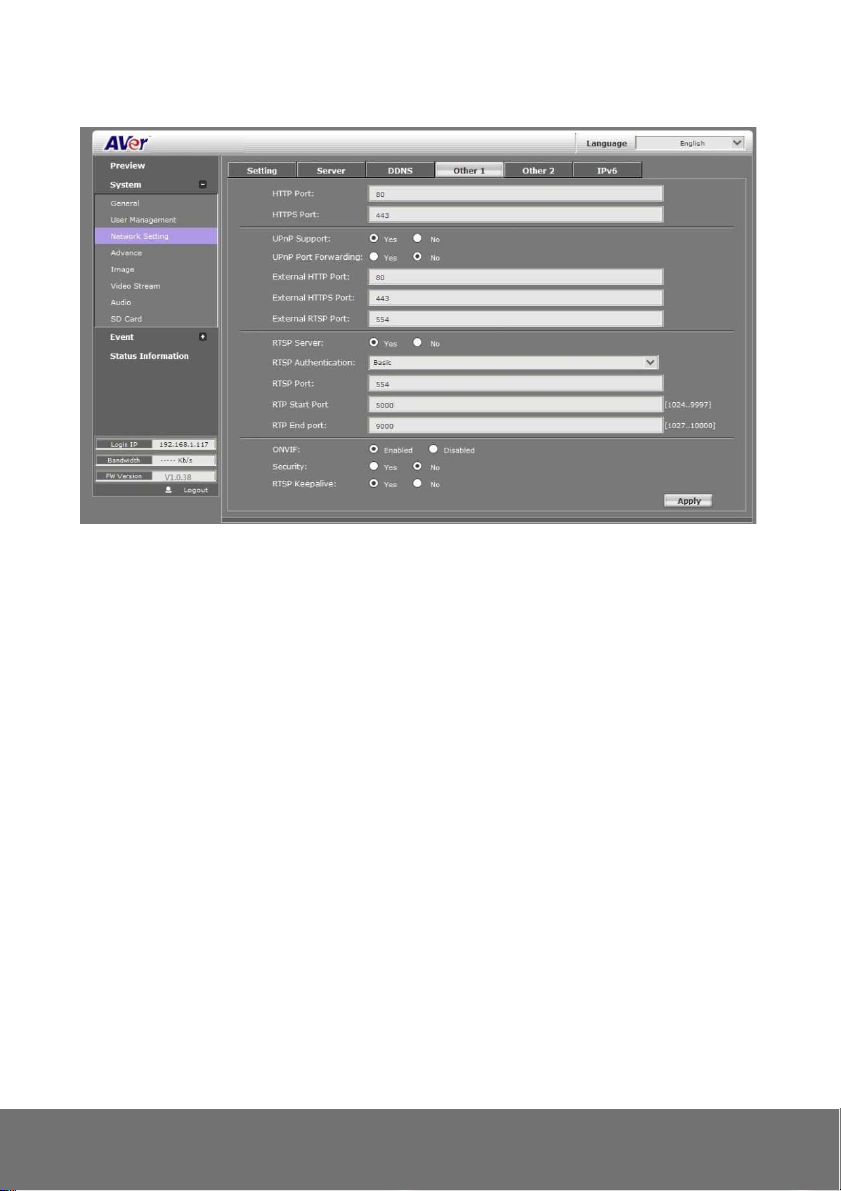

SYSTEM > NETWORK SETTING > OTHER 1 .......................................................................... 32

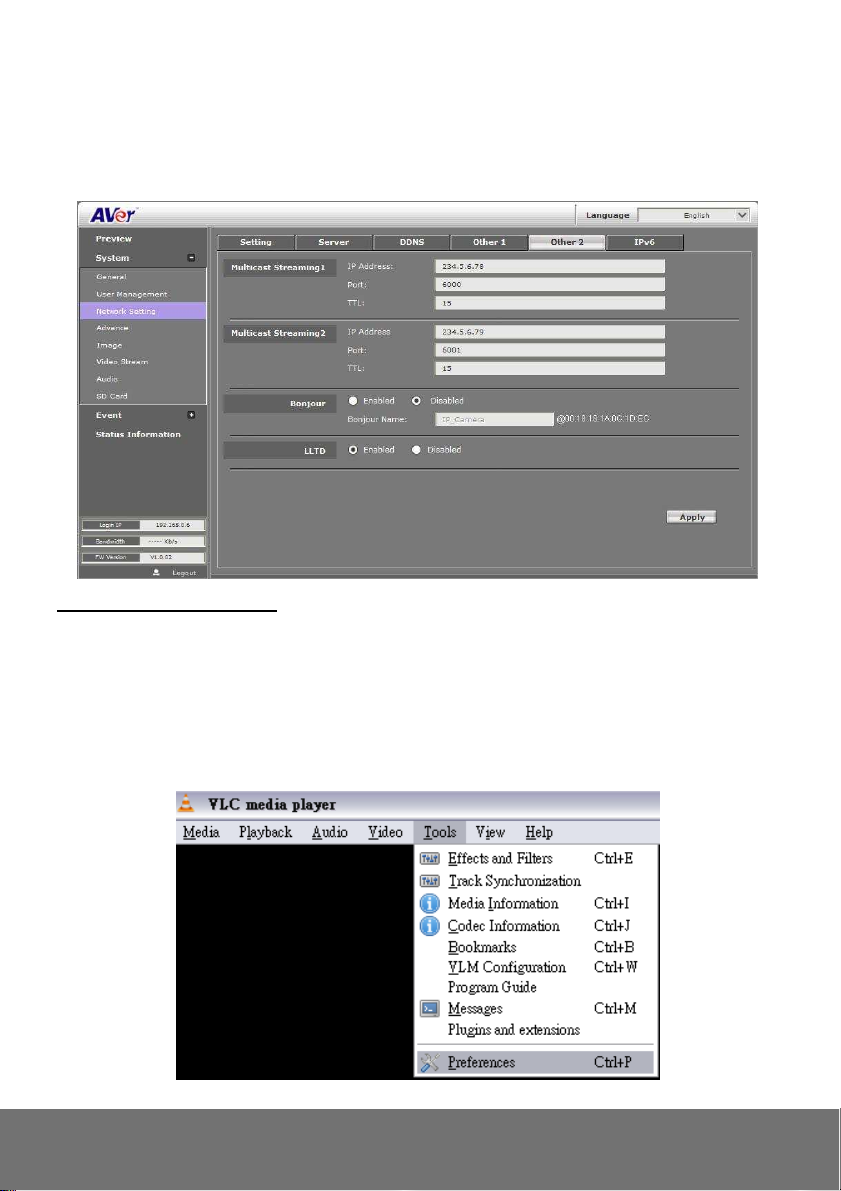

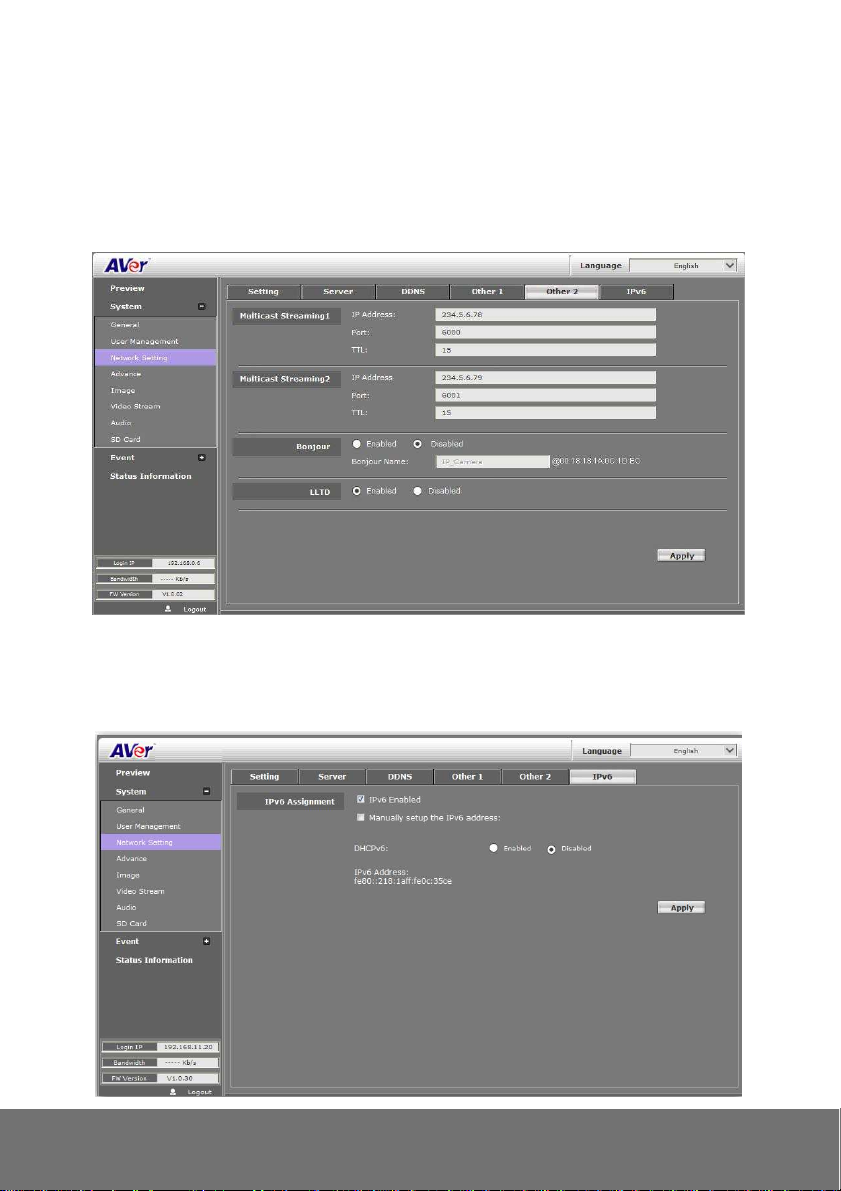

SYSTEM > NETWORK SETTING > OTHER 2 .......................................................................... 34
SYSTEM > NETWORK SETTING > IPV6 ................................................................................ 38

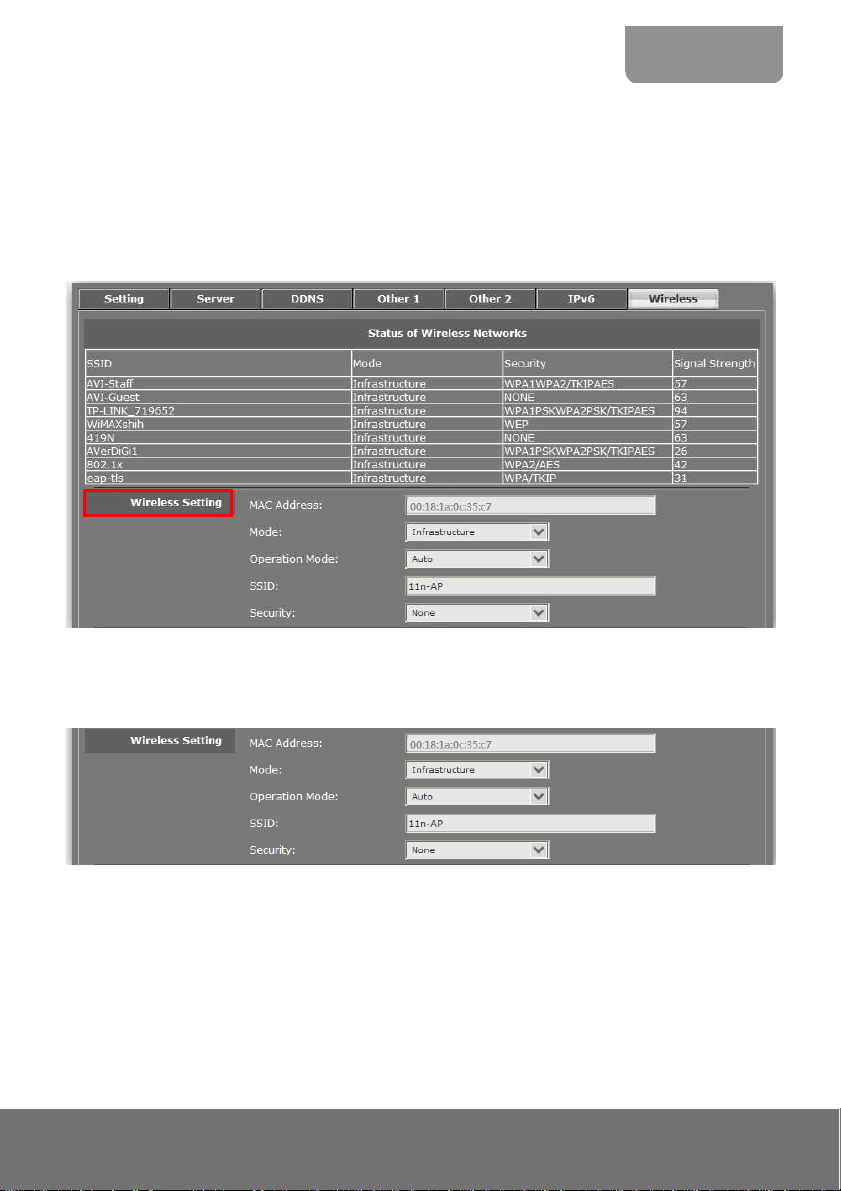

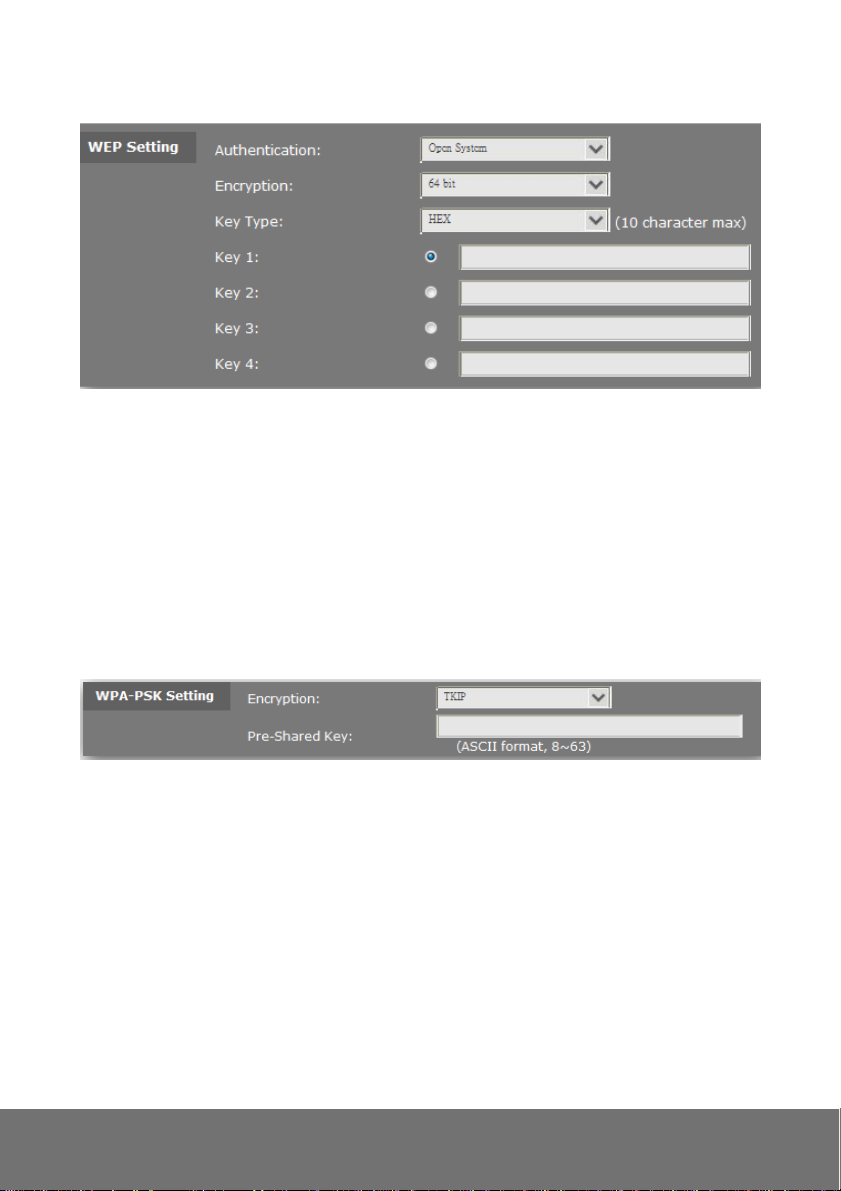

SYSTEM > NETWORK SETTING > IPV6>WIRELESS (FC1320-PW ONLY) ................................ 39

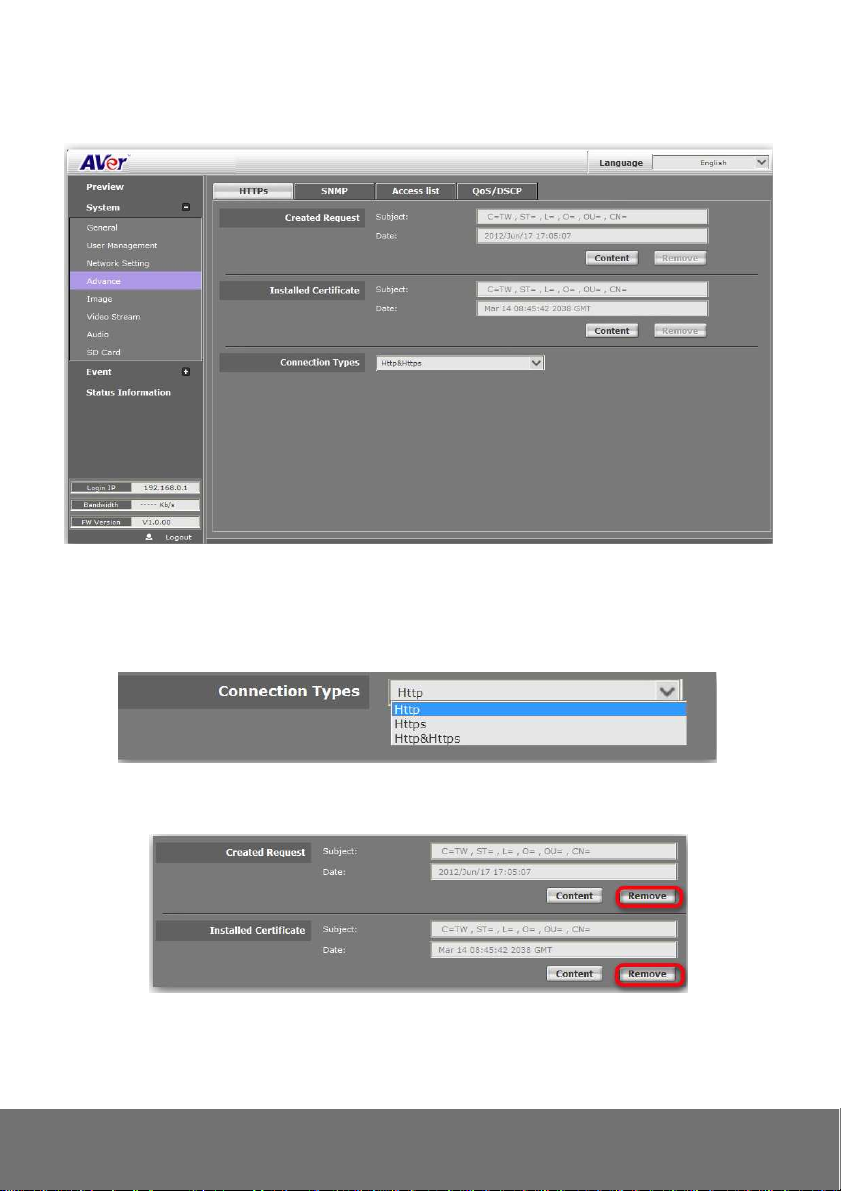

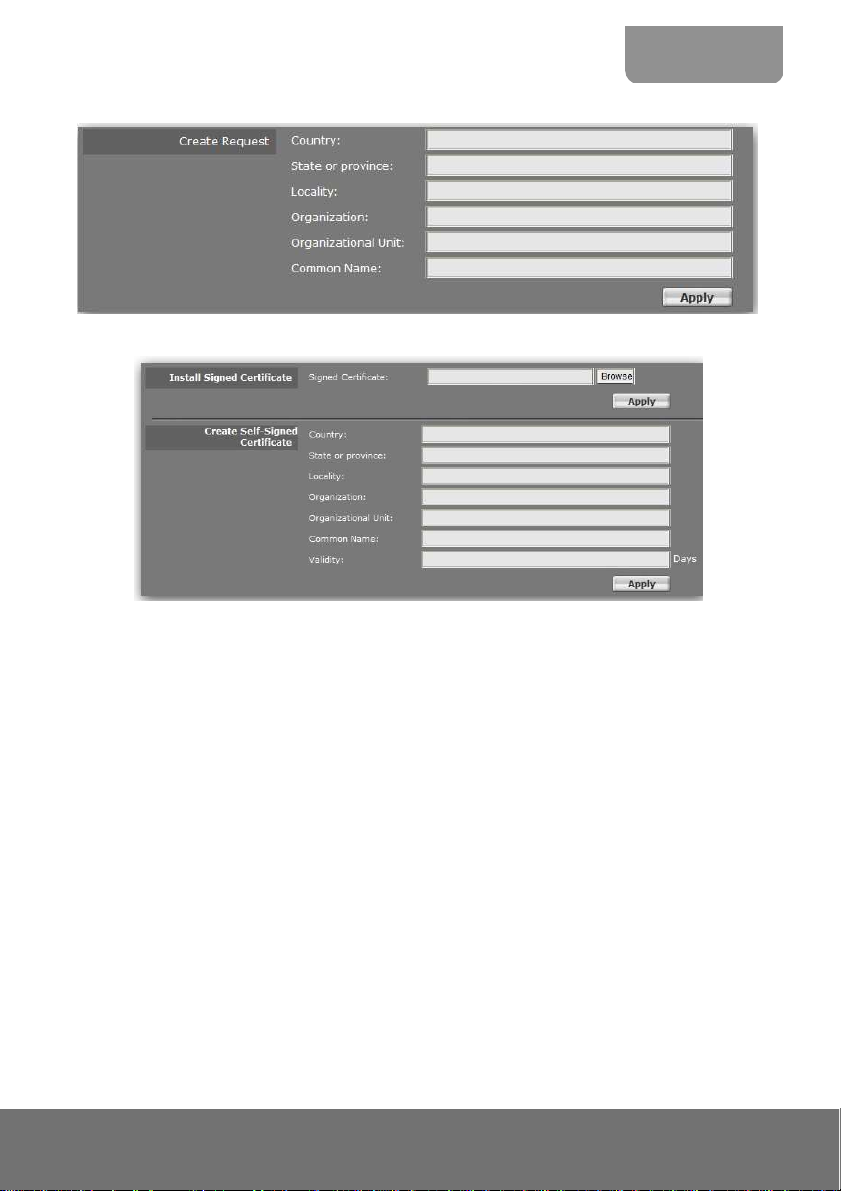

SYSTEM > ADVANCE > HTTPS .......................................................................................... 42

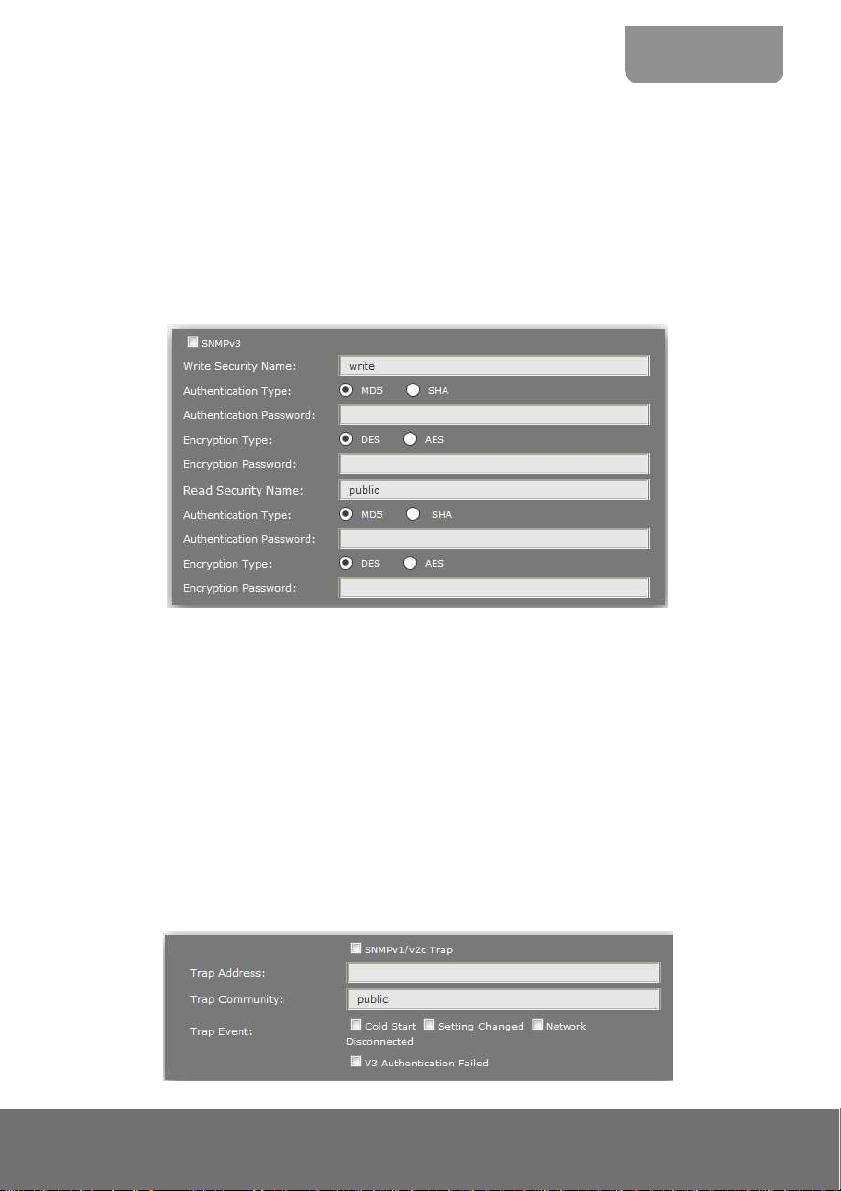

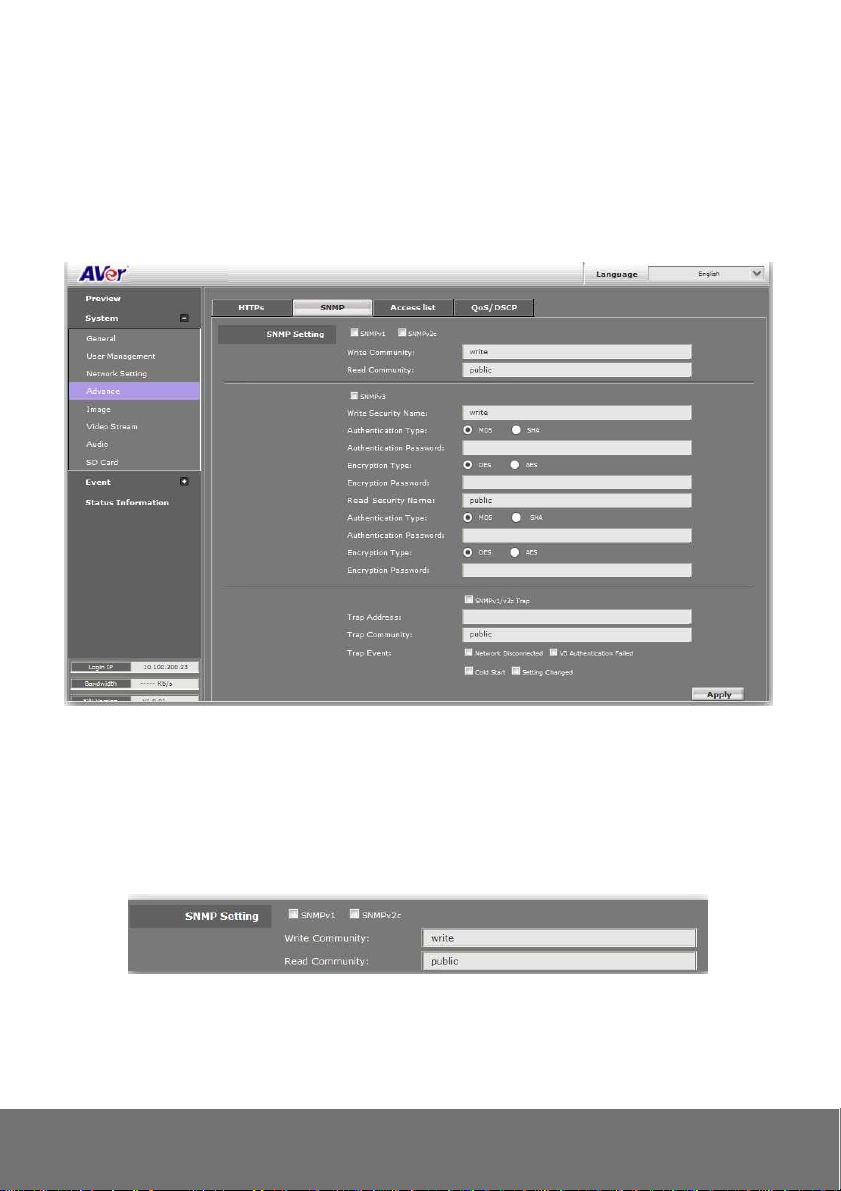

SYSTEM > ADVANCE > SNMP ........................................................................................... 44

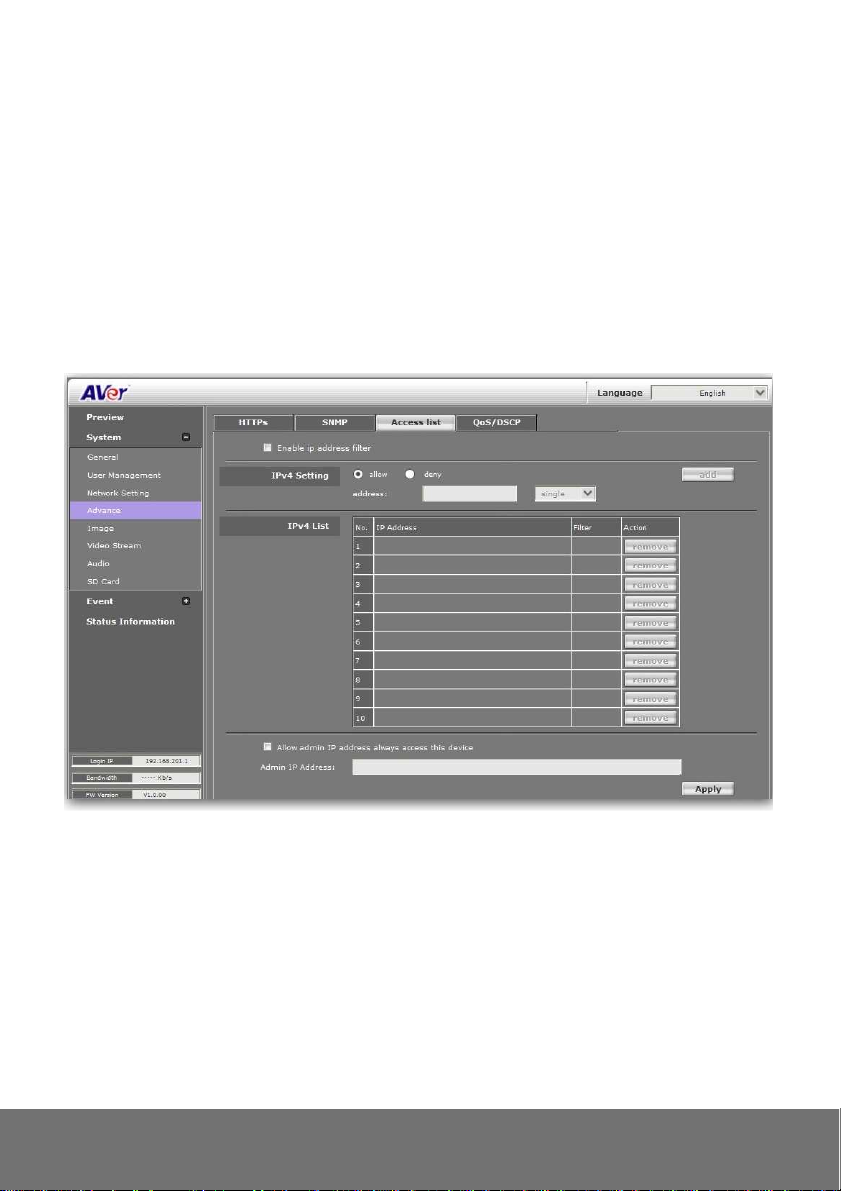

SYSTEM > ADVANCE > ACCESS LIST ................................................................................... 46

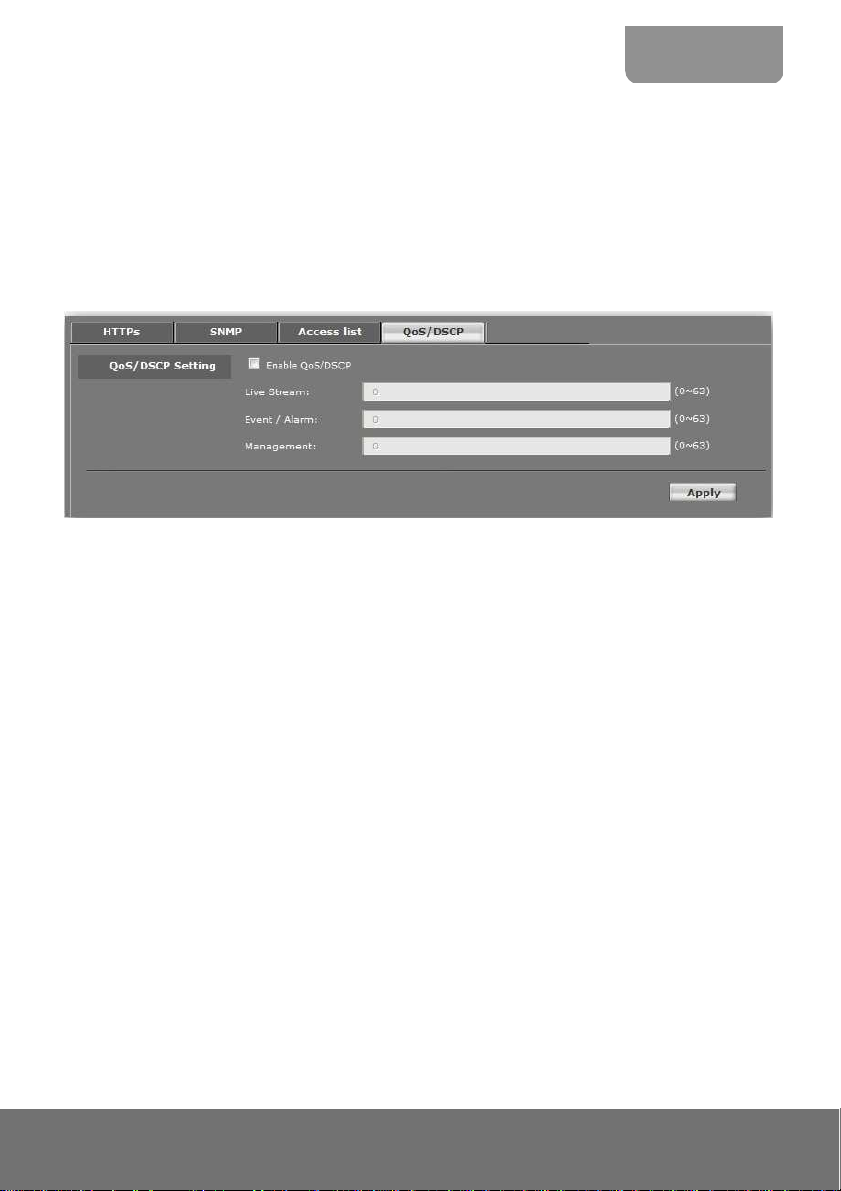

SYSTEM > ADVANCE > QOS/DSCP ................................................................................... 47
SYSTEM > IMAGE .............................................................................................................. 48

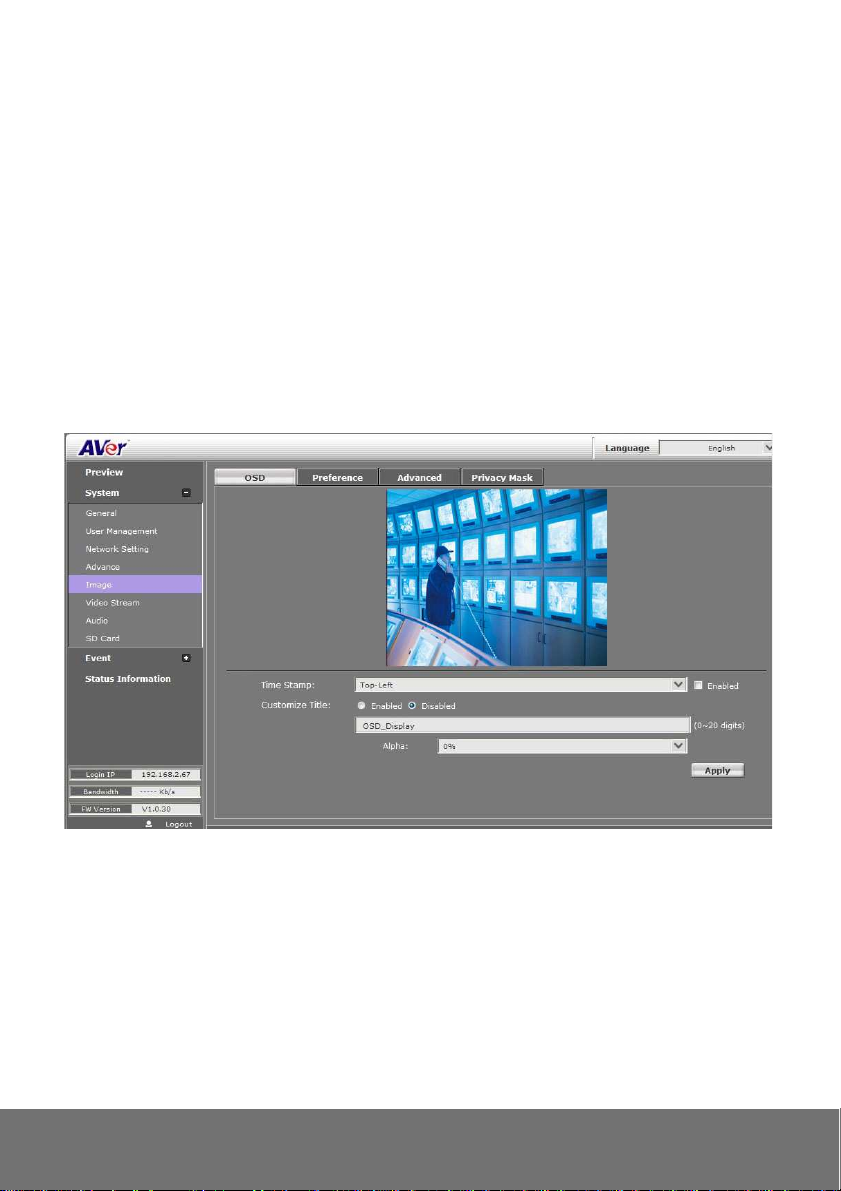

SYSTEM > IMAGE> OSD ................................................................................................... 48

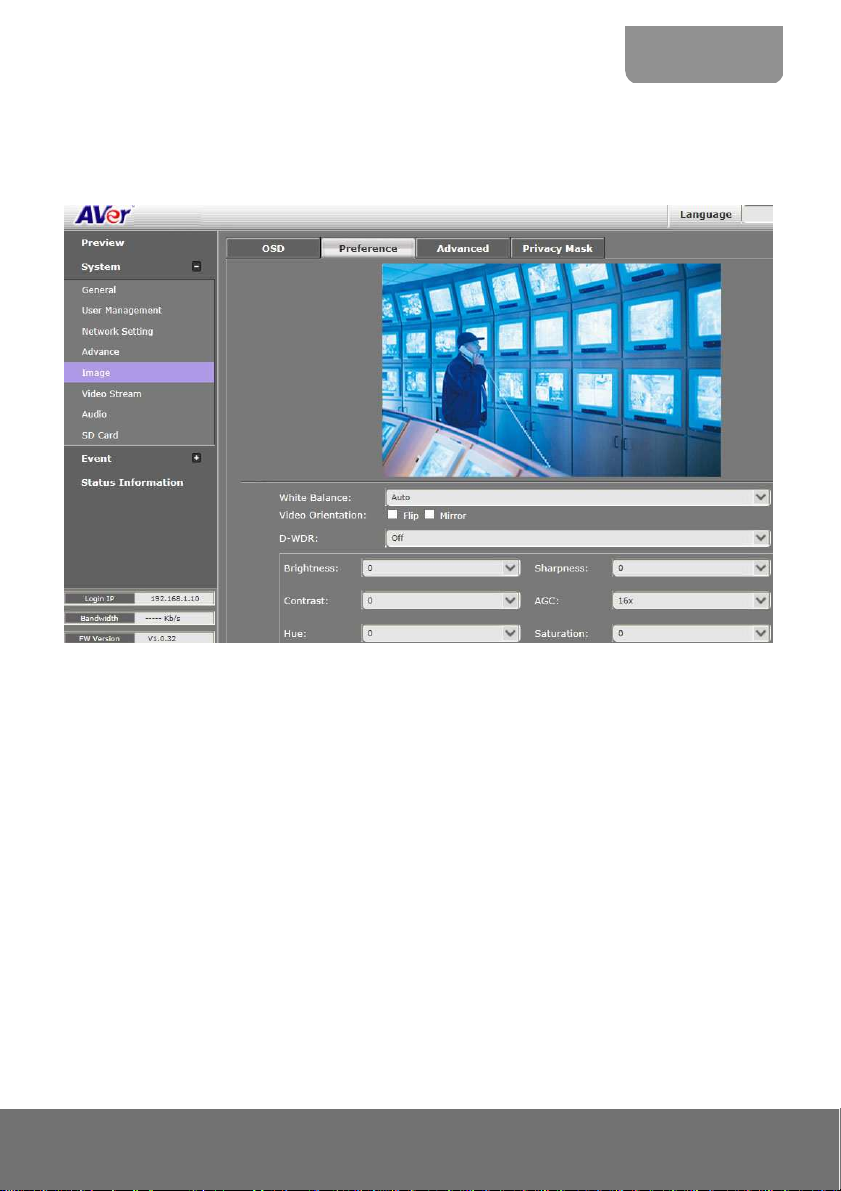

SYSTEM > IMAGE > PREFERENCE ....................................................................................... 49

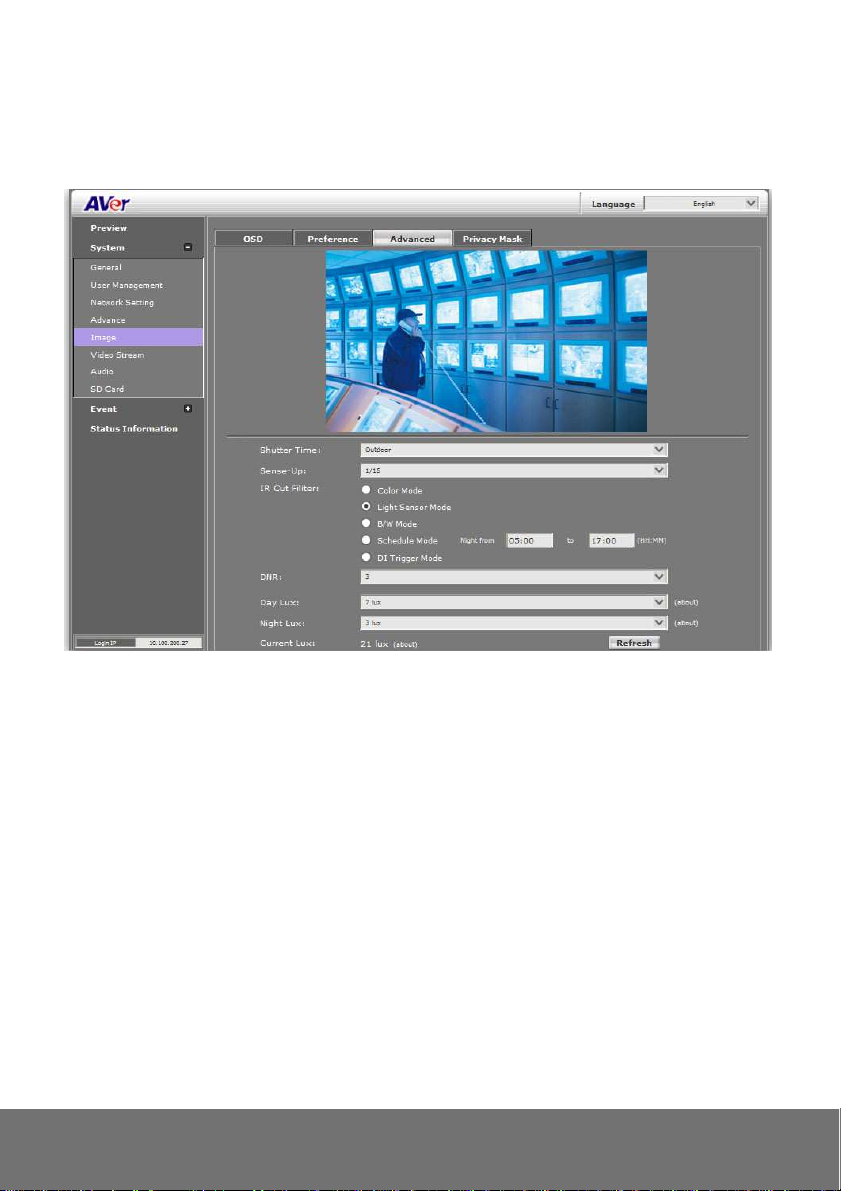

SYSTEM > IMAGE> ADVANCED ........................................................................................... 50

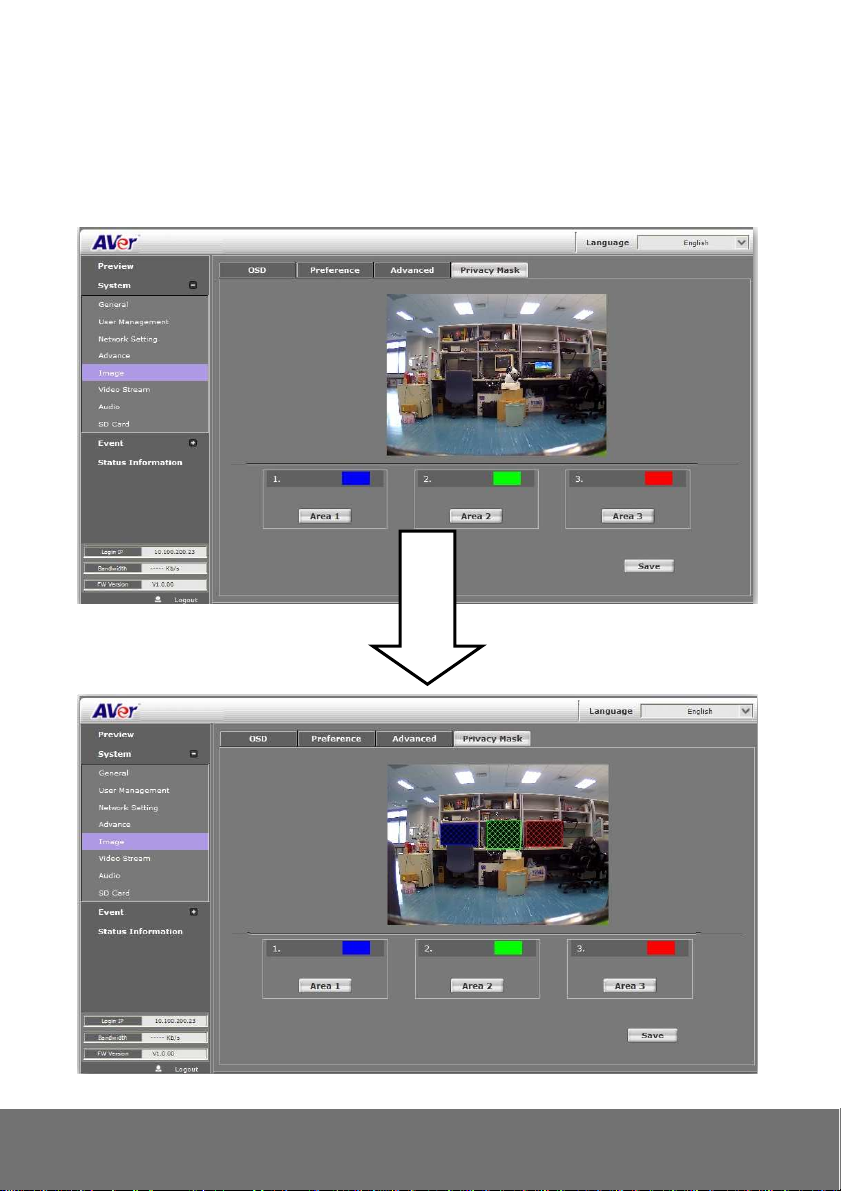

SYSTEM > IMAGE> PRIVACY MASK ..................................................................................... 52

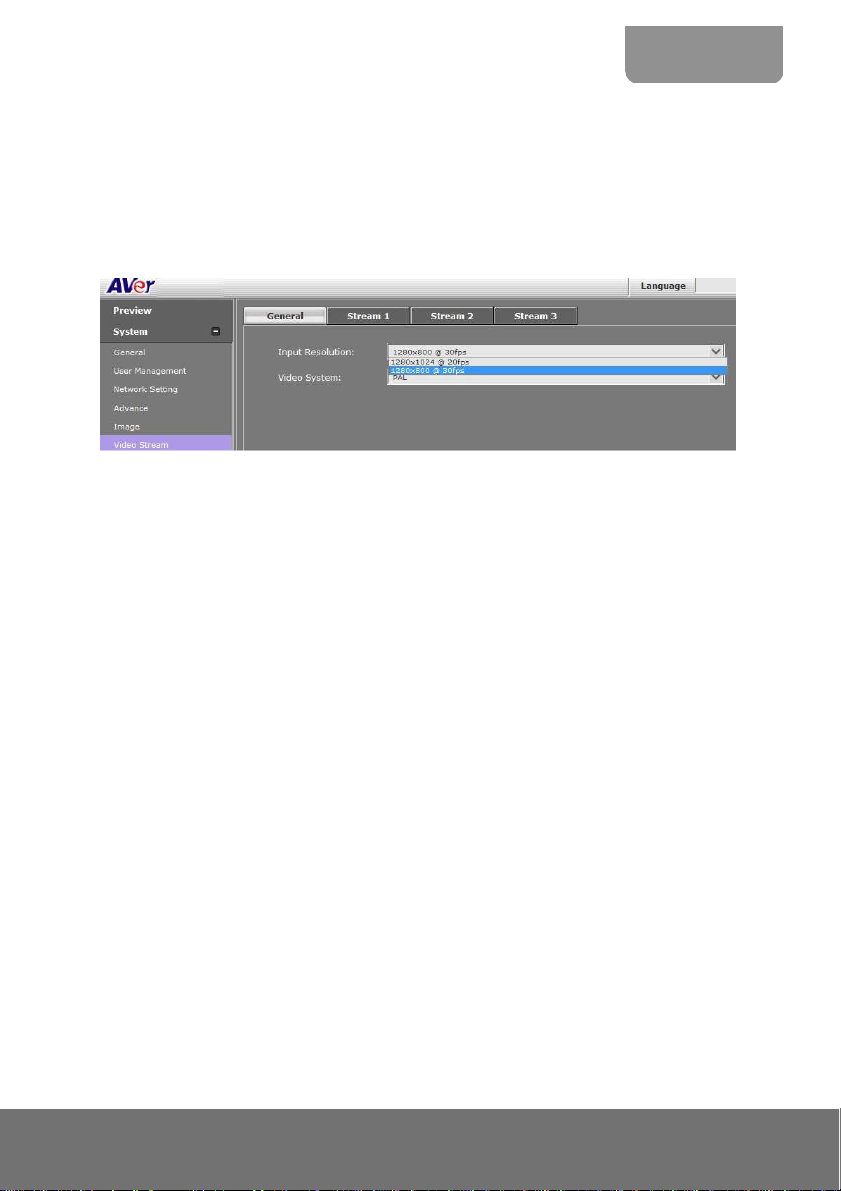

SYSTEM > VIDEO STREAM > GENERAL ............................................................................... 53

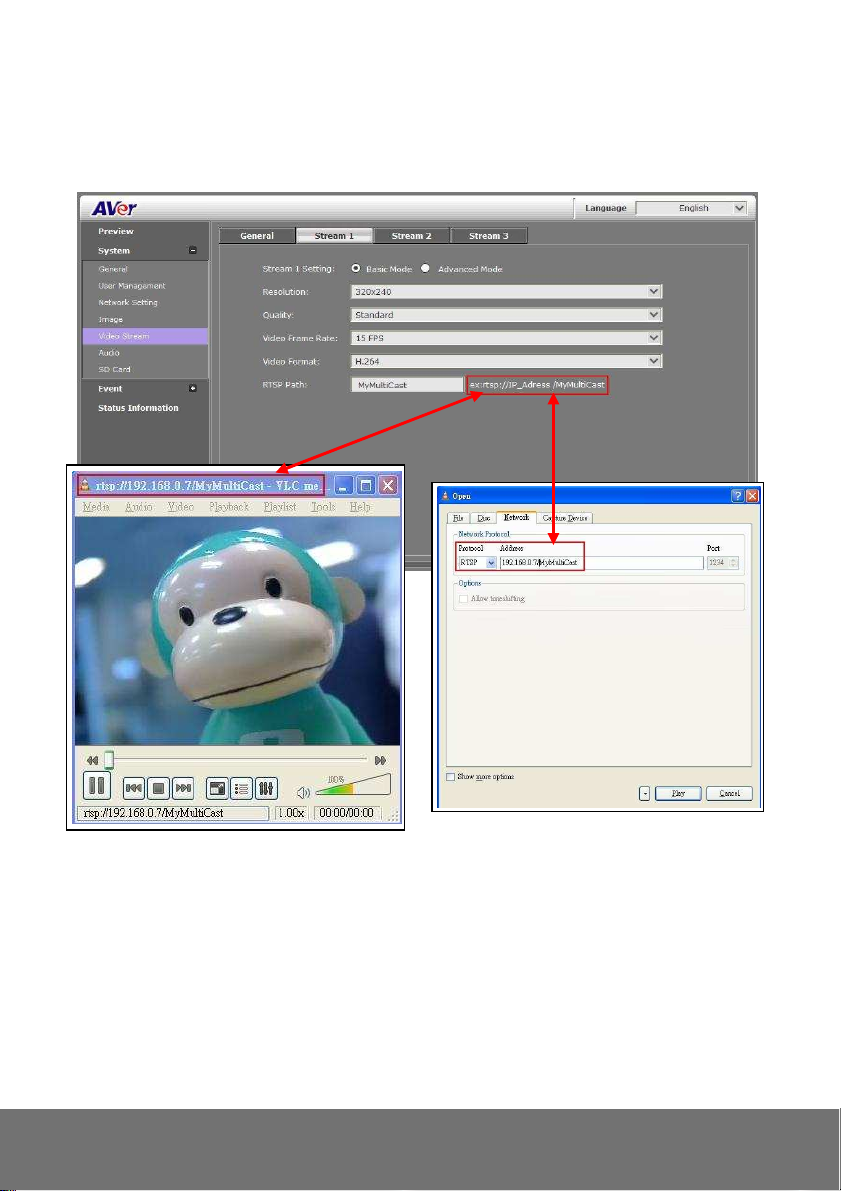

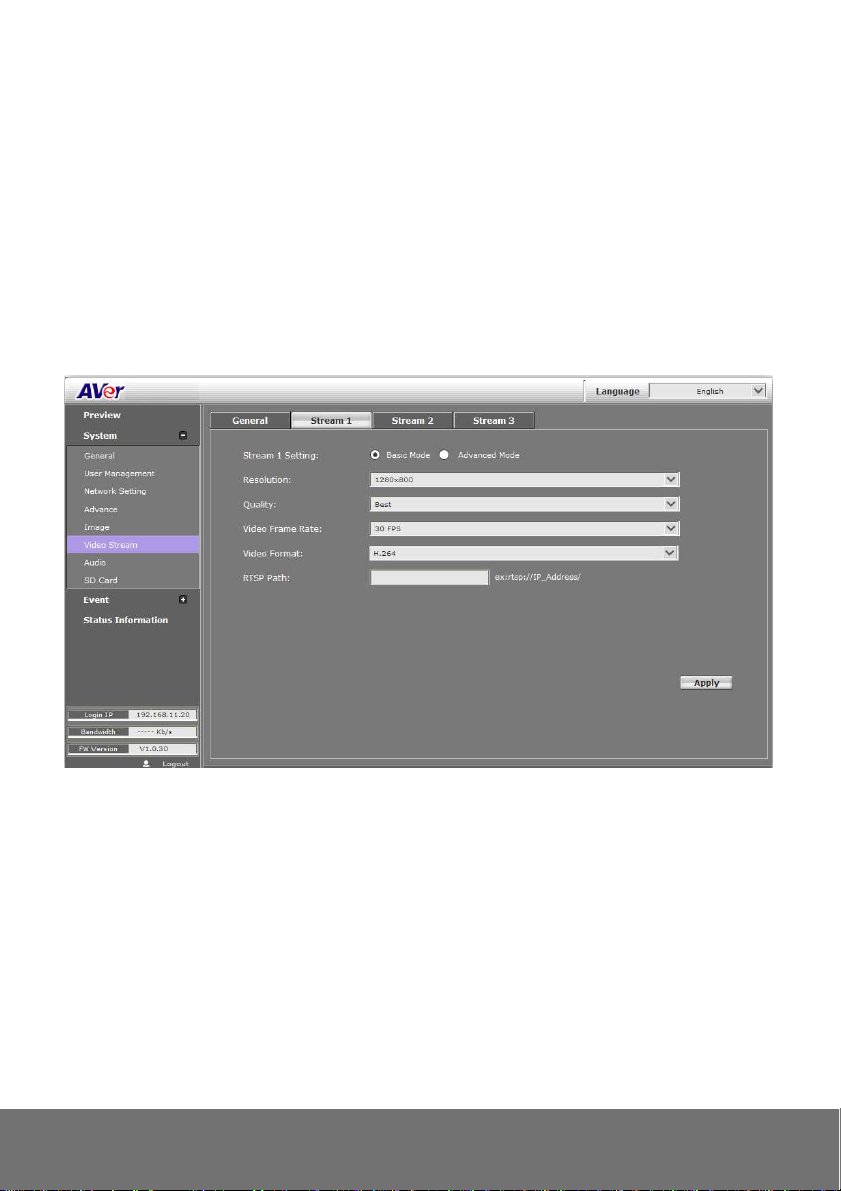

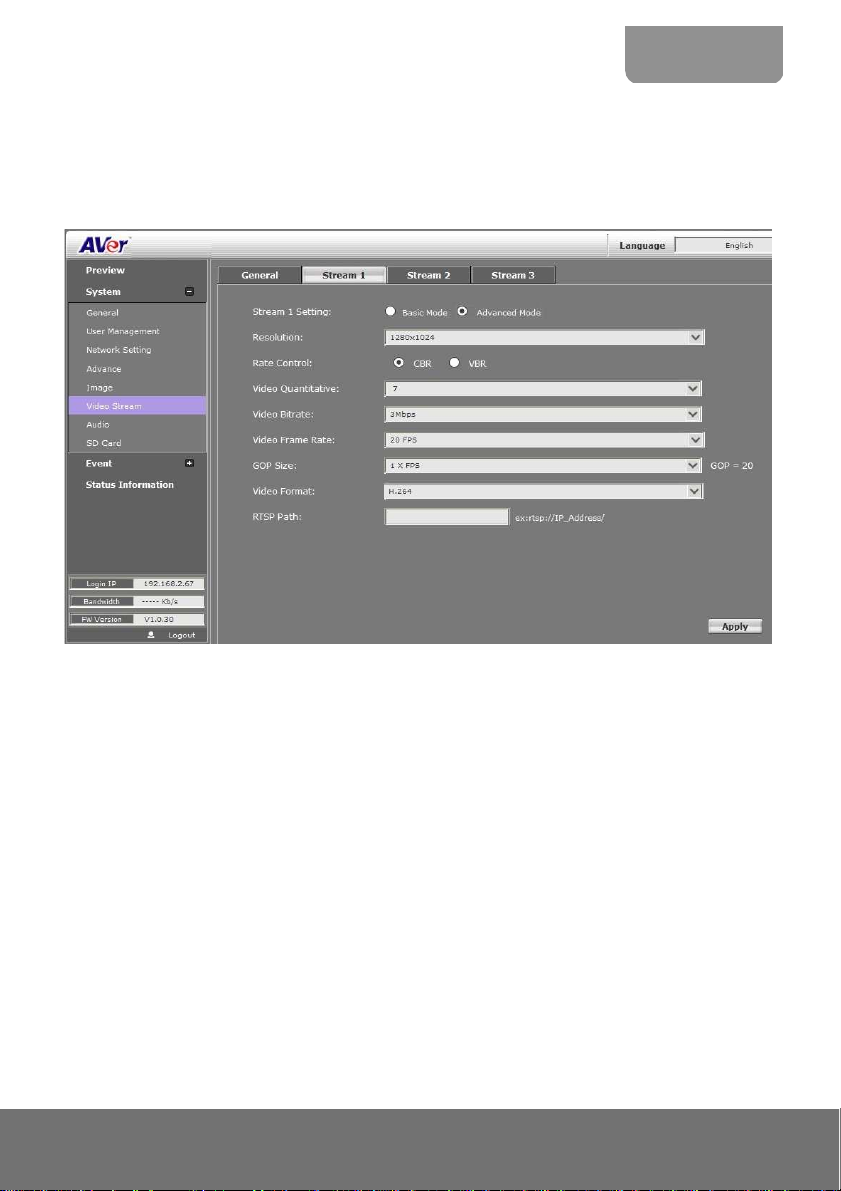

SYSTEM > VIDEO STREAM > STREAM1 ............................................................................... 54

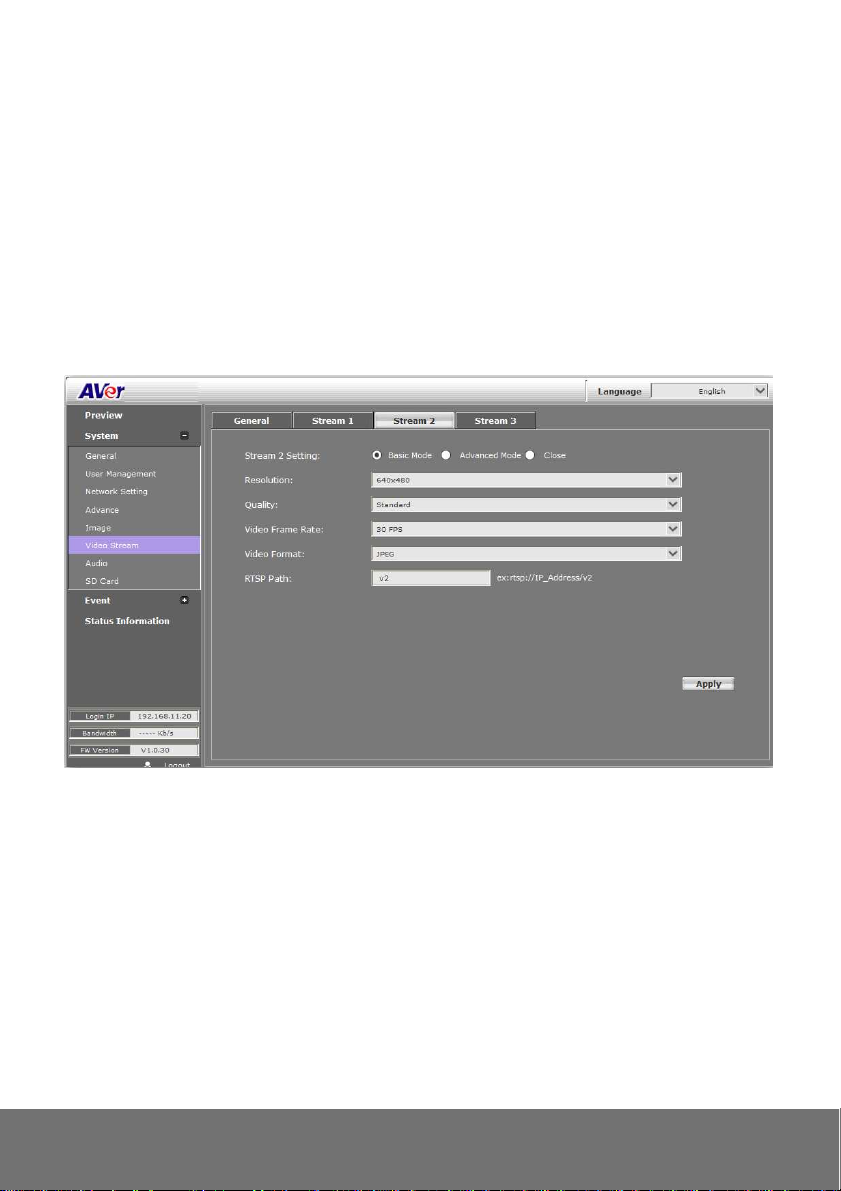

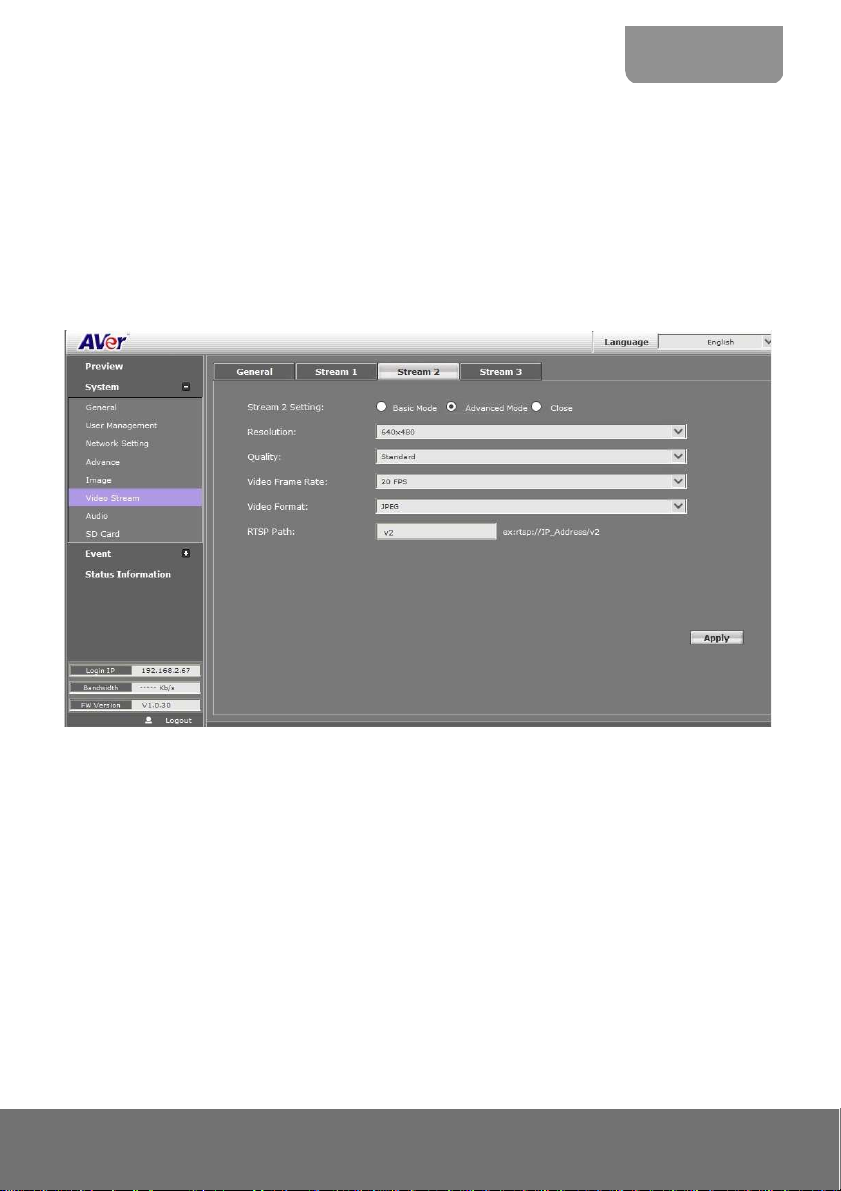

SYSTEM > VIDEO STREAM > STREAM2 ............................................................................... 56

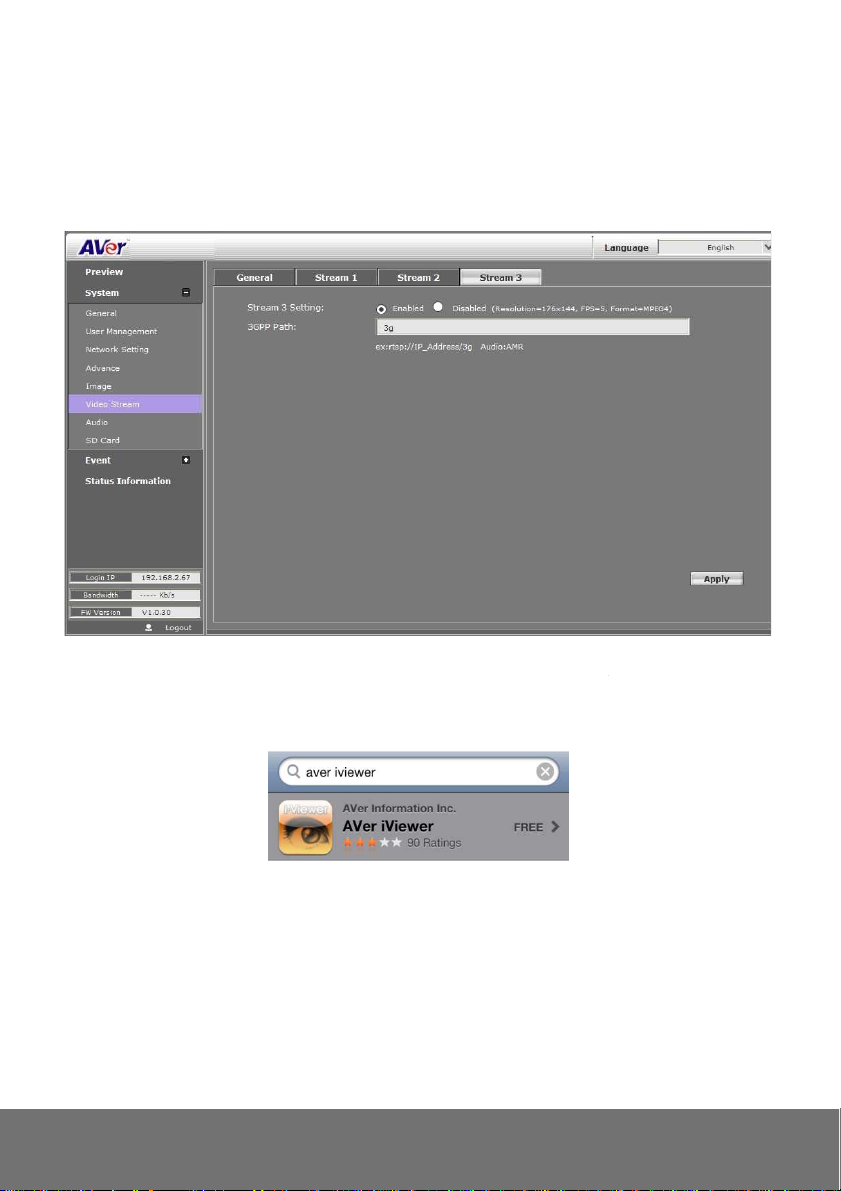

SYSTEM > VIDEO STREAM > STREAM3 ............................................................................... 58

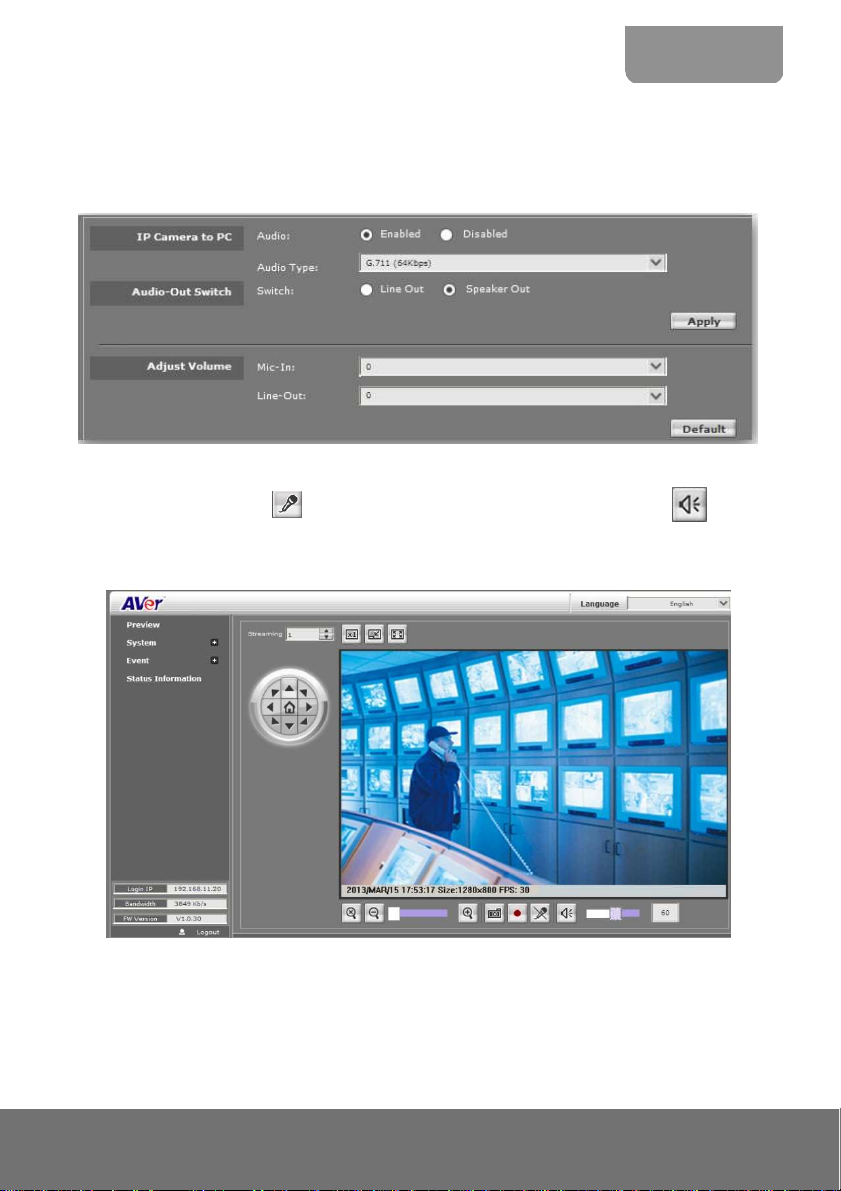

SYSTEM > AUDIO .............................................................................................................. 59

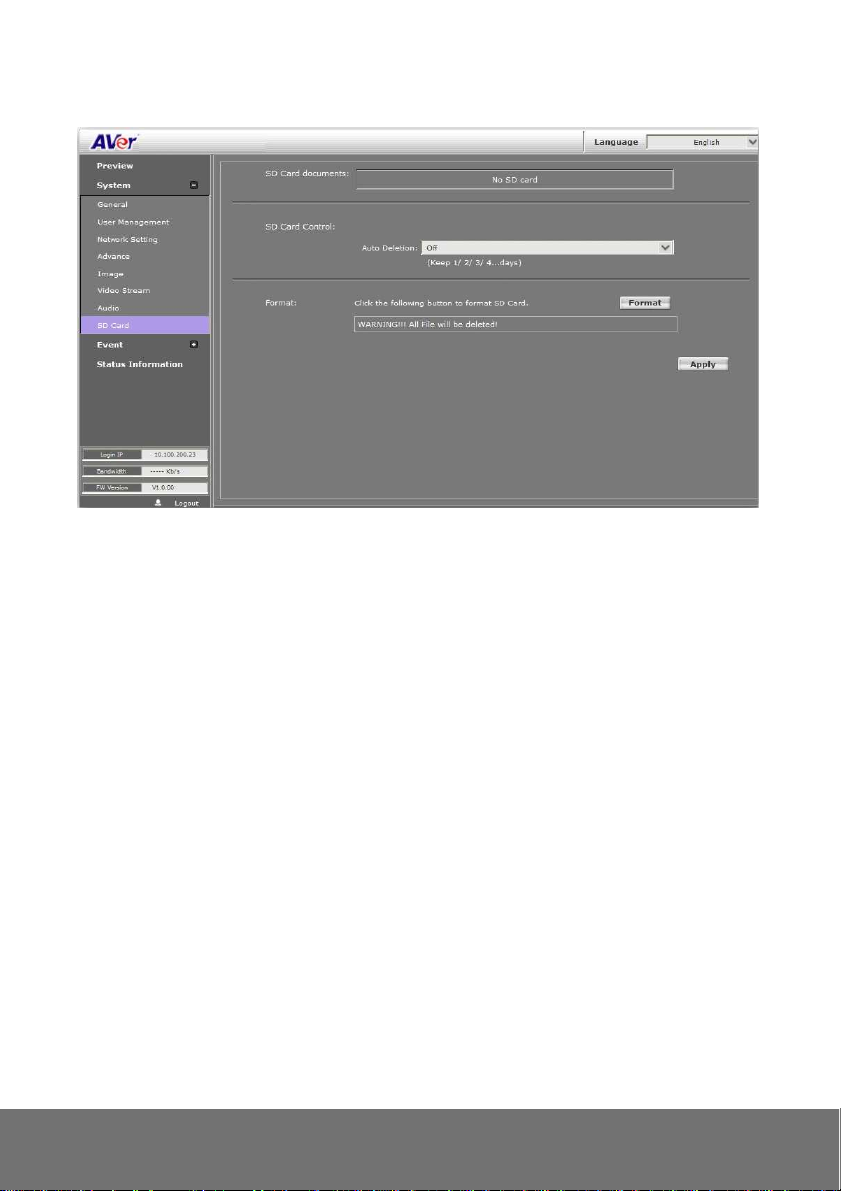

SYSTEM > SD CARD ......................................................................................................... 60

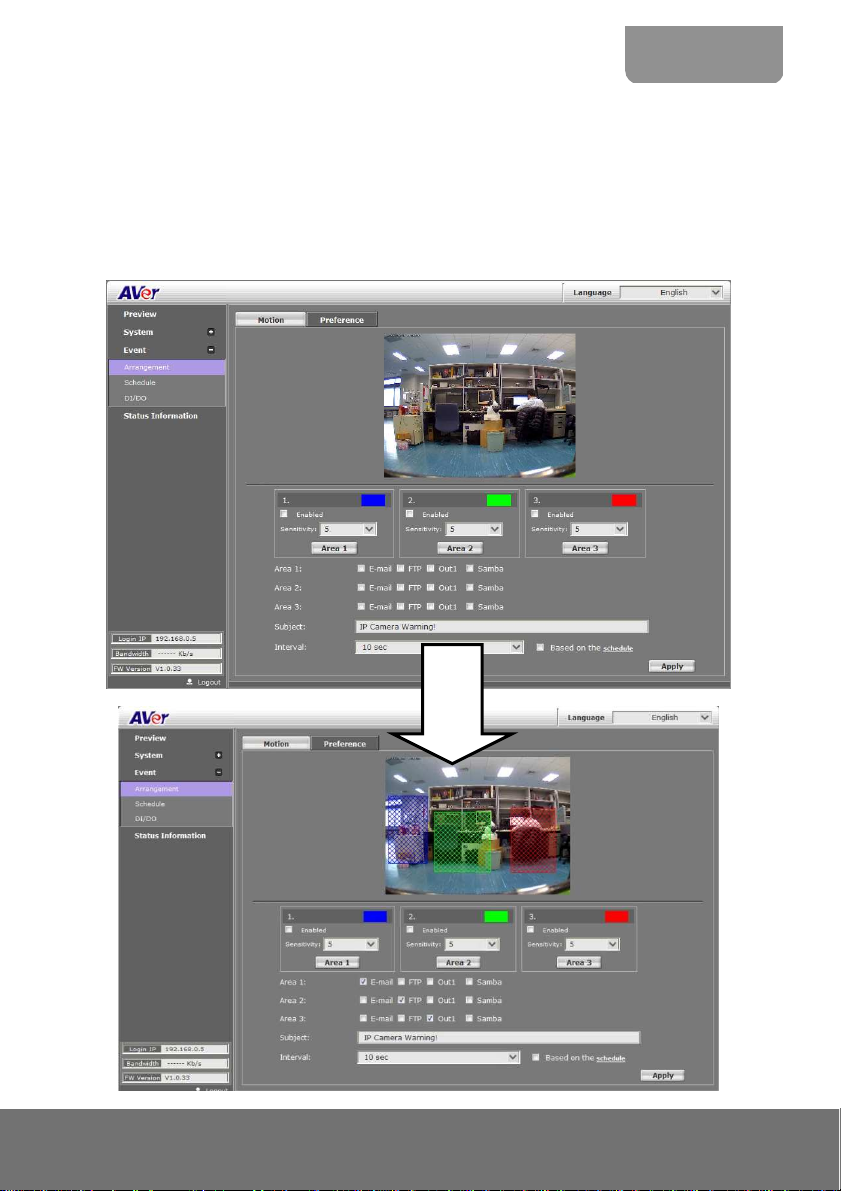

EVENT > ARRANGEMENT > MOTION .................................................................................... 61

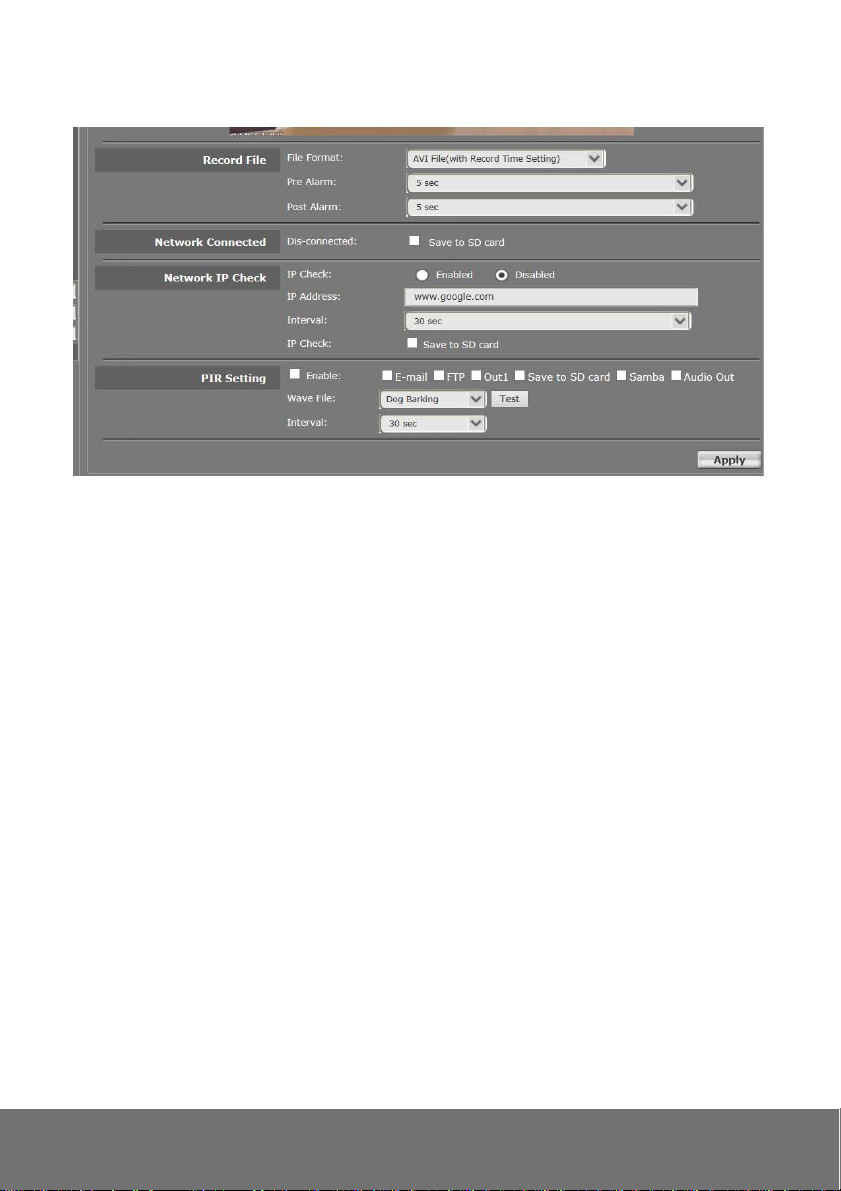

EVENT > ARRANGEMENT > PREFERENCE ............................................................................ 62

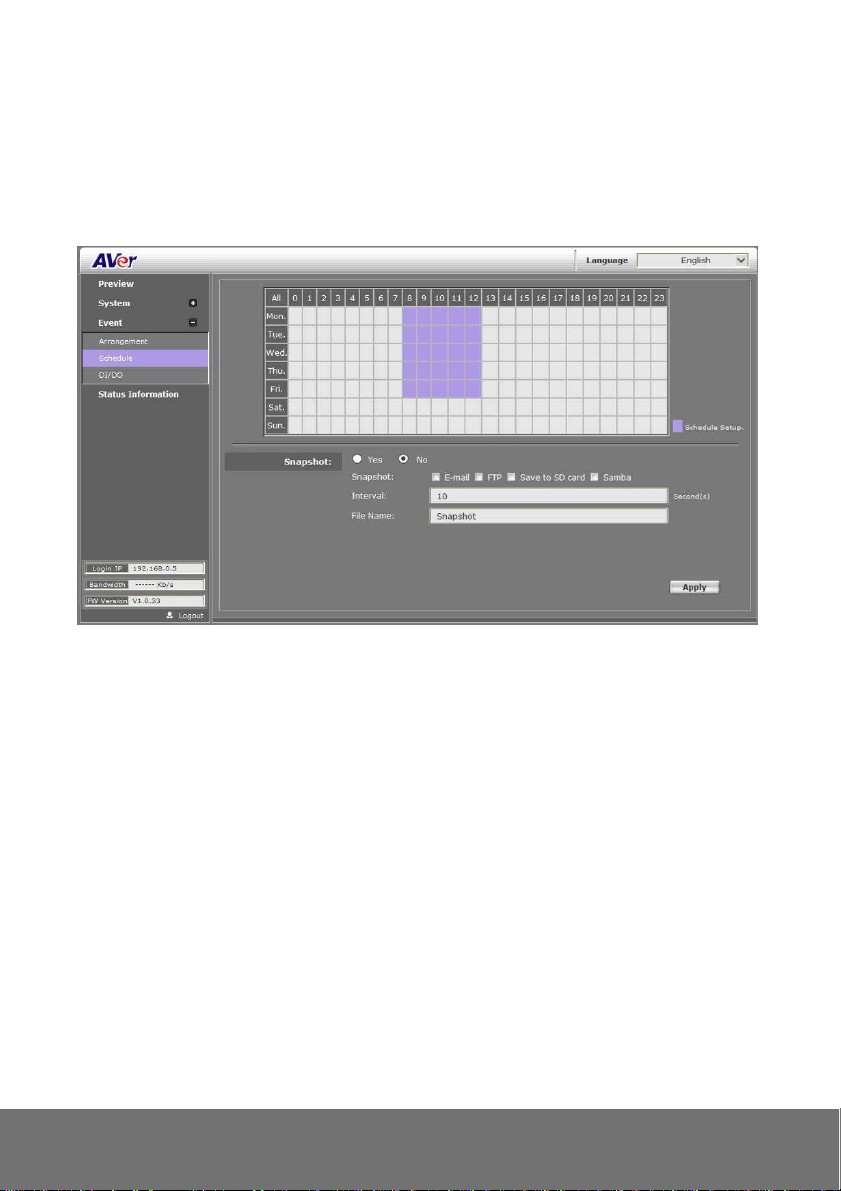

EVENT > SCHEDULE ......................................................................................................... 64

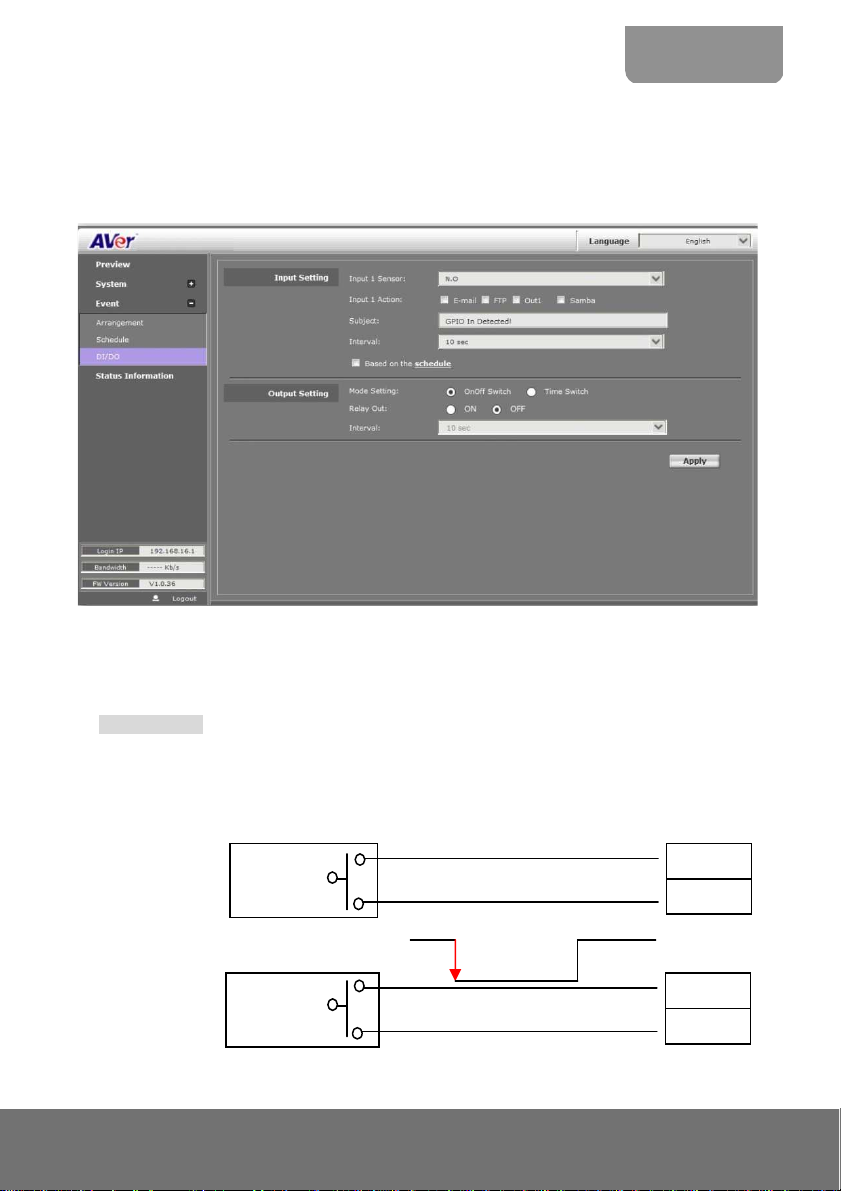

EVENT > DI/DO ............................................................................................................... 65

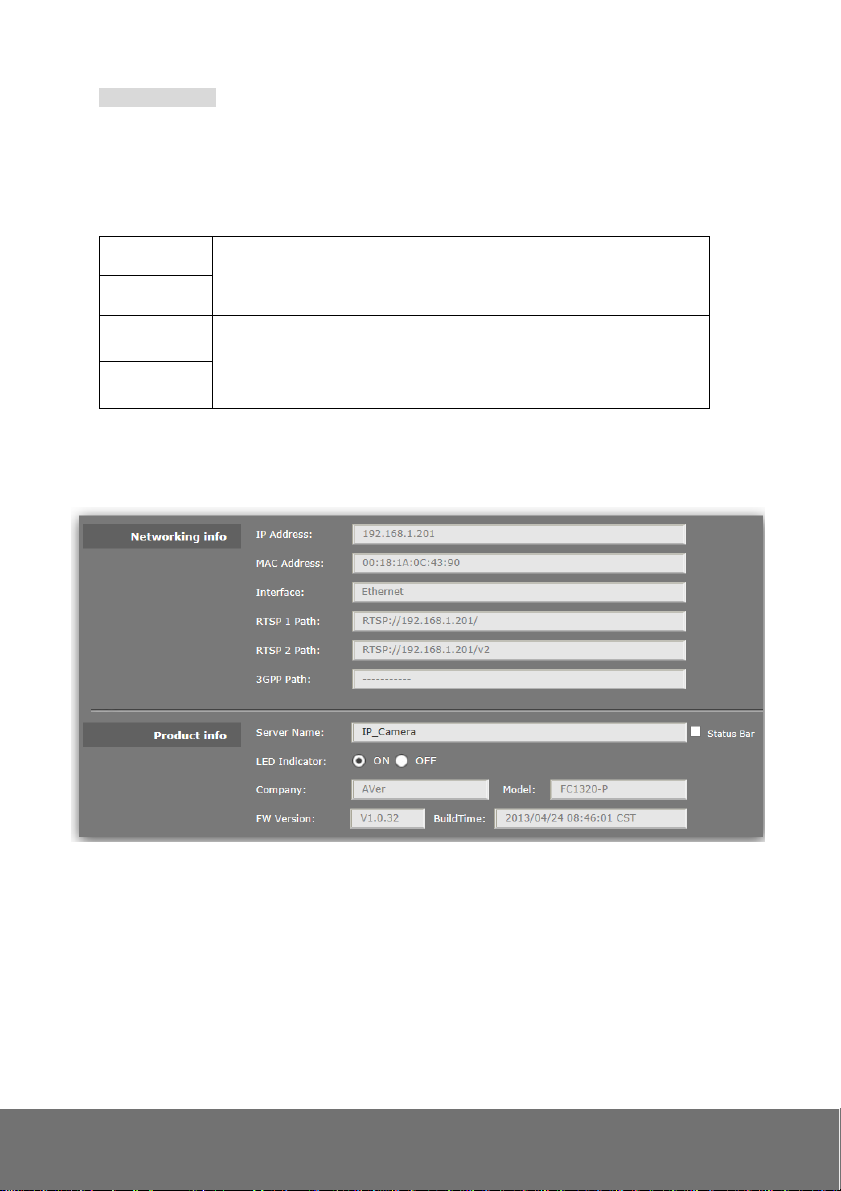

STATUS INFORMATION ....................................................................................................... 66
NETWORK CONFIGURATION .......................................................................................... 67

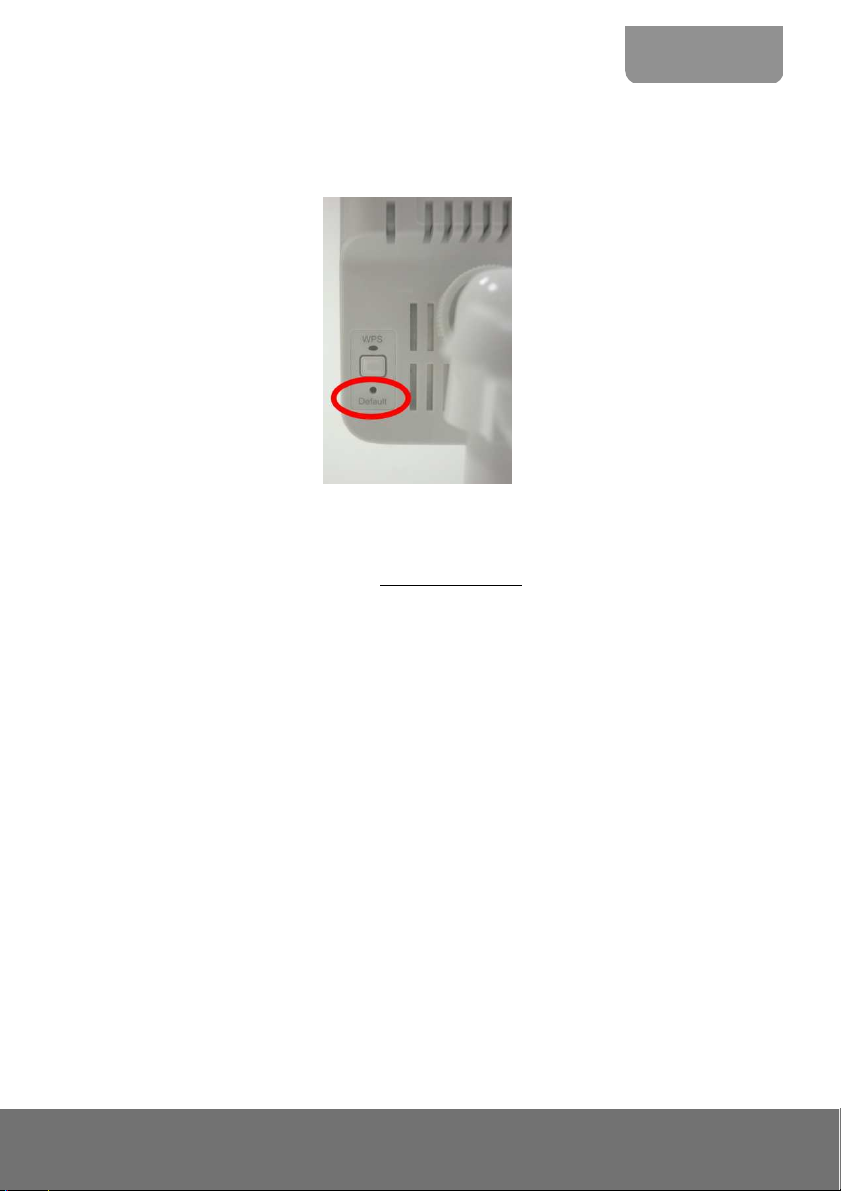

FACTORY DEFAULT ......................................................................................................... 69
TROUBLESHOOTING ....................................................................................................... 70
APPENDIX ......................................................................................................................... 71
COPYRIGHT ...................................................................................................................... 72
NOTICE .............................................................................................................................. 72
WARNING .......................................................................................................................... 72
GOVERNING LAW AND YOUR RIGHTS .......................................................................... 74
ENGLISH
Preface
The FC1320-P and FC1320-PW are compact cube cameras for indoor use with two-way audio
communication. It has the added security of a Micro SD based local backup capacity ensuring that
images of events also save locally when the alarm is triggered or the network is down. This compact
camera offers HD720p resolution and advanced features including intelligent motion detection and
privacy masking. The 1.3-megapixel H.264 FC1320-P/PW camera can truly provide your system with
good quality, discreet indoor surveillance.
Product Specifications
1.3M-pixel cube camera
HD Definition (720p) support
Built-in IR LED (distance :5 Meter) for night view
Support PIR function
Digital Wide Dynamic Range
Power over Ethernet (PoE)(FC1320-P only)

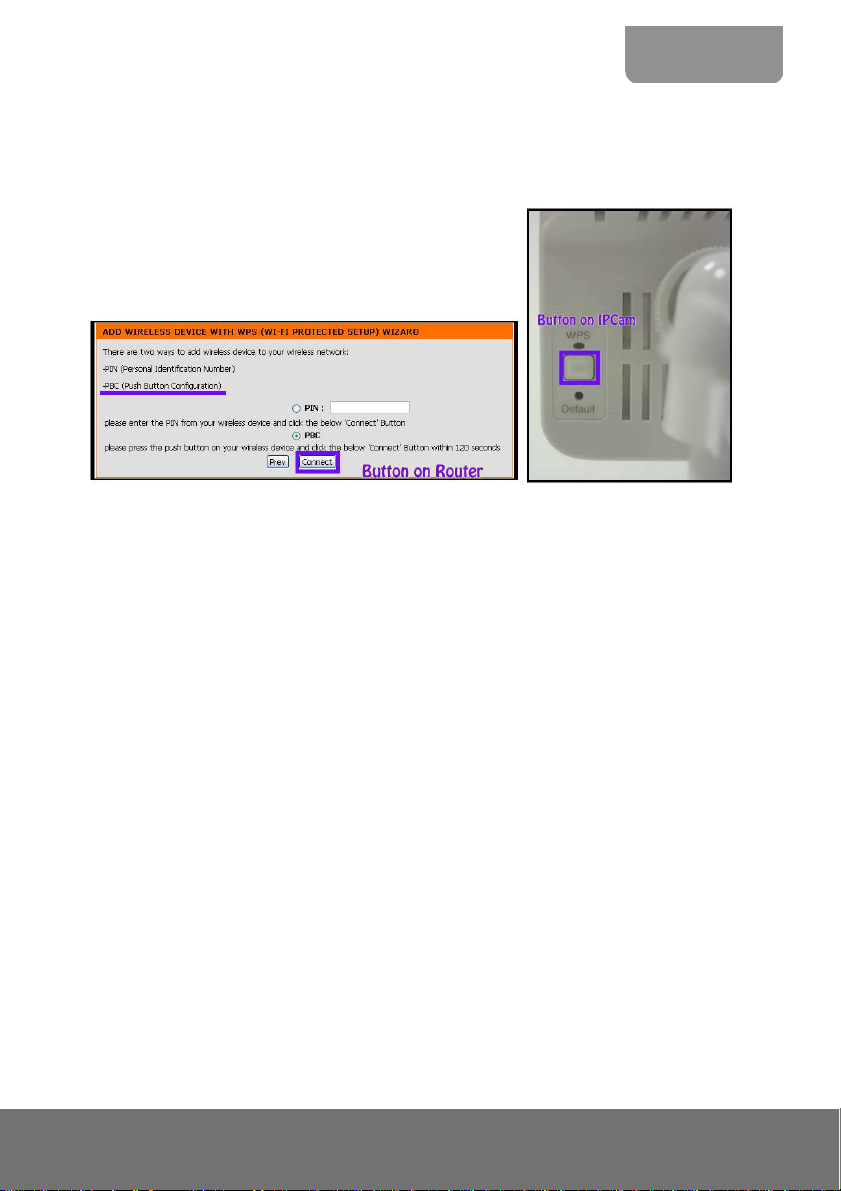

Wi-Fi protected setup(WPS) for wireless connection(FC1320-PW only)
H.264/MJPEG/MPEG-4 compression formats
microSD/SDHC card backup (SD card is not included)
2-way audio
Adjustable shutter speed
Support iPhone/ iPAD/ Android phone and PAD
Free bundled 32-CH AVer NXU Lite recording software
1
elay out
Specifications
Hardware
CPU ARM 9, 32-bit RISC
RAM 128 MB
16M
Image sensor 1/3” CMOS (1.3 Megapixel)
Lens Type 4.2mm@F1.6, Megapixel fixed lens
Shutter time 1/5~1/10,000 sec
I/O 1 Sensor in /1 R
MIC in 1
Audio Out G.711(64K) and G.726(32K,24K) audio compression
Input : MIC built-in
Output : 3.5mm phone jack, or Speaker
Support 2-way audio
IR distance 5 Meter
PIR Yes
Shutter speed 1 / 5 ~ 1 / 10,000 sec
Power Over Ethernet Yes (FC1320-P, wired model only)
Power Consumption
Dimensions 62mm x 101(mm)x 42(mm)
Operation Temperature 0°C ~ 45°C
Weight 150g (without bracket); 270g (with bracket)
Network
Ethernet 10/100 Base-T
Network Protocol
Wireless (FC1320-PW model only)
Wireless
Security WEP,WPA-PSK,WPA2-PSK
DC12V : 3.2W(IR Off), 3.6W(IR On);
PoE : 3.8W(IR Off), 4.2W(IR On)
IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP, Access
list, RTSP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP,
DDNS, NTP, UPnP, 3GPP (video only), SAMBA,
Bonjour
802.11 b/g/n
2
ENGLISH
System
Video Resolution
Video Adjust
Triple Streaming Yes
Image snapshot Yes
Full screen monitoring Yes
Privacy Mask Yes, 3 different areas
Compression format H.264/ JPEG/ MPEG-4
Video bitrate adjust CBR, VBR
Motion Detection Yes, 3 different areas
Triggered action Mail, FTP, Save to microSD/SDHC card, Relay,
Pre/ Post alarm Yes (Pre: 5 secs/ Post: 5 secs)
Security
Firmware upgrade HTTP mode, can be upgraded remotely
1280x1024@20fps, 1280x720@30fps,
640x480@30fps, 320x240@30fps, 176x144@30fps
Brightness, Contrast, Sharpness, D-WDR, Shutter
Speed, Sense-Up, AGC..etc.
SAMBA
Password protection, IP address filtering, HTTPS
encrypted data transmission, QoS/DSCP
Simultaneous connection Up to 10
Audio Yes, 2-way (mono)
MicroSD/SDHC card management
Recording trigger Motion Detection, IP Check, Network Status (wired
Connection only), Schedule,
Video format AVI, JPEG
Video playback Yes
Delete files Yes
3
Web browsing requirement
OS Windows® XP (32-bit), 7 (32/64-bit)
Microsoft® IE 6.0 or above (32-bit only)
Notes: Please enable “Compatibility View” while using
IE 10 or above.
Hardware Suggested
Mobil support iOS 5 or above, Android 1.6 or above.
*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Intel® Dual Core 2.53GHz, RAM: 1024MB, Graphics
Card: 128MB
4
PW
0.5
s Manual and Quick Guide
PW model only)
Package contents
Item Descriptions
ENGLISH
1. FC1320-P or FC1320-
2. Bracket
3. Screw pack
4. Power Adaptor(DC 12V/
5. CD (User’
software included)
6. Antenna (FC1320-
A) (Optional)
, NVR
5
Product Installation
Monitor Setting
1. Right-click on the desktop. Select “ Properties”
2. Change “Color quality” to “Highest (32-bit)”.
6
ENGLISH
Hardware Installation and I/O Pin Assignment
1. Install with bracket
Please refer to the picture for camera installation. Use the screws to lock the bracket to the wall or
ceiling, and then connect the camera to the bracket. There’s a knob on the back of the bracket.
Loosen the knob and you can adjust the angle of camera. Tighten it to fix the angle.
For FC1320-PW wireless model, please install antenna.
7
2. Connector Instruction
The camera connectors are as below. Connect the power and the Ethernet cable with the camera,
and set it according to your network environment.
3. I/O Configuration
I/O Connection
a. Please connect the G & DO pin to the external relay (buzzer) device
When no event happens, DO output is 5V (DO and GND are disconnected). When the camera
detects event happening and triggers external alarm, DO output is 0V (DO and GND are
connected).
8
b. Please connect the G & DI pin to the external trigger device.
If you select "N.O" in "Input sensor setting", when external devise or circuit makes DI and GND
pin connected, the camera input alarm is triggered, and then camera will execute the action
user has set, for example, send snapshot to E-mail address.
If you select "N.C" in "Input sensor setting", when external devise or circuit makes DI and GND
pin disconnected, the camera input alarm is triggered, and then camera will execute the action
user has set, for example, send snapshot to E-mail address.
ENGLISH
9
Power Over Ethernet (PoE)
Set up the IP camera through Power over Ethernet (PoE). PoE is a technology that integrates power
into a standard LAN infrastructure. It enables power to be provided to the network device, such as an
IP camera, using the same cable as that used for network connection. It eliminates the need for power
outlets at the camera locations.
[Note]
1. FC1320-PW wireless model doesn’t support PoE
2. 802.3at, 30W PoE Switch is recommended.
Ethernet
PoE IP Camera
PoE Switch
10
Ethernet Cable
Ethernet Cable
PoE IP Camera
ENGLISH
IP Assignment
There are two ways to find IP Camera:
− Finding IP Camera by using “NXU Lite recording software”
− Finding IP Camera by using “AVer IPCam Utility”
Finding IP Camera by using “NXU Lite recording software”
1. The NXU Lite software is in the attached software CD. Before launching it, please install the
software first. During the installing process, users will be required to input a User name and
Password for login NXU Lite system. Users can define the User name and Password as wishes.
Please refer to NXU Lite user manual for detailed installation instruction.
2. To run the application, double-click on your PC desktop or click Start > Programs > DVR >
NXU Lite. For security purpose, some of the features would require you to enter User name and
Password before it can be accessed. When the Authorization dialog box appears, key in your User
ID and Password. (If this is the first time, enter the one you have registered when installing the
software.
Click it to call out virtual
keyboard.
11
3. Click “Setup” button.
4. Click “Add IPCam” button.
5. Select “IP Camera” item.
12
6. Enter IP Camera’s ID and Password (default is admin/admin) and click “Auto Search” to find
camera.
7. In Search Result window, click it the IP camera model that user has purchased (Please ignore
ONVIF connection item); the camera is in red text that is configurable. User can double-click on
the camera is in red text and configure the IP camera’s setting; even the IP camera is not in the
same IP segment. Press “OK” to back to previous screen and press ”Connect” to start live view.
Double-click the IP camera
model that user has
purchased (ex: FC1320-P).
ENGLISH
Please ignore ONVIF
protocol selection; NXU Lite
doesn’t support ONVIF
connection.
13
Finding IP Camera by using “AVer IPCam Utility”
1. Use the software, “AVer IPCam Utility” to assign the IP address of the IP camera. The software is
in the attached software CD.
2. Run the IPCam Utility
3. Select the proper network adapter and click [Search] to begin searching.
4. Select and double click the IP camera you want to access. If you want to change the setting of the
selected IP camera, enter the user ID, correct password, and change the settings and then click
Apply button. This will change the setting and rescan the network again.
14
5. The IE browser will open and direct you to IP camera login page. This requires IPViewer.ocx to run.
If the IE ActiveX warning message appears, click to allow running the add-on.
[Note]
The default IP address is: 192.168.1.168
The default ID and Password are both ”admin”.
It is not allowed to enter device name in Chinese and any other special characters (' " \ & ^).
Gateway number can’t be “0”.
IP camera device name should be less than 30 digits
ENGLISH
15
Using NON-DHCP Server/Router Network
In Non-DHCP server/router network, the static IP address must be assigned to the device each time
when adding another IP camera to the network; the default IP address of the current one must be
changed to avoid conflict.
Please make sure the Subnet of the PC’s IP address and the IP camera’s IP address are the same.
[Example]
The same Subnet:
IP camera IP address: 192.168.1.168
PC IP address: 192.168.1.100
Different Subnets:
IP camera IP address: 192.168.1.168
PC IP address: 192.168.2.100
To Change PC IP Address:
Control PanelNetwork Connections Local Area Connection Properties Internet
Protocol (TCP/IP) Properties
Please make sure your IP camera and PC have the same Subnet. If not, please change IP
camera subnet or PC IP subnet accordingly.
PC’s IP address:
16
IP camera IP addresses:
A quick way to access remote monitoring is to double-click on a selected IP camera in “Camera Name
list” in AVer IPCam Utility. Then, the IE browser will open and connect to IP camera.
Then, please key in the default “ID” and “Password”, both of which are “admin”.
ENGLISH
Notes: Please enable “Compatibility View” while using IE 10 or above.
17
Install ActiveX Control
The first time you attempt to view the camera video via Internet Explorer, it will ask you to install the
ActiveX component.
If the installation fails, please check the security settings for the Internet Explorer browser.
1. IE Tools Internet Options… Security Tab Custom Level… Security Settings
Download unsigned ActiveX controls Select “Enable” or Prompt.
2. IE Tools Internet Options… Security Tab Custom Level… Initialize and script ActiveX
controls not marked as safe Select “Enable” or Prompt.
1 2
3 4
18
Loading...
