Federal Communications Commission Statement(Class A)
NOTE- This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by tuning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Class A ITE:
Class A ITE is a category of all other ITE which satisfies the class A ITE limits but not the class B ITE limits.
Such equipment should not be restricted in its sale but the following warning shall be included in the
instructions for use:
Warning - This is a class A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
CE Class A (EMC)
interference in which case the user may be required to take adequate measures to correct this interference.
DISCLAIMER
No warranty or representation, either expressed or implied, is made with respect to the contents of this
documentation, its quality, performance, merchantability, or fitness for a particular purpose. Information
presented in this documentation has been carefully checked for reliability; however, no responsibility is
assumed for inaccuracies. The information contained in this documentation is subject to change without
notice.
In no event will AVer be liable for direct, indirect, special, incidental, or consequential damages arising out of
the use or inability to use this product or documentation, even if advised of the possibility of such damages.
TRADEMARKS
AVerVision is registered trademarks of AVer Information Inc. IBM PC is a registered trademark of
International Business Machines Corporation. Macintosh is a registered trademark of Apple Computer, Inc.
Microsoft is a registered trademark and Windows is a trademark of Microsoft Corporation. All other products
or corporate names mentioned in this documentation are for identification and explanation purposes only,
and may be trademarks or registered trademarks of their respective owners.
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form by any means without the written permission of AVer Information Inc.
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
This product is herewith confirmed to comply with the requirements set out in the Council
Directives on the Approximation of the laws of the Member States relating to Electromagnetic
Compatibility Directive 2004/108/EEC.
Warning - This is a Class A product. In a domestic environment this product may cause radio
ENGLISH
THE MARK OF CROSSED-OUT WHEELED BIN INDICATES THAT THIS PRODUCT
MUST NOT BE DISPOSED OF WITH YOUR OTHER HOUSEHOLD WASTE.
INSTEAD, YOU NEED TO DISPOSE OF THE WASTE EQUIPMENT BY HANDING IT
OVER TO A DESIGNATED COLLECTION POINT FOR THE RECYCLING OF WASTE
ELECTRICAL AND ELECTRONIC EQUIPMENT. FOR MORE INFORMATION ABOUT
WHERE TO DROP OFF YOUR WASTE EQUIPMENT FOR RECYCLING, PLEASE
CONTACT YOUR HOUSEHOLD WASTE DISPOSAL SERVICE OR THE SHOP
WHERE YOU PURCHASED THE PRODUCT.
Remote Control Battery Safety Information
- Store batteries in any cool & dry place.
- Do not dispose used batteries in domestic waste. Dispose batteries at special collection points
or return to stores if applies.
- Remove the batteries if they are not in use for long period of time. Battery leakage and
corrosion can damage the remote control, dispose batteries safely.
- Do not mix and use old and new batteries.
- Do not mix and use different types of batteries: alkaline, standard (carbon-zinc) or rechargeable
(nickel-cadmium).
- Do not dispose batteries in a fire.
- Do not attempt to short circuit the battery terminals.
(3) LED light Provide light to enhance the lighting condition.
(4) Flexible arm Provide adjustable viewing coverage.
(5) Left panel
(6) Control panel Easy access to various functions.
(7) IR sensor Receive remote control commands.
(8) Rear panel
(9) Right panel
Connections for microphone, speaker, USB flash drive/USB mouse,
and USB switch.
Connections for power, computer, RGB/RCA external display device,
RS-232, and USB to PC.
Connections for the camera head holder, SD card, TV-RGB display
output switch, and antitheft Kensington security lock compatible slot.
Right Panel
(2)
(5)
(6)
(7)
(8)
(9)
(fig. 1.1)
(3)
(1)
Name Function
(1) Camera Holder Hold the camera head for storage.
(2) SD card slot Insert the SD card with the label facing up.
(3) TV-RGB switch
(4) Antitheft Slot
TV switch to output display video from RS232/CVBS (via RCA
connection), and RGB to RGB OUT port.
Attach a Kensington compatible security lock or antitheft device.
2
(4)
(fig. 1.2)
Rear Panel
ENGLISH
(1)
Name Function

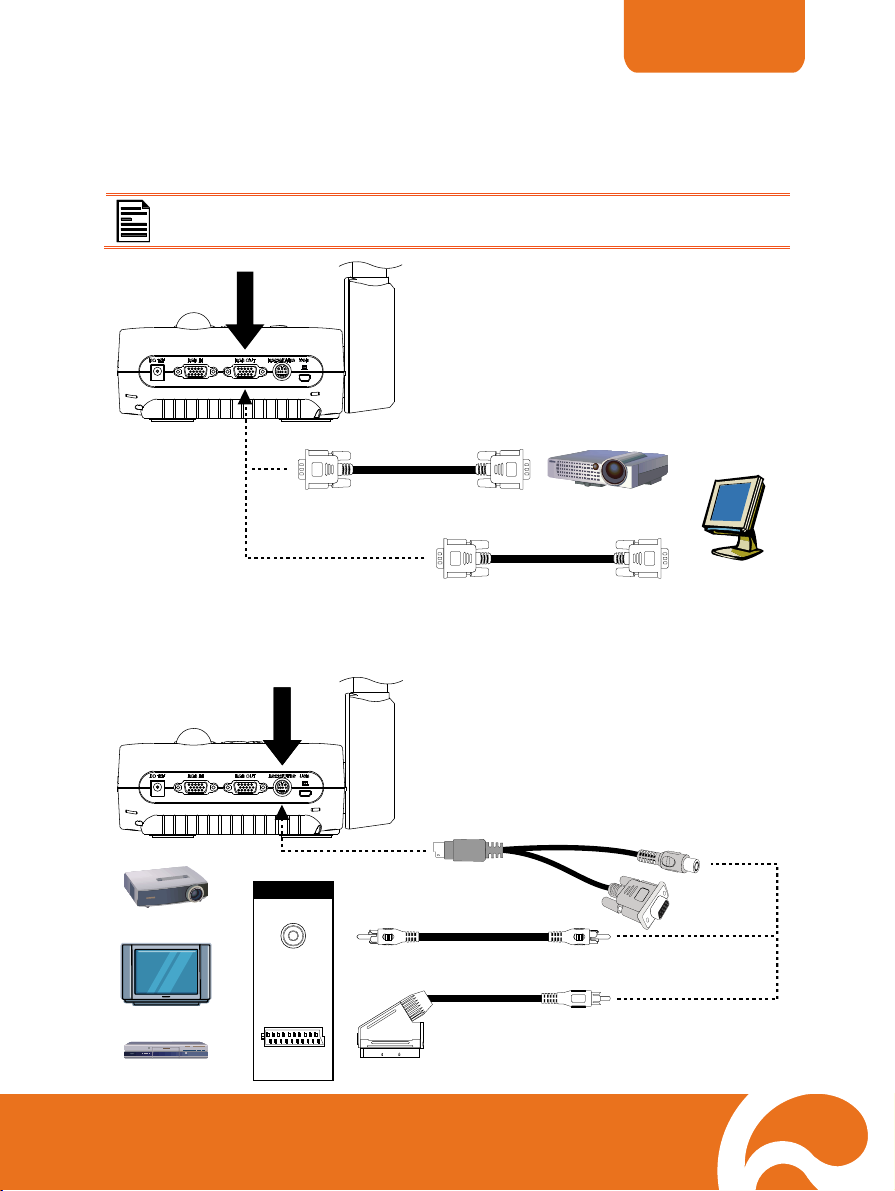

(1) DC12V
(2) RGB INPUT port
(3) RGB OUTPUT port
(4) RS-232/CVBS port
(5) Mini USB port
Connect the power adapter into this port.
Input the signal from a computer or other sources and pass it
through to the RGB OUT port only. Connect this port to the
RGB/VGA output port of a computer or other sources.
Connect the AVerVision F30 to any display device with RGB
cable.
Connect the supplied RS-232/CVBS cable into this port. The
RCA jack outputs the video signal from the camera to a TV or
video equipment. The RS-232 jack is used to connect to
computer serial port or to any control panel or for centralized
control if desired.
Connect to a USB port of a computer with a USB cable and use
AVerVision F30 as a USB camera or transfer the captured
images from the memory source to computer.
Left Panel
(1)
(2)
(3)
(4)
Name Function
(1) Speaker port
(2) MIC port
(3) USB port
(4) USB switch
Connect to an amplified speaker to playback recorded audio &
video clip.
Connect a 3.5mm plug microphone. The built-in mic will be
disabled when an external MIC is connected to this port.
Insert a USB flash drive to save the captured images or recorded
video directly from the USB flash drive.
Switch to
recording directly to the USB flash drive; and
AVerVision F30 to a computer using a USB cable from the rear
USB port.
(5)
(4)(2)
(3)
(fig. 1.3)
(fig. 1.4)
for saving the captured image and audio video
when connecting
3
Control Panel
ENGLISH
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
Name Function
(1) POWER
(2) OUTPUT LED
Turn the unit on/standby mode.
Indicate TV-RGB switch selection to show which port the video signal
is sent out.
TV indicates that the video signal is sent out thru RS232/CVBS
port via RCA connection.
RGB indicates the video signal is sent out thru RGB OUT port.
(3) RECORDING
Start/Stop audio & video recording. Audio and video recording can be
saved on a SD card or an USB Flash drive only. See External
Memory Storage.
(4) USB Switch LED
Indicate the USB switch selection to show which USB port is
activated.
allowing you to use the AVerVision F30 as USB camera or
transfer the captured images from the memory source to computer.
(5) Shuttle Wheel
allowing you to save the images/video in the USB flash drive.
- Turn the shuttle wheel clockwise to zoom in and counter-clockwise
to zoom out the image in Camera and Playback mode only.
When it reaches the AVerZoom of 200%, you can still continue to
zoom in up to 8X digital zoom.
- Press the shuttle wheel ▲,▼,◄, &► to pan the image while in
zoom in mode, to make a selection on 16-thumbnail images or
move to the next or previous single full screen preview in Playback
mode, or to make a selection and adjustment on the OSD mainmenu and sub-menu (See Menu Functions for more details).
- Use ▲&▼ to increase and decrease the video playback volume.
- Use ◄&► to play the video backward and forward.
- Move the Spotlight frame and Visor screen cover.
OUTPUT
RGB
TV
POWERRECORDINGPLAYBACKCAMERA / PC
MENU FREEZE ROTATECAP /DELLAMP
AUTO FOCUS
(10)
(11)
(12)
(13)
(14)
(15)
(fig. 1.5)
4
ENGLISH
Name Function
(6)
(7) FREEZE
(8) MENU
(9) ROTATE
(10) CAMERA / PC
(11) PLAYBACK
(12) AUTO FOCUS
(13) LAMP
(14) CAP/DEL
(15) Built-in MIC
- Make a selection in Playback mode and OSD menu.
- Start/Pause video playback.
- Pause or resume image display in Camera mode.
- Stop audio & video playback in Playback mode.
Open and exit the OSD menu.
Turn the image by 90° in Camera and Playback mode.
Switch the video signal between camera or computer from the RGB
IN port.
View & playback captured still images and video files.
Adjust the focus automatically.
Turn the overhead light on/off.
- Capture picture in Camera mode. In continuous capture mode,
press this button again to stop.
- Delete the selected picture/video in Playback mode.
Record audio when recording video clip. The recorded sound will be
in monophonic.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
OUTPUT
RGB
TV
POWERRECORDINGPLAYBACKCAMERA / PC
MENU FREEZE ROTATECAP /DELLAMP
AUTO FOCUS
(10)
(11)
(12)
(13)
(14)
(15)
(fig. 1.5)
5
ENGLISH
.
Remote Control
The remote control requires two (2) “AAA” size batteries (supplied), make sure batteries
are installed properly before use. You can access all the features of AVerVision F30 with
the remote.
(1)
(26)
(25)
(24)
(23)
(22)
(21)
(20)
(19)
(18)
(17)
RM-NM
Name Function
(1) POWER Turn the unit on/standby.
(2)
(3)
(2) CAMERA / PC Switch between Camera and computer
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(3) PLAYBACK View the captured picture/video from
(11)
(12)
(13)
(4) SPOTLIGHT Call the Spotlight submenu. Spotlight
(14)
(15)
(16)
mode.
- Camera mode displays the video
signal from the built-in camera.
- PC mode displays the video signal
from the RGB INPUT port of F30.
the memory in 16-thumbnail images.
overlays a box frame on the presentation
screen. You can adjust the box size and
move it around.
In the Spotlight submenu, the following
options are available.
(fig. 1.6)
ON/OFF – select to run/cancel the
Spotlight. Press
selection.
Shade – set the opacity level of the area
outside the box. The shaded area will
completely turns black when it is set to
level 100. Press
selection.
Color – select the Spotlight frame color.
Press
OK – press
effect. If you select ON, the frame will
appear and blink, use the ▲,▼,◄, & ►
buttons to adjust the frame size and
press
OFF will close the submenu.
To turn off Spotlight, press
to move to the next selection.
to set the desired size; and
to move to the next
to move to the next
for the setting to take
again.
6
(1)
(26)
(25)
(24)
(23)
(22)
(21)
(20)
(19)
(18)
(17)
RM-NM
(fig. 1.6)
Name Function
(2)
(5) VISOR Call the Visor submenu. Visor covers
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
part of the presentation screen and allow
presenter to reveal the material as
desire.
In the Visor submenu, the following
options are available.
ON/OFF – select to run/cancel the Visor.
Press
to move to the next selection.
Shade – set the opacity level of the
covered area. The shaded area will
completely turns black when it is set to
level 100. Press
selection.
OK – press
for the setting to take
effect. If you select ON, upper part of the
presentation screen is slightly exposed.
Use the ▲,▼,◄, & ► buttons to reveal
more of the covered area; and OFF will
close the submenu.
To turn off Visor, press
(6) SPLIT
SCREEN
Divide the screen into two. One side
displays the live image from the built-in
camera and the other side displays 8thumbnail size picture/video from the
memory.
(7) PIP Show a thumbnail size captured
picture/video from the memory at the
corner of the screen in Camera mode.
(8) SLIDE SHOW Start/Stop automatically showing the
captured picture/video one-by-one.
(9) TIMER Call the Timer
submenu.
Select to
Start/Pause/St
op the timer
countdown
and set the
timer duration.
7
ENGLISH
to move to the next
again.
ENGLISH
(1)
(26)
(25)
(24)
(23)
(22)
(21)
(20)
(19)
(18)
(17)
RM-NM
(fig. 1.6)
Name Function
(2)
(10) CAPTURE Capture still image in Camera mode. In
(3)
(4)
(5)
(6)
(11) RECORDING Start/Stop audio & video recording.
(7)
(8)
(9)
(10)
(12) DEL Delete the selected picture/video in
(11)
(12)
(13)
(13) AUTO IMAGE Automatically adjust and set the white
(14)
(14) BRIGHTNESS
(15)
(16)
+/-
(15) DEFAULT Reset at factory default setting.
(16) NEAR / FAR Adjust the focus manually.
(17) ZOOM
RESET
(18) ZOOM +/- - Increase/decrease the image
(19)
(20) ▲,▼,◄, & ►- Pan the image when image is above
(21) MENU Open and exit the OSD menu.
(22) AUTO
FOCUS
(23) FREEZE /
STOP
(24) ROTATE Rotate the image by 90° in Camera
continuous capture mode, press this
button again to stop.
Video recording can only be saved
either in a SD memory card or a USB
flash drive.
Playback mode.
balance and exposure setting.
Adjust the brightness.
Reset zoom level to 100%.
magnification in camera and picture
playback mode.
- Use to easily page up and page down
16-thumbnail picture preview.
- Make a selection in Playback mode
and OSD menu.
- Play/Pause video playback.
10X zoom in live mode or in playback
captured image mode.
- Move the selection in Playback mode
and in OSD menu.
- Use ▲&▼ to increase and decrease
the video playback volume.
- Use ◄ &► to play the video backward
and forward.
- Move the Spotlight frame and Visor
screen cover.
Adjust the focus automatically.
- Freeze live images.
- Stop video playback.
mode and Playback mode.
8
ENGLISH
(1)
(26)
(25)
(24)
(23)
(22)
(21)
(20)
(19)
(18)
(17)
RM-NM
Name Function
(2)
(25) MODE Select from 4 type of modes:
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(26) LAMP Turn the overhead light on/off.
(16)
Sharp - adjust the contrast along
the edges making text appear more
visible.
Graphics - adjust the gradient of
image.
Motion - increase frame rate.
Sufficient lighting is required when
using this mode.
Microscope - automatically adjust
to the optimum zoom level for
microscopic viewing.
(fig. 1.6)
MMaakkiinngg tthhee CCoonnnneeccttiioonnss
Before making the connection, make sure the power of all devices are turned off. If you
are not sure on where to connect, simply follow the illustrated connections below and also
refer to the user manual of the device you are connecting the AVerVision F30 with.
The TV-RGB switch determines the display output selection. Switch it to RGB (right) to
output signal using RGB connection and TV (left) to output signal using RCA connection.
(see fig. 1.2 # 3)
Switch AVerVision Port Display Device Port
RGB
TV
RGB OUTPUT
RS232/CVBS
(use RS-232/CVBS cable)
To
RGB INPUT
VIDEO IN
9
ENGLISH
CCoonnnneecctt ttoo aa MMoonniittoorr oorr LLCCDD//DDLLPP PPrroojjeeccttoorr
Locate the RGB (VGA) input port of the graphics display device and connect it to RGB
OUT port of AVERVISION F30.
Make sure the TV/RGB switch is set to RGB.
RGB cable
CCoonnnneecctt ttoo aa TTVV
Locate the VIDEO or SCART RGB (if applicable) input port of the TV or Video equipment
(i.e., VCR) to record your presentation and connect it to RCA jack of RS-232/CVBS cable.
LCD/DLP projector
RGB cable
LCD monitor
Projector
Television
VCR
INPUT
VIDEO
SCART
RS-232/CVBS cable
RCA cable
RCA to SCART cable
(not supplied)
10
ENGLISH
CCoonnnneeccttiinngg tthhee PPoowweerr
Connect the power adapter to a standard 100V~240V AC power outlet. The unit
automatically in standby mode once the power is connected. Press to turn on.
Power adapter
Wall outlet
CCoonnnneecctt ttoo aa CCoommppuutteerr
Locate the RGB (VGA) output port of the computer or laptop and connect it to RGB IN port
of AVerVision F30. The video signal from the RGB IN port is streamed to RGB OUT port.
- To display computer image, press Camera/PC button on the control panel
or remote control to switch AVerVision F30 to computer mode.
- For laptop to output display image, use the keyboard command (FN+F5)
to switch between the display modes. For different command, please refer
to your laptop manual.
RGB cable
Desktop
Laptop
11
B
CCoonnnneecctt ttoo aa CCoommppuutteerr vviiaa UUSSB
1. Set the USB switch on the left panel to
and the LED on the control panel will
light up. This
F30 as a USB Camera or to transfer the
captured pictures from the memory source and
to computer. Als o see “Trans fer F ile f rom
AVerVision F30 to PC”.
2.
Locate the USB port of the computer or laptop and connect it to PC port of
Plug a 3.5mm mono microphone to port. The built-in microphone on the control panel
will be disabled when an external microphone is connected. The recorded audio will be in
monophonic sound.
Plug a 3.5mm plug amplified speaker toport. Only the audio from the video playback is
supported.
We recommend connecting an amplified speaker to the Audio output port.
Take caution when using earphones. Adjust the volume down on the
remote to prevent hearing damage due to loudness.
Amplified Speaker
CCoonnnneecctt ttoo aa MMiiccrroossccooppee
Connect the AVerVision F30 to a microscope enables you to examine microscopic objects
on a big screen.
1. Change the image display mode to
Microscope. Press MENU > select
IMAGE tab > select MODE > select
(microscope) and press
2. Aim the camera head at the farthest
point and press AUTO FOCUS.
3. Adjust the focus of the microscope.
.
13
ENGLISH
4. Select the appropriate rubber coupler
size for the microscope eyepiece and
insert it in the microscope adapter.
5. Remove the microscope eyepiece from
the microscope and connect it to the
microscope adapter with the rubber
coupler inserted. Fasten the 3 bolts until
the adapter secures the eyepiece.
For the eyepiece, we suggest using
15.5mm eye relief or higher.
6. Attach the microscope adapter to the
AVerVision camera head. Then connect
it to the AVerVision and microscope.
Make sure the arrow on the camera
head and microscope adapter are on
the same side to connect and twist
clockwise for the arrows to meet and
lock.
0
SSeettttiinngg UUpp AAVVeerrVViissiioonn FF330
This section provides useful tips on how to adjust the AVerVision F30 to meet your needs.
Microscope
Microscope
Adapter
Microscope
eyepiece
SSttoorriinngg aanndd HHaannddlliinngg
The gooseneck design allows you to freely bend the arm and store the camera head in the
camera holder. Once you have properly secured the camera head to the camera holder,
you may use the arm to carry AVerVision F30.
14
ENGLISH

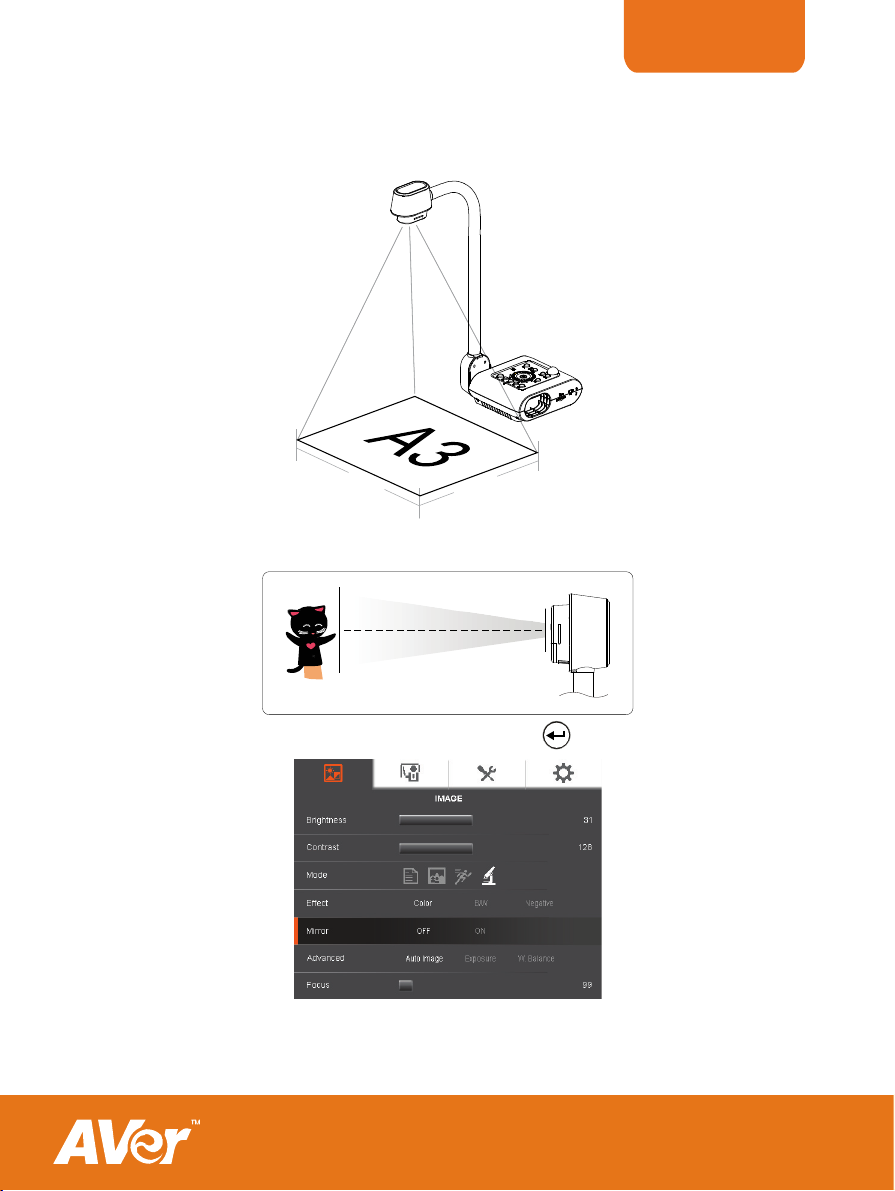

SShhoooottiinngg AArreeaa
The shooting area can view an area of 420x297mm which allows you to show an A3
size landscape paper.
4
2
0
m
m
m
m
7
9
2
If the camera head is in upright position, press ROTATE on the control panel or remote
control twice to rotate the image in 180°.
To mirror the image, press MENU > select Mirror, press , and select On.
15
ENGLISH
O
OOvveerrhheeaadd LLiigghhtt
O
vveerrhheeaadd LLiigghhtt
Press LAMP button on the control panel or remote control to turn on and off light. Press LAMP button on the control panel or remote control to turn on and off light.
IInnffrraarreedd SSeennssoorr
Aim the remote control at the infrared sensor to operate the unit.
AAnnttii--ggllaarree SShheeeett
The anti-glare sheet is a special coated film that helps eliminate any
glare that maybe encountered while displaying very shiny objects or
glossy surfaces such as magazines and pictures. To use, simply
place the anti-glare sheet on top of the shiny document to reduce
reflected light.
16
ENGLISH
EExxtteerrnnaall MMeemmoorryy SSttoorraaggee
AVerVision F30 supports both SD memory card and USB flash drive for more image
capture and audio & video recordings. AVerVision F30 can detect when there is an
external storage media and automatically switch to the last detected storage. If no
external storage is connected, all captured still images will be saved in the built-in memory.
IInnsseerrtt aann SSDD CCaarrdd
Insert the card with the contact facing down until it reaches the end. To remove
the card, push to eject and pull the card out. The supported SD card capacity is
from 1GB to 32GB (FAT32). We recommend using SDHC card with class-6 or
above for high quality recording.
SD Card
IInnsseerrtt aa UUSSBB FFllaasshh DDrriivvee
1. Set the USB switch on the left panel
. AVerVision F30 will then
to
detect the USB flash drive and the
LED on the control panel will
light up.
2. Connect the USB flash drive in the USB slot. AVerVision F30 can support
USB flash drive from 2GB to 64GB (FAT32). Best to format the USB flash drive using AVerVision F30 for better video recording.
USB Flash Drive
17
ENGLISH
OOSSDD MMEENNUU
There are 4 tabs on the OSD menu: IMAGE, PRESENTATION, SETTING and SYSTEM.
In Playback mode, you can access PLAYBACK OSD menu to enable the Slide Show
feature and modify Slide Show interval and transition setting if desire.
For TV output, the RESOLUTION will be disabled in SETTING menu list.
1. Press MENU button on the remote or control
panel.
2. Press ► and ◄ to toggle between tabs
3. Press ▼ and ▲ to choose a selection in the
menu list.
ENGLISH
4. Press
5. Use ► and ◄ to adjust the setting or make a
6. Press
7. Press MENU to close the OSD menu.
IImmaaggee
Menu Screen Function
Brightness
Adjust brightness level manually between 0 and 63.
Contrast
Adjust the contrast level manually between 0 and 255
under bright and dark environments.
to make a selection.
selection.
to enter submenu.
19
Menu Screen Function
Mode
Select from the various image display settings.
Sharp - adjust the contrast along the edges making
text appear more visible.
Graphics - adjust the gradient of image.
Motion - increase frame rate. Sufficient lighting is
required when using this mode.
Microscope - automatically adjust to the optimum
zoom level for microscopic viewing.
Effect
Convert the image into positive (true color), monochrome
(black and white) or negative.
Mirror
Select to flip the image in Camera mode.
ENGLISH
Advanced
Select to set the Auto Image, Exposure, and White
Balance settings.
20
Menu Screen Function
Auto Image
Select ON or OFF to automatically adjust the white
balance and exposure setting, and correct the color and
exposure compensation.
This will also set the lamp to automatically turn on when
the light is not enough for the camera to adjust the focus.
Exposure
Select the exposure setting.
AUTO - automatically adjust the camera exposure and
the amount of light required.
MANUAL - manually adjust the exposure level. The
exposure can be adjusted up to 100.
White Balance
Select the White Balance setting for various light
conditions or color temperature.
AUTO - automatically adjust the white balance.
MANUAL
The color level can be adjusted up to 255.
ENGLISH
- manually adjust the red and blue color level.
Focus
Manually adjust the focus.
21
ENGLISH
PPrreesseennttaattiioonn
Menu Screen Function
Spotlight
Spotlight overlays a frame on the presentation screen.
You can move the Spotlight around the presentation
screen using the ▲,▼,◄, & ► buttons. Select Execute
to call the Spotlight submenu.
In the Spotlight submenu, the following options are available.
ON/OFF – select to run/cancel the Spotlight. Press to
move to the next selection.
Shade – set the opacity level of the area outside the box.
The shaded area will completely turns black when it is set
to level 100. Press
Color – select the Spotlight frame color. Press to
move to the next selection.
OK – press
ON, the frame will appear and blink, use the ▲,▼,◄, &
► buttons to adjust the frame size and press
the desired size; and OFF will close the submenu.
Visor
Visor covers the presentation
screen. The upper part of the
presentation screen is slightly
exposed. Use the ▲,▼,◄, & ►
buttons to reveal more of the
covered area. Select Execute to call
the Visor submenu.
to move to the next selection.
for the setting to take effect. If you select
to set
22
Menu Screen Function
In the Visor submenu, the following options are available.
ENGLISH
ON/OFF – select to run/cancel the Visor. Press to move to
the next selection.
Shade – set the opacity level of the covered area. The shaded
area will completely turns black when it is set to level 100. Press
to move to the next selection.
OK – press
upper part of the presentation screen is slightly exposed. Use the
▲,▼,◄, & ► buttons to reveal more of the covered area; and
OFF will close the submenu.
for the setting to take effect. If you select ON,
PIP
Select the thumbnail playback screen location and show
the thumbnail playback screen at the corner of the
screen to recall the captured image from the memory in
Camera mode. Select OFF to cancel PIP.
Lower Left
Upper Left
Upper Right
Lower Right
Split Screen
Divide the screen into two parts. Half of the screen
displays the 8-thumbnail images and the other half
display the image from the AVerVision F30 camera.
Select the display location of the 8- thumbnail playback
images. Select OFF to cancel Split Screen.
Left
Top Below
23
Right
Menu Screen Function
Timer
Start/Pause/Stop the timer and set the timer duration.
The timer automatically counts up after the count down
reaches zero to show the elapsed time. Even when you
switch between Playback, PC or Camera modes, the
timer will continue.
ENGLISH
SSeettttiinngg
Menu Screen Function
Capture
Select to set the capture resolution, quality, type and
interval settings.
Resolution
Select the capture size. In 3M setting, the capture
resolution size is 2592 X 1944.
Quality
Select the capture compression setting.
24
Menu Screen Function
Type
Select the capture type.
Single - capture one picture only.
Continuous - capture successive pictures.
Interval
Set the time interval for continuous capture. The length
can be set up to 600 sec (10 min).
Recording
Select the video recording compression setting.
ENGLISH
Storage
Change the storage location. Audio & video recording
can only be saved in SD memory card or USB flash
drive.
Format
Format to delete all the data in the selected memory.
25
Menu Screen Function
USB to PC
Select the status of the AVerVision F30 when it is
connected to the computer via USB. Make sure the USB
switch on the left panel is set to .
Camera - can be used as a computer webcam or with
our bundled software to record video and capture still
image.
Storage
memory to computer hard disk.
Flicker
Select between 50Hz or 60Hz. Some display devices
cannot handle high refresh rates. The image will flicker a
couple of times as the output is switched to another
refresh rate.
ENGLISH
- transfer the captured pictures from the
SSyysstteemm
Menu Screen Function
Language
Change and select different language.
Output Display
Set the resolution to display the image on screen. This
selection will be disabled in TV output mode.
26
Menu Screen Function
Backup
Copy the image from the built-in memory to SD card or
USB flash drive.
Save Setting
Save current setting in the selected profile number. Only
effect, mode, brightness and contrast settings can be
saved.
Recall Setting
Restore the setting back to the selected profile number.
ENGLISH
Information
Display the product information.
Default
Restore all the settings into original factory default
setting.
27
k
PPllaayybbaacck
Menu Screen Function
Slide Show
Display all captured still pictures in an automated slide
show. The video file will be skipped.
Interval
Set the interval before displaying the next picture. The
length can be set up to 100 sec.
Slide Show Effect
Select the slide show transition effect.
ENGLISH
Slide image
Checker down Split Vertical Out
Wipe down
Current Storage
Select the source of the images.
Delete All
Permanently delete all the data in selected memory
source. A Warning Message will appear. Select YES to
continue and NO to stop formatting the storage.
Wipe right
Split Horizontal In
28
ENGLISH
TTrraannssffeerr CCaappttuurreedd IImmaaggeess//VViiddeeooss ttoo aa ccoommppuutteerr
This enables you to transfer the captured image from the built-in memory or SD to a
computer.
The instruction below MUST be read and followed BEFORE connecting
the USB cable.
1. Make sure to set the USB switch to for the computer to detect AVerVision
F30.
2. MUST set the USB to PC as STORAGE before connecting the USB cable.
3. When “Mass Storage Start…” appears at the lower right corner of the presentation
screen, you may now connect the USB cable.
4. Upon connecting the USB cable, the system automatically detects the new removable
disk. You can now transfer the captured image(s) from the F30 built-in memory
computer hard disk.
CVBS/RS-232 Mini-DIN Jack (use CVBS/RS-232 Adapter cable)
Composite Video RCA Jack
USB USB2.0
DC 12V Input Power Jack
MIC Phone Jack
Speaker Phone Jack
Dimension
Operating 380mm x 200mm x 525mm (+/-2mm include rubber foot)
Folded 305mm x 230mm x 77mm (+/-2mm include rubber foot)
Weight 2.5 kg (about 5.513lbs)
External Storage
Secure Digital
(SDHC)
USB Flash Drive 2GB ~ 64GB (FAT32)
1GB ~ 32GB (FAT32)
ENGLISH
30
ENGLISH
UUssiinngg tthhee RRSS--223322 IInntteerrffaaccee
AVerVision F30 can be controlled using a computer or any centralized control panel
through RS-232 connection. The command code for RS-232 is provided for the system
integrator to be able to incorporate it with the system program.
Send Device Code(1 Byte) : 0x52
Type Code(1 Byte) : 0x0B
DataLength Code(1 Byte) : 0x03
Data Code(1 Byte) : See the Command Table for reference.
Data Code(2 Byte) : See the Command Table for reference.
Data Code(3 Byte) : See the Command Table for reference.
Receive Device Code(1 Byte) : 0x53
CheckSum Code(1 Byte) : See the Command Table for reference.
Format : Start + Type + DataLength + Data + CheckSum
Example : 0x52 + 0x0B + 0x03+ 0x3 + 0x01 + 0x00 + 0x00 + 0x53 +
0: Camera Mode
1: Playback Mode
2: PC-1 Pass Through
TTrroouubblleesshhoooottiinngg
This section provides many useful tips on how to solve common problems while using the
AVerVision F30.
There is no picture on the presentation screen.
1. Check all the connectors again as shown in this manual.
2. Check the on/off switch of the display output device.
3. Verify the setting of the display output device.
4. If you are presenting from a notebook or computer through the display output device, check the
cable connection from computer RGB (VGA) output to RGB input of AVerVision F30 and make
sure AVerVision F30 is in PC Mode.
I have set up the AVerVision F30 and checked all the connections as specified in
the manual but I cannot get a picture on the preferred presentation screen.
1. Once the power is connected the unit is set to standby mode. Press the POWER button to turn on.
2. If your display output device is on TV or any analog device, please switch the TV-RGB dip switch
to TV.
The picture on the presentation screen is distorted or the image is blurry.
1. Reset all changed settings, if any, to the original manufacturer default setting. Press MENU then
go to SYSTEM > Default and select YES in the OSD menu.
2. Use the Brightness and Contrast menu functions to reduce the distortion if applicable.
3. If you discover that the image is blurry or out of focus, press the Auto Focus button on the control
panel or remote control.
37
ENGLISH
There is no computer signal on presentation screen.
1. Check all the cable connections among the display device, AVerVision F30 and your PC.
2. Connect your PC to the AVerVision F30 first before you power on your computer.
3. For notebook, repeatedly press FN+F5 to toggles between display modes and display the
computer image on the presentation screen. For different command, please refer to your laptop
manual.
The presentation screen does not show the exact desktop image on my PC or
Notebook after I toggle from Camera to PC mode.
1. Return to your PC or Notebook, place the mouse on the desktop and right click, choose
“Properties”, choose “Setting” tab, click on “2” monitor and check the box “Extend my Windows
desktop onto this monitor”.
2. Then go back one more time to your PC or Notebook and place the mouse on the desktop and
right click again.
3. This time choose “Graphics Options”, then “Output To”, then “Intel® Dual Display Clone”, and
then choose “Monitor + Notebook”.
4. After you follow these steps, you should be able to see the same desktop image on your PC or
Notebook as well as on the presentation screen.
AVerVision F30 can’t detect the inserted USB flash drive.
Make sure the USB flash drive switch is set to and check if the USB flash drive is properly
inserted.
LLiimmiitteedd WWaarrrraannttyy
For a period of time beginning on the date of purchase of the applicable product and extending as set
forth in the “Warranty Period of AVer Product Purchased” section of the warranty card, AVer
Information Inc. (“AVer”) warrants that the applicable product (“Product”) substantially conforms to
AVer’s documentation for the product and that its manufacture and components are free of defects in
material and workmanship under normal use. “You” as used in this agreement means you individually
or the business entity on whose behalf you use or install the product, as applicable. This limited
warranty extends only to You as the original purchaser. Except for the foregoing, the Product is
provided “AS IS.” In no event does AVer warrant that You will be able to operate the Product without
problems or interruptions, or that the Product is suitable for your purposes. Your exclusive remedy
and the entire liability of AVer under this paragraph shall be, at AVer’s option, the repair or
replacement of the Product with the same or a comparable product. This warranty does not apply to
(a) any Product on which the serial number has been defaced, modified, or removed, or (b) cartons,
cases, batteries, cabinets, tapes, or accessories used with this product. This warranty does not apply
to any Product that has suffered damage, deterioration or malfunction due to (a) accident, abuse,
misuse, neglect, fire, water, lightning, or other acts of nature, commercial or industrial use,
unauthorized product modification or failure to follow instructions included with the Product, (b)
misapplication of service by someone other than the manufacturer’s representative, (c) any shipment
damages (such claims must be made with the carrier), or (d) any other causes that do not relate to a
Product defect. The Warranty Period of any repaired or replaced Product shall be the longer of (a) the
original Warranty Period or (b) thirty (30) days from the date of delivery of the repaired or replaced
product.
Limitations of Warranty
AVer makes no warranties to any third party. You are responsible for all claims, damages, settlements,
expenses, and attorneys’ fees with respect to claims made against You as a result of Your use or
misuse of the Product. This warranty applies only if the Product is installed, operated, maintained,
and used in accordance with AVer specifications. Specifically, the warranties do not extend to any
failure caused by (i) accident, unusual physical, electrical, or electromagnetic stress, neglect or
misuse, (ii) fluctuations in electrical power beyond AVer specifications, (iii) use of the Product with any
accessories or options not furnished by AVer or its authorized agents, or (iv) installation, alteration, or
38
ENGLISH
repair of the Product by anyone other than AVer or its authorized agents.
Disclaimer of Warranty
EXCEPT AS EXPRESSLY PROVIDED OTHERWISE HEREIN AND TO THE MAXIMUM EXTENT
PERMITTED BY APPLICABLE LAW, AVER DISCLAIMS ALL OTHER WARRANTIES WITH
RESPECT TO THE PRODUCT, WHETHER EXPRESS, IMPLIED, STATUTORY OR OTHERWISE,
INCLUDING WITHOUT LIMITATION, SATISFACTORY QUALITY, COURSE OF DEALING, TRADE
USAGE OR PRACTICE OR THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE OR NONINFRINGEMENT OF THIRD PARTY RIGHTS.
Limitation of Liability
IN NO EVENT SHALL AVER BE LIABLE FOR INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY NATURE INCLUDING, BUT NOT LIMITED
TO, LOSS OF PROFITS, DATA, REVENUE, PRODUCTION, OR USE, BUSINESS INTERRUPTION,
OR PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES ARISING OUT OF OR IN
CONNECTION WITH THIS LIMITED WARRANTY, OR THE USE OR PERFORMANCE OF ANY
PRODUCT, WHETHER BASED ON CONTRACT OR TORT, INCLUDING NEGLIGENCE, OR ANY
OTHER LEGAL THEORY, EVEN IF AVER HAS ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. AVER’S TOTAL, AGGREGATE LIABILITY FOR DAMAGES OF ANY NATURE,
REGARDLESS OF FORM OF ACTION, SHALL IN NO EVENT EXCEED THE AMOUNT PAID BY
YOU TO AVER FOR THE SPECIFIC PRODUCT UPON WHICH LIABILITY IS BASED.
Governing Law and Your Rights
This warranty gives you specific legal rights; You may also have other rights granted under state law.
These rights vary from state to state.
For warranty period, please refer to the warranty card.
39
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
