Federal Communications Commission
Statement(Class A)
NOTE- This equipment has been tested and found to
comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to
in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by tuning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
Class A ITE:
Class A ITE is a category of all other ITE which satisfies the class A ITE
limits but not the class B ITE limits. Such equipment should not be
restricted in its sale but the following warning shall be included in the
instructions for use:
Warning - This is a class A product. In a domestic environment this
product may cause radio interference in which case the user may be
required to take adequate measures.
CE Class A (EMC)
Warning - This is a Class A product. In a domestic environment this
product may cause radio interference in which case the user may be
required to take adequate measures to correct this interference.
DISCLAIMER
No warranty or representation, either expressed or implied, is made with
respect to the contents of this documentation, its quality, performance,
merchantability, or fitness for a particular purpose. Information
presented in this documentation has been carefully checked for
reliability; however, no responsibility is assumed for inaccuracies. The
information contained in this documentation is subject to change without
notice.
In no event will AVerMedia be liable for direct, indirect, special,
incidental, or consequential damages arising out of the use or inability
to use this product or documentation, even if advised of the possibility of
such damages.
provide reasonable protection against harmful interference
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician
for help.
This product is herewith confirmed to comply with the
requirements set out in the Council Directives on the
Approximation of the laws of the Member States relating
to Electromagnetic Compatibility Directive 2004/108/EEC
.
English 繁體中文
ภาษาไทย
TRADEMARKS
AVerVision is registered trademarks of AVerMedia Information, Inc. IBM
PC is a registered trademark of International Business Machines
Corporation. Macintosh is a registered trademark of Apple Computer,
Inc. Microsoft is a registered trademark and Windows is a trademark of
Microsoft Corporation. All other products or corporate names mentioned
in this documentation are for identification and explanation purposes
only, and may be trademarks or registered trademarks of their
respective owners.
COPYRIGHT
© 2009 by AVerMedia Information, Inc. All rights reserved. No
part of this publication may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any
language in any form by any means without the written
permission of AVerMedia INFORMATION, Inc.
THE MARK OF CROSSED-OUT WHEELED BIN
INDICATES THAT THIS PRODUCT MUST NOT BE
DISPOSED OF WITH YOUR OTHER HOUSEHOLD
WASTE. INSTEAD, YOU NEED TO DISPOSE OF THE
WASTE EQUIPMENT BY HANDING IT OVER TO A
DESIGNATED COLLECTION POINT FOR THE
RECYCLING OF WASTE ELECTRICAL AND
ELECTRONIC EQUIPMENT. FOR MORE
INFORMATION ABOUT WHERE TO DROP OFF YOUR
WASTE EQUIPMENT FOR RECYCLING, PLEASE
CONTACT YOUR HOUSEHOLD WASTE DISPOSAL
SERVICE OR THE SHOP WHERE YOU PURCHASED
THE PRODUCT.
Remote Control Battery Safety Information
- Store batteries in any cool & dry place.
- Do not dispose used batteries in domestic waste. Dispose
batteries at special collection points or return to stores if
applies.
- Remove the batteries if they are not in use for long period of
time. Battery leakage and corrosion can damage the remote
control, dispose batteries safely.
- Do not mix and use old and new batteries.
- Do not mix and use different types of batteries: alkaline,
standard (carbon-zinc) or rechargeable (nickel-cadmium).
- Do not dispose batteries in a fire.
- Do not attempt to short circuit the battery terminals.
Class 2 Laser Product
DO NOT STARE INTO THE BEAM
CLASS 2 LASER PRODUCT
LASER RADIATION
TTaabbllee ooff CCoonntteennttss
Introduction ..........................................................1
Package Contents ................................................1
Optional Accessories...........................................2
AVerVision CP355 Parts.......................................3
Technical Specifications......................................4
Making the Connections......................................5

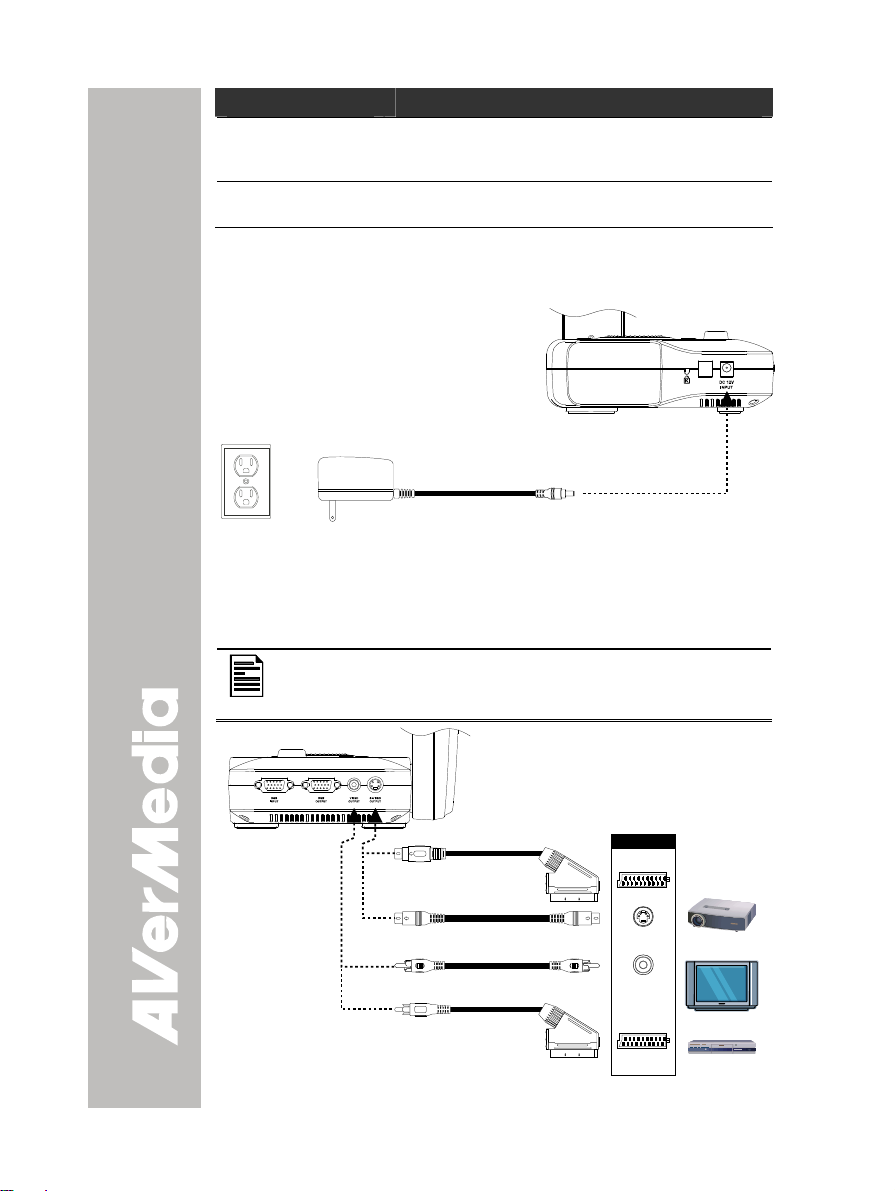

Connecting the Power Adapter ................................... 6
Connecting a TV .........................................................6
Connecting a CRT/LCD/MAC Display Monitor or
LCD/DLP Projector .....................................................7
Connecting an LCD/MAC Display Monitor or
LCD/DLP Projector with DVI-I interface ...................... 7
Connecting a Computer .............................................. 8
Connecting a Computer via USB ................................ 8
Connecting to a Microscope ....................................... 9
Setting Up AVerVision CP355..............................9
Camera Head .............................................................9
LED Light Switch......................................................... 9
Infrared Sensor ......................................................... 10
Flexible Gooseneck and Arm .................................... 10
Anti-glare Sheet ........................................................ 10
Using the Infrared Remote Control ..................11

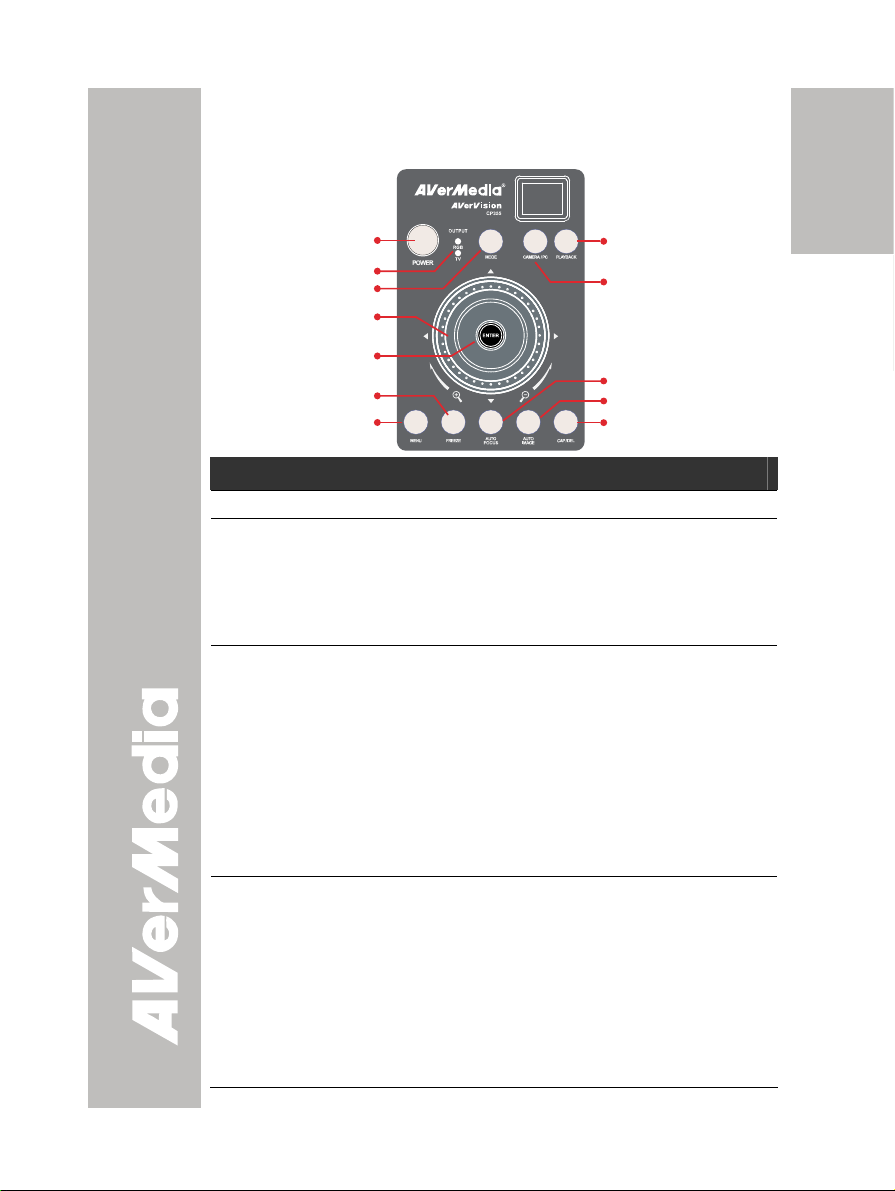

Touch Button Control Panel..............................15
OSD Navigation Tree..........................................17
Menu Functions..................................................18

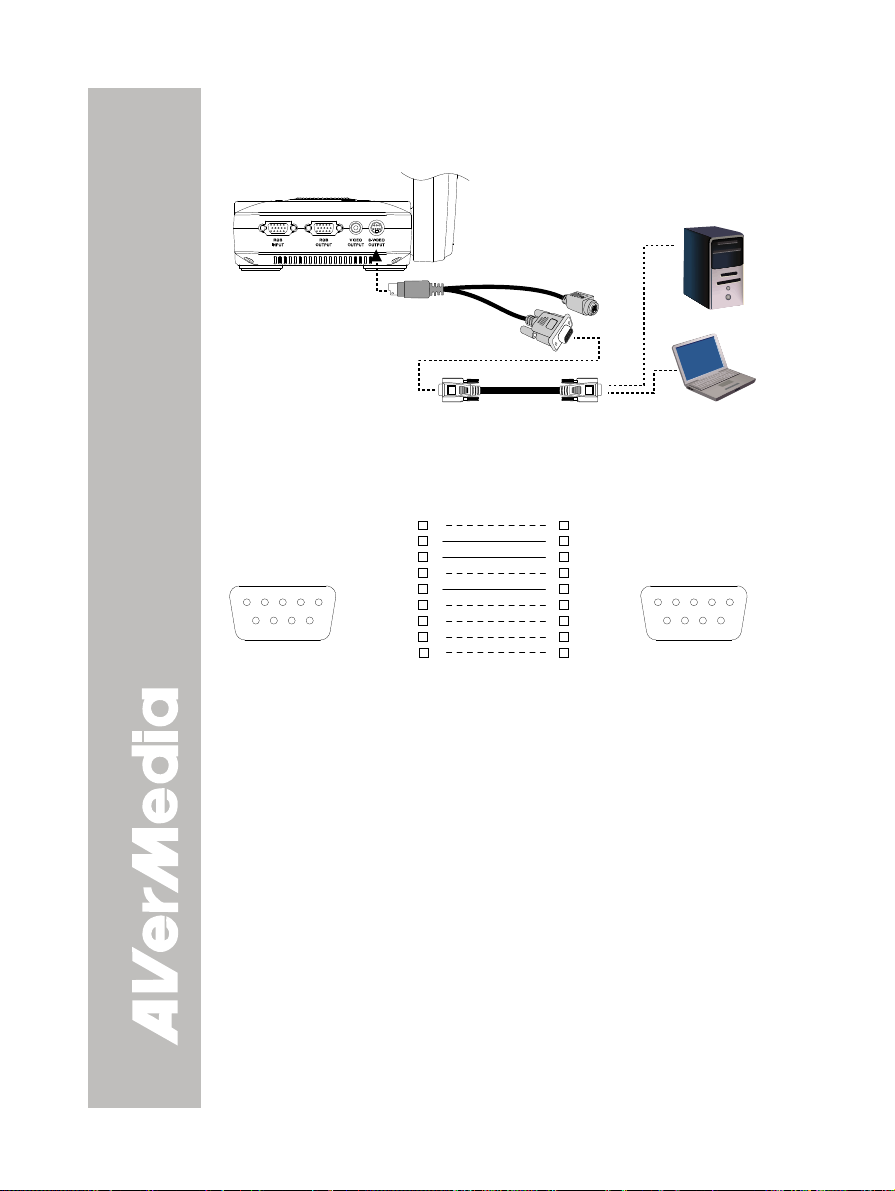

RS-232C Diagram Connection ..........................22
RS-232C Cable Spec..........................................22
RS-232C Transmission Spec.............................22
RS-232C Communication Format.....................22
RS-232C Command Table..................................23
Transferring the Captured Image to PC..................23
Troubleshooting.................................................24
Limited Warranty................................................25
English 繁體中文
简体中文 日本語
ภาษาไทย
IInnttrroodduuccttiioonn
Thank you for purchasing
the AVerMedia®
AVerVision CP355.
AVerVision CP355 is
integrated with 5X optical
zoom and wide angle
technology to increase the
area of visibility. You can
use this to display
documents, negatives,
transparencies, and 3D
objects onto a TV, LCD or
DLP projector making
presentations a snap.
AVerVision CP355 is an
ideal presentation tool for
business, academic,
medical and the scientific
community.
PPaacckkaaggee CCoonntteenntts
AVerMedia® AVerVision CP355
Anti-glare Sheet
Bag
s
Software & Manual CD
English 繁體中文
简体中文 日本語
RGB Cable
USB Cable
Power Adapter
* The power adapter will vary
depending on the standard
power outlet of the country
where it is sold.
1
Remote Control
(batteries included)
S-Video/RS-232 Cable
ภาษาไทย
OOppttiioonnaall AAcccceessssoorriieess
34mm Microscope Adapter
Light Box
28mm Microscope Adapter
2
)(4)
)
(
)
(
(1) Camera head
(2) LED light
(3) Camera lens
(4) LED light switch
(5) IR sensor
(6) Control panel
(7) Right panel
(8) Gooseneck
(9) Rear panel
(10) Left panel
(11) Label slot
(12) DC 12V port
(13) Antitheft slot
(14) Camera head holder
(15) S-Video output port
(16) Composite video
output port
(17) RGB input port
(18) RGB output port
AAVVeerrVViissiioonn CCPP335555 PPaarrttss
The illustrations below identify the parts of AVerVision CP355.
(8)
(9)
(5)
(6)
10)
(7)
11)
Right Panel
(13)
(12)
(14)
Rear Panel
(1
(2
(3
English
繁體中文
简体中文 日本語
(15)(17)
(19) TV-RGB switch
(20) USB port
(21) DVI-I output port
Left Panel
(20)
(16)(18)
(19)
ภาษาไทย
(21)
3
TTeecchhnniiccaall SSppeecciiffiiccaattiioonnss
Sensor 1/2.5” Progressive Scan CMOS
Pixel Count 3.2 mega pixels
Frame Rate 24 fps (max.)
White Balance Auto / Manual
Exposure Auto / Manual
Image mode
Effect Color / B/W / Negative / Mirror / Reverse / Freeze
Analog RGB output HD 720P; XGA 60 Hz; SVGA 60 Hz; VGA 60 Hz
Image Capture Up to 80 Frames
Text / Graphics / High Frame / Wide Angle /
Microscope / Macro / Infinite
Optics
Lens F3.2 (Wide); F6.8 (Tele)
Focusing Auto / Manual
Shooting Area
Zooming 5X Optical Zoom, 2X AVERZOOM, 8X Digital Zoom
315mm x 236mm
400mm x 300mm (max.) (wide angle mode)
Power
Power Source DC 12V, 100-240V, 50-60Hz
Consumption 18 Watts (lamp off); 20 Watts (lamp on)
Lighting
Lamp Type LED light with laser pointer
Input/Output
RGB Input 15-Pins D-sub (VGA)
RGB Output 15-Pins D-sub (VGA)
DVI-I Output DVI-I Type
S-Video/RS-232 Mini-DIN Jack (use S-Video/RS-232 Adapter cable)
Composite Video RCA Jack
USB USB2.0
DC 12V Input Power Jack
Dimension
Operating 430mm x 180mm x 600mm
Folded 355mm x 245mm x 63mm
Weight 2.6 kg (about 5.73 lbs)
4
s
MMaakkiinngg tthhee CCoonnnneeccttiioonns
The ports on the rear, left and right panel of CP355 enable you to
connect the unit to a computer, graphics display monitor or LCD/DLP
projector, TV or other device. Illustrated below are the ports that are
located at the rear, left and right panel of CP355 with their corresponding
labels.
English 繁體中文
Right Panel
(1)
(2)
Rear & Left Panel
(3)
(4)
(5)
(6)
(7)
(8)
(9)
Port Description
(1) Antitheft Slot Attach a Kensington compatible security lock or
(2) DC 12V Input Connect the power adapter into this port.
(3) RGB INPUT Input the signal from a computer or other sources
(4) RGB OUTPUT Output the signal from the camera, RGB input port,
(5) VIDEO OUTPUT
(RCA/Composite)
(6) S-VIDEO
OUTPUT
(7) DVI-I OUTPUT Output the signal from the camera, RGB input port,
antitheft device.
and pass it through to the RGB Output port only.
Connect this port to the RGB/VGA output port of the
computer.
or the captured images from the memory on a
CRT/LCD/MAC monitor or LCD/DLP projector.
Output the signal from the camera or the captured
images from the memory on TV or Video
equipment. Connect this port to the VIDEO input
port of a TV or video equipment.
Output the signal from the camera or the captured
images from the memory on TV or Video
equipment. Connect this port to the S-VIDEO input
port of a TV or video equipment.
or the captured images from the memory on a
CRT/LCD/MAC monitor or LCD/DLP projector with
DVI-I interface.
If the display device does not support DVI-I, it can
only display the signal from the camera and the
captured images.
简体中文 日本語
ภาษาไทย
5
Port Description
(8) USB Use CP355 as a USB Camera or transfer the
(9) TV-RGB switch Switch to output display video either from Video and
CCoonnnneeccttiinngg tthhee PPoowweerr AAddaapptteerr
Connect the power adapter to a standard 100V~240V AC power source.
captured images from CP355 memory to PC.
Connect this port to the USB port of the computer.
S-VIDEO, or RGB and DVI-I output port.
Wall outlet
CCoonnnneeccttiinngg aa TTVV
Power adapter
Locate the VIDEO, S-VIDEO or SCART RGB input port of the TV or
Video equipment (i.e., VCR) to record your presentation on a videotape
and connect it to S-VIDEO or VIDEO OUTPUT port of CP355.
- For better video quality, we strongly suggest using
S-VIDEO connection.
- Make sure the TV/RGB switch is set to TV.
INPUT
S-Video to SCART cable
(not supplied)
S-Video cable
(not supplied)
RCA cable
(not supplied)
RCA to SCART cable
(not supplied)
SCART
S-VIDEO
VIDEO
SCART
Projector
Television
VCR
6
CCoonnnneeccttiinngg aa CCRRTT//LLCCDD//MMAACC DDiissppllaayy
MMoonniittoorr oorr LLCCDD//DDLLPP PPrroojjeeccttoorr
Locate the RGB (VGA) input port of the graphics display device and
connect it to RGB OUTPUT port of CP355.
Make sure the TV/RGB switch is set to RGB.
RGB cable
MAC monitor
LCD/DLP projector
CRT monitor
CCoonnnneeccttiinngg aann LLCCDD//MMAACC DDiissppllaayy
MMoonniittoorr oorr LLCCDD//DDLLPP PPrroojjeeccttoorr wwiitthh
DDVVII--II iinntteerrffaaccee
LCD monitor
English 繁體中文
简体中文 日本語
Locate the DVI-I input port of the display device and connect it to DVI-I
OUTPUT port of CP355.
Make sure the TV/RGB switch is set to RGB.
LCD Monitor
with DVI interface
DVI cable
(not supplied)
LCD/DLP projector
with DVI interface
7
ภาษาไทย
CCoonnnneeccttiinngg aa CCoommppuutteerr
Locate the RGB (VGA) output port of the computer or laptop to display
your PC presentation on screen and connect it to RGB INPUT port of
CP355. The video signal from the RGB INPUT port is streamed to RGB
OUTPUT port, and displayed on the screen.
- To display computer image, press Camera/PC button on
the control panel or remote control to switch CP355 to PC
mode.
- For laptop to output display image, use the keyboard
command (FN+F5) to switch between the display modes.
For different command, please refer to your laptop
manual.
RGB cable
CCoonnnneeccttiinngg aa CCoommppuutteerr vviiaa UUSSB
Locate the USB port of the computer or laptop and connect it to USB port
of CP355. This enables you to use CP355 as a USB Camera and to
transfer the captured images from the memory and to computer. Also
see “Transfer Image from AVerVision CP355 to PC”.
Computer
MAC
B
Laptop
Computer
USB cable
Laptop
MAC
8
CCoonnnneeccttiinngg ttoo aa MMiiccrroossccooppee
Connecting the CP355 to a microscope enables you to examine
microscopic objects on a big screen without straining your eyes.
Make sure to connect the longer hook to the front latch hole
of the camera head.
Microscope
Adapter
Microscope
2.5cm
SSeettttiinngg UUpp AAVVeerrVViissiioonn CCPP335555
This section provides useful tips on how to adjust the CP355 to meet
your needs.
CCaammeerraa HHeeaadd
The camera head can be turned 90° to the left and right.
2.2cm
English 繁體中文
简体中文 日本語
90°90°
White LED
Only
Document
Posit ioning
Poin ters
White LED and
Document
Posi tio nin g
Point ers
LLEEDD LLiigghhtt SSwwiittcchh
A unique feature of the CP355 is the four (4) laser positioning pointers
that define the viewing area. This enables the user to quickly center the
object underneath the camera. The three (3) various light and laser
positioning pointers settings are provided as follows:
OffOff
9
ภาษาไทย
I
I
I
nnffrraarreedd SSeennssoorr
I
nnffrraarreedd SSeennssoorr
Aim the remote control at the infrared sensor to operate the unit. Aim the remote control at the infrared sensor to operate the unit.
FFlleexxiibbllee GGoooosseenneecckk aanndd AArrmm
The flexible gooseneck and arm design allows you to position the
camera head from any angle.
When positioning the camera head in upright position, press
REVERSE on the remote control to rotate the image 180° .
You may also rotate the image 180° in OSD menu. Just
press MENU, select REVERSE in IMAGE menu list, and
then press ENTER to turn on/off image reverse.
AAnnttii--ggllaarree SShheeeett
The anti-glare sheet is a special coated film that
helps eliminate any glare that maybe encountered
while displaying very shiny objects or glossy
surfaces such as magazines and pictures. To use,
simply place the anti-glare sheet on top of the shiny
document to reduce reflected light.
10
UUssiinngg tthhee IInnffrraarreedd RReemmoottee CCoonnttrrooll
Use the CP355 Remote Control to enhance your presentation by having
the ability to switch between three (3) presentation modes and access
various features. To use the remote control, first insert the batteries (2
“AAA” size batteries are provided) into the battery compartment at the
back of the remote. Use the figure and descriptions below as a reference
for remote control functions.
(1)
(2)
(3)
(4)
(5)
(12)
(13)
(14)
(15)
(16)
(17)
(6)
(7)
(8)
(9)
(10)
(11)
Name Function
(1) POWER Turn the unit on/off.
(2) LASER
(3) Shuttle Wheel - Turn the shuttle wheel clockwise to zoom in and
Turn on the laser pointer.
DO NOT look directly at the laser pointer and
avoid aiming the laser at any surface that
may reflect the beam (i.e., a mirror or
mirrored surface).
counter-clockwise to zoom out the image in
Camera and Playback mode only.
When it reaches the maximum optical zoom level
of about 5X, you can still continue to AVERZOOM
up to 2X and 8X digitally zoom. To return to normal
view (100%), press ENTER.
- Press the shuttle wheel ▲,▼,◄, &► to pan the
image while in zoom in mode, to make a selection
on 16-thumbnail images or move to the next or
previous single full screen preview in Playback
mode, or to make a selection and adjustment on
the OSD main-menu and sub-menu (See Menu
Functions for more details).
English 繁體中文
简体中文 日本語
ภาษาไทย
11
Name Function
(4) ENTER Make a selection in Playback mode and OSD
(5) MENU Pull up and exit the OSD main-menu and
(6) CAMERA/PC Switch between Camera and PC mode.
(7) AUTO FOCUS Adjust the focus automatically.
(8) CAP/DEL - Capture a still image in Camera mode. The
(9) EFFECT Convert and display the image in BW, Negative or
(10) PIP Show a thumbnail size playback screen at the
(11) PRESENTER Select to turn on/off AVERBOX or AVERVISOR.
menu. Use this to quick zoom to 200% or back to
100% in Camera mode only.
sub-menu.
- Camera mode displays the video signal from the
built-in camera.
- PC mode displays the video signal from the RGB
INPUT port of CP355.
captured image is saved in the memory and can
store up to 80 images. The image size can be
saved either in 1024 x 768 (default) or 2016 x
1520 pixels.
If the Capture setting is in Continuous mode, use
CAP/DEL button to start and stop successive still
image capture. To stop continuous capture, press
CAP/DEL button when “SAVE” message in the
status box at the lower right corner of the screen
disappear.
To set the image size of your choice, press MENU,
select CAPTURE in IMAGE menu list, press
ENTER, select IMG SIZE, press ENTER, use ▲
and ▼ to make a selection, and press ENTER to
save the setting.
- Remove the selected picture from the built-in
memory permanently in Playback mode.
Color in Camera and Playback mode only.
corner of the screen to view the captured image
from the memory in Camera mode.
Use ◄ or ► to move to the previous or next image
and ENTER to view the image in full screen and
press ENTER again to go back to PIP mode.
To move the thumbnail playback screen to different
corners or close, press PIP button repeatedly. You
may also press CAMERA/PC to exit PIP mode and
switch to Camera mode.
Only one feature can be used at a time.
In the PRESENTER menu, use ▲ and ▼ to select
between AVERBOX or AVERVISOR, and press
ENTER to turn on/off the selected feature. Then
press MENU to close menu or execute the turned
12
Name Function
on feature. To exit AVerBox or AVerVisor mode,
press CAMERA/PC to switch to Camera mode.
PRESENTER
AVERBOX OFF
AVERVISOR OFF
SHADE
COLOR
RESIZE
(10) PRESENTER - AVerBox overlays a frame on the presentation
screen. Selecting SHADE changes the opacity of
the area outside the box from 0%, 50% and 100%,
COLOR to change the frame color from red, green
and blue, and RESIZE to change the size of the
frame.
To resize the frame, press the shuttle wheel ▲, ▼,
◄, & ► then press ENTER when done resizing.
To move the frame around the presentation
screen, use the shuttle wheel ▲,▼,◄, & ►.
English 繁體中文
- AVerVisor covers part of the presentation screen.
The upper part of the presentation screen is
slightly exposed when it is being called each time.
To expose part of the covered area, press the
shuttle wheel ▲,▼,◄, &►. Select SHADE to
change the darkness of the shaded area between
50% or 100%.
(12) PLAYBACK View the captured image from the memory in
16-thumbnail images.
Use ▲,▼,◄, & ► to make a selection and ENTER
to view the selected image in full screen. To zoom in
and out the image, turn the shuttle wheel clockwise
and counter-clockwise.
To start slide show, press MENU, select START and
press ENTER to begin and end. Select INTERVAL
to set the display time interval between frames in
second.
To change the slide show time interval, select
INTERVAL, press ENTER and the bar will turn red,
use ◄ & ► to increase and decrease the value, and
简体中文 日本語
ภาษาไทย
13
Name Function
then press ENTER to save the setting and the bar
will turn white.
SLIDE SHOW
START
INTERVAL
(13) AUTO IMAGE Automatically adjust and set the white balance and
exposure setting.
(14) FREEZE Toggle to pause or resume the camera.
(15) REVERSE Rotate the image by 180°in Camera mode only.
(16) TIMER Set/start/pause/resume the timer in TIMER menu.
The timer will automatically count up after count
down reaches zero to show the elapsed time. The
timer continues to run even when you switch to
different modes.
In TIMER menu, select SET TIME to set the time
value, START to begin the countdown timer,
PAUSE/RESUME to temporarily halt or continue,
and STOP to end.
To set the timer value, select SET TIME, press
ENTER and the bar will turn red, use ◄ & ► to
increase and decrease the value, and then press
ENTER to save the setting and the bar will turn
white.
TIMER
START
PAU SE
STOP
SET TIME
Once the countdown timer starts, in the status box
at the lower right corner of the screen, the timer
format is displayed in hours : minutes : seconds.
(17) SPLIT SCRN Divide the screen into two parts. One side displays
the live image from the CP355 camera and the
other side displays the captured images from the
memory in 8-thumbnail images.
Use the ▲,▼,◄, &► to make a selection and
ENTER to enlarge the selected image in split
screen mode. To horizontally or vertically pan the
enlarged image, use the ◄ & ► or ▲&▼
respectively.
To switch to different split screen type or close,
press SPLIT SCRN button repeatedly. You may
also press CAMERA/PC to exit Split Screen mode
and switch to Camera mode.
1011
12000
14
TToouucchh BBuuttttoonn CCoonnttrrooll PPaanneell
The touch button control panel located on the top side of the CP355
provides quick access to commonly used functions.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
Function Description
(1) POWER Turn the unit on/off.
(2) Output LED
Indicator
(3) MODE Toggles between Text, Graphics, and High Frame.
(4) Shuttle Wheel
Indicate the setting of the TV to RGB switch to which
port the video signal is being sent out.
- RGB indicates that the video signal is sent out thru
RGB OUTPUT port of CP355.
- TV indicates that the video signal is sent out thru
VIDEO and S-VIDEO OUTPUT port of CP355.
Text - corrects the intensity of the adjacent pixel
making it more uniform producing sharper and clearer
images.
Graphics - adjusts the gradient of the adjacent pixel
making it appears to have a smooth image.
High Frame - increases the frame rate capture and
can visually tracks the motion and react quickly.
Sufficient lighting is required when using this mode.
Wide Angle - extends the area of visibility up to
400mm x 300mm shooting area.
- Turn the shuttle wheel clockwise to zoom in and
counter-clockwise to zoom out the image in Camera
and Playback mode only.
When it reaches the maximum optical zoom level of
about 5X, you can still continue to AVERZOOM up to
2X and 8X digitally zoom. To return to normal view
(100%), press ENTER.
- Press the shuttle wheel ▲,▼,◄, &► to pan the
image while in zoom in mode, to make a selection
on 16-thumbnail images or move to the next or
previous single full screen preview in Playback
English 繁體中文
简体中文 日本語
ภาษาไทย
15
Function Description
Shuttle Wheel mode, or to make a selection and adjustment on the
(5) ENTER Make a selection in Playback mode and OSD menu.
(6) FREEZE Toggle to pause or resume the camera.
(7) MENU Pull up and exit the OSD main-menu and sub-menu.
(8) PLAYBACK View the captured image from the memory in
(9) CAMERA/PC Switch between Camera and PC mode.
(10) AUTO FOCUS Adjust the focus automatically.
(11) AUTO IMAGE Automatically adjust and set the white balance and
(12) CAP/DEL
OSD main-menu and sub-menu (See Menu
Functions for more details).
Use this to quick zoom to 200% or back to 100% in
Camera mode only.
16-thumbnail images.
Use ▲,▼,◄, & ► to make a selection and ENTER to
view the selected image in full screen. To zoom in and
out the image, turn the shuttle wheel clockwise and
counter-clockwise.
To start slide show, press MENU, select START and
press ENTER to begin and end. Select INTERVAL to
set the display time interval between frames in
second.
To change the slide show time interval, select
INTERVAL, press ENTER and the bar will turn red,
use ◄ & ► to increase and decrease the value, and
then press ENTER to save the setting and the bar will
turn white.
SLIDE SHOW
START
INTERVAL
- Camera mode displays the video signal from the
built-in camera.
- PC mode displays the video signal from the RGB
INPUT port of CP355.
exposure setting.
- Capture a still image in Camera mode. The captured
image is saved in the memory and can store up to
80 images. The image size can be saved either in
1024 x 768 (default) or 2016 x 1520 pixels.
If the Capture setting is in Continuous mode, use
CAP/DEL button to start and stop successive still
image capture. To stop continuous capture, press
CAP/DEL button when “SAVE” message in the
status box at the lower right corner of the screen
disappear.
To set the image size of your choice, press MENU,
select CAPTURE in IMAGE menu list, press
ENTER, select IMG SIZE, press ENTER, use ▲ and
1011
16
Function Description
(CAP/DEL) ▼ to make a selection, and press ENTER to save
OOSSDD NNaavviiggaattiioonn TTrreeee
There are 2 tab menus in CP355: IMAGE and SETTING tabs. For TV
output, the RESOLUTION will be disabled in SETTING menu list.
IMAGE MENU
the setting.
- Remove the selected picture from the built-in
memory permanently in Playback mode.
English 繁體中文
简体中文 日本語
ภาษาไทย
17
SETTING MENU
MMeennuu FFuunnccttiioonnss
The MENU functions of CP355 enhance fine-tuning your screen display,
set the timer, select OSD language and more. Press the MENU button
to call up and exit from the main menu or sub-menu display. Use
◄or► to select between IMAGE and SETTING menu list. Then use
▲or▼ to select the items in the menu list. To make a selection or
change setting, press ENTER. To adjust the setting, press ◄or►.
OSD Menu Description
MODE
TEXT
GRAPHICS
HIGH FRAME
WIDE ANGLE
MICROSCOPE
MACRO
INFINITE
IMAGE > MODE
Use ▲or▼ to select between Text, Graphics and
High Frame enhancement mode and then ENTER to
make a selection.
Text - corrects the intensity of the adjacent pixel
making it more uniform producing sharper and clearer
images.
Graphics - adjusts the gradient of the adjacent pixel
making it appears to have a smooth image.
High Frame - increases the frame rate capture and
can visually tracks the motion and react quickly.
Sufficient lighting is required when using this mode.
Wide Angle - extends the area of visibility up to
400mm x 300mm shooting area.
Microscope
and displays the microscope image more clearly.
Macro - improves the ability to view small details and
18
- automatically fixes the optical zoom
OSD Menu Description
MODE
TEXT
GRAPHICS
HIGH FRAME
WIDE ANGLE
MICROSCOPE
MACRO
INFINITY
EFFECT
COLOR
B / W
NEGATIVE
MENU
IMAGE SETTING
MODE
EFFECT
REVERSE
MIRROR
MANUAL FOCUS
EXPOSURE
WHITE BALANCE
CAPTURE
NIGHT VIEW
MENU
IMAGE SETTING
MODE
EFFECT
REVERSE
MIRROR
MANUAL FOCUS
EXPOSURE
WHITE BALANCE
CAPTURE
NIGHT VIEW
MANUAL FOCUS
EXPOSURE
AUTO
MANUAL
WHITE BALANCE
AUTO
RED
BLUE
GRAPHICS
SINGLE (06/80)
GRAPHICS
SINGLE (06/80)
FARNEAR
get close-up view from the subject in the range of 5 to
20cm.
Infinite - set to view the subject far away from the
camera in the range of 55cm and beyond.
IMAGE > EFFECT
Use ▲or▼ to select and display the image in Camera
mode into positive (true color), monochrome (black
and white) or negative. Then press ENTER to make a
selection.
IMAGE > REVERSE
Press ENTER to turn off/on REVERSE. Reverse
COLOR
OFF
rotates the image by 180° in Camera mode.
OFF
AUTO
AUTO
AUTO
OFF
IMAGE > MIRROR
Press ENTER to turn off/on MIRROR. Mirror flips the
COLOR
OFF
image in Camera mode.
OFF
AUTO
AUTO
AUTO
OFF
IMAGE > MANUAL FOCUS
Use ◄or► to manually adjust the focus and then
press ENTER to save the setting and exit.
IMAGE > EXPOSURE
Use ▲or▼ to select between AUTO or MANUAL.
Then press ENTER to make a selection.
AUTO to automatically adjust the camera exposure to
determine how much light is required.
MANUAL to manually adjust the exposure level.
Press ENTER and the bar will turn red, use ◄ & ► to
increase and decrease the exposure level, and then
press ENTER to save the setting and the bar will turn
white. Press MENU to close the menu.
EXPOSURE
AUTO
MANUAL
IMAGE > WHITE BALANCE
Use ▲or▼ to select between auto or manually adjust
the red and blue color to suit the lighting condition or
color temperature. Then press ENTER to make a
selection.
To manually adjust the red or blue color level, select
RED or BLUE, press ENTER and the bar will turn
red, use ◄ & ► to increase and decrease the level,
and then press ENTER to save the setting and the
English 繁體中文
简体中文 日本語
54320
ภาษาไทย
19
OSD Menu Description
WHITE BALANCE
AUTO
RED
BLUE
CAPTURE
SINGLE
CONTINUOUS
IMG SIZE
NIGHT VIEW
OFF
AUTO
CONTRAST
128
2550
BRIGHTNESS
32
FORMAT MEMORY
NO
YES
630
bar will turn white.
WHITE BALANCE
AUTO
RED
BLUE
IMAGE > CAPTURE
Use ▲or▼ to select SINGLE or CONTINUOUS
capture mode and IMG SIZE to select the capture
pixel size of the image.
Select SINGLE to save one still image only and
CONTINUOUS to save successive still images until
the built-in memory is full or when the CAP/DEL
button is being press again to stop.
In Continuous mode, press ENTER the bar will turn
red, use ◄ & ► to increase and decrease the capture
time interval between frames and then press ENTER
to save the setting and the bar will turn white. The
time interval can be set from 5 to 600 sec.
CAPTURE
SINGLE
CONTINUOUS
IMG SIZE
In IMG SIZE, press ENTER, use ▲ and ▼ to make a
selection, and press ENTER to save the setting.
CAPTURE
SINGLE
CONTINUOUS
IMG SIZE
IMAGE > NIGHT VIEW
Use ▲or▼ to turn Night View OFF or AUTO.
If you are presenting in a low-light condition, Night
View enables the image of the object to appear as
though under normal lighting conditions. CP355 can
automatically adjust the exposure to compensate for
the adverse condition, but the captured image will
appear to be in slow motion.
SETTING > CONTRAST
Use ◄ or ► to emphasize or reduce the difference
between light and dark conditions then press ENTER.
The contrast level can be adjustable up to 255.
SETTING > BRIGHTNESS
Use ◄ or ► to increase or decrease the brightness
level and improve the visibility of the image then
press ENTER. The brightness level can be set up to
63.
SETTING > FORMAT MEMORY
Use ▲or▼ to select NO to exit or YES to format and
delete all the images saved in the built-in memory
then press ENTER.
INTERVAL
5 SECS
1024 x 768
2016 x 1520
255620
WHITE BALANCE
AUTO
RED
BLUE
255920
20
OSD Menu Description
RESOLUTION
1024 x 768
800 x 600
640 x 480
1280 x 720
LANGUAGE
ENGLISH
ESPAÑOL
日本語
繁體中文
USB CONNECTION
USB CAMERA
IMG DOWNLOAD
FLICKER
50 HZ
60 HZ
DEFAULT
NO
YES
MENU
IMAGE SETTING
CONTRAST
BRIGHTNESS
FORMAT MEMORY
RESOLUTION
LANGUAGE
USB CONNECTION
FLICKER
DEFAULT
PROFILE
1024 X 768
ENGLISH
USB CAMERA
60 HZ
OFF
Please wait till the message “FORMAT” at the low
right corne
process.
SETTING > RESOLUTION
Use ▲or▼ to choose from different supported display
resolutions then press ENTER to make the selection.
SETTING > LANGUAGE
Use ▲or▼ to select from different supported
languages then press ENTER to make the selection.
SETTING > USB CONNECTION
Use ▲or▼ buttons to select the function of USB
between USB CAMERA and IMG DOWNLOAD. Then
press ENTER.
USB Camera - can be used as a computer
Img Download - transfer the captured image
SETTINGS > IMAGE > EXPOSURE > FLICKER
Use ▲or▼ to select between 50Hz or 60Hz. Some
display devices cannot handle high refresh rates. The
image will flicker a couple of times as the output is
DEFAULT
Use ▲or▼ to select YES to restore to original factory
default setting or NO to exit then press ENTER to
make the selection.
SETTING > PROFILE
92
Press ENTER and use ▲or▼ to select between
32
NO
SAVE or RECALL. Then press ENTER again to
make a selection.
SAVE - store the current setting in the selected profil
NO
number. Only effect, mod
settings can be saved.
RECALL - restore the setting back to the selected
profile number.
In the SAVE/RECALL selection, use ▲or▼ to sele
saving/restoring the setting from t
number then press ENTER.
SAVE
RECALL
r of the screen disappear to finish the
webcam or with our bundled sof
video and capture still image.
the built-in memory to computer hard disk.
nother refresh rate. switched to a
PROFILE
PROFILE 1
PROFILE 2
PROFILE 3
led in TV output mode. This selection will be disab
tware to record
e, brightness and contrast
he three profile
PROFILE
SAVE
RECALL
PROFILE 1
PROFILE 2
PROFILE 3
er
s from
ct
English 繁體中文
简体中文 日本語
e
ภาษาไทย
21
RRSS--223322CC DDiiaaggrraamm CCoonnnneeccttiioonn
CP355 can be controlled using a PC through RS-232 connection.
S-Video/RS-232 cable
RS-232 cable
(not supplied)
RRSS--223322CC CCaabbllee SSppeecc
Computer
Laptop
Make sure the RS-232 cable matches the cable spec design.
PC COM Port
DSUB-9P (Female)
6789
1
CD
RXD
2
TXD
3
DTR
DSR
RTS
CTS
RI (CI)
4
SG
5
6
7
8
9
12345
1
AVerVision RS-232 Port
TXD
2
RXD
3
4
SG
5
6
7
8
9
DSUB-9P (Female)
6789
12345
RRSS--223322CC TTrraannssmmiissssiioonn SSppeecc
Start bit
Data bit
Stop bit
Parity bit
X parameter
Baud rate(Communication speed)
：1 bit
：8 bit
：1 bit
：None
：None
：9600bps
RRSS--223322CC CCoommmmuunniiccaattiioonn FFoorrmmaatt
Start Code(1 Byte) : 0xFF
Type Code(1 Byte) : 0x70
DataLength Code(1 Byte) : 0x01
Data Code(1 Byte) : See the Command Table for reference.
CheckSum Code(1 Byte) : See the Command Table for reference.
Format : Start + Type + DataLength + Data + CheckSum
Example : 0xFF + 0x70 + 0x01+ 0x1 + 0x70 (Command Power)
22
RRSS--223322CC CCoommmmaanndd TTaabbllee
Function Start Type
POWER FF 70 1 1 70
ENTER FF 70 1 2 73
UP FF 70 1 3 72
DOWN FF 70 1 4 75
LEFT FF 70 1 5 74
RIGHT FF 70 1 6 77
PLAYBACK FF 70 1 7 76
MENU FF 70 1 8 79
PC/CAMERA FF 70 1 9 78
AUTOIMAGE FF 70 1 A 7B
AUTOFOCUS FF 70 1 B 7A
FREEZE FF 70 1 C 7D
CAPTURE FF 70 1 D 7C
REVERSE FF 70 1 E 7F
TIMER FF 70 1 F 7E
EFFECT FF 70 1 10 61
PBP FF 70 1 11 60
PRESENTER FF 70 1 12 63
PIP FF 70 1 13 62
POWER ON FF 70 1 40 31
POWER OFF FF 70 1 41 30
Data
Length
Data Checksum
English 繁體中文
简体中文 日本語
TTrraannssffeerrrriinngg tthhee CCaappttuurreedd IImmaaggee ttoo PPCC
This enables you to transfer the captured image from the built-in memory
to PC.
The instruction below MUST be read and followed BEFORE
connecting the USB cable.
1. MUST set the USB CONNECTION as IMG DOWNLOAD before
connecting the USB cable.
To set the USB CONNECTION as IMG DOWNLOAD, press MENU
> select USB CONNECTION in SETTING menu list and press
ENTER, select IMG DOWNLOAD and press ENTER.
2. When “IMG DOWNLOAD” appears at the lower right corner of the
presentation screen, you may now connect the USB cable.
3. Upon connecting the USB cable, the system automatically detects
the new removable disk. You may now transfer the captured image(s)
from the CP355 built-in memory to PC hard disk.
23
ภาษาไทย
TTrroouubblleesshhoooottiinngg
This section provides many useful tips on how to solve common
problems while using the CP355.
There is no picture on the presentation screen.
1. Check all the connectors again as shown in this manual.
2. Check the on/off switch of the display output device.
3. Verify the setting of the display output device.
4. If you are presenting from a notebook or computer through the display output
device, check the cable connection from computer RGB (VGA) output to RGB
input of CP355 and make sure CP355 is in PC Mode.
I have set up the CP355 and checked all the connections as
specified in the manual but I cannot get a picture on the preferred
presentation screen.
1. The unit POWER button turns orange in standby mode. Press the POWER
button again to turn on and the LED light will turn blue.
2. The default camera display resolution setting is on 1024x768. If your output
device does not support this resolution; no image can be projected. Simply
press hold the MENU and
3. If your display output device is on TV or any analog device, please switch the
TV-RGB dip switch to TV.
► button to the change the resolution setting.
The picture on the presentation screen is distorted or the image is
blurry.
1. Reset all changed settings, if any, to the original manufacturer default setting
(Refer to the Menu Functions for more details and steps).
2. Use the Brightness and Contrast menu functions to reduce the distortion if
applicable.
3. If you discover that the image is blurry or out of focus, press the Auto Focus
button on the control panel or remote control.
There is no computer signal on presentation screen.
1. Check all the cable connections among the display device, CP355 and your
PC.
2. Connect your PC to the CP355 first before you power on your computer.
3. For notebook, repeatedly press FN+F5 to toggles between display modes
and display the computer image on the presentation screen. For different
command, please refer to your laptop manual.
The presentation screen does not show the exact desktop image on
my PC or Notebook after I toggle from Camera to PC mode.
1. Return to your PC or Notebook, place the mouse on the desktop and right
click, choose “Properties”, choose “Setting” tab, click on “2” monitor and
check the box “Extend my Windows desktop onto this monitor”.
2. Then go back one more time to your PC or Notebook and place the mouse on
the desktop and right click again.
3. This time choose “Graphics Options”, then “Output To”, then “Intel® Dual
Display Clone”, and then choose “Monitor + Notebook”.
4. After you follow these steps, you should be able to see the same desktop
image on your PC or Notebook as well as on the presentation screen.
How do I transfer the images from CP355 to a computer? Is it
normal that CP355 will reset to camera mode after I download
images and disconnect the USB cable?
24
Choose "IMG DOWNLOAD" in SETTING tab, USB CONNECTION menu, and
then connect the USB cable to transfer the captured images from the CP355 to
the computer. When finished, unplug the USB cable. The CP355 will
automatically reset and switch to camera mode.
LLiimmiitteedd WWaarrrraannttyy
For a period of time beginning on the date of purchase of the applicable product
and extending as set forth in the “Warranty Period of AVerMedia Product
Purchased” section of the warranty card, AVerMedia Information, Inc.
(“AVerMedia”) warrants that the applicable product (“Product”) substantially
conforms to AVerMedia’s documentation for the product and that its manufacture
and components are free of defects in material and workmanship under normal
use. “You” as used in this agreement means you individually or the business entity
on whose behalf you use or install the product, as applicable. This limited
warranty extends only to You as the original purchaser. Except for the foregoing,
the Product is provided “AS IS.” In no event does AVerMedia warrant that You
will be able to operate the Product without problems or interruptions, or that the
Product is suitable for your purposes. Your exclusive remedy and the entire
liability of AVerMedia under this paragraph shall be, at AVerMedia’s option, the
repair or replacement of the Product with the same or a comparable product. This
warranty does not apply to (a) any Product on which the serial number has been
defaced, modified, or removed, or (b) cartons, cases, batteries, cabinets, tapes, or
accessories used with this product. This warranty does not apply to any Product
that has suffered damage, deterioration or malfunction due to (a) accident, abuse,
misuse, neglect, fire, water, lightning, or other acts of nature, commercial or
industrial use, unauthorized product modification or failure to follow instructions
included with the Product, (b) misapplication of service by someone other than the
manufacturer’s representative, (c) any shipment damages (such claims must be
made with the carrier), or (d) any other causes that do not relate to a Product
defect. The Warranty Period of any repaired or replaced Product shall be the
longer of (a) the original Warranty Period or (b) thirty (30) days from the date of
delivery of the repaired or replaced product.
Limitations of Warranty
AVerMedia makes no warranties to any third party. You are responsible for all
claims, damages, settlements, expenses, and attorneys’ fees with respect to
claims made against You as a result of Your use or misuse of the Product. This
warranty applies only if the Product is installed, operated, maintained, and used in
accordance with AVerMedia specifications. Specifically, the warranties do not
extend to any failure caused by (i) accident, unusual physical, electrical, or
electromagnetic stress, neglect or misuse, (ii) fluctuations in electrical power
beyond AVerMedia specifications, (iii) use of the Product with any accessories or
options not furnished by AVerMedia or its authorized agents, or (iv) installation,
alteration, or repair of the Product by anyone other than AVerMedia or its
authorized agents.
Disclaimer of Warranty
EXCEPT AS EXPRESSLY PROVIDED OTHERWISE HEREIN AND TO THE
MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, AVERMEDIA
DISCLAIMS ALL OTHER WARRANTIES WITH RESPECT TO THE PRODUCT,
WHETHER EXPRESS, IMPLIED, STATUTORY OR OTHERWISE, INCLUDING
WITHOUT LIMITATION, SATISFACTORY QUALITY, COURSE OF DEALING,
TRADE USAGE OR PRACTICE OR THE IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR
NONINFRINGEMENT OF THIRD PARTY RIGHTS.
English
繁體中文
简体中文 日本語
ภาษาไทย
25
Limitation of Liability
IN NO EVENT SHALL AVERMEDIA BE LIABLE FOR INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY
NATURE INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS, DATA,
REVENUE, PRODUCTION, OR USE, BUSINESS INTERRUPTION, OR
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES ARISING OUT OF
OR IN CONNECTION WITH THIS LIMITED WARRANTY, OR THE USE OR
PERFORMANCE OF ANY PRODUCT, WHETHER BASED ON CONTRACT OR
TORT, INCLUDING NEGLIGENCE, OR ANY OTHER LEGAL THEORY, EVEN IF
AVERMEDIA HAS ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
AVERMEDIA’S TOTAL, AGGREGATE LIABILITY FOR DAMAGES OF ANY
NATURE, REGARDLESS OF FORM OF ACTION, SHALL IN NO EVENT
EXCEED THE AMOUNT PAID BY YOU TO AVERMEDIA FOR THE SPECIFIC
PRODUCT UPON WHICH LIABILITY IS BASED.
Governing Law and Your Rights
This warranty gives You specific legal rights; You may also have other rights
granted under state law. These rights vary from state to state.
For warranty period, please refer to the warranty card.
26
Loading...
