AVer CP150 User Manual

FCC NOTICE (Class A)

This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful

interference received, including interference that may cause
undesired operation.

Federal Communications Commission
Statement

NOTE- This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
tuning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio/television technician
for help.

Class A ITE:

Class A ITE is a category of all other ITE which satisfies the
class A ITE limits but not the class B ITE limits. Such
equipment should not be restricted in its sale but the following
warning shall be included in the instructions for use:

Warning - This is a class A product. In a domestic environment
this product may cause radio interference in which case the
user may be required to take adequate measures.

CE Class A (EMC)

Compatibility Directive 2004/108/EEC.
Warning - This is a Class A product. In a domestic environment

this product may cause radio interference in which case the
user may be required to take adequate measures to correct this
interference.

interference, and (2) this device must accept any

This product is herewith confirmed to comply
with the requirements set out in the Council
Directives on the Approximation of the laws of
the Member States relating to Electromagnetic

English Deutsch Français

Italiano Español Česky

DISCLAIMER

No warranty or representation, either expressed or implied, is
made with respect to the contents of this documentation, its
quality, performance, merchantability, or fitness for a particular
purpose. Information presented in this documentation has been
carefully checked for reliability; however, no responsibility is
assumed for inaccuracies. The information contained in this
documentation is subject to change without notice.

In no event will AVerMedia be liable for direct, indirect, special,
incidental, or consequential damages arising out of the use or
inability to use this product or documentation, even if advised of
the possibility of such damages.

TRADEMARKS

AVerVision is registered trademarks of AVerMedia Information,
Inc. IBM PC is a registered trademark of International Business
Machines Corporation. Macintosh is a registered trademark of
Apple Computer, Inc. Microsoft is a registered trademark and
Windows is a trademark of Microsoft Corporation. All other
products or corporate names mentioned in this documentation
are for identification and explanation purposes only, and may
be trademarks or registered trademarks of their respective
owners.

COPYRIGHT

© 2008 by AVerMedia INFORMATION, Inc. All rights reserved.

No part of this publication may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any
language in any form by any means without the written
permission of AVerMedia Information, Inc.

THE MARK OF CROSSED-OUT WHEELED
BIN INDICATES THAT THIS PRODUCT MUST
NOT BE DISPOSED OF WITH YOUR OTHER
HOUSEHOLD WASTE. INSTEAD, YOU NEED
TO DISPOSE OF THE WASTE EQUIPMENT
BY HANDING IT OVER TO A DESIGNATED
COLLECTION POINT FOR THE RECYCLING
OF WASTE ELECTRICAL AND ELECTRONIC
EQUIPMENT. FOR MORE INFORMATION
ABOUT WHERE TO DROP OFF YOUR
WASTE EQUIPMENT FOR RECYCLING,
PLEASE CONTACT YOUR HOUSEHOLD
WASTE DISPOSAL SERVICE OR THE SHOP
WHERE YOU PURCHASED THE PRODUCT.

TTaabbllee ooff CCoonntteennttss

Introduction ......................................................E-1

Package Contents ............................................ E-1

Optional Accessories....................................... E-2

AVerVision CP150 Parts................................... E-3

Technical Specifications..................................E-4

Making the Connections.................................. E-5

Connecting the Power Adapter ............................... E-6

Connecting a TV ..................................................... E-6

Connecting a VGA, Mac Display Monitor or

LCD/DLP Projector ................................................. E-

Connecting an IBM Compatible PC or

Macintosh Computer............................................... E-

Installing the Optional Light Box.............................. E-8

Connecting to a Microscope ................................... E-9

Setting Up AVerVision CP150.......................... E-9

Camera Head ......................................................... E-9

LED Light ................................................................ E-9

Flexible Gooseneck and Arm................................ E-10

Infrared Sensor ..................................................... E-10

Anti-glare Sheet .................................................... E-10

Using the Infrared Remote Control ..............E-11

Touch Button Control Panel.......................... E-13

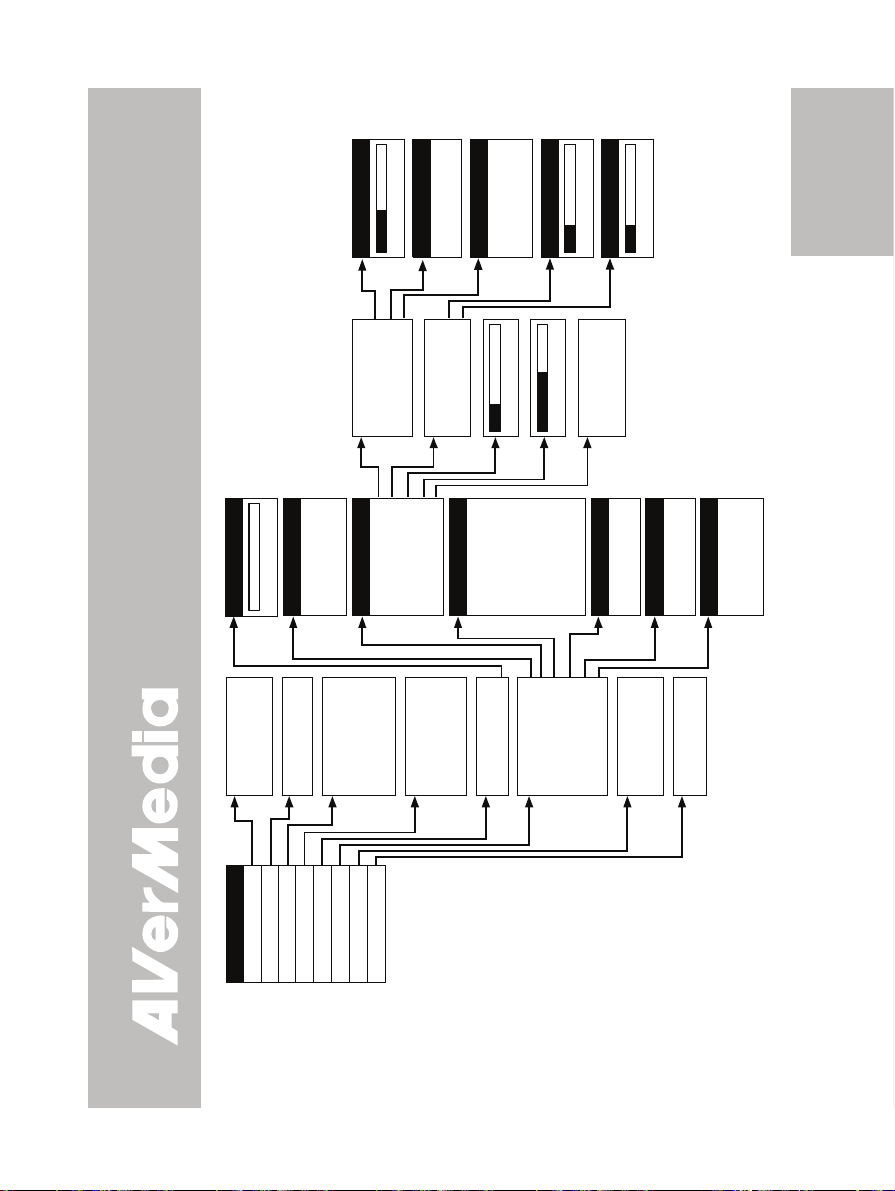

OSD Navigation Tree...................................... E-15

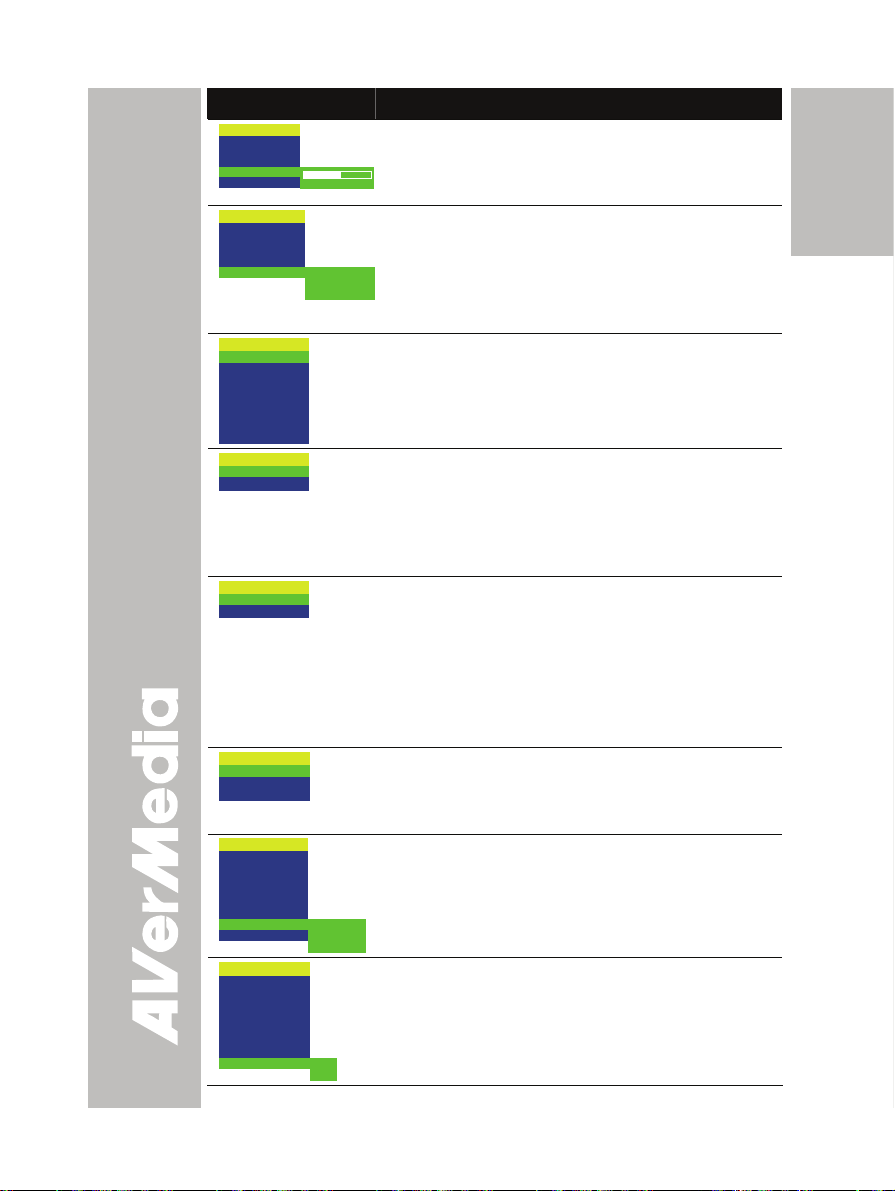

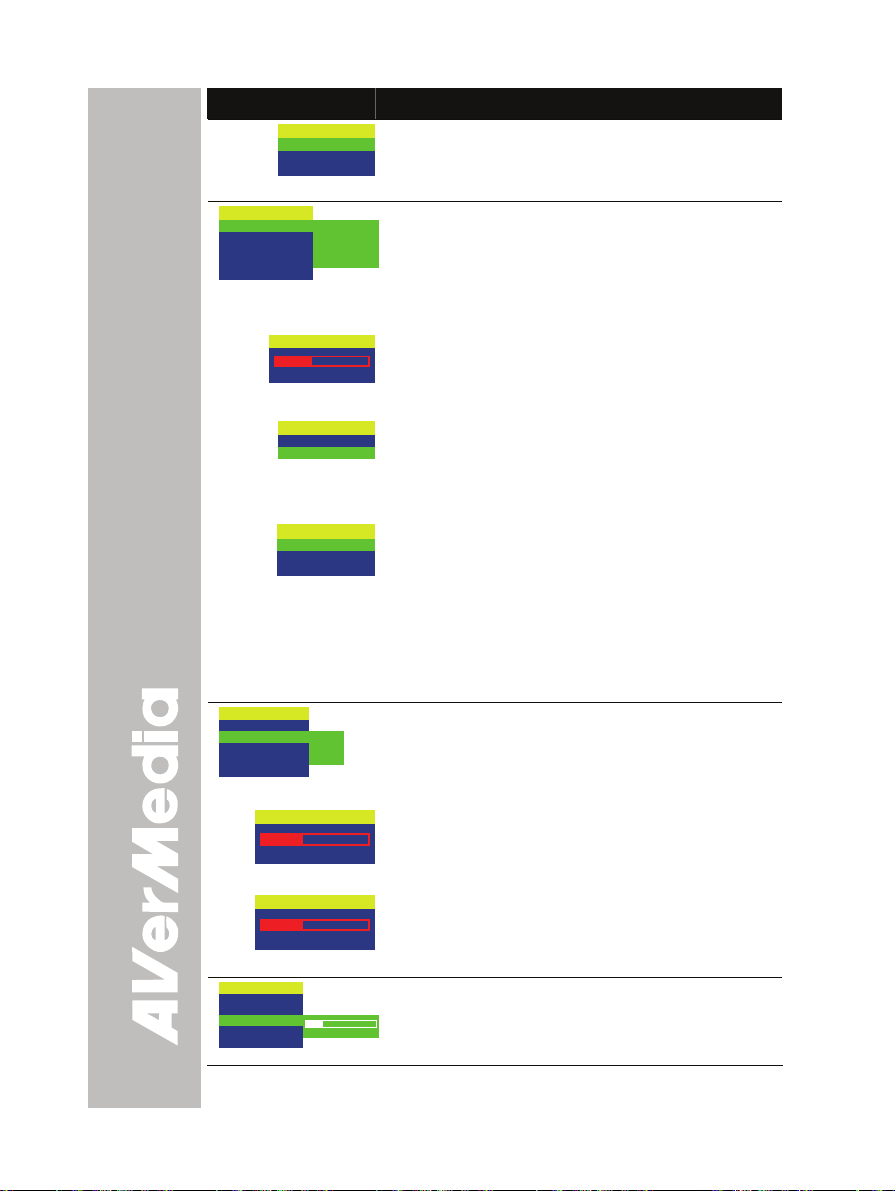

Menu Functions.............................................. E-16

Transferring the Captured Images to PC..... E-20

Troubleshooting............................................. E-20

Limited Warranty............................................ E-21

English Deutsch Français

7

7

Italiano Español Česky

A

V

®

IInnttrroodduuccttiioonn

Thank you for purchasing

the AVerMedia®

AVerVision CP150. This

document camera displays

documents, negatives,

transparencies and 3D

objects onto a TV, LCD or

DLP projector making

presentations a snap.

AVerVision CP150 is an

ideal presentation tool for

business, academic,

medical and the scientific

community.

PPaacckkaaggee CCoonntteenntts

AVerMedia® AVerVision CP150

h
s
i
l
g

n
E

0

5

1

CP

n
o
i

s

i
V
r

®

e

V

A
a
i

h

d

e

M

c

r

e

V

A

s

l

t

a

u

n

a

u

M

r

e

e

s

U

D

s
i
a
ç
n
a
r

F

o
n
a
i
l

a
t
I

l
o
ñ
a
p
s

E

y
k
s

a
i

e

d

e
M
r

a

e

r

Č

e

m

a

C
t
n

e

m
u
c

o
D

l
a
t
i

i

g
D

User Manual

s

Anti-glare Sheet

Remote Control

(batteries included)

Driver CD

English Deutsch Français

Italiano Español Česky

RCA Cable

S-Video Cable

USB Cable

Computer Extension cable

(VGA Cable)

Power Cord

* The power cord will vary
depending on the standard

Power Adapter

power outlet of the country
where it is sold.

E-1

OOppttiioonnaall AAcccceessssoorriieess

34mm Microscopic Adapter

Light Box

28mm Microscopic Adapter

Bag

E-2

(

(1) Camera head

(2) LED light module

(3) Camera lens

(4) LED switch

(5) IR sensor

(6) Control panel

(7) Right panel

(8) Gooseneck

(9) Rear panel

(10) Left panel

(11) Light box power port

(12) DC 12V port

(13) Antitheft slot

(14) Camera head holder

(15) S-Video output port

(16) Composite video

output port

(17) RGB input port

(18) RGB output port

(19) TV-RGB switch

(20) USB port

AAVVeerrVViissiioonn CCPP115500 PPaarrttss

The illustrations below identify the parts of AVerVision CP150.

(8)

(9)

(5)
(6)
(7)

10)

Right Panel

(13)

(11)

(12)

(14)

Rear Panel

(1)

(2)

(3)
(4)

English Deutsch Français

Italiano Español Česky

(15)(17)

(16)(18)

Left Panel

(20)

E-3

(19)

TTeecchhnniiccaall SSppeecciiffiiccaattiioonnss


Sensor 1/2" CMOS color image sensor

Pixel Count 3.2 mega pixels

Frame Rate 24 fps (max.)

White Balance Auto / Manual

Exposure Auto / Manual

Image mode Text / Graphics / High Frame

Effect Color / B/W / Negative

Analog RGB output XGA 60 Hz; SVGA 60 Hz; VGA 60 Hz

Image Capture Up to 80 Frames

Optics

Lens F3.0; fl=9.6mm

Focusing Manual

Shooting Area 300mm x 225mm (max.)

Zooming 2X AVERZOOM, 8X Digital Zoom

Power

Power Source 100-240V ~ 4.0-4.2A, 50-60Hz

Consumption 18 Watts (lamp off); 20 Watts (lamp on)

Lighting

Lamp Type LED lamp

Input/Output

RGB Input 15-Pins D-sub (VGA)

RGB Output 15-Pins D-sub (VGA)

S-Video Mini-DIN Jack

Composite Video RCA Jack

USB USB2.0

DC 12V Input Power Jack

Light Box Power Jack (DC 6V Output)

Dimension

Operating 160mm x 170mm x 450mm

Folded 287.4mm x 232.5mm x 61mm

Weight 2.4 kg (about 5.3 lb)

E-4

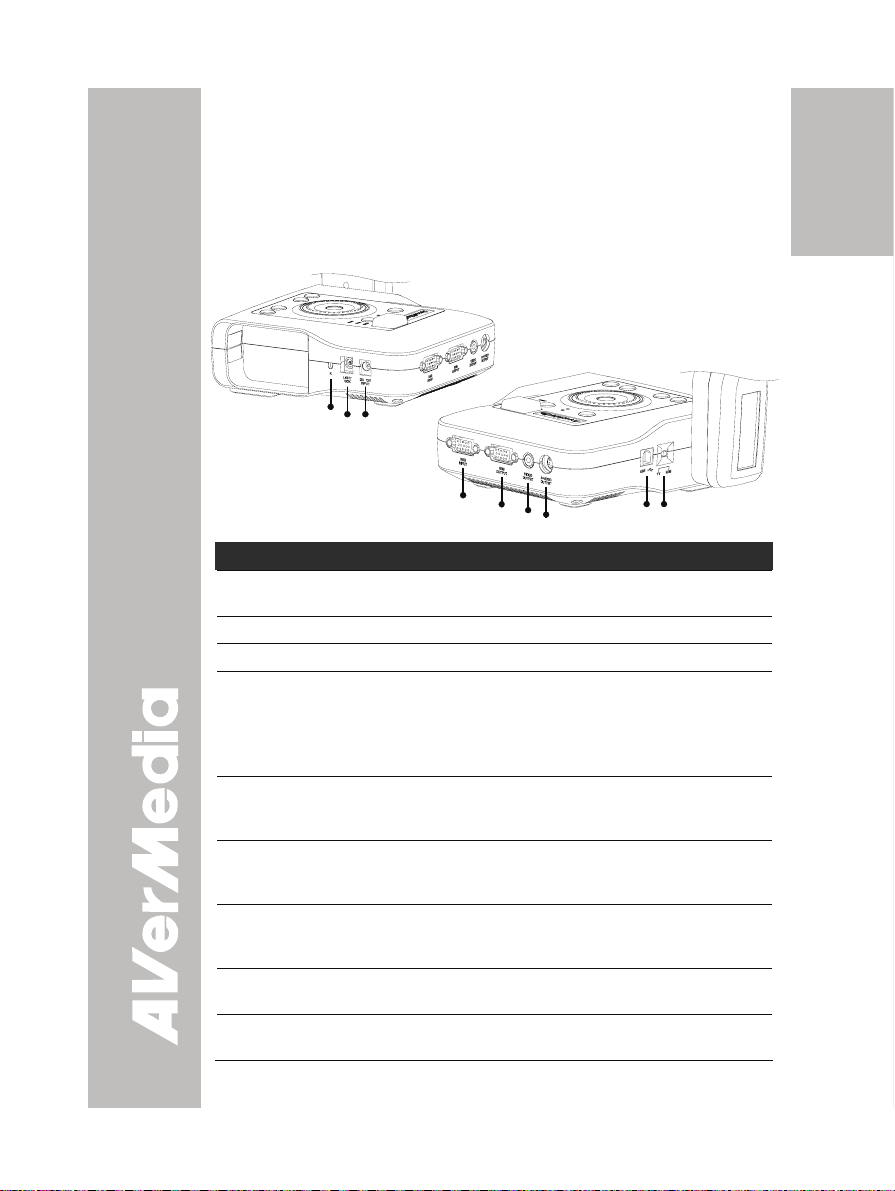

MMaakkiinngg tthhee CCoonnnneeccttiioonnss

The ports on the rear, left and right panel of CP150 enable you to
connect the unit to a computer, graphics display monitor or LCD/DLP
projector, TV or other device. Illustrated below are the ports that are
located at the rear, left and right panel of CP150 with their corresponding
labels.

Right Panel

Rear & Left Panel

(1)

(2)(3)

(4)

(5)

(6)

(7)

(8)

(9)

Port Description

(1) Antitheft Slot Attach a Kensington compatible security lock or

(2) Light Box Plug the optional light box into this port.

(3) DC 12V Input Connect the power adapter into this port.

(4) RGB INPUT Input the signal from a computer or other

(5) RGB OUTPUT Output the signal from the camera, RGB input

(6) VIDEO OUTPUT
(RCA/Composite)

(7) S-VIDEO OUTPUT Output the signal from the camera or the

(8) USB Use CP150 as a USB Camera or transfer the

(9) TV-RGB switch Switch to output display video either from Video,

antitheft device.

sources and pass it through to the RGB Output
port only.

Connect this port to the VGA output port of the
computer.

port, or the captured images from the memory on
a VGA/Mac monitor or LCD/DLP projector.

Output the signal from the camera or the
captured images from the memory on TV or
Video equipment.

captured images from the memory on TV or
Video equipment.

captured images from CP150 memory to PC.

S-VIDEO, or RGB output port.

English Deutsch Français

Italiano Español Česky

E-5

CCoonnnneeccttiinngg tthhee PPoowweerr AAddaapptteerr

Connect the power adapter to a standard 100V~240V AC power source.

Wall outlet

Power cord

Power adapter

CCoonnnneeccttiinngg aa TTVV

Locate the VIDEO, S-VIDEO or SCART RGB input port of the TV or
Video equipment (i.e., VCR) to record your presentation on a videotape
and connect it to S-VIDEO or VIDEO OUTPUT port of CP150. If you are
not sure, please refer to the user manual of the TV or Video equipment.

For better video quality, we strongly suggest using S-VIDEO
connection.

Make sure the TV/RGB switch is set to TV.

INPUT

S-Video to SCART cable

(not supplied)

S-Video cable

RCA cable

RCA to SCART cable

(not supplied)

SCART

S-VIDEO

VIDEO

SCART

Projector

Television

VCR

E-6

CCoonnnneeccttiinngg aa VVGGAA,, MMaacc DDiissppllaayy
MMoonniittoorr oorr LLCCDD//DDLLPP PPrroojjeeccttoorr

Locate the RGB (VGA) input port of the display device and connect it to
RGB OUTPUT port of CP150. If you are not sure, please refer to the
user manual of the device.

Make sure the TV/RGB switch is set to RGB.

RGB (VGA) cable

(not supplied)

CRT monitor

MAC

Monitor Adapter

(not supplied)

MAC monitor

CCoonnnneeccttiinngg aann IIBBMM CCoommppaattiibbllee PPCC oorr
MMaacciinnttoosshh CCoommppuutteerr

LCD/DLP projector

LCD monitor

English Deutsch Français

Locate the RGB video output port of the computer or laptop to display
your PC presentation on screen and connect it to RGB INPUT port of
CP150. The video signal from the RGB INPUT port is streamed to RGB
OUTPUT port and displayed on the screen.

Computer

Laptop

Computer extension cable

(VGA cable)

Monitor Adapter

(not supplied)

MAC

E-7

Italiano Español Česky

x

CCoonnnneeccttiinngg aa CCoommppuutteerr vviiaa UUSSBB
CCoonnnneeccttiioon

Locate the USB port of the computer or laptop and connect it to USB port
of CP150. This enables you to use CP150 as a USB Camera and to
transfer the captured images from the memory and to computer. Also
see “Transfer Image from AVerVision CP150 to PC”.

Computer

Laptop

MAC

n

USB cable

IInnssttaalllliinngg tthhee OOppttiioonnaall LLiigghhtt BBooxx

Connecting an optional light box enables you to view x-rays,
transparencies and negative slides.

Light Bo
(optional)

TURN ON

PLUG

IT HERE

E-8

CCoonnnneeccttiinngg ttoo aa MMiiccrroossccooppee

Connecting the CP150 to a microscope enables
you to examine microscopic objects on a big
screen without straining your eyes.

Microscopic

Adapter

SSeettttiinngg UUpp AAVVeerrVViissiioonn CCPP115500

This section provides useful tips on how to adjust the CP150 to meet
your needs.

CCaammeerraa HHeeaadd

The camera head can be turned 90 ° to the left and right. The latch must
be pressed to open and unfold the LED light. You can also manually
adjust the focus from the focus ring to improve the quality of the pictures.

Make sure to unfold the LED light fully.

90° 90°

180°

Latch

Microscope

Focus
Ring

English Deutsch Français

Italiano Español Česky

LLEEDD LLiigghhtt

The LED light provides white light and is best used when presenting in
low light conditions.

Tur n O nTur n O n Tu rn OffTur n Of f

E-9

FFlleexxiibbllee GGoooosseenneecckk aanndd AArrmm

The flexible gooseneck and arm design allows you to position the
camera head from any angle.

90°

IInnffrraarreedd SSeennssoorr

Aim the remote control at the infrared sensor to operate the unit.

AAnnttii--ggllaarree SShheeeett

The anti-glare sheet is a special coated film that helps eliminate any
glare that maybe encountered while displaying very shiny objects or
glossy surfaces such as magazines and pictures. To use, simply place
the anti-glare sheet on top of the shiny document to reduce reflected
light.

E-10

UUssiinngg tthhee IInnffrraarreedd RReemmoottee CCoonnttrrooll

Use the CP150 Remote Control to enhance your presentation by having
the ability to switch between three (3) presentation modes and access
various features. To use the remote control, first insert the batteries (2
“AAA” size batteries are provided) into the battery compartment at the
back of the remote. Use the figure and descriptions below as a reference
for remote control functions.

(1)

(2)

(3)

(9)

(10)

(11)

(12)
(13)

(4)

(5)

(6)

(7)

(8)

English Deutsch Français

Name Function

(1) POWER Turn the unit on/off.

(2) Shuttle Wheel - Turn the shuttle wheel clockwise to zoom in and

counter-clockwise to zoom out the image in Camera
and Playback mode only.
When it reaches the maximum AVERZOOM level of
about 200%, you can still continue to digitally zoom
in the image up to 1600%. Press ENTER to return to
normal view (100%).

- Press the shuttle wheel ▲,▼,◄, &► to pan the
image while in zoom in mode, to make a selection on
16-thumbnail images or move to the next or previous
single full screen preview in Playback mode, or to
make a selection or adjustment on the OSD
main-menu and sub-menu (See Menu Functions for
more details).

(3) ENTER Make a selection in Playback mode and OSD menu.

E-11

Italiano Español Česky

Name Function

(4) Source Switch between Camera, Playback and PC mode.

- Camera mode displays the video signal from the
built-in camera.

- Playback mode displays the captured image from
the built-in memory in 16-thumbnail images. Use
▲,▼,◄, & ► buttons to make a selection and
ENTER to display the selected image in full screen.
To start slide show press MENU and select START
and press ENTER to begin and end. Select
INTERVAL to set the display time interval between
frames in second.

- PC mode displays the video signal from the RGB
INPUT port of CP150.

(5) CAP/DEL - Capture a still image in Camera mode. The captured

(6) REVERSE Rotate the image by 180°in Camera mode only.

(7) PROFILE Recall and switch from the 3 saved user setting profile

(8) TIMER

(9) MENU Pull up and exit the OSD main-menu and sub-menu.

(10) AUTO


(11) FREEZE Toggle to pause or resume the camera.

(12) EFFECT Convert and display the image in BW, Negative or

(13) PRESENTER Select to turn on/off AVe rB o x or AVerVisor. Only one

image is saved in the built-in memory at 1024 x 768
resolution and can store up to 80 images.

- Remove the selected picture from the built-in
memory permanently in Playback mode.

selections (See MENU Functions – SAVE for more
details).

Display the OSD timer menu and
select SET TIME to set the time value, START to begin
the countdown timer, PAUSE/RESUME to temporarily
halt or continue, and STOP to end.

Automatically adjust and set the white balance and
exposure setting.

Color in Camera and Playback mode only.

feature can be used at a time.

AVerBox overlays a frame on the presentation screen.
Selecting SHADE changes the opacity of the area
outside the box from 0%, 50% and 100%, COLOR to
change the frame color from red, green and blue, and
RESIZE to change the size of the frame. To resize or
move the frame around the presentation screen, press
the shuttle wheel ▲,▼,◄, & ►.

use ▲or▼ buttons to

E-12

Name Function

(13) PRESENTER

AVerVisor covers part of the presentation screen. The
upper part of the presentation screen is slightly
exposed when it is being called each time. To expose
part of the covered area, press the shuttle wheel
▲,▼,◄, & ►. Select SHADE to change the darkness
of the shaded area between 50% or 100%.

English Deutsch Français

TToouucchh BBuuttttoonn CCoonnttrrooll PPaanneell

The touch button control panel located on the top side of the CP150
provides quick access to commonly used functions.

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(10)

(11)

Function Description

(1) POWER

Turn the unit on/off.

E-13

Italiano Español Česky

Function Description

(2) Output LED

Indicator

(3) Shuttle Wheel

(4) ENTER

(5) FREEZE

(6) MENU

(7) Source LED

Indicator

(8) Source

SLIDE SHOW

START

INTERVAL

(9) AUTO IMAGE

(10) CAP/DEL

(11) EFFECT Convert and display the image in BW, Negative or

Indicate the setting of the TV to RGB dip switch to
which the video signal is being sent out.

- Turn the shuttle wheel clockwise to zoom in and
counter-clockwise to zoom out the image in
Camera and Playback mode only.
When it reaches the maximum AVERZOOM level
of about 200%, you can still continue to digitally
zoom in the image up to 1600%. Press ENTER to
return to normal view (100%).

- Press the shuttle wheel ▲,▼,◄, & ► to pan the
image while in zoom in mode, to make a selection
on 16-thumbnail images or move to the next or
previous single full screen preview in Playback
mode, or to make a selection and adjustment on
the OSD main-menu and sub-menu (See Menu
Functions for more details).

Make a selection in Playback mode and OSD menu.

Toggle to pause or resume the camera.

Pull up and exit the OSD main-menu and sub-menu.

Indicate the source of the video signal or image.

Switch between Camera, Playback and PC mode.

- Camera mode displays the video signal from the
built-in camera.

- Playback mode displays the captured image from
the built-in memory in 16-thumbnail images. Use
▲,▼,◄, & ► buttons to make a selection and
ENTER to display the selected image in full
screen. To start slide show press MENU and
select START and press ENTER to begin and
end. Select INTERVAL to set the display time
interval between frames in second.

- PC mode displays the video signal from the RGB
INPUT port of AVerVision CP150.

Automatically adjust and set the white balance and
exposure setting.

- Capture a still image in Camera mode. The
captured image is saved in the built-in memory at
1024 x 768 resolution and can store up to 80
images.

- Remove the selected picture from the built-in
memory permanently in Playback mode

Color in Camera and Playback mode only.

E-14

OOSSDD NNaavviiggaattiioonn TTrreeee

54210

RED

ON

FRANÇAIS

OFF

63160

RED

AUTO

2551400

ITALIANA

ESPAÑOL

Русский

POLSKI

MANUAL

FLICKER

NIGHT VIEW

EXPOSURE

WHITE BALANCE

FLICKER

50 HZ

AUTO

BRIGHTNESS

CONTRAST

RESOLUTION

NIGHT VIEW

60 HZ

RED

BLUE

LANGUAGE

ENGLISH

DEUTSCH

MANUAL

AUTO

MODE

5 SECS

INTERVAL

TEXT

GRAPHICS


HIGH FRAME

255650

255650

1024 x 768

Čeština

RED

BLUE

800 x 600

640 x 480

FORMAT MEMORY

NO

YES

255650

255650

USB CONNECTION

USB CAMERA

IMG DOWNLOAD

SAVE

PROFILE 1

PROFILE 2

PROFILE 3

English Deutsch Français

Italiano Español Česky

MIRROR OFF

REVERSE OFF

AVERBOX OFF

AVERVISOR OFF

SHADE

COLOR

RESIZE

START

PAUSE

STOP

COLOR

B / W

NEGATIVE

MENU

EFFECT

SET TIME

REVERSE/MIRROR

TIMER

CAPTURE

SETTINGS

PRESENTER

RECALL

DEFAULT

SINGLE

CONTINUOUS

MODE


LANGUAGE

FORMAT MEMORY

USB CONNECTION

SAVE

PROFILE 1

PROFILE 2

PROFILE 3

NO

YES

E-15

MMeennuu FFuunnccttiioonnss

The MENU functions of CP150 enhance fine-tuning your screen display,
set the timer, select OSD language and more. Press the MENU button
to call up and exit from the main menu or sub-menu display. Then use
▲or▼ buttons to select the items in the menu list. Use ►/ENTER
button to enter sub-menu and ◄/ ENTER to return to main menu. To
adjust the setting, press ◄ or► buttons. To make a selection, press
ENTER.

OSD Menu Description

MENU

EFFECT

REVERSE/MIRROR
PRESENTER
TIMER
CAPTURE
SETTINGS
RECALL
DEFAULT

MENU

EFFECT

REVERSE/MIRROR

PRESENTER
TIMER
CAPTURE
SETTINGS
RECALL
DEFAULT

MENU

EFFECT
REVERSE/MIRROR

PRESENTER

TIMER
CAPTURE
SETTINGS
RECALL
DEFAULT

COLOR
B / W
NEGATIVE

MIRROR OFF
REVERSE OFF

AVERBOX OFF
AVERVISOR OFF

SHADE
COLOR
RESIZE

EFFECT

Press ► and use ▲or▼ buttons to select and display
the image in Camera mode into positive (true color),
monochrome (black and white) or negative. Then
press ►

/ENTER to make a selection.

REVERSE / MIRROR

Press ► and use ▲or▼ buttons to select and turn on
MIRROR to flip the image and REVERSE to rotate
the image by 180° in Camera mode. Then press

►

/ENTER to make a selection.

PRESENTER

Press ► and use ▲or▼ buttons to select and turn on
either AV E RB OX or AVERVISOR. Only one feature
can be used at a time.

AVerBox overlays a frame on the presentation screen.
Selecting SHADE changes the opacity of the area
outside the box from 0%, 50% and 100%, COLOR to
change the frame color from red, green and blue, and
RESIZE to change the size of the frame. To resize or
move the frame around the presentation screen,
press the shuttle wheel ▲,▼,◄, & ►.

AVerVisor covers part of the presentation screen. The
upper part of the presentation screen is slightly
exposed when it is being called each time. To expose

E-16

OSD Menu Description

MENU

EFFECT
REVERSE/MIRROR

PRESENTER

TIMER
CAPTURE
SETTINGS
RECALL
DEFAULT

AVERBOX OFF
AVERVISOR OFF

SHADE
COLOR
RESIZE

part of the covered area, press the shuttle wheel
▲,▼,◄, & ►. Select SHADE to change the darkness
of the shaded area between 50% or 100%.

English Deutsch Français

MENU

EFFECT
REVERSE/MIRROR
PRESENTER

TIMER

CAPTURE
SETTINGS
RECALL
DEFAULT

MENU

EFFECT
REVERSE/MIRROR
PRESENTER
TIMER

CAPTURE

SETTINGS
RECALL
DEFAULT

MENU

EFFECT
REVERSE/MIRROR
PRESENTER
TIMER
CAPTURE

SETTINGS

RECALL
DEFAULT

START
PAUSE
STOP

SET TIME

SINGLE
CONTINUOUS

INTERVAL

5 SECS

MODE
LANGUAGE
FORMAT MEMORY
USB CONNECTION
SAVE

MODE

TEXT

GRAPHICS
HIGH FRAME

TIMER

Press ► and use ▲or▼ buttons to select SET TIME
to set the time value, START to begin the countdown
timer, PAUSE/RESUME to temporarily halt or
continue, and STOP to end.

CAPTURE
Press ► and use ▲or▼ buttons to select SINGLE or

CONTINUOUS capture mode.
Setting SINGLE saves one still image only and

CONTINUOUS saves successive still images until the

built-in memory is full or when the CAP/DEL button is
being press again to stop.

In Continuous mode, use ►or◄ buttons to increase
or decrease the capture time interval between frames
and then press ENTER to save the setting and exit.
The time interval can be set from 5 to 600 sec.

SETTINGS

Press ►, then use ▲or▼ buttons to select the items
in SETTINGS list and press ►/ENTER.

SETTINGS > MODE

Use ▲or▼ buttons to select between Text, Graphics
and High Frame enhancement mode and then
ENTER to make a selection.

• Text - corrects the intensity of the adjacent pixel
making it more uniform producing sharper and
clearer images.

• Graphics - adjusts the gradient of the adjacent
pixel making it appears to have a smooth image.

Italiano Español Česky

E-17

OSD Menu Description


EXPOSURE

WHITE BALANCE
BRIGHTNESS
CONTRAST
RESOLUTION

0 5421


EXPOSURE

WHITE BALANCE

BRIGHTNESS
CONTRAST
RESOLUTION


EXPOSURE
WHITE BALANCE

BRIGHTNESS

CONTRAST
RESOLUTION

MODE

TEXT

GRAPHICS
HIGH FRAME

AUTO
MANUAL
FLICKER
NIGHT VIEW

MANUAL

FLICKER

50 HZ

60 HZ

NIGHT VIEW

ON

OFF
AUTO

AUTO
RED
BLUE

RED

BLUE

• High Frame - increases the frame rate capture and
can visually tracks the motion and react quickly.
Sufficient lighting is required when using this
mode.

SETTINGS > IMAGE > EXPOSURE

Press ► and use ▲or▼ buttons to select between
Auto, Manual, Flicker and Night View. Then press

►

/ENTER to make a selection.

Select AUTO to automatically adjust the camera
exposure to determine how much light is required.

SETTINGS > IMAGE > EXPOSURE > MANUAL

Press ►/ENTER and use ◄or► buttons to manually
adjust the exposure level then press ENTER to save
the setting and exit.

SETTINGS > IMAGE > EXPOSURE > FLICKER

Use ▲or▼ buttons to select between 50Hz or 60Hz.
Some display devices cannot handle high refresh
rates. The image will flicker a couple of times as the
output is switched to another refresh rate.

SETTINGS > IMAGE > EXPOSURE > NIGHT VIEW
Use ▲or▼ buttons to turn Night View ON, OFF or

AUTO.

If you are presenting in a low-light condition, Night
View enables the image of the object to appear as
though under normal lighting conditions. CP150 can
automatically adjust the exposure to compensate for
the adverse condition, but the captured image will
appear to be in slow motion.

SETTINGS > IMAGE > EXPOSURE > WHITE BALANCE

Press ► and use ▲or▼ buttons to select between
Auto or manually adjust the Red and Blue color to suit
the lighting condition or color temperature. Then
press ►/ENTER to make a selection.

SETTINGS > IMAGE > EXPOSURE > WHITE BALANCE >
RED

2550 65

Use ►or◄ buttons to manually adjust the red color
level then press ENTER to save the setting and exit.

SETTINGS > IMAGE > EXPOSURE > WHITE BALANCE >
BLUE

2550 65

Use ►or◄ buttons to manually adjust the blue color
level then press ENTER to save the setting and exit.

SETTINGS > IMAGE > BRIGHTNESS

Use ►or◄ buttons to increase or decrease the

63160

brightness level and improve the visibility of the
image. The brightness level can be set up to 63.

E-18

OSD Menu Description


EXPOSURE
WHITE BALANCE
BRIGHTNESS

CONTRAST

RESOLUTION


EXPOSURE
WHITE BALANCE
BRIGHTNESS
CONTRAST

RESOLUTION

LANGUAGE

ENGLISH

DEUTSCH
FRANÇAIS
ITALIANA
ESPAÑOL

Русский

POLSKI
Čeština

FORMAT MEMORY

NO

YES

USB CONNECTION

USB CAMERA

IMG DOWNLOAD

SAVE

PROFILE 1

PROFILE 2
PROFILE 3

MENU

EFFECT
REVERSE/MIRROR
PRESENTER
TIMER
CAPTURE
SETTINGS

RECALL

DEFAULT

MENU

EFFECT
REVERSE/MIRROR
PRESENTER
TIMER
CAPTURE
SETTINGS
RECALL

DEFAULT

1024 x 768
800 x 600
640 x 480

PROFILE 1
PROFILE 2
PROFILE 3

NO
YES

SETTINGS > IMAGE >

Use ►or◄ buttons to emphasize or reduce the
difference between light and dark conditions. The

2551400

contrast level can be adjustable up to 255.
SETTINGS > IMAGE >

Press ►/ENTER and use ▲or▼ buttons to choose
from different display resolutions then press
►/ENTER to make the selection.

This selection will not be available in TV output
(Composite/S-Video)

SETTINGS > LANGUAGE

Use ▲or▼ buttons to select from different languages
then press ► to make the selection.

SETTINGS > FORMAT MEMORY

Use ▲or▼ buttons to select NO to exit or YES to
format and delete all the images saved in the built-in
memory then press ►/ENTER.

Please wait till the message “FORMAT” disappear to
finish the process.

SETTINGS > USB SELECT

Use ▲or▼ buttons to select the USB function
between PC Camera and Image Download.

• USB Camera - can be used as a computer
webcam or with our bundled software as video
recorder and capture still image.

• Img Download - transfer the captured images from
the built-in memory to computer hard disk.

SETTINGS > SAVE

Use ▲or▼ buttons to select which user setting profile
number to save your preferred setting. Only effect,
mode, brightness and contrast settings can be saved.

RECALL

Press ►and use ▲or▼ buttons to select from the list
to change to the preferred saved user setting profile
number then press ►/ENTER to make the selection.

DEFAULT

Press ► and use ▲or▼ buttons to select YES to
restore to original factory default setting or NO to exit
then press ►/ENTER to make the selection.

CONTRAST

RESOLUTION

English Deutsch Français

Italiano Español Česky

E-19

TTrraannssffeerrrriinngg tthhee CCaappttuurreedd IImmaaggeess ttoo PPCC

This enables you to transfer the captured image from the built-in memory
to PC.

The instruction below MUST be read and followed
BEFORE connecting the USB cable.

1. MUST set the USB CONNECTION as IMG DOWNLOAD before

connecting the USB cable.

To set the USB CONNECTION as IMG DOWNLOAD, press MENU
> select SETTING and press (►), select USB CONNECTION and
press (►), select IMG DOWNLOAD and press (►/ENTER), and
MENU to close the OSD menu.

2. When “IMG DOWNLOAD” appears at the lower right corner of the
presentation screen, you may now connect the USB cable.

3. Upon connecting the USB cable, the system automatically detects
the new removable disk. You may now transfer the captured image
from AVerVision CP150 built-in memory to PC hard disk.

TTrroouubblleesshhoooottiinngg

This section provides many useful tips on how to solve common
problems while using the CP150.

There is no picture on the presentation screen.

1. Check all the connectors again as shown in this manual.

2. Check the on/off switch of the display output device.

3. Verify the setting of the display output device.

4. If you are presenting from a notebook or computer through the display output
device, please check and switch the document camera source to PC Mode.

I have set up the CP150 and checked all the connections as
specified in the manual but I cannot get a picture on the preferred
presentation screen.

1. The unit POWER button turns orange in standby mode. Press the POWER
button again to turn on and the LED light will turn blue.

2. The default camera display resolution setting is on 1024x768. If your output
device does not support this resolution; no image can be projected. Simply
press hold the MENU and ► button to the increase or decrease the resolution
setting.

3. If your display output device is TV or any analog device, please switch the
TV-RGB dip switch to TV.

The picture on the presentation screen is distorted or the image is
blurry.

1. Reset all changed settings, if any, to the original manufacturer default setting
(Refer to the Menu Functions for more details and steps).

2. Use the Brightness and Contrast menu functions to reduce the distortion if
applicable.

3. If you discover that the image is blurry or out of focus, adjust the focus ring on
the camera head.

E-20

There is no computer signal on presentation screen.

1. Check all the cable connections among the display device, CP150 and your
PC.

2. Connect your PC to the CP150 first before you power on your computer.

3. Make sure to switch your laptop to output display on external display device.

LLiimmiitteedd WWaarrrraannttyy

For a period of time beginning on the date of purchase of the applicable product
and extending as set forth in the “Warranty Period of AVerMedia Product
Purchased” section of the warranty card, AVerMedia Information, Inc.
(“AVerMedia”) warrants that the applicable product (“Product”) substantially
conforms to AVerMedia’s documentation for the product and that its manufacture
and components are free of defects in material and workmanship under normal
use. “You” as used in this agreement means you individually or the business entity
on whose behalf you use or install the product, as applicable. This limited
warranty extends only to You as the original purchaser. Except for the foregoing,
the Product is provided “AS IS.” In no event does AVerMedia warrant that You will
be able to operate the Product without problems or interruptions, or that the
Product is suitable for your purposes. Your exclusive remedy and the entire
liability of AVerMedia under this paragraph shall be, at AVerMedia’s option, the
repair or replacement of the Product with the same or a comparable product.
This warranty does not apply to (a) any Product on which the serial number has
been defaced, modified, or removed, or (b) cartons, cases, batteries, cabinets,
tapes, or accessories used with this product. This warranty does not apply to any
Product that has suffered damage, deterioration or malfunction due to (a)
accident, abuse, misuse, neglect, fire, water, lightning, or other acts of nature,
commercial or industrial use, unauthorized product modification or failure to follow
instructions included with the Product, (b) misapplication of service by someone
other than the manufacturer’s representative, (c) any shipment damages (such
claims must be made with the carrier), or (d) any other causes that do not relate to
a Product defect. The Warranty Period of any repaired or replaced Product shall
be the longer of (a) the original Warranty Period or (b) thirty (30) days from the
date of delivery of the repaired or replaced product.

Limitations of Warranty

AVerMedia makes no warranties to any third party. You are responsible for all
claims, damages, settlements, expenses, and attorneys’ fees with respect to
claims made against You as a result of Your use or misuse of the Product. This
warranty applies only if the Product is installed, operated, maintained, and used in
accordance with AVerMedia specifications. Specifically, the warranties do not
extend to any failure caused by (i) accident, unusual physical, electrical, or
electromagnetic stress, neglect or misuse, (ii) fluctuations in electrical power
beyond AVerMedia specifications, (iii) use of the Product with any accessories or
options not furnished by AVerMedia or its authorized agents, or (iv) installation,
alteration, or repair of the Product by anyone other than AVerMedia or its
authorized agents.

Disclaimer of Warranty

EXCEPT AS EXPRESSLY PROVIDED OTHERWISE HEREIN AND TO THE
MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, AVERMEDIA
DISCLAIMS ALL OTHER WARRANTIES WITH RESPECT TO THE PRODUCT,
WHETHER EXPRESS, IMPLIED, STATUTORY OR OTHERWISE, INCLUDING
WITHOUT LIMITATION, SATISFACTORY QUALITY, COURSE OF DEALING,
TRADE USAGE OR PRACTICE OR THE IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR

English Deutsch Français

Italiano Español Česky

E-21

NONINFRINGEMENT OF THIRD PARTY RIGHTS.

Limitation of Liability

IN NO EVENT SHALL AVERMEDIA BE LIABLE FOR INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY
NATURE INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS, DATA,
REVENUE, PRODUCTION, OR USE, BUSINESS INTERRUPTION, OR
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES ARISING OUT OF
OR IN CONNECTION WITH THIS LIMITED WARRANTY, OR THE USE OR
PERFORMANCE OF ANY PRODUCT, WHETHER BASED ON CONTRACT OR
TORT, INCLUDING NEGLIGENCE, OR ANY OTHER LEGAL THEORY, EVEN IF
AVERMEDIA HAS ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
AVERMEDIA’S TOTAL, AGGREGATE LIABILITY FOR DAMAGES OF ANY
NATURE, REGARDLESS OF FORM OF ACTION, SHALL IN NO EVENT
EXCEED THE AMOUNT PAID BY YOU TO AVERMEDIA FOR THE SPECIFIC
PRODUCT UPON WHICH LIABILITY IS BASED.

Governing Law and Your Rights

This warranty gives You specific legal rights; You may also have other rights
granted under state law. These rights vary from state to state.

For warranty period, please refer to the warranty card.

E-22
