Avalon RF MX416 User's Manual & Operating Manual
MX416
Wireless Digital Microphone
User's Guide & Operating Manual
REV. X0 25 June 25, 2007
http://www.avalonrf.com/
Avalon RF, Inc. • 344 Coogan Way • El Cajon, CA 92020
Phone: (619) 401-1969 • Fax: (619) 401-1971 • Email: sales@avalonrf.com
AVALON RF, INC. Page ii
MX416 User’s Guide & Operating Manual
Table of Contents
1. General................................................................................................1
Figure A – MX416 Controls and Connectors........................................2
Charging Port ......................................................................................3
RF Output/Antenna Connector.............................................................3
I/O Connector......................................................................................3
RF Input/ Antenna Connector..............................................................3
2. Specifications.......................................................................................4
User Interface......................................................................................4
Setup...................................................................................................4
Electrical Interface...............................................................................4
Interconnecting....................................................................................5
Figure B – Battery Charger Connections .............................................5
Figure C – I/O Interface .......................................................................6
Mechanical ..........................................................................................7
Mounting..........................................................................................7
Mechanical Data ..............................................................................8

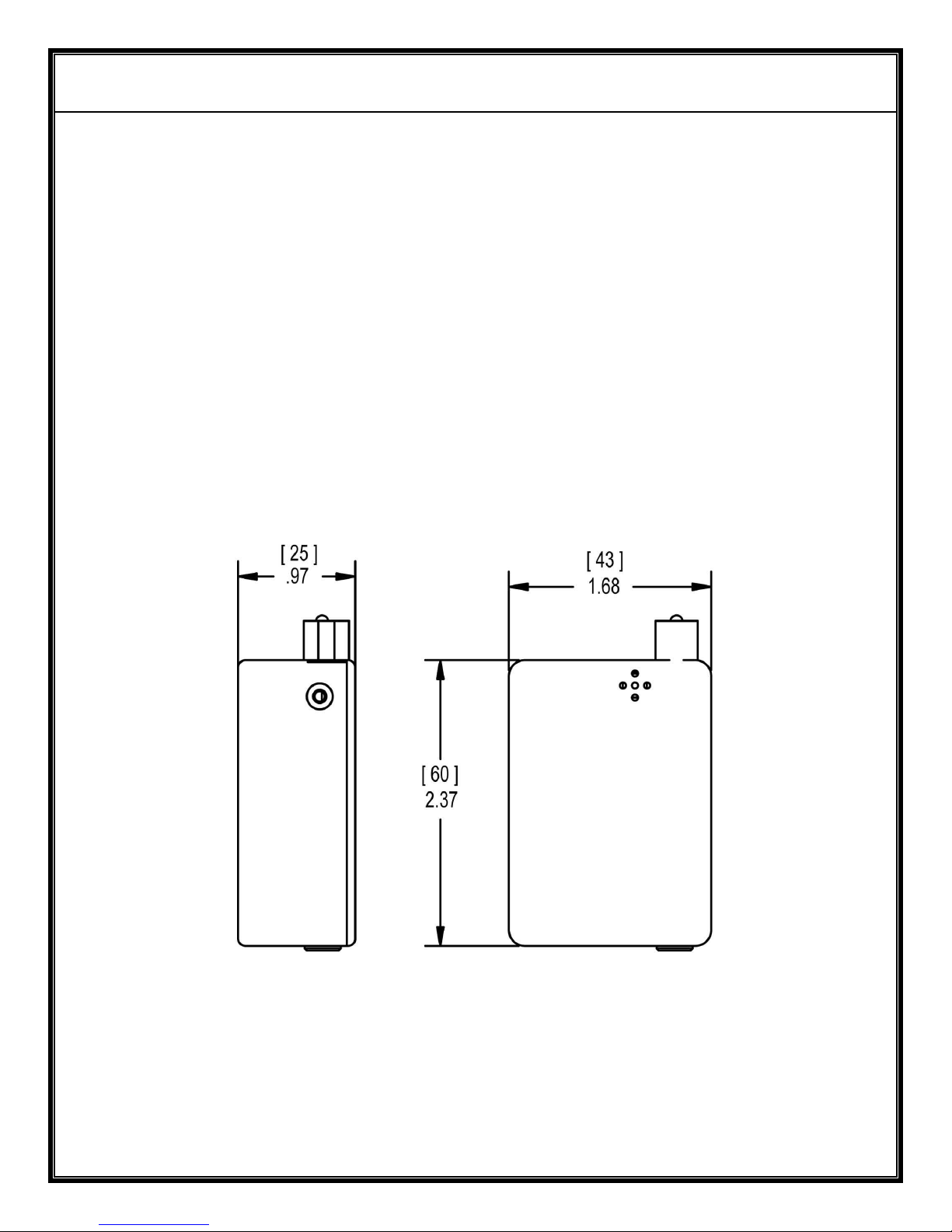

Figure D – MX416 Mechanical Outline.................................................8
Environmental Conditions....................................................................9
3. Operating the transceiver...................................................................10
4. Ordering information..........................................................................11
Base models......................................................................................11
Options..............................................................................................12
Recommended Accessories..............................................................12
AVALON RF, INC. Page 1
MX416 User’s Guide & Operating Manual
1. General
The MX416 rugged digital microphone is intended for use in short
range wireless audio transmission applications for police, homeland
security etc. The RF output power is approx. 250mW and typical lineof-sight operating range is over 3 miles (depends on various factors).
The MX416 works as a pair. The transmitter is very small and
completely self-contained with a microphone and a Li-Ion battery
built-in. The battery is capable of running the MX416 continuously for
over 7 hours. The receiver is powered by an external dc supply and
has a output for driving a 16 ohm headset speaker.
The MX416 offers the following features:
• A secure digital audio link with very short delay.
• UHF frequencies that provide better radio signal penetration
through walls and obstacles
• Low Power and light weight
AVALON RF, INC. Page 2
MX416 User’s Guide & Operating Manual
Top View
1 Antenna – MCX Connector
2 Power On/Off switch
Bottom View
3 Transmitter - Battery Charger
Connector
Receiver - I/O Connector
Front View
4 Microphone (Transmitter only)
Figure A – MX416 Controls and Connectors
AVALON RF, INC. Page 3
MX416 User’s Guide & Operating Manual
MX416-T (Transmitter)
1.1 Charging Port

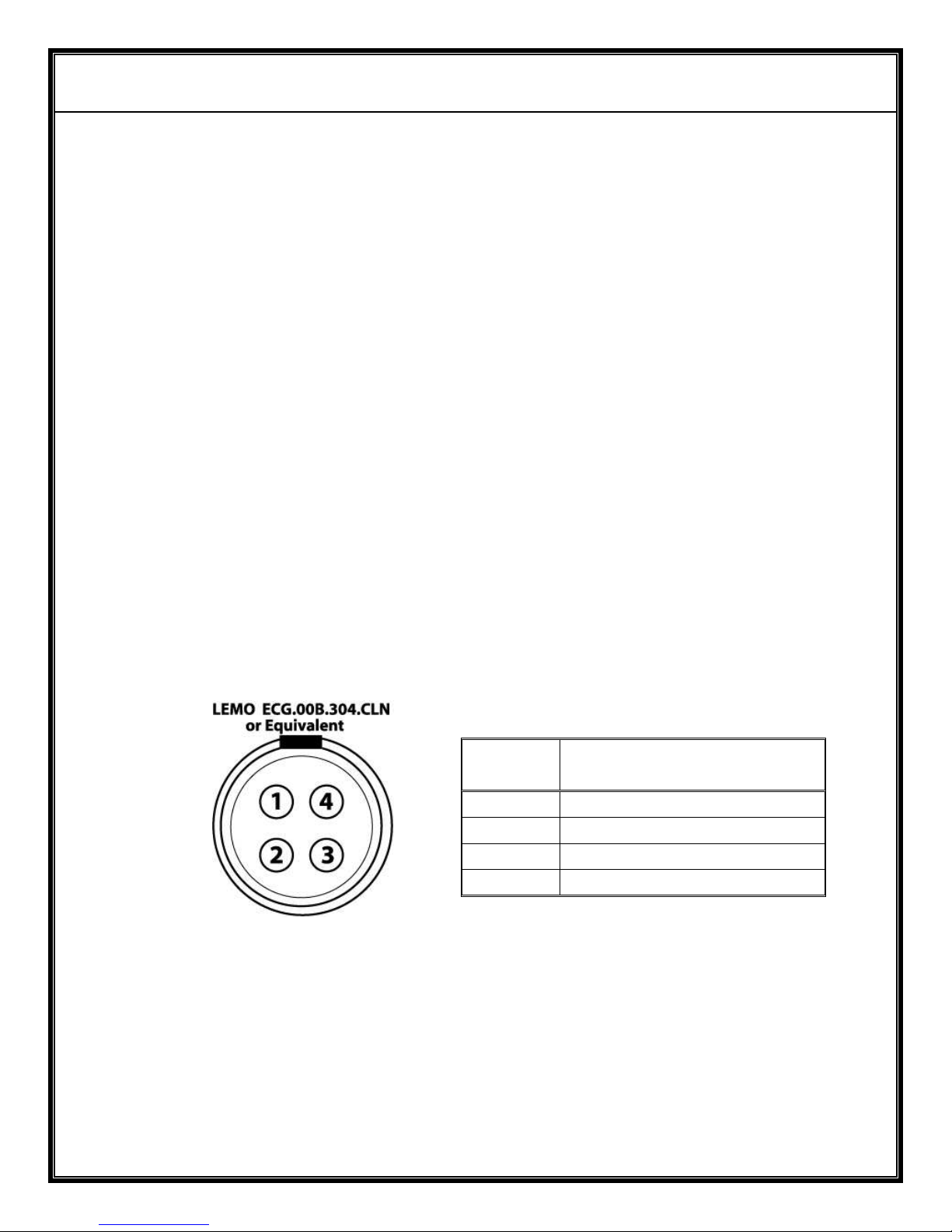

The charging connector is a 4-pin size 00B LEMO connector. A
separate wall mount charger is provided thereby avoiding the need
for a cradle.
1.2 RF Output/ Antenna
The MX416 has a 50 Ohm RF output through a MCX jack. An
antenna is included for each unit.
MX416-R (Receiver)
1.3 I/O Connector

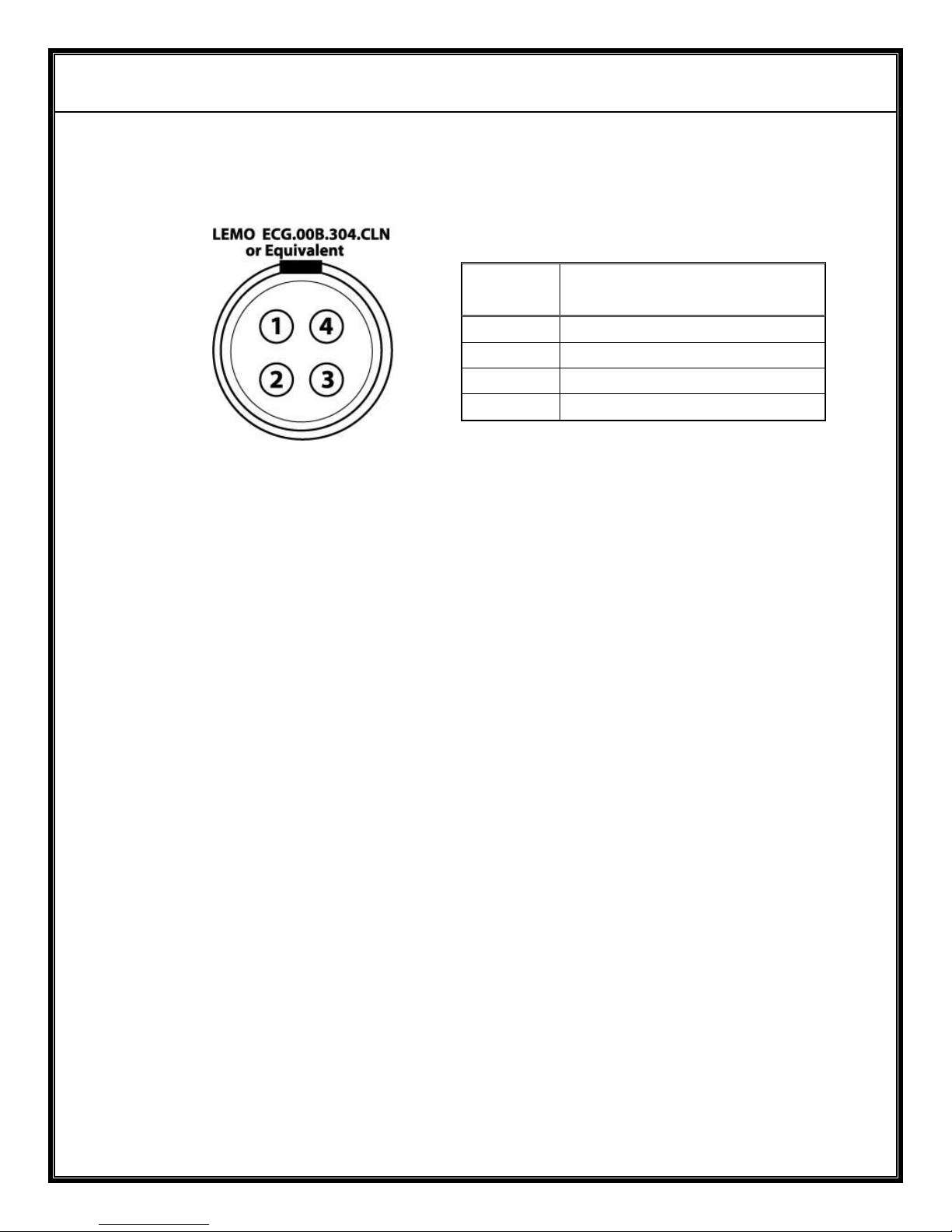

This is also a 4-pin size 00B LEMO connector. It has 2 pins for power
and speaker/audio output.
1.4 RF Input/ Antenna
This MCX jack is an rf input connector for an antenna. A short omni
whip (supplied) can be used for short distances up to a few hundred
feet or a high gain omni (or directional antenna if the application
permits) can be connected using a adaptor cable (optional).
