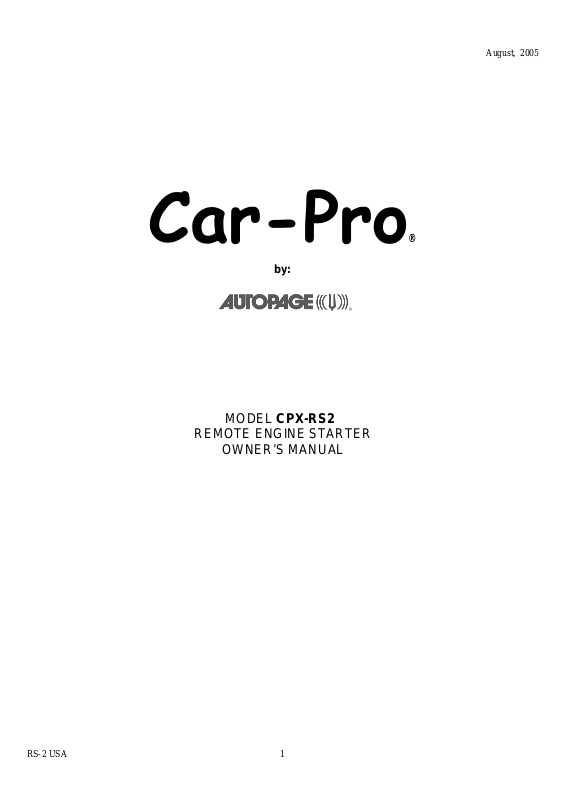

August, 2005

®

by:

MODEL CPX-RS2

REMOTE ENGINE STARTER

OWNER’S MANUAL

RS-2 USA 1

August, 2005

WARNINGS:

As with any product that performs automatic functions, there are certain safety precautions that you must practice and be
aware of.

1. Keep the transmitter out of children’s reach.

2. Do not leave anyone in the vehicle while running on remote control.

3. Alert servicing personnel that the vehicle can be started automatically.

4. Do not start the vehicle by remote while it’s in an enclosed area or garage.

5. Always apply the parking brake and lock the vehicle as you exit the vehicle.

6. Should the unit malfunction, disconnect the fuse until the problem is corrected.

7. The use and operations of this system is the sole responsibility of the operator.

8. Some areas may have local ordinances that prohibit leaving a vehicle running on public streets.

OPERATION:

A. REGULAR TRANSMITTER OPERATION:

Transmitter Button System Function Remark

+

Lock Doors Press to lock doors

Unlock Doors Press to unlock doors

Turn On The Remote Start Press Twice within 3 seconds

Turn Off The Remote Start Press Once

B. TO REMOTE START THE VEHICLE:

When you want to start your vehicle,

1. Press the transmitter button twice to start the vehicle.

2. The parking light will activate to indicate the remote start received the signal.

3. It will take approximately 5 seconds for the engine to start.

4. Once the engine is running, after couple seconds the parking light will turn on again and climate controls will activate
and adjust the vehicles interior temperature to your preset setting.

5. The vehicle will run for 5 to 30 minute cycle and automatically shut down.

NOTE: The following safety and security conditions exist with this unit.
The Remote Start Unit will not start the vehicle if any one of the following conditions exists:

1. The hood is opened.

2. The brake pedal is pressed.

3. Move the optional remote start enable toggle switch to OFF position. (If installed)

4. The gear selector is in any gear other then “PARK” or “NEUTRAL”

C. TO TURN OFF THE REMOTE START:

When the engine is running (by remote start), if you want to stop it, you can do one of three things:

1. Press and release the transmitter button.

2. Move the optional remote start enable toggle switch to OFF position. (If installed)

3. Press the brake pedal

The vehicle will shut down and turn off the parking light to indicate engine stopped.

D. TO OPERATE THE VEHICLE WHILE RUNNING ON THE REMOTE START:

To operate the vehicle after you have used the remote start function:

1. Insert the ignition key and turn it to “ON” (not the start) position.

2. Press the brake pedal.

Note: If the brake pedal is pressed before the key is in the “ON” position, the engine will shut down.

RS-2 USA 2
