AUO M270DAN01.1 Specification

Download
Page 1

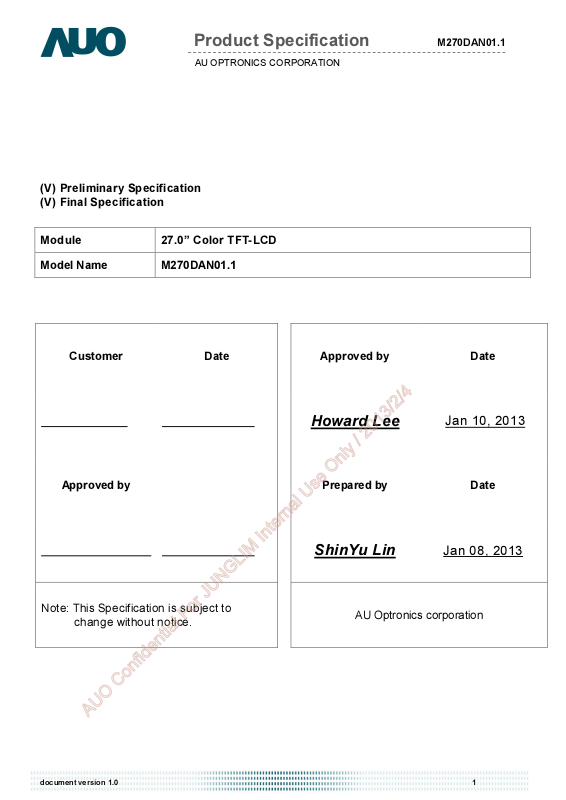

Product Specification
Preliminary Specification
(V) (V) Final Specification
Module 27.0” Color TFT-LCD
Model Name M270DAN01.1
AU OPTRONICS CORPORATION
M270DAN01.1
Customer Date
Approved by
Approved by Date
Howard Lee
Prepared by Date
ShinYu Lin
Jan 10, 2013
Jan 08, 2013
Note: This Specification is subject to
change without notice.
AU Optronics corporation
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
Page 2
Product Specification
AU OPTRONICS CORPORATION
M270DAN01.1
Contents
1 Handling Precautions................................................................ 4
2 General Description .................................................................. 5
2.1 Display Characteristics...........................................................................................................5
2.2 Absolute Maximum Rating of Environment ...........................................................................6
2.3 Optical Characteristics ...........................................................................................................7
3 TFT-LCD Module...................................................................... 13
3.1 Block Diagram ..................................................................................................................... 13
3.2 Interface Connection ........................................................................................................... 14
3.2.1 Connector Type ................................................................................................................ 14
3.2.2 Connector Pin Assignment............................................................................................... 14
3.3 Electrical Characteristics..................................................................................................... 17
3.3.1 Absolute Maximum Rating ............................................................................................... 17
3.3.2 Recommended Operating Condition ............................................................................... 17
3.4 Signal Characteristics.......................................................................................................... 18
3.4.1 LCD Pixel Format ............................................................................................................. 18
3.4.2 LVDS Data Format ........................................................................................................... 19
3.4.3 Color versus Input Data ................................................................................................... 20
3.4.4 LVDS Specification........................................................................................................... 21
3.4.5 Input Timing Specification................................................................................................. 23
3.4.6 Input Timing Diagram ....................................................................................................... 24
3.5 Power ON/OFF Sequence .................................................................................................. 25
4 Backlight Unit ......................................................................... 26
4.1 Block Diagram ..................................................................................................................... 26
4.2 Interface Connection ........................................................................................................... 27
4.2.1 Connector Type ................................................................................................................ 27
4.2.2 Connector Pin Assignment............................................................................................... 29
4.3 Electrical Characteristics..................................................................................................... 30
4.3.1 Absolute Maximum Rating ............................................................................................... 30
5 Reliability Test........................................................................ 32
6 Shipping Label ........................................................................ 33
7 Mechanical Characteristics ..................................................... 34
8 Packing Specification.............................................................. 37
8.1 Packing Flow ....................................................................................................................... 37
8.2 Pallet and shipment information.......................................................................................... 38
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
Page 3
Product Specification
AU OPTRONICS CORPORATION
M270DAN01.1
Record of Revision
Version
0.0 2012/12/26
Date Page Old description New Description Remark
All First version release -
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
Page 4
Product Specification
AU OPTRONICS CORPORATION
M270DAN01.1
1 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case a TFT-LCD Module has to be put back into the packing container slot after once it was taken out from the container, do not press the center of the LED lightbar edge. Otherwise the TFT-LCD Module may be damaged.
10) Insert or pull out the interface connector, be sure not to rotate nor tilt it of the TFT-LCD Module.
11) Do not twist nor bend the TFT -LCD Module even momentary. It should be taken into consideration that no bending/twisting forces are applied to the TFT-LCD Module from outside. Otherwise the TFT-LCD Module may be damaged.
12) Please avoid touching COF position while you are doing mechanical design.
13) When storing modules as spares for a long time, the following precaution is necessary:
Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the
temperature between 5℃ and 35℃ at normal humidity.
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
Page 5
Product Specification
AU OPTRONICS CORPORATION
M270DAN01.1
2 General Description
This specification applies to the 27.0 inch wide Color a-Si TFT-LCD Module M270DAN01.1. The display supports the WQHD - 2560(H) x 1440(V) screen format and 1.07B colors (RGB 10-bits). The input interface is 4 channel LVDS and this module doesn’t contain an driver board for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25
ITEMS Unit SPECIFICATIONS
Screen Diagonal [mm] 684.7 (27.0”)
Active Area [mm] 596.7 (H) x 335.6 (V)
condition:
Pixels H x V - 2560(x3) x 1440
Pixel Pitch [um] 233.1 (per one triad) ×233.1
Pixel Arrangement - R.G.B. Vertical Stripe
Display Mode -
White Luminance ( Center ) [cd/m2]
Contrast Ratio -
Normally Black
350 cd/m2 (Typ.)
1000 (Typ.)
Response Time [msec] 12ms (Typ., G/G)
Power Consumption (LCD Module + Backligh unit)
[Watt]
34.8 (Typ.) LCD module : PDD (Typ.)=8 W @ white pattern,Fv=60Hz Backlight unit : P
(Typ.) =26.8W @ IsR=70mA and IsB=90mA
BLU
Weight [Grams] TBD
Outline Dimension [mm] 630(H) × 368.2(V) × 12.45(D) Typ.
Electrical Interface -
4 channel LVDS
Support Color - 1.07B colors (RGB 10-bit)
Surface Treatment - Anti-Glare, 3H
Temperature Range Operating Storage (Shipping)
[oC] [oC]
0 to +50
-20 to +60
RoHS Compliance - RoHS Compliance
TCO Compliance - TCO 6.0 Compliance
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
document version 1.2 5
Page 6
Product Specification
AU OPTRONICS CORPORATION
M270DAN01.1

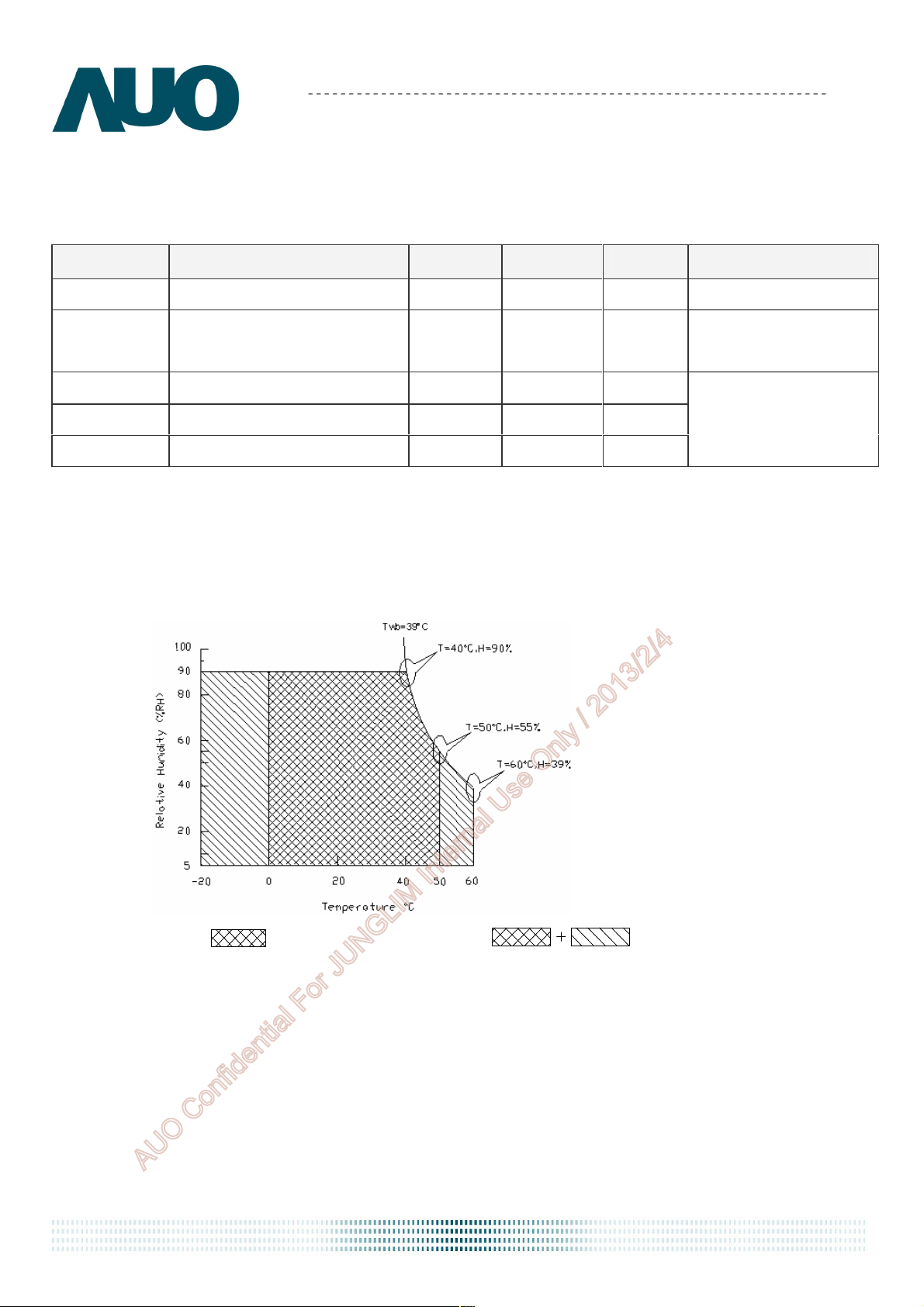

2.2 Absolute Maximum Rating of Environment
Permanent damage may occur if exceeding the following maximum rating.
Symbol Description Min. Max. Unit Remark
TOP Operating Temperature 0 +50 [oC] Note 2-1
TGS
Glass surface temperature (operation)
0 +65 [oC]
Function judged only
HOP Operation Humidity 5 90 [%RH]
TST Storage Temperature -20 +60 [oC]
HST Storage Humidity
5 90
[%RH]
Note 2-1: Temperature and relative humidity range are shown as the below figure.
1. 90% RH Max ( Ta ≦39℃)
2. Max wet-bulb temperature at 39℃ or less. ( Ta ≦39℃)
3. No condensation
Note 2-1
Note 2-1
Operating Range
Storage Range
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
document version 1.2 6
Page 7
Product Specification
AU OPTRONICS CORPORATION
2.3 Optical Characteristics
The optical characteristics are measured on the following test condition.
Test Condition:
1. Equipment setup: Please refer to Note 2-2.
2. Panel Lighting time: 30 minutes
M270DAN01.1
3. VDD=5.0V, Fv=60Hz, ,Is
Symbol
Lw
L
uni
CR
θR
θL
ΦH
ΦL
θR θL
ΦH
ΦL
White Luminance (Center of screen)
Luminance Uniformity (9 points)
Contrast Ratio (Center of screen) 600 1000
Horizontal Viewing Angle
(CR=10)
Vertical Viewing Angle
(CR=10)
Horizontal Viewing Angle
(CR=5)
Vertical Viewing Angle
(CR=5)
=70mA, IsB=90mA Ta=25℃
R
Description Min. Typ. Max.
280 350 -
75 80
Right 75 89 -
Left 75 89 -
Up
Down 75 89 -
Right 75 89 -
Left 75 89 -
Up
Down 75 89 -
75 89 -
75 89 -
-
- -
Unit Remark
[cd/m2]
[%]
[degree]
Note 2-2
By SR-3
Note 2-3
By SR-3
Note 2-4
By SR-3
Note 2-5
By SR-3
-
Rx
Ry
Gx
Gy
Bx
By
Wx
Wy
CT
FdB
Response Time
(Gray to Gray)
Color Coordinates
(CIE 1931)
Crosstalk - - -
Flicker (Center of screen) - -
Rising + Falling -
Red x
Red y
Green x
Green y
Blue x
Blue y
White x
White y
0.664 0.694 0.724
0.267 0.297 0.327
0.180 0.210 0.240
0.679 0.709 0.739
0.114 0.144 0.174
0.032 0.062 0.092
0.283 0.313 0.343
0.299 0.329 0.359
12 -
-20
[msec]
-
1.5
[dB]
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
Note 2-2: Equipment setup :
document version 1.2 7
Note 2-6
By TRD-100
By SR-3
Note 2-7
By SR-3
Note 2-8
By SR-3
Page 8
Product Specification
TFT-LCD Module
LCD Panel
AU OPTRONICS CORPORATION
Photo detector (SR-3, TRD-100)
Measured distance (50cm)
M270DAN01.1
Center of the screen

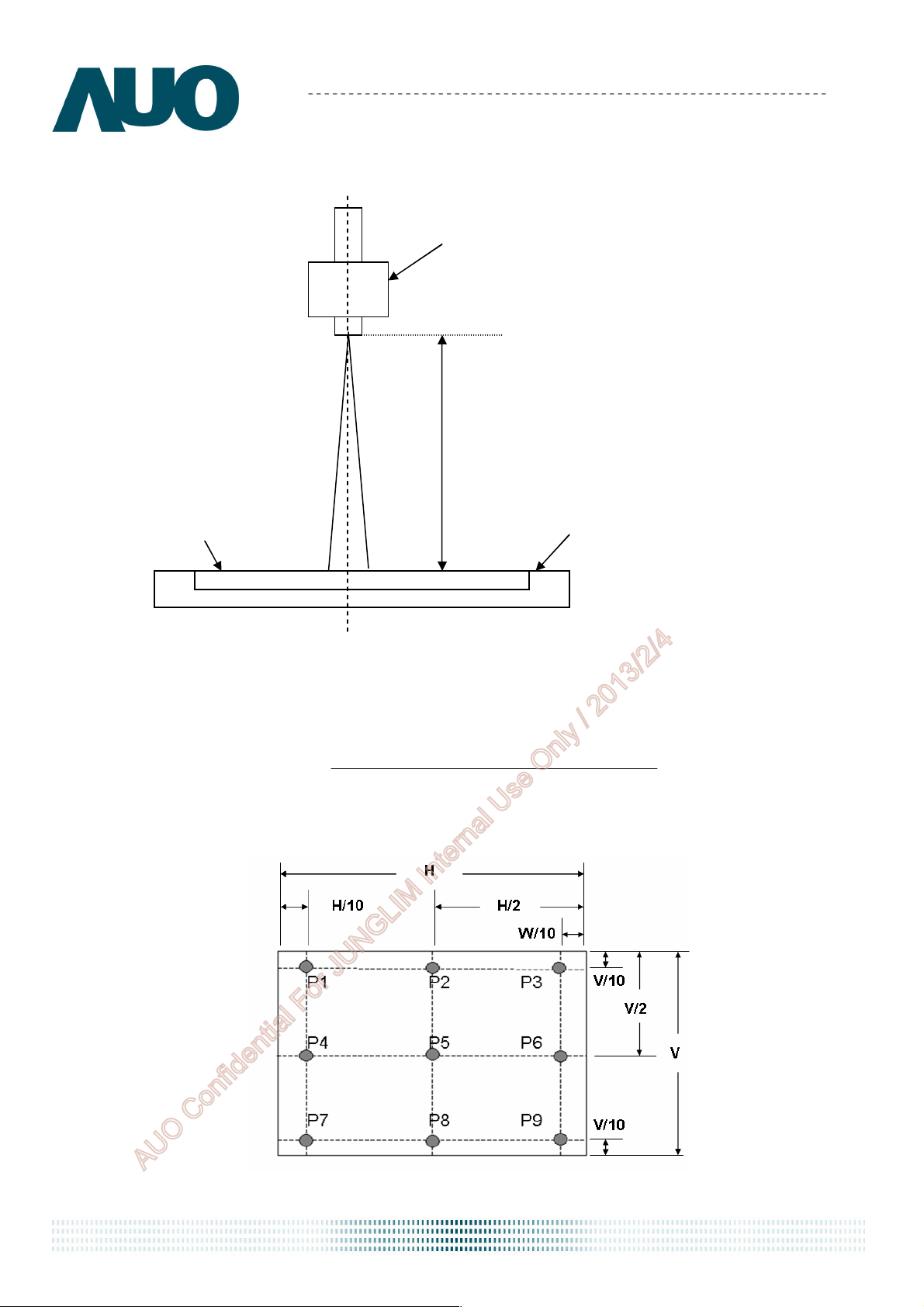

Note 2-3: Luminance Uniformity Measurement
Definition:
y UniformitLuminance =
a.Test pattern: White Pattern
P9)~(P1 Points 9 of Luminance Minimum
P9)~(P1 Points 9 of Luminance Maximum
document version 1.2 8
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
Page 9
Product Specification
T
Black
1 Frame
T
AU OPTRONICS CORPORATION
Note 2-4: Contrast Ratio Measurement
Definition:
RatioContrast =
M270DAN01.1
pattern Whiteof Luminance
pattern Black of Luminance
a. Measured position: Center of screen (P5) & perpendicular to the screen (θ=Φ=0°)

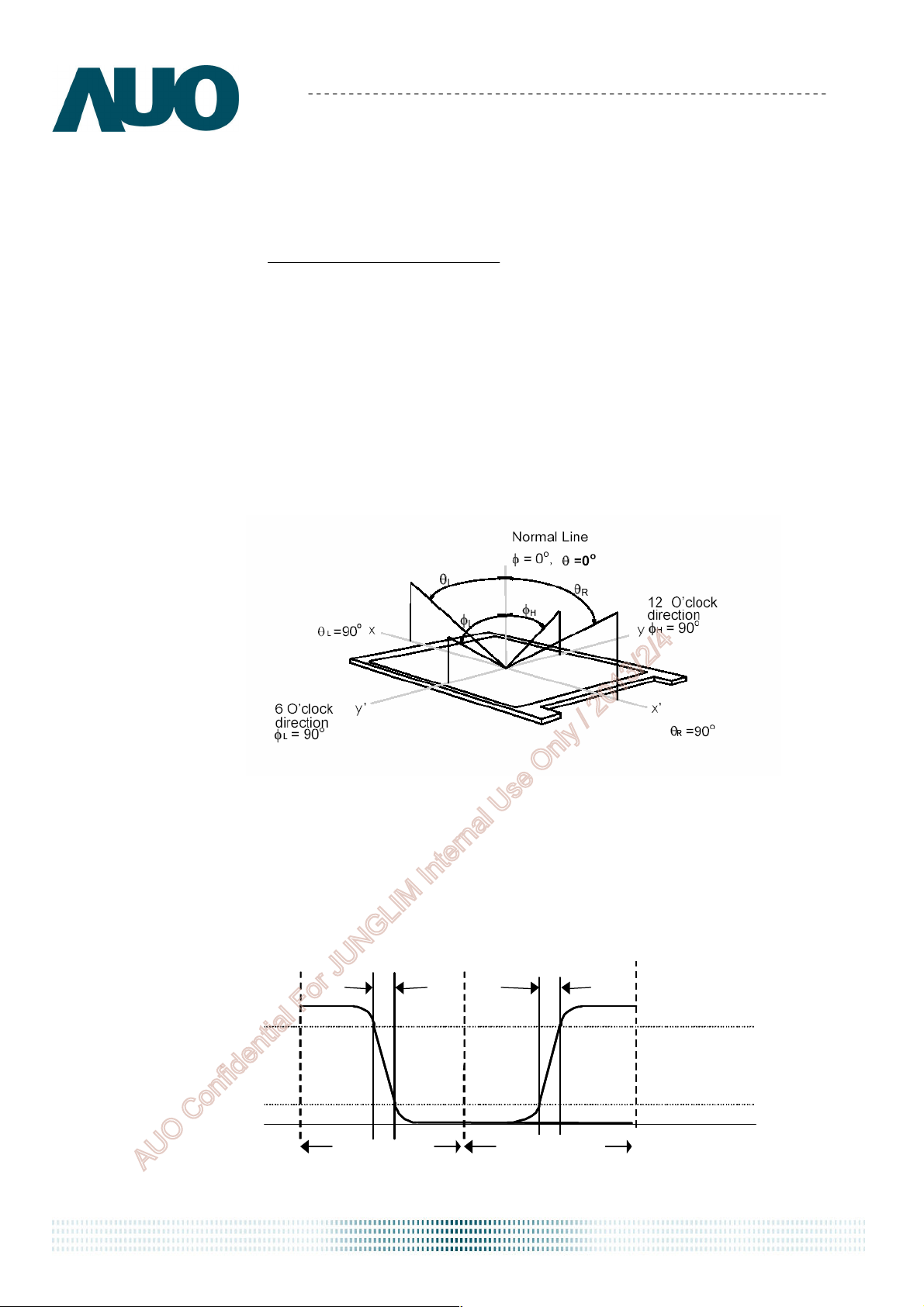

Note 2-5: Viewing angle measurement
Definition: The angle at which the contrast ratio is greater than 10 & 5 .
a. Horizontal view angle: Divide to left & right (θ
Vertical view angle: Divide to up & down (Φ
L & θR
&ΦL)
H
)
Note 2-6: Response time measurement
The output signals of photo detector are measured when the input signals are changed from “Black” to “White” (rising time, T
), and from “White” to “Black” (falling time, TF),
R
respectively. The response time is interval between the 10% and 90% of optical response. (Black & White color definition: Please refer section 3.4.3)
Optica l
Optica l
resp on se
resp on se
10 0
10 0
90
10
10
%
%
White
0
0
F
1 Frame
B lack
R
White
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
document version 1.2 9
Page 10
Product Specification
Gray 511
Black
AU OPTRONICS CORPORATION
M270DAN01.1
The gray to gray response time is defined as the following table. The algorithm is┃Gray Level A – Gray Level B┃≧256.
Gray Level to Gray Level
Falling Time
G0 G255 G511 G767 G1023
G0
G255
Rising Time
G511 G767
G1023
T T
GTG_typ
GTG_max
is the total average time at rising time and falling time of gray to gray.
is the maximum time at rising time or falling time of gray to gray.

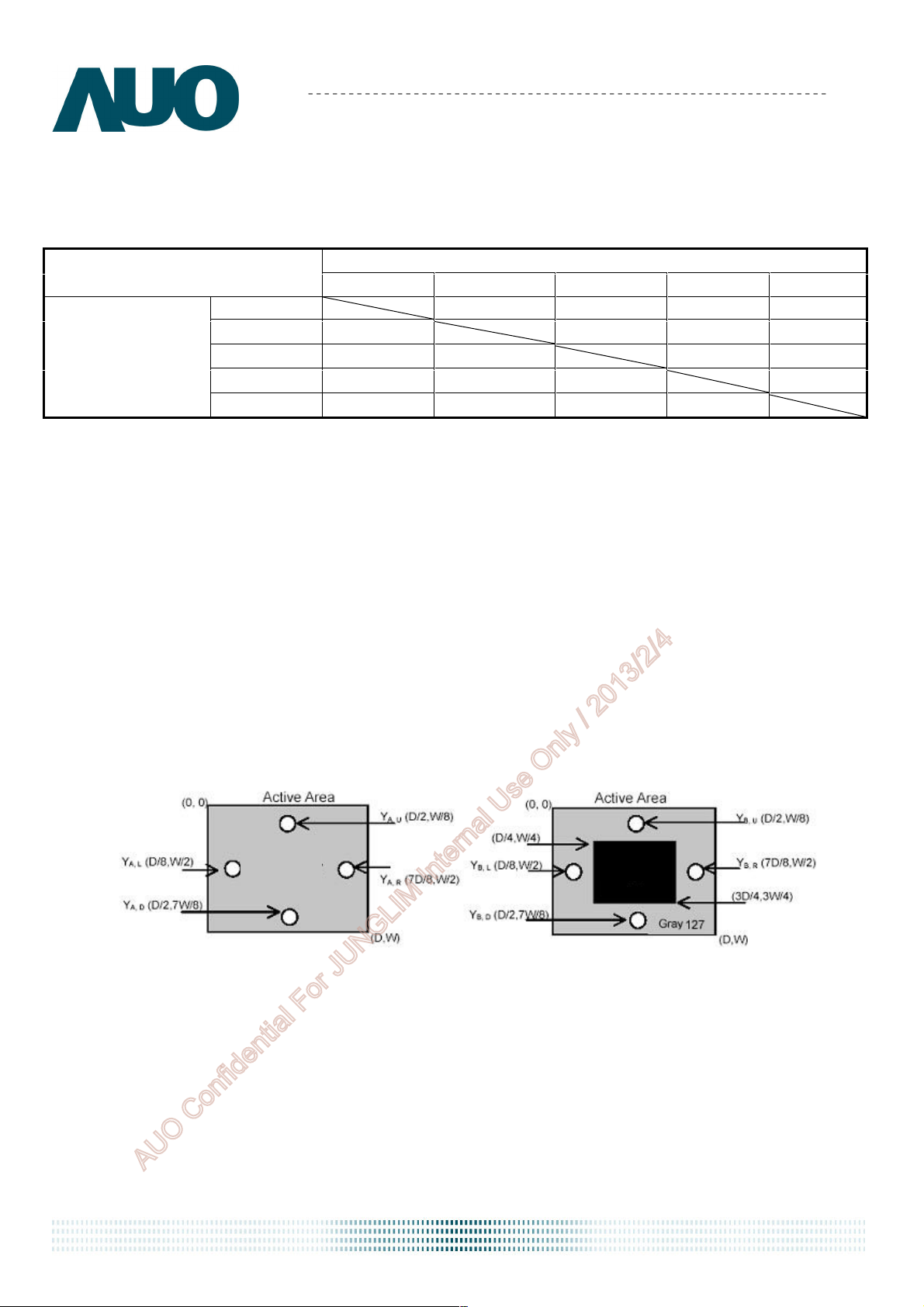

Note 2-7: Crosstalk measurement
Definition:
CT = Max. (CTH,CTV);
Where
a.Maximum Horizontal Crosstalk :
CTH = Max. (| YBL – YAL | / YAL × 100 %, | YBR – YAR | / YAR × 100 %);
Maximum Vertical Crosstalk:
CTV = Max. (| YBU – YAU | / YAU × 100 %, | YBD – YAD | / YAD × 100 %);
b. YAU, YAD, YAL, YAR = Luminance of measured location without Black pattern
YBU, YBD, YBL, YBR = Luminance of measured location with Black pattern
document version 1.2 10
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
Page 11
Product Specification
AU OPTRONICS CORPORATION

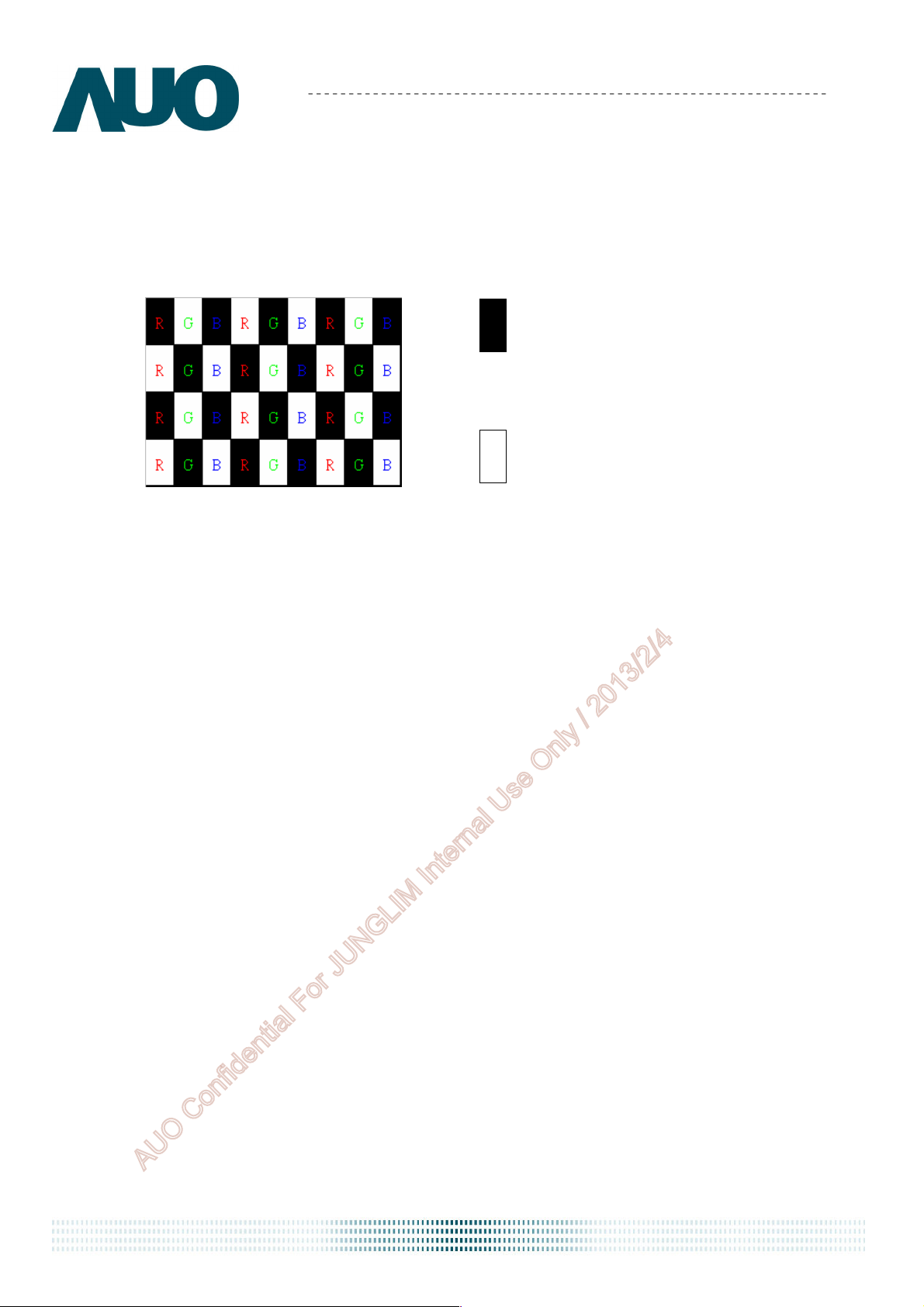

Note 2-8: Flicker measurement
a. Test pattern: It is listed as following.
R: Red, G: Green, B:Blue
M270DAN01.1
Gray level = L0
Gray level = L511
b. Measured position: Center of screen (P5) & perpendicular to the screen (θ=Φ=0°)
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
document version 1.2 11
Page 12
Product Specification
M270DAN01.1
AU OPTRONICS CORPORATION
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
document version 1.2 12
Page 13
Product Specification
X-Driver IC
Y
-
Driver IC (30 pin)
(40 pin)
AU OPTRONICS CORPORATION
M270DAN01.1
3 TFT-LCD Module
3.1 Block Diagram

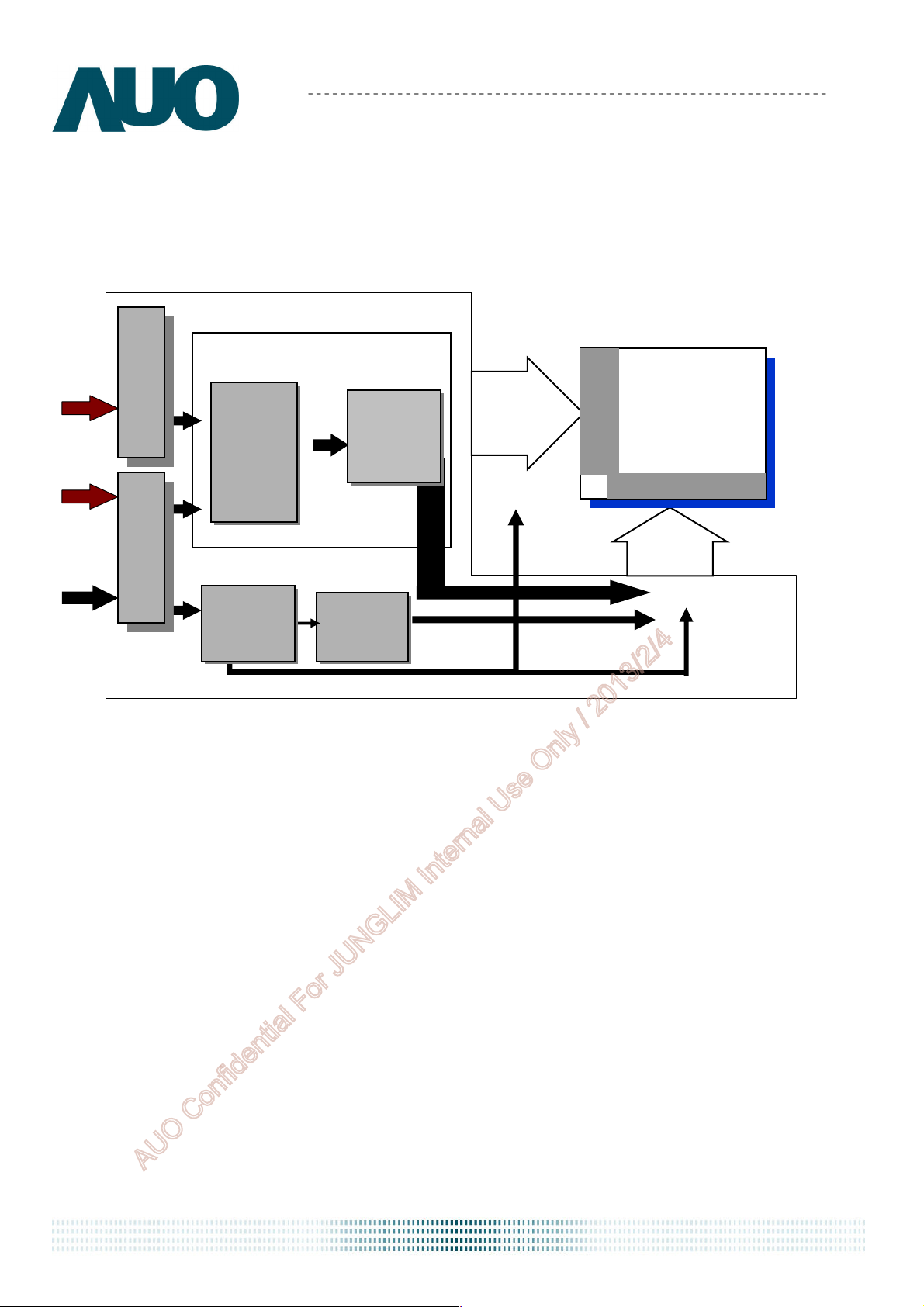

The following shows the block diagram of the 27.0 inch Color TFT-LCD Module.
LVDS
2port
LVDS
2port
VDD
CNT1
Receiver
CNT2
Converter
Control Board
LVDS
DC/DC
AUO ASIC
Timing
Controller
miniLVDS
Transmitter
Gamma
Correctio
G1
G1440
D1
TFT-LCD
2560(x3) x 1440
Pixels
D7680
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
document version 1.2 13
Page 14

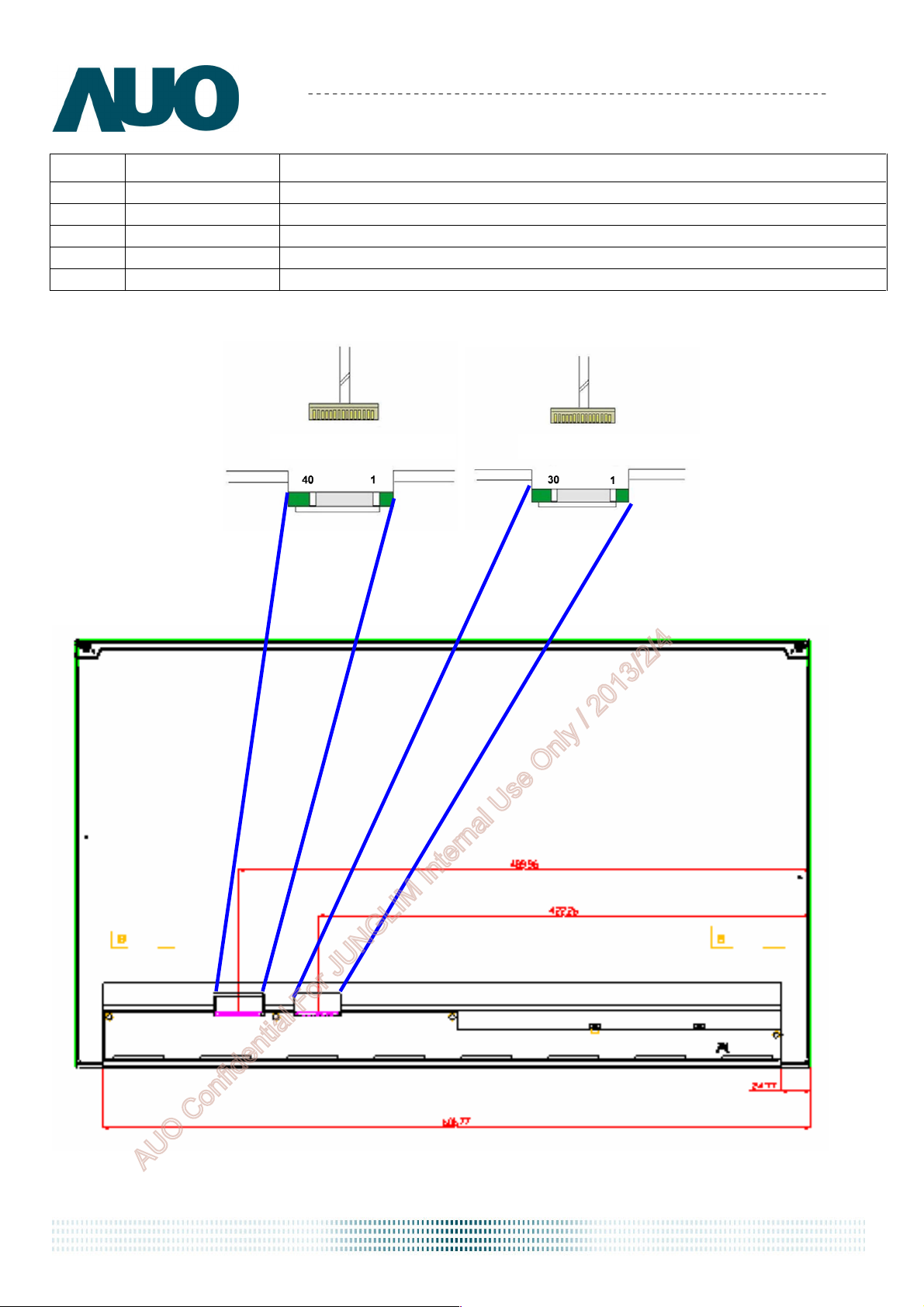

3.2 Interface Connection
3.2.1 Connector Type
Product Specification
AU OPTRONICS CORPORATION
M270DAN01.1
TFT-LCD Connector (CNT1)
TFT-LCD Connector (CNT2)
Mating Connector (CNT1)
Mating Connector (CNT2)
Manufacturer JAE STM
Part Number
FI-XB30SSRL-HF16 MSCK2407P30
Manufacturer STARCONN -
Part Number 115F40-R000RA-M3
-
Manufacturer JAE STM
Part Number
FI-X30HL (Locked Type) PK2407P30V
Manufacturer JAE
Part Number FI-NX40HL
3.2.2 Connector Pin Assignment
Module Connector - CNT1
PIN # Signal Name Description
1 RFO_N0 F path_ Negative LVDS differential data input (Odd data)
2 RFO_P0 F path_ Positive LVDS differential data input (Odd data)
3 RFO_N1 F path_ Negative LVDS differential data input (Odd data)
4 RFO_P1 F path_ Positive LVDS differential data input (Odd data)
5 RFO_N2 F path_ Negative LVDS differential data input (Odd data)
6 RFO_P2 F path_ Positive LVDS differential data input (Odd data)
7 GND Power Ground
8 RFO_CLKN F path_ Negative LVDS differential clock input (Odd clock)
9 RFO_CLKP F path_ Positive LVDS differential clock input (Odd clock)
10 GND Power Ground
11 RFO_N3 F path_ Negative LVDS differential data input (Odd data)
12 RFO_P3 F path_ Positive LVDS differential data input (Odd data)
13 RFO_N4 F path_ Negative LVDS differential data input (Odd data)
14 RFO_P4 F path_ Positive LVDS differential data input (Odd data)
15 GND Power Ground
16 RFE_N0 F path_ Negative LVDS differential data input (Even data)
17 RFE_P0 F path_ Positive LVDS differential data input (Even data)
18 RFE_N1 F path_ Negative LVDS differential data input (Even data)
19 RFE_P1 F path_ Positive LVDS differential data input (Even data)
20 RFE_N2 F path_ Negative LVDS differential data input (Even data)
21 RFE_P2 F path_ Positive LVDS differential data input (Even data)
22 GND Power Ground
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
document version 1.2 14
Page 15
Product Specification
AU OPTRONICS CORPORATION
M270DAN01.1
23 RFE_CLKN F path_ Negative LVDS differential clock input (Even clock)
24 RFE_CLKP F path_ Positive LVDS differential clock input (Even clock)
25 GND Power Ground
26 RFE_N3 F path_ Negative LVDS differential data input (Even data)
27 RFE_P3 F path_ Positive LVDS differential data input (Even data)
28 RFE_N4 F path_ Negative LVDS differential data input (Even data)
29 RFE_P4 F path_ Positive LVDS differential data input (Even data)
30 GND Power Ground
Module Connector - CNT2
PIN # Signal Name Description
1 RBO_N0 B path_ Negative LVDS differential data input (Odd data) 2 RBO_P0 B path_ Positive LVDS differential data input (Odd data) 3 RBO_N1 B path_ Negative LVDS differential data input (Odd data) 4 RBO_P1 B path_ Positive LVDS differential data input (Odd data) 5 RBO_N2 B path_ Negative LVDS differential data input (Odd data) 6 RBO_P2 B path_ Positive LVDS differential data input (Odd data) 7 GND Power Ground 8 RBO_CLKN B path_ Negative LVDS differential clock input (Odd clock)
9 RBO_CLKP B path_ Positive LVDS differential clock input (Odd clock) 10 GND Power Ground 11 RBO_N3 B path_ Negative LVDS differential data input (Odd data) 12 RBO_P3 B path_ Positive LVDS differential data input (Odd data) 13 RBO_N4 B path_ Negative LVDS differential data input (Odd data) 14 RBO_P4 B path_ Positive LVDS differential data input (Odd data) 15 GND Power Ground 16 RBE_N0 B path_ Negative LVDS differential data input (Even data) 17 RBE_P0 B path_ Positive LVDS differential data input (Even data) 18 RBE_N1 B path_ Negative LVDS differential data input (Even data) 19 RBE_P1 B path_ Positive LVDS differential data input (Even data) 20 RBE_N2 B path_ Negative LVDS differential data input (Even data) 21 RBE_P2 B path_ Positive LVDS differential data input (Even data) 22 GND Power Ground 23 RBE_CLKN B path_ Negative LVDS differential clock input (Even clock) 24 RBE_CLKP B path_ Positive LVDS differential clock input (Even clock) 25 GND Power Ground 26 RBE_N3 B path_ Negative LVDS differential data input (Even data) 27 RBE_P3 B path_ Positive LVDS differential data input (Even data) 28 RBE_N4 B path_ Negative LVDS differential data input (Even data) 29 RBE_P4 B path_ Positive LVDS differential data input (Even data) 30 GND Power Ground 31 NC No connection (for AUO test only. Do not connect) 32 NC No connection (for AUO test only. Do not connect) 33 GND Power Ground
34 GND Power Ground
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
document version 1.2 15
Page 16
Product Specification
M270DAN01.1
AU OPTRONICS CORPORATION
35 GND
Power Ground
36 VDD Power +5V 37 VDD Power +5V 38 VDD Power +5V 39 VDD Power +5V 40 VDD Power +5V
RF0_N0 GND RB0_N0 VDD
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
document version 1.2 16
Page 17
Product Specification
AU OPTRONICS CORPORATION
3.3 Electrical Characteristics
3.3.1 Absolute Maximum Rating
Permanent damage may occur if exceeding the following maximum rating.
M270DAN01.1
Symbol
VDD
Description Min Max Unit
Power Supply
Input Voltage
GND-0.3 6.0 [Volt]
3.3.2 Recommended Operating Condition
Symbol
VDD
IDD
PDD
IRush Inrush Current
VDDrp
Description Min Typ Max Unit Remark
Power supply
Input voltage
Power supply
Input Current (RMS)
VDD Power
Consumption
Allowable VDD
Ripple Voltage
4.5 5.0 5.5 [Volt]
- 1.6 2.0
2.0 2.5
- 8.0 10.0
10.0
-
-
- 2.0 [A] Note 3-1
- 500 [mV]
12.5
[A]
[A]
[Watt]
[Watt]
Remark
Ta=25
VDD= 5.0V, Black Pattern, Fv=60Hz
VDD= 5.0V, Black Pattern, Fv=75Hz
VDD= 5.0V, Black Pattern, Fv=60Hz
VDD= 5.0V, Black Pattern, Fv=75Hz
VDD= 5.0V, Black Pattern, Fv=75Hz

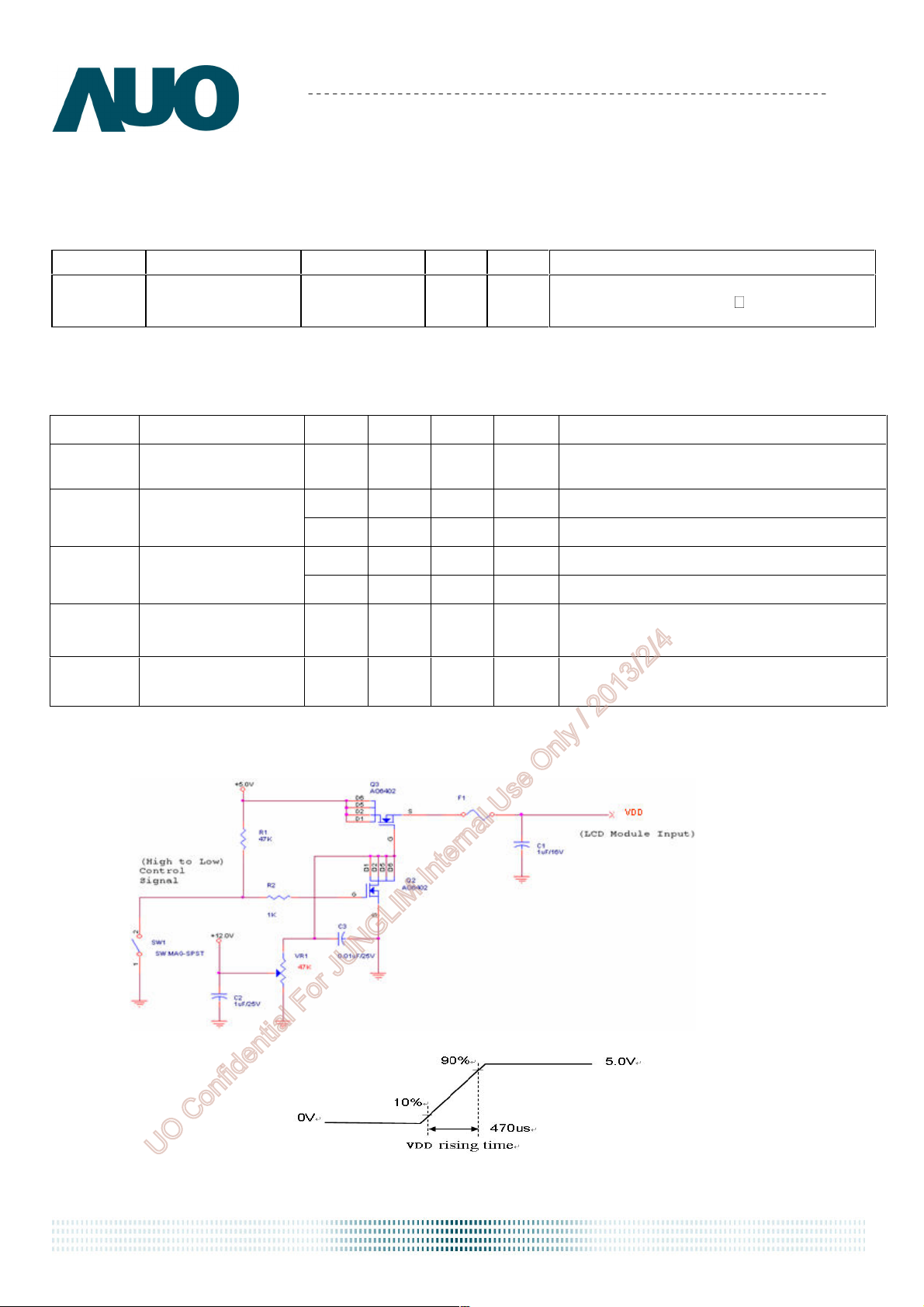

Note 3-1: Inrush Current measurement:
Test circuit:
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
The duration of VDD rising time: 470us.
document version 1.2 17
Page 18
3.4 Signal Characteristics

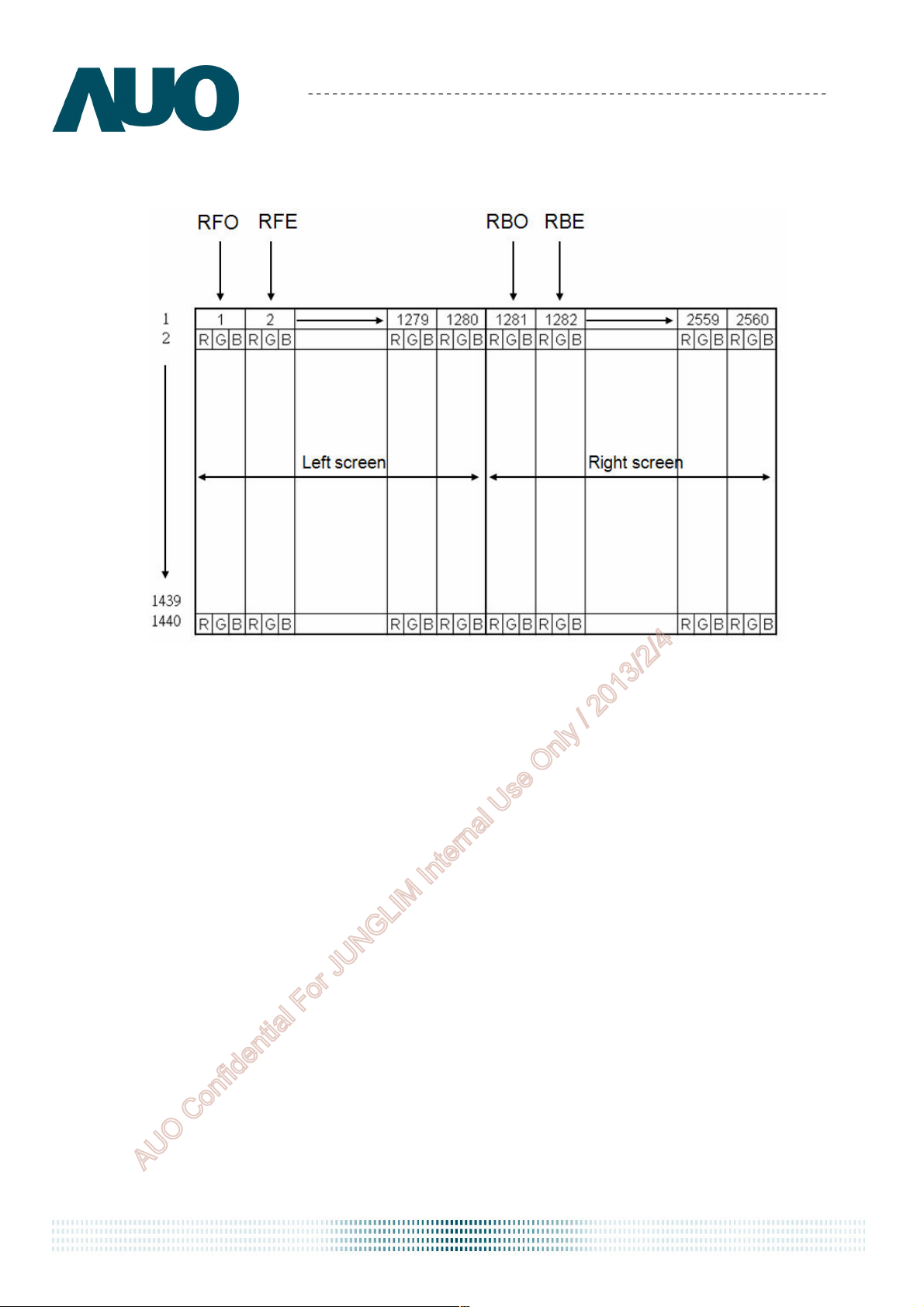

3.4.1 LCD Pixel Format
Product Specification
AU OPTRONICS CORPORATION
M270DAN01.1
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
document version 1.2 18
Page 19

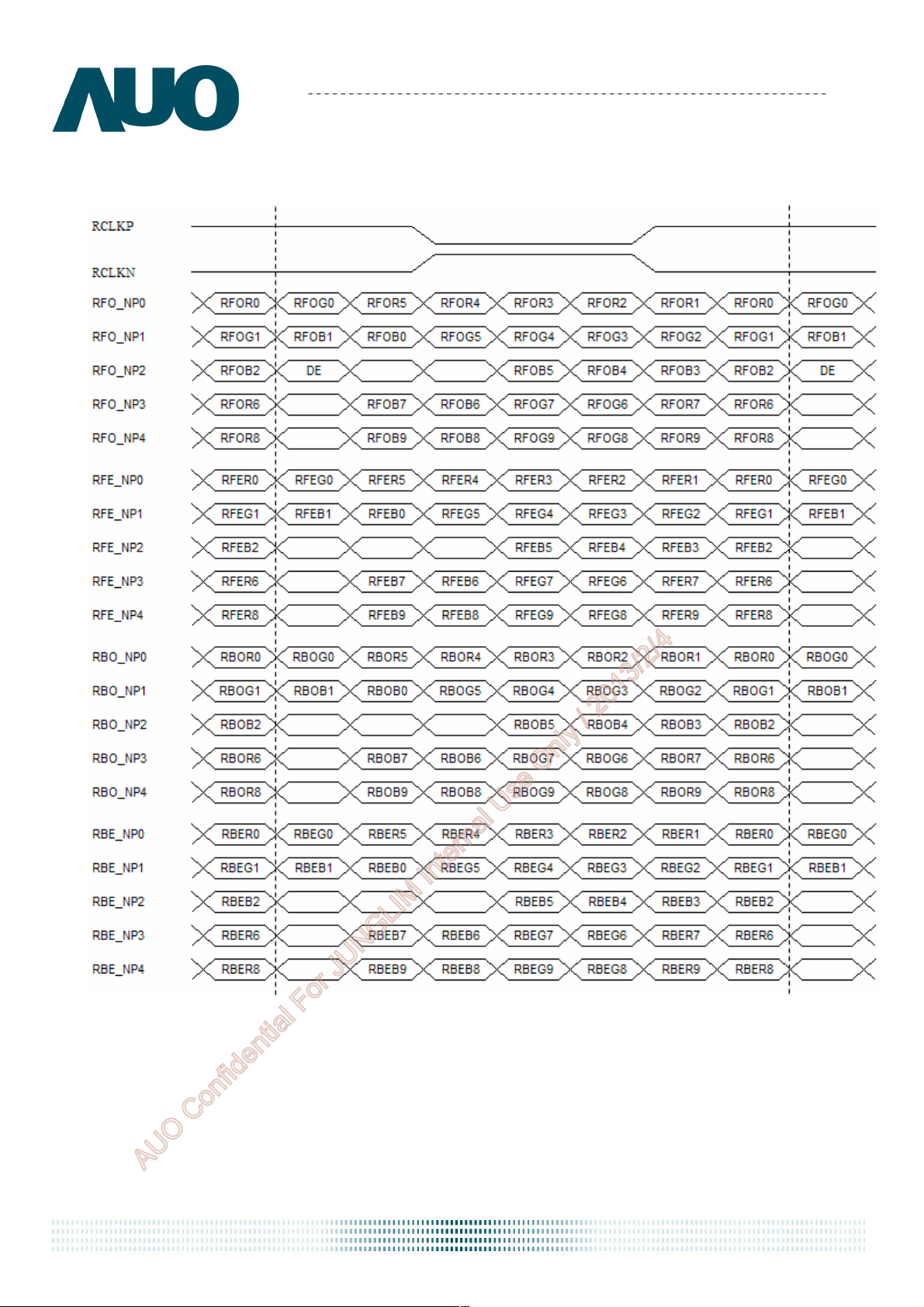

3.4.2 LVDS Data Format
Product Specification
AU OPTRONICS CORPORATION
M270DAN01.1
Note 3-2:
a. O = “Odd Pixel Data” E = “Even Pixel Data” b. Refer to 3.4.1 the first/third LVDS port (RFO_XX / RBO_XX) transmits odd pixels while the second/fourth LVDS
port (RFE_XX / RBE_XX) transmits even pixels and the last data is 2560(even pixel data)
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
document version 1.2 19
Page 20
Product Specification
M270DAN01.1
AU OPTRONICS CORPORATION

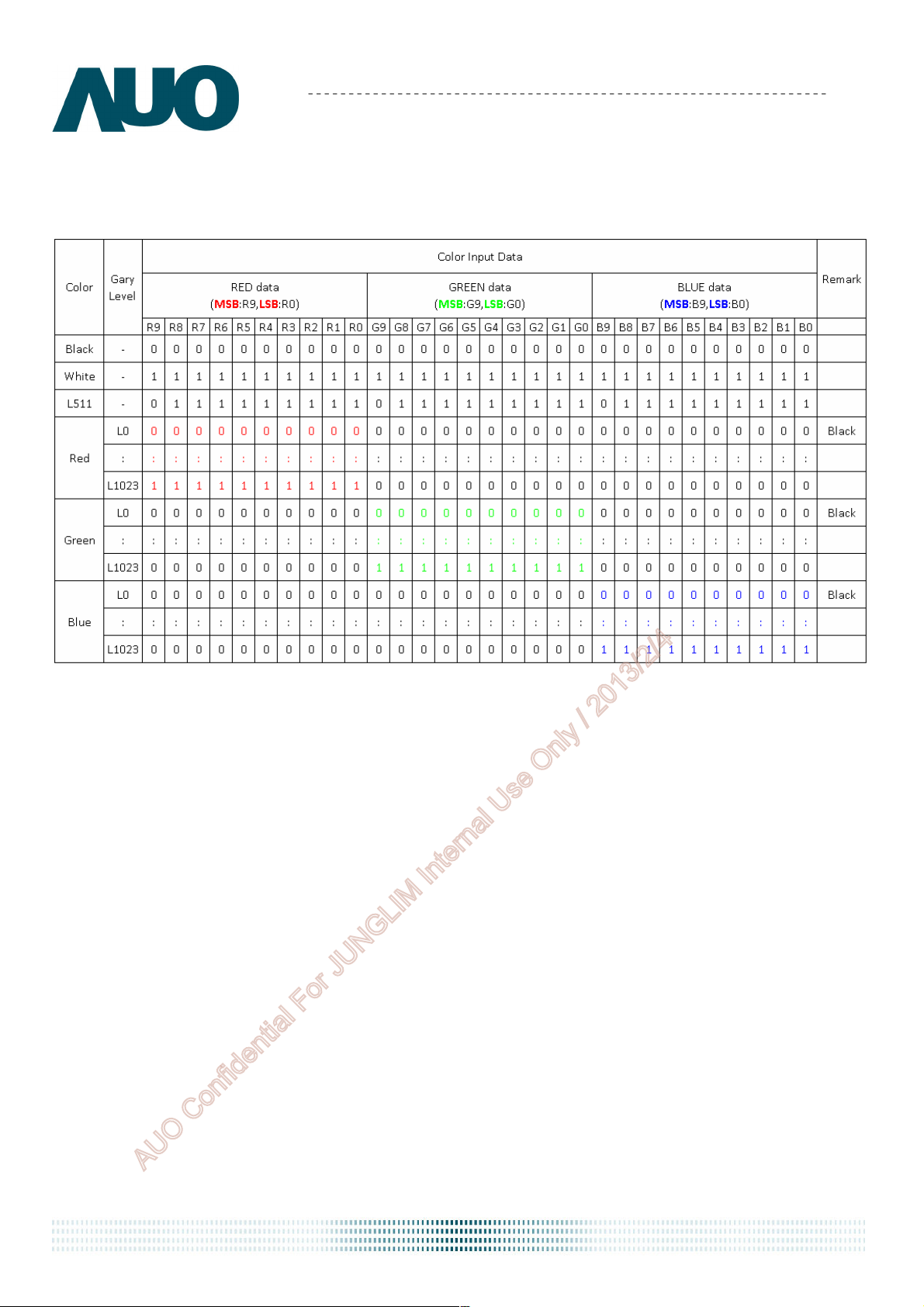

3.4.3 Color versus Input Data
The following table is for color versus input data (10bit). The higher the gray level, the brighter the color.
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
document version 1.2 20
Page 21
3.4.4 LVDS Specification
a. DC Characteristics:
Product Specification
AU OPTRONICS CORPORATION
M270DAN01.1
Symbol
VTH
VTL
│VID│
VCM
Description Min Typ Max Units
LVDS Differential Input High Threshold LVDS Differential Input Low Threshold LVDS Differential Input Voltage LVDS Common Mode Voltage
-100
100 - 600 [mV]
+1.0 +1.2 +1.5 [V] VTH-VTL = 200mV

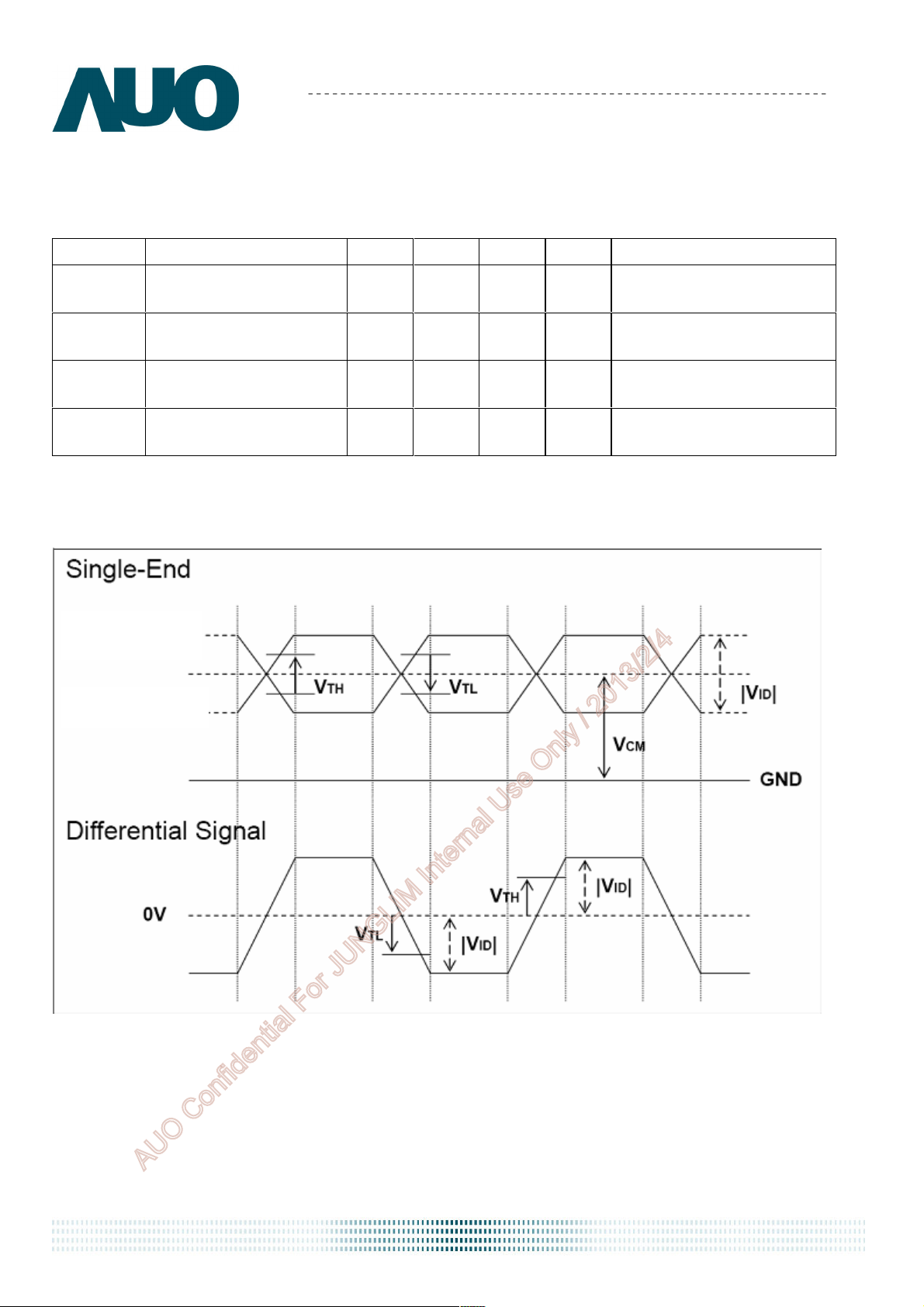

LVDS Signal Waveform:
Use RxOCLK- & RxOCLK+ as example.
RxOCLK-
Condition
- - +100 [mV] VCM = 1.2V
- - [mV] VCM = 1.2V
RxOCLK+
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
document version 1.2 21
Page 22
Product Specification
Freq
F
max
F
clk
F
min
F
clk
* F
DEV
< Spread Spectrum>
T
ime
AU OPTRONICS CORPORATION

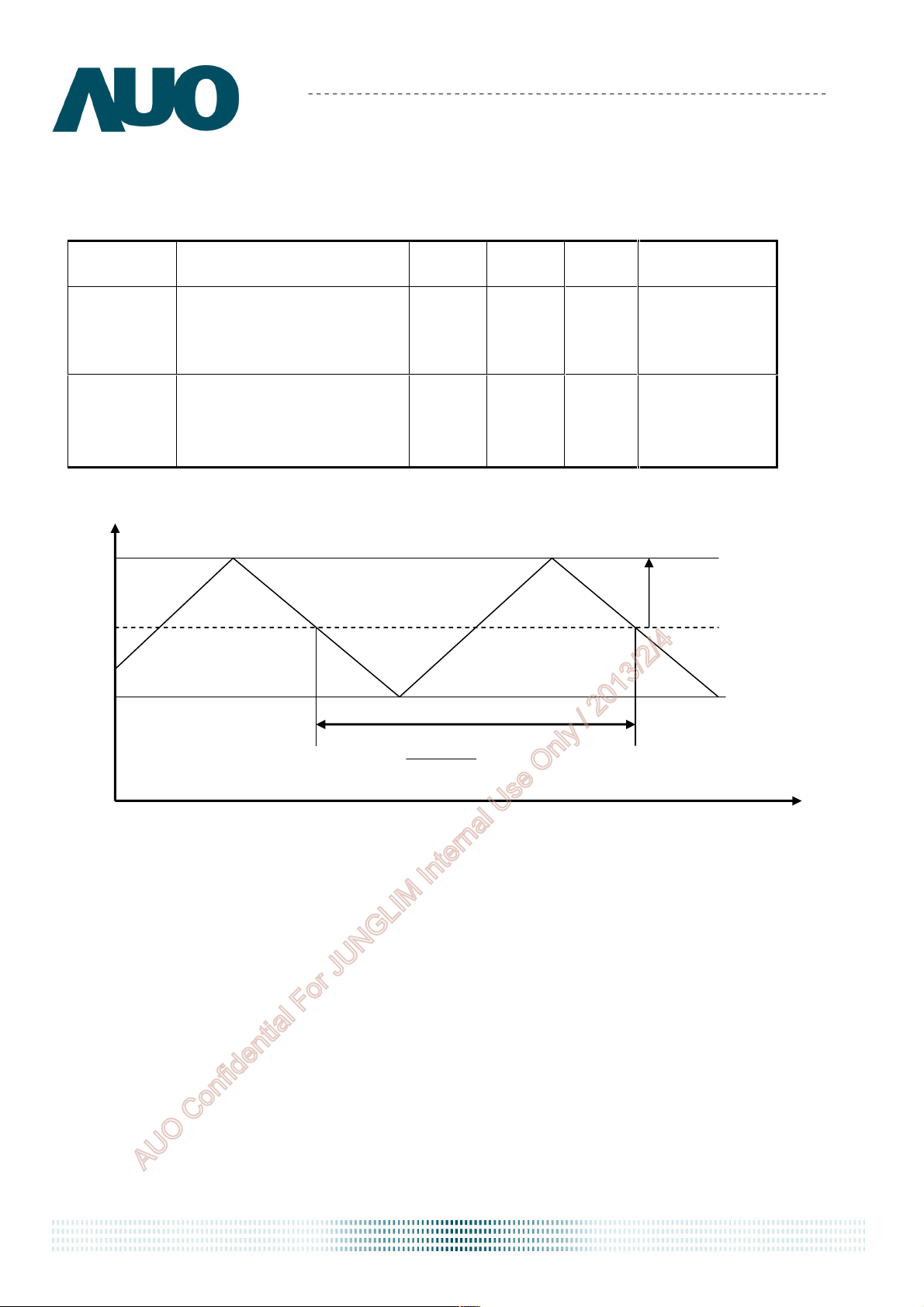

b. AC Characteristics:
Symbol Description Min Max Unit Remark
Maximum deviation of
M270DAN01.1
F
DEV
input clock frequency
-
± 3 %
during Spread Spectrum
Maximum modulation
F
MOD
frequency of input clock
-
200 KHz
during Spread Spectrum
1
FMOD
Fclk: LVDS Clock Frequency
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
document version 1.2 22
Page 23
Product Specification
AU OPTRONICS CORPORATION
M270DAN01.1

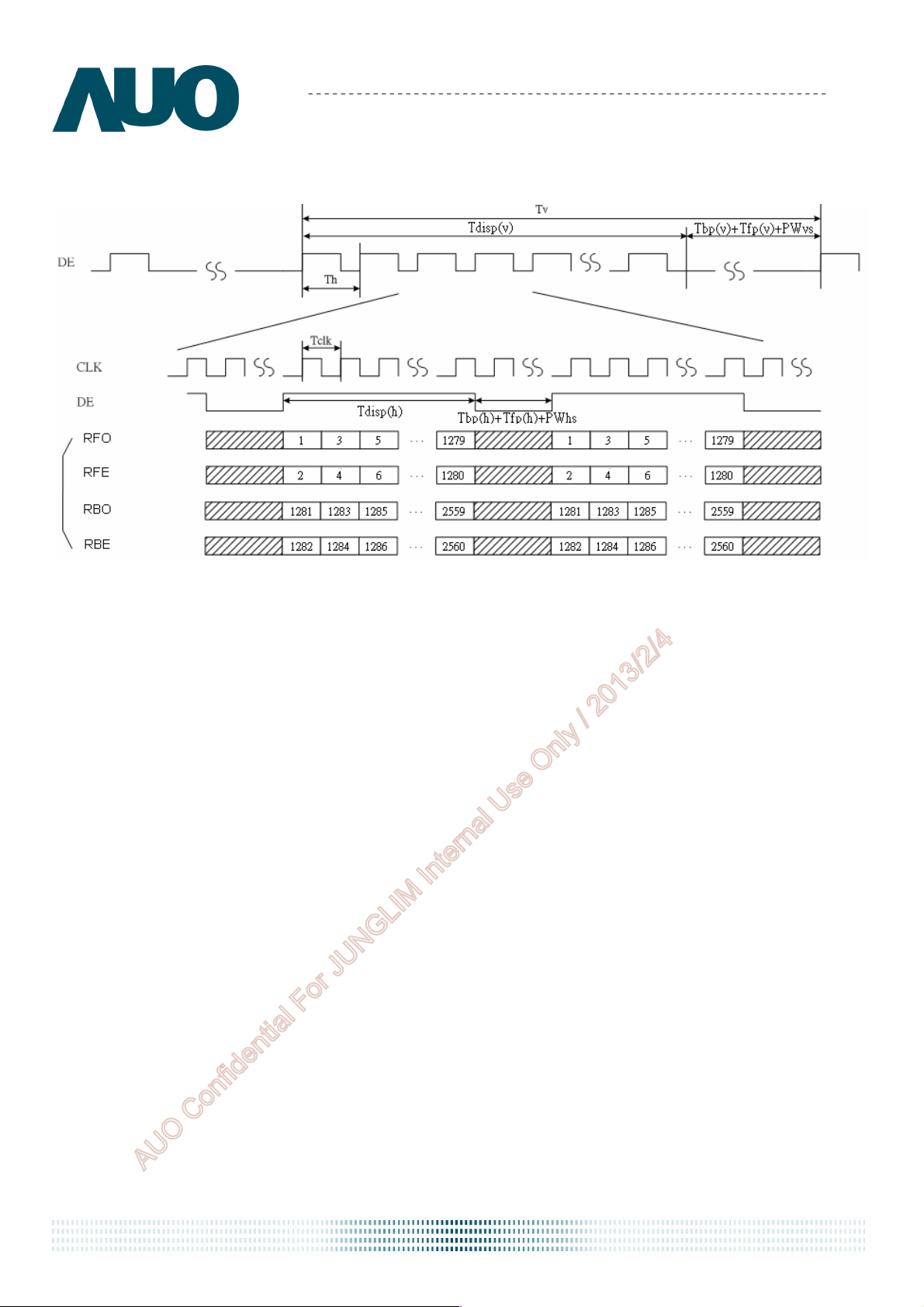

3.4.5 Input Timing Specification
It only support DE mode, and the input timing are shown as the following table.
Symbol Description Min. Typ. Max. Unit Remark
Tv Period
Tdisp (v) Active
Vertical Section
Tblk (v) Blanking
Fv
Frequency
Th Period
Tdisp (h) Active
Horizontal Section
Tblk (h) Blanking
Fh
Frequency
Tclk Period
LVDS Clock
Fclk
Frequency
1479
1440
39 41 43
50 60 75
676 680 684
640 640 640
36 40 44
73.9 88.8 111.2
22.22
45 60.4 76
1481 1483
1440 1440
16.56 13.16
Th
Th
Th
Hz
Tclk
Tclk
Tclk
KHz
Note 3-3
ns 1/Fclk
MHz
Note 3-4
Note 3-3: The equation is listed as following. Please don’t exceed the above recommended value.
Fh (Min.) = Fclk (Min.) / Th (Min.); Fh (Typ.) = Fclk (Typ.) / Th (Typ.); Fh (Max.)= Fclk (Max.) / Th (Min.);
Note 3-4: The equation is listed as following. Please don’t exceed the above recommended value.
Fclk (Min.) = Fv (Min.) x Th (Min.) x Tv (Min.); Fclk (Typ.) = Fv (Typ.) x Th (Typ.) x Tv (Typ.);
Fclk (Max.) = Fv (Max.) x Th (Typ.) x Tv (Typ.);
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
document version 1.2 23
Page 24
3.4.6 Input Timing Diagram
Product Specification
AU OPTRONICS CORPORATION
M270DAN01.1
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
document version 1.2 24
Page 25
Product Specification
DATA
10%
90%
10%
90%
AU OPTRONICS CORPORATION
M270DAN01.1

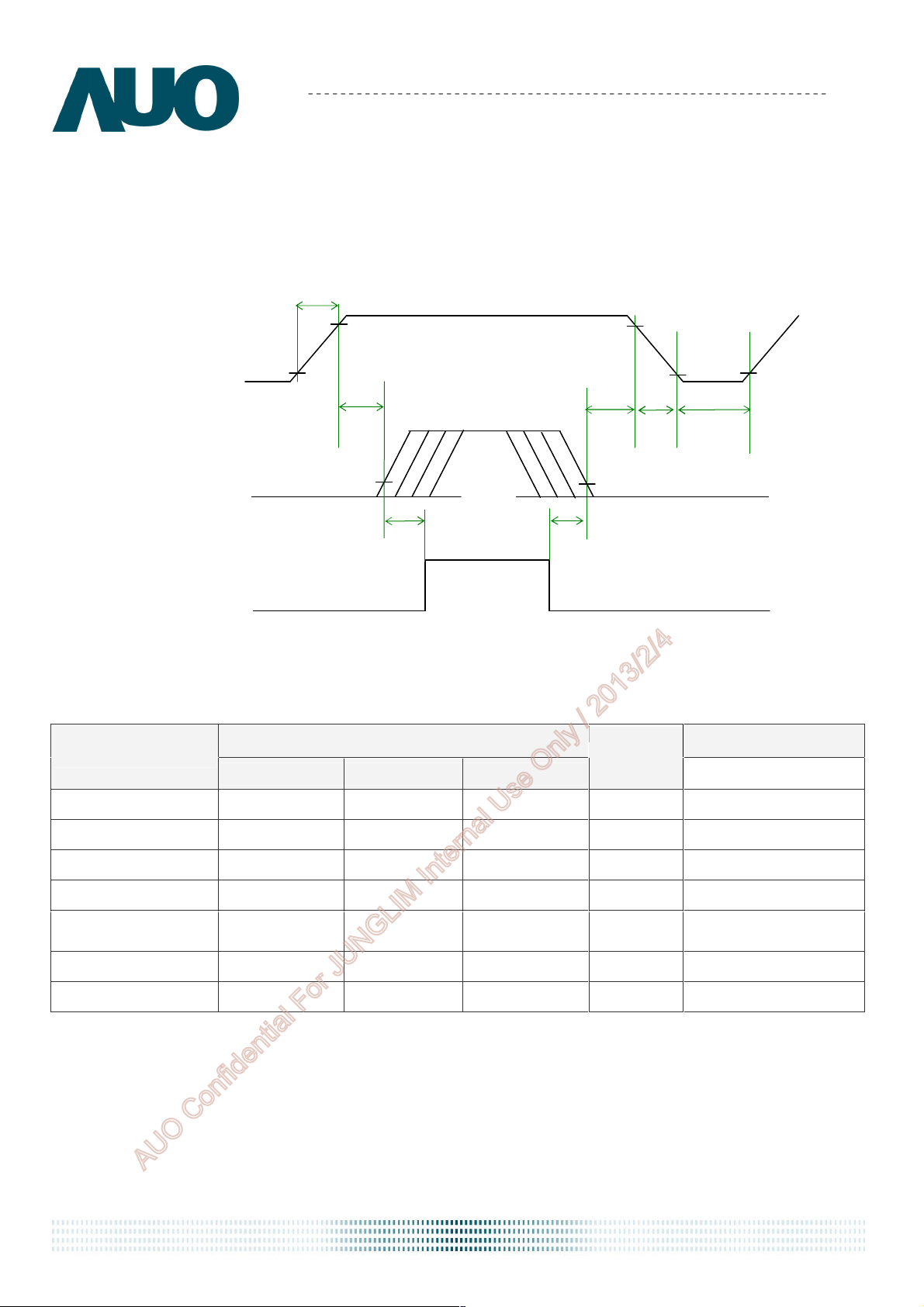

3.5 Power ON/OFF Sequence
VDD power,LVDS signal and backlight on/off sequence are as following. LVDS signals
from any system shall be Hi-Z state when VDD is off.
Backlight Off
T1
LVDS Signal
Symbol
VDD
V
SLED
Backlight Off
T2
VALID
T3
Backlight On
Power Sequence Timing
T5
T4
Backlight Off
T6
T7
Value Remark
Unit
Min. Typ. Max.
T1 0.5 - 10 [ms]
T2 0 - 50 [ms]
T3 500 - - [ms]
T4 100 - - [ms]
T5 0 50 [ms]
T6 0 - 150 [ms] Note 3-6
T7 1000 - - [ms]
Note 3-5 Note 3-6
Note 3-5 : Recommend setting T5 = 0ms to avoid electronic noise when VDD is off.
Note 3-6 : During T5 and T6 period , please keep the level of input LVDS signals with Hi-Z state.
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
document version 1.2 25
Page 26
Product Specification
V
SLEDB
Ch1
B
Ch2
B
Ch1
R
Ch2
R
V
SLEDR
AU OPTRONICS CORPORATION
4 Backlight Unit

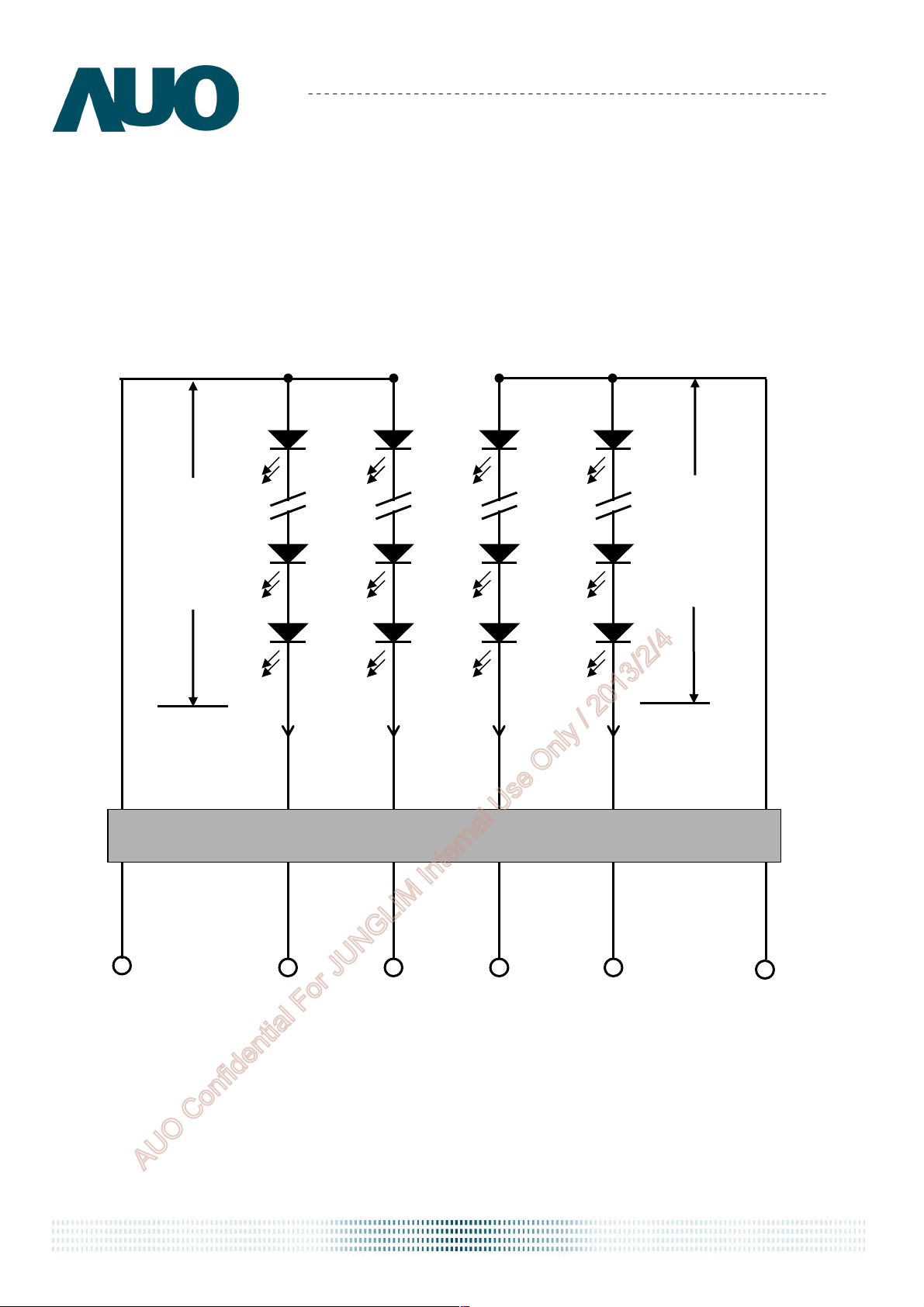

4.1 Block Diagram
The following shows the block diagram of the 27.0 inch Backlight Unit. And it includes 2 pcs LED light bar in Backlight Unit. Each LED light bar includes 30 pcs LED package. (2 strings RED LED chip & 2 strings Blue LED chip in one LED light bar, and 15 pcs LED in one string).
M270DAN01.1
V
+
SB
-
I
SB
I
SB
Connector 1
I
SR
I
SR
V
+
SR
-
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
document version 1.2 26
Page 27
4.2 Interface Connection
4.2.1 Connector Type
Product Specification
AU OPTRONICS CORPORATION
M270DAN01.1
Backlight Connector
Mating Connector
Manufacturer ENTERY
Part Number 3707K-S06N-21R
Manufacturer ENTERY
Part Number

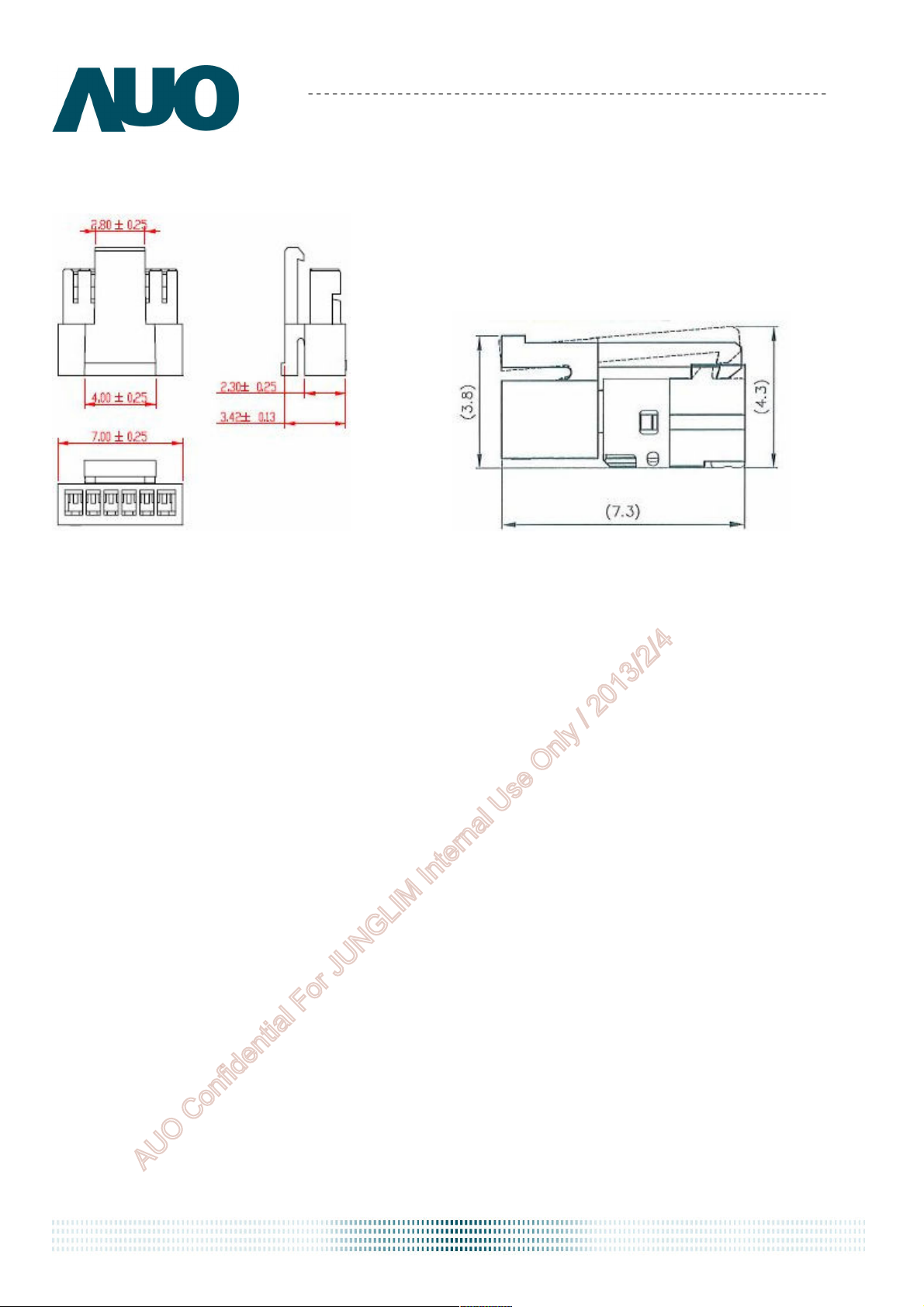

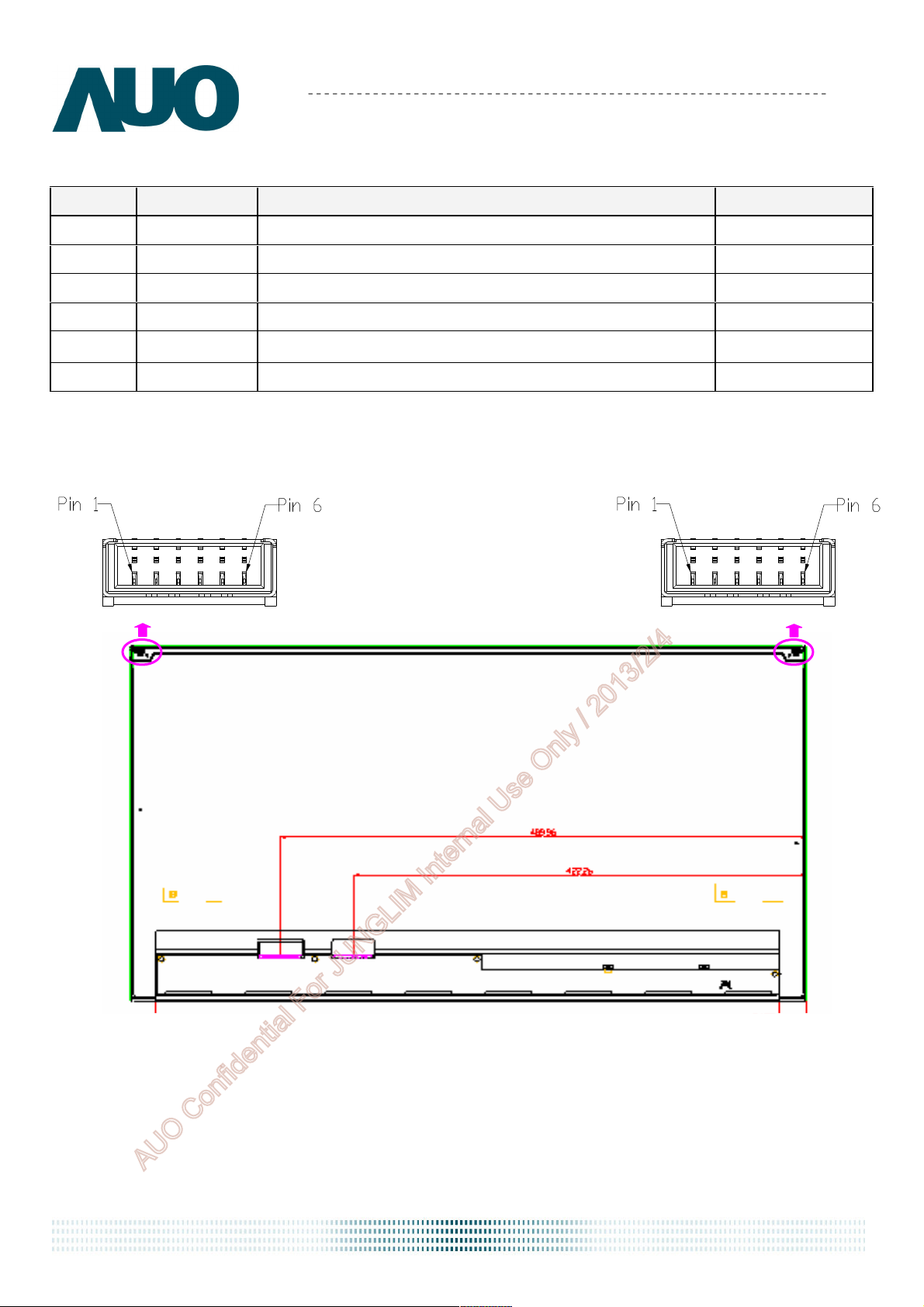

Backlight Connector dimension:
Connector
3707K-S06N-21R
H112K-P06N-00B (Non-Locking type) H112K-P06N-03B (Locking type)
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
document version 1.2 27
Page 28
Mating Connector dimension:
Product Specification
M270DAN01.1
AU OPTRONICS CORPORATION
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
document version 1.2 28
Page 29
Product Specification
AU OPTRONICS CORPORATION
M270DAN01.1

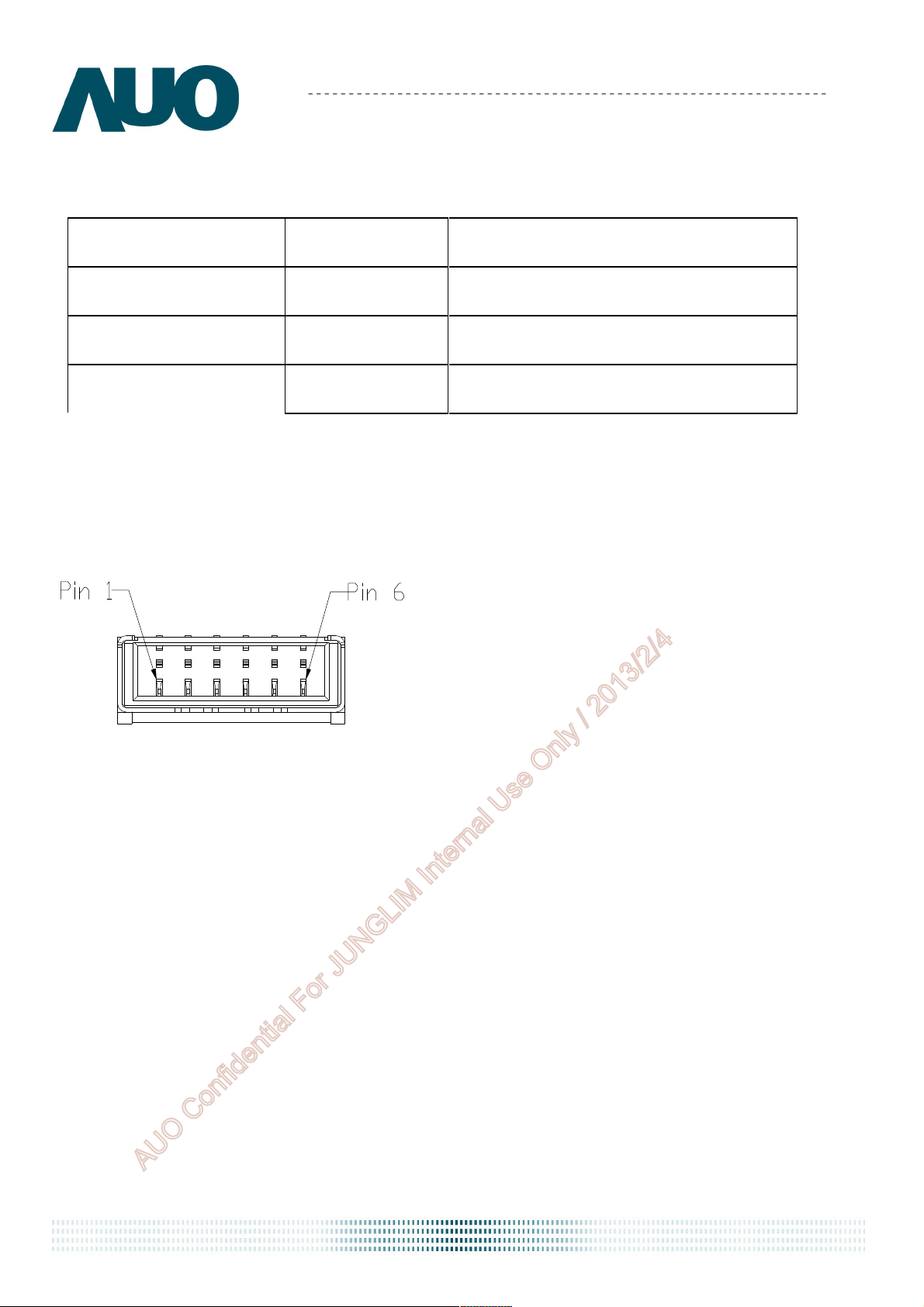

4.2.2 Connector Pin Assignment
Pin# Symbol Description Remark
1 Ch1R Red LED Current Feedback Terminal (Channel 1)
2 V
Red LED Power Supply Voltage Input Terminal
SLEDR
3 Ch2R Red LED Current Feedback Terminal (Channel 2)
4 Ch1B Blue LED Current Feedback Terminal (Channel 1)
5 V
Blue LED Power Supply Voltage Input Terminal
SLEDB
6 Ch2B Blue LED Current Feedback Terminal (Channel 2)
document version 1.2 29
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
Page 30
Product Specification
AU OPTRONICS CORPORATION
M270DAN01.1

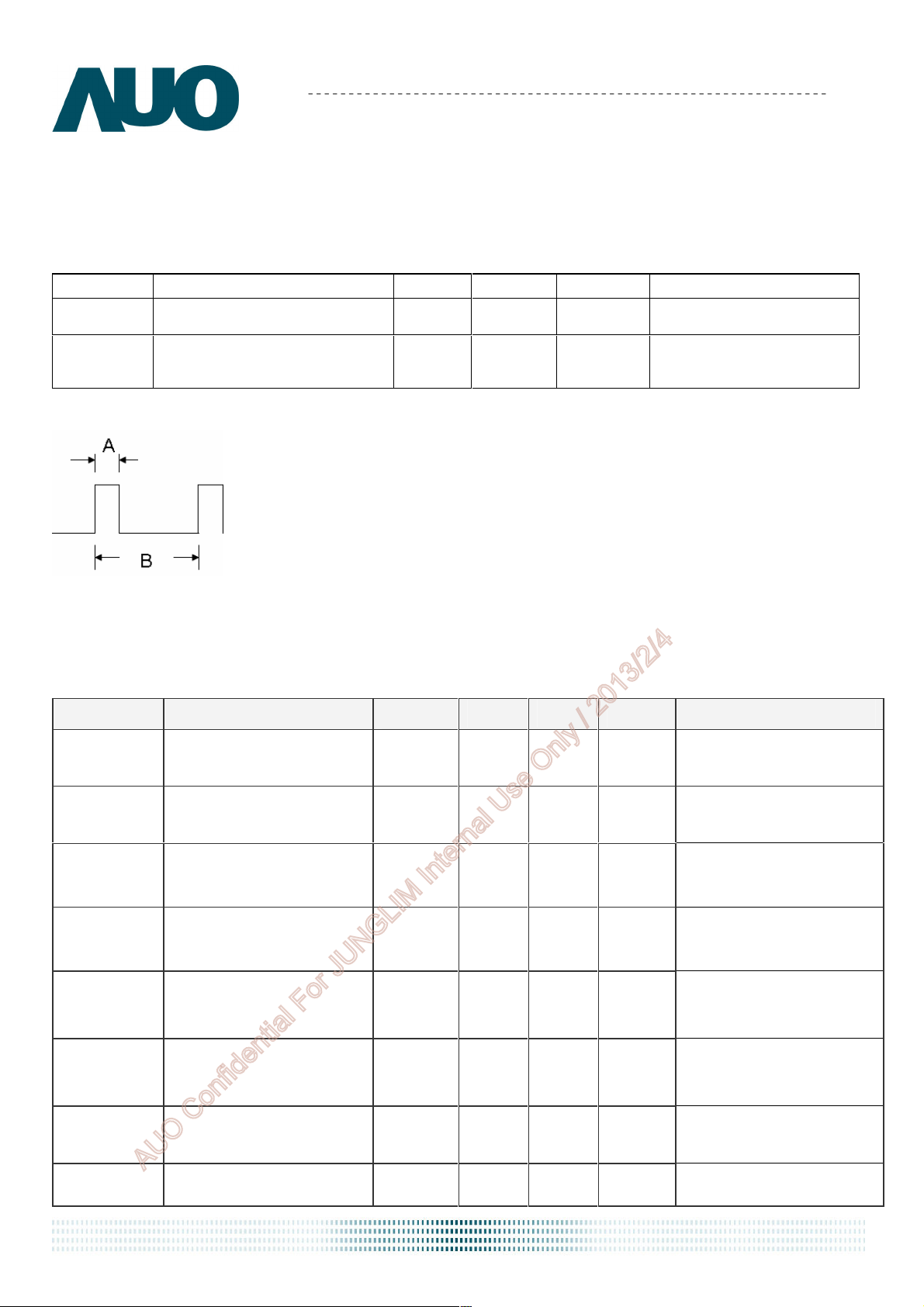

4.3 Electrical Characteristics
4.3.1 Absolute Maximum Rating
Permanent damage may occur if exceeding the following maximum rating.
Symbol Description Min Max Unit Remark
(Ta=25℃)
IsR
IsB
LED String Current 0 100
LED String Current 0 160
Duty ratio= (A / B) X 100% ; (A: Pulse time, B: Period)
4.3.2 Recommended Operating Condition
Symbol Description
IsR R_LED String Current -
Min.
Typ. Max. Unit Remark
70 77
[mA] 100% duty ratio
[mA] 100% duty ratio
(Ta=25℃)
100% duty ratio of LED
[mA]
chip
IsB B_LED String Current -
VsR R_LED String Voltage
VsB B_LED String Voltage
R
∆VsR
Maximum ∆Vs Voltage Deviation of
31.5 36 39
42 46.5 51
-
90 99
- 3
[mA]
[Volt]
[Volt]
[Volt]
light bar
B
-
- 3
[Volt]
∆VsB
Maximum ∆Vs Voltage Deviation of light bar
P
LED Light Bar Power
BLU
LT
LED
document version 1.2 30
Consumption
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
LED Life Time 30,000
-
26.8 32.2
[Watt] Note 4-3
- - [Hour] Note 4-4
100% duty ratio of LED
chip
IsR=70mA @ 100% duty
ratio; Note 4-1
IsB=90mA @ 100% duty
ratio; Note 4-1
IsR=70mA @ 100% duty
ratio; Note 4-2
IsB=90mA @ 100% duty
ratio; Note 4-2
Page 31
Product Specification
AU OPTRONICS CORPORATION

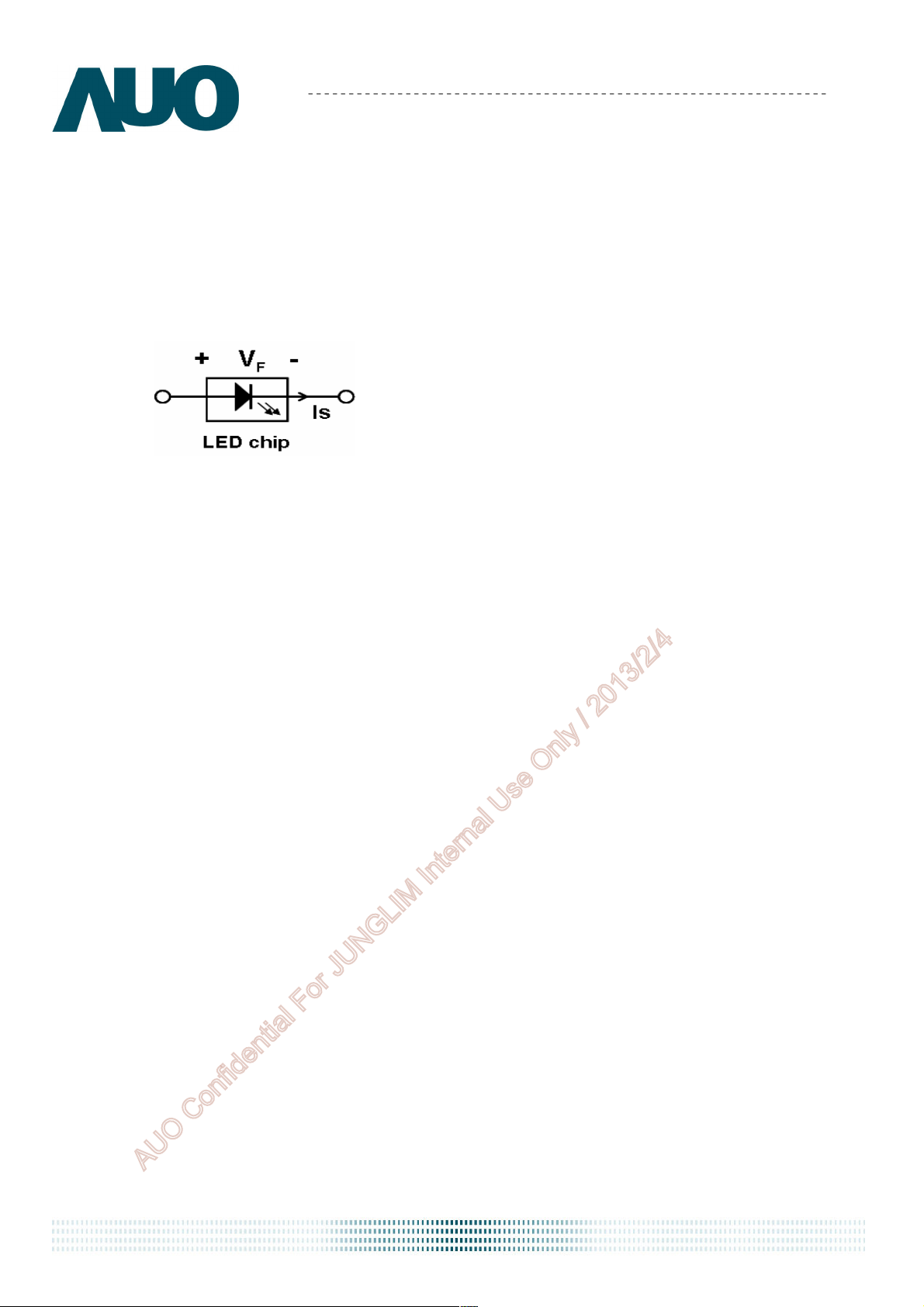

Note 4-1: Vs (Typ.) = VF (Typ.) X LED No. (one string);
a. VF: LED chip forward voltage, Blue LED VF (Min.)=2.8V, VF(Typ.)=3.1V, V
(Max.)=3.4V; Red LED VF (Min.)=2.1V, VF(Typ.)=2.4V, VF(Max.)=2.6V
F
b. The same euqation to calculate Vs(Min.) & Vs (Max.) for respective V
(Max.);
V
F
M270DAN01.1
(Min.) &
F
Note 4-2: ∆Vs (Max.) = ∆VF X LED No. (one string);
a. ∆V
Note 4-3: P
BLU
LED chip forward voltage deviation; (0.2 V , each Bin of LED VF)
F:
(Typ.) = [ VsR (Typ.) X IsR (Typ.) + VsB (Typ.) X IsB (Typ.) ] X 2 X 2 ;
( “2” is total Red (or Blue) String No. of single LED Light bar.
“2” is total LED Light bar No. of single Backlight Unit. )
P
(Max.) = [ VsR (Max.) X IsR (Max.) + VsB (Max.) X IsB (Max.) ] X 2 X 2
BLU
Note 4-4: Definition of life time:
a. Brightness of LED becomes to 50% of its original value b. Test condition: Is
= 70mA, IsB = 90mA and 25℃ (Room Temperature)
R
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
document version 1.2 31
Page 32
Product Specification
AU OPTRONICS CORPORATION
5 Reliability Test
AUO reliability test items are listed as following table. (Bare Panel only)
Items Condition
Temperature Humidity Bias (THB)
Ta= 50
, 80%RH, 300hours
M270DAN01.1
Remark
High Temperature Operation (HTO)
Low Temperature Operation (LTO)
High Temperature Storage (HTS)
Low Temperature Storage (LTS)
Ta= 50
Ta= 0
Ta= 60
Ta= -20
, 50%RH, 300hours
, 300hours
, 300hours
, 300hours
Acceleration: 1.5 Grms Vibration Test (Non-operation)
Wave: Random
Frequency: 10 - 200 Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
Acceleration: 50 G Shock Test (Non-operation)
Wave: Half-sine
Active Time: 20 ms
Direction: ±X, ±Y, ±Z (one time for each Axis)
Drop Test Height: 60 cm, package test
Thermal Shock Test (TST)
-20
/30min, 60
/30min, 100 cycles Note 5-1
On/Off Test On/10sec, Off/10sec, 30,000 cycles
Contact Discharge: ± 15KV, 150pF(330Ω ) 1sec,
8 points, 25 times/ point. ESD (Electro Static Discharge)
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
8 points, 25 times/ point.
Note 5-2
Altitude Test
Note 5-1: a. A cycle of rapid temperature change consists of varying the temperature from -
60
db
an
,
k
ac
aga
Operation:18,000 ft Non-Operation:40,000 ft
i
P
n
.
i
t
li
dd
i
th
t
o
er
sno
app
w
e
r
ng
u
t
e
es
.
0
t
2
o
b. After finish temperature cycling, the unit is placed in normal room ambient for at least 4
hours before power on.
Note 5-2: EN61000-4-2, ESD class B: Certain performance degradation allowed
No data lost Self-recoverable No hardware failures.
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
document version 1.2 32
Page 33
Product Specification
AU Optronics
AU OPTRONICS CORPORATION
6 Shipping Label

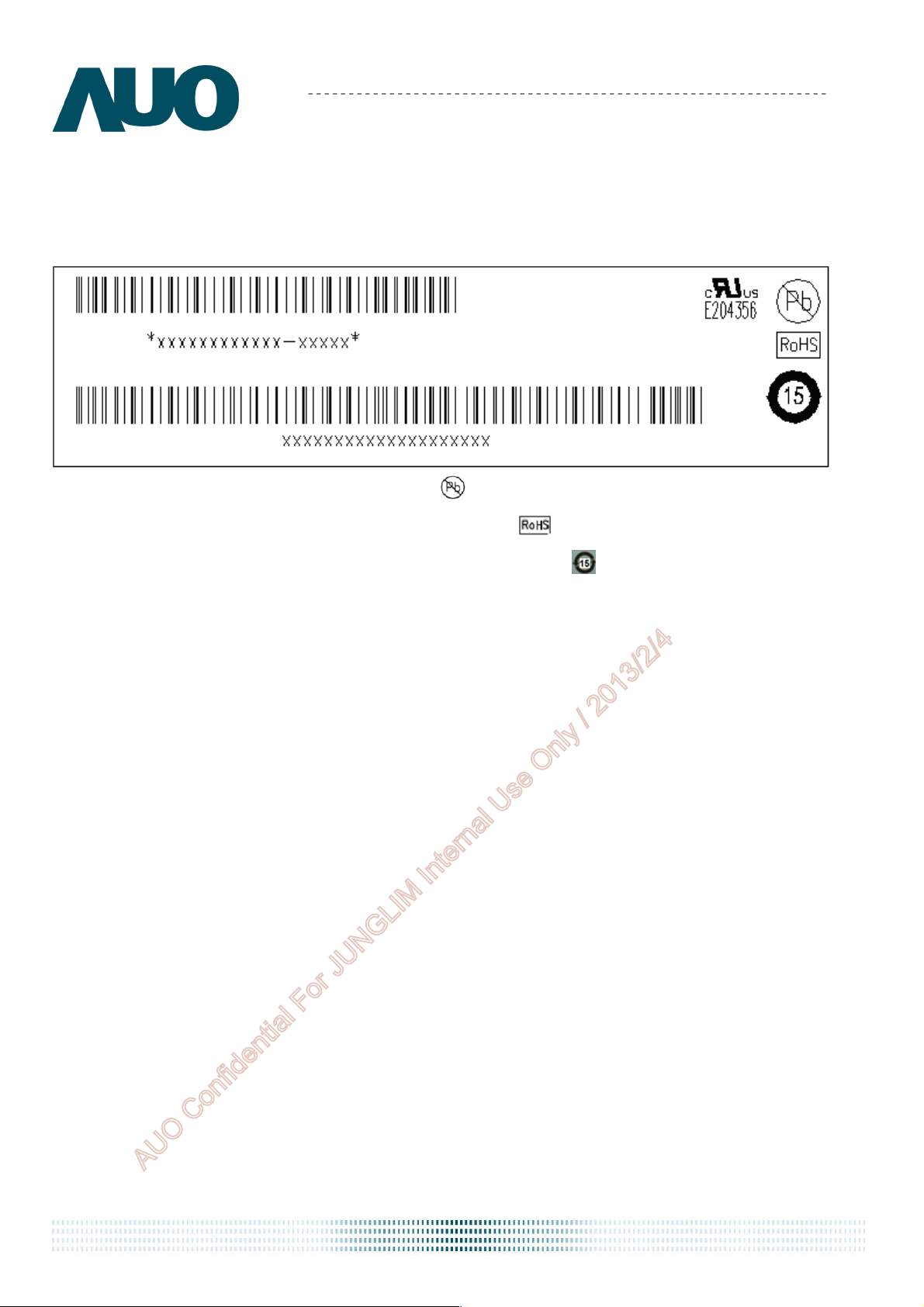

The label is on the panel as shown below:
Note 6-1: For Pb Free products, AUO will add for identification.
Manufactured XX/XX
Model No: M270DAN01.1
M270DAN01.1
Note 6-2: For RoHS compatible products, AUO will add
Note 6-3: For China RoHS compatible products, AUO will add
for identification.
for identification.
Note 6-4: The Green Mark will be presented only when the green documents have been ready by
AUO Internal Green Team.
document version 1.2 33
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
Page 34
Ver 0.1
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4

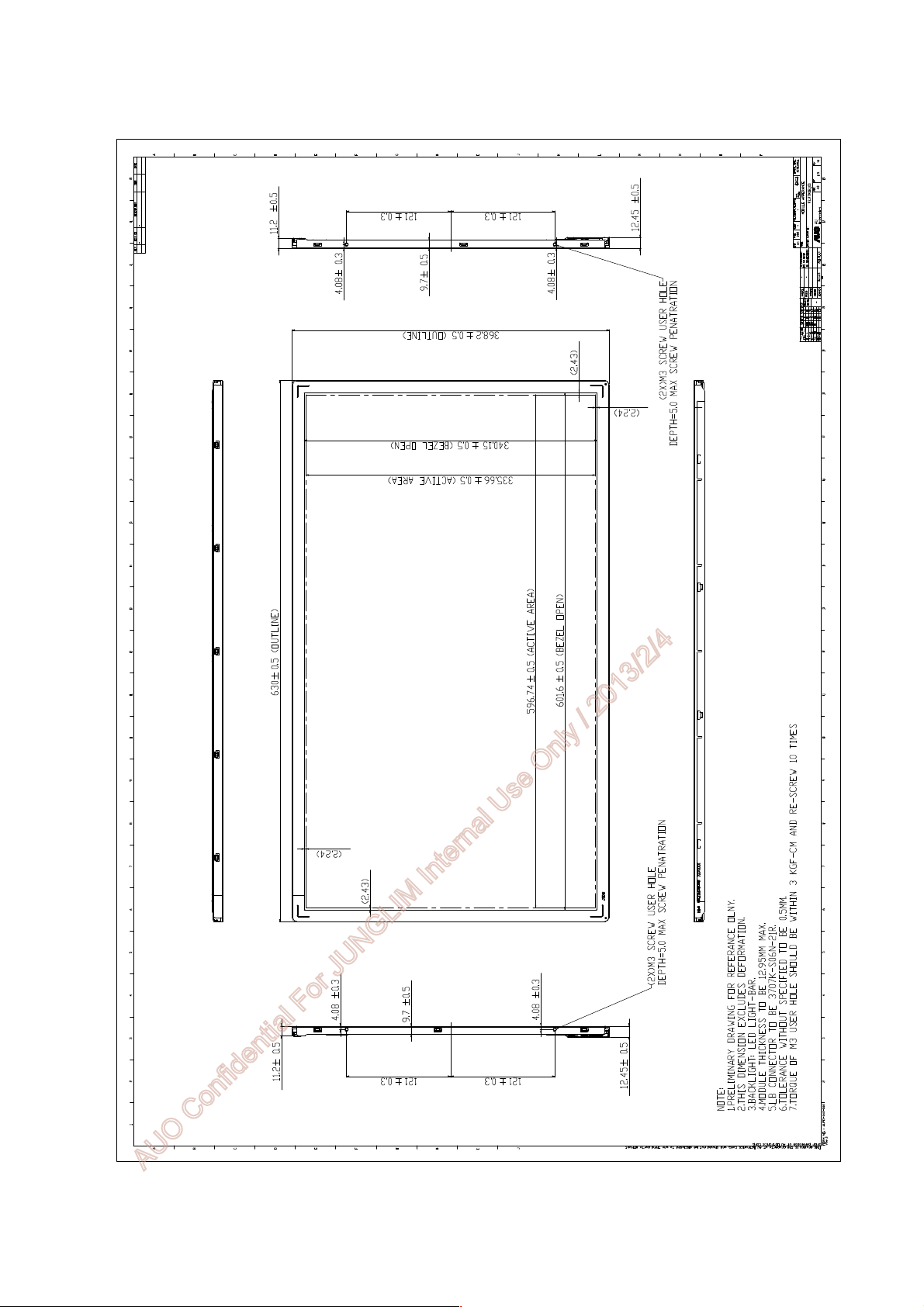

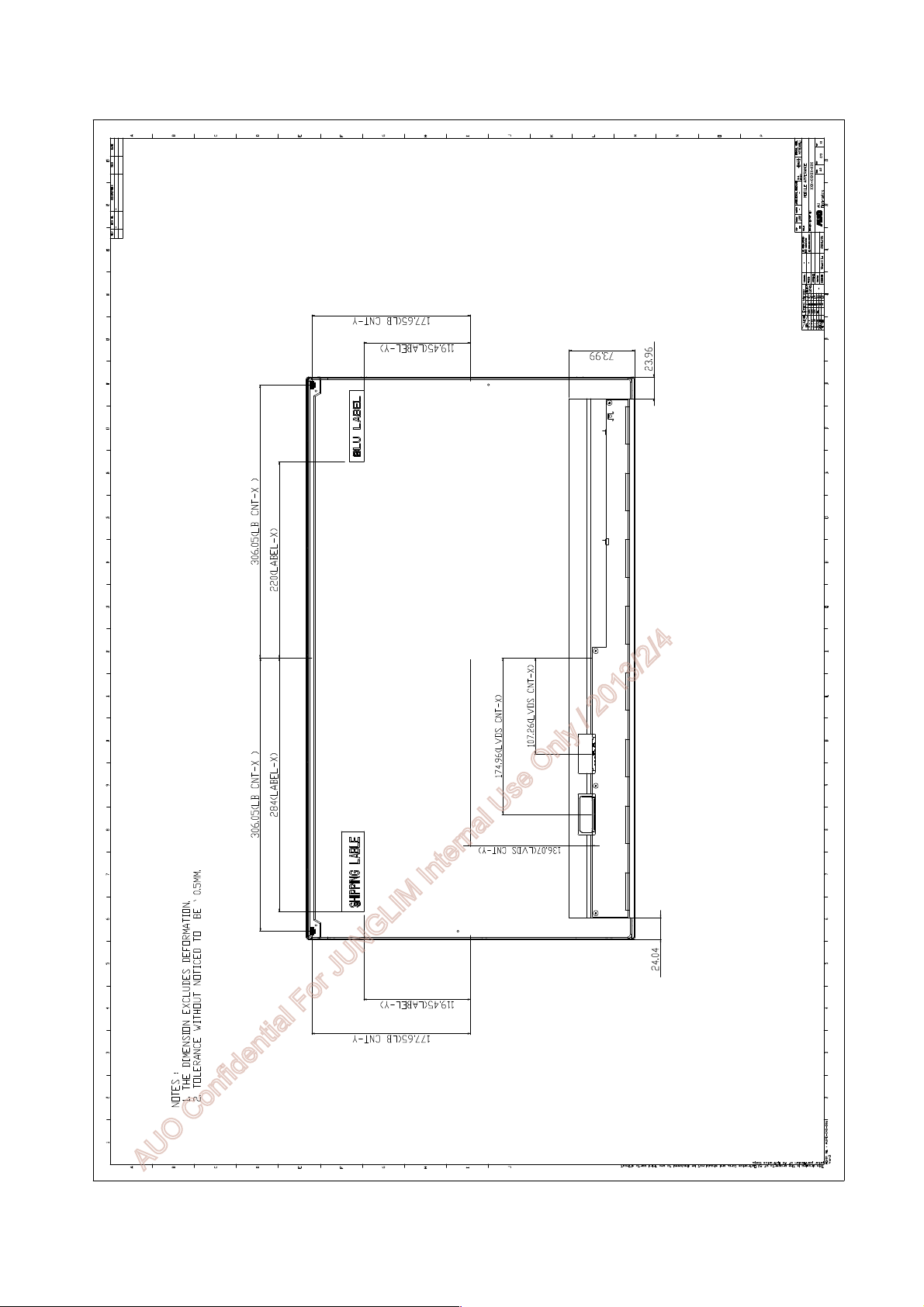

7 Mechanical Characteristics
Page 35
Ver 0.1
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
Page 36
Ver 0.1

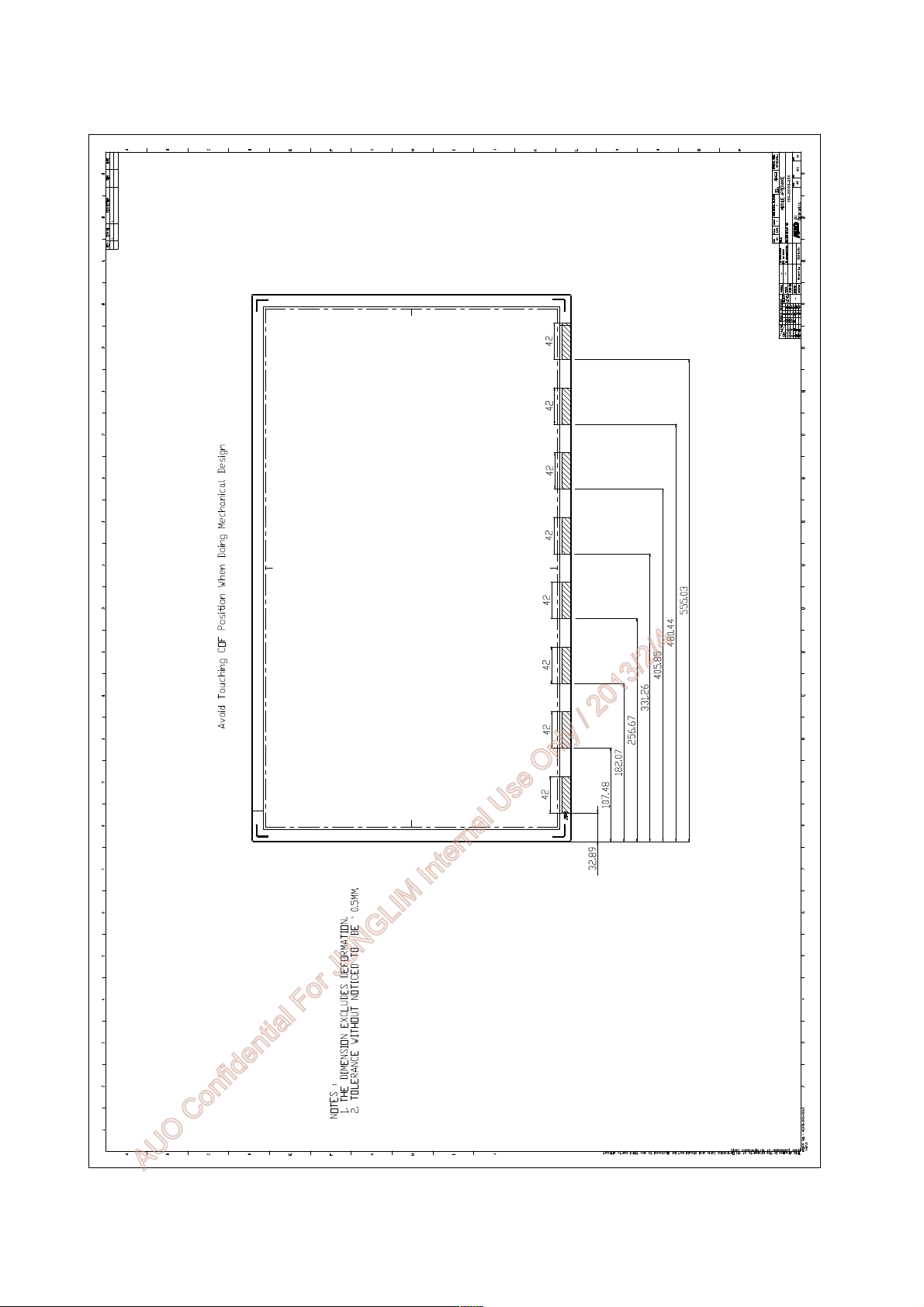

Avoid touching COF position when doing
mechanical design
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
Page 37
8 Packing Specification

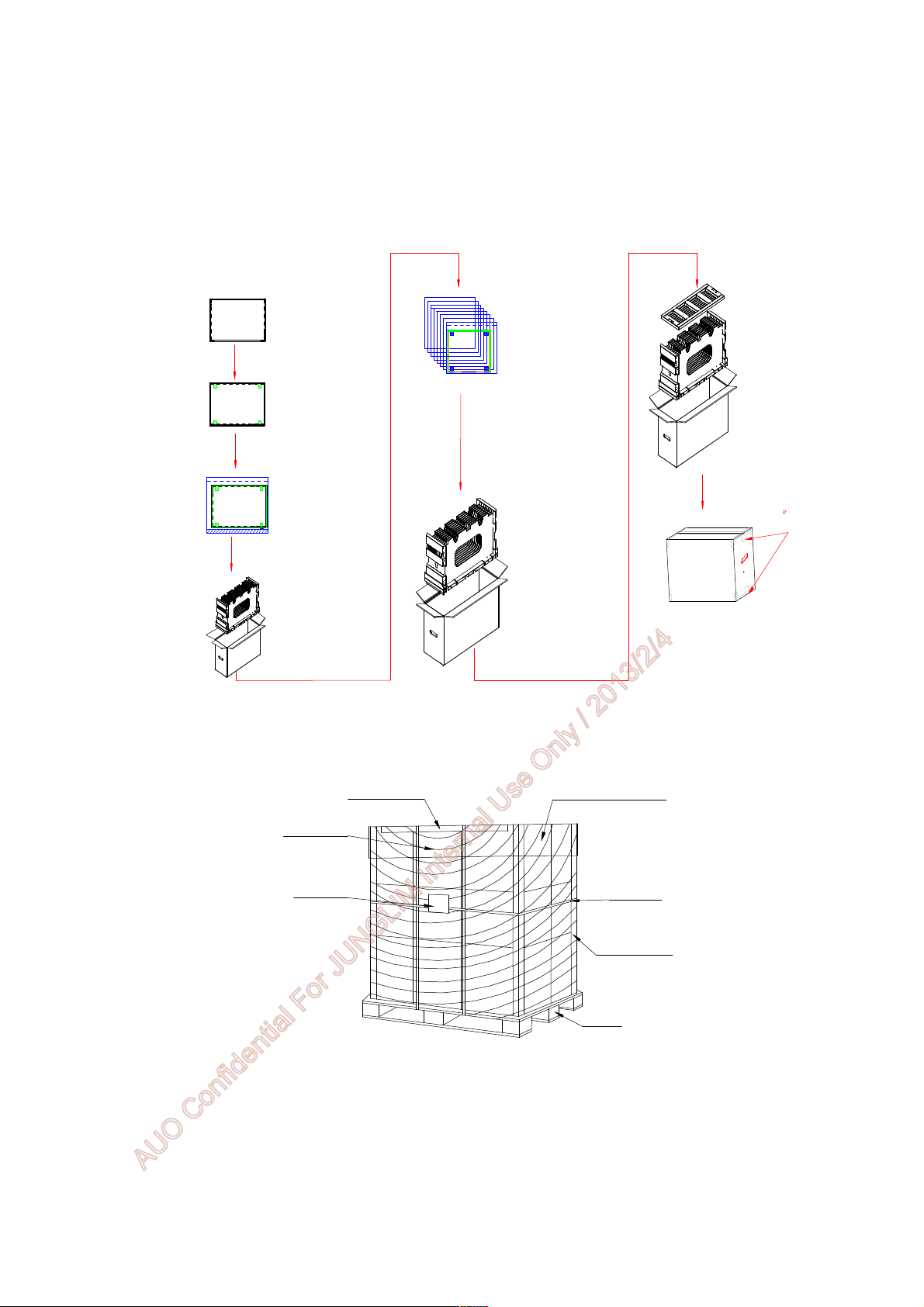

8.1 Packing Flow
Paste protect film
Module
8PCS/Carton
Put top cover
1pcs Module/ESD
Paper Cushion
H " Tape
Paper Carton
Open Top cover
Corner angle
Stretch film
Label
Moisture-proof film
PET band
Corner angle
Pallet
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
Ver 0.1
Page 38
720(L)mm x 264(W)mm x 460(H)mm
720(L)mm x 264(W)mm x 460(H)mm
8.2 Pallet and shipment information
Item
Q'ty Dimension Weight(kg)
Panel 1
630(H)mm x 368.2(V)mm x
Specification
12.45(D)mm
TBD
Cushion 1 - 4.41
Box 1
Packing Box 8 pcs/Box
Pallet 1
Pallet after
Packing
boxes/pallet
8
1070(L)mm x 740(W)mm x
138(H)mm
1070(L)mm x 740(W)mm x
1060(H)mm
1.35
TBD with panel & cushion
12.9
TBD
Remark
without Panel &
cushion
AUO Confidential For JUNGLIM Internal Use Only / 2013/2/4
Ver 0.1
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
