M215HW03 V2
Specification
28 pgs1.47 Mb0

AUO M215HW03 V2 Specification

Download
Page 1
Global LCD Panel Exchange Center
www.panelook.com

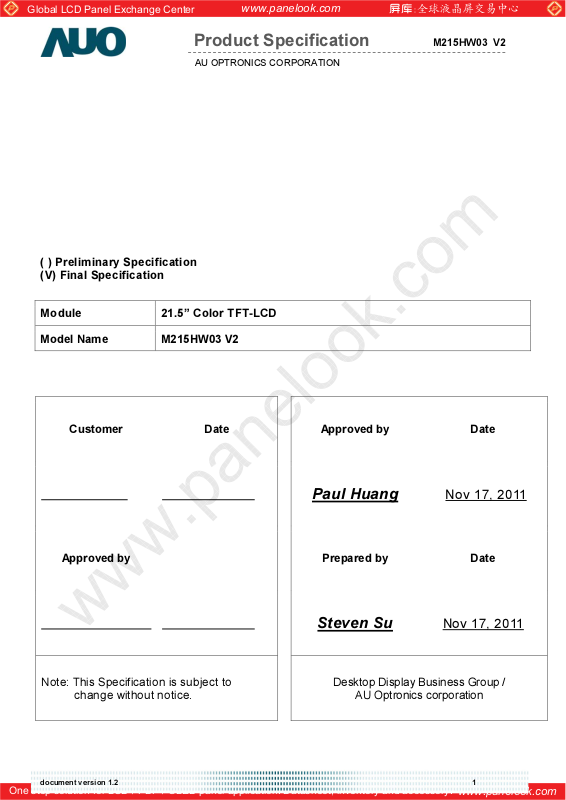

Product Specification
AU OPTRONICS CORPORATION
Preliminary Specification
( ) (V) Final Specification
Module 21.5” Color TFT-LCD
Model Name M215HW03 V2
Customer Date
Approved by
Approved by Date
Paul Huang
Prepared by Date
Nov 17, 2011
Note: This Specification is subject to
change without notice.
document version 1.2 1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Steven Su
Desktop Display Business Group /
AU Optronics corporation
Nov 17, 2011
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Contents
1.0 Handling Precautions............................................................. 4
2.0 General Description ............................................................... 5
2.1 Display Characteristics....................................................................................................................5
2.2 Optical Characteristics ....................................................................................................................6
3.0 Functional Block Diagram .................................................... 10
4.0 Absolute Maximum Ratings ................................................. 11
4.1 TFT LCD Module............................................................................................................................ 11
4.2 Absolute Ratings of Environment................................................................................................ 11
5.0 Electrical characteristics...................................................... 12
5.1 TFT LCD Module............................................................................................................................ 12
5.1.1 Power Specification....................................................................................................................12
5.1.2 Signal Electrical Characteristics............................................................................................... 13
6.0 Signal Characteristic............................................................ 16
6.1 Pixel Format Image........................................................................................................................16
6.2 The input data format ....................................................................................................................16
6.3 Signal Description.......................................................................................................................... 17
6.4 Timing Characteristics................................................................................................................... 19
6.5 Timing diagram...............................................................................................................................20
6.6 Power ON/OFF Sequence ...........................................................................................................21
7.0 Connector & Pin Assignment ............................................... 22
7.1 TFT LCD Module............................................................................................................................ 22
7.1.1 Pin Assignment ................................................................................................... 22
7.2 Connector on Backlight Unit.............................................................................................................. 23
7.2.1 Signal for LED light bar connector........................................................................... 23
8.0 Reliability Test..................................................................... 24
9.0 Shipping Label ..................................................................... 25
10.0 Mechanical Characteristics ................................................ 26
11. Packing Specification........................................................... 28
document version 1.2 2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Record of Revision
Version and Date Page Old description New Description Remark
0.1 2011/5/5 All First Edition for Customer -
1.0 2011/7/7 All Final Spec.
1.1 2011/7/20 19 Data clock max=90MHz Data clock max=94MHz Revised
1.1 2011/7/20 26 Mechanical Characteristics
Thickness 10.
1.2 2011/11/17 27 Mechanical Characteristics Modify label position Revised
ˆ˃ˁˈ
Mechanical Characteristics
Thickness 10.ˈ˃ˁˈ
Revised
document version 1.2 3
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
1.0 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken out from the container, do not press the center of the LED lightbar edge. Instead, press at the far ends of the LED light bar edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module even momentary. At designing the enclosure, it should be taken into consideration that no bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module may be damaged.
12) Small amount of materials having no flammability grade is used in the LCD module. The LCD module should be supplied by power complied with requirements of Limited Power Source (IEC60950 or UL1950), or be applied exemption.
13) Pls avoid touching COF position while you are doing mechanical design.
14) When storing modules as spares for a long time, the following precaution is necessary:
Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the
temperature between 5к and 35к at normal humidity.
document version 1.2 4
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
2.0 General Description
This specification applies to the 21.5 inch-wide Color a-Si TFT-LCD Module M215HW03.The display supports the Full HD - 1920(H) x 1080(V) screen format and 16.7M colors (RGB 6-bits + Hi-FRC data). All input signals are 2-channel LVDS interface and this module doesn’t contain an driver board for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25
ITEMS Unit SPECIFICATIONS
Screen Diagonal [mm] Active Area [mm] 476.64 (H) x 268.11 (V) Pixels H x V 1920(x3) x 1080 Pixel Pitch [um] 248.25 (per one triad) ×248.25 Pixel Arrangement R.G.B. Vertical Stripe Display Mode TN Mode, Normally White White Luminance ( Center ) [cd/m2]
Contrast Ratio 1000 (Typ.) Optical Response Time [msec] 5ms (Typ., on/off) Nominal Input Voltage VDD [Volt] +5.0 V Power Consumption
[Watt] (VDD line + LED line) Weight [Grams] 1750 Physical Size [mm] 495.6(W) × 292.2(H) × 10.5(D) Typ. Electrical Interface Dual channel LVDS Support Color 16.7M colors (RGB 6-bit + Hi_FRC ) Surface Treatment Glare, 3H Temperature Range Operating Storage (Shipping)
o
C]
[
o
C]
[ RoHS Compliance RoHS Compliance TCO Compliance TCO Compliance
546.86(21.53”)
2
250cd/m
(Typ.)
17 (Typ.) (without driver board, all black pattern)
0 to +50
-20 to +60
condition:
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25
Item Unit Conditions Min. Typ. Max. Note
Horizontal (Right)
Viewing Angle [degree]
Contrast ratio Normal Direction 600 1000 -
Response Time [msec]
Color / Chromaticity Coordinates (CIE)
Color Coordinates (CIE) White
Central Luminance [cd/m2] 200 250 - 6
Luminance Uniformity
Crosstalk (in 60Hz)
Flicker
[%]
[%]
dB
CR = 10 (Left)
Vertical (Up) CR = 10 (Down)
Raising Time (TrR)
Falling Time (TrF)
Raising + Falling
Red x
Red y
Green x
Green y
Blue x
Blue y
White x
White y
0.616 0.646 0.676
0.302 0.332 0.362
0.301 0.331 0.361
0.595 0.625 0.655
0.126 0.156 0.186
0.021 0.051 0.081
0.283 0.313 0.343
0.299 0.329 0.359
:
75 75
70 70
-
-
-
75 80
85 85
80 80
3.8
1.2 2.5
5 8
-
-
-
-
5.5
-
1.5 8
-20
2
3
4
5
7
9
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
6
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Note 1: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature change during measuring (at surface 35
). In order to stabilize the luminance, the
measurement should be executed after lighting Backlight for 30 minutes in a stable, windless and dark room. ʳ
Photo detector
Measured distance
LCD Panel
Center of the screen
Note 2: Definition of viewing angle measured by ELDIM (EZContrast 88) Viewing angle is the measurement of contrast ratio Њ10, at the screen center, over a 180°
horizontal and 180° vertical range (off-normal viewing angles). The 180° viewing angle range is
broken down as follows; 90° (θ) horizontal left and right and 90° (Φ) vertical, high (up) and low
(down). The measurement direction is typically perpendicular to the display surface with the screen
rotated about its center to develop the desired measurement viewing angle.
TFT-LCD Module
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Note 3: Contrast ratio is measured by TOPCON SR-3
Note 4: Definition of Response time measured by Westar TRD-100A
The output signals of photo detector are measured when the input signals are changed from “Full
Black” to “Full White” (rising time, T
), and from “Full White” to “Full Black” (falling time, TrF),
rR
respectively. The response time is interval between the 10% and 90% (1 frame at 60 Hz) of
amplitudes.
%
Optical
Optical
response
response
100
100
90
10
10
%
White Black
0
0
T
rF
Black
1 Frame 1 Frame
T
rR
White
+ TrF = 5 msec (typ.).
T
rR
Note 5: Color chromaticity and coordinates (CIE) is measured by TOPCON SR-3
Note 6: Central luminance is measured by TOPCON SR-3
Note 7: Luminance uniformity of these 9 points is defined as below and measured by
TOPCON SR-3
Uniformity =
9)-(1 points 9in LuminanceMinimum
9)-(1 Points 9in LuminanceMaximum
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8
www.panelook.com
Page 9
Global LCD Panel Exchange Center
L
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Note 8: Crosstalk is defined as below and measured by TOPCON SR-3
CT = | YB – YA | / YA × 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
Note 9: Test Patern: Subchecker Pattern measured by TOPCON SR-3
RGBRGB
Gray Level = L127
R GBRGB
Gray Level = L0
RGBRGB
Method: Record dBV & DC value with TRD-100
Amplitude
DC
AC
Time
log20(dB)Flicker =
Hz) 30Level(at AC
evel DC
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
9
www.panelook.com
Page 10
Global LCD Panel Exchange Center
S
AUO AS
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

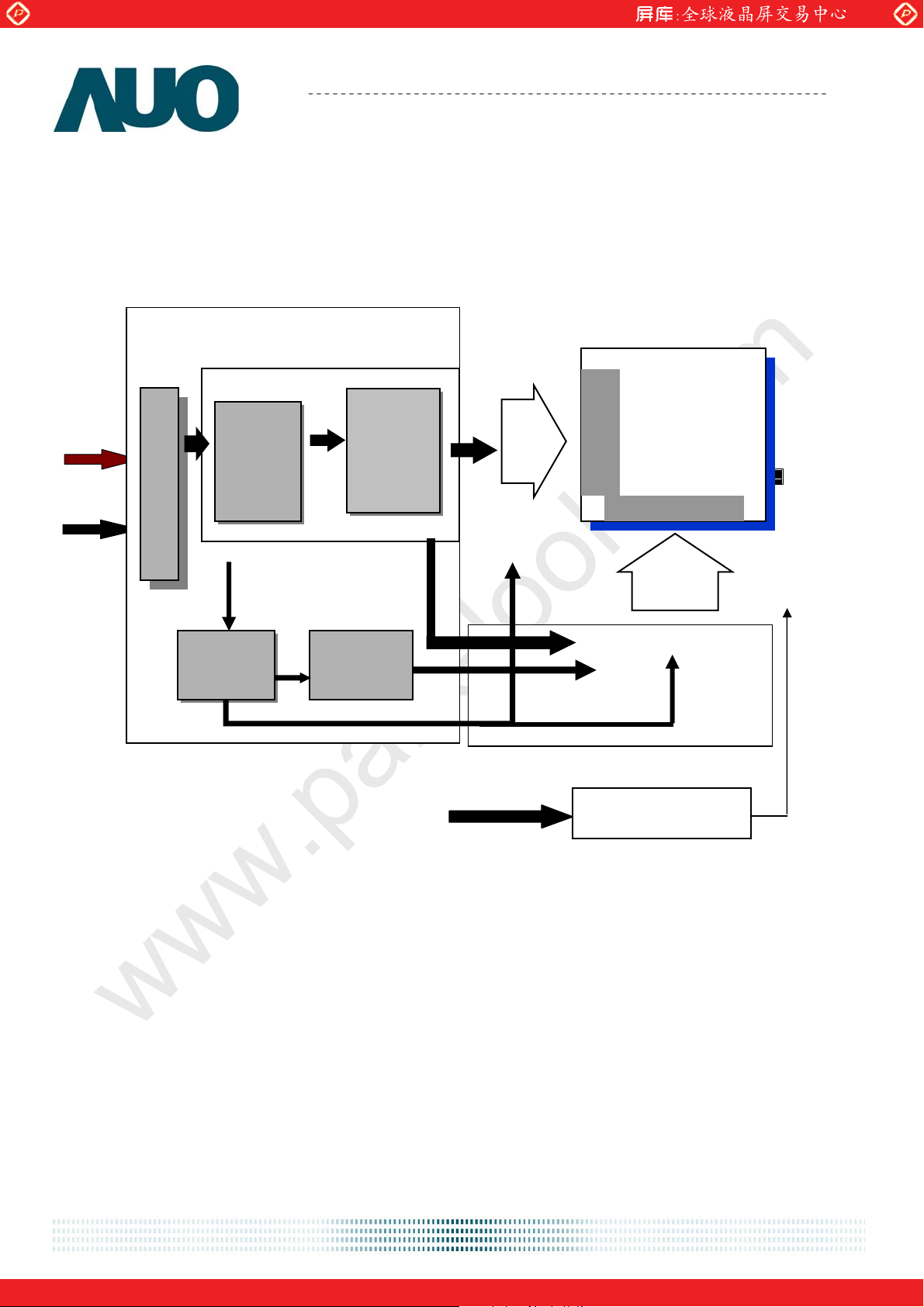

3.0 Functional Block Diagram
The following diagram shows the functional block of the 21.5 inch Color TFT-LCD Module:
+5V
LVD
LVD
Connector
Receiver
AUO ASIC
LVDS
IC
Timing
Controller
Mini LVDS
Transmitter
G1
G1080
Y-Driver IC
TFT-LCD
1920(x3) x 1080
Pixels
-
D1 D5760
LED Backlight
DC/DC
Converter
I/F + X-PCB
I/F PCB Interface:
JAE-FI-XPB30SRLA-HF11 P-TWO-187121-30091-3(A)
Mating Type:
FI-X30HL (Locked Type)
Gamma
Correction
DC
LED Driver on system
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
10
www.panelook.com
Page 11
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
4.0 Absolute Maximum Ratings
Absolute maximum ratings of the module are as following:
4.1 TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
Voltage
VDD 0 6.0 [Volt] Note 1,2

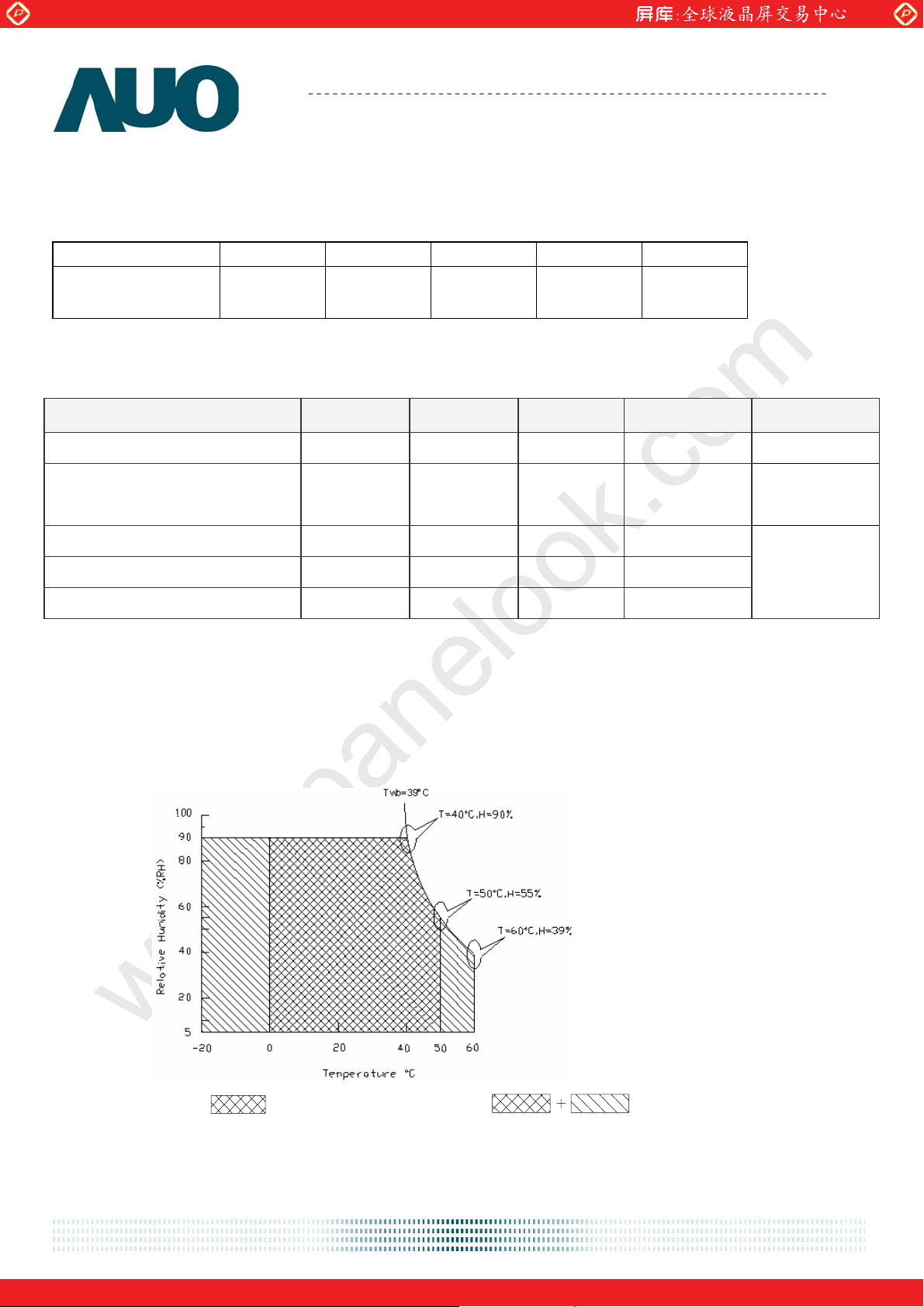

4.2 Absolute Ratings of Environment
Item Symbol Min. Max. Unit Conditions
Operating Temperature TOP 0 +50 [oC] Note 3
Glass surface temperature
(operation)
TGS 0 +65 [oC] Note 3, Note 4
Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [oC]
Storage Humidity HST
Note 1: With in Ta (25к) Note 2: Permanent damage to the device may occur if exceeding maximum values
Note 3: Temperature and relative humidity range are shown as the below figure.
1. 90% RH Max ( Taʳ Љˆˌкʼʳ
2. Max wet-bulb temperature at 39кʳ ʳ˿˸ˁʳʻʳ˧˴ʳ Љˆˌкʼʳ
ʳʳʳʳʳʳʳʳˆˁʳˡʳ˶˷˸˴˼ʳ
Note 4: Function Judged only
5 90
[%RH]
Note 3
Operating Range Storage Range
document version 1.1
11
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
5.0 Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as following:
Symbol Parameter Min Typ Max Unit Conditions
VDD Logic/LCD Drive Voltage 4.5 5.0 5.5 [Volt] +/-10%
VDD= 5.0V, All Black Pattern At 60Hz VDD= 5.0V, All Black Pattern At 75Hz VDD= 5.0V, All Black Pattern At 60Hz VDD= 5.0V, All Black Pattern At 75Hz
Note 1
IDD Input Current
PDD VDD Power
IRush Inrush Current
-
-
-
0.82 0.98 [A]
0.92 1.1 [A]
4.1 4.9 [Watt]
4.6 5.5 [Watt]
- 3 [A]
VDDrp
Allowable Logic/LCD
Drive Ripple Voltage
-
- 500 [mV] p-p

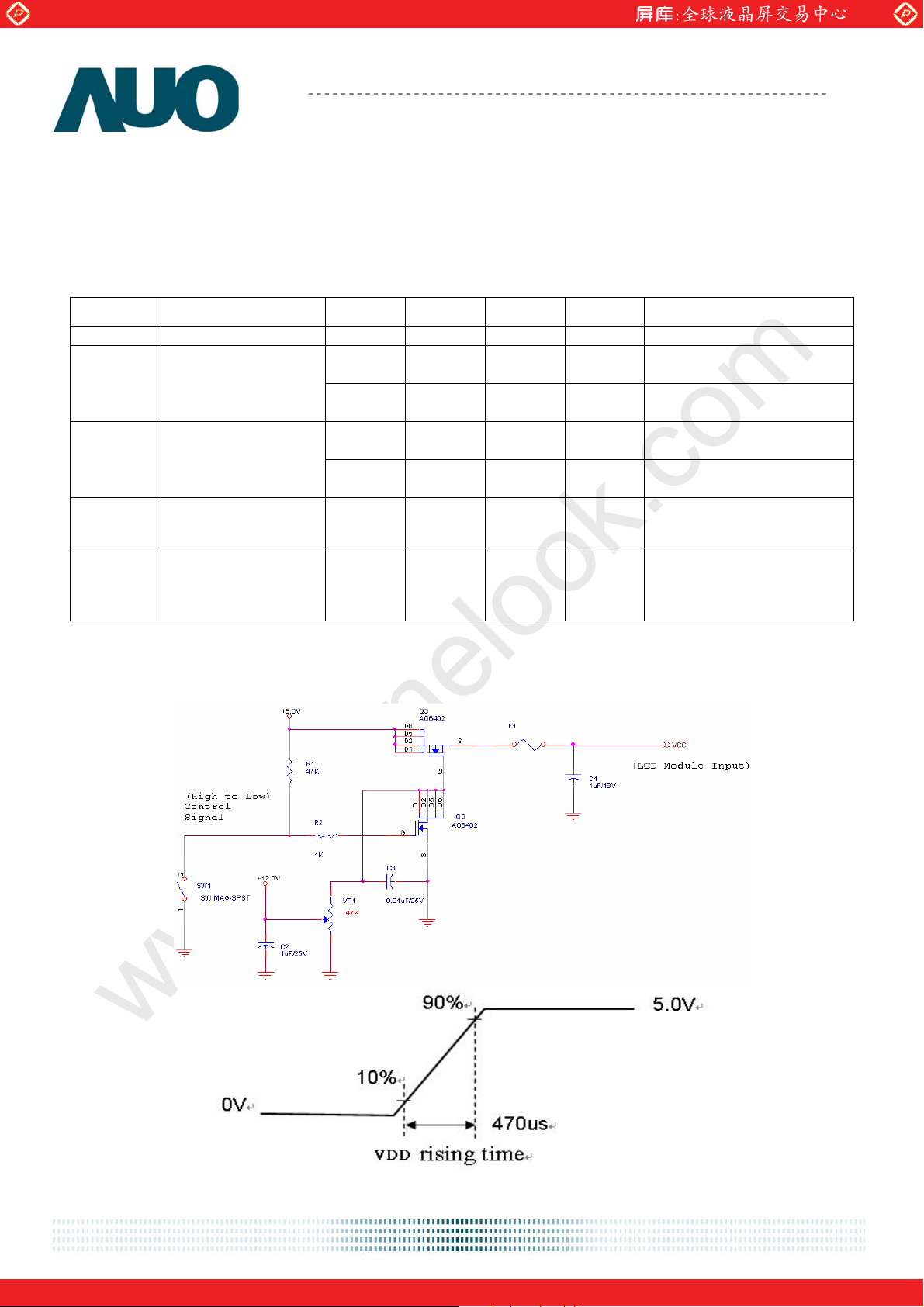

Note 1: Measurement conditions:
The duration of rising time of power input is 470us.
VDD= 5.0V, All Black Pattern At 75Hz
document version 1.1
12
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
5.1.2 Signal Electrical Characteristics
Input signals shall be low or Hi-Z state when VDD is off. Please refer to specifications of
SN75LVDS82DGG (Texas Instruments) in detail.
1. DC Characteristics of each signal are as following:
Symbol Parameter Min Typ Max Units Condition
VTH
VTL
ūVIDū Input Differential Voltage 100 - 600 [mV] Note 1
VICM
Differential Input High
Threshold
Differential Input Low
Threshold
Differential Input Common
Mode Voltage
- - +100 [mV]
-100
- - [mV]
+1.0 +1.2 +1.5 [V]
VICM = 1.2V
Note 1
VICM = 1.2V
Note 1
VTH-VTL = 200MV (max)
Note 1

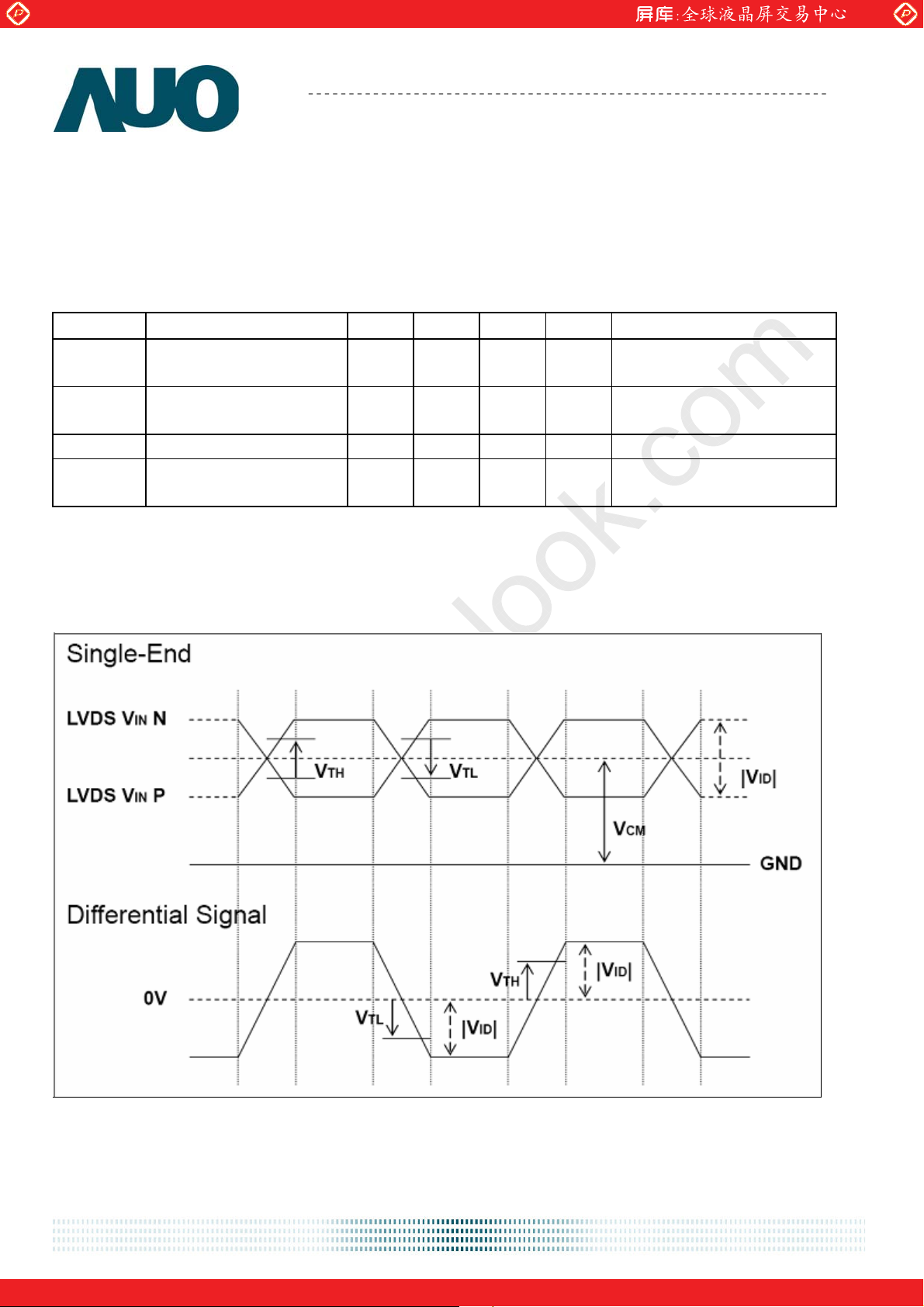

Note 1: LVDS Signal Waveform
document version 1.1
13
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
q
x
r
V
t
www.panelook.com

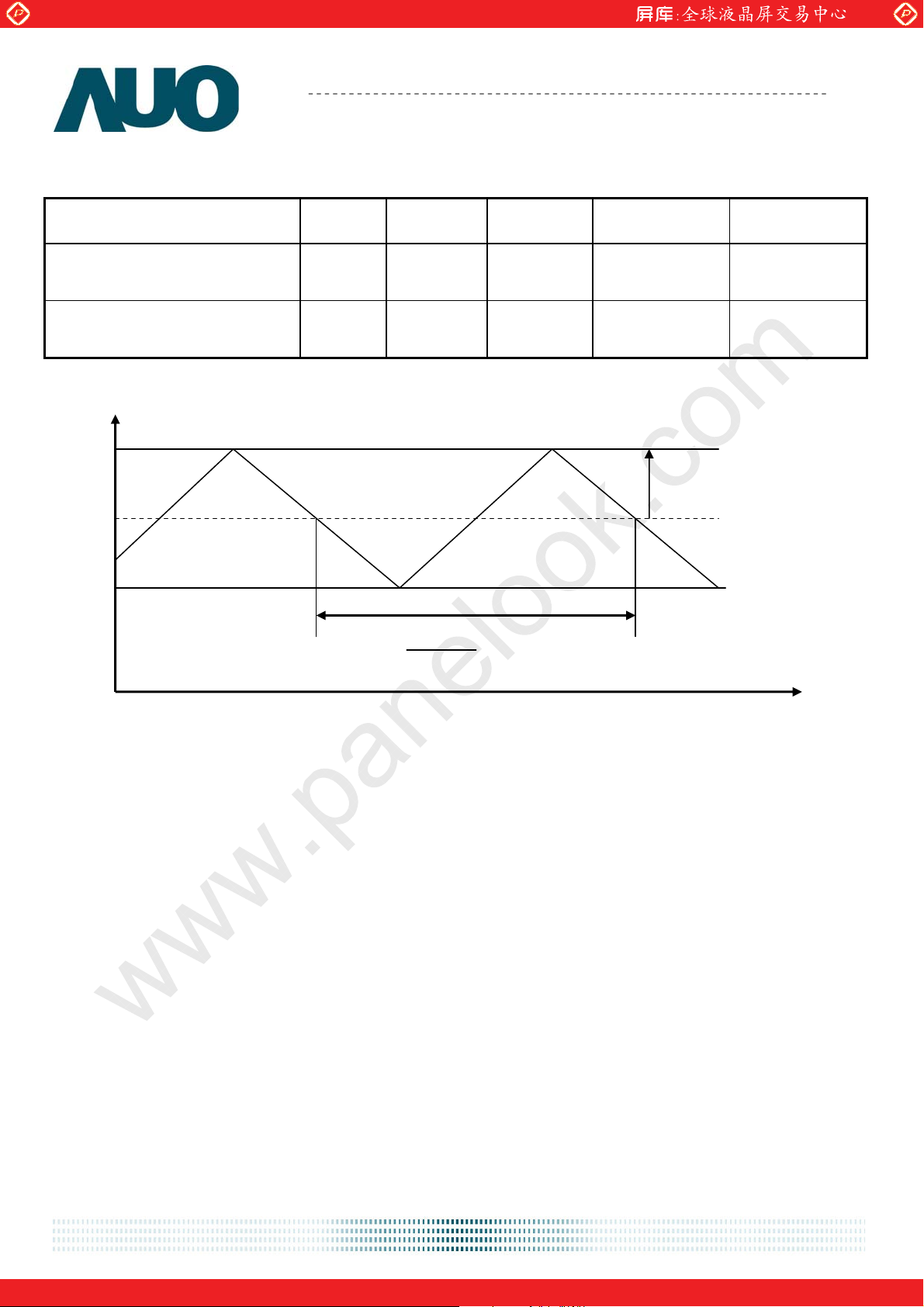

2. AC Characteristics
Description Symbol Min Max Unit Note
Maximum deviation of input
clock frequency during SSC
Maximum modulation frequency
of input clock during SSC
Fre
Fma
Fcente
Product Specification
AU OPTRONICS CORPORATION
DEV -
F
MOD - 300 KHz
F
3
%
Fcenter * FDE
Fmin
1
F
MOD
< Spread Spectrum>
ime
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
14
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
5.2 Backlight Unit
Parameter guideline for LED driver is under stable conditions at 25
Symbol Parameter Min.
IR
LED Operation Current - 60 63
LED
VLB
P
BLU Power consumption (for reference)
BLU
LT
LED life Time
LED
Light Bar Operation Voltage
(for reference)
Note 1 :The specified current is input LED chip 100% duty current.
Note 2 : The value showed in the table is one light bar’s operation voltage.
Note 3 : Definition of life time : brightness becomes 50% of its original value. The minimum life time of LED unit is on the
condition of IR
=60mA and 25˅к (Room temperature).
LED
Note 4: Each LED light bar consists of 64 pcs LED package ( 4 strings x 16 pcs / string ).
Typ. Max. Unit Note
48 52.8 57.6
12.7 13.8
30000
(Room Temperature):
[mA]
Note 1
[Volt]
Note 2
[Watt]
Operating with fixed
driving current
Note 3
[Hour]
Note 3
document version 1.1
15
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6.0 Signal Characteristic

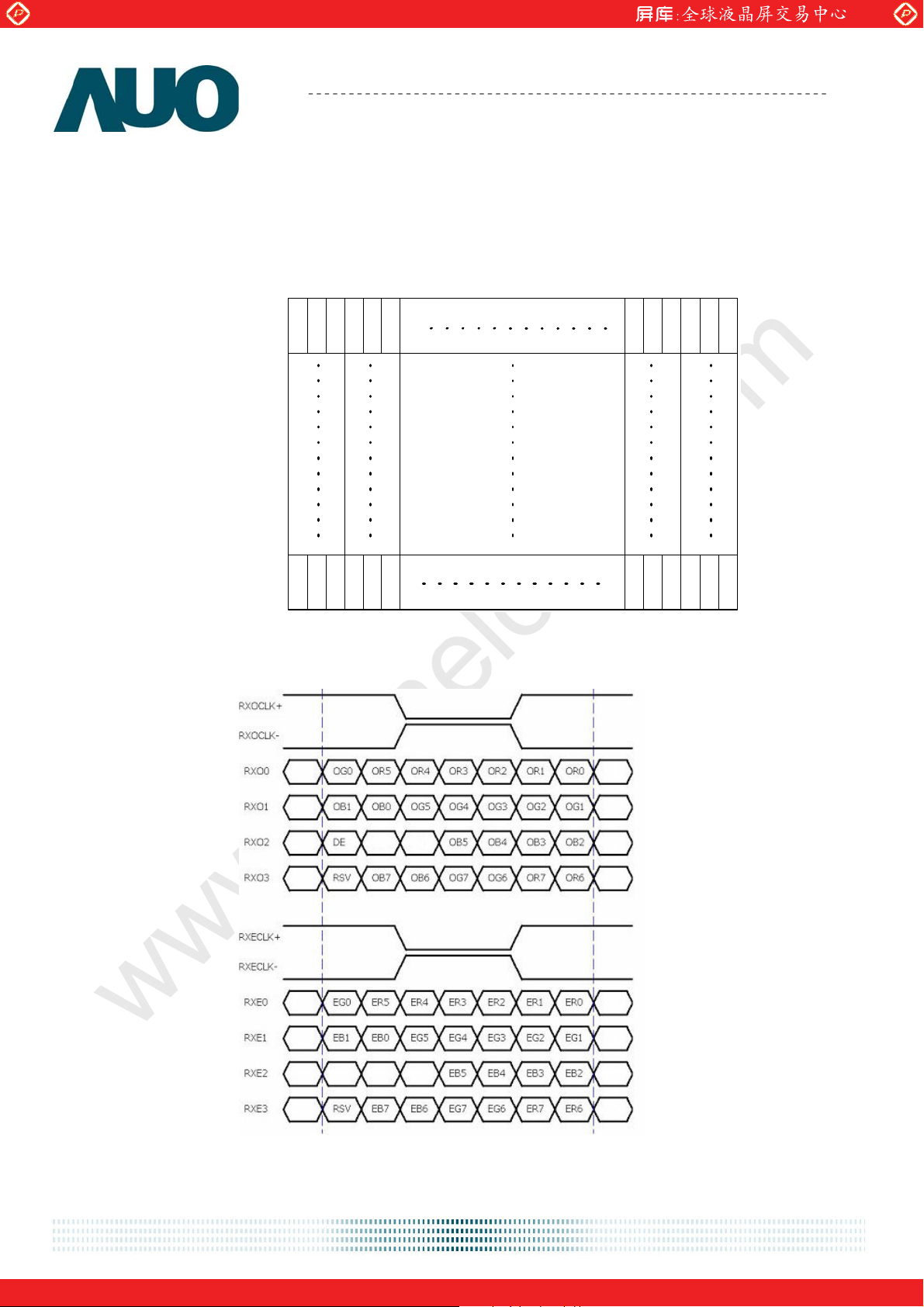

6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
1st Line
1 2 1919 1920
R G B R G B
R G B R G B
1080 Line
6.2 The input data format
R G B R G B
R G B R G B
Note 1: R/G/B data 7:MSB, R/G/B data 0:LSB O = “First Pixel Data” E = “Second Pixel Data”
document version 1.1
16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
g
)
)
g
)
)
g
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
t)
V
V
V
V
V
V
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6.3 Signal Description
The module using one LVDS receiver SN75LVDS82(Texas Instruments). LVDS is a differential signal technology for LCD interface and high speed data transfer device. LVDS transmitters shall be SN75LVDS83(negative edge sampling). The first LVDS port(RxOxxx) transmits odd pixels while the second LVDS port(RxExxx) transmits even pixels.
PIN # SIGNAL NAME DESCRIPTION
1RxOIN0- Ne
2 RxOIN0+ Positive LVDS differential data input (Odd data
3RxOIN1- Ne
4 RxOIN1+ Positive LVDS differential data input (Odd data
5RxOIN2- Ne
6 RxOIN2+ Positive LVDS differential data input (Odd data,DSPTMG
7 GND Power Ground
8 RxOCLK- Negative LVDS differential clock input (Odd clock
ative LVDS differential data input (Odd data
ative LVDS differential data input (Odd data
ative LVDS differential data input (Odd data,DSPTMG
9 RxOCLK+ Positive LVDS differential clock input (Odd clock
10 RxOIN3- Negative LVDS differential data input (Odd data
11 RxOIN3+ Positive LVDS differential data input (Odd data
12 RxEIN0- Negative LVDS differential data input (Even data
13 RxEIN0+ Positive LVDS differential data input (Even data
14 GND Power Ground
15 RxEIN1- Negative LVDS differential data input (Even data
16 RxEIN1+ Positive LVDS differential data input (Even data
17 GND Power Ground
18 RxEIN2- Negative LVDS differential data input (Even data
19 RxEIN2+ Positive LVDS differential data input (Even data
20 RxECLK- Negative LVDS differential clock input (Even clock
21 RxECLK+ Positive LVDS differential clock input (Even clock
22 RxEIN3- Negative LVDS differential data input (Even data
23 RxEIN3+ Positive LVDS differential data input (Even data
24 GND Power Ground
25 NC No connection(for AUO test only. Do not connect
26 NC No connection(for AUO test only. Do not connect
27 NC No connection (for AUO test only. Do not connec
28
29
30
DD Power +5
DD Power +5
DD Power +5
Note1: Start from left side
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
17
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

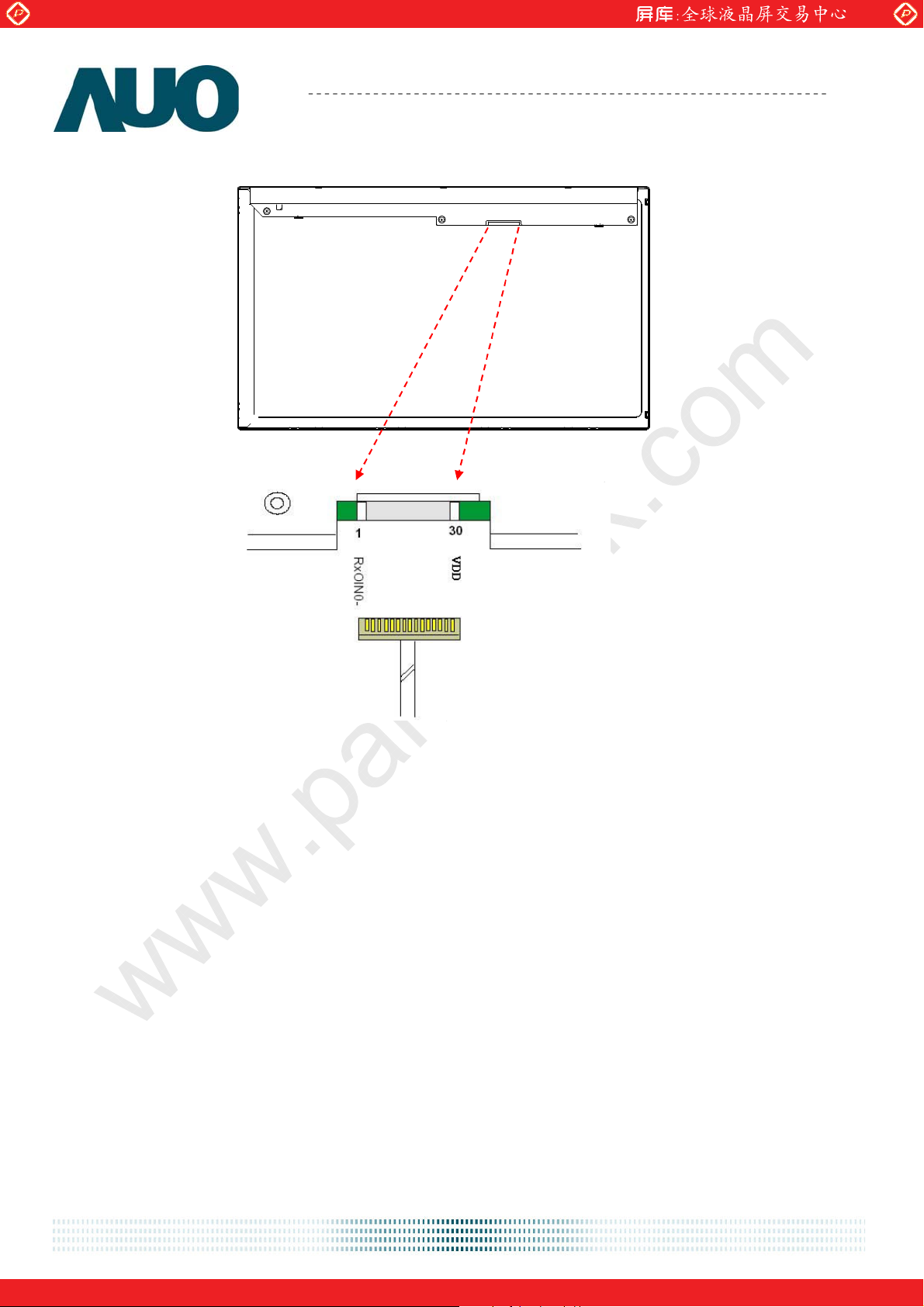

Note2: Input
signals of odd and even clock shall be the same timing.
document version 1.1
18
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6.4 Timing Characteristics
Basically, interface timing described here is not actual input timing of LCD module but close to output timing of SN75LVDS82DGG (Texas Instruments) or equivalent.
Signal Item Symbol Min Typ Max Unit
Th
Th
Th
Tclk
Tclk
Tclk
ns
MHz
Vertical
Section
Horizontal
Section
Clock
Period Tv
Active Tdisp(v)
Blanking Tbp(v)+Tfp(v)+PWvs
Period Th
Active Tdisp(h)
Blanking Tbp(h)+Tfp(h)+PWhs
Period Tclk
Frequency Freq
1088 1120 2047
1080 1080 1080
8 40 967
1034 1060 2047
960 960 960
74 100 1087
25 13.3 11.1
40 75 94
Frame
Frame rate
rate
F
50 60 75
Hz
Note : DE mode only
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
19
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com

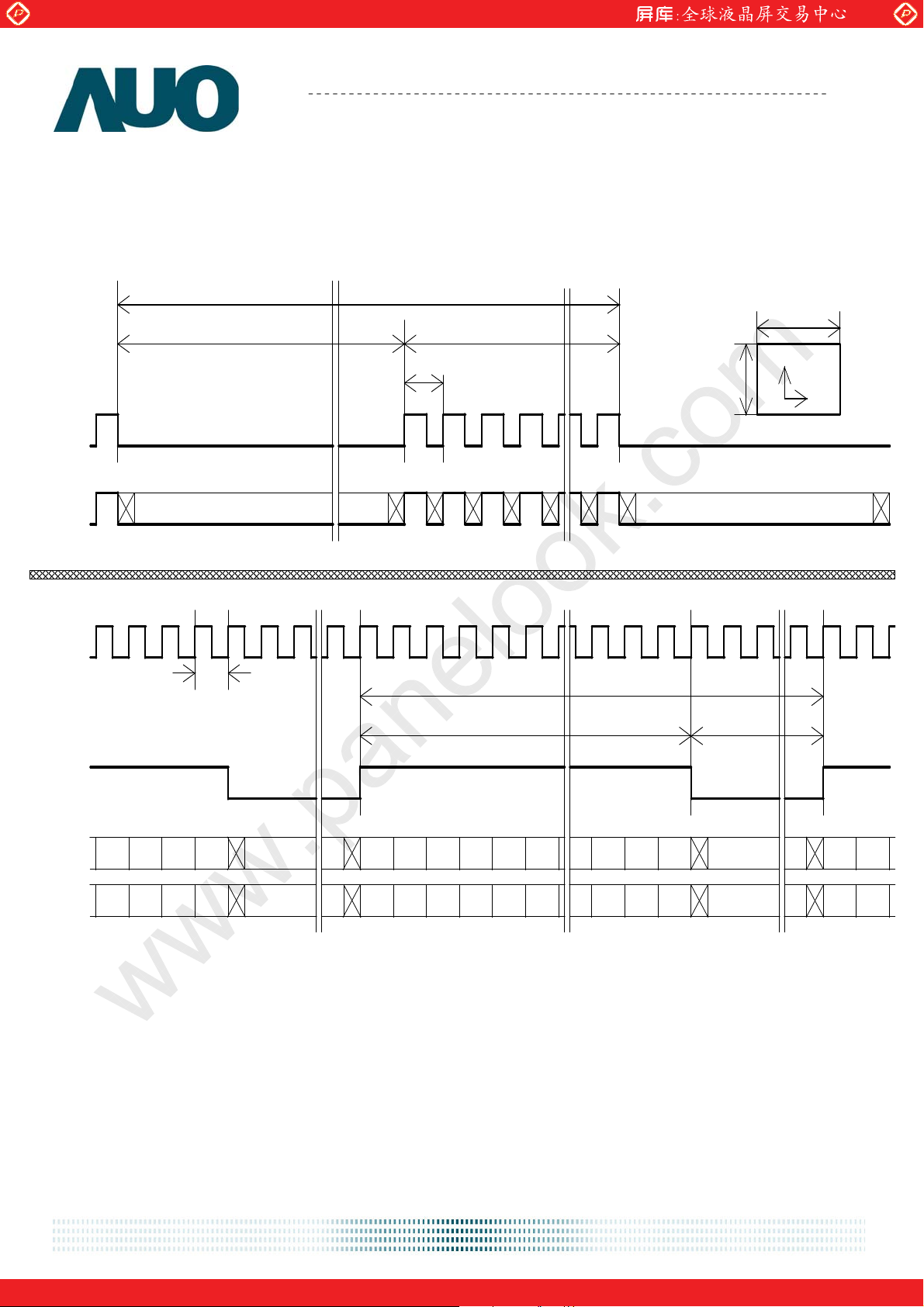

6.5 Timing diagram
DE
RGB Data
CLK
RGB Data (Odd)
RGB Data (Even)
DE
N
Line
Pixel
Pixel
M-7
M-6
Pixel
M-5
Pixel
Pixel
M-3
Pixel
M-2
Invalid Data
Tclk
Pixel
M-1
Pixel
M
Tblk(v)
Invalid Data
Invalid Data
Product Specification
AU OPTRONICS CORPORATION
Tv
Tdisp(v)
Th
32
LineLine
Th
Tdisp(h)
Pixel
Pixel
10
4
LineLine
Pixel
119
12
Pixel
Pixel
1
Pixel
Pixel
1
3
Pixel Pixel
2
4
Pixel
Pixel
7
5
Pixel
Pixel
8M
6M-2
N
Line
M-5
M-4
Pixel
Pixel
M-3
Invalid Data
Tblk(h)
Pixel
M-1
PixelPixel
Invalid Data
Invalid Data
N Line
M pixel
Y
X
Pixel
Pixel
1
3
Pixel
Pixel
4
2M-4
document version 1.1
20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

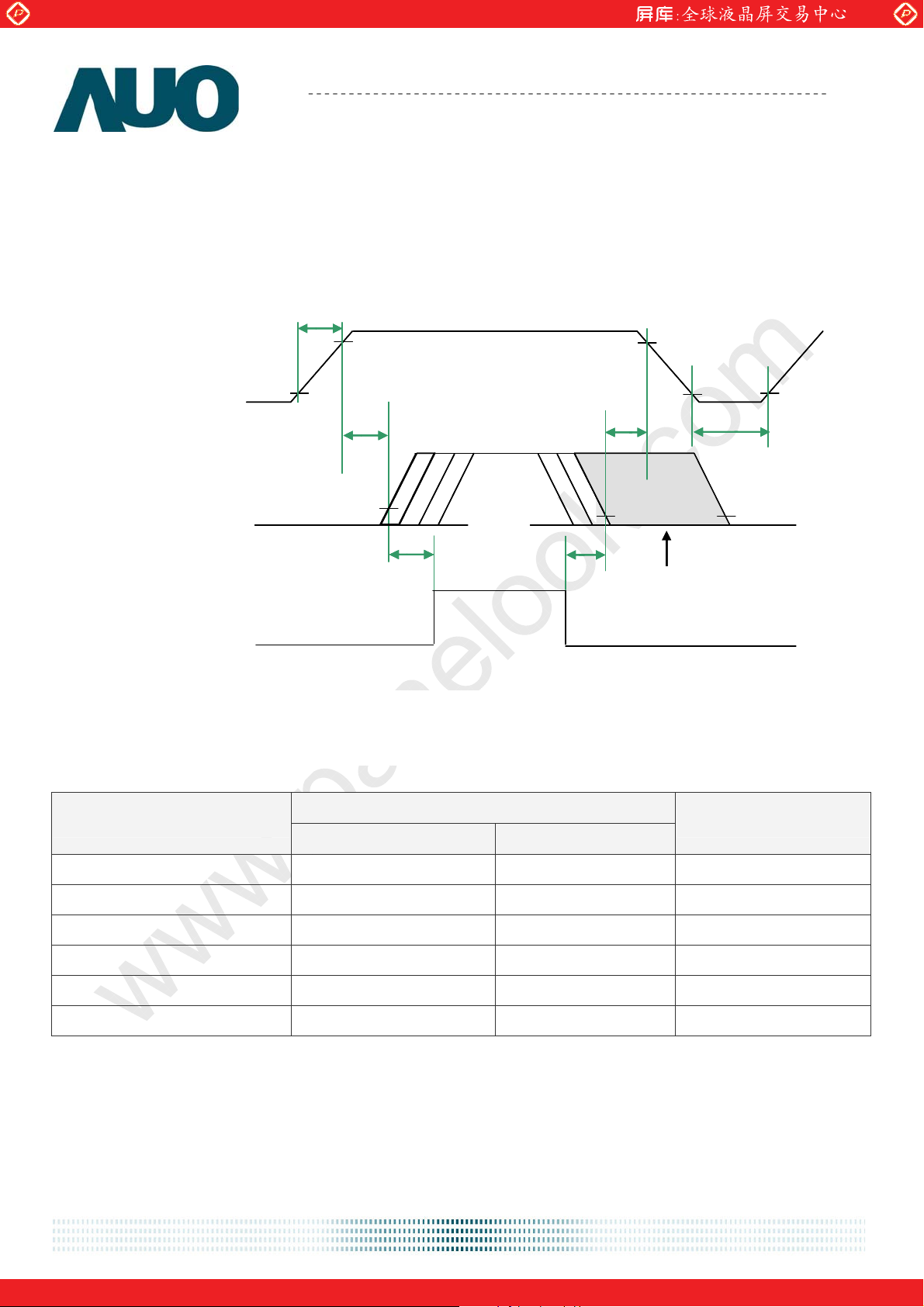

6.6 Power ON/OFF Sequence
VDD power and backlight on/off sequence are as follows. Interface signals are also shown in the chart. Signals from any system shall be Hi-Z state or low level when VDD is off.
Power Supply VDD
Power Supply VDD
LVDS Signal
LVDS Signal
Backlight On
Backlight On
Note : Insert a white pattern after valid data and last until VDD falls to 10%
0V
0V
10%
10%
T1
T1
90%
90%
T2
T2
T3
T3
VALID
VALID DATA
DATA
T4
T4
90%
90%
T5
T5
Note
Note
10%
10%
T6
T6
Parameter
Min. Max.
T1 0.5 10 [msec]
T2 0 50 [msec]
T3 500 - [msec]
T4 200 - [msec]
T5 40 - [msec]
T6 1000 - [msec]
document version 1.1
Value
Unit
21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
)
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
7.0 Connector & Pin Assignment
Physical interface is described as for the connector on module. These connectors are capable of accommodating the following signals and will be following components.
7.1 TFT LCD Module
Connector Name / Designation Interface Connector / Interface card
Manufacturer JAE, P-TWO,
Type Part Number
Mating Housing Part Number FI-X30HL (Locked Type)
JAE-FI-XPB30SRLA-HF11
P-TWO-187121-30091-3(A
7.1.1 Pin Assignment
Pin# Signal Name Pin# Signal Name
1 RxOIN0- 2 RxOIN0+
3 RxOIN1- 4 RxOIN1+
5 RxOIN2- 6 RxOIN2+
7 GND 8 RxOCLKIN-
9 RxOCLKIN+ 10 RxOIN3-
11 RxOIN3+ 12 RxEIN0-
13 RxEIN0+ 14 GND
15 RxEIN1- 16 RxEIN1+
17 GND 18 RxEIN2-
19 RxEIN2+ 20 RxECLKIN-
21 RxECLKIN+ 22 RxEIN3-
23 RxEIN3+ 24 GND
25 NC (for AUO test only. Do not
connect)
27 NC (for AUO test only. Do not
connect)
29 VDD 30 VDD
26 NC
(for AUO test only. Do not
connect)
28 VDD
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
22
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
7.2 Connector on Backlight Unit.
This connector is mounted on LED light-bar.
Connector Name / Designation Light Bar Connector
Manufacturer ENTERY
Type Part Number 3707K-S06N-21R
Mating Type Part Number ENTERY H112K-P06N-03B
7.2.1 Signal for LED light bar connector
Pin no. Signal name
1 I
2 I
3 V
4 V
5 I
6 I
(current out)
LED
(current out)
LED
(voltage in)
LED
(voltage in)
LED
(current out)
LED
(current out)
LED
document version 1.1
23
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
8.0 Reliability Test
Environment test conditions are listed as following table.
Items Required Condition
Temperature Humidity Bias (THB)
High Temperature Operation (HTO)
Low Temperature Operation (LTO)
High Temperature Storage (HTS)
Low Temperature Storage (LTS)
Vibration Test (Non-operation)
Ta= 50
Ta= 50
Ta= 0
Ta= 60
Ta= -20
, 80%RH, 300hours
, 50%RH, 300hours
, 300hours
, 300hours
, 300hours
Acceleration: 1.5 Grms Wave: Random Frequency: 10 - 200 Hz Sweep: 30 Minutes each Axis (X, Y, Z)
Note
Acceleration: 50 G Shock Test (Non-operation)
Wave: Half-sine
Active Time: 20 ms
Direction: ±X, ±Y, ±Z (one time for each Axis)
Drop Test Height: 60 cm, package test
Thermal Shock Test (TST)
/30min, 60/30min, 100 cycles 1
-20
On/Off Test On/10sec, Off/10sec, 30,000 cycles
Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec,
8 points, 25 times/ point. ESD (Electro Static Discharge)
2
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
8 points, 25 times/ point.
Altitude Test
Operation:10,000 ft Non-Operation:30,000 ft
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid temperature change. A cycle of rapid temperature change consists of varying the temperature from
-
!
unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: EN61000-4-2, ESD class B: Certain performance degradation allowed
No data lost Self-recoverable No hardware failures.
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
24
www.panelook.com
Page 25
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

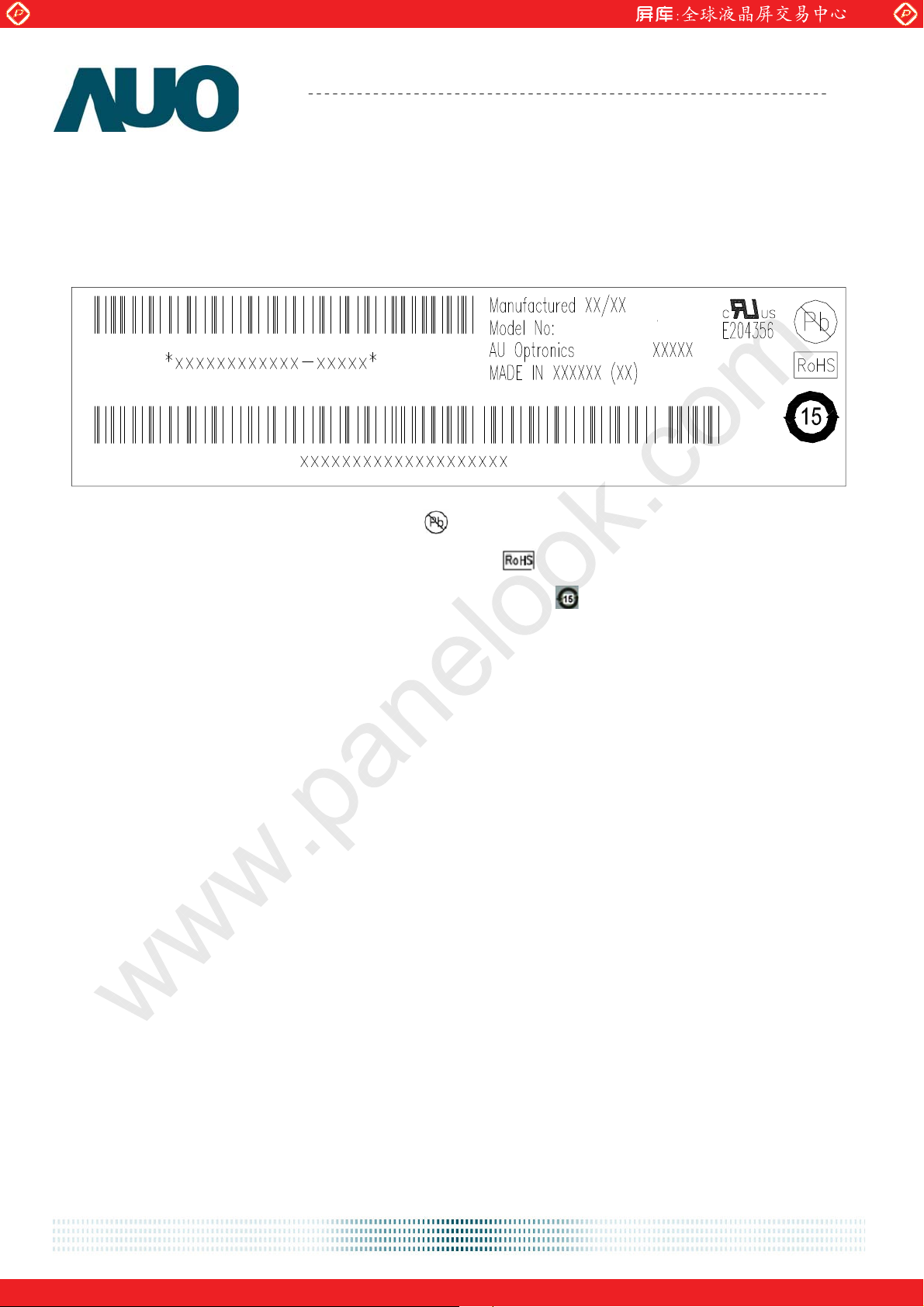

9.0 Shipping Label
The label is on the panel as shown below:
Note 1: For Pb Free products, AUO will add
for identification.
M215HW03 V.2
Note 2: For RoHS compatible products, AUO will add
Note 3: For China RoHS compatible products, AUO will add
for identification.
for identification.
Note 4: The Green Mark will be presented only when the green documents have been ready by
AUO Internal Green Team.
document version 1.1
25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
www.panelook.com
Ver 0.1

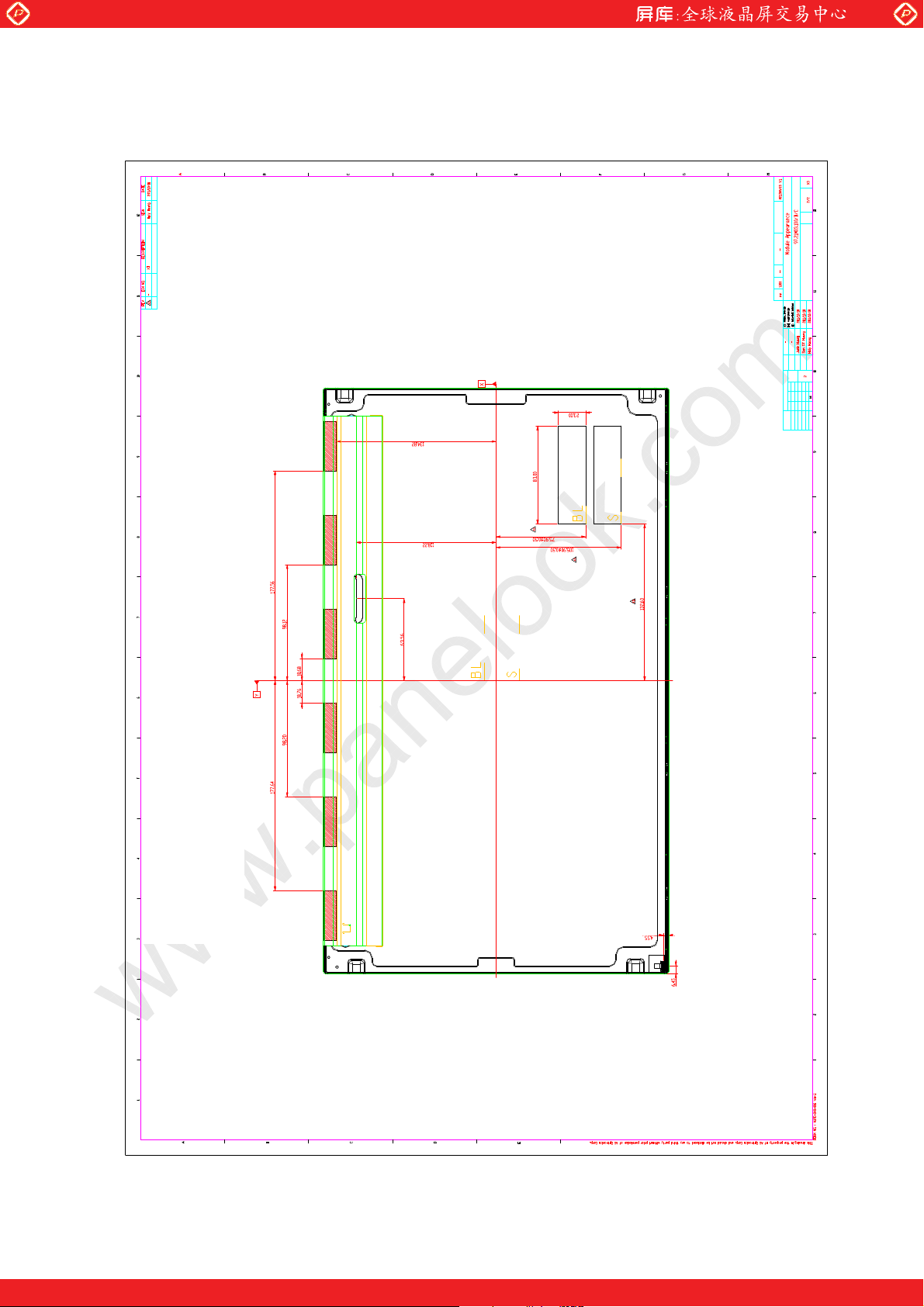

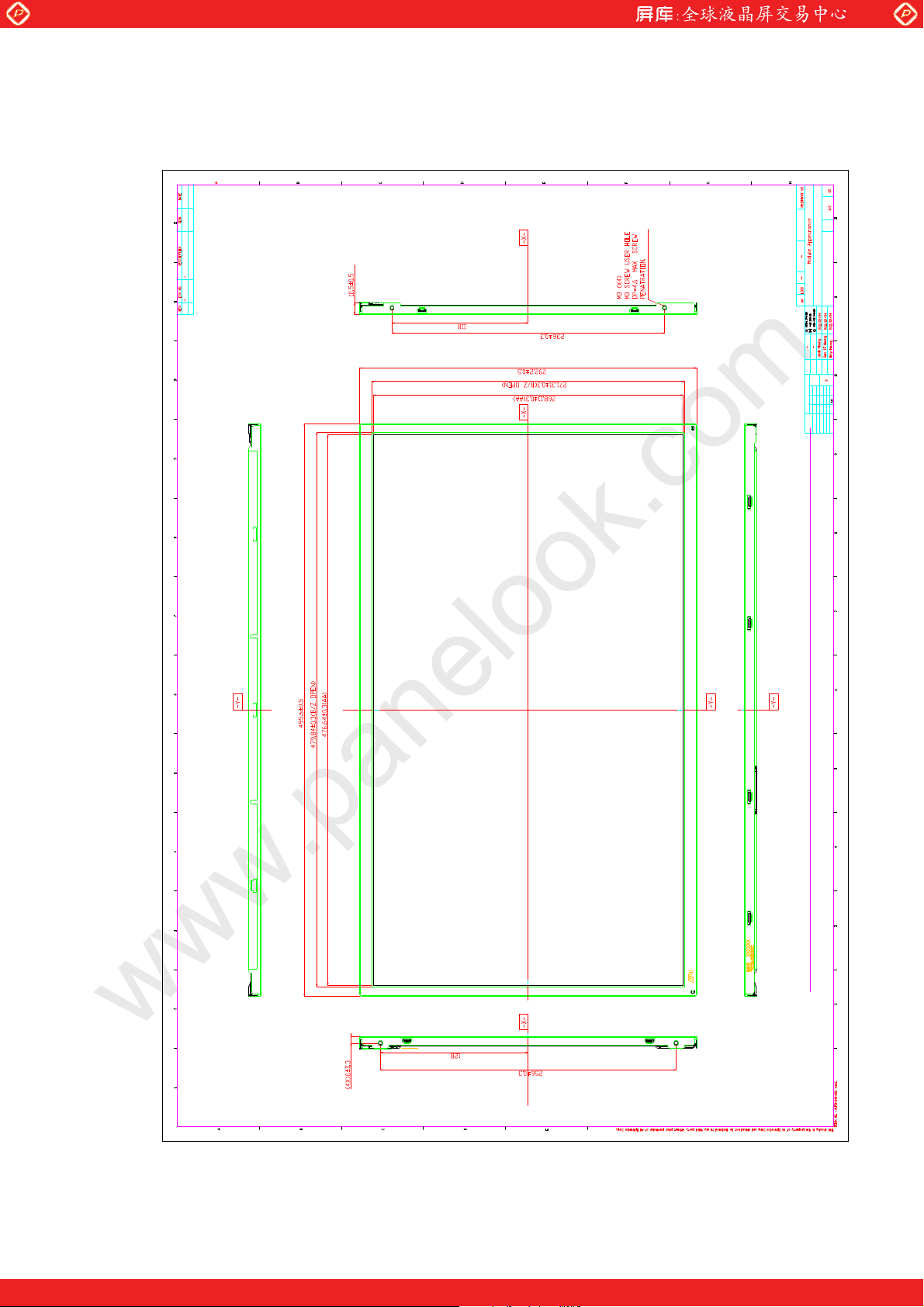

10.0 Mechanical Characteristics
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 27
Global LCD Panel Exchange Center
www.panelook.com
Avoid touching COF position
when doing mechanical design
Ver 0.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 28
Global LCD Panel Exchange Center

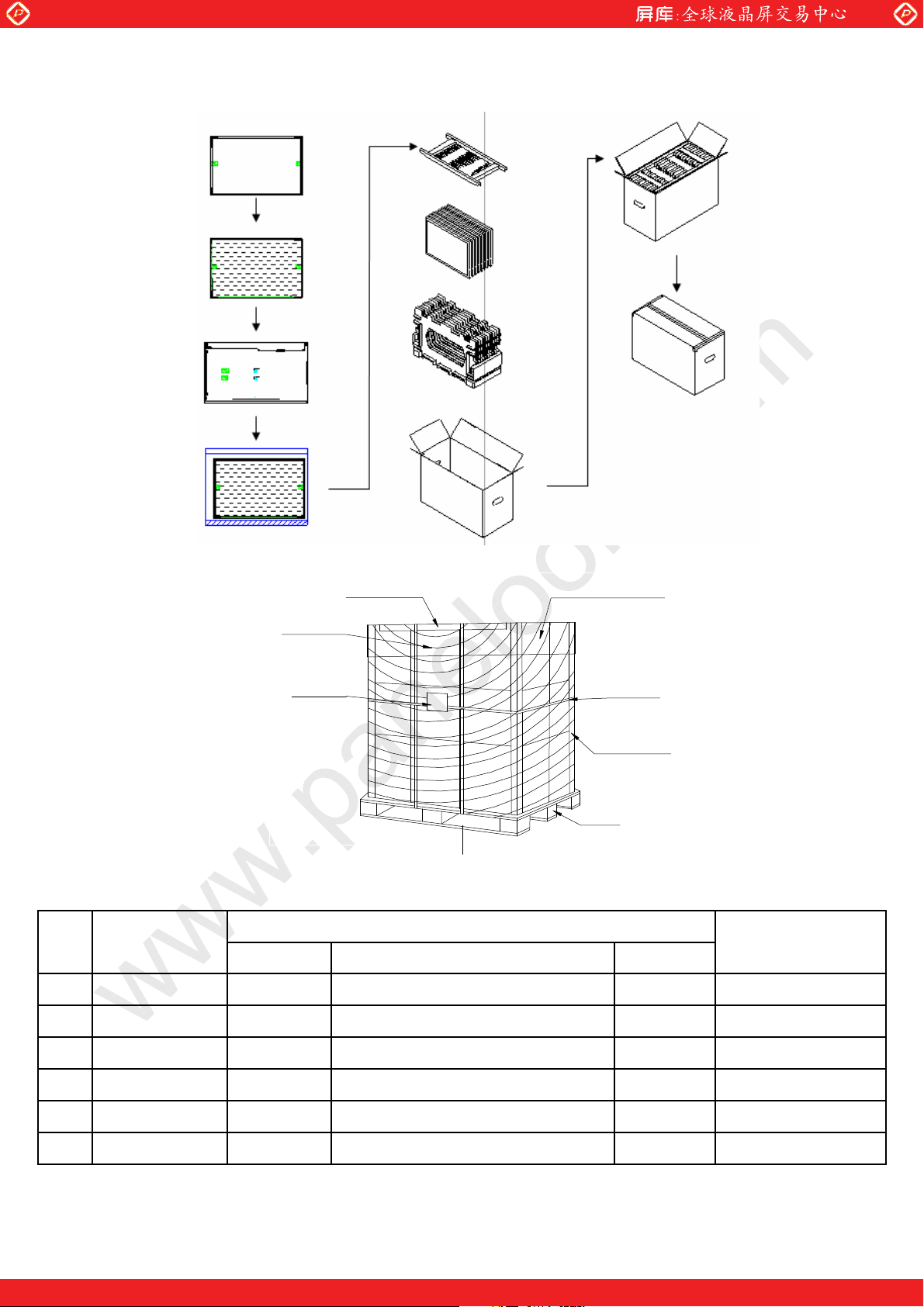

11. Packing Specification
www.panelook.com
Stretch film
2. Pallet and shipment information
Item
Q'ty Dimension Weight(kg)
Label
Corner angle
Moisture-proof film
PET band
Corner angle
Pallet
Specification
Remark
1 Panel 1 556(H)mm x 323(V)mm x 17.1(D)mm
2 Cushion 1 -
3 Box 1 568(L)mm x 277(W)mm x 382(H)mm
4 Packing Box 10 pcs/Box 568(L)mm x 277(W)mm x 382(H)mm
1.75
1.11
1.035
19.645
without Panel & cushion
5 Pallet 1 1150(L)mm x 840(W)mm x 138(H)mm 12
6 Pallet after Packing 18 boxes/pallet 1150(L)mm x 840(W)mm x 128.6(H)mm
365.6
Ver 0.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
with panel & cushion
www.panelook.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
