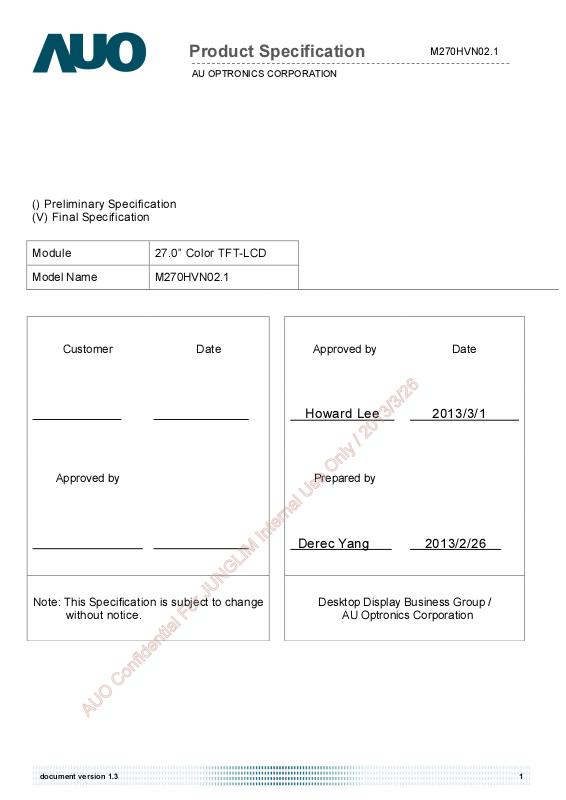

Page 1
Product Specification
() Preliminary Specification
(V) Final Specification
AU OPTRONICS CORPORATION
M270HVN02.1
Module 27.0” Color TFT-LCD
Model Name M270HVN02.1
Customer Date
Approved by
Note: This Specification is subject to change
without notice.
Approved by Date
Howard Lee 2013/3/1
Prepared by
Derec Yang 2013/2/26
Desktop Display Business Group /
AU Optronics Corporation
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
document version 1.3 1
Page 2
Product Specification
AU OPTRONICS CORPORATION
M270HVN02.1
Content
1 HANDLING PRECAUTIONS .......................................................................................................... 4
2 GENERAL DESCRIPTION ............................................................................................................. 5
2.1 Display Characteristics ............................................................................................................................. 5
2.2 Optical Characteristics.............................................................................................................................. 6
3 FUNCTIONAL BLOCK DIAGRAM................................................................................................10
4 ABSOLUTE MAXIMUM RATINGS...............................................................................................11
4.1 TFT LCD Module .................................................................................................................................... 11
4.2 Backlight Unit.......................................................................................................................................... 11
4.3 Absolute Ratings of Environment........................................................................................................... 11
5 ELECTRICAL CHARACTERISTICS ............................................................................................13
5.1 TFT LCD Module .................................................................................................................................... 13
5.1.1 Power Specification ........................................................................................................................................ 13
5.1.2 Signal Electrical Characteristics ..................................................................................................................... 15
5.2 Backlight Unit.......................................................................................................................................... 17
6 SIGNAL CHARACTERISTICS .....................................................................................................18
6.1 Pixel Format Definition ........................................................................................................................... 18
6.2 Input Data Format Definition .................................................................................................................. 18
6.3 Signal Description................................................................................................................................... 19
6.4 Timing Characteristics ............................................................................................................................ 21
6.5 Timing Diagram ...................................................................................................................................... 22
6.6 Power ON/OFF Sequence ..................................................................................................................... 23
7 CONNECTOR AND PIN ASSIGNMENT...................................................................................... 24
7.1 TFT LCD Module .................................................................................................................................... 24
7.1.1 Pin Assignment............................................................................................................................................... 24
7.2 LED Connector on Backlight Unit........................................................................................................... 25
7.2.1 LED Pin assignment ....................................................................................................................................... 25
7.2.2 LED Connector Dimension ............................................................................................................................. 26
7.2.3 LED Mating housing dimension...................................................................................................................... 26
8 RELIABILITY TEST.......................................................................................................................27
9 SHIPPING LABEL.........................................................................................................................28
10 MECHANICAL CHARACTERISTICS...........................................................................................29
11 PACKING SPECIFICATION.........................................................................................................32
11.1 Packing Flow .......................................................................................................................................... 32
11-2 Pallet and shipment information ............................................................................................................................... 33
document version 1.3 2
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
Page 3
Version
and Date
0.1
2012/10/18
0.2
2012/11/9
1.0 final
2012/12/06
Product Specification
AU OPTRONICS CORPORATION
M270HVN02.1

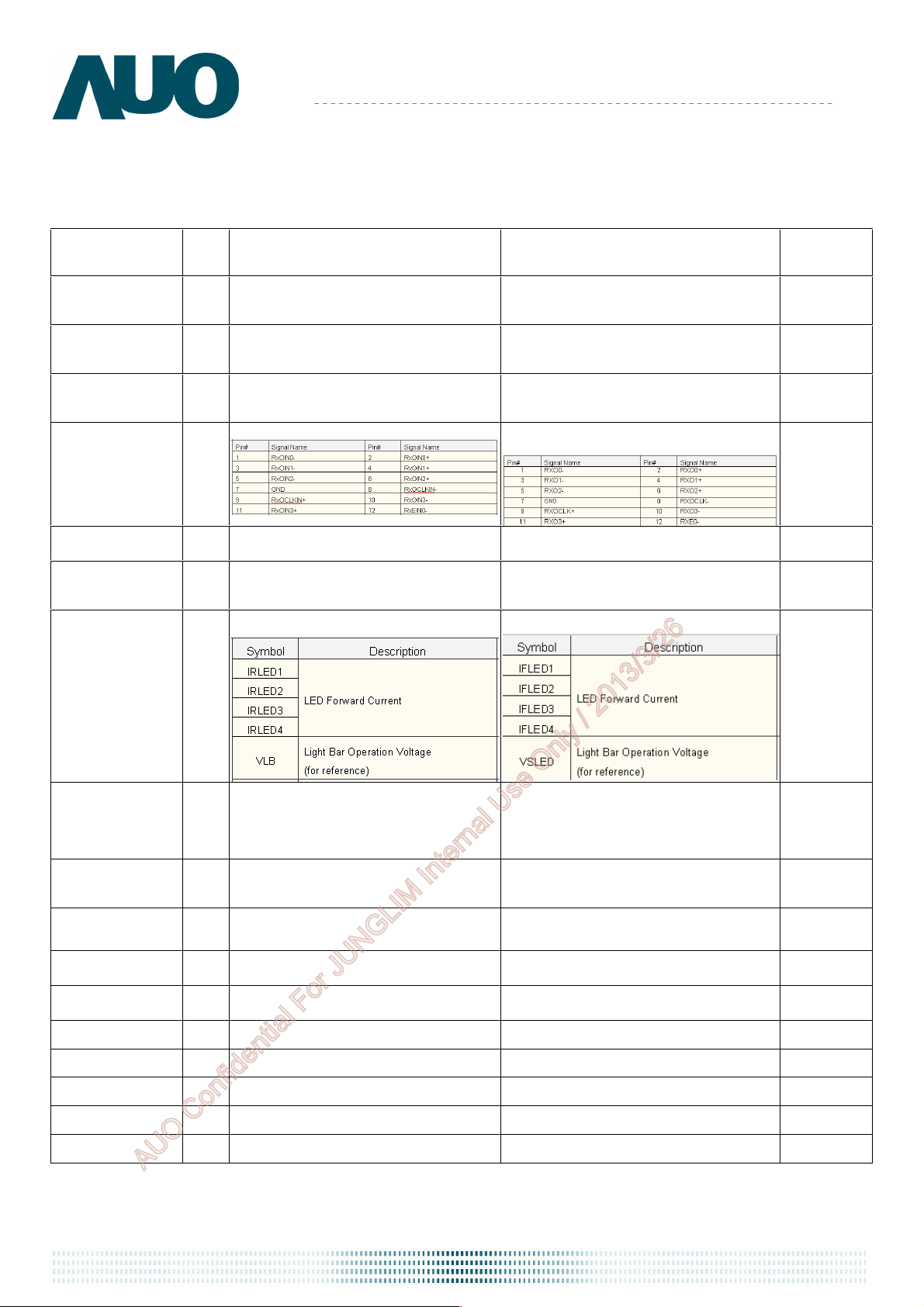

Records of Revision
Page
First Version
17 LED Forward Current 120mA
17 Re-define the LED symbol name
Old description New Description Remark
Update LED Forward currenct as
110mA
Re-named the LVDS Signal
33 Fulfill Pallet and shipment information
1.1
2012/12/25
1.2
2013/1/14
1.3
2013/2/26
6
19/20
/24
24
11/17
/25
5/33
29/30
Old naming
New add Connector STARCONN
New naming :
Modify the physicial size as below
630(H)x368.2(V)x10.0(D) (Typ.)
To modify the label position
To define the maximun value of
responese time
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
document version 1.3 3
Page 4
Product Specification
AU OPTRONICS CORPORATION
M270HVN02.1
1 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth
when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken out
from the container, do not press the center of LED light bar edge. Instead, press at the far ends
of the LED light bar edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module
even momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module
may be damaged.
12) Small amount of materials having no flammability grade is used in the LCD module. The LCD
module should be supplied by power complied with requirements of Limited Power Source
(IEC60950 or UL1950), or be applied exemption.
13) Avoid touching COF position while doing mechanical design.
14) While storing modules as spares for a long time, the following precautions are necessary:
Store modules in a dark place. Do not expose them to sunlight or fluorescent light.
Keep the temperature between 5°C and 35°C at normal humidity.
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
document version 1.3 4
Page 5
Product Specification
AU OPTRONICS CORPORATION
M270HVN02.1
2 General Description
This specification applies to the 27 inch-FHD color a-Si TFT-LCD Module M270HVN02.1 The
display supports the FHD - 1920(H) x 1080(V) screen format and 16.7M colors (RGB 8-bit data).
The light source of this TFT-LCD module is W-LED. All input signals are 2-channel LVDS interface
and this module doesn’t contain a driver for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25°C condition:
Items Unit Specification
Screen Diagonal [mm] 685.65(27.0”)
Active Area [mm] 597.6 (H) x 336.15 (V)
Pixels H x V 1920(x3) x 1080
Pixel Pitch [um] 311.25 (per one triad) ×311.25
Pixel Arrangement R.G.B. Vertical island
Display Mode VA Mode, Normally Black
White Luminance ( Center ) [cd/m2]
Contrast Ratio 3000 (Typ.)
Optical Response Time [msec] 12ms (Typ., on/off)
Nominal Input Voltage VDD [Volt] 5 V (Typ)
Power Consumption
(VDD line + LED line)
Weight [g] 2300 gram (Typ.)
Physical Size [mm] 630(H)x368.2(V)x10.0(D) (Typ.)
Electrical Interface Dual channel LVDS
Support Color 16.7M colors (RGB 8-bit)
Surface Treatment Anti-Glare 3H
Temperature Range
[Watt]
300 cd/m2 (Typ.)
26.88 watt
VDD line : PDD (typ), All white pattern at 60Hz =
5.1 W
LED line : PBLU (typ) = 21.78 W@110mA)
Operating
Storage (Shipping)
RoHS Compliance RoHS Compliance
TCO Compliance TCO 6.0 Compliance
[°C]
[°C]
0 to +50
-20 to +60
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
document version 1.3 5
Page 6
Product Specification
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25°C:
Item Unit Conditions Min. Typ. Max. Note
Viewing Angle [degree]
Contrast ratio Normal Direction
Response Time [msec]
Color / Chromaticity
Coordinates (CIE)
Color Coordinates (CIE) White
Central Luminance [cd/m2]
Luminance Uniformity
Crosstalk (in 60Hz)
Flicker
AU OPTRONICS CORPORATION
Horizontal (Right)
CR = 10 (Left)
150
Vertical (Up)
CR = 10 (Down)
150
1800
Raising Time (TrR)
Falling Time (TrF)
Raising + Falling
Red x
Red y
Green x
Green y
Blue x
Blue y
White x
White y
- 7 17
- 5 7
- 12
0.615
0.300 0.330 0.360
0.285 0.315 0.345
0.590 0.620 0.650
0.124 0.154 0.184
0.034 0.064 0.094
0.283 0.313 0.343
0.299 0.329 0.359
240
[%]
[%]
dB
75 80 -
M270HVN02.1
178
178
-
-
-
-
3000 -
24
0.645 0.675
300 -
1.5 8
-20
2
3
4
5
6
7
9
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
document version 1.3 6
Page 7
Product Specification
Center of the screen
TFT-LCD Module
AU OPTRONICS CORPORATION
M270HVN02.1
Note 1: Measurement Method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt
temperature change during measuring (at surface 35°C). In order to stabilize the luminance, the
measurement should be executed after lighting Backlight for 30 minutes in a stable, windless and
dark room.
LCD Panel
Photo Detector
Measured Distance

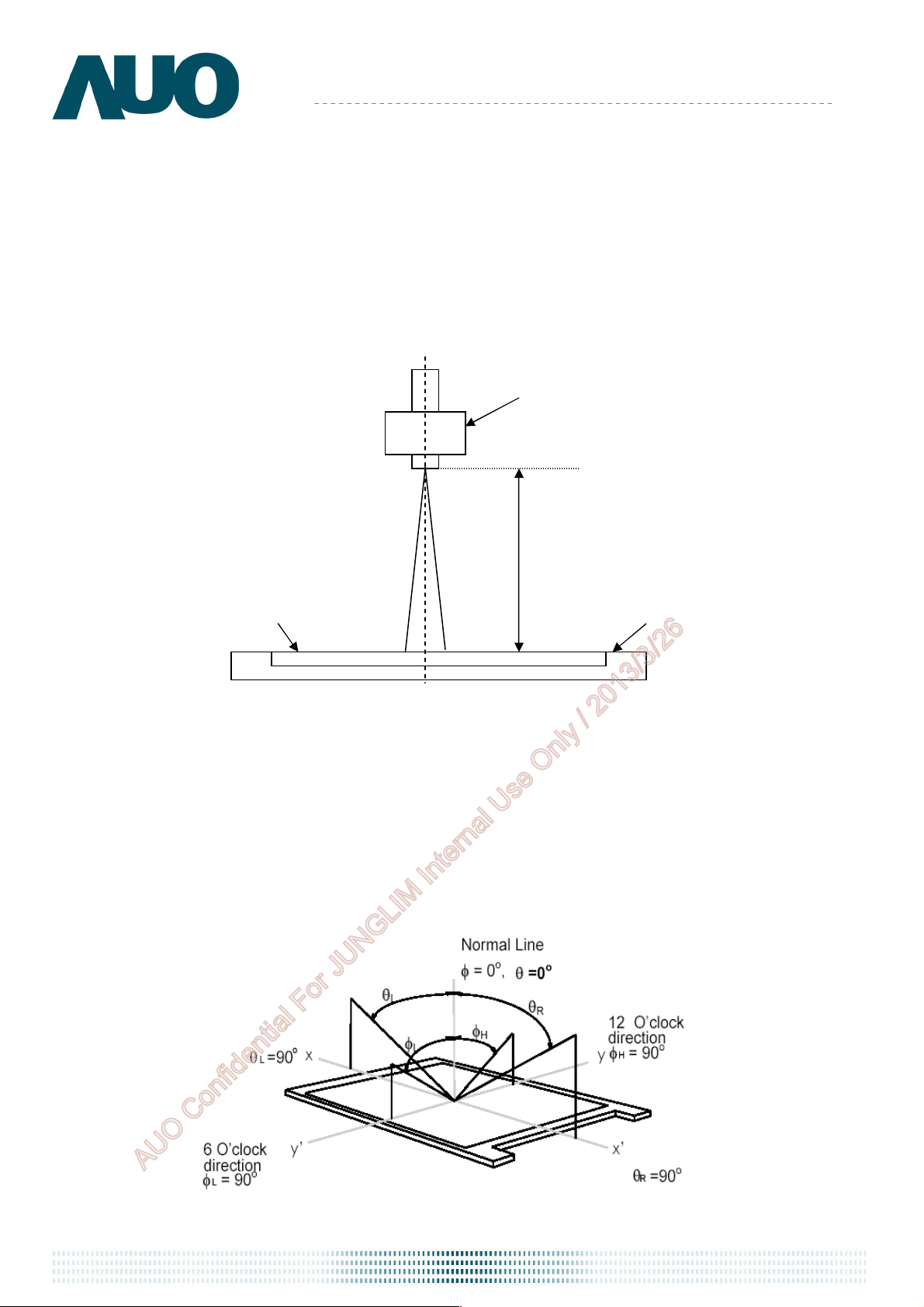

Note 2: Definition of Viewing Angle measured by ELDIM (EZContrast 88)
Viewing angle is the measurement of contrast ratio ≧10, at the screen center, over a 180°
horizontal and 180° vertical range (off-normal viewing angles). The 180° viewing angle range is
broken down as follows; 90° (θ) horizontal left and right and 90° (Φ) vertical, high (up) and low
(down). The measurement direction is typically perpendicular to the display surface with the screen
rotated about its center to develop the desired measurement viewing angle.
document version 1.3 7
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
Page 8
Product Specification
100
90
10
0
response
T
100
10
0
response
1 Frame
1 Frame
T
AU OPTRONICS CORPORATION
M270HVN02.1

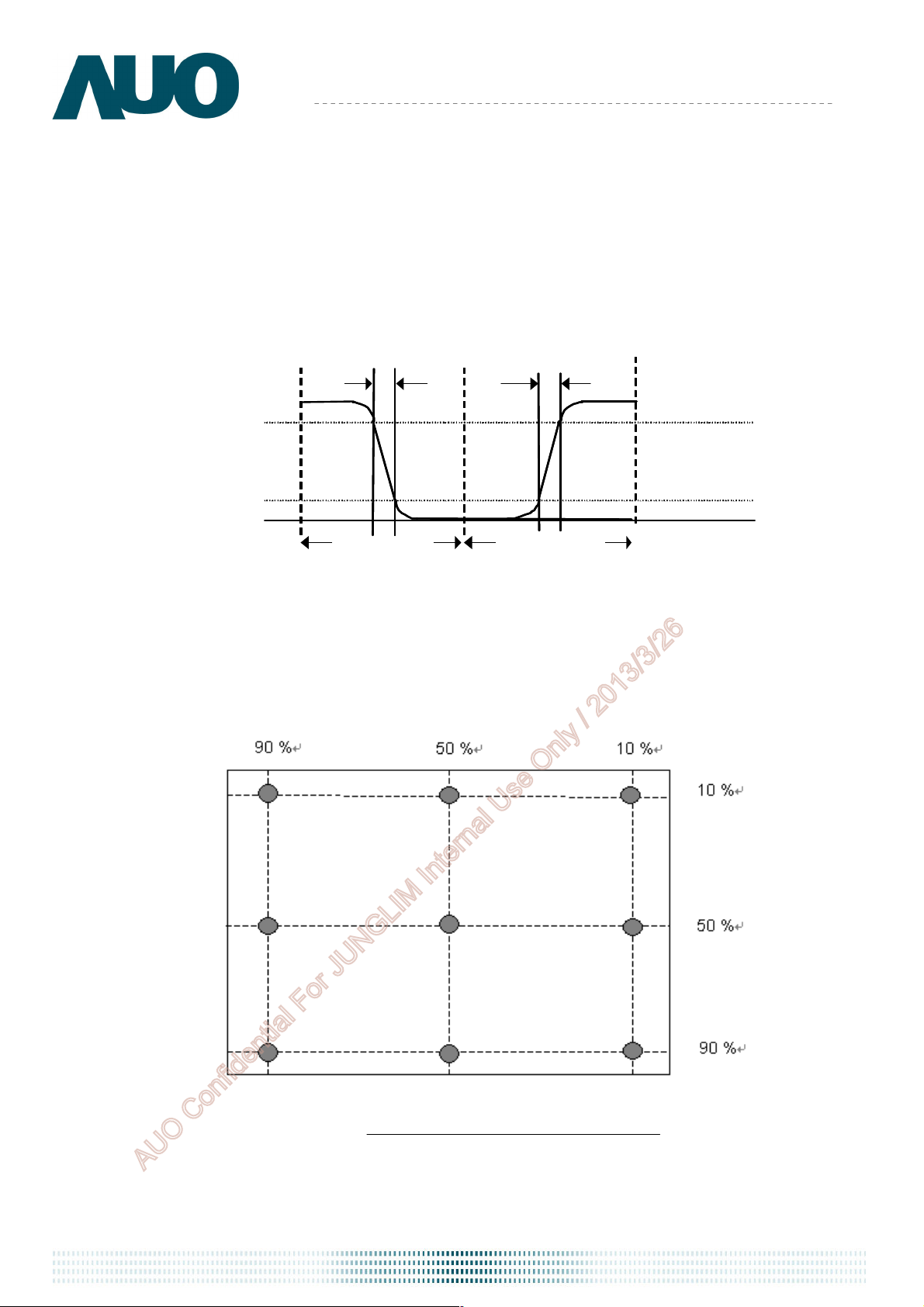

Note 3: Contrast Ratio measured by TOPCON SR-3
Note 4: Definition of Response time measured by Westar TRD-100A
The output signals of photo detector are measured when the input signals are changed from “Full
Black” to “Full White” (rising time, T
), and from “Full White” to “Full Black” (falling time, TrF),
rR
respectively. The response time is interval between the 10% and 90% (1 frame at 60 Hz) of
amplitudes.
%
Optical
Optical
%
White
rF
Black
Black
rR
White
TrR + TrF = 12 msec (typ.).
Note 5: Color Chromaticity and Coordinates (CIE) measured by TOPCON SR-3
Note 6: Central Luminance measured by TOPCON SR-3
Note 7: Luminance Uniformity of these 9 points defined as below and measured by TOPCON SR-3
9)-(1 points 9in Luminance Minimum
Uniformity =
9)-(1 Points 9in Luminance Maximum
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26

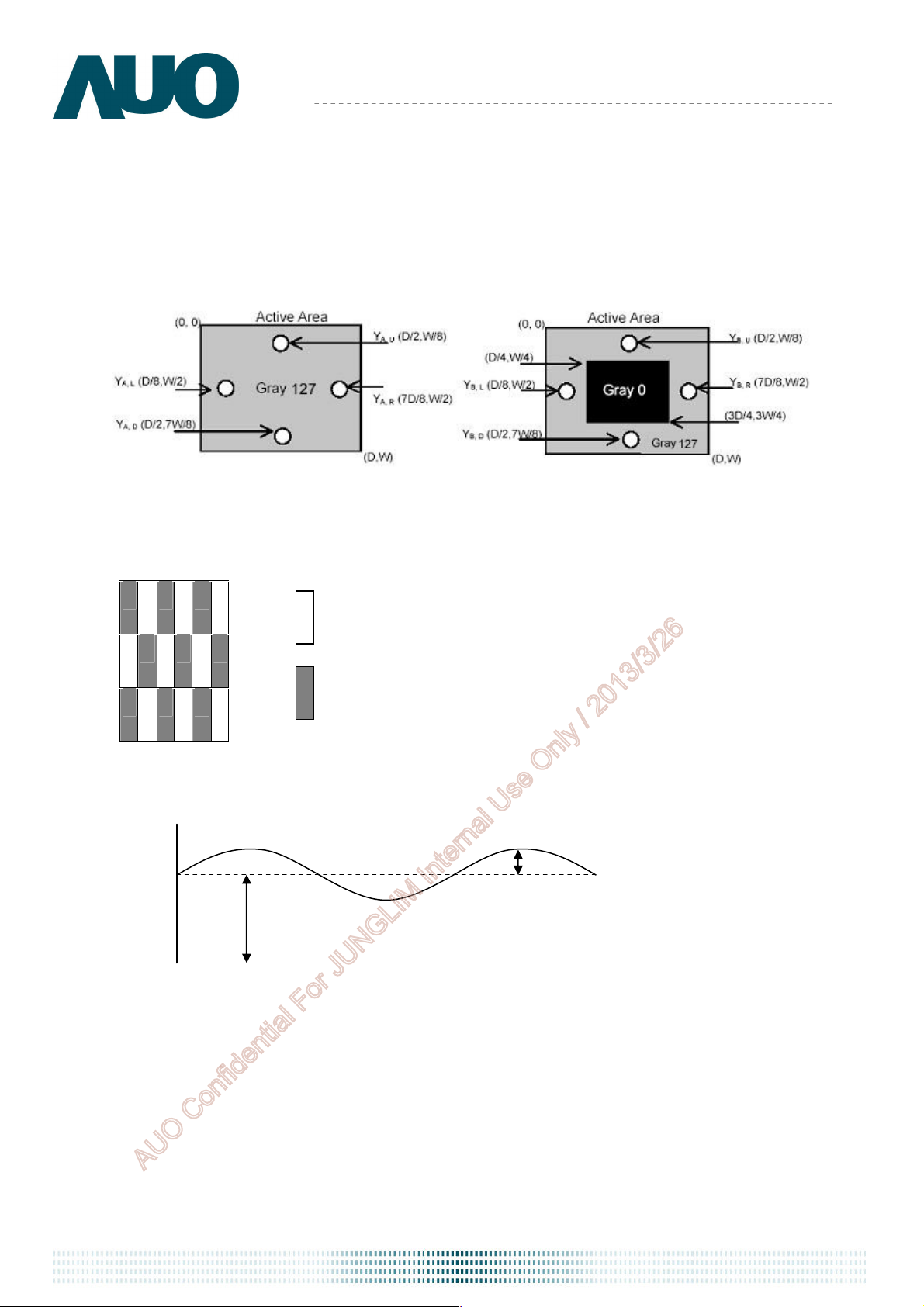

Note 8: Crosstalk defined as below and measured by TOPCON SR-3
document version 1.3 8
Page 9
Product Specification
Level
DC
Time
CT = | YB – YA | / YA × 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
AU OPTRONICS CORPORATION
M270HVN02.1
Note 9: Test Pattern Sub-checker Pattern measured by TOPCON SR-3
R G B R G B
Gray Level = L127
R G B R G B
R G B R G B
Gray Level = L0
Method: Record dBV & DC value with TRD-100
Amplitude
AC
DC
log20(dB)Flicker =
Hz) 30Level(at AC
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
document version 1.3 9
Page 10
Product Specification
DC
Connector
Timing
LVD
S
X-Driver IC
Y
-
Driver IC
AU OPTRONICS CORPORATION
M270HVN02.1

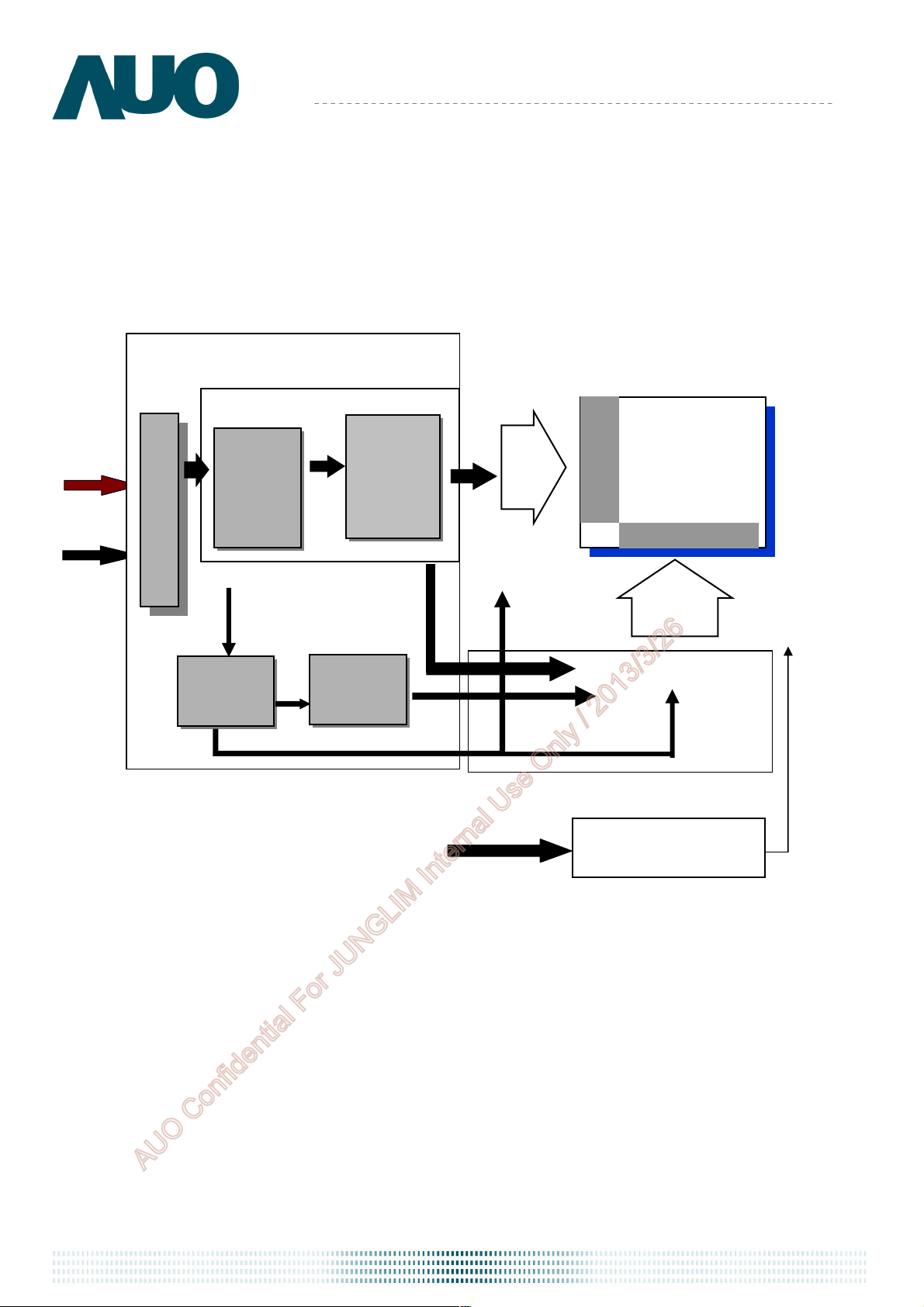

3 Functional Block Diagram
The following diagram shows the functional block of the 27.0 inch Color TFT-LCD Module:
VDD
DC/DC
Converter
AUO
ASIC
LVDS
Receiver
Gamma
Correction
I/F + X-PCB
Controller
miniLVDS
Transmitter
G1080
G1
TFT-LCD
1920(x3) x 1080
Pixels
D1
D5760
LED
Backlight
LED Driver on system
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
document version 1.3 10
Page 11
Product Specification
4 Absolute Maximum Ratings
Absolute maximum ratings of the module are listed as follows:
4.1 TFT LCD Module
AU OPTRONICS CORPORATION
M270HVN02.1
Item Symbol
Logic/LCD Drive
4.2 Backlight Unit
Item Symbol Min Max Unit Conditions
LED Forward Current
LED Pulse Forward Current
LED forward Voltage variation
(per string variation)
Min Max Unit Conditions
VDD -0.3 6.0 [Volt] Note 1, 2
IFLED1
IFLED2
IFLED3
IFLED4
IPLED1
IPLED2
IPLED3
IPLED4
ΔVf
0 150
- 210
- 3
[mA]
[mA]
[Volt]
Pulse width 10msec≦
Note 1,2,5
100% duty
Note 1,2,5
and duty 10% ≦
Note 1,2,6
4.3 Absolute Ratings of Environment
Item Symbol Min. Max. Unit Conditions
Operating Temperature TOP 0 +50 [°C] Note 3
Glass Surface Temperature
(Operation)
TGS 0 +65 [°C]
Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [°C]
Storage Humidity HST 5 90 [%RH]
Note 1: With in Ta (25 °C)
Note 2: Permanent damage to the device may occur if exceeding maximum values

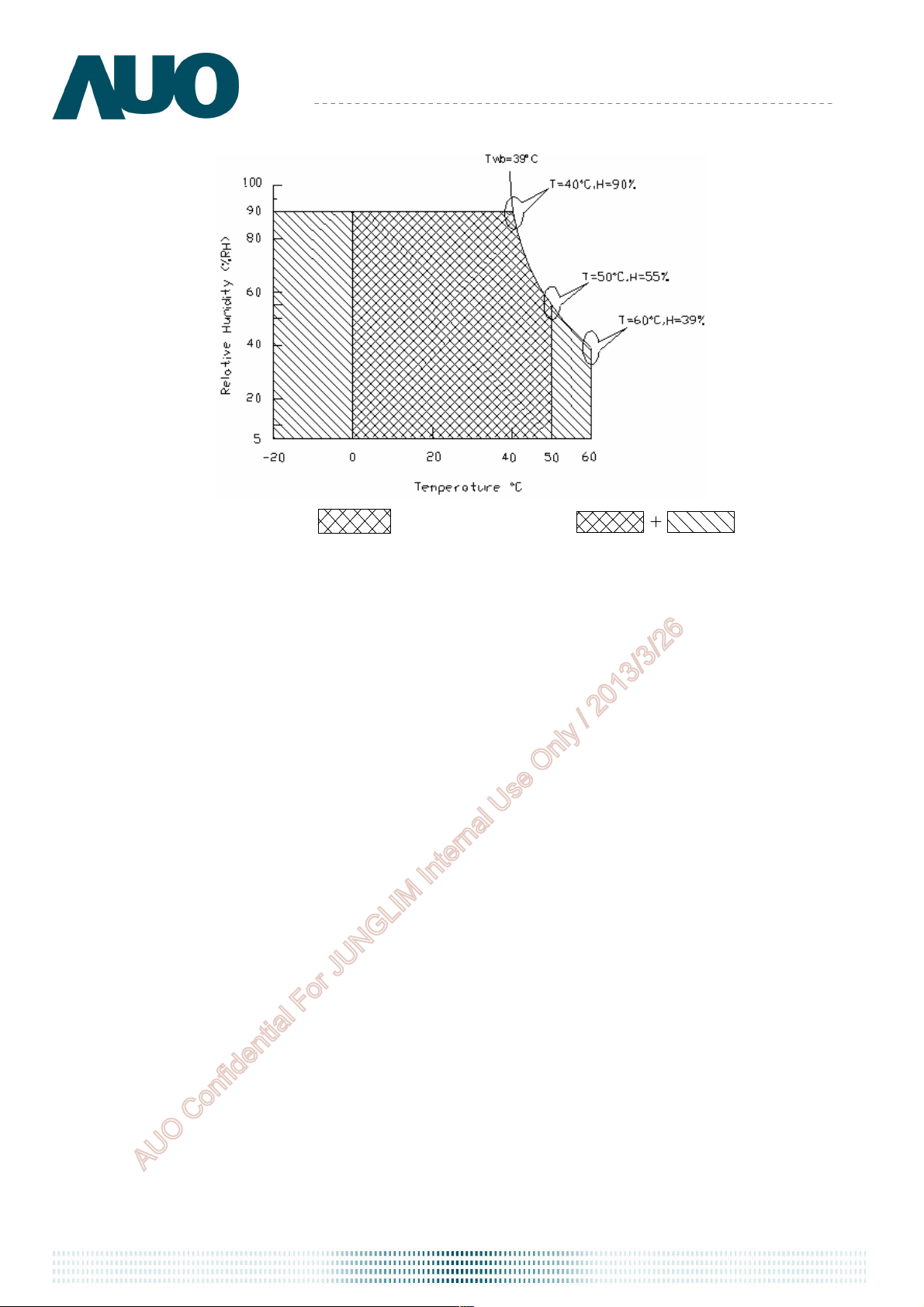

Note 3: Temperature and relative humidity range are shown as the below figure.
1. 90% RH Max ( Ta ≦39°C)
2. Max wet-bulb temperature at 39°C or less. ( Ta ≦39°C)
3. No condensation
Note 4: Function Judged only
Note 5: IFLED1,2,3,4 and IPLED1,2,3,4 define as per strings LED current.
Note 6 : LED forward Voltage variation is define as voltage drop difference of each LED string in single LCD module.
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
Note3
Note4
Note 3
document version 1.3 11
Page 12
Product Specification
AU OPTRONICS CORPORATION
M270HVN02.1
Operating Range
Storage Range
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
document version 1.3 12
Page 13
Product Specification
AU OPTRONICS CORPORATION
M270HVN02.1

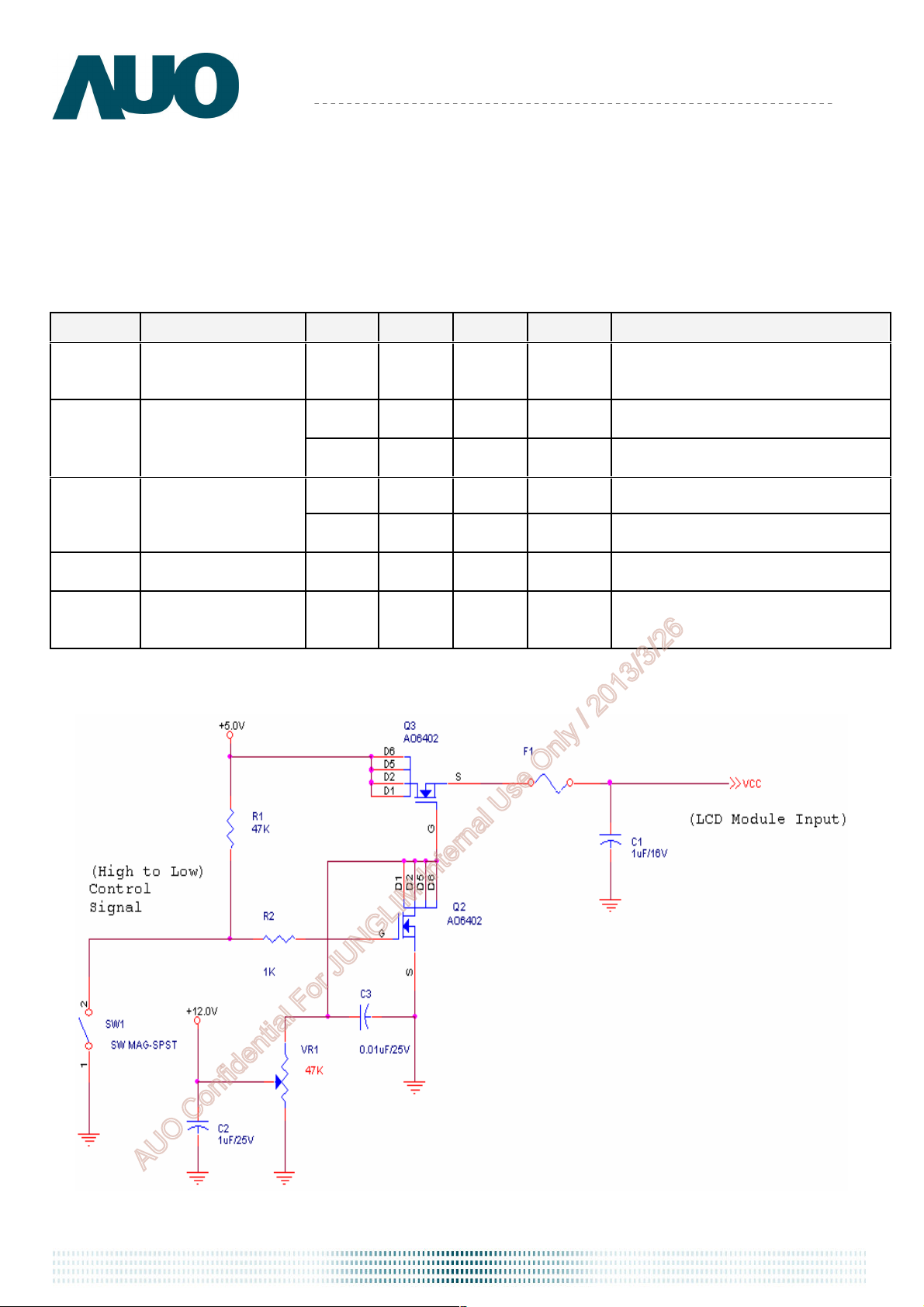

5 Electrical Characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are listed as follows:
Symbol Description Min Typ. Max Unit Conditions
VDD
IDD1 Input Current
PDD1 VDD Power
IRush Inrush Current - - 3 [A] Note 1
VDDrp

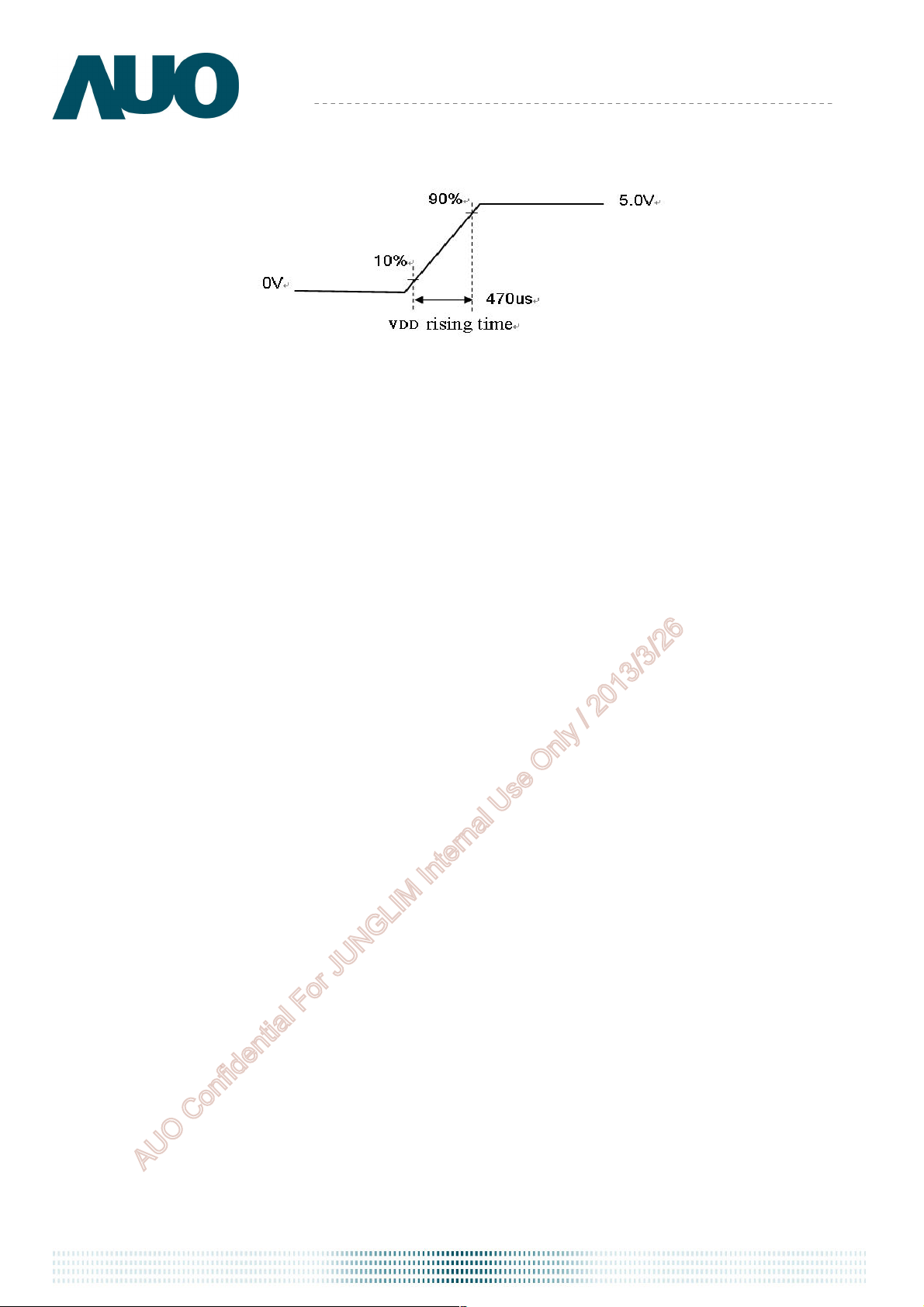

Note 1: Measurement Conditions:
The duration of rising time of power input is 470 us.
Logic/LCD Drive
Voltage
Allowable Logic/LCD
Drive Ripple Voltage
4.5 5.0 5.5 [Volt] +/-10%
-
-
-
-
- - 500 [mV] p-p VDD= 5.0V, All white Pattern at 75 Hz
1.02 1.22
1.21 1.45
5.1 6.12
6.05 7.26
[A] VDD= 5.0V, All white Pattern at 60 Hz
[A] VDD= 5.0V, All white Pattern at 75 Hz
[Watt] VDD= 5.0V, All white Pattern at 60 Hz
[Watt] VDD= 5.0V, All white Pattern at 75 Hz
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
document version 1.3 13
Page 14
Product Specification
AU OPTRONICS CORPORATION
M270HVN02.1
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
document version 1.3 14
Page 15
Product Specification
= 1.2V

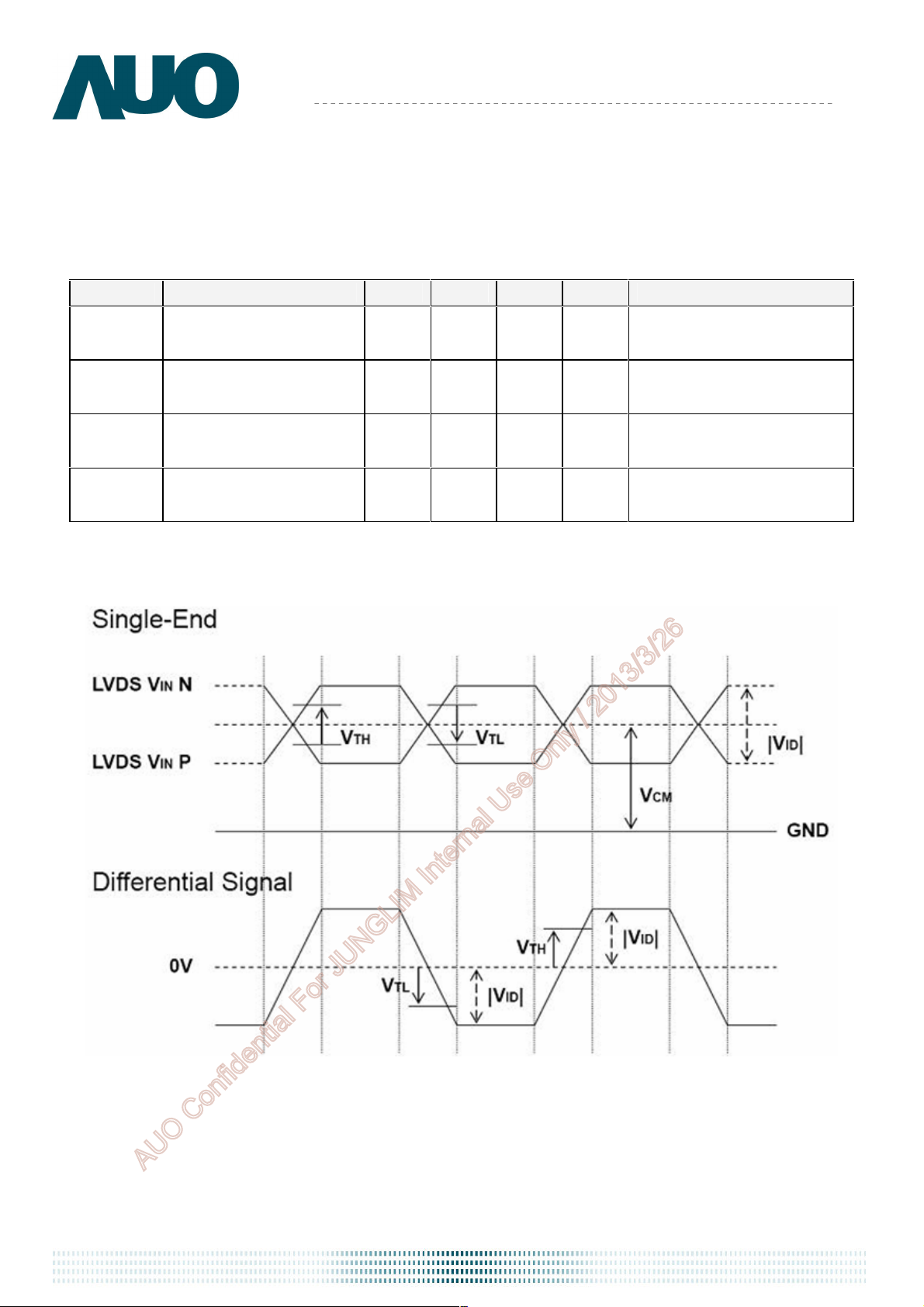

5.1.2 Signal Electrical Characteristics
(1) DC Characteristics of each signal are as following:
AU OPTRONICS CORPORATION
M270HVN02.1
Symbol Description Min Typ Max Units
VTH
VTL
│VID│
VCM
Differential Input High
Threshold
Differential Input Low
Threshold
Input Differential
Voltage
Differential Input
Common Mode Voltage
- - +100
-100 - -
100 - 600
+1.0 +1.2 +1.5
Note 1: LVDS Signal Waveform
Conditions
V
[mV]
[mV]
CM
Note 1
VCM = 1.2V
Note 1
[mV] Note 1
[V]
VTH-V
= 200MV (max)
TL
Note 1
document version 1.3 15
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
Page 16

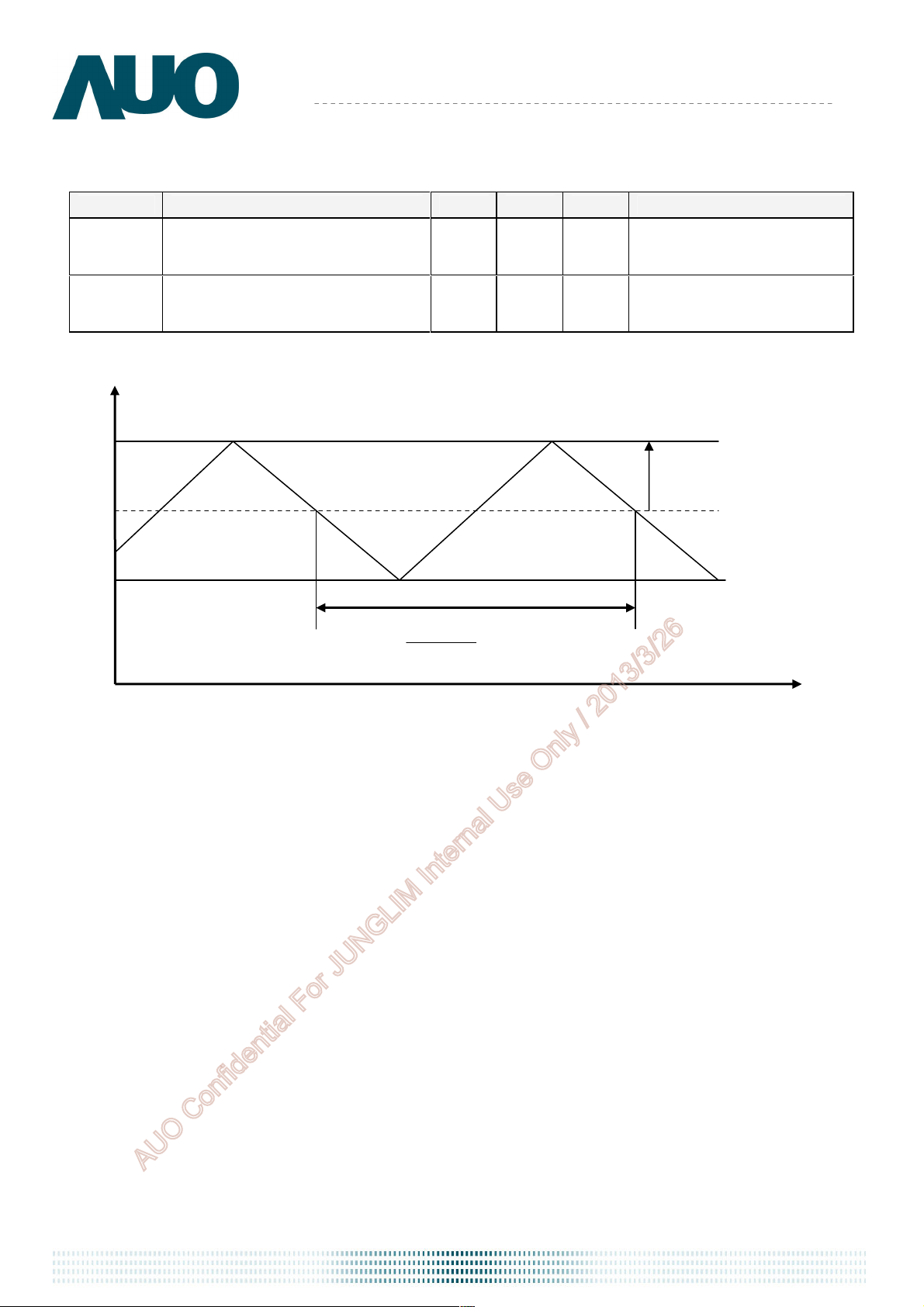

(2) AC Characteristics
< Spread Spectrum>
T
ime
Product Specification
AU OPTRONICS CORPORATION
M270HVN02.1
Symbol Description Min Max Units
F
F
DEV
MOD
Maximum deviation of input clock
frequency during SSC
Maximum modulation frequency
of input clock during SSC
- ± 3 %
- 200 KHz
Freq
F
max
F
min
1
F
center
Conditions
* F
DEV
F
MOD
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
document version 1.3 16
Page 17
Product Specification
AU OPTRONICS CORPORATION
M270HVN02.1
5.2 Backlight Unit
Parameter guideline for LED driving is under stable conditions at 25 °C (Room Temperature):
Symbol Description Min. Typ. Max. Unit Note
IFLED1
IFLED2
IFLED3
IFLED4
VSLED
PBLU BLU Power Consumption (for reference)
LTLED LED Life Time (Typical) 30,000
LED Forward Current - 110 115.5
Light Bar Operation Voltage
44.25
(for reference)
- 21.78 24.95 [Watt] Note 3
49.5 54 [Volt] Note 2
- -
[mA]
Note 1
[Hour]
Note 4
Each module consists of 60 pcs LED ( 4 strings x 15 pcs / string )
Note 1: The specified current is 100% duty of LED chip input current, IFLED1,2,3,4 define as per
strings LED current.
Note 2: The value showed is one string operation voltage.
Note 3: PBLU = VSLED *( IFLED1+IFLED2+IFLED3+IFLED4)
Note 4: Definition of life time: Brightness becomes to 50% of its original value. The minimum life time
of LED unit is on the condition of IFLED = 110mA and 25±2°C (Room Temperature).
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
document version 1.3 17
Page 18
Product Specification
R G B R G B
R G B R G B
R G B R G B
R G B R G B

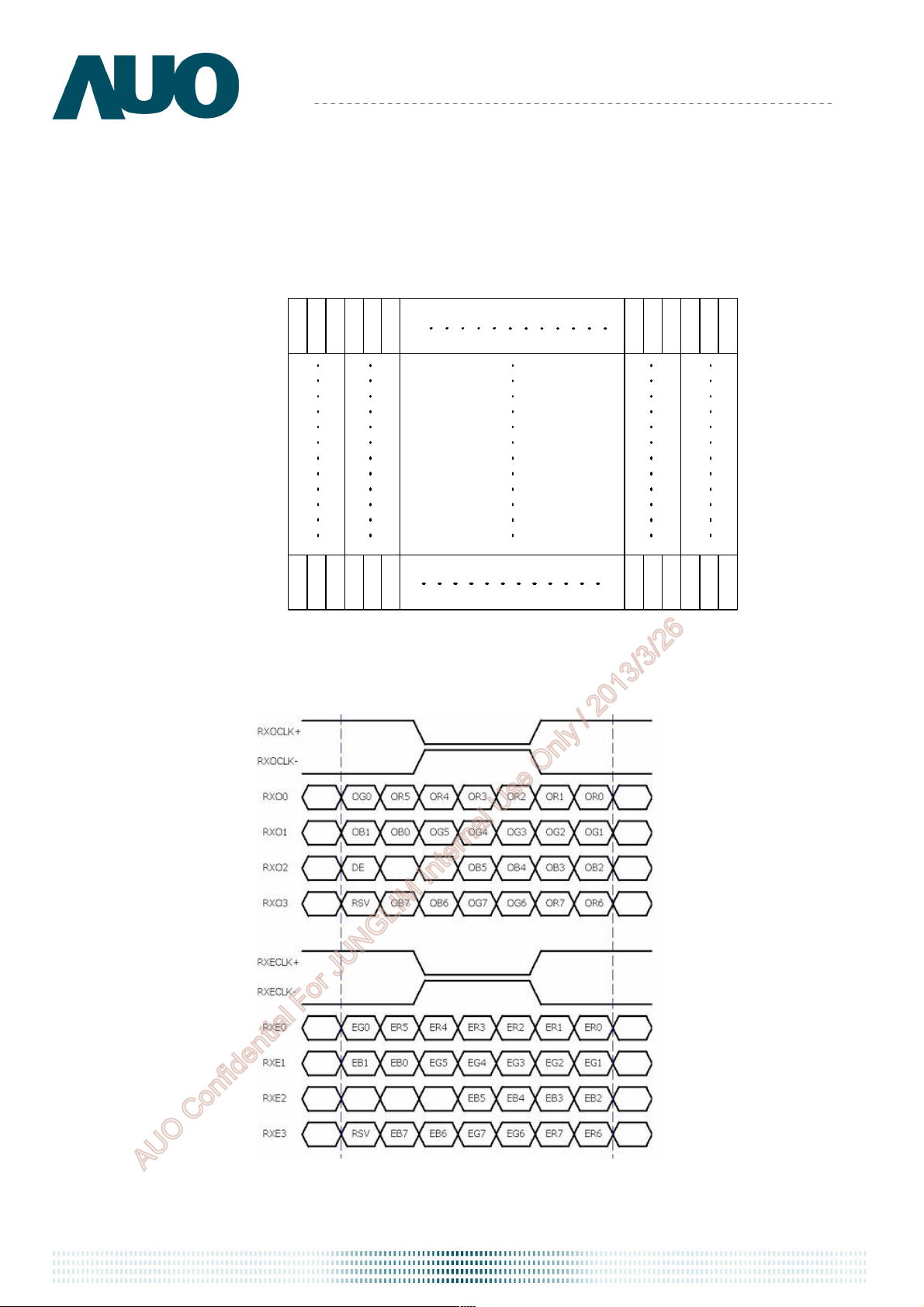

1 2 1
919 1
920
1st Line
1080
Line
AU OPTRONICS CORPORATION
M270HVN02.1
6 Signal Characteristics
6.1 Pixel Format Definition
Following figure shows the relationship between the input signals and LCD pixel format.
6.2 Input Data Format Definition
Note1: Normally, DE, VS, HS on EVEN channel are not used.
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
Note2: Please follow PSWG.
Note3: 8-bit in
document version 1.3 18
Page 19
PIN #
SIGNAL
DESCRIPTION
1 RXO0
- Negative LVDS differential data input (Odd data)
2 RXO0+
Positive LVDS differential data in
put (Odd data)
3 RXO1
- Negative LVDS differential data input (Odd data)
4 RXO1+
Positive LVDS differential data input (Odd data)
5 RXO2
- Negative LVDS differential data input (Odd data, H
-
Sync,V
-
Sync,DSPTMG)
6 RXO2+
Positive LVDS differential data inpu
t (Odd data, H
-
Sync,V
-
Sync,DSPTMG)
7 GND
Power Ground
8 RXOCLK
- Negative LVDS differential clock input (Odd clock)
9 RXOCLK+
Positive LVDS differential clock input (Odd clock)
10 RXO3
- Negative LVDS differential data input (Odd data)
11 RXO3+
Positive
LVDS differential data input (Odd data)
12 RXE0
- Negative LVDS differential data input (Even data)
13 RXE0+
Positive LVDS differential data input (Even data)
14 GND
Power Ground
15 RXE1
- Negative LVDS differential data input (Even data)
16 RXE1+
Posi
tive LVDS differential data input (Even data)
17 GND
Power Ground
18 RXE2
- Negative LVDS differential data input (Even data)
19 RXE2+
Positive LVDS differential data input (Even data)
20 RXECLK
- Negative LVDS differential clock input (Even clock)
21 R
XECLK+
Positive LVDS differential clock input (Even clock)
22 RXE3
- Negative LVDS differential data input (Even data)
23 RXE3+
Positive LVDS differential data input (Even data)
24 GND
Power Ground
25 GND
Power Ground (For AUO test Aging+HVS mode )
26 NC No contact
27 GND
Power Ground
28 VDD
+5.0V Power Supply
29 VDD
+5.0V Power Supply
30 VDD
+5.0V Power Supply
6.3 Signal Description
Product Specification
AU OPTRONICS CORPORATION
M270HVN02.1
Note 1: Input signals of odd and even clock shall be the same timing.
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
document version 1.3 19
Page 20
Product Specification
AU OPTRONICS CORPORATION
M270HVN02.1

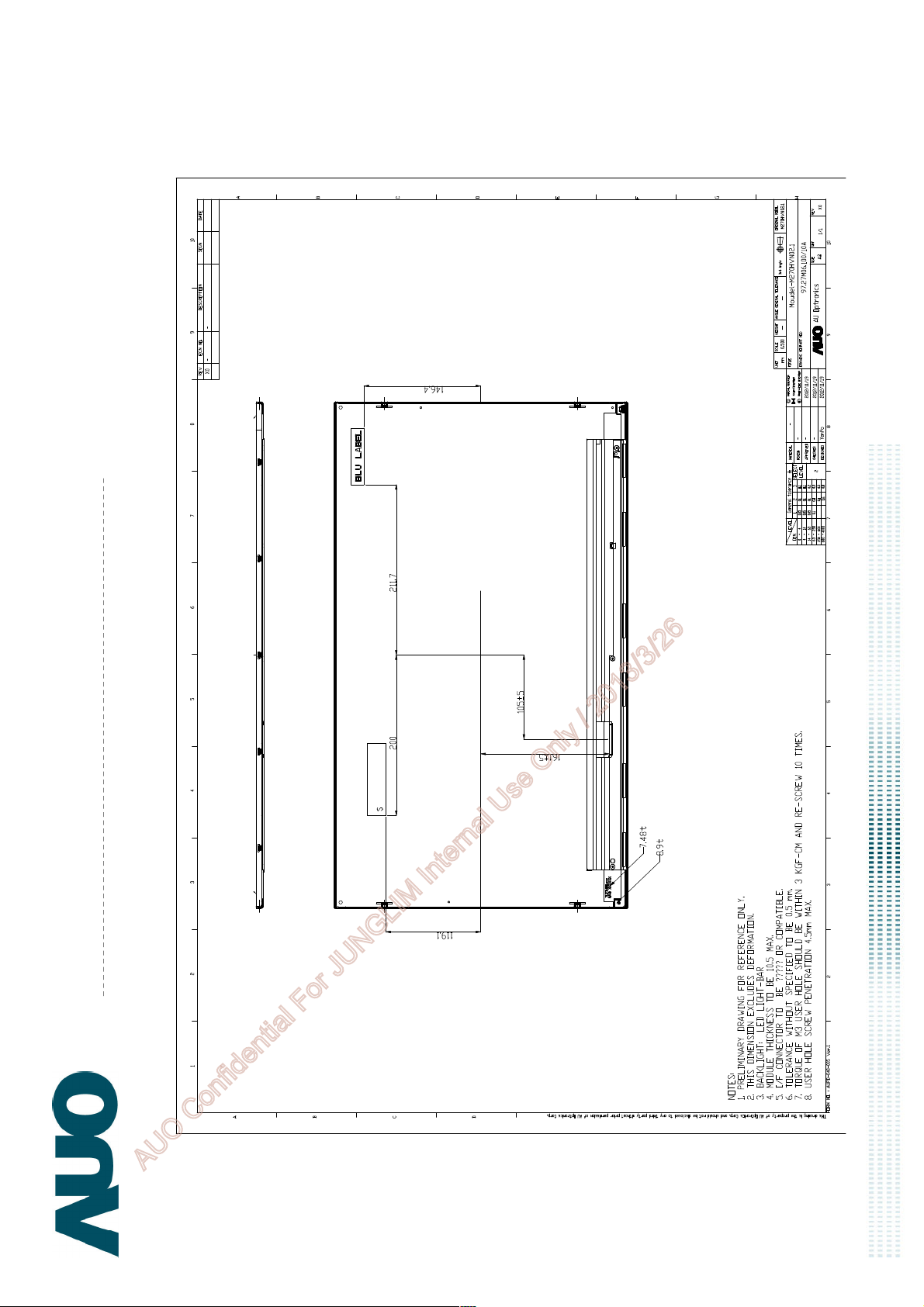

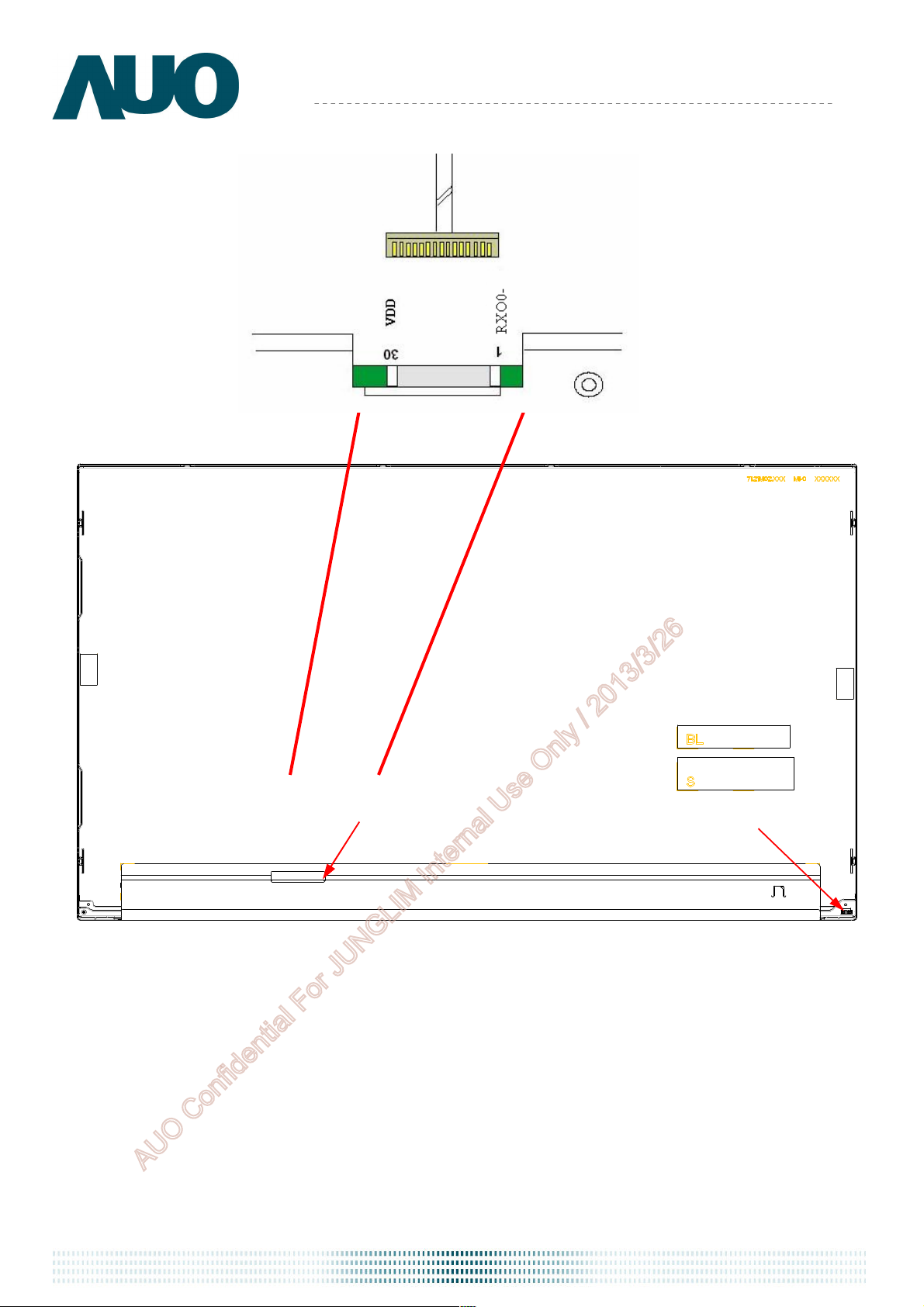

LVDS C/N PIN 1
L/B C/N PIN 1
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
document version 1.3 20
Page 21
Product Specification
6.4 Timing Characteristics
The input signal timing specifications are shown as the following table
Signal Item Symbol Min Typ Max Unit
AU OPTRONICS CORPORATION
M270HVN02.1
Vertical
Section
Horizontal
Section
Clock
Frame rate
Hsync
Frequency
Note 1: DE mode only
Period Tv
Active Tdisp(v)
Blanking
Tblk(v)
Period Th
Active Tdisp(h)
Blanking
Tblk(h)
Period Tclk
Frequency
Freq
Frame
VFreq
rate
Hsync
HFreq
Frequency
1092 1130 1793
1080 1080 1080
12 50 713
1004 1050 1100
960 960 960
44 90 140
11.1 14.0 18.2
54.8 71.2 90.0
50 60 76
55 68 90
Th
Th
Th
Tclk
Tclk
Tclk
ns
MHz
Hz
KHz
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
document version 1.3 21
Page 22

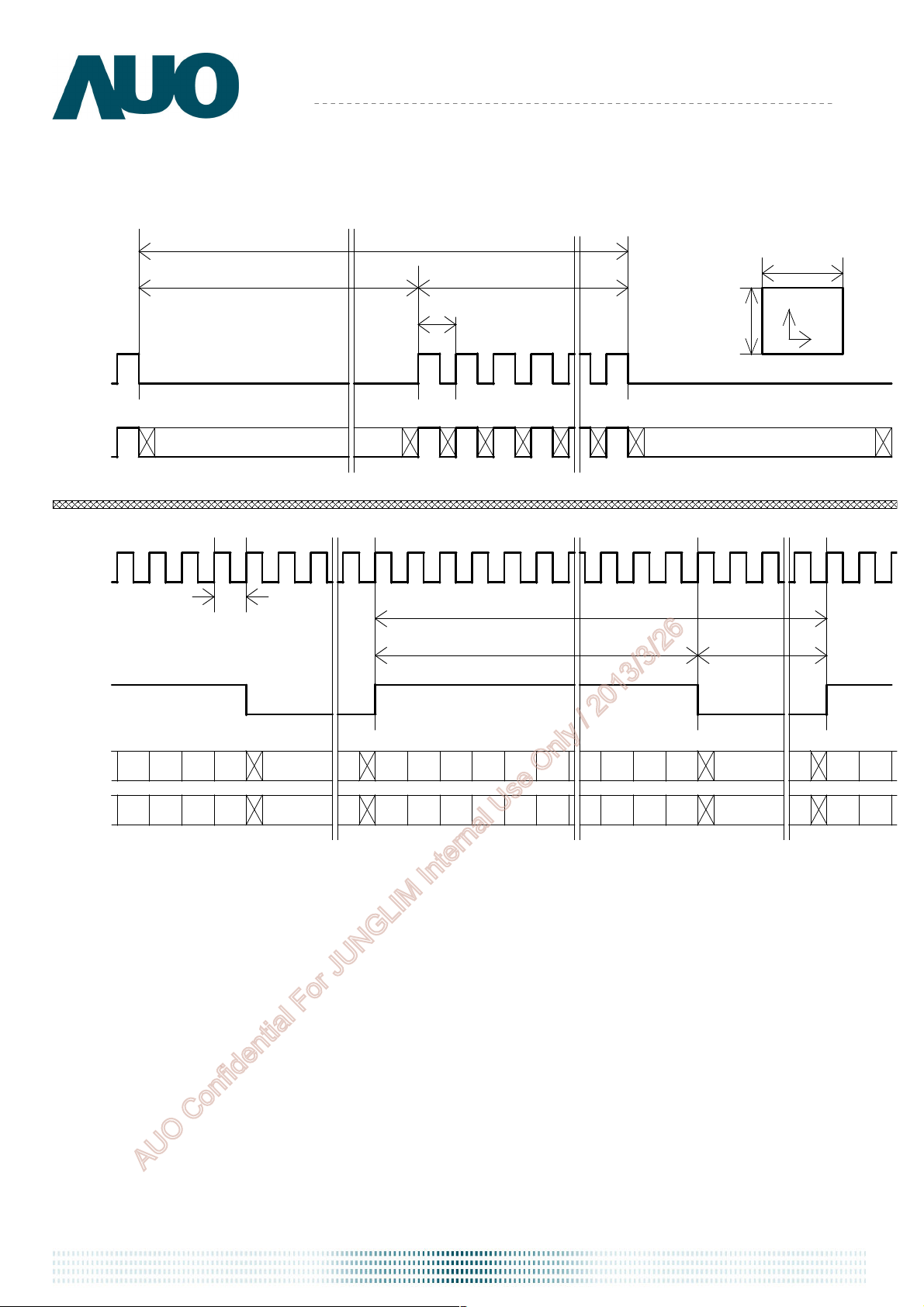

6.5 Timing Diagram
Product Specification
AU OPTRONICS CORPORATION
Tv
M270HVN02.1
M pixel
DE
RGB Data
CLK
DE
N
Line
Invalid Data
Tclk
Tblk(v)
Tdisp(v)
Y
Th
N Line
4
1
32
LineLine
Th
Tdisp(h)
LineLine
N
Line
Invalid Data
Tblk(h)
X
RGB Data
(Odd)
RGB Data
(Even)
Pixel
M-7
Pixel
M-6
Pixel
M-5
Pixel
Pixel
M-3
Pixel
M-2
Pixel
M-1
Pixel
M
Invalid Data
Invalid Data
Pixel
Pixel
1
3
Pixel Pixel
4
2
Pixel
Pixel
5
7
Pixel
Pixel
8 M
6 M-2
Pixel
Pixel
10
Pixel
119
12
Pixel
M-5
Pixel
M-4
Pixel
Pixel
M-3
Pixel
M-1
PixelPixel
Invalid Data
Invalid Data
Pixel
1
Pixel
2M-4
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
Pixel
3
Pixel
4
document version 1.3 22
Page 23
Product Specification
T5
T2
T1
T6
AU OPTRONICS CORPORATION
M270HVN02.1

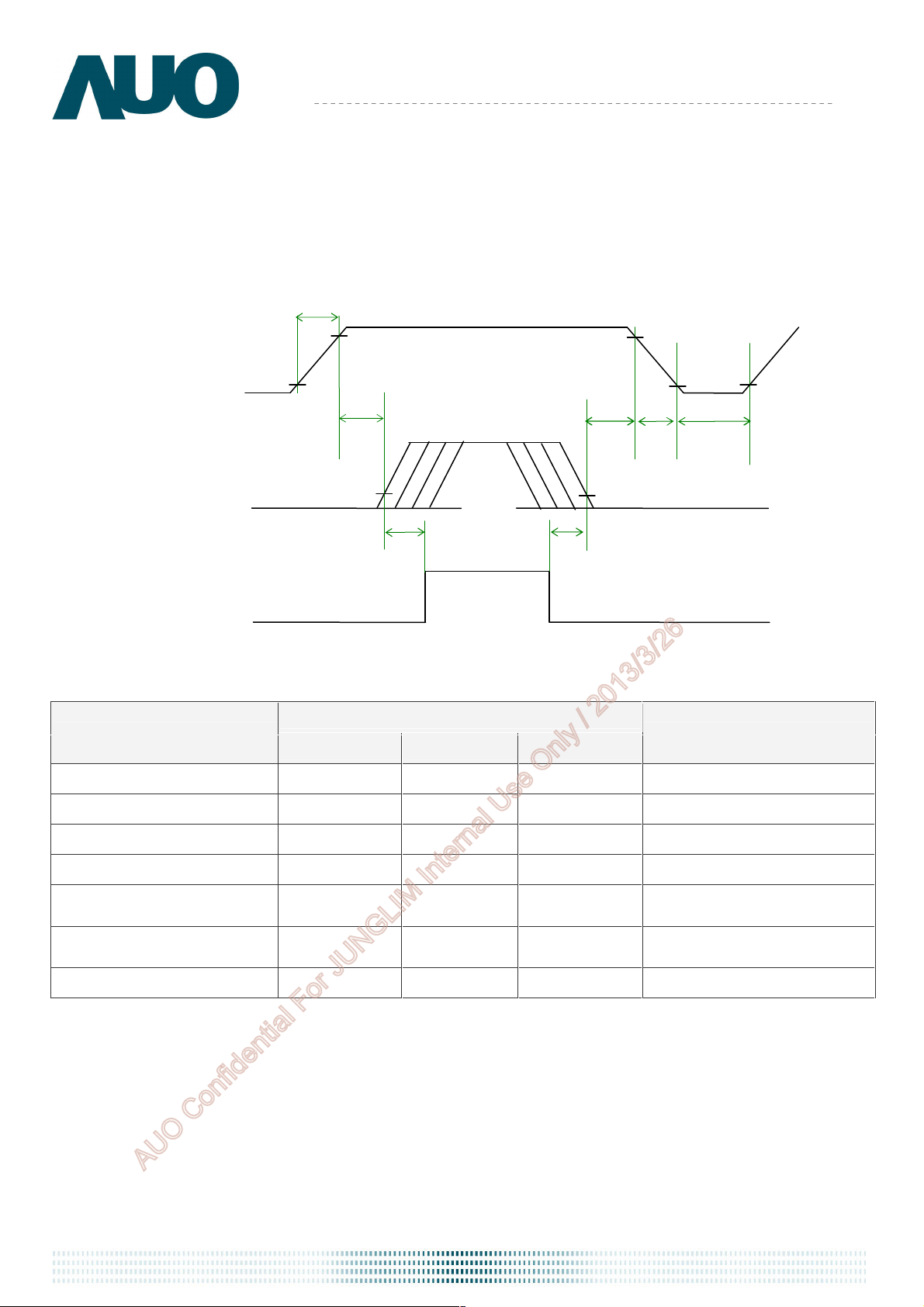

6.6 Power ON/OFF Sequence
VDD power and lamp on/off sequence are as follows. Interface signals are also shown in the
chart. Signals from any system shall be Hi-Z state when VDD is off.
Power Supply VDD
LVDS Signal
Backlight On
Parameter
T1 0.5 - 10 [ms]
10%
90%
VALID
DATA
T3
T4
Power Sequence Timing
Value
Min. Typ. Max.
90%
10%
T7
Unit
T2 0 - 50 [ms]
T3 500 - - [ms]
T4 100 - - [ms]
T5 0 - 50
T6 5 - 100
T7 1000 - - [ms]
Note1 : Recommend setting T5 = 0ms to avoid electronic noise when VDD is off.
Note2 : During T5 and T6 period , please keep the level of input LVDS signals with Hi-Z state.
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
[ms]
Note1,2
[ms]
Note1,2
document version 1.3 23
Page 24
Product Specification
AU OPTRONICS CORPORATION
M270HVN02.1

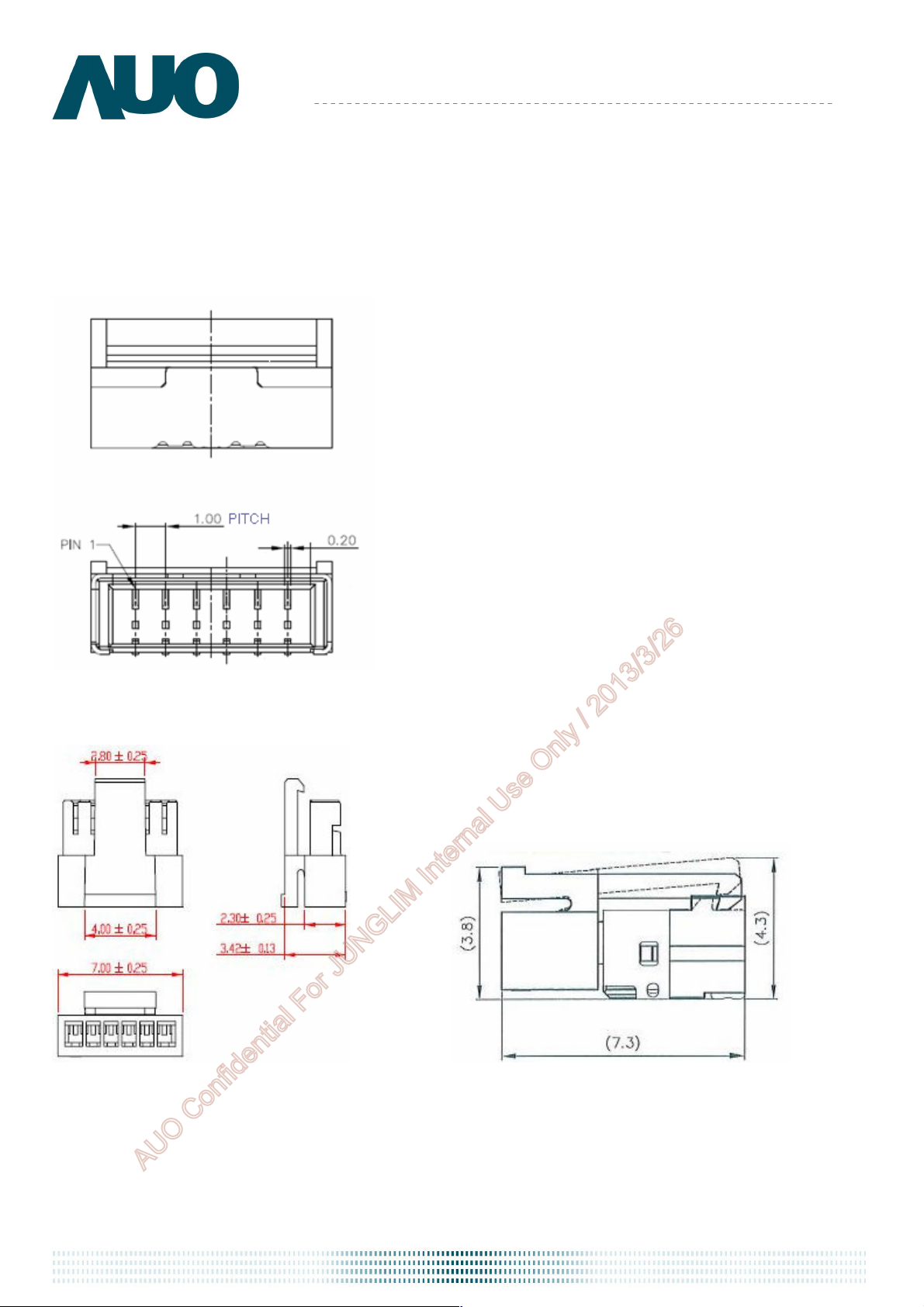

7 Connector and Pin Assignment
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
7.1 TFT LCD Module
Connector Name / Designation Interface Connector / Interface Card
STM
Manufacturer
Type Part Number
Mating Housing Part Number FI-X30HL (Locked Type)
7.1.1 Pin Assignment
Pin# Signal Name Pin# Signal Name
1 RXO0- 2 RXO0+
3 RXO1- 4 RXO1+
5 RXO2- 6 RXO2+
7
9 RXOCLK+ 10 RXO311 RXO3+ 12 RXE013 RXE0+ 14
15 RXE1- 16 RXE1+
17
GND
GND
P-TWO
STARCONN
MSCKT2407P30HB
AL230F-A0G1D-P
093G30-02001A-M4
8 RXOCLK-
GND
18 RXE219 RXE2+ 20 RXECLK21 RXECLK+ 22 RXE323 RXE3+ 24
25 GND (AGMODE+HVS) 26 NC
27 GND 28 VDD
29 VDD 30 VDD
GND
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
document version 1.3 24
Page 25
Product Specification
7.2 LED Connector on Backlight Unit
This connector is mounted on LED light bar.
Connector Name / Designation Light Bar Connector
Manufacturer E&T(ENTERY)
Type Part Number 3707K-S06N-21R
Mating Housing Part Number H112K-P06N-13B (Locked Type)
7.2.1 LED Pin assignment
AU OPTRONICS CORPORATION
M270HVN02.1
Pin# Signal Name
1 IFLED (current return)
2 IFLED (current return)
3 VSLED (voltage in)
4 VSLED (voltage in)
5 IFLED (current return)
6 IFLED (current return)
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
document version 1.3 25
Page 26
Product Specification
==××=××

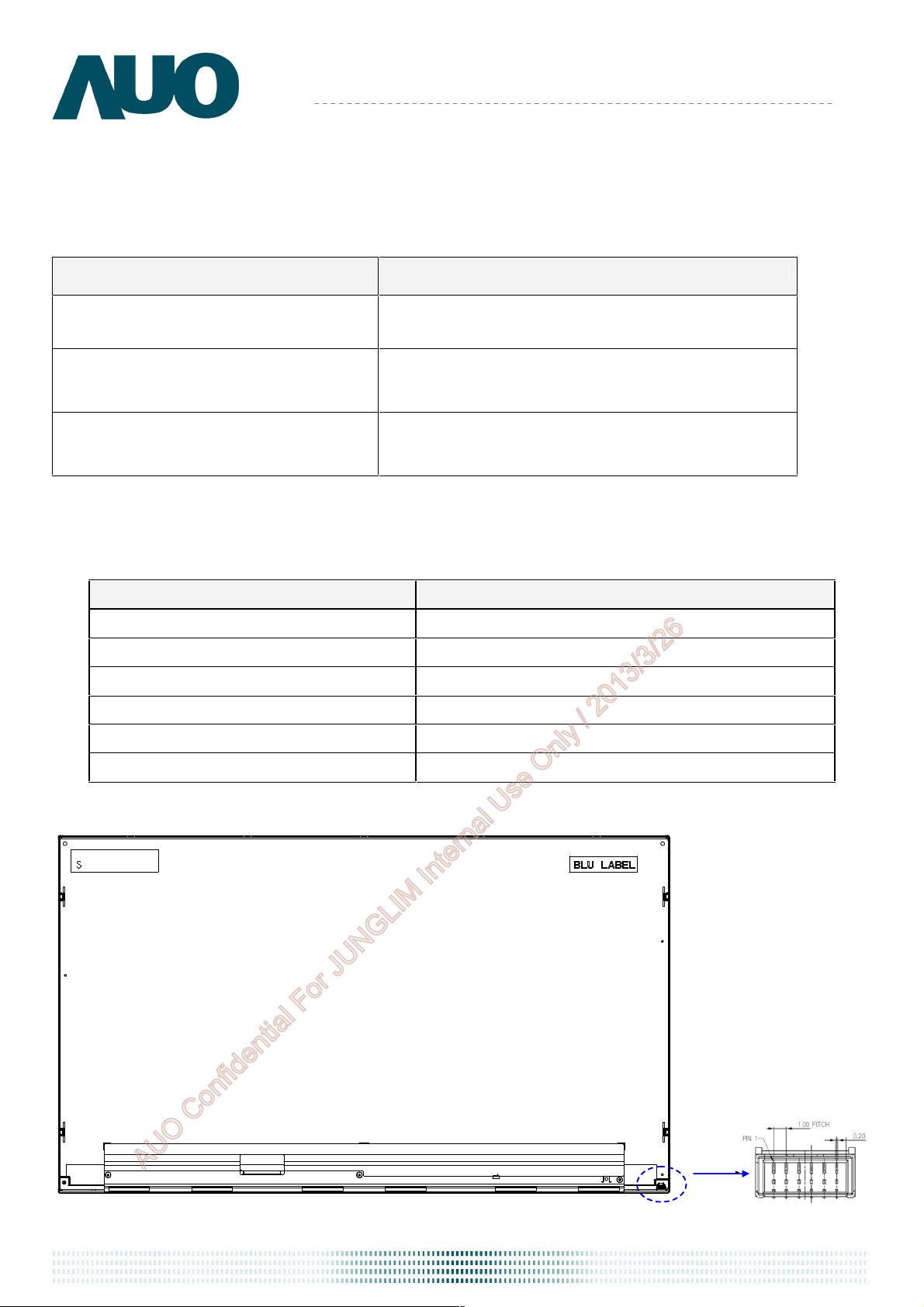

7.2.2 LED Connector Dimension
AU OPTRONICS CORPORATION
M270HVN02.1
)(0.1,25.400.39.13 mmunitPitchDVH
7.2.3 LED Mating housing dimension
document version 1.3 26
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
Page 27
Product Specification
AU OPTRONICS CORPORATION
M270HVN02.1
8 Reliability Test
Environment test conditions are listed as following table.
Items Required Condition Note
Temperature Humidity Bias (THB) Ta= 50°C, 80%RH, 300 hours
High Temperature Operation (HTO) Ta= 50°C, 50%RH, 300 hours
Low Temperature Operation (LTO) Ta= 0°C, 300 hours
High Temperature Storage (HTS) Ta= 60°C, 300 hours
Low Temperature Storage (LTS) Ta= -20°C, 300 hours
Acceleration: 1.5 Grms
Vibration Test
(Non-operation)
Shock Test
(Non-operation)
Drop Test Height: 46 cm, package test
Thermal Shock Test (TST) -20°C/30min, 60°C/30min, 100 cycles Note 1
On/Off Test On/10sec, Off/10sec, 30,000 cycles
ESD (Electro Static Discharge)
Altitude Test
Wave: Random
Frequency: 10 - 200 Hz
Duration: 30 Minutes each Axis (X, Y, Z)
Acceleration: 50 G
Wave: Half-sine
Active Time: 20 ms
Direction: ±X, ±Y, ±Z (one time for each Axis)
Contact Discharge: ± 15KV, 150pF(330Ω ) 1sec,
15 points, 25 times/ point
Note 2
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
15 points, 25 times/ point
Operation: 18,000 ft
Note 3
Non-Operation: 40,000 ft
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature from
-20°C to 60°C, and back again. Power is not applied during the test. After temperature cycling, the
unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: EN61000-4-2, ESD class B: Certain performance degradation allowed:
No data lost
Self-recoverable
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
No hardware failures
document version 1.3 27
Page 28
Product Specification
AU Optronics
9 Shipping Label

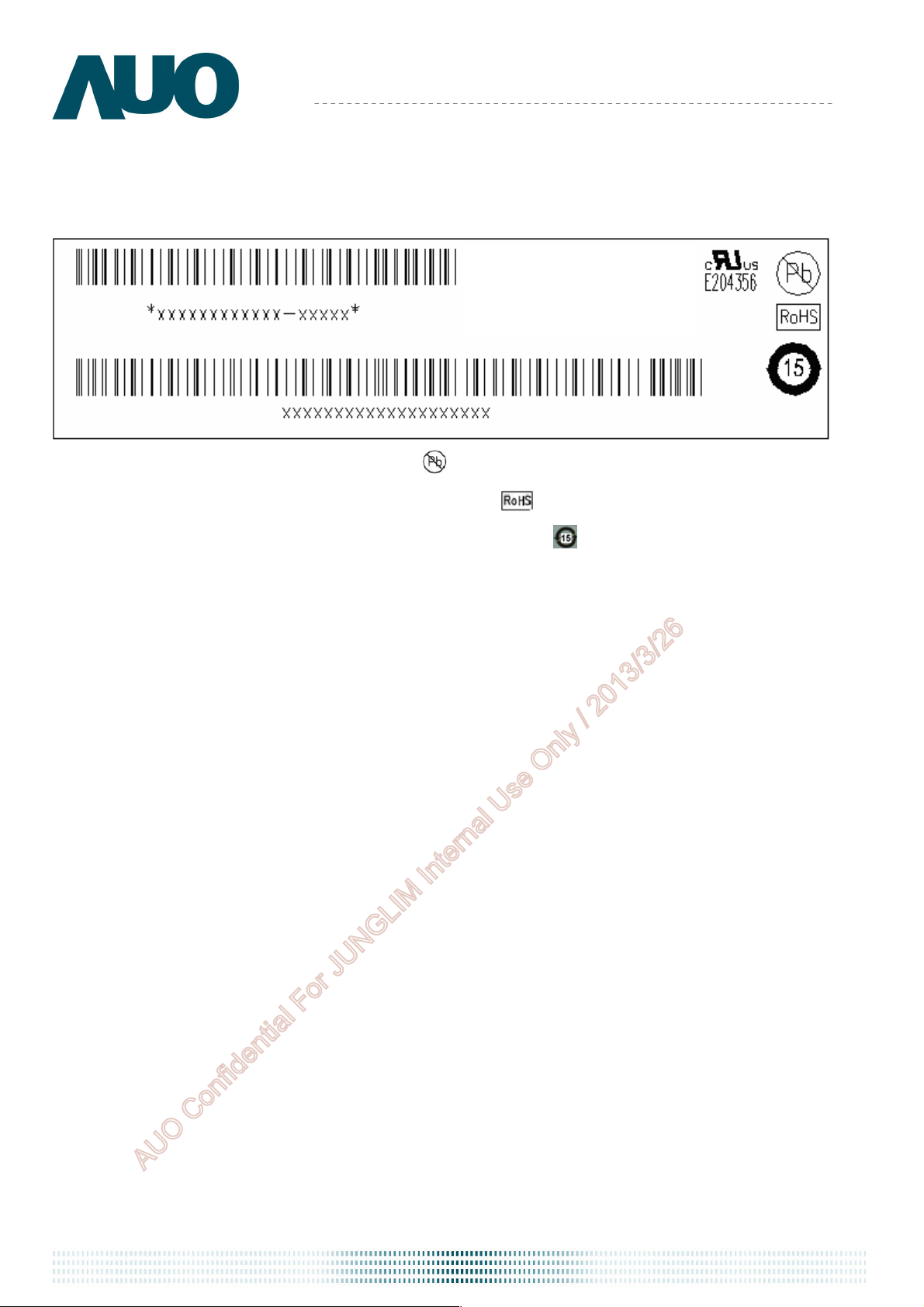

The label on the panel is shown as below:
Note 1: For Pb Free products, AUO will add for identification.
AU OPTRONICS CORPORATION
Manufactured XX/XX
Model No: M270HVN02.1
M270HVN02.1
Note 2: For RoHS compatible products, AUO will add
for identification.
Note 3: For China RoHS compatible products, AUO will add for identification.
Note 4: The Green Mark will be presented only when the green documents have been ready by
AUO Internal Green Team.
document version 1.3 28
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
Page 29
M270HVN02.1
AU OPTRONICS CORPORATION
Product Specification
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
Front Face

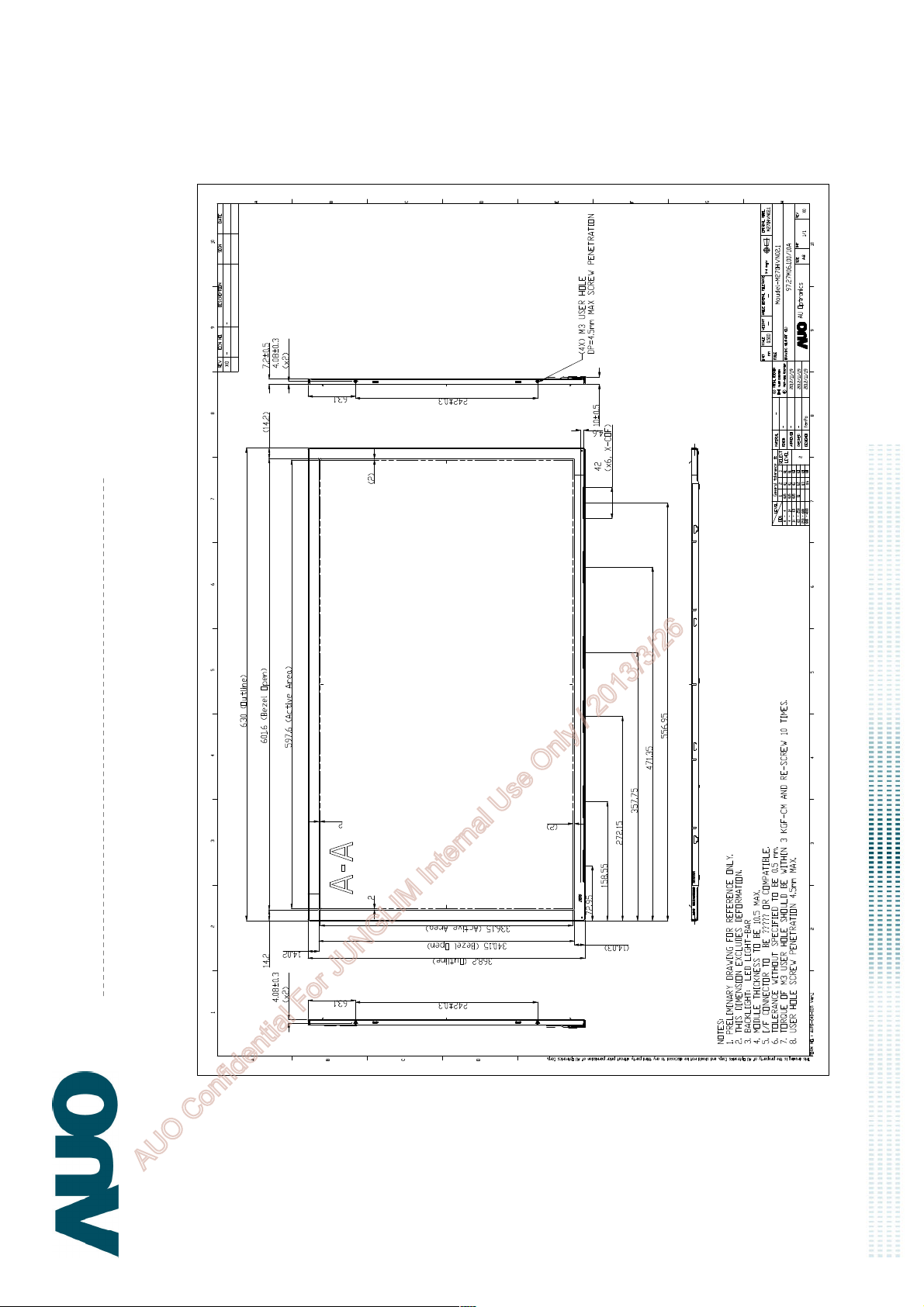

10 Mechanical Characteristics
document version 1.3 29
Page 30
M270HVN02.1
AU OPTRONICS CORPORATION
Product Specification

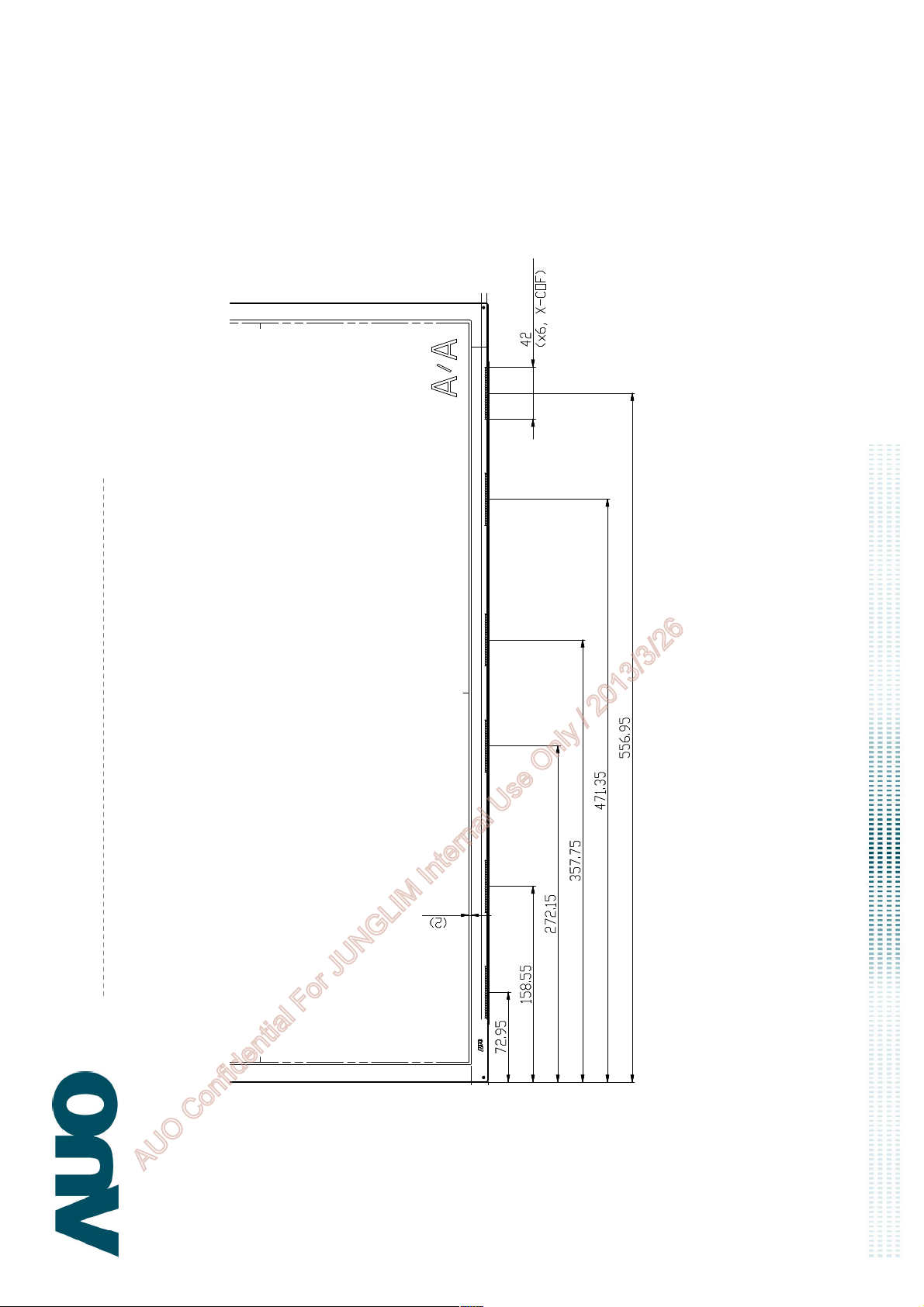

Back Face:
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
document version 1.3 30
Page 31
A
void touchin
M270HVN02.1
when doing mechanical design
AU OPTRONICS CORPORATION
Product Specification
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
document version 1.3 31
Page 32
H " Tape
Put top cover
11 Packing Specification

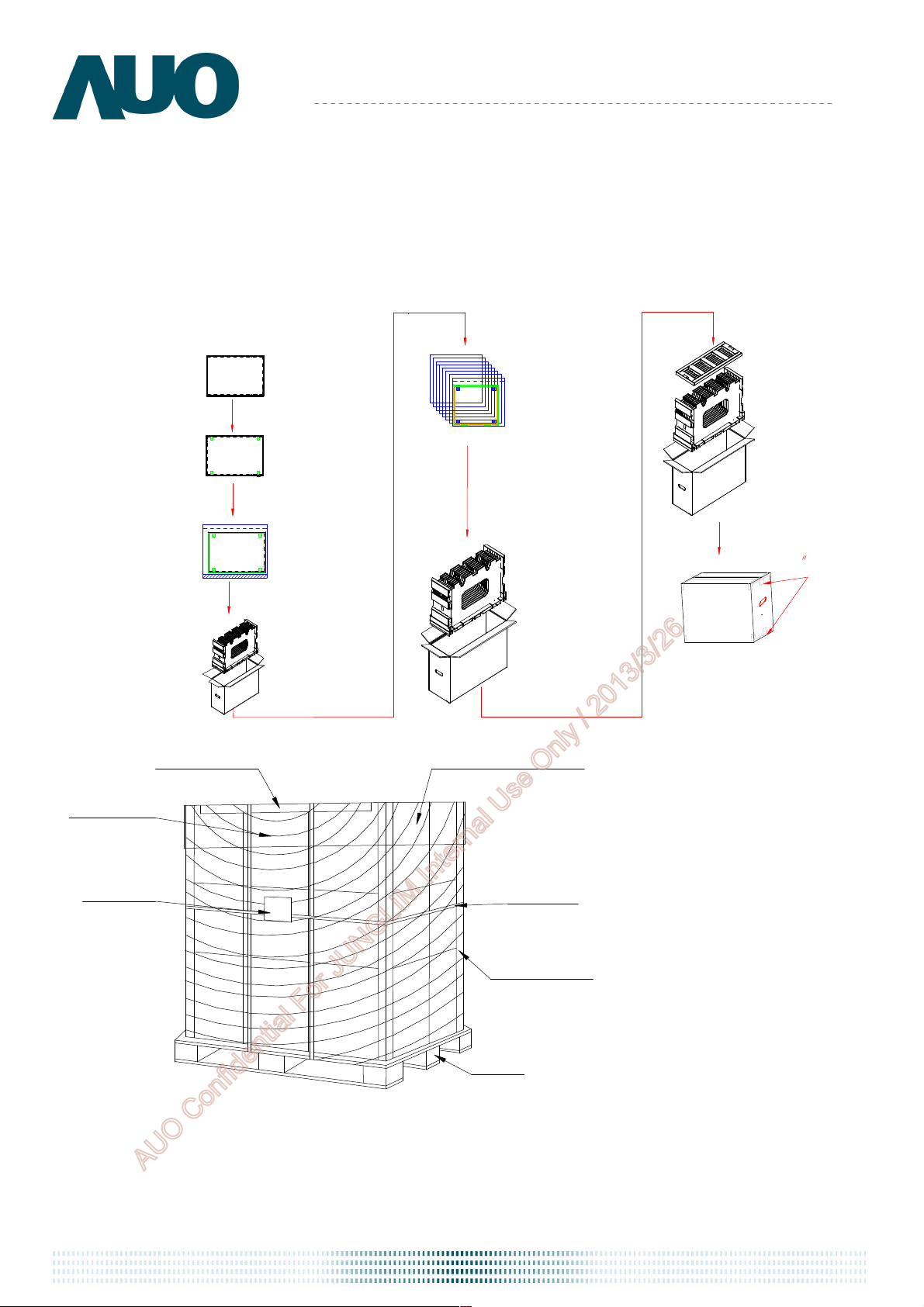

11.1 Packing Flow
Module
Paste protect film
Product Specification
AU OPTRONICS CORPORATION
9PCS/Carton
8PCS/Carton
M270HVN02.1
Stretch film
Label
Corner angle
1pcs Module/ESD
Open Top cover
Paper Cushion
Paper Carton
Moisture-proof film
PET band
Corner angle
document version 1.3 32
Pallet
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
Page 33
Product Specification
11-2 Pallet and shipment information
Item
Q'ty Dimension Weight(kg)
AU OPTRONICS CORPORATION
M270HVN02.1
Specification
Remark
1
2
3
4 Packing Box 9 pcs/Box 720(L)mm x 264(W)mm x 460(H)mm
5
6
Panel 1
Cushion 1 - 4.41
Box 1 720(L)mm x 264(W)mm x 460(H)mm
Pallet 1 1070(L)mm x 740(W)mm x 138(H)mm 12.9
Pallet after
Packing
8 boxes/pallet
630mmx368.2mmx10.0mm
1070(L)mm x 740(W)mm x 138(H)mm 224.6
2.3
1.35 without Panel & cushion
26.46 with panel & cushion
AUO Confidential For JUNGLIM Internal Use Only / 2013/3/26
document version 1.3 33
Loading...
