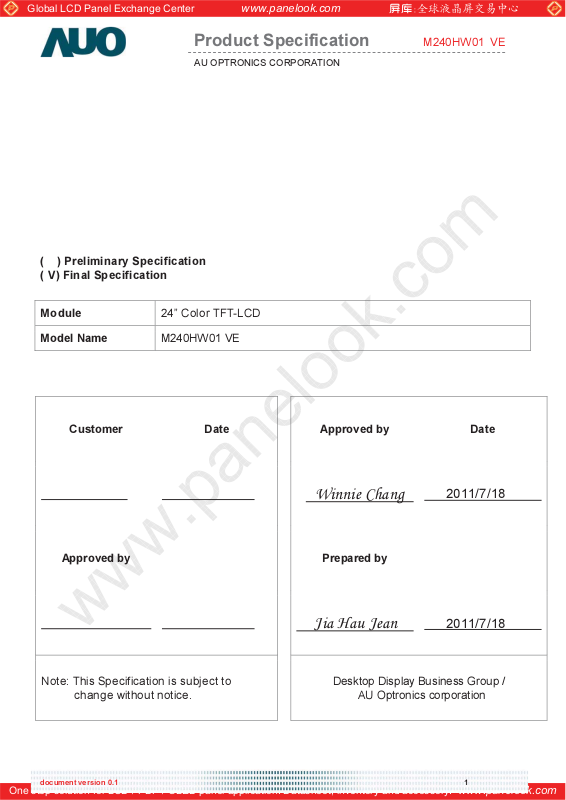

AU OPTRONICS CORPORATION
M240HW01 VE
( ) Preliminary Specification
( V) Final Specification
Module 24” Color TFT-LCD
Model Name M240HW01 VE
Customer Date
Approved by
Approved by Date
Winnie Chang
Prepared by
2011/7/18
Note: This Specification is subject to
change without notice.
document version 0.1 1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Jia Hau Jean
Desktop Display Business Group /
AU Optronics corporation
2011/7/18
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Contents
M240HW01 VE
1.0 Handling Precautions............................................................. 4
2.0 General Description ............................................................... 5
2.1 Display Characteristics.................................................................................................................... 5
2.2 Optical Characteristics ....................................................................................................................6
3.0 Functional Block Diagram .................................................... 10
4.0 Absolute Maximum Ratings ................................................. 11
4.1 TFT LCD Module..............................................................................................................................11
4.2 Backlight Unit.................................................................................................................................... 11
4.3 Absolute Ratings of Environment ...................................................................................................... 11
5.0 Electrical characteristics...................................................... 12
5.1 TFT LCD Module............................................................................................................................ 12
5.1.1 Power Specification.............................................................................................. 12
5.1.2 Signal Electrical Characteristics.............................................................................. 13
6.0 Signal Characteristic............................................................ 17
6.1 Pixel Format Image........................................................................................................................17
6.2 The input data format .................................................................................................................... 17
6.3 Signal Description..........................................................................................................................18
6.4 Timing Characteristics ....................................................................................................................... 20
6.5 Timing diagram...............................................................................................................................21
6.6 Power ON/OFF Sequence ...........................................................................................................22
7.0 Connector & Pin Assignment ............................................... 23
7.1 TFT LCD Module............................................................................................................................ 23
7.1.1 Pin Assignment ................................................................................................... 23
7.2 Recommend connector for Backlight Unit.........................................................................................24
7.2.1 Pin assignment ................................................................................................... 24
8.0 Reliability Test..................................................................... 25
9.0 Shipping Label ..................................................................... 26
10.0 Mechanical Characteristics ................................................ 27
11. Packing Specification........................................................... 30
document version 0.1 2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HW01 VE
Record of Revision
Version and Date Page Old description New Description Remark
0.1
2010/12/29
First Version
document version 0.1 3
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HW01 VE
1.0 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth
when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken
out from the container, do not press the center of the LED lightbar edge. Instead, press at the
far ends of the LED light bar edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module
even momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT
Module may be damaged.
12) Small amount of materials having no flammability grade is used in the LCD module. The LCD
module should be supplied by power complied with requirements of Limited Power Source
(IEC60950 or UL1950), or be applied exemption.
13) Please avoid touching COF position while you are doing mechanical design
14) When storing modules as spares for a long time, the following precaution is necessary:
Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep
the temperature between 5к and 35к at normal humidity.
document version 0.1 4
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HW01 VE
2.0 General Description
This specification applies to the 24 inch-FHD Color a-Si TFT-LCD Module M240HW01. The
display supports the FHD - 1920(H) x 1080(V) screen format and 16.7M colors (RGB 6-bits +
Hi-FRC data). The light source of this TFT-LCD module is W-LED. All input signals are 2-channel
LVDS interface and this module doesn’t contain a driver for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25к condition:
ITEMS Unit SPECIFICATIONS
Screen Diagonal [mm] 609.7(24.0”)
Active Area [mm] 531.36 (H) x 298.89 (V)
Pixels H x V 1920(x3) x 1080
Pixel Pitch [um] 276.75 (per one triad) ×276.75
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode TN Mode, Normally White
White Luminance ( Center ) [cd/m2]
250 cd/m
Contrast Ratio 1000(Typ.)
Optical Response Time [msec] 5ms (Typ., on/off)
Nominal Input Voltage VDD [Volt] +5.0 V (Typ)
Power Consumption
[Watt] 19.2W ( Typ.,60 Hz )
(VDD line + LED line)
Weight [Grams] 2530+/-80g
Physical Size [mm] 556.0(H)x323.2(V)x11.5(D)
Electrical Interface Dual channel LVDS
Support Color 16.7M colors (RGB 6-bit + Hi_FRC )
Surface Treatment Glare
Temperature Range
Operating
Storage (Shipping)
o
[
C]
o
[
C]
0 to +50
-20 to +60
RoHS Compliance RoHS Compliance
TCO Compliance TCO 5.1 Compliance
2
(Typ.)
document version 0.1 5
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M240HW01 VE
AU OPTRONICS CORPORATION
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25к:
Item Unit Conditions Min. Typ. Max. Note
Horizontal (Right)
Viewing Angle [degree]
CR = 10 (Left)
Vertical (Up)
CR = 10 (Down)
Contrast ratio Normal Direction
Raising Time (TrR)
Response Time [msec]
Falling Time (TrF)
Raising + Falling -
Red x
Red y
Color / Chromaticity
Coordinates (CIE)
Green x
Green y
Blue x
Blue y
Color Coordinates (CIE) White
White x
White y
Central Luminance [cd/m2] 200 250 - 6
Luminance Uniformity
Crosstalk (in 60Hz)
Flicker
[%]
[%]
dB
75
75
70
70
600
0.620 0.650 0.680
0.303 0.333 0.363
0.302 0.332 0.362
0.593 0.623 0.653
0.127 0.157 0.187
0.023 0.053 0.083
0.283 0.313 0.343
0.299 0.329 0.359
75 80
85
85
80
80
-
-
-
-
1000 -
-
-
3.5 7.4
1.5 2.6
5 10
-
1.5 8
-20
2
3
4
5
7
9
document version 0.1 6
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HW01 VE

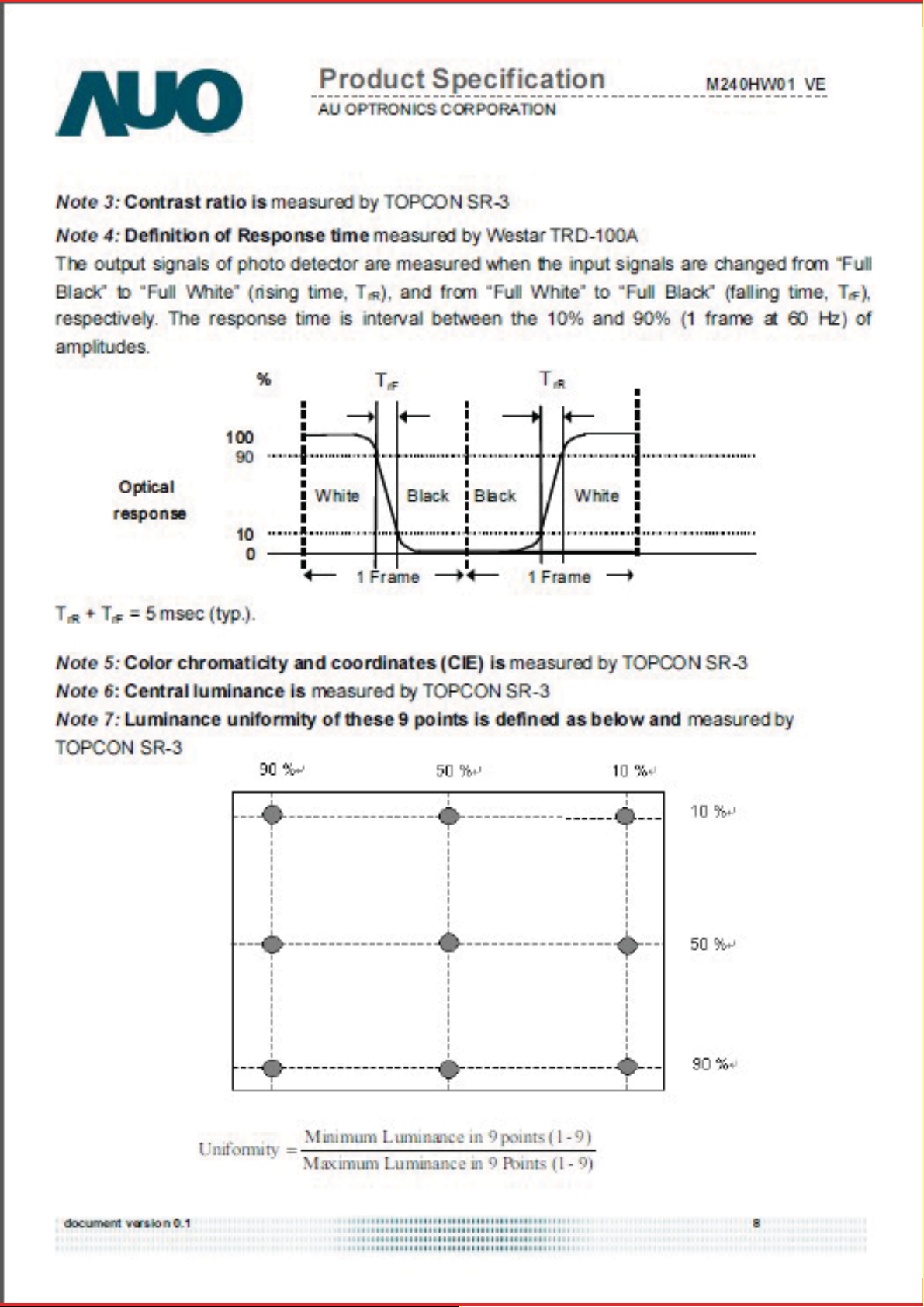

Note 1: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt
temperature change during measuring (at surface 35
. In order to stabilize the luminance, the
measurement should be executed after lighting Backlight for 30 minutes in a stable, windless and
dark room. ʳ
Photo detector
Measured distance
-

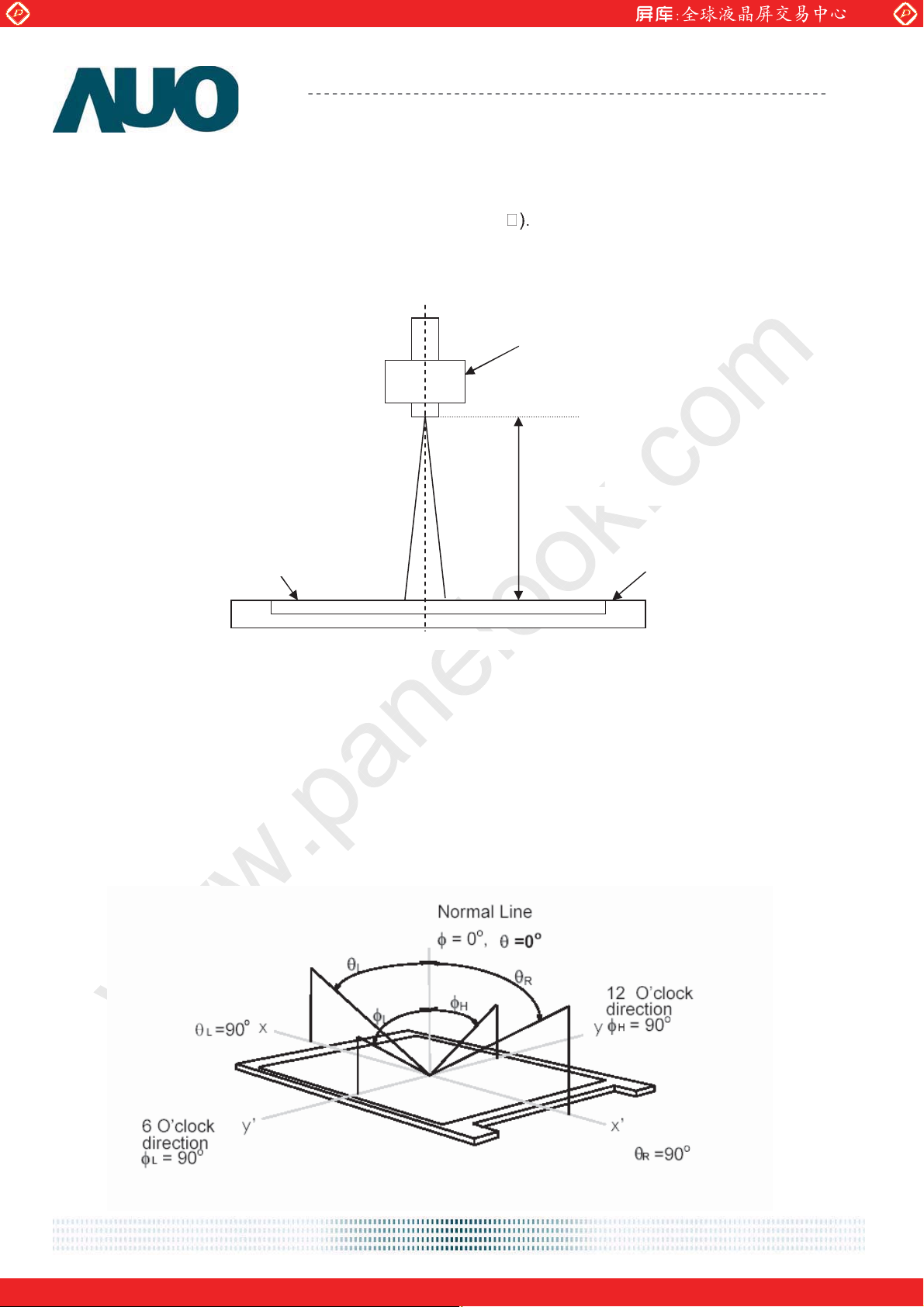

Note 2: Definition of viewing angle measured by ELDIM (EZContrast 88)
Viewing angle is the measurement of contrast ratio Њ10, at the screen center, over a 180°
horizontal and 180° vertical range (off-normal viewing angles). The 180° viewing angle range is
broken down as follows; 90° (θ) horizontal left and right and 90° (Φ) vertical, high (up) and low
(down). The measurement direction is typically perpendicular to the display surface with the screen
rotated about its center to develop the desired measurement viewing angle.
Center of the screen
document version 0.1 7
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

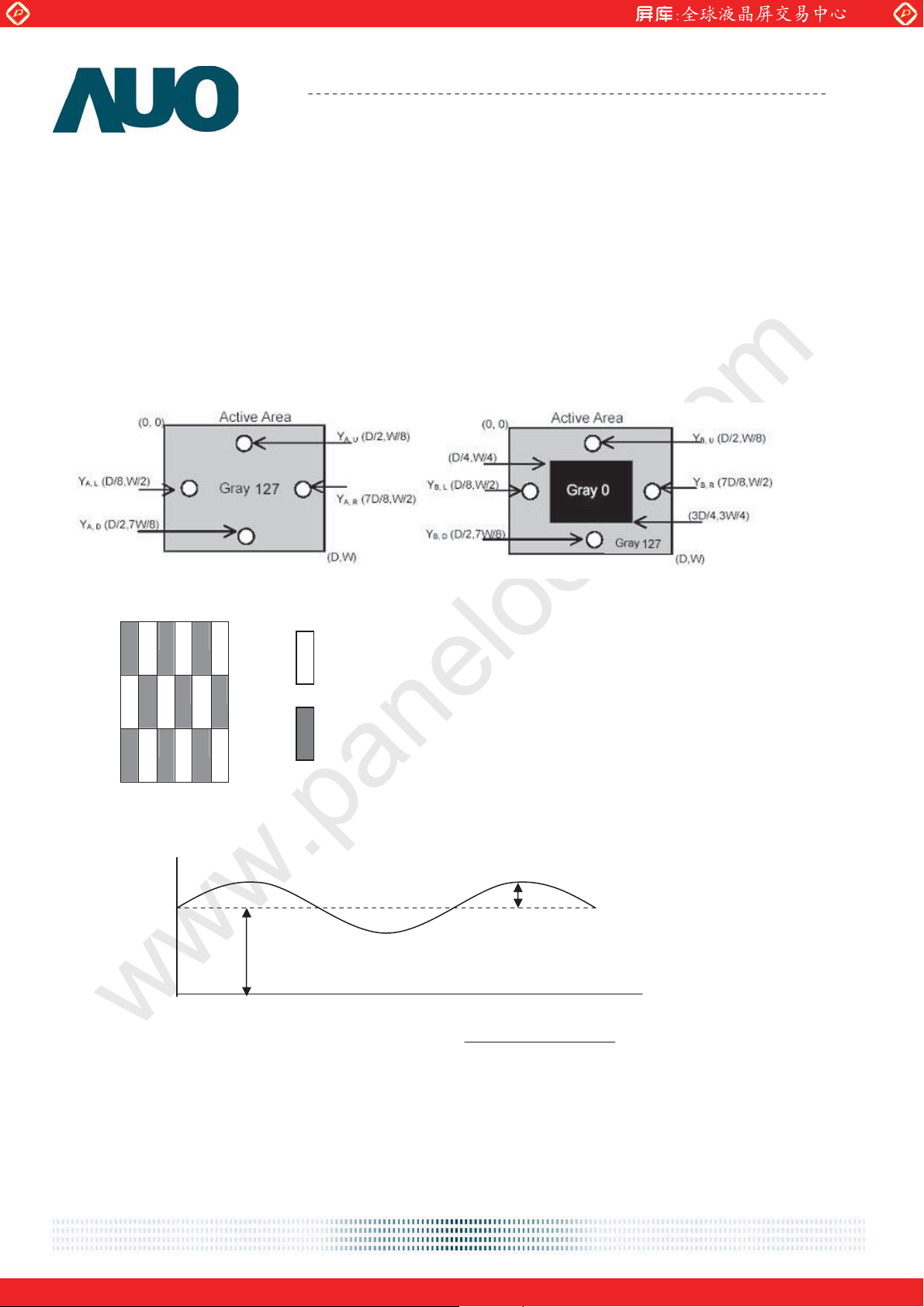

Note 8: Crosstalk is defined as below and measured by TOPCON SR-3
CT = | YB – YA | / YA 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
M240HW01 VE
Note 9: Test Patern: Subchecker Pattern measured by TOPCON SR-3
B R G B
G
R
Gray Level = L127
R G B R G B
R G B R G B
Gray Level = L0

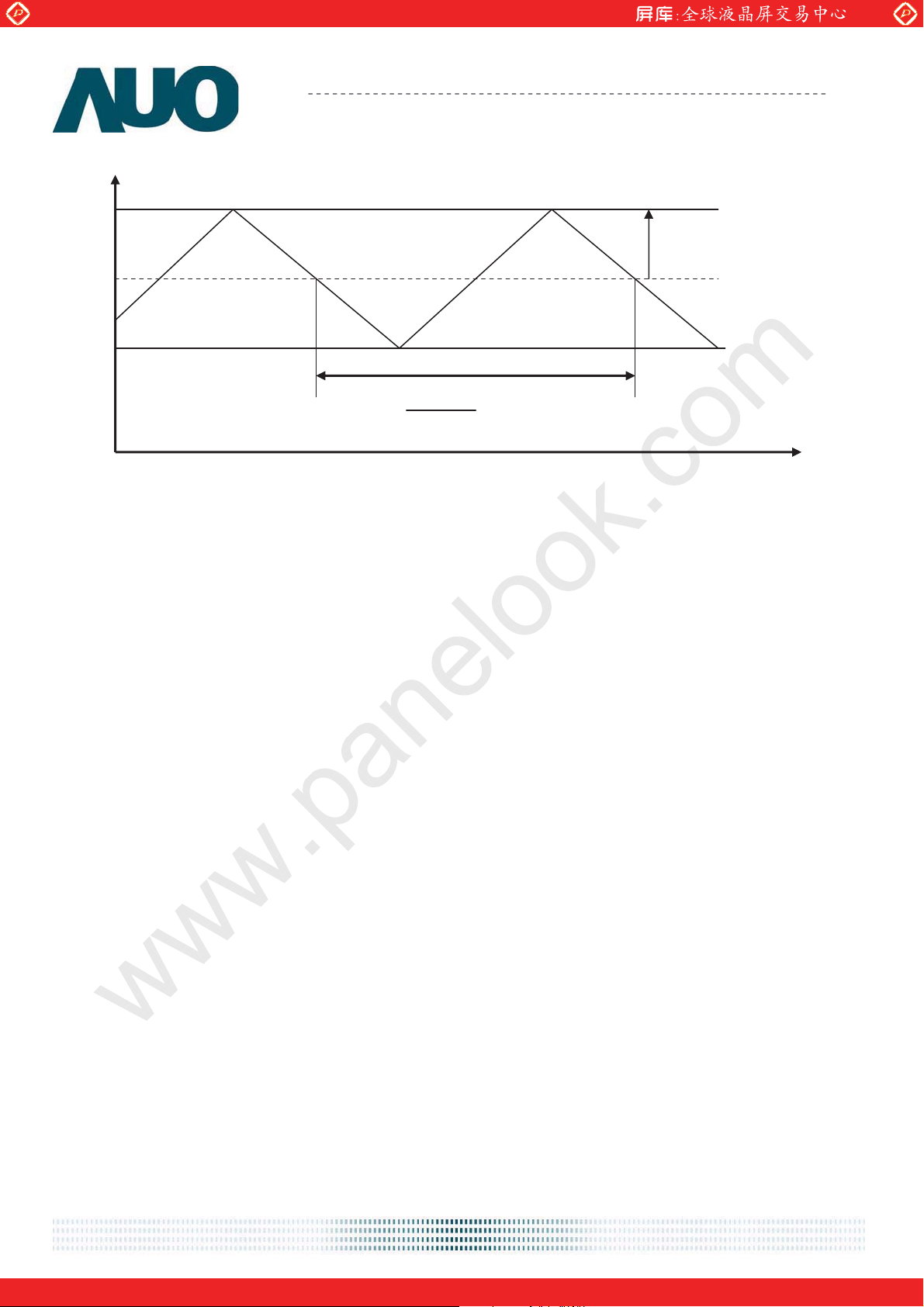

Method: Record dBV & DC value with TRD-100
Amplitude
DC
AC
Time
Hz) 30Level(at AC
log20(dB)Flicker =
Level DC
document version 0.1 9
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
ght
Y
www.panelook.com
Product Specification
M240HW01 VE
AU OPTRONICS CORPORATION

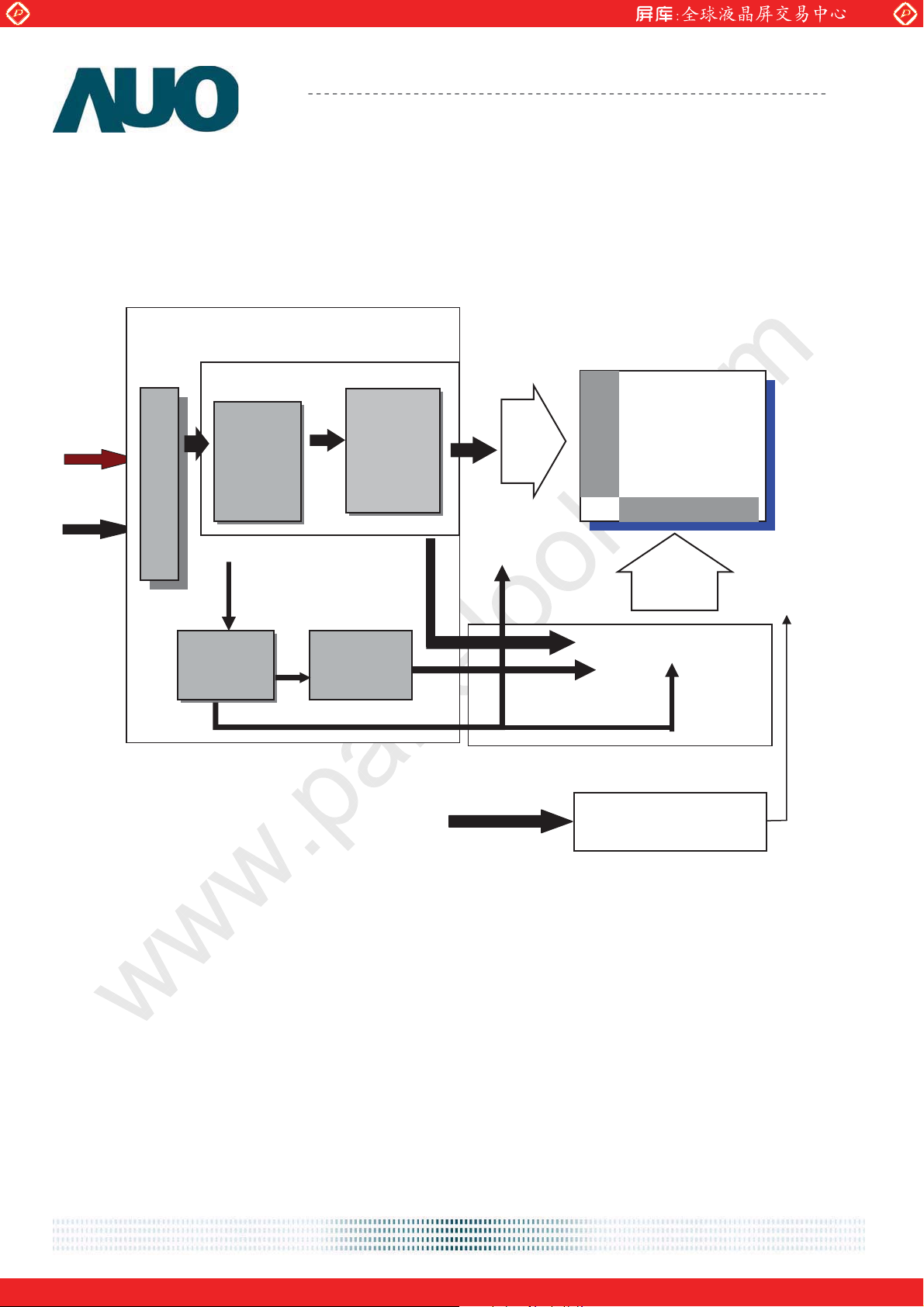

3.0 Functional Block Diagram
The following diagram shows the functional block of the 24.0 inch Color TFT-LCD Module:
LVDS
+5V
LVDS
Receiver
Connector
DC/DC
Converter
AUO
ASIC
Correction
Timing
Controller
miniLVDS
Transmitter
Gamma
G1
-Driver IC
1920(x3) x 1080
G1080
D1
TFT-LCD
Pixels
X-Driver IC
D5760
LED
Backli
I/F PCB Interface:
I/F + X-PCB
DC
LED Driver on system
FI-XPB30SRLAHF11 (JAE)ʳ
MSCK2407P30 (STM)ʳ
Mating Type:
FI-X30HL(Locked Type)
document version 0.1 10
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
4.0 Absolute Maximum Ratings
Absolute maximum ratings of the module are as following:
4.1 TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
Voltage
4.2 Backlight Unit
Item Symbol Min Max Unit Conditions
LED Current ILED
4.3 Absolute Ratings of Environment
VDD 0 6.0 [Volt] Note 1,2
- 63
M240HW01 VE
[mA] Note 1,2
Item Symbol Min. Max. Unit Conditions

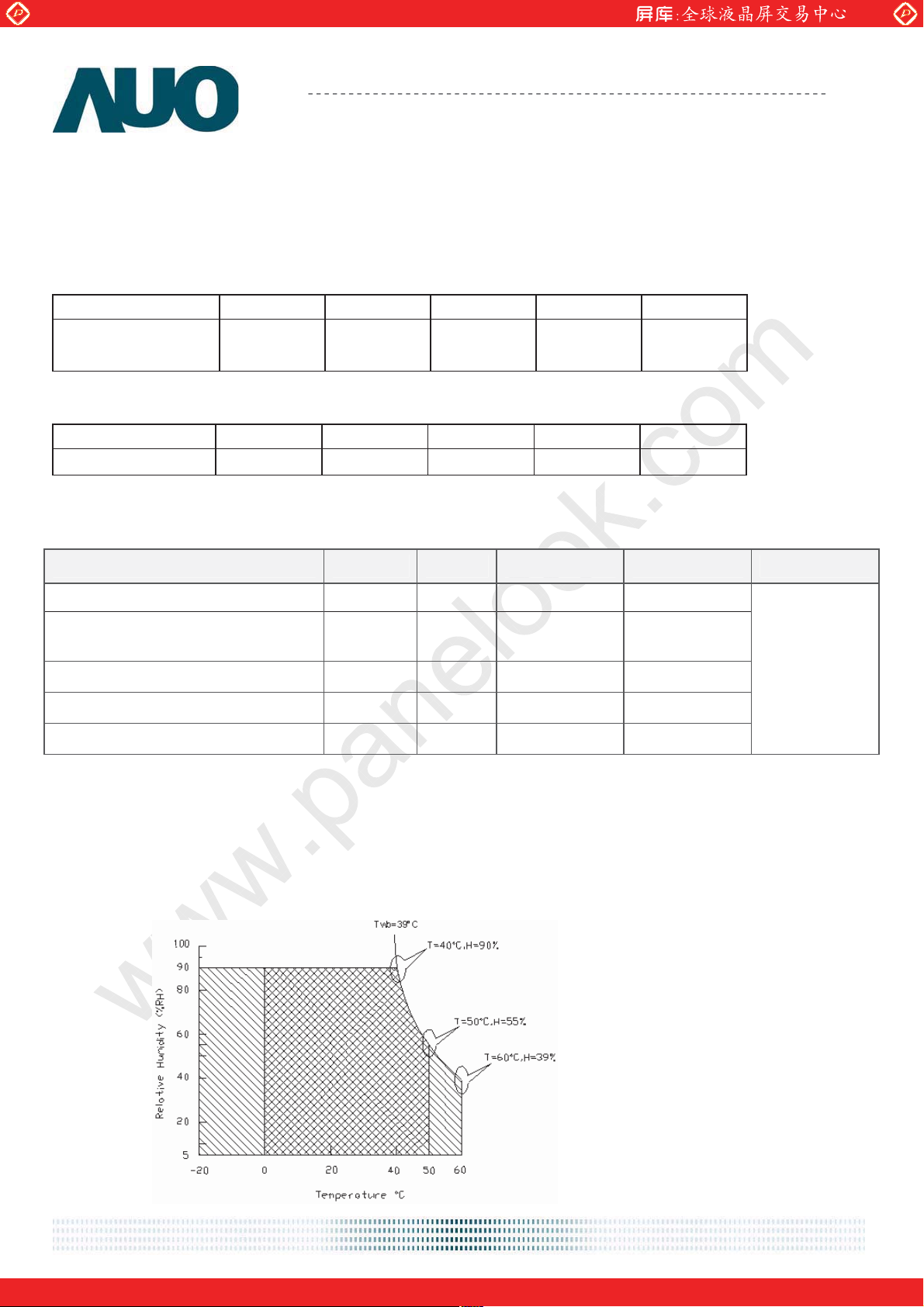

Operating Temperature TOP 0 +50 [oC]
Center Glass surface temperature
(operation)
Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [oC]
Storage Humidity HST
TGS 0 +50 [
5 90
o
C]
[%RH]
Note 1: With in Ta (25к)
Note 2: Permanent damage to the device may occur if exceeding maximum values
Note 3: For quality perfermance, please refer to AUO IIS(Incoming Inspection Standard).
2. Max wet-bulb temperature at 39кʳ ʳ˿˸ˁʳʻʳ˧˴ʳ Љˆˌкʼʳ
ʳʳʳʳʳʳʳʳʳʳˆˁʳˡʳ˶˷˸˴˼
1. 90% RH Max ( Taʳ Љˆˌкʼʳ
Note 3
document version 0.1 11
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HW01 VE
Operating Range Storage Range
5.0 Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as following:
Symbol Parameter Min Typ Max Unit Conditions
VDD Logic/LCD Drive Voltage
IDD Input Current
PDD VDD Power
4.5
-
0.8 0.96 [A] VDD= 5.0V, All Black Pattern At 75Hz,
-
4 4.8 [Watt] VDD= 5.0V, All Black Pattern At 75Hz
5.0 5.5 [Volt] +/-10%
0.65 0.78 [A] VDD= 5.0V,All black Pattern, At 60Hz
3.25 3.9 [Watt] VDD= 5.0V,All black Pattern, At 60Hz
IRush Inrush Current
VDDrp
Allowable Logic/LCD
Drive Ripple Voltage
-
-
- 3 [A]
- 500 [mV] p-p VDD= 5.0V, All Black Pattern At 75Hz

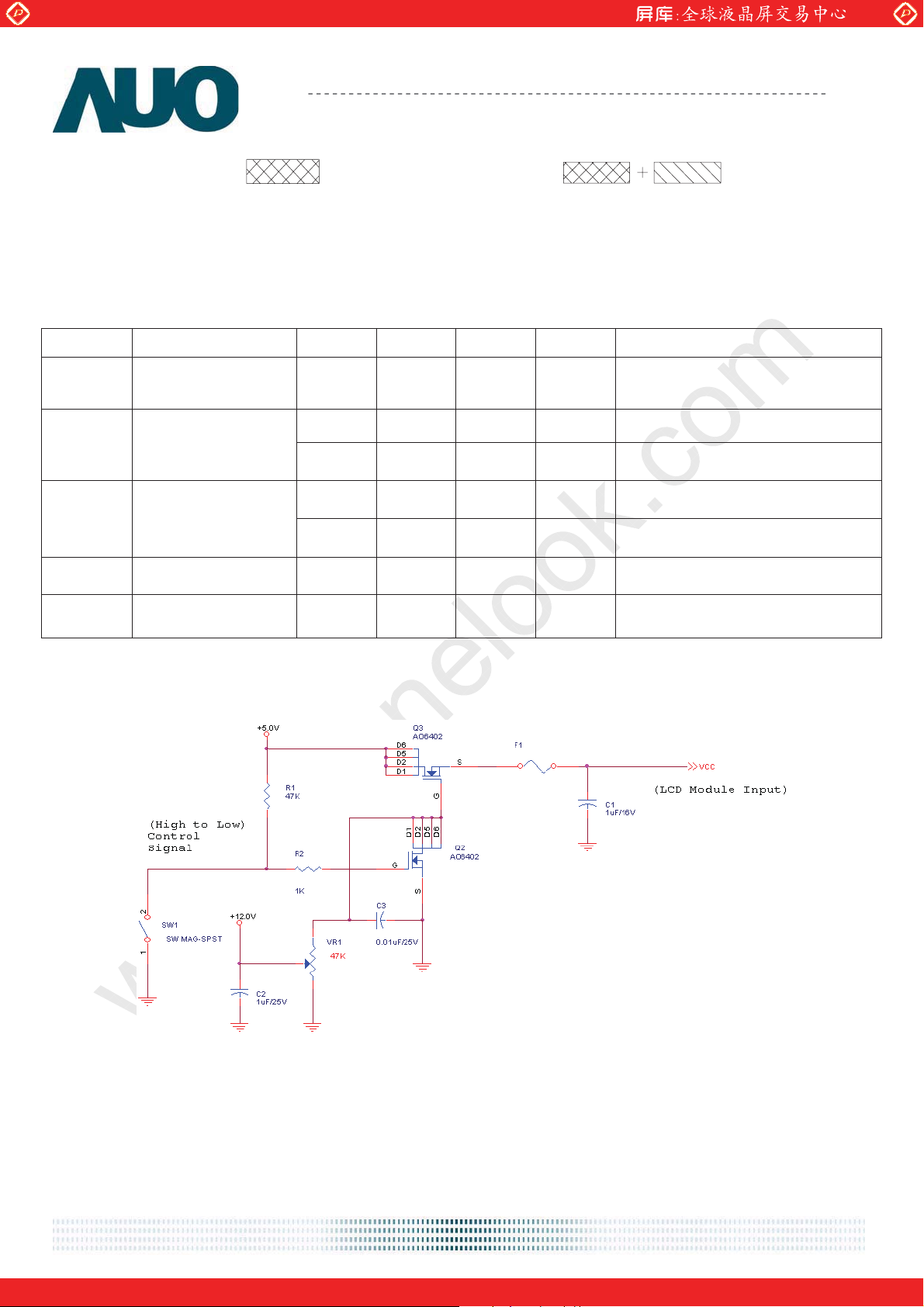

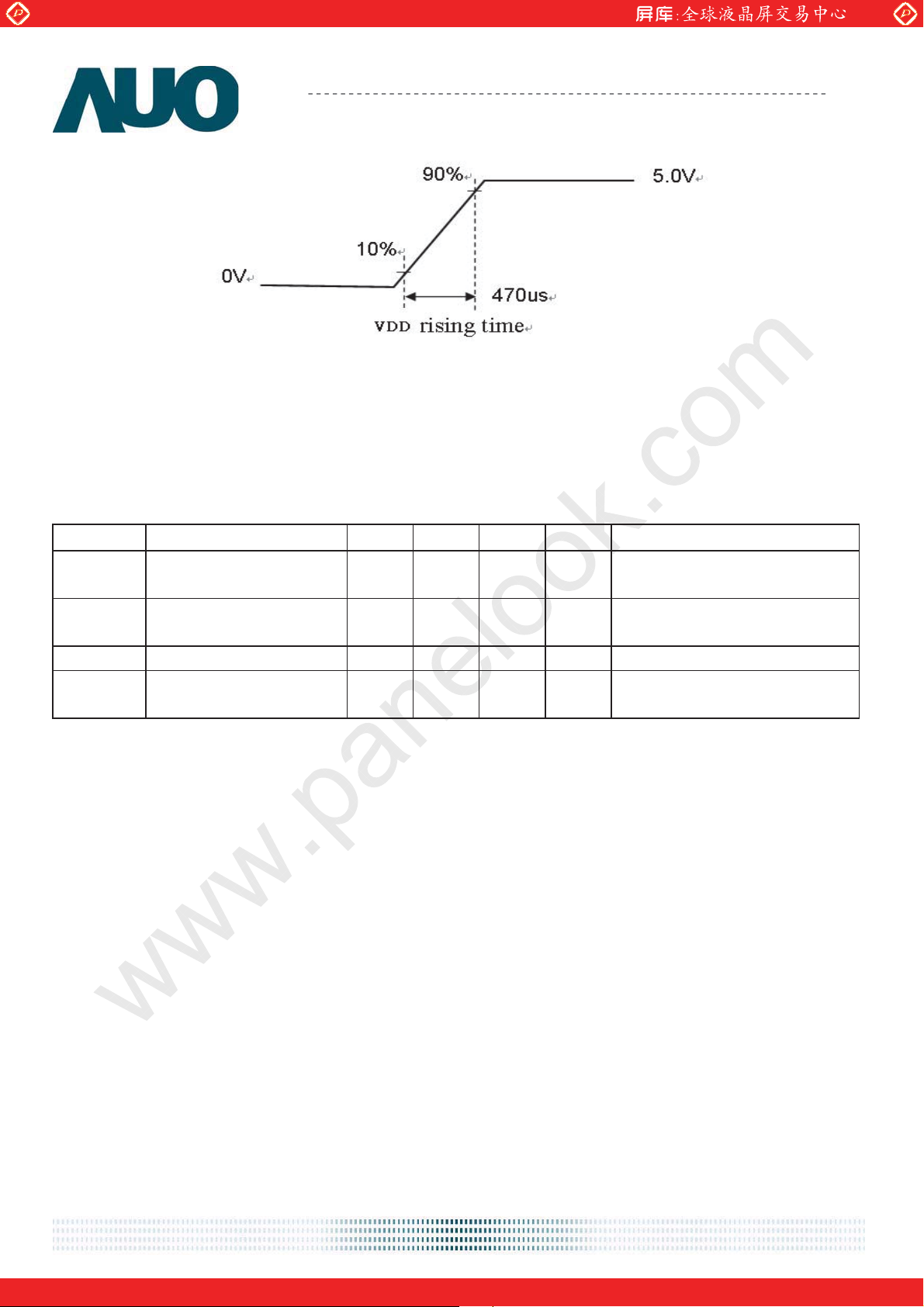

Note 1: Measurement conditions:
The duration of rising time of power input is 470us.
Note 1
document version 0.1 12
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M240HW01 VE
AU OPTRONICS CORPORATION
5.1.2 Signal Electrical Characteristics
Input signals shall be low or Hi-Z state when VDD is off. Please refer to specifications of
SN75LVDS82DGG (Texas Instruments) in detail.
1. DC Characteristics of each signal are as following:
Symbol Parameter Min Typ Max Units Condition
VTH
VTL
Differential Input High
Threshold
Differential Input Low
Threshold
- - +100 [mV] VCM = 1.2V Note 1
-100 - - [mV] V
= 1.2V Note 1
CM
ūVIDū Input Differential Voltage 100 - 600 [mV] Note 1
VCM
Differential Input Common
Mode Voltage
+1.0 +1.2 +1.5 [V]
V
TH-VTL
Note 1
= 200MV (max)

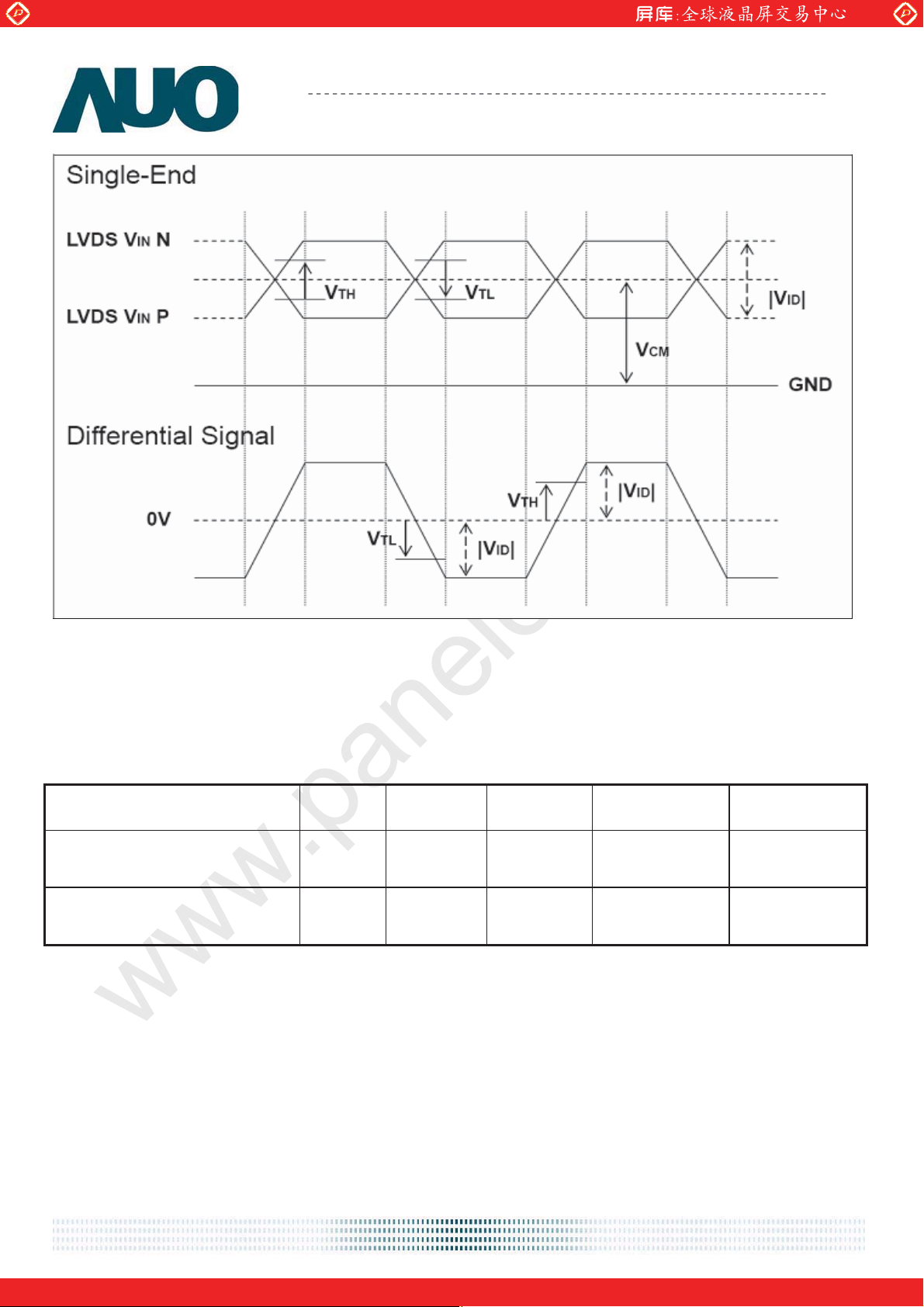

Note 1: LVDS Signal Waveform
document version 0.1 13
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M240HW01 VE
AU OPTRONICS CORPORATION
2. AC Characteristics
Description Symbol Min Max Unit Note
Maximum deviation of input
clock frequency during SSC
Maximum modulation frequency
of input clock during SSC
FDEV -
3
%
FMOD - 300 KHz
document version 0.1 14
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
r
V
www.panelook.com
Freq
F
max
Fcente
Fmin
Product Specification
AU OPTRONICS CORPORATION
M240HW01 VE
Fcenter * FDE
1
F
MOD
< Spread Spectrum>
time
document version 0.1 15
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M240HW01 VE
AU OPTRONICS CORPORATION
5.2 Backlight Unit
Parameter guideline for LED driving is under stable conditions at 25к (Room Temperature):
Symbol Parameter Min. Typ. Max. Unit Note
IR
LED Operation Current - 60
LED
VLB
P
BLU Power consumption (for reference)
BLU
LT
LED life Time (Typical)
LED
Light Bar Operation Voltage
(for reference)
- 66 72
- 15.9 18.2 [Watt]
30,000 -
63
Note 1 :The specified current is input LED chip 100% duty current.
Note 2 : The value showed in the table is one light bar’s operation voltage.
Note 3 : Definition of life time : brightness becomes 50% of its original value. The minimum life time of LED unit is on the
condition of IR
= 60mA and 25±2к(Room temperature).
LED
Note 4: Each LED light bar consists of 80 pcs LED package ( 4 strings x 20 pcs / string ).
[mA]
Note 1
[Volt]
Note 2
[Hour]
Note 3
Operating with fixed
driving current
document version 0.1 16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6.0 Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
1st Line
1 2 1919 1920
R G B R G B
R G B R G B
M240HW01 VE
1080 Line
R G B R G B

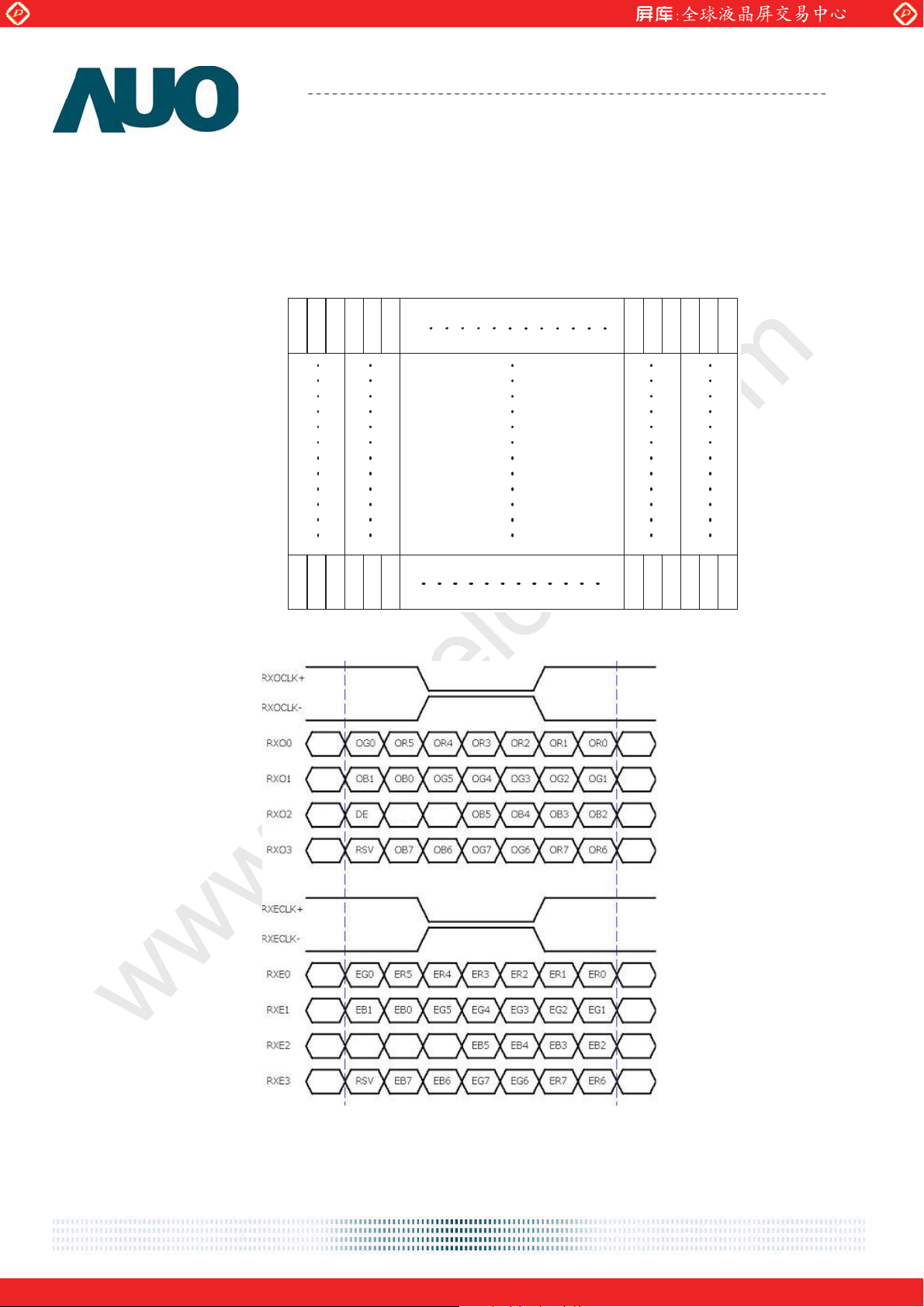

6.2 The input data format
R G B R G B
Note 1: R/G/B data 7:MSB, R/G/B data 0:LSB O = “Odd Pixel Data” E = “Even Pixel Data”
document version 0.1 17
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HW01 VE
6.3 Signal Description
The module using one LVDS receiver SN75LVDS82(Texas Instruments). LVDS is a
differential signal technology for LCD interface and high speed data transfer device. LVDS
transmitters shall be SN75LVDS83(negative edge sampling). The first LVDS port(RxOxxx)
transmits odd pixels while the second LVDS port(RxExxx) transmits even pixels.
PIN # SIGNAL NAME DESCRIPTION
1 RxOIN0- Negative LVDS differential data input (Odd data)
2 RxOIN0+ Positive LVDS differential data input (Odd data)
3 RxOIN1- Negative LVDS differential data input (Odd data)
4 RxOIN1+ Positive LVDS differential data input (Odd data)
5 RxOIN2- Negative LVDS differential data input (Odd data, DSPTMG)
6 RxOIN2+ Positive LVDS differential data input (Odd data, DSPTMG)
7 GND Power Ground
8 RxOCLK- Negative LVDS differential clock input (Odd clock)
9 RxOCLK+ Positive LVDS differential clock input (Odd clock)
10 RxOIN3- Negative LVDS differential data input (Odd data)
11 RxOIN3+ Positive LVDS differential data input (Odd data)
12 RxEIN0- Negative LVDS differential data input (Even data)
13 RxEIN0+ Positive LVDS differential data input (Even data)
14 GND Power Ground
15 RxEIN1- Positive LVDS differential data input (Even data)
16 RxEIN1+ Negative LVDS differential data input (Even data)
17 GND Power Ground
18 RxEIN2- Negative LVDS differential data input (Even data)
19 RxEIN2+ Positive LVDS differential data input (Even data)
20 RxECLK- Negative LVDS differential clock input (Even clock)
21 RxECLK+ Positive LVDS differential clock input (Even clock)
22 RxEIN3- Negative LVDS differential data input (Even data)
23 RxEIN3+ Positive LVDS differential data input (Even data)
24 GND Power Ground
25 NC No connection (for AUO test only. Do not connect)
26 NC No connection (for AUO test only. Do not connect)
27 NC No connection (for AUO test only. Do not connect)
28 VDD Power +5V
29 VDD Power +5V
30 VDD Power +5V
Note1: Start from left side
document version 0.1 18
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HW01 VE
Note2: Input signals of odd and even clock shall be the same timing.
document version 0.1 19
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HW01 VE
6.4 Timing Characteristics
Basically, interface timing described here is not actual input timing of LCD module but close to
output timing of SN75LVDS82DGG (Texas Instruments) or equivalent.
Signal Item Symbol Min Typ Max Unit
Vertical Section
Horizontal
Section
Clock
Period Tv
Active Tdisp(v)
Blanking Tbp(v)+Tfp(v)+PWvs
Period Th
Active Tdisp(h)
Blanking Tbp(h)+Tfp(h)+PWhs
Period Tclk
Frequency Freq
1088 1120 2047
1080 1080 1080
8 40 967
1034 1060 2047
960 960 960
74 100 1087
25 13.3 11.1
40 75 90
Th
Th
Th
Tclk
Tclk
Tclk
ns
MHz
Frame rate Frame rate F
50 60 75
Note : DE mode only
document version 0.1 20
Hz
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com

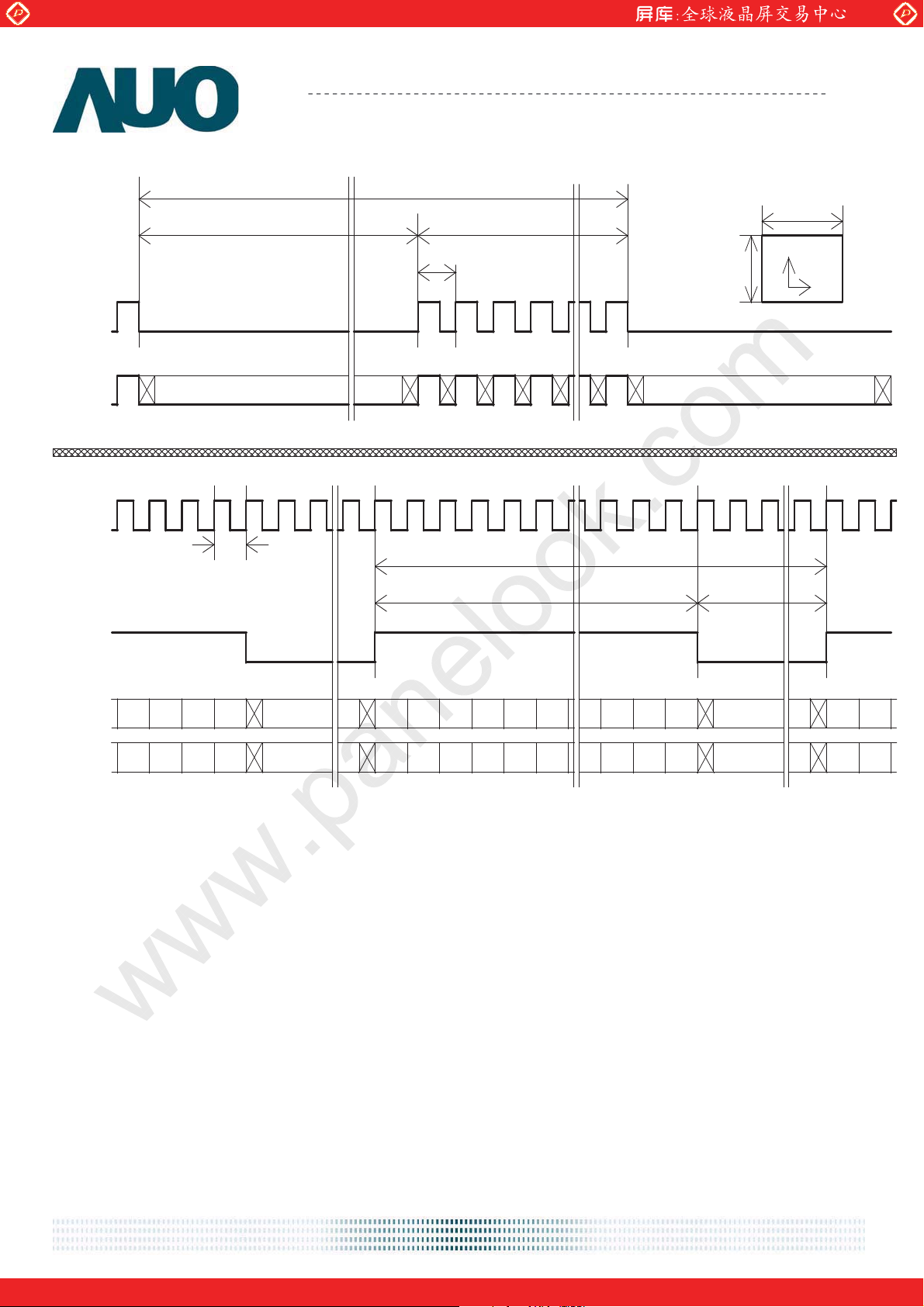

6.5 Timing diagram
DE
RGB Data
CLK
N
Line
Tblk(v)
Invalid Data
Product Specification
AU OPTRONICS CORPORATION
Tv
Tdisp(v)
Th
4
1
32
LineLine
LineLine
N
Line
M240HW01 VE
M pixel
Y
N Line
Invalid Data
X
RGB Data
(Odd)
RGB Data
(Even)
Tclk
DE
Pixel
Pixel
Pixel
M-7
Pixel
M-6
Pixel
M-5
Pixel
M-3
Pixel
M-2
M-1
Pixel
M
Invalid Data
Invalid Data
Pixel
Pixel
1
Pixel Pixel
2
Pixel
5
3
Pixel
4
6M-2
Th
Tdisp(h)
Pixel
Pixel
10
Pixel
119
12
Pixel
M-5
Pixel
M-4
Pixel
7
Pixel
8M
Pixel
Pixel
M-3
Pixel
M-1
PixelPixel
Tblk(h)
Invalid Data
Invalid Data
Pixel
Pixel
Pixel
1
3
Pixel
2M-4
4
document version 0.1 21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M240HW01 VE
AU OPTRONICS CORPORATION

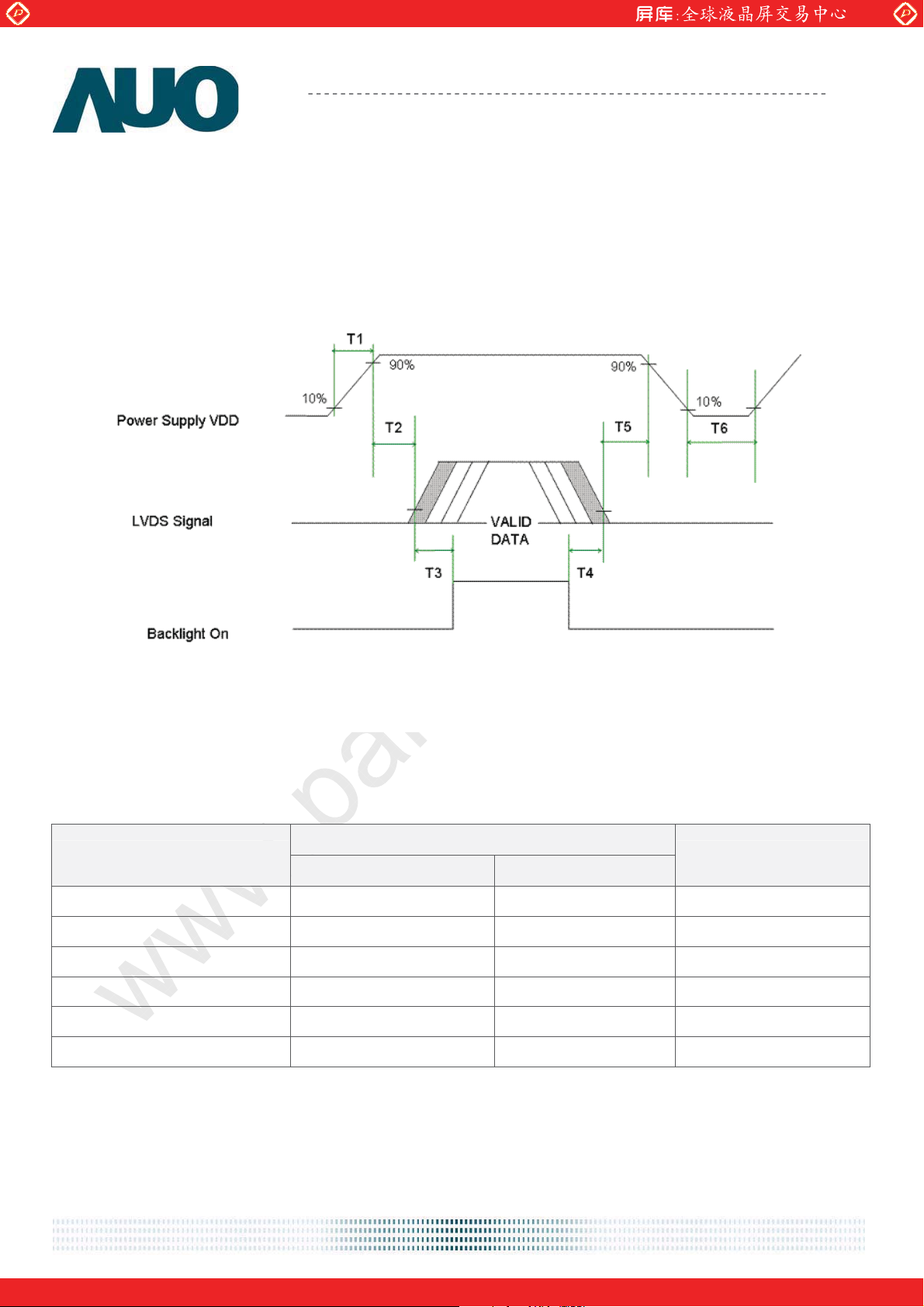

6.6 Power ON/OFF Sequence
VDD power and lamp on/off sequence are as follows. Interface signals are also shown in the
chart. Signals from any system shall be Hi-Z state or low level when VDD is off.
Note 1: Insert a black pattern
Note 2: Insert a white pattern
Parameter
T1 0.5 10 [msec]
T2 0 50 [msec]
T3 500 - [msec]
T4 200 - [msec]
T5 0 50 [msec]
T6 1000 - [msec]
Value
Unit
Min. Max.
document version 0.1 22
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HW01 VE

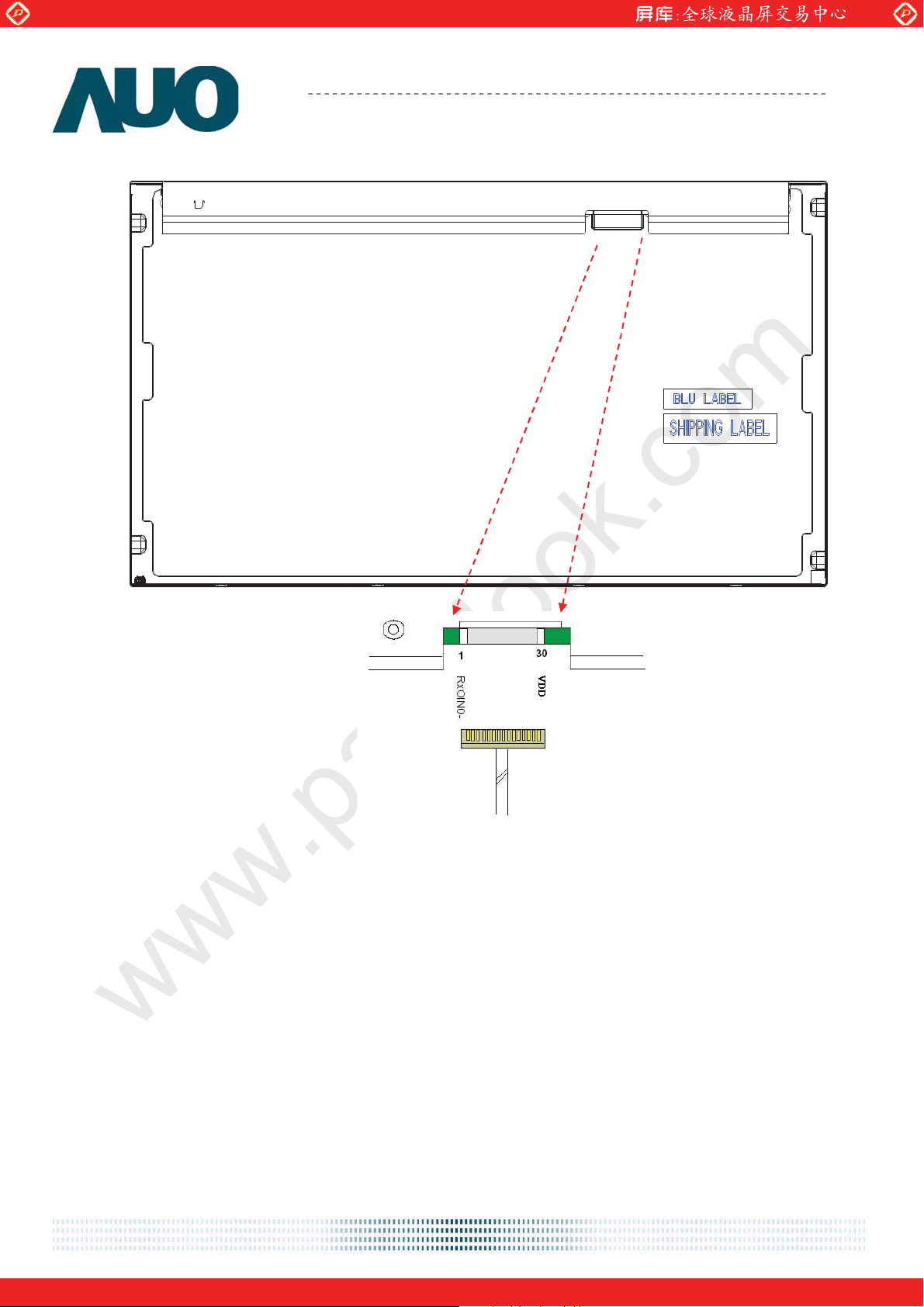

7.0 Connector & Pin Assignment
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
7.1 TFT LCD Module
Connector Name / Designation Interface Connector / Interface card
Manufacturer
Type Part Number
Mating Housing Part Number FI-X30HL (Locked Type)
JAE
STM
FI-XPB30SRLAHF11ʳ
MSCK2407P30
7.1.1 Pin Assignment
Pin# Signal Name Pin# Signal Name
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
RxOIN0-
RxOIN1-
RxOIN2-
GND
RxOCLKIN+
RxOIN3+
RxEIN0+
RxEIN1-
GND
RxEIN2+
RxECLKIN+
RxEIN3+
(for AUO test only. Do not connect)
NC
(for AUO test only. Do not connect)
NC
VDD
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
RxOIN0+
RxOIN1+
RxOIN2+
RxOCLKIN-
RxOIN3-
RxEIN0-
GND
RxEIN1+
RxEIN2-
RxECLKIN-
RxEIN3-
GND
NC (for AUO test only. Do not connect)
VDD
VDD
document version 0.1 23
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
7.2 Recommend connector for Backlight Unit.
This connector is mounted on LED light-bar.
Connector Name / Designation Light Bar Connector
Manufacturer
Type Part Number
7.2.1 Pin assignment
Pin no. Signal name
ENTERY INDUSTRIAL CO., LTD
3707K-Q06N-01
M240HW01 VE
1 IRLED (current out)
2 IRLED (current out)
3 VLED (voltage in)
4 VLED (voltage in)
5 IRLED (current out)
6 IRLED (current out)
document version 0.1 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
8.0 Reliability Test
Environment test conditions are listed as following table.
Items Required Condition
Temperature Humidity Bias (THB)
High Temperature Operation (HTO)
Low Temperature Operation (LTO)
High Temperature Storage (HTS)
Low Temperature Storage (LTS)
Vibration Test
(Non-operation)
Ta= 50
Ta= 50
Ta= 0
Ta= 60
Ta= -20
Acceleration: 1.5 Grms
Wave: Random
Frequency: 10 - 200 Hz
Duration: 30 Minutes each Axis (X, Y, Z)
к, 80%RH, 300hours
к, 50%RH, 300hours
к, 300hours
к, 300hours
к, 300hours
M240HW01 VE
Note
Acceleration: 50 G
Shock Test
(Non-operation)
Drop Test Height: 46 cm, package test
Thermal Shock Test (TST)
On/Off Test On/10sec, Off/10sec, 30,000 cycles
ESD (Electro Static Discharge)
Altitude Test
Wave: Half-sine
Active Time: 20 ms
Direction: X,ʳY,ʳZ (one time for each Axis)
к/30min, 60к/30min, 100 cycles
-20
Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec,
15 points, 25 times/ point.
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
15 points, 25 times/ point.
Operation:10,000 ft
Non-Operation:30,000 ft
1
2
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature from
-2˃к to 6˃к, and back again. Power is not applied during the test. After temperature cycling, the
unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: EN61000-4-2, ESD class B: Certain performance degradation allowed
No data lost
Self-recoverable
No hardware failures.
document version 0.1 25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
9.0 Shipping Label

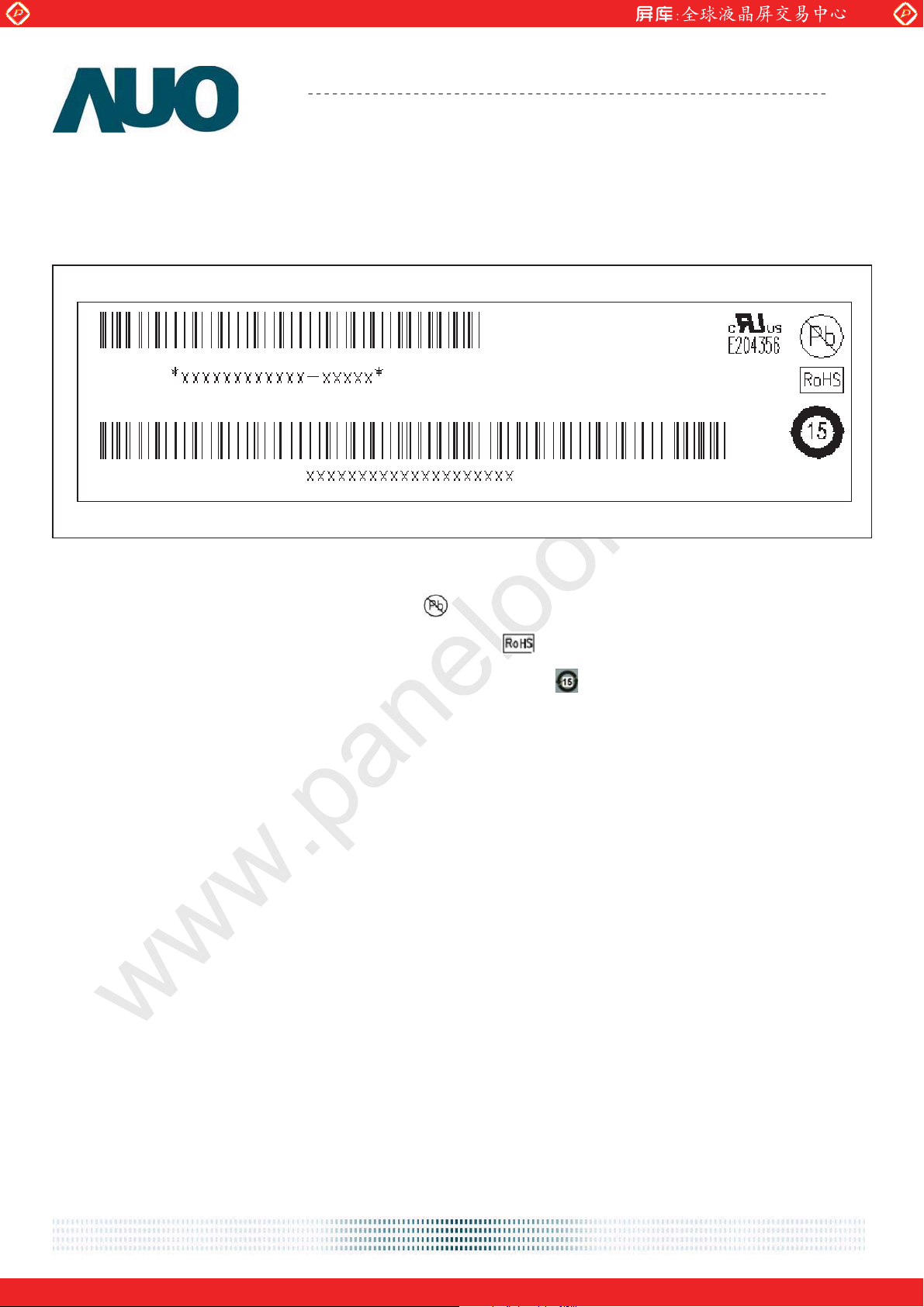

The label is on the panel as shown below:
Manufactured: XX/XX
Model No: M240HW01 V.E
AU Optronics
Made in XXXXX
M240HW01 VE
Note 1: For Pb Free products, AUO will add
Note 2: For RoHS compatible products, AUO will add
Note 3: For China RoHS compatible products, AUO will add
for identification.
for identification.
for identification.
Note 4: The Green Mark will be presented only when the green documents have been ready by
AUO Internal Green Team.
document version 0.1 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 27
Global LCD Panel Exchange Center
www.panelook.com
M240HW01 VE
AU OPTRONICS CORPORATION
Product Specification
document version 0.1 27

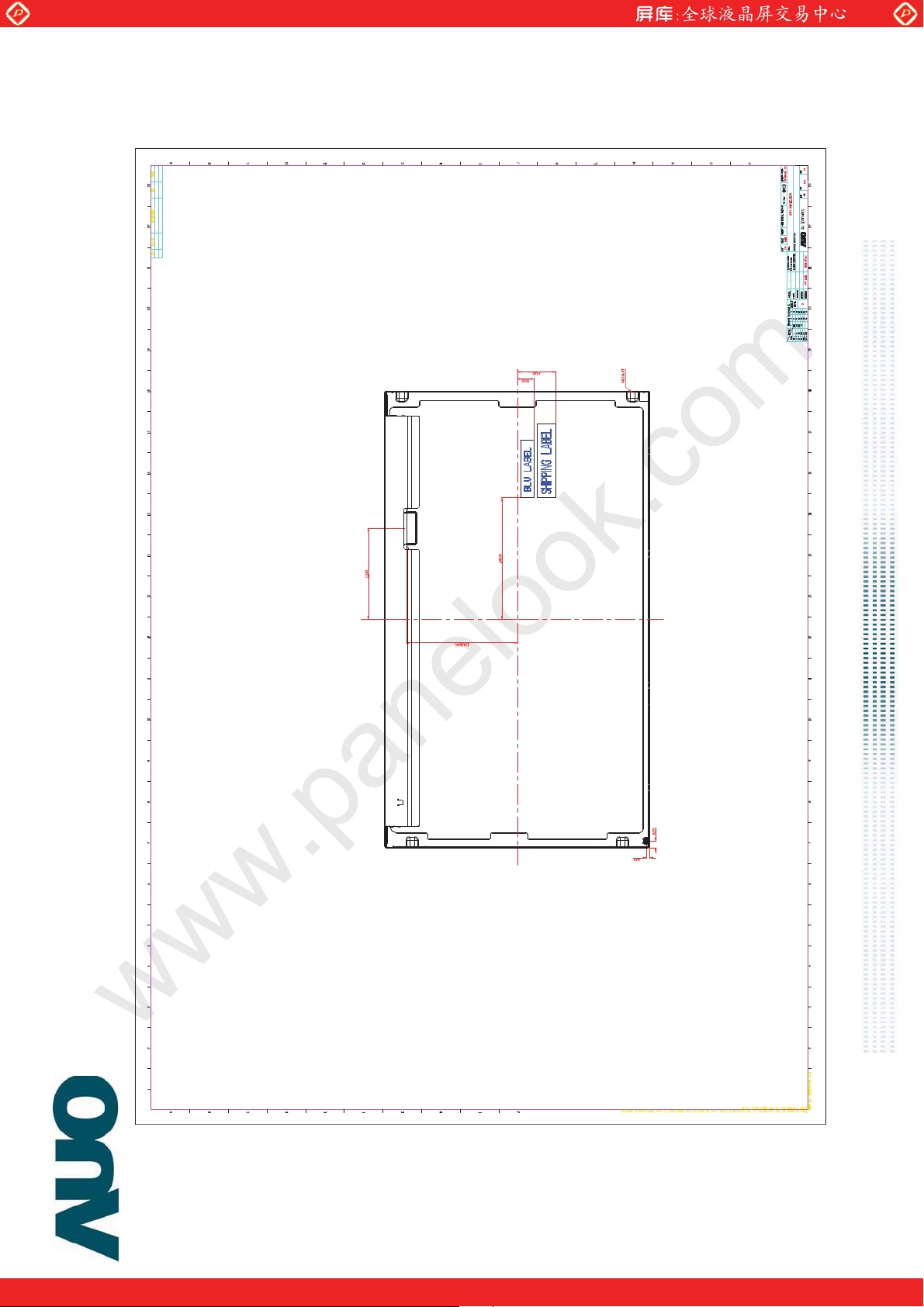

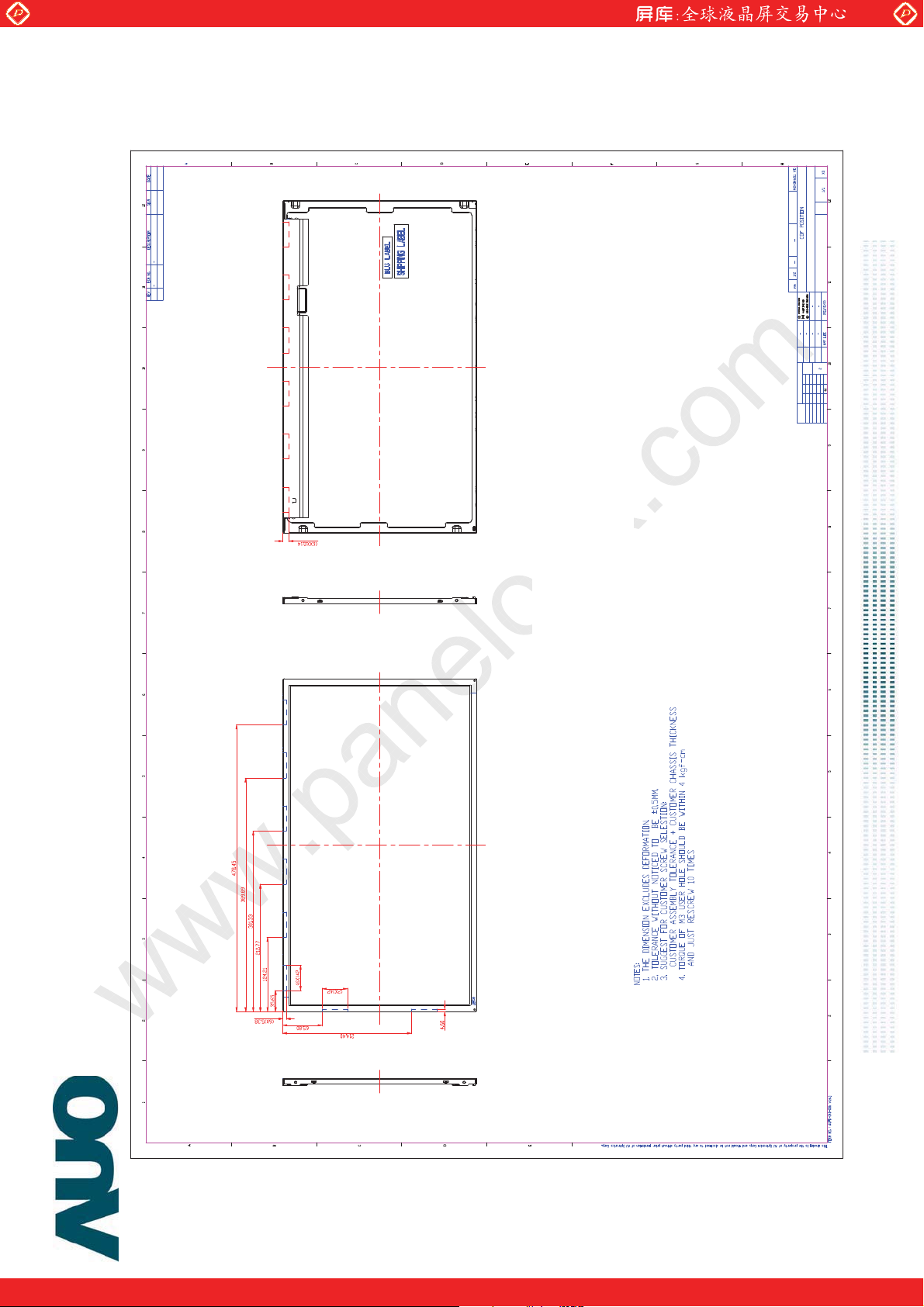

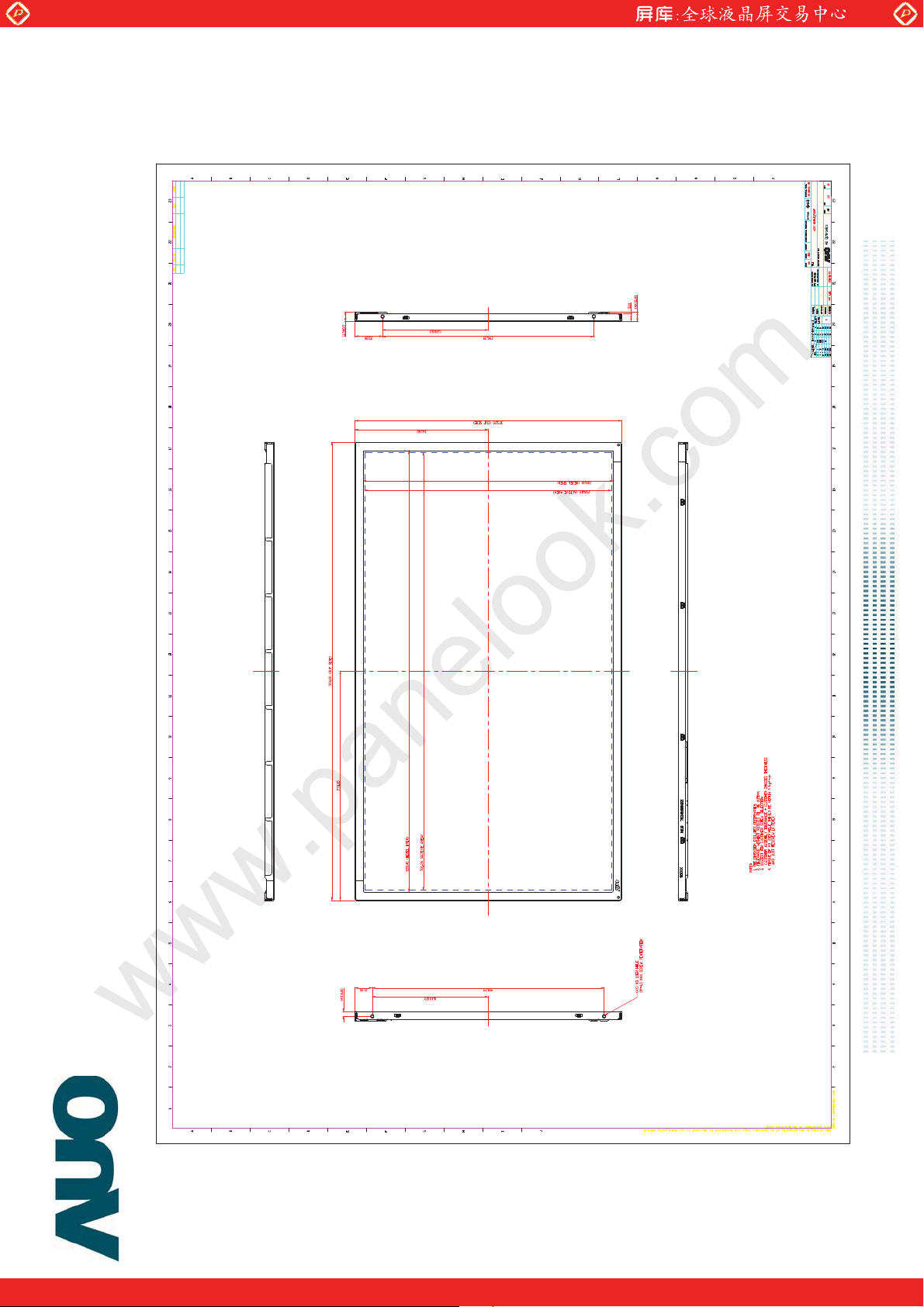

10.0 Mechanical Characteristics
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 28
Global LCD Panel Exchange Center
M240HW01 VE
www.panelook.com
AU OPTRONICS CORPORATION
Product Specification
document version 0.1 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 29
Global LCD Panel Exchange Center
M240HW01 VE
www.panelook.com
AU OPTRONICS CORPORATION
Product Specification
Avoid touching COF position
when doing mechanical design
document version 0.1 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 30
Global LCD Panel Exchange Center
p
www.panelook.com

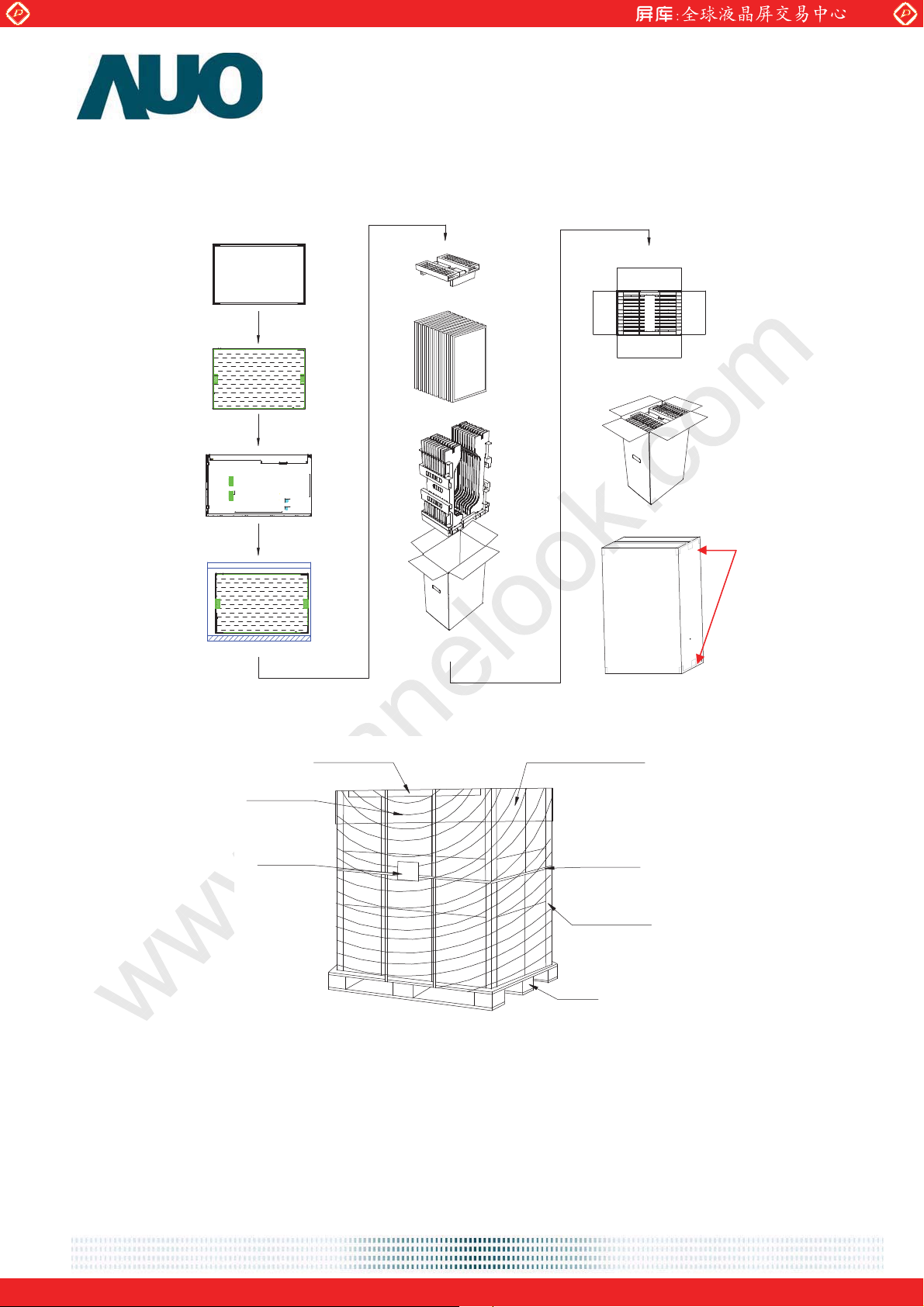

11. Packing Specification
1. Package Follow
Module
Paste protect film
Paste lamp wire
Product Specification
AU OPTRONICS CORPORATION
Top cover
10 pcs/carton
Cushion
M240HW01 VE
Put top cover
1pcs Module/ESD
Stretch film
Label
Corner angle
Carton
Moi sture-proof film
PET band
Corner angle
Pall et
” H ” Ta
e
document version 0.1 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 31
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HW01 VE
2. Pallet and shipment information
˦˸˶˼˹˼˶˴˼
˦˸˶˼˹˼˶˴˼
˄ ˣ˴˸˿ ˄ ˈˈˉʻ˛ʼʳʳˆ˅ˆʻ˩ʼʳʳ˄ˉˁˆʻ˗ʼ ˅ˁˈˉ
˅ ˖˻˼ ˄ ˀ ˄ˁˊ
ˆ ˕ ˄ ˇ˃ˉʻ˟ʼʳʳ˅ˋ˄ʻ˪ʼʳʳˉˈ˄ʻ˛ʼʳ ˄ˁ˅ ˼˻ʳˣ˴˸˿ʳʹʳ˶˻˼
ˇ ˣ˴˶˾˼˺ʳ˕ ˄˃ʳ˶˂˕ ˇ˃ˉʻ˟ʼʳʳ˅ˋ˄ʻ˪ʼʳʳˉˈ˄ʻ˛ʼʳ ˅ˋˁˈ ˼˻ʳ˴˸˿ʳʹʳ˶˻˼
ˈ ˣ˴˿˿˸ ˄ ˄˄ˇ˃ʻ˟ʼʳʳˋˆ˃ʻ˪ʼʳʳ˄ˆˋʻ˛ʼ ˄˅
ˉ ˣ˴˿˿˸ʳ˴˹˸ʳˣ˴˶˾˼˺ ˄ˉʳ˵˸˂˴˿˿˸ ˄˄ˇ˃ʻ˟ʼʳʳˋˆ˃ʻ˪ʼʳʳ˄ˇ˅ˁ˅ʻ˛ʼ ˇˉˋ
˜˸
˜˸
˜˸˜˸
ˤʺ
ˤʺ ˗˼˸˼
ˤʺˤʺ
˦˸˶˼˹˼˶˴˼˦˸˶˼˹˼˶˴˼
˗˼˸˼ ˪˸˼˺˻ʻ˾˺ʼ
˗˼˸˼˗˼˸˼
˪˸˼˺˻ʻ˾˺ʼ
˪˸˼˺˻ʻ˾˺ʼ˪˸˼˺˻ʻ˾˺ʼ
˥˸˴˾
˥˸˴˾
˥˸˴˾˥˸˴˾
document version 0.1 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
