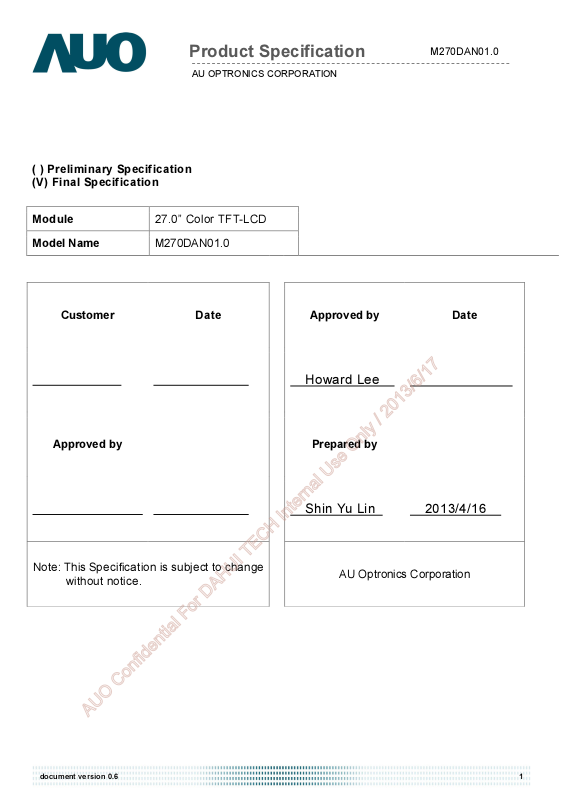

AUO M270DAN01.0 Specification

Product Specification

( ) Preliminary Specification
(V) Final Specification

AU OPTRONICS CORPORATION

M270DAN01.0

Module

Model Name

27.0” Color TFT-LCD

M270DAN01.0

Customer Date

Approved by

Approved by Date

Howard Lee

Prepared by

Note: This Specification is subject to change

without notice.

Shin Yu Lin 2013/4/16

AU Optronics Corporation

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

document version 0.6 1

Product Specification

AU OPTRONICS CORPORATION

M270DAN01.0

Content

1 HANDLING PRECAUTIONS.......................................................................................................... 5

2 GENERAL DESCRIPTION............................................................................................................. 6

2.1 Display Characteristics ............................................................................................................................. 6

2.2 Optical Characteristics.............................................................................................................................. 7

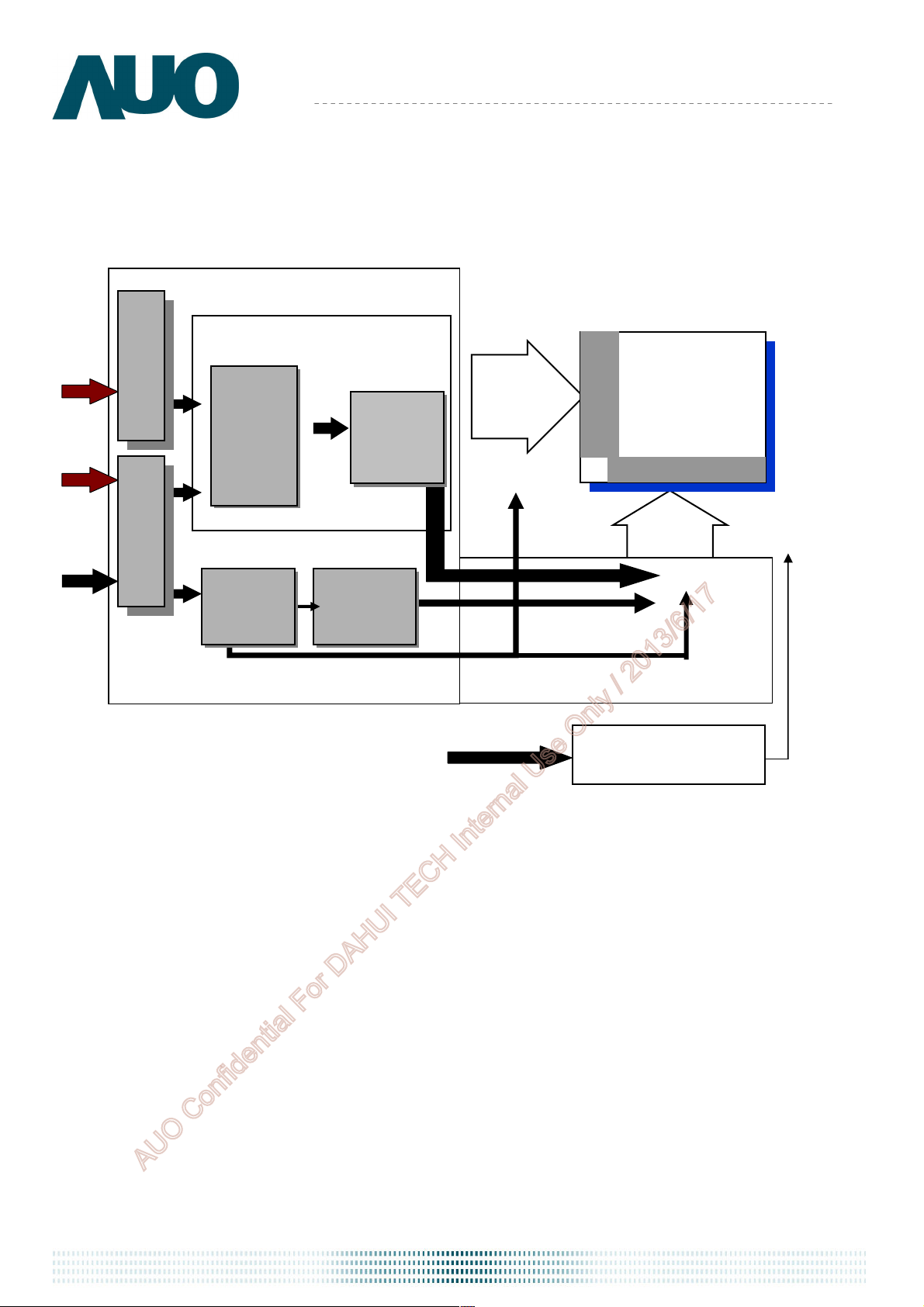

3 FUNCTIONAL BLOCK DIAGRAM ..............................................................................................12

4 ABSOLUTE MAXIMUM RATINGS ..............................................................................................13

4.1 TFT LCD Module .................................................................................................................................... 13

4.2 Backlight Unit.......................................................................................................................................... 13

4.3 Absolute Ratings of Environment........................................................................................................... 13

5 ELECTRICAL CHARACTERISTICS ...........................................................................................15

5.1 TFT LCD Module .................................................................................................................................... 15

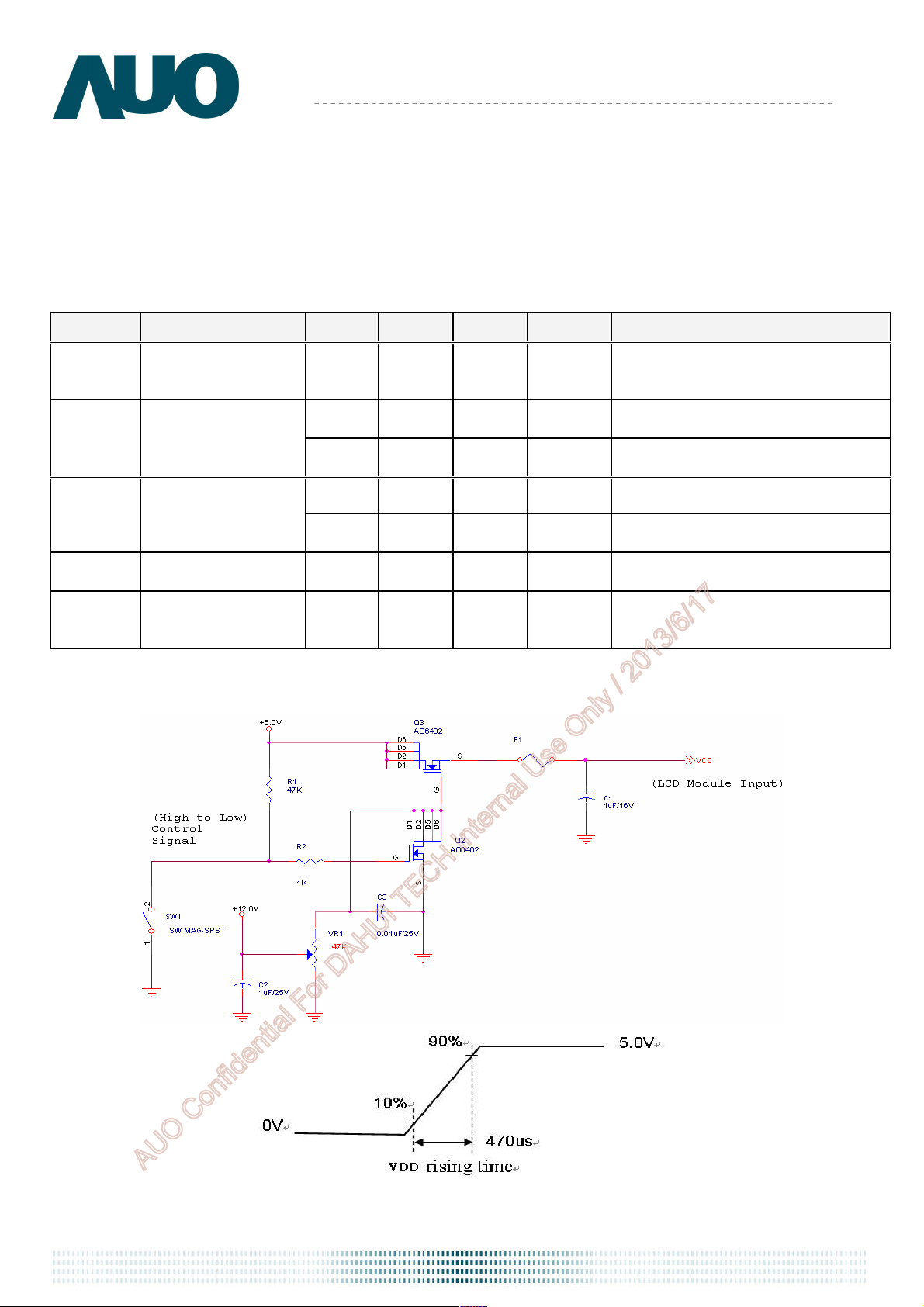

5.1.1 Power Specification ........................................................................................................................................ 15

5.1.2 Signal Electrical Characteristics ..................................................................................................................... 16

5.2 Backlight Unit.......................................................................................................................................... 18

6 SIGNAL CHARACTERISTICS.....................................................................................................19

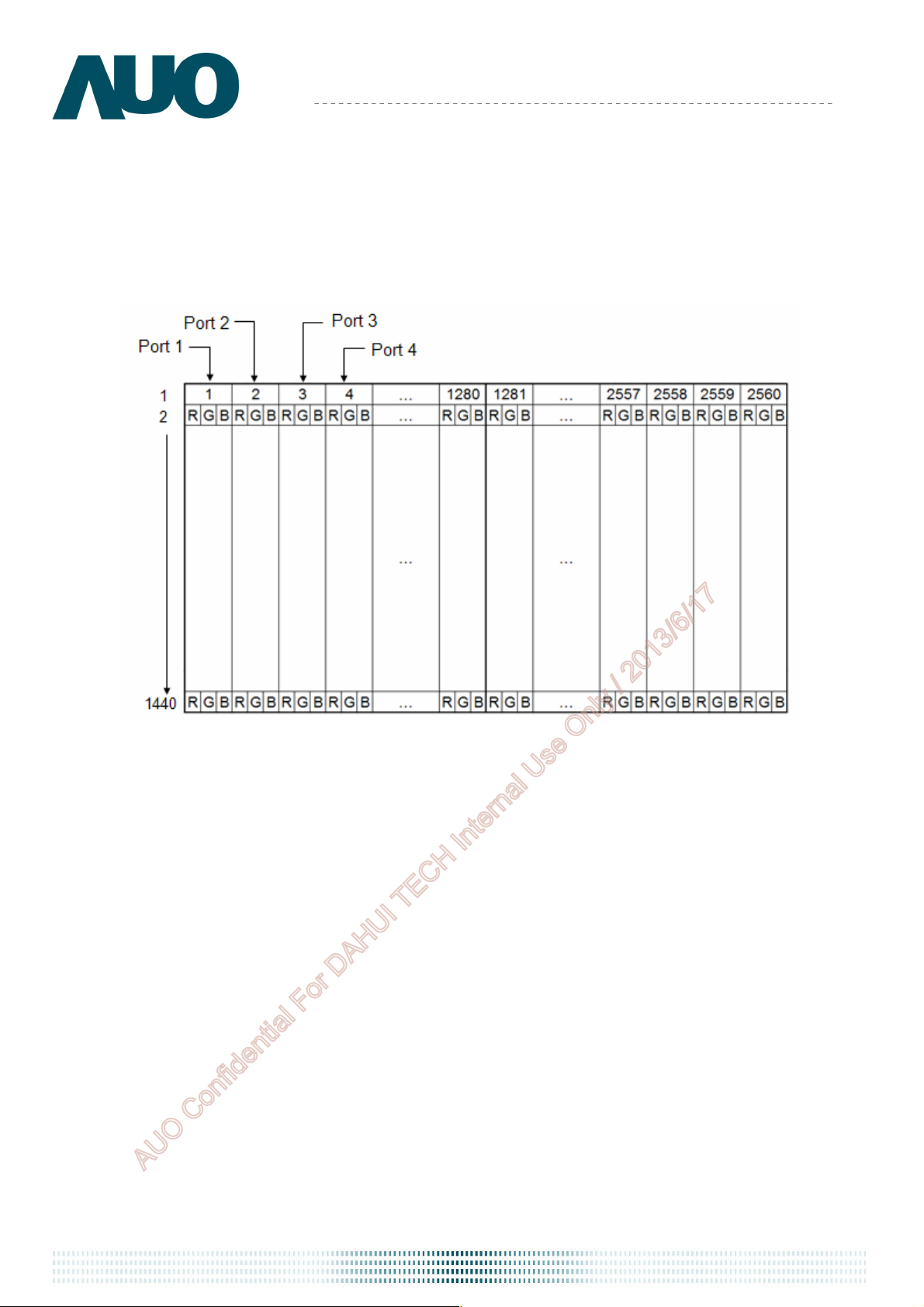

6.1 Pixel Format Definition ........................................................................................................................... 19

6.2 Input Data Format Definition .................................................................................................................. 20

6.3 Signal Description................................................................................................................................... 21

6.4 Timing Characteristics ............................................................................................................................ 24

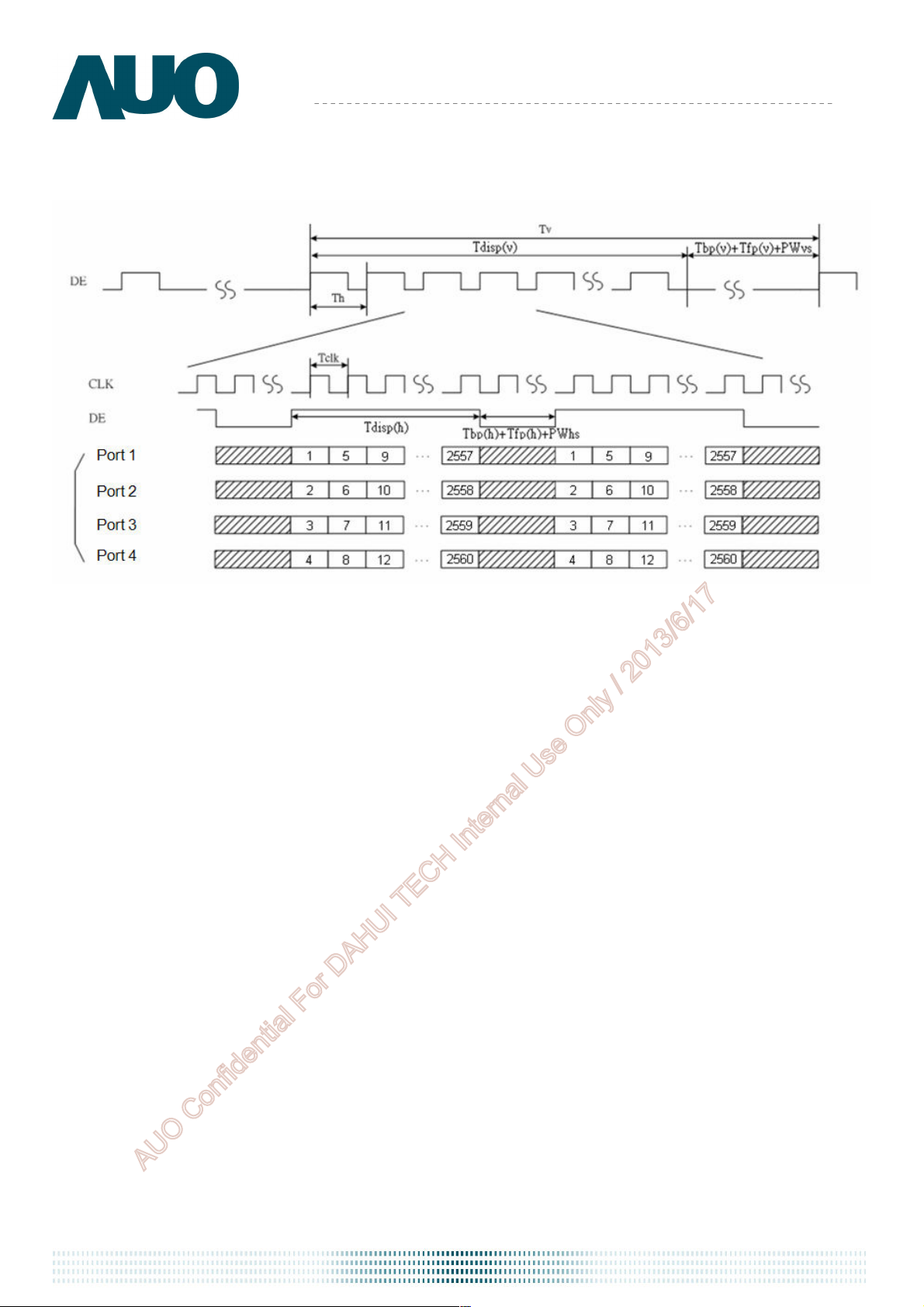

6.5 Timing Diagram ...................................................................................................................................... 25

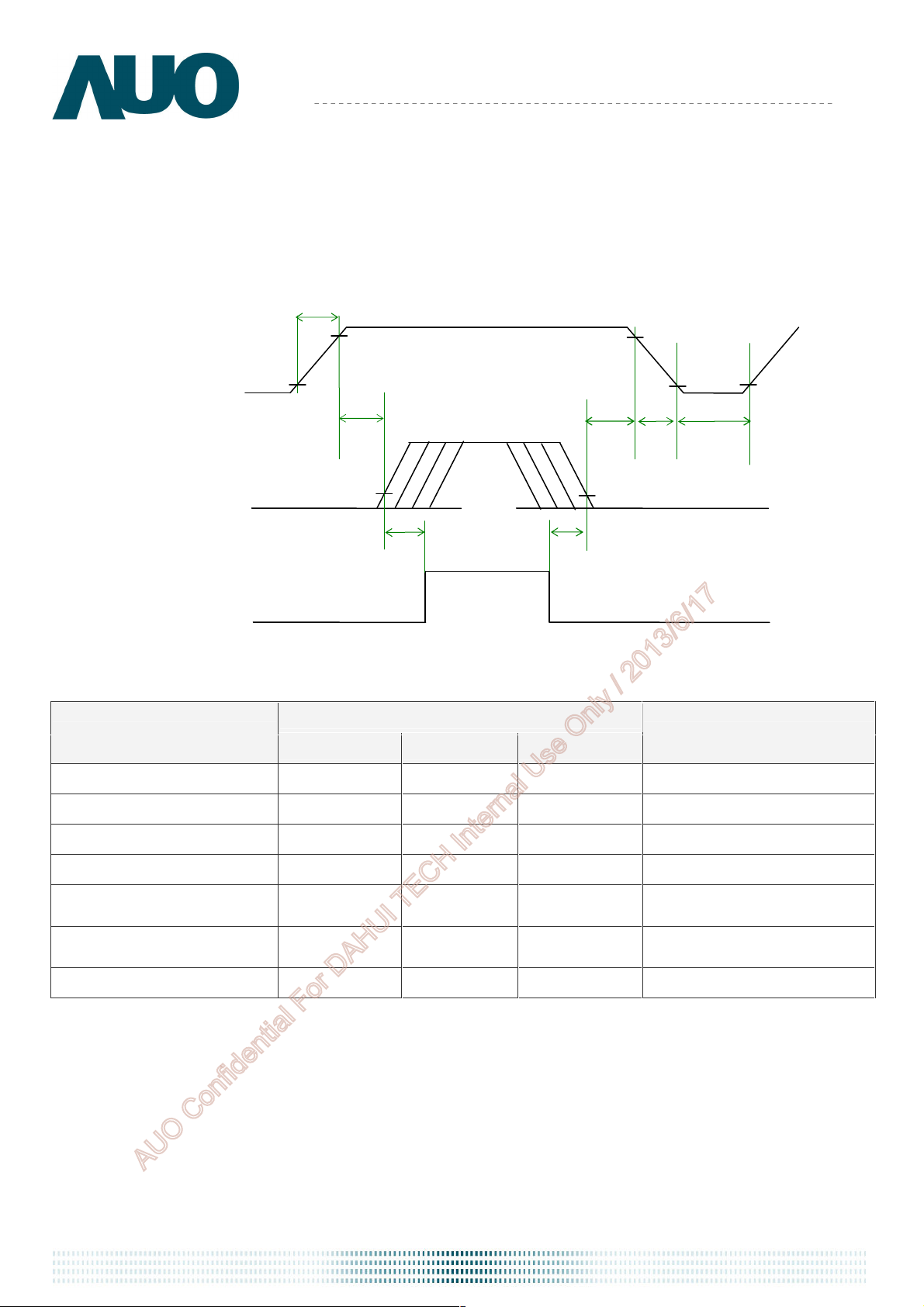

6.6 Power ON/OFF Sequence ..................................................................................................................... 26

7 CONNECTOR AND PIN ASSIGNMENT .....................................................................................27

7.1 TFT LCD Module .................................................................................................................................... 27

7.1.1 Pin Assignment............................................................................................................................................... 27

7.2 LED Connector on Backlight Unit........................................................................................................... 29

7.2.1 LED Pin assignment ....................................................................................................................................... 29

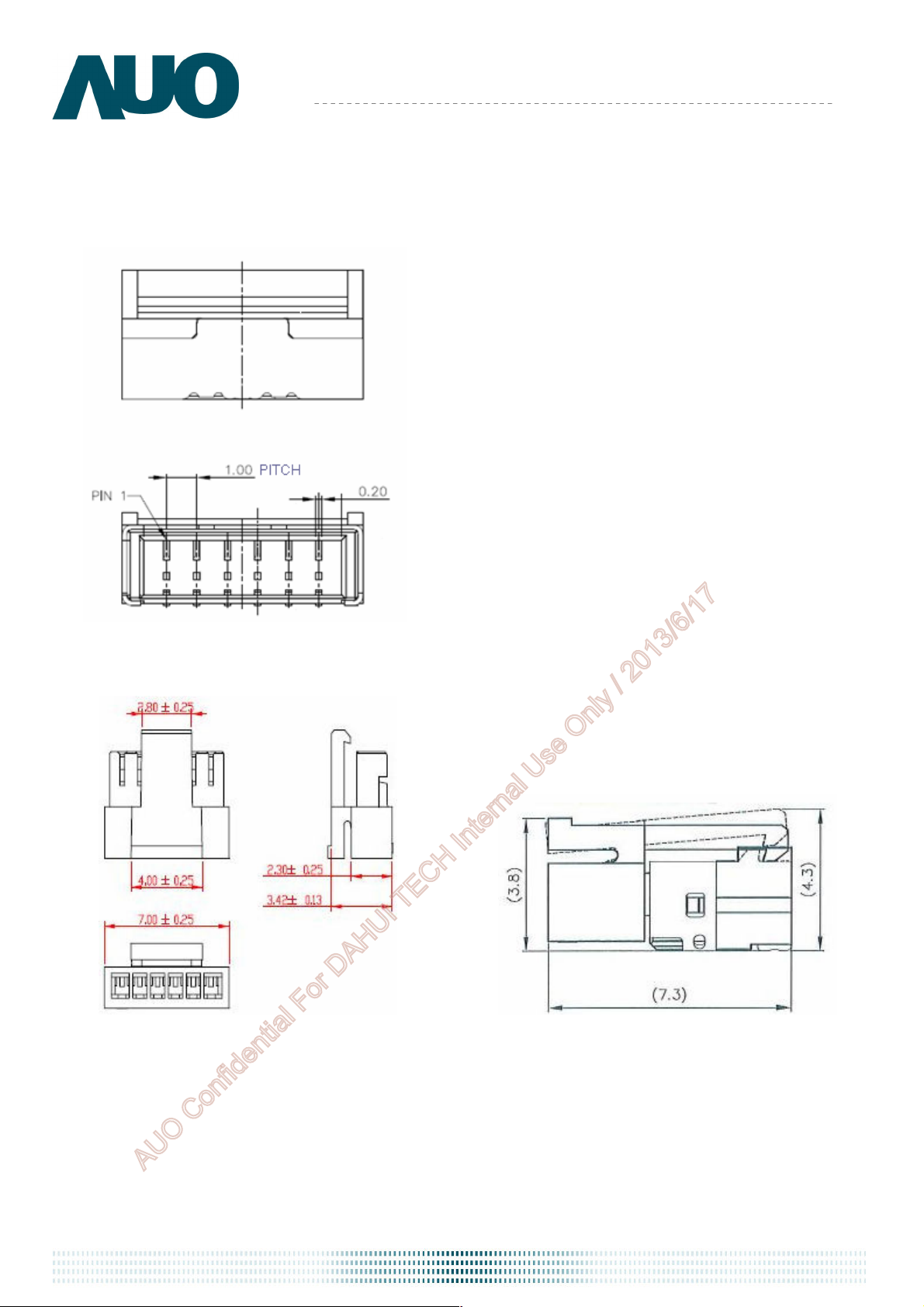

7.2.2 LED Connector Dimension ............................................................................................................................. 30

7.2.3 LED Mating housing dimension...................................................................................................................... 30

8 RELIABILITY TEST...................................................................................................................... 31

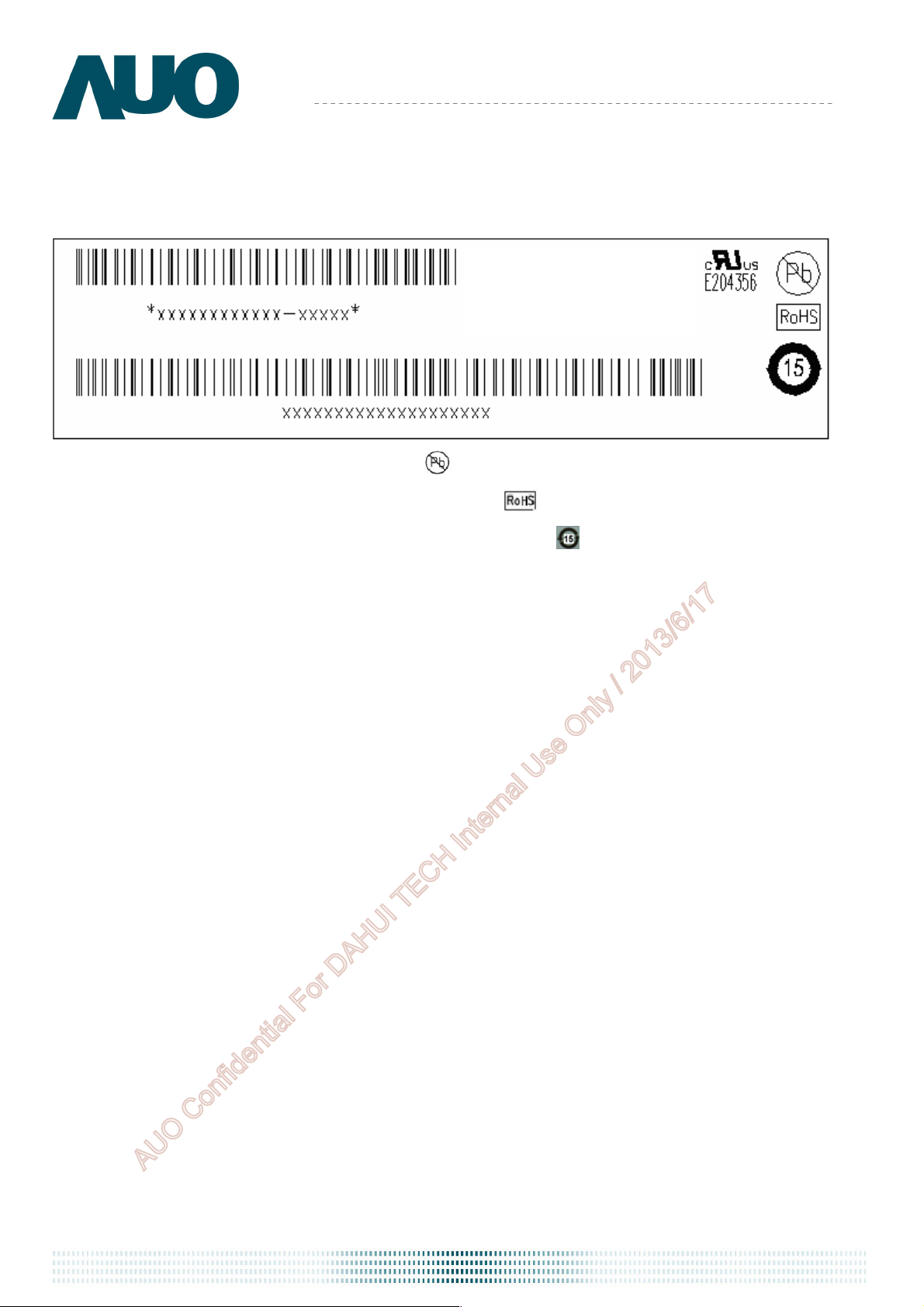

9 SHIPPING LABEL ........................................................................................................................32

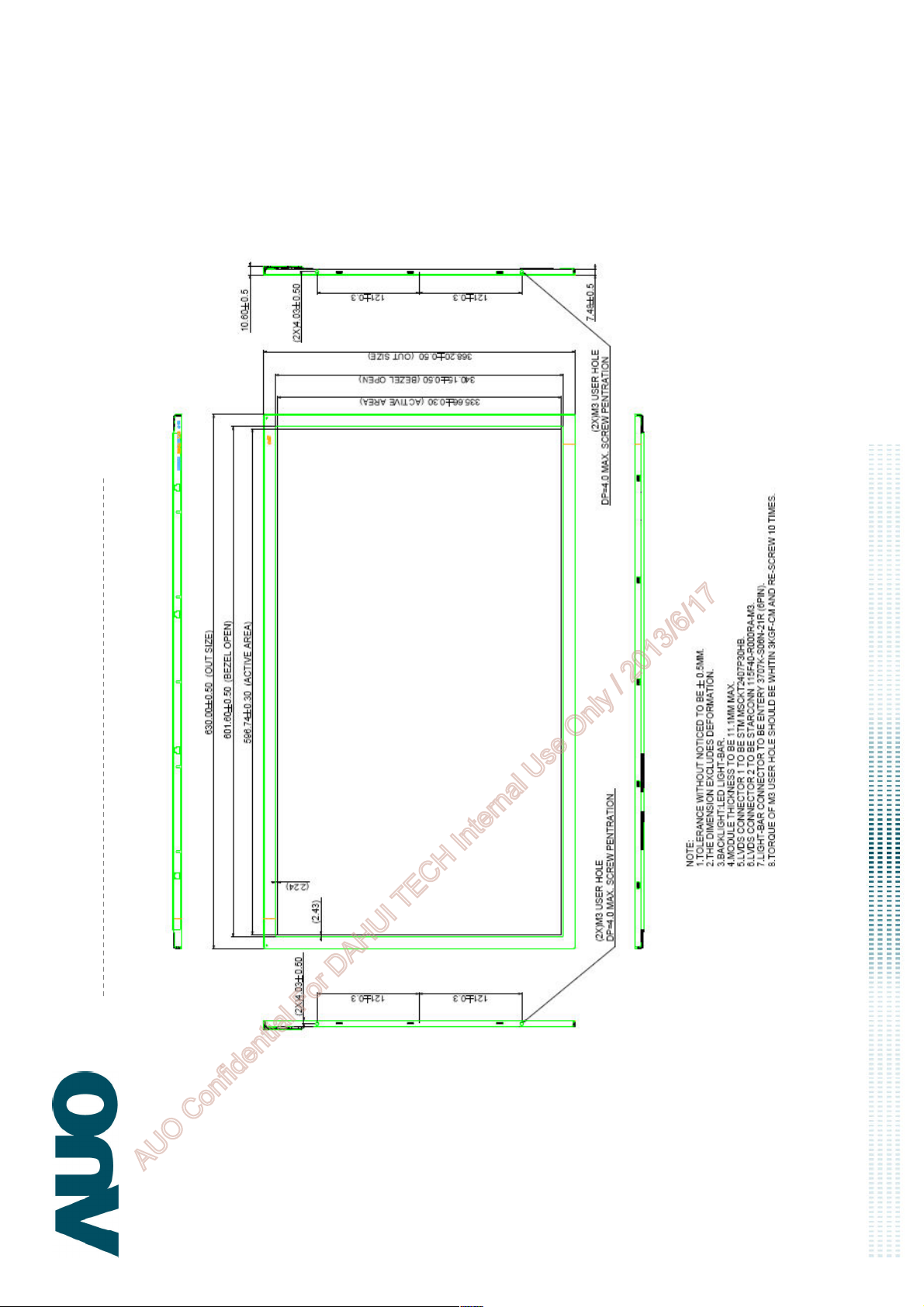

10 MECHANICAL CHARACTERISTICS..........................................................................................33

11 PACKING SPECIFICATION ........................................................................................................35

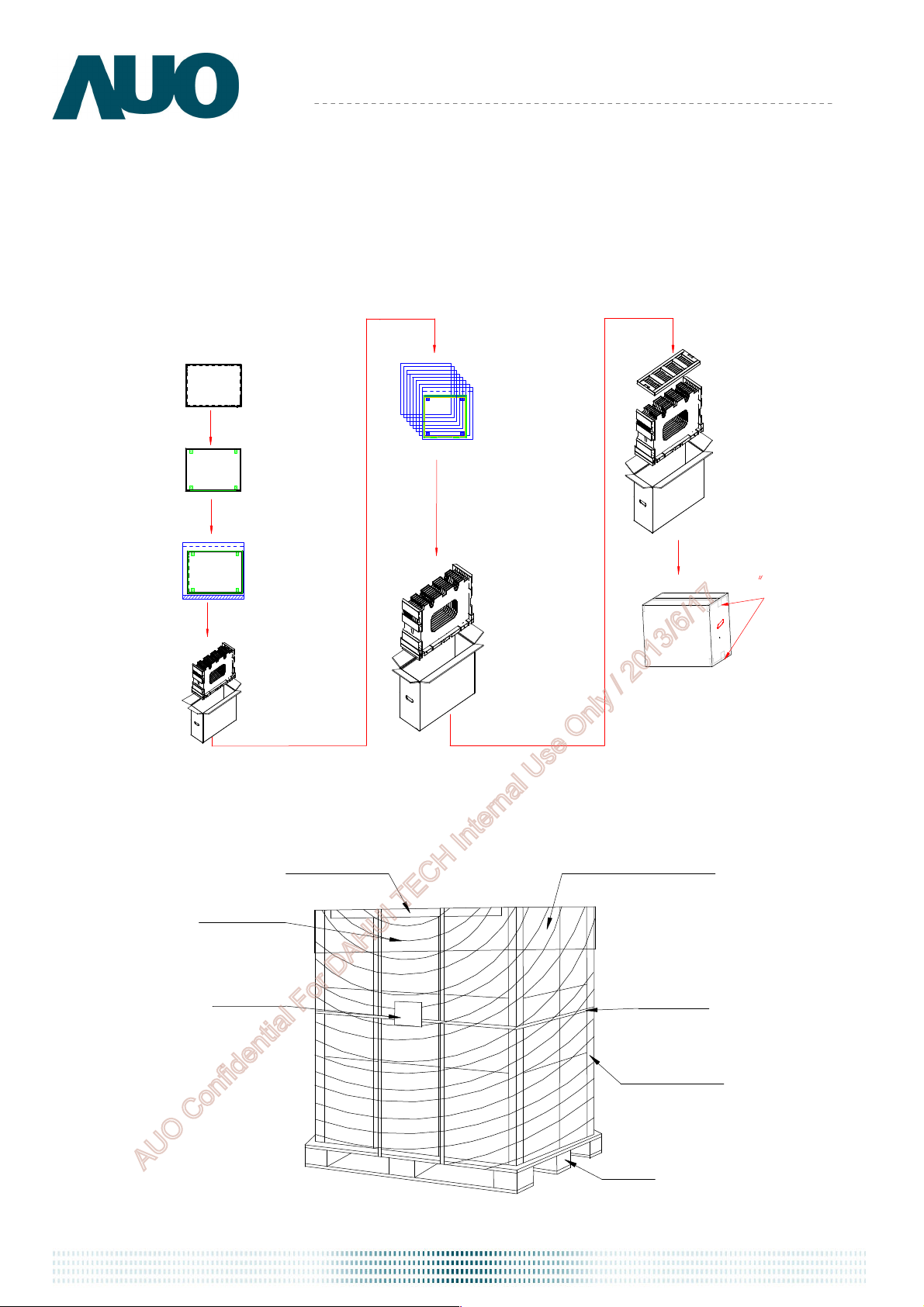

11.1 Packing Flow .......................................................................................................................................... 35

11.2 Pallet and Shipment Information............................................................................................................ 36

document version 0.6 2

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

Product Specification

Voltage variation maximum is

onnector 2 is

AU OPTRONICS CORPORATION

M270DAN01.0

Records of Revision

Version and Date Page

0.1 2012/09/20

0.2 2012/09/20

All

6~7

12/ 28

13

15 -

Old description New Description

First Version

1. The minimum of white luminance is
240nit

2. The typical of white luminance is
300nit

3. The module consumption is 31.26W

4. The Color / Chromaticity is TBD

5. The weight of module is TBD

- Add second source of LVDS CNT1

LED forward

3.6V

N/A

1. The minumn of white luminance is
280 nit

2. The typical of white luminance is
350nit

3. The module consumptiion is 34.9W

4. The Color / Chromaticity is defined
by Min/Tpy/Max

5. The weight of module is 2319g

LED forward Voltage variation maximum
is 3.4V

Update power specifications

Remar

k

0.3 2013/01/6

The back light unit of electrical

characteristics is modified by Min/ Typ /

Max/ LED pcs.

18

23/ 34 Old label position Label position alteration

33 -

The weight of packing and shipment is

37

TBD

1. The maker of module connector 2 is
JAE.

27

2. The part no. of module c
FI-NXB40SLA-HF10

22/38 Original pin assignment of module

connector (CNT2)

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

23/34 Original module back cover picture New module back cover picture

Update mechanical drawing- add hook in
gate IC side

To define weight of packing and
shipment

1. The maker of module connector 2 is

STARCONN.

2. The part no. of module connector 2

is 115F40-R000RA-M3

New pin assignment of module
connector (CNT2)

26 The T6 of power ON/OFF sequence is

document version 0.6 3

100 ms

The T6 of power ON/OFF sequence is
150 ms

Product Specification

naming of input signal are

AU OPTRONICS CORPORATION

M270DAN01.0

23/34 Original module back cover picture New module back cover picture

0.4 2013/02/04

0.5 2013/3/20

0.6 2013/4/16 34 Original size and appearance of BS-ITO

28/33 Orignal module connector 1 information New module connector 1 information

19~23

23/34 NA Add shipping label mark line.

1. The original relationship between

/

25

LVDS 4 ports input signal is dual
screen.

2. The original naming of input signal
are RFO_XX/ RBO_XX/ RFE_XX/
RBE_XX

3. The original naming of signal pair
are RFO/ RFE/ RBO/ RBE

tape

1. The new relationship between
LVDS 4 ports input signal is single
screen

2. The new
RX_XX/ RX_XX

3. The new naming of signal pair are
port 1/ port 2/ port 3/ port 4

New size and appearance of BS-ITO
tape

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

document version 0.6 4

Product Specification

AU OPTRONICS CORPORATION

M270DAN01.0

1 Handling Precautions

1) Since front polarizer is easily damaged, pay attention not to scratch it.

2) Be sure to turn off power supply when inserting or disconnecting from input connector.

3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.

4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.

5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.

6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth
when handling.

7) Do not open or modify the Module Assembly.

8) Do not press the reflector sheet at the back of the module to any directions.

9) In case if a Module has to be put back into the packing container slot after once it was taken out
from the container, do not press the center of LED light bar edge. Instead, press at the far ends
of the LED light bar edge softly. Otherwise the TFT Module may be damaged.

10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.

11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module
even momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module
may be damaged.

12) Small amount of materials having no flammability grade is used in the LCD module. The LCD
module should be supplied by power complied with requirements of Limited Power Source
(IEC60950 or UL1950), or be applied exemption.

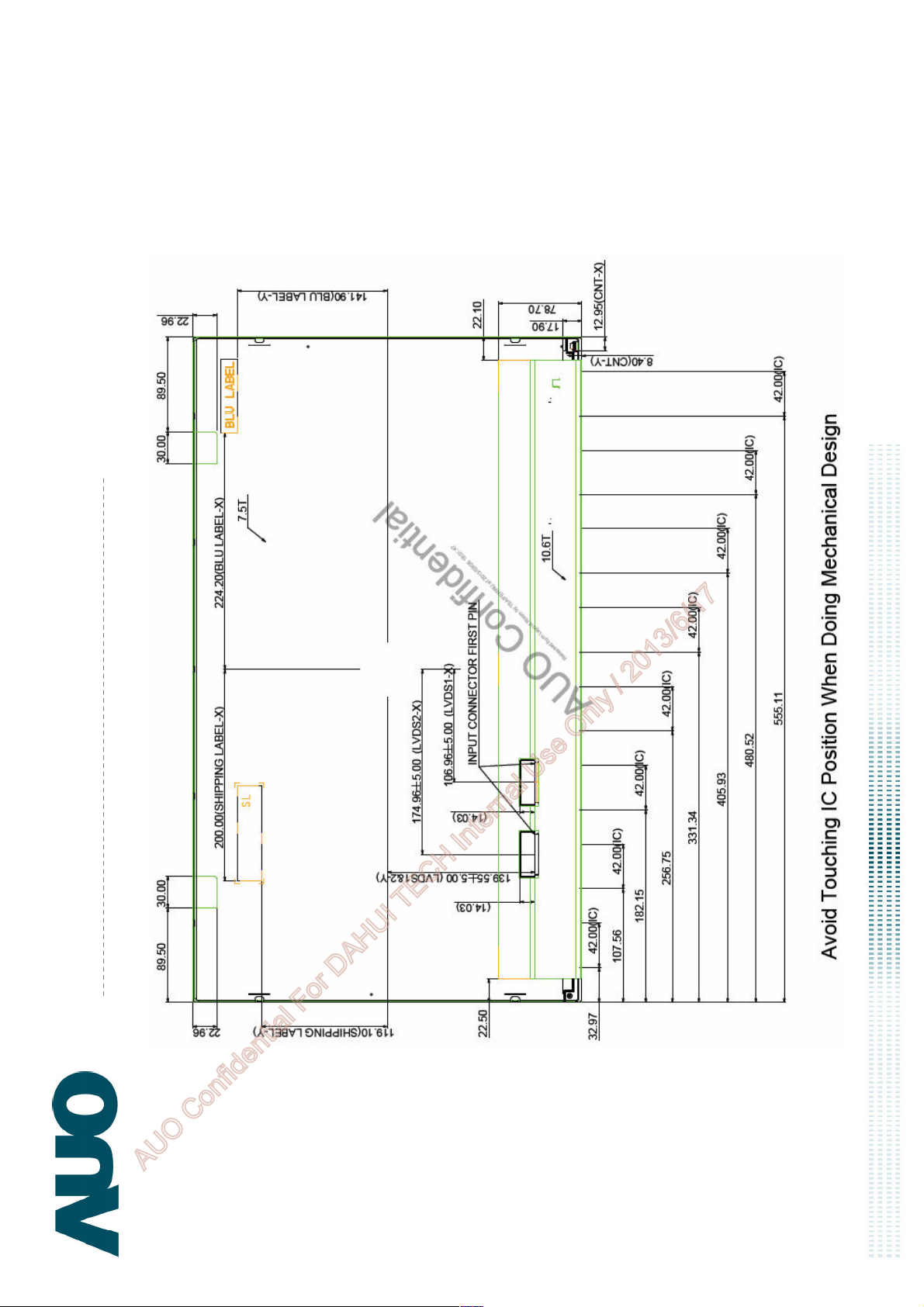

13) Avoid touching COF position while doing mechanical design.

14) Avoid stressing front bezel position when doing mechanical design

15) While storing modules as spares for a long time, the following precautions are necessary:

 Store modules in a dark place. Do not expose them to sunlight or fluorescent light.
 Keep the temperature between 5°C and 35°C at normal humidity.

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

document version 0.6 5

Product Specification

AU OPTRONICS CORPORATION

M270DAN01.0

2 General Description

This specification applies to the 27 inch-QHD color a-Si TFT-LCD Module M270DAN01.0. The
display supports the QHD - 2560(H) x 1440(V) screen format and 1.07B colors (RGB 8-bit +FRC
data). The light source of this TFT-LCD module is W-LED. All input signals are 4-channel LVDS
interface and this module doesn’t contain a driver for backlight.

2.1 Display Characteristics

The following items are characteristics summary on the table under 25°C condition:

Items Unit Specification

Screen Diagonal [mm] 684.7 (27.0”)

Active Area [mm] 596.7 (H) x 335.6 (V)

Pixels H x V 2560(x3) x 1440

Pixel Pitch [um] 233.1 (per one triad) ×233.1

Pixel Arrangement R.G.B. Vertical Stripe

Display Mode Normally Black

White Luminance ( Center ) [cd/m2] 350 cd/m2 (Typ.)

Contrast Ratio 1000 (Typ.)

Optical Response Time [msec] 12ms (Typ., G/G)

Nominal Input Voltage VDD [Volt] + 5.0 V

Power Consumption

(VDD line + LED line)

Weight [g] 2319

Physical Size [mm] 630.0 (W) x 368.2 (H) x 10.6(D) (Typ.)

Electrical Interface 4 channel LVDS

Support Color 1.07B colors (RGB 8-bit + FRC data)

Surface Treatment Anti-Glare, 3H

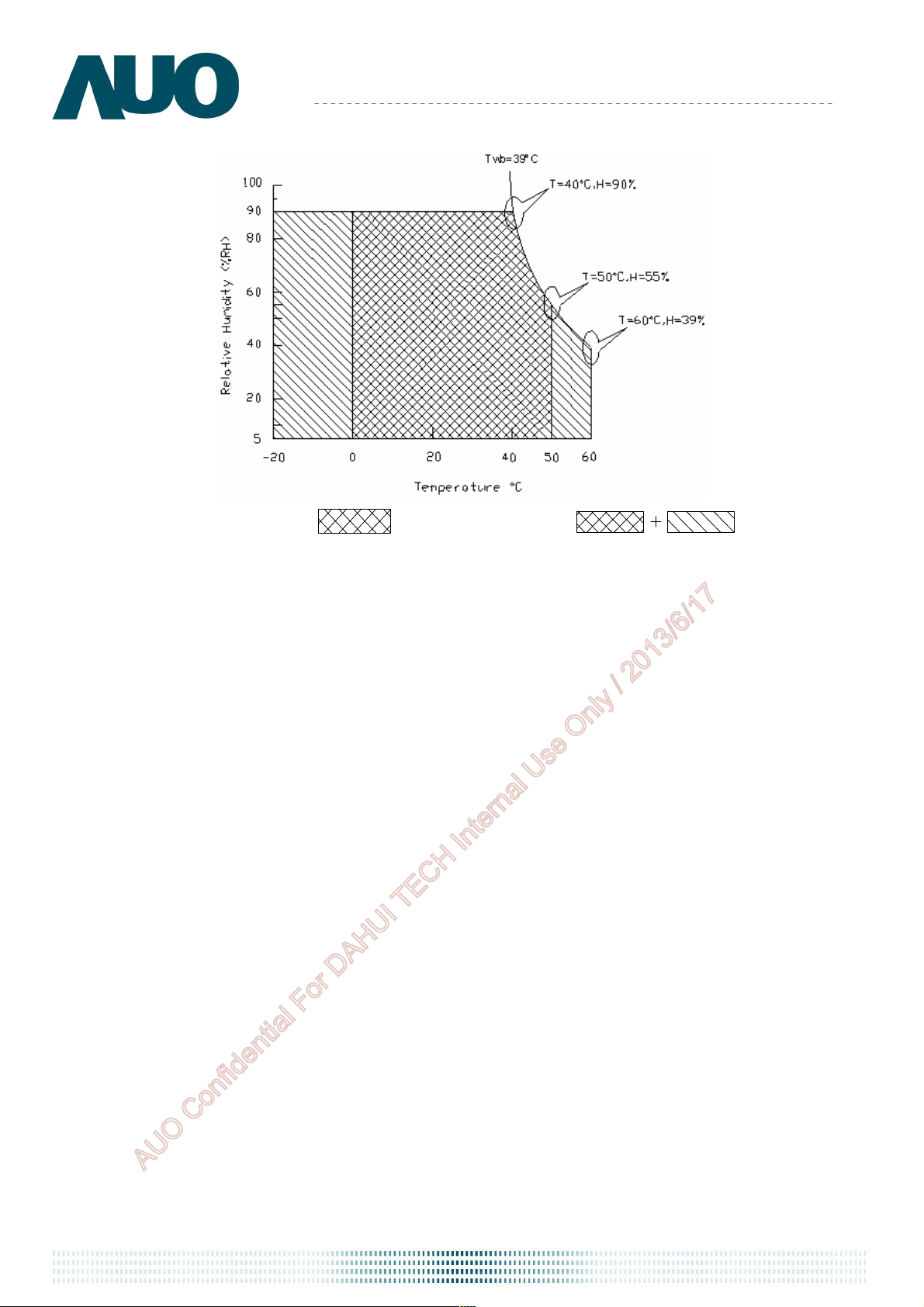

Temperature Range

Operating

Storage (Shipping)

[Watt]

[°C]

[°C]

34.9 W (typ)
VDD line : PDD (typ), All white pattern at 60Hz = 8.0W
LED line : PBLU (typ) = 26.9 W

0 to +50

-20 to +60

RoHS Compliance RoHS Compliance

TCO Compliance TCO 6.0 Compliance

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

document version 0.6 6

2.2 Optical Characteristics

Product Specification

AU OPTRONICS CORPORATION

M270DAN01.0

The optical characteristics are measured under stable conditions at 25°C:

Item Unit Conditions Min. Typ. Max. Note

Horizontal (Right)

Viewing Angle [degree]

Contrast Ratio Normal Direction

Response Time [msec] Gray to Gray - 12 - 4

Color / Chromaticity

Coordinates (CIE)

CR = 10 (Left)

Vertical (Up)

CR = 10 (Down)

Red x 0.630 0.660 0.690

Red y 0.302 0.332 0.362

Green x 0.270 0.300 0.330

Green y 0.599 0.629 0.659

Blue x 0.117 0.147 0.177

Blue y 0.022 0.052 0.082

75

75

75

75

600

89

89

89

89

1000 - 3

-

-

-

-

2

5

Color Coordinates (CIE) White

Central Luminance [cd/m2] 280 350 - 6

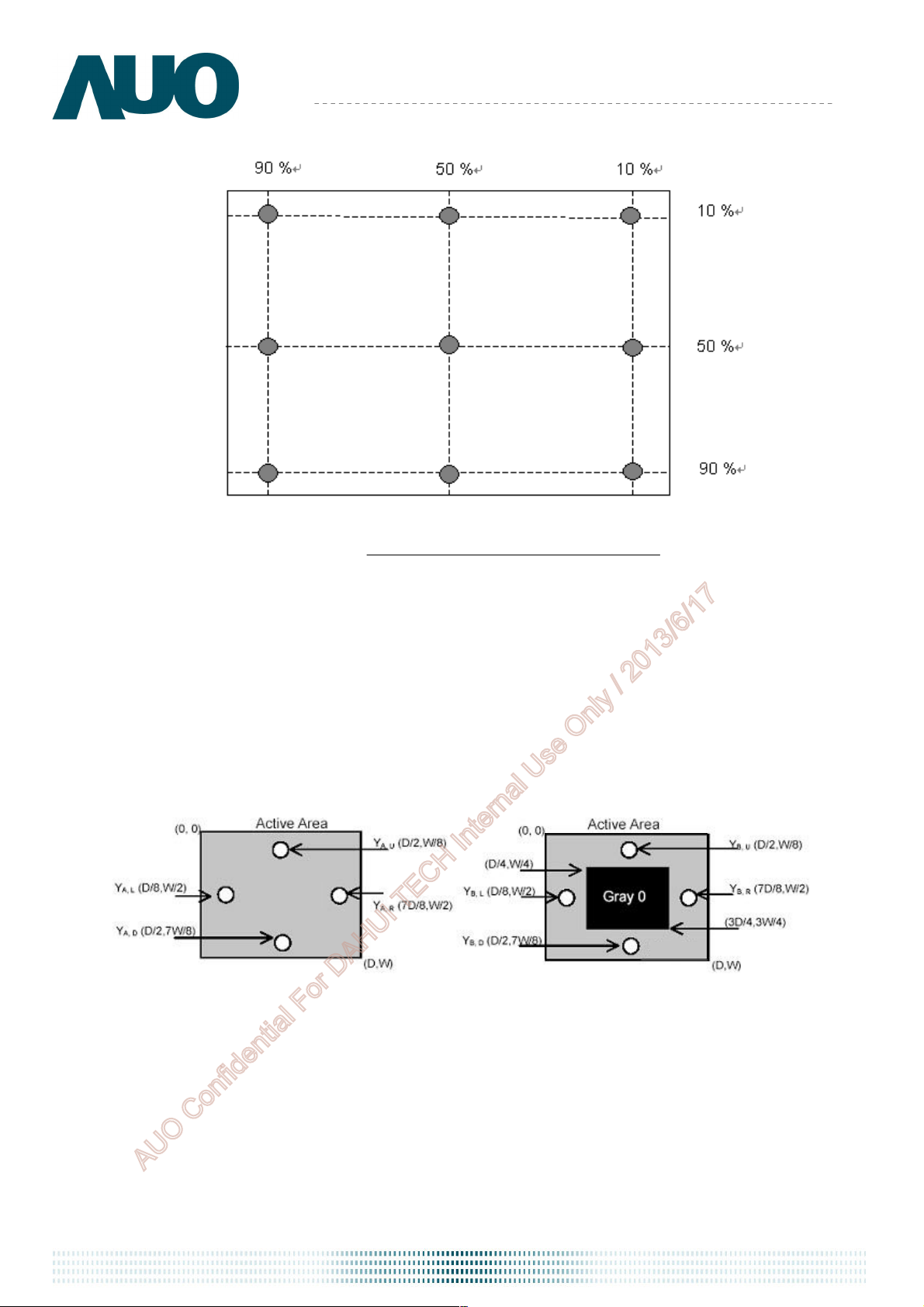

Luminance Uniformity [%] 75 80 - 7

Crosstalk (in 60Hz) [%] 1.5 8

Flicker dB -20 9

White x 0.283 0.313 0.343

White y 0.299 0.329 0.359

document version 0.6 7

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

Product Specification

Center of the screen

TFT-LCD Module

AU OPTRONICS CORPORATION

M270DAN01.0

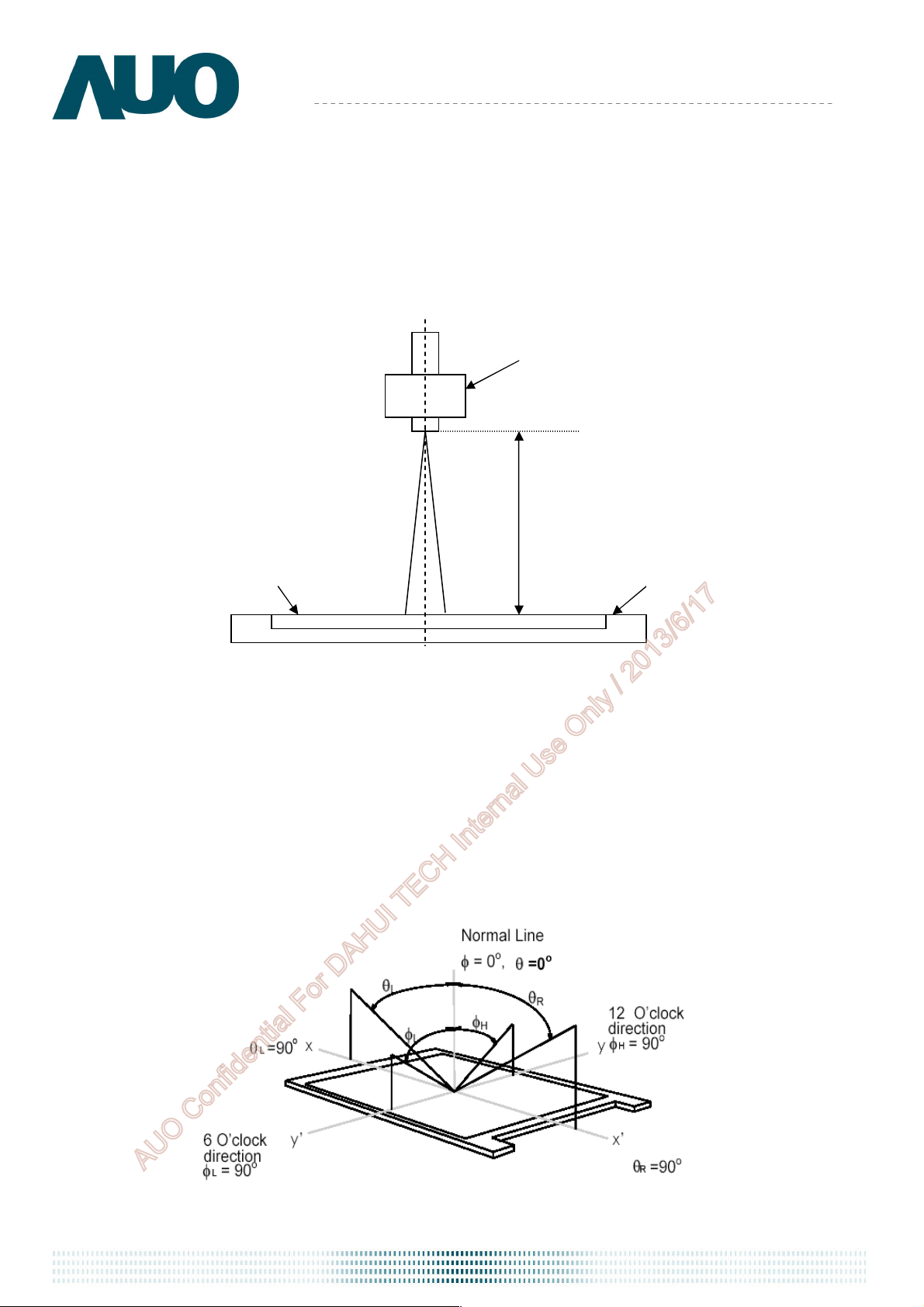

Note 1: Measurement Method

The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt
temperature change during measuring (at surface 35°C). In order to stabilize the luminance, the
measurement should be executed after lighting Backlight for 30 minutes in a stable, windless and
dark room.

LCD Panel

Photo Detector

Measured Distance

Note 2: Definition of Viewing Angle measured by ELDIM (EZContrast 88)

Viewing angle is the measurement of contrast ratio ≧10, at the screen center, over a 180°

horizontal and 180° vertical range (off-normal viewing angles). The 180° viewing angle range is
broken down as follows; 90° (θ) horizontal left and right and 90° (Φ) vertical, high (up) and low
(down). The measurement direction is typically perpendicular to the display surface with the screen
rotated about its center to develop the desired measurement viewing angle.

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

document version 0.6 8

Product Specification

100

90

10

0

response

T

100

10

0

response

1 Frame

1 Frame

T

AU OPTRONICS CORPORATION

M270DAN01.0

Note 3: Contrast Ratio measured by TOPCON SR-3

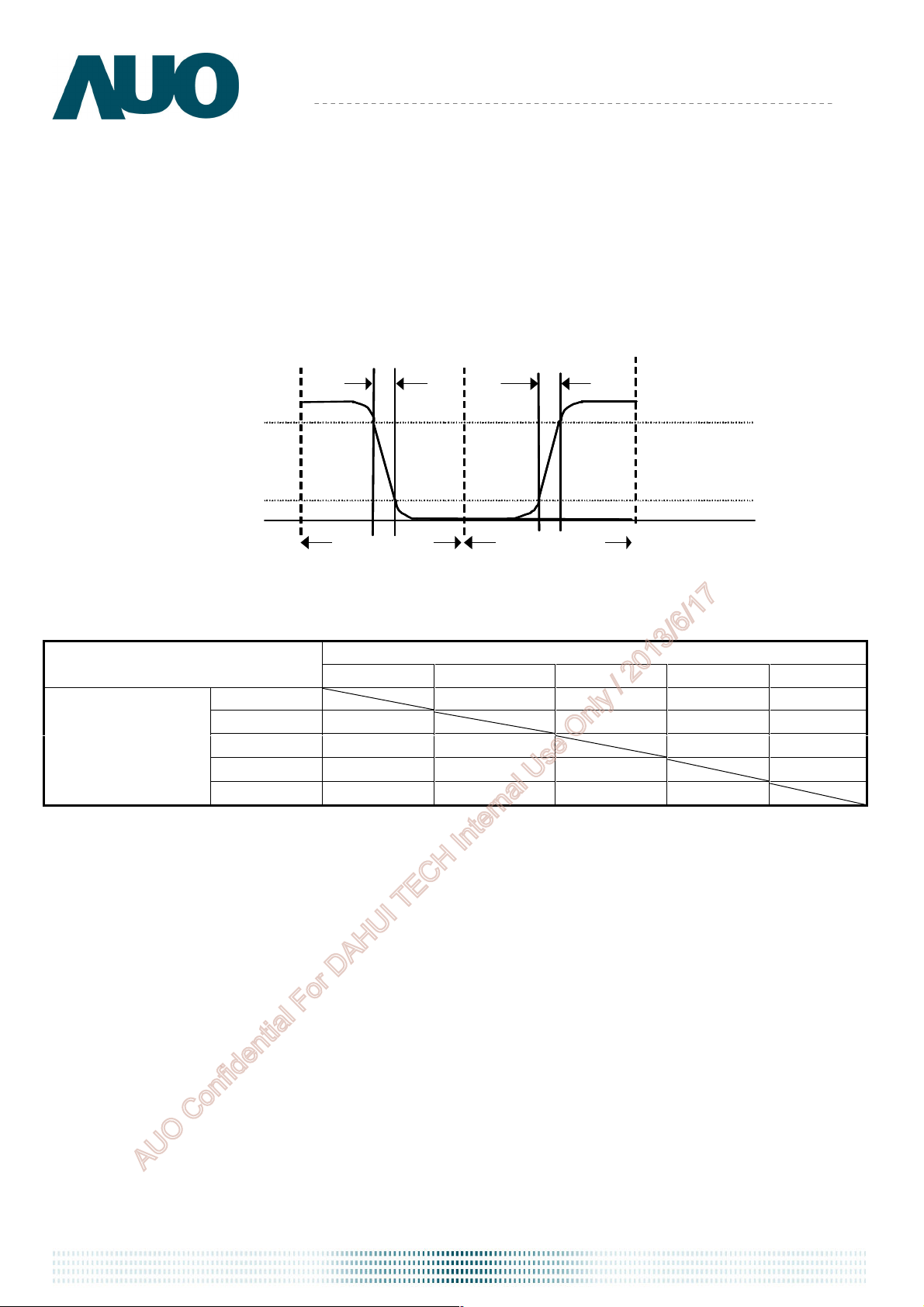

Note 4: Definition of Response time measured by Westar TRD-100A

The output signals of photo detector are measured when the input signals are changed from “Full
Black” to “Full White” (rising time, T

), and from “Full White” to “Full Black” (falling time, TrF),

rR

respectively. The response time is interval between the 10% and 90% (1 frame at 60 Hz) of
amplitudes.

%

Optical

Optical

%

White

rF

Black

Black

rR

White

The gray to gray response time is defined as the following table. The algorithm is┃Gray Level A –
Gray Level B┃≧256.

Gray Level to Gray Level

Falling Time

G0 G255 G511 G767 G1023

G0

G255

Rising Time

G511
G767

G1023

 T
 T

GTG_typ

GTG_max

is the total average time at rising time and falling time of gray to gray.

is the maximum time at rising time or falling time of gray to gray.

Note 5: Color Chromaticity and Coordinates (CIE) measured by TOPCON SR-3

Note 6: Central Luminance measured by TOPCON SR-3

Note 7: Luminance Uniformity of these 9 points defined as below and measured by TOPCON

SR-3

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

document version 0.6 9

Product Specification

Gray 511

Gray 511

AU OPTRONICS CORPORATION

M270DAN01.0

Uniformity =

Note 8: Crosstalk defined as below and measured by TOPCON SR-3

CT = | YB – YA | / YA × 100 (%)

Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)

9)-(1 points 9in Luminance Minimum

9)-(1 Points 9in Luminance Maximum

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

document version 0.6 10

Product Specification

Level

DC

Time

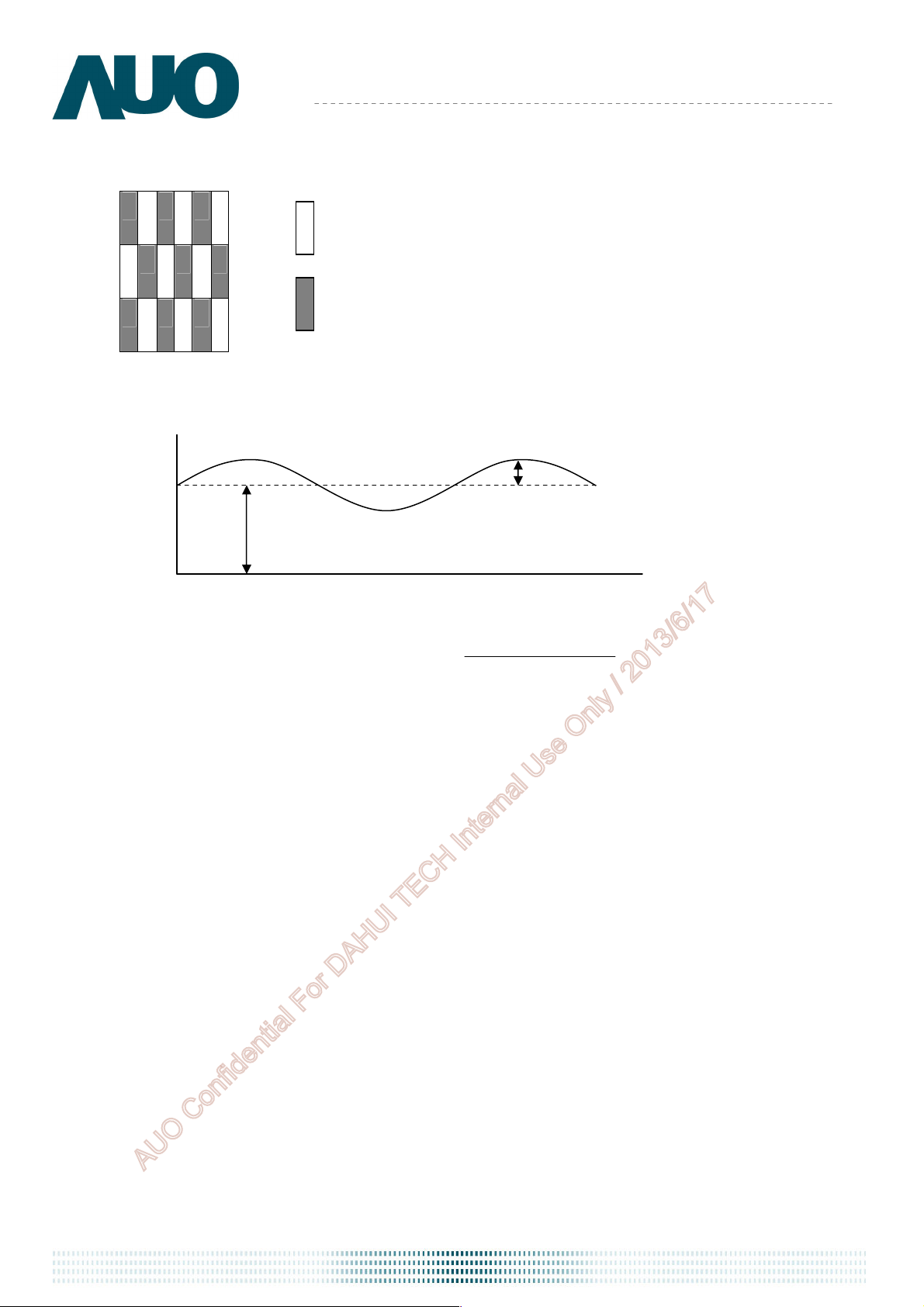

Note 9: Test Pattern Sub-checker Pattern measured by TOPCON SR-3

R G B R G B

R G B R G B

AU OPTRONICS CORPORATION

Gray Level = 511

M270DAN01.0

R G B R G B

Gray Level = 0

Method: Record dBV & DC value with TRD-100

Amplitude

DC

AC

log20(dB)Flicker =

Hz) 30Level(at AC

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

document version 0.6 11

Product Specification

VLED (4CH)

AUO

Y

-

Driver IC

(30 pin)

(40 pin)

LVDS

LVDS

Timing

AU OPTRONICS CORPORATION

M270DAN01.0

3 Functional Block Diagram

The following diagram shows the functional block of the 27.0 inch Color TFT-LCD Module:

2port

2port

VDD

CNT1

CNT2

Converter

ASIC

LVDS

Receiver

DC/DC

I/F + X-PCB

Controller

miniLVDS

Transmitter

Gamma

Correction

G1

G1440

D1

LED Driver on system

TFT-LCD

2560(x3) x 1440

Pixels

D7680

LED

Backlight

document version 0.6 12

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

Product Specification

4 Absolute Maximum Ratings

Absolute maximum ratings of the module are listed as follows:

4.1 TFT LCD Module

AU OPTRONICS CORPORATION

M270DAN01.0

Item Symbol

Logic/LCD Drive

4.2 Backlight Unit

Item Symbol Min Max Unit Conditions

LED Forward Current

LED Pulse Forward Current

LED forward Voltage variation

(per string variation)

Min Max Unit Conditions

VDD -0.3 6.0 [Volt] Note 1, 2

IRLED1

IRLED2

IRLED3

IRLED4

IPLED1

IPLED2

IPLED3

IPLED4

ΔVf

0 150

- 300

- 3.4

[mA]

[mA]

[Volt]

Note 1,2,5

100% duty

Note 1,2,5

10% duty @100Hz

Note 1,2

4.3 Absolute Ratings of Environment

Item Symbol Min. Max. Unit Conditions

Operating Temperature TOP 0 +50 [°C] Note 3
Glass Surface Temperature

(Operation)

TGS 0 +65 [°C]

Note3
Note4

Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [°C]

Note 3

Storage Humidity HST 5 90 [%RH]

Note 1: With in Ta (25 °C)
Note 2: Permanent damage to the device may occur if exceeding maximum values
Note 3: Temperature and relative humidity range are shown as the below figure.

1. 90% RH Max ( Ta ≦39°C)

2. Max wet-bulb temperature at 39°C or less. ( Ta ≦39°C)

3. No condensation

Note 4: Function Judged only

Note 5: IRLED1,2,3,4 and IPLED1,2,3,4 define as per strings LED current.

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

document version 0.6 13

Product Specification

AU OPTRONICS CORPORATION

M270DAN01.0

Operating Range

Storage Range

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

document version 0.6 14

Product Specification

AU OPTRONICS CORPORATION

M270DAN01.0

5 Electrical Characteristics

5.1 TFT LCD Module

5.1.1 Power Specification

Input power specifications are listed as follows:

Symbol Description Min Typ. Max Unit Conditions

VDD

IDD1 Input Current

PDD1 VDD Power

IRush Inrush Current - - 2.0 [A] Note 1

VDDrp

Note 1: Measurement Conditions:

The duration of rising time of power input is 470 us.

Logic/LCD Drive

4.5 5.0 5.5 [Volt] +/-10%

Voltage

- 1.6 2.0 [A] VDD= 5.0V, All White Pattern at 60 Hz

- 2.0 2.5 [A] VDD= 5.0V, All White Pattern at 75 Hz

- 8.0 10.0 [Watt] VDD= 5.0V, All White Pattern at 60 Hz

- 10.0 12.5 [Watt] VDD= 5.0V, All White Pattern at 75 Hz

Allowable Logic/LCD

- - 500 [mV] p-p VDD= 5.0V, All White Pattern at 75 Hz

Drive Ripple Voltage

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

document version 0.6 15

Product Specification

= 1.2V

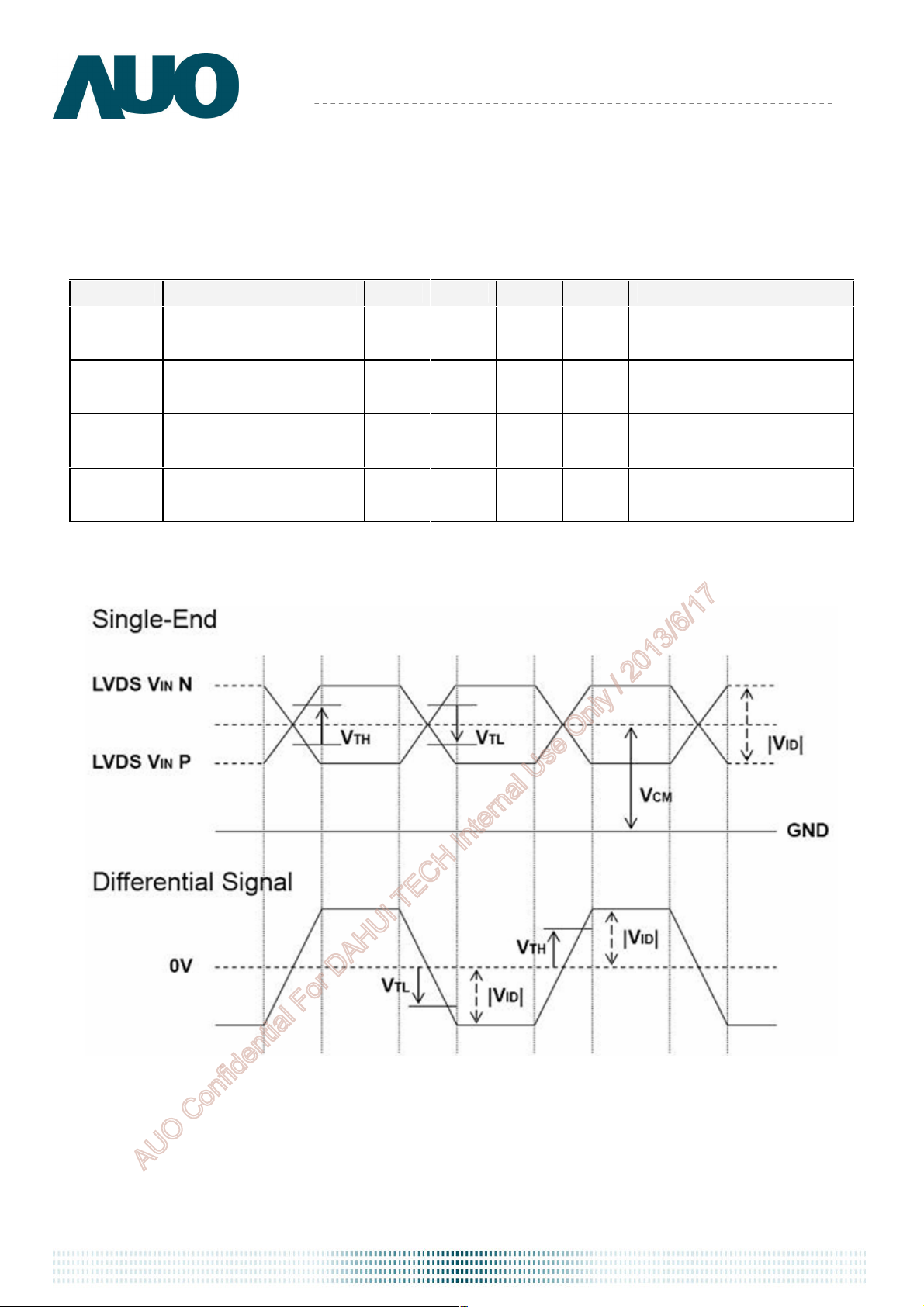

5.1.2 Signal Electrical Characteristics

(1) DC Characteristics of each signal are as following:

AU OPTRONICS CORPORATION

M270DAN01.0

Symbol Description Min Typ Max Units

VTH

VTL

│VID│

VCM

Differential Input High

Threshold

Differential Input Low

Threshold

Input Differential

Voltage

Differential Input

Common Mode Voltage

- - +100

-100 - -

100 - 600

+1.0 +1.2 +1.5

Note 1: LVDS Signal Waveform

Conditions

V

[mV]

[mV]

CM

Note 1

VCM = 1.2V

Note 1

[mV] Note 1

[V]

VTH-V

= 200MV (max)

TL

Note 1

document version 0.6 16

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

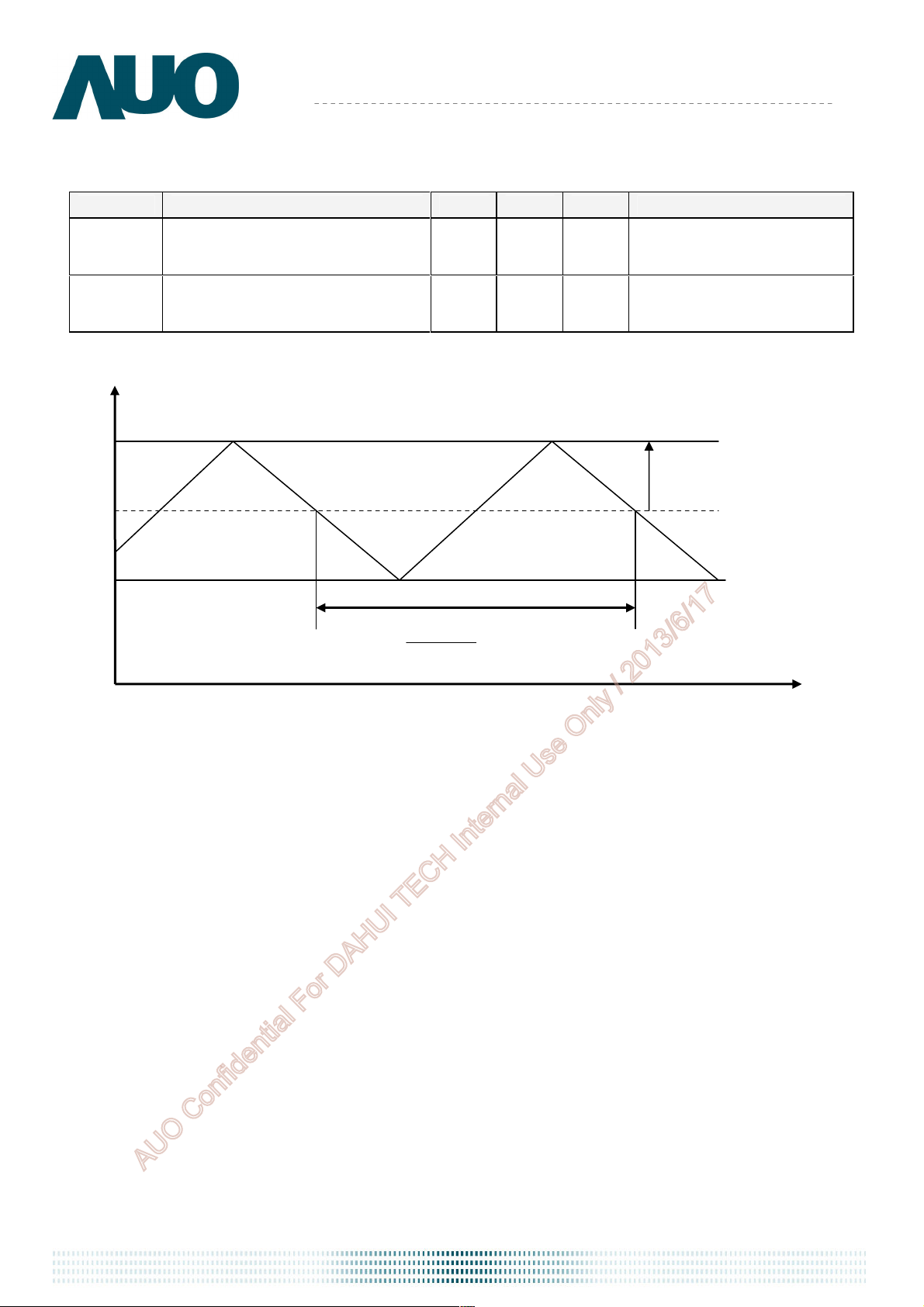

(2) AC Characteristics

< Spread Spectrum>

T

ime

Product Specification

AU OPTRONICS CORPORATION

M270DAN01.0

Symbol Description Min Max Units

F

F

DEV

MOD

Maximum deviation of input clock
frequency during SSC
Maximum modulation frequency
of input clock during SSC

- ± 3 %

- 200 KHz

Freq

F

max

F

min

1

Conditions

F

center

* F

DEV

F

MOD

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

document version 0.6 17

Product Specification

AU OPTRONICS CORPORATION

M270DAN01.0

5.2 Backlight Unit

Parameter guideline for LED driving is under stable conditions at 25 °C (Room Temperature):

Symbol Description Min.

IRLED LED Operation Current - 120.0 130.0

Light Bar Operation Voltage

VLB

(for reference)

PBLU BLU Power Consumption (for reference)

LTLED LED Life Time (Typical) 30,000



Typ. Max. Unit Note

[mA] Note 1

50.0 56.1 61.2 [Volt] Note 2

- 26.9 31.8 [Watt] Note 3

- -

[Hour]

Note 4

Each module consists of 68 pcs LED ( 4 strings x 17 pcs / string )

Note 1: The specified current is 100% duty of LED chip input current, IRLED1,2,3,4 define as per
strings LED current.

Note 2: The value showed is one string operation voltage.

Note 3: PBLU = VLB *( IRLED1+IRLED2+IRLED3+IRLED4)

Note 4: Definition of life time: Brightness becomes to 50% of its original value. The minimum life

time of LED unit is on the condition of IRLED = 120mA and 25±2°C (Room Temperature).

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

document version 0.6 18

Product Specification

AU OPTRONICS CORPORATION

M270DAN01.0

6 Signal Characteristics

6.1 Pixel Format Definition

Following figure shows the relationship between the input signals and LCD pixel format.

Note 1: The module use 4port-LVDS interface.

Port 1：1, 5…………………..2557pixel

Port 2：2, 6…………………..2558pixel

Port 3：3, 7…………………..2559 pixel

Port 4：4, 8…………………..2560 pixel

document version 0.6 19

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

Product Specification

6.2 Input Data Format Definition

AU OPTRONICS CORPORATION

M270DAN01.0

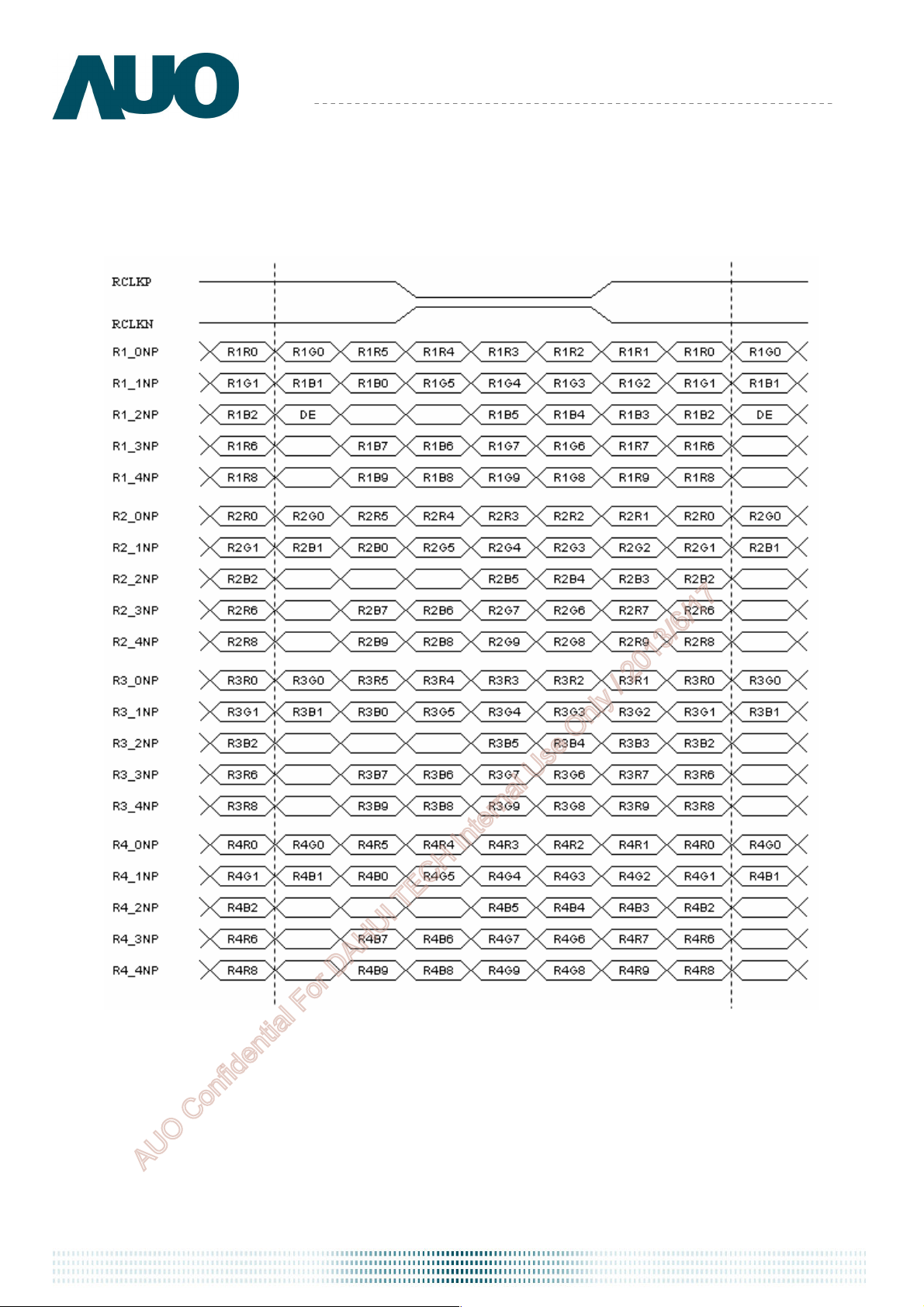

LVDS Data Mapping of NS Format for Quad Channel

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

document version 0.6 20

Product Specification

AU OPTRONICS CORPORATION

M270DAN01.0

6.3 Signal Description

The module using 30/40 pin 4port-LVDS interface. LVDS is a differential signal technology for LCD
interface and high speed data transfer device.

Module Connector - CNT1

PIN #

1 R1_0N FIRST_ Negative LVDS differential data input
2 R1_0P FIRST_ Positive LVDS differential data input
3 R1_1N FIRST_ Negative LVDS differential data input
4 R1_1P FIRST_ Positive LVDS differential data input
5 R1_2N FIRST_ Negative LVDS differential data input
6 R1_2P FIRST_ Positive LVDS differential data input
7 GND Power Ground
8 R1_CLKN FIRST_ Negative LVDS differential clock input

9 R1_CLKP FIRST_ Positive LVDS differential clock input
10 GND Power Ground
11 R1_3N FIRST_ Negative LVDS differential data input
12 R1_3P FIRST_ Positive LVDS differential data input
13 R1_4N FIRST_ Negative LVDS differential data input
14 R1_4P FIRST_ Positive LVDS differential data input
15 GND Power Ground
16 R2_0N SECOND_ Negative LVDS differential data input
17 R2_0P SECOND_ Positive LVDS differential data input

Signal Name Description Function

LVDS port 1

18 R2_1N SECOND_ Negative LVDS differential data input
19 R2_1P SECOND_ Positive LVDS differential data input
20 R2_2N SECOND_ Negative LVDS differential data input
21 R2_2P SECOND_ Positive LVDS differential data input
22 GND Power Ground
23 R2_CLKN SECOND_ Negative LVDS differential clock input
24 R2_CLKP SECOND_ Positive LVDS differential clock input
25 GND Power Ground
26 R2_3N SECOND_ Negative LVDS differential data input
27 R2_3P SECOND_ Positive LVDS differential data input
28 R2_4N SECOND_ Negative LVDS differential data input
29 R2_4P SECOND_ Positive LVDS differential data input
30 GND Power Ground

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

LVDS port 2

document version 0.6 21

Product Specification

Module Connector - CNT2

PIN #

1 R3_0N THIRD_ Negative LVDS differential data input
2 R3_0P THIRD_ Positive LVDS differential data input
3 R3_1N THIRD_ Negative LVDS differential data input
4 R3_1P THIRD_ Positive LVDS differential data input
5 R3_2N THIRD_ Negative LVDS differential data input
6 R3_2P THIRD_ Positive LVDS differential data input
7 GND Power Ground
8 R3_CLKN THIRD_ Negative LVDS differential clock input
9 R3_CLKP THIRD_ Positive LVDS differential clock input

10 GND Power Ground
11 R3_3N THIRD_ Negative LVDS differential data input
12 R3_3P THIRD_ Positive LVDS differential data input
13 R3_4N THIRD_ Negative LVDS differential data input
14 R3_4P THIRD_ Positive LVDS differential data input
15 GND Power Ground
16 R4_0N FOURTH_ Negative LVDS differential data input
17 R4_0P FOURTH_ Positive LVDS differential data input
18 R4_1N FOURTH_ Negative LVDS differential data input
19 R4_1P FOURTH_ Positive LVDS differential data input
20 R4_2N FOURTH_ Negative LVDS differential data input
21 R4_2P FOURTH_ Positive LVDS differential data input
22 GND Power Ground
23 R4_CLKN FOURTH_ Negative LVDS differential clock input
24 R4_CLKP FOURTH_ Positive LVDS differential clock input
25 GND Power Ground
26 R4_3N FOURTH_ Negative LVDS differential data input
27 R4_3P FOURTH_ Positive LVDS differential data input
28 R4_4N FOURTH_ Negative LVDS differential data input
29 R4_4P FOURTH_ Positive LVDS differential data input
30 GND Power Ground
31 NC No connection (for AUO test only. Do not connect)
32 NC No connection (for AUO test only. Do not connect)
33 GND Power Ground
34 GND Power Ground
35 GND Power Ground
36 VDD Power +5V
37 VDD Power +5V
38 VDD Power +5V
39 VDD Power +5V
40 VDD Power +5V

Signal Name Description Function

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

AU OPTRONICS CORPORATION

M270DAN01.0

LVDS port 3

LVDS port 4

NC

Power

document version 0.6 22

Product Specification

AU OPTRONICS CORPORATION

M270DAN01.0

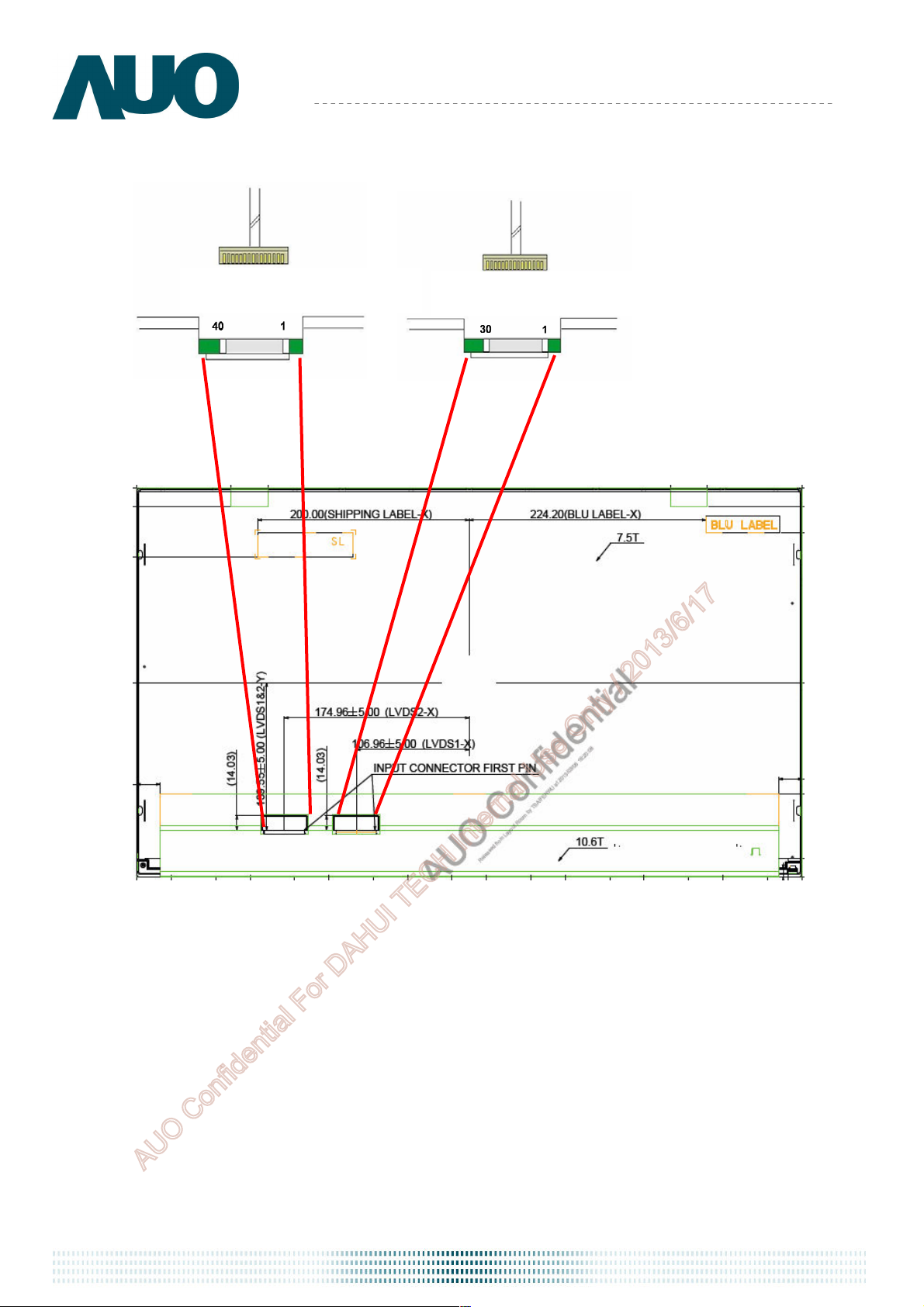

VDD R3_0N

GND R1_0N

Note 1: Input signals of port 1 to port 4 clocks shall be the same timing.

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

document version 0.6 23

Product Specification

6.4 Timing Characteristics

The input signal timing specifications are shown as the following table

Signal Item Symbol Min Typ Max Unit

AU OPTRONICS CORPORATION

M270DAN01.0

Vertical

Section

Horizontal

Section

Clock

Frame rate

Hsync

Frequency

Note 1: DE mode only

Period Tv

Active Tdisp(v)

Blanking Tbp(v)+Tfp(v)+PWvs

Period Th

Active Tdisp(h)

Blanking Tbp(h)+Tfp(h)+PWhs

Period Tclk

Frequency

Freq

Frame

F

rate

Hsync

HFreq 73.9 88.8 111.2 KHz

Frequency

1479 1481 1483

1440 1440 1440

39 41 43

676 680 684

640 640 640

36 40 44

22.22

45 60.4 76

50 60 75

16.56 13.16

Th

Th

Th

Tclk

Tclk

Tclk

ns

MHz

Hz

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

document version 0.6 24

6.5 Timing Diagram

Product Specification

AU OPTRONICS CORPORATION

M270DAN01.0

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

document version 0.6 25

Product Specification

T5

T2

T1

T6

AU OPTRONICS CORPORATION

M270DAN01.0

6.6 Power ON/OFF Sequence

VDD power and lamp on/off sequence are as follows. Interface signals are also shown in the
chart. Signals from any system shall be Hi-Z state when VDD is off.

Power Supply VDD

LVDS Signal

Backlight On

Parameter

T1 0.5 - 10 [ms]

10%

90%

VALID
DATA

T3

T4

Power Sequence Timing

Value

Min. Typ. Max.

90%

10%

T7

Unit

T2 0 - 50 [ms]
T3 500 - - [ms]
T4 100 - - [ms]

T5 0 - 50

T6 5 - 150

T7 1000 - - [ms]

Note1 : Recommend setting T5 = 0ms to avoid electronic noise when VDD is off.

Note2 : During T5 and T6 period , please keep the level of input LVDS signals with Hi-Z state.

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

[ms]

Note1,2

[ms]

Note1,2

document version 0.6 26

Product Specification

AU OPTRONICS CORPORATION

M270DAN01.0

7 Connector and Pin Assignment

Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.

7.1 TFT LCD Module

Connector Name / Designation Interface Connector / Interface Card

Manufacturer

Type Part Number

Mating Housing Part Number

7.1.1 Pin Assignment

Module Connector - CNT1

Pin# Signal Name Pin# Signal Name

1 R1_0N 2 R1_0P
3 R1_1N 4 R1_1P
5 R1_2N 6 R1_2P
7 GND 8 R1_CLKN

CNT1: STM/ P-TOW/ STARCONN
CNT2: STARCONN

CNT1: STM_MSCKT2407P30HB

P-TOW_AL230F-A0G1D-P

STARCONN_093G30-02001A-M4

CNT2: STARCONN_115F40-R000RA-M3
CNT1: JAE_FI-X30HL

STM_PK2407P30V
CNT2: FI-NX40HL

9 R1_CLKP 10 GND
11 R1_3N 12 R1_3P
13 R1_4N 14 R1_4P
15 GND 16 R2_0N
17 R2_0P 18 R2_1N
19 R2_1P 20 R2_2N
21 R2_2P 22 GND
23 R2_CLKN 24 R2_CLKP
25 GND 26 R2_3N
27 R2_3P 28 R2_4N
29 R2_4P 30 GND

document version 0.6 27

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

Module Connector - CNT2

Pin# Signal Name Pin# Signal Name

1 R3_0N 2 R3_0P

3 R3_1N 4 R3_1P

5 R3_2N 6 R3_2P

7 GND 8 R3_CLKN

9 R3_CLKP 10 GND
11 R3_3N 12 R3_3P
13 R3_4N 14 R3_4P
15 GND 16 R4_0N
17 R4_0P 18 R4_1N
19 R4_1P 20 R4_2N
21 R4_2P 22 GND

Product Specification

AU OPTRONICS CORPORATION

M270DAN01.0

23 R4_CLKN 24 R4_CLKP
25 GND 26 R4_3N
27 R4_3P 28 R4_4N
29 R4_4P 30 GND
31 NC 32 NC
33 GND 34 GND
35 GND 36 VDD
37 VDD 38 VDD
39 VDD 40 VDD

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

document version 0.6 28

Product Specification

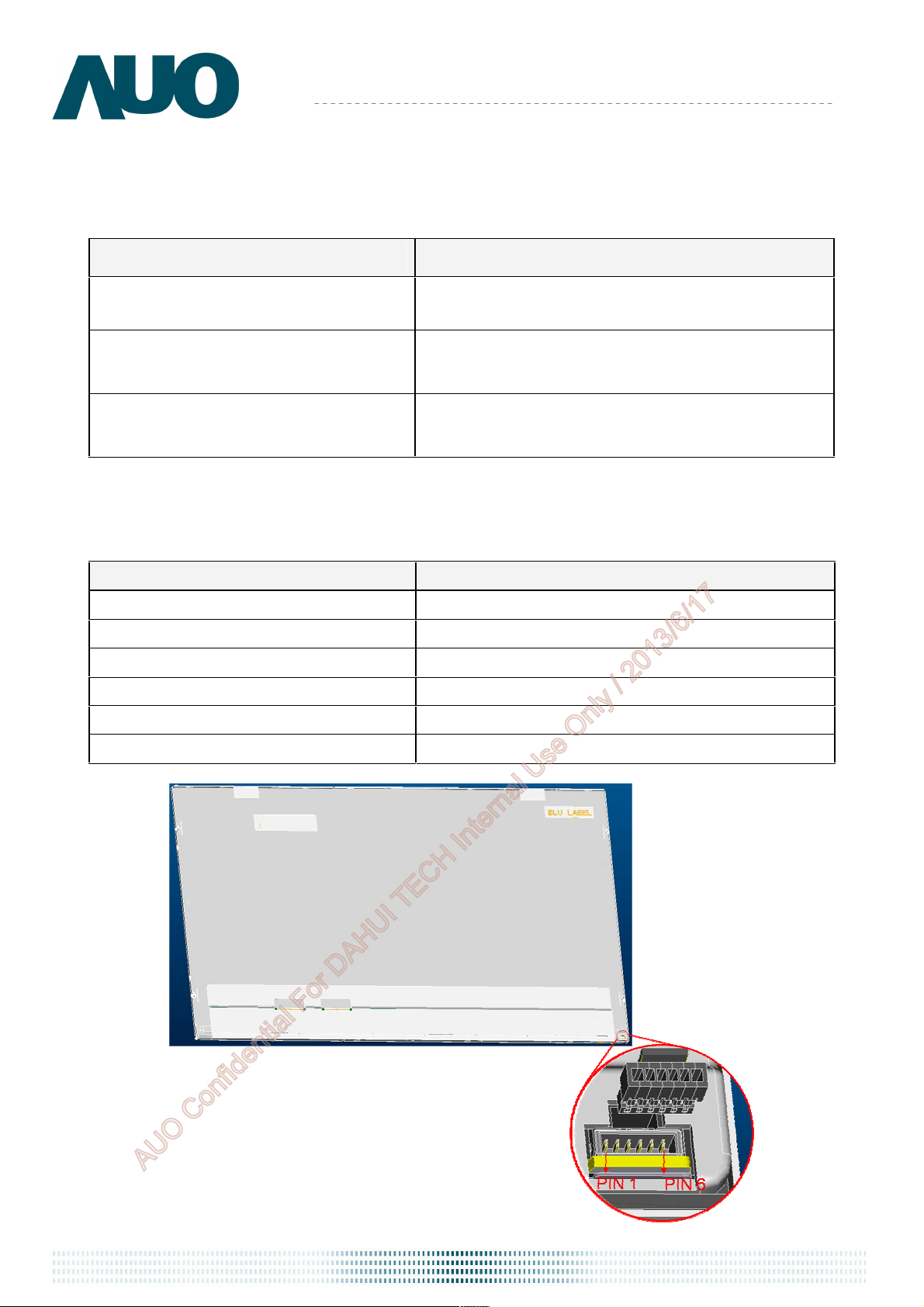

7.2 LED Connector on Backlight Unit

This connector is mounted on LED light bar.

Connector Name / Designation Light Bar Connector

Manufacturer E&T(ENTERY)

Type Part Number 3707K-S06N-21R

AU OPTRONICS CORPORATION

M270DAN01.0

Mating Housing Part Number

H112K-P06N-13B (Locked Type)

7.2.1 LED Pin assignment

Pin# Signal Name

1 IRLED1 (current out)
2 IRLED2 (current out)
3 VLED (voltage in)
4 VLED (voltage in)
5 IRLED3 (current out)
6 IRLED4 (current out)

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

document version 0.6 29

Product Specification

==××=××

7.2.2 LED Connector Dimension

AU OPTRONICS CORPORATION

M270DAN01.0

)(0.1,25.400.39.13 mmunitPitchDVH

7.2.3 LED Mating housing dimension

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

document version 0.6 30

Product Specification

AU OPTRONICS CORPORATION

M270DAN01.0

8 Reliability Test

Environment test conditions are listed as following table.

Items Required Condition Note

Temperature Humidity Bias (THB) Ta= 50°C, 80%RH, 300 hours

High Temperature Operation (HTO) Ta= 50°C, 50%RH, 300 hours

Low Temperature Operation (LTO) Ta= 0°C, 300 hours

High Temperature Storage (HTS) Ta= 60°C, 300 hours

Low Temperature Storage (LTS) Ta= -20°C, 300 hours

Acceleration: 1.5 Grms
Vibration Test
(Non-operation)

Shock Test
(Non-operation)

Drop Test Height: 46 cm, package test
Thermal Shock Test (TST) -20°C/30min, 60°C/30min, 100 cycles Note 1
On/Off Test On/10sec, Off/10sec, 30,000 cycles

ESD (Electro Static Discharge)

Altitude Test

Wave: Random

Frequency: 10 - 200 Hz

Duration: 30 Minutes each Axis (X, Y, Z)

Acceleration: 50 G

Wave: Half-sine

Active Time: 20 ms

Direction: ±X, ±Y, ±Z (one time for each Axis)

Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec,

15 points, 25 times/ point

Note 2

Air Discharge: ± 15KV, 150pF(330Ω ) 1sec

15 points, 25 times/ point

Operation: 18,000 ft

Non-Operation: 40,000 ft

Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature from

-20°C to 60°C, and back again. Power is not applied during the test. After temperature cycling, the
unit is placed in normal room ambient for at least 4 hours before power on.

Note 2: EN61000-4-2, ESD class B: Certain performance degradation allowed:

 No data lost
 Self-recoverable

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

 No hardware failures

document version 0.6 31

Product Specification

AU Optronics

9 Shipping Label

The label on the panel is shown as below:

Note 1: For Pb Free products, AUO will add for identification.

AU OPTRONICS CORPORATION

Manufactured XX/XX
Model No: M270DAN01.0

M270DAN01.0

Note 2: For RoHS compatible products, AUO will add

for identification.

Note 3: For China RoHS compatible products, AUO will add for identification.

Note 4: The Green Mark will be presented only when the green documents have been ready by

AUO Internal Green Team.

document version 0.6 32

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

Avoi

M270DAN01.0

when doing mechanical design

AU OPTRONICS CORPORATION

Product Specification

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

10 Mechanical Characteristics

document version 0.6 33

M270DAN01.0

AU OPTRONICS CORPORATION

Product Specification

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

document version 0.6 34

11 Packing Specification

11.1 Packing Flow

Module

Paste protect film

Product Specification

AU OPTRONICS CORPORATION

9PCS/Carton

M270DAN01.0

Put top cover

1pcs Module/ESD

Paper Cushion

H " Tape

Paper Carton

Open Top cover

Corner angle

Stretch film

Label

Moisture-proof film

PET band

Corner angle

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

Pallet

document version 0.6 35

Product Specification

without Panel & cushion

with panel & cushion

11.2 Pallet and Shipment Information

AU OPTRONICS CORPORATION

M270DAN01.0

Specification

Item

1 Panel 1 630.0(H)mm x 368.2(V)mm x 10.6(D)mm

2 Cushion 1 - 4.41

3 Box 1 720(L)mm x 264(W)mm x 460(H)mm

4 Packing Box 9 pcs/Box 720(L)mm x 264(W)mm x 460(H)mm

5 Pallet 1 1070(L)mm x 740(W)mm x 138(H)mm

6 Pallet after Packing

Note 1: Estimated value which is subject to change based on real measured data.

Q'ty Dimension Weight(kg)

8

boxes/pallet

1070(L)mm x 740(W)mm x 1060(H)mm

2.319 Note 1

1.35

26.424

13.85 Note 1

225.24 Note 1

Remark

Note 1

Note 1

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/17

document version 0.6 36
