Product Specification
AU OPTRONICS CORPORATION
M240UW01 V0
( V ) Preliminary Specification
( ) Final Specification
Module
24.0” WUXGA Color TFT-LCD
Model Name
M240UW01 V0
Customer Date
Approved by
Prepared by Date
Jack CC Hsu
Approved by
Dec. 14, 2005
Note: This Specification is subject to change without
notice.
document version 0.1 1/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
CC Chiu
Desktop Display Business Group /
AU Optronics corporation
Dec.14, 2005
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240UW01 V0
Contents
1.0 Handling Precautions.............................................................4
2.0 General Description ...............................................................7
2.1 Display Characteristics ................................................................................................................... 7
2.2 Optical Characteristics .................................................................................................................... 7
3.0 Functional Block Diagram ....................................................12
4.0 Absolute Maximum Ratings..................................................13
4.1 TFT LCD Module............................................................................................................................13
4.2 Backlight Unit.................................................................................................................................. 13
4.3 Absolute Ratings of Environment................................................................................................ 13
5.0 Electrical characteristics ......................................................14
5.1 TFT LCD Module............................................................................................................................14
5.1.1 Power Specification .......................................................................................................................14
5.1.2 Signal Electrical Characteristics............................................................................................... 15
6.0 Signal Characteristic ............................................................17
6.1 Pixel Format Image ....................................................................................................................... 17
6.2 The input data format....................................................................................................................17
6.3 Signal Description.......................................................................................................................... 18
6.4 Timing Characteristics................................................................................................................... 19
6.5 Timing diagram............................................................................................................................... 20
6.6 Power ON/OFF Sequence ........................................................................................................... 21
7.0 Connector & Pin Assignment................................................22
7.1 TFT LCD Module............................................................................................................................22
7.1.1 Pin Assignment ...................................................................................................22
7.2 Backlight Unit.................................................................................................................................. 23
7.2.1 Signal for Lamp connector ....................................................................................23
8.0 Reliability Test .....................................................................24
9.0 Shipping Label .....................................................................25
10.0 Mechanical Characteristics.................................................26
document version 0.1 2/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240UW01 V0
Record of Revision
Version and Date Page Old description New Description Remark
0.1 2005/12/015 All First Edition for Customer All
document version 0.1 3/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240UW01 V0
1.0 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth
when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken
out from the container, do not press the center of the CCFL reflector edge. Instead, press at
the far ends of the CCFL Reflector edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module
even momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT
Module may be damaged.
12) Cold cathode fluorescent lamp in LCD contains a small amount of mercury. Please follow local
ordinances or regulations for disposal.
13) Small amount of materials having no flammability grade is used in the LCD module. The LCD module
should be supplied by power complied with requirements of Limited Power Source (IEC60950 or
UL1950), or be applied exemption.
14) The LCD module is designed so that the CCFL in it is supplied by Limited Current Circuit (IEC60950 or
UL1950). Do not connect the CCFL in Hazardous Voltage Circuit.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
document version 0.1 4/28
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240UW01 V0
2.0 General Description
This specification applies to the 24.0 inch Color a-Si TFT-LCD Module M240UW01.
The display supports the WUXGA (1920(H) x 1200(V)) screen format and 16.7M colors (RGB 8-bits data).
All input signals are 2 channel LVDS interface compatible.
This module doesn’t contain an inverter board for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 к condition:
ITEMS Unit SPECIFICATIONS
Screen Diagonal [mm] 611.32(24")
Active Area [mm] 518.4 (H) x 324 (V)
Pixels H x V 1920(x3) x 1200
Pixel Pitch [mm] 0.270 (per one triad) x 0.270
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally Black
White Luminance ( Center ) [cd/m2]
500 cd/m
Contrast Ratio 1000 : 1 (Typ.)
Optical Response Time [msec] 12ms(Typ., on/off); TBD (Typ., GTG)
Nominal Input Voltage VDD [Volt] +5.0 V
Power Consumption
(VDD line + CCFL line)
[Watt] CCFL line TBDW(Typ.) (w/o inverter)
CCFL line TBDW(Max.) (w/o inverter)
Weight [Grams] 3250 (Max)
Physical Size [mm] 546.4(W) x 352(H) x 35.8(D) (Typ.)
Electrical Interface Even/Odd R/G/B data, clock LVDS
Support Color 16.7M colors (RGB 8-bit data )
Surface Treatment Anti-Glare, 3H
Temperature Range
Operating
Storage (Shipping)
o
[
C]
o
[
C]
0 to +50
-20 to +60
RoHS Compliance RoHS Compliance
2
@
=6mA (Typ.)
I
L
2.2 Optical Characteristics
document version 0.1 7/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
The optical characteristics are measured under stable conditions at 25к:
Item Unit Conditions Min. Typ. Max. Note
Viewing Angle
Contrast ratio Normal Direction 700 1000 -
Response Time
Color / Chromaticity
Coordinates (CIE)
Color Coordinates (CIE) White
AU OPTRONICS CORPORATION
[degree]
[degree]
[degree]
[degree]
[msec] Raising Time - 7
[msec] Falling Time - 5
[msec] Raising + Falling - 12
[msec] Gray to Gray - TBD -
Horizontal (Right)
CR = 10 (Left)
Vertical (Up)
CR = 10 (Down)
Red x
Red y
Green x
Green y
Blue x
Blue y
White x 0.283 0.313 0.343
White y 0.299 0.329 0.359
0.623 0.653 0.683
0.307 0.337 0.367
0.265 0.295 0.325
0.577 0.607 0.637
0.114 0.144 0.174
0.045 0.075 0.105
75
75
75
75
89
89
89
89
M240UW01 V0
-
-
-
-
Note 1
Note 1
Note 1
Note 2
Central Luminance (IL=6mA) [cd/m2] 400 500 -
Luminance Uniformity
Crosstalk (in60Hz)
Flicker
[%] 75 80 -
[%] 1.5
dB -20
Note 3
Note 4
Note 5
Equipment Pattern Generator, Power Supply, Digital Voltmeter, Luminance meter (PR 880, BM-5A ,
BM 7 ,CS-1000, & EZContrast* )
Aperture 1шwith 100cm VD or 2шwith 50cm viewing distance
Test Point Center (VESA point 9)
Environment < 1 lux
document version 0.1 8/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
*’ EZ Contrast is different measurement tool with very close viewing distance.
Note 1: Definition of Response time
The output signals of photodetector are measured when the input signals are changed from “Black” to “White”
(rising time), and from “White” to “Black ”(falling time), respectively. The response time is interval between the
10% and 90% of amplitudes.
M240UW01 V0
Note 2: Over-Drive and Response time:
Algorithm:
16 B Level - A Level t
then the average of Grey-to-Grey response time is TBD ms. ( F= 60 Hz).
Tr (rising time; from “Black” to “White”) + Tf (Falling time; from “White” to “Black”) = TBD ms(typ).
document version 0.1 9/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

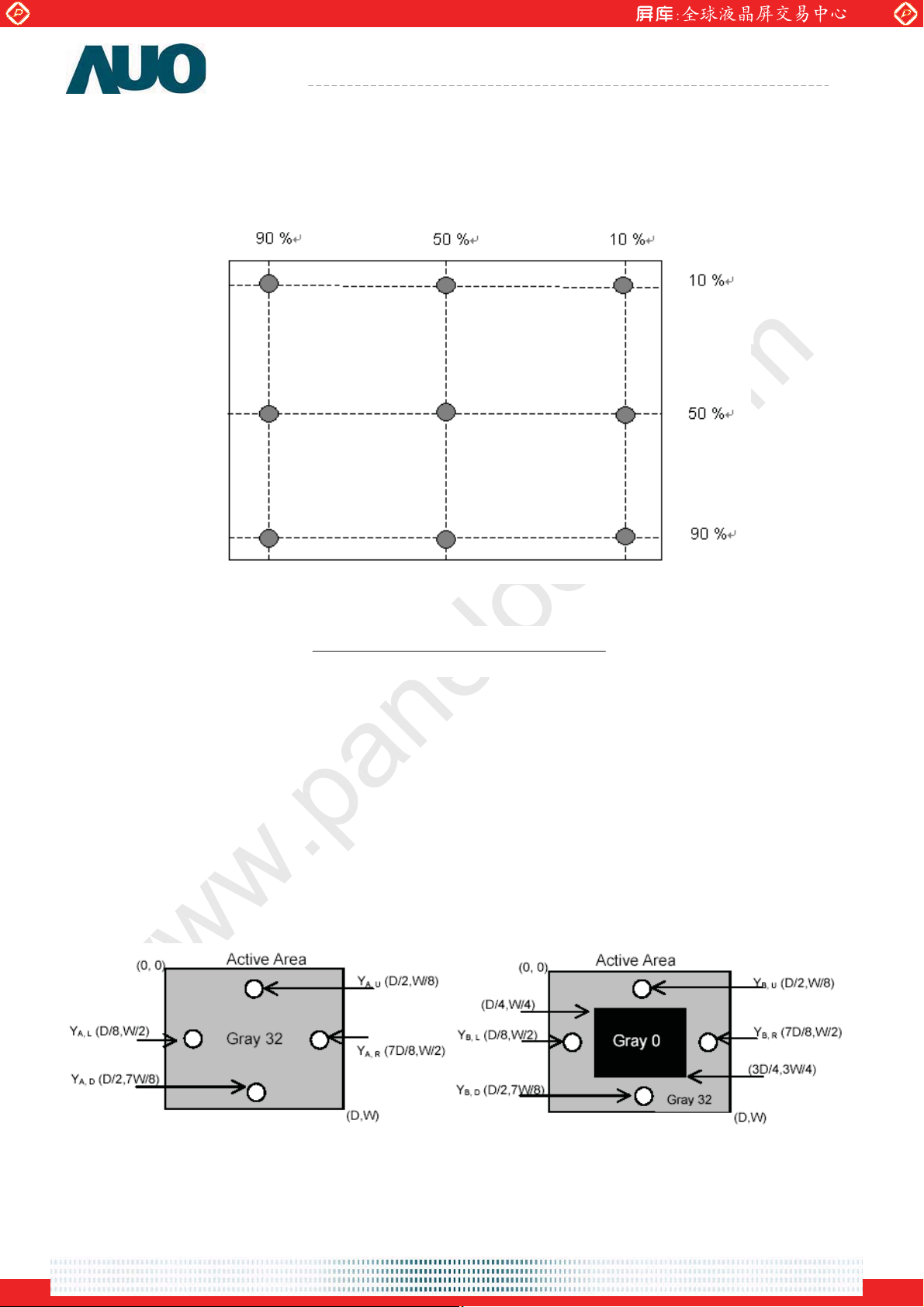

Note 3: Luminance uniformity of these 9 points is defined as below
M240UW01 V0
Uniformity
Note 4: Crosstalk is defined as below :
CT = | YB – YA | / YA Ø 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
9)-(1points9inLuminanceMinimum
9)-(1Points9inLuminanceMaximum
document version 0.1 10/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
Note 5: Test Paterm: Subchecker Pattern
R G B R G B
R G B R G B
R G B R G B
Method: Record dBV & DC value with (WESTAR)TRD-100
Amplitude
AU OPTRONICS CORPORATION
Gray Level = L127
Gray Level = L0
DC
M240UW01 V0
AC
Time
Hz)30Level(atAC
log20(dB)Flicker
LevelDC
document version 0.1 11/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
3.0 Functional Block Diagram
The following diagram shows the functional block of the 24.0 inch Color TFT-LCD Module:
+
LVDS 2CH
Input
Connector
DC/DC
Converterr
LVDS
Receive
Over
Driver
AU OPTRONICS CORPORATION
Power
Signal
No Gamma
Correction
AUO ASIC
Timing
Controller
Y-Driver IC
TFT-LCD 1920(*3)*1200 pixels
(8 bits display)
M240UW01 V0
-
I/F PCB Interface:
JAE FI-XB30SSL-HF15 or compatible
Mating Type:
FI-X30HL-T (Locked Type)
FI-X30S-H (Unlocked Type)
DC POWER
6 U-type CCFL
Inverter
document version 0.1 12/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
p
к
www.panelook.com
Product Specification
4.0 Absolute Maximum Ratings
Absolute maximum ratings of the module is as following:
4.1 TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
4.2 Backlight Unit
Item Symbol Min Max Unit Conditions
CCFL Current ICFL 2.0 8.0 [mA] rms Note 1,2
AU OPTRONICS CORPORATION
VIN 4.5 5.5 [Volt] Note 1,2
M240UW01 V0
4.3 Absolute Ratings of Environment
Item Symbol Min Max Unit Conditions
Operating Humidity HOP 5 95 [%RH] Note 3
Storage Temperature TST -20 +60 [oC] Note 3
Storage Humidity HST 5 95 [%RH] Note 3
Note 1: With in Ta (25к )
Note 2: Permanent damage to the device may occur if exceed maximum values
Note 3: For quality perfermance, please refer to AUO IIS(Incoming Inspection Standard)
Relative Humidity %
100
95
80
60
40
Storage
range
Operation range
Twb=39к
T=40к,H=95%
T=50к,H=55%
20
Storage
range
5
0
-20
0 6050
Tem
erature
.
T=60к,H=39%
T=65к,H=29%
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
document version 0.1 13/28
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240UW01 V0
5.0 Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows;
Symbol Parameter Min Typ Max Units Condition
VDD
IDD VDD current - 1.8 2.5 [A]
Irush LCD Inrush Current - - TBD [A] Note
PDD VDD Power - 9 13.75 [Watt]
Logic/LCD Drive
Voltage
4.5 5.0 5.5 [Volt] r10%
VDD=5V , All White Pattern,
at frame rate 60Hz
VDD=5V , All White Pattern,
at 60Hz
Note: Measurement conditions:
The duration of rush current is about 2ms and rising time of power input is 1ms(min.).
document version 0.1 14/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M240UW01 V0
AU OPTRONICS CORPORATION
5.1.2 Signal Electrical Characteristics
Input signals shall be low or Hi-Z state when Vin is off
It is recommended to refer the specifications of SN75LVDS82DGG (Texas Instruments) in detail.
Each signal characteristics are as follows;
Symbol Parameter Min Typ Max Units Condition
VTH
VTL
Differential Input High
Threshold
Differential Input Low
Threshold
֥VID֥ Input Differential Voltage 100 - 600 [mV] Note
VICM
Differential Input Common
Mode Voltage
- +50 +100 [mV]
-100 -50 - [mV]
+1.0 +1.2 +1.5 [V]
VICM = 1.2V
Note
VICM = 1.2V
Note
VTH-VTL = 200MV
Note
Note: LVDS Signal Waveform
VTH
VTL
VSS
ѨVIDѨ
VICM
document version 0.1 15/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
)к
)к
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240UW01 V0
5.2 Backlight Unit
Parameter guideline for CCFL Inverter is under stable conditions at 25 (Room Temperature):к
Parameter Min.
CCFL Operation Current(IRCFL) 2.0 6.0 8.0 [mA] rms Note 2
CCFL Frequency(FCFL) 48 53 58 [KHz] Note 3,4
CCFL Ignition Voltage(ViCFL, Ta=
0
CCFL Ignition Voltage(ViCF, Ta=
25
CCFL Operation Voltage (VCFL) -
2850 - - [Volt] rms
2280 - - [Volt] rms
Typ. Max.
1800
(@ 6mA)
- [Volt] rms Note 6
Unit Condition
Note 5
CCFL Power Consumption(PCFL) - 64.8 - [Watt] Note 6
CCFL Life Time(LTCFL) 40,000 50,000 - [Hour] Note 7
Note 1: Typ. are AUO recommended design points.
*1 All of characteristics listed are measured under the condition using the AUO test inverter.
*2 In case of using an inverter other than listed, it is recommended to check the inverter
carefully. Sometimes, interfering noise stripes appear on the screen, and substandard
luminance or flicker at low power may happen.
*3 In designing an inverter, it is suggested to check safety circuit very carefully. Impedance of
CCFL, for instance, becomes more than 1 [M ohm] when CCFL is damaged.
*4 Generally, CCFL has some amount of delay time after applying kick-off voltage. It is
recommended to keep on applying kick-off voltage for 1 [Sec] until discharge.
*5 Reducing CCFL current increases CCFL discharge voltage and generally increases CCFL
discharge frequency. So all the parameters of an inverter should be carefully designed so as
not to produce too much leakage current from high-voltage output of the inverter.
Note 2: CCFL standard current is measured at 252к.
Note 3: CCFL discharge frequency should be carefully determined to avoid interference between inverter
and TFT LCD.
Note 4: The frequency range will not affect to lamp life and reliability characteristics.
Note 5: CCFL inverter should be able to give out a power that has a generating capacity of over 2850
voltage. Lamp units need 2850 voltage minimum for ignition.
Note 6: The variance of CCFL power consumption is ±10%. Calculator value for reference (IRCFL ×
VCFL × 6 = PCFL)
Note 7: Definition of life: brightness becomes 50% or less than the minimum luminance value of CCFL.
The typical life time of CCFL is on the condition at 6 mA lamp current.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
document version 0.1 16/28
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
6.0 Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
1st Line
AU OPTRONICS CORPORATION
1 2 1919 1920
R G B R G B
M240UW01 V0
R G B R G B
1200 Line
6.2 The input data format
R G B R G B
R G B R G B
Note 1: R/G/B data 7:MSB, R/G/B data 0:LSB
O = “First Pixel Data”
E = “Second Pixel Data”
document version 0.1 17/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240UW01 V0
6.3 Signal Description
The module using one LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a
differential signal technology for LCD interface and high speed data transfer device. Transmitter shall be
SN75LVDS83(negative edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels
while the second LVDS port(RxExxx) transmits even pixels.
PIN # SIGNAL NAME DESCRIPTION
1 RxOIN0- Negative LVDS differential data input (Odd data
2 RxOIN0+ Positive LVDS differential data input (Odd data
3 RxOIN1- Negative LVDS differential data input (Odd data
4 RxOIN1+ Positive LVDS differential data input (Odd data
5 RxOIN2- Negative LVDS differential data input (Odd data, DSPTMG)
6 RxOIN2+ Positive LVDS differential data input (Odd data, DSPTMG)
7 GND Power Ground
8 RxOCLK- Negative LVDS differential clock input (Odd clock
9 RxOCLK+ Positive LVDS differential clock input (Odd clock
10 RxOIN3- Negative LVDS differential data input (Odd data
11 RxOIN3+ Positive LVDS differential data input (Odd data
12 RxEIN0- Negative LVDS differential data input (Even data
13 RxEIN0+ Positive LVDS differential data input (Even data
14 GND Power Ground
15 RxEIN1- Positive LVDS differential data input (Even data
16 RxEIN1+ Negative LVDS differential data input (Even data
17 GND Power Ground
18 RxEIN2- Negative LVDS differential data input (Even data
19 RxEIN2+ Positive LVDS differential data input (Even data
20 RxECLK- Negative LVDS differential clock input (Even clock
21 RxECLK+ Positive LVDS differential clock input (Even clock
22 RxEIN3- Negative LVDS differential data input (Even data
23 RxEIN3+ Positive LVDS differential data input (Even data
24 GND Power Ground
25 NC No connection
26 NC No connection
27 VDD Power +5V
28 VDD Power +5V
29 VDD Power +5V
30 VDD Power +5V
Note1: Start from left side
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
document version 0.1 18/28
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240UW01 V0
Note2: Input signals of odd and even clock shall be the same timing.
6.4 Timing Characteristics
Basically, interface timings described here is not actual input timing of LCD module but output timing of
SN75LVDS82DGG (Texas Instruments) or equivalent.
Note: Typical value refer to VESA STANDARD
Signal Item Symbol Min Typ Max Unit
Vertical
Section
Horizontal
Section
Clock
Frame Rate Frequency Vsync - 60 - Hz
Note : DE mode only
Period Tv 1211 1212 2048 Th
Active Tdisp(v) 1200 1200 1200 Th
Blanking Tblk(v) 11 12 - Th
Period Th 1040 1072 2048 Tclk
Active Tdisp(h) 960 960 960 Tclk
Blanking Tblk(h) 80 112 - Tclk
Period Tclk 11.76 - - ns
Frequency Freq - - 85 MHz
document version 0.1 19/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
6.5 Timing diagram
RGB Data
(Even)
Pixel
M-6
Pixel
Pixel
M-2
Pixel
M
Invalid Data
RGB Data
(Odd)
Pixel
M-7
Pixel
M-5
Pixel
M-3
Pixel
M-1
Invalid Data
Product Specification
AU OPTRONICS CORPORATION
RGB Data
DE
CLK
Line
Tclk
Invalid Data
M240UW01 V0
DE
N
Tblk(v)
2
4
6M-2
8M
10
12
M-4
1
Pixel
3
Pixel
Pixel
5
Pixel
Pixel
7
Pixel
Pixel
Pixel
119
Pixel
Pixel
M-5
Pixel
Pixel
M-3
PixelPixel
Pixel
M-1
Invalid Data
Invalid Data
Tdisp(h)
Tblk(h)
Th
1
LineLine
32
LineLine
4
Line
N
Invalid Data
Pixel
Pixel Pixel
Tv
Th
Tdisp(v)
N Line
X
Pixel
Pixel
Pixel
1
Pixel
3
2M-4
4
document version 0.1 20/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Y
M pixel
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240UW01 V0
6.6 Power ON/OFF Sequence
Vin power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals from any
system shall be Hi-Z state or low level when Vin is off.
90% 90%
90% 90%
90% 90%
10%
10%
Vin 10%
Vin 10%
Vin 10%
0V
0V
0V
Signal
Signal
Signal
0V
0V
0V
10%
T2 T5 T6 T7
T2 T5 T6 T7
T2 T5 T6 T7
T1
T1
T1
T4
T4
T3
T3
T3
T4
10%
10%
10%
Lamp
Lamp
Lamp
0V
0V
0V
Symbol
Min Typ Max
T1 0.3 - 10 [ms]
T2 0.5 40 50 [ms]
T3 300 - - [ms]
T4 300 - - [ms]
T5 0.5 16 50 [ms]
T6 0.5 - 60 [ms]
T7 1000 - - [ms]
Values
Unit
document version 0.1 21/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240UW01 V0
7.0 Connector & Pin Assignment
Physical interface is described as for the connector on module.
These connectors are capable of accommodating the following signals and will be following components.
7.1 TFT LCD Module
Connector Name / Designation Interface Connector / Interface card
Manufacturer JAE or compatible
Type Part Number FI-XB30SSL-HF15
Mating Housing Part Number
FI-X30HL-T (Locked Type)
FI-X30S-H (Unlocked Type)
7.1.1 Pin Assignment
Pin# Signal Name Pin# Signal Name
1 RxOIN0- 2 RxOIN0+
3 RxOIN1- 4 RxOIN1+
5 RxOIN2- 6 RxOIN2+
7 GND 8 RxOCLKIN-
9 RxOCLKIN+ 10 RxOIN3-
11 RxOIN3+ 12 RxEIN0-
13 RxEIN0+ 14 GND
15 RxEIN1- 16 RxEIN1+
17 GND 18 RxEIN2-
19 RxEIN2+ 20 RxECLKIN-
21 RxECLKIN+ 22 RxEIN3-
23 RxEIN3+ 24 GND
25 NV 26 NC
27 VDD 28 VDD
29 VDD 30 VDD
document version 0.1 22/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240UW01 V0
7.2 Backlight Unit
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
Connector Name / Designation Lamp Connector / Backlight lamp
Manufacturer JST
Type Part Number
Mating Type Part Number
BHR-04VS-1
SM02(12)B-BH
7.2.1 Signal for Lamp connector
Connector Pin No. Input Color Function
CN1
CN2
CN3
CN4
CN5
CN6
1 Hot Pink High Voltage
4 Hot White High Voltage
1 Hot Pink High Voltage
4 Hot White High Voltage
1 Hot Pink High Voltage
4 Hot White High Voltage
1 Hot Pink High Voltage
4 Hot White High Voltage
1 Hot Pink High Voltage
4 Hot White High Voltage
1 Hot Pink High Voltage
4 Hot White High Voltage
document version 0.1 23/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
8.0 Reliability Test
Environment test conditions are listed as following table.
Items Required Condition
Temperature Humidity Bias (THB) Ta= 50 , к 80%RH, 300hours
High Temperature Operation
(HTO)
Low Temperature Operation (LTO) Ta= 0 , 300hoursк
High Temperature Storage (HTS) Ta= 60 , 300hoursк
Low Temperature Storage (LTS) Ta= -20 , 300hoursк
Vibration Test
(Non-operation)
AU OPTRONICS CORPORATION
Ta= 50 , к 50%RH, 300hours
Acceleration: 1.5 G
Wave: Random
Frequency: 10 - 200 - 10 Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
M240UW01 V0
Note
Acceleration: 50 G
Shock Test
(Non-operation)
Drop Test Height: 60 cm, package test
Thermal Shock Test (TST) -20к/30min, 60к/30min, 100 cycles
On/Off Test On/10sec, Off/10sec, 30,000 cycles
ESD (ElectroStatic Discharge)
Altitude Test
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature
from -2˃к to 6˃к, and back again. Power is not applied during the test. After temperature
cycling, the unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: According to EN61000-4-2 , ESD class B: Some performance degradation allowed. No data lost.
Self-recoverable. No hardware failures.
Wave: Half-sine
Active Time: 20 ms
Direction: X,ʳY,ʳZ (one time for each Axis)
Contact Discharge: ± 8KV, 150pF(330 ) 1sec,
8 points, 25 times/ point.
Air Discharge: ± 15KV, 150pF(330 ) 1sec
8 points, 25 times/ point.
Operation:10,000 ft
Non-Operation:30,000 ft
1
2
document version 0.1 24/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
9.0 Shipping Label
The label is on the panel as shown below:
M240UW01 V0
document version 0.1 25/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Ver0.1 26/28
10.0 Mechanical Characteristics
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Ver0.1 27/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Ver0.1 28/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
