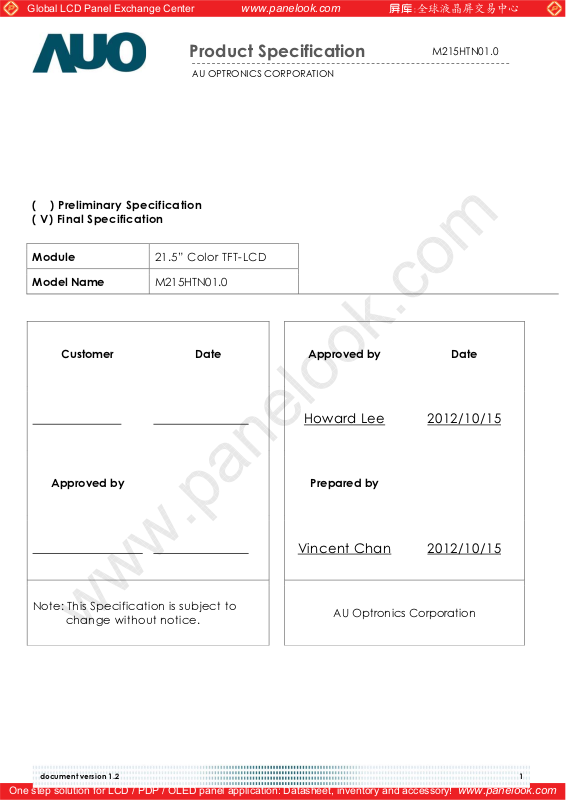

Page 1
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.0
( ) Preliminary Specification
( V) Final Specification
Module
Model Name
21.5” Color TFT-LCD
M215HTN01.0
Customer Date
Approved by
Note: This Specification is subject to
change without notice.
Approved by Date
Howard Lee 2012/10/15
Prepared by
Vincent Chan 2012/10/15
AU Optronics Corporation
document version 1.2 1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.0
Content
1 HANDLING PRECAUTIONS ............................................................................................................6
2 GENERAL DESCRIPTION................................................................................................................. 7
2.1 Display Characteristics .......................................................................................................................... 7
2.2 Optical Characteristics.......................................................................................................................... 8

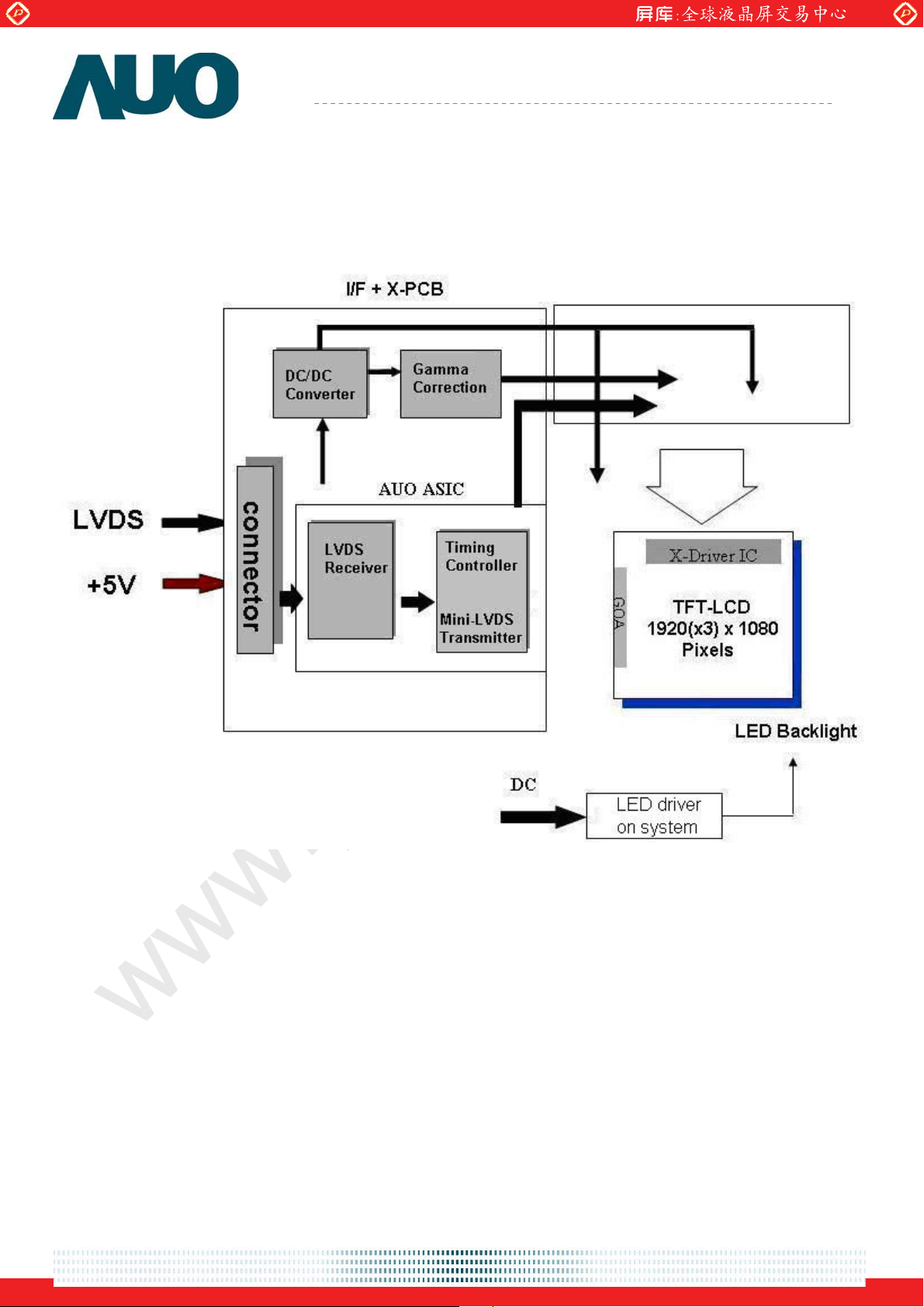

3 FUNCTIONAL BLOCK DIAGRAM................................................................................................. 12
4 ABSOLUTE MAXIMUM RATINGS.................................................................................................. 13
4.1 TFT LCD Module.................................................................................................................................... 13
4.2 Backlight Unit ........................................................................................................................................ 13

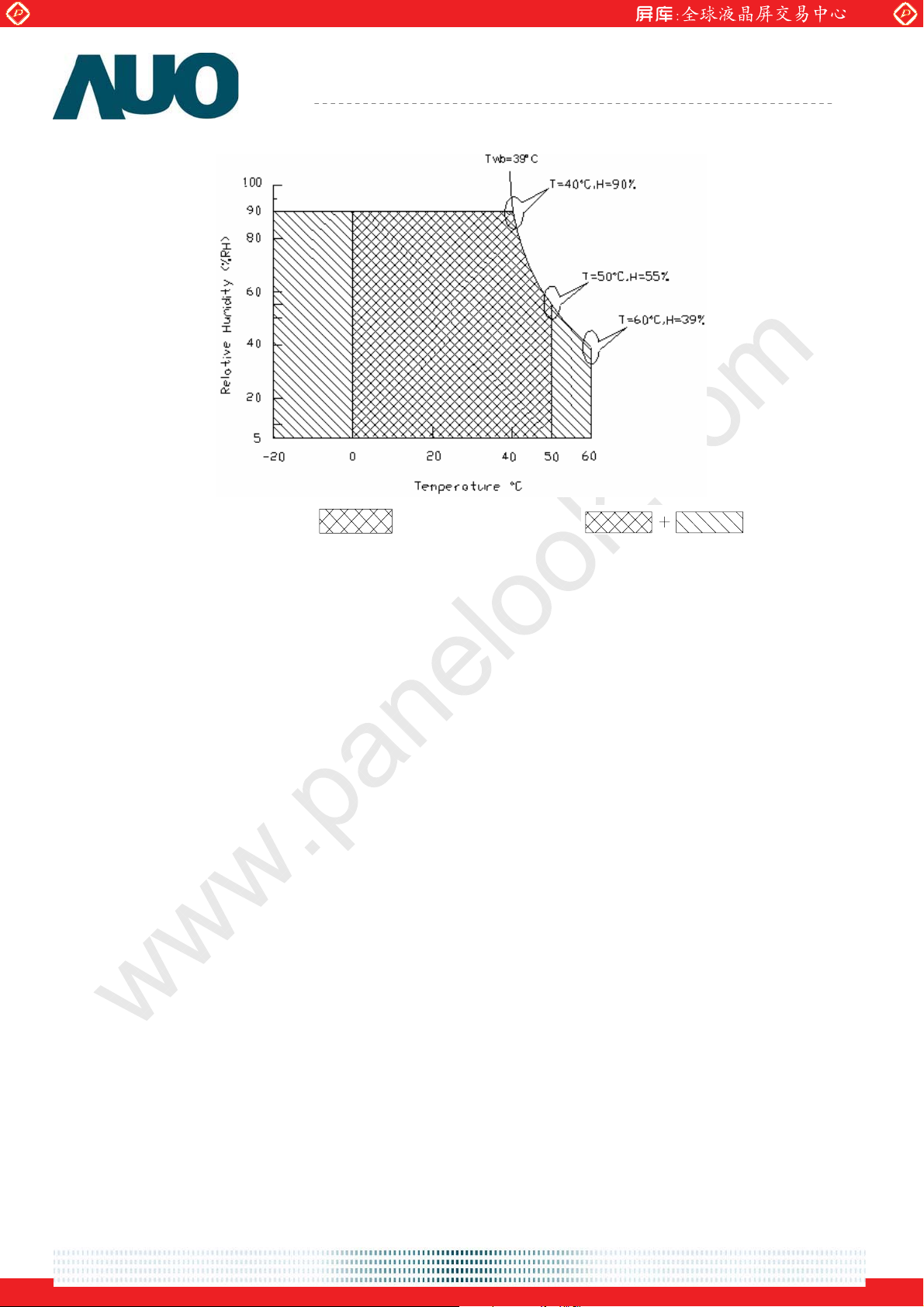

4.3 Absolute Ratings of Environment ....................................................................................................... 13
5 ELECTRICAL CHARACTERISTICS.................................................................................................. 15
5.1 TFT LCD Module.................................................................................................................................... 15

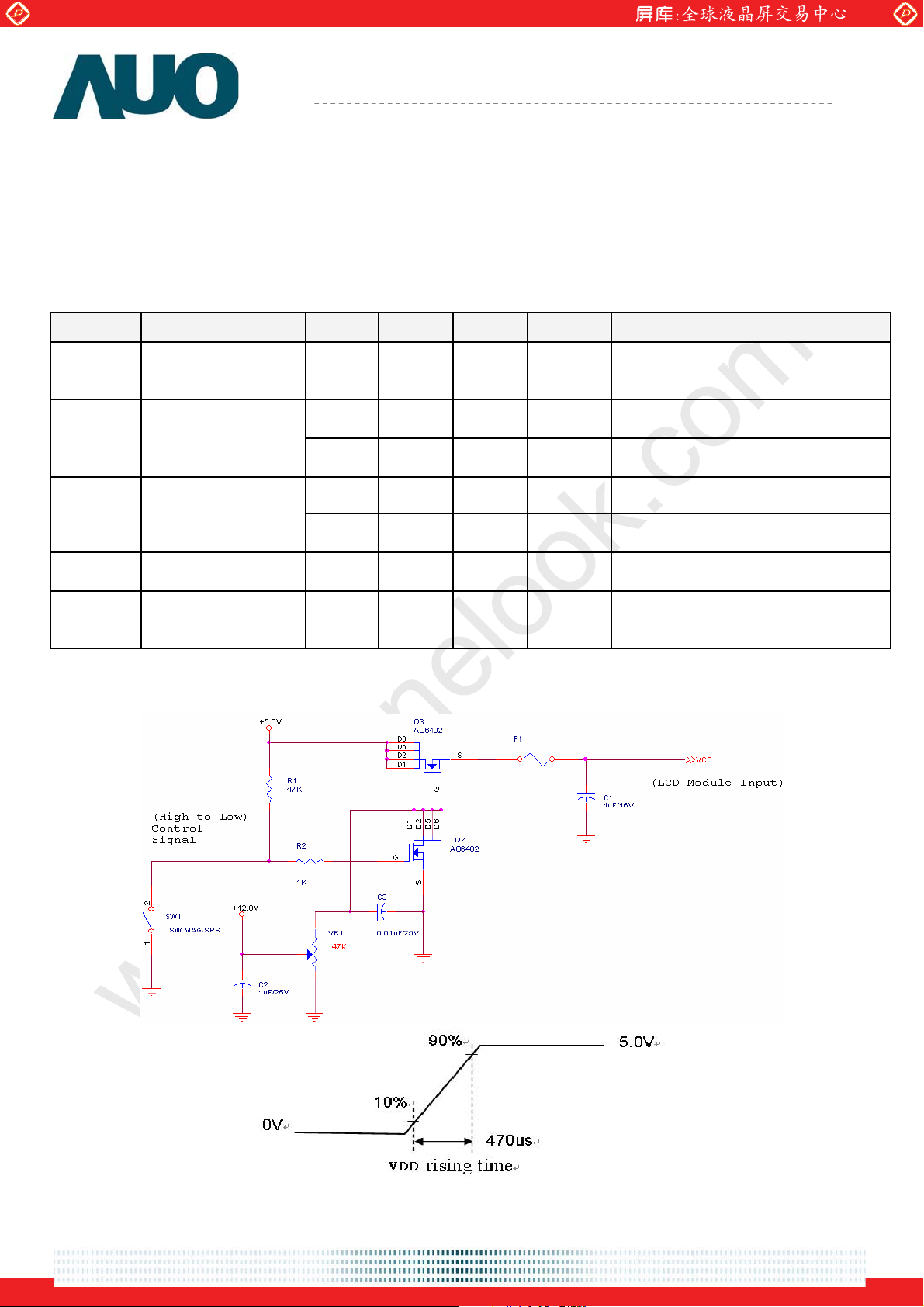

5.1.1 Power Specification..................................................................................................................................... 15

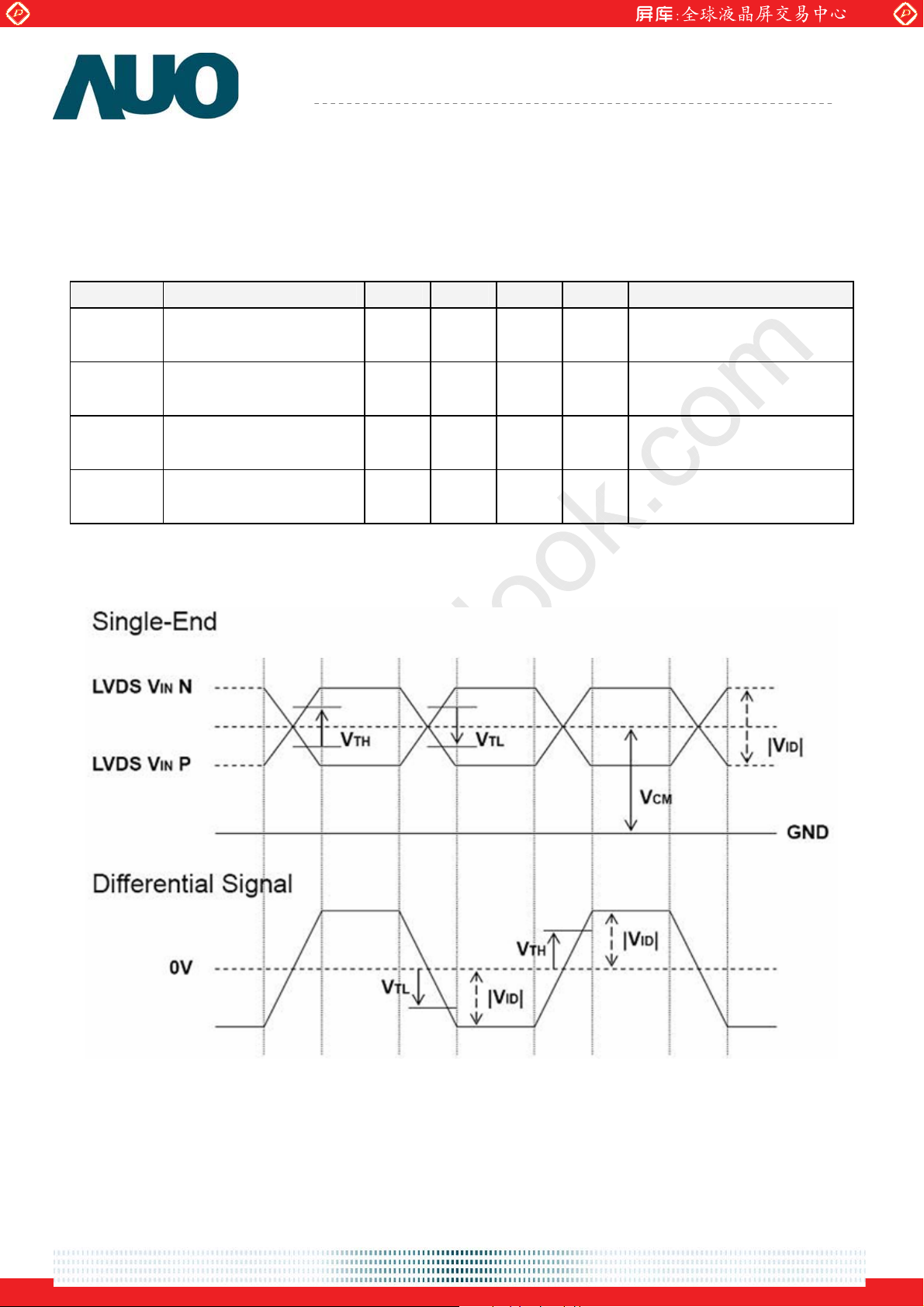

5.1.2 Signal Electrical Characteristics ................................................................................................................. 16
5.2 Backlight Unit ........................................................................................................................................ 18
6 SIGNAL CHARACTERISTICS .........................................................................................................19
6.1 Pixel Format Definition ......................................................................................................................... 19

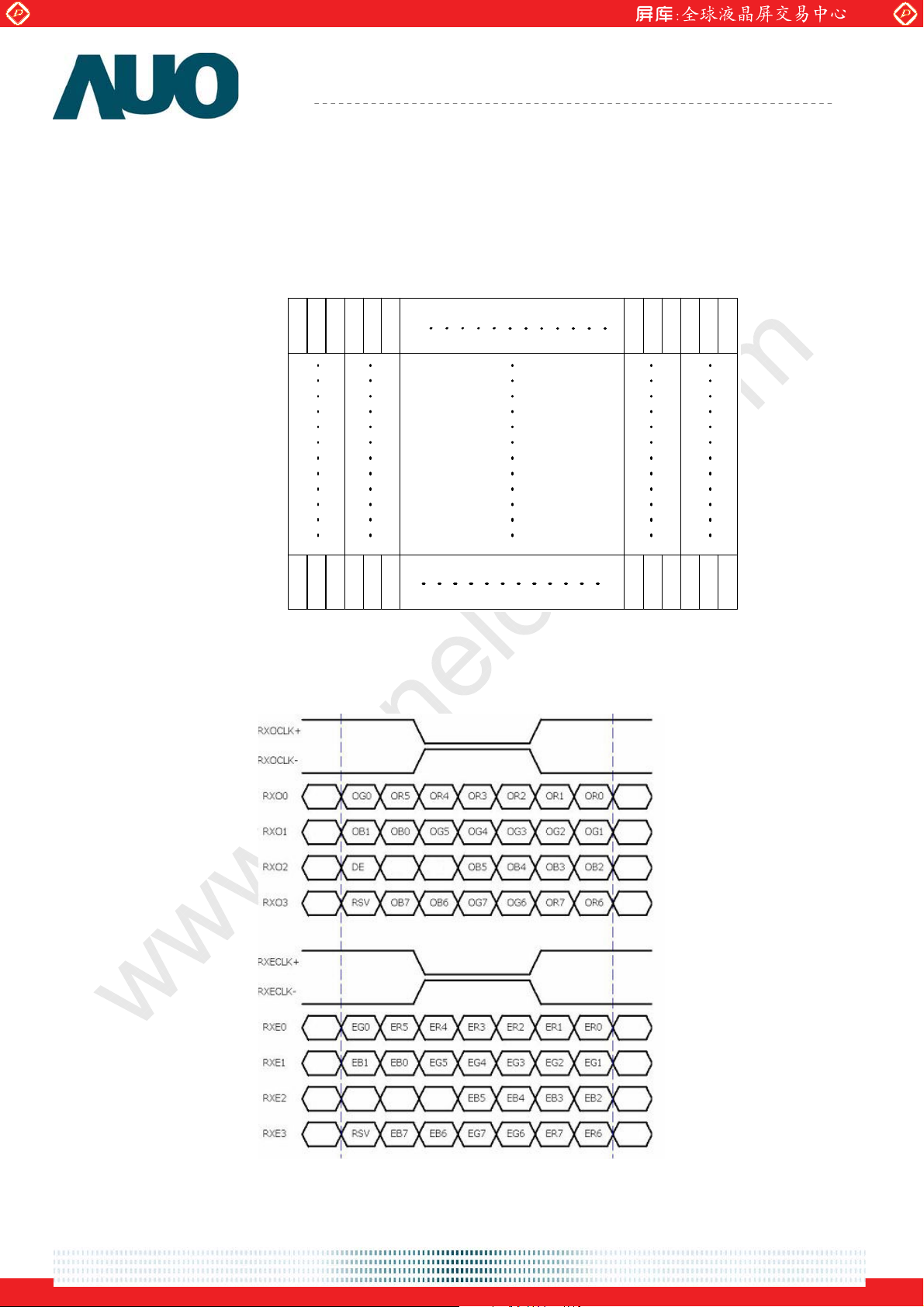

6.2 Input Data Format Definition .............................................................................................................. 19
6.3 Signal Description................................................................................................................................. 20
6.4 Timing Characteristics.......................................................................................................................... 22

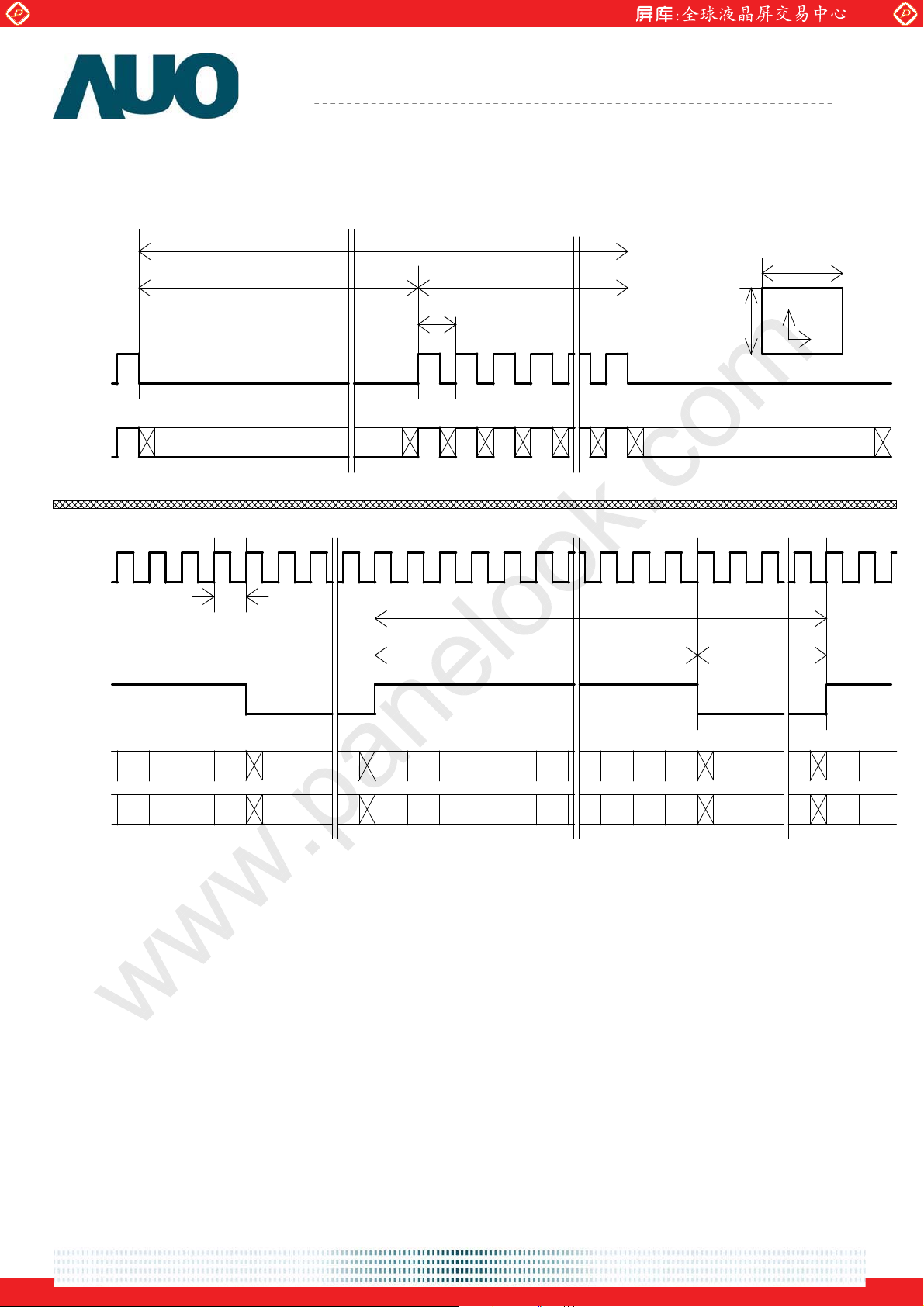

6.5 Timing Diagram..................................................................................................................................... 23

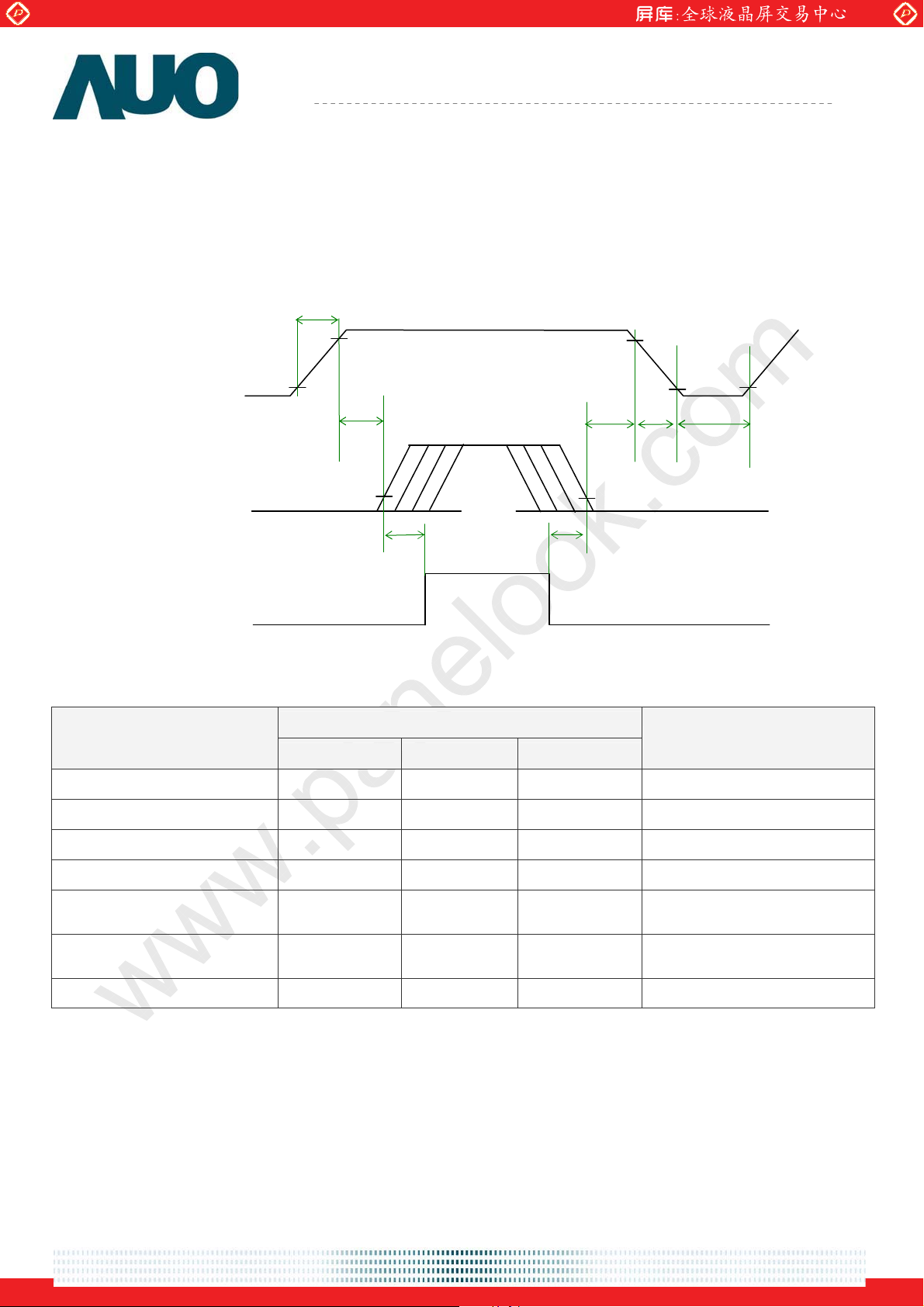

6.6 Power ON/OFF Sequence................................................................................................................... 24

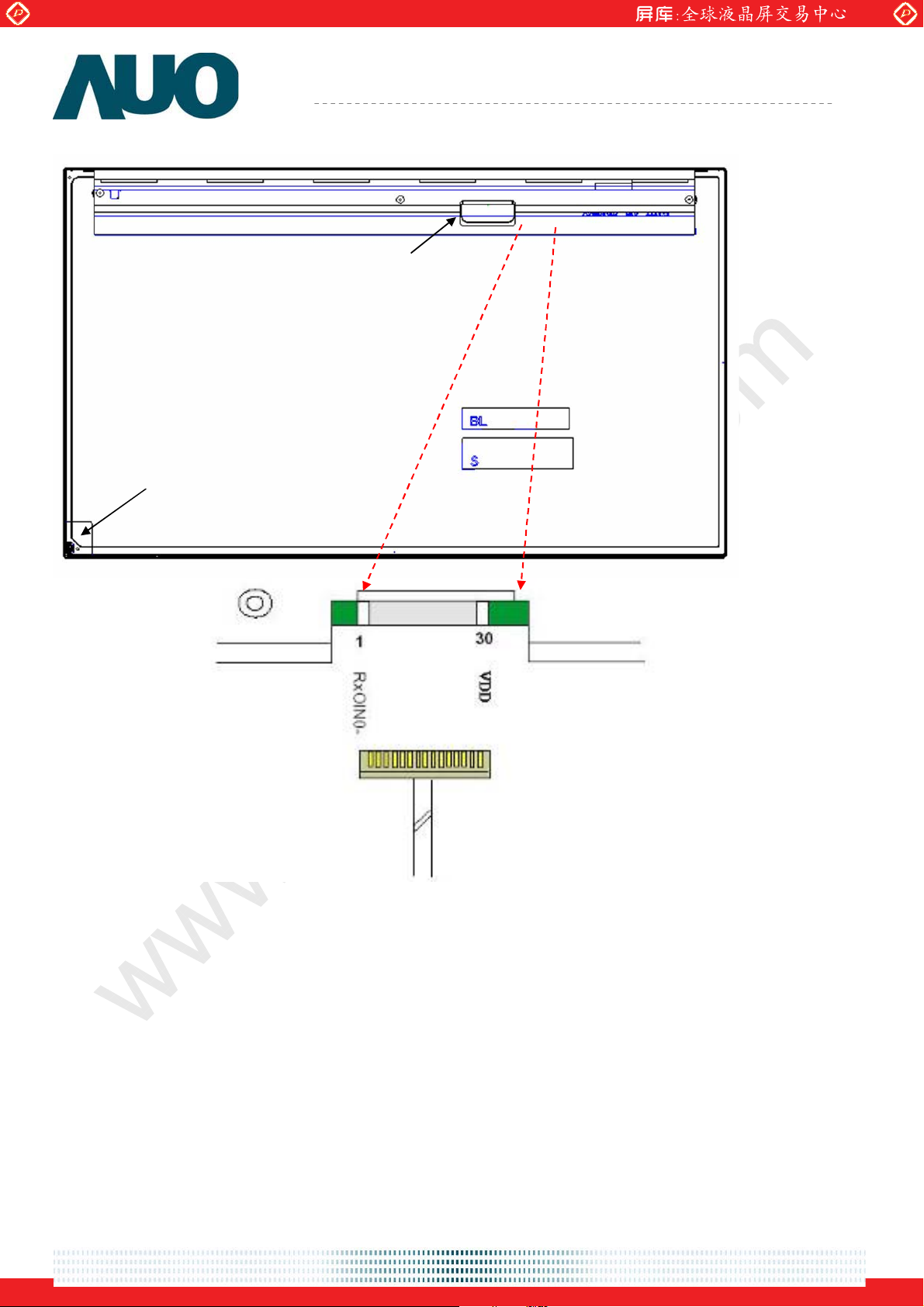

7 CONNECTOR AND PIN ASSIGNMENT........................................................................................ 25
7.1 TFT LCD Module.................................................................................................................................... 25
7.1.1 Pin Assignment.............................................................................................................................................. 25

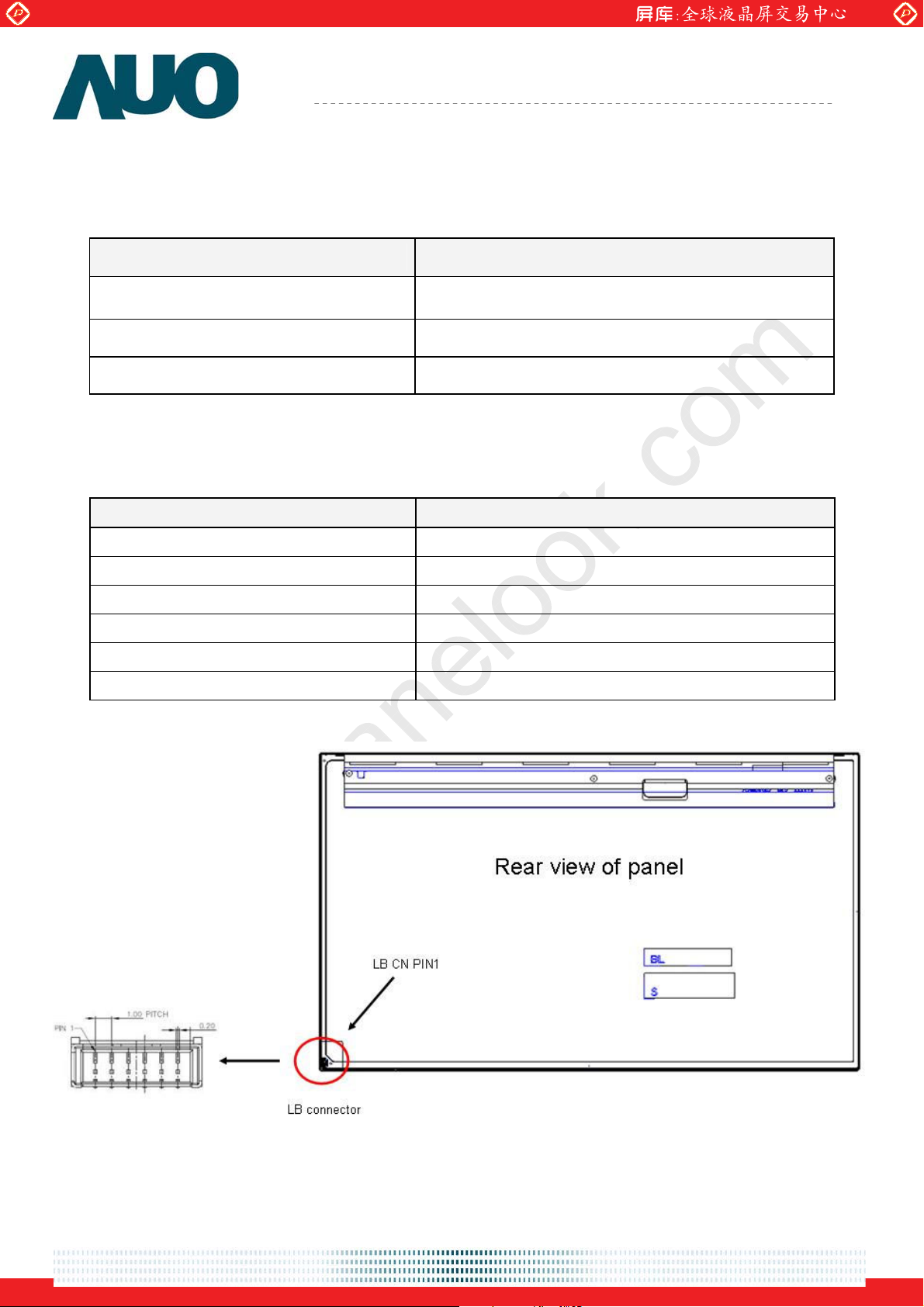

7.2 LED Connector on Backlight Unit....................................................................................................... 26
7.2.1 LED Pin assignment....................................................................................................................................... 26

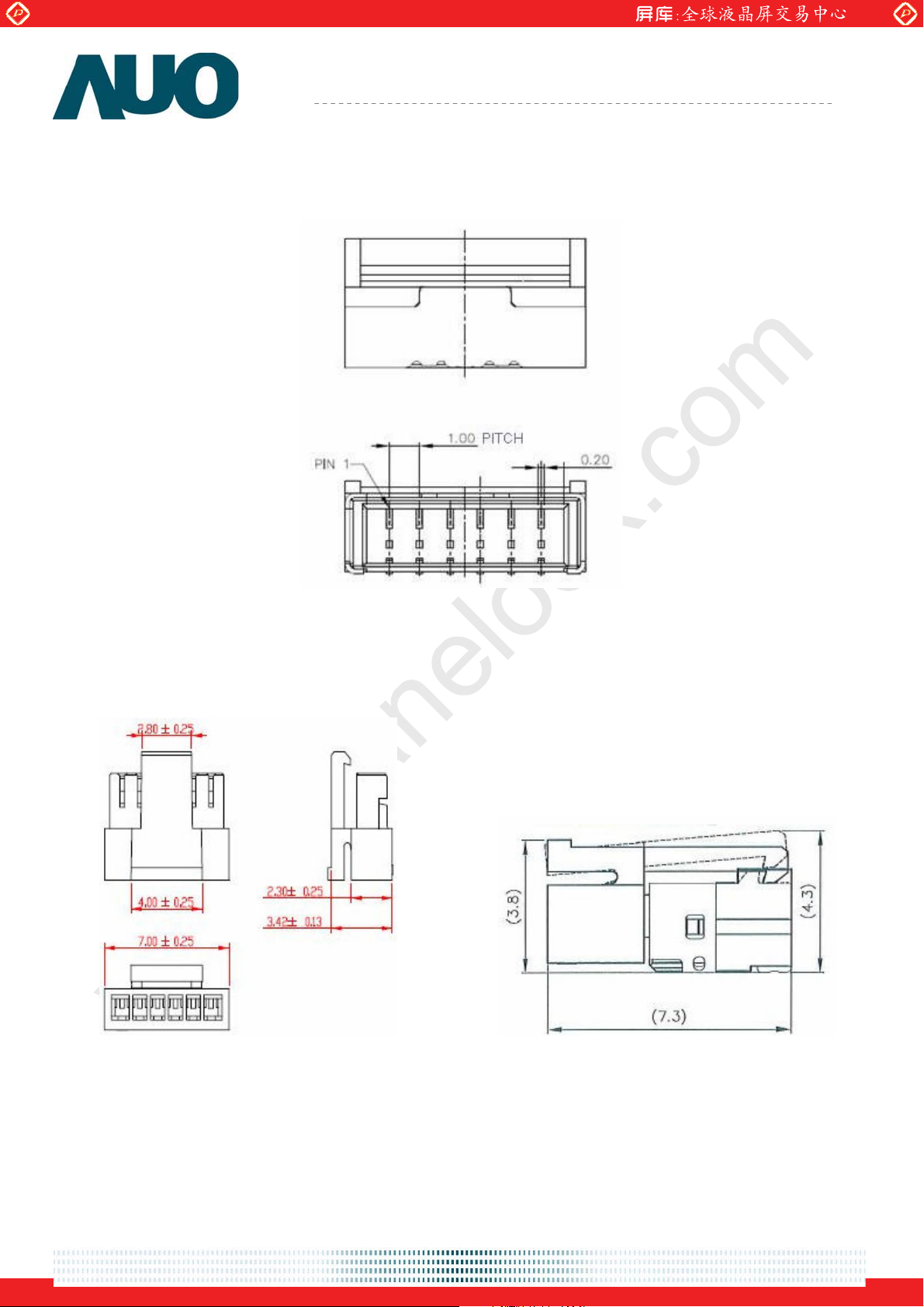

7.2.2 LED Connector Dimension .......................................................................................................................... 27
7.2.3 LED Mating housing dimension................................................................................................................... 27
8 RELIABILITY TEST............................................................................................................................ 28

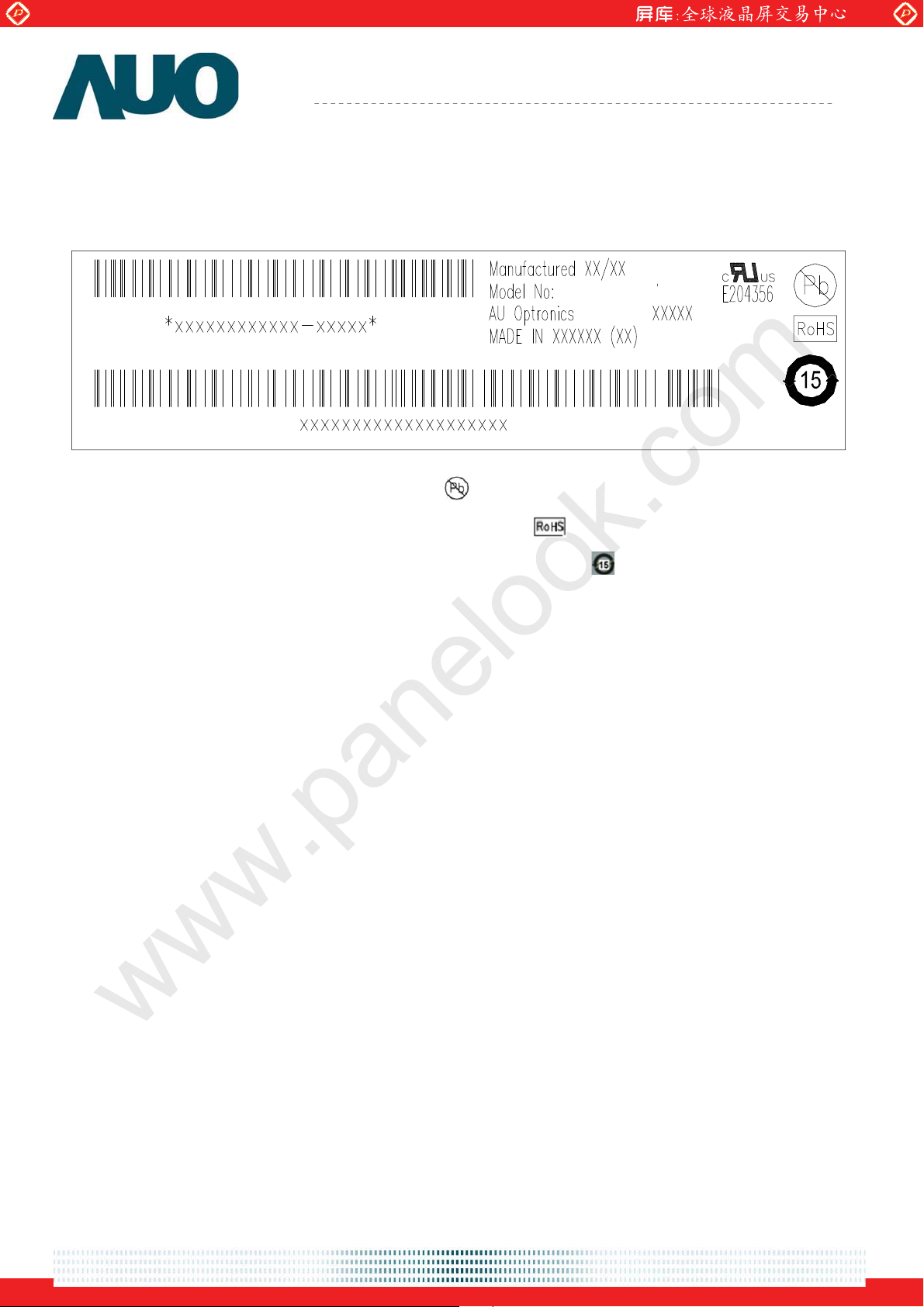

9 SHIPPING LABEL ...........................................................................................................................30
10 MECHANICAL CHARACTERISTICS..............................................................ᙑᎄ! ࡸآࡳᆠ᧘Ζ
11 PACKING SPECIFICATION ..........................................................................ᙑᎄ! ࡸآࡳᆠ᧘Ζ

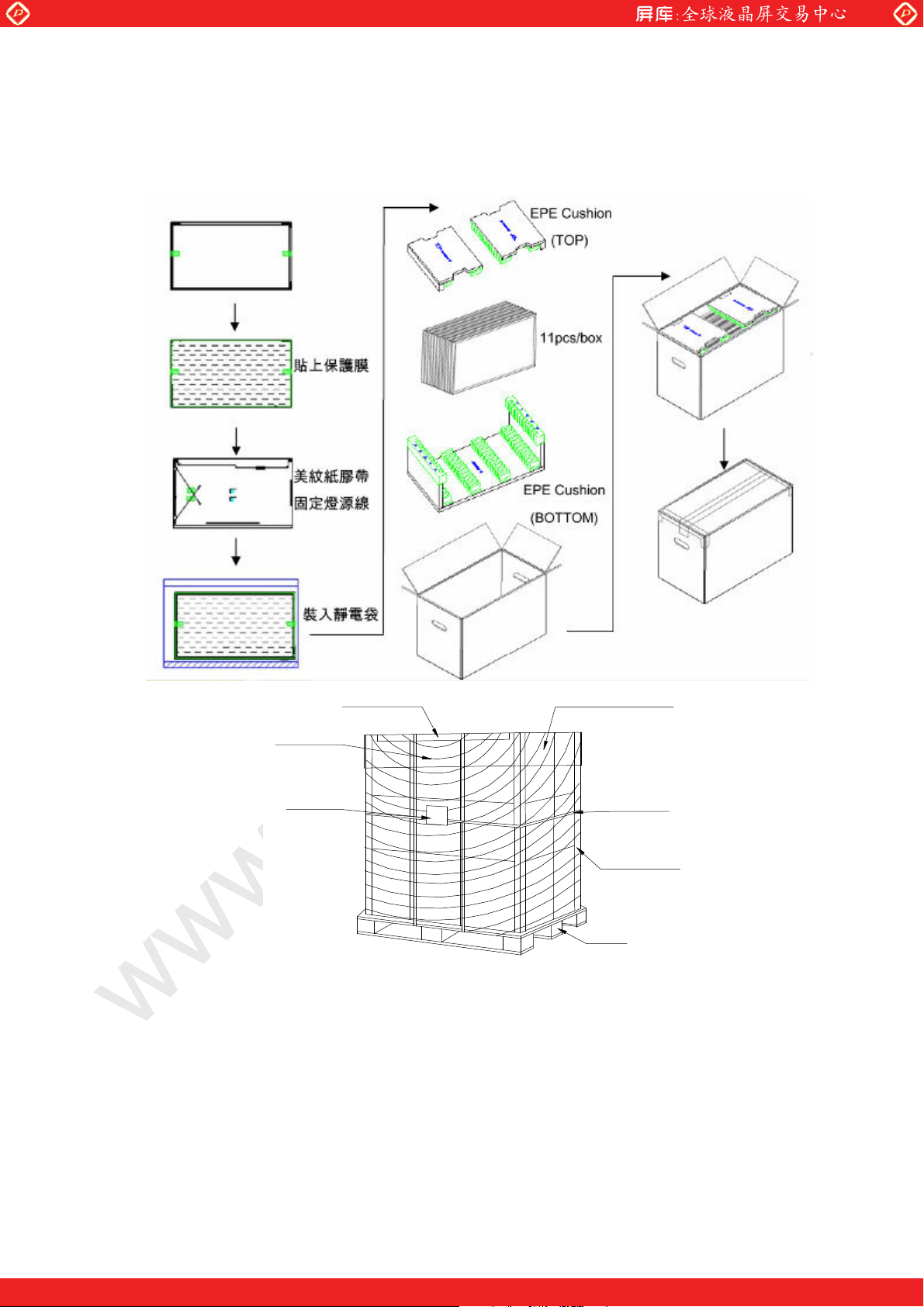

11.1 Packing Flow......................................................................................................... ᙑᎄ
11.2 Pallet and Shipment Information ....................................................................... ᙑᎄ
document version 1.2 2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
ᙑᎄ! ࡸآࡳᆠ᧘Ζ
ᙑᎄᙑᎄ
ᙑᎄ! ࡸآࡳᆠ᧘Ζ
ᙑᎄᙑᎄ
ࡸآࡳᆠ᧘Ζ
ࡸآࡳᆠ᧘Ζࡸآࡳᆠ᧘Ζ
ࡸآࡳᆠ᧘Ζ
ࡸآࡳᆠ᧘Ζࡸآࡳᆠ᧘Ζ
www.panelook.com
Page 3
Global LCD Panel Exchange Center
p
z
www.panelook.com
Version and
Date
0.1
2011/12/07
0.2 2012/1/9
0.2 2012/1/9
0.2 2012/1/9
0.2 2012/1/9
0.2 2012/1/9
0.2 2012/1/9
0.2 2012/1/9
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.0
Records of Revision
Page Old description New Description Remark
All First Edition for Customer
7
7
12 Backligh Unit / CCFL Current Backlight Unit / LED Forward
12
17 Symbol / IRLED Symbol / IRLED1, IRLED2, IRLED3,
17 PBLU / Typ 9.216 , Max 10.886 PBLU / Typ 9.2 , Max 10.9
17 Correct Note 1,2,3,4
Add Response Time / Gray to
Gray(16x16 avg.)
Correct Color / Chromaticity
Coordinates (CIE)
Current , LED Pulse Forward Current ,
LED forward Voltage variation (per
string variation)
Add Note 5: IRLED1,2,3,4 and
IPLED1,2,3,4 define as per strings LED
current.
IRLED4
0.2 2012/1/9
1.0
2012/05/18
1.0
2012/05/18
1.0
2012/05/18
1.0
2012/05/18
28 9.0 Shipping Label / Model
No:M215HTN01 V0
2
Power Consum
(without inverter ; 60 H
6
pattern)
6 Delete TCO Compliance item
9
tion / 14.2(Typ.)
, all black
9.0 Shipping Label / Model
No:M215HTN01.0
Add 5.2 Backlight Unit item
Add 7.2.2 LED Connector Dimension
Add 7.2.3 LED Mating housing
dimension
Add 11.1 Packing Flow
Add 11.2 Pallet and Shipment
Information
Power Consumption(VDD line + LED
line) / 13.3W VDD line : PDD (typ), All
black pattern at 60Hz = 4.1W LED
line : PBLU (typ) = 9.2W
Add Note 4 Algorithm:ŬGray Level
A – Gray Level BŬЊ16, then the
average gray to gray response time
is 2 ms,(F= 60 Hz).
1.0
2012/05/18
1.1
document version 1.2 3
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
11 Correct Functional Block Diagram
I/F PCB Interface:
11
FI-XB30SRL-HF11 (JAE)
I/F PCB Interface:
FI-XPB30SRLA-HF11 (JAE)
www.panelook.com
Page 4
Global LCD Panel Exchange Center
(typ)
www.panelook.com
2012/07/20
1.1
2012/07/20
1.1
2012/07/20
1.1
2012/07/20
1.1
2012/07/20
1.1
2012/07/20
1.1
2012/07/20
1.1
2012/07/20
1.1
2012/07/20
1.1
2012/07/20
Product Specification
or 093F30-B0T01A (Starcoon)
24 7.1 TFT LCD Module
Manufacturer / JAE, Starconn
Type Part Number /
FI-XB30SRL-HF11(JAE)
093F30-B0T01A(Starconn)
20 Correct Signal Description / Note1
23 Correct Power ON/OFF Sequence
25 Correct 7.2.1 LED Pin assignment /
26 Add 7.2.2 LED Connector Dimension
27 8.0 Reliability Test/Drop Test/
Height: 60 cm, package test
27 ESD (Electro Static Discharge) /
Contact Discharge: ± 8KV,
150pF(330Ө ) 1sec, 8 points, 25
times/ point.
Air Discharge: ± 15KV,
150pF(330Ө ) 1sec
8 points, 25 times/ point.
27
29 10.0 Mechanical Characteristics /
Altitude Test / Operation:10,000 ft
Non-Operation:30,000 ft
AU OPTRONICS CORPORATION
01-187121-30091-3(A) (P-TWO)
7.1 TFT LCD Module
Manufacturer / JAE P-TWO
Type Part Number /
FI-XPB30SRLA-HF11
01-187121-30091-3(A)
Signal Name
Add LED light bar connector
illustration
Add 7.2.3 LED Mating housing
dimension
8.0 Reliability Test/Drop Test/
Height: 46 cm, package test
ESD (Electro Static Discharge) /
Contact Discharge: ± 15KV,
150pF(330Ө ) 1sec,11 points, 25
times/ point.
Air Discharge: ± 15KV, 150pF(330Ө )
1sec
11 points, 25 times/ point.
Altitude Test /Operation: 18,000 ft
Non-Operation: 40,000 ft
Add Torqe value & section
illustration
M215HTN01.0
1.2
2012/10/15
document version 1.2 4
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
I/F PCB Interface:
11
FI-XPB30SRLA-HF11 (JAE)
01-187121-30091-3(A) (P-TWO)
Type port number :
24
FI-XPB30SRLA-HF11
01-187121-30091-3(A)
Power Consumption : 13.3W
6
VDD line : PDD
pattern at 60Hz = 4.1W
LED line : PBLU (typ) = 9.2W
, All black
I/F PCB Interface:
FI-XPB30SRLA-HF11 (JAE)
01-187145-30091-3(A) (P-TWO)
Type port number :
FI-XPB30SRLA-HF11
01-187145-30091-3(A)
Power Consumption : 13.6W
VDD line : PDD (typ), All black
pattern at 60Hz = 4.1W
LED line : PBLU (typ) = 9.5W
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
17
25
21
AU OPTRONICS CORPORATION
M215HTN01.0
document version 1.2 5
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.0
1 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or
spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard
surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human
earth when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was
taken out from the container, do not press the center of LED light bar edge. Instead,
press at the far ends of the LED light bar edge softly. Otherwise the TFT Module may be
damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor
tilt the Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT
Module even momentary. At designing the enclosure, it should be taken into
consideration that no bending/twisting forces are applied to the TFT Module from
outside. Otherwise the TFT Module may be damaged.
12) Small amount of materials having no flammability grade is used in the LCD module. The
LCD module should be supplied by power complied with requirements of Limited
Power Source (IEC60950 or UL1950), or be applied exemption.
13) Avoid touching COF position while doing mechanical design.
14) While storing modules as spares for a long time, the following precautions are
necessary:
Store modules in a dark place. Do not expose them to sunlight or fluorescent light.
Keep the temperature between 5°C and 35°C at normal humidity.
15) Pls avoid touching COF position while you are doing mechanical design.
16) When storing modules as spares for a long time, the following precaution is necessary:
Store them in a dark place. Do not expose the module to sunlight or fluorescent light.
Keep the temperature between 5к and 35к at normal humidity.
document version 1.2 6
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.0
2 General Description
This specification applies to the 21.5 inch-FHD color a-Si TFT-LCD Module M215HTN01.0. The
display supports the FHD - 1920(H) x 1080(V) screen format and 16.7M colors (RGB 6-bit
data). The light source of this TFT-LCD module is W-LED. All input signals are 2-channel LVDS
interface and this module doesn’t contain a driver for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25°C condition:
Items Unit Specification
Screen Diagonal [mm] 546.86 (21.53”)
Active Area [mm] 476.64 (H) x 268.11 (V)
Pixels H x V 1920(x3) x 1080
Pixel Pitch
[um] 248.25 (per one triad) ×248.25
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode TN Mode, Normally White
White Luminance ( Center ) [cd/m2]
200 cd/m
2
(Typ.)
Contrast Ratio 600 (Typ.)
Optical Response Time [msec] 5ms (Typ., on/off)
Nominal Input Voltage VDD [Volt] +5.0 V (Type)
Power Consumption
(VDD line + LED line)
[Watt] 13.6W
VDD line : PDD (typ), All black pattern at 60Hz =
4.1W
LED line : PBLU (typ) = 9.5W
Weight [Grams] 1850 (Typ.)
Physical Size [mm] 495.6(H) × 292.2(V) × 10.3(D)
Electrical Interface Dual channel LVDS
Support Color 16.7M colors (RGB 6-bit + Hi_FRC )
Surface Treatment Anti-Glare, 3H
Temperature Range
Operating
Storage (Shipping)
o
[
C]
o
[
C]
0 to +50
-20 to +60
RoHS Compliance RoHS Compliance
document version 1.2 7
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.0
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25°C:
Item Unit Conditions Min. Typ. Max. Note
Horizontal (Right)
Viewing Angle
Contrast ratio Normal Direction 360 600 -
[degree
]
Response Time [msec]
CR = 10 (Left)
Vertical (Up)
CR = 10 (Down)
Raising Time (TrR)
Falling Time (TrF)
Raising + Falling
Gray to Gray(16x16
avg.)
Red x
40
40
15
40
-
-
-
0.610 0.640 0.670
45
45
20
45
3.8
1.2 2.5
5 8
-
-
-
-
5.5
2
3
4
Red y 0.300 0.330 0.360
Color / Chromaticity
Coordinates (CIE)
Color Coordinates (CIE) White
Central Luminance [cd/m2] 160 200 -
Luminance Uniformity
Crosstalk (in 60Hz)
Flicker
[%]
[%]
dB
Green x 0.302 0.332 0.362
Green y 0.595 0.625 0.655
Blue x 0.126 0.156 0.186
Blue y 0.019 0.049 0.079
White x 0.283 0.313 0.343
White y 0.299 0.329 0.359
75 80
-
1.5
-20
5
6
7
8
9
document version 1.2 8
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.0
Note 1: Measurement Method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt
temperature change during measuring (at surface 35°C). In order to stabilize the
luminance, the measurement should be executed after lighting Backlight for 30 minutes in
a stable, windless and dark room.
Photo Detector
Measured Distance
LCD Panel
TFT-LCD Module
Center of the screen
Note 2: Definition of Viewing Angle measured by ELDIM (EZContrast 88)
Viewing angle is the measurement of contrast ratio Њ10, at the screen center, over a 180°
horizontal and 180° vertical range (off-normal viewing angles). The 180° viewing angle
range is broken down as follows; 90° (Ӱ) horizontal left and right and 90° (ӥ) vertical, high
(up) and low (down). The measurement direction is typically perpendicular to the display
surface with the screen rotated about its center to develop the desired measurement
viewing angle.
document version 1.2 9
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.0
Note 3: Contrast Ratio measured by TOPCON SR-3
Note 4: Definition of Response time measured by Westar TRD-100A
The output signals of photo detector are measured when the input signals are changed
from “Full Black” to “Full White” (rising time, T
time, T
), respectively. The response time is interval between the 10% and 90% (1 frame at
rF
), and from “Full White” to “Full Black” (falling
rR
60 Hz) of amplitudes.
%
Optical
Optical
response
response
100
100
90
10
10
%
White Black
0
0
T
rF
Black
1 Frame 1 Frame
T
rR
White
T
+ TrF = 5 msec (typ.).
rR
˔˿˺˼˻ˍϭ˚˴ʳ˟˸˸˿ʳ˔ʳΩʳ˚˴ʳ˟˸˸˿ʳ˕ϭЊ˄ˉʿʳ˻˸ʳ˻˸ʳ˴˸˴˺˸ʳ˺˴ʳʳ˺˴ʳ˸˸ʳ˼˸ʳ˼ʳ˅ʳʿʻ˙ːʳˉ˃ʳ
˛ʼˁ
Note 5: Color Chromaticity and Coordinates (CIE) measured by TOPCON SR-3
Note 6: Central Luminance measured by TOPCON SR-3
Note 7: Luminance Uniformity of these 9 points defined as below and measured by
TOPCON SR-3
document version 1.2 10
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
L
www.panelook.com
Product Specification
Uniformity =
Note 8: Crosstalk defined as below and measured by TOPCON SR-3
CT = | YB – YA | / YA × 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
AU OPTRONICS CORPORATION
9)-(1 points 9in Luminance Minimum
9)-(1 Points 9in Luminance Maximum
M215HTN01.0
Note 9: Test Pattern Sub-checker Pattern measured by TOPCON SR-3
RGBRGB
Gray Level = L127
R GBRGB
RGBRGB
Gray Level = L0
Method: Record dBV & DC value with TRD-100
Amplitude
AC
DC
log20(dB)Flicker =
document version 1.2 11
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Time
Hz) 30Level(at AC
evel DC
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
M215HTN01.0
Product Specification
AU OPTRONICS CORPORATION
3 Functional Block Diagram
The following diagram shows the functional block of the 21.5 inch Color TFT-LCD Module:
I/F PCB Interface:
FI-XPB30SRLA-HF11 (JAE)
01-187145-30091-3(A) (P-TWO)
Mating Type:
FI-X30HL (Locked Type)
document version 1.2 12
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
4 Absolute Maximum Ratings
Absolute maximum ratings of the module are listed as follows:
4.1 TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
4.2 Backlight Unit
Item Symbol Min Max Unit Conditions
LED Forward Current
LED Pulse Forward Current
AU OPTRONICS CORPORATION
VDD 0 6 [Volt] Note 1,2
IRLED1
IRLED2
IRLED3
IRLED4
IPLED1
IPLED2
IPLED3
IPLED4
0 90
- 150
[mA]
[mA]
M215HTN01.0
Note 1,2,5
100% duty
Note 1,2,5
10% duty @100Hz
LED forward Voltage variation
(per string variation)
ӔVf
3.0 3.6
[Volt]
4.3 Absolute Ratings of Environment
Item Symbol Min. Max. Unit Conditions
Operating Temperature TOP 0 +50 [oC]
Glass surface temperature
Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [oC]
Storage Humidity HST
Note 1: With in Ta (25 °C)
Note 2: Permanent damage to the device may occur if exceeding maximum values
Note 3: Temperature and relative humidity range are shown as the below figure.
1. 90% RH Max ( Ta Љ39°C)
2. Max wet-bulb temperature at 39°C or less. ( Ta Љ39°C)
3. No condensation
Note 4: Function Judged only
TGS 0 +65 [oC]
5 90
[%RH]
Note 1,2
Note 3
Note3
Note4
Note 3
Note 5: IRLED1,2,3,4 and IPLED1,2,3,4 define as per strings LED current.
document version 1.2 13
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
Operating Range Storage Range
AU OPTRONICS CORPORATION
M215HTN01.0
document version 1.2 14
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
g
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.0
5 Electrical Characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are listed as follows:
Symbol Description Min Typ. Max Unit Conditions
VDD
Logic/LCD Drive
Voltage
IDD1 Input Current
PDD1 VDD Power
4.5 5.0 5.5 [Volt] +/-10%
-
-
0.82 0.98 [A] VDD= 5.0V, All Black Pattern At 60Hz
0.92 1.1 [A] VDD= 5.0V, All Black Pattern At 75Hz
4.1 4.9 [Watt] VDD= 5.0V, All Black Pattern At 60Hz
4.6 5.5 [Watt] VDD= 5.0V, All Black Pattern At 75Hz
IRush Inrush Current -
VDDrp
Allowable Lo
Drive Ripple Voltage
Note 1: Measurement Conditions:
The duration of rising time of power input is 470 us.
ic/LCD
-
- 3 [A] Note 1
- 500 [mV] p-p VDD= 5.0V, All Black Pattern At 75Hz
document version 1.2 15
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.0
5.1.2 Signal Electrical Characteristics
(1) DC Characteristics of each signal are as following:
Symbol Description Min Typ Max Units Conditions
VTH
VTL
ѨVIDѨ
VCM
Differential Input High
Threshold
Differential Input Low
Threshold
Input Differential
Voltage
Differential Input
Common Mode Voltage
- - +100 [mV]
-100 - - [mV]
100 - 600 [mV] Note 1
+1.0 +1.2 +1.5 [V]
= 1.2V
V
CM
Note 1
= 1.2V
V
CM
Note 1
= 200mV (max)
V
TH-VTL
Note 1
Note 1: LVDS Signal Waveform
document version 1.2 16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.0

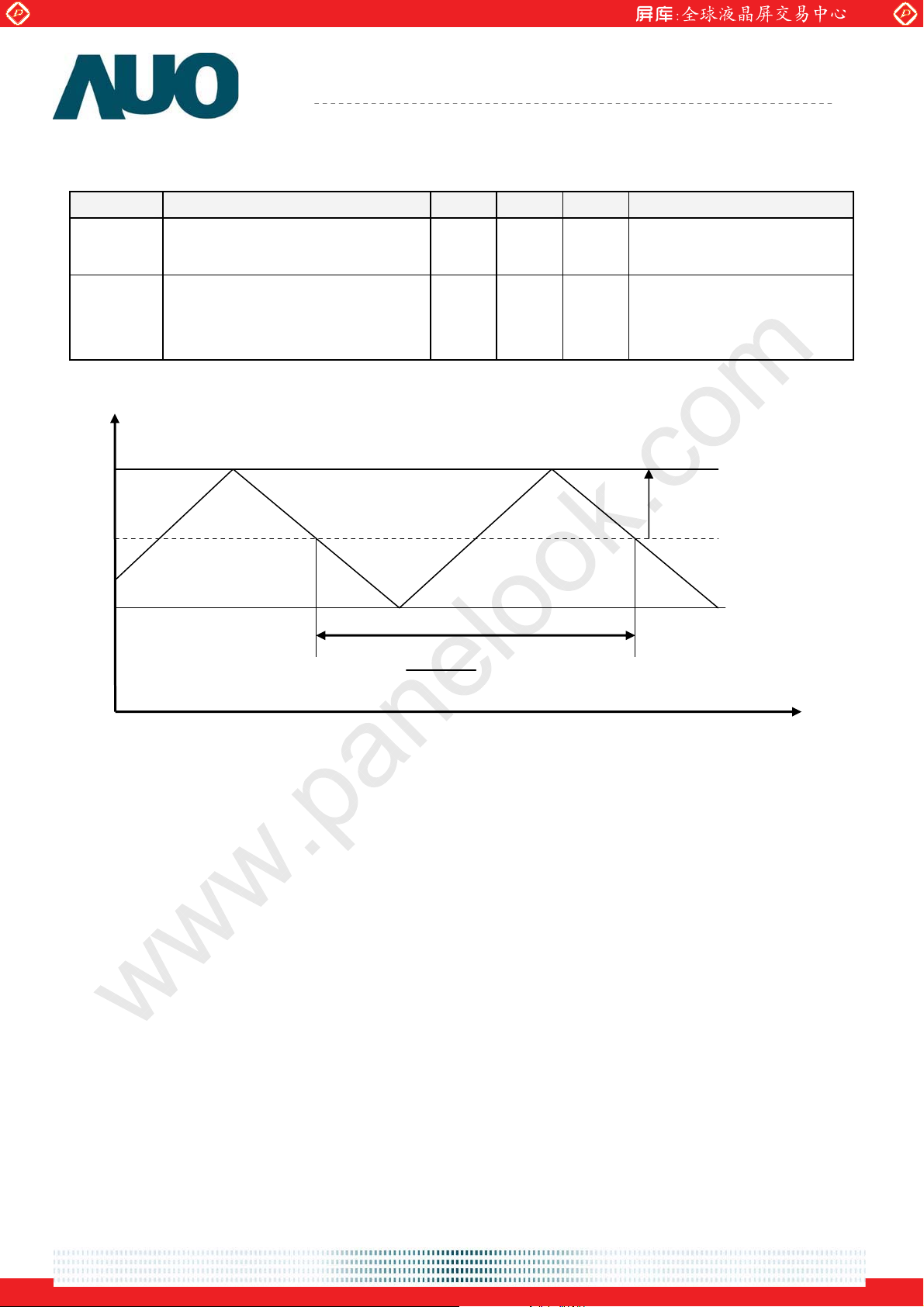

(2) AC Characteristics
Symbol Description Min Max Units Conditions
F
F
DEV
MOD
Maximum deviation of input
clock frequency during SSC
Maximum modulation
frequency of input clock
during SSC
- ± 3 %
- 200 KHz
Freq
F
max
F
center
* F
DEV
F
min
1
F
MOD
Time
< Spread Spectrum>
document version 1.2 17
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
5.2 Backlight Unit
Parameter guideline for LED driving is under stable conditions at 25
Symbol Description Min.
IRLED1
IRLED2
LED Forward Current - 60 63 [mA]
IRLED3
IRLED4
Light Bar Operation Voltage
VLED
(for reference)
BLU Power Consumption (for
PBLU
reference)
AU OPTRONICS CORPORATION
Typ. Max. Unit Note
34.5 39.6 43.2 [Volt]
8.28 9.5
10.ˆˊ
M215HTN01.0
°C (Room Temperature):
Note 1
[Watt]
Note 2
Note 3
LTLED LED Life Time (Typical) 30,000 - - [Hour]
Note 4
Each module consists of 48 pcs LED ( 4 strings x 12 pcs / string )
Note 1: The specified current is 100% duty of LED chip input current, IRLED1,2,3,4 define as
per strings LED current.
Note 2: The value showed is one string operation voltage.
Note 3: PBLU = VLED *( IRLED1+IRLED2+IRLED3+IRLED4)
Note 4: Definition of life time: Brightness becomes to 50% of its original value. The minimum
life time of LED unit is on the condition of IRLED = 60mA and 25±2°C (Room Temperature).
document version 1.2 18
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.0
6 Signal Characteristics
6.1 Pixel Format Definition
Following figure shows the relationship between the input signals and LCD pixel format.
1st Line
1 2 1919 1920
R G B R G B
R G B R G B
1080 Line
R G B R G B
6.2 Input Data Format Definition
R G B R G B
Note 1: R/G/B data 7:MSB, R/G/B data 0:LSB O = “Odd Pixel Data” E = “Even Pixel
Data”
document version 1.2 19
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
www.panelook.com
6.3 Signal Description
PIN # SIGNAL NAME DESCRIPTION
1 RxOIN0- Negative LVDS differential data input (Odd data
2 RxOIN0+ Positive LVDS differential data input (Odd data
3 RxOIN1- Negative LVDS differential data input (Odd data
4 RxOIN1+ Positive LVDS differential data input (Odd data
5 RxOIN2- Negative LVDS differential data input (Odd data, DSPTMG
6 RxOIN2+ Positive LVDS differential data input (Odd data, DSPTMG
7 GND Power Ground
8 RxOCLK- Negative LVDS differential clock input (Odd clock
9 RxOCLK+ Positive LVDS differential clock input (Odd clock
10 RxOIN3- Negative LVDS differential data input (Odd data
11 RxOIN3+ Positive LVDS differential data input (Odd data
12 RxEIN0- Negative LVDS differential data input (Even data
13 RxEIN0+ LVDS differential data input (Even data
14 GND Power Ground
15 RxEIN1- Negative LVDS differential data input (Even data
16 RxEIN1+ Positive LVDS differential data input (Even data
17 GND Power Ground
18 RxEIN2- Negative LVDS differential data input (Even data
19 RxEIN2+ Positive LVDS differential data input (Even data
20 RxECLK- Negative LVDS differential clock input (Even clock
21 RxECLK+ Positive LVDS differential clock input (Even clock
22 RxEIN3- Negative LVDS differential data input (Even data
23 RxEIN3+ Positive LVDS differential data input (Even data
24 GND Power Ground
25 NC No connection (for AUO test only. Do not connect
26 NC No connection (for AUO test only. Do not connect
27 NC No connection (for AUO test only. Do not connect
28 VDD Power +5V
29 VDD Power +5V
30 VDD Power +5V
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.0
Note 1: Input signals of odd and even clock shall be the same timing.
document version 1.2 20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
L/B C/N PIN 1
Product Specification
AU OPTRONICS CORPORATION
LVDS C/N PIN 1
M215HTN01.0
document version 1.2 21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
6.4 Timing Characteristics
The input signal timing specifications are shown as the following table
Signal Item Symbol Min Typ Max Unit
Period Tv
Vertical
Active Tdisp(v)
Section
Blanking Tbp(v)+Tfp(v)+PWvs
Period Th
Horizontal
Active Tdisp(h)
Section
Blanking Tbp(h)+Tfp(h)+PWhs
Period Tclk
Clock
Frequency Freq
Frame
Frame rate
Hsync
Frequency
Hsync
Frequency
AU OPTRONICS CORPORATION
F
rate
HFreq
1092ʳ 1130ʳ 1818ʳ
1080ʳ 1080ʳ 1080ʳ
12ʳ 50ʳ 738ʳ
1034ʳ 1050ʳ 1100ʳ
960ʳ 960ʳ 960ʳ
74ʳ 90ʳ 140ʳ
10.6ʳ 14.0ʳ 17.7ʳ
56.5ʳ 71.2ʳ 94.0ʳ
50ʳ 60ʳ 76ʳ
55ʳ 68ʳ 91ʳ
M215HTN01.0
Th
Th
Th
Tclk
Tclk
Tclk
ns
MHz
Hz
KHz
Note 1: DE mode only
document version 1.2 22
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
6.5 Timing Diagram
DE
RGB Data
N
Line
Tblk(v)
Invalid Data
Product Specification
AU OPTRONICS CORPORATION
Tv
Tdisp(v)
Th
4
1
32
LineLine
LineLine
N
Line
M215HTN01.0
M pixel
Y
N Line
Invalid Data
X
CLK
RGB Data
(Odd)
RGB Data
(Even)
Tclk
DE
Pixel
Pixel
M-7
Pixel
M-6
M-5
Pixel
Pixel
M-3
Pixel
M-2
Pixel
M-1
Pixel
M
Invalid Data
Invalid Data
Pixel
Pixel
1
Pixel Pixel
2
Pixel
5
3
Pixel
4
6M-2
Th
Tdisp(h)
Pixel
Pixel
10
Pixel
119
12
Pixel
M-5
Pixel
M-4
Pixel
7
Pixel
8M
Pixel
Pixel
M-3
Pixel
M-1
PixelPixel
Tblk(h)
Invalid Data
Invalid Data
Pixel
Pixel
Pixel
3
1
Pixel
2M-4
4
document version 1.2 23
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.0
6.6 Power ON/OFF Sequence
VDD power and lamp on/off sequence are as follows. Interface signals are also
shown in the chart. Signals from any system shall be Hi-Z state when VDD is off.
90%
T5
T6
10%
T7
Power Supply VDD
T1
90%
10%
T2
LVDS Signal
VALID
DATA
T3
T4
Backlight On
Power Sequence Timing
Value
Parameter
Min. Typ. Max.
T1 0.5 - 10 [ms]
T2 0 - 50 [ms]
T3 500 - - [ms]
T4 100 - - [ms]
T5 0 - 50
T6 5 - 100
T7 1000 - - [ms]
Note1 : Recommend setting T5 = 0ms to avoid electronic noise when VDD is off.
Note2 : During T5 and T6 period , please keep the level of input LVDS signals with Hi-Z state.
Note1,2
Note1,2
Unit
[ms]
[ms]
document version 1.2 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.0
7 Connector and Pin Assignment
Physical interface is described as for the connector on module. These connectors are
capable of accommodating the following signals and will be following components.
7.1 TFT LCD Module
Connector Name / Designation Interface Connector / Interface Card
Manufacturer
Type Part Number
Mating Housing Part Number
7.1.1 Pin Assignment
JAE
P-TWO
FI-XPB30SRLA-HF11
01-187145-30091-3(A)
FI-X30HL (Locked Type)
Pin# Signal Name Pin# Signal Name
1 RxOIN0- 2 RxOIN0+
3 RxOIN1- 4 RxOIN1+
5 RxOIN2- 6 RxOIN2+
7 GND 8 RxOCLKIN-
9 RxOCLKIN+ 10 RxOIN3-
11 RxOIN3+ 12 RxEIN0-
13 RxEIN0+ 14 GND
15 RxEIN1- 16 RxEIN1+
17 GND 18 RxEIN2-
19 RxEIN2+ 20 RxECLKIN-
21 RxECLKIN+ 22 RxEIN3-
23 RxEIN3+ 24 GND
25
27
NC (for AUO test only. Do not
26
connect)
NC (for AUO test only. Do not
28 VDD
connect)
NC (for AUO test only. Do not
connect)
29 VDD 30 VDD
document version 1.2 25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
7.2 LED Connector on Backlight Unit
This connector is mounted on LED light bar.
Connector Name / Designation Light Bar Connector
Manufacturer
Type Part Number
Mating Housing Part Number
7.2.1 LED Pin assignment
Pin# Signal Name
AU OPTRONICS CORPORATION
CVILUX
CI1406M1HRB-NH
M215HTN01.0
1 IRLED1 (current out)
2 IRLED2 (current out)
3 VLED (voltage in)
4 VLED (voltage in)
5 IRLED3 (current out)
6 IRLED4 (current out)
document version 1.2 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 27
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
7.2.2 LED Connector Dimension
H x V x D = 7.9 x 3.05 x 4.25, Pitch = 1.0 (unit = mm)
AU OPTRONICS CORPORATION
M215HTN01.0
7.2.3 LED Mating housing dimension
document version 1.2 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 28
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.0
8 Reliability Test
Environment test conditions are listed as following table.
Items Required Condition Note
Temperature Humidity Bias (THB) Ta= 50°C, 80%RH, 300 hours
High Temperature Operation
(HTO)
Low Temperature Operation (LTO) Ta= 0°C, 300 hours
High Temperature Storage (HTS) Ta= 60°C, 300 hours
Low Temperature Storage (LTS) Ta= -20°C, 300 hours
Vibration Test
(Non-operation)
Ta= 50°C, 50%RH, 300 hours
Acceleration: 1.5 Grms
Wave: Random
Frequency: 10 - 200 Hz
Duration: 30 Minutes each Axis (X, Y, Z)
Acceleration: 50 G
Shock Test
(Non-operation)
Drop Test Height: 46 cm, package test
Thermal Shock Test (TST) -20°C/30min, 60°C/30min, 100 cycles
On/Off Test On/10sec, Off/10sec, 30,000 cycles
ESD (Electro Static Discharge)
Altitude Test
Wave: Half-sine
Active Time: 20 ms
Direction: ±X, ±Y, ±Z (one time for each Axis)
Note 1
Contact Discharge: ± 15KV, 150pF(330Ө) 1sec,
11 points, 25 times/ point.
Note 2
Air Discharge: ± 15KV, 150pF(330Ө ) 1sec
11 points, 25 times/ point.
Operation: 18,000 ft
Non-Operation: 40,000 ft
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of
rapid temperature change. A cycle of rapid temperature change consists of varying the
temperature from -20
°C to 60°C, and back again. Power is not applied during the test. After
temperature cycling, the unit is placed in normal room ambient for at least 4 hours before
power on.
Note 2: EN61000-4-2, ESD class B: Certain performance degradation allowed:
No data lost
Self-recoverable
No hardware failures
document version 1.2 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 29
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.0
document version 1.2 29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 30
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
9 Shipping Label
The label is on the panel as shown below:
Note 1: For Pb Free products, AUO will add
Note 2: For RoHS compatible products, AUO will add
AU OPTRONICS CORPORATION
for identification.
M215HTN01.0
M215HTN01.0
for identification.
Note 3: For China RoHS compatible products, AUO will add for identification.
Note 4: The Green Mark will be presented only when the green documents have been
ready by AUO Internal Green Team.
document version 1.2 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 31
Global LCD Panel Exchange Center
www.panelook.com
10.0 Mechanical Characteristics
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 32
Global LCD Panel Exchange Center
www.panelook.com
void touching COF position
when doing mechanical design
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 33
Global LCD Panel Exchange Center
p
p
p
11. Packing Specification
11.1 Packing Flow
Module
www.panelook.com
Cover top cushion
Paste
rotect film
Paste lam
wire
1pcs Module/ESD
Stretch film
Label
Corner angle
Carton
Moi sture-proof fi lm
PET band
Corner angle
”H ”Ta
e
Pall et
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 34
Global LCD Panel Exchange Center
11.2. Pallet and shipment information
www.panelook.com
Item
Q'ty Dimension Weight(kg)
1 Panel 1
Specification
495.6(W)mm × 292.2(H)mm ×
11(D)mm
Remark
1.92 Note1
2 Cushion 1 - 0.40
without Panel &
3 Box 1 556(L)mm x 292(W)mm x 375(H)mm 0.95
cushion
Note1
4 Packing Box 11 pcs/Box 556(L)mm x 292(W)mm x 375(H)mm 23.00
with panel & cushion
Note1
5 Pallet 1 1150(L)mm x 910(W)mm x 132(H)mm 12.00 Note1
6
Pallet after
Packing
18
boxes/pallet
1150(L)mm x 910(W)mm x 1257(H)mm 426.00
Note1
Note 1: Estimated value which is subject to change based on real measured data.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
