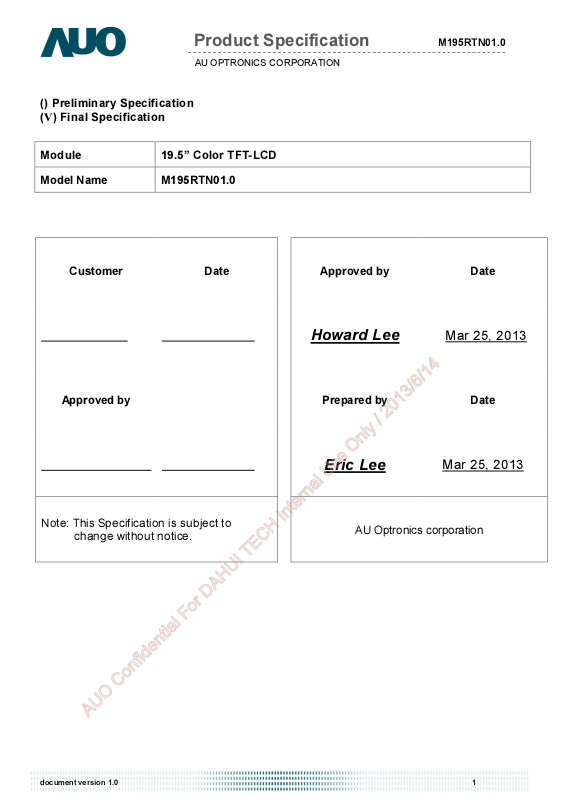

AUO M195RTN01.0 Specification

Product Specification

Preliminary Specification

()
(V) Final Specification

Module 19.5” Color TFT-LCD

Model Name M195RTN01.0

AU OPTRONICS CORPORATION

M195RTN01.0

Customer Date

Approved by

Approved by Date

Howard Lee

Prepared by Date

Eric Lee

Mar 25, 2013

Mar 25, 2013

Note: This Specification is subject to

change without notice.

AU Optronics corporation

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 1

Product Specification

AU OPTRONICS CORPORATION

M195RTN01.0

Contents

1 Handling Precautions................................................................ 4

2 General Description .................................................................. 5

2.1 Display Characteristics...........................................................................................................5

2.2 Absolute Maximum Rating of Environment ...........................................................................6

2.3 Optical Characteristics ...........................................................................................................7

3 TFT-LCD Module...................................................................... 11

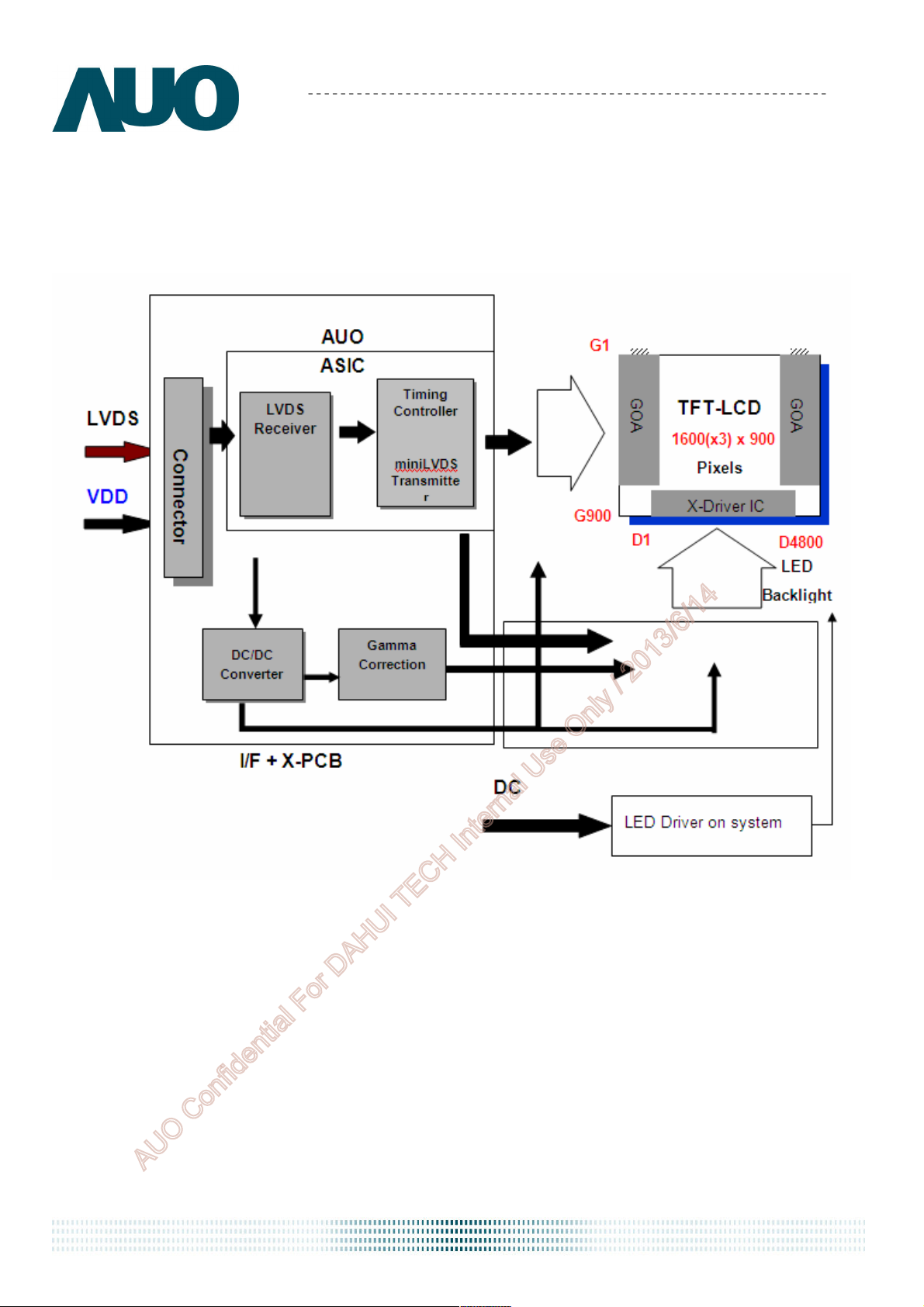

3.1 Block Diagram ......................................................................................................................11

3.2 Interface Connection ........................................................................................................... 12

3.2.1 Connector Type.......................................................................................................... 12

3.2.2 Connector Pin Assignment ........................................................................................ 12

3.3 Electrical Characteristics..................................................................................................... 14

3.3.1 Absolute Maximum Rating ......................................................................................... 14

3.3.2 Recommended Operating Condition......................................................................... 14

3.4 Signal Characteristics.......................................................................................................... 15

3.4.1 LCD Pixel Format....................................................................................................... 15

3.4.2 LVDS Data Format..................................................................................................... 15

3.4.3 Color versus Input Data ............................................................................................. 16

3.4.4 LVDS Specification..................................................................................................... 17

3.4.5 Input Timing Specification .......................................................................................... 19

3.4.6 Input Timing Diagram ................................................................................................. 20

3.5 Power ON/OFF Sequence .................................................................................................. 21

4 Backlight Unit ......................................................................... 22

4.1 Block Diagram ..................................................................................................................... 22

4.2 Interface Connection ........................................................................................................... 23

4.2.1 Connector Type.......................................................................................................... 23

4.2.2 Connector Pin Assignment ........................................................................................ 25

4.3 Electrical Characteristics..................................................................................................... 26

4.3.1 Absolute Maximum Rating ......................................................................................... 26

4.3.2 Recommended Operating Condition......................................................................... 26

5 Reliability Test........................................................................ 28

6 Shipping Label ........................................................................ 29

7 Mechanical Characteristics ..................................................... 30

8 Packing Specification.............................................................. 31

8.1 Packing Flow ....................................................................................................................... 31

8.2 Pallet and shipment information.......................................................................................... 32

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 2

Product Specification

AU OPTRONICS CORPORATION

M195RTN01.0

Version

0.1 2013/1/19

1.0 2013/3/25

1.0 2013/3/25

1.0 2013/3/25

Date Page Old description New Description Remark

Record of Revision

All First version release -

19 Input timing spec Modify Input timing spec

5 Pixel Arrangement RGB Island

5 VDD line: PDD type (typ) 2.5W VDD line: PDD type (typ) 3.0W

Pixel Arrangement RGB

Vertical Stripe

1.0 2013/3/25

14 Table 3.3.2 Table 3.3.2 IDD & PDD

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 3

Product Specification

AU OPTRONICS CORPORATION

M195RTN01.0

1 Handling Precautions

1) Since front polarizer is easily damaged, pay attention not to scratch it.

2) Be sure to turn off power supply when inserting or disconnecting from input connector.

3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.

4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.

5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.

6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth
when handling.

7) Do not open or modify the Module Assembly.

8) Do not press the reflector sheet at the back of the module to any directions.

9) In case a TFT-LCD Module has to be put back into the packing container slot after once it was
taken out from the container, do not press the center of the LED lightbar edge. Otherwise the
TFT-LCD Module may be damaged.

10) Insert or pull out the interface connector, be sure not to rotate nor tilt it of the TFT-LCD
Module.

11) Do not twist nor bend the TFT -LCD Module even momentary. It should be taken into
consideration that no bending/twisting forces are applied to the TFT-LCD Module from outside.
Otherwise the TFT-LCD Module may be damaged.

12) Please avoid touching COF position while you are doing mechanical design.

13) When storing modules as spares for a long time, the following precaution is necessary:

Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the

temperature between 5℃ and 35℃ at normal humidity.

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 4

Product Specification

AU OPTRONICS CORPORATION

M195RTN01.0

2 General Description

This specification applies to the19.5 inch wide Color a-Si TFT-LCD Module M195RTN01.0. The
display supports the HD+ - 1600(H) x 900(V) screen format and
Hi-FRC data). The input interface is

Dual channel LVDS and this module doesn’t contain an

16.7M colors (RGB 6-bits +

driver board for backlight.

2.1 Display Characteristics

The following items are characteristics summary on the table under 25

ITEMS Unit SPECIFICATIONS

Screen Diagonal [mm]
Active Area [mm] 433.92(H) x 236.34 (V)
Pixels H x V - 1600(x3) x 900
Pixel Pitch [um] 0.2712 x 0.2626
Pixel Arrangement - R.G.B. Vertical Stripe
Display Mode - TN Mode, Normally White
White Luminance ( Center ) [cd/m2] 250 (Typ.)
Contrast Ratio - 1000 (Typ.)
Response Time [msec] 5 (Typ., on/off)
Power Consumption

[Watt] LED line : PBLU (typ) = 7.44 W
(LCD Module + Backligh unit)
Weight [Grams] 1430
Outline Dimension [mm] 452.0(H)x263(V)x10.5(D)
Electrical Interface - Dual channel LVDS
Support Color - 16.7M colors (RGB 6-bit + Hi_FRC )
Surface Treatment - Anti-Glare, 3H
Temperature Range
Operating
Storage (Shipping)

[oC]

[oC]
RoHS Compliance - RoHS Compliance
TCO Compliance - TCO 6.0 Compliance

495.3 (19.5”)

VDD line : PDD (typ)= 3.0 W

0 to +50

-20 to +60



condition:

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 5

Product Specification

AU OPTRONICS CORPORATION

M195RTN01.0

2.2 Absolute Maximum Rating of Environment

Permanent damage may occur if exceeding the following maximum rating.

Symbol Description Min. Max. Unit Remark

TOP Operating Temperature 0 +50 [oC] Note 2-1

TGS

Glass surface temperature
(operation)

0 +65 [oC]

Function judged only

HOP Operation Humidity 5 90 [%RH]

TST Storage Temperature -20 +60 [oC]

HST Storage Humidity

5 90

[%RH]

Note 2-1: Temperature and relative humidity range are shown as the below figure.

1. 90% RH Max ( Ta ≦39℃)

2. Max wet-bulb temperature at 39℃ or less. ( Ta ≦39℃)

3. No condensation

Note 2-1

Note 2-1

Operating Range

Storage Range

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 6

Product Specification

AU OPTRONICS CORPORATION

2.3 Optical Characteristics

The optical characteristics are measured on the following test condition.

Test Condition:

1. Equipment setup: Please refer to Note 2-2.

2. Panel Lighting time: 30 minutes

3. VDD=5.0V, Fv=60Hz,Is=65mA,Ta=25℃

M195RTN01.0

Symbol

Lw

L

uni

CR

θR

White Luminance (Center of screen)

Luminance Uniformity (9 points)

Contrast Ratio (Center of screen) 600 1000 - -

Horizontal Viewing Angle

θL

ΦH

Vertical Viewing Angle

ΦL

θR

Horizontal Viewing Angle

θL

ΦH

Vertical Viewing Angle

ΦL

TR

TF

Response Time

-

Rx

Ry

Gx

Gy

Bx

Color Coordinates

(CIE 1931)

By

Wx

Wy

CT

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

FdB

Description Min. Typ. Max. Unit Remark

200 250

75 80

Right 75 85 -

(CR=10)

(CR=10)

(CR=5)

(CR=5)

Crosstalk - -

Flicker (Center of screen) - -

Left 75 85 -

Up

Down 70 80 -

Right 75 88 -

Left 75 88 -

Up

Down 70 85 -

Rising Time - 3.8

Falling Time -

Rising + Falling -

Red x

Red y

Green x

Green y

Blue x

Blue y

White x

White y

70 80 -

70 85 -

0.614 0.644 0.674

0.303 0.333 0.363

0.292 0.322 0.352

0.593 0.623 0.653

0.125 0.155 0.185

0.028 0.058 0.088

0.283 0.313 0.343

0.299 0.329 0.359

1.2 2.5

5

-

-

5.5

8

1.5

-20

[cd/m2]

[%]

[degree]

[msec]

-

[%]

[dB]

Note 2-2

By SR-3

Note 2-3

By SR-3

Note 2-4

By SR-3

Note 2-5

By SR-3

Note 2-6

By TRD-100

By SR-3

Note 2-7

By SR-3

Note 2-8

By SR-3

document version 1.0 7

Note 2-2: Equipment setup :

Product Specification

AU OPTRONICS CORPORATION

Photo detector (SR-3, TRD-100)

Measured distance (50cm)

M195RTN01.0

Center of the screen

Note 2-3: Luminance Uniformity Measurement

Definition:

y UniformitLuminance =

a.Test pattern: White Pattern

P9)~(P1 Points 9 of Luminance Minimum

P9)~(P1 Points 9 of Luminance Maximum

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 8

Product Specification

T

Black

1 Frame

T

AU OPTRONICS CORPORATION

Note 2-4: Contrast Ratio Measurement

Definition:

RatioContrast =

M195RTN01.0

pattern Whiteof Luminance

pattern Black of Luminance

a. Measured position: Center of screen (P5) & perpendicular to the screen (θ=Φ=0°)

Note 2-5: Viewing angle measurement

Definition: The angle at which the contrast ratio is greater than 10 & 5 .

a. Horizontal view angle: Divide to left & right (θ

Vertical view angle: Divide to up & down (Φ

L & θR

&ΦL)

H

)

Note 2-6: Response time measurement

The output signals of photo detector are measured when the input signals are changed
from “Black” to “White” (rising time, T

), and from “White” to “Black” (falling time, TF),

R

respectively. The response time is interval between the 10% and 90% of optical
response. (Black & White color definition: Please refer section 3.4.3)

Optica l

Optica l

resp on se

resp on se

10 0

10 0

90

10

10

%

%

White

0

0

F

1 Frame

B lack

R

White

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 9

Product Specification

AU OPTRONICS CORPORATION

Note 2-7: Crosstalk measurement

Definition:

CT = Max. (CTH,CTV);

Where
a.Maximum Horizontal Crosstalk :

CTH = Max. (| YBL – YAL | / YAL × 100 %, | YBR – YAR | / YAR × 100 %);

Maximum Vertical Crosstalk:

CTV = Max. (| YBU – YAU | / YAU × 100 %, | YBD – YAD | / YAD × 100 %);

b. YAU, YAD, YAL, YAR = Luminance of measured location without Black pattern

YBU, YBD, YBL, YBR = Luminance of measured location with Black pattern

M195RTN01.0

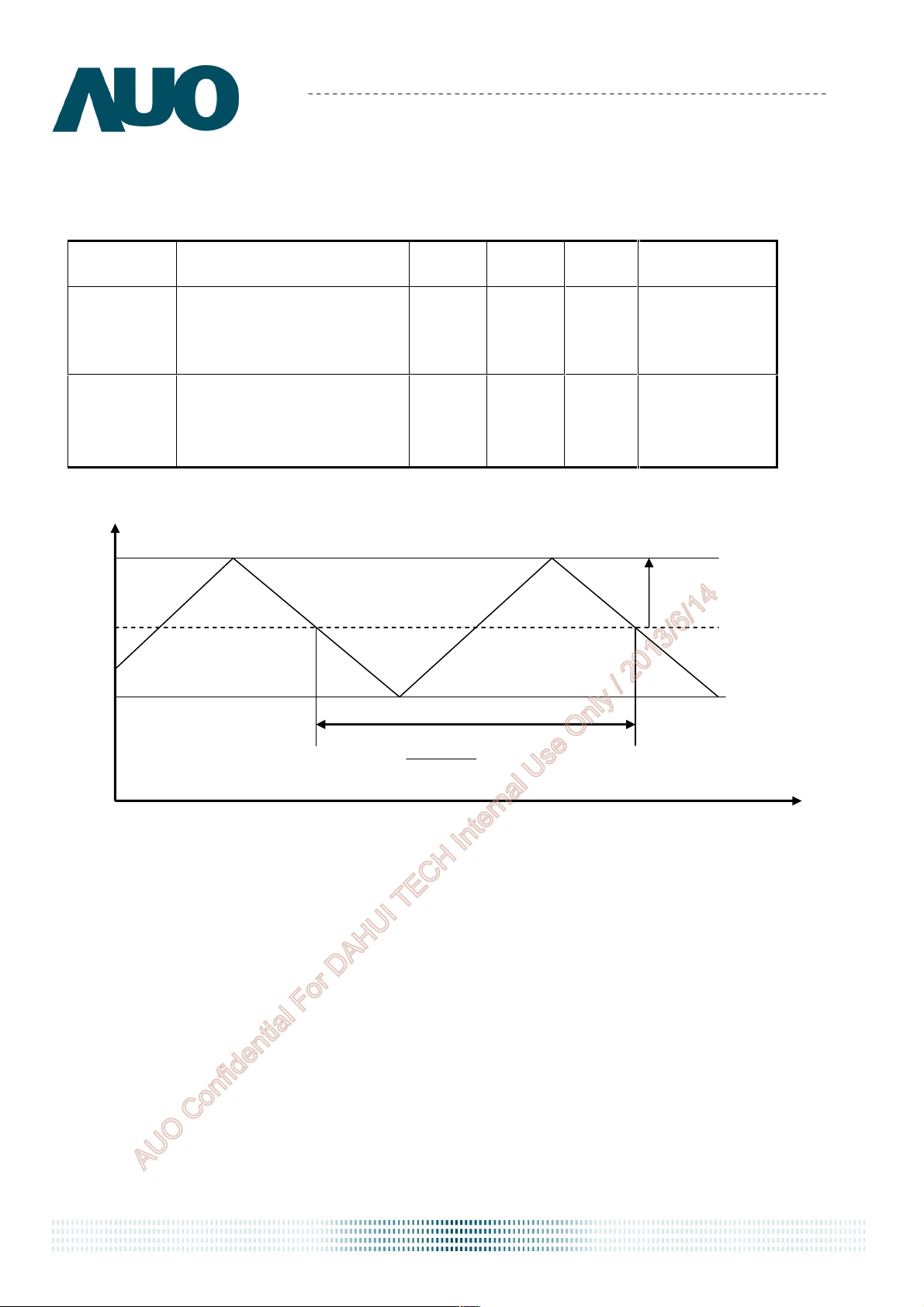

Note 2-8: Flicker measurement

a. Test pattern: It is listed as following.

Gray level = L0

Gray level = L127

R: Red, G: Green, B:Blue

b. Measured position: Center of screen (P5) & perpendicular to the screen (θ=Φ=0°)

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 10

Product Specification

M195RTN01.0

AU OPTRONICS CORPORATION

3 TFT-LCD Module

3.1 Block Diagram

The following shows the block diagram of the19.5 inch Color TFT-LCD Module.

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 11

Product Specification

1 RxO0

- Negative LVDS differential data input (Odd data)

2 RxO0+

Positive LVDS differential data input (Odd dat

a)

3 RxO1

- Negative LVDS differential data input (Odd data)

4 RxO1+

Positive LVDS differential data input (Odd data)

5 RxO2

- Negative LVDS differential data input (Odd data)

6 RxO2+

Positive LVDS differential data input (Odd data)

7 GND

Ground

8 RxOCLK

- Negative LVDS differential clock input (Odd clock)

9 RxOCLK+

Positive LVDS differential clock input (Odd clock)

10 RxO3

- Negative LVDS differential data input (Odd data)

11 RxO3+

Positive LVDS differential data input (Odd data)

12 RxE0

- N

egative LVDS differential data input (Even data)

13 RxE0+

Positive LVDS differential data input (Even data)

14 GND

Ground

15 RxE1

- Negative LVDS differential data input (Even data)

16 RxE1+

Positive LVDS differential data input (Even data)

17 GND

Ground

18 RxE2

- Negative LVDS differential data input (Even data)

19 RxE2+

Positive LVDS differential data input (Even data)

20 RxECLK

- Negative LVDS differential clock input (Even clock)

21 RxECLK+

Positive LVDS differential clock input (Even clo

ck)

22 RxE3

- Negative LVDS differential data input (Even data)

23 RxE3+

Positive LVDS differential data input (Even data)

24 GND

Ground

25 NC No connection (for AUO test only. Do not connect)

26 NC No connection (for AUO test only. Do not connect

)

AU OPTRONICS CORPORATION

M195RTN01.0

3.2 Interface Connection

3.2.1 Connector Type

Manufacturer P-TWO STM

TFT-LCD Connector

Part Number AL230F-A0G1D-P MSCKT2407P30HB

Manufacturer JAE

Mating Connector

Part Number FI-X30HL (Locked Type)

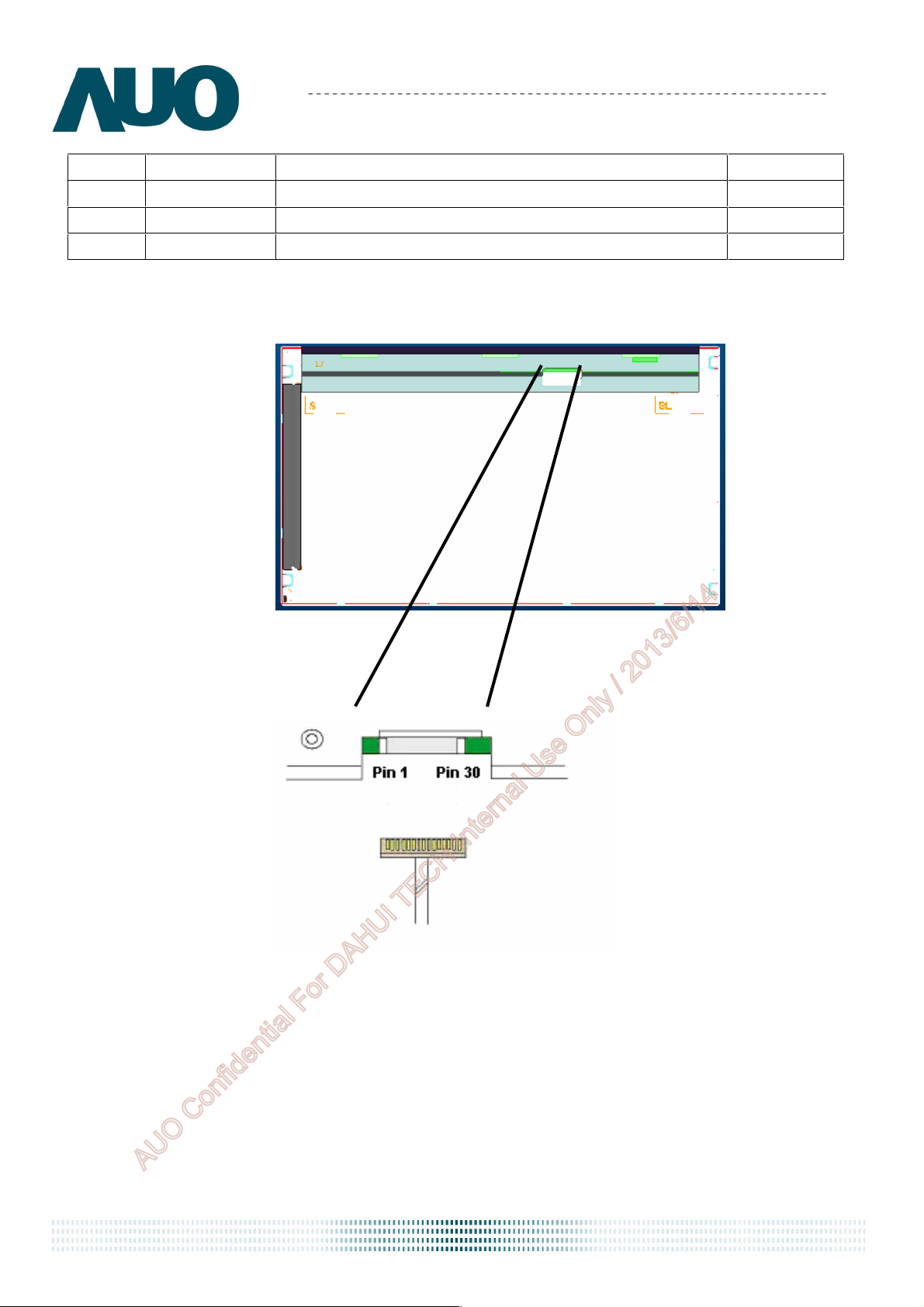

3.2.2 Connector Pin Assignment

PIN # Symbol Description Remark

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 12

Product Specification

27 NC No connection (for AUO test only. Do not connect)

28 VDD

Power Supply Input Voltage

29 VDD

Power Supply Input Voltage

30 VDD

Power Supply Input Voltage

AU OPTRONICS CORPORATION

M195RTN01.0

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 13

Product Specification

AU OPTRONICS CORPORATION

3.3 Electrical Characteristics

3.3.1 Absolute Maximum Rating

Permanent damage may occur if exceeding the following maximum rating.

M195RTN01.0

Symbol

VDD

Description Min Max Unit

Power Supply

Input Voltage

GND-0.3 6.0 [Volt]

3.3.2 Recommended Operating Condition

Symbol

VDD

IDD

PDD

IRush Inrush Current

VDDrp

Description Min Typ Max Unit

Power supply

Input voltage

Power supply

Input Current (RMS)

VDD Power

Consumption

Allowable VDD

Ripple Voltage

4.5 5.0 5.5 [Volt]

- 0.6 0.7

0.7 0.8

- 3.0 4.0

3.5 4.4

-

-

- 3.0 [A] Note 3-1

- 500 [mV]

[A]

[A]

[Watt]

[Watt]

Remark

Ta=25



Remark

VDD= 5.0V, Black Pattern, Fv=60Hz

VDD= 5.0V, Black Pattern, Fv=75Hz

VDD= 5.0V, Black Pattern, Fv=60Hz

VDD= 5.0V, Black Pattern, Fv=75Hz

VDD= 5.0V, Black Pattern, Fv=75Hz

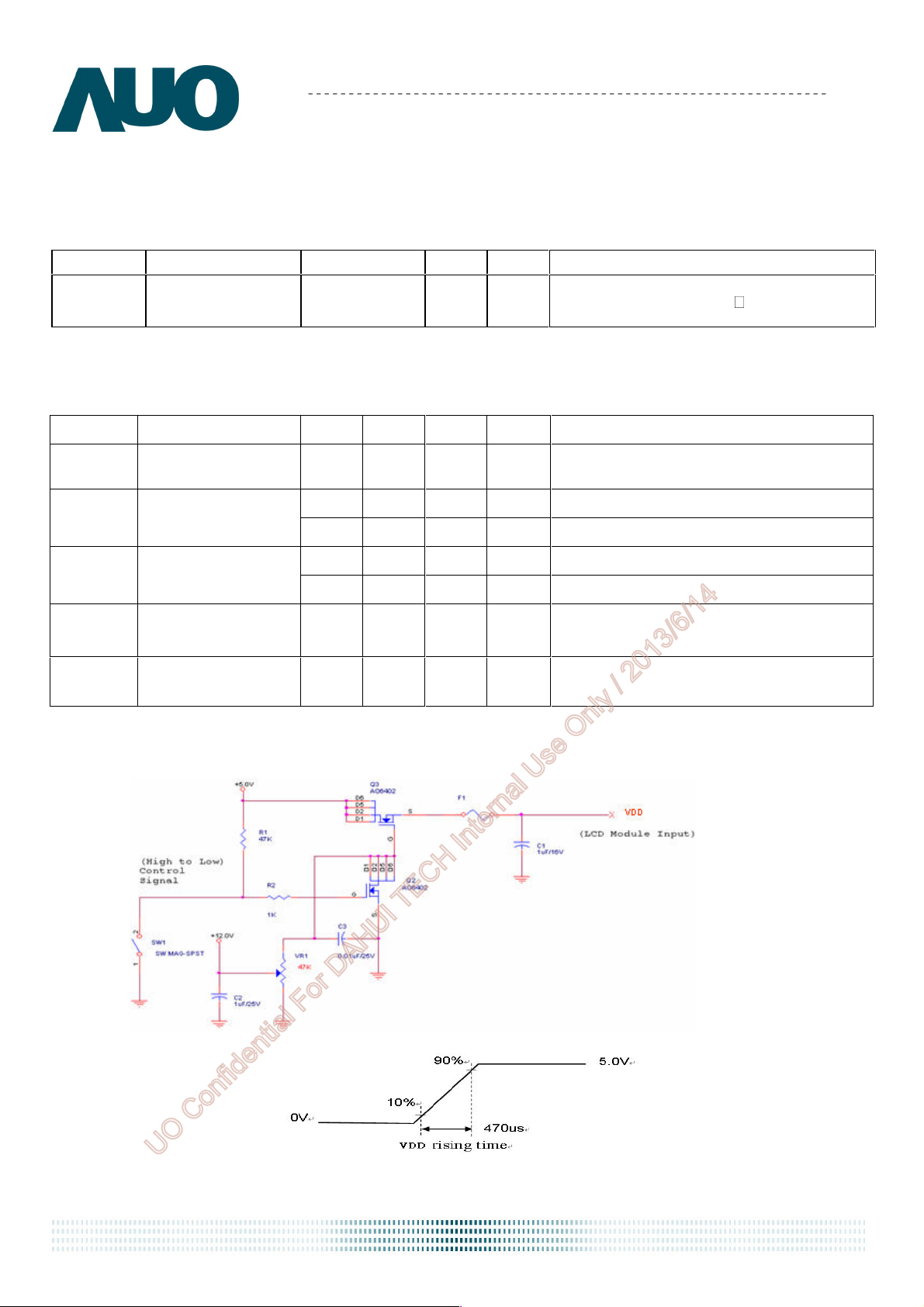

Note 3-1: Inrush Current measurement:

Test circuit:

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

The duration of VDD rising time: 470us.

document version 1.0 14

1 2 1599

1600

900

Line

3.4 Signal Characteristics

3.4.1 LCD Pixel Format

Product Specification

AU OPTRONICS CORPORATION

M195RTN01.0

1st Line

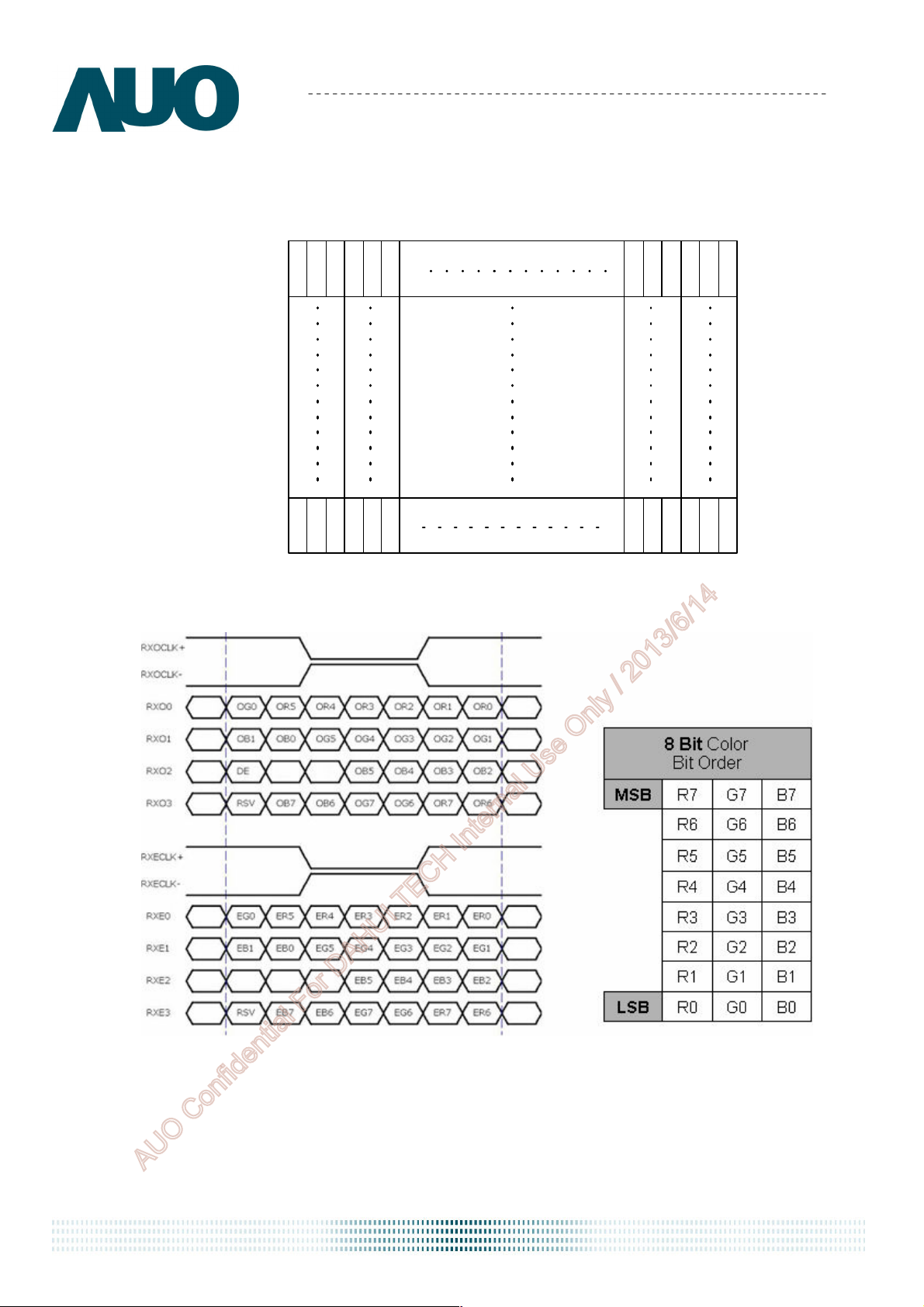

3.4.2 LVDS Data Format

R G B R G B

R G B R G B

R G B R G B

R G B R G B

Note 3-2:

a. O = “Odd Pixel Data” E = “Even Pixel Data”
b. Refer to 3.4.1 LCD pixel format, the 1st data is 1 (Odd Pixel Data), the 2nd data is 2 (Even Pixel Data) and the

last data is 1600 (Even Pixel Data).

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 15

Product Specification

M195RTN01.0

AU OPTRONICS CORPORATION

3.4.3 Color versus Input Data

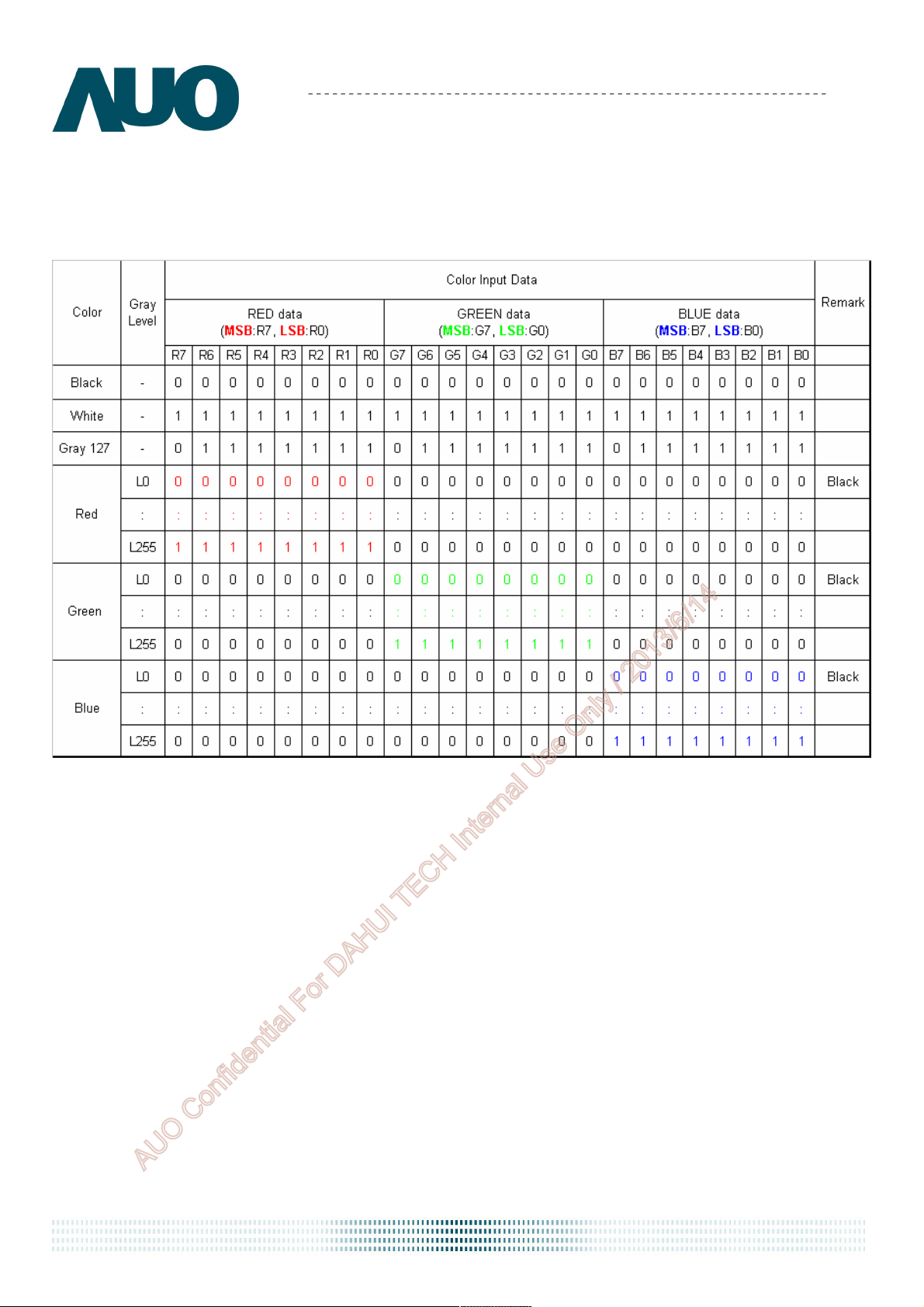

The following table is for color versus input data (8bit). The higher the gray level, the brighter
the color.

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 16

3.4.4 LVDS Specification

a. DC Characteristics:

Product Specification

AU OPTRONICS CORPORATION

M195RTN01.0

Symbol

VTH

VTL

│VID│

VCM

Description Min Typ Max Units

LVDS Differential
Input High Threshold
LVDS Differential
Input Low Threshold
LVDS Differential
Input Voltage
LVDS Common Mode
Voltage

-100

100 - 600 [mV]

+1.0 +1.2 +1.5 [V] VTH-VTL = 200mV

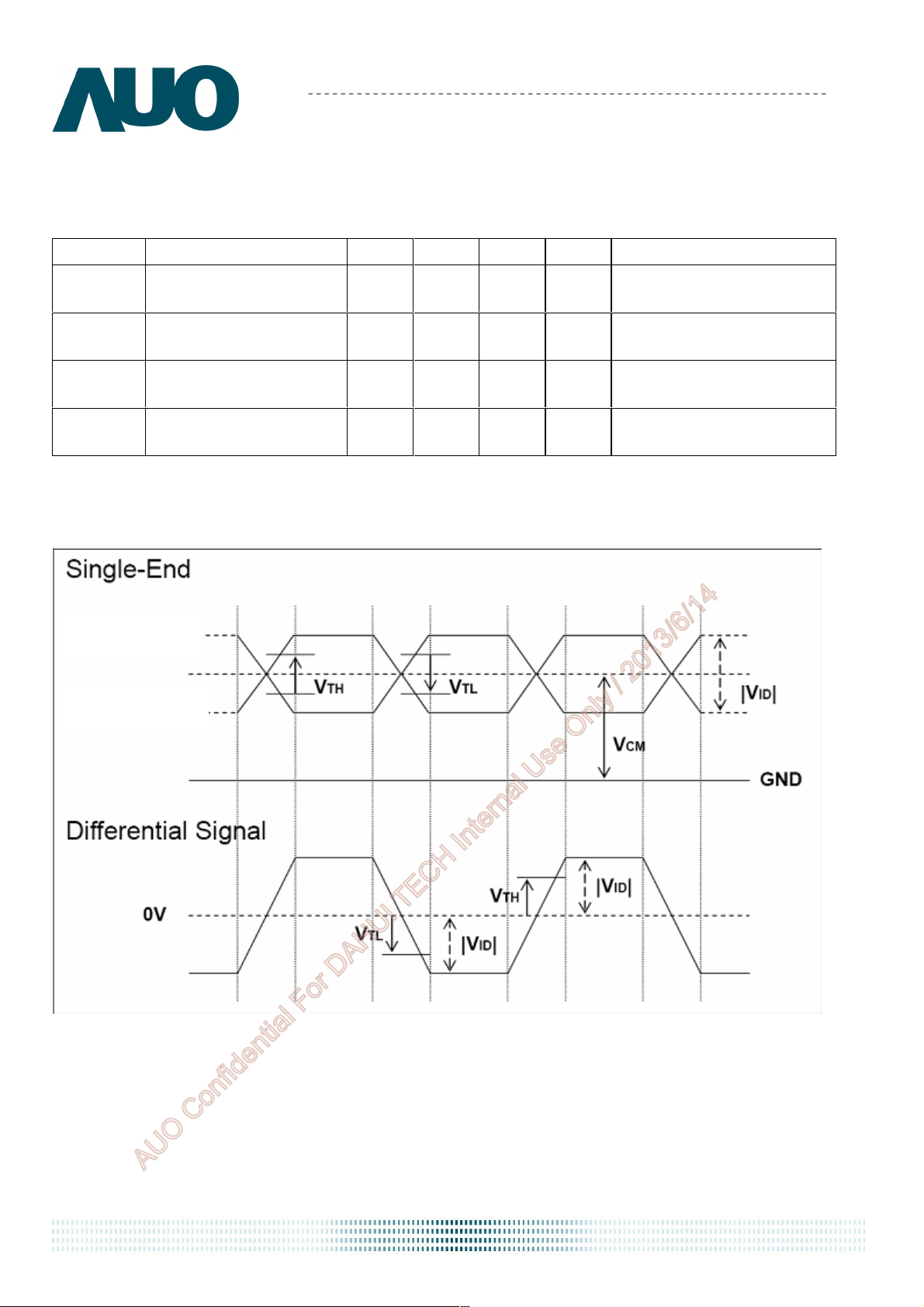

LVDS Signal Waveform:

Use RxOCLK- & RxOCLK+ as example.

RxOCLK-

Condition

- - +100 [mV] VCM = 1.2V

- - [mV] VCM = 1.2V

RxOCLK+

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 17

Product Specification

Freq

F

max

F

clk

F

min

F

clk

* F

DEV

< Spread Spectrum>

T

ime

AU OPTRONICS CORPORATION

b. AC Characteristics:

Symbol Description Min Max Unit Remark

Maximum deviation of

M195RTN01.0

F

DEV

input clock frequency

-

± 3 %

during Spread Spectrum

Maximum modulation

F

MOD

frequency of input clock

-

200 KHz

during Spread Spectrum

1

FMOD

Fclk: LVDS Clock Frequency

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 18

Product Specification

AU OPTRONICS CORPORATION

3.4.5 Input Timing Specification

It only support DE mode, and the input timing are shown as the following table.

M195RTN01.0

Symbol Description Min.

Tv Period

Tdisp (v) Active

912 934 1564

900 900 900

Typ. Max. Unit

Th

Th

Remark

Vertical Section

Tblk (v) Blanking

Fv

Frequency

Th Period

Tdisp (h) Active

12 34 664

50 60 76

980 1080

1150

800 800 800

Th

Hz

Tclk

Tclk

Horizontal Section

Tblk (h) Blanking

Fh

Frequency

Tclk Period

180 280 350

45.6 56.0 78.2

13.0 16.5 22.4

Tclk

KHz Note 3-3

ns 1/Fclk

LVDS Clock

Fclk

Frequency

44.7 60.5 76.6

MHz Note 3-4

Note 3-3: The equation is listed as following. Please don’t exceed the above recommended value.

Fh (Min.) = Fclk (Min.) / Th (Min.);
Fh (Typ.) = Fclk (Typ.) / Th (Typ.);
Fh (Max.)= Fclk (Max.) / Th (Min.);

Note 3-4: The equation is listed as following. Please don’t exceed the above recommended value.

Fclk (Min.) = Fv (Min.) x Th (Min.) x Tv (Min.);
Fclk (Typ.) = Fv (Typ.) x Th (Typ.) x Tv (Typ.);
Fclk (Max.) = Fv (Max.) x Th (Typ.) x Tv (Typ.);

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 19

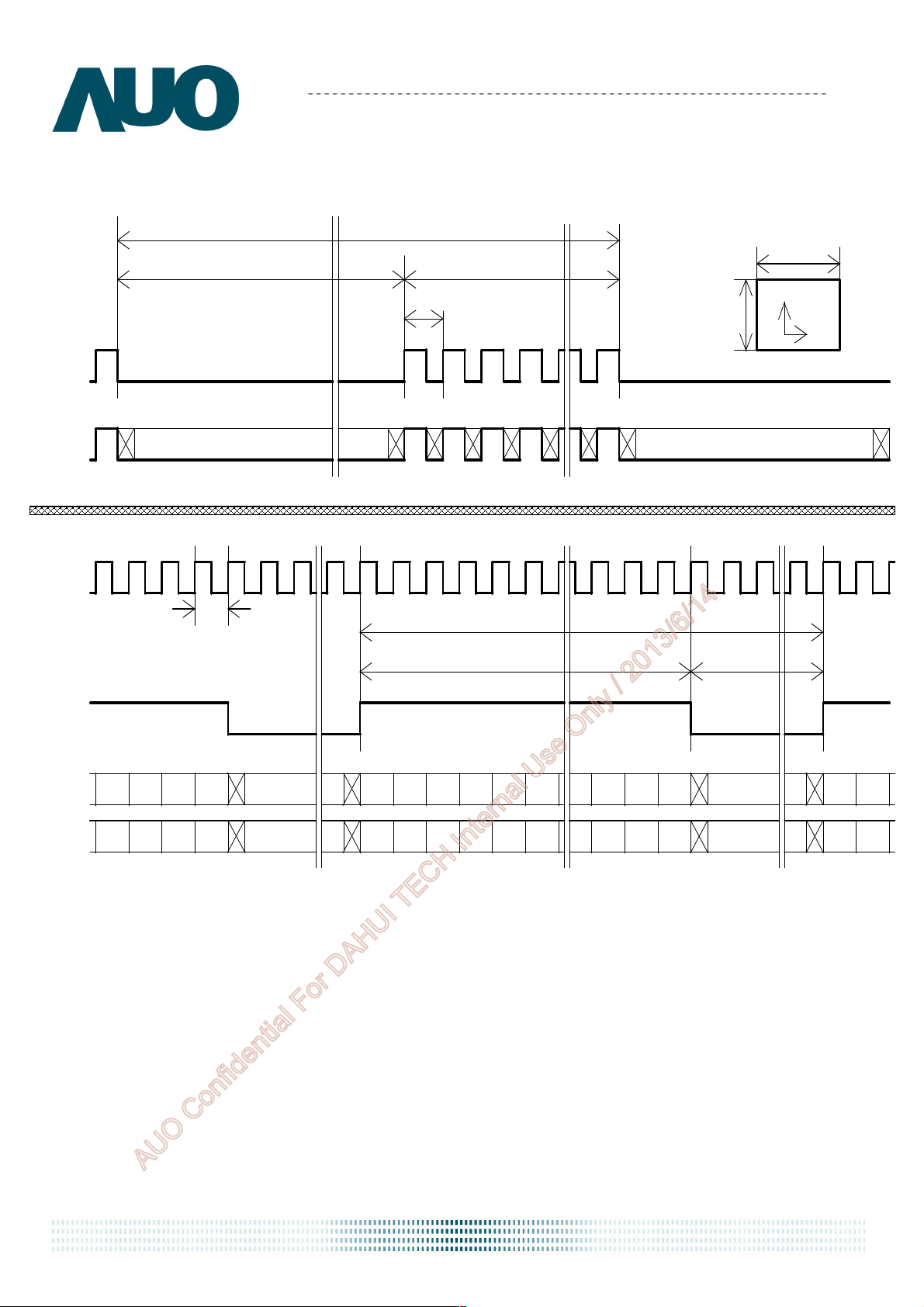

3.4.6 Input Timing Diagram

DE

RGB Data

CLK

DE

RGB Data
(Odd)

RGB Data
(Even)

N

Line

Pixel

M-7

Pixel

M-6

Pixel

M-5

Pixel

Pixel

M-3

Pixel

M-2

Tblk(v)

Invalid Data

Tclk

Pixel

M-1

Pixel

M

Invalid Data

Invalid Data

Product Specification

AU OPTRONICS CORPORATION

Tv

Tdisp(v)

Th

32

LineLine

Th

Tdisp(h)

Pixel

Pixel

10

4

LineLine

Pixel

Pixel

119

Pixel

12

1

Pixel

1

Pixel Pixel

2

Pixel

Pixel

3

4

Pixel

7

5

Pixel

Pixel

8 M

6 M-2

N

Line

M-5

M-4

Pixel

Pixel

M-3

Pixel

M-1

PixelPixel

M195RTN01.0

M pixel

Y

N Line

Invalid Data

Tblk(h)

Invalid Data

Invalid Data

X

Pixel

Pixel

Pixel

1

3

Pixel

2M-4

4

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 20

Product Specification

DATA

10%

90%

10%

90%

AU OPTRONICS CORPORATION

M195RTN01.0

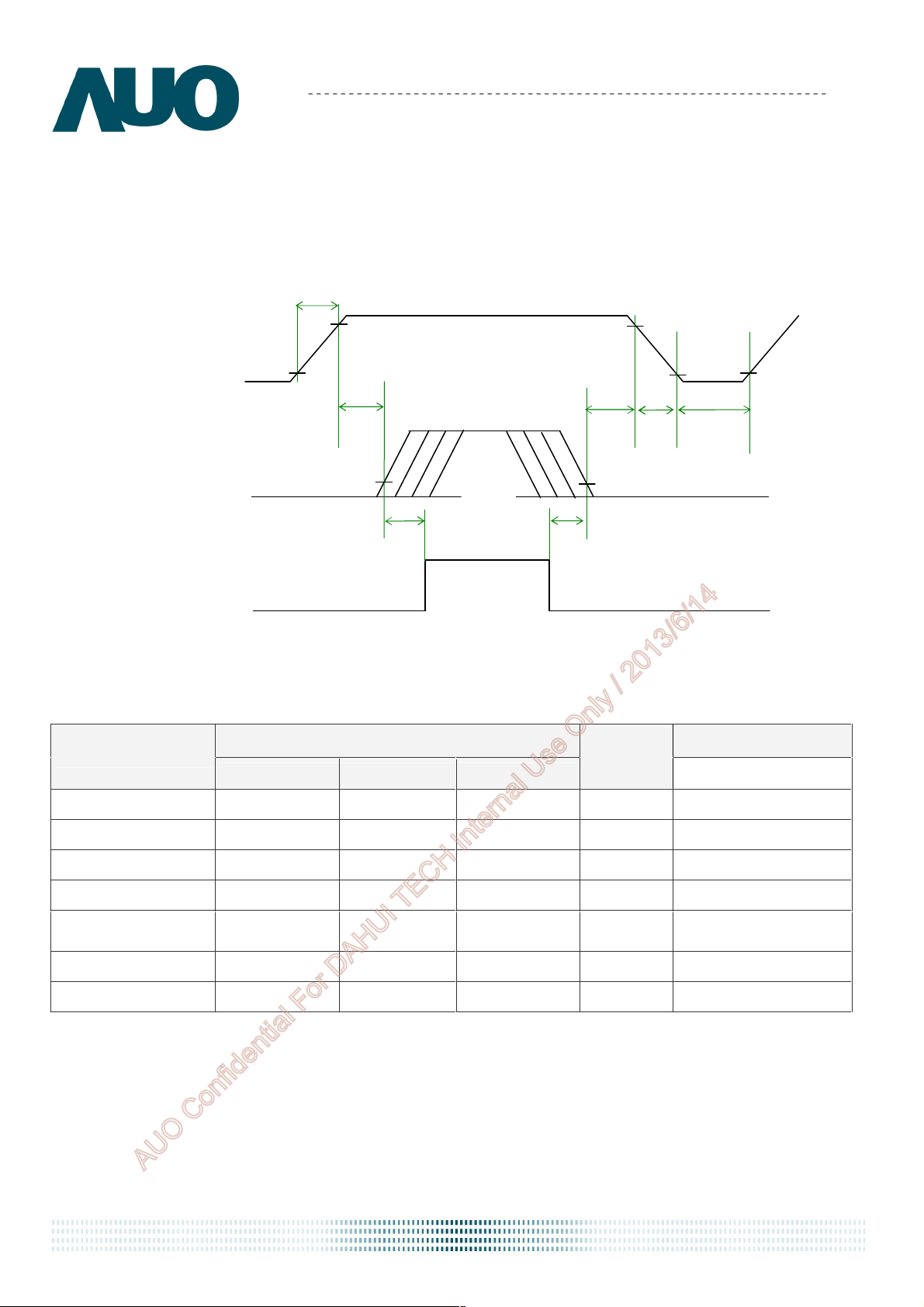

3.5 Power ON/OFF Sequence

VDD power,LVDS signal and backlight on/off sequence are as following. LVDS signals
from any system shall be Hi-Z state when VDD is off.

Backlight Off

T1

LVDS Signal

Symbol

VDD

V

SLED

Backlight Off

T2

VALID

T3

Backlight On

Power Sequence Timing

T5

T4

Backlight Off

T6

T7

Value Remark

Unit

Min. Typ. Max.

T1 0.5 - 10 [ms]

T2 0 - 50 [ms]

T3 500 - - [ms]

T4 100 - - [ms]

T5 0 50 [ms]

T6 0 - 150 [ms] Note 3-6

T7 1000 - - [ms]

Note 3-5
Note 3-6

Note 3-5 : Recommend setting T5 = 0ms to avoid electronic noise when VDD is off.

Note 3-6 : During T5 and T6 period , please keep the level of input LVDS signals with Hi-Z state.

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 21

V

SLED

Ch1

Ch2

Ch3

Ch4

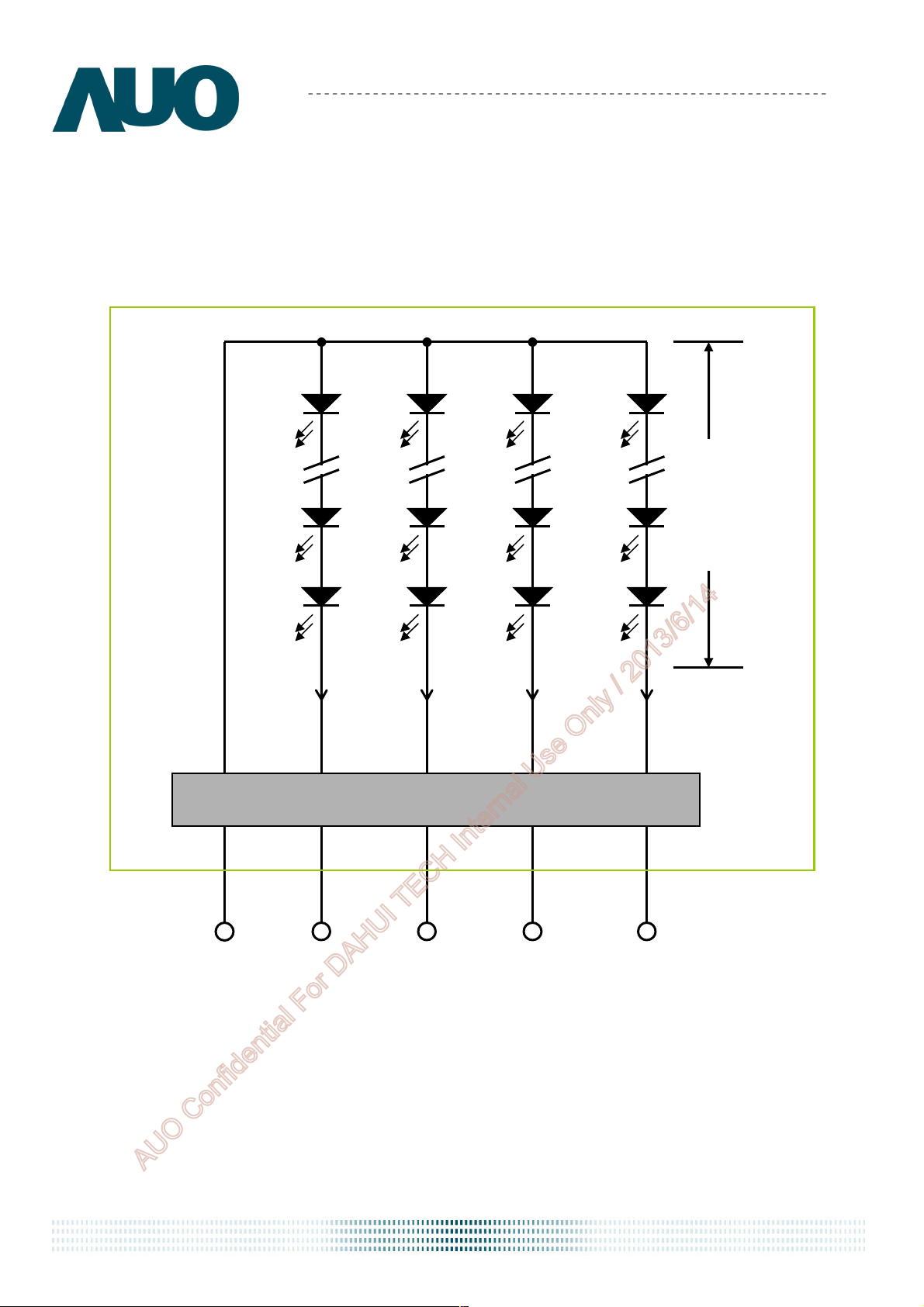

4 Backlight Unit

4.1 Block Diagram

Product Specification

AU OPTRONICS CORPORATION

M195RTN01.0

The following shows the block diagram of the
in the LED light bar. (4 strings and 10 pcs LED of one string).

I

S

19.5 inch Backlight Unit. And it includes 40 pcs LED

I

S

I

S

+

V

S

-

I

S

Connector

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 22

Product Specification

==××=××

AU OPTRONICS CORPORATION

4.2 Interface Connection

4.2.1 Connector Type

Backlight Connector

Mating Connector

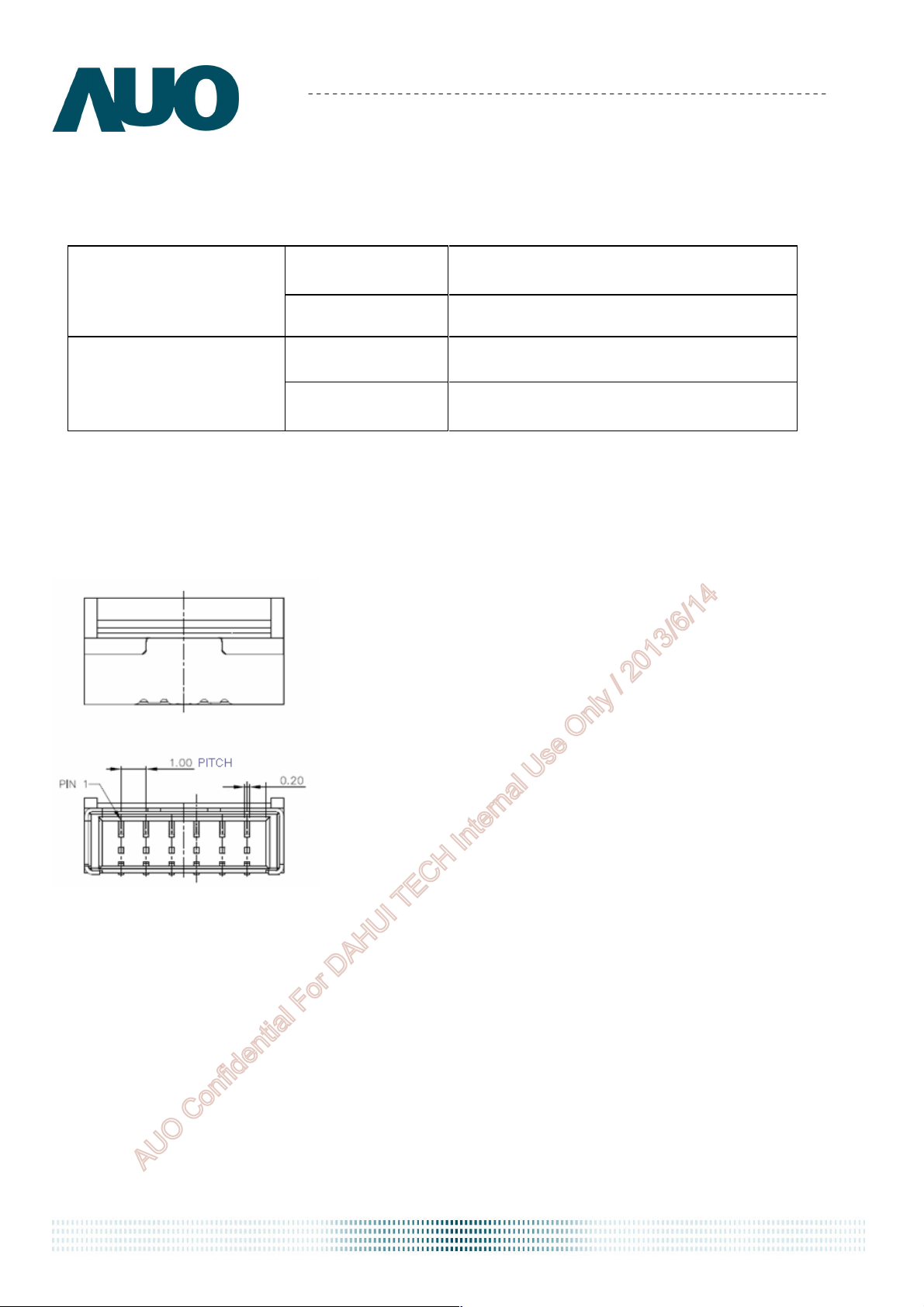

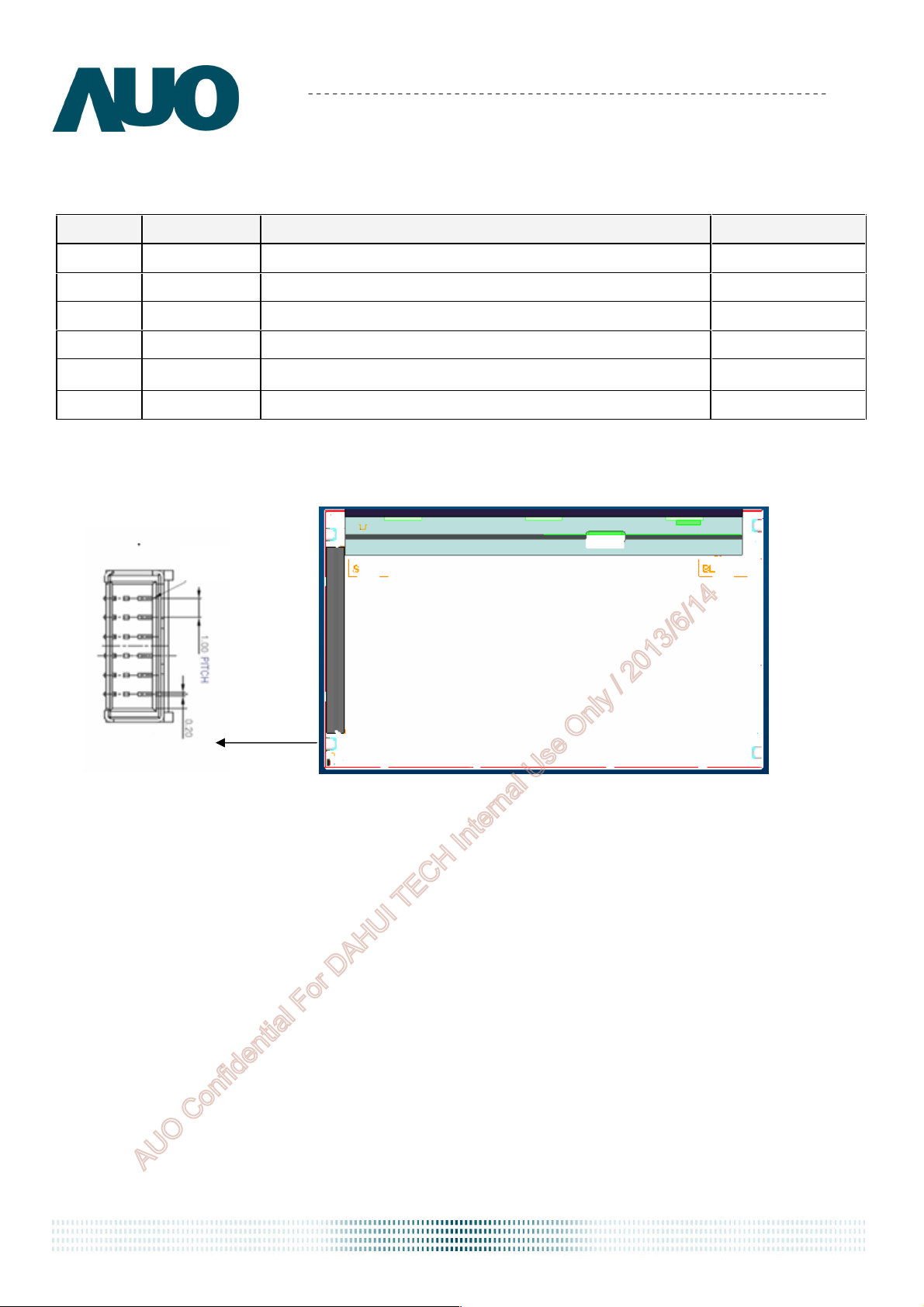

Backlight Connector dimension:

Manufacturer ENTERY

Part Number 3707K-S06N-21R

Manufacturer ENTERY

Part Number H112K-P06N-13B (Locked type)

M195RTN01.0

)(0.1,25.400.39.13 mmunitPitchDVH

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 23

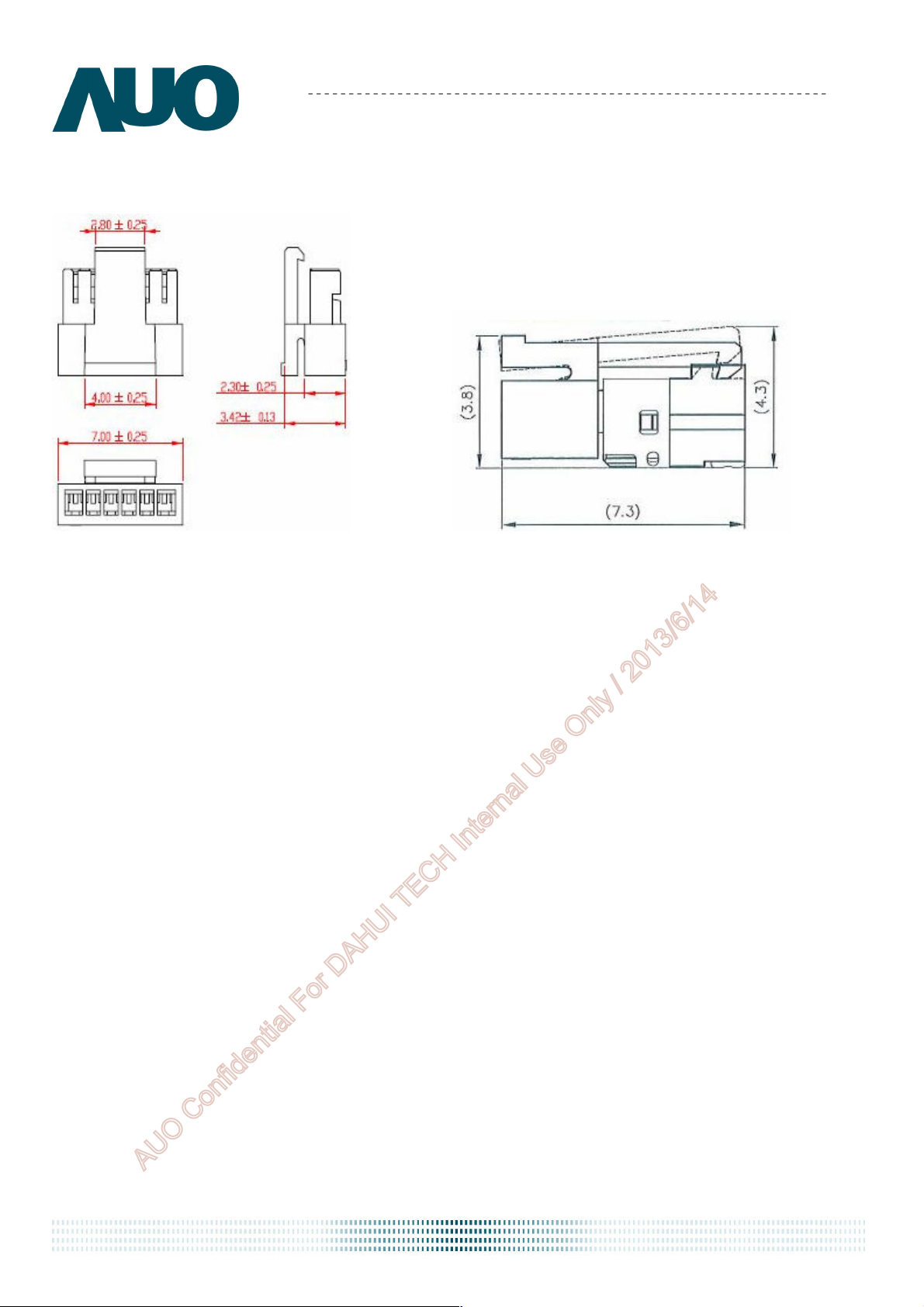

Mating Connector dimension:

Product Specification

AU OPTRONICS CORPORATION

M195RTN01.0

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 24

Product Specification

AU OPTRONICS CORPORATION

M195RTN01.0

4.2.2 Connector Pin Assignment

Pin# Symbol Description Remark

1 Ch1 LED Current Feedback Terminal (Channel 1)

2 Ch2 LED Current Feedback Terminal (Channel 2)

3 V

4 V

LED Power Supply Voltage Input Terminal

SLED

LED Power Supply Voltage Input Terminal

SLED

5 Ch3 LED Current Feedback Terminal (Channel 3)

6 Ch4 LED Current Feedback Terminal (Channel 4)

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 25

Product Specification

AU OPTRONICS CORPORATION

M195RTN01.0

4.3 Electrical Characteristics

4.3.1 Absolute Maximum Rating

Permanent damage may occur if exceeding the following maximum rating.

Symbol Description Min Max Unit Remark

(Ta=25℃)

Is LED String Current 0

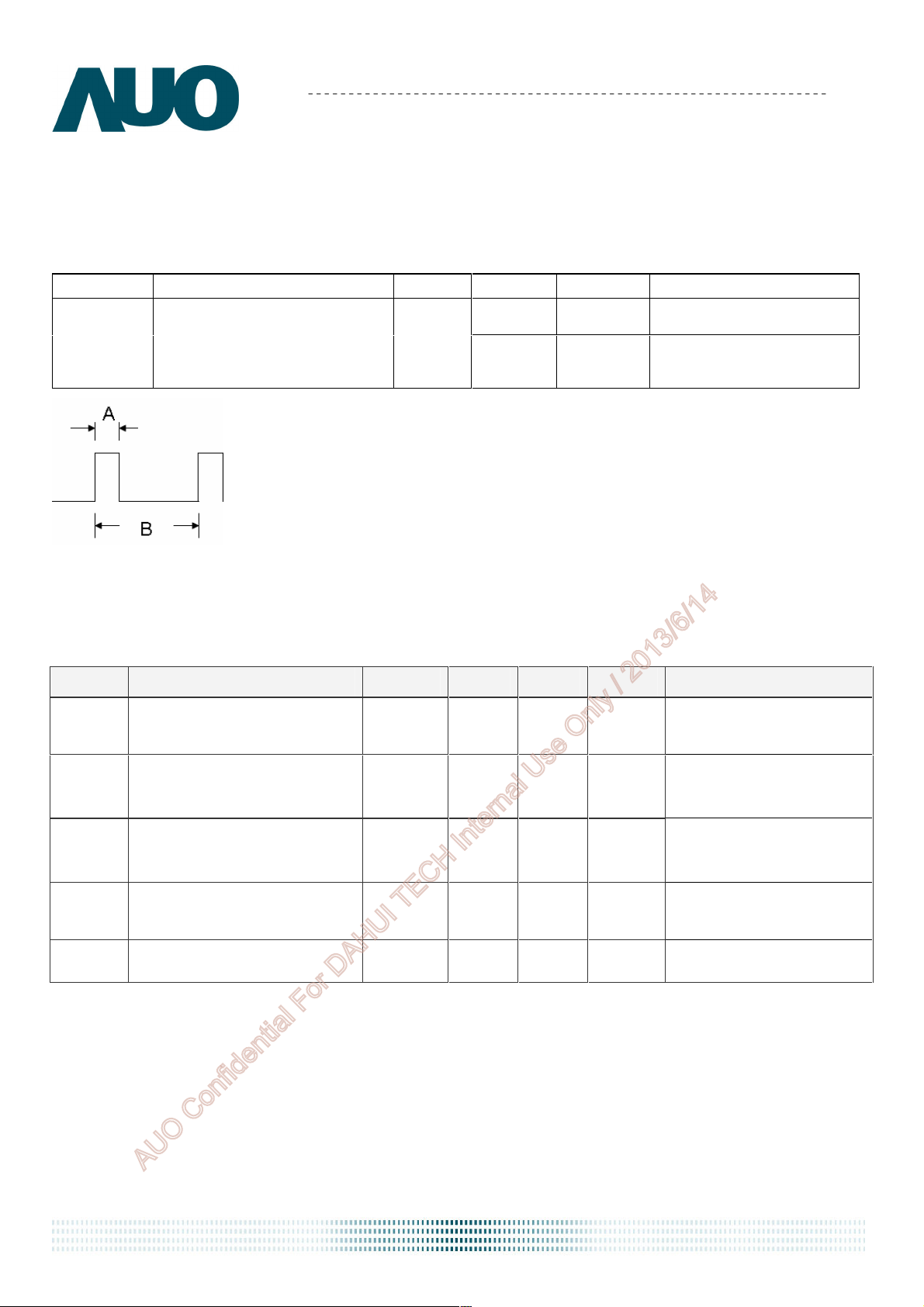

Duty ratio= (A / B) X 100% ; (A: Pulse time, B: Period)

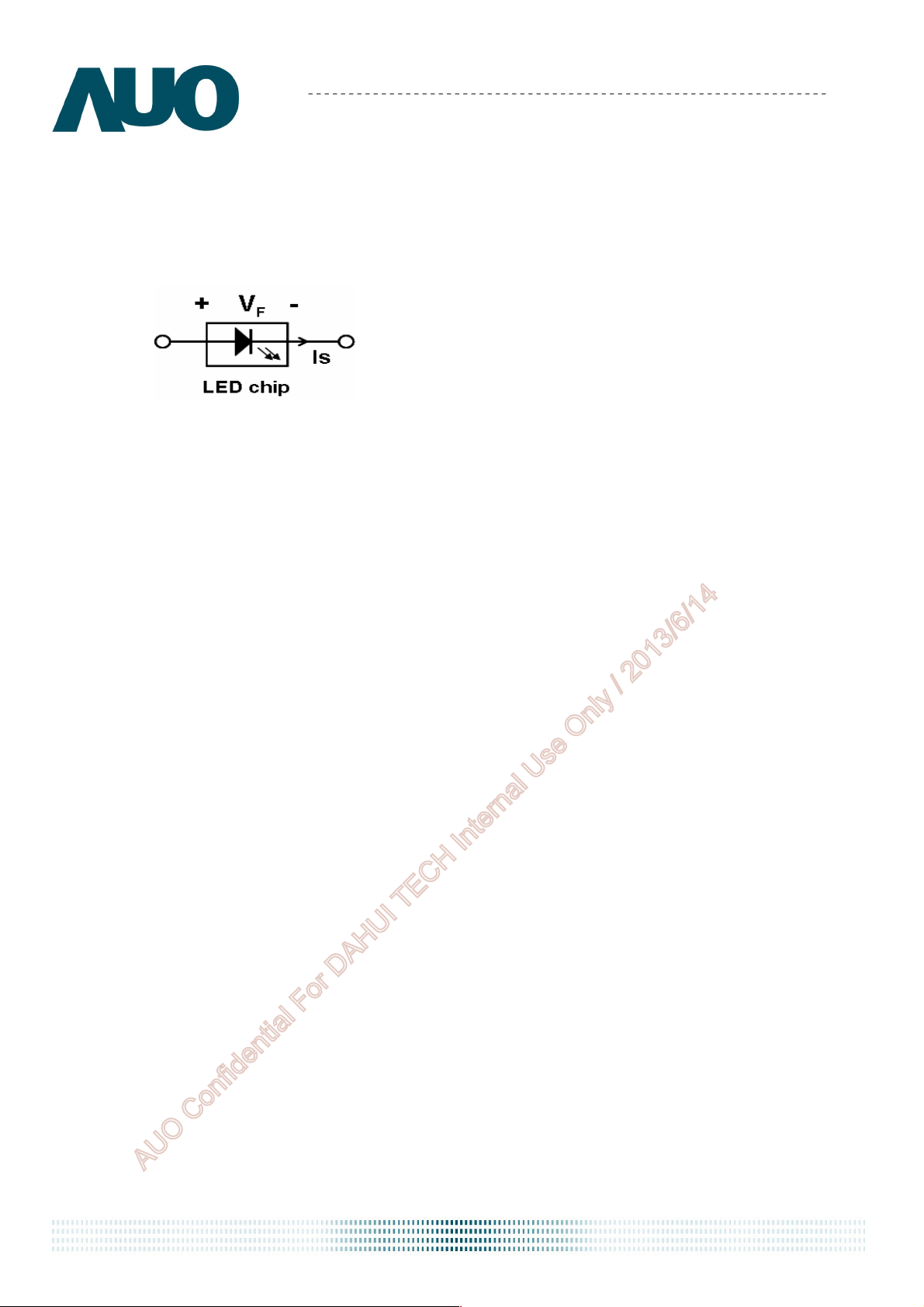

4.3.2 Recommended Operating Condition

Symbol

Description

Is LED String Current -

Min.

Typ. Max. Unit Remark

60 66

90

150

[mA] 100% duty ratio

[mA]

Duty ratio≦ 10%

Pulse time=10 ms

(Ta=25℃)

[mA]

100% duty ratio of LED

chip

Vs LED String Voltage

∆Vs

Maximum Vs Voltage
Deviation of light bar

LED Light Bar Power

P

BLU

LT

LED

Consumption

LED Life Time 30,000

28

-

6.72

31 34

- 2

7.44 8.98

[Volt]

[Volt]

[Watt] Note 4-3

- - [Hour] Note 4-4

Is=60mA @ 100% duty

ratio; Note 4-1

Is=60mA @ 100% duty

ratio; Note 4-2

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 26

Product Specification

AU OPTRONICS CORPORATION

Note 4-1: Vs (Typ.) = VF (Typ.) X LED No. (one string);

a. VF: LED chip forward voltage, VF (Min.)=2.8V, VF(Typ.)=3.1V, VF(Max.)=3.4V

M195RTN01.0

b. The same euqation to calculate Vs(Min.) & Vs (Max.) for respective V
V

(Max.);

F

Note 4-2: ∆Vs (Max.) = ∆VF X LED No. (one string);

a. ∆V

Note 4-3: P

P

BLU

BLU

LED chip forward voltage deviation; (0.2 V , each Bin of LED VF)

F:

(Typ.) = Vs (Typ.) X Is (Typ.) X 4 ; ( 4 is total String No. of LED Light bar)

(Max.) = Vs (Max.) X Is (Max.) X 4 ;

Note 4-4: Definition of life time:

a. Brightness of LED becomes to 50% of its original value
b. Test condition: Is = 60mA and 25℃ (Room Temperature)

(Min.) &

F

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 27

Product Specification

) 1sec,

AU OPTRONICS CORPORATION

5 Reliability Test

AUO reliability test items are listed as following table. (Bare Panel only)

Items Condition

Temperature Humidity Bias (THB)

Ta= 50

, 80%RH, 300hours



M195RTN01.0

Remark

High Temperature Operation (HTO)

Low Temperature Operation (LTO)

High Temperature Storage (HTS)

Low Temperature Storage (LTS)

Ta= 50

Ta= 0

Ta= 60

Ta= -20



, 50%RH, 300hours



, 300hours



, 300hours

, 300hours



Acceleration: 1.5 Grms
Vibration Test
(Non-operation)

Wave: Random

Frequency: 10 - 200 Hz

Sweep: 30 Minutes each Axis (X, Y, Z)

Acceleration: 50 G
Shock Test
(Non-operation)

Wave: Half-sine

Active Time: 20 ms

Direction: ±X, ±Y, ±Z (one time for each Axis)

Drop Test Height: 46cm, package test

Thermal Shock Test (TST)

-20

/30min, 60



/30min, 100 cycles Note 5-1



On/Off Test On/10sec, Off/10sec, 30,000 cycles

Contact Discharge: ± 15KV, 150pF(330Ω

8 points, 25 times/ point.
ESD (Electro Static Discharge)

Air Discharge: ± 15KV, 150pF(330Ω ) 1sec

8 points, 25 times/ point.

Note 5-2

Altitude Test

Note 5-1: a. A cycle of rapid temperature change consists of varying the temperature from -

Note 5-2: EN61000-4-2, ESD class B: Certain performance degradation allowed

document version 1.0 28

Operation:18,000 ft
Non-Operation:40,000 ft

60

db

k

i

an

,



ac

aga

P

n

.

i

t

li

dd

i

th

t

o

er

sno

app

w

e

r

ng

u

t

e

es

.

0

t

o

2



b. After finish temperature cycling, the unit is placed in normal room ambient for at least 4

hours before power on.

No data lost
Self-recoverable
No hardware failures.

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

Product Specification

AU OPTRONICS CORPORATION

6 Shipping Label

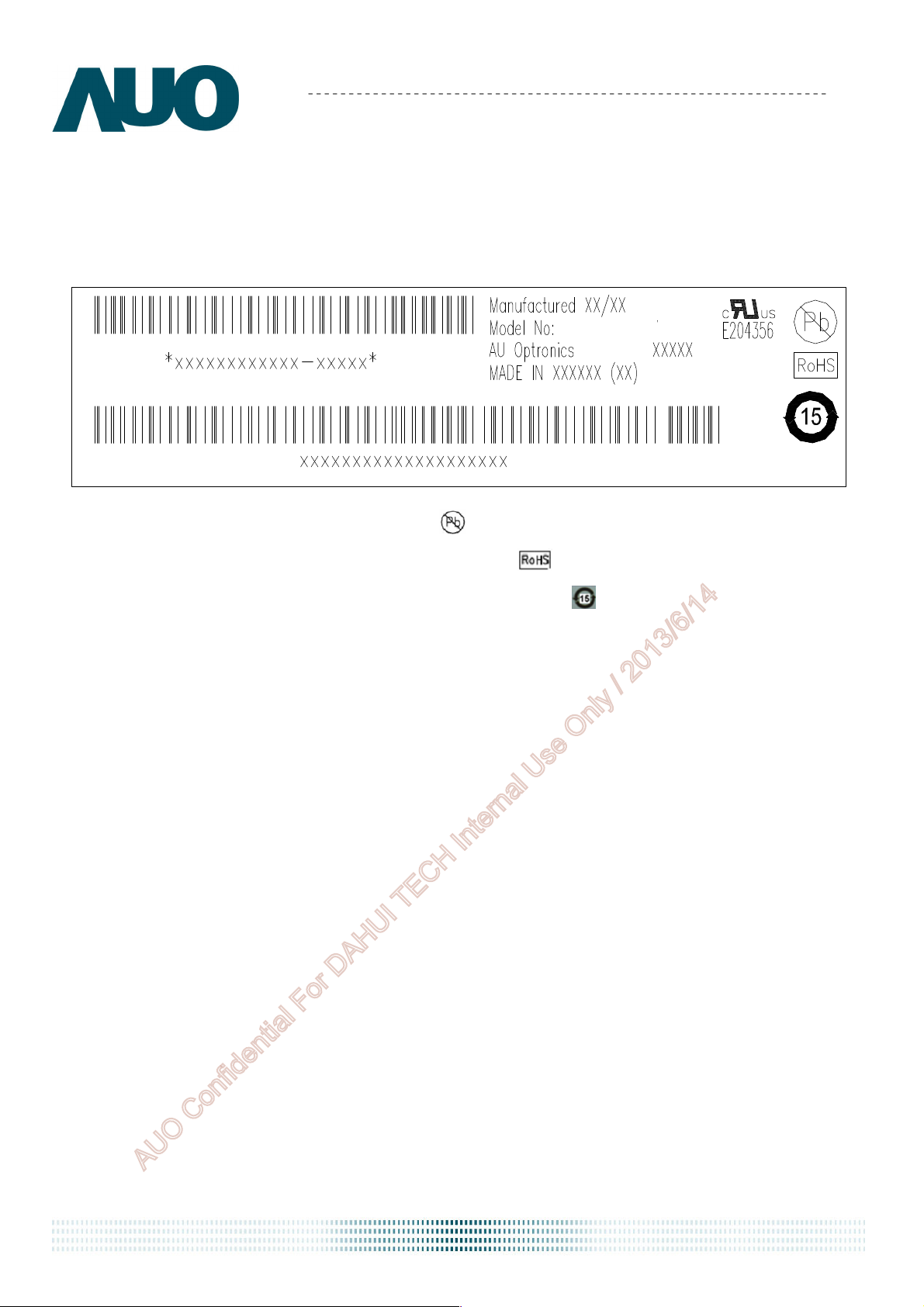

The label is on the panel as shown below:

M195RTN01.0

M195RTN01.0

Note 6-1: For Pb Free products, AUO will add

for identification.

Note 6-2: For RoHS compatible products, AUO will add for identification.

Note 6-3: For China RoHS compatible products, AUO will add

for identification.

Note 6-4: The Green Mark will be presented only when the green documents have been ready by

AUO Internal Green Team.

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

document version 1.0 29

Ver 1.2

Avoid touching COF position when doing

mechanical design

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

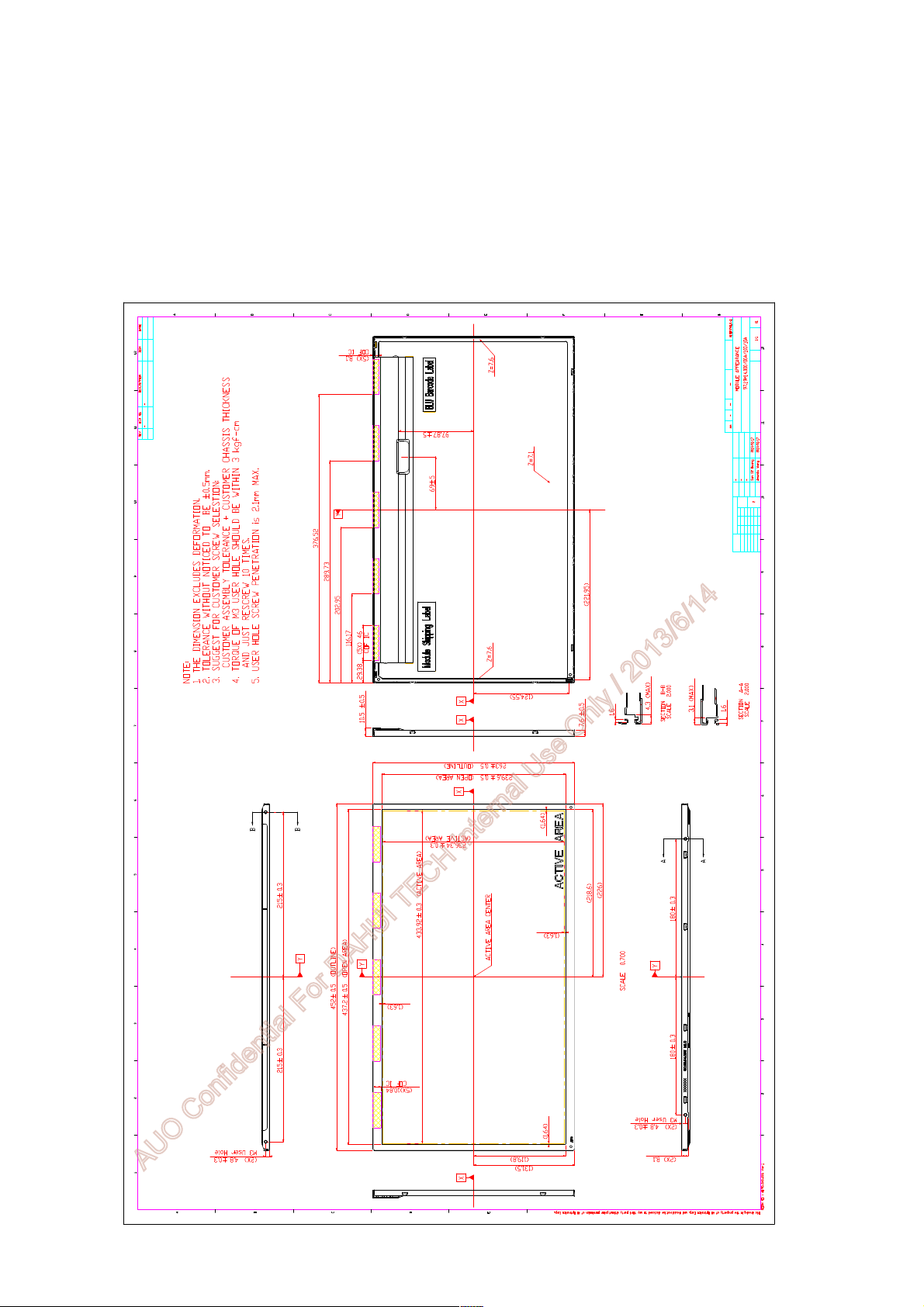

7 Mechanical Characteristics

8 Packing Specification

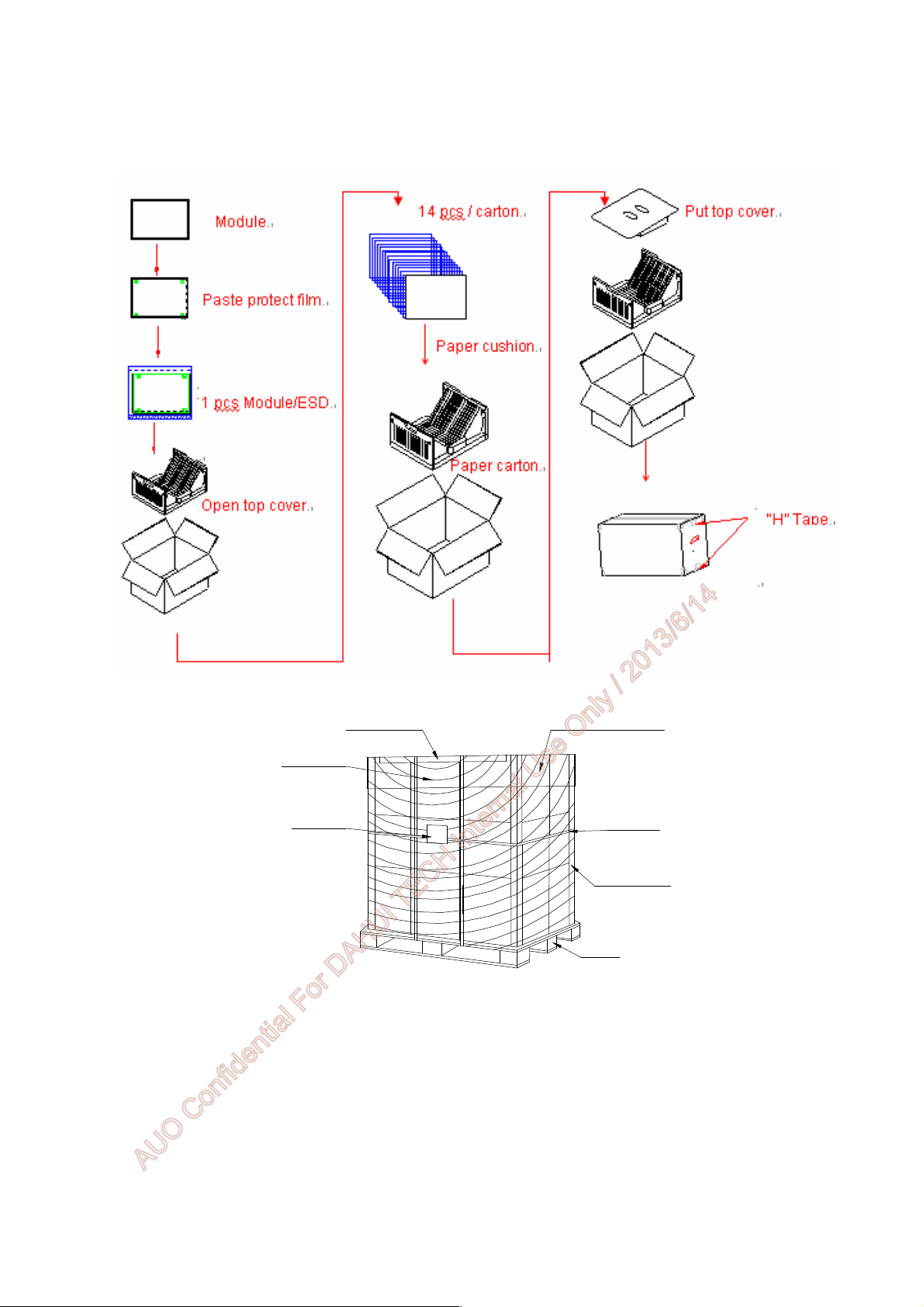

8.1 Packing Flow

Corner angle

Stretch film

Label

Moisture-proof film

PET band

Corner angle

Pallet

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

Ver 1.2

8.2 Pallet and shipment information

Item

Specification

Q'ty Dimension Weight(kg)

1 Panel 1

452.0(H)mmx263(V)mmx10.5(D)mm

2 Cushion 1 - 1.92 Kg

3 Box 1 526(L)mm x 299(W)mm x 335(H)mm

4 Packing Box

14 pcs/Box 526(L)mm x 299(W)mm x 335(H)mm

5 Pallet 1 1150(L)mm x 910(W)mm x 138(H)mm

6

Pallet after

Packing

18boxes/ pallet

1150(L)mm x 910(W)mm x

1143(H)mm

Remark

1.4 Kg

0.7Kg

22.22Kg

15Kg

414.96Kg

AUO Confidential For DAHUI TECH Internal Use Only / 2013/6/14

Ver 1.2
