Atrust A66 User Manual
Sample Barcode
Atrust A66
Manufacturer : Atrust Computer Corp.
製造商 : 冠信電腦股份有限公司
Model Name : All-In-One Thin Client
產品名稱 : 一體成型精簡型電腦
Model No. / 產品型號 : Atrust a100T
Input / 輸入 : +19V 3.42A
Made in Taiwan / 台灣製造
KSAA
S/N : XXXXXXXXXXXX
XXXXXXXXXXXX
MAC : XXXXXXXXXXXX
Atrust a100T
1

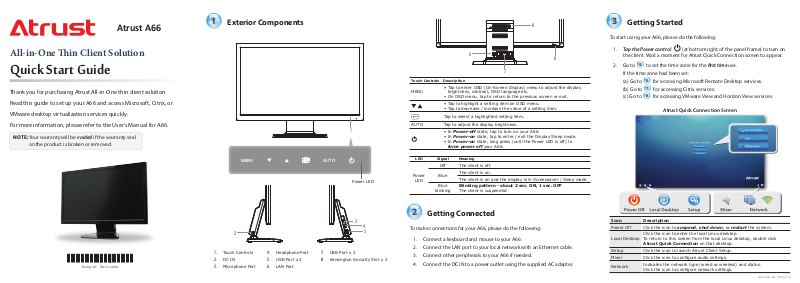

Exterior Components
3
8
Getting Started
To start using your A66, please do the following:
All-in-One in Client Solution
Quick Start Guide
Thank you for purchasing Atrust All-in-One thin client solution.
Read this guide to set up your A66 and access Microsoft, Citrix, or
VMware desktop virtualization services quickly.
For more information, please refer to the User’s Manual for A66.
NOTE: Your warranty will be voided if the warranty seal
on the product is broken or removed.
Touch Controls
1.
DC IN
2.
Microphone Port
3.
MENU AUTO
2
Headphone Port
4.
USB Port x 2
5.
LAN Port
6.
1
Power LED
3
4
USB Port x 2
7.
Kensington Security Slot x 2
8.
6
8
7
Touch Controls Description
MENU
AUTO Tap to adjust the display brightness.
LED Signal Meaning
Power
LED
2
Getting Connected
5
To make connections for your A66, please do the following:
•Tap to enter OSD (On-Screen Display) menu to adjust the display
brightness, contrast, OSD language etc.
•On OSD menu, tap to return to the previous screen or exit.
•Tap to highlight a setting item on OSD menu.
•Tap to decrease / increase the value of a setting item.
Tap to select a highlighted setting item.
•In Power-off state, tap to turn on your A66.
•In Power-on state, tap to enter / exit the Display Sleep mode.
•In Power-on state, long press (until the Power LED is off) to
force power off your A66.
Off The client is off.
Blue
Blue
blinking
The client is on.
The client is on and the display is in Screensaver / Sleep mode.
Blinking pattern - about 2 sec. ON, 1 sec. OFF
The client is suspended.
1. Connect a keyboard and mouse to your A66.
2. Connect the LAN port to your local network with an Ethernet cable.
3. Connect other peripherals to your A66 if needed.
4. Connect the DC IN to a power outlet using the supplied AC adapter.
1. Tap the Power control
the client. Wait a moment for Atrust Quick Connection screen to appear.
2. Go to
4
to set the time zone for the rst time use.
If the time zone had been set:
(a) Go to
(b) Go to
(c) Go to
Icon Description
Power Off Click the icon to suspend, shut down, or restart the system.
Local Desktop
Setup Click the icon to launch Atrust Client Setup.
Mixer Clicktheicontocongureaudiosettings.
Network
6
for accessing Microsoft Remote Desktop services.
7
for accessing Citrix services.
8
for accessing VMware View and Horizon View services.
Click the icon to enter the local Linux desktop.
To return to this screen from the local Linux desktop, double click
Atrust Quick Connection on that desktop.
Indicates the network type (wired or wireless) and status.
Clicktheicontocongurenetworksettings.
(at bottom right of the panel frame) to turn on
Atrust Quick Connection Screen
QSG-A66-EN-15040119
4
Conguring the Time Zone
To set the time zone for your A66, please do the following:
1. Click the Setup
2. On Atrust Client Setup, click System > Time Zone.
3. Click the Time Zone drop-down menu to select the desired time zone.
4. Click Save to apply, and then close Atrust Client Setup.
5
Returning to the Quick Connection Screen
To return to Atrust Quick Connection screen
when on local Linux desktop, please
double click Atrust Quick Connection
on that desktop.
icon to launch Atrust Client Setup.
Atrust Client Setup
Time Zone
drop-down menu
NOTE: To discover available MultiPoint Server systems over your network,
click
Type in data manually if the desired system cannot be found.
NOTE: To return to Atrust Quick Connection screen, press Esc.
3. The remote desktop will be displayed on the screen.
Accessing Citrix Services
7
Connecting to the Server
To connect to the server through which virtual desktops and applications are
accessible, please do the following:
1. Click
2. On the appeared Atrust Citrix Connection screen, enter the appropriate
IP address / URL / FQDN of the server, and then click Log On.
NOTE: FQDN is the acronym of Fully Qualied Domain Name.
, select the desired system, and then click OK.
on Atrust Quick Connection screen.
Atrust Citrix Connection Screen
NOTE: A message “This Connection is Untrusted” might appear. Consult the
IT administrator for details and ensure the connection is secure rst. To import a
certicate, click Setup
click I Understand the Risks > Add Exception > Conrm Security Exception.
The following is an example of Citrix Logon screens.
Type the
required user
name, password,
domain, and click
Log On to access
virtual desktops
or applications.
NOTE: To return to Atrust Citrix Connection screen, press Esc.
NOTE: On Desktop Selection or Application selection screen, you can
• Use Alt + Tab to select and restore a hidden or minimized application.
• Click Log o on the top of the screen to return to Citrix Logon screen.
• Press Esc to return to Atrust Citrix Connection screen directly.
8
Accessing VMware View Services
> System > Certicate Manager > Add. To bypass,
Citrix Logon Screen
This area will
display Citrix
XenDesktop or
Citrix XenApp,
depending
on your Citrix
service type.
NOTE: A window might appear with a certicate message about the
remote server. Consult the IT administrator for details and ensure
the connection is secure rst. To import a certicate through a USB
ash drive or a remote server, on Atrust Quick Connection screen,
click Setup
click Connect Insecurely.
4. A Welcome window might appear. Click OK to continue.
5. A window appears prompting for the credentials. Enter your user name,
password, click the Domain drop-down menu to select the domain,
and then click OK.
> System > Certicate Manager > Add. To bypass,
6
Accessing Microsoft Remote Desktop Services
To access Microsoft Remote Desktop services, please do the following:
1. Click
2. On the appeared window, type in the computer
name or IP address of the computer, user name,
password, and domain (if any), and then
click Connect.
on Atrust Quick Connection screen.
NOTE: To return to Atrust Quick Connection screen, press Esc.
Logging On to Citrix Services
When connected, the Citrix Logon screen appears. The appeared screen may vary
with the service type and version.
To access VMware View or Horizon View services, please do the following:
1. Click
2. On the opened window, double-click Add Server icon or click New Server
in the top-left corner. A window appears prompting for the name or IP
address of the VMware View Connection Server.
NOTE: To return to Atrust Quick Connection screen, close the opened
windows.
3. Enter the required information, and then click Connect.
on Atrust Quick Connection screen.
6. A window appears with available desktops or applications for the provided
credentials. Double click to select the desired desktop or application.
7. The virtual desktop or application will be displayed on the screen.
© 2014-15 Atrust Computer Corp. All rights reserved.
Version 1.00
QSG-A66-EN-15040119
