Features

• Incorporates the ARM926EJ-S™ ARM

– DSP Instruction Extensions – ARM Jazelle – 16 Kbyte Data Cache, 16 Kbyte Instruction Cache, Write Buffer – 210 MIPS at 190 MHz – Memory Management Unit – EmbeddedICE – Mid-level implementation Embedded Trace Macrocell

• Additional Embedded Memories

– 32 Kbytes of Internal ROM, Single-cycle Access at Maximum Bus Speed – 160 Kbytes of Internal SRAM, Single-cycle Access at Maximum Processor or Bus

Speed

• External Bus Interface (EBI)

– Supports SDRAM, Static Memory, NAND Flash and CompactFlash

• LCD Controller

– Supports Passive or Active Displays – Up to 16-bits per Pixel in STN Color Mode – Up to 16M Colors in TFT Mode (24-bit per Pixel), Resolution up to 2048 x 2048

• USB

– USB 2.0 Full Speed (12 Mbits per second) Host Double Port

• Dual On-chip Transceivers

• Integrated FIFOs and Dedicated DMA Channels

– USB 2.0 Full Speed (12 Mbits per second) Device Port

• On-chip Transceiver, 2 Kbyte Configurable Integrated FIFOs

• Bus Matrix

– Handles Five Masters and Five Slaves – Boot Mode Select Option – Remap Command

• Fully Featured System Controller (SYSC) for Efficient System Management, including

– Reset Controller, Shutdown Controller, Four 32-bit Battery Backup Registers for a

Total of 16 Bytes – Clock Generator and Power Management Controller – Advanced Interrupt Controller and Debug Unit – Periodic Interval Timer, Watchdog Timer and Real-time Timer – Three 32-bit PIO Controllers

• Reset Controller (RSTC)

– Based on Power-on Reset Cells, Reset Source Identification and Reset Output

Control

• Shutdown Controller (SHDWC)

– Programmable Shutdown Pin Control and Wake-up Circuitry

• Clock Generator (CKGR)

– 32,768 Hz Low-power Oscillator on Battery Backup Power Supply, Providing a

Permanent Slow Clock – 3 to 20 MHz On-chip Oscillator and two PLLs

• Power Management Controller (PMC)

– Very Slow Clock Operating Mode, Software Programmable Power Optimization

Capabilities – Four Programmable External Clock Signals

Technology for Java® Acceleration

™

, Debug Communication Channel Support

Thumb® Processor

™

AT91 ARM Thumb-based Microcontrollers

AT91SAM9261

Preliminary

Summary

NOTE: This is a summary document.

The complete document is available on the Atmel website at www.atmel.com.

6062JS–ATARM–06-Feb-08

• Advanced Interrupt Controller (AIC)

– Individually Maskable, Eight-level Priority, Vectored Interrupt Sources – Three External Interrupt Sources and One Fast Interrupt Source, Spurious Interrupt Protected

• Debug Unit (DBGU)

– 2-wire USART and support for Debug Communication Channel, Programmable ICE Access Prevention

• Periodic Interval Timer (PIT)

– 20-bit Interval Timer plus 12-bit Interval Counter

• Watchdog Timer (WDT)

– Key Protected, Programmable Only Once, Windowed 12-bit Counter, Running at Slow Clock

• Real-Time Timer (RTT)

– 32-bit Free-running Backup Counter Running at Slow Clock

• Three 32-bit Parallel Input/Output Controllers (PIO) PIOA, PIOB and PIOC

– 96 Programmable I/O Lines Multiplexed with up to Two Peripheral I/Os – Input Change Interrupt Capability on Each I/O Line – Individually Programmable Open-drain, Pull-up Resistor and Synchronous Output

• Nineteen Peripheral DMA (PDC) Channels

• Multimedia Card Interface (MCI)

– SDCard and MultiMediaCard™ Compliant – Automatic Protocol Control and Fast Automatic Data Transfers with PDC, MMC and SDCard Compliant

• Three Synchronous Serial Controllers (SSC)

– Independent Clock and Frame Sync Signals for Each Receiver and Transmitter – I²S Analog Interface Support, Time Division Multiplex Support – High-speed Continuous Data Stream Capabilities with 32-bit Data Transfer

• Three Universal Synchronous/Asynchronous Receiver Transmitters (USART)

– Individual Baud Rate Generator, IrDA – Support for ISO7816 T0/T1 Smart Card, Hardware and Software Handshaking, RS485 Support

Infrared Modulation/Demodulation

• Two Master/Slave Serial Peripheral Interface (SPI)

– 8- to 16-bit Programmable Data Length, Four External Peripheral Chip Selects

• One Three-channel 16-bit Timer/Counters (TC)

– Three External Clock Inputs, Two multi-purpose I/O Pins per Channel – Double PWM Generation, Capture/Waveform Mode, Up/Down Capability

• Two-wire Interface (TWI)

– Master Mode Support, All Two-wire Atmel EEPROMs Supported

• IEEE

1149.1 JTAG Boundary Scan on All Digital Pins

• Required Power Supplies:

– 1.08V to 1.32V for VDDCORE and VDDBU – 3.0V to 3.6V for VDDOSC and for VDDPLL – 2.7V to 3.6V for VDDIOP (Peripheral I/Os) – 1.65V to 1.95V and 3.0V to 3.6V for VDDIOM (Memory I/Os)

• Available in a 217-ball LFBGA RoHS-compliant Package

AT91SAM9261 Preliminary

6062JS–ATARM–06-Feb-08

1. Description

AT91SAM9261 Preliminary

The AT91SAM9261 is a complete system-on-chip built around the ARM926EJ-S ARM Thumb processor with an extended DSP instruction set and Jazelle Java accelerator. It achieves 210 MIPS at 190 MHz.

The AT91SAM9261 is an optimized host processor for applications with an LCD display. Its integrated LCD controller supports BW and up to 16M color, active and passive LCD displays. The 160 Kbyte integrated SRAM can be configured as a frame buffer minimizing the impact for LCD refresh on the overall processor performance. The External Bus Interface incorporates controllers for synchronous DRAM (SDRAM) and Static memories and features specific interface circuitry for CompactFlash and NAND Flash.

The AT91SAM9261 integrates a ROM-based Boot Loader supporting code shadowing from, for example, external DataFlash ment Controller (PMC) keeps system power consumption to a minimum by selectively enabling/disabling the processor and various peripherals and adjustment of the operating frequency.

The AT91SAM9261 also benefits from the integration of a wide range of debug features including JTAG-ICE, a dedicated UART debug channel (DBGU) and an embedded real time trace. This enables the development and debug of all applications, especially those with real-time constraints.

into external SDRAM. The software controlled Power Manage-

6062JS–ATARM–06-Feb-08

2. Block Diagram

Figure 2-1. AT91SAM9261 Block Diagram

JTAGSEL

TDI TDO TMS TCK

NTRST

RTCK

TST

FIQ

IRQ0-IRQ2

DRXD DTXD

PCK0-PCK3

PLLRCA PLLRCB

XIN

XOUT

XIN32

XOUT32

SHDN

WKUP

VDDBU GNDBU

VDDCORE

NRST

MCCK

MCCDA

MCDA0-MCDA3

RXD0 TXD0 SCK0

RTS0

CTS0

RXD1 TXD1 SCK1

RTS1

CTS1 RXD2

TXD2 SCK2

RTS2

CTS2

SPI0_NPCS0 SPI0_NPCS1 SPI0_NPCS2 SPI0_NPCS3

SPI0_MISO SPI0_MOSI

SPI0_SPCK

SPI1_NPCS10

SPI1_NPCS1

SPI1_NPCS12

SPI1_NPCS3

SPI1_MISO SPI1_MOSI

SPI1_SPCK

JTAG

Boundary Scan

System Controller

AIC

PIO

DBGU

PDC

PLLA

GPBREG

PIO

PMC

PIT

RTT

SHDWC

RSTC

PLLB

OSC

WDT

OSC

POR

PIOA PIOB PIOC

MCI

USART0

USART1

USART2

SPI0

SPI1

ICE

ITCM DTCM

PDC

Instruction Cache

16K bytes

TCM

Interface

Fast SRAM 160K bytes

Fast ROM 32K bytes

Peripheral

Bridge

Peripheral

DMA

Controller

APB

ARM926EJ-S Core

MMU

5-layer

Matrix

Data Cache

16K bytes

BIU

DMA FIFO

FIFO

DMA

FIFO

LUT

LCD Controller

PDC

Timer Counter

ETM

EBI

CompactFlash

NAND Flash

SDRAM

Controller

Static

Memory

Controller

USB Host

USB Device

SSC0

SSC1

SSC2

TC0

TC1

TC2

TWI

TSYNC TCLK

PIO

TPS0-TPS2 TPK0-TPK15

BMS D0-D15

A0/NBS0 A1/NBS2/NWR2 A2-A15/A18-A21 A22/REG A16/BA0 A17/BA1 NCS0 NCS1/SDCS NCS2 NCS3/NANDCS NRD/CFOE NWR0/NWE/CFWE NWR1/NBS1/CFIOR NWR3/NBS3/CFIOW SDCK SDCKE RAS-CAS SDWE SDA10 NWAIT A23-A24 A25/CFRNW NCS4/CFCS0

PIO

NCS5/CFCS1 CFCE1

CFCE2 NCS6/NANDOE NCS7/NANDWE D16-D31

HDMA HDPA

HDMB HDPB

DDM DDP

LCDD0-LCDD23 LCDVSYNC LCDHSYNC LCDDOTCK LCDDEN LCDCC

TF0 TK0 TD0 RD0 RK0 RF0

TF1 TK1 TD1 RD1 RK1 RF1

TF2 TK2

TD2 RD2 RK2 RF2

TCLK0 TCLK1 TCLK2 TIOA0 TIOB0 TIOA1 TIOB1 TIOA2 TIOB2

TWD TWCK

PIO

Transceiver

AT91SAM9261 Preliminary

6062JS–ATARM–06-Feb-08

AT91SAM9261 Preliminary

3. Signal Description

Table 3-1. Signal Description by Peripheral

Signal Name Function Type Active Level Comments

Power

VDDIOM EBI I/O Lines Power Supply Power 1.65 V to 1.95V and 3.0V to 3.6V VDDIOP Peripherals I/O Lines Power Supply Power 2.7V to 3.6V VDDBU Backup I/O Lines Power Supply Power 1.08V to 1.32V VDDPLL PLL Power Supply Power 3.0V to 3.6V VDDOSC Oscillator Power Supply Power 3.0V to 3.6V VDDCORE Core Chip Power Supply Power 1.08V to 1.32V GND Ground Ground GNDPLL PLL Ground Ground GNDOSC Oscillator Ground Ground GNDBU Backup Ground Ground

Clocks, Oscillators and PLLs

XIN Main Oscillator Input Input XOUT Main Oscillator Output Output XIN32 Slow Clock Oscillator Input Input XOUT32 Slow Clock Oscillator Output Output PLLRCA PLL Filter Input PLLRCB PLL Filter Input PCK0 - PCK3 Programmable Clock Output Output

Shutdown, Wakeup Logic

SHDN Shutdown Control Output Do not tie over VDDBU. WKUP Wake-Up Input Input Accepts between 0V and VDDBU.

ICE and JTAG

TCK Test Clock Input No pull-up resistor. RTCK Returned Test Clock Output No pull-up resistor. TDI Test Data In Input No pull-up resistor. TDO Test Data Out Output TMS Test Mode Select Input No pull-up resistor. NTRST Test Reset Signal Input Low Pull-up resistor.

JTAGSEL JTAG Selection Input

™

ETM

TSYNC Trace Synchronization Signal Output TCLK Trace Clock Output TPS0 - TPS2 Trace ARM Pipeline Status Output TPK0 - TPK15 Trace Packet Port Output

Pull-down resistor. Accepts between 0V and VDDBU.

6062JS–ATARM–06-Feb-08

Table 3-1. Signal Description by Peripheral (Continued)

Signal Name Function Type Active Level Comments

Reset/Test

NRST Microcontroller Reset I/O Low Pull-up resistor TST Test Mode Select Input Pull-down resistor. BMS Boot Mode Select Input

Debug Unit

DRXD Debug Receive Data Input DTXD Debug Transmit Data Output

AIC

IRQ0 - IRQ2 External Interrupt Inputs Input FIQ Fast Interrupt Input Input

PIO

PA0 - PA31 Parallel IO Controller A I/O Pulled-up input at reset PB0 - PB31 Parallel IO Controller B I/O Pulled-up input at reset PC0 - PC31 Parallel IO Controller C I/O Pulled-up input at reset

EBI

D0 - D31 Data Bus I/O Pulled-up input at reset A0 - A25 Address Bus Output 0 at reset NWAIT External Wait Signal Input Low

SMC

NCS0 - NCS7 Chip Select Lines Output Low NWR0 - NWR3 Write Signal Output Low NRD Read Signal Output Low NWE Write Enable Output Low NBS0 - NBS3 Byte Mask Signal Output Low

CompactFlash Support

CFCE1 - CFCE2 CompactFlash Chip Enable Output Low CFOE CompactFlash Output Enable Output Low CFWE CompactFlash Write Enable Output Low CFIOR CompactFlash IO Read Output Low CFIOW CompactFlash IO Write Output Low CFRNW CompactFlash Read Not Write Output CFCS0 - CFCS1 CompactFlash Chip Select Lines Output Low

NAND Flash Support

NANDOE NAND Flash Output Enable Output Low NANDWE NAND Flash Write Enable Output Low NANDCS NAND Flash Chip Select Output Low

AT91SAM9261 Preliminary

6062JS–ATARM–06-Feb-08

AT91SAM9261 Preliminary

Table 3-1. Signal Description by Peripheral (Continued)

Signal Name Function Type Active Level Comments

SDRAM Controller

SDCK SDRAM Clock Output SDCKE SDRAM Clock Enable Output High SDCS SDRAM Controller Chip Select Output Low BA0 - BA1 Bank Select Output SDWE SDRAM Write Enable Output Low RAS - CAS Row and Column Signal Output Low SDA10 SDRAM Address 10 Line Output

Multimedia Card Interface

MCCK Multimedia Card Clock Output MCCDA Multimedia Card A Command I/O MCDA0 - MCDA3 Multimedia Card A Data I/O

USART

SCK0 - SCK2 Serial Clock I/O TXD0 - TXD2 Transmit Data Output RXD0 - RXD2 Receive Data Input RTS0 - RTS2 Request To Send Output CTS0 - CTS2 Clear To Send Input

Synchronous Serial Controller

TD0 - TD2 Transmit Data Output RD0 - RD2 Receive Data Input TK0 - TK2 Transmit Clock I/O RK0 - RK2 Receive Clock I/O TF0 - TF2 Transmit Frame Sync I/O RF0 - RF2 Receive Frame Sync I/O

Timer/Counter

TCLK0 - TCLK2 External Clock Input Input TIOA0 - TIOA2 I/O Line A I/O TIOB0 - TIOB2 I/O Line B I/O

SPI

SPI0_MISO SPI1_MISO

SPI0_MOSI SPI1_MOSI

SPI0_SPCK SPI1_SPCK

SPI0_NPCS0, SPI1_NPCS0

SPI0_NPCS1 SPI0_NPCS3

SPI1_NPCS1 SPI1_NPCS3

Master In Slave Out I/O

Master Out Slave In I/O

SPI Serial Clock I/O

SPI Peripheral Chip Select 0 I/O Low

SPI Peripheral Chip Select Output Low

6062JS–ATARM–06-Feb-08

Table 3-1. Signal Description by Peripheral (Continued)

Signal Name Function Type Active Level Comments

Two-Wire Interface

TWD Two-wire Serial Data I/O TWCK Two-wire Serial Clock I/O

LCD Controller

LCDD0 - LCDD23 LCD Data Bus Output LCDVSYNC LCD Vertical Synchronization Output LCDHSYNC LCD Horizontal Synchronization Output LCDDOTCK LCD Dot Clock Output LCDDEN LCD Data Enable Output LCDCC LCD Contrast Control Output

USB Device Port

DDM USB Device Port Data - Analog DDP USB Device Port Data + Analog

USB Host Port

HDMA USB Host Port A Data - Analog HDPA USB Host Port A Data + Analog HDMB USB Host Port B Data - Analog HDPB USB Host Port B Data + Analog

AT91SAM9261 Preliminary

6062JS–ATARM–06-Feb-08

4. Package and Pinout

The AT91SAM9261 is available in a 217-ball LFBGA RoHS-compliant package, 15 x 15 mm, 0.8 mm ball pitch

4.1 217-ball LFBGA Package Outline

Figure 4-1 shows the orientation of the 217-ball LFBGA Package.

A detailed mechanical description is given in the section “AT91SAM9261 Mechanical Characteristics” of the product datasheet.

Figure 4-1. 217-ball LFBGA Package Outline (Top View)

AT91SAM9261 Preliminary

17 16 15 14 13 12 11 10

9 8 7 6 5 4 3 2 1

Ball A1

ABCDEFGHJ K LMNPRTU

6062JS–ATARM–06-Feb-08

4.2 Pinout

Table 4-1. AT91SAM9261 Pinout for 217-ball LFBGA Package

(1)

Pin Signal Name Pin Signal Name Pin Signal Name Pin Signal Name

A1 A19 D5 VDDCORE J14 VDDIOP P17 PA20 A2 A16/BA0 D6 A10 J15 PB9 R1 PC19 A3 A14 D7 A5 J16 PB6 R2 PC21 A4 A12 D8 A0/NBS0 J17 PB4 R3 GND A5 A9 D9 SHDN K1 D6 R4 PC27 A6 A6 D10 NC K2 D8 R5 PC29 A7 A3 D11 VDDIOP K3 D10 R6 PC4 A8 A2 D12 PB29 K4 D7 R7 PC8 A9 NC D13 PB28 K8 GND R8 PC12 A10 XOUT32 D14 PB23 K9 GND R9 PC14 A11 XIN32 D15 PB20 K10 GND R10 VDDPLL A12 DDP D16 PB17 K14 VDDCORE R11 PA0 A13 HDPB D17 TCK K15 PB3/BMS R12 PA7 A14 HDMB A15 PB27 A16 GND A17 PB24 B1 A20 E14 PB22 L3 D12 R17 PA18 B2 A18 E15 PB18 L4 VDDIOM T1 PC20 B3 A15 E16 PB15 L14 PA30 T2 PC23 B4 A13 E17 TDI L15 PA27 T3 PC26 B5 A11 F1 SDCKE L16 PA31 T4 PC2 B6 A7 F2 RAS L17 PB0 T5 VDDIOP B7 A4 F3 NWR3/NBS3/CFIOW M1 D13 T6 PC5 B8 A1/NBS2/NWR2 F4 NCS0 M2 D15 T7 PC9 B9 VDDBU F14 PB16 B10 JTAGSEL F15 NRST M4 VDDCORE T9 PC15 B11 WKUP F16 TDO M14 PA25 T10 VDDOSC B12 DDM F17 NTRST M15 PA26 T11 GNDOSC B13 PB31 B14 HDMA B15 PB26 B16 PB25 B17 PB19 G14 PB14 C1 A22 G15 PB12 N4 VDDIOM T17 PA14 C2 A21 G16 PB11 N14 PA22 U1 PC25 C3 VDDIOM G17 PB8 N15 PA21 U2 PC0 C4 A17/BA1 H1 D2 N16 PA23 U3 PC3 C5 VDDIOM H2 D3 N17 PA24 U4 GND C6 A8 H3 VDDIOM P1 PC16 U5 PC6 C7 GND C8 VDDIOM H8 GND P3 PC22 U7 GND C9 GNDBU H9 GND C10 TST H10 GND C11 GND H14 PB10 P6 PC1 U10 PLLRCA C12 HDPA H15 PB13 P7 PC7 U11 XIN C13 PB30 H16 PB7 P8 PC11 U12 XOUT C14 NC H17 PB5 P9 GNDPLL U13 PA2 C15 VDDIOP C16 PB21 C17 TMS J3 GND P12 VDDCORE U16 PA9 D1 NCS2 J4 CAS P13 PA15 U17 RTCK D2 NCS1/SDCS J8 GND P14 PA16 D3 GND J9 GND P15 VDDIOP D4 VDDIOM J10 GND P16 PA19

E1 NWR1/NBS1/CFIOR K16 PB1 R13 PA10 E2 NWR0/NWE/CFWE K17 PB2 R14 PA13 E3 NRD/CFOE L1 D9 R15 PA17 E4 SDA10 L2 D11 R16 GND

M3 PC18 T8 PC10

G1 D0 M16 PA28 T12 PA1 G2 D1 M17 PA29 T13 PA4 G3 SDWE N1 D14 T14 PA6 G4 NCS3/NANDCS N2 PC17 T15 PA8

N3 PC31 T16 PA11

H4 SDCK P2 PC30 U6 VDDIOP

P4 PC24 U8 PC13 P5 PC28 U9 PLLRCB

J1 D4 P10 PA3 U14 PA5 J2 D5 P11 VDDIOP U15 PA12

Note: 1. Shaded cells define the pins powered by VDDIOM.

AT91SAM9261 Preliminary

6062JS–ATARM–06-Feb-08

5. Power Considerations

5.1 Power Supplies

The AT91SAM9261 has six types of power supply pins:

• VDDCORE pins: Power the core, including the processor, the memories and the peripherals; voltage ranges from 1.08V and 1.32V, 1.2V nominal.

• VDDIOM pins: Power the External Bus Interface I/O lines; voltage ranges from 1.65V to

1.95V and 3.0V to 3.6V, 1.8V and 3.3V nominal.

• VDDIOP pins: Power the Peripheral I/O lines and the USB transceivers; voltage ranges from

2.7V and 3.6V, 3.3V nominal.

• VDDBU pin: Powers the Slow Clock oscillator and a part of the System Controller; voltage ranges from 1.08V and 1.32V, 1.2V nominal.

• VDDPLL pin: Powers the PLL cells; voltage ranges from 3.0V and 3.6V, 3.3V nominal.

• VDDOSC pin: Powers the Main Oscillator cells; voltage ranges from 3.0V and 3.6V, 3.3V nominal.

The double power supplies VDDIOM and VDDIOP are identified in Table 4-1 on page 10. These supplies enable the user to power the device differently for interfacing with memories and for interfacing with peripherals.

AT91SAM9261 Preliminary

Ground pins GND are common to VDDCORE, VDDIOM and VDDIOP pins power supplies. Separated ground pins are provided for VDDBU, VDDOSC and VDDPLL. The ground pins are GNDBU, GNDOSC and GNDPLL, respectively.

5.2 Power Consumption

The AT91SAM9261 consumes about 550 µA of static current on VDDCORE at 25°C. This static current rises at up to 5.5 mA if the temperature increases to 85°C.

On VDDBU, the current does not exceed 3 µA @25°C, but can rise at up to 20 µA @85°C.

For dynamic power consumption, the AT91SAM9261 consumes a maximum of 50 mA on VDDCORE at maximum speed in typical conditions (1.2V, 25°C), processor running full-performance algorithm.

6. I/O Line Considerations

6.1 JTAG Port Pins

TMS, TDI and TCK are Schmitt trigger inputs and have no pull-up resistors.

TDO and RTCK are outputs, driven at up to VDDIOP, and have no pull-up resistor.

The JTAGSEL pin is used to select the JTAG boundary scan when asserted at a high level (tied to VDDBU). It integrates a permanent pull-down resistor of about 15 kΩ to GNDBU, so that it can be left unconnected for normal operations.

6062JS–ATARM–06-Feb-08

The NTRST pin is used to initialize the embedded ICE TAP Controller when asserted at a low level. It integrates a permanent pull-up resistor of about 15 kΩ to VDDIOP, so that it can be left unconnected for normal operations.

6.2 Test Pin

The TST pin is used for manufacturing test purposes when asserted high. It integrates a permanent pull-down resistor of about 15 kΩ to GNDBU, so that it can be left unconnected for normal operations. Driving this line at a high level leads to unpredictable results.

6.3 Reset Pin

NRST is an open-drain output integrating a non-programmable pull-up resistor. It can be driven with voltage at up to VDDIOP. As the product integrates power-on reset cells, the NRST pin can be left unconnected in case no reset from the system needs to be applied to the product.

The NRST pin integrates a permanent pull-up resistor of 100 kΩ minimum to VDDIOP.

The NRST signal is inserted in the Boundary Scan.

6.4 PIO Controller A, B and C Lines

All the I/O lines PA0 to PA31, PB0 to PB31, and PC0 to PC31 integrate a programmable pull-up resistor of 100 kΩ. Programming of this pull-up resistor is performed independently for each I/O line through the PIO Controllers.

After reset, all the I/O lines default as inputs with pull-up resistors enabled, except those which are multiplexed with the External Bus Interface signals that require to be enabled as Peripherals at reset. This is explicitly indicated in the column “Reset State” of the PIO Controller multiplexing tables.

6.5 Shutdown Logic Pins

The SHDN pin is an output only, driven by Shutdown Controller.

The pin WKUP is an input only. It can accept voltages only between 0V and VDDBU.

AT91SAM9261 Preliminary

6062JS–ATARM–06-Feb-08

7. Processor and Architecture

7.1 ARM926EJ-S Processor

• RISC Processor Based on ARM v5TEJ Architecture with Jazelle technology for Java acceleration

• Two Instruction Sets

– ARM High-performance 32-bit Instruction Set – Thumb High Code Density 16-bit Instruction Set

• DSP Instruction Extensions

• 5-Stage Pipeline Architecture:

– Instruction Fetch (F) – Instruction – Execute (E) – Data Memory (M) – Register Write (W)

• 16 Kbyte Data Cache, 16 Kbyte Instruction Cache

– Virtually-addressed 4-way Associative Cache – Eight words per line – Write-through and Write-back Operation – Pseudo-random or Round-robin Replacement

• Write Buffer

– Main Write Buffer with 16-word Data Buffer and 4-address Buffer – DCache Write-back Buffer with 8-word Entries and a Single Address Entry – Software Control Drain

• Standard ARM v4 and v5 Memory Management Unit (MMU)

– Access Permission for Sections – Access Permission for large pages and small pages can be specified separately for

each quarter of the page

– 16 embedded domains

• Bus Interface Unit (BIU)

– Arbitrates and Schedules AHB Requests – Separate Masters for both instruction and data access providing complete AHB

system flexibility

– Separate Address and Data Buses for both the 32-bit instruction interface and the

32-bit data interface

– On Address and Data Buses, data can be 8-bit (Bytes), 16-bit (Half-words) or 32-bit

(Words)

Decode (D)

AT91SAM9261 Preliminary

6062JS–ATARM–06-Feb-08

7.2 Debug and Test Features

• Integrated Embedded In-circuit Emulator Real-Time

– Two real-time Watchpoint Units – Two Independent Registers: Debug Control Register and Debug Status Register – Test Access Port Accessible through JTAG Protocol – Debug Communications Channel

• Debug Unit

–Two-pin UART – Debug Communication Channel Interrupt Handling – Chip ID Register

• Embedded Trace Macrocell: ETM9

– Medium+ Level Implementation – Half-rate Clock Mode – Four Pairs of Address Comparators – Two Data Comparators – Eight Memory Map Decoder Inputs – Two 16-bit Counters – One 3-stage Sequencer – One 45-byte FIFO

• IEEE1149.1 JTAG Boundary-scan on All Digital Pins

™

7.3 Bus Matrix

• Five Masters and Five Slaves handled

– Handles Requests from the ARM926EJ-S, USB Host Port, LCD Controller and the

Peripheral DMA Controller to internal ROM, internal SRAM, EBI, APB, LCD Controller and USB Host Port.

– Round-Robin Arbitration (three modes supported: no default master, last accessed

default master, fixed default master)

– Burst Breaking with Slot Cycle Limit

• One Address Decoder Provided per Master

– Three different slaves may be assigned to each decoded memory area: one for

internal boot, one for external boot, one after remap.

• Boot Mode Select Option

– Non-volatile Boot Memory can be Internal or External. – Selection is made by BMS pin sampled at reset.

• Remap Command

– Allows Remapping of an Internal SRAM in Place of the Boot Non-Volatile Memory – Allows Handling of Dynamic Exception Vectors

7.4 Peripheral DMA Controller

• Transfers from/to peripheral to/from any memory space without intervention of the processor.

• Next Pointer Support, forbids strong real-time constraints on buffer management.

AT91SAM9261 Preliminary

6062JS–ATARM–06-Feb-08

• Nineteen channels

– Two for each USART – Two for the Debug Unit – Two for each Serial Synchronous Controller – Two for each Serial Peripheral Interface – One for the Multimedia Card Interface

AT91SAM9261 Preliminary

6062JS–ATARM–06-Feb-08

8. Memories

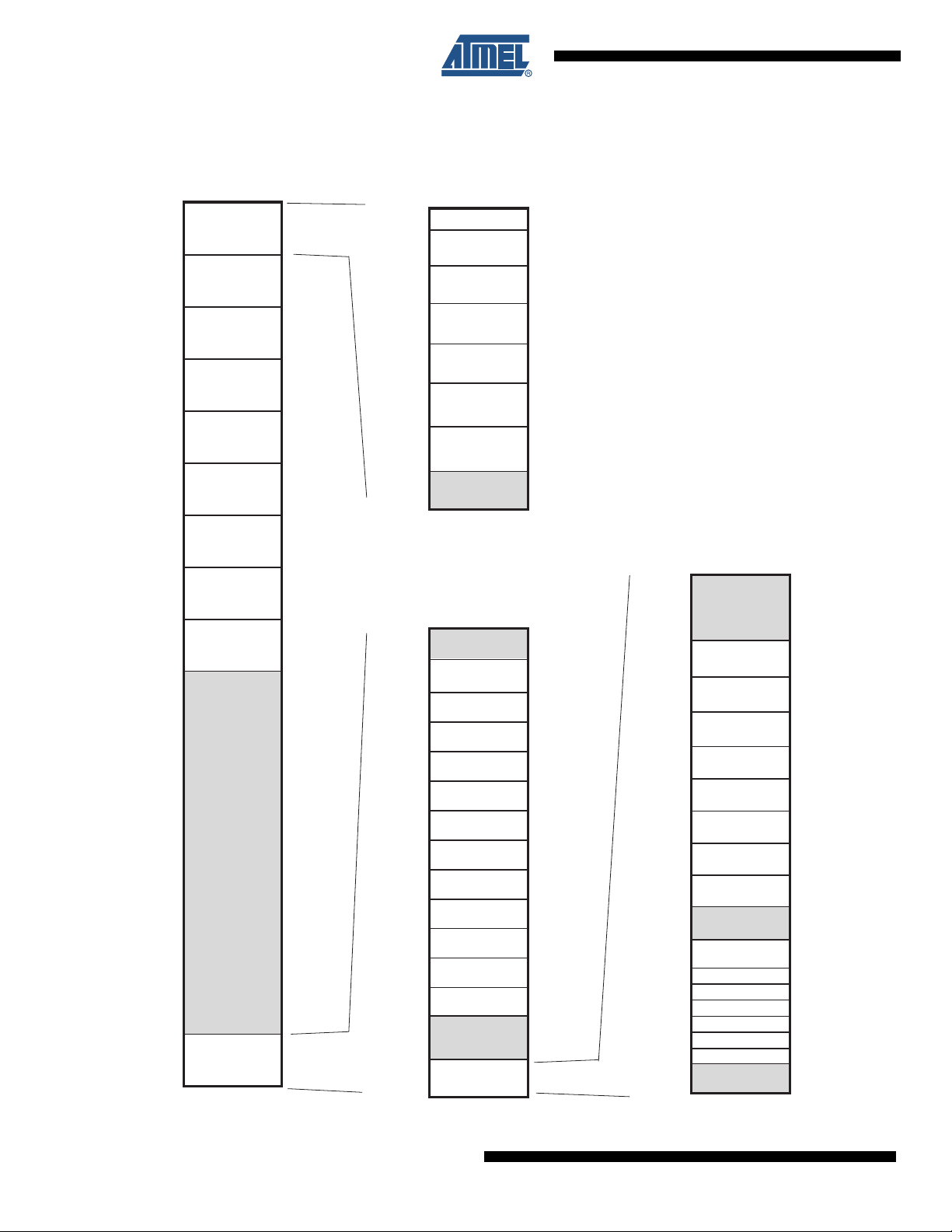

Figure 8-1. AT91SAM9261 Memory Mapping

Address Memory Space

0x0000 0000

0x0FFF FFFF

0x1000 0000

0x1FFF FFFF

0x2000 0000

0x2FFF FFFF

0x3000 0000

0x3FFF FFFF

0x4000 0000

0x4FFF FFFF

0x5000 0000

0x5FFF FFFF

0x6000 0000

0x6FFF FFFF

0x7000 0000

0x7FFF FFFF

0x8000 0000

0x8FFF FFFF

0x9000 0000

0xEFFF FFFF

0xF000 0000

0xFFFF FFFF

Internal Memories

EBI

Chip Select 0

EBI

Chip Select 1/

SDRAMC

EBI

Chip Select 2

EBI

Chip Select 3/

NANDFlash

EBI

Chip Select 4/

Compact Flash

Slot 0

EBI

Chip Select 5/

Compact Flash

Slot 1

EBI

Chip Select 6

EBI

Chip Select 7

Undefined

(Abort)

Internal Peripherals

256M Bytes

1,518M Bytes

256M Bytes

0x0000 0000

0x0FFF FFFF

0xF000 0000

0xFFFA 0000

0xFFFA 4000

0xFFFA 8000

0xFFFA C000

0xFFFB 0000

0xFFFB 4000

0xFFFB 8000

0xFFFB C000

0xFFFC 0000

0xFFFC 4000

0xFFFC 8000

0xFFFC C000

0xFFFC D000

0xFFFF C000

0xFFFF FFFF

Internal Memory Mapping

0x10 0000

0x20 0000

0x30 0000

0x40 0000

0x50 0000

Boot Memory (1)

UHP User Interface

0x60 0000

LCD User Interface

0x70 0000

Peripheral Mapping

ITCM (2)

DTCM (2)

SRAM (2)

ROM

Reserved

TCO, TC1, TC2

UDP

MCI

TWI

USART0

USART1

USART2

SSC0

SSC1

SSC2

SPI0

SPI1

Reserved

SYSC

1M Bytes

16K Bytes

Notes : (1) Can be ROM, EBI_NCS0 or SRAM

depending on BMS and REMAP

(2) Software programmable

System Controller Mapping

0xFFFF C000

Reserved

0xFFFF EA00

SDRAMC

0xFFFF EC00

SMC

0xFFFF EE00

MATRIX

0xFFFF F000

AIC

0xFFFF F200

DBGU

0xFFFF F400

PIOA

0xFFFF F600

PIOB

0xFFFF F800

PIOC

0xFFFF FA00

Reserved

0xFFFF FC00

PMC

0xFFFF FD00

0xFFFF FD10 0xFFFF FD20

0xFFFF FD30

0xFFFF FD40

0xFFFF FD50 0xFFFF FD60

RSTC

SHDWC

RTT

PIT

WDT

GPBR

Reserved

0xFFFF FFFF

512 Bytes

512 bytes

256 Bytes

16 Bytes 16 Bytes

16 Bytes

16 Bytes 16 Bytes

AT91SAM9261 Preliminary

6062JS–ATARM–06-Feb-08

AT91SAM9261 Preliminary

A first level of address decoding is performed by the Bus Matrix, i.e., the implementation of the Advanced High performance Bus (AHB) for its Master and Slave interfaces with additional features.

Decoding breaks up the 4 Gbytes of address space into 16 areas of 256 Mbytes. The areas 1 to 8 are directed to the EBI that associates these areas to the external chip selects NCS0 to NCS7. The area 0 is reserved for the addressing of the internal memories, and a second level of decoding provides 1 Mbyte of internal memory area. The area 15 is reserved for the peripherals and provides access to the Advanced Peripheral Bus (APB).

Other areas are unused and performing an access within them provides an abort to the master requesting such an access.

The Bus Matrix manages five Masters and five Slaves.

Each Master has its own bus and its own decoder, thus allowing a different memory mapping per Master.

Regarding Master 0 and Master 1 (ARM926 assigned to the memory space decoded at address 0x0: one for internal boot, one for external boot, one after remap. Refer to Table 8-3 for details.

Table 8-1. List of Bus Matrix Masters

™

Instruction and Data), three different Slaves are

Master 0 ARM926 Instruction

Master 1 ARM926 Data

Master 2 PDC

Master 3 LCD Controller

Master 4 USB Host

Each Slave has its own arbiter, thus allowing a different arbitration per Slave.

Table 8-2. List of Bus Matrix Slaves

Slave 0 Internal SRAM

Slave 1 Internal ROM

Slave 2 LCD Controller and USB Host Port Interfaces

Slave 3 External Bus Interface

Slave 4 Internal Peripherals

8.1 Embedded Memories

• 32 KB ROM

– Single Cycle Access at full bus speed

• 160 KB Fast SRAM

– Single Cycle Access at full bus speed – Supports ARM926EJ-S TCM interface at full processor speed

6062JS–ATARM–06-Feb-08

8.1.1 Internal Memory Mapping

Table 8-3 summarizes the Internal Memory Mapping for each Master, depending on the Remap

status and the BMS state at reset.

Table 8-3. Internal Memory Mapping

Address Master 0: ARM926 Instruction Master 1: ARM926 Data

REMAP(RCB0) = 0 REMAP (RCB0) = 1 REMAP (RCB1) = 0 REMAP (RCB1) = 1

BMS = 1 BMS = 0 BMS = 1 BMS = 0

0x0000 0000 Int. ROM EBI NCS0

Note: 1. EBI NCS0 is to be connected to a 16-bit non-volatile memory. The access configuration is defined by the reset state of SMC

Setup, SMC Pulse, SMC Cycle and SMC Mode CS0 registers.

(1)

Int. RAM C Int. ROM EBI NCS0

(1)

Int. RAM C

8.1.1.1 Internal SRAM

The AT91SAM9261 embeds a high-speed 160 Kbyte SRAM. This Internal SRAM is split into three areas. Its Memory Mapping is detailed in Table 8-3 above.

• Internal SRAM A is the ARM926EJ-S Instruction TCM and the user can map this SRAM block anywhere in the ARM926 instruction memory space using CP15 instructions. This SRAM block is also accessible by the ARM926 Data Master and by the AHB Masters through the AHB bus at address 0x0010 0000.

• Internal SRAM B is the ARM926EJ-S Data TCM and the user can map this SRAM block anywhere in the ARM926 data memory space using CP15 instructions. This SRAM block is also accessible by the ARM926 Data Master and by the AHB Masters through the AHB bus at address 0x0020 0000.

• Internal SRAM C is only accessible by all the AHB Masters. After reset and until the Remap Command is performed, this SRAM block is accessible through the AHB bus at address 0x0030 0000 by all the AHB Masters. After Remap, this SRAM block also becomes accessible through the AHB bus at address 0x0 by the ARM926 Instruction and the ARM926 Data Masters.

Within the 160 Kbyte SRAM size available, the amount of memory assigned to each block is software programmable as a multiple of 16 Kbytes according to Table 8-4. This table provides the size of the Internal SRAM C according to the size of the Internal SRAM A and the Internal SRAM B.

Table 8-4. Internal SRAM Block Size

Internal SRAM C

16 Kbytes

32 Kbytes

Internal SRAM B (DCTM)

64 Kbytes

Note that among the ten 16 Kbyte blocks making up the Internal SRAM, two are permanently assigned to Internal SRAM C.

At reset, the whole memory (160 Kbytes) is assigned to Internal SRAM C.

AT91SAM9261 Preliminary

Internal SRAM A (ITCM)

0 16 Kbytes 32 Kbytes 64 Kbytes

160 Kbytes 144 Kbytes 128 Kbytes 96 Kbytes

144 Kbytes 128 Kbytes 112 Kbytes 80 Kbytes

128 Kbytes 112 Kbytes 96 Kbytes 64 Kbytes

96 Kbytes 80 Kbytes 64 Kbytes 32 Kbytes

6062JS–ATARM–06-Feb-08

The memory blocks assigned to SRAM A, SRAM B and SRAM C areas are not contiguous and when the user dynamically changes the Internal SRAM configuration, the new 16 Kbyte block organization may affect the previous configuration from a software point of view.

Table 8-5 illustrates different configurations and the related 16 Kbyte blocks (RB0 to RB9)

assignments.

Table 8-5. 16 Kbyte Block Allocation

Configuration Examples and Related 16 Kbyte Block Assignments

AT91SAM9261 Preliminary

Decoded Area Address

0x0010 0000 RB3 RB3 RB3

Internal

SRAM A

(ITCM)

Internal

SRAM B

(DTCM)

Internal

SRAM C

(AHB)

0x0010 4000 RB2 RB2 RB2

0x0010 8000 RB1

0x0010 C000 RB0

0x0020 0000 RB7 RB7 RB7

0x0020 4000 RB6 RB6

0x0020 8000 RB5 RB5

0x0020 C000 RB4 RB4

0x0030 0000 RB9 RB9 RB9 RB9

0x0030 4000 RB8 RB8 RB8 RB8

0x0030 8000 RB7 RB1 RB6

0x0030 C000 RB6 RB0 RB5

0x0031 0000 RB5 RB4

0x0031 4000 RB4 RB1

0x0031 8000 RB3 RB0

ITCM = 0 Kbyte DTCM = 0 Kbyte AHB = 160 Kbytes

ITCM = 64 Kbytes DTCM = 64 Kbytes

(1)

AHB = 32 Kbytes

ITCM = 32 Kbytes DTCM = 64 Kbytes AHB = 64 Kbytes

ITCM = 32 Kbytes DTCM = 16 Kbytes AHB = 112 Kbytes

0x0031 C000 RB2

0x0032 0000 RB1

0x0032 4000 RB0

Note: 1. Configuration after reset.

8.1.1.2 Internal ROM

The AT91SAM9261 integrates a 32 Kbyte Internal ROM mapped at address 0x0040 0000. It is also accessible at address 0x0 after reset and before remap if the BMS is tied high during reset.

8.1.1.3 USB Host Port

The AT91SAM9261 integrates a USB Host Port Open Host Controller Interface (OHCI). The registers of this interface are directly accessible on the AHB Bus and are mapped like a standard internal memory at address 0x0050 0000.

8.1.1.4 LCD Controller

The AT91SAM9261 integrates an LCD Controller. The interface is directly accessible on the AHB Bus and is mapped like a standard internal memory at address 0x0060 0000.

6062JS–ATARM–06-Feb-08

8.1.2 Boot Strategies

The system always boots at address 0x0. To ensure a maximum number of possibilities for boot, the memory layout can be configured with two parameters.

REMAP allows the user to lay out the first internal SRAM bank to 0x0 to ease development. This is done by software once the system has booted for each Master of the Bus Matrix. Refer to the Bus Matrix Section for more details.

When REMAP = 0, BMS allows the user to lay out to 0x0, at his convenience, the ROM or an external memory. This is done via hardware at reset.

Note: Memory blocks not affected by these parameters can always be seen at their specified base

addresses. See the complete memory map presented in Figure 8-1 on page 16.

The AT91SAM9261 Bus Matrix manages a boot memory that depends on the level on the BMS pin at reset. The internal memory area mapped between address 0x0 and 0x000F FFFF is reserved for this purpose.

If BMS is detected at 1, the boot memory is the embedded ROM.

If BMS is detected at 0, the boot memory is the memory connected on the Chip Select 0 of the External Bus Interface.

8.1.2.1 BMS = 1, Boot on Embedded ROM

The system boots using the Boot Program.

• DataFlash Boot

– Downloads and runs an application from SPI DataFlash into internal SRAM – Downloaded code size from SPI DataFlash depends on embedded SRAM –size – Automatic detection of valid application – SPI DataFlash connected to SPI NPCS0

• NANDFlash Boot

• Boot Uploader in case no valid program is detected in external SPI DataFlash

– Small monitor functionalities (read/write/run) interface with SAM-BA – Automatic detection of the communication link

Serial communication on a DBGU (XModem protocol)

™

application

USB Device Port (CDC Protocol)

8.1.2.2 BMS = 0, Boot on External Memory

• Boot on slow clock (32,768 Hz)

• Boot with the default configuration for the Static Memory Controller, byte select mode, 16-bit data bus, Read/Write controlled by Chip Select, allows boot on 16-bit non-volatile memory.

The customer-programmed software must perform a complete configuration.

To speed up the boot sequence when booting at 32 kHz EBI CS0 (BMS=0), the user must take the following steps:

1. Program the PMC (main oscillator enable or bypass mode).

2. Program and start the PLL.

AT91SAM9261 Preliminary

6062JS–ATARM–06-Feb-08

AT91SAM9261 Preliminary

3. Reprogram the SMC setup, cycle, hold, mode timings registers for CS0 to adapt them

to the new clock

4. Switch the main clock to the new value.

8.1.3 ETM

™

Memories

The eight ETM9 Medium+ memory map decoder inputs are connected to custom address decoders and the resulting memory mapping is summarized in Table 8-6.

Table 8-6. ETM9 Memory Mapping

Product Resource Area Access Type Start Address End Address

SRAM Internal Data 0x0000 0000 0x002F FFFF

SRAM Internal Fetch 0x0000 0000 0x002F FFFF

ROM Internal Data 0x0040 0000 0x004F FFFF

ROM Internal Fetch 0x0040 0000 0x004F FFFF

External Bus Interface External Data 0x1000 0000 0x8FFF FFFF

External Bus Interface External Fetch 0x1000 0000 0x8FFF FFFF

User Peripherals Internal Data 0xF000 0000 0xFFFF BFFF

System Peripherals Internal Data 0xFFFF C000 0xFFFF FFFF

8.2 External Memories

The external memories are accessed through the External Bus Interface (Bus Matrix Slave 3).

Refer to the memory map in Figure 8-1 on page 16.

6062JS–ATARM–06-Feb-08

9. System Controller

The System Controller manages all vital blocks of the microcontroller: interrupts, clocks, power, time, debug and reset.

The System Peripherals are all mapped within the highest 6 Kbytes of address space, between addresses 0xFFFF EA00 and 0xFFFF FFFF. Each peripheral has an address space of 256 or 512 Bytes, representing 64 or 128 registers.

Figure 9-1 on page 23 shows the System Controller block diagram.

Figure 8-1 on page 16 shows the mapping of the User Interfaces of the System Controller

peripherals.

AT91SAM9261 Preliminary

6062JS–ATARM–06-Feb-08

9.1 Block Diagram

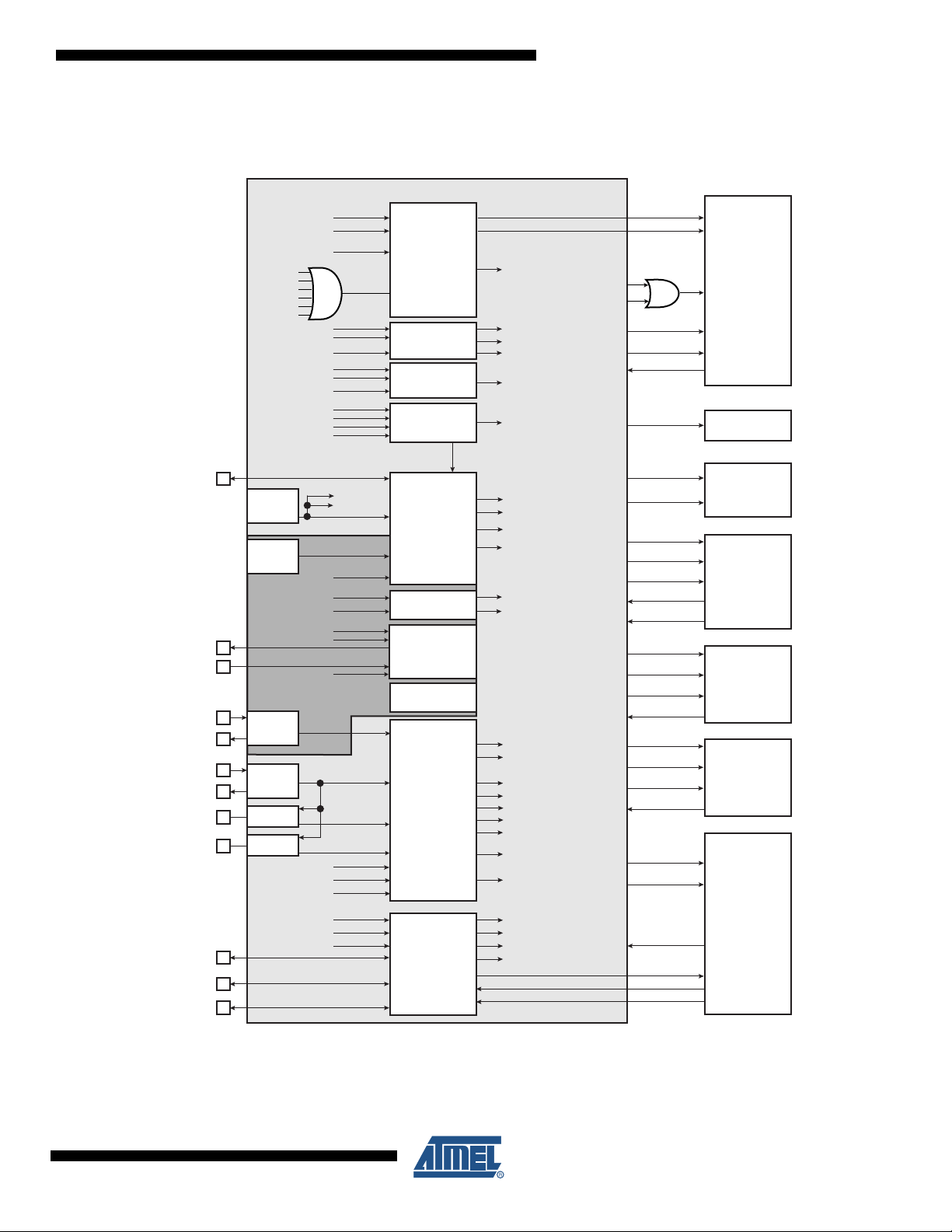

Figure 9-1. System Controller Block Diagram

irq0-irq2

fiq

periph_irq[2..21]

pit_irq rtt_irq

wdt_irq

dbgu_irq

pmc_irq

rstc_irq

MCK

periph_nreset

dbgu_rxd

MCK

debug

periph_nreset

SLCK

debug

idle

proc_nreset

VDDCORE Powered

NRST

SLCK

rtt_alarm

SLCK

dbgu_rxd

ice_nreset jtag_nreset

MAINCK

PLLACK

PLLBCK

int

SHDN

WKUP

XIN32

XOUT32

XIN

XOUT

PLLRCA

PLLRCB

PA0-PA31

PB0-PB31

PC0-PC31

VDDCORE

POR

VDDBU

POR

backup_nreset

VDDBU Powered

SLOW

CLOCK

OSC

MAIN

OSC

PLLA

PLLB

periph_nreset

usb_suspend

periph_nreset

periph_clk[2..4]

System Controller

Advanced

Interrupt

Controller

Debug

Unit

Periodic

Interval

Timer

Watchdog

Timer

wdt_fault WDRPROC

Reset

Controller

Real-Time

Timer

Shutdown Controller

4 General-purpose

Backup Registers

Power

Management

Controller

PIO

Controllers

AT91SAM9261 Preliminary

nirq nfiq

int

dbgu_irq force_ntrst dbgu_txd

pit_irq

wdt_irq

periph_nreset proc_nreset

backup_nreset

rstc_irq

rtt_irq rtt_alarm

periph_clk[2..21] pck[0-3]

PCK UDPCK UHPCK LCDCK MCK

pmc_irq

idle

periph_irq{2..4] irq0-irq2 fiq dbgu_txd

ice_nreset

force_ntrst

periph_clk[6..21]

periph_irq[6..21]

ntrst

proc_nreset

PCK

debug

jtag_nreset

MCK

periph_nreset

UDPCK

periph_clk[10]

periph_nreset

periph_irq[10]

usb_suspend

UHPCK

periph_clk[20]

periph_nreset

periph_irq[20]

LCDCK

periph_clk[21]

periph_nreset

periph_irq[21]

periph_nreset

in out enable

ARM926EJ-S

Boundary Scan

TAP Controller

Bus Matrix

USB Device

Por t

USB Host

Por t

LCD

Controller

Embedded

Peripherals

6062JS–ATARM–06-Feb-08

9.2 Reset Controller

• Based on two Power-on-Reset cells

• Status of the last reset

– Either cold reset, first reset, soft reset, user reset, watchdog reset, wake-up reset

• Controls the internal resets and the NRST pin output

9.3 Shutdown Controller

• Shutdown and Wake-up logic:

– Software programmable assertion of the SHDN pin – Deassertion Programmable on a WKUP pin level change or on alarm

9.4 General-purpose Backup Registers

• Four 32-bit general-purpose backup registers

9.5 Clock Generator

• Embeds the Low-power 32768 Hz Slow Clock Oscillator

– Provides the permanent Slow Clock to the system

• Embeds the Main Oscillator

– Oscillator bypass feature – Supports 3 to 20 MHz crystals

• Embeds Two PLLs

– Outputs 80 to 240 MHz clocks – Integrates an input divider to increase output accuracy – 1 MHz minimum input frequency

• Provides SLCK, MAINCK, PLLACK and PLLBCK.

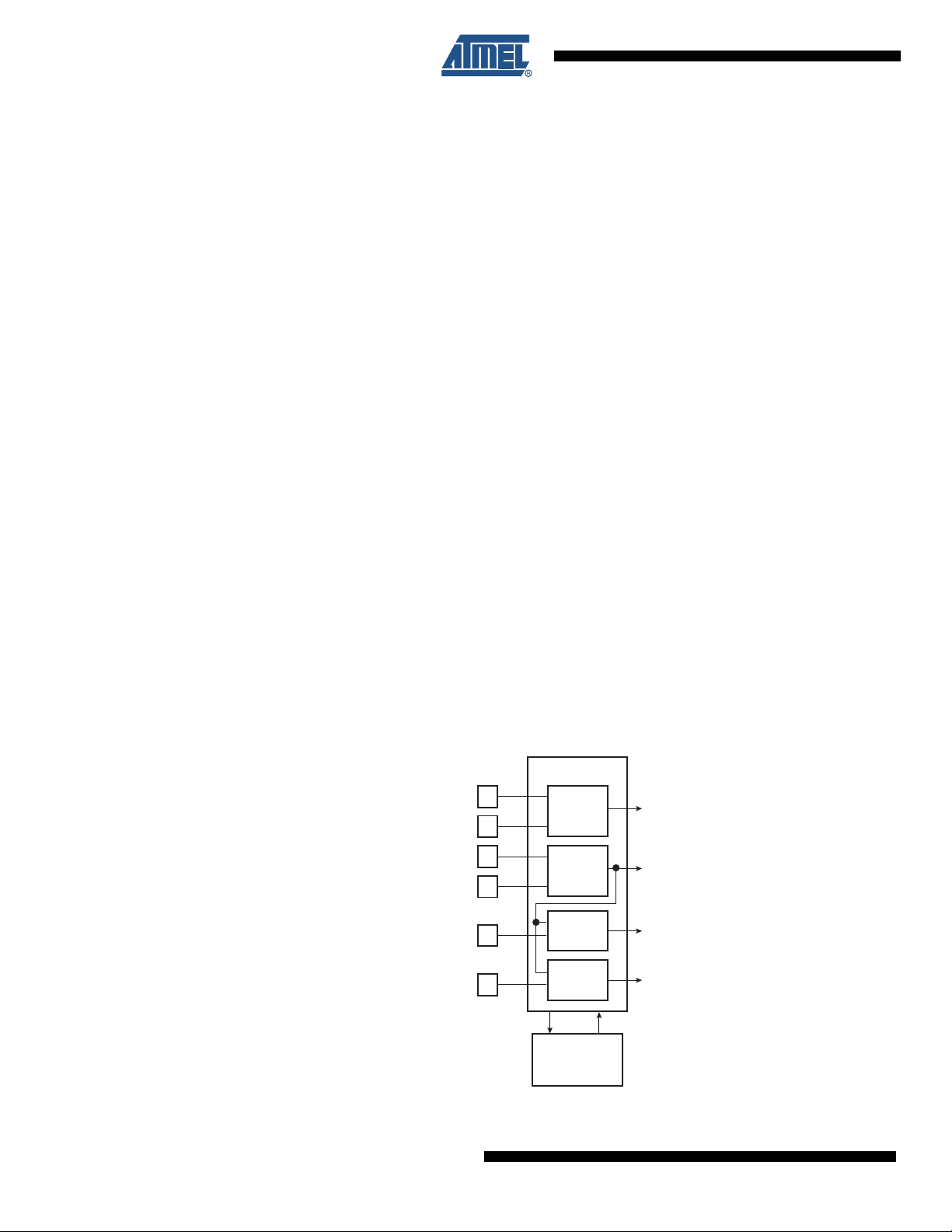

Figure 9-2. Clock Generator Block Diagram

XIN32

XOUT32

XIN

XOUT

PLLRCA

PLLRCB

AT91SAM9261 Preliminary

Clock Generator

Slow Clock

Oscillator

Main

Oscillator

PLL and Divider A

PLL and Divider B

Power

Management

Controller

Slow Clock SLCK

Main Clock MAINCK

PLLA Clock PLLACK

PLLB Clock PLLBCK

ControlStatus

6062JS–ATARM–06-Feb-08

9.6 Power Management Controller

• The Power Management Controller provides:

– the Processor Clock PCK – the Master Clock MCK – the USB Clock USBCK (HCK0) – the LCD Controller Clock LCDCK (HCK1) – up to thirty peripheral clocks – four programmable clock outputs: PCK0 to PCK3

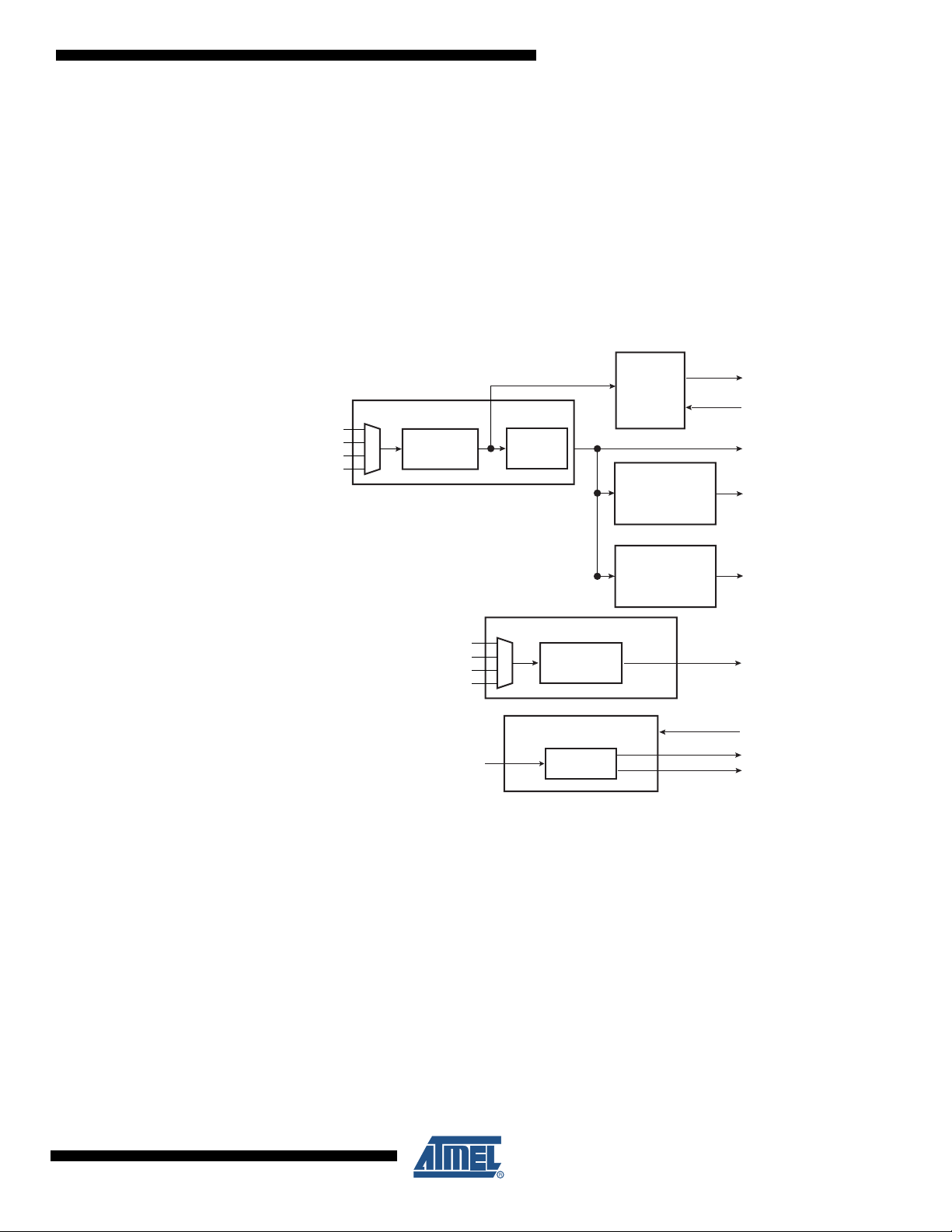

Figure 9-3. Power Management Controller Block Diagram

Master Clock Controller

SLCK

MAINCK PLLACK PLLBCK

Prescaler

/1,/2,/4,...,/64

AT91SAM9261 Preliminary

Processor

Clock

Controller

Idle Mode

Divider /1,/2,/4

APB Peripherals Clock Controller

ON/OFF

PCK

int

MCK

periph_clk[2..21]

9.7 Periodic Interval Timer

• Includes a 20-bit Periodic Counter with less than 1 µs accuracy

• Includes a 12-bit Interval Overlay Counter

• Real time OS or Linux

9.8 Watchdog Timer

• 12-bit key-protected only-once programmable counter

• Windowed, prevents the processor to be in a dead-lock on the watchdog access

AHB Peripherals

Clock Controller

ON/OFF

Programmable Clock Controller

SLCK

MAINCK

PLLACK

PLLBCK

/WindowsCE® compliant tick generator

Prescaler

/1,/2,/4,...,/64

USB Clock Controller

ON/OFF

Divider /1,/2,/4

HCKx

pck[0..3]

usb_suspend

UDPCK UHPCK

9.9 Real-time Timer

6062JS–ATARM–06-Feb-08

• 32-bit Free-running backup counter

• Alarm Register capable to generate a wake-up of the system

9.10 Advanced Interrupt Controller

• Controls the interrupt lines (nIRQ and nFIQ) of an ARM Processor

• Thirty-two individually maskable and vectored interrupt sources – Source 0 is reserved for the Fast Interrupt Input (FIQ) – Source 1 is reserved for system peripherals (PIT, RTT, PMC, DBGU, etc.) – Source 2 to Source 31 control up to thirty embedded peripheral interrupts or external

interrupts – Programmable edge-triggered or level-sensitive internal sources – Programmable positive/negative edge-triggered or high/low level-sensitive

• Four External Sources

• 8-level Priority Controller – Drives the normal interrupt of the processor – Handles priority of the interrupt sources 1 to 31 – Higher priority interrupts can be served during service of lower priority interrupt

• Vectoring – Optimizes Interrupt Service Routine Branch and Execution – One 32-bit Vector Register per interrupt source – Interrupt Vector Register reads the corresponding current Interrupt Vector

•Protect Mode – Easy debugging by preventing automatic operations when protect mode is enabled

•Fast Forcing – Permits redirecting any normal interrupt source on the Fast Interrupt of the

processor

• General Interrupt Mask – Provides processor synchronization on events without triggering an interrupt

9.11 Debug Unit

AT91SAM9261 Preliminary

• Composed of four functions –Two-pin UART – Debug Communication Channel (DCC) support – Chip ID Registers – ICE Access Prevention

•Two-pin UART – Implemented features are 100% compatible with the standard Atmel USART – Independent receiver and transmitter with a common programmable Baud Rate

Generator – Even, Odd, Mark or Space Parity Generation – Parity, Framing and Overrun Error Detection – Automatic Echo, Local Loopback and Remote Loopback Channel Modes – Support for two PDC channels with connection to receiver and transmitter

• Debug Communication Channel Support

6062JS–ATARM–06-Feb-08

9.12 PIO Controllers

AT91SAM9261 Preliminary

– Offers visibility of COMMRX and COMMTX signals from the ARM Processor

• Chip ID Registers – Identification of the device revision, sizes of the embedded memories, set of

peripherals

• ICE Access prevention – Enables software to prevent system access through the ARM Processor’s ICE – Prevention is made by asserting the NTRST line of the ARM Processor’s ICE

• Three PIO Controllers, each controlling up to 32 programmable I/O Lines – PIOA has 32 I/O Lines – PIOB has 32 I/O Lines – PIOC has 32 I/O Lines

• Fully programmable through Set/Clear Registers

• Multiplexing of two peripheral functions per I/O Line

• For each I/O Line (whether assigned to a peripheral or used as general-purpose I/O) – Input change interrupt – Glitch filter – Multi-drive option enables driving in open drain – Programmable pull up on each I/O line – Pin data status register, supplies visibility of the level on the pin at any time

• Synchronous output, provides Set and Clear of several I/O lines in a single write

6062JS–ATARM–06-Feb-08

10. Peripherals

10.1 User Interface

The User Peripherals are mapped in the upper 256 Mbytes of the address space between the addresses 0xFFFA 0000 and 0xFFFC FFFF. Each User Peripheral is allocated 16 Kbytes of address space.

A complete memory map is presented in Figure 8-1 on page 16.

10.2 Peripheral Identifiers

Table 10-1 defines the Peripheral Identifiers of the AT91SAM9261. A peripheral identifier is

required for the control of the peripheral interrupt with the Advanced Interrupt Controller and for the control of the peripheral clock with the Power Management Controller.

Table 10-1. Peripheral Identifiers

Peripheral ID Peripheral Mnemonic Peripheral Name External Interrupt

0 AIC Advanced Interrupt Controller FIQ

1 SYSIRQ System Interrupt

2 PIOA Parallel I/O Controller A

3 PIOB Parallel I/O Controller B

4 PIOC Parallel I/O Controller C

5- Reserved

6US0 USART 0

7US1 USART 1

8US2 USART 2

9 MCI Multimedia Card Interface

10 UDP USB Device Port

11 TWI Two-Wire Interface

12 SPI0 Serial Peripheral Interface 0

13 SPI1 Serial Peripheral Interface 1

14 SSC0 Synchronous Serial Controller 0

15 SSC1 Synchronous Serial Controller 1

16 SSC2 Synchronous Serial Controller 2

17 TC0 Timer/Counter 0

18 TC1 Timer/Counter 1

19 TC2 Timer/Counter 2

20 UHP USB Host Port

21 LCDC LCD Controller

22 - 28 - Reserved

29 AIC Advanced Interrupt Controller IRQ0

30 AIC Advanced Interrupt Controller IRQ1

31 AIC Advanced Interrupt Controller IRQ2

AT91SAM9261 Preliminary

6062JS–ATARM–06-Feb-08

Note: Setting AIC, SYSIRQ, UHP, LCDC and IRQ0 to IRQ2 bits in the clock set/clear registers of the

PMC has no effect.

10.3 Peripheral Multiplexing on PIO Lines

The AT91SAM9261 features three PIO controllers, PIOA, PIOB and PIOC, that multiplex the I/O lines of the peripheral set.

Each PIO Controller controls up to thirty-two lines. Each line can be assigned to one of two peripheral functions, A or B. Table 10-2 on page 31, Table 10-3 on page 32 and Table 10-4 on

page 33 define how the I/O lines of the peripherals A and B are multiplexed on the PIO Control-

lers. The two columns “Function” and “Comments” have been inserted for the user’s own comments; they may be used to track how pins are defined in an application.

Note that some output only peripheral functions might be duplicated within the tables.

The column “Reset State” indicates whether the PIO line resets in I/O mode or in peripheral mode. If I/O is mentioned, the PIO line resets in input with the pull-up enabled, so that the device is maintained in a static state as soon as the reset is released. As a result, the bit corresponding to the PIO line in the register PIO_PSR (Peripheral Status Register) resets low.

If a signal name is mentioned in the “Reset State” column, the PIO line is assigned to this function and the corresponding bit in PIO_PSR resets high. This is the case of pins controlling memories, in particular the address lines, which require the pin to be driven as soon as the reset is released. Note that the pull-up resistor is also enabled in this case.

AT91SAM9261 Preliminary

10.3.1 Resource Multiplexing

10.3.1.1 LCD Controller

The LCD Controller can interface with several LCD panels. It supports 4, 8 or 16 bit-per-pixel without any limitation. Interfacing 24 bit-per-pixel TFTs panel prevents using the SSC0 and the chip select line 0 of the SPI1.

16 bit-per-pixel TFT panels are interfaced through peripheral B functions, as color data is output on LCDD3 to LCDD7, LCDD11 to LCDD15 and LCDD19 to LCDD23. Intensity bit is output on LCDD2, LCDD10 and LCDD18. Using the peripheral B does not prevent using the SSC0 and the SPI1 lines.

10.3.1.2 ETM

Using the ETM prevents:

• using the USART1 and USART2 control signals, in particular the SCK lines which are

required to use the USART as ISO7816 and the RTS and CTS to handle hardware handshaking on the serial lines. In case the ETM and an ISO7816 connection are both required, the USART0 has to be used as a Smart Card interface.

• using the SSC1

• addressing a static memory of more than 8 Mbytes, which requires the A23 and A24 address

lines

• using the chip select lines 1 to 3 of SPI0 and SPI1

10.3.1.3 EBI

6062JS–ATARM–06-Feb-08

If not required, the NWAIT function (external wait request) can be deactivated by software, allowing this pin to be used as a PIO.

10.3.1.4 32-bit Data Bus

Using a 32-bit Data Bus prevents:

• using the three Timer Counter channels’ outputs and trigger inputs

• using the SSC2

10.3.1.5 NAND Flash Interface

Using the NAND Flash interface prevents:

• using NCS3, NCS6 and NCS7 to access other parallel devices

10.3.1.6 Compact Flash Interface

Using the CompactFlash interface prevents:

• using NCS4 and/or NCS5 to access other parallel devices

10.3.1.7 SPI0 and the MultiMedia Card Interface

As the DataFlash Card is compatible with the SDCard, it is useful to multiplex SPI and MCI. Here, the SPI0 signal is multiplexed with the MCI.

10.3.1.8 USARTs

• Using the USART1 and USART2 control signals prevents using the ETM.

• Alternatively, using USART0 with its control signals prevents using some clock outputs and

interrupt lines.

10.3.1.9 Clock Outputs

10.3.1.10 Interrupt Lines

• Using the clock outputs multiplexed with the PIO A prevents using the Debug Unit and/or the

Two Wire Interface.

• Alternatively, using the second implementation of the clock outputs prevents using the LCD

Controller Interface and/or USART0.

• Using FIQ prevents using the USART0 control signals.

• Using IRQ0 prevents using the NWAIT EBI signal.

• Using the IRQ1 and/or IRQ2 prevents using the SPI1.

AT91SAM9261 Preliminary

6062JS–ATARM–06-Feb-08

AT91SAM9261 Preliminary

10.3.2 PIO Controller A Multiplexing

Table 10-2. Multiplexing on PIO Controller A

PIO Controller A Application Usage

Reset

I/O Line Peripheral A Peripheral B Comments

PA0 SPI0_MISO MCDA0 I/O VDDIOP

PA1 SPI0_MOSI MCCDA I/O VDDIOP

PA2 SPI0_SPCK MCCK I/O VDDIOP

PA3 SPI0_NPCS0 I/O VDDIOP

PA4 SPI0_NPCS1 MCDA1 I/O VDDIOP

PA5 SPI0_NPCS2 MCDA2 I/O VDDIOP

PA6 SPI0_NPCS3 MCDA3 I/O VDDIOP

PA7 TWD PCK0 I/O VDDIOP

PA8 TWCK PCK1 I/O VDDIOP

PA9 DRXD PCK2 I/O VDDIOP

PA10 DTXD PCK3 I/O VDDIOP

PA11 TSYNC SCK1 I/O VDDIOP

State Power Supply Function Comments

PA12 TCLK RTS1 I/O VDDIOP

PA13 TPS0 CTS1 I/O VDDIOP

PA14 TPS1 SCK2 I/O VDDIOP

PA15 TPS2 RTS2 I/O VDDIOP

PA16 TPK0 CTS2 I/O VDDIOP

PA17 TPK1 TF1 I/O VDDIOP

PA18 TPK2 TK1 I/O VDDIOP

PA19 TPK3 TD1 I/O VDDIOP

PA20 TPK4 RD1 I/O VDDIOP

PA21 TPK5 RK1 I/O VDDIOP

PA22 TPK6 RF1 I/O VDDIOP

PA23 TPK7 RTS0 I/O VDDIOP

PA24 TPK8 SPI1_NPCS1 I/O VDDIOP

PA25 TPK9 SPI1_NPCS2 I/O VDDIOP

PA26 TPK10 SPI1_NPCS3 I/O VDDIOP

PA27 TPK11 SPI0_NPCS1 I/O VDDIOP

PA28 TPK12 SPI0_NPCS2 I/O VDDIOP

PA29 TPK13 SPI0_NPCS3 I/O VDDIOP

PA30 TPK14 A23 A23 VDDIOP

PA31 TPK15 A24 A24 VDDIOP

6062JS–ATARM–06-Feb-08

10.3.3 PIO Controller B Multiplexing

Table 10-3. Multiplexing on PIO Controller B

PIO Controller B Application Usage

Reset

I/O Line Peripheral A Peripheral B Comments

PB0 LCDVSYNC I/O VDDIOP

PB1 LCDHSYNC I/O VDDIOP

PB2 LCDDOTCK PCK0 I/O VDDIOP

(1)

PB3

PB4 LCDCC LCDD2 I/O VDDIOP

PB5 LCDD0 LCDD3 I/O VDDIOP

PB6 LCDD1 LCDD4 I/O VDDIOP

PB7 LCDD2 LCDD5 I/O VDDIOP

PB8 LCDD3 LCDD6 I/O VDDIOP

PB9 LCDD4 LCDD7 I/O VDDIOP

PB10 LCDD5 LCDD10 I/O VDDIOP

PB11 LCDD6 LCDD11 I/O VDDIOP

PB12 LCDD7 LCDD12 I/O VDDIOP

PB13 LCDD8 LCDD13 I/O VDDIOP

PB14 LCDD9 LCDD14 I/O VDDIOP

LCDDEN See footnote

(1)

State Power Supply Function Comments

I/O VDDIOP

PB15 LCDD10 LCDD15 I/O VDDIOP

PB16 LCDD11 LCDD19 I/O VDDIOP

PB17 LCDD12 LCDD20 I/O VDDIOP

PB18 LCDD13 LCDD21 I/O VDDIOP

PB19 LCDD14 LCDD22 I/O VDDIOP

PB20 LCDD15 LCDD23 I/O VDDIOP

PB21 TF0 LCDD16 I/O VDDIOP

PB22 TK0 LCDD17 I/O VDDIOP

PB23 TD0 LCDD18 I/O VDDIOP

PB24 RD0 LCDD19 I/O VDDIOP

PB25 RK0 LCDD20 I/O VDDIOP

PB26 RF0 LCDD21 I/O VDDIOP

PB27 SPI1_NPCS1 LCDD22 I/O VDDIOP

PB28 SPI1_NPCS0 LCDD23 I/O VDDIOP

PB29 SPI1_SPCK IRQ2 I/O VDDIOP

PB30 SPI1_MISO IRQ1 I/O VDDIOP

PB31 SPI1_MOSI PCK2 I/O VDDIOP

Note: 1. PB3 is multiplexed with BMS signal. Care should be taken during reset time.

AT91SAM9261 Preliminary

6062JS–ATARM–06-Feb-08

AT91SAM9261 Preliminary

10.3.4 PIO Controller C Multiplexing

Table 10-4. Multiplexing on PIO Controller C

PIO Controller C Application Usage

Reset

I/O Line Peripheral A Peripheral B Comments

PC0 NANDOE NCS6 I/O VDDIOP

PC1 NANDWE NCS7 I/O VDDIOP

PC2 NWAIT IRQ0 I/O VDDIOP

PC3 A25/CFRNW A25 VDDIOP

PC4 NCS4/CFCS0 I/O VDDIOP

PC5 NCS5/CFCS1 I/O VDDIOP

PC6 CFCE1 I/O VDDIOP

PC7 CFCE2 I/O VDDIOP

PC8 TXD0 PCK2 I/O VDDIOP

PC9 RXD0 PCK3 I/O VDDIOP

PC10 RTS0 SCK0 I/O VDDIOP

PC11 CTS0 FIQ I/O VDDIOP

State Power Supply Function Comments

PC12 TXD1 NCS6 I/O VDDIOP

PC13 RXD1 NCS7 I/O VDDIOP

PC14 TXD2 SPI1_NPCS2 I/O VDDIOP

PC15 RXD2 SPI1_NPCS3 I/O VDDIOP

PC16 D16 TCLK0 I/O VDDIOM

PC17 D17 TCLK1 I/O VDDIOM

PC18 D18 TCLK2 I/O VDDIOM

PC19 D19 TIOA0 I/O VDDIOM

PC20 D20 TIOB0 I/O VDDIOM

PC21 D21 TIOA1 I/O VDDIOM

PC22 D22 TIOB1 I/O VDDIOM

PC23 D23 TIOA2 I/O VDDIOM

PC24 D24 TIOB2 I/O VDDIOM

PC25 D25 TF2 I/O VDDIOM

PC26 D26 TK2 I/O VDDIOM

PC27 D27 TD2 I/O VDDIOM

PC28 D28 RD2 I/O VDDIOM

PC29 D29 RK2 I/O VDDIOM

PC30 D30 RF2 I/O VDDIOM

PC31 D31 PCK1 I/O VDDIOM

6062JS–ATARM–06-Feb-08

10.3.5 System Interrupt

The System Interrupt in Source 1 is the wired-OR of the interrupt signals coming from:

• the SDRAM Controller

• the Debug Unit

• the Periodic Interval Timer

• the Real-Time Timer

• the Watchdog Timer

• the Reset Controller

• the Power Management Controller

The clock of these peripherals cannot be deactivated and Peripheral ID 1 can only be used within the Advanced Interrupt Controller.

10.3.6 External Interrupts

All external interrupt signals, i.e., the Fast Interrupt signal FIQ or the Interrupt signals IRQ0 to IRQ2, use a dedicated Peripheral ID. However, there is no clock control associated with these peripheral IDs.

10.4 External Bus Interface

• Integrates two External Memory Controllers: – Static Memory Controller – SDRAM Controller

• Additional logic for NAND Flash and CompactFlash – NAND Flash support: 8-bit as well as 16-bit devices are supported – CompactFlash support: all modes (Attribute Memory, Common Memory, I/O, True

IDE) are supported but the signals -IOIS16 (I/O and True IDE modes) and -ATA SEL (True IDE mode) are not handled.

• Optimized External Bus – 16- or 32-bit Data Bus – Up to 26-bit Address Bus, up to 64 Mbytes addressable – Eight Chip Selects, each reserved to one of the eight Memory Areas – Optimized pin multiplexing to reduce latencies on External Memories

• Configurable Chip Select Assignment Managed by EBI_CSA Register located in the MATRIX

user interface

– Static Memory Controller on NCS0 – SDRAM Controller or Static Memory Controller on NCS1 – Static Memory Controller on NCS2 – Static Memory Controller on NCS3, Optional NAND Flash Support – Static Memory Controller on NCS4 - NCS5, Optional CompactFlash Support – Static Memory Controller on NCS6 - NCS7

support

AT91SAM9261 Preliminary

6062JS–ATARM–06-Feb-08

10.5 Static Memory Controller

• External memory mapping, 256 Mbyte address space per Chip Select Line

• Up to Eight Chip Select Lines

• 8-, 16- or 32-bit Data Bus

• Multiple Access Modes supported – Byte Write or Byte Select Lines – Asynchronous read in Page Mode supported (4- up to 32-byte page size)

• Multiple device adaptability – Compliant with LCD Module – Control signal programmable setup, pulse and hold time for each Memory Bank

• Multiple Wait State Management – Programmable Wait State Generation – External Wait Request – Programmable Data Float Time

• Slow Clock Mode Supported

AT91SAM9261 Preliminary

10.6 SDRAM Controller

• Supported Devices

• Numerous configurations supported

• Programming Facilities

• Energy-saving Capabilities

• Error detection

• SDRAM Power-up Initialization by software

• CAS Latency of 1, 2 and 3 supported

• Auto Precharge Command not used

– Standard and Low Power SDRAM (Mobile SDRAM)

– 2K, 4K, 8K Row Address Memory Parts – SDRAM with two or four Internal Banks – SDRAM with 16- or 32-bit Data Path

– Word, half-word, byte access – Automatic page break when Memory Boundary has been reached – Multibank Ping-pong Access – Timing parameters specified by software – Automatic refresh operation, refresh rate is programmable

– Self-refresh, power down and deep power down modes supported

– Refresh Error Interrupt

6062JS–ATARM–06-Feb-08

10.7 Serial Peripheral Interface

• Supports communication with serial external devices – Four chip selects with external decoder support allow communication with up to

fifteen peripherals – Serial memories, such as DataFlash and 3-wire EEPROMs – Serial peripherals, such as ADCs, DACs, LCD Controllers, CAN Controllers and

Sensors – External co-processors

• Master or slave serial peripheral bus interface – 8- to 16-bit programmable data length per chip select – Programmable phase and polarity per chip select – Programmable transfer delays between consecutive transfers and between clock

and data per chip select – Programmable delay between consecutive transfers – Selectable mode fault detection

• Very fast transfers supported – Transfers with baud rates up to MCK – The chip select line may be left active to speed up transfers on the same device

10.8 Two-wire Interface

• Compatibility with standard two-wire serial memory

• One, two or three bytes for slave address

• Sequential read/write operations

10.9 USART

• Programmable Baud Rate Generator

• 5- to 9-bit full-duplex synchronous or asynchronous serial communications

• RS485 with driver control signal

• ISO7816, T = 0 or T = 1 Protocols for interfacing with smart cards

• IrDA modulation and demodulation

– 1, 1.5 or 2 stop bits in Asynchronous Mode or 1 or 2 stop bits in Synchronous Mode – Parity generation and error detection – Framing error detection, overrun error detection – MSB- or LSB-first – Optional break generation and detection – By-8 or by-16 over-sampling receiver frequency – Hardware handshaking RTS-CTS – Receiver time-out and transmitter timeguard – Optional Multi-drop Mode with address generation and detection – Optional Manchester Encoding

– NACK handling, error counter with repetition and iteration limit

AT91SAM9261 Preliminary

6062JS–ATARM–06-Feb-08

– Communication at up to 115.2 Kbps

• Test Modes – Remote Loopback, Local Loopback, Automatic Echo

10.10 Synchronous Serial Controller

• Provides serial synchronous communication links used in audio and telecom applications

(with CODECs in Master or Slave Modes, I more).

• Contains an independent receiver and transmitter and a common clock divider.

• Offers a configurable frame sync and data length.

• Receiver and transmitter can be programmed to start automatically or on detection of

different event on the frame sync signal.

• Receiver and transmitter include a data signal, a clock signal and a frame synchronization

signal.

10.11 Timer Counter

• Three 16-bit Timer Counter Channels

• Wide range of functions including: – Frequency Measurement – Event Counting – Interval Measurement – Pulse Generation –Delay Timing – Pulse Width Modulation – Up/down Capabilities

• Each channel is user-configurable and contains: – Three external clock inputs – Five internal clock inputs – Two multi-purpose input/output signals

• Two global registers that act on all three TC Channels

AT91SAM9261 Preliminary

S, TDM Buses, Magnetic Card Reader and

10.12 Multimedia Card Interface

• Compatibility with MultiMedia Card Specification Version 2.2

• Compatibility with SD Memory Card Specification Version 1.0

• Cards clock rate up to Master Clock divided by 2

• Embedded power management to slow down clock rate when not used

• Each MCI has two slots, each supporting – One slot for one MultiMedia Card bus (up to 30 cards) or – One SD Memory Card

• Support for stream, block and multi-block data read and write

6062JS–ATARM–06-Feb-08

10.13 USB

• USB Host Port: – Compliance with Open HCI Rev 1.0 specification – Compliance with USB V2.0 Full-speed and Low-speed Specification – Supports both Low-speed 1.5 Mbps and Full-speed 12 Mbps USB devices – Root hub integrated with two downstream USB ports – Two embedded USB transceivers – No overcurrent detection – Supports power management – Operates as a master on the Bus Matrix

• USB Device Port: – USB V2.0 full-speed compliant, 12 Mbits per second – Embedded USB V2.0 full-speed transceiver – Embedded dual-port RAM for endpoints – Suspend/Resume logic – Ping-pong mode (two memory banks) for isochronous and bulk endpoints – Six general-purpose endpoints:

Endpoint 0: 8 bytes, no ping-pong mode

10.14 LCD Controller

Endpoint 1, Endpoint 2: 64 bytes, ping-pong mode

Endpoint 3: 64 bytes, no ping-pong mode

Endpoint 4, Endpoint 5: 256 bytes, ping-pong mode

• Embedded pad pull-up configurable via USB_PUCR Register located in the MATRIX user

interface

• Single and Dual scan color and monochrome passive STN LCD panels supported

• Single scan active TFT LCD panels supported.

• 4-bit single scan, 8-bit single or dual scan, 16-bit dual scan STN interfaces supported

• Up to 24-bit single scan TFT interfaces supported

• Up to 16 gray levels for mono STN and up to 4096 colors for color STN displays

• 1, 2 bits per pixel (palletized), 4 bits per pixel (non-palletized) for mono STN

• 1, 2, 4, 8 bits per pixel (palletized), 16 bits per pixel (non-palletized) for color STN

• 1, 2, 4, 8 bits per pixel (palletized), 16, 24 bits per pixel (non-palletized) for TFT

• Single clock domain architecture

• Resolution supported up to 2048 x 2048

AT91SAM9261 Preliminary

6062JS–ATARM–06-Feb-08

11. Package Drawing

Figure 11-1. 217-ball LFBGA Package Drawing

AT91SAM9261 Preliminary

6062JS–ATARM–06-Feb-08

12. Ordering Information

Table 12-1. AT91SAM9261 Ordering Information

Ordering Code Package Package Type Temperature Operating Range

AT91SAM9261-CJ BGA217 RoHS-compliant

Industrial

-40°C to 85°C

AT91SAM9261 Preliminary

6062JS–ATARM–06-Feb-08

13. Revision History

Table 13-1. Revision History

Doc. Rev. Source Comments

6062AS Qualified/Internal: 23-Aug-04

Date: 02-Jun-05

AT91SAM9261 Preliminary

6062BS

CSR 04-370

CSR 04-371

CSR 04-376

CSR 04-446

CSR 04-447

CSR 04-461 New pinout for 217-ball LFBGA package, Table 2 updated.

CSR 04-475

CSR 05-023

CSR 05-024

Change to Additional Embedded Memories in “Features” on page 1. Change to Section 5.2 “Power

Consumption” on page 11. Change to Table 8-3 on page 18.

Change to AIC, “Features” on page 1, SMCS signal added to Table 3-1, “Signal Description by

Peripheral,” on page 5, Change to Section 10.3.1.5 “NAND Flash Interface” on page 30.

Added NTRST signal to“Block Diagram” on page 4. NTRST signal added to Table 3-1 on page 5. F1 modified in Table 4-1 on page 10. Change to “JTAG Port Pins” on page 11.

Changed ROM access to single cycle in “Features” on page 1 and Section 8.1 “Embedded Memories”

on page 17.

Replaced “PDMA” with “PDC” throughout. Replaced “Peripheral DMA” with “Peripheral DMA Controller” throughout.

Updated Section 8.1.2 ”Boot Program” on page 20.

Removed “Embedded Software Services” on page 18.

Changed min voltage level for VDDIOM and VDDIOP to 2.7V throughout. Corrected nominal voltage level for VDDIOP and VDDIOP in Section 5.1 “Power Supplies” on page 11.

Added information on chip select assignment management in Section 10.4 “External Bus Interface” on

page 34.

Added information on configuration management of embedded pad pull-up in Section 10.13 “USB” on

page 38.

Throughout document: All references to SmartMedia removed and replaced by NAND Flash. All signals SMxx changed to NANDxx.

CSR 05-398

6062CS

CSR 05-481 Updated A22 pin in Figure 2-1, “AT91SAM9261 Block Diagram,” on page 4.

CSR 05-496

CSR 05-487 Updated Table 12-1, “AT91SAM9261 Ordering Information,” on page 40.

6062JS–ATARM–06-Feb-08

Throughout document: Package now qualified as RoHS-compliant

Changed pull-up resistor level to 10 kOhm in Section 6.4 “PIO Controller A, B and C Lines” on page 12.

Changed typical conditions for VDDCORE to 1.2V in Section 5.2 “Power Consumption” on page 11.

Corrected BMS state in Table 8-3, “Internal Memory Mapping,” on page 18.

Corrected BMS reset condition for ROM access in Section 8.1.1.2 “Internal ROM” on page 19. Date: 15-Nov-05

Changed SPI pin names in Figure 2-1, “AT91SAM9261 Block Diagram,” on page 4, Table 3-1, “Signal

Description by Peripheral,” on page 5, Table 10-2, “Multiplexing on PIO Controller A,” on page 31, Table 10-3, “Multiplexing on PIO Controller B,” on page 32 and Controller C,” on page 33.

Changed value of programmable pull-up resistor in Section 6.4 “PIO Controller A, B and C Lines” on

page 12.

Table 10-4, “Multiplexing on PIO

Table 13-1. Revision History

Doc. Rev. Source Comments

6062DS

2292 Added information on EBI NCS0 hwhen BMS = 0 in Table 8-3, “Internal Memory Mapping,” on page 18.

2946

2475

6062ES

2474

2480 Inserted new Section 8.1.2 “Boot Strategies” on page 20 to replace Boot ROM section.

Corrected MIPS and speed on page 1.

Updated information on JTAGSEL in Section 3-1 “Signal Description by Peripheral” on page 5 and in

Section 6.1 “JTAG Port Pins” on page 11.

Reformatted Section 8. “Memories” on page 16. Inserted new Figure 8-1, “AT91SAM9261 Memory

Mapping,” on page 16 to show full product memory mapping.

Removed information on Timer Counter clock assignments in Section 10.11 “Timer Counter” on page

37.

6062FS

6062GS

6062HS

6062IS

3068

3147 Updated information on shutdown pin in Section 6.5 “Shutdown Logic Pins” on page 12.

3067 Updated peripheral mnemonics in Figure 8-1, “AT91SAM9261 Memory Mapping,” on page 16.

3503 Added note to Table 10-1, “Peripheral Identifiers,” on page 28.

3660, 3695

3660 Added ROM to Figure 8-1, “AT91SAM9261 Memory Mapping,” on page 16.

3491

5042

5027 rfo

4965 Section 5.1 “Power Supplies”, startup voltage slope requirements for VDDCORE and VDDBU added.

4844 Table 10-3, “Multiplexing on PIO Controller B,” on page 32, Note added to “PB3” comments

4835

Changed pin name for ball D9 to SHDN in Table 4-1, “AT91SAM9261 Pinout for 217-ball LFBGA

Package

Updated VDDOSC, VDDPLL and VDDIOM ranges in”Features”, Table 3-1, “Signal Description by

Peripheral,” on page 5 and Section 5.2 “Power Consumption” on page 11.

Updated Section 9.6 “Power Management Controller” on page 25 and Figure 9-3, “Power Management

Controller Block Diagram,” on page 25.

Added Section 11. “Package Drawing” on page 39.

Table 10-4, “Multiplexing on PIO Controller C,” on page 33,

PCO - PC7 and PC12-PC13 power supplies are VDDIOP not VDDIOM.

Table 10-2, “Multiplexing on PIO Controller A,” on page 31

PA30-PA31 power supplies are VDDIOP not VDDIOM

Section 8.1.2 “Boot Strategies”, removed sentence pertaining to “remap” Section 8.1.2.1 “BMS = 1, Boot on Embedded ROM”, added NANDFlash Boot.

Figure 9-3, “Power Management Controller Block Diagram,” on page 25, in the master memory

controller representation, the divider has been updated.

(1)

,” on page 10.

6062JS

4241

5250

5248 In Features, on page 2: Required Power Supply updated, 3.0V to 3.6V for VDDOSC and for VDDPLL

Table 4-1 on page 10,

PCO - PC7, PC8 - PC11, PC12 - PC15 power supplies are VDDIOP not VDDIOM.

Section 5.2 “Power Consumption”, startup voltage slope requirements for VDDCORE and VDDBU

removed.

AT91SAM9261 Preliminary

6062JS–ATARM–06-Feb-08

ATMEL AT91SAM9261 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Features

1. Description

2. Block Diagram

3. Signal Description

4. Package and Pinout

4.1 217-ball LFBGA Package Outline

4.2 Pinout

5. Power Considerations

5.1 Power Supplies

5.2 Power Consumption

6. I/O Line Considerations

6.1 JTAG Port Pins

6.2 Test Pin

6.3 Reset Pin

6.4 PIO Controller A, B and C Lines

6.5 Shutdown Logic Pins

7. Processor and Architecture

7.1 ARM926EJ-S Processor

7.2 Debug and Test Features

7.3 Bus Matrix

7.4 Peripheral DMA Controller

8. Memories

8.1 Embedded Memories

8.1.1 Internal Memory Mapping

8.1.1.1 Internal SRAM

8.1.1.2 Internal ROM

8.1.1.3 USB Host Port

8.1.1.4 LCD Controller

8.1.2 Boot Strategies

8.1.2.1 BMS = 1, Boot on Embedded ROM

8.1.2.2 BMS = 0, Boot on External Memory

8.2 External Memories

9. System Controller

9.1 Block Diagram

9.2 Reset Controller

9.3 Shutdown Controller

9.4 General-purpose Backup Registers

9.5 Clock Generator

9.6 Power Management Controller

9.7 Periodic Interval Timer

9.8 Watchdog Timer

9.9 Real-time Timer

9.10 Advanced Interrupt Controller

9.11 Debug Unit

9.12 PIO Controllers

10. Peripherals

10.1 User Interface

10.2 Peripheral Identifiers

10.3 Peripheral Multiplexing on PIO Lines

10.3.1 Resource Multiplexing

10.3.1.1 LCD Controller

10.3.1.2 ETM

10.3.1.3 EBI

10.3.1.4 32-bit Data Bus

10.3.1.5 NAND Flash Interface

10.3.1.6 Compact Flash Interface

10.3.1.7 SPI0 and the MultiMedia Card Interface

10.3.1.8 USARTs

10.3.1.9 Clock Outputs

10.3.1.10 Interrupt Lines

10.3.2 PIO Controller A Multiplexing

10.3.3 PIO Controller B Multiplexing

10.3.4 PIO Controller C Multiplexing

10.3.5 System Interrupt

10.3.6 External Interrupts

10.4 External Bus Interface

10.5 Static Memory Controller

10.6 SDRAM Controller

10.7 Serial Peripheral Interface

10.8 Two-wire Interface

10.9 USART

10.10 Synchronous Serial Controller

10.11 Timer Counter

10.12 Multimedia Card Interface

10.13 USB

10.14 LCD Controller
