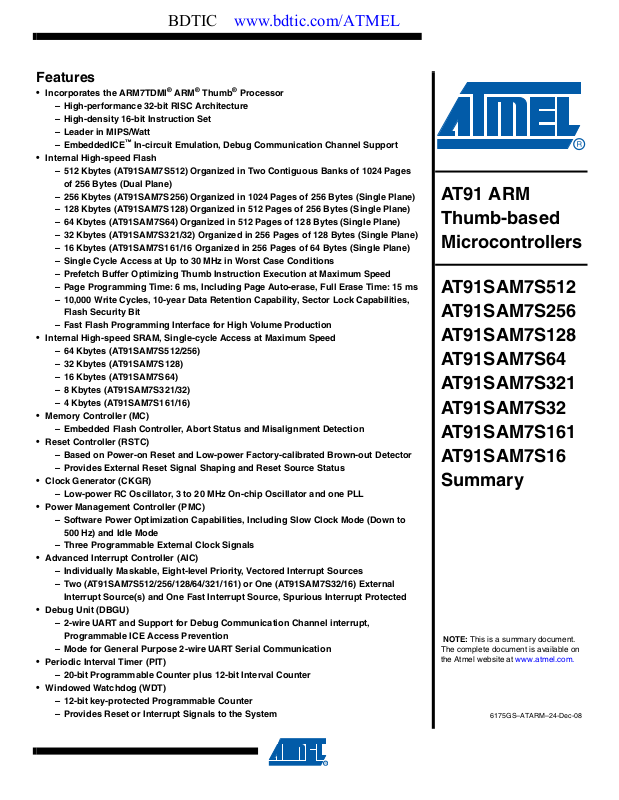

Features
• Incorporates the ARM7TDMI
– High-performance 32-bit RISC Architecture
– High-density 16-bit Instruction Set
– Leader in MIPS/Watt
– EmbeddedICE
• Internal High-speed Flash
– 512 Kbytes (AT91SAM7S512) Organized in Two Contiguous Banks of 1024 Pages
of 256 Bytes (Dual Plane)
– 256 Kbytes (AT91SAM7S256) Organized in 1024 Pages of 256 Bytes (Single Plane)
– 128 Kbytes (AT91SAM7S128) Organized in 512 Pages of 256 Bytes (Single Plane)
– 64 Kbytes (AT91SAM7S64) Organized in 512 Pages of 128 Bytes (Single Plane)
– 32 Kbytes (AT91SAM7S321/32) Organized in 256 Pages of 128 Bytes (Single Plane)
– 16 Kbytes (AT91SAM7S161/16 Organized in 256 Pages of 64 Bytes (Single Plane)
– Single Cycle Access at Up to 30 MHz in Worst Case Conditions
– Prefetch Buffer Optimizing Thumb Instruction Execution at Maximum Speed
– Page Programming Time: 6 ms, Including Page Auto-erase, Full Erase Time: 15 ms
– 10,000 Write Cycles, 10-year Data Retention Capability, Sector Lock Capabilities,
Flash Security Bit
– Fast Flash Programming Interface for High Volume Production
• Internal High-speed SRAM, Single-cycle Access at Maximum Speed
– 64 Kbytes (AT91SAM7S512/256)
– 32 Kbytes (AT91SAM7S128)
– 16 Kbytes (AT91SAM7S64)
– 8 Kbytes (AT91SAM7S321/32)
– 4 Kbytes (AT91SAM7S161/16)
• Memory Controller (MC)
– Embedded Flash Controller, Abort Status and Misalignment Detection
• Reset Controller (RSTC)
– Based on Power-on Reset and Low-power Factory-calibrated Brown-out Detector
– Provides External Reset Signal Shaping and Reset Source Status
• Clock Generator (CKGR)
– Low-power RC Oscillator, 3 to 20 MHz On-chip Oscillator and one PLL
• Power Management Controller (PMC)
– Software Power Optimization Capabilities, Including Slow Clock Mode (Down to
500 Hz) and Idle Mode
– Three Programmable External Clock Signals
• Advanced Interrupt Controller (AIC)
– Individually Maskable, Eight-level Priority, Vectored Interrupt Sources
– Two (AT91SAM7S512/256/128/64/321/161) or One (AT91SAM7S32/16) External
Interrupt Source(s) and One Fast Interrupt Source, Spurious Interrupt Protected
• Debug Unit (DBGU)
– 2-wire UART and Support for Debug Communication Channel interrupt,
Programmable ICE Access Prevention
– Mode for General Purpose 2-wire UART Serial Communication
• Periodic Interval Timer (PIT)
– 20-bit Programmable Counter plus 12-bit Interval Counter
• Windowed Watchdog (WDT)
– 12-bit key-protected Programmable Counter
– Provides Reset or Interrupt Signals to the System
™
In-circuit Emulation, Debug Communication Channel Support
®
ARM® Thumb® Processor
AT91 ARM
Thumb-based
Microcontrollers
AT91SAM7S512
AT91SAM7S256
AT91SAM7S128
AT91SAM7S64
AT91SAM7S321
AT91SAM7S32
AT91SAM7S161
AT91SAM7S16
Summary
NOTE: This is a summary document.
The complete document is available on
the Atmel website at www.atmel.com.
6175GS–ATARM–24-Dec-08
– Counter May Be Stopped While the Processor is in Debug State or in Idle Mode
• Real-time Timer (RTT)
– 32-bit Free-running Counter with Alarm
– Runs Off the Internal RC Oscillator
• One Parallel Input/Output Controller (PIOA)
– Thirty-two (AT91SAM7S512/256/128/64/321/161) or twenty-one (AT91SAM7S32/16) Programmable I/O Lines Multiplexed
with up to Two Peripheral I/Os
– Input Change Interrupt Capability on Each I/O Line
– Individually Programmable Open-drain, Pull-up resistor and Synchronous Output
• Eleven (AT91SAM7S512/256/128/64/321/161) or Nine (AT91SAM7S32/16) Peripheral DMA Controller (PDC) Channels
• One USB 2.0 Full Speed (12 Mbits per Second) Device Port (Except for the AT91SAM7S32/16).
– On-chip Transceiver, 328-byte Configurable Integrated FIFOs
• One Synchronous Serial Controller (SSC)
– Independent Clock and Frame Sync Signals for Each Receiver and Transmitter
– I²S Analog Interface Support, Time Division Multiplex Support
– High-speed Continuous Data Stream Capabilities with 32-bit Data Transfer
• Two (AT91SAM7S512/256/128/64/321/161) or One (AT91SAM7S32/16) Universal Synchronous/Asynchronous Receiver
Transmitters (USART)
– Individual Baud Rate Generator, IrDA
– Support for ISO7816 T0/T1 Smart Card, Hardware Handshaking, RS485 Support
– Full Modem Line Support on USART1 (AT91SAM7S512/256/128/64/321/161)
®
Infrared Modulation/Demodulation
• One Master/Slave Serial Peripheral Interface (SPI)
– 8- to 16-bit Programmable Data Length, Four External Peripheral Chip Selects
• One Three-channel 16-bit Timer/Counter (TC)
– Three External Clock Input and Two Multi-purpose I/O Pins per Channel (AT91SAM7S512/256/128/64/321/161)
– One External Clock Input and Two Multi-purpose I/O Pins for the first Two Channels Only (AT91SAM7S32/16)
– Double PWM Generation, Capture/Waveform Mode, Up/Down Capability
• One Four-channel 16-bit PWM Controller (PWMC)
• One Two-wire Interface (TWI)
– Master Mode Support Only, All Two-wire Atmel EEPROMs and I2C Compatible Devices Supported
(AT91SAM7S512/256/128/64/321/32)
– Master, Multi-Master and Slave Mode Support, All Two-wire Atmel EEPROMs and I
(AT91SAM7S161/16)
2
C Compatible Devices Supported
• One 8-channel 10-bit Analog-to-Digital Converter, Four Channels Multiplexed with Digital I/Os
• SAM-BA
• IEEE
™
Boot Assistant
– Default Boot program
– Interface with SAM-BA Graphic User Interface
®
1149.1 JTAG Boundary Scan on All Digital Pins
• 5V-tolerant I/Os, including Four High-current Drive I/O lines, Up to 16 mA Each (AT91SAM7S161/16 I/Os Not 5V-tolerant)
• Power Supplies
– Embedded 1.8V Regulator, Drawing up to 100 mA for the Core and External Components
– 3.3V or 1.8V VDDIO I/O Lines Power Supply, Independent 3.3V VDDFLASH Flash Power Supply
– 1.8V VDDCORE Core Power Supply with Brown-out Detector
• Fully Static Operation: Up to 55 MHz at 1.65V and 85⋅ C Worst Case Conditions
• Available in 64-lead LQFP Green or 64-pad QFN Green Package (AT91SAM7S512/256/128/64/321/161) and 48-lead LQFP Green
or 48-pad QFN Green Package (AT91SAM7S32/16)
2
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
1. Description
AT91SAM7S Series Summary
Atmel’s AT91SAM7S is a series of low pincount Flash microcontrollers based on the 32-bit ARM
RISC processor. It features a high-speed Flash and an SRAM, a large set of peripherals, including a USB 2.0 device (except for the AT91SAM7S32 and AT91SAM7S16), and a complete set
of system functions minimizing the number of external components. The device is an ideal
migration path for 8-bit microcontroller users looking for additional performance and extended
memory.
The embedded Flash memory can be programmed in-system via the JTAG-ICE interface or via
a parallel interface on a production programmer prior to mounting. Built-in lock bits and a security bit protect the firmware from accidental overwrite and preserves its confidentiality.
The AT91SAM7S Series system controller includes a reset controller capable of managing the
power-on sequence of the microcontroller and the complete system. Correct device operation
can be monitored by a built-in brownout detector and a watchdog running off an integrated RC
oscillator.
The AT91SAM7S Series are general-purpose microcontrollers. Their integrated USB Device
port makes them ideal devices for peripheral applications requiring connectivity to a PC or cellular phone. Their aggressive price point and high level of integration pushes their scope of use far
into the cost-sensitive, high-volume consumer market.
1.1 Configuration Summary of the AT91SAM7S512, AT91SAM7S256, AT91SAM7S128, AT91SAM7S64, AT91SAM7S321, AT91SAM7S32, AT91SAM7S161 and AT91SAM7S16
The AT91SAM7S512, AT91SAM7S256, AT91SAM7S128, AT91SAM7S64, AT91SAM7S321,
AT91SAM7S32, AT91SAM7S161 and AT91SAM7S16 differ in memory size, peripheral set and
package. Table 1-1 summarizes the configuration of the six devices.
Except for the AT91SAM7S32/16, all other AT91SAM7S devices are package and pinout
compatible.
Table 1-1. Configuration Summary
USB
Flash
Device Flash TWI
AT91SAM7S512 512 Kbytes Master dual plane 64 Kbytes 1 2
AT91SAM7S256 256 Kbytes Master single plane 64 Kbytes 1 2
AT91SAM7S128 128 Kbytes Master single plane 32 Kbytes 1 2
AT91SAM7S64 64 Kbytes Master single plane 16 Kbytes 1 2
AT91SAM7S321 32 Kbytes Master single plane 8 Kbytes 1 2
AT91SAM7S32 32 Kbytes Master single plane 8 Kbytes
AT91SAM7S161 16 Kbytes
AT91SAM7S16 16 Kbytes
Master/
Slave
Master/
Slave
Organization SRAM
single plane 4 Kbytes 1 2
single plane 4 Kbytes
Device
Port USART
not
present
not
present
Notes: 1. Fractional Baud Rate.
2. Full modem line support on USART1.
3. Only two TC channels are accessible through the PIO.
11 9 3
11 9 3
External
Interrupt
Source
(1) (2)
2113 Yes32
(1) (2)
2113 Yes32
(1) (2)
2113 Yes32
(2)
2113 Yes32
(2)
2113 Yes32
(2)
2113 No32LQFP
PDC
Channels
TC
Channels
(3)
(3)
I/O 5V
Tol erant
Ye s 2 1
No 21
I/O
Lines Package
LQFP/
QFN 64
LQFP/
QFN 64
LQFP/
QFN 64
LQFP/
QFN 64
LQFP/
QFN 64
LQFP/
QFN 48
LQFP/
QFN 48
6175GS–ATARM–24-Dec-08
3
TDI
TDO
TMS
TCK
NRST
FIQ
IRQ0-IRQ1
PCK0-PCK2
PMC
Peripheral Bridge
Peripheral Data
Controller
AIC
PLL
RCOSC
SRAM
64/32/16/8/4 Kbytes
ARM7TDMI
Processor
ICE
JTAG
SCAN
JTAGSEL
PIOA
USART0
SSC
Timer Counter
RXD0
TXD0
SCK0
RTS0
CTS0
NPCS0
NPCS1
NPCS2
NPCS3
MISO
MOSI
SPCK
Flash
512/256/
128/64/32/16 Kbytes
Reset
Controller
DRXD
DTXD
TF
TK
TD
RD
RK
RF
TCLK0
TCLK1
TCLK2
TIOA0
TIOB0
TIOA1
TIOB1
TIOA2
TIOB2
Memory Controller
Abort
Status
Address
Decoder
Misalignment
Detection
PIO
PIO
APB
POR
Embedded
Flash
Controller
AD0
AD1
AD2
AD3
ADTRG
PLLRC
11 Channels
PDC
PDC
USART1
RXD1
TXD1
SCK1
RTS1
CTS1
DCD1
DSR1
DTR1
RI1
PDC
PDC
PDC
PDC
SPI
PDC
ADC
ADVREF
PDC
PDC
TC0
TC1
TC2
TWD
TWCK
TWI
OSC
XIN
XOUT
VDDIN
PWMC
PWM0
PWM1
PWM2
PWM3
1.8 V
Voltage
Regulator
USB Device
FIFO
DDM
DDP
Transceiver
GND
VDDOUT
BOD
VDDCORE
VDDCORE
AD4
AD5
AD6
AD7
VDDFLASH
Fast Flash
Programming
Interface
ERASE
PIO
PGMD0-PGMD15
PGMNCMD
PGMEN0-PGMEN2
PGMRDY
PGMNVALID
PGMNOE
PGMCK
PGMM0-PGMM3
VDDIO
TST
DBGU
PDC
PDC
PIO
PIT
WDT
RTT
System Controller
VDDCORE
SAM-BA
ROM
2. Block Diagram
Figure 2-1. AT91SAM7S512/256/128/64/321/161 Block Diagram
4
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
ROM
TDI
TDO
TMS
TCK
NRST
FIQ
IRQ0
PCK0-PCK2
JTAGSEL
RXD0
TXD0
SCK0
RTS0
CTS0
NPCS0
NPCS1
NPCS2
NPCS3
MISO
MOSI
SPCK
DRXD
DTXD
TF
TK
TD
RD
RK
RF
TCLK0
TIOA0
TIOB0
TIOA1
TIOB1
AD0
AD1
AD2
AD3
ADTRG
PLLRC
9 Channels
ADVREF
TWD
TWCK
XIN
XOUT
VDDIN
PWM0
PWM1
PWM2
PWM3
GND
VDDOUT
VDDCORE
VDDCORE
AD4
AD5
AD6
AD7
VDDFLASH
ERASE
PGMD0-PGMD7
PGMNCMD
PGMEN0-PGMEN2
PGMRDY
PGMNVALID
PGMNOE
PGMCK
PGMM0-PGMM3
VDDIO
TST
VDDCORE
SRAM
8/4 Kbytes
ARM7TDMI
Processor
Flash
32/16 Kbytes
APB
SAM-BA
PMC
Peripheral Bridge
Peripheral DMA
Controller
AIC
PLL
RCOSC
ICE
JTAG
SCAN
PIOA
USART0
SSC
Timer Counter
Reset
Controller
Memory Controller
Abort
Status
Address
Decoder
Misalignment
Detection
PIO
PIO
POR
Embedded
Flash
Controller
PDC
PDC
PDC
PDC
SPI
PDC
ADC
PDC
PDC
TC0
TC1
TC2
TWI
OSC
PWMC
1.8 V
Voltage
Regulator
BOD
Fast Flash
Programming
Interface
PIO
DBGU
PDC
PDC
PIO
PIT
WDT
RTT
System Controller
Figure 2-2. AT91SAM7S32/16 Block Diagram
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
5
3. Signal Description
Table 3-1. Signal Description List
Active
Signal Name Function Type
Power
VDDIN
VDDOUT Voltage Regulator Output Power 1.85V nominal
VDDFLASH Flash Power Supply Power 3.0V to 3.6V
VDDIO I/O Lines Power Supply Power 3.0V to 3.6V or 1.65V to 1.95V
VDDCORE Core Power Supply Power 1.65V to 1.95V
VDDPLL PLL Power 1.65V to 1.95V
GND Ground Ground
XIN Main Oscillator Input Input
XOUT Main Oscillator Output Output
PLLRC PLL Filter Input
PCK0 - PCK2 Programmable Clock Output Output
TCK Test Clock Input No pull-up resistor
TDI Test Data In Input No pull-up resistor
TDO Test Data Out Output
TMS Test Mode Select Input No pull-up resistor
JTAGSEL JTAG Selection Input Pull-down resistor
ERASE
NRST Microcontroller Reset I/O Low Open-drain with pull-Up resistor
TST Test Mode Select Input High Pull-down resistor
DRXD Debug Receive Data Input
DTXD Debug Transmit Data Output
IRQ0 - IRQ1 External Interrupt Inputs Input IRQ1 not present on AT91SAM7S32/16
FIQ Fast Interrupt Input Input
PA0 - PA31 Parallel IO Controller A I/O
Voltage and ADC Regulator Power Supply
Input
Clocks, Oscillators and PLLs
ICE and JTAG
Flash Memory
Flash and NVM Configuration Bits Erase
Command
Reset/Test
Debug Unit
Power 3.0 to 3.6V
Input High Pull-down resistor
AIC
PIO
Level Comments
(1)
(1)
(1)
Pulled-up input at reset
PA0 - PA20 only on AT91SAM7S32/16
6
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
AT91SAM7S Series Summary
Table 3-1. Signal Description List (Continued)
Active
Signal Name Function Type
USB Device Port
DDM USB Device Port Data - Analog not present on AT91SAM7S32/16
DDP USB Device Port Data + Analog not present on AT91SAM7S32/16
USART
SCK0 - SCK1 Serial Clock I/O SCK1 not present on AT91SAM7S32/16
TXD0 - TXD1 Transmit Data I/O TXD1 not present on AT91SAM7S32/16
RXD0 - RXD1 Receive Data Input RXD1 not present on AT91SAM7S32/16
RTS0 - RTS1 Request To Send Output RTS1 not present on AT91SAM7S32/16
CTS0 - CTS1 Clear To Send Input CTS1 not present on AT91SAM7S32/16
DCD1 Data Carrier Detect Input not present on AT91SAM7S32/16
DTR1 Data Terminal Ready Output not present on AT91SAM7S32/16
DSR1 Data Set Ready Input not present on AT91SAM7S32/16
RI1 Ring Indicator Input not present on AT91SAM7S32/16
Synchronous Serial Controller
TD Transmit Data Output
RD Receive Data Input
TK Transmit Clock I/O
RK Receive Clock I/O
TF Transmit Frame Sync I/O
RF Receive Frame Sync I/O
Timer/Counter
TCLK0 - TCLK2 External Clock Inputs Input
TIOA0 - TIOA2 I/O Line A I/O TIOA2 not present on AT91SAM7S32/16
TIOB0 - TIOB2 I/O Line B I/O TIOB2 not present on AT91SAM7S32/16
PWM Controller
PWM0 - PWM3 PWM Channels Output
SPI
MISO Master In Slave Out I/O
MOSI Master Out Slave In I/O
SPCK SPI Serial Clock I/O
NPCS0 SPI Peripheral Chip Select 0 I/O Low
NPCS1-NPCS3 SPI Peripheral Chip Select 1 to 3 Output Low
Level Comments
TCLK1 and TCLK2 not present on
AT91SAM7S32/16
6175GS–ATARM–24-Dec-08
7
Table 3-1. Signal Description List (Continued)
Active
Signal Name Function Type
Two-Wire Interface
TWD Two-wire Serial Data I/O
TWCK Two-wire Serial Clock I/O
Analog-to-Digital Converter
AD0-AD3 Analog Inputs Analog Digital pulled-up inputs at reset
AD4-AD7 Analog Inputs Analog Analog Inputs
ADTRG ADC Trigger Input
ADVREF ADC Reference Analog
Fast Flash Programming Interface
PGMEN0-PGMEN2 Programming Enabling Input
PGMM0-PGMM3 Programming Mode Input
PGMD0-PGMD15 Programming Data I/O
PGMRDY Programming Ready Output High
PGMNVALID Data Direction Output Low
PGMNOE Programming Read Input Low
PGMCK Programming Clock Input
PGMNCMD Programming Command Input Low
Level Comments
PGMD0-PGMD7 only on
AT91SAM7S32/16
Note: 1. Refer to Section 6. “I/O Lines Considerations” on page 14.
8
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
AT91SAM7S Series Summary
116
17
32
3348
49
64
3348
161
49
64
32
17
4. Package and Pinout
The AT91SAM7S512/256/128/64/321 are available in a 64-lead LQFP or 64-pad QFN package.
The AT91SAM7S161 is available in a 64-Lead LQFP package.
The AT91SAM7S32/16 are available in a 48-lead LQFP or 48-pad QFN package.
4.1 64-lead LQFP and 64-pad QFN Package Outlines
Figure 4-1 and Figure 4-2 show the orientation of the 64-lead LQFP and the 64-pad QFN pack-
age. A detailed mechanical description is given in the section Mechanical Characteristics of the
full datasheet.
Figure 4-1. 64-lead LQFP Package (Top View)
Figure 4-2. 64-pad QFN Package (Top View)
6175GS–ATARM–24-Dec-08
9
4.2 64-lead LQFP and 64-pad QFN Pinout
Table 4-1. AT91SAM7S512/256/128/64/321/161 Pinout
1 ADVREF 17 GND 33 TDI 49 TDO
2 GND 18 VDDIO 34 PA6/PGMNOE 50 JTAGSEL
3 AD4 19 PA16/PGMD4 35 PA5/PGMRDY 51 TMS
4 AD5 20 PA15/PGMD3 36 PA4/PGMNCMD 52 PA31
5 AD6 21 PA14/PGMD2 37 PA27/PGMD15 53 TCK
6 AD7 22 PA13/PGMD1 38 PA28 54 VDDCORE
7 VDDIN 23 PA24/PGMD12 39 NRST 55 ERASE
8 VDDOUT 24 VDDCORE 40 TST 56 DDM
9 PA17/PGMD5/AD0 25 PA25/PGMD13 41 PA29 57 DDP
10 PA18/PGMD6/AD1 26 PA26/PGMD14 42 PA30 58 VDDIO
11 PA21/PGMD9 27 PA12/PGMD0 43 PA3 59 VDDFLASH
12 VDDCORE 28 PA11/PGMM3 44 PA2/PGMEN2 60 GND
13 PA19/PGMD7/AD2 29 PA10/PGMM2 45 VDDIO 61 XOUT
14 PA22/PGMD10 30 PA9/PGMM1 46 GND 62 XIN/PGMCK
15 PA23/PGMD11 31 PA8/PGMM0 47 PA1/PGMEN1 63 PLLRC
16 PA20/PGMD8/AD3 32 PA7/PGMNVALID 48 PA0/PGMEN0 64 VDDPLL
Note: 1. The bottom pad of the QFN package must be connected to ground.
(1)
10
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
AT91SAM7S Series Summary
112
13
24
2536
37
48
2536
121
37
48
24
13
4.3 48-lead LQFP and 48-pad QFN Package Outlines
Figure 4-3 and Figure 4-4 show the orientation of the 48-lead LQFP and the 48-pad QFN pack-
age. A detailed mechanical description is given in the section Mechanical Characteristics of the
full datasheet.
Figure 4-3. 48-lead LQFP Package (Top View)
Figure 4-4. 48-pad QFN Package (Top View)
4.4 48-lead LQFP and 48-pad QFN Pinout
Table 4-2. AT91SAM7S32/16 Pinout
1 ADVREF 13 VDDIO 25 TDI 37 TDO
2 GND 14 PA16/PGMD4 26 PA6/PGMNOE 38 JTAGSEL
3 AD4 15 PA15/PGMD3 27 PA5/PGMRDY 39 TMS
4 AD5 16 PA14/PGMD2 28 PA4/PGMNCMD 40 TCK
5 AD6 17 PA13/PGMD1 29 NRST 41 VDDCORE
6 AD7 18 VDDCORE 30 TST 42 ERASE
7 VDDIN 19 PA12/PGMD0 31 PA3 43 VDDFLASH
8 VDDOUT 20 PA11/PGMM3 32 PA2/PGMEN2 44 GND
9 PA17/PGMD5/AD0 21 PA10/PGMM2 33 VDDIO 45 XOUT
10 PA18/PGMD6/AD1 22 PA9/PGMM1 34 GND 46 XIN/PGMCK
11 PA19/PGMD7/AD2 23 PA8/PGMM0 35 PA1/PGMEN1 47 PLLRC
12 PA20/AD3 24 PA7/PGMNVALID 36 PA0/PGMEN0 48 VDDPLL
Note: 1. The bottom pad of the QFN package must be connected to ground.
6175GS–ATARM–24-Dec-08
(1)
11
5. Power Considerations
5.1 Power Supplies
The AT91SAM7S Series has six types of power supply pins and integrates a voltage regulator,
allowing the device to be supplied with only one voltage. The six power supply pin types are:
• VDDIN pin. It powers the voltage regulator and the ADC; voltage ranges from 3.0V to 3.6V,
3.3V nominal.
• VDDOUT pin. It is the output of the 1.8V voltage regulator.
• VDDIO pin. It powers the I/O lines and the USB transceivers; dual voltage range is
supported. Ranges from 3.0V to 3.6V, 3.3V nominal or from 1.65V to 1.95V, 1.8V nominal.
Note that supplying less than 3.0V to VDDIO prevents any use of the USB transceivers.
• VDDFLASH pin. It powers a part of the Flash and is required for the Flash to operate
correctly; voltage ranges from 3.0V to 3.6V, 3.3V nominal.
• VDDCORE pins. They power the logic of the device; voltage ranges from 1.65V to 1.95V,
1.8V typical. It can be connected to the VDDOUT pin with decoupling capacitor. VDDCORE
is required for the device, including its embedded Flash, to operate correctly.
During startup, core supply voltage (VDDCORE) slope must be superior or equal to 6V/ms.
• VDDPLL pin. It powers the oscillator and the PLL. It can be connected directly to the
VDDOUT pin.
No separate ground pins are provided for the different power supplies. Only GND pins are provided and should be connected as shortly as possible to the system ground plane.
In order to decrease current consumption, if the voltage regulator and the ADC are not used,
VDDIN, ADVREF, AD4, AD5, AD6 and AD7 should be connected to GND. In this case VDDOUT
should be left unconnected.
5.2 Power Consumption
The AT91SAM7S Series has a static current of less than 60 µA on VDDCORE at 25°C, including
the RC oscillator, the voltage regulator and the power-on reset. When the brown-out detector is
activated, 20 µA static current is added.
The dynamic power consumption on VDDCORE is less than 50 mA at full speed when running
out of the Flash. Under the same conditions, the power consumption on VDDFLASH does not
exceed 10 mA.
5.3 Voltage Regulator
The AT91SAM7S Series embeds a voltage regulator that is managed by the System Controller.
In Normal Mode, the voltage regulator consumes less than 100 µA static current and draws 100
mA of output current.
The voltage regulator also has a Low-power Mode. In this mode, it consumes less than 25 µA
static current and draws 1 mA of output current.
Adequate output supply decoupling is mandatory for VDDOUT to reduce ripple and avoid oscillations. The best way to achieve this is to use two capacitors in parallel: one external 470 pF (or
1 nF) NPO capacitor must be connected between VDDOUT and GND as close to the chip as
possible. One external 2.2 µF (or 3.3 µF) X7R capacitor must be connected between VDDOUT
and GND.
12
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
Adequate input supply decoupling is mandatory for VDDIN in order to improve startup stability
Power Source
ranges
from 4.5V (USB)
to 18V
3.3V
VDDIN
Voltage
Regulator
VDDOUT
VDDIO
DC/DC Converter
VDDCORE
VDDFLASH
VDDPLL
and reduce source voltage drop. The input decoupling capacitor should be placed close to the
chip. For example, two capacitors can be used in parallel: 100 nF NPO and 4.7 µF X7R.
5.4 Typical Powering Schematics
The AT91SAM7S Series supports a 3.3V single supply mode. The internal regulator is connected to the 3.3V source and its output feeds VDDCORE and the VDDPLL. Figure 5-1 shows
the power schematics to be used for USB bus-powered systems.
Figure 5-1. 3.3V System Single Power Supply Schematic
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
13
6. I/O Lines Considerations
6.1 JTAG Port Pins
TMS, TDI and TCK are schmitt trigger inputs. TMS and TCK are 5-V tolerant, TDI is not. TMS,
TDI and TCK do not integrate a pull-up resistor.
TDO is an output, driven at up to VDDIO, and has no pull-up resistor.
The JTAGSEL pin is used to select the JTAG boundary scan when asserted at a high level. The
JTAGSEL pin integrates a permanent pull-down resistor of about 15 kΩ to GND, so that it can be
left unconnected for normal operations.
6.2 Test Pin
The TST pin is used for manufacturing test, fast programming mode or SAM-BA Boot Recovery
of the AT91SAM7S Series when asserted high. The TST pin integrates a permanent pull-down
resistor of about 15 kΩ to GND, so that it can be left unconnected for normal operations.
To enter fast programming mode, the TST pin and the PA0 and PA1 pins should be tied high
and PA2 tied to low.
To enter SAM-BA Boot Recovery, the TST pin and the PA0, PA1 and PA2 pins should be tied
high fo at least 10 seconds.
Driving the TST pin at a high level while PA0 or PA1 is driven at 0 leads to unpredictable results.
6.3 Reset Pin
The NRST pin is bidirectional with an open drain output buffer. It is handled by the on-chip reset
controller and can be driven low to provide a reset signal to the external components or asserted
low externally to reset the microcontroller. There is no constraint on the length of the reset pulse,
and the reset controller can guarantee a minimum pulse length. This allows connection of a simple push-button on the pin NRST as system user reset, and the use of the signal NRST to reset
all the components of the system.
The NRST pin integrates a permanent pull-up resistor to VDDIO.
6.4 ERASE Pin
The ERASE pin is used to re-initialize the Flash content and some of its NVM bits. It integrates a
permanent pull-down resistor of about 15 kΩ to GND, so that it can be left unconnected for nor-
mal operations.
6.5 PIO Controller A Lines
• All the I/O lines PA0 to PA31on AT91SAM7S512/256/128/64/321 (PA0 to PA20 on
AT91SAM7S32) are 5V-tolerant and all integrate a programmable pull-up resistor.
• All the I/O lines PA0 to PA31 on AT91SAM7S161 (PA0 to PA20 on AT91SAM7S16) are not
5V-tolerant and all integrate a programmable pull-up resistor.
Programming of this pull-up resistor is performed independently for each I/O line through the
PIO controllers.
14
5V-tolerant means that the I/O lines can drive voltage level according to VDDIO, but can be
driven with a voltage of up to 5.5V. However, driving an I/O line with a voltage over VDDIO while
the programmable pull-up resistor is enabled will create a current path through the pull-up resis-
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
tor from the I/O line to VDDIO. Care should be taken, in particular at reset, as all the I/O lines
default to input with the pull-up resistor enabled at reset.
6.6 I/O Line Drive Levels
The PIO lines PA0 to PA3 are high-drive current capable. Each of these I/O lines can drive up to
16 mA permanently.
The remaining I/O lines can draw only 8 mA.
However, the total current drawn by all the I/O lines cannot exceed 150 mA (100 mA for
AT91SAM7S32/16).
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
15
7. Processor and Architecture
7.1 ARM7TDMI Processor
• RISC processor based on ARMv4T Von Neumann architecture
– Runs at up to 55 MHz, providing 0.9 MIPS/MHz
• Two instruction sets
–ARM
–Thumb
• Three-stage pipeline architecture
– Instruction Fetch (F)
– Instruction
– Execute (E)
7.2 Debug and Test Features
• Integrated EmbeddedICE™ (embedded in-circuit emulator)
– Two watchpoint units
– Test access port accessible through a JTAG protocol
– Debug communication channel
• Debug Unit
–Two-pin UART
– Debug communication channel interrupt handling
– Chip ID Register
• IEEE1149.1 JTAG Boundary-scan on all digital pins
®
high-performance 32-bit instruction set
®
high code density 16-bit instruction set
Decode (D)
7.3 Memory Controller
• Bus Arbiter
• Address decoder provides selection signals for
• Abort Status Registers
• Misalignment Detector
• Remap Command
• Embedded Flash Controller
– Handles requests from the ARM7TDMI and the Peripheral DMA Controller
– Three internal 1 Mbyte memory areas
– One 256 Mbyte embedded peripheral area
– Source, Type and all parameters of the access leading to an abort are saved
– Facilitates debug by detection of bad pointers
– Alignment checking of all data accesses
– Abort generation in case of misalignment
– Remaps the SRAM in place of the embedded non-volatile memory
– Allows handling of dynamic exception vectors
– Embedded Flash interface, up to three programmable wait states
16
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
– Prefetch buffer, buffering and anticipating the 16-bit requests, reducing the required
wait states
– Key-protected program, erase and lock/unlock sequencer
– Single command for erasing, programming and locking operations
– Interrupt generation in case of forbidden operation
7.4 Peripheral DMA Controller
• Handles data transfer between peripherals and memories
• Eleven channels: AT91SAM7S512/256/128/64/321/161
• Nine channels: AT91SAM7S32/16
– Two for each USART
– Two for the Debug Unit
– Two for the Serial Synchronous Controller
– Two for the Serial Peripheral Interface
– One for the Analog-to-digital Converter
• Low bus arbitration overhead
– One Master Clock cycle needed for a transfer from memory to peripheral
– Two Master Clock cycles needed for a transfer from peripheral to memory
• Next Pointer management for reducing interrupt latency requirements
• Peripheral DMA Controller (PDC) priority is as follows (from the highest priority to the lowest):
AT91SAM7S Series Summary
Receive DBGU
Receive USART0
Receive USART1
Receive SSC
Receive ADC
Receive SPI
Tr an s m it D B GU
Transmit USART0
Transmit USART1
Transmit SSC
Transmit SPI
6175GS–ATARM–24-Dec-08
17
8. Memories
8.1 AT91SAM7S512
8.2 AT91SAM7S256
• 512 Kbytes of Flash Memory, dual plane
– 2 contiguous banks of 1024 pages of 256 bytes
– Fast access time, 30 MHz single-cycle access in Worst Case conditions
– Page programming time: 6 ms, including page auto-erase
– Page programming without auto-erase: 3 ms
– Full chip erase time: 15 ms
– 10,000 write cycles, 10-year data retention capability
– 32 lock bits, protecting 32 sectors of 64 pages
– Protection Mode to secure contents of the Flash
• 64 Kbytes of Fast SRAM
– Single-cycle access at full speed
• 256 Kbytes of Flash Memory, single plane
– 1024 pages of 256 bytes
– Fast access time, 30 MHz single-cycle access in Worst Case conditions
– Page programming time: 6 ms, including page auto-erase
– Page programming without auto-erase: 3 ms
– Full chip erase time: 15 ms
– 10,000 write cycles, 10-year data retention capability
– 16 lock bits, protecting 16 sectors of 64 pages
– Protection Mode to secure contents of the Flash
• 64 Kbytes of Fast SRAM
– Single-cycle access at full speed
8.3 AT91SAM7S128
18
AT91SAM7S Series Summary
• 128 Kbytes of Flash Memory, single plane
– 512 pages of 256 bytes
– Fast access time, 30 MHz single-cycle access in Worst Case conditions
– Page programming time: 6 ms, including page auto-erase
– Page programming without auto-erase: 3 ms
– Full chip erase time: 15 ms
– 10,000 write cycles, 10-year data retention capability
– 8 lock bits, protecting 8 sectors of 64 pages
– Protection Mode to secure contents of the Flash
• 32 Kbytes of Fast SRAM
– Single-cycle access at full speed
6175GS–ATARM–24-Dec-08
8.4 AT91SAM7S64
• 64 Kbytes of Flash Memory, single plane
• 16 Kbytes of Fast SRAM
8.5 AT91SAM7S321/32
• 32 Kbytes of Flash Memory, single plane
• 8 Kbytes of Fast SRAM
AT91SAM7S Series Summary
– 512 pages of 128 bytes
– Fast access time, 30 MHz single-cycle access in Worst Case conditions
– Page programming time: 6 ms, including page auto-erase
– Page programming without auto-erase: 3 ms
– Full chip erase time: 15 ms
– 10,000 write cycles, 10-year data retention capability
– 16 lock bits, protecting 16 sectors of 32 pages
– Protection Mode to secure contents of the Flash
– Single-cycle access at full speed
– 256 pages of 128 bytes
– Fast access time, 30 MHz single-cycle access in Worst Case conditions
– Page programming time: 6 ms, including page auto-erase
– Page programming without auto-erase: 3 ms
– Full chip erase time: 15 ms
– 10,000 write cycles, 10-year data retention capability
– 8 lock bits, protecting 8 sectors of 32 pages
– Protection Mode to secure contents of the Flash
– Single-cycle access at full speed
8.6 AT91SAM7S161/16
• 16 Kbytes of Flash Memory, single plane
• 4 Kbytes of Fast SRAM
6175GS–ATARM–24-Dec-08
– 256 pages of 64 bytes
– Fast access time, 30 MHz single-cycle access in Worst Case conditions
– Page programming time: 6 ms, including page auto-erase
– Page programming without auto-erase: 3 ms
– Full chip erase time: 15 ms
– 10,000 write cycles, 10-year data retention capability
– 8 lock bits, protecting 8 sectors of 32 pages
– Protection Mode to secure contents of the Flash
– Single-cycle access at full speed
19
Figure 8-1. AT91SAM7S512/256/128/64/321/32/161/16 Memory Mapping
0x1000 0000
0x0000 0000
0x0FFF FFFF
0xF000 0000
0xEFFF FFFF
0xFFFF FFFF
256M Bytes
256 MBytes
14 x 256 MBytes
3,584 MBytes
0x000F FFF
0x0010 0000
0x001F FFF
0x0020 0000
0x002F FFF
0x0030 0000
0x0000 0000
1 MBytes
1 MBytes
1 MBytes
253 MBytes
0xFFFA 0000
0xFFFA 3FFF
0xFFFA 4000
0xF000 0000
0xFFFB 8000
0xFFFC 0000
0xFFFC 3FFF
0xFFFC 4000
0xFFFC 7FFF
0xFFFD 4000
0xFFFD 7FFF
0xFFFD 3FFF
0xFFFD FFFF
0xFFFE 0000
0xFFFE 3FFF
0xFFFF EFFF
0xFFFE 4000
0xFFFF FFFF
0xFFFF F000
0xFFFB 4000
0xFFFB 7FFF
0xFFF9 FFFF
0xFFFC FFFF
0xFFFD 8000
0xFFFD BFFF
0xFFFC BFFF
0xFFFC C000
0xFFFB FFFF
0xFFFB C000
0xFFFB BFFF
0xFFFA FFFF
0xFFFB 0000
0xFFFB 3FFF
0xFFFD 0000
0xFFFD C000
0xFFFC 8000
16 Kbytes
(Reserved on
AT91SAM7S32/16)
16 Kbytes
(Reserved on
AT91SAM7S32/16)
16 Kbytes
16 Kbytes
16 Kbytes
16 Kbytes
16 Kbytes
16 Kbytes
16 Kbytes
0x0FFF FFFF
512 Bytes/
128 registers
512 Bytes/
128 registers
256 Bytes/
64 registers
16 Bytes/
4 registers
16 Bytes/
4 registers
16 Bytes/
4 registers
16 Bytes/
4 registers
256 Bytes/
64 registers
4 Bytes/
1 register
512 Bytes/
128 registers
0xFFFF F000
0xFFFF F200
0xFFFF F1FF
0xFFFF F3FF
0xFFFF FBFF
0xFFFF FCFF
0xFFFF FEFF
0xFFFF FFFF
0xFFFF F400
0xFFFF FC00
0xFFFF FD0F
0xFFFF FC2F
0xFFFF FC3F
0xFFFF FD4F
0xFFFF FC6F
0xFFFF F5FF
0xFFFF F600
0xFFFF FD00
0xFFFF FF00
0xFFFF FD20
0xFFFF FD30
0xFFFF FD40
0xFFFF FD60
0xFFFF FD70
Internal Memories
Undefined
(Abort)
(1) Can be Flash or SRAM
depending on REMAP.
Flash before Remap
SRAM after Remap
Internal Flash
Internal SRAM
Reserved
Address Memory Space
Internal Memory Mapping
Note:
TC0, TC1, TC2
USART0
USART1
PWMC
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
TWI
SSC
SPI
UDP
ADC
AIC
DBGU
PIOA
Reserved
PMC
MC
WDT
PIT
RTT
RSTC
VREG
Peripheral Mapping
System Controller Mapping
Internal Peripherals
Reserved
SYSC
Reserved
(1)
20
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
8.7 Memory Mapping
256 MBytes
Flash Before Remap
SRAM After Remap
Undefined Areas
(Abort)
0x000F FFFF
0x001F FFFF
0x002F FFFF
0x0FFF FFFF
1 MBytes
1 MBytes
1 MBytes
253 MBytes
Internal Flash
Internal SRAM
0x0000 0000
0x0010 0000
0x0020 0000
0x0030 0000
8.7.1 Internal SRAM
• The AT91SAM7S512 embeds a high-speed 64-Kbyte SRAM bank.
• The AT91SAM7S256 embeds a high-speed 64-Kbyte SRAM bank.
• The AT91SAM7S128 embeds a high-speed 32-Kbyte SRAM bank.
• The AT91SAM7S64 embeds a high-speed 16-Kbyte SRAM bank.
• The AT91SAM7S321 embeds a high-speed 8-Kbyte SRAM bank.
• The AT91SAM7S32 embeds a high-speed 8-Kbyte SRAM bank.
• The AT91SAM7S161 embeds a high-speed 4-Kbyte SRAM bank.
• The AT91SAM7S16 embeds a high-speed 4-Kbyte SRAM bank
After reset and until the Remap Command is performed, the SRAM is only accessible at address
0x0020 0000. After Remap, the SRAM also becomes available at address 0x0.
8.7.2 Internal ROM
The AT91SAM7S Series embeds an Internal ROM. The ROM contains the FFPI and the
SAM-BA program.
AT91SAM7S Series Summary
8.7.3 Internal Flash
The internal ROM is not mapped by default.
• The AT91SAM7S512 features two contiguous banks (dual plane) of 256 Kbytes of Flash.
• The AT91SAM7S256 features one bank (single plane) of 256 Kbytes of Flash.
• The AT91SAM7S128 features one bank (single plane) of 128 Kbytes of Flash.
• The AT91SAM7S64 features one bank (single plane) of 64 Kbytes of Flash.
• The AT91SAM7S321/32 features one bank (single plane) of 32 Kbytes of Flash.
• The AT91SAM7S161/16 features one bank (single plane) of 16 Kbytes of Flash.
At any time, the Flash is mapped to address 0x0010 0000. It is also accessible at address 0x0
after the reset and before the Remap Command.
Figure 8-2. Internal Memory Mapping
6175GS–ATARM–24-Dec-08
21
8.8 Embedded Flash
8.8.1 Flash Overview
• The Flash of the AT91SAM7S512 is organized in two banks (dual plane) of 1024 pages of
• The Flash of the AT91SAM7S256 is organized in 1024 pages (single plane) of 256 bytes. The
• The Flash of the AT91SAM7S128 is organized in 512 pages (single plane) of 256 bytes. The
• The Flash of the AT91SAM7S64 is organized in 512 pages (single plane) of 128 bytes. The
• The Flash of the AT91SAM7S321/32 is organized in 256 pages (single plane) of 128 bytes.
• The Flash of the AT91SAM7S161/16 is organized in 256 pages (single plane) of 64 bytes.
• The Flash of the AT91SAM7S512/256/128 contains a 256-byte write buffer, accessible
• The Flash of the AT91SAM7S64/321/32/161/16 contains a 128-byte write buffer, accessible
The Flash benefits from the integration of a power reset cell and from the brownout detector.
This prevents code corruption during power supply changes, even in the worst conditions.
256 bytes. The 524,288 bytes are organized in 32-bit words.
262,144 bytes are organized in 32-bit words.
131,072 bytes are organized in 32-bit words.
65,536 bytes are organized in 32-bit words.
The 32,768 bytes are organized in 32-bit words.
The 16,384 bytes are organized in 32-bit words.
through a 32-bit interface.
through a 32-bit interface.
When Flash is not used (read or write access), it is automatically placed into standby mode.
8.8.2 Embedded Flash Controller
The Embedded Flash Controller (EFC) manages accesses performed by the masters of the system. It enables reading the Flash and writing the write buffer. It also contains a User Interface,
mapped within the Memory Controller on the APB. The User Interface allows:
• programming of the access parameters of the Flash (number of wait states, timings, etc.)
• starting commands such as full erase, page erase, page program, NVM bit set, NVM bit
clear, etc.
• getting the end status of the last command
• getting error status
• programming interrupts on the end of the last commands or on errors
The Embedded Flash Controller also provides a dual 32-bit prefetch buffer that optimizes 16-bit
access to the Flash. This is particularly efficient when the processor is running in Thumb mode.
Two EFCs are embedded in the SAM7S512 to control each bank of 256 Kbytes. Dual plane
organization allows concurrent Read and Program. Read from one memory plane may be performed even while program or erase functions are being executed in the other memory plane.
One EFC is embedded in the SAM7S256/128/64/32/321/161/16 to control the single plane
256/128/64/32/16 Kbytes.
22
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
8.8.3 Lock Regions
8.8.3.1 AT91SAM7S512
Two Embedded Flash Controllers each manage 16 lock bits to protect 16 regions of the flash
against inadvertent flash erasing or programming commands. The AT91SAM7S512 contains 32
lock regions and each lock region contains 64 pages of 256 bytes. Each lock region has a size of
16 Kbytes.
If a locked-region’s erase or program command occurs, the command is aborted and the
LOCKE bit in the MC_FSR register rises and the interrupt line rises if the LOCKE bit has been
written at 1 in the MC_FMR register.
The 16 NVM bits (or 32 NVM bits) are software programmable through the corresponding EFC
User Interface. The command “Set Lock Bit” enables the protection. The command “Clear Lock
Bit” unlocks the lock region.
Asserting the ERASE pin clears the lock bits, thus unlocking the entire Flash.
8.8.3.2 AT91SAM7S256
The Embedded Flash Controller manages 16 lock bits to protect 16 regions of the flash against
inadvertent flash erasing or programming commands. The AT91SAM7S256 contains 16 lock
regions and each lock region contains 64 pages of 256 bytes. Each lock region has a size of 16
Kbytes.
AT91SAM7S Series Summary
If a locked-region’s erase or program command occurs, the command is aborted and the
LOCKE bit in the MC_FSR register rises and the interrupt line rises if the LOCKE bit has been
written at 1 in the MC_FMR register.
The 16 NVM bits are software programmable through the EFC User Interface. The command
“Set Lock Bit” enables the protection. The command “Clear Lock Bit” unlocks the lock region.
Asserting the ERASE pin clears the lock bits, thus unlocking the entire Flash.
8.8.3.3 AT91SAM7S128
The Embedded Flash Controller manages 8 lock bits to protect 8 regions of the flash against
inadvertent flash erasing or programming commands. The AT91SAM7S128 contains 8 lock
regions and each lock region contains 64 pages of 256 bytes. Each lock region has a size of 16
Kbytes.
If a locked-region’s erase or program command occurs, the command is aborted and the
LOCKE bit in the MC_FSR register rises and the interrupt line rises if the LOCKE bit has been
written at 1 in the MC_FMR register.
The 8 NVM bits are software programmable through the EFC User Interface. The command “Set
Lock Bit” enables the protection. The command “Clear Lock Bit” unlocks the lock region.
Asserting the ERASE pin clears the lock bits, thus unlocking the entire Flash.
8.8.3.4 AT91SAM7S64
The Embedded Flash Controller manages 16 lock bits to protect 16 regions of the flash against
inadvertent flash erasing or programming commands. The AT91SAM7S64 contains 16 lock
regions and each lock region contains 32 pages of 128 bytes. Each lock region has a size of 4
Kbytes.
6175GS–ATARM–24-Dec-08
23
If a locked-region’s erase or program command occurs, the command is aborted and the
LOCKE bit in the MC_FSR register rises and the interrupt line rises if the LOCKE bit has been
written at 1 in the MC_FMR register.
The 16 NVM bits are software programmable through the EFC User Interface. The command
“Set Lock Bit” enables the protection. The command “Clear Lock Bit” unlocks the lock region.
Asserting the ERASE pin clears the lock bits, thus unlocking the entire Flash.
8.8.3.5 AT91SAM7S321/32
The Embedded Flash Controller manages 8 lock bits to protect 8 regions of the flash against
inadvertent flash erasing or programming commands. The AT91SAM7S321/32 contains 8 lock
regions and each lock region contains 32 pages of 128 bytes. Each lock region has a size of 4
Kbytes.
If a locked-region’s erase or program command occurs, the command is aborted and the
LOCKE bit in the MC_FSR register rises and the interrupt line rises if the LOCKE bit has been
written at 1 in the MC_FMR register.
The 8 NVM bits are software programmable through the EFC User Interface. The command “Set
Lock Bit” enables the protection. The command “Clear Lock Bit” unlocks the lock region.
Asserting the ERASE pin clears the lock bits, thus unlocking the entire Flash.
8.8.3.6 AT91SAM7S161/16
The Embedded Flash Controller manages 8 lock bits to protect 8 regions of the flash against
inadvertent flash erasing or programming commands. The AT91SAM7S161/16 contains 8 lock
regions and each lock region contains 32 pages of 64 bytes. Each lock region has a size of 2
Kbytes.
If a locked-region’s erase or program command occurs, the command is aborted and the
LOCKE bit in the MC_FSR register rises and the interrupt line rises if the LOCKE bit has been
written at 1 in the MC_FMR register.
The 8 NVM bits are software programmable through the EFC User Interface. The command “Set
Lock Bit” enables the protection. The command “Clear Lock Bit” unlocks the lock region.
Asserting the ERASE pin clears the lock bits, thus unlocking the entire Flash.
Table summarizes the configuration of the eight devices.
Flash Configuration Summary
Device Number of Lock Bits Number of Pages in the Lock Region Page Size
AT91SAM7S512 32 64 256 bytes
AT91SAM7S256 16 64 256 bytes
AT91SAM7S128 8 64 256 bytes
AT91SAM7S64 16 32 128 bytes
AT91SAM7S321/32 8 32 128 bytes
AT91SAM7S161/16 8 32 64 bytes
24
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
8.8.4 Security Bit Feature
The AT91SAM7S Series features a security bit, based on a specific NVM Bit. When the security
is enabled, any access to the Flash, either through the ICE interface or through the Fast Flash
Programming Interface, is forbidden. This ensures the confidentiality of the code programmed in
the Flash.
This security bit can only be enabled, through the Command “Set Security Bit” of the EFC User
Interface. Disabling the security bit can only be achieved by asserting the ERASE pin at 1, and
after a full flash erase is performed. When the security bit is deactivated, all accesses to the
flash are permitted.
It is important to note that the assertion of the ERASE pin should always be longer than 50 ms.
As the ERASE pin integrates a permanent pull-down, it can be left unconnected during normal
operation. However, it is safer to connect it directly to GND for the final application.
8.8.5 Non-volatile Brownout Detector Control
Two general purpose NVM (GPNVM) bits are used for controlling the brownout detector (BOD),
so that even after a power loss, the brownout detector operations remain in their state.
These two GPNVM bits can be cleared or set respectively through the commands “Clear General-purpose NVM Bit” and “Set General-purpose NVM Bit” of the EFC User Interface.
AT91SAM7S Series Summary
• GPNVM Bit 0 is used as a brownout detector enable bit. Setting the GPNVM Bit 0 enables
the BOD, clearing it disables the BOD. Asserting ERASE clears the GPNVM Bit 0 and thus
disables the brownout detector by default.
• The GPNVM Bit 1 is used as a brownout reset enable signal for the reset controller. Setting
the GPNVM Bit 1 enables the brownout reset when a brownout is detected, Clearing the
GPNVM Bit 1 disables the brownout reset. Asserting ERASE disables the brownout reset by
default.
8.8.6 Calibration Bits
Eight NVM bits are used to calibrate the brownout detector and the voltage regulator. These bits
are factory configured and cannot be changed by the user. The ERASE pin has no effect on the
calibration bits.
8.9 Fast Flash Programming Interface
The Fast Flash Programming Interface allows programming the device through either a serial
JTAG interface or through a multiplexed fully-handshaked parallel port. It allows gang-programming with market-standard industrial programmers.
The FFPI supports read, page program, page erase, full erase, lock, unlock and protect
commands.
The Fast Flash Programming Interface is enabled and the Fast Programming Mode is entered
when the TST pin and the PA0 and PA1 pins are all tied high and PA2 is tied low.
8.10 SAM-BA Boot Assistant
The SAM-BA™ Boot Recovery restores the SAM-BA Boot in the first two sectors of the on-chip
Flash memory. The SAM-BA Boot recovery is performed when the TST pin and the PA0, PA1
and PA2 pins are all tied high for 10 seconds.
6175GS–ATARM–24-Dec-08
25
The SAM-BA Boot Assistant is a default Boot Program that provides an easy way to program in
situ the on-chip Flash memory.
The SAM-BA Boot Assistant supports serial communication through the DBGU or through the
USB Device Port. (The AT91SAM7S32/16 have no USB Device Port.)
• Communication through the DBGU supports a wide range of crystals from 3 to 20 MHz via
software auto-detection.
• Communication through the USB Device Port is limited to an 18.432 MHz crystal. (
The SAM-BA Boot provides an interface with SAM-BA Graphic User Interface (GUI).
9. System Controller
The System Controller manages all vital blocks of the microcontroller: interrupts, clocks, power,
time, debug and reset.
The System Controller peripherals are all mapped to the highest 4 Kbytes of address space,
between addresses 0xFFFF F000 and 0xFFFF FFFF.
Figure 9-1 on page 27 and Figure 9-2 on page 28 show the product specific System Controller
Block Diagrams.
Figure 8-1 on page 20 shows the mapping of the of the User Interface of the System Controller
peripherals. Note that the memory controller configuration user interface is also mapped within
this address space.
26
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
AT91SAM7S Series Summary
NRST
SLCK
Advanced
Interrupt
Controller
Real-Time
Timer
Periodic
Interval
Timer
Reset
Controller
PA0-PA31
periph_nreset
System Controller
Watchdog
Timer
wdt_fault
WDRPROC
PIO
Controller
POR
BOD
RCOSC
gpnvm[0]
cal
en
Power
Management
Controller
OSC
PLL
XIN
XOUT
PLLRC
MAINCK
PLLCK
pit_irq
MCK
proc_nreset
wdt_irq
periph_irq{2]
periph_nreset
periph_clk[2..14]
PCK
MCK
pmc_irq
UDPCK
nirq
nfiq
rtt_irq
Embedded
Peripherals
periph_clk[2]
pck[0-2]
in
out
enable
ARM7TDMI
SLCK
SLCK
irq0-irq1
fiq
irq0-irq1
fiq
periph_irq[4..14]
periph_irq[2..14]
int
int
periph_nreset
periph_clk[4..14]
Embedded
Flash
flash_poe
jtag_nreset
flash_poe
gpnvm[0..1]
flash_wrdis
flash_wrdis
proc_nreset
periph_nreset
dbgu_txd
dbgu_rxd
pit_irq
rtt_irq
dbgu_irq
pmc_irq
rstc_irq
wdt_irq
rstc_irq
SLCK
gpnvm[1]
Boundary Scan
TAP Controller
jtag_nreset
debug
PCK
debug
idle
debug
Memory
Controller
MCK
proc_nreset
bod_rst_en
proc_nreset
idle
Debug
Unit
dbgu_irq
MCK
dbgu_rxd
periph_nreset
force_ntrst
dbgu_txd
USB Device
Por t
UDPCK
periph_nreset
periph_clk[11]
periph_irq[11]
usb_suspend
usb_suspend
Voltage
Regulator
standby
Voltage
Regulator
Mode
Controller
security_bit
cal
power_on_reset
force_ntrst
cal
power_on_reset
power_on_reset
power_on_reset
Figure 9-1. System Controller Block Diagram (AT91SAM7S512/256/128/64/321/161)
6175GS–ATARM–24-Dec-08
27
Figure 9-2. System Controller Block Diagram (AT91SAM7S32/16)
NRST
SLCK
Advanced
Interrupt
Controller
Real-Time
Timer
Periodic
Interval
Timer
Reset
Controller
PA0-PA20
periph_nreset
System Controller
Watchdog
Timer
wdt_fault
WDRPROC
PIO
Controller
POR
BOD
RCOSC
gpnvm[0]
cal
en
Power
Management
Controller
OSC
PLL
XIN
XOUT
PLLRC
MAINCK
PLLCK
pit_irq
MCK
proc_nreset
wdt_irq
periph_irq{2]
periph_nreset
periph_clk[2..14]
PCK
MCK
pmc_irq
nirq
nfiq
rtt_irq
Embedded
Peripherals
periph_clk[2]
pck[0-2]
in
out
enable
ARM7TDMI
SLCK
SLCK
irq0
fiq
irq0
fiq
periph_irq[4..14]
periph_irq[2..14]
int
int
periph_nreset
periph_clk[4..14]
Embedded
Flash
flash_poe
gpnvm[0..1]
flash_wrdis
proc_nreset
periph_nreset
dbgu_txd
dbgu_rxd
pit_irq
rtt_irq
dbgu_irq
pmc_irq
rstc_irq
wdt_irq
rstc_irq
SLCK
gpnvm[1]
Boundary Scan
TAP Controller
jtag_nreset
debug
PCK
debug
idle
debug
Memory
Controller
MCK
proc_nreset
bod_rst_en
proc_nreset
periph_nreset
idle
Debug
Unit
dbgu_irq
MCK
dbgu_rxd
periph_nreset
force_ntrst
dbgu_txd
Voltage
Regulator
standby
Voltage
Regulator
Mode
Controller
security_bit
cal
force_ntrst
cal
flash_poe
jtag_nreset
power_on_reset
power_on_reset
flash_wrdis
power_on_reset
28
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
9.1 Reset Controller
The Reset Controller is based on a power-on reset cell and one brownout detector. It gives the
status of the last reset, indicating whether it is a power-up reset, a software reset, a user reset, a
watchdog reset or a brownout reset. In addition, it controls the internal resets and the NRST pin
open-drain output. It allows to shape a signal on the NRST line, guaranteeing that the length of
the pulse meets any requirement.
Note that if NRST is used as a reset output signal for external devices during power-off, the
brownout detector must be activated.
9.1.1 Brownout Detector and Power-on Reset
The AT91SAM7S Series embeds a brownout detection circuit and a power-on reset cell. Both
are supplied with and monitor VDDCORE. Both signals are provided to the Flash to prevent any
code corruption during power-up or power-down sequences or if brownouts occur on the
VDDCORE power supply.
The power-on reset cell has a limited-accuracy threshold at around 1.5V. Its output remains low
during power-up until VDDCORE goes over this voltage level. This signal goes to the reset controller and allows a full re-initialization of the device.
The brownout detector monitors the VDDCORE level during operation by comparing it to a fixed
trigger level. It secures system operations in the most difficult environments and prevents code
corruption in case of brownout on the VDDCORE.
AT91SAM7S Series Summary
Only VDDCORE is monitored.
When the brownout detector is enabled and VDDCORE decreases to a value below the trigger
level (Vbot-, defined as Vbot - hyst/2), the brownout output is immediately activated.
When VDDCORE increases above the trigger level (Vbot+, defined as Vbot + hyst/2), the reset
is released. The brownout detector only detects a drop if the voltage on VDDCORE stays below
the threshold voltage for longer than about 1µs.
The threshold voltage has a hysteresis of about 50 mV, to ensure spike free brownout detection.
The typical value of the brownout detector threshold is 1.68V with an accuracy of ± 2% and is
factory calibrated.
The brownout detector is low-power, as it consumes less than 20 µA static current. However, it
can be deactivated to save its static current. In this case, it consumes less than 1µA. The deactivation is configured through the GPNVM bit 0 of the Flash.
6175GS–ATARM–24-Dec-08
29
9.2 Clock Generator
Embedded
RC
Oscillator
Main
Oscillator
PLL and
Divider
Clock Generator
Power
Management
Controller
XIN
XOUT
PLLRC
Slow Clock
SLCK
Main Clock
MAINCK
PLL Clock
PLLCK
Control
Status
The Clock Generator embeds one low-power RC Oscillator, one Main Oscillator and one PLL
with the following characteristics:
It provides SLCK, MAINCK and PLLCK.
Figure 9-3. Clock Generator Block Diagram
• RC Oscillator ranges between 22 kHz and 42 kHz
• Main Oscillator frequency ranges between 3 and 20 MHz
• Main Oscillator can be bypassed
• PLL output ranges between 80 and 220 MHz
9.3 Power Management Controller
The Power Management Controller uses the Clock Generator outputs to provide:
• the Processor Clock PCK
• the Master Clock MCK
• the USB Clock UDPCK (not present on AT91SAM7S32/16)
• all the peripheral clocks, independently controllable
• three programmable clock outputs
The Master Clock (MCK) is programmable from a few hundred Hz to the maximum operating frequency of the device.
The Processor Clock (PCK) switches off when entering processor idle mode, thus allowing
reduced power consumption while waiting for an interrupt.
30
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
AT91SAM7S Series Summary
MCK
periph_clk[2..14]
int
UDPCK
usb_suspend
SLCK
MAINCK
PLLCK
Prescaler
/1,/2,/4,...,/64
PCK
Processor
Clock
Controller
Idle Mode
Master Clock Controller
Peripherals
Clock Controller
ON/OFF
USB Clock Controller
ON/OFF
SLCK
MAINCK
PLLCK
Prescaler
/1,/2,/4,...,/64
Programmable Clock Controller
PLLCK
Divider
/1,/2,/4
pck[0..2]
Figure 9-4. Power Management Controller Block Diagram
9.4 Advanced Interrupt Controller
• Controls the interrupt lines (nIRQ and nFIQ) of an ARM Processor
• Individually maskable and vectored interrupt sources
– Source 0 is reserved for the Fast Interrupt Input (FIQ)
– Source 1 is reserved for system peripherals RTT, PIT, EFC, PMC, DBGU, etc.)
– Other sources control the peripheral interrupts or external interrupts
– Programmable edge-triggered or level-sensitive internal sources
– Programmable positive/negative edge-triggered or high/low level-sensitive external
sources
• 8-level Priority Controller
– Drives the normal interrupt of the processor
– Handles priority of the interrupt sources
– Higher priority interrupts can be served during service of lower priority interrupt
• Vectoring
– Optimizes interrupt service routine branch and execution
– One 32-bit vector register per interrupt source
– Interrupt vector register reads the corresponding current interrupt vector
•Protect Mode
– Easy debugging by preventing automatic operations
•Fast Forcing
– Permits redirecting any interrupt source on the fast interrupt
• General Interrupt Mask
– Provides processor synchronization on events without triggering an interrupt
6175GS–ATARM–24-Dec-08
31
9.5 Debug Unit
• Comprises:
– One two-pin UART
– One Interface for the Debug Communication Channel (DCC) support
– One set of Chip ID Registers
– One Interface providing ICE Access Prevention
•Two-pin UART
– Implemented features are compatible with the USART
– Programmable Baud Rate Generator
– Parity, Framing and Overrun Error
– Automatic Echo, Local Loopback and Remote Loopback Channel Modes
• Debug Communication Channel Support
– Offers visibility of COMMRX and COMMTX signals from the ARM Processor
• Chip ID Registers
– Identification of the device revision, sizes of the embedded memories, set of
peripherals
– Chip ID is 0x270B0A40 for AT91SAM7S512 Rev A
– Chip ID is 0x270B0940 for AT91SAM7S256 Rev A
– Chip ID is 0x270B0941 for AT91SAM7S256 Rev B
– Chip ID is 0x270A0740 for AT91SAM7S128 Rev A
– Chip ID is 0x270A0741 for AT91SAM7S128 Rev B
– Chip ID is 0x27090540 for AT91SAM7S64 Rev A
– Chip ID is 0x27090543 for AT91SAM7S64 Rev B
– Chip ID is 0x27080342 for AT91SAM7S321 Rev A
– Chip ID is 0x27080340 for AT91SAM7S32 Rev A
– Chip ID is 0x27080341 for AT91SAM7S32 Rev B
– Chip ID is 0x27050241 for AT9SAM7S161 Rev A
– Chip ID is 0x27050240 for AT91SAM7S16 Rev A
Note: Refer to the errata section of the datasheet for updates on chip ID.
9.6 Periodic Interval Timer
• 20-bit programmable counter plus 12-bit interval counter
9.7 Watchdog Timer
• 12-bit key-protected Programmable Counter running on prescaled SCLK
• Provides reset or interrupt signals to the system
• Counter may be stopped while the processor is in debug state or in idle mode
9.8 Real-time Timer
• 32-bit free-running counter with alarm running on prescaled SCLK
• Programmable 16-bit prescaler for SLCK accuracy compensation
32
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
9.9 PIO Controller
• One PIO Controller, controlling 32 I/O lines (21 for AT91SAM7S32/16)
• Fully programmable through set/clear registers
• Multiplexing of two peripheral functions per I/O line
• For each I/O line (whether assigned to a peripheral or used as general-purpose I/O)
– Input change interrupt
– Half a clock period glitch filter
– Multi-drive option enables driving in open drain
– Programmable pull-up on each I/O line
– Pin data status register, supplies visibility of the level on the pin at any time
• Synchronous output, provides Set and Clear of several I/O lines in a single write
9.10 Voltage Regulator Controller
The aim of this controller is to select the Power Mode of the Voltage Regulator between Normal
Mode (bit 0 is cleared) or Standby Mode (bit 0 is set).
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
33
10. Peripherals
10.1 User Interface
The User Peripherals are mapped in the 256 MBytes of address space between 0xF000 0000
and 0xFFFF EFFF. Each peripheral is allocated 16 Kbytes of address space.
A complete memory map is provided in Figure 8-1 on page 20.
10.2 Peripheral Identifiers
The AT91SAM7S Series embeds a wide range of peripherals. Table 10-1 defines the Peripheral
Identifiers of the AT91SAM7S512/256/128/64/321/161. Table 10-2 defines the Peripheral Identifiers of the AT91SAM7S32/16. A peripheral identifier is required for the control of the peripheral
interrupt with the Advanced Interrupt Controller and for the control of the peripheral clock with
the Power Management Controller.
Table 10-1. Peripheral Identifiers (AT91SAM7S512/256/128/64/321/161)
Peripheral
ID
0 AIC Advanced Interrupt Controller FIQ
1SYSC
2 PIOA Parallel I/O Controller A
3 Reserved
4ADC
5 SPI Serial Peripheral Interface
6 US0 USART 0
7 US1 USART 1
8 SSC Synchronous Serial Controller
9 TWI Two-wire Interface
10 PWMC PWM Controller
11 UDP USB Device Port
12 TC0 Timer/Counter 0
13 TC1 Timer/Counter 1
14 TC2 Timer/Counter 2
15 - 29 Reserved
Peripheral
Mnemonic
(1)
(1)
Peripheral
Name
System
Analog-to Digital Converter
External
Interrupt
34
30 AIC Advanced Interrupt Controller IRQ0
31 AIC Advanced Interrupt Controller IRQ1
Note: 1. Setting SYSC and ADC bits in the clock set/clear registers of the PMC has no effect. The Sys-
tem Controller is continuously clocked. The ADC clock is automatically started for the first
conversion. In Sleep Mode the ADC clock is automatically stopped after each conversion.
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
AT91SAM7S Series Summary
Table 10-2. Peripheral Identifiers (AT91SAM7S32/16)
Peripheral
ID
0 AIC Advanced Interrupt Controller FIQ
1 SYSC
2 PIOA Parallel I/O Controller A
3Reserved
4ADC
5 SPI Serial Peripheral Interface
6USUSART
7Reserved
8 SSC Synchronous Serial Controller
9 TWI Two-wire Interface
10 PWMC PWM Controller
11 Reserved
12 TC0 Timer/Counter 0
13 TC1 Timer/Counter 1
14 TC2 Timer/Counter 2
15 - 29 Reserved
30 AIC Advanced Interrupt Controller IRQ0
31 Reserved
Note: 1. Setting SYSC and ADC bits in the clock set/clear re gisters of the PMC has no effect. The Sys-
tem Controller is continuously clocked. The ADC clock is automatically started for the first
conversion. In Sleep Mode the ADC clock is automatically stopped after each conversion.
Peripheral
Mnemonic
(1)
(1)
Peripheral
Name
System
Analog-to Digital Converter
External
Interrupt
10.3 Peripheral Multiplexing on PIO Lines
The AT91SAM7S Series features one PIO controller, PIOA, that multiplexes the I/O lines of the
peripheral set.
PIO Controller A controls 32 lines (21 lines for AT91SAM7S32/16). Each line can be assigned to
one of two peripheral functions, A or B. Some of them can also be multiplexed with the analog
inputs of the ADC Controller.
Table 10-3, “Multiplexing on PIO Controller A (AT91SAM7S512/256/128/64/321/161),” on
page 36 and Table 10-4, “Multiplexing on PIO Controller A (AT91SAM7S32/16),” on page 37
define how the I/O lines of the peripherals A, B or the analog inputs are multiplexed on the PIO
Controller A. The two columns “Function” and “Comments” have been inserted for the user’s
own comments; they may be used to track how pins are defined in an application.
Note that some peripheral functions that are output only may be duplicated in the table.
All pins reset in their Parallel I/O lines function are configured as input with the programmable
pull-up enabled, so that the device is maintained in a static state as soon as a reset is detected.
6175GS–ATARM–24-Dec-08
35
10.4 PIO Controller A Multiplexing
Table 10-3. Multiplexing on PIO Controller A (AT91SAM7S512/256/128/64/321/161)
PIO Controller A Application Usage
I/O Line Peripheral A Peripheral B Comments Function Comments
PA0 PWM0 TIOA0 High-Drive
PA1 PWM1 TIOB0 High-Drive
PA2 PWM2 SCK0 High-Drive
PA3 TWD NPCS3 High-Drive
PA 4 T W C K T C LK 0
PA5 RXD0 NPCS3
PA 6 T X D 0 PC K 0
PA 7 R T S0 P WM 3
PA8 CTS0 ADTRG
PA9 DRXD NPCS1
PA10 DTXD NPCS2
PA11 NPCS0 PWM0
PA12 MISO PWM1
PA13 MOSI PWM2
PA14 SPCK PWM3
PA15 TF TIOA1
PA16 TK TIOB1
PA17 TD PCK1 AD0
PA18 RD PCK2 AD1
PA 19 RK FIQ AD2
PA 20
PA21 RXD1 PCK1
PA22 TXD1 NPCS3
PA23 SCK1 PWM0
PA24 RTS1 PWM1
PA 25 C T S1 P W M2
PA26 DCD1 TIOA2
PA27 DTR1 TIOB2
PA28 DSR1 TCLK1
PA29 RI1 TCLK2
PA30 IRQ1 NPCS2
PA31 NPCS1 PCK2
RF IRQ0 AD3
36
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
AT91SAM7S Series Summary
Table 10-4. Multiplexing on PIO Controller A (AT91SAM7S32/16)
PIO Controller A Application Usage
I/O Line Peripheral A Peripheral B Comments Function Comments
PA0 PWM0 TIOA0 High-Drive
PA1 PWM1 TIOB0 High-Drive
PA2 PWM2 SCK0 High-Drive
PA3 TWD NPCS3 High-Drive
PA 4 T W C K T C LK 0
PA5 RXD0 NPCS3
PA 6 T X D 0 P C K0
PA 7 R T S0 P WM 3
PA8 CTS0 ADTRG
PA9 DRXD NPCS1
PA10 DTXD NPCS2
PA11 NPCS0 PWM0
PA12 MISO PWM1
PA13 MOSI PWM2
PA14 SPCK PWM3
PA15 TF TIOA1
PA16 TK TIOB1
PA17 TD PCK1 AD0
PA18 RD PCK2 AD1
PA 19 RK FIQ AD2
PA 20
RF IRQ0 AD3
6175GS–ATARM–24-Dec-08
37
10.5 Serial Peripheral Interface
• Supports communication with external serial devices
– Four chip selects with external decoder allow communication with up to 15
peripherals
– Serial memories, such as DataFlash
– Serial peripherals, such as ADCs, DACs, LCD Controllers, CAN Controllers and
Sensors
– External co-processors
• Master or slave serial peripheral bus interface
– 8- to 16-bit programmable data length per chip select
– Programmable phase and polarity per chip select
– Programmable transfer delays between consecutive transfers and between clock
and data per chip select
– Programmable delay between consecutive transfers
– Selectable mode fault detection
– Maximum frequency at up to Master Clock
10.6 Two-wire Interface
• Master Mode only (AT91SAM7S512/256/128/64/321/32)
• Master, Multi-Master and Slave Mode support (AT91SAM7S161/16)
• General Call supported in Slave Mode (AT91SAM7S161/16)
• Compatibility with
• One, two or three bytes internal address registers for easy Serial Memory access
• 7-bit or 10-bit slave addressing
• Sequential read/write operations
®
and 3-wire EEPROMs
I2C compatible devices (refer to the TWI sections of the datasheet)
10.7 USART
38
AT91SAM7S Series Summary
• Programmable Baud Rate Generator
• 5- to 9-bit full-duplex synchronous or asynchronous serial communications
– 1, 1.5 or 2 stop bits in Asynchronous Mode
– 1 or 2 stop bits in Synchronous Mode
– Parity generation and error detection
– Framing error detection, overrun error detection
– MSB or LSB first
– Optional break generation and detection
– By 8 or by 16 over-sampling receiver frequency
– Hardware handshaking RTS - CTS
– Modem Signals Management DTR-DSR-DCD-RI on USART1 (not present on
AT91SAM7S32/16)
– Receiver time-out and transmitter timeguard
– Multi-drop Mode with address generation and detection
• RS485 with driver control signal
6175GS–ATARM–24-Dec-08
• ISO7816, T = 0 or T = 1 Protocols for interfacing with smart cards
– NACK handling, error counter with repetition and iteration limit
• IrDA modulation and demodulation
– Communication at up to 115.2 Kbps
• Test Modes
– Remote Loopback, Local Loopback, Automatic Echo
10.8 Serial Synchronous Controller
• Provides serial synchronous communication links used in audio and telecom applications
• Contains an independent receiver and transmitter and a common clock divider
• Offers a configurable frame sync and data length
• Receiver and transmitter can be programmed to start automatically or on detection of
different event on the frame sync signal
• Receiver and transmitter include a data signal, a clock signal and a frame synchronization
signal
10.9 Timer Counter
• Three 16-bit Timer Counter Channels
– Two output compare or one input capture per channel (except for AT91SAM7S32/16
which have only two channels connected to the PIO)
• Wide range of functions including:
– Frequency measurement
– Event counting
– Interval measurement
– Pulse generation
– Delay timing
– Pulse Width Modulation
– Up/down capabilities
• Each channel is user-configurable and contains:
– Three external clock inputs (The AT91SAM7S32/16 have one)
– Five internal clock inputs, as defined in Table 10-5
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
Table 10-5. Timer Counter Clocks Assignment
TC Clock Input Clock
TIMER_CLOCK1 MCK/2
TIMER_CLOCK2 MCK/8
TIMER_CLOCK3 MCK/32
TIMER_CLOCK4 MCK/128
TIMER_CLOCK5 MCK/1024
– Two multi-purpose input/output signals
– Two global registers that act on all three TC channels
39
10.10 PWM Controller
• Four channels, one 16-bit counter per channel
• Common clock generator, providing thirteen different clocks
– One Modulo n counter providing eleven clocks
– Two independent linear dividers working on modulo n counter outputs
• Independent channel programming
– Independent enable/disable commands
– Independent clock selection
– Independent period and duty cycle, with double buffering
– Programmable selection of the output waveform polarity
– Programmable center or left aligned output waveform
10.11 USB Device Port (Does not pertain to AT91SAM7S32/16)
• USB V2.0 full-speed compliant, 12 Mbits per second.
• Embedded USB V2.0 full-speed transceiver
• Embedded 328-byte dual-port RAM for endpoints
• Four endpoints
– Endpoint 0: 8 bytes
– Endpoint 1 and 2: 64 bytes ping-pong
– Endpoint 3: 64 bytes
– Ping-pong Mode (two memory banks) for isochronous and bulk endpoints
• Suspend/resume logic
10.12 Analog-to-digital Converter
• 8-channel ADC
• 10-bit 384 Ksamples/sec. or 8-bit 583 Ksamples/sec. Successive Approximation Register
ADC
• ±2 LSB Integral Non Linearity, ±1 LSB Differential Non Linearity
• Integrated 8-to-1 multiplexer, offering eight independent 3.3V analog inputs
• External voltage reference for better accuracy on low voltage inputs
• Individual enable and disable of each channel
• Multiple trigger source
– Hardware or software trigger
– External trigger pin
– Timer Counter 0 to 2 outputs TIOA0 to TIOA2 trigger
• Sleep Mode and conversion sequencer
– Automatic wakeup on trigger and back to sleep mode after conversions of all
enabled channels
• Four of eight analog inputs shared with digital signals
40
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
11. Package Drawings
The SAM7S series devices are available in LQFP and QFN package types.
11.1 LQFP Packages
Figure 11-1. 48-and 64-lead LQFP Package Drawing
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
41
Table 11-1. 48-lead LQFP Package Dimensions (in mm)
Symbol
A – – 1.60 – – 0.063
A1 0.05 – 0.15 0.002 – 0.006
A2 1.35 1.40 1.45 0.053 0.055 0.057
D 9.00 BSC 0.354 BSC
D1 7.00 BSC 0.276 BSC
E 9.00 BSC 0.354 BSC
E1 7.00 BSC 0.276 BSC
R2 0.08 – 0.20 0.003 – 0.008
R1 0.08 – – 0.003 – –
q 0°3.5°7° 0°3.5°7°
θ
1
θ
2
θ
3
c 0.09 – 0.20 0.004 – 0.008
L 0.45 0.60 0.75 0.018 0.024 0.030
L1 1.00 REF 0.039 REF
S 0.20 – – 0.008 – –
b 0.17 0.20 0.27 0.007 0.008 0.011
Min Nom Max Min Nom Max
0° – – 0° – –
11° 12° 13° 11° 12° 13°
11° 12° 13° 11° 12° 13°
Millimeter Inch
e 0.50 BSC. 0.020 BSC.
D2 5.50 0.217
E2 5.50 0.217
Tolerances of Form and Position
aaa 0.20 0.008
bbb 0.20 0.008
ccc 0.08 0.003
ddd 0.08 0.003
42
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
AT91SAM7S Series Summary
Table 11-2. 64-lead LQFP Package Dimensions (in mm)
Symbol
A – –1.60– –0.063
A1 0.05 – 0.15 0.002 – 0.006
A2 1.35 1.40 1.45 0.053 0.055 0.057
D 12.00 BSC 0.472 BSC
D1 10.00 BSC 0.383 BSC
E 12.00 BSC 0.472 BSC
E1 10.00 BSC 0.383 BSC
R2 0.08 – 0.20 0.003 – 0.008
R1 0.08 – – 0.003 – –
q 0°3.5°7° 0°3.5°7°
θ
1
θ
2
θ
3
c 0.09 – 0.20 0.004 – 0.008
L 0.45 0.60 0.75 0.018 0.024 0.030
L1 1.00 REF 0.039 REF
S 0.20 – – 0.008 – –
b 0.17 0.20 0.27 0.007 0.008 0.011
e 0.50 BSC. 0.020 BSC.
D2 7.50 0.285
E2 7.50 0.285
aaa 0.20 0.008
bbb 0.20 0.008
ccc 0.08 0.003
ddd 0.08 0.003
Min Nom Max Min Nom Max
0°––0°––
11° 12° 13° 11° 12° 13°
11° 12° 13° 11° 12° 13°
Millimeter Inch
Tolerances of Form and Position
6175GS–ATARM–24-Dec-08
43
11.2 QFN Packages
Figure 11-2. 48-pad QFN Package
44
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
AT91SAM7S Series Summary
Table 11-3. 48-pad QFN Package Dimensions (in mm)
Symbol
Min Nom Max Min Nom Max
A – – 090 – – 0.035
A1 – –0.050– –0.002
A2 – 0.65 0.70 – 0.026 0.028
A3 0.20 REF 0.008 REF
b 0.18 0.20 0.23 0.007 0.008 0.009
D 7.00 bsc 0.276 bsc
D2 5.45 5.60 5.75 0.215 0.220 0.226
E 7.00 bsc 0.276 bsc
E2 5.45 5.60 5.75 0.215 0.220 0.226
L 0.35 0.40 0.45 0.014 0.016 0.018
e 0.50 bsc 0.020 bsc
R 0.09 – – 0.004 – –
aaa 0.10 0.004
bbb 0.10 0.004
ccc 0.05 0.002
Millimeter Inch
Tolerances of Form and Position
6175GS–ATARM–24-Dec-08
45
Figure 11-3. 64-pad QFN Package Drawing
46
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
AT91SAM7S Series Summary
Table 11-4. 64-pad QFN Package Dimensions (in mm)
Symbol
A – – 090 – – 0.035
A1 – – 0.05 – – 0.001
A2 – 0.65 0.70 – 0.026 0.028
A3 0.20 REF 0.008 REF
b 0.23 0.25 0.28 0.009 0.010 0.011
D 9.00 bsc 0.354 bsc
D2 6.95 7.10 7.25 0.274 0.280 0.285
E 9.00 bsc 0.354 bsc
E2 6.95 7.10 7.25 0.274 0.280 0.285
L 0.35 0.40 0.45 0.014 0.016 0.018
e 0.50 bsc 0.020 bsc
R 0.125 – – 0.0005 – –
aaa 0.10 0.004
bbb 0.10 0.004
ccc 0.05 0.002
Min Nom Max Min Nom Max
Millimeter Inch
Tolerances of Form and Position
6175GS–ATARM–24-Dec-08
47
12. AT91SAM7S Ordering Information
Table 12-1. AT91SAM7S Series Ordering Information
MLR A Ordering Code MLR B Ordering Code Package Package Type
Tem peratu r e
Operating Range
AT91SAM7S16-AU
AT91SAM7S16-MU
AT91SAM7S161-AU – LQFP 64 Green
AT91SAM7S32-AU-001
AT91SAM7S32-MU
AT91SAM7S321-AU
AT91SAM7S321-MU
AT91SAM7S64-AU-001
AT91SAM7S64-MU
–
–
AT91SAM7S512-AU
AT91SAM7S512-MU
AT91SAM7S32B-AU
AT91SAM7S32B-MU
AT91SAM7S64B-AU
AT91SAM7S64B-MU
AT91SAM7S128-AU-001
AT91SAM7S128-MU
AT91SAM7S256-AU-001
AT91SAM7S256-MU
–
–
–
LQFP 48
QFN 48
LQFP 48
QFN 48
LQFP 64
QFN 64
LQFP 64
QFN 64
LQFP 64
QFN 64
LQFP 64
QFN 64
LQFP 64
QFN 64
Green
Green
Green
Green
Green
Green
Green
Industrial
(-40⋅ C to 85⋅ C)
Industrial
(-40⋅ C to 85⋅ C)
Industrial
(-40⋅ C to 85⋅ C)
Industrial
(-40⋅ C to 85⋅ C)
Industrial
(-40⋅ C to 85⋅ C)
Industrial
(-40⋅ C to 85⋅ C)
Industrial
(-40⋅ C to 85⋅ C)
Industrial
(-40⋅ C to 85⋅ C)
48
AT91SAM7S Series Summary
6175GS–ATARM–24-Dec-08
AT91SAM7S Series Summary
Revision History
Change
Request
Doc. Rev Comments
First issue - Unqualified on Intranet
6175AS
6175BS Section 8. “Memories” on page 18 updated: 2 ms => 3 ms, 10 ms => 15 ms, 4 ms => 6 ms CSR05-529
6175CS Section 12. ”AT91SAM7S Ordering Information” AT91SAM7S321 changed in Table 12-1 on page 48 #2342
Corresponds to 6175A full datasheet approval loop.
Qualified on Intranet.
Ref.
6175DS
6175ES Section 10.11 on page 40 USB Device port, Ping-pong Mode includes Isochronous endpoints. specs
6175FS AT91SAM7S161 and AT91SAM7S16 added to product family BDs
“Features”, Table 1-1, “Configuration Summary,” on page 3, Section 4. ”Package and Pinout”
Section 12. ”AT91SAM7S Ordering Information” QFN package information added
“Features” on page 1, and global: AT91SAM7S512 added to series. Reference to Manchester Encoder
removed from USART.
Section 8. ”Memories” Reformatted Memories, Consolidated Memory Mapping in Figure 8-1 on page 20
Section 10. ”Peripherals” Reordered sub sections.
Section 11. ”Package Drawings” QFN, LQFP package drawings added.
“ice_nreset” signals changed to” power_on_reset” in System Controller block diagrams, Figure 9-1 on
page 27 and Figure 9-2 on page 28.
Section 4. ”Package and Pinout” LQFP and QFN Package Outlines replace Mechanical Overview.
Section 10.1 ”User Interface”, User peripherals are mapped between 0xF000 0000 and 0xFFFF EFFF.
SYSIRQ changed to SYSC in “Peripheral Identifiers” Table 10-1 and Table 10-2
Features: Timer Counter, on page 2 product specific information rewritten, Table 1-1, “Configuration
Summary,” on page 3, footnote explains TC on AT91SAM7S32/16 has only two channels accessible via
PIO, and in Section 10.9 ”Timer Counter”, precisions added to “compare and capture” output/input.
2
Section 10.6 ”Two-wire Interface”, updated reference to I
slave addressing, Modes for AT91SAM7S161/16
“One Two-wire Interface (TWI)” on page 2, updated in Features
Section 10.12 ”Analog-to-digital Converter”, updated Successive Approximation Register ADC and the
INL, DNL ± values of LSB.
Section 8.8.3 ”Lock Regions”, locked-region’s erase or program command updated
Section 9.5 ”Debug Unit”, Chip ID updated.
C compatibility, internal address registers,
#2444
#2748
#2832
(DBGU IP)
rfo review
4208
rfo review
4325
Section 6. ”I/O Lines Considerations”, JTAG Port Pin, Test Pin, Erase Pin, updated. 5063
6175GS “Features”,“Debug Unit (DBGU)” updated with “Mode for General Purpose 2-wire UART Serial
Communication”
Section 7.4 ”Peripheral DMA Controller”, added list of PDC priorities.
Section 9. ”System Controller”, Figure 9-1 and Figure 9-2 RTT is reset by “power_on_reset”.
Section 9.1.1 ”Brownout Detector and Power-on Reset”, fourth paragraph reduced.
Section 9.5 ”Debug Unit”, the list; Section • ”Chip ID Registers”, chip IDs updated, added SAM7S32 Rev
B and SAM7S64 Rev B to the list.
Section 12. ”AT91SAM7S Ordering Information”, Updated product ordering information by MRL A and
MRL B versions.
6175GS–ATARM–24-Dec-08
5846
5913
5224
5685
rfo
49
Loading...
