ASUS TUEGVM User Manual

®

TUEG-VM

Intel® 815EG Chipset

microATX Motherboard

USER’S MANUAL

USER'S NOTICE

No part of this manual, including the products and software described herein, may be repro­duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in
any form or by any means, except for documentation kept by the purchaser for backup purposes,
without the expressed written permission of ASUSTeK COMPUTER INC. (“ASUS”).

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
IMPLIED W ARRANTIES OR CONDITIONS OF MERCHANT ABILITY OR FITNESS FOR
A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,
EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDEN­TAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF
PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSI­NESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL
OR PRODUCT.

Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification or alteration is authorized in writing by ASUS; or (2)
the serial number of the product is defaced or missing.

Products and corporate names appearing in this manual may or may not be registered trade­marks or copyrights of their respective companies, and are used only for identification or
explanation, for the owners’ benefit, without intent to infringe.

• Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.

• Intel, LANDesk, and Pentium are registered trademarks of Intel Corporation.

• Trend and ChipAwayVirus are trademarks of Trend Micro, Inc.

• Windows and MS-DOS are registered trademarks of Microsoft Corporation.

• ADI and SoundMAX are trademarks of Analog Devices, Inc..
The product name and revision number are both printed on the product itself. Manual revi-

sions are released for each product design represented by the digit before and after the period
of the manual revision number. Manual updates are represented by the third digit in the manual
revision number.

For more information on manuals, BIOS, drivers, or recent product releases, contact ASUS at
http://www.asus.com.tw or through any of the means indicated on the following page.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FUR­NISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT
ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COM­MITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR
ANY ERRORS OR INACCURACIES THAT MA Y APPEAR IN THIS MANUAL, INCLUD­ING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Copyright © 2001 ASUSTeK COMPUTER INC. All Rights Reserved.

Product Name: ASUS TUEG-VM
Manual Revision: 1.01 E859
Release Date: September 2001

2 ASUS TUEG-VM User’s Manual

ASUS CONTACT INFORMATION

ASUSTeK COMPUTER INC. (Asia-Pacific)

Marketing

Address: 150 Li-Te Road, Peitou, Taipei, Taiwan 112
Telephone: [phone]
Fax: [phone]
Email: [e-mail]

Technical Support

MB/Others (Tel): [phone] (English)
Notebook (Tel): [phone] (English)
Desktop/Server (Tel): [phone] (English)
Fax: [phone]
Newsgroup: cscnews.asus.com.tw
Email: [e-mail]
WWW: www.asus.com.tw
FTP: ftp.asus.com.tw/pub/ASUS

ASUS COMPUTER INTERNATIONAL (America)

Marketing

Address: 6737 Mowry Avenue, Mowry Business Center, Building 2

Newark, CA 94560, USA
Fax: [phone]
Email: [e-mail]

Technical Support

Fax: [phone]
Email: [e-mail]
WWW: www.asus.com
FTP: ftp.asus.com/Pub/ASUS

ASUS COMPUTER GmbH (Europe)

Marketing

Address: Harkortstr. 25, 40880 Ratingen, BRD, Germany
Fax: [phone]
Email: [e-mail] (for marketing requests only)

Technical Support

Hotline: MB/Others: [phone] Notebook: [phone]
Fax: [phone]
Support (Email): www.asuscom.de/de/support (for online support)
WWW: www.asuscom.de
FTP: ftp.asuscom.de/pub/ASUSCOM

3ASUS TUEG-VM User’s Manual

CONTENTS

1. INTRODUCTION ............................................................................. 7

1.1 How This Manual Is Organized .................................................. 7

1.2 Item Checklist ............................................................................. 7

2. FEATURES ........................................................................................ 8

2.1 The ASUS TUEG-VM ............................................................... 8

2.2 TUEG-VM Motherboard Components ................................... 12

3. HARDWARE SETUP ...................................................................... 14

3.1 TUEG-VM Motherboard Layout ............................................ 14

3.2 Layout Contents ........................................................................ 15

3.3 Hardware Setup Procedure ....................................................... 17

3.4 Motherboard Settings................................................................ 17

3.5 System Memory (DIMM) ......................................................... 24

3.5.1 General DIMM Notes .................................................... 24

3.5.2 Memory Installation ...................................................... 25

3.6 Central Processing Unit (CPU) ................................................. 26

3.7 Expansion Cards ....................................................................... 27

3.7.1 Expansion Card Installation Procedure ......................... 27

3.7 Expansion Cards ....................................................................... 27

3.7.1 Expansion Card Installation Procedure ......................... 27

3.7.2 Assigning IRQs for Expansion Cards............................ 28

3.7.3 Communication and Networking Riser (CNR) Slot...... 29

3.8 Connectors ................................................................................. 30

3.8.1 External Connectors ...................................................... 30

3.8.2 Internal Connectors ......................................................... 34

3.9 Starting Up the First Time ........................................................ 43

4. BIOS SETUP..................................................................................... 45

4.1 Managing and Updating Your BIOS ......................................... 45

4.1.1 Upon First Use of the Computer System....................... 45

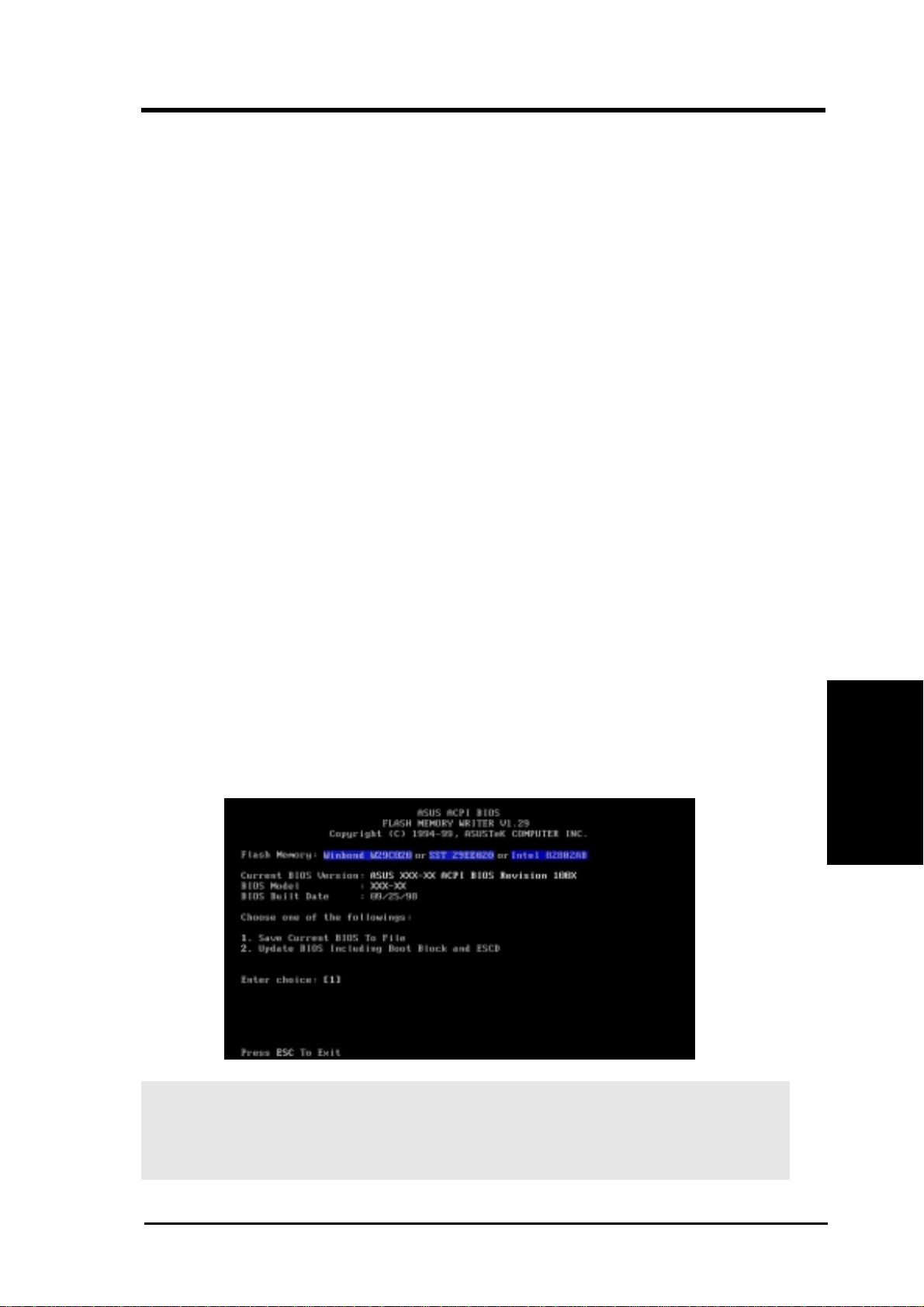

4.1.2 Updating BIOS Procedures ........................................... 47

4.2 BIOS Setup Program ................................................................ 49

4.2.1 BIOS Menu Bar ............................................................. 50

4.2.2 Legend Bar .................................................................... 50

4 ASUS TUEG-VM User’s Manual

CONTENTS

4.3 Main Menu................................................................................ 52

4.3.1 Primary & Secondary Master/Slave .............................. 53

4.3.2 Keyboard Features......................................................... 56

4.4 Advanced Menu ........................................................................ 58

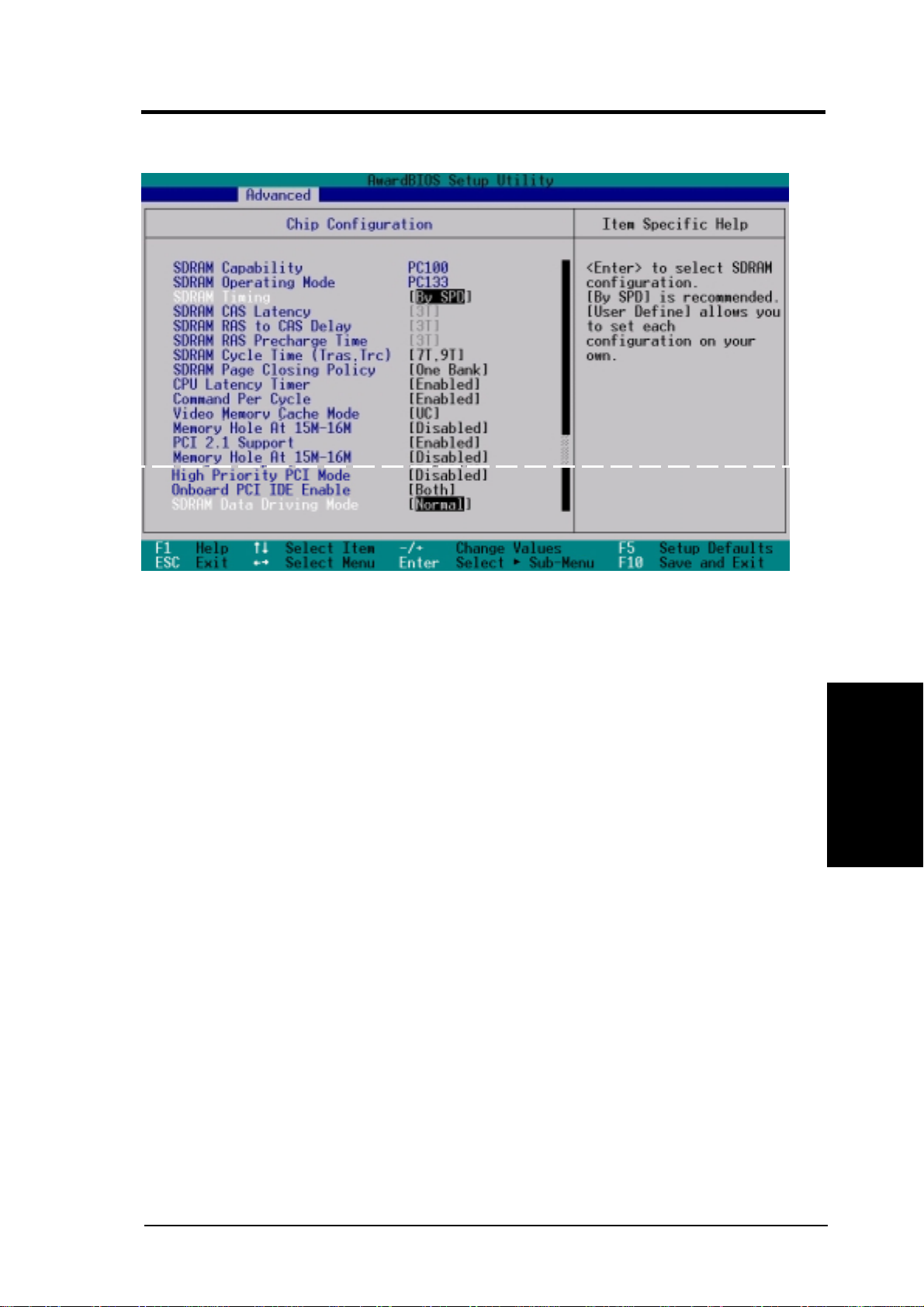

4.4.1 Chip Configuration ........................................................ 61

4.4.2 I/O Device Configuration .............................................. 64

4.4.3 PCI Configuration ......................................................... 66

4.4.4 Shadow Configuration................................................... 68

4.5 Power Menu .............................................................................. 69

4.5.1 Power Up Control.......................................................... 71

4.5.2 Hardware Monitor ......................................................... 73

4.6 Boot Menu ................................................................................ 74

4.7 Exit Menu ................................................................................. 76

5. SOFTWARE SETUP ....................................................................... 79

5.1 Operating Systems .................................................................... 79

5.1.1 Windows 98 First Time Installation .............................. 79

5.2 TUEG-VM Motherboard Support CD ...................................... 79

5.2.1 Installation Menus ......................................................... 79

5.2.2 Applications................................................................... 80

6. SOFTWARE REFERENCE ........................................................... 83

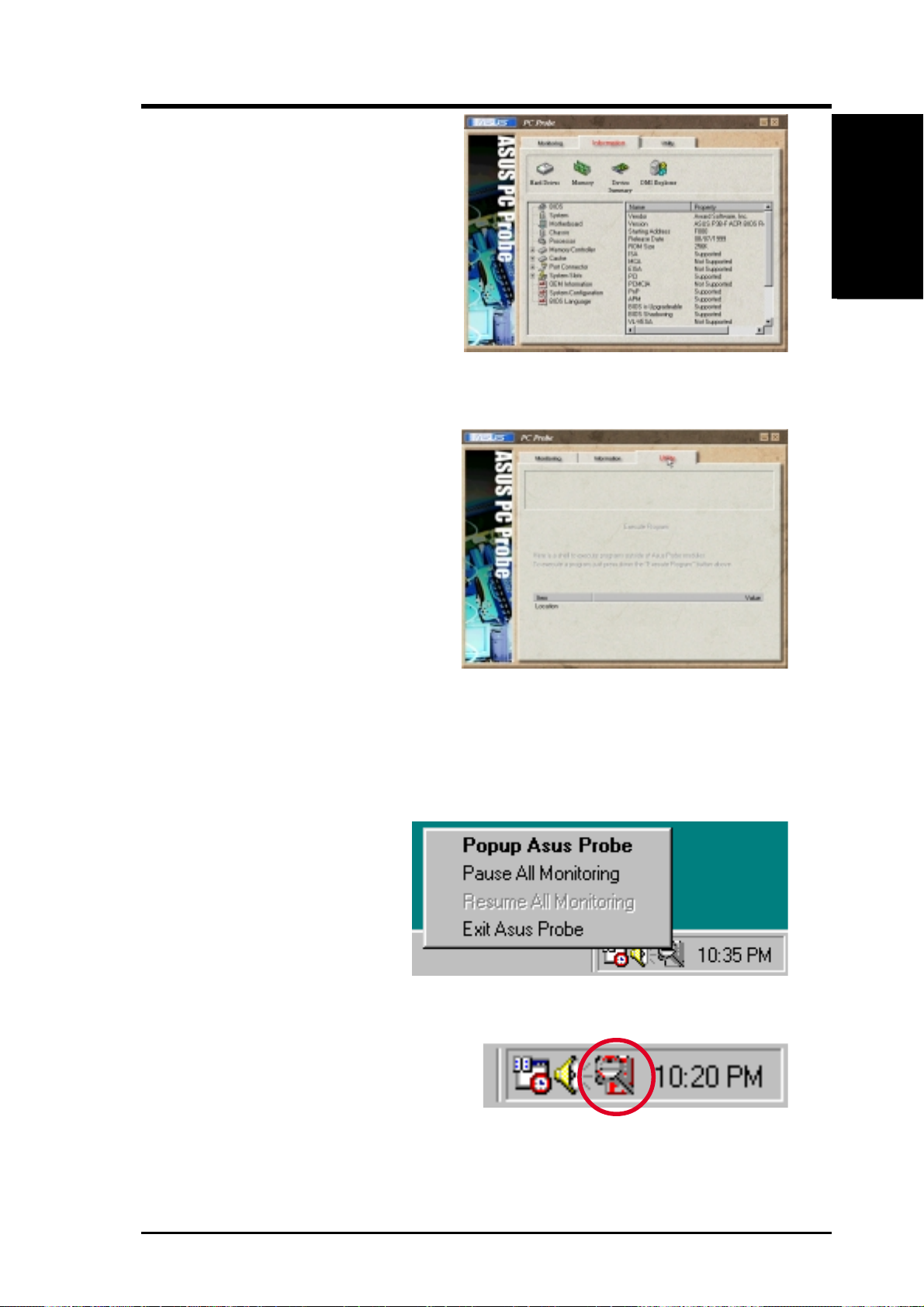

6.1 ASUS PC Probe ........................................................................ 83

6.1.1 Starting ASUS PC Probe ............................................... 83

6.1.2 Using ASUS PC Probe .................................................. 84

6.1.3 ASUS PC Probe Task Bar Icon ..................................... 87

6.2 Winbond Smart Manager ........................................................... 89

6.3 CyberLink PowerPlayer SE ...................................................... 93

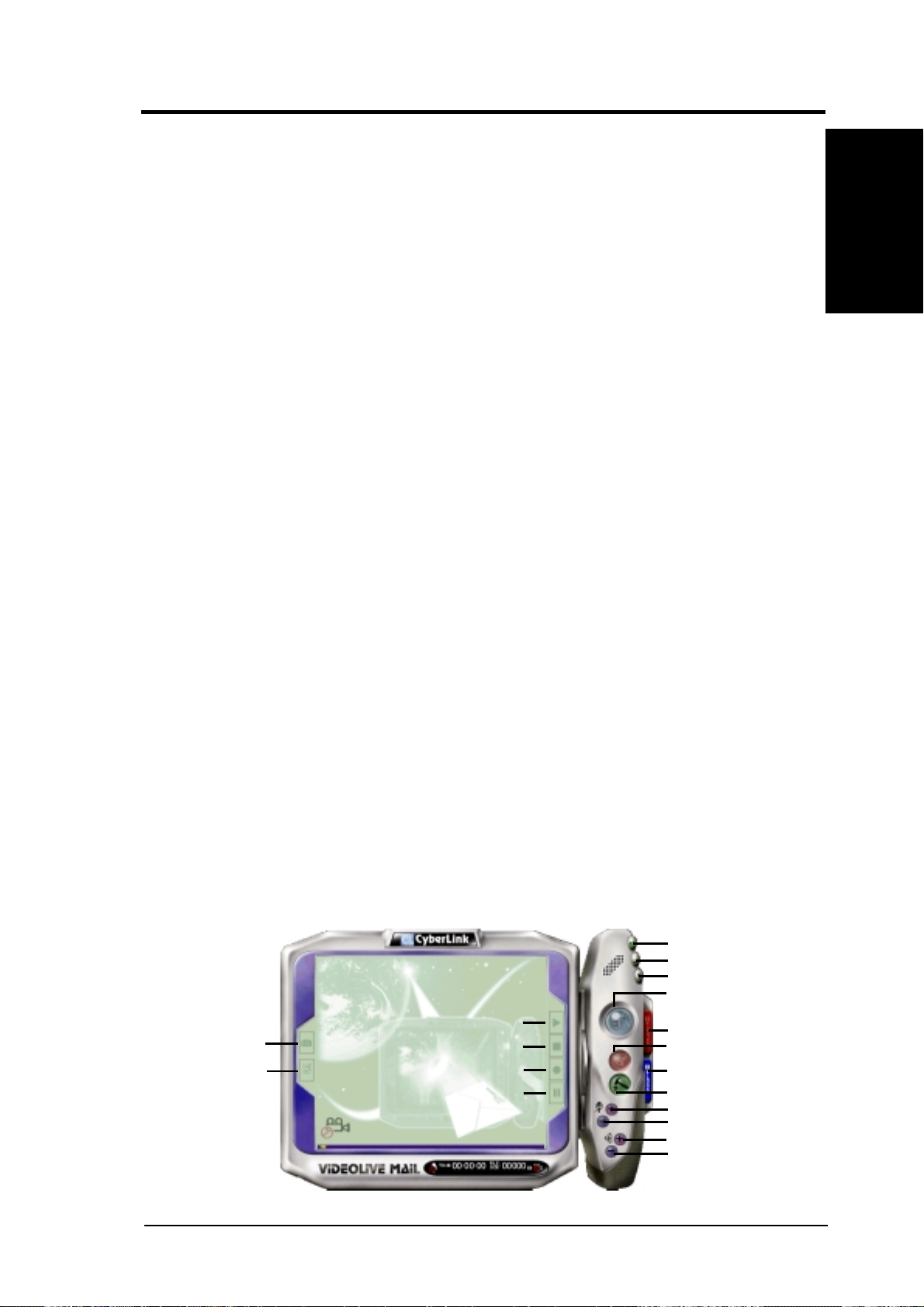

6.4 CyberLink V ideoLive Mail ....................................................... 94

6.5 ASUS LiveUpdate .................................................................... 96

7. APPENDIX........................................................................................ 97

7.1 Glossary .................................................................................... 97

INDEX ................................................................................................. 101

5ASUS TUEG-VM User’s Manual

FCC & DOC COMPLIANCE

Federal Communications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the following
two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference that
may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa­tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with manufacturer's instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interfer­ence by one or more of the following measures:

• Re-orient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING! Any changes or modifications to this product not expressly ap-

proved by the manufacturer would void any assurances on its safety or
performance and could result in violation of Part 15 of the FCC Rules.

Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. W ashington DC: Of fice of the
Federal Register, National Archives and Records Administration, U.S. Government Printing Office.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications.

This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

6 ASUS TUEG-VM User’s Manual

1. INTRODUCTION

1.1 How This Manual Is Organized

This manual is divided into the following sections:

1. INTRODUCTION Manual information and checklist

2. FEATURES Production information and specifications

3. HARDWARE SETUP Instructions on setting up the motherboard.

4. BIOS SETUP Instructions on setting up the BIOS

5. SOFTWARE SETUP Instructions on setting up the included software

6. SOFTWARE REFERENCE Reference material for the included software

7. APPENDIX Optional items and general reference

1.2 Item Checklist

Check that your package is complete. If you discover damaged or missing items,
contact your retailer.

Manual / Checklist

1. INTRODUCTION

Package Contents

(1) ASUS Motherboard
(1) 40-pin 80-conductor ribbon cable

for internal UltraDMA100/66/33
IDE drives

(1) Ribbon cable for (1) 5.25” and (2)

3.5” floppy disk drives

(1) Serial COM2 connector with

bracket
(1) Bag of spare jumpers
(1) Support drivers and utilities
(1) User’s Manual
(1) ASUS 2-port USB connector set

with bracket

Optional Items

LCD controller module
TVOUT controller module
ASUS iPanel
ASUS IrDA-compliant infrared module
Smart Card Reader

ASUS TUEG-VM User’s Manual

7

2.1 The ASUS TUEG-VM

The ASUS TUEG-VM motherboard is carefully designed for the demanding PC
user who wants advanced features processed by the fastest processors.

2.1.1 Specifications

• Latest Intel Processor Support

2. FEATURES

Specifications

• North Bridge System Chipset: The Intel

• South Bridge System Chipset: The Intel

• Intel

• PC100/PC133 Memory Support: Equipped with three Dual Inline Memory

2. FEATURES

®

PIII

Tualatin™ 133/100MHz FSB FC-PGA2
PIII® Coppermine™ 133/100MHz FSB FC-PGA
Celeron™ 100/66MHz FSB FC-PGA

®

82815EG Graphics and AGP Memory
Controller Hub (GMCH) chipset features a fully backward compatible and unified
graphics driver, which utilizes system memory ef ficiently for graphics, O/S, and
complex applications. It supports 66/100/133 Front Side Bus (FSB), up to 512MB
of PC100/PC133 SDRAM, and integrated AGP 4x graphics.

®

82801BA I/O Controller Hub (ICH2)
delivers twice the I/O bandwidth, and supports UltraDMA/100, allowing burst
mode data transfer rates of up to 100MB/sec. Two USB controllers provide up
to four USB ports.

®

Accelerated Hub Architecture: Features a dedicated high speed hub

link between the ICH2 and GMCH with a bandwidth of 266MB/sec – twice the
maximum bandwidth of the PCI bus.

Module (DIMM) sockets which support PC133/PC100 non-ECC SDRAMs
(available in 64, 128, 256, 512Mb densities) up to 512MB.

• UltraDMA33/66/100 Support: Comes with an onboard PCI Bus Master IDE

controller with two connectors that support four IDE devices on two channels.
Supports UltraDMA/100, UltraDMA/66, UltraDMA/33, PIO Modes 3 & 4 and
up to four ATAPI devices like DVD-ROM, CD-ROM, CD-R/RW, LS-120, and
tape backup drives.

• ASUS JumperFree™ Mode: Allows processor settings and easy overclocking

of frequency and Vcore voltage all through BIOS setup when JumperFree™
mode is enabled. Easy-to-use DIP switches instead of jumpers are included to
allow manual adjustment of the processor external frequency.

• Wake-Up Support: Supports Wake-On-LAN and Wake-On-Ring, Keyboard

Wake-Up, and BIOS Wake-Up.

• Around-the-Clock Intrusion Detection: Chassis intrusion circuitry can log

chassis open events into LDCM. The onboard battery supports detection even
when normal power is removed and through a new design, battery drain is even
lower than the RTC used for keeping time!

• PC Health Monitoring: Provides an easy way to examine and manage system

status information, such as CPU and system voltages, temperatures, and fan
status through the onboard hardware ASUS ASIC and the bundled ASUS PC
Probe or Intel LDCM software.

8

ASUS TUEG-VM User’s Manual

2. FEATURES

• CNR Support: A Communication and Networking Riser (CNR) slot provides

an interface to support very affordable multichannel audio, V.90 analog modem,
Home PNA, 10/100 Ethernet networking, USB hub, as well as future technologies
such as xDSL.

• PCI Expansion Slots: Provides three 32-bit PCI (PCI 2.2 compliant) expansion

slots. All PCI slots can support Bus Master PCI cards, such as SCSI or LAN
cards. (PCI supports up to 133MB/s maximum throughput.)

• Super Multi-I/O: Provides two high-speed UART compatible serial ports and

one parallel port with EPP and ECP capabilities. UART2 can also be directed
from COM2 to the Infrared Module for wireless connections. The Super I/O
controller also supports a floppy disk dirve, PS/2 keyboard, and PS/2 mouse.

• Smart BIOS: 2Mbit firmware gives a new easy-to-use interface which provides

more control and protection over the motherboard. Provides Vcore and CPU/
SDRAM frequency adjustments, boot block write protection, and HD/SCSI/MO/
ZIP/CD/Floppy boot selection. Hardware random number generator supports new
security software for data protection and secured Internet transactions.

• Enhanced ACPI & Anti-Boot Virus Protection: Programmable BIOS (Flash

EEPROM), offering enhanced ACPI for Windows 98 compatibility, built-in
firmware-based virus protection, and autodetection of most devices for virtually
automatic setup.

• Onboard LED: The onboard LED lights up when there is standby power to the

motherboard. This acts as a reminder to the user to turn OFF the power before
plugging and unplugging devices so as not to damage the motherboard,
peripherals, and/or components.

Specifications

2. FEATURES

• Onboard Audio: Audio models come with the AC ’97-compliant interfaces

that support integrated audio and modem features that comprise digital audio
engine with 3D-hardware accelerator, on-chip sample rate converter, and a
professional wavetable.

• Easy Connectivity and System Information Access: Supports an optional

ASUS iPanel, an easy-to-access box with system diagnostic display area, system
status LEDs, USB ports, and hot keys. The AFPANEL connector on the
motherboard accommodates the ASUS iPanel.

• Smartcard Reader Connector: Features a connector that provides the

convenience of financial, telephony , and traveling services through the optional
Smartcard Reader interface.

• LCD/TV Output: The LCD/TV interface can support either an optional LCD

module for LCD output or a TV-out module for TV output.

• SMBus: Features the System Management Bus interface that physically

transports commands and information between SMBus devices.

ASUS TUEG-VM User’s Manual

9

2. FEATURES

2.1.2 Specifications–Optional Components

The following onboard components are optional at the time of purchase:

• Smart Networking: Features 3Com’s 3C920 Fast Ethernet controller, which

supports Wired for Management, remote wake-up, and OnNow initiatives to
reduce Total Cost of Ownership (TCO).

• Onboard Audio: AC’97 Audio chipset supports the latest audio sound circuitry .

2. FEATURES

Performance

A software package helps setup the multi-channel PC sound system.

2.1.3 Performance

• UltraPerformance: Onboard IDE Bus Master controller with two connectors that

support four IDE devices in two channels. Supports UltraDMA/100, UltraDMA/
66, UltraDMA/33 (IDE DMA Mode 2), PIO Modes 3 & 4, and supports Enhanced
IDE devices, such as DVD-ROM, CD-ROM, CD-R/R W , LS-120, and T ape Backup
drives.

• High-Speed Data Transfer Interface: IDE transfers using UltraDMA/66 Bus

Master IDE can handle rates up to 66.6MB/s. This motherboard with its chipset
and support for UltraDMA/100 increases the data transfer rate to 100MB/s.
UltraDMA/100 is backward compatible with DMA/66, DMA/33, and DMA and
with existing DMA devices and systems so there is no need to upgrade current
EIDE/IDE drives and host systems. (UltraDMA/66/100 requires a 40-pin 80­conductor cable to be enabled.)

• Concurrent PCI: Concurrent PCI allows multiple PCI transfers from PCI master

buses to memory and processor.

• SDRAM Optimized Performance: This motherboard supports PC133-

compliant Synchronous Dynamic Random Access Memory (SDRAM), which
increases the data transfer rate to 1066MB/s max.

• ACPI Ready: Advanced Configuration and Power Interface (ACPI) is also

implemented on all ASUS smart series motherboards. ACPI provides more Ener gy
Saving Features for future operating systems (OS) supporting OS Direct Power
Management (OSPM) functionality . W ith these features implemented in the OS,
PCs can be ready around the clock, yet satisfy all the energy saving standards.
To fully utilize the benefits of ACPI, an ACPI-supported OS, such as Windows
98, must be used.

• Suspend and Go: Suspend-to-RAM (STR) provides maximum power savings

as an alternative to leaving the computer ON and QuickStart™ so that you do
not have to wait for a long time for system bootup.

• Stepless Frequency Selection: Allows CPU external (FSB) frequency settings

to be raised or lowered in MHz increments.

10

ASUS TUEG-VM User’s Manual

2. FEATURES

• PC’99 Compliant: Both the BIOS and hardware levels of ASUS smart series

motherboards are PC’99 compliant. The new PC’99 requirements for systems
and components are based on the following high-level goals: support for Plug­n-Play capability and power management for configuring and managing all system
components, and 32-bit device drivers and installation procedures for
Windows95/98/NT . Color-coded connectors and descriptive icons make
identification easy as required by PC’99.

2.1.4 Intelligence

• Fan Status Monitoring and Alarm: To prevent system overheat and system

damage, the CPU, power supply, and system fans can be monitored for RPM
and failure. All the fans are set for its normal RPM range and alarm thresholds.

• Voltage Monitoring and Alert: System voltage levels are monitored to ensure

stable current to critical motherboard components. Voltage specifications are
more critical for future processors, so monitoring is necessary to ensure proper
system configuration and management.

Intelligence

2. FEATURES

• System Resources Alert: Windows 98, Windows NT, and OS/2, require much

more memory and hard disk space to present enormous user interfaces and run
large applications. The onboard hardware ASUS ASIC in conjunction with either
the bundled ASUS PC Probe or Intel LDCM, will warn you before the system
resources are used up to prevent possible application crashes.

• Dual Function Power Button: Through BIOS, the power button can be defined

as the “Stand by” (a.k.a. Suspend or Sleep) button or as the Soft-Off button (see
ATX Power / Soft-Off Switch Lead in 3.8 Connectors for more information).
Regardless of the setting, pushing the power button for more than 4 seconds allows
the computer to enter the Soft-Off mode.

• Remote Ring On (requires modem): This allows a computer to be turned on

remotely through an internal or external modem. With this benefit on hand, you
can access any information from their computers from anywhere in the world.

• Message LED (requires ACPI OS support): Message LEDs now act as

information providers. Through the way a particular LED illuminates, you can
determine if a message has been received from a fax/modem. A simple glimpse
provides useful information. This function requires ACPI OS and driver support.

• Peripheral Power Up: Keyboard or Mouse power up can be enabled or disabled

through BIOS setup to allow the computer to be powered ON using your keyboard
or mouse click.

ASUS TUEG-VM User’s Manual

11

2.2 TUEG-VM Motherboard Components

See opposite page for locations.

Processor Support Socket 370 for Pentium III/Celeron/Tualatin CPUs................. 2

MB Components

2. FEATURES

2. FEATURES

Location

Feature Setting DIP Switches ................................................... 8

Chipsets Intel 82815G Graphics Memory Controller Hub (GMCH)...... 3

Intel 82801BA I/O Controller Hub (ICH2) .......................... 13

2Mbit Firmware Hub (FWH) ................................................. 11

Low Pin Count (LPC) Multi-I/O Chipset ............................... 20

Main Memory 3 DIMM Sockets (maximum 512MB support) ........................ 4

PC133 SDRAM support

Expansion Slots 3 PCI Slots .............................................................................. 19

1 Communications & Network Riser (CNR) Slot .................. 15

System I/O 1 USB Header ......................................................................... 10

1 Floppy Disk Drive Connector ............................................... 5

2 IDE Connectors (UltraDMA/100 Support) ........................... 6

1 Serial COM2 Header ........................................................... 22

1 ASUS iPanel Connector ........................................................ 9

1 Parallel Port Connector ............................................. (Top) 25

1 Serial COM1 Port Connector .............................. (Bottom) 26

2 USB Port Connectors .......................................... (Bottom) 27

1 PS/2 Mouse Connector .............................................. (Top) 28

1 PS/2 Keyboard Connector ................................... (Bottom) 28

3D Graphics Graphics and Memory Controller Hub

1 VGA Monitor Output Connector......................... (Bottom) 24

TV-Out/Digital LCD Module Headers ................................... 23

Audio AC’97 Audio Codec............................................................. 18

1 Game/MIDI Connector.............................................. (Top) 21

1 Line Out Connector ............................................. (Bottom) 21

1 Line In Connector................................................ (Bottom) 21

1 Microphone Connector ........................................ (Bottom) 21

Network Features 3Com 3C920 Fast Ethernet Controller ................................... 16

Wake-On-LAN Connector...................................................... 17

Wake-On-Ring Connector ...................................................... 12

RJ-45 Connector ...................................................... (Top) 27

Hardware Monitoring System Voltage Monitoring (integrated in ASUS ASIC) ....... 14

3 Fan Power and Speed Monitoring Connectors

Power ATX Power Supply Connector ................................................. 1

Onboard LED ........................................................................... 7

Form Factor micro A TX

12

ASUS TUEG-VM User’s Manual

2. FEATURES

2.2.1 Component Locations

28
27

26

25

24
23

22
21

20

1

2345

86

7

2. FEATURES

Component Location

19
18

17
16

15

14 91213 11

10

ASUS TUEG-VM User’s Manual

13

3. HARDWARE SETUP

3.1 TUEG-VM Motherboard Layout

PS/2KBMS

T: Mouse
B: Keyboard

USB

T: USB1
B: USB2

COM1

Motherboard Layout

3. H/W SETUP

VGA

GAME_AUDIO

AAPANEL

Audio

Codec

Top:

RJ-45

USBPWR1

KBPWR

PARALLEL PORT

Line
Out

Line

In

AUX

Mic

In

HEADPHONE

MIC2

AUD_EN

LAN_EN

3Com

3C920

Fast

Ethernet

ATX Power Connector

COM2

SMARTCARD

MODEM

CD

CNR_SLOT

PWR_FAN

Super

I/O

WOL_CON

Socket 370

Intel 815G

Graphics &

Memory

Controller

Hub (GMCH)

LCDTV

PCI1

TUEG-VM

PCI2

PCI3

CHA_FAN

CPU_FAN

®

SECONDARY IDE

FLOPPY

DIMM1 (64/72 bit, 168-pin module)

DIMM2 (64/72 bit, 168-pin module)

DIMM3 (64/72 bit, 168-pin module)

1

0

3

2

5

Controller

JTPWR

ASUS ASIC

with

Hardware

Monitor

4

Intel I/O

Hub

(ICH2)

WOR

1

CR2032 3V
Lithium Cell

CMOS Power

R210

CNRUSB1
CNRUSB2
JEN

USBPWR2

PANEL

ACHA

PRIMARY IDE

2Mbit

Firmware

(FWH)

USB2

DSW

11

Hub

IDELED

DIP

Switches

LED

AFPANEL

SMB

14

NOTE: The AC’97 audio codec, external GAME/AUDIO connectors, and

internal audio connectors are optional components, and present in audio
models only . The components are grayed in the above motherboard layout.

ASUS TUEG-VM User’s Manual

3. HARDWARE SETUP

3.2 Layout Contents

Motherboard Settings

1) JEN p. 18 JumperFree™ Mode (Enable/Disable)

2) USBPWR1 p. 19 USB Device Wake Up (Enable/Disable)
USBPWR2

3) USBCNR1/USBCNR2 p. 19 USB/CNR Selection (USB2 Connect/CNR)

4) AUD_EN1 p. 20 Onboard Audio CODEC Setting (Enable/Disable)

5) LAN_EN p. 20 Onboard LAN Setting (Enable/Disable)

6) KBPWR p. 21 Keyboard Power Up (Enable/Disable)

7) DSW p. 22 CPU External Frequency Setting

Expansion Slots

1) DIMM 1/2/3 p. 24 168-Pin System Memory Support

2) CPU p. 26 Central Processing Unit (CPU)6

3) PCI1/2/3 p. 27 32-bit PCI Bus Expansion Slots

4) CNR1 p. 28 Communication and Network Riser Slot

External Connectors

1) PS2KBMS p. 30 PS/2 Mouse Connector (6-pin female)

2) PS2KBMS p. 30 PS/2 Keyboard Connector (6-pin female)

3) USB p. 31 Universal Serial Bus Ports (Two 4-pin female)

4) PRINTER p. 31 Parallel Port Connector (25-pin female)

5) COM1/COM2 p. 32 Serial Port Connectors (9-pin male, 10-1 pin)

6) VGA p. 32 Monitor Output Connector (15-pin female)

7) GAME_AUDIO p. 33 Game/MIDI Connector (15-pin female) (optional)

8) LINE-IN, -OUT, MIC p. 33 Audio Port Connectors (Three 1/8” female) (optional)

9) RJ-45 p. 33 Fast Ethernet Port Connector (optional)

Internal Connectors

1) FLOPPY p. 34 Floppy Disk Drive Connector (34-1pins)

2) PRIMARY/SECONDARY IDE p. 35 Primary/Secondary IDE Connectors (Two 40-1pins)

3) IDELED p. 35 IDE Activity LED (2 pins)

4) CPU_FAN, PWR_FAN p. 35 CPU, Power Supply , Chassis Fan Connectors (Three 3-pin)
CHA_FAN

5) CD1, AUX, MODEM p. 36 InternalAudio Connectors (optional)

6) HEADPHONE p. 36 Headphone True-Level Line Out Header (3 pins)

3. H/W SETUP

Layout Contents

7) MIC2 p. 37 Internal Microphone Connector (3 pins)

8) AFPANEL p. 37 ASUS iPanel Connector (24-1 pins)

9) AAPANEL p. 37 ASUS iPanel Audio Connector (10-1 pins)

10) SMB p. 38 SMBus Connector (6-1 pins)

11) ACHA p. 38 Chassis Intrusion Connector (2 pins)

12) WOL_CON p. 39 Wake-On-LAN Connector (3 pins)

ASUS TUEG-VM User’s Manual

15

13) WOR p. 39 Wake-On-Ring Connector (2 pins)

14) LCDTV p. 40 LCD-TV Headers (18-1 pins/18 pins )

15) USB2 p. 40 USB Headers (5-1 pins)

16) ATXPWR p. 41 ATX Power Supply Connector (20 pins)

17) PWRLED (PANEL) p. 42 System Power LED Lead (3-1 pins)

18) KEYLOCK (PANEL) p. 42 Keyboard Lock Switch Lead (2 pins)

19) SPEAKER (PANEL) p. 42 System Warning Speaker Connector (4 pins)

20) MSG.LED (PANEL) p. 42 System Message LED (2 pins)

21) SMI (PANEL) p. 42 System Management Interrupt Switch Lead (2 pins)

22) PWRSW (PANEL) p. 42 ATX Power / Soft-Off Switch Lead (2 pins)

23) RESET (PANEL) p. 42 Reset Switch Lead (2 pins)

Layout Contents

3. H/W SETUP

3. HARDWARE SETUP

16

ASUS TUEG-VM User’s Manual

3. HARDWARE SETUP

3.3 Hardware Setup Procedure

Before using your computer, you must complete the following steps:

• Check Motherboard Settings

• Install Memory Modules

• Install the Central Processing Unit (CPU)

• Install Expansion Cards

• Connect Ribbon Cables, Panel Wires, and Power Supply

3.4 Motherboard Settings

WARNING! Computer motherboards and expansion cards contain very delicate

Integrated Circuit (IC) chips. T o protect them against damage from static electricity ,
you should follow some precautions whenever you work on your computer.

1. Unplug your computer when working on the internal components.

2. Use a grounded wrist strap or touch a safely grounded object or to a metal
object, such as the power supply case, before handling computer components.

3. Hold components by the edges and try not to touch the IC chips on them.

4. Whenever you install any component, place the components on a grounded
antistatic pad or in the bag that came with the components.

5. Before you install or remove any component, ensure that the ATX power

supply is switched off or the power cord is detached from the power
supply. Failure to do so may cause severe damage to the motherboard,

peripherals, and/or components.

LED

TUEG-VM

®

ON

Standby

Power

OFF

Powered

Off

3. H/W SETUP

Motherboard Settings

TUEG-VM Onboard LED

ASUS TUEG-VM User’s Manual

17

3. HARDWARE SETUP

Motherboard Feature Settings

The motherboard’s onboard functions are either adjusted through jumpers or DIP
switches. When using DIP switches, the white block represents the switch’s position.
The example below shows all the switches in the OFF position.

DSW

12345

ON

Motherboard Settings

TUEG-VM DIP Switches

3. H/W SETUP

1) JumperFree™ Mode (JEN)

This jumper allows you to enable or disable the JumperFree™ mode. The
JumperFree™ mode allows processor settings to be made through the BIOS
setup (see 4.4 Advanced Menu).

NOTE: In JumperFree™ mode, all dip switches must be set to OFF.
Setting JEN

Disable (Jumper) [1-2]
Enable (JumperFree) [2-3] (default)

TUEG-VM

®

1. Frequency Selection

2. Frequency Selection

3. Frequency Selection

4. Frequency Selection

5. Frequency Selection.

ON OFF

DSW

18

®

TUEG-VM

TUEG-VM JumperFree™ Mode Setting

ASUS TUEG-VM User’s Manual

12

Disable

ON

OFF

JEN

12345

2

3

Enable

(default)

3. HARDWARE SETUP

2) USB Device Wake Up (USBPWR1,USBPWR2)

These allow you to disable or enable the USB device wake up function. Set these
jumpers to Enable if you wish to use your USB devices to wake up your computer .
This feature requires an A TX power supply that can supply at least 2A on the +5VSB
lead. The default is set to Disable because not all computers have the appropriate
ATX power supply. Your computer will not power ON if you set this to Enable and
do not have the appropriate ATX power supply . NOTE: This jumper must be set in
conjunction with W ake On USB for STR State in 4.5.1 Power Up Control.

NOTES

1. For suspend to RAM function, these jumpers must be set to Enable.

2. The total current consumed must NOT exceed the power supply capability
(+5VSB) whether under normal working conditions or in the sleep mode.

USBPWR1

2

1

2

3

®

TUEG-VM

TUEG-VM USB Device Wake Up

Disable

(Default)

USBPWR2

2

1

Disable

(Default)

Enable

2

Enable

3

3) CNR/USB Selection (CNRUSB1/CNRUSB2)

The CNR slot can support an optional USB hub CNR card. If a USB hub CNR
card is used, set these jumpers to CNR. Otherwise, leave them on the default
setting of USB2 Connect.

CNRUSB1

TUEG-VM

CNRUSB2

®

12

2

3

3. H/W SETUP

Motherboard Settings

TUEG-VM USB/CNR Selection

ASUS TUEG-VM User’s Manual

(default)

CNRUSB2 Connect

19

4) Onboard Audio CODEC Setting (AUD_EN1)

(available on audio model only)
The onboard audio CODEC may be enabled or disabled using all of these jumpers.
Disable the onboard audio CODEC if you are using a PCI audio card on any of
the expansion slots or a primary audio/modem CNR on a CNR slot (see CNR
Slot later in this section). If using a PCI audio expansion card, Onboard AC97

Audio Controller in 4.4.2 I/O Device Configuration must also be disabled.
Setting AUD_EN1

Enable [1-2] (default)
Disable [2-3]

Motherboard Settings

3. H/W SETUP

3. HARDWARE SETUP

AUD_EN1

2

1

2

3

®

TUEG-VM

TUEG-VM Audio Codec Setting

Enable

(Default)

Disable

5) Onboard LAN Setting (LAN_EN)

The onboard LAN may be enabled/disabled with this jumper.

Setting LAN_EN

Enable [1-2] (default)
Disable [2-3]

LAN_EN

20

®

TUEG-VM

TUEG-VM On Board Lan Setting

ASUS TUEG-VM User’s Manual

12

Enable

(default)

2

Disable

3

3. HARDWARE SETUP

6) Keyboard Power Up (KBPWR)

This allows you to disable or enable the keyboard power up function. Set this
jumper to Enable if you wish to use your keyboard (by pressing <Spacebar>) to
power up your computer. This feature requires an ATX power supply that can
supply at least 300mA on the +5VSB lead. The default is set to Enable because
not all computers have the appropriate A TX power supply. Your computer will not
power ON if you set this to Enable b ut do not have the appropriate ATX power
supply. NOTE: This jumper must be set in conjunction with Wake On PS2 KB/

PS2 Mouse/CIR in 4.5.1 Power Up Control.
Setting KBPWR

Enable [1-2] (default)
Disable [2-3]

KBPWR

2

Disable

3

®

TUEG-VM

TUEG-VM Keyboard Power Setting

12

Enable

(default)

WARNING! Using a higher voltage may help when overclocking but may result

in the shortening of your computer component’s life. It is highly recommended
that you leave this setting on its default.

3. H/W SETUP

Motherboard Settings

ASUS TUEG-VM User’s Manual

21

7) CPU External Frequency Setting (DSW)

This option tells the clock generator what frequency to send to the CPU, DRAM,
AGP , and the PCI bus. This allows the selection of the CPU’s External frequency.

IMPORTANT:

1. In JumperFree mode, all dip switches must be set to OFF.

2. When JumperFree mode is enabled, use BIOS setup in place of these switches

(see CPU Internal Frequency in 4.4 Advanced Menu).

NOTE: Only selected switches are illustrated. For a complete frequency listing,
see next page.

Motherboard Settings

3. H/W SETUP

3. HARDWARE SETUP

DSW

ON

12345

ON

12345

ON

CPU
SDRAM
AGP
PCI

®

TUEG-VM

66MHz

100MHz

66MHz
33MHz

100MHz
100MHz

66MHz
33MHz

133MHz
133MHz

66MHz
33MHz

12345

ON

133MHz
100MHz

66MHz
33MHz

12345

12345

ON

TUEG-VM CPU External

(JumperFree Mode)

Clock (BUS) Frequency Selection

NOTE: If your processor does not have a locked Frequency Multiple, you must
use CPU Cor e:Bus Freq. Multiple in 4.4 Advanced Menu to set the Frequency
Multiple. If the Frequency Multiple is locked, setting the Frequency Multiple in
BIOS setup will have no effect.

22

ASUS TUEG-VM User’s Manual

3. HARDWARE SETUP

External Frequency Table

The following table is for use by experienced motherboard installers only . Overclocking
can result in system instability or even shortening the life of the processor .

CPU:DRAM CPU SDRAM Frequency Selection Switches

Ratio (MHz) (MHz) 1 2 3 4 5

66:100 64.4 99.6 [ON] [O N] [ON ] [O N] [ON]
66:100 60.0 90.0 [ON] [O N] [ON ] [O N] [OFF]

66:100 66.0 100.0 [ON] [ON] [O N] [OFF] [ON]

66:100 68.3 102.5 [ON ] [ON] [ON] [OFF] [OFF]
66:100 70.0 105.0 [ON ] [ON] [OFF] [O N] [ON]
66:100 75.0 112.5 [ON] [O N] [OFF] [ON] [OFF]
66:100 80.0 120.0 [ON ] [ON] [OFF] [OFF] [ON]

66:100 83.0 124.5 [ON ] [ON] [OFF] [OFF] [OFF]
100:100 99.6 99.6 [ON ] [OFF] [ON ] [ON] [ON]
100:100 90.0 90.0 [ON ] [OFF] [ON ] [ON] [O FF]

100:100 100.0 100.0 [ON] [OFF] [ON] [OFF] [ON]

100:100 103.0 103.0 [ON] [OFF] [ON ] [OFF] [OFF]
100:100 105.0 105.0 [ON] [OFF] [OFF] [ON ] [ON]
100:100 110.0 110.0 [ON ] [OFF] [OFF] [ON ] [OFF]
100:100 115.0 115.0 [ON ] [OFF] [OFF] [OFF] [ON]
100:100 200.0 200.0 [ON] [OFF] [OFF] [OFF] [OFF]
133:133 132.8 132.8 [OFF] [ON] [O N] [O N] [O N]
133:133 166.6 166.6 [OFF] [ON] [O N] [O N ] [O FF]

133:133 133.0 133.0 [OFF] [ON] [O N] [OFF] [ON]

133:133 137.0 137.0 [OFF] [ON] [O N] [O FF] [O FF]
133:133 140.0 140.0 [OFF] [ON] [OFF] [O N ] [O N ]
133:133 145.0 145.0 [OFF] [ON] [OFF] [O N ] [O FF]
133:133 150.0 150.0 [OFF] [ON] [OFF] [O FF] [O N ]
133:133 160.0 160.0 [OFF] [ON] [OFF] [O FF] [O FF]
133:100 132.8 99.6 [OFF] [OFF] [O N ] [O N ] [O N]
133:100 166.6 125.0 [OFF] [OFF] [O N] [O N ] [O FF]

133:100 133.0 100.0 [OFF] [OFF] [O N ] [OFF] [O N ]

133:100 137.0 102.8 [OFF] [OFF] [O N] [O FF] [OFF]
133:100 140.0 105.0 [OFF] [OFF] [O FF] [O N ] [O N]
133:100 145.0 108.8 [OFF] [OFF] [O FF] [O N ] [O FF]
133:100 150.0 112.5 [OFF] [OFF] [O FF] [O FF] [O N ]
133:100 160.0 120.0 [OFF] [OFF] [O FF] [O FF] [O FF]

3. H/W SETUP

Motherboard Settings

For updated processor settings, visit ASUS’s web site (see ASUS CONTACT
INFORMATION)

ASUS TUEG-VM User’s Manual

23

3. HARDWARE SETUP

3.5 System Memory (DIMM)

NOTE: No hardware or BIOS setup is required after adding or removing memory.
This motherboard uses only Dual Inline Memory Modules (DIMMs). S ockets are

available for 3.3Volt (power level) unbuffered Synchronous Dynamic Random Access
Memory (SDRAM). One side (with memory chips) of the DIMM takes up one row on
the motherboard.

Memory speed setup is recommended through SDRAM Configuration in 4.4.1

Chip Configuration.

Install memory in any combination as follows:

DIMM Location 168-pin DIMM Total Memory

System Memory

3. H/W SETUP

Socket 1 (Rows 0&1) SDRAM 8, 16, 32, 64, 128, 256, 512MB x1
Socket 2 (Rows 2&3) SDRAM 8, 16, 32, 64, 128, 256, 512MB x1
Socket 3 (Rows 4&5) SDRAM 8, 16, 32, 64, 128, 256, 512MB x1

CAUTION! If the total installed memory exceeds 512MB, the system will hang
during startup.

3.5.1 General DIMM Notes

• For the system CPU bus to operate at 133MHz, use only PC133-compliant

• ASUS motherboards support SPD (Serial Presence Detect) DIMMs. This is the

Total System Memory (Max 512MB) =

DIMMs. When this motherboard operates at 133MHz, most system will not

even boot if non-compliant modules are used because of the strict timing issues
involved under this speed. If your DIMMs are not PC133-compliant, set the
CPU bus frequency to 100MHz RAM to ensure system stability.

memory of choice for best performance vs. stability.

• BIOS shows SDRAM memory on bootup screen.

• Single-sided DIMMs come in 16, 32, 64,128, 256MB; double-sided come in 32,

64, 128, 256, 512MB.

24

ASUS TUEG-VM User’s Manual

3. HARDWARE SETUP

3.5.2 Memory Installation

WARNING! Make sure that you unplug the power supply when adding or

removing memory modules or other system components. Failure to do so may
cause severe damage to both your motherboard and expansion cards (see 3.3
Hardware Setup Procedure for more information).

Insert the module(s) as shown. Because the number of pins are different on either
side of the breaks, the module will only fit in the orientation shown. DRAM SIMM
modules have the same pin contacts on both sides. SDRAM DIMMs have different
pin contacts on each side and therefore have a higher pin density.

Lock

88 Pins

®

TUEG-VM

TUEG-VM 168-Pin DIMM Sockets

60 Pins

20 Pins

The DIMMs must be 3.3Volt unbuffered SDRAMs. To determine the DIMM type,
check the notches on the DIMMs (see figure below).

3. H/W SETUP

System Memory

The notches on the DIMM will shift between left, center, or right to identify the type
and also to prevent the wrong type from being inserted into the DIMM slot on the
motherboard. You must tell your retailer the correct DIMM type before purchasing.
This motherboard supports four clock signals per DIMM.

ASUS TUEG-VM User’s Manual

25

3. H/W SETUP

CPU

3. HARDWARE SETUP

3.6 Central Processing Unit (CPU)

The motherboard provides a ZIF Socket 370. The CPU that came with the
motherboard should have a fan attached to it to prevent overheating. If this is not the
case, then purchase a fan before you turn on your system.

WARNING! Be sure that there is sufficient air circulation across the processor’s

heatsink by regularly checking that your CPU fan is working. W ithout sufficient
circulation, the processor could overheat and damage both the processor and the
motherboard. You may install an auxiliary fan, if necessary.

To install a CPU, first turn off your system and remove its cover. Locate the ZIF
socket and open it by first pulling the lever sideways away from the socket then
upwards to a 90-degree angle. Insert the CPU with the correct orientation as shown.
The notched corner should point towards the end of the lever . Because the CPU has
a corner pin for two of the four corners, the CPU will only fit in the orientation as
shown. The picture is for reference only; you should have a CPU fan that covers the
face of the CPU. With the added weight of the CPU fan, no force is required to
insert the CPU. Once completely inserted, close the socket’s lever while holding
down the CPU. After the CPU is , install an Intel recommended fan heatsink. Locate
the CPU fan connector (see 3.1 Motherboard Layout or 3.8 Connectors) and connect
the CPU fan cable to it.

NOTE: Do not forget to set the correct Bus Frequency and Multiple (frequency
multiple setting is available only on unlocked processors) for your Socket 370
processor or else boot-up may not be possible. Socket 370 processors provide internal
thermal sensing so that a socket mounted thermal resistor is not needed.

CAUTION! Be careful not to scrape the motherboard when mounting a clamp-

style processor fan or else damage may occur to the motherboard.

Pentium III
Celeron

(Coppermine)

FC-PGA

Gold Arrow

®

TUEG-VM

TUEG-VM Socket 370

Pentium III

(Tualatin)

FC-PGA2

Gold Arrow

26

ASUS TUEG-VM User’s Manual

3. HARDWARE SETUP

3.7 Expansion Cards

WARNING! Make sure that you unplug your power supply when adding or

removing expansion cards or other system components. Failure to do so may
cause severe damage to both your motherboard and expansion cards.

3.7.1 Expansion Card Installation Procedure

1. Read the documentation for your expansion card and make any necessary
hardware or software settings for your expansion card, such as jumpers or
switches.

2. Remove your computer system’s cover and the bracket plate with screw on the
slot you intend to use. Keep the bracket for possible future use.

3. Carefully align the card’s connectors and press firmly.

4. Secure the card on the slot with the screw you removed above.

5. Replace the computer system’s cover.

6. Set up the BIOS if necessary
(such as IRQ xx Used By ISA: Yes in PNP AND PCI SETUP)

7. Install the necessary software drivers for your expansion card.

3. H/W SETUP

Expansion Cards

ASUS TUEG-VM User’s Manual

27

3.7.2 Assigning IRQs for Expansion Cards

Some expansion cards need an IRQ to operate. Generally , an IRQ must be exclusively
assigned to one use. In a standard design, there are 16 IRQs available but most of
them are already in use, leaving 6 IRQs free for expansion cards. If your motherboard
has PCI audio onboard, an additional IRQ will be used. If your motherboard also

has MIDI enabled, another IRQ will be used, leaving 4 IRQs free.

Standard Interrupt Assignments

IRQ Priority Standard Function

0 1 System Timer
1 2 Keyboard Controller
2 N/A Programmable Interrupt
3* 11 Communications Port (COM2)
4* 12 Communications Port (COM1)
5* 13 Sound Card (sometimes LPT2)

Expansion Cards

3. H/W SETUP

6 14 Floppy Disk Controller
7* 15 Printer Port (LPT1)
8 3 System CMOS/Real Time Clock
9* 4 ACPI Mode when enabled
10* 5 IRQ Holder for PCI Steering
11* 6 IRQ Holder for PCI Steering
12* 7 PS/2 Compatible Mouse Port
13 8 Numeric Data Processor
14* 9 Primary IDE Channel
15* 10 Secondary IDE Channel

*These IRQs are usually available for ISA or PCI devices.

3. HARDWARE SETUP

Interrupt Request Table for this Motherboard

Interrupt requests are shared as shown by the following table:

ABCDEFGH

PCI slot 1 —————not shared ——
PCI slot 2 ——————not shared —
PCI slot 3 ———————shared
Onboard VGA shared ———————
Onboard USB controller HC0 ———not shared ————
Onboard USB controller HC1 ———————shared
AGP Pro shared ———————
CNR LAN ————not shared ———
CNR Audio/Modem — not shared ——————

Onboard LAN ——not shared —————

IMPORTANT: If using PCI cards on shared slots, make sure that the drivers support

“Share IRQ” or that the cards do not need IRQ assignments. Conflicts will arise
between the two PCI groups that will make the system unstable or cards inoperable.

28

ASUS TUEG-VM User’s Manual

3. HARDWARE SETUP

3.7.3 Communication and Networking Riser (CNR) Slot

This connector supports a specially designed network, audio, or modem riser card.
Main processing is done through software and controlled by the motherboard’s system
chipset. This provides upgradeable network, audio, and/or modem solutions at an
incredibly low cost.

NOTE: CNRs are not included with this motherboard.

®

TUEG-VM

TUEG-VM Communication
& Networking Riser Connectors

CNR Restrictions:

1. If an audio CNR card is used, it must be primary.

2. If the onboard audio CODEC is enabled, the modem CNR card must be
secondary.

3. H/W SETUP

Expansion Cards

ASUS TUEG-VM User’s Manual

29

3.8 Connectors

3.8.1 External Connectors

3. H/W SETUP

Connectors

1) PS/2 Mouse Connector (Green 6-pin PS2KBMS)

3. HARDWARE SETUP

WARNING! Some pins are used for connectors or power sources. These are

clearly distinguished from jumpers in the Motherboard Layout. Placing jumper
caps over these connector pins will cause damage to your motherboard.

IMPORTANT: Ribbon cables should always be connected with the red stripe to

Pin 1 on the connectors. Pin 1 is usually on the side closest to the power connector
on hard drives and CD-ROM drives, but may be on the opposite side on floppy
disk drives. Check the connectors before installation because there may be
exceptions. IDE ribbon cable must be less than 46 cm (18 in.), with the second
drive connector no more than 15 cm (6 in.) from the first connector.

The system will direct IRQ12 to the PS/2 mouse if one is detected. If one is not
detected, expansion cards can use IRQ12. See PS/2 Mouse Function Control
in 4.4 Advanced Menu.

PS/2 Mouse (6-pin female)

2) PS/2 Keyboard Connector (Purple 6-pin PS2KBMS)
This connection is for a standard keyboard using an PS/2 plug (mini DIN). This
connector will not allow standard AT size (large DIN) keyboard plugs. You
may use a DIN to mini DIN adapter on standard AT keyboards.

PS/2 Keyboard (6-pin female)

30 ASUS TUEG-VM User’s Manual

3. HARDWARE SETUP

3) Universal Serial BUS Ports 0 & 1 (Black two 4-pin USB)

Two USB ports are available for connecting USB devices. For additional USB
ports, you can use the USB headers (see USB Headers later in this section) and
mount it to the chassis.

Universal Serial Bus (USB)

4) Parallel Port Connector (Burgundy 25-pin PRINTER)
You can enable the parallel port and choose the IRQ through Onboard Parallel
Port (see 4.4.2 I/O Device Configuration).
NOTE: Serial printers must be connected to the serial port.

Parallel (Printer) Port (25-pin female)

Connectors

3. H/W SETUP

ASUS TUEG-VM User’s Manual 31

3. H/W SETUP

Connectors

3. HARDWARE SETUP

5) Serial Port Connectors (Teal/Turquoise 9-pin COM1, 10-1 pin COM2)

One serial port is ready for a mouse or other serial devices. A second serial port
is available using a serial port bracket connected from the motherboard to an
expansion slot opening. See Onboard Serial Port 1/2 in 4.4.2 I/O Device
Configuration for settings.

COM 1

Serial Port (9-pin male)

PIN 1

®

TUEG-VM

TUEG-VM Serial COM2 Bracket

6) Monitor Output Connector (Blue 15-pin VGA)

This connector is for output to a VGA-compatible device.

VGA Monitor (15-pin female)

32 ASUS TUEG-VM User’s Manual

3. HARDWARE SETUP

7) Game/MIDI Connector (Gold 15-pin GAME_AUDIO) (optional)

You may connect game joysticks or game pads to this connector for playing
games. Connect MIDI devices for playing or editing professional audio.

Game/MIDI (15-pin female)

8) Audio Port Connectors (Three 1/8” GAME_AUDIO) (optional)
Line Out (lime) can be connected to headphones or preferably powered speakers.
Line In (light blue) allows tape players or other audio sources to be recorded by

your computer or played through the Line Out (lime). Mic (pink) allows
microphones to be connected for inputting voice.

MicLine InLine Out

1/8" Stereo Audio Connectors

9) Fast-Ethernet Port Connector (RJ-45) (optional)

The RJ-45 connector is optional at the time of purchase and is located on top of
the USB connectors. The connector allows the motherboard to connect to a Local
Area Network (LAN) through a network hub.

RJ45

Connectors

3. H/W SETUP

DMA Channels

3. H/W SETUP

ASUS TUEG-VM User’s Manual 33

1) Floppy Disk Drive Connector (34-1pin FLOPPY)

3. H/W SETUP

Connectors

3. HARDWARE SETUP

3.8.2 Internal Connectors

This connector supports the provided floppy drive ribbon cable. After connecting
the single end to the board, connect the two plugs on the other end to the floppy
drives. (Pin 5 is removed to prevent inserting in the wr ong orientation when

using ribbon cables with pin 5 plugged).

FLOPPY

NOTE: Orient the red markings on
the floppy ribbon cable to PIN 1.

®

TUEG-VM

PIN 1

TUEG-VM Floppy Disk Drive Connector

2) Primary (Blue) / Secondary IDE Connectors (Two 40-1pin IDE)

These connectors support the provided IDE hard disk ribbon cable. Connect the
cable’s blue connector to the motherboard’s primary (recommended) or secondary
IDE connector, and then connect the gray connector to your UltraDMA/100
slave device (hard disk drive) and the black connector to your UltraDMA/100
master device. It is recommended that non-UltraDMA/100 devices be connected
to the secondary IDE connector . If you install two hard disks, you must configure
the second drive to Slave mode by setting its jumper accordingly . Please refer to
your hard disk documentation for the jumper settings. BIOS now supports specific
device bootup (see 4.4.1 Advanced CMOS Setup). (Pin 20 is removed to prevent

inserting in the wrong orientation when using ribbon cables with pin 20
plugged).

TIP: You may configure two hard disks to be both Masters with two ribbon

cables – one for the primary IDE connector and another for the secondary IDE
connector . You may install one operating system on an IDE drive and another on
a SCSI drive and select the boot disk through 4.4.1 Advanced CMOS Setup.

IMPORTANT: UltraDMA/100 IDE devices must use a 40-pin 80-conductor IDE

cable for 100MByte/sec transfer rates.

34 ASUS TUEG-VM User’s Manual

3. HARDWARE SETUP

NOTE: Orient the red markings
(usually zigzag) on the IDE
ribbon cable to PIN 1.

®

TUEG-VM

Secondary IDE Connector

TUEG-VM IDE Connectors

Primary IDE Connector

PIN 1

3) IDE Activity LED (2-pin IDELED)

This connector supplies power to the cabinet’s IDE activity LED. Read and
write activity by devices connected to the Primary or Secondary IDE connectors
will cause the LED to light up.

TIP: If the case-mounted LED does not
light, try reversing the 2-pin plug.

®

TUEG-VM

TUEG-VM IDE Activity LED

IDELED

Connectors

3. H/W SETUP

4) Power Supply (PWR_FAN), CPU (CPU_FAN), Chassis (CHA_FAN) Fan
Connectors (3 pins)

These connectors support cooling fans of 350mA (4.2 Watts) or less. Orientate
the fans so that the heat sink fins allow airflow to go across the onboard heat
sink(s) instead of the expansion slots. Depending on the fan manufacturer, the
wiring and plug may be different. The red wire should be positive, while the
black should be ground. Connect the fan’s plug to the board taking into
consideration the polarity of the connector.

NOTE: The “Rotation” signal is to be used only by a specially designed fan with
rotation signal. The Rotations per Minute (RPM) can be read directly from the
ASUS iPanel or monitored using a utility such as ASUS PC Probe or Intel LDCM.

ASUS TUEG-VM User’s Manual 35

5) Internal Audio Connectors (4-pin CD1, AUX and MODEM)

3. H/W SETUP

Connectors

3. HARDWARE SETUP

WARNING! Airflow across the CPU and onboard heatsinks is imperative, and

the corresponding pins should be used accordingly. These are not jumpers, do

not place jumper caps over these pins.

CPU_FAN

GND

+12V

Rotation

PWR_FAN

GND

+12V

®

TUEG-VM

TUEG-VM 12-Volt Cooling Fan Power

These connectors allow you to receive stereo audio input from such sound sources
as a CD-ROM, TV tuner, or MPEG card. The MODEM connector allows the
onboard audio to interface with a voice modem card with a similar connector.

Rotation

CHA_FAN

GND

+12V

Rotation

TUEG-VM

Right Audio Channel

Ground

Left Audio Channel

Modem-Out

Ground
Ground

®

Modem-In

CD1 (Black)

AUX (White)

MODEM

Left Audio Channel
Ground
Right Audio Channel

TUEG-VM Internal Audio Connectors

6) Headphone True-Level Line Out Header (3-pin HEADPHONE)

This connector allows you to connect chassis mounted headphone to the
motherboard instead of having to attach an external headphone onto the ATX
connectors.

HEADPHONE

Headphone Right

®

TUEG-VM

GND
Headphone Left

1

TUEG-VM True-Level Line Out Header

36 ASUS TUEG-VM User’s Manual

3. HARDWARE SETUP

7) Internal Microphone Connector (3-pin MIC2)

This connector allows you to connect chassis mounted microphone to the
motherboard.

MIC2

Ground

3

MIC Input

®

TUEG-VM

MIC Power

1

TUEG-VM Internal Microphone Connector

8) ASUS iPanel Connector (24-1 pin AFPANEL)

This connector allows you to connect an optional ASUS iPanel, an easy to access
drive bay with front I/O ports, status LEDs, and space reserved for a hard disk
drive.

AFPANEL

NC
BATT
PCIRST#
MLED­+5VSMBCLK
EXTSMI#
CHASSIS#
+5VSB
CIRRX
NC
GND
NC

TUEG-VM

NC
NC
NC

LOCKKEY

+3VSB

SMBDATA

®

IRTX

GND

IRRX

+5 V

Connectors

3. H/W SETUP

TUEG-VM Front Panel Connectors

9) ASUS iPanel Audio Connector (10-1 pin AAPANEL)

Connect the audio cable from the optional ASUS iPanel to this for front panel
audio control.

AAPANEL

Line in_R

Line in_L

AGND

AGND2AGND3

MIC2

®

TUEG-VM

MICPWR

Line out_L

Line out_R

TUEG-VM Audio Panel Connectors

ASUS TUEG-VM User’s Manual 37

10) SMB Connector (6-1 pin SMB)

3. H/W SETUP

Connectors

3. HARDWARE SETUP

This connector allows you to connect SMBus (System Management Bus) devices.
SMBus devices communicate by means of the SMBus with an SMBus host and/
or other SMBus devices. SMBus is a specific implementation of an I2C bus,
which is a multi-device bus; that is, multiple chips can be connected to the same
bus and each one can act as a master by initiating data transfer.

SMB

+3V
SMBDATA

®

TUEG-VM

TUEG-VM SMBus Connector

Ground
SMBCLK

Key

1

11) Chassis Intrusion Lead (2-pin ACHA)

This lead is for a chassis designed for chassis intrusion detection. After-market
toggle switches may also be installed to the chassis panel or on any removable
components. Two wires should be available from the chassis to connect to this
lead. When any chassis component is removed, the contact should open and the
motherboard will record a chassis intrusion event. The event can then be processed
by software such as LDCM. If the chassis intrusion lead is not used, a jumper

cap must be placed over the pins to close the circuit.

®

TUEG-VM

TUEG-VM Chassis Open Alarm Lead

ACHA

38 ASUS TUEG-VM User’s Manual

3. HARDWARE SETUP

12) Wake-On-LAN Connector (3-pin WOL_CON)

This connector connects to a LAN card with a Wake-On-LAN output. The
connector powers up the system when a wake up packet or signal is received
through the LAN card.

IMPORTANT: This feature requires that Wake On LAN or PCI Modem is

enabled (see 4.5.1 Power Up Control) and that the system has an ATX power
supply with at least 720mA +5V standby power.

IMPORTANT: Requires an ATX power
supply with at least 720mA +5 volt
standby power

WOL_CON

®

TUEG-VM

+5 Volt Standby

PME

Ground

TUEG-VM Wake-On-LAN Connector

13) Wake-On-Ring Connector (2-pin WOR)

This connector connects to internal modem cards with a Wake-On-Ring output.
The connector powers up the system when a ringup packet or signal is received
through the internal modem card. NOTE: For external modems, W ake-On-Ring
is detected through the COM port.

IMPORTANT: This feature requires that Wake On LAN or PCI Modem is

enabled (see 4.5.1 Power Up Control) and that your system has an ATX power
supply with at least 720mA +5V standby power.

Connectors

3. H/W SETUP

®

TUEG-VM

TUEG-VM Wake-On-Ring Connector

ASUS TUEG-VM User’s Manual 39

WOR

Ground

Ring#

1

2

3. HARDWARE SETUP

14) LCD-TV Headers (18-pin, 18-1 pin LCDTV)

These headers require an optional LCD module for LCD output or a TV-out
module for TV output.

LTVCL

+3V

ROMSEN

TVVSYNC

GND

DD4

DD3

DD1

GND

DD2

GND

TVHSYNC

DD0

LCDTV

+1.8V

LTVDA

GND

BLANK

3. H/W SETUP

Connectors

15) USB Headers (10-1 pin USB2)

®

TUEG-VM

TUEG-VM LCD-TV Headers

+5V

GND

DD11

DD9

DD7

GND

DD5

CLKOUT1

1

+5V

PCIRST#

DD10

GND

DD8

DD6

CLKOUT0

GND

If the USB Ports on the back panels are inadequate, a USB header is available
for two additional USB ports. Connect the 10-1 pin ribbon cable from the provided
2-port USB connector set to the midboard 10-1 pin USB header and mount the
USB connector set to an open slot on your chassis.

NOTE: To use this header, make sure that the USBCNR1/USBCNR2 jumpers
(see 3.4 Motherboard Settings) are set to USB Connect.

USB2

10

TUEG-VM

1: USB Power
2: USBP2–
3: USBP2+

®

4: GND
5: NC

156

6: USB Power
7: USBP3–
8: USBP3+
9: GND

TUEG-VM USB Headers

40 ASUS TUEG-VM User’s Manual

3. HARDWARE SETUP

16) ATX Power Supply Connector (20-pin block ATXPWR)

This connector connects to an A TX power supply . The plug from the power supply
will only insert in one orientation because of the different hole sizes. Find the
proper orientation and push down firmly making sure that the pins are aligned.

IMPORTANT: Make sure that your ATX power supply (minimum recommended

wattage: 200 watts; 235W for a fully-configured system) can supply at least 20
amperes on the +5-volt lead and at least 10mA (750mA recommended) on the +5­volt standby lead (+5VSB). Your system may become unstable/unreliable and may
experience difficulty in powering up if your power supply is inadequate. For W ake­On-LAN support, your ATX power supply must supply at least 750mA +5VSB.

+3.3 Volts
+3.3 Volts
Ground
+5.0 Volts
Ground
+5.0 Volts
Ground
Power Good
+5V Standby
+12.0 Volts

TUEG-VM

+3.3 Volts

-12.0 Volts
Ground

Power Supply On

Ground
Ground
Ground

®

-5.0 Volts
+5.0 Volts
+5.0 Volts

TUEG-VM ATX Power Connector

17) Smart Card Reader Connector (14-1 pin SMART CARD) (optional)

This connector accommodates a Smart Card Reader that allows you to
conveniently make transactions such as financial, health care, telephony, or
traveling services through a Smart Card user interface software.

Connectors

3. H/W SETUP

®

TUEG-VM

TUEG-VM Smartcard

ASUS TUEG-VM User’s Manual 41

SMARTCARD

1

VCC

NC

SCRFET#

SCRCLK

NC

GND

NC2

NC
NC
SCRREST
NC
SCRUI
SCRRES#

3. HARDWARE SETUP

The following illustration is for items 18–24.

18) System Power LED Lead (3-1 pin PWRLED)

3. H/W SETUP

Connectors

19) Keyboard Lock Switch Lead (2-pin KEYLOCK)

20) System Warning Speaker Connector (4-pin SPEAKER)

PLED-

Keylock

MLED-

ExtSMI#

Ground

Ground

Speaker
Connector

Ground

Speaker

Ground

+5V

GND

PWR

Reset

Ground

Reset SW

ATX Power
Switch*

TUEG-VM

Keyboard Lock

Power LED

PLED+

®

Message LED

SMI Lead

*

Requires an ATX power supply.

MLED+

TUEG-VM System Panel Connectors

This 3-1 pin connector connects the system power LED, which lights when the
system is powered on and blinks when it is in sleep mode.

This 2-pin connector connects to the case-mounted key switch to allow keyboard
locking.

This 4-pin connector connects to the case-mounted speaker. Two sources
(LINE_OUT and SPEAKER) will allow you to hear system beeps and warnings.
Only SPEAKER will allow you to hear system beeps before the integrated audio
has been properly initialized.

21) System Message LED Lead (2-pin MSG.LED)

This indicates whether a message has been received from a fax/modem. The
LED will remain lit when there is no signal and blink when there is data received.
This function requires an ACPI OS and driver support.

22) System Management Interrupt Lead (2-pin SMI)

This allows the user to manually place the system into a suspend mode or “Green”
mode, where system activity is decreased to save electricity and expand the life
of certain components when the system is not in use. This 2-pin connector
connects to the case-mounted suspend switch.

23) ATX Power Switch Lead (2-pin PWRSW)

The system power is controlled by a momentary switch connected to this lead.
Pressing the button once will switch the system between ON and SOFT OFF.
Pushing the switch while in the ON mode for more than 4 seconds will turn the
system off. The system power LED shows the status of the system’s power.

24) Reset Switch Lead (2-pin RESET)

This 2-pin connector connects to the case-mounted reset switch for rebooting
your computer without having to turn off your power switch. This is a preferred
method of rebooting to prolong the life of the system’s power supply.

42 ASUS TUEG-VM User’s Manual

3. HARDWARE SETUP

3.9 Starting Up the First Time

1. After all connections are made, close the system case cover.

2. Be sure that all switches are off (in some systems, marked with
the power input voltage is set to comply with the standard used in your
country (220V-240V or 110-120V).

3. Connect the power supply cord into the power supply located on the
back of your system case according to your system user’s manual.

4. Connect the power cord into a power outlet that is equipped with a surge
protector.

5. You may then turn on your devices in the following order:
a. Your monitor
b. External SCSI devices (starting with the last device on the chain)
c. Your system power. For ATX power supplies, you need to switch on

the power supply as well as press the ATX power switch on the front
of the case.

6. The power LED on the front panel of the system case will light. For
ATX power supplies, the system LED will light when the ATX power
switch is pressed. The LED on the monitor may light up or switch between
orange and green after the system’ s if it complies with “green” standards
or if it has a power standby feature. The system will then run power-on
tests. While the tests are running, the BIOS will alarm beeps or additional
messages will appear on the screen. If you do not see anything within 30
seconds from the time you turn on the power, the system may have failed
a power-on test. Recheck your jumper settings and connections or call
your retailer for assistance.

), and

Powering Up

3. H/W SETUP

Award BIOS Beep Codes

Beep Meaning

One short beep when No error during POST
displaying logo
Long beeps in an endless loop No DRAM installed or detected
One long beep followed by Video card not found or video card
three short beeps memory bad

High frequency beeps when CPU overheated
system is working System running at a lower frequency

ASUS TUEG-VM User’s Manual

43

7. During power-on, hold down <Delete> to enter BIOS setup. Follow the

* Powering Off your computer: You must first exit or shut down your

3. H/W SETUP

Powering Up

3. HARDWARE SETUP

instructions in 4. BIOS SETUP.

operating system before switching off the power switch. For ATX power
supplies, you can press the ATX power switch after exiting or shutting
down your operating system. If you use Windows 9X, click the Start
button, click Shut Down, and then click Shut down the computer?
The power supply should turn off after Windows shuts down.

NOTE: The message “You can now safely turn off your computer” will
not appear when shutting down with ATX power supplies.

ASUS TUEG-VM User’s Manual44

4. BIOS SETUP

4.1 Managing and Updating Your BIOS

4.1.1 Upon First Use of the Computer System

It is recommended that you save a copy of the original motherboard BIOS
along with a Flash Memory Writer utility (AFLASH.EXE) to a bootable
floppy disk in case you need to reinstall the BIOS later . AFLASH.EXE is a
Flash Memory Writer utility that updates the BIOS by uploading a new
BIOS file to the programmable flash ROM on the motherboard. This file
works only in DOS mode. To determine the BIOS version of your
motherboard, check the last four numbers of the code displayed on the upper
left-hand corner of your screen during bootup. Larger numbers represent a
newer BIOS file.

1. Type FORMAT A:/S at the DOS prompt to create a bootable system
disk. DO NOT copy AUTOEXEC.BAT and CONFIG.SYS to the disk.

2. Type COPY D:\AFLASH\AFLASH.EXE A:\ (assuming D is your
CD-ROM drive) to copy AFLASH.EXE to the boot disk you created.
NOTE: AFLASH works only in DOS mode. It does not work in the DOS

prompt within Windows and does not work with certain memory drivers
that may be loaded when you boot from the hard drive. It is recommended
that you reboot using a floppy disk.

3. Reboot the computer from the floppy disk.

NOTE: BIOS setup must specify “Floppy” as the first item in the boot
sequence.

4. In DOS mode, type A:\AFLASH <Enter> to run AFLASH.

IMPORTANT! If the word “unknown” appears after Flash Memory:, the

memory chip is either not programmable or is not supported by the ACPI BIOS
and therefore, cannot be programmed by the Flash Memory Writer utility.

Updating BIOS

4. BIOS SETUP

ASUS TUEG-VM User’s Manual 45

4. BIOS SETUP

5. Select 1. Save Current BIOS to File from the Main menu and press
<Enter>. The Save Current BIOS To File screen appears.

6. Type a filename and the path, for example, A:\XXX-XX.XXX and then
press <Enter>.

4. BIOS SETUP

Updating BIOS

ASUS TUEG-VM User’s Manual46

4. BIOS SETUP

4.1.2 Updating BIOS Procedures

WARNING! Update the BIOS only if you have problems with the motherboard

and you know that the new BIOS revision will solve your problems. Careless
updating can result in your motherboard having more problems!

1. Download an updated ASUS BIOS file from the Internet (WWW or
FTP) (see ASUS CONTACT INFORMATION on page 3 for details)
and save to the boot floppy disk you created earlier.

2. Boot from the floppy disk.

3. At the “A:\” prompt, type AFLASH and then press <Enter>.

4. At the Main Menu, type 2 then press <Enter>. The Update BIOS
Including Boot Block and ESCD screen appears.

5. Type the filename of your new BIOS and the path, for example, A:\XXX-

XX.XXX, then press <Enter>.
NOTE: To cancel this operation, press <Enter>.

6. When prompted to confirm the BIOS update, press Y to start the update.

ASUS TUEG-VM User’s Manual 47

Updating BIOS

4. BIOS SETUP

4. BIOS SETUP

7. The utility starts to program the new BIOS information into the Flash
ROM. The boot block is updated automatically only when necessary.
This minimizes the possibilities of boot problems in case of update
failures. When the programming is done, Flashed Successfully appears.

8. Follow the onscreen instructions to continue.

Program Information

4. BIOS SETUP

4. BIOS SETUP

P

WARNING! If you encounter problems while updating the new BIOS, DO NOT

turn off the system because this may cause boot problems. Just repeat the process,
and if the problem still persists, load the original BIOS file you saved to the boot
disk. If the Flash Memory Writer utility is not able to successfully update a
complete BIOS file, the system may not boot. If this happens, call the ASUS
service center for support.

ASUS TUEG-VM User’s Manual48

4. BIOS SETUP

4.2 BIOS Setup Program

This motherboard supports a programmable EEPROM that can be updated using
the provided utility as described in 4.1 Managing and Updating Your BIOS.

The utility is used if you are installing a motherboard, reconfiguring your system,
or prompted to “Run Setup”. This section describes how to configure your system
using this utility.

Even if you are not prompted to use the Setup program, at some time in the future
you may want to change the configuration of your computer. For example, you
may want to enable the Security Password Feature or make changes to the power
management settings. It will then be necessary to reconfigure your system using
the BIOS Setup program so that the computer can recognize these changes and
record them in the CMOS RAM of the EEPROM.

The EEPROM on the motherboard stores the Setup utility. When you start up the
computer, the system provides you with the opportunity to run this program. This
appears during the Power-On Self Test (POST). Press <Delete> to call up the Setup
utility . If you are a little bit late in pressing the mentioned key, POST will continue
with its test routines, thus preventing you from calling up Setup. If you still need to
call Setup, restart the system by pressing <Ctrl> + <Alt> + <Delete>, or by pressing
the Reset button on the system chassis. You can also restart by turning the system
off and then back on again. But do so only if the first two methods fail.

The Setup program has been designed to make it as easy to use as possible. It is a
menu-driven program, which means you can scroll through the various sub-menus
and make your selections among the predetermined choices.

To access the BIOS Setup program, press the <Delete> key after
the computer has run through its POST.

NOTE: Because the BIOS software is constantly being updated, the following
BIOS screens and descriptions are for reference purposes only and may not reflect
your BIOS screens exactly.

4. BIOS SETUP

Program Information

ASUS TUEG-VM User’s Manual 49

4. BIOS SETUP

4.2.1 BIOS Menu Bar

The top of the screen has a menu bar with the following selections:

MAIN Use this menu to make changes to the basic system configuration.
ADVANCED Use this menu to enable and make changes to the advanced

features.

POWER Use this menu to configure and enable Power Management

features.

BOOT Use this menu to configure the default system device used to locate

and load the Operating System.

EXIT Use this menu to exit the current menu or specify how to exit the

Setup program.

To access the menu bar items, press the right or left arrow key on the keyboard
until the desired item is highlighted.

4.2.2 Legend Bar

At the bottom of the Setup screen you will notice a legend bar. The keys in the
legend bar allow you to navigate through the various setup menus. The following
table lists the keys found in the legend bar with their corresponding alternates and

Menu Introduction

4. BIOS SETUP

functions.

Navigation Key(s) Function Description

<F1> or <Alt + H> Displays the General Help screen from anywhere in the BIOS

<Esc> Jumps to the Exit menu or returns to the main menu from a sub-

← or → (keypad arrow) Selects the menu item to the left or right
↑ or ↓ (keypad arrow) Moves the highlight up or down between fields

- (minus key) Scrolls backward through the values for the highlighted field
+ (plus key) or spacebar Scrolls forward through the values for the highlighted field
<Enter> Brings up a selection menu for the highlighted field
<Home> or <PgUp> Moves the cursor to the first field
<End> or <PgDn> Moves the cursor to the last field

Setup

menu

<F5> Resets the current screen to its Setup Defaults
<F10> Saves changes and exits Setup

ASUS TUEG-VM User’s Manual50

4. BIOS SETUP

General Help

In addition to the Item Specific Help window , the BIOS setup program also provides
a General Help screen. This screen can be called up from any menu by simply
pressing <F1> or the <Alt> + <H> combination. The General Help screen lists the
legend keys with their corresponding alternates and functions.

Saving Changes and Exiting the Setup Program

See 4.7 Exit Menu for detailed information on saving changes and exiting the
setup program.

Scroll Bar

When a scroll bar appears to the right of a help window, it indicates that there is
more information to be displayed that will not fit in the window. Use <PgUp> and
<PgDn> or the up and down arrow keys to scroll through the entire help document.
Press <Home> to display the first page, press <End> to go to the last page. To exit
the help window, press <Enter> or <Esc>.

Sub-Menu

Note that a right pointer symbol (as shown in the left view)
appears to the left of certain fields. This pointer indicates that
a sub-menu can be launched from this field. A sub-menu
contains additional options for a field parameter. To call up a
sub-menu, simply move the highlight to the field and press
<Enter>. The sub-menu will then immediately appear. Use
the legend keys to enter values and move from field to field
within a sub-menu just as you would within a menu. Use the
<Esc> key to return to the main menu.

Take some time to familiarize yourself with each of the legend keys and their
corresponding functions. Practice navigating through the various menus and sub­menus. If you accidentally make unwanted changes to any of the fields, use the set
default hot key <F5>. While moving around through the Setup program, note that
explanations appear in the Item Specific Help window located to the right of each
menu. This window displays the help text for the currently highlighted field.

4. BIOS SETUP

Menu Introduction

NOTE: The item heading in square brackets represents the default setting for
that field.

ASUS TUEG-VM User’s Manual 51

4. BIOS SETUP

4.3 Main Menu

When the Setup program is accessed, the following screen appears:

System Time [XX:XX:XX]

Sets your system to the time that you specify (usually the current time).

4. BIOS SETUP

Main Menu

The format is hour, minute, second. V alid values for hour , minute and second
are Hour: (00 to 23), Minute: (00 to 59), Second: (00 to 59). Use the
<Tab> or <Shift> + <Tab> keys to move between the hour, minute, and
second fields.

System Date [XX/XX/XXXX]

Sets your system to the date that you specify (usually the current date). The
format is month, day , year . Valid values for month, day, and year are Month:
(1 to 12), Day: (1 to 31), Y ear: (100 year range). Use the <T ab> or <Shift>
+ <Tab> keys to move between the month, day, and year fields.

Legacy Diskette A [1.44M, 3.5 in.], Legacy Diskette B [None]

Sets the type of floppy drives installed. Configuration options: [None]
[360K, 5.25 in.] [1.2M , 5.25 in.] [720K , 3.5 in.] [1.44M, 3.5 in.]
[2.88M, 3.5 in.]

Floppy 3 Mode Support [Disabled]

This is required to support older Japanese floppy drives. Floppy 3 Mode
support will allow reading and writing of 1.2MB (as opposed to 1.44MB)
on a 3.5-inch diskette. Configuration options: [Disabled] [Enabled].

ASUS TUEG-VM User’s Manual52

4. BIOS SETUP

4.3.1 Primary & Secondary Master/Slave

Type [Auto]

Select [Auto] to automatically detect an IDE hard disk drive. If automatic
detection is successful, Setup automatically fills in the correct values for
the remaining fields on this sub-menu. If automatic detection fails, this
may be because the hard disk drive is too old or too new. If the hard disk
was already formatted on an older system, Setup may detect incorrect
parameters. In these cases, select [User Type HDD] to manually enter the
IDE hard disk drive parameters. Refer to the next section for details.

NOTE: After entering the IDE hard disk drive information into BIOS,
use a disk utility, such as FDISK, to partition and format new IDE hard
disk drives. This is necessary so that you can write or read data from the
hard disk. Make sure to set the partition of the Primary IDE hard disk
drives to active.

CAUTION! Before attempting to configure a hard disk drive, make sure you

have the configuration information supplied by the drive manufacturer . Incorrect
settings may cause the system to fail to recognize the installed hard disk.

4. BIOS SETUP

Master/Slave Drives

Other options for the Type field are:

[None] - to disable IDE devices

ASUS TUEG-VM User’s Manual 53

[User Type HDD]

4. BIOS SETUP

Manually enter the number of cylinders, heads and sectors per track for the drive.
Refer to the drive documentation or on the drive label for this information. If no
drive is installed or if you are removing a drive and not replacing it, select [None].

Cylinders

This field configures the number of cylinders. Refer to the drive documentation to

Master/Slave Drives

4. BIOS SETUP

determine the correct value to enter into this field. NOTE: To make changes to
this field, set the Type field to [User Type HDD] and the Translation Method
field to [Manual].

Head

This field configures the number of read/write heads. Refer to the drive documentation
to determine the correct value to enter into this field. NOTE: To make changes to this
field, set the Type field to [User Type HDD] and the Translation Method field to
[Manual].

Sector

This field configures the number of sectors per track. Refer to the drive
documentation to determine the correct value to enter into this field. NOTE:
To make changes to this field, set the Type field to [User Type HDD] and
the Translation Method field to [Manual].

CHS Capacity

This field shows the drive’s maximum CHS capacity as calculated by the
BIOS based on the drive information you entered.

ASUS TUEG-VM User’s Manual54

4. BIOS SETUP

Maximum LBA Capacity

This field shows the drive’s maximum LBA capacity as calculated by the BIOS
based on the drive information you entered.

Multi-Sector Transfers [Maximum]

This option automatically sets the number of sectors per block to the highest number
that the drive supports. Note that when this field is automatically configured, the set
value may not always be the fastest value for the drive. You may also manually
configure this field. Refer to the documentation that came with the hard drive to
determine the optimum value and set it manually. NOTE: To make changes to this
field, set the Type field to [User Type HDD]. Configuration options: [Disabled] [2
Sectors] [4 Sectors] [8 Sectors] [16 Sectors] [32 Sectors] [Maximum]

SMART Monitoring [Disabled]

This filed allows you to enable or disable the S.M.A.R.T . (Self-Monitoring, Analysis
and Reporting Technology) system that utilizes internal hard disk drive monitoring
technology. This parameter is normally disabled because the resources used in the
SMART monitoring feature may decrease system performance. Configuration
options: [Disabled] [Enabled]

PIO Mode [4]

This option lets you set a PIO (Programmed Input/Output) mode for the IDE device.
Modes 0 through 4 provide successively increased performance. Configuration
options: [0] [1] [2] [3] [4]

Ultra DMA Mode [Disabled]

Ultra DMA capability allows improved transfer speeds and data integrity for compatible
IDE devices. Set to [Disabled] to suppress Ultra DMA capability.

NOTE: To make changes to this field, set the Type field to [User Type
HDD]. Configuration options: [0] [1] [2] [3] [4] [5] [Disabled]

Other options for the Type field are:

[CD-ROM] - for IDE CD-ROM drives
[LS-120] - for LS-120 compatible floppy disk drives
[ZIP-100] - for ZIP-100 compatible disk drives
[MO] - for IDE magneto optical disk drives
[Other ATAPI Device] - for IDE devices not listed here

4. BIOS SETUP

Master/Slave Drives

After making your selections on this sub-menu, press the <Esc> key to return
to the Main menu. When the Main menu appears, the hard disk drive filed
displays the size for the hard disk drive that you configured.

ASUS TUEG-VM User’s Manual 55

4. BIOS SETUP

4.3.2 Keyboard Features

Boot Up NumLock Status [On]

This field enables users to activate the Number Lock function upon system
boot. Configuration options: [Off] [On]

Keyboard Auto-Repeat Rate [12/Sec]

4. BIOS SETUP

Main Menu

This controls the speed at which the system registers repeated keystrokes.
Options range from 6 to 30 characters per second. Configuration options:
[6/Sec] [8/Sec] [10/Sec] [12/Sec] [15/Sec] [20/Sec] [24/Sec] [30/Sec]

Keyboard Auto-Repeat Delay [1/4 Sec]

This field sets the time interval for displaying the first and second characters.
Configuration options: [1/4 Sec] [1/2 Sec] [3/4 Sec] [1 Sec]

Language [English]

This field displays the BIOS language version.

Supervisor Password [Disabled] / User Password [Disabled]

These fields allow you to set passwords. To set a password, highlight the appropriate
field and press <Enter>. Type in a password then press <Enter>. You can type up to
eight alphanumeric characters. Symbols and other characters are ignored. T o confirm
the password, type the password again and press <Enter>. The password is now set to
[Enabled]. This password allows full access to the BIOS Setup menus. To clear the
password, highlight this field and press <Enter>. The same dialog box as above appears.
Press <Enter>. The password is set to [Disabled].

ASUS TUEG-VM User’s Manual56

4. BIOS SETUP

A Note about Passwords

The BIOS Setup program allows you to specify passwords in the Main menu.
The passwords control access to the BIOS during system startup. The passwords
are not case sensitive. In other words, it makes no difference whether you enter
a password using upper or lowercase letters. The BIOS Setup program allows
you to specify two separate passwords: a Supervisor password and a User
password. When disabled, anyone may access all BIOS Setup program
functions. When enabled, the Supervisor password is required for entering the

BIOS Setup program and having full access to all configuration fields.

Forgot the Password?

If you forgot the password, you can clear the password by erasing the CMOS Real
Time Clock (RTC) RAM. The RAM data containing the password information is
powered by the onboard button cell battery. To erase the RTC RAM: (1) Unplug
your computer, (2) Short the solder points, (3) Turn ON your computer, (4) Hold
down <Delete> during bootup and enter BIOS setup to re-enter user preferences.

®

TUEG-VM

TUEG-VM Clear RTC RAM

R210

Short solder points
to Clear CMOS

Halt On [All Errors]

This field determines which types of errors will cause the system to halt.
Configuration options: [All Errors] [No Error] [All but Keyboard] [All but
Disk] [All but Disk/Keyboard]

Installed Memory [XXX MB]

This display-only field displays the amount of conventional memory detected
by the system during bootup. You do not need to make changes to this field.

Main Menu

4. BIOS SETUP

ASUS TUEG-VM User’s Manual 57

4. BIOS SETUP

4.4 Advanced Menu

CPU Internal Frequency

In JumperFree™ Mode, this field allows you to select the internal frequency
of your CPU. Select [Manual] if you want to make changes to the subsequent
2 fields. Note that selecting a frequency higher than the CPU manufacturer
recommends may cause the system to hang or crash. See System Hangup

4. BIOS SETUP

Advanced Menu

on page 60.

CPU Level 1 Cache, CPU Level 2 Cache [Enabled]

These fields allow you to choose from the default of [Enabled] or choose
[Disabled] to turn on or off the CPU’s Level 1 and Level 2 built-in cache.
Configuration options: [Disabled] [Enabled]

CPU Level 2 Cache ECC Check [Disabled]

This function controls the ECC capability in the CPU level 2 cache.
Configuration options: [Disabled] [Enabled]

BIOS Update [Enabled]

This functions as an update loader integrated into the BIOS to supply the
processor with the required data. In the default position of [Enabled], the
BIOS will load the update on all processors during system bootup.
Configuration options: [Disabled] [Enabled]

PS/2 Mouse Function Control [Auto]

The default of [Auto] allows the system to detect a PS/2 mouse on startup.
If detected, IRQ12 will be used for the PS/2 mouse. IRQ12 will be reserved
for expansion cards only if a PS/2 mouse is not detected. [Enabled] will
always reserve IRQ12, whether on startup a PS/2 mouse is detected or not.
Configuration options: [Enabled] [Auto]

ASUS TUEG-VM User’s Manual58

4. BIOS SETUP

USB Legacy Support [Auto]

This motherboard supports Universal Serial Bus (USB) devices. The default
of [Auto] allows the system to detect a USB device on startup. If detected,
USB controller legacy mode will be enabled. If not detected, USB controller
legacy mode will be disabled. When this field is set to [Disabled], USB
controller legacy mode is disabled whether you are using a USB device or
not. Configuration options: [Disabled] [Enabled] [Auto]

OS/2 Onboard Memory > 64M [Disabled]

When using OS/2 operating systems with installed DRAM of greater than
64MB, you need to set this option to [Enabled]; otherwise, leave this on
[Disabled]. Configuration options: [Disabled] [Enabled]

ASUS TUEG-VM User’s Manual 59

Advanced Menu

4. BIOS SETUP

4. BIOS SETUP

Notes for JumperFree Mode

CPU Upgrade/Reinstallation

To ensure that your system can enter BIOS setup after the processor has
been changed or reinstalled, your system will start up running at a bus speed
of 66MHz and a fail-safe CPU internal frequency (4x66MHz). It will then
automatically take you to the Advanced menu with a popup menu of all the
officially possible CPU internal frequencies.

JumperFree Notes

4. BIOS SETUP

System Hangup

If your system crashes or hangs due to improper frequency settings, power
OFF your system and restart. The system will start up in safe mode running
at a bus speed of 66MHz and enter BIOS setup.

ASUS TUEG-VM User’s Manual60

4. BIOS SETUP

4.4.1 Chip Configuration

SDRAM Capability

This field displays the capability of the memory modules that you are using
either PC100 or PC133.

SDRAM Operating Mode

This field displays the current SDRAM operating mode (PC100 or PC133)
according to the SDRAM frequency you configure in the Advanced menu.

SDRAM Timing [By SPD]

This sets the optimal timings for items 4-7, depending on the memory
modules that you are using. The default setting [By SPD] configures items
4-7 by reading the contents in the SPD (Serial Presence Detect) device. The
EEPROM on the memory module stores critical parameter information about
the module, such as memory type, size, speed, voltage interface, and module
banks. Configuration options: [User Define] [By SPD]

SDRAM CAS Latency

This controls the latency between the SDRAM read command and the time
that the data actually becomes available.

4. BIOS SETUP

Chip Configuration

SDRAM RAS to CAS Delay

This controls the latency between the SDRAM active command and the
read/write command.

ASUS TUEG-VM User’s Manual 61

4. BIOS SETUP

SDRAM RAS Precharge Time

This controls the idle clocks after issuing a precharge command to the
SDRAM.

SDRAM Cycle Time (Tras, Trc) [7T, 9T]

This feature controls the number of SDRAM clocks used for SDRAM
parameters T ras and Trc. Tras specifies the minimum clocks required between
active command and precharge command. T rc specifies the minimum clocks
required between active command and re-active command. Configuration
options: [5T, 7T] [7T, 9T]

SDRAM Page Closing Policy [One Bank]

This feature controls that after a page miss whether the Graphics and Memory
Controller Hub (GMCH) will issue “precharge only the bank” or “precharge
all” command to a specific opened SDRAM bank. Configuration options:
[One Bank] [All Banks]

CPU Latency Timer [Enabled]

This controls the GMCH’s response to CPU deferrable cycles. Configuration
options: [Disabled] [Enabled]

Command Per Cycle [Enabled]

When onboard VGA is used, CPU can help to gain graphics performance by
increasing proper SDRAM cycles combinations. Configuration options:

Chip Configuration

4. BIOS SETUP

[Enabled] [Disabled]

Video Memory Cache Mode [UC]

USWC (uncacheable, speculative write combining) is a new cache
technology for the video memory of the processor. It can greatly improve
the display speed by caching the display data. You must set this to UC
(uncacheable) if your display card does not support this feature, otherwise
the system may not boot. Configuration options: [UC] [USWC]

Graphics Window Size [64MB]

This feature allows you to select the size of mapped memory for AGP graphic
data. Configuration options: [64MB] [32MB]

Memory Hole At 15M-16M [Disabled]

This field allows you to reserve an address space for ISA devices that require
it. Configuration options: [Disabled] [Enabled]

PCI 2.1 Support [Enabled]

This function allows you to enable or disable PCI 2.1 features including
passive release and delayed transaction. Configuration options: [Disabled]
[Enabled]

ASUS TUEG-VM User’s Manual62

4. BIOS SETUP

High Priority PCI Mode [Disabled]

This field allows you to give PCI slot 1 a higher priority. You may want to
leave on the default setting if you are using an IEEE-1394 PCI card.
Configuration options: [Disabled] [Enabled]

Onboard PCI IDE Enable [Both]

You can select to enable the primary IDE channel, secondary IDE channel,
both, or disable both channels. Configuration options: [Both] [Disabled]

SDRAM DATA DRIVING MODE [NORMAL]

Leave on default setting. Configuration options: [Normal] [Strong]

ASUS TUEG-VM User’s Manual 63

4. BIOS SETUP

Chip Configuration

4. BIOS SETUP

4.4.2 I/O Device Configuration

Onboard AC97 Modem Controller [Auto]
Onboard AC97 Audio Controller [Auto]

I/O Device Config

4. BIOS SETUP

[Auto] allows the motherboard’s BIOS to detect whether you are using any
modem/audio device. If a modem/audio device is detected, the onboard
modem/audio controller will be enabled; if no modem/audio device is
detected, the onboard modem/audio controller will be disabled. If you have
conflicts with the onboard controller, you may set the appropriate field to
[Disabled]. Configuration options: [Disabled] [Auto]

Onboard FDC Swap A & B [No Swap]

This field allows you to reverse the hardware drive letter assignments of
your floppy disk drives. Configuration options: [No Swap] [Swap AB]

Floppy Disk Access Control [R/W]

When set to [Read Only], this field protects files from being copied to floppy
disks by allowing reads from the floppy disk drive but not writes. The setup
default [R/W] allows both reads and writes. Configuration options: [R/W]
[Read Only]

ASUS TUEG-VM User’s Manual64

4. BIOS SETUP

Onboard Serial Port 1 [3F8H/IRQ4]
Onboard Serial Port 2 [2F8H/IRQ3]

These fields allow you to set the addresses for the onboard serial connectors.
Serial Port 1 and Serial Port 2 must have different addresses. Configuration
options: [3F8H/IRQ4] [2F8H/IRQ3] [3E8H/IRQ4] [2E8H/IRQ10]
[Disabled]

UART2 Use As [COM Port]

When enabled, this field activates the onboard standard infrared feature and
sets the second serial UART to support the infrared module connector on
the motherboard. If your system already has a second serial port connected
to the onboard COM2 connector, it will no longer work if you enable the
infrared feature. Configuration options: [COM Port] [IR] [Smart Card
Reader]

Onboard Parallel Port [378H/IRQ7]

This field sets the address of the onboard parallel port connector. If you
disable this feature, Parallel Port Mode and ECP DMA Select
configurations will not be available. Configuration options: [Disabled]
[378H/IRQ7] [278H/IRQ5]

Parallel Port Mode [ECP+EPP]

This field allows you to set the operation mode of the parallel port. [Normal]
allows normal-speed operation but in one direction only; [EPP] allows
bidirectional parallel port operation; [ECP] allows the parallel port to operate
in bidirectional DMA mode; [ECP+EPP] allows normal speed operation in
a two-way mode. Configuration options: [Normal] [EPP] [ECP] [ECP+EPP]

ECP DMA Select [3]

This field allows you to configure the parallel port DMA channel for the
selected ECP mode. This selection is available only if you select [ECP] or
[ECP+EPP] in Parallel Port Mode above. Configuration options: [1] [3]

Onboard Game Port [200H-207H]

This field sets the address of the onboard game port connector . Configuration
options: [Disabled] [200H-207H] [208H-20FH]

Onboard MIDI I/O [Disabled]

This field sets the address of the onboard MIDI connector. Configuration
options: [Disabled] [330H-331H] [300H-301H]

4. BIOS SETUP

Onboard CIR I/O [Disabled]

This field sets the address of the onboard Consumer IR connector.
Configuration options: [Disabled] [2E0-2E8H] [3E0-3E8H]

ASUS TUEG-VM User’s Manual 65

4. BIOS SETUP

4.4.3 PCI Configuration

Slot 1, Slot 2, Slot 3 IRQ [Auto]

These fields set how IRQ use is determined for each PCI slot. The default
setting for each field is [Auto], which utilizes auto-routing to determine
IRQ use. Configuration options: [Auto] [NA] [3] [4] [5] [7] [9] [10] [11]
[12] [14] [15]

PCI Configuration

4. BIOS SETUP

PCI/VGA Palette Snoop [Disabled]

Some nonstandard VGA cards, such as graphics accelerators or MPEG video
cards, may not show colors properly. The setting [Enabled] should correct
this problem. Otherwise, leave this on the default setting of [Disabled].
Configuration options: [Disabled] [Enabled]

PCI Latency Timer [32]

Leave on default setting for best performance vs. stability.

SYMBIOS SCSI BIOS [Auto]

[Auto] allows the motherboard’s BIOS to detect whether you have a Symbios
SCSI controller. If the Symbios SCSI controller is detected, the
motherboard’s Symbios BIOS will be enabled; if no Symbios SCSI controller
is detected, the onboard Symbios SCSI BIOS will be disabled.

[Disabled] will disable the motherboard’s Symbios SCSI BIOS so that the
BIOS on an add-on Symbios SCSI card can be used. If your Symbios SCSI
card does not have a BIOS, the Symbios SCSI card will not function.
Configuration options: [Auto] [Disabled]

ASUS TUEG-VM User’s Manual66

4. BIOS SETUP

USB Function [Enabled]

This motherboard supports Universal Serial Bus (USB) devices. Set to
[Enabled] if you want to use USB devices. Configuration options: [Disabled]
[Enabled]

Primary VGA BIOS [PCI Card]

The default, [PCI Card], allows your PCI graphics card to take precedence
when detected. [On-Board] allows you to use the onboard VGA as your
primary graphics controller . Configuration options: [PCI Card] [On-Board]

Onboard LAN Boot ROM [Disabled]

When set to [Enabled], this field allows your computer to boot from the
network using the onboard LAN controller boot ROM. Configuration
options: [Disabled] [Enabled]

PCI IRQ Resource Exclusion

IRQ XX Reserved [No]

These fields indicate whether or not the displayed IRQ for each field is
being used by a specified device. The default value indicates that the
displayed IRQ is not used. Configuration options: [No] [Yes]

4. BIOS SETUP

PCI Configuration

ASUS TUEG-VM User’s Manual 67

4. BIOS SETUP

4.4.4 Shadow Configuration

Video ROM BIOS Shadow [Enabled]

This field allows you to change the video BIOS location from ROM to
RAM. Relocating to RAM enhances system performance, as information
access is faster than the ROM. Configuration options: [Disabled] [Enabled]

Shadow Configuration

4. BIOS SETUP

C8000-DFFFF Shadow [Disabled]

These fields are used for shadowing other expansion card ROMs. If you
install other expansion cards with ROMs on them, you will need to know
which addresses the ROMs use to shadow them specifically. Shadowing a
ROM reduces the memory available between 640K and 1024K by the amount
used for this purpose. Configuration options: [Disabled] [Enabled]

ASUS TUEG-VM User’s Manual68

4. BIOS SETUP

4.5 Power Menu

The Power menu allows you to reduce power consumption. This feature turns off the
video display and shuts down the hard disk after a period of inactivity.

Power Management [User Defined]

This option must be enabled to use any of the automatic power saving features. If
this menu item is set to [Disabled], power management features will not function
regardless of other field settings on this menu. The [User Defined] option allows
you to make your own selections in the Power menu. When set to [Max Saving],
system power will be conserved to its greatest amount.

will then be set to predefined value that ensures maximum power savings.
This field acts as the master control for the power management modes. [Max Saving]

puts the system into power saving mode after a brief period of system inactivity;
[Min Saving] is almost the same as [Max Saving] except that the system inactivity
period is longer; [Disabled] disables the power saving features; [User Define] allows
you to set power saving options according to your preference. Configuration options:
[User Define] [Disabled] [Min Saving] [Max Saving]

IMPORT ANT: Advanced Power Management (APM) should be installed to keep

the system time updated when the computer enters suspend mode activated by
the BIOS Power Management. For DOS environments, you need to add the
statement, DEVICE=C:\DOS\POWER.EXE, to your CONFIG.SYS file. For
Windows 3.x and Windows 95, you need to install Windows with the APM
feature. For Windows 98 and later, APM is automatically installed. A battery
and power cord icon labeled “Power Management” will appear in the “Control
Panel.” Choose “Advanced” in the Power Management Properties dialog box.

The Suspend Mode field

Power Menu

4. BIOS SETUP

ASUS TUEG-VM User’s Manual 69

4. BIOS SETUP

Video Off Option [Suspend -> Off ]

This field determines when to activate the video off feature for monitor
power management. Configuration options: [Always On] [Suspend -> Off]

Video Off Method [DPMS OFF]

The DPMS (Display Power Management System) feature allows the BIOS to
control the video display card if it supports the DPMS feature. [Blank Screen]
only blanks the screen (use this for monitors without power management or
“green” features. [V/H SYNC+Blank] blanks the screen and turns off vertical
and horizontal scanning. Configuration options: [Blank Screen] [V/H
SYNC+Blank] [DPMS Standby] [DPMS Suspend] [DPMS OFF] [DPMS
Reduce ON]

HDD Power Down [Disabled]

This feature shuts down any IDE hard disk drives in the system after a
period of inactivity as set in this user-configurable field. This feature does
not affect SCSI hard drives. Configuration options: [Disabled] [1 Min] [2
Min] [3 Min]...[15 Min]

Suspend-to-RAM Capability [Disabled]

Suspend-to-RAM (STR) is an energy-saving feature. In Suspend-to-RAM
state, all devices on the computer are turned off, except for the system RAM.
Thus, the PC consumes less than 5 Watts of power. Select [Enabled] if your

4. BIOS SETUP

Power Menu

power supply can supply at least 720mA on the +5VSB lead to support the
STR function. If the expansion cards you use on the motherboard do not
support the STR function, you must leave this field on the default setting
[Disabled]. NOTE: This field is only effective for Windows 98.
Configuration options: [Disabled] [Enabled]

APIC Mode [Disabled]

This function supports the operating system in multiprocessing (MP OS).
Configuration options: [Enabled] [Disabled]

Suspend Mode [Disabled]

Sets the time period before the system goes into suspend mode. NOTE:
This field is effective for DOS, Windows 9x, and Windows NT 4.0
environments. Configuration options: [Disabled] [1~2 Min] [2~3 Min]...[1
Hour]

PWR Button < 4 Secs [Soft Off]

When set to [Soft off], the ATX switch may be used as a power-off button
when pressed for less than 4 seconds. [Suspend] gives the button a dual
function: when pressed for less than 4 seconds puts the system in sleep
mode. Regardless of the setting, holding the switch for more than 4 seconds
will power off the system. Configuration options: [Soft off] [Suspend]

ASUS TUEG-VM User’s Manual70

4. BIOS SETUP

4.5.1 Power Up Control

AC PWR Loss Restart [Disabled]

This allows you to set whether you want your system to reboot after the
power has been interrupted. [Disabled] leaves your system off and [Enabled]
reboots your system. [Previous State] sets your system back to the state it is
before the power interruption. Configuration options: [Disabled] [Enabled]
[Previous State]

PWR Up On External Modem Act [Disabled]

This allows either settings of [Enabled] or [Disabled] for powering up the
computer when the external modem receives a call while the computer is in
Soft-off mode. NOTE: The computer cannot receive or transmit data until
the computer and applications are fully running. Thus connection cannot be
made on the first try . T urning an external modem off and then back on while
the computer is off causes an initialization string that will also cause the
system to power on. Configuration options: [Disabled] [Enabled]

Wake On LAN or PCI Modem[Disabled]

W ake-On-LAN/PCI Modem allows your computer to be booted from another
computer via a network by sending a wake-up frame or signal. Configuration
options: [Disabled] [Enabled]

4. BIOS SETUP

Power Up Control

IMPORTANT: This feature requires an optional network interface card with W ake-

On-LAN and an ATX power supply with at least 720mA +5V standby power.

ASUS TUEG-VM User’s Manual 71

Wake On PS2 KB/PS2 Mouse/CIR [Disabled]

Set this field to [Enabled] if you wish to use your PS2 keyboard, PS2 mouse,
or consumer IR device to power up your computer . This feature requires an
ATX power supply that can supply at least 300mA on the +5VSB lead. The
default is set to [Disabled] because not all computers have the appropriate
ATX power supply. Your computer will not power ON if you set this to
[Enabled] and do not have the appropriate A TX power supply . Configuration
options: [Disabled] [Enabled]

Wake Up By PS2 Keyboard [Space Bar]

When the previous setup item Wake On PS2 KB/PS2 Mouse/CIR is
enabled, you may specify the key(s) to press to power up the computer.
Configuration options: [Space Bar] [Ctrl-Esc] [Power Key] [Wakeup Key]

Wake On USB for S3 or S4 State [Disabled]

This field allows you to use your USB device/s, if any, to power up the
computer from Suspend-to-RAM mode. This feature requires an A TX power
supply that can supply at least 2A on the +5VSB lead. The default is set to
[Disabled] because not all computers have the appropriate A TX power supply .
Your computer will not power on if you set this to [Enabled] and do not

have the appropriate ATX power supply. NOTE: This feature must be set in
conjunction with USB Device Wake Up in 3.4 Motherboard Settings.

Power Up Control

4. BIOS SETUP

Configuration options: [Disabled] [Enabled]

Automatic Power Up [Disabled]

This allows an unattended or automatic system power up. You may configure
your system to power up at a certain time of the day by selecting [Everyday]
or at a certain time and day by selecting [By Date]. NOTE: Automatic Power
Up will not work if the system is powered down by operating systems, such
as W indows 98, which have ACPI support enabled. Configuration options:
[Disabled] [Everyday] [By Date]

4. BIOS SETUP

ASUS TUEG-VM User’s Manual72

4. BIOS SETUP

4.5.2 Hardware Monitor

MB Temperature [xxxC/xxxF]
CPU Temperature [xxxC/xxxF]
JTPWR Temperature [xxxC/xxxF]

The onboard hardware monitor is able to detect the MB (motherboard),
CPU, and power supply (JTPWR) temperatures. Set to [Ignore] only if
necessary.

CPU Fan Speed [xxxxRPM]
Power Fan Speed [xxxxRPM]
Chassis Fan Speed [xxxxRPM]

The onboard hardware monitor is able to detect the CPU, power supply , and
chassis fan speeds in rotations per minute (RPM). The presence of the fans
is automatically detected. Set to [Ignore] only if necessary.

VCORE Voltage, +3.3V Voltage, +5V Voltage, +12V Voltage [xx.xV]

The onboard hardware monitor is able to detect the voltage output by the
onboard voltage regulators. Set to [Ignore] only if necessary.

NOTE: If any of the monitored items is out of range, an error message will
appear: “Hardware Monitor found an error. Enter Power setup menu for
details”. You will then be prompted to “Press F1 to continue, DEL to enter
SETUP”.

4. BIOS SETUP

Hardware Monitor

ASUS TUEG-VM User’s Manual 73

4. BIOS SETUP

4.6 Boot Menu

Boot Sequence

The Boot menu allows you to select among the four possible types of boot
devices listed using the up and down arrow keys. By using the <+> or <Space>
key, you can promote devices and by using the <-> key, you can demote

4. BIOS SETUP

Boot Menu

devices. Promotion or demotion of devices alters the priority which the system
uses to search for a boot device on system power up. Configuration fields
include Removable Devices, IDE Hard Drive, A T API CD-ROM, and Other
Boot Device.

Removable Device [Legacy Floppy]

Configuration options: [Disabled] [Legacy Floppy] [LS120] [ZIP] [ATAPI
MO]

IDE Hard Drive

This field allows you to select which IDE hard disk drive to use in the boot
sequence. Pressing [Enter] will show the product IDs of all connected IDE
hard disk drives.

ATAPI CD-ROM

This field allows you to select which ATAPI CD-ROM drive to use in the
boot sequence. Pressing [Enter] will show the product IDs of all your
connected ATAPI CD-ROM drives.

Other Boot Device Select [INT18 Device (Network)]

Configuration options: [Disabled] [SCSI Boot Device] [INT18 Device
(Network)]

ASUS TUEG-VM User’s Manual74

4. BIOS SETUP

Plug & Play O/S [No]

This field allows you to use a Plug-and-Play (PnP) operating system to
configure the PCI bus slots instead of using the BIOS. When [Yes] is selected,
interrupts may be reassigned by the OS. When a non-PnP OS is installed or
you want to prevent reassigning of interrupt settings, select the default setting
of [No]. Configuration options: [No] [Yes]

Boot Virus Detection [Enabled]

This field allows you to set boot virus detection, ensuring a virus-free boot
sector. The system halts and displays a warning message when it detects a
virus. If this occurs, you can either allow the operation to continue or use a
virus-free bootable floppy disk to restart and investigate your system.
Configuration options: [Disabled] [Enabled]

Quick Power On Self Test [Enabled]

This field speeds up the Power-On-Self Test (POST) routine by skipping
retesting a second, third, and fourth time. Configuration options: [Disabled]
[Enabled]

Boot Up Floppy Seek [Enabled]

When enabled, the BIOS will seek the floppy disk drive to determine whether
the drive has 40 or 80 tracks. Configuration options: [Disabled] [Enabled]

Full Screen Logo [Enabled]

Configuration options: [Disabled] [Enabled]

Boot Menu

4. BIOS SETUP

ASUS TUEG-VM User’s Manual 75

4. BIOS SETUP

4.7 Exit Menu

Once you have made all of your selections from the various menus in the Setup program,
you should save your changes and exit Setup. Select Exit from the menu bar to display
the following menu:

NOTE: Pressing <Esc> does not exit this menu. You must select one of the

4. BIOS SETUP

Exit Menu

options from this menu or <F10> from the legend bar to exit this menu.

Exit Saving Changes

Once you are finished making your selections, choose this option from the
Exit menu to ensure the values you selected are saved to the CMOS RAM.
The CMOS RAM is sustained by an onboard backup battery and stays on
even when the PC is turned off. Once this option is selected, a confirmation
is asked. Select [Yes] to save changes and exit.

NOTE: If you attempt to exit the Setup program without saving your
changes, the program will prompt you with a message asking if you want
to save your changes before exiting. Pressing <Enter> will then save changes
while exiting.

Exit Discarding Changes

This option should only be used if you do not want to save the changes you
have made to the Setup program. If you have made changes to fields other
than system date, system time, and password, the system will ask for
confirmation before exiting.

ASUS TUEG-VM User’s Manual76

4. BIOS SETUP

Load Setup Defaults

This option allows you to load the default values for each of the parameters
on the Setup menus. When this option is selected or if <F5> is pressed, a
confirmation is requested. Select [Yes] to load default values. You can now
select Exit Saving Changes or make other changes before saving the values
to the non-volatile RAM.

Discard Changes

This option allows you to discard the selections you made and restore the
values you previously saved. After selecting this option, a confirmation is
requested. Select [Y es] to discard any changes and load the previously saved
values.

Save Changes

This option saves your selections without exiting the Setup program. You
can then return to other menus and make changes. After selecting this option,
all selections are saved and a confirmation is requested. Select [Yes] to save
any changes to the non-volatile RAM.

ASUS TUEG-VM User’s Manual 77

Exit Menu

4. BIOS SETUP

4. BIOS SETUP

NOTES

4. BIOS SETUP

ASUS TUEG-VM User’s Manual78

5. SOFTWARE SETUP

5. SOFTWARE SETUP

5.1 Operating Systems

You should always use the latest operating system and updates when using new
hardware to ensure full compliance. You may use any version of W indows 98/2000/
Millenium, but for Windows 95, you must use OSR 2.0 or later. For Windows NT

4.0, you must use Service Pack 3.0 or later.

5.1.1 Windows 98 First Time Installation

When you start W indows for the first time after the installation of the motherboard,
Windows 98 detects the onboard audio and video chips and may attempt to install a
driver from its system registry . When prompted to restart, select No and then follow
the normal setup procedures on the screen.

5.2 TUEG-VM Motherboard Support CD

To begin using the support CD, insert it into the CD-ROM drive. The support
installation menu should appear. If the menu does not appear, double-click or run

D:\ASSETUP.EXE (assuming that your CD-ROM drive is drive D).
NOTE: The support CD contents are subject to change at any time without notice.

5.2.1 Installation Menus

Applications
OS / Support CD

5. S/W SETUP

5. S/W SETUP

ASUS TUEG-VM User’s Manual

79

5. SOFTWARE SETUP

5. S/W SETUP

Applications

5.2.2 Applications

• INF Update Utility for Intel 815 Chipset: Installs INF files in W indows for the
following items: System and Graphics, LPC Interface, SM Bus, PCI Bridge,
Bus Master IDE, USB Host, and Controllers.

• Intel Ultra ATA Storage Driver: Installs Intel’s Ultra ATA storage driver.

• Intel 815 Chipset Graphic Control Driver: Installs Intel’s 815 System and
Graphics Controller Driver.

• Intel(r) AC’97 Audio Controller: Installs the AC’97 Audio Controller.

• 3Com 3C920 Integrated Fast Ethernet Controller: Opens a Readme file with
instructions for installing the driver for the integrated 3Com ethernet controller .

• Intel LDCM Administrator Setup: Installs software to monitor PC systems on
the network within the same bridge address with the Client software installed.
The administrator should install both Administrator and Client software.

• Intel LDCM Client Setup: Installs software to monitor the Client system. The
LANDesk Client Manager must be installed to use the hardware manager features.

• ASUS BIOS Flash Utility for LDCM: Installs a utility that can remotely flash
a client PC’s BIOS when used in conjunction with Intel LDCM Administrator.

• ASUS PC Probe Vx.xx: Installs a utility to monitor your computer’s fan,
temperature, and voltages.

80

ASUS TUEG-VM User’s Manual

5. SOFTWARE SETUP

• ASUS Update Vx.xx: Installs a program to help you update your BIOS or

download a BIOS image file.

• Microsoft DirectX Driver: Installs Microsoft DirectX driver.

• Winbond Smart Manager Application: Installs the W inbond Smart Manager

Application.

• Adobe Acrobat Reader Vx.x: Installs the Adobe Acrobat Reader software

necessary to view user’s manuals saved in PDF format. Updated or other language
versions of this motherboard's manual is available in PDF format at any of our
web sites.

• Cyberlink Video and Audio Applications: Installs Cyberlink PowerPlayer SE,

and Cyberlink VideoLive Mail.

• E-Color 3 Deep: Installs 3 Deep, the first application which gives the

competetive edge in online gaming, as well as in 3D graphics resolution.

• ASUS Screen Saver: Installs the ASUS Screen Saver application.

• Show Motherboard Information: Allows you to view information about your

motherboard, such as product name, BIOS version, and CPU.

• Browse Support CD: Allows you to view the contents of the CD.

• ReadMe: Allows you to view the support CD file list and contact information.

• Exit: Exits the CD installation menu.

Applications

Applications

5. S/W SETUP

5. S/W SETUP

ASUS TUEG-VM User’s Manual

81

5. SOFTWARE SETUP

NOTES

5. S/W SETUP

Applications

82

ASUS TUEG-VM User’s Manual

6. SOFTWARE REFERENCE

6.1 ASUS PC Probe

ASUS PC Probe is a convenient utility to continuously monitor your computer
system’s vital components, such as fan rotations, voltages, and temperatures. It also
has a utility that lets you review useful information about your computer, such as
hard disk space, memory usage, and CPU type, CPU speed, and internal/external
frequencies through the DMI Explorer.

6.1.1 Starting ASUS PC Probe

When ASUS PC Probe starts, a splash screen appears allowing you to select whether
to show the screen again when you open PC Probe or not. To bypass this startup
screen, clear the Show up in next execution check box.

ASUS PC Probe

6. S/W REFERENCE

T o open ASUS PC Pr obe, click the W indows Start button, point to Programs, and
then ASUS Utility, and then click Probe Vx.xx.

The PC Probe icon
PC Probe is running. Clicking the icon allows you to see the status of your PC.

appears on the taskbar system tray indicating that ASUS

ASUS TUEG-VM User’s Manual 83

6. S/W REFERENCE

ASUS PC Probe

6.1.2 Using ASUS PC Probe

Monitoring

Monitor Summary

Shows a summary of the
items being monitored.

Temperature Monitor

Shows the PC temperature
(for supported processors
only).

(Move the slider up to increase the
threshold level or down to decrease

6. SOFTWARE REFERENCE

Temperature Warning

threshold adjustment

the threshold level)

Fan Monitor

Shows the PC fan rotation.

Fan Warning

threshold adjustment

(Move the slider up to increase the
threshold level or down to decrease

the threshold level)

Voltage Monitor

Shows the PC voltages.

ASUS TUEG-VM User’s Manual84

6. SOFTWARE REFERENCE

Settings

Lets you set threshold levels and polling
intervals or refresh times of the PC’s
temperature, fan rotation, and voltages.

ASUS PC Probe

ASUS PC Probe

6. S/W REFERENCE

6. S/W REFERENCE

Lets you select when to enable software

CPU cooling. When When CPU

Overheated is selected, the CPU cooling

system is enabled whenever the CPU

temperature reaches the threshold value.

CPU Cooling System Setup

History

Lets you record the monitoring
activity of a certain component of
your PC for future reference.

Fan Control

Lets you enable/disable Smart Fan
Control. Smart Fan Control adjusts
the fan speed automatically based
on the current CPU temperature
and predefined threshold.

ASUS TUEG-VM User’s Manual 85

6. SOFTWARE REFERENCE

6. S/W REFERENCE

ASUS PC Probe

Information

Hard Drives

Shows the used and free space of
the PC’s hard disk drives and the
file allocation table or file system
used.

Memory

Shows the PC memory load,
memory usage, and paging file
usage.

Device Summary

Shows a summary of devices present
in your PC.

ASUS TUEG-VM User’s Manual86

6. SOFTWARE REFERENCE

DMI Explorer

Shows information pertinent to the
PC, such as CPU type, CPU speed,
and internal/external frequencies,
and memory size.

Utility

Lets you run programs outside of the
ASUS Probe modules. To run a
program, click Execute Program.
NOTE: This feature is currently
unavailable.

ASUS PC Probe

ASUS PC Probe

6. S/W REFERENCE

6. S/W REFERENCE

6.1.3 ASUS PC Probe Task Bar Icon

Right clicking the PC Probe
icon brings up a menu to open
or exit ASUS PC Probe and
pause or resume all system
monitoring.

When the ASUS PC Probe
senses a problem with your
PC, portions of the ASUS PC
Probe icon changes to red, the
PC speaker beeps, and the
ASUS PC Probe monitor
appears.

ASUS TUEG-VM User’s Manual 87

6. S/W REFERENCE

ASUS PC Probe

6. SOFTWARE REFERENCE

NOTES

ASUS TUEG-VM User’s Manual88

6. SOFTWARE REFERENCE

6.2 Winbond Smart Manager

The Winbond Smart Manager is a clever utility that helps secure the PC
with a Read2-IN-01 Smart Card Reader and a smart card
containing a mini-chip insert, like a GSM cell phone SIM card. Once a
smart card reader is configured, set up the Smart Manager software utility
for “boot up” or “always on” system security.

6.2.1 Setting Up Smart Manager

Connect the smart card reader to the TUSL2; (refer to Section 3.8.13 in
Hardware Setup for the connector location.) Boot up the PC and enter

BIOS (press <del>) to change the configuration to accept smart card
hardware: in the Advanced BIOS menu select the I/O Device Configuration
sub-menu, go to UART2 and select Smart Card Read, save and exit.

Smart Manager

6. S/W REFERENCE

Finish booting up. Insert the ASUS Support CD and click on the selection:
Winbond Smart Manager Application. The auto-installer prompts to
install the Base Components and after doing show displays a readme file.
Next, immediately install the Smart Card Driver Library as prompted.
Finally, install the Winbond Smart Manager application as prompted.

ASUS TUEG-VM User’s Manual 89

6. S/W REFERENCE

Smart Manager

The auto-installer implements all of
the drivers, base components and
displays the Winbond Smart Manager
program groups. Restart. Windows
should auto-detect the smart card
reader and install its system drivers.

NOTE: Do not install system components or Winbond applications unless you

install a smart card reader, (see page 7). Smart card system software compo­nents support various types of smart card applications; all system components
are compatible with W indows 98, ME and 2000. However, the W indbond Smart
Manager application is readily compatible only with Windows 98 and ME.

6. SOFTWARE REFERENCE

ASUS TUEG-VM User’s Manual90

6. SOFTWARE REFERENCE

Smart Manager

6.2.2 Starting to Use Smart Manager

After installing the software, start
W indbond Smart Manager for the first
time: select the Programs menu from
the Start bar and select the Windbond
program group. When you click the
program application, an icon is created
for the Logon Smart Card software
in the bottom right hand corner of the
screen.

The new icon resembles a key.

Right click on the icon and select
Setting Logon Smart Card.

Smart Manager

6. S/W REFERENCE

Click the Add New button
and then select the type of
card you are using. Insert
the smart card into the
card reader, then enter your
name and any remarks into
the fields. Click OK.

The card reader detects the
smart card ID. Smart
Manager registers the
smart card for security
capability and prompts to
click OK. The card’s
security status is displayed
in the main program
window.

ASUS TUEG-VM User’s Manual 91

6. S/W REFERENCE

Smart Manager

6.2.3 Smart Manager Modes

Return to the Windbond Smart Manager icon on the bottom right hand
corner of the Windows screen. Select the Logon Card Check Mode to
choose the security mode. Three basic modes are available:

1. Disable Check renders the Smart Manager security system inoperative.

2. Boot Check enables the Smart Manager security system for start up.
The user must insert the smart card into the reader during start up in order to
complete the Windows boot up process. In this mode, the user may
remove the smart card and continue to use the PC after the start cycle is
complete. If no smart card, or the wrong one, is inserted during boot up, the
PC displays the Smart Manager Protection Screen:

6. SOFTWARE REFERENCE

PC Probe

Whenever the Smart Manager
Protection Screen is displayed,
the computer is secured and
impenetrable.

3. Always Check configures the Smart Manager to require that the user
insert the smart card during start up; then, if the card is removed at any time
during the operation of the PC, the Smart Manager protection screen will
automatically pop up and the PC is secure until the card is reinserted.

File Protect Check Mode: This is a sub-program used to encrypt and
decode individual files stored in the system using a smart card as a key.

NOTE: Do take care not to lose your smart card or you may not be able

to restart the PC or decode encrypted files. T est each new smart card to
ensure that it is completely compatible with the card reader; the Read2-
In-01 Smart Card Reader is designed only to read cards with the
standard PC/SC mini-chip configuration.

ASUS TUEG-VM User’s Manual92

6. SOFTWARE REFERENCE

6.3 CyberLink PowerPlayer SE

CyberLink PowerPlayer SE is an intelligent software player that can automatically
detect and playback all kinds of video/audio files, CD and MP3 files as well. This is
the only software you need for all types of video and audio files. No need to waste
time identifying your file types.

Cyberlink

6.3.1 Starting CyberLink PowerPlayer SE

To start CyberLink Power Player, click the Windows Start button, point
to Programs, and then CyberLink PowerPlayer SE, and then click
PowerPlayer.

6.3.2 CyberLink PowerPlayer Control Panel

Minimize

Zoom
About

Stop

Backward Scan

Backstep Frame

Previous

Stop

Eject
Help

Power Off

Forward Scan

Step Frame

Next

Play

6. S/W REFERENCE

Configuration

i-Power!

CD Mode

Shuffle

Karaoke Next angle Next audio stream Next subtitle Add bookmark

Capture frame Go-Up Repeat Menu Go to bookmark

Increase Volume
Mute

Decrease Volume

ASUS TUEG-VM User’s Manual 93

6. SOFTWARE REFERENCE

6. S/W REFERENCE

6.4 CyberLink VideoLive Mail

Cyberlink

CyberLink’s VideoLive Mail Plus V er 3.0 (a.k.a. VLM 3) is a convenient and excel­lent way to create professional quality video mails from PC video/audio input de­vices and to send the mails to any recipients via VLM 3’s built-in e-mail system
through the Internet. VLM 3’s mails comprise video, sound, or snapshot informa-
tion; and thus may convey the most profound information to target audiences. It is
very convenient for mail recipients who do not need to install additional software
component in order to view VLM 3 mails.

VLM 3 works as a very applicant sales tool. It efficiently delivers profound and live
product information to your target customers without costing a fortune. VLM 3 also
helps corporate managers easily give vivid speeches and broadcast through corpo­rate E-mail system. For personal or home users, VLM 3 easily records live video
clips allowing users to send them to friends or family members across the Internet.

VLM 3 loads video messages from PC cameras, digital camcorders, analog camcorder
via video capture cards, or from an existing AVI video clips, and captures audio
messages from PC microphones. Video and audio messages are encoded at a very
high compressed rate in a real-time mode. From data input, data conversion, to
sending video mails via Internet, or saving data to disks, the whole procedure is
done in an easy and continuous process.

VLM 3’s video clip compression rate is up to 1:900, and its playback rate is up to 30
frame per second. VLM 3 provides CIF (352 x 288 pixel) display resolution, and
support true color configuration. A one-minute video mail with QCIF (176 x 144)
resolution takes up less than 500KB of memory , making it easy to transmit and save
mail. Users may always adjust resolution and recording parameters for different
purpose.

VLM 3 supports all the hardware devices that are compliant with Video for Win­dows standard. V ideo for W indows is a well-accepted and well-tested standard. Thus,
users do not have to worry about compatibility issues.

ASUS TUEG-VM User’s Manual94

6. SOFTWARE REFERENCE

6.4.1 Starting VideoLive Mail

To start VideoLive Mail, click the Windows Start button, point to Programs, and
then CyberLink VideoLive Mail, and then click VideoLive Mail x.x. VLM 3’s
Setup W izard will start and guide you through configuring the video and audio input
peripherals and to setup the e-mail environment.

1. Setup Wizard first will prompt a dialog to confirm that you want to configure

the hardware and E-mail setting. Click Yes to continue the system parameter
configuration.

2. The e-mail configuration screen appears. You will need to enter your name and

the e-mail address. Click Next to continue.

3. The Internet e-mail configuration screen appears. You may choose to use the
VLM 3 built-in E-mail functionality (SMTP mail), or use MAPI compliant e­mail system. Consult your ISP or MIS staff for the E-mail server IP address if
you are not sure. Click Next to continue.

4. Then the Video Configuration screen shows up. You may have to specify the
video driver for VLM 3, if there are several video-input devices installed. Then
configure the number of video frames to be captured per second. Note that the
more frames you choose, the bigger the file size will be. Click Next to continue.

Cyberlink

6. S/W REFERENCE

5. Then the Setup Wizard will then search for the GSM CODECS module for au­dio compression, and prompt you with the result. Click Next to continue.

6. Setup Wizard then tests the audio volume during playing and recording. Click
Next when ready.

7. Configuration done. Click Finish to complete the environmental setting proce­dure.

6.7.2 CyberLink VideoLive Mail User Interface

Exit
Minimize
Help

Video Mail Wizard

Snapshot to File

Video Configuration

Start Playback

Stop Recording / Playback

Start Recording

Pause

Save Video File
Send Mail

Load Video File
Send Mail

Increase MIC volume
Decrease MIC volume

Increase speaker volume
Decrease speaker volume

ASUS TUEG-VM User’s Manual 95

6. S/W REFERENCE

ASUS Live Update

6.5 ASUS LiveUpdate

6. SOFTWARE REFERENCE

Cyberlink

ASUS LiveUpdate is a utility that allows you to update your motherboard’s
BIOS and drivers. The use of this utility requires that you are properly con­nected to the Internet through an Internet Service Provider (ISP).

1. Start ASUS Update.
Launch the utility from Start | Programs | ASUS

Utility | ASUS LiveUpdate.

2. Select an update method.

3. If you selected updating/downloading from the

Internet, you will need to select an Internet site.
Choose the site that is closest to you or click
Auto Select.

If you selected Update from a file, you will
be prompted to locate the file.

ASUS TUEG-VM User’s Manual96

7. APPENDIX

7. APPENDIX

7.1 Glossary

1394

1394 is the IEEE designation for the high performance serial bus at 12.5, 25 or
50MBytes/sec speeds. This serial bus defines both a back plane physical layer and a
point-to-point cable-connected virtual bus. The primary application of the cable ver­sion is the integration of I/O connectivity at the back panel of personal computers
using a low-cost, scalable, high-speed serial interface. The 1394 standard also pro­vides new services such as live connect/disconnect capability for external devices
including disk drives, printers and hand-held peripherals such as scanners and cam­eras. This is a new standard to complement the slower USB interface and to compete
with the more expensive SCSI interface.

AC’97 (Audio Codec '97)

AC '97 is the next step in enabling PCs with audio quality comparable to consumer
electronics devices. The specification defines new cost-effective options to help in­tegrate the components necessary to support next-generation auto-intensive PC ap­plications such as DVD, 3-D multiplayer gaming and interactive music. The speci­fication also defines new extensions supporting modem and docking to help both
desktop and mobile manufacturers adopt these new technologies more quickly and
cost-effectively . This specification uses software emulation to compete with the PCI
SoundBlaster specification.

ACPI (Advanced Configuration and Power Interface)

The ACPI specification defines a cross-platform interface designed to support many
operating systems. ACPI defines a flexible and abstract hardware interface that pro­vides a standard way to integrate power management features throughout a PC sys­tem, including hardware, operating system and application software. This enables
the system to automatically turn ON and OFF peripherals such as CD-ROMs, net­work cards, hard disk drives, and printers, as well as consumer devices connected to
the PC such as VCRs, TVs, phones, and stereos. With this technology, peripherals
will also be able to activate the PC. For example, inserting a tape into a VCR can
turn on the PC, which could then activate a large-screen TV and high-fidelity sound
system.

AGP (Accelerated Graphics Port)

An interface specification that enables high-performance 3D graphics on mainstream
PCs. AGP was designed to offer the necessary bandwidth and latency to perform
texture mapping directly from system memory.

Glossary

7. APPENDIX

Bus Bus Frequency Bandwidth Data Transfer Rate

PCI 33MHz 33MHz 133MByte/sec
AGP 1X 66MHz 66MHz 266MByte/sec
AGP 2X 66MHz 133MHz 512MByte/sec

AGP 4X 66MHz 266MHz 1024MByte/sec

BIOS (Basic Input/Output System)

BIOS is a set of routines that affect how the computer transfers data between com­puter components, such as memory, disks, and the display adapter. The BIOS in­structions are built into the computer’s read-only memory. BIOS parameters can be
configured by the user through the BIOS Setup program. The BIOS can be updated
using the provided utility to copy a new BIOS file into the EEPROM.

Bit (Binary Digit)

Represents the smallest unit of data used by the computer . A bit can have one of two
values: 0 or 1.

ASUS TUEG-VM User’s Manual 97

7. APPENDIX

Glossary

7. APPENDIX

Boot

Boot means to start the computer operating system by loading it into system memory .
When the manual instructs you to “boot” your system (or computer), it means to
turn ON your computer . “Reboot” means to restart your computer . When using W in­dows 95 or later, selecting “Restart” from “Start | Shut Down...” will reboot your
computer.

Bus Master IDE

PIO (Programmable I/O) IDE requires that the CPU be involved in IDE access and
waiting for mechanical events. Bus master IDE transfers data to/from the memory
without interrupting the CPU. Bus master IDE driver and bus master IDE hard disk
drives are required to support bus master IDE mode.

Byte (Binary Term)

One byte is a group of eight contiguous bits. A byte is used to represent a single
alphanumeric character, punctuation mark, or other symbol.

COM Port

COM is a logical device name used by to designate the computer serial ports. Point­ing devices, modems, and infrared modules can be connected to COM ports. Each
COM port is configured to use a different IRQ and address assignment.

Concurrent PCI

Concurrent PCI maximizes system performance with simultaneous CPU, PCI and
ISA bus activities. It includes multi-transaction timing, enhanced write performance,
a passive release mechanism and support for PCI 2.1 compliant delayed transac­tions. Concurrent PCI provides increased bandwidth, reduced system latencies, im­proves video and audio performance, and improves processing of host based appli­cations.

CPU (Central Processing Unit)

The CPU, sometimes called “Processor,” actually functions as the “brain” of the
computer. It interprets and executes program commands and processes data stored
in memory. Currently, there are socket 370 (for Pentium III FC-PGA and Celeron­PPGA), socket 7 (for Pentium, AMD, Cyrix, IBM), slot 1 (for Pentium II and III),
slot 2 (for Xeon), and slot A (for AMD) processors.

Device Driver

A device driver is a special set of instructions that allows the computer’s operating
system to communicate with devices such as VGA, audio, printer, or modem.

DOS (Disk Operating System)

DOS is the foundation on which all other programs and software applications oper­ate, including W indows. DOS is responsible for allocating system resources such as
memory, CPU time, disk space, and access to peripheral devices. For this reason,
DOS constitutes the basic interface between you and your computer.

DRAM (Dynamic Random Access Memory)

There are several different types of DRAM such as, EDO DRAM (Extended Data
Output DRAM), SDRAM (Synchronous DRAM), and RDRAM (Rambus DRAM).

Flash ROM

The flash ROM is designed to be a resident program and can be updated by a spe­cific programming method. Normally , the flash ROM is used for system BIOS which
initiates hardware devices and sets up necessary parameters for the OS. Since the
contents of flash ROM can be modified, users are able to update the BIOS by them­selves.

IDE (Integrated Drive Electronics)

IDE devices integrate the drive control circuitry directly on the drive itself, elimi­nating the need for a separate adapter card (in the case for SCSI devices). UltraDMA/
33 IDE devices can achieve up to 33MB/Sec transfer.

ASUS TUEG-VM User’s Manual98

7. APPENDIX

LPT Port (Line Printer Port)

Logical device name reserved by DOS for the computer parallel ports. Each LPT
port is configured to use a different IRQ and address assignment.

MMX

A set of 57 new instructions based on a technique called Single Instruction, Multiple
Data (SIMD), which is built into the new Intel Pentium PP/MT (P55C) and Pentium
II (Klamath) CPU as well as other x86-compatible microprocessors. The MMX in­structions are designed to accelerate multimedia and communications applications,
such as 3D video, 3D sound, video conference.

OnNow

The OnNow design initiative is a comprehensive, system-wide approach to system
and device power control. OnNow is a term for PC that is always ON but appears
OFF and responds immediately to user or other requests. The OnNow design initia­tive involves changes that will occur in the Microsoft Windows operating system,
device drivers, hardware, and applications, and also relies on the changes defined in
the Advanced Configuration and Power Interface (ACPI) specification.

PC100

SDRAM is Intel's goal is to ensure that memory subsystems continue to support
evolving platform requirements and to assure that memory does not become a bottle­neck to system performance. It is especially important to ensure that the PC memory
roadmap evolves together with the performance roadmaps for the processors, I/O
and graphics.

PCI Bus (Peripheral Component Interconnect Local Bus)

PCI bus is a specification that defines a 32-bit data bus interface. PCI is a standard
widely used by expansion card manufacturers.

PCI Bus Master

The PCI Bus Master can perform data transfer without local CPU help and further­more, the CPU can be treated as one of the Bus Masters. PCI 2.1 supports concur­rent PCI operation to allow the local CPU and bus master to work simultaneously.

Plug and Play BIOS

The ISA bus architecture requires the allocation of memory and I/O address, DMA
channels and interrupt levels among multiple ISA cards. However, configuration of
ISA cards is typically done with jumpers that change the decode maps for memory
and I/O space and steer the DMA and interrupt signals to different pins on the bus.
Further, system configuration files may need to be updated to reflect these changes.
Users typically resolve sharing conflicts by referring to documentation provided by
each manufacturer. For the average user, this configuration process can be unreli­able and frustrating. Plug and play (PnP) BIOS eliminates the ISA add-on card hard­ware conflict problem. The PnP BIOS uses a memory block to define and remember
each card's configuration, which allows the user to change the card's IRQs and DMA
in BIOS either automatically or manually.

POST (Power On Self Test)

When you turn ON the computer, it will first run through the POST, a series of
software-controlled diagnostic tests. The POST checks system memory , the mother ­board circuitry, the display, the keyboard, the diskette drive, and other I/O devices.

PS/2 Port

PS/2 ports are based on IBM Micro Channel Architecture. This type of architecture
transfers data through a 16-bit or 32-bit bus. A PS/2 mouse and/or keyboard may be
used on ATX motherboards.

Glossary

7. APPENDIX

RDRAM (Rambus DRAM)

Developed by Rambus, Inc., this type of memory can deliver up to 1.6GB of data
per second. RDRAM is the first interface standard that can be directly implemented
on high performance VLSI components such as, CMOS DRAMs, memory control-

lers, and graphics/video ICs.

ASUS TUEG-VM User’s Manual 99

7. APPENDIX

Glossary

7. APPENDIX

ROM (Read Only Memory)

ROM is nonvolatile memory used to store permanent programs (called firmware)
used in certain computer components. Flash ROM (or EEPROM) can be repro­grammed with new programs (or BIOS).

SCSI (Small Computer System Interface)

High speed multi-threaded I/O interface defined by the X3T9.2 committee of the
American National Standards Institute (ANSI) for connecting many peripheral de­vices. The standard started from 10MBytes/sec to 160MBytes/sec available today.

SDRAM (Synchronous DRAM)

The SDRAM features a fully synchronous operation referenced to a positive edge
clock whereby all operations are synchronized at a clock input which enables the
coexistence of high performance and a simple user interface. SDRAM takes memory
access away from the CPU's control; internal registers in the chips accept the re­quest, and let the CPU do something else while the data requested is assembled for
the next time the CPU talks to the memory. As they work on their own clock cycle,
the rest of the system can be clocked faster. There is a version optimized for video
cards, and main memory for motherboards.

SPD for SDRAM module

Serial Presence Detect (SPD) is most like an ID detect for SDRAM module, it using
a EEPROM component on DIMM module for storing module configuration infor­mation inside. The Serial Presence Detect function is implemented using a 2048 bit
EEPROM component. This nonvolatile storage device contains data programmed
by the DIMM manufacturer that identifies the module type and various SDRAM
organization and timing parameters.

SSE (Streaming SIMD Extensions)

A set of new instructions added to existing architectures that enables a better visual
experience with an accelerated 3D geometry pipeline and support for new applica­tions, such as real-time video encoding and speech recognition.

System Disk

A system disk contains the core file of an operating system and is used to boot up the
operating system.

UltraDMA

Ultra DMA/33 is a "synchronous DMA" protocol designed by Intel. This function is
included into Intel's PIIX4 chipset. The traditional IDE transfer only uses one edge
of the data stroke as the data transfer . Ultra DMA/33 uses both edges of data strobe
when the data is transferred. Hence, the data transfer rate is double of the PIO mode
4 or DMA mode 2 (16.6MB/s x2 = 33MB/s) on ATA-2 devices.

Ultra ATA/66, also known as Ultra DMA/66, is an extension of current Ultra ATA/
33 interface. This new high-speed interface has doubled the Ultra AT A/33 burst data
transfer rate to 66.6 Mbytes/sec and maximized disk performance under current PCI
local bus environment

USB (Universal Serial Bus)

A 4-pin serial cable bus that allows up to 127 plug and play computer peripherals
such as keyboard, mouse, joystick, scanner, printer, modem, and monitor to share a
bandwidth through a host scheduled token based protocol. This allows attaching or
detaching while the host and other peripherals are in operation. Supports synchro­nous and asynchronous transfer types over the same set of wires up to 12Mbit/sec.
USB 2.0 provides twice the transfer rate compared to USB 1.0 and competes with
the 1394 standard.

Wake-On-LAN

The computer automatically wakes up upon receiving a wake-up packet through a
Network interface when it is under power soft-off, suspend or sleep mode.

ASUS TUEG-VM User’s Manual100
