ASUS PUNDIT P1-PH1 User Guide

Download

Pundit P1-PH1

Barebone System

User Guide

E2243

First Edition V1 November 2005

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe.

Table of contents

Notices ........................................................................................... 6

Safety information .......................................................................... 7

About this guide .............................................................................. 8

System package contents ............................................................ 10

Chapter 1: System introduction

1.1 Welcome! ........................................................................... 1-2

1.2 Front panel (external) ......................................................... 1-2

1.3 Front panel (internal) .......................................................... 1-3

1.4 Rear panel .......................................................................... 1-4

1.5 Internal components ........................................................... 1-6

1.6 System dimension .............................................................. 1-6

Chapter 2: Basic installation

2.1 Preparation ......................................................................... 2-2

2.2 Before you proceed ............................................................ 2-2

2.3 Removing the cover ........................................................... 2-3

2.4 Removing the front panel cover ......................................... 2-4

2.5 Removing the storage drive assembly ............................... 2-4

2.6 Installing a CPU .................................................................. 2-5

2.6.1 Removing the CPU fan and heatsink assembly ... 2-5

2.6.2 CPU installation .................................................... 2-6

2.6.3 Re-installing the CPU fan and

heatsink assembly ................................................ 2-8

2.7 Installing memory modules ................................................. 2-9

2.7.1 Overview .............................................................. 2-9

2.7.2 Memory configurations ......................................... 2-9

2.7.3 Qualified Vendor List .......................................... 2-10

2.7.4 Installing a DIMM ............................................... 2-10

2.7.5 Removing a DIMM ............................................. 2-13

2.8 Installing PCI cards .......................................................... 2-13

2.8.1 PCI slots ............................................................. 2-13

2.8.2 PCI card installation ........................................... 2-13

2.8.3 Configuring an expansion card .......................... 2-15

Table of contents

2.9 Installing optical and storage drives ................................. 2-16

2.9.1 optical and storage drives installation ................ 2-16

2.9.2 Recommended optical drive dimension ............. 2-18

2.9.3 Enabling Plug and Share (PnS) ......................... 2-19

2.10 Replacing the cover .......................................................... 2-20

2.11 Removing and re-installing the foot stand ........................ 2-21

2.11.1 Installing the foot stand ...................................... 2-21

2.11.2 Removing the foot stand .................................... 2-22

2.12 Power supply unit information .......................................... 2-23

2.12.1 Voltage selector.................................................. 2-23

2.12.2 Power supply specifications ............................... 2-24

2.13 Connecting devices .......................................................... 2-25

Chapter 3: Starting up

3.1 Installing an operating system ............................................ 3-2

3.2 Powering up ....................................................................... 3-2

3.3 Using the system ................................................................ 3-2

3.3.1 CompactFlash card slot ....................................... 3-2

3.3.2 Storage card slot .................................................. 3-3

3.3.3 Optical drive ......................................................... 3-3

3.4 Support CD information ...................................................... 3-4

3.4.1 Running the support CD ....................................... 3-4

3.4.2 Drivers menu ........................................................ 3-4

3.4.3 Utilities .................................................................. 3-5

3.4.4 ASUS contact information .................................... 3-6

3.4.5 Other information ................................................. 3-7

Chapter 4: Motherboard information

4.1 Introduction......................................................................... 4-2

4.2 Motherboard layout ............................................................ 4-2

4.3 Jumper ............................................................................... 4-3

4.4 Internal connectors ............................................................. 4-4

Table of contents

Chapter 5: BIOS setup

5.1 Managing and updating your BIOS .................................... 5-2

5.1.1 ASUS EZ Flash utility ........................................... 5-2

5.1.2 Recovering the BIOS with CrashFree BIOS 2 ..... 5-3

5.1.3 ASUS Update ....................................................... 5-5

5.2 BIOS Setup program .......................................................... 5-7

5.2.1 BIOS menu bar .................................................... 5-8

5.2.2 Legend bar ........................................................... 5-8

5.3 Main Menu ........................................................................ 5-10

5.3.1 System Time [xx:xx:xx]....................................... 5-10

5.3.2 System Date [xx/xx/xxxx] ................................... 5-10

5.3.3 Primary IDE Master/Slave ; First SATA Master ...5-11

5.3.4 HDD SMART Monitoring [Disable] ..................... 5-12

5.3.5 Installed Memory [xxx MB] ................................. 5-12

5.3.6 Usable Memory [xxx MB] ................................... 5-12

5.4 Advanced Menu ............................................................... 5-13

5.4.1 CPU configuration .............................................. 5-13

5.4.2 Chipset configuration ......................................... 5-14

5.4.3 PCIPnP .............................................................. 5-15

5.4.4 Onboard device configuration ............................ 5-16

5.4.5 USB configuration .............................................. 5-18

5.5 Power menu ..................................................................... 5-19

5.5.1 APM configuration .............................................. 5-20

5.5.2 Hardware Monitor ............................................... 5-22

5.6 Boot menu ........................................................................ 5-23

5.6.1 Boot device priority ............................................. 5-23

5.6.2 Removable drives .............................................. 5-24

5.6.3 Hard disk drives ................................................. 5-24

5.6.4 CD-ROM drives .................................................. 5-25

5.6.5 Boot Settings Configuration ............................... 5-26

5.6.6 Security .............................................................. 5-27

5.7 Exit menu ......................................................................... 5-29

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING! The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

Safety information

Electrical safety

• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.

• When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected.

• If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.

Operation safety

• Before installing devices into the system, carefully read all the documentation that came with the package.

• Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.

• To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.

• Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may become wet. Place the product on a stable surface.

• If you encounter technical problems with the product, contact a qualified service technician or your retailer.

Lithium-Ion Battery Warning

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

VORSICHT: Explosionsgetahr bei unsachgemäßen Austausch der Batterie. Ersatz nur durch denselben oder einem vom Hersteller empfohlenem ähnljchen Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers.

LASER PRODUCT WARNING

CLASS 1 LASER PRODUCT

Safeguards

About this guide

Audience

This guide provides general information and installation instructions about the ASUS Book size barebone system. This guide is intended for experienced users and integrators with hardware knowledge of personal computers.

How this guide is organized

This guide contains the following parts:

1. Chapter 1: System introduction

This chapter gives a general description of the ASUS Book size barebone system. The chapter lists the system features including introduction on the front and rear panels, and internal components.

2. Chapter 2: Basic installation

This chapter provides step-by-step instructions on how to install components in the system.

3. Chapter 3: Starting up

This chapter helps you power up the system and install drivers and utilities from the support CD.

4. Chapter 4: Motherboard information

This chapter gives information about the motherboard that comes with the system. This chapter includes the motherboard layout, jumper settings, and connector locations.

5. Chapter 5: BIOS setup

This chapter tells how to change system settings through the BIOS Setup menus and describes the BIOS parameters.

Conventions used in this guide

WARNING: Information to prevent injury to yourself when trying to

complete a task.

CAUTION: Information to prevent damage to the components when trying to complete a task.

IMPORTANT: Information that you MUST follow to complete a task.

NOTE: Tips and additional information to aid in completing a task.

Where to find more information

Refer to the following sources for additional information and for product and software updates.

1. ASUS websites

The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to the ASUS contact information.

2. Optional documentation

Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer. These documents are not part of the standard package.

System package contents

Check your book size barebone system package for the following items.

1. ASUS book size barebone system with:

• ASUS motherboard

• CPU fan and heatsink assembly

• CompactFlash card reader

• 3-in-1 storage card reader

• PCI riser card

• 250W power supply unit

2. Cables

• Power cable and plug

• Serial ATA power cable and signal cable

• USB cable (Type A to Type B)

• IDE cables (one is preinstalled , 2 in the accessary box)

3. CDs

• Support CD

• Recover PRO CD

4. Quick Installation Guide

If any of the items is damaged or missing, contact your retailer immediately.

Chapter 1

This chapter gives a general description of the ASUS book size barebone system. The chapter lists the system features including introduction on the front and rear panel, and internal components.

System introduction

1.1 Welcome!

Thank you for choosing the ASUS book size barebone system!

The ASUS book size barebone system is a union of power, design, and performance built on ASUS technology and innovation. Inside the elegant casing is the ASUS motherboard that supports Intel® Pentium® 4 processor with up to 800MHz front side bus (FSB), and up to 2GB system memory.

This system features a complete array of multimedia capabilities and seamless connectivity including dual display function, PnS function, Fast Ethernet, 3-in-1 card reader, CF card reader, USB, S/PDIF, and IEEE 1394 interfaces.

The ergonomic design, silent operation, and cost effective architecture of the ASUS book size barebone system makes it an ideal solution for your multimedia and computing needs.

1.2 Front panel (external)

The front panel includes the system and audio control buttons, system LEDs, and LED panel.

1. Optical drive bay cover.

This door opens when you eject the loading tray.

2. Eject button . Press this

button to eject the loading tray of the optical drive.

3. HDD LED . This LED lights

up when data is being read

from or written to the hard disk drive.

4. Front panel I/O door. Open this door to show the front panel input/

output ports.

5. Power button . Press this button to turn the system on.

6. Power LED . When lit, this LED indicates that the system is ON.

7. Foot stand. The foot stand allows you to place the system in a

vertical position. See page 2-21 for details.

1-2

Chapter 1: System introduction

1.3 Front panel (internal)

The optical drive, storage card reader, and several I/O ports are located inside the front panel door.

Open the front panel door by pressing the mark.

8. Reset button . Press this

button to reset the system.

9. Plug N’ Share mini USB port .. See page 2-19 for

details.

10. CF card slot . This slot is for

a CompactFlash® compliant card.

11. 3-in-1 card slot . This slot is for Memory Stick®/Pro™, SecureDigital™and MultiMediaCard.

You can not close the front panel I/O door if a storage card is inserted in any of the card slots.

12. S/PDIF In port . This port connects your audio system for

5.1-channel surround sound and enhanced 3D audio.

13. 6-pin IEEE 1394 port . This port provides high-speed connectivity for IEEE 1394-compliant audio/video devices, storage peripherals, and other PC devices.

14. 4-pin IEEE 1394 port . This port provides high-speed connectivity for IEEE 1394-compliant audio/video devices, storage peripherals, and other PC devices.

15. Microphone port . This Mic (pink) port connects a microphone.

16. Headphone port . This port connects a headphone with a stereo

mini-plug.

17. USB 2.0 ports . These Universal Serial Bus 2.0 (USB 2.0) ports are available for connecting USB 2.0 devices such as a mouse, printer, scanner, camera, PDA, and others.

18. S/PDIF out port . This port connects your audio system for

5.1-channel surround sound and enhanced 3D audio.

ASUS Pundit P1-PH1system

1-3

1.4 Rear panel

The system rear panel includes the power socket and several I/O ports that allow convenient connection of devices.

1. Voltage selector. This switch

allows you to select the appropriate voltage supply in your area. See the “Voltage selector” section on page 223 before adjusting this switch.

2. Power supply unit. This is a

250W power supply unit.

3. S-Video port . This port

connects a video cassette recorder, camcorder, or television with S-Video interface.

4. TV-out port. This port connects a television.

5. PS/2 mouse port . This green 6-pin connector is for a PS/2 mouse.

6. Ethernet LAN port . This port allows connection to a Local Area

Network (LAN) through a network hub.

7. Parallel port . This 25-pin port connects a printer, scanner, or

other devices.

8. PCI slots. These PCI slots (covered) are for PCI-compliant cards.

9. Serial port . This port connects a mouse, modem, or other

devices that conforms with serial specification.

10. VGA port . This port connects a VGA monitor.

11. DVI-D port. This port connects a flat panel or LCD display.

12. USB 2.0 ports

. These Universal Serial Bus 2.0 (USB 2.0)

2.0

ports are available for connecting USB 2.0 devices such as a mouse, printer, scanner, camera, PDA, and others.

1-4

Chapter 1: System introduction

13. PS/2 keyboard port . This

purple 6-pin connector is for a

PS/2 keyboard.

14. Microphone port . This Microphone (pink) port connects a microphone. In 4/ 6-channel mode, the function of this port becomes Surround Speaker.

15. Line Out port . This Line

Out (lime) port connects a headphone or a speaker. In 4/6-channel mode, the function of this port becomes Front Speaker Out.

16. Line In port . This Line In (light blue) port connects a tape player or other audio sources. In 6-channel mode, the function of this port becomes Low Frequency Enhanced Output/Center.

The functions of the Line Out (lime), Line In (blue), and Microphone (pink) ports change when you select the 4-channel or 6-channel audio configuration as shown in the table below.

Audio ports function variation

Port Headphone/2-Channel 4-Channel 6-Channel

Blue Line In No function LFE Output*/Center

Lime Line Out Front Speaker Out Front Speaker Out

Pink Mic In Surround Surround

* Low Frequency Enhanced Output

17. Power socket. This socket connects the power cable and plug.

ASUS Pundit P1-PH1system

1-5

1.5 Internal components

The illustration below is the internal view of the system when you remove the cover. The installed components are labeled for your reference. Proceed to Chapter 2 for instructions on installing other system components.

1. Storage drive assembly

2. PCI riser

3. ASUS motherboard

4. Power supply unit

5. DIMM sockets

6. CPU fan and heatsink assembly

7. Foot stand

1.6 System dimension

The ASUS booksize barebone system is ergonomically designed to fit and complement your desktop.

You may use the foot stand to place the system vertically on a flat, stable surface.

275mm

1-6

357mm

91mm

Chapter 1: System introduction

Chapter 2

This chapter provides step-by-step instructions on how to install components in the system.

Basic installation

2.1 Preparation

Before you proceed, make sure that you have all the components that you plan to install in the system.

Basic components to install

1. Central processing unit (CPU)

2. DDR II Memory Module

3. Expansion card(s)

4. Hard disk drive

5. Optical drive

Tool

Phillips (cross) screw driver

2.2 Before you proceed

Take note of the following precautions before you install components into the system.

• Use a grounded wrist strap or touch a safely grounded object or to a metal object, such as the power supply case, before handling components to avoid damaging them due to static electricity.

• Hold components by the edges to avoid touching the ICs on them.

• Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that came with the component.

The motherboard comes with an onboard standby power LED. When lit, this LED indicates that the system is ON, in sleep mode or in soft-off mode, and not powered OFF. Unplug the power cable from the power outlet and make sure that the standby power LED is OFF before installing any system component.

SB_PWR

2-2

Onboard LED

Standby

Power

Chapter 2: Basic installation

OFF

Powered

Off

2.3 Removing the cover

To remove the cover:

1. On the rear panel, locate the two screws that secure the cover to the chassis.

3. Pull the cover slightly toward the rear panel until the cover tabs disengage from the chassis.

2. Use a Phillips (cross) screw driver to remove the cover screws. Keep the screws for later use.

4. Lift the cover, then set aside.

ASUS Pundit P1-PH1system

2-3

2.4 Removing the front panel cover

To remove the front cover:

1. Lift the front cover hooks outward until they disengage from the chassis.

2. Carefully remove the front cover, then set it aside.

2.5 Removing the storage drive assembly

Removing the storage drive assembly provides you more space when installing the CPU and the CPU fan and heatsink assembly.

To remove the front cover and storage drive assembly:

1. Locate and remove three storage drive assembly screws. Keep the screws for later use.

If your system comes with a pre-installed optical drive, disconnect the power, audio, and IDE plugs at the back of the drive before lifting the storage drive assembly.

2. Slightly lift the storage drive assembly until its hooks are released from the chassis holes. Set the storage drive assembly aside.

When removing the storage drive assembly, make sure to hold or support it firmly. The assembly may accidentally drop and damage other system components.

2-4

Chapter 2: Basic installation

2.6 Installing a CPU

The motherboard comes with a surface mount LGA775 socket designed for Intel® Pentium® 4 processor in the 775-land package.

2.6.1 Removing the CPU fan and heatsink assembly

The system package includes a pre-installed proprietary CPU fan and heatsink assembly to provide an efficient thermal solution to the CPU.

• DO NOT replace the proprietary CPU fan and heatsink with other

models.

• Remove the memory modules first before removing the CPU fan

and heatsink assembly to avoid damaging the retaining clips of the DIMM sockets. Refer to the next section for details on how to remove the memory modules.

You must remove the CPU fan and heatsink assembly before installing a CPU.

To remove the CPU fan and heatsink assembly:

1. Disconnect the CPU fan cable from the CPU fan connector on the motherboard.

2. Loosen the CPU fan and heatsink assembly screws.

3. Lift the CPU fan and heatsink assembly, then set aside.

ASUS Pundit P1-PH1system

2-5

2.6.2 CPU installation

To install the CPU:

1. Locate the 775-pin CPU socket on the motherboard.

CPU Socket 775

Before installing the CPU, make sure that the socket box is facing towards you and the load lever is on your left.

2. Press the load lever with your thumb (A) and move it to the left (B) until it is released from the retention tab.

PnP CapPnP Cap

PnP Cap

Retention tabRetention tab

Retention tab

Retention tabRetention tab

Load leverLoad lever

Load lever

Load leverLoad lever

PnP CapPnP Cap

2-6

This side of the camThis side of the cam

This side of the cam

This side of the camThis side of the cam box should face you.box should face you.

box should face you.

box should face you.box should face you.

To prevent damage to the socket pins, do not remove the PnP cap unless you are installing a CPU.

Chapter 2: Basic installation

3. Lift the load lever in the direction of the arrow to a 135º angle.

4. Lift the load plate with your thumb and forefinger to a 100º angle (A), then push the PnP cap from the load plate window to remove (B).

5. Position the CPU over the socket, making sure that the gold triangle is on the bottom-left corner of the socket. The socket alignment key should fit into the CPU notch.

Alignment keyAlignment key

Alignment key

Alignment keyAlignment key

Load plateLoad plate

Load plate

Load plateLoad plate

Gold triangle markGold triangle mark

Gold triangle mark

Gold triangle markGold triangle mark

6. Close the load plate (A), then push the load lever (B) until it snaps into the retention tab.

The CPU fits in only one correct orientation. DO NOT force the CPU into the socket to prevent bending the connectors on the socket and damaging the CPU!

ASUS Pundit P1-PH1system

2-7

2.6.3 Re-installing the CPU fan and heatsink assembly

To re-install the CPU fan and heatsink assembly:

1. Position the CPU fan and heatsink

assembly on top of the installed CPU.

2. Hold down the heatsink lightly and

twist each of the four screws with a Philips (cross) screwdriver just enough to attach the heatsink to the motherboard. When the four screws are attached, tighten them one by one to completely secure the heatsink.

3. Connect the CPU fan cable to

the CPU fan connector on the motherboard.

CPU_FAN

2-8

Fan power connectors

Rotation

Chapter 2: Basic installation

+12V

GND

2.7 Installing memory modules

2.7.1 Overview

The system motherboard has two DDR II DIMM sockets that support up to 2GB non-ECC PC5300/4200/3200 DDR II SDRAM DIMMs. Each DIMM socket is double-sided. Refer to the illustration below for the location of the DIMM sockets.

DIMMA1

DIMMB1

240-pin DDR2 DIMM sockets

For optimum compatibility, it is recommend that you obtain memory modules from the same vendor. Refer to section 2.7.3 for a list of qualified DDR vendors.

2.7.2 Memory configurations

You may install 64MB, 128MB, 256MB, 512MB, and 1GB DDR II DIMMs to the DIMM sockets.

ASUS Pundit P1-PH1system

2-9

2.7.3 Qualified Vendor List

The following table lists the DDR II 667 memory modules that have been tested and qualified for use with this motherboard.

Size Vendor Model CL Brand SS Component DIMM

256MB SAMSUNG M378T3253FZ0-CE6 N/A SAMSUNG SS K4T56083QF-ZCE6 V V

512MB SAMSUNG M378T6453FZ0-CE6 N/A SAMSUNG DS K4T56083QF-ZCE6 V V 1024MB Kingston KVR667D2N5/1G N/A Kingston DS E5108AE-GE-E V V 512MB Hynix HYMP564U64AP8-Y5 N/A Hynix SS HY5PS12821AFP-Y5 V V

1024MB Hynix HYMP512U64AP8-Y4 N/A Hynix DS HY5PS12821AFP-Y4 V V 512MB Hynix HYMP564U64AP8-Y4 3 Hynix SS HY5PS12821AFP-Y4 V V 512MB MICRON MT16HTF6464AY-667B4 5 MICRON DS 4VB41D9CZM V V

256MB MICRON MT8HTF3264AY-667B5 5 MICRON SS 4SB42D9CZM V V 256MB MICRON MT8HTF3264AY-667B6 5 MICRON SS 5FB42D9DPN V V 256MB Infineon HYS64T32000HU-3S-A 5 Infineon SS HYB18T512160AF-3S V V

512MB Infineon HYS64T64000HU-3S-A 5 Infineon SS HYB18T512800AF3S V V 1024MB Infineon HYS64T128020HU-3S-A 5 Infineon DS HYB18T512800AF3S V V 512MB ELPIDA EBE51UD8AEFA-6E-E N/A ELPIDA SS E5108AE-GE-E V V

1024MB ELPIDA EBE11UD8AEFA-6E-E N/A N/A DS N/A V V 256MB ELPIDA EBE25UC8ABFA-6E-E 5 ELPIDA SS E2508AB-GE-E V V

/DS

socket support (Optional)

A* B*

A* : Supports one module inserted in any slot as Single-channel memory configuration. B* : Supports one pair of modules inserted into eithor the blue slots or the black slots as one pair of Dual-channel memory configuration.

Obtain DDR II DIMMs only from ASUS qualified vendors. Visit the ASUS website (www.asus.com) for the latest QVL.

2-10

Chapter 2: Basic installation

2.7.4 Installing a DIMM

• Make sure to unplug the power supply before adding or removing DIMMs or other system components. Failure to do so may cause severe damage to both the motherboard and the components.

• Re-install the CPU fan and heatsink assembly before installing the DIMM(s) to avoid damaging the retaining clips of the DIMM sockets. Refer to the previous section for details on how to reinstall the CPU fan and heatsink assembly.

Follow these steps to install a DIMM.

1. Locate the DIMM sockets in the motherboard.

2. Unlock a DIMM socket by pressing the retaining clips outward.

3. Align a DIMM on the socket such that the notch on the DIMM matches the break on the socket.

4. Firmly insert the DIMM into the socket until the retaining clips snap back in place and the DIMM is properly seated.

A DDR II DIMM is keyed with a notch so that it fits in only one direction. DO NOT force a DIMM into a socket to avoid damaging the DIMM.

DDR II DIMM notch

Unlocked

retaining clip

Locked

retaining clip

ASUS Pundit P1-PH1system

2-11

2.7.5 Removing a DIMM

Follow these steps to remove a DIMM.

1. Simultaneously press the retaining clips outward to unlock the DIMM.

Support the DIMM lightly with your fingers when pressing the retaining clips. The DIMM might get damaged when it flips out with extra force.

2. Remove the DIMM from the socket.

Remove the CPU fan and heatsink assembly before removing the memory module(s). Incorrect installation sequence may damage the DIMM socket retaining clips.

2-12

Chapter 2: Basic installation

2.8 Installing PCI cards

In the future, you may need to install PCI cards to the system. The system motherboard has one PCI slot with a pre-installed PCI riser assembly that supports two PCI cards.

Make sure to unplug the power cord before adding or removing expansion cards. Failure to do so may cause you physical injury and damage motherboard components.

2.8.1 PCI slots

The PCI slots support PCI cards such as a LAN card, SCSI card, USB card, and other cards that comply with PCI specifications. The following figure shows a LAN card installed on a PCI slot.

2.8.2 PCI card installation

To install a PCI card:

1. Slightly lift the PCI riser assembly until it disengages from the chassis.

PCI riser assembly

ASUS Pundit P1-PH1system

2-13

2. Place the PCI riser asembly on a flat surface.

3. Remove the bracket opposite the PCI slot you wish to use. Keep the screw for later use.

PCI riser card

PCI slot bracket

4. Align the PCI card connector with the slot and press firmly until the card is completely seated on the slot. Secure the PCI card to the PCI riser assembly with the screw you removed earlier.

5. Re-install the PCI riser assembly to the system chassis.

2-14

Chapter 2: Basic installation

2.8.3 Configuring an expansion card

After installing the expansion card, configure the card by adjusting the software settings.

1. Turn on the system and change the necessary BIOS settings, if any. See Chapter 5 for information on BIOS setup.

2. Assign an IRQ to the card. Refer to the tables below.

3. Install the software drivers for the expansion card.

Standard interrupt assignments

IRQ Priority Standard Function

0 1 System Timer 1 2 Keyboard Controller 2 N/A Programmable Interrupt 4* 12 Communications Port (COM1) 5* 13 Sound Card (sometimes LPT2) 6 14 Floppy Disk Controller 7* 15 Printer Port (LPT1) 8 3 System CMOS/Real Time Clock 9* 4 ACPI Mode when used 10* 5 IRQ Holder for PCI Steering 11* 6 IRQ Holder for PCI Steering 12* 7 PS/2 Compatible Mouse Port 13 8 Numeric Data Processor 14* 9 Primary IDE Channel

* These IRQs are usually available for ISA or PCI devices.

IRQ assignments for this motherboard

ABCDE FGH

PCI slot 1 used –– –– –– –– –– –– –– PCI slot 2 –– shared –– –– –– –– –– –– Onboard USB controller HC0 –– –– –– shared –– –– –– –– Onboard USB controller HC1 –– –– –– shared –– –– –– –– Onboard USB 2.0 controller –– –– –– shared –– –– –– –– Onboard LAN –– –– –– –– used –– –– –– Onboard Audio –– shared –– –– –– –– –– –– Onboard VGA –– shared –– –– –– –– –– –– Onboard 1394 controller –– –– –– –– –– used –– –– Onboard SATA1 –– –– –– –– –– –– used –– Onboard SATA2 –– –– –– –– –– –– –– usedd

When using a PCI card on shared slots, ensure that the drivers support “Share IRQ” or that the cards do not need IRQ assignments. Otherwise, conflicts will arise between the two PCI groups, making the system unstable and the card inoperable.

ASUS Pundit P1-PH1system

2-15

2.9 Installing optical and storage drives

2.9.1 optical and storage drives installation

The system supports one UltraATA100/66 IDE or one Serial ATA hard disk drive.

Configure your hard disk drive as Master device before installing it in the storage drive assembly. Refer to the HDD documentation on how to set the drive as a Master device.

To install an IDE hard disk drive and optical drive:

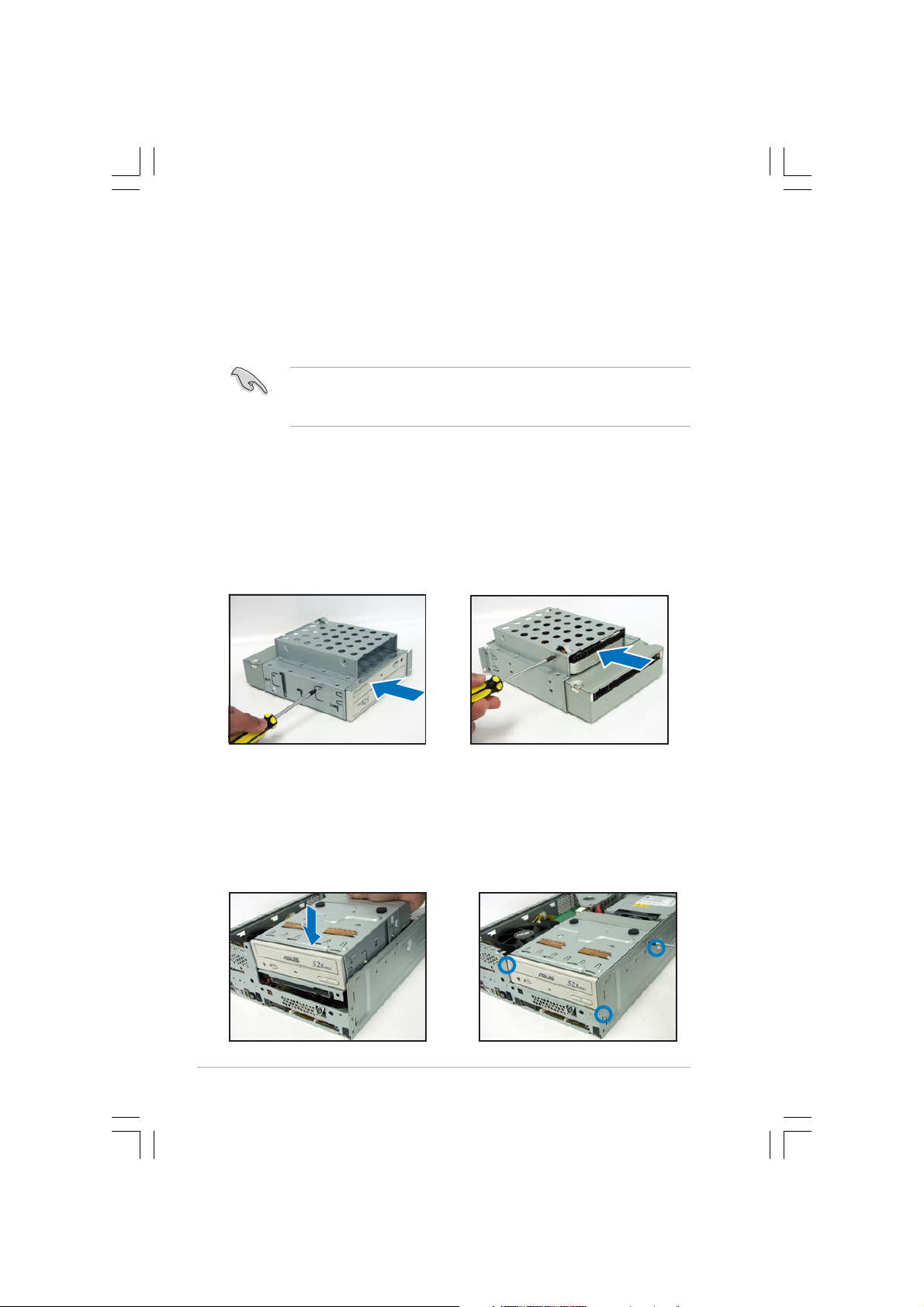

1. Turn the storage drive assembly upside down with the 3.5-inch bay on top of the 5.25-inch bay.

2. Insert the optical drive upside down to the 5.25-inch bay, then secure it with two screws on both sides.

3. Turn the storage drive assembly, insert the hard disk drive upside down to the 3.5-inch bay, then secure it with two screws on both sides.

4. Connect the black plug of the IDE cable to the optical drive, then the gray plug to the hard disk drive.

5. Connect the 4-pin power plugs to the power connectors at the back of the drives.

6. Install the storage drive assembly to the chassis.

7. Secure the storage drive assembly with three screws.

2-16

Chapter 2: Basic installation

To install a Serial ATA hard disk drive:

1. Follow steps 1-3 of the previous section.

2. Connect one end of the supplied 7-pin SATA cable to the connector at the back of the

Serial ATA cable

drive, then connect the other end to the SATA connector on the motherboard. See page 64 for the location of the Serial ATA connector.

For Serial ATA HDDs

with

a 4-pin power connector:

Connect a 4-pin (female) power plug from the power supply unit (PSU) to the 4-pin (male) power connector at the back of the drive.

For Serial ATA HDDs

without

a 4-pin power connector:

Use the supplied SATA power cable. Connect a 4-pin plug (female) from the PSU to the 4-pin (male) plug of the SATA power cable. Connect the 15-pin SATA power plug to the power connector at the back of the drive.

15-pin

4-pin (male)

Serial ATA power cable

ASUS Pundit P1-PH1system

2-17

2.9.2 Recommended optical drive dimension

You must consider the following optical drive requirements when installing a new optical drive or replacing a defective one.

We recommended that you install and use an ASUS optical drive on this system.

Optical drive buttons

The stop/eject button area of the DVD/CD-ROM drive should be less than or equal to 21.9 millimeters from the right edge of the drive.

↓

≤

21.9mm

Optical drive tray

The optical drive tray door should not exceed 4.5 millimeters from the bottom edge of the drive tray. The height of the bottom edge of the drive tray should be less than or equal to 13 millimeters in parallel with the lower drive screw holes.

2-18

≤

13mm

≤

4.5mm

Chapter 2: Basic installation

Optical drive cover thickness and length

The thickness of the optical drive front panel cover should be less than or equal to 7 millimeters and the length of the drive should be less than or equal to 208 millimeters.

≤

↓

208mm

↓

≤

7mm

2.9.3 Enabling Plug and Share (PnS)

Plug and Share (PnS) allows you to share the optical drive with other devices (e.g. notebook) via the PnS USB port in the front panel.

The Plug and Share feature does not support Serial ATA optical drives.

To enable PnS:

1. Install an Window 2000/XP operating system.

2. When finished, turn off the system, then uninstall the storage drive assembly.

3. Remove the pre-installed IDE cable on the PRI_IDE connector, then install the supplied IDE cables to the PRI_IDE and RED_IDE connectors.

4. Connect the cable from the RED_IDE connector to the optical drive, then connect the cable from the PRI_IDE connector to the hard disk drive.

5. Connect the 4-pin power plugs to the power connectors at the back of the drives.

6. Restart the system and Install the USB ODD Driver. See Page 3-5.

ASUS Pundit P1-PH1system

PnS mini USB portPnS mini USB port

PnS mini USB port

PnS mini USB portPnS mini USB port

2-19

2.10 Replacing the cover

After installing all system components and re-connecting all cables, replace the system cover by following these instructions.

1. Replace the front panel cover by fastening its hooks to the chassis holes until they fit in place.

3. Push the system cover toward the front panel until it fits in place.

2. Position the cover at least two inches from the front panel, then align the cover hooks to the chassis rail.

4. Secure the system cover with the screws you removed earlier.

2-20

Chapter 2: Basic installation

2.11 Removing and re-installing the foot stand

The system comes with a removable foot stand for vertical desktop placement. Follow the instructions to remove or re-install the foot stand.

2.11.1 Installing the foot stand

To install the foot stand:

1. Locate six tab holes on the bottom of the chassis.

Tab holes

2. Align the foot stand hooks to the chassis holes, then lay the foot stand over the chassis bottom.

Hooks

3. Pull the foot stand toward the front panel until it fits in place.

ASUS Pundit P1-PH1system

2-21

2.11.2 Removing the foot stand

To remove the foot stand:

1. Lay the system upside down on a flat and stable surface.

2. Locate the foot stand lock.

3. Use your thumb to push the lock toward the rear panel until the foot stand tabs are released from the chassis holes.

4. Lift the foot stand, then set it aside.

Lock

2-22

Chapter 2: Basic installation

2.12 Power supply unit information

The system comes with a 250W power supply unit (PSU).

2.12.1 Voltage selector

The PSU has a 115V/230V voltage selector switch located beside the power socket. Use this switch to select the appropriate voltage according to the voltage supply in your area.

The voltage selector is set to 230V by default.

If the voltage supply in your area is 100-127V, set the switch to 115V.

If the voltage supply in your area is 200-240V, set the switch to 230V.

Setting the switch to 115V in a 230V environment will seriously damage the system!

ASUS Pundit P1-PH1system

2-23

2.12.2 Power supply specifications

Input Characteristics

Input Voltage Range Min Nom Max

Range 1 90V 100-127V 132V

Range 2 180V 200-240V 264V

Input Frequency Range 47 Hz to 63 Hz

Maximum Input ac Current 7A max. at 115Vac

4A max. at 230Vac, full load

Efficiency 65% min. at input 115Vac/230Vac and

output full load

Current harmonic Meet IEC61000-3-2 Class D (input power from

75W to max. continue power.)

AC Inrush Current Peak inrush current shall be limited to 100A

warm start.

Output Characteristics

Output Load Range Regulation Ripple

Voltage Min Max Min Max Max

+5V 0.5A 16A -5% +5% 50mVp-p

+12V 1A 16A -5% +5% 120mVp-p

-12V 0A 0.8A -10% +10% 120mVp-p

+3.3V 0.3A 16A -5% +5% 50mVp-p

+5VSB 0A 2A -5% +5% 50mVp-p

Over-Voltage Protection (OVP)

Output Voltage Maximum Voltage

+5V 6.5V

+3.3V 4.6V

+12V 15.5V

+5VSB 7V

The power supply will shut down and latch off for shorting +5V, +12V,

-12V, or +3.3V. By shorting +5VSB, the power supply can latch down or automatically recover when the fault condition is removed

2-24

Chapter 2: Basic installation

2.13 Connecting devices

To the rear panel

Line In

Line Out

Mic

PS/2 KB

USB

DVI-D

VGA

Serial

S-Video

TV-out

PS/2 Mouse

RJ-45

Parallel

ASUS Pundit P1-PH1system

2-25

To the front panel

Camera

Scanner

Audio

Devices

HDD

Mic

2-26

Headphone

Chapter 2: Basic installation

Chapter 3

This chapter helps you to power up and use the system for the first time. This part also provides information on how to install drivers and utilities from the support CD.

Starting up

3.1 Installing an operating system

The ASUS book size barebone system supports Windows® 2000 / XP operating systems (OS). Always install the latest OS version and corresponding updates so you can maximize the features of your book size barebone system.

Because motherboard settings and hardware options vary, use the setup procedures presented in this chapter for general reference only. Refer to your OS documentation for detailed information.

3.2 Powering up

The system has two power buttons located in the front panel. Press the system power button ( ) to enter the OS.

System power button

3.3 Using the system

The following sections illustrate how to use the storage card reader slots, and the optical drive.

3.3.1 CompactFlash card slot

The system comes with a Compactflash card slot that supports Compactflash cards and Microdrive .

CompactFlash card slot

3-2

Chapter 3: Starting up

3.3.2 Storage card slot

A 3-in-1 storage card reader comes pre-installed in your ASUS book size barebone system. The storage card reader supports the following storage cards:

• Memory Stick

/ Pro™

• Secure Digital™

• MultimediaCard

3-in-1 card reader

3.3.3 Optical drive

If your system comes with an installed optical drive, follow these instructions to insert a CD/DVD to the drive.

1. Press the EJECT button of the optical drive.

2. Place a CD/DVD on the drive tray. Make sure the CD/DVD is properly seated on the tray locks.

3. Push the drive tray back to the drive.

ASUS Pundit P1-PH1system

Tray locks

3-3

3.4 Support CD information

The support CD that came with the system contains useful software and several utility drivers that enhance the system features.

• Screen display and driver options may not be the same for other operating system versions.

• The contents of the support CD are subject to change at any time without notice. Visit the ASUS website for updates.

3.4.1 Running the support CD

To begin using the support CD, place the CD in your optical drive. The CD automatically displays the Drivers menu if Autorun is enabled in your computer.

Click an item to install Click an icon to display

If Autorun is NOT enabled in your computer, browse the contents of the support CD to locate the file ASSETUP.EXE from the BIN folder. Double-click the ASSETUP.EXE to run the CD.

other information

3.4.2 Drivers menu

The drivers menu shows the available device drivers if the system detects installed devices. Install the necessary drivers to activate the devices.

ATI All In One Driver

Click this item to install the ATI All In One Driver.

3-4

Chapter 3: Starting up

Realtek Audio Driver

Click this item to install the Realtek Audio Driver.

Realtek LAN Driver

Click this item to install the Realtek LAN Driver.

USB ODD Driver

Click this item to install the Plug and Share (PnS) ODD applicaton.See Page 2-19.

USB 2.0 Driver

Click this item to install the USB 2.0 Driver.

3.4.3 Utilities

The Utilities tab displays the applications and softwares that the motherboard supports.

ASUS PC Probe

This utility continuously monitors vital system information such as fan rotations, CPU temperature, and system voltages, and alerts you on any detected problems. This utility helps you keep your computer in a healthy operating condition.

ASUS Update

This item installs the ASUS Update that allows you to update the motherboard BIOS and drivers. This utility requires an Internet connection either through a network or an Internet Service Provider (ISP).

ASUS Pundit P1-PH1system

3-5

ASUS Screensaver

This item installs the ASUS Screensaver.

ADOBE Acrobat Reader V7.0

This item installs the Adobe® Acrobat Reader®. The Acrobat® Acrobat Reader® software is for viewing files saved in Portable Document Format (PDF).

Microsoft DirectX 9.0c

Installs the Microsoft® DirectX 9.0c driver.

USB2.0 Card Reader Software

This item installs the USB2.0 Card Reader Software.

Anti-Virus Utility

This item installs the Anti-Virus Utility. View the online help for detailed information.

3.4.4 ASUS contact information

Click the Contact tab to display the ASUS contact information.

3-6

Chapter 3: Starting up

3.4.5 Other information

The icons on the top right side of the screen give additional information on the motherboard and the contents of the support CD. Click an icon to display the specified information.

Motherboard infoMotherboard info

Motherboard info

Motherboard infoMotherboard info

Displays the general specifications of the motherboard.

Browse this CDBrowse this CD

Browse this CD

Browse this CDBrowse this CD

Displays the support CD contents in graphical format.

ASUS Pundit P1-PH1system

3-7

Technical support formTechnical support form

Technical support form

Technical support formTechnical support form

Displays the ASUS Technical Support Request Form that you have to fill out when requesting technical support.

FilelistFilelist

Filelist

FilelistFilelist

Displays the contents of the support CD and a brief description of each in text format.

3-8

Chapter 3: Starting up

Chapter 4

This chapter gives information about the motherboard that comes with the system. This chapter includes the motherboard layout, jumper settings, and connector locations.

Motherboard info

4.1 Introduction

The ASUS motherboard comes already installed in the ASUS book size barebone system. This chapter provides technical information about the motherboard for future upgrades or system reconfiguration.

4.2 Motherboard layout

PS/2KBMS T: Mouse B: Keyboard

LAN_USB12

DVI

VGA

AUX

CH7307C

COM1

TVOUT

EATXPWR

PCI1

RTL8100C

IT8712

CR2032 3V Lithium Cell

PMC

CMOS Power

Flash

PRI_IDE

RED_IDE

SATA1

ATI

RS400

DDR2 DIMMA1 (64 bit,240-pin module)

DDR2 DIMMB1 (64 bit,240-pin module)

CLRTC

ATI

SB450

USB34

LGA775

ATX12V

SB_PWR

VIA

VT6307

PANEL

SMSC

USB2227

BUZZER

3IN1_CON

SPDIF_IN

SPDIF_OUT

PWRSW

RSTCON

IDE_USB

CF_CON

IE1394_1

IE1394_2

USB12

FP_AUDIO

CPU_FAN

4-2

Chapter 4: Motherboard info

4.3 Jumper

1. Clear RTC RAM (CLRTC)

This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM data. The RAM data in CMOS, that include system setup information such as system passwords, is powered by the onboard button cell battery.

To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.

2. Remove the battery.

3. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3 for about 5-10 seconds, then move the cap back to pins 1-2.

4. Re-install the battery.

5. Plug the power cord and turn ON the computer.

6. Hold down the <Del> key during the boot process and enter BIOS setup to re-enter data.

CLRTC

2312

Clear RTC RAM

Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default position. Removing the cap will cause system boot failure.

ASUS Pundit P1-PH1system

NORMAL CLEAR RTC

(Default)

4-3

4.4 Internal connectors

This section describes and illustrates the connectors on the motherboard. See page 14-15 for the description of the rear panel connectors.

1. USB connector (10-1 pin USB34)

If the rear panel USB 2.0 ports are inadequate, a USB header is available at midboard to accommodate two additional USB ports. You may connect the cable of a two-port USB module to this connector, then mount the module to an open slot in the chassis.

USB Power

USBP3–

USBP3+

GND

USB34

610

USB connector

2. Rear panel TV and audio ports connector (14-1 pin TVOUT_R)

This interface is connected to the ASUS proprietary daughtercard that supports the rear panel audio I/O, S-Video, and composite video ports.

GND

USBP2–

USBP2+

USB Power

4-4

TVOUT_REARAUDIO connectors

D33005

Chapter 4: Motherboard info

3. LED connector (6-pin LED_CON1)

This connector supports the Power and HDD activity LEDs in the system front panel.

LED_CON

PLED+ NC IDE_LED+

PLED-

IDE_LED-

LED connector

4. ATX power connectors (24-pin ATXPWR, 4-pin ATX12V)

These connectors are for the 24-pin and 4-pin power plugs from the power supply unit. The plugs from the power supply unit are designed to fit these connectors in only one orientation. Find the proper orientation and push down firmly until the connectors completely fit.

EATXPWR

ATX12V

ATX Power connectors

ASUS Pundit P1-PH1system

+12V DC

GND

+3 Volts

-12 Volts

ATX12V

Ground

+5 Volts

Ground

PSON#

+12V DC GND

+5 Volts

Ground

Power OK

-5 Volts

Ground

+12 Volts

+3 Volts

+12 Volts

+5V Standby

Ground

+5 Volts

4-5

5. IDE connectors (40-1 pin PRI_IDE, RED_IDE)

The PRI_IDE connector is for the primary master device (hard disk drive) . Attach the blue connector of the 40-pin cable to this interface, then attach the black connector to the UltraATA100/66 primary master device (hard disk drive). The RED_IDE connector is for the secondary master device (optical drive). Configure the hard disk drive and the optical drive as primary/secondary master device by adjusting their jumper settings. Refer to their respective documentation for details.

Pin 20 on the IDE connector is removed to match the covered hole on the UltraATA cable connector. This prevents incorrect orientation when you connect the cables.

4-6

IDE connectors

RED_IDE

NOTE: Orient the red markings (usually zigzag) on the IDE ribbon cable to PIN 1.

PIN 1

PRI_IDE

PIN 1

RED_IDE can’t connect to Hard Drive.

You can’t install OS with RED_IDE connector. See 2.9.1 ( Page 2-16 ) and 2.9.3.( Page 2-19 ) .

Chapter 4: Motherboard info

6. Serial ATA connectors (7-pin SATA1)

This next generation connector supports the thin Serial ATA cable for a Serial ATA hard disk drive. The current Serial ATA interface allows up to 150 MB/s data transfer rate, faster than the standard parallel ATA with 133 MB/s (UltraATA133).

SATA 1

SATA connector

Important notes on Serial ATA

• The Serial ATA cable is smaller and more flexible allowing easier routing inside the chassis. The lower pin count of the Serial ATA cable eliminates the problem caused by the wide, flat ribbon cables of the Parallel ATA interface.

• Hot plug support for Serial ATA drive and connections are not available in this motherboard.

• Install Windows® XP™ Service Pack 1 when using Serial ATA.

7. Serial port connector (10-1 pin COM1)

This connector supports the rear panel serial port.

GND RSATA_RXN1 RSATA_RXP1 GND RSATA_TXN1 RSATA_TXP1 GND

Serial COM1 connector

ASUS Pundit P1-PH1system

COM1

4-7

8. Internal audio connectors (4-pin AUX, CD)

These connectors allow you to receive stereo audio input from sound sources such as a optical drive, TV tuner, or MPEG card.

AUX

Internal audio connectors

Left Audio Channel Ground

Right Audio Channel

9. CPU fan connectors (3-pin CPU_FAN)

The fan connectors support the proprietary CPU fan. Connect the fan cable to the connector matching the black wire to the ground pin.

4-8

CPU_FAN

GND

Fan power connector

+12V

Rotation

Do not forget to connect the fan cables to the fan connectors. Lack of sufficient air flow within the system may damage the motherboard components. These are not jumpers! DO NOT place jumper caps on the fan connectors!

Chapter 4: Motherboard info

Chapter 5

This chapter tells how to change system settings through the BIOS Setup menus and describes the BIOS parameters.

BIOS setup

5.1 Managing and updating your BIOS

The following utilities allow you to manage and update the motherboard Basic Input/Output System (BIOS) setup.

1. ASUS EZ Flash (Updates the BIOS using a flash disk during POST.)

2. CrashFree BIOS 2 (Updates the BIOS using the support CD when

the BIOS gets corrupted.)

3. ASUS Update (Updates the BIOS in Windows® environment.)

Refer to the corresponding section for each utility.

Important notes

• It is recommended that you save a copy of the original motherboard BIOS file to a USB flash disk in case you need to

restore the BIOS in the future. Copy the original motherboard BIOS using the ASUS Update utility.

•A working BIOS file for this motherboard is in the support CD. Use this file only when you do not have a copy of the original motherboard BIOS file in a USB flash disk or floppy disk.

• Visit the ASUS website and download the latest BIOS file for this motherboard using the ASUS Update utility.

5.1.1 ASUS EZ Flash utility

The ASUS EZ Flash feature allows you to update the BIOS without having to go through the long process of booting from a flash disk and using a DOS-based utility. The EZ Flash utility is built-in the BIOS chip so it is accessible by pressing <Alt> + <F2> during the Power-On Self Tests (POST).

To update the BIOS using EZ Flash:

1. Visit the ASUS website (www.asus.com) to download the latest BIOS file for the motherboard and rename the same to

2. Save the BIOS file to a flash disk, then restart the system.

3. Press <Alt> + <F2> during POST to display the following.

5-2

P5R8L.BINP5R8L.BIN

P5R8L.BIN.

P5R8L.BINP5R8L.BIN

Chapter 5: BIOS setup

EZFlash starting BIOS update Checking for floppy...

4. Insert the flash disk that contains the BIOS file to the flash disk drive. When the correct BIOS file is found, EZ Flash performs the BIOS update process and automatically reboots the system when done.

EZFlash starting BIOS update Checking for floppy... Floppy found! Reading file “P5R8L.BIN”. Completed.

Start erasing.......|

Start programming...| Flashed successfully. Rebooting.

• Do not shut down or reset the system while updating the BIOS to prevent system boot failure!

• A “Floppy not found!” error message appears if there is no floppy disk in the drive. A “P5R8L.BIN not found!” error message appears if the correct BIOS file is not found in the floppy disk. Make sure that you rename the BIOS file to P5R8L.BIN.

5.1.2 Recovering the BIOS with CrashFree BIOS 2

The CrashFree BIOS 2 auto recovery tool allows you to restore BIOS from the motherboard support CD, or from a USB floppy disk or flash disk that contains the BIOS file, in case the current BIOS on the motherboard fails or gets corrupted.

• Prepare the support CD that came with the motherboard that

contains the motherboard BIOS (P5R8L.BIN) before proceeding with the BIOS update process.

• If you have saved a copy of the original motherboard BIOS to a

bootable USB floppy disk or USB flash disk, you may also use this disk to restore the BIOS.

To recover the BIOS from the support CD:

Make sure the optical drive is set as secondary master device when recovering the BIOS using the support CD.

ASUS Pundit P1-PH1system

5-3

1. Boot the system.

2. When a corrupted BIOS is detected, the following screen message appears.

Bad BIOS checksum. Starting BIOS recovery... Checking for floppy...

The system automatically checks the optical drive.

3. Place the support CD in the optical drive. The support CD contains the original BIOS for this motherboard.

Bad BIOS checksum. Starting BIOS recovery... Checking for floppy... Floppy not found! Checking for CD-ROM... CD-ROM found. Reading file “P5R8L.BIN”. Completed. Start flashing...

DO NOT shutdown or reset the system while updating the BIOS! Doing so may cause system boot failure!

4. When the BIOS update process is complete, reboot the system.

The recovered BIOS may not be the latest BIOS version for this motherboard. Visit the ASUS website (www.asus.com) to download the latest BIOS file.

5-4

Chapter 5: BIOS setup

5.1.3 ASUS Update

The ASUS Update is a utility that allows you to update the motherboard BIOS in Windows® environment. This utility is available in the support CD that comes with the motherboard package. ASUS Update requires an Internet connection either through a network or an Internet Service Provider (ISP).

To install ASUS Update:

1. Place the support CD in the optical drive. The Drivers menu appears.

2. Click the Utilities tab, then click Install ASUS Update VX.XX.XX. See page 48 for the Utilities screen menu.

3. The ASUS Update utility is copied into your system.

To update the BIOS using the ASUS Update:

1. Launch the utility from the Windows desktop by clicking Start > Programs > ASUS > ASUSUpdate > ASUSUpdate. The ASUS Update initial screen appears.

2. Select your desired update method, then click Next.

ASUS Pundit P1-PH1system

5-5

3. If you selected updating/downloading from the Internet, select the ASUS FTP site nearest you to avoid network traffic, or choose Auto Select. Click Next.

4. From the FTP site, select the BIOS version that you wish to download. Click Next.

5. Follow the instructions on the succeeding screens to complete the update process.

5-6

If you selected the option to update the BIOS from a file, a window pops up prompting you to locate the file. Select the file, click Save, then follow the screen instructions to complete the update process.

Chapter 5: BIOS setup

5.2 BIOS Setup program

This motherboard supports a programmable Firmware Hub (FWH) that you can update using the provided utility described in section Managing and updating your BIOS.”

Use the BIOS Setup program when you are installing a motherboard, reconfiguring your system, or prompted to “Run Setup”. This section explains how to configure your system using this utility.

Even if you are not prompted to use the Setup program, you may want to change the configuration of your computer in the future. For example, you may want to enable the security password feature or make changes to the power management settings. This requires you to reconfigure your system using the BIOS Setup program so that the computer can recognize these changes and record them in the CMOS RAM of the firmware hub.

The firmware hub stores the Setup utility. When you start up the computer, the system provides you with the opportunity to run this program. Press <Delete> during the Power-On Self Test (POST) to enter the Setup utility, otherwise, POST continues with its test routines.

If you wish to enter Setup after POST, restart the system by pressing <Ctrl> + <Alt> + <Delete>, or by pressing the reset button on the system chassis. You can also restart by turning the system off and then back on. Do this last option only if the first two failed.

The Setup program is designed to make it as easy to use as possible. It is a menu-driven program, which means you can scroll through the various sub-menus and make your selections among the predetermined choices.

“

5.1

Because the BIOS software is constantly being updated, the following BIOS setup screens and descriptions are for reference purposes only, and may not exactly match what you see on your screen.

ASUS Pundit P1-PH1system

5-7

5.2.15.2.1

5.2.1

5.2.15.2.1

BIOS menu barBIOS menu bar

BIOS menu bar

BIOS menu barBIOS menu bar

The top of the screen has a menu bar with the following selections:

MAINMAIN

MAIN Use this menu to make changes to the basic system

MAINMAIN

configuration.

ADVANCEDADVANCED

ADVANCED Use this menu to enable and make changes to the

ADVANCEDADVANCED

advanced features.

POWERPOWER

POWER Use this menu to configure and enable Power

POWERPOWER

Management features.

BOOTBOOT

BOOT Use this menu to configure the default system device

BOOTBOOT

used to locate and load the Operating System.

EXITEXIT

EXIT Use this menu to exit the current menu or to exit the

EXITEXIT

Setup program.

To access the menu bar items, press the right or left arrow key on the keyboard until the desired item is highlighted.

5.2.2 Legend bar

At the bottom of the Setup screen is a legend bar. The keys in the legend bar allow you to navigate through the various setup menus. The following table lists the keys found in the legend bar with their corresponding functions.

5-8

Navigation Key(s)Navigation Key(s)

Navigation Key(s)

Navigation Key(s)Navigation Key(s)

<F1> or <Alt + H> Displays the General Help screen from anywhere in the

<Esc> Jumps to the Exit menu or returns to the main menu

Left or Right arrowLeft or Right arrow

Left or Right arrow Selects the menu item to the left or right

Left or Right arrowLeft or Right arrow Up or Down arrowUp or Down arrow

Up or Down arrow Moves the highlight up or down between fields

Up or Down arrowUp or Down arrow

- (minus key)- (minus key)

- (minus key) Scrolls backward through the values for the highlighted

- (minus key)- (minus key)

+ (plus key) or spacebar+ (plus key) or spacebar

+ (plus key) or spacebar Scrolls forward through the values for the

+ (plus key) or spacebar+ (plus key) or spacebar

<Enter> Brings up a selection menu for the highlighted field

<Home> or <PgUp> Moves the cursor to the first field

<End> or <PgDn> Moves the cursor to the last field

<F5> Resets the current screen to its Setup Defaults

<F10> Saves changes and exits Setup

Function DescriptionFunction Description

Function Description

Function DescriptionFunction Description

BIOS Setup

from a sub-menu

field

highlighted field

Chapter 5: BIOS setup

General help

In addition to the Item Specific Help window, the BIOS setup program also provides a General Help screen. You may launch this screen from any menu by simply pressing <F1>. The General Help screen lists the legend keys and their corresponding functions.

Saving changes and exiting the Setup program

See

“5.7 Exit Menu”

the setup program.

for detailed information on saving changes and exiting

Scroll bar

When a scroll bar appears to the right of a help window, it indicates that there is more information to be displayed that will not fit in the window. Use <PgUp> and <PgDn> or the up and down arrow keys to scroll through the entire help document. Press <Home> to display the first page, press <End> to go to the last page. To exit the help window, press <Enter> or <Esc>.

Sub-menu

Note that a right pointer symbol (as shown on the left) appears to the left of certain fields. This pointer indicates that you can display a sub-menu from this field. A sub-menu contains additional options for a field parameter. To display a sub-menu, move the highlight to the field and press <Enter>. The submenu appears. Use the legend keys to enter values and move from field to field within a sub-menu as you would within a menu. Use the <Esc> key to return to the main menu.

Take some time to familiarize yourself with the legend keys and their corresponding functions. Practice navigating through the various menus and sub-menus. If you accidentally make unwanted changes to any of the fields, use the set default hot key <F5> to load the Setup default values. While moving around through the Setup program, note that explanations appear in the Item Specific Help window located to the right of each menu. This window displays the help text for the currently highlighted field.

ASUS Pundit P1-PH1system

5-9

5.3 Main Menu

When you enter the Setup program, the following screen appears.

System Time 09:40:12 System Date Wed., Dec 07 2004

Primary IDE Master [HDS7288080PLAT20] Primary IDE Slave [None] First SATA Master [None]

HDD SMART Monitoring [Disabled]

Installed Memory 512 MB Usable Memory 447 MB

Select Menu

Item Specific Help

Change the internal clock.

5.3.1 System Time [xx:xx:xx]

Sets the system to the time that you specify (usually the current time). The format is hour, minute, second. Valid values for hour, minute and second are Hour: (00 to 23), Minute: (00 to 59), Second: (00 to 59). Use the <Tab> key to move between the hour, minute, and second fields.

5.3.2 System Date [xx/xx/xxxx]

Sets the system to the date that you specify (usually the current date). The format is month, day, year. Valid values for month, day, and year are Month: (1 to 12), Day: (1 to 31), Year: (up to 2084). Use the <Tab> key to move between the month, day, and year fields.

5-10

Chapter 5: BIOS setup

5.3.3 Primary IDE Master/Slave ; First SATA Master

IDE Primary Master

Primary IDE Master [Auto] Access Mode [Auto]

Capacity 0 MB

Cylinder 0 Head 0 Sector 0

PIO Mode [Auto] UDMA Mode [Auto]

Transfer Mode None

Select Menu

Item Specific Help

Press [Enter] to select.

Primary IDE Master [Auto]

Select [Auto] to automatically detect an IDE hard disk drive. If automatic detection is successful, Setup automatically fills in the correct values for the remaining fields on this sub-menu. If automatic detection fails, this may be because the hard disk drive is too old or too new. If the hard disk was already formatted on an older system, Setup may detect incorrect parameters. In these cases, select [Manual] to manually enter the IDE hard disk drive parameters. Refer to the next section for details.

Before attempting to configure a hard disk drive, make sure you have the correct configuration information supplied by the drive manufacturer. Incorrect settings may cause the system to fail to recognize the installed hard disk.

Access Mode [Auto]

This item allows the user to select the sector addressing mode. Configuration options: [CHS] [LBA] [Large] [Auto]

PIO Mode [Auto]

This option lets you set a PIO (Programmed Input/Output) mode for the IDE device. Modes 0 through 4 provide successive increase in performance. Configuration options: [Auto] [Mode 0] [Mode 1] [Mode 2] [Mode 3] [Mode 4]

ASUS Pundit P1-PH1system

5-11

UDMA Mode [Auto]

Ultra DMA capability allows improved transfer speeds and data integrity for compatible IDE devices. Set to [Disabled] to suppress Ultra DMA capability.

5.3.4 HDD SMART Monitoring [Disable]

This option allows you to enable or disable the HDD SMART Monitoring function. Configuration options: [Disabled] [Enabled]

5.3.5 Installed Memory [xxx MB]

This field automatically displays the amount of conventional memory detected by the system during the boot process.

5.3.6 Usable Memory [xxx MB]

This field automatically displays the Usable Memory detected by the system during the boot process.

5-12

Chapter 5: BIOS setup

5.4 Advanced Menu

The Advanced menu items allow you to change the settings for the CPU and other system devices.

Take caution when changing the settings of the Advanced menu items. Incorrect field values may cause the system to malfunction.

CPU Configuration Chipset PCIPnP Onboard Device Configuration USB Configuration

Select Menu

Item Specific Help

Press [Enter] to Set.

5.4.1 CPU configuration

The items in this menu show the CPU-related information auto-detected by the BIOS.

CPU Configuration

CPU Type Intel Pentium(R) D CPU Speed 2.80GHz Cache RAM 1024 K x2 Current FSB Frequency 200 MHz Thermal Management TM 1

Limit CPUID MaxVal [Disabled] Execute Disable Bit [Enabled]

Select Menu

Item Specific Help

Set Limit CPUID MaxVal to 3, Should Be “Disabled” for WinXP

ASUS Pundit P1-PH1system

5-13

Limit CPUID MaxVal [Disable]

This option allows you to enable or disable the Limit CPUID MaxVal. Configuration options: [Disabled] [Enabled]

Execute Disable Bit [Enable]

This option allows you to enable or disable the Execute Disable Bit. Configuration options: [Disabled] [Enabled]

5.4.2 Chipset configuration

The items in this menu show the chipset configuration settings. Select an item then press <Enter> to display a pop-up menu with the configuration options.

Chipset

Current MRC Version 6.1 Current DRAM Frequency 533 MHz

Onboard Video Memory Size [64MB] Video Display Devices [Auto] TV Standard [NTSC] Memory Hole [Disabled] System BIOS Cacheable [Disabled]

Select Menu

Item Specific Help

Onboard Video Memory Size [64MB]

This option allows you to select the size of the onboard graphics controller memory use. Configuration options: [32MB] [64MB] [128MB] [256MB]

Video Display Device [Auto]

This parameter allows you to select the type of video display device you intend to use. Configuration options: [Auto] [CRT Force] [TV Force] [TV Only] [CRT and DFP]

TV Standard [NTSC]

Select the TV standard according to your location. Configuration options: [NTSC] [PAL]

5-14

Chapter 5: BIOS setup

Memory Hole [Disable]

This option allows you to enable or disable the Memory Hole. Configuration options: [Disabled] [Enabled]

System BIOS Cacheable [Disable]

This option allows you to enable or disable the System BIOS Cacheable function. Configuration options: [Disabled] [Enabled]

5.4.3 PCIPnP

The items in this menu show the PCIPnP configuration settings. Select an item then press <Enter> to display a pop-up menu with the configuration options.

PCIPnP

Plug & Play O/S [No] PCI Latency Timer(CLK) [64]

Select Menu

Item Specific Help

Plug & Play O/S [No]

Select [Yes] if you are using a Plug and Play capable operating system. Select [No] if you need the BIOS to configure non-boot devices. Configuration options: [No] [Yes]

PCI Latency Timer(CLK) [64]

Allows you to enter the value in units of PCI clocks for the PCI device latency timer register. Min is 0 , Max is 255.

ASUS Pundit P1-PH1system

5-15

5.4.4 Onboard device configuration

The items in this menu show the onboard device configuration settings. Select an item then press <Enter> to display a pop-up menu with the configuration options.

Onboard Device Configuration

Onboard IEEE 1394 [Enabled]

Onboard LAN [Enabled] South OnChip IDE Device South OnChip PCI Device

Primary Display Adapter [PCI]

Onboard LAN Boot ROM [Disabled]

Serial Port1 Address [3F8/IRQ4]

Parallel Port Address [378/IRQ7]

Parallel Port Mode [ECP+EPP]

ECP Mode Use DMA [3]

Select Menu

Item Specific Help

Onboard IEEE 1394 [Enabled]

Allows you to enable or disable the onboard IEEE 1394 controller. Configuration options: [Enabled] [Disabled]

Onboard LAN [Enabled]

Allows you to enable or disable the onboard LAN controller. Keep the default enabled if you wish to use the onboard LAN feature. Set to [Disabled] if you installed a PCI LAN card. Configuration options: [Disabled] [Enabled]

South OnChip IDE Device

IDE DMA transfer access [Enabled]

Select Menu

Item Specific Help

IDE DMA transfer access [Enabled]

Allows you to enable or disable the IDE DMA transfer access function. Configuration options: [Disabled] [Enabled]

5-16

Chapter 5: BIOS setup

South OnChip PCI Device

Onboard AC97 Audio [Auto] Onboard Chip SATA [IDE Controller]

Onboard AC97 Audio [Auto]

Setting to [Auto] allows the BIOS to detect whether you are using any audio device. If an audio device is detected, the onboard audio controller is enabled. If no audio device is detected, the controller is disabled. If there are conflicts with the onboard audio controller, set the appropriate field to [Disabled]. Configuration options: [Auto] [Disabled]

Onboard Chip SATA [IDE Controller]

Allows you to enable or disable the Onboard Chip SATA. Configuration options: [SATA Disabled] [IDE Controller]]

Select Menu

Item Specific Help

Primary Display Adapter [PCI]

Allows you to set which graphics controller to use as the primary boot device. Configuration options: [PCI]

Onboard LAN Boot ROM [Disabled]

Allows you to enable or disable the option ROM on the onboard LAN chipset. Configuration options: [Disabled] [Enabled]

Serial Port1 Address [3F8/IRQ4]

Allows you to set the addresses for the onboard serial port connector. Configuration options: [3F8/IRQ4] [2F8/IRQ3] [3E8/IRQ4] [2E8/IRQ3] [Disabled]

Parallel Port Address [378/IRQ7]

Allows you to set the base address of the onboard parallel port connector. If you disable this field, the Parallel Port Mode and ECP DMA Select configurations are not available. Configuration options: [Disabled] [378/ IRQ7] [278/IRQ5] [3BC/IRQ7]

Parallel Port Mode [ECP+EPP]

Allows you to set the operation mode of the parallel port. Configuration options: [SPP] [EPP] [ECP] [ECP+EPP]

ECP Mode Use DMA [3]

Allows you to select the ECP Mode. This item becomes configurable only if the

Parallel Port Mode

Configuration options: [1] [3]

ASUS Pundit P1-PH1system

is set to [ECP] or [ECP+EPP].

5-17

5.4.5 USB configuration

The items in this menu show the USB configuration settings. Select an item then press <Enter> to display a pop-up menu with the configuration options.

USB Configuration

USB Controller [Enabled]

USB EHCI Controller [Enabled]

USB Legacy Support [Enabled]

Select Menu

Item Specific Help

USB Controller [Enabled]

Allows you to enable or disable the USB controller. Configuration options: [Enabled] Disabled]

USB EHCI Controller [Enabled]

Allows you to enable or disable the EHCI controller. Setting this item to [Enabled] allows the built-in high speed USB support in the BIOS to turn on automatically when you install high speed USB devices. Configuration options: [Enabled] Disabled]

USB Legacy Support [Enabled]

Allows you to enable or disable support for legacy USB devices. Configuration options: [Enabled] Disabled]

5-18

Chapter 5: BIOS setup

5.5 Power menu

The Power menu items allow you to change the settings for the Advanced Power Management (APM). Select an item then press Enter to display the configuration options.

ACPI Suspend Type [S1&S3]

x ACPI APIC Support Enabled

APM Configuration

Hardware Monitor

Select Menu

Item Specific Help

ACPI Suspend Type [S1 & S3]

Allows you to select the ACPI state used for system suspend. Configuration options: [S1(POS)] [S3(STR)] [S1&S3]

ACPI APIC Support [Enabled]

Allows you enable or disable the ACPI feature on the operating system. Configuration options: [Enabled] [Disabled]

ASUS Pundit P1-PH1system

5-19

5.5.1 APM configuration

This menu shows the Advanced Power Management (APM) configuration settings. Select an item then press <Enter> to display a pop-up menu with the configuration options.

APM Configuration

Power Up By External Modem [Disabled] Power Up By PS/2 Mouse [Disabled] Power Up By PS/2 Keyboard [Disabled] Restore on AC Power Loss [Power Off]

x Power On By Button Enabled

Video Off Option [Suspend -> Off] PWR Button <4 secs [Instant-Off] Power On by PCI Devices [Disabled]

Power On By RTC Alarm [Disabled]

x Date(of Month) Alarm 0 x Time(hh:mm:ss) Alarm 0:0:0

Select Menu

Item Specific Help

Power Up By External Modem [Disabled]

Allows you to enable or disable system power up when the external modem receives a call while the computer is in soft-off mode. Configuration options: [Disabled] [Enabled]

Power Up By PS/2 Mouse [Disabled]

Allows you to enable or disable system power up by PS/2 Mouse. Configuration options: [Disabled] [Enabled]

Power Up By PS/2 Keyboard [Disabled]

Allows you to enable or disable system power up by PS/2 Keyboard. Configuration options: [Disabled] [Space Bar] [Ctrl-ESC] [Power Key]

Restore on AC Power Loss [Power Off]

Allows you to set whether or not to reboot the system after power interruptions. [Power Off] leaves your system off, [Power On] reboots the system, and [Last State] sets the system back to the state it was before the power interruption. Configuration options: [Power Off] [Power On] [Last State]

Power On By Button [Enabled]

This item appear only when the Power Up By PS/2 Keyboard item is set to Enabled. Configuration options: [Disabled] [Enabled]

5-20

Chapter 5: BIOS setup

Video Off Option [Suspend -> Off]

This item determines when to activate the video off feature to monitor power management. Configuration options: [Suspend -> Off] [Always On]

PWR Button < 4 secs [Instant-Off]

When set to [Instant-Off], the system goes to soft-off when you press the power button for less than 4 seconds. When set to [Suspend], press the power button for more than 4 seconds to power off the system. Configuration options: [Suspend] [Instant-Off]

Power Up On PCI Devices [Disabled]

When set to [Enabled], this parameter allows you to turn on the system through a PCI modem. This feature requires an ATX power supply that provides at least 1A on the +5VSB lead. Configuration options: [Disabled] [Enabled]

Power On By RTC Alarm [Disabled]

Allows you to enable or disable RTC to generate an event. When this item is enabled, you can set the date and time of alarm using the two following items. Configuration options: [Disabled] [Enabled]

Date (of Month) Alarm [0]

To set the date of alarm, highlight this item and press <Enter> to display a pop-up menu. Key-in a value within the specified range then press <Enter>. Configuration options: [Min=0] [Max=31]

Time (hh:mm:ss) Alarm [0 : 0 : 0]

To set the time of alarm:

1. Highlight this item and press <Enter> to display a pop-up menu for the hour field.

2. Key-in a value (Min=0, Max=23), then press <Enter>.

3. Press tab to move to the minutes field, then press <Enter>.

4. Key-in a minute value (Min=0, Max=59), then press <Enter>.

5. Press tab to move to the seconds field, then press <Enter>.

6. Key-in a value (Min=0, Max=59), then press <Enter>.

ASUS Pundit P1-PH1system

5-21

5.5.2 Hardware Monitor

Hardware Monitor

Q-FAN Controller [Enabled] Vcore Voltage [1.23V]

3.3V Voltage 3.26V 5V Voltage 5.02V 12V Voltage 12.28V

CPU Temperature 54oC M/B Temperature 38oC CPU Fan Speed 7273 RPM

Select Menu

Item Specific Help

System will shut down when CPU temperature is too high.

Q-Fan Controller [Enabled]

Allows you to enable or disable the ASUS Q-Fan feature that smartly adjusts the CPU or chassis fan speed for more efficient system operation. Configuration options: [Disabled] [Enabled]

VCORE Voltage

3.3V Voltage 5V Voltage 12V Voltage

The onboard hardware monitor automatically detects the voltage output through the onboard voltage regulators.

CPU Temperature [xxxC/xxxF] M/B Temperature [xxxC/xxxF]

The onboard hardware monitor automatically detects and display the power supply and CPU temperatures in these fields.

CPU Fan Speed [xxxxRPM]

The onboard hardware monitor automatically detects the CPU fan speeds in rotations per minute (RPM).

5-22

Chapter 5: BIOS setup

5.6 Boot menu

The Boot menu items allow you to change the system boot options. Select an item then press Enter to display the sub-menu.

Boot Device Priority

Removable Drives

Hard Disk Drives CDROM Drives Boot Settings Configuration Security

5.6.1 Boot device priority

Boot Device Priority

1st Boot Device [Removable] 2nd Boot Device [Hard Disk] 3rd Boot Device [CDROM] 4th Boot Device [Disabled]

Select Menu

Item Specific Help

Select Menu

Item Specific Help

Select your Boot Device Priority

1st Boot Device [Removable] 2nd Boot Device [Hard Disk] 3rd Boot Device [CDROM] 4th Boot Device [Disabled]

These items allow you to select your boot device priority. Configuration options: [Removable] [Hard Disk] [CDROM] [Disabled]

ASUS Pundit P1-PH1system

5-23

5.6.2 Removable drives

Removable Drives

1. Ai-Flash

5.6.3 Hard disk drives

Hard Disk Drives

1. Bootable Add-in Cards

Select Menu

Item Specific Help

Use <up> or <down> arrow to select a device, then press <+> to move it up, or <-> to move it down the list. Press <ESC> to exit this menu.

Select Menu

Item Specific Help

Use <up> or <down> arrow to select a device, then press <+> to move it up, or <-> to move it down the list. Press <ESC> to exit this menu.

5-24

Chapter 5: BIOS setup

5.6.4 CD-ROM drives

CDROM Drives

1. Pri. Slave: Pioneer CD-ROM ATAPI Model

Item Specific Help

Use <up> or <down> arrow to select a device, then press <+> to move it up, or <-> to move it down the list. Press <ESC> to exit this menu.

Select Menu

ASUS Pundit P1-PH1system

5-25

5.6.5 Boot Settings Configuration

Boot Settings COnfiguration

Quick Boot [Enabled] Boot Num-Lock [On]

Typematic Rate Setting [Disabled]

x Typematic Rate (Chars/Sec) 6 x Typematic Delay (Msec) 250

Full Screen LOGO [Enabled]

Halt On [All,But Keyboard]

Select Menu

Item Specific Help

Allows the system to skip certain tests while booting. This will decrease the time needed to boot the system.

Quick Boot [Enabled]

Enabling this item allows the BIOS to skip some power on self tests (POST) while booting to decrease the time needed to boot the system. When set to [Disabled], BIOS performs all the POST items. Configuration options: [Enabled] [Disabled]

Bootup Num-Lock [On]

Allows you to select the power-on state for the NumLock. Configuration options: [On] [Off]

Typematic Rate Setting [Disabled]

Allows you to enable or disable the keyboard typematic rate setting. Set to [Enabled] to configure the Type Rate and Type Delay items. Configuration options: [Disabled] [Enabled]

The items become configurable only when the item Typematic Setting is enabled.

Typematic Rate (Chars/Sec) Typematic Rate (Chars/Sec)

Typematic Rate (Chars/Sec) and

Typematic Rate (Chars/Sec) Typematic Rate (Chars/Sec)

Typematic DelayTypematic Delay

Typematic Delay

Typematic DelayTypematic Delay

Typematic Rate (Chars/Sec) [6]

Allows you to select the rate at which character repeats when you hold a key. Configuration options: [6] [8] [10] [12] [15] [20] [24] [30]

Typematic Delay (Msec) [250]

Allows you to set the delay before key strokes begin to repeat. Configuration options: [250] [500] [750] [1000]

5-26

Chapter 5: BIOS setup

Full Screen Logo [Enabled]

This allows you to enable or disable the full screen logo display feature. Configuration options: [Enabled] [Disabled]

Make sure that the Full Screen Logo item is set to [Enabled] if you wish to use the ASUS MyLogo2™ feature.

Halt On [All Errors]

Sets the system to halt on errors according to the system functions specified in each option. Configuration options: [All Errors] [No Errors] [All, But Keyboard] [All , But Diskette] [All, But Disk/Key]

5.6.6 Security

The Security menu items allow you to change the system security settings. Select an item then press Enter to display the configuration options.

Security

Supervisor Password Clear User Password Clear

Password Check [Setup]

ASUS Pundit P1-PH1system

Select Menu

Item Specific Help

Supervisor password controls full access, <Enter> to change password.

5-27

Supervisor Password [Clear]Supervisor Password [Clear]

Supervisor Password [Clear]

Supervisor Password [Clear]Supervisor Password [Clear] User Password [Clear]User Password [Clear]

User Password [Clear]

User Password [Clear]User Password [Clear]

These fields allow you to set passwords.

To set a password:

1. Highlight an item then press <Enter>.

2. Type in a password using eight (8) alphanumeric characters, then press <Enter>.

3. When prompted, confirm the password by typing the exact characters again, then press <Enter>. The password field setting is changed to [Set].

To clear the password:

1. Highlight the password field, and press <Enter> twice. The following message appears:

“PASSWORD DISABLED!!! Press any key to continue...”

2. Press any key to return to the menu.

A note about passwords

The Supervisor password is required to enter the BIOS Setup program preventing unauthorized access. The User password is required to boot the system preventing unauthorized use.

Forgot the password?

If you forget your password, you can clear it by erasing the CMOS Real Time Clock (RTC) RAM. The RAM data containing the password information is powered by the onboard button cell battery. If you need to erase the CMOS RAM, refer to section “4.3 Jumpers” for instructions.

Password Check [Setup]

This field requires you to enter the password before entering the BIOS setup or the system. Select [Setup] to require the password before entering the BIOS Setup. Select [System] to require the password before entering the system. Configuration options: [Setup] [System]

5-28

Chapter 5: BIOS setup

5.7 Exit menu

The Exit menu items allow you to load the BIOS setup default settings, save or discard any changes you made, or exit the Setup utility.

Exit & Save Changes Exit & Discard Changes Load Setup Default Discard Changes

Pressing <Esc> does not immediately exit this menu. Select one of the options from this menu or <F10> from the legend bar to exit.

Select Menu

Item Specific Help

This option saves data to CMOS and exits the setup menu.

Exit & Save Changes

Once you are finished making your selections, choose this option from the Exit menu to ensure the values you selected are saved to the CMOS RAM. The CMOS RAM is sustained by an onboard backup battery and stays on even when the PC is turned off. When you select this option, a confirmation window appears. Select [Yes] to save changes and exit.

If you attempt to exit the Setup program without saving your changes, the program prompts you with a message asking if you want to save your changes before exiting. Pressing <Enter> saves the changes while exiting.

Exit & Discard Changes

Select this option only if you do not want to save the changes that you made to the Setup program. If you made changes to fields other than system date, system time, and password, the BIOS asks for a confirmation before exiting.

ASUS Pundit P1-PH1system

5-29

Load Setup Defaults

This option allows you to load the default values for each of the parameters on the Setup menus. When you select this option or if you press <F5>, a confirmation window appears. Select [Yes] to load the default values. Select Exit Saving Changes or make other changes before saving the values to the non-volatile RAM.

Discard Changes

This option allows you to discard the selections you made and restore the previously saved values. After selecting this option, a confirmation appears. Select [Yes] to discard any changes and load the previously saved values.

5-30

Chapter 5: BIOS setup

ASUS PUNDIT P1-PH1 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
