Asus PK5C User Manual

P5KC

Motherboard

E3155

First Edition V1 May 2007

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the

product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to infringe.

Contents

Notices ........................................................................................................ vii

Safety information .................................................................................... viii

About this guide ......................................................................................... ix

P5KC specications summary .................................................................. xi

Chapter 1: Product introduction

1.1 Welcome! ...................................................................................... 1-1

1.2 Package contents .........................................................................

1.3 Special features ............................................................................

1.3.1 Product highlights ...........................................................

1.3.2 ASUS AI Lifestyle features .............................................

1.3.3 ASUS Special features ...................................................

Chapter 2: Hardware information

2.1 Before you proceed ..................................................................... 2-1

2.2 Motherboard overview .................................................................

2.2.1 Placement direction ........................................................

2.2.2 Screw holes ....................................................................

2.2.3 ASUS Stack Cool 2 .........................................................

2.2.4 Motherboard layout .........................................................

2.2.5 Layout contents ...............................................................

2.3 Central Processing Unit (CPU) ...................................................

2.3.1 Installing the CPU ...........................................................

2.3.2 Installing the CPU heatsink and fan ..............................

2.3.3 Uninstalling the CPU heatsink and fan .........................

2.4 System memory .........................................................................

2.4.1 Overview .......................................................................

2.4.2 Memory congurations ..................................................

2.4.3 Installing a DDR2/DDR3 DIMM .....................................

2.4.4 Removing a DIMM ........................................................

2.5 Expansion slots ..........................................................................

2.5.1 Installing an expansion card .........................................

2.5.2 Conguring an expansion card .....................................

2.5.3 Interrupt assignments ...................................................

2.5.4 PCI slots ........................................................................

2.5.5 PCI Express x1 slot .......................................................

2.5.6 Two PCI Express x16 slots ...........................................

2.5.7 AI Slot Detector .............................................................

1-1

1-2

1-3

1-5

2-2

2-3

2-4

2-5

2-7

2-8

2-10

2-12

2-14

2-15

2-20

2-21

2-22

2-23

2-25

iii

Contents

2.6 Jumper ........................................................................................ 2-26

2.7 Connectors .................................................................................

2.7.1 Rear panel connectors ..................................................

2.7.2 Internal connectors .......................................................

Chapter 3: Powering up

3.1 Starting up for the rst time ........................................................ 3-1

3.2 Powering off the computer ..........................................................

3.2.1 Using the OS shut down function ....................................

3.2.2 Using the dual function power switch ..............................

Chapter 4: BIOS setup

4.1 Managing and updating your BIOS .............................................. -1

4.1.1 ASUS Update utility ........................................................

4.1.2 Creating a bootable oppy disk .......................................

4.1.3 ASUS EZ Flash 2 utility ...................................................

4.1.4 AFUDOS utility ................................................................

4.1.5 ASUS CrashFree BIOS 3 utility ......................................

4.2 BIOS setup program ....................................................................

4.2.1 BIOS menu screen ........................................................

4.2.2 Menu bar .......................................................................

4.2.3 Navigation keys .............................................................

4.2.4 Menu items ....................................................................

4.2.5 Sub-menu items .............................................................

4.2.6 Conguration elds ........................................................

4.2.7 Pop-up window ..............................................................

4.2.8 Scroll bar ........................................................................

4.2.9 General help ..................................................................

4.3 Main menu ..................................................................................

4.3.1 System Time .................................................................

4.3.2 System Date .................................................................

4.3.3 Legacy Diskette A .........................................................

4.3.4

4.3.5 SATA Conguration .......................................................

4.3.6 System Information .......................................................

SATA 1~4 .........................................................................................4-13

2-27

2-30

3-2

4-1

4-4

4-5

4-6

4-8

4-9

4-10

4-11

4-12

4-14

4-15

Contents

4.4 Advanced menu ......................................................................... 4-16

4.4.1 Jumperfree Conguration .............................................

4.4.2 USB Conguration ........................................................

4.4.3 CPU Conguration ........................................................

4.4.4 Chipset ..........................................................................

4.4.5 OnBoard Devices Conguration ...................................

4.4.6 PCI PnP ........................................................................

4.5 Power menu ................................................................................

4.5.1 Suspend Mode ..............................................................

4.5.2 Repost Video on S3 Resume ........................................

4.5.3 ACPI Version .................................................................

4.5.4 ACPI APIC Support .......................................................

4.5.5 APM Conguration ........................................................

4.5.6 Hardware Monitor .........................................................

4.6 Boot menu ..................................................................................

4.6.1 Boot Device Priority ......................................................

4.6.2 Removable Drives .........................................................

4.6.3 Boot Settings Conguration ..........................................

4.6.4 Security .........................................................................

4.7 Tools menu .................................................................................

4.7.1 ASUS EZ Flash 2 ..........................................................

4.7.2 ASUS O.C. Prole .........................................................

4.8 Exit menu ....................................................................................

4-16

4-20

4-22

4-23

4-24

4-25

4-26

4-27

4-28

4-30

4-31

4-33

4-35

4-36

4-37

Chapter 5: Software support

5.1 Installing an operating system ................................................... 5-1

5.2 Support CD information ..............................................................

5.2.1 Running the Support CD .................................................

5.2.2 Drivers menu ...................................................................

5.2.3 Utilities menu ..................................................................

5.2.4 Make Disk menu .............................................................

5.2.5 Manuals menu ................................................................

5.2.6 ASUS Contact information ..............................................

5.2.7 Other information ............................................................

5-1

5-2

5-3

5-5

5-6

5-7

Contents

5.3 Software information ................................................................... 5-9

5.3.1 ASUS MyLogo2™ ...........................................................

5.3.2 Audio congurations ......................................................

5.3.3 ASUS PC Probe II .........................................................

5.3.4 ASUS AI Suite ...............................................................

5.3.5 ASUS AI Gear2 .............................................................

5.3.6 ASUS AI Nap ................................................................

5.3.7 ASUS AI N.O.S. ............................................................

5.3.8 ASUS Q-Fan2 ...............................................................

5.3.9 ASUS AI Booster ...........................................................

5.4 RAID congurations ..................................................................

5.4.1 RAID denitions ............................................................

5.4.2 Installing Serial ATA hard disks .....................................

5.4.3 JMicron

5.5 Creating a RAID driver disk .......................................................

5.5.1 Creating a RAID driver disk without entering the OS ....

5.5.2 Creating a RAID/SATA driver disk in Windows

Appendix: CPU features

A.1 Intel® EM64T ..................................................................................A-1

A.2 Enhanced Intel SpeedStep

A.2.1 System requirements ......................................................

A.2.2 Using the EIST ................................................................

A.3 Intel

Hyper-Threading Technology ...........................................A-3

RAID Conguration ........................................ 5-29

............ 5-37

Technology (EIST) ........................A-1

5-9

5-11

5-15

5-21

5-23

5-24

5-25

5-26

5-27

5-28

5-37

A-1

A-2

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

•

This device may not cause harmful interference, and

•

This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is

required to assure compliance with FCC regulations. Changes or modications

to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

vii

Safety information

Electrical safety

•

To prevent electrical shock hazard, disconnect the power cable from the

electrical outlet before relocating the system.

•

When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.

•

Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged.

•

Seek professional assistance before using an adpater or extension cord. These devices could interrupt the grounding circuit.

•

Make sure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.

•

If the power supply is broken, do not try to x it by yourself. Contact a qualied service technician or your retailer.

Operation safety

•

Before installing the motherboard and adding devices on it, carefully read all the manuals that came with the package.

•

Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.

•

To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.

•

Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may become wet.

•

Place the product on a stable surface.

•

If you encounter technical problems with the product, contact a qualied

service technician or your retailer.

viii

This symbol of the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

About this guide

This user guide contains the information you need when installing and conguring

the motherboard.

How this guide is organized

This guide contains the following parts:

• Chapter 1: Product introduction

This chapter describes the features of the motherboard and the new technology it supports.

• Chapter 2: Hardware information

This chapter lists the hardware setup procedures that you have to perform when installing system components. It includes description of the switches, jumpers, and connectors on the motherboard.

• Chapter 3: Powering up

This chapter describes the power up sequence and ways of shutting down the system.

• Chapter 4: BIOS setup

This chapter tells how to change system settings through the BIOS Setup menus. Detailed descriptions of the BIOS parameters are also provided.

• Chapter 5: Software support

This chapter describes the contents of the support CD that comes with the motherboard package.

• Appendix: CPU features

The Appendix describes the CPU features and technologies that the motherboard supports.

Where to nd more information

Refer to the following sources for additional information and for product and software updates.

1. ASUS websites

The ASUS website provides updated information on ASUS hardware and software products. Refer to the ASUS contact information.

2. Optional documentation

Your product package may include optional documentation, such as warranty

yers, that may have been added by your dealer. These documents are not

part of the standard package.

Conventions used in this guide

To make sure that you perform certain tasks properly, take note of the following symbols used throughout this manual.

DANGER/WARNING: Information to prevent injury to yourself

when trying to complete a task.

CAUTION: Information to prevent damage to the components

when trying to complete a task.

IMPORTANT: Instructions that you MUST follow to complete a

task.

NOTE: Tips and additional information to help you complete a

task.

Typography

Bold text Indicates a menu or an item to select.

Italics

Used to emphasize a word or a phrase.

<Key> Keys enclosed in the less-than and greater-than sign

means that you must press the enclosed key.

Example: <Enter> means that you must press the Enter or Return key.

<Key1>+<Key2>+<Key3> If you must press two or more keys simultaneously, the

key names are connected with a plus sign (+).

Example: <Ctrl>+<Alt>+<D>

Command Means that you must type the command exactly as

shown.

Example: At the DOS prompt, type the command line:

afudos /iP5KC.ROM

P5KC specications summary

CPU LGA775 socket for Intel® Core™2 Quad / Core™2 Extreme

Chipset Intel® P35 / ICH9 with Intel® Fast Memory Access

System bus 1333/1066/800 MHz

Memory Dual-channel memory architecture

Expansion slots 2 x PCI Express™ x16 slots with CrossFire support

Storage Southbridge

LAN PCIe Gigabit LAN controller

High Denition audio Realtek® 8-channel High-Denition Audio

IEEE 1394 VIA VT6308P controller supports 2 x IEEE 1394a ports

USB Supports up to 12 USB 2.0 ports (6 at mid-board, 6 at

/ Core™2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 processors Compatible with Intel® 05A/05B/06 processors Supports Intel® next generation 45nm Multi-Core CPU * Refer to www.asus.com for Intel® CPU support list

Technology

- 2 x 240-pin DIMM sockets support up to 4 GB system memory unbuffered / non-ECC DDR3 1333/1066/800 MHz memory modules

- 4 x 240-pin DIMM sockets support up to 8 GB system memory unbuffered / non-ECC DDR2

1066 /800/667 MHz memory modules

(blue @ x16 mode, black @ x4 or x1 mode) 1 x PCI Express™ x1 slot 3 x PCI slots

- 4 x Serial ATA 3.0 Gb/s ports JMicron® JMB363 PATA and SATA controller supports:

- 1 x UltraDMA 133/100/66 for up to 2 PATA devices

- 1 x Serial ATA 3.0 Gb/s port

- 1 x External SATA 3.0 Gb/s port (SATA On-the-Go)

- Supports SATA RAID 0, 1, and JBOD

CODEC

- Supports Jack-Sensing, Enumeration, and Multi-Streaming Technology

- Coaxial/Optical S/PDIF out ports at back I/O

- ASUS Noise Filter

(one at midboard; one at back panel)

back panel)

(continued on the next page)

P5KC specications summary

AI Lifestyle Unique features

ASUS Stylish features ASUS MyLogo2

ASUS Exclusive Overclocking features

Rear panel connectors 1 x PS/2 keyboard port

ASUS Quiet Thermal Solution:

- ASUS AI Gear2

- ASUS AI Nap

- ASUS Fanless Design: Heat-pipe

- ASUS Fanless Design: Stack Cool 2

- ASUS Q-Fan 2

ASUS Crystal Sound:

- ASUS Noise Filter

ASUS EZ DIY:

- ASUS Q-Connector

- ASUS O.C. Prole

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 2

- ASUS AI Slot Detector

Intelligent overclocking tools:

- AI NOS™

- ASUS AI Booster utility

Precision Tweaker:

- vCore: Adjustable CPU voltage at 0.0125V increment

- vDIMM: 8-step DRAM voltage control

- vChipset: 4-step Chipset voltage control

SFS (Stepless Frequency Selection):

- FSB tuning from 200MHz to 800 MHz at 1MHz increment

- Memory tuning from 667MHz to 1333MHz for DDR2

- Memory tuning from 800MHz to 1333MHz for DDR3

- PCI Express frequency tuning from 100MHz up to 150MHz at 1 MHz increment

Overclocking protection:

- ASUS C.P.R. (CPU Parameter Recall)

1 x External Serial ATA port 1 x S/PDIF Out (Coaxial + Optical) 1 x IEEE1394a 1 x LAN (RJ-45) port 6 x USB 2.0/1.1 ports 8-channel audio ports

(continued on the next page)

xii

P5KC specications summary

Internal connectors 3 x USB connectors support six additional USB ports

BIOS features 8 Mb Flash ROM, AMI BIOS, PnP, DMI 2.0, WfM2.0,

Manageability WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Accessories UltraDMA 133/100/66 cable

Support CD contents Drivers

Form factor ATX form factor: 12 in x 9.6 in (30.5 cm x 24.5 cm)

*Specications are subject to change without notice.

1 x Floppy disk drive connector 1 x IDE connector 5 x Serial ATA connectors 1 x CPU / 2 x Chassis / 1 x Power fan connectors 1 x IEEE1394a connector 1 x COM connector 1 x S/PDIF Out header Chassis intrusion connector Front panel audio connector CD audio in connector 24-pin ATX power connector 4-pin ATX 12 V power connector System panel connector (Q-Connector)

SM BIOS 2.3, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

FDD cable SATA cables SATA power cable I/O Shield User's manual 3 in 1 Q-connector

ASUS PC Probe II ASUS Update ASUS AI Suite Anti-virus software (OEM version)

xiii

xiv

This chapter describes the motherboard features and the new technologies it supports.

Product

introduction

Chapter summary

1.1 Welcome! ...................................................................................... 1-1

1.2 Package contents .........................................................................

1.3 Special features ............................................................................

1-1

1-2

ASUS P5KC

1.1 Welcome!

Thank you for buying an ASUS® P5KC motherboard!

The motherboard delivers a host of new features and latest technologies, making it another standout in the long line of ASUS quality motherboards!

Before you start installing the motherboard, and hardware devices on it, check the items in your package with the list below.

1.2 Package contents

Check your motherboard package for the following items.

Motherboard ASUS P5KC

Cables Serial ATA power and signal cables for 4 devices 1 x Ultra DMA 133/100/66 cable 1 x Floppy disk drive cable

Accessories I/O shield 1 x ASUS Q-Connector Kit (USB, 1394, system

panel; Retail version only)

Application CD ASUS motherboard support CD;

ASUS Superb Software Library CD

Documentation User guide

If any of the above items is damaged or missing, contact your retailer.

ASUS P5KC 1-1

1.3 Special features

Supports

1.3.1 Product highlights

Green ASUS

This motherboard and its packaging comply with the European Union’s Restriction

on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision

of creating environment-friendly and recyclable products/packaging to safeguard

consumers’ health while minimizing the impact on the environment.

Intel® Core™2 Duo/ Intel® Core™2 Extreme CPU support

This motherboard supports the latest Intel® Core™2 processor in the LGA775 package. With the new Intel® Core™ microarchitecture technology and

1333/1066/800 MHz FSB, the Intel® Core™2 is one of the most powerful and energy efcient CPUs in the world.

Intel® Quad-core Processor Ready

This motherboard supports the latest Intel® Quad-core processors in the LGA775 package and Intel®’s next-generation 45nm multi-core processors. It is excellent for

multi-tasking, multi-media and enthusiastic gamers with 1333/1066/800 MHz FSB.

Intel® Quad-core processor is one of the most powerful CPU in the world. See page 2-7 for details.

Intel P35 Chipset

The Intel® P35 Express Chipset is the latest chipset designed to support the next

generation 45nm CPU and dual-channel DDR2 800/677 MHz or DDR3 1066/800 MHz memory architecture. It also supports 1333/1066/800 FSB (Front Side Bus),

PCI Express x16 graphics and multi-core CPUs.

DDR2 memory support

The motherboard supports DDR2 memory that features data transfer rates of

1066/800/667 MHz to meet the higher bandwidth requirements of the latest

3D graphics, multimedia, and Internet applications. The dual-channel DDR2 architecture doubles the bandwidth of your system memory to boost system performance, eliminating bottlenecks with peak bandwidths of up to 17.05 GB/s.

Furthermore, this motherboard does not restrict the memory size across two channels. Users may install different memory size DIMMs into the two channels

and enjoy dual-channel and single-channel functions at the same time. This new

feature optimizes the use of available memory size. See page 2-14 for details.

1-2 Chapter 1: Product Introduction

DDR3 memory support

The motherboard supports DDR3 memory that features data transfer rates of

1333/1066/800 MHz to meet the higher bandwidth requirements of the latest

3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture doubles the bandwidth of your system memory to boost system

performance. Furthermore, this motherboard does not restrict the memory size across two channels. Users may install different memory size DIMMs into the two

channels and enjoy dual-channel and single-channel functions at the same time.

This new feature optimizes the use of available memory size. See page 2-14 for

details.

Serial ATA 3.0 Gb/s technology and SATA-On-The-Go

This motherboard supports the next-generation hard drives based on the Serial

ATA (SATA) 3Gb/s storage specication, delivering enhanced scalability and

doubling the bus bandwidth for high-speed data retrieval and saves. The external SATA port located at the back I/O provides smart setup and hot-plug functions. Easily backup photos, videos and other entertainment contents to external devices. See page 2-28, 2-32, and 2-33 for details.

IEEE 1394a support

The IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices. See page 2-27 and 2-35 for details.

S/PDIF digital sound ready

This motherboard provides convenient connectivity to external home theater audio systems via coaxial and optical S/PDIF-out (SONY-PHILIPS Digital Interface) jacks.It allows to transfer digital audio without converting to analog format and keeps the best signal quality. See pages 2-27, 2-29, and 2-34 for details.

High Denition Audio

Enjoy high-end sound quality on your PC! The onboard 8-channel HD audio (High

Denition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-

streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing multi-channel network games. See page 2-27 and 2-28 for details.

ASUS P5KC 1-3

1.3.2 ASUS AI Lifestyle features

ASUS Quiet Thermal Solution

ASUS Quiet Thermal solution makes system more stable and enhances the overclocking capability.

AI Gear2

AI Gear2 allows you to choose proles to adjust the CPU frequency and Vcore voltage to minimize system noise and power consumption. You can

change the mode in real-time in the operating system to max power saving mode and save up to 50% power when using word processing applications. See page 5-23 for details.

AI Nap

With AI Nap, the system can continue running at minimum power and noise when you are temporarily away. To wake the system and return to the OS environment, simply click the mouse or press a key. See page 5-24 for details.

Fanless Design - Heat-pipe

The Heat Pipe design effectively directs the heat generated by the chipsets to the heatsink near the back IO ports, where it can be carried away by existing

airow from CPU fan or bundled optional fan. The purpose of the innovative

heat pipe design on this motherboard is that the groundbreaking fanless design does not have lifetime problems as a chipset fan does. The Heat Pipe design is the most reliable fanless thermal solution to date.

Fanless Design - Stack Cool 2

ASUS Stack Cool 2 is a fan-less and zero-noise cooling solution that lowers

the temperature of critical heat generating components. The motherboard uses a special design on the printed circuit board (PCB) to dissipate heat these critical components generate.

Q-Fan 2

ASUS Q-Fan2 technology intelligently adjusts both CPU fan and chassis fan

speeds according to system loading to ensure quiet, cool and efcient operation.

See page 4-28 and 5-26 for details.

1-4 Chapter 1: Product Introduction

ASUS Crystal Sound

This feature can enhance speech-centric applications like Skype, online game, video conference and recording.

Noise Filter

This feature detects repetitive and stationary noises (non-voice signals) like computer fans, air conditioners, and other background noises then eliminates it in the incoming audio stream while recording.

ASUS EZ DIY

ASUS EZ DIY feature collection provides you easy ways to install computer components, update the BIOS or back up your favorite settings.

ASUS Q-Connector

ASUS Q-Connector allows you to easily connect or disconnect the chassis front panel cables to the motherboard. This unique module eliminates the trouble of connecting the system panel cables one at a time and avoiding wrong cable connections. See page 2-40 for details.

ASUS O.C. Prole

The motherboard features the ASUS O.C. Prole that allows users to

conveniently store or load multiple BIOS settings. The BIOS settings can be

stored in the CMOS or a separate le, giving users freedom to share and

distribute their favorite settings. See page 4-36 for details.

ASUS CrashFree BIOS 3

The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data

from a USB ash disk containing the BIOS le. See page 4-8 for details.

ASUS EZ Flash 2

EZ Flash 2 is a user-friendly BIOS update utility. Simply press the predened

hotkey to launch the utility and update the BIOS without entering the OS. Update your BIOS easily without preparing a bootable diskette or using an

OS-based ash utility. See page 4-5 and 4-35 for details.

ASUS AI Slot Detector

When PCIE/PCI devices are installed, you can nd out if they are installed

successfully via ASUS’s innovatively designed on-board LEDs when the

power is on. This is an efcient way to identify the correct way to set up

PCI(E) devices without entering the operating system. See page 2-25 for details.

ASUS P5KC 1-5

1.3.3 ASUS Stylish features

ASUS MyLogo2™

This feature allows you to convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen. See page 4-31 for details.

1.3.4 ASUS Intelligent Overclocking features

AI NOS™ (Non-Delay Overclocking System)

The patented ASUS Non-delay Overclocking System™ (AI NOS™) technology auto-detects the CPU loading and dynamically overclocks the CPU speed when needed. Unlike other dynamic overclocking techniques, AI NOS™ reacts much faster to satisfy your need for speed. See page 4-16 and 5-25 for details.

AI Booster

The ASUS AI Booster allows you to overclock the CPU speed in Windows environment without the hassle of booting the BIOS. See page 5-27 for details.

Precision Tweaker

This feature allows you to ne tune the CPU/memory voltage and gradually increase the memory Front Side Bus (FSB) and PCI Express frequency at 1MHz

increment to achieve maximum system performance. See page 4-17 to 4-19 for details.

C.P.R. (CPU Parameter Recall)

The C.P.R. feature of the motherboard BIOS allows automatic re-setting to the BIOS default settings in case the system hangs due to overclocking. When the system hangs due to overclocking, C.P.R. eliminates the need to open the system chassis and clear the RTC data. Simply shut down and reboot the system, and the BIOS automatically restores the CPU default setting for each parameter. See page 2-26 for details.

1-6 Chapter 1: Product Introduction

This chapter lists the hardware setup procedures that you have to perform when installing system components. It includes description of the jumpers and connectors on the motherboard.

information

Hardware

Chapter summary

2.1 Before you proceed ..................................................................... 2-1

2.2 Motherboard overview .................................................................

2.3 Central Processing Unit (CPU) ...................................................

2.4 System memory .........................................................................

2.5 Expansion slots ..........................................................................

2.6 Jumper ........................................................................................

2.7 Connectors .................................................................................

2-2

2-7

2-14

2-25

2-30

2-31

ASUS P5KC

2.1 Before you proceed

P5KC

P5KC Onboard LED

SB_PWR

Standby

Power

OFF

Powered

Off

Take note of the following precautions before you install motherboard components or change any motherboard settings.

• Unplug the power cord from the wall socket before touching any component.

• Use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, before handling components to avoid damaging them due to static electricity.

• Hold components by the edges to avoid touching the ICs on them.

• Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that came with the component.

• Before you install or remove any component, ensure that the ATX power supply is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, and/or components.

Onboard LED

The motherboard comes with a standby power LED that lights up to indicate that the system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should shut down the system and unplug the power cable before removing or plugging in any motherboard component. The illustration below shows the location of the onboard LED.

ASUS P5KC 2-1

P5KC

2.2 Motherboard overview

Before you install the motherboard, study the conguration of your chassis to ensure that the motherboard ts into it.

Make sure to unplug the power cord before installing or removing the motherboard. Failure to do so can cause you physical injury and damage motherboard components.

2.2.1 Placement direction

When installing the motherboard, make sure that you place it into the chassis in the correct orientation. The edge with external ports goes to the rear part of the chassis as indicated in the image below.

2.2.2 Screw holes

Place nine (9) screws into the holes indicated by circles to secure the motherboard to the chassis.

Do not overtighten the screws! Doing so can damage the motherboard.

Place this side towards the rear of the chassis

2-2 Chapter 2: Hardware information

2.2.3 ASUS Stack Cool 2

The motherboard comes with the ASUS Stack Cool 2 cooling solution that lowers the temperature of critical heat generating components. The motherboard uses a special design on the printed circuit board (PCB) to dissipate heat that critical components generate.

ASUS P5KC 2-3

PANEL

P5KC

AAFP

CHASSIS

24.5cm (9.6in)

30.5cm (12.0in)

CPU_FAN

Super

I/O

CLRTC

Intel

ICH9

EATXPWR

CR2032 3V Lithium Cell

CMOS Power

Intel

P35

PCI1

USB1112

PCIEX16_1

PCI2

PCI3

JMB363

SPDIF_OUT

LGA775

IE1394_2 USB78

SATA4

ATX12V

ALC883

PWR_FAN

PCIEX1_1

CHA_FAN1

COM1

BIOS

PRI_EIDE

SB_PWR

SATA3

SATA1

SATA

SATA_E2

VIA

VT6308P

LAN

DDR3 DIMM_B1 (64 bit,240-pin module)

DDR2 DIMM_B2 (64 bit,240-pin module)

DDR2 DIMM_B1 (64 bit,240-pin module)

DDR3 DIMM_A1 (64 bit,240-pin module)

DDR2 DIMM_A2 (64 bit,240-pin module)

DDR2 DIMM_A1 (64 bit,240-pin module)

PCIEX16_2

CHA_FAN2

LAN1_USB12

KB_USB56

USB34

AUDIO

USB910

F_ESATA

SPDIF_O12

FLOPPY

DET_X16_1

DET_PCI1

DET_PCI2

DET_X16_2

DET_PCI3

DET_X1_1

2.2.4 Motherboard layout

Refer to 2.7 Connectors for more information about rear panel connectors and

2-4 Chapter 2: Hardware information

internal connectors.

2.2.5 Layout contents

Slots Page

1. DDR2 / DDR3 DIMM slots 2-14

2. PCI slots

3. PCI Express x1 slot

4. PCI Express x16 slots

Jumper Page

1. Clear RTC RAM (3-pin CLRTC) 2-26

Rear panel connectors Page

1. PS/2 keyboard port (purple) 2-27

2. Coaxial S/PDIF Out port

3. IEEE 1394a port

4. LAN (RJ-45) port

5. Center/Subwoofer port (orange)

6. Rear Speaker Out port (black)

7. Line In port (light blue)

8. Line Out port (lime)

9. Microphone port (pink)

10. Side Speaker Out port (gray)

11. USB 2.0 ports 1 and 2

12. External SATA port

13. USB 2.0 ports 3 and 4

14. Optical S/PDIF Out port

15. USB 2.0 ports 5 and 6

2-23

2-27

2-28

ASUS P5KC 2-5

Internal connectors Page

1. Floppy disk drive connector (34-1 pin FLOPPY) 2-30

2. IDE connector (40-1 pin PRI_EIDE

3. ICH9 Serial ATA connectors

) 2-31

(7-pin SATA1 [red], SATA2 [red],

2-32

SATA3 [black], SATA4 [black])

4. JMicron JMB363

5. Digital audio connector (4-pin SPDIF_OUT)

Serial ATA RAID connector (7-pin SATA_E2) 2-33

2-34

6. USB connectors (10-1 pin USB78, USB910, USB1112) 2-34

7. IEEE 1394a port connector (10-1 pin IE1394_2) 2-35

8. Optical drive audio connector (4-pin CD)

9. CPU, chassis, and power fan connectors (4-pin CPU_FAN,

2-35

2-36

3-pin CHA_FAN1, 3-pin CHA_FAN2, 3-pin PWR_FAN)

10. Serial port connector (10-1 pin COM1)

2-36

11. Chassis intrusion connector (4-1 pin CHASSIS) 2-37

12. Front panel audio connector (10-1 pin AAFP)

2-37

13. ATX power connectors (24-pin EATXPWR, 4-pin EATX12V) 2-38

14. System panel connector (20-8-pin PANEL)

2-39

• System power LED (2-pin PLED)

• Hard disk drive activity LED (2-pin IDE_LED)

• System warning speaker (4-pin SPEAKER)

• ATX power button/soft-off button (2-pin PWR)

• Reset button (2-pin RESET)

ASUS Q-connector (system panel)

2-40

2-6 Chapter 2: Hardware information

2.3 Central Processing Unit (CPU)

The motherboard comes with a surface mount LGA775 socket designed for the Intel® Core™2 Quad / Core™2 Extreme / Core™2 Duo / Pentium® Extreme / Pentium® D/ Pentium® 4 processors.

• Make sure that all power cables are unplugged before installing the CPU.

• Connect the chassis fan cable to the CHA_FAN1 connector to ensure system stability.

•

Upon purchase of the motherboard, make sure that the PnP cap is on the socket and the socket contacts are not bent. Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket contacts/motherboard components. ASUS will shoulder the cost of repair only if the damage is shipment/transit-related.

•

Keep the cap after installing the motherboard. ASUS will process Return

Merchandise Authorization (RMA) requests only if the motherboard comes

with the cap on the LGA775 socket.

• The product warranty does not cover damage to the socket contacts resulting from incorrect CPU installation/removal, or misplacement/loss/ incorrect removal of the PnP cap.

ASUS P5KC 2-7

2.3.1 Installing the CPU

P5KC

P5KC CPU Socket 775

To install a CPU:

1. Locate the CPU socket on the motherboard.

Before installing the CPU, make sure that the socket box is facing towards you and the load lever is on your left.

2. Press the load lever with your thumb (A), then move it to the left (B) until it is released from the retention tab.

Retention tab

Load lever

This side of the socket box should face you.

To prevent damage to the socket pins, do not remove the PnP cap unless you are installing a CPU.

3. Lift the load lever in the direction of the arrow to a 135º angle.

2-8 Chapter 2: Hardware information

PnP cap

4. Lift the load plate with your thumb

and forenger to a 100º angle (A),

then push the PnP cap from the load plate window to remove (B).

Alignment key

5. Position the CPU over the socket, making sure that the gold triangle is on the bottom-left corner of the

socket then t the socket

alignment key into the CPU notch.

The CPU ts in only one correct orientation. DO NOT force the CPU into the

socket to prevent bending the connectors on the socket and damaging the CPU!

CPU notch

Gold triangle mark

Load plate

6. Close the load plate (A), then

push the load lever (B) until it snaps into the retention tab.

7. If installing a dual-core CPU, connect the chassis fan cable

to the CHA_FAN2 connector to ensure system stability.

The motherboard supports Intel® LGA775 processors with the Intel® Enhanced Memory 64 Technology (EM64T), Enhanced Intel SpeedStep® Technology (EIST), and Hyper-Threading Technology. Refer to the Appendix for more information on these CPU features.

ASUS P5KC 2-9

2.3.2 Installing the CPU heatsink and fan

The Intel® LGA775 processor requires a specially designed heatsink and fan assembly to ensure optimum thermal condition and performance.

•

When you buy a boxed Intel® processor, the package includes the CPU fan and heatsink assembly. If you buy a CPU separately, make sure that you use only Intel®-certied multi-directional heatsink and fan.

• Your Intel and requires no tool to install.

• If you purchased a separate CPU heatsink and fan assembly, make sure that you have properly applied Thermal Interface Material to the CPU heatsink or CPU before you install the heatsink and fan assembly.

Make sure that you have installed the motherboard to the chassis before you install the CPU fan and heatsink assembly.

To install the CPU heatsink and fan:

1. Place the heatsink on top of the installed CPU, making sure that the four fasteners match the holes on the motherboard.

Orient the heatsink and fan assembly such that the CPU fan cable is closest to the CPU fan connector.

LGA775 heatsink and fan assembly comes in a push-pin design

Motherboard hole

Narrow end of the groove

Make sure to orient each fastener with the narrow end of the groove pointing outward. (The photo shows the groove shaded for emphasis.)

2-10 Chapter 2: Hardware information

Fastener

2. Push down two fasteners at a time in

P5KC

P5KC CPU fan connector

CPU_FAN

GND

CPU FAN PWR

CPU FAN IN

CPU FAN PWM

a diagonal sequence to secure the heatsink and fan assembly in place.

3. Connect the CPU fan cable to the connector on the motherboard labeled CPU_FAN.

Do not forget to connect the CPU fan connector! Hardware monitoring errors can occur if you fail to plug this connector.

ASUS P5KC 2-11

2.3.3 Uninstalling the CPU heatsink and fan

To uninstall the CPU heatsink and fan:

1. Disconnect the CPU fan cable from the connector on the motherboard.

2. Rotate each fastener counterclockwise.

3. Pull up two fasteners at a time in a diagonal sequence to disengage the heatsink and fan assembly from the motherboard.

4. Carefully remove the heatsink and fan assembly from the motherboard.

2-12 Chapter 2: Hardware information

5. Rotate each fastener clockwise to ensure correct orientation when reinstalling.

The narrow end of the groove should point outward after resetting. (The photo shows the groove shaded for emphasis.)

Narrow end of the groove

Refer to the documentation in the boxed or stand-alone CPU fan package for detailed information on CPU fan installation.

ASUS P5KC 2-13

2.4 System memory

P5KC

P5KC 240-pin DDR3/DDR2 DIMM sockets

DDR2_A1

DDR2_A2

DDR3_A1

DDR2_B1

DDR2_B2

DDR3_B1

2.4.1 Overview

The motherboard comes with two Double Data Rate 3 (DDR3) and four Double Data Rate 2 (DDR2) Dual Inline Memory Modules (DIMM) sockets.

A DDR3 module has the same physical dimensions as a DDR2/DDR DIMM but is notched differently to prevent installation on a DDR2/DDR DIMM socket, while a DDR3/DDR2 module has a 240-pin footprint compared to the 184-pin DDR DIMM. DDR3 modules are developed for better performance with less power

consumption. The gure illustrates the location of the DDR3/DDR2 DIMM sockets:

DDR3 module installation

Channel Sockets

Channel A DDR3_DIMM_A1

Channel B DDR3_DIMM_B1

DDR2 module installation

Channel Sockets

Channel A DIMM_A1 and DIMM_A2

Channel B DIMM_B1 and DIMM_B2

You can only install either DDR2 module(s) or DDR3 module(s) on the

motherboard; otherwise, the system will not boot up.

2-14 Chapter 2: Hardware information

• This chipset ofcially supports DDR3 1066/800. With the ASUS Super Memspeed Technology, the motherboard supports up to 1333MHz and

provides more ratio setting items than the chipset ofcially supports. Refer to the table below for details.

FSB 1600 1333 1066

DDR3 1600 1333 1200 1000 800 1333 1111 1000 833 889

• This chipset ofcially supports DDR2-800 MHz. With the ASUS Super

Memspeed Technology, this motherboard natively supports up to

DDR2-1066 MHz. See the table below.

FSB DDR2

1333 1066*

1333 800

1333 667

1066 1066*

1066 800

1066 667

• *If you install a DDR2-1066 memory module whose SPD is DDR2-800, make sure that you set the DRAM Frequency item in BIOS to [DDR2-1066MHz]. See section 4.4.1 Jumperfree Conguration for details.

2.4.2 Memory congurations

You may install 256 MB, 512 MB, 1 GB, and 2 GB unbuffered non-ECC DDR2 / DDR3 DIMMs into the DIMM sockets.

Recommended Memory Congurations (DDR2)

Mode

Single-Channel

Dual-channel (1) Populated - Populated -

Dual-channel (2) Populated Populated Populated Populated

ASUS P5KC 2-15

DIMM_A1 DIMM_A2 DIMM_B1 DIMM_B2

- - Populated -

Populated - - -

Sockets

Recommended Memory Congurations (DDR3)

Mode

Single-Channel

Dual-channel Populated Populated

DDR3_DIMM_A1 DDR3_DIMM_B1

Populated -

- Populated

• You may install varying memory sizes in Channel A and Channel B. The system maps the total size of the lower-sized channel for the dual-channel conguration. Any excess memory from the higher-sized channel is then

mapped for single-channel operation.

• Always install DIMMs with the same CAS latency. For optimum compatibility, it is recommended that you obtain memory modules from the same vendor.

• This motherboard does not support memory modules made up of 128 Mb chips or double sided x16 memory modules.

For DDR2 DIMMs:

• For DDR2 DIMMs, due to chipset resource allocation, the system may detect less than 8 GB system memory when you installed four 2 GB DDR2 memory modules.

• If you install four 1 GB memory modules, the system may detect less than 3 GB of total memory because of address space allocation for other critical functions. This limitation applies to Windows Vista 32-bit/Windows XP 32-bit version operating system since it does not support PAE (Physical Address Extention) mode.

• If you install Windows Vista 32-bit/Windows XP 32-bit version operating system, we recommend that you install less than 3GB of total memory.

Notes on memory limitations

• Due to chipset limitation, this motherboard can only support up to 8 GB on the operating systems listed below. You may install a maximum of 2 GB DIMMs on each slot.

Sockets

64-bit

Windows XP Professional x64 Edition

Windows Vista x64 Edition

2-16 Chapter 2: Hardware information

For DDR3 DIMMs:

• If you install two 2 GB memory modules, the system may detect less than 3 GB of total memory because of address space allocation for other critical functions. This limitation applies to Windows Vista 32-bit/Windows XP 32-bit version operating system since it does not support PAE (Physical Address Extention) mode.

• If you install Windows Vista 32-bit/Windows XP 32-bit version operating system, we recommend that you install less than 3GB of total memory.

• Some old-version DDR2-800 DIMMs may not match Intel®’s On-Die-Termination (ODT) requirement and will automatically downgrade to run at DDR2-667. If this happens, contact your memory vendor to check the ODT value.

• Due to chipset limitation, DDR2-800 with CL=4 will be downgraded to run at DDR2-667 by default setting. If you want to operate with lower latency, adjust the memory timing manually.

ASUS P5KC 2-17

P5KC Motherboard Qualied Vendors Lists (QVL) DDR3-1333 MHz capability

Size Vendor Chip No. CL Chip Brand

512MB ELPIDA J5308BASE-DG-E 8 ELPIDA SS EBJ51UD8BAFA-DG-E

512MB Qimonda IDSH51-03A1F1C-13H 9 QIMONDA SS IMSH51U03A1F1C-13H

1024MB Qimonda IDSH51-03A1F1C-13H 9 QIMONDA DS IMSH1GU13A1F1C-13H

SS/ DS

Part No.

DIMM

support

A* B*

• •

P5KC Motherboard Qualied Vendors Lists (QVL) DDR3-1066 MHz capability

Size Vendor Chip No. CL Chip Brand

1024MB Qimonda IDSH51-03A1F1C-10F N/A QIMONDA DS IMSH1GU13A1F1C-10F •

512MB NANYA NT5CB64M8AN-BE N/A NANYA SS NT512C64B88A0NY-BF •

512MB SAMSUNG K4B510846E-ZCG8 8 SAMSUNG SS M378B6573EZ0-CG8 •

SS/ DS

Part No.

DIMM

support

A* B*

P5KC Motherboard Qualied Vendors Lists (QVL) DDR3-800 MHz capability

Size Vendor Chip No. CL Chip Brand

512MB SAMSUNG K4B510846E-ZCE7 N/A SAMSUNG SS M378B6573EZ0-CE7

512MB ELPIDA J5308BASE-AC-E 6 ELPIDA SS EBJ51UD8BAFA-8C-E

1024MB ELPIDA J5308BASE-AC-E 6 ELPIDA DS EBJ11UD8BAFA-8C-E

512MB NANYA NT5CB64M8AN-25D N/A NANYA SS NT512C64B88A0NY-25D

1024MB NANYA NT5CB64M8AN-25D N/A NANYA DS NT1GC64B8HA0NY-25D

1024MB Qimonda IDSH51-03A1F1C-08E N/A QIMONDA DS IMSH1GU13A1F1C-08E

512MB Qimonda IDSH51-03A1F1C-08D N/A Qimonda SS IMSH51U03A1F1C-08D

512MB Qimonda IDSH51-03A1F1C-08E N/A Qimonda SS IMSH51U03A1F1C-08E

2048MB Hynix HY5TQ1G831ZNF-S5 N/A Hynix DS HYMT125U64ZNF8-S5

SS/ DS

Part No.

SS - Single-sided DS - Double-sided DIMM support:

A - Supports one module inserted into either slot, in Single-channel memory conguration.

B - Supports two modules inserted into both the orange slots as Dual-channel memory

conguration.

DIMM support

A* B*

•

Visit the ASUS website for the latest DDR3-1333/1066/800 MHz QVL.

2-18 Chapter 2: Hardware information

P5KC Motherboard Qualied Vendors Lists (QVL) DDR2-1066 MHz capability

Size Vendor

1024MB CORSAIR DS XMS8505v1.1 / 0616126-12 • • •

1024MB CORSAIR DS CM2X1024-8500 • • •

1024MB Kingston SS KHX9600D2 / 1G 9905316-069.A00LF / 2.3-2.35v • • •

1024MB OCZ DS OCZ2P10002GK/PC2 8000 /1G EL Dual CH/PlatinumXTC • • •

1024MB OCZ DS OCZ2P10002GK/PC2 8000 /1G EL Dual CH/Gold XTC • • •

SS/

Part No.

DIMM support

A* B* C*

If you install a DDR2-1066 memory module whose SPD is DDR2-800, make sure that you set the DRAM Frequency item in BIOS to [DDR2-1066MHz]. See section 4.4.1 Jumperfree Conguration for details.

P5KC Motherboard Qualied Vendors Lists (QVL) DDR2-800 MHz capability

Size Vendor Chip No. CL

512MB KINGSTON K4T51083QC 5 SEC SS KVR800D2N5/512

1024MB KINGSTON Heat-Sink Package 4-4-4-12 N/A DS KHX6400D2LL/1G

1024MB KINGSTON Heat-Sink Package 4-4-4-12 N/A SS KHX6400D2LLK2/1GN

1024MB KINGSTON V59C1512804QBF25 N/A N/A DS KVR800D2N5/1G

256MB Qimonda HYB18T512160BF-25F 5-5-5 INFINEON SS HYS64T32000HU-25F-B

512MB Qimonda HYB18T512800BF25F 5-5-5 N/A SS HYS64T64000HU-25F-B

1024MB Qimonda HYB18T512800BF25F 5-5-5 N/A DS HYS64T128020HU-25F-B

512MB SAMSUNG ZCE7K4T51083QC 5-5-5 SEC SS M378T6553CZ3-CE7

Chip Brand

SS/ DS

Part No.

DIMM support

A* B* C*

• • •

•

SS - Single-sided DS - Double-sided DIMM support:

A - Supports one module inserted into either slot, in Single-channel memory conguration.

B - Supports two modules inserted into either the yellow slots or the black slots as one pair of Dual-

channel memory conguration.

C - Supports four modules inserted into both the yellow slots and the black slots as two pairs of Dual-

channel memory conguration.

• Visit the ASUS website for the latest DDR2-1066/800 MHz QVL.

ASUS P5KC 2-19

2.4.3 Installing a DDR2/DDR3 DIMM

Unplug the power supply before adding or removing DIMMs or other system components. Failure to do so can cause severe damage to both the motherboard and the components.

To install a DIMM:

1. Unlock a DIMM socket by pressing the retaining clips outward.

2. Align a DIMM on the socket such that the notch on the DIMM matches the break on the socket.

3. Firmly insert the DIMM into the socket until the retaining clips snap back in place and the DIMM is properly seated.

• A DDR2/DDR3 DIMM is keyed with a notch so that it ts in only one

direction. DO NOT force a DIMM into a socket to avoid damaging the DIMM.

• The DDR3 DIMM sockets on this motherboard are orange-colored and do not support DDR or DDR2 DIMMs. DO NOT install DDR or DDR2 DIMMs to the DDR3 DIMM sockets.

• The DDR2 DIMM sockets do not support DDR or DDR3 DIMMs. Do not install DDR or DDR3 DIMMs to the DDR2 DIMM sockets.

2.4.4 Removing a DIMM

DIMM notch

Unlocked retaining clip

To remove a DIMM:

1. Simultaneously press the retaining

DIMM notch

clips outward to unlock the DIMM.

Support the DIMM lightly with

your ngers when pressing the

retaining clips. The DIMM might

get damaged when it ips out

with extra force.

2. Remove the DIMM from the socket.

2-20 Chapter 2: Hardware information

2.5 Expansion slots

In the future, you may need to install expansion cards. The following sub-sections describe the slots and the expansion cards that they support.

Make sure to unplug the power cord before adding or removing expansion cards. Failure to do so may cause you physical injury and damage motherboard components.

2.5.1 Installing an expansion card

To install an expansion card:

1. Before installing the expansion card, read the documentation that came with it and make the necessary hardware settings for the card.

2. Remove the system unit cover (if your motherboard is already installed in a chassis).

3. Remove the bracket opposite the slot that you intend to use. Keep the screw for later use.

4. Align the card connector with the slot and press rmly until the card is

completely seated on the slot.

5. Secure the card to the chassis with the screw you removed earlier.

6. Replace the system cover.

2.5.2 Conguring an expansion card

After installing the expansion card, congure it by adjusting the software settings.

1. Turn on the system and change the necessary BIOS settings, if any. See Chapter 4 for information on BIOS setup.

2. Assign an IRQ to the card. Refer to the tables on the next page.

3. Install the software drivers for the expansion card.

When using PCI cards on shared slots, ensure that the drivers support “Share

IRQ” or that the cards do not need IRQ assignments. Otherwise, conicts will

arise between the two PCI groups, making the system unstable and the card inoperable. Refer to the table on the next page for details.

ASUS P5KC 2-21

2.5.3 Interrupt assignments

IRQ Priority Standard function

0 1 System timer 1 2 Keyboard controller 2 3 11 IRQ holder for PCI steering* 4 12 Communications port (COM1)* 5 13 IRQ holder for PCI steering* 6 14 Floppy disk controller 7 3 System CMOS/Real Time Clock 8 4 IRQ holder for PCI steering*

9 5 IRQ holder for PCI steering* 10 6 IRQ holder for PCI steering* 11 7 PS/2 compatible mouse port* 12 8 Numeric data processor 13 9 Primary IDE channel 14 10 Secondary IDE channel

* These IRQs are usually available for PCI devices.

IRQ assignments for this motherboard

PCI slot 1 shared – – – – – – – PCI slot 2 – shared – – – – – – PCI slot 3 – – shared – – – – – LAN (L1) – shared – – – – – – SATA (363) shared – – – – – – – PCIE x16_1 shared – – – – – – – PCIE x16_2 shared – – – – – – – USB controller 1 – – – shared – – – – USB controller 2 – – shared – – – – – USB controller 3 shared – – – – – – – USB controller 4 shared – – – – – – – USB controller 5 – – – – – shared – – USB 2.0 controller 1 – – – – – – – shared USB 2.0 controller 2 – – shared – – – – – SATA controller 1 – – shared – – – – – SATA controller 2 – – – – – – shared – Azalia – – – – – – shared –

–

Re-direct to IRQ#9

A B C D E F G H

2-22 Chapter 2: Hardware information

2.5.4 PCI slots

The PCI slots support cards such as a LAN card, SCSI card, USB card, and other cards that comply with PCI

specications. The gure shows a LAN

card installed on a PCI slot.

2.5.5 PCI Express x1 slot

This motherboard supports PCI Express x1 network cards, SCSI cards and other cards that comply with the PCI Express

specications. The following gure

shows a network card installed on the PCI Express x1 slot.

2.5.6 Two PCI Express x16 slots

This motherboard supports two ATI CrossFire™ PCI Express x16 graphics cards that comply with the PCI Express

specications.

The gure shows two graphics cards

installed on the PCI Express x16 slots.

ASUS P5KC 2-23

We recommend that you install a VGA card on the primary (blue) PCI Express slot, and install any other PCI Express device on the Universal PCI-E slot (black).

Primary PCI Express x16 slot

The primary PCI Express x16 slot supports PCI Express x16 graphics cards that

comply with the PCI Express specications.

Universal PCI-E slot (max. x4 mode)

This motherboard also supports a Universal PCI-E slot with a maximum speed of 2 GB/s. The operating frequency of this slot changes, depending on the type of PCI Express card you install. Refer to the table below for details.

If you install two VGA cards, we recommend that you plug the rear chassis fan cable to the motherboard connector labeled CHA_FAN1 for better thermal environment. See page 2-36 for the connector location.

Options for Universal PCI Express slot PCI Express operating speed

Auto Automatically optimizes performance and

x4 mode [fast] User gets the best performance but this

x1 mode [compatible] Always runs at PCI Express x1 speed.

functionality according to devices installed.

mode disables the PCI Express x1 slot.

•

Some PCI Express graphics cards cannot operate on x4/x1 mode. We suggest that you install these cards on the primary PCI Express slot (blue) to increase system stability.

•

Some PCI Express devices cannot operate on x4/x1 mode.

2-24 Chapter 2: Hardware information

2.5.7 AI Slot Detector

P5KC

P5KC Slot Detector

DET_X16_1 DET_PCI1 DET_PCI2 DET_X16_2 DET_PCI3 DET_X1_1

This motherboard comes with onboard LEDs that light up when the PCIE/PCI devices are not correctly installed. This is a reminder that you should reinstall

these devices. Refer to the gure below for the location of the LEDs.

When the LEDs light up, turn off the power before reinstalling the devices.

The PCIEX16_1 slot (blue) is for a PCIE x16 card. The DET_X16_1 LED lights up despite correct installation when you install a x1, x4, or x8 card to this slot.

ASUS P5KC 2-25

2.6 Jumper

P5KC

P5KC Clear RTC RAM

CLRTC

Normal Clear RTC

(Default)

1 2 2 3

1. Clear RTC RAM (CLRTC)

This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords.

To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.

2. Remove the onboard battery.

3. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3 for about 5~10 seconds, then move the cap back to pins 1-2.

4. Reinstall the battery.

5. Plug the power cord and turn ON the computer.

6. Hold down the <Del> key during the boot process and enter BIOS setup to re-enter data.

Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default position. Removing the cap will cause system boot failure!

• You do not need to clear the RTC when the system hangs due to overclocking. For system failure due to overclocking, use the C.P.R. (CPU Parameter Recall) feature. Shut down and reboot the system so the BIOS can automatically reset parameter settings to default values.

• Due to the chipset limitation, AC power off is required prior using C.P.R. function. You must turn off and on the power supply or unplug and plug the power cord before reboot the system.

2-26 Chapter 2: Hardware information

1 4 5

910

7 86

14 1115

1213

2.7 Connectors

2.7.1 Rear panel connectors

1. PS/2 keyboard port (purple). This port is for a PS/2 keyboard.

2. Coaxial S/PDIF Out port.

via a coaxial S/PDIF cable.

3. IEEE1394a port.

This 6-pin IEEE 1394a port provides high-speed connectivity for audio/video devices, storage peripherals, PCs, or portable devices.

4. LAN (RJ-45) port.

Network (LAN) through a network hub. Refer to the table below for the LAN port LED indications.

LAN port LED indications

Activity/Link Speed LED Status Description Status Description

OFF No link OFF 10 Mbps connection

ORANGE Linked ORANGE 100 Mbps connection

BLINKING Data activity GREEN 1 Gbps connection

5. Center/Subwoofer port (orange).

speakers.

6. Rear Speaker Out port (black).

4-channel, 6-channel, or 8-channel audio conguration.

7. Line In port (light blue).

other audio sources.

8. Line Out port (lime).

4-channel, 6-channel, and 8-channel conguration, the function of this port

becomes Front Speaker Out.

9. Microphone port (pink). This port connects a microphone.

10. Side Speaker Out port (gray).

8-channel audio conguration.

This port connects an external audio output device

This port allows Gigabit connection to a Local Area

This port connects the center/subwoofer

This port connects the rear speakers in a

This port connects the tape, CD, DVD player, or

This port connects a headphone or a speaker. In

This port connects the side speakers in an

ACT/LINK

LED

LAN port

SPEED

LED

ASUS P5KC 2-27

Refer to the audio conguration table below for the function of the audio ports in 2, 4, 6, or 8-channel conguration.

Audio 2, 4, 6, or 8-channel conguration

Port

Light Blue Line In Line In Line In Line In

Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out

Pink Mic In Mic In Mic In Mic In

Orange – – Center/Subwoofer Center/Subwoofer

Black – Rear Speaker Out Rear Speaker Ou Rear Speaker Out

Gray – – – Side Speaker Out

11. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports

12. External SATA port. This port connects an external Serial ATA hard disk

Headset 2-channel

4-channel 6-channel 8-channel

are available for connecting USB 2.0 devices.

drive. To congure a RAID 0, RAID 1, or JBOD set, install an external Serial

ATA hard disk drive and an internal Serial ATA hard disk drive connected to the onboard Serial ATA connector labeled SATA_E2.

The external SATA port supports external Serial ATA 3.0 Gb/s devices. Longer cables support higher power requirements to deliver signal up to two meters away, and enables improved hotswap function.

• Before creating a RAID set using Serial ATA hard disks, make sure that you have connected the Serial ATA signal cable and installed Serial ATA hard

disk drives; otherwise, you cannot enter the JMicron RAID utility and SATA

BIOS setup during POST.

• If you intend to create a RAID conguration using this connector, set the

J-Micron eSATA/PATA Controller Mode item in the BIOS to [RAID]. Setting this item to [AHCI] supports Native Command Queuing (NCQ) function. See section 4.4.5 Onboard Devices Conguration for details.

• Refer to section RAID 0, RAID 1, or JBOD.

• DO NOT insert a different connector to this port.

• DO NOT unplug the external Serial ATA box when a RAID 0 or JBOD is

congured.

2-28 Chapter 2: Hardware information

5.4 RAID congurations for details about conguring a

13. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports

are available for connecting USB 2.0 devices.

14. Optical S/PDIF Out port

. This port connects an external audio output device

via an optical S/PDIF cable.

15. USB 2.0 ports 5 and 6.

These two 4-pin Universal Serial Bus (USB) ports

are available for connecting USB 2.0 devices.

ASUS P5KC 2-29

2.7.2 Internal connectors

P5KC

P5KC Floppy disk drive connector

NOTE: Orient the red markings on

the floppy ribbon cable to PIN 1.

FLOPPY

PIN 1

1. Floppy disk drive connector (34-1 pin FLOPPY)

This connector is for the provided oppy disk drive (FDD) signal cable. Insert

one end of the cable to this connector, then connect the other end to the

signal connector at the back of the oppy disk drive.

Pin 5 on the connector is removed to prevent incorrect cable connection when using a FDD cable with a covered Pin 5.

2-30 Chapter 2: Hardware information

2. IDE connector (40-1 pin PRI_EIDE)

P5KC

P5KC EIDE connector

NOTE: Orient the red markings

(usually zigzag) on the IDE

ribbon cable to PIN 1.

PRI_EIDE

PIN 1

The onboard IDE connector is for the Ultra DMA 133/100/66 signal cable. There are three connectors on each Ultra DMA 133/100/66 signal cable: blue, black, and gray. Connect the blue connector to the motherboard’s IDE

connector, then select one of the following modes to congure your device.

Drive jumper setting Mode of

Cable connector

device(s)

Single device Cable-Select or Master - Black

Two devices Cable-Select Master

Black

Slave Gray

Master Master Black or gray

Slave Slave

• Pin 20 on the IDE connector is removed to match the covered hole on the Ultra DMA cable connector. This prevents incorrect insertion when you connect the IDE cable.

• Use the 80-conductor IDE cable for Ultra DMA 133/100/66 IDE devices.

If any device jumper is set as “Cable-Select,” make sure all other device jumpers have the same setting.

ASUS P5KC 2-31

3. ICH9 Serial ATA connectors

P5KC

P5KC SATA connectors

SATA3

GND

RSATA_TXP3

RSATA_TXN3

GND

RSATA_RXP3

RSATA_RXN3

GND

SATA2

GND

RSATA_TXP2

RSATA_TXN2

GND

RSATA_RXP2

RSATA_RXN2

GND

SATA4 SATA1

GND

RSATA_TXP1

RSATA_TXN1

GND

RSATA_RXP1

RSATA_RXN1

GND

RSATA_TXP4

RSATA_TXN4

GND

RSATA_RXP4

RSATA_RXN4

GND

(7-pin SATA1 [red], SATA2 [red], SATA3 [black], SATA4 [black])

These connectors are for the Serial ATA signal cables for Serial ATA hard disk drives.

When using the connectors in Standard IDE mode, connect the primary (boot) hard disk drive to the SATA1/2 connector. Refer to the table below for the recommended SATA hard disk drive connections.

Serial ATA hard disk drive connection

Connector Color Setting Use

SATA 1/2 Red Master Boot disk

SATA 3/4 Black Slave Data disk

Connect the right-angle side

right angle side

of SATA signal cable to SATA device. Or you may connect the right-angle side of SATA cable to the onboard SATA port to avoid

mechanical conict with huge

graphics cards.

2-32 Chapter 2: Hardware information

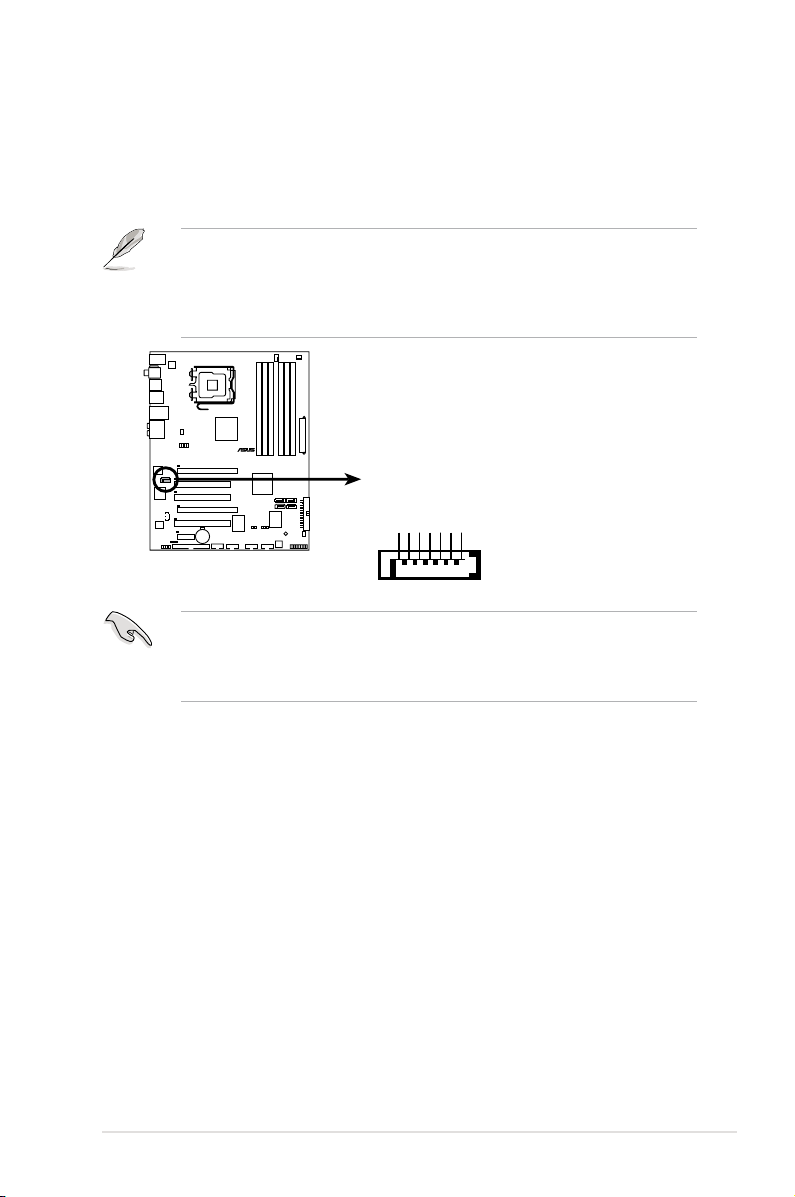

4. JMicron JMB363® Serial ATA RAID connector (7-pin SATA_E2)

P5KC

P5KC SATA connector

SATA_E2

GND

RSATA_TXP2

RSATA_TXN2

GND

RSATA_RXP2

RSATA_RXN2

GND

This connector is for a Serial ATA signal cable that supports a Serial ATA hard

disk drive. To congure RAID 0, RAID 1, or JBOD, install an internal Serial

ATA hard disk drive to this connector and an external Serial ATA drive to the external SATA port.

The JMicron controller mode item in the BIOS is set to [IDE] by default. Setting this item to [RAID] allows you to use the connectors to build a RAID set. See section 5.4.3 JMicron® RAID Conguration for details. Setting this item to [AHCI] supports Native Command Queuing (NCQ) function. See section 4.4.5 Onboard Devices Conguration for details.

Before creating a RAID set using Serial ATA hard disks, make sure that you have connected the Serial ATA signal cables and installed Serial ATA hard disk

drives; otherwise, you cannot enter the JMicron® JMB363 RAID utility and SATA

BIOS setup during POST.

ASUS P5KC 2-33

5. Digital audio connector (4-1 pin SPDIF_OUT)

P5KC

P5KC Digital audio connector

+5V

SPDIFOUT

GND

SPDIF_OUT

P5KC

P5KC USB 2.0 connectors

USB1112

USB+5V

USB_P6-

USB_P6+

GND

USB+5V

USB_P5-

USB_P5+

GND

USB78

USB+5V

USB_P8-

USB_P8+

GND

USB+5V

USB_P7-

USB_P7+

GND

USB910

GND

USB_P10+

USB_P10-

USB+5V

GND

USB_P9+

USB_P9-

USB+5V

This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port(s). Connect the S/PDIF Out module cable to this connector, then install the module to a slot opening at the back of the system chassis.

The S/PDIF module is purchased separately.

6. USB connectors (10-1 pin USB78, USB 910, USB1112)

These connectors are for USB 2.0 ports. Connect the USB module cable to any of these connectors, then install the module to a slot opening at the back of the system chassis. These USB connectors comply with USB 2.0

specication that supports up to 480 Mbps connection speed.

Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!

You can connect the USB cable to ASUS Q-Connector (USB, blue) rst, and

then install the Q-Connector (USB) to the USB connector onboard.

The USB module is purchased separately.

2-34 Chapter 2: Hardware information

7. IEEE 1394a port connector (10-1 pin IE1394_2)

P5KC

P5KC IEEE 1394a connector

IE1394_2

PIN 1

GND

+12V

TPB1-

GND

TPA1-

+12V

TPB1+

GND

TPA1+

P5KC

P5KC Internal audio connector

Right Audio Channel

Left Audio Channel

Ground

This connector is for a IEEE 1394a port. Connect the IEEE 1394a module cable to this connector, then install the module to a slot opening at the back of the system chassis.

Never connect a USB cable to the IEEE 1394a connector. Doing so will damage the motherboard!

You can connect the 1394 cable to ASUS Q-Connector (1394, red) rst, and

then install the Q-Connector (1394) to the 1394 connector onboard.

The IEEE 1394 module is purchased separately.

8. Optical drive audio connector (4-pin CD [Black])

These connectors allow you to receive stereo audio input from sound sources such as a CD-ROM, TV tuner, or MPEG card.

ASUS P5KC 2-35

9. CPU, chassis, and power fan connectors

P5KC

P5KC Fan connectors

CPU_FAN

CHA_FAN1

GND

Rotation

+12V

CHA_FAN2

PWR_FAN

GND

Rotation

+12V

GND

CPU FAN PWR

CPU FAN IN

CPU FAN PWM

GND

Rotation

+12V

CPU_FAN

PWR_FAN

CHA_FAN1

CHA_FAN2

P5KC

P5KC COM port connector

PIN 1

COM1

(4-pin CPU_FAN, 3-pin CHA_FAN1, 3-pin CHA_FAN2, 3-pin PWR_FAN)

The fan connectors support cooling fans of 350 mA~2000 mA (24 W max.) or a total of 1 A~7 A (84 W max.) at +12V. Connect the fan cables to the fan connectors on the motherboard, making sure that the black wire of each cable matches the ground pin of the connector.

Do not forget to connect the fan cables to the fan connectors. Insufcient air ow inside the system may damage the motherboard components. These are

not jumpers! Do not place jumper caps on the fan connectors!

Only the CPU-FAN and CHA-FAN 1-2 connectors support the ASUS Q-FAN 2 feature.

10. Serial port connector (10-1 pin COM1)

This connector is for a serial (COM) port. Connect the serial port module cable to this connector, then install the module to a slot opening at the back of the system chassis.

The serial port module is purchased separately.

2-36 Chapter 2: Hardware information

11. Chassis intrusion connector (4-1 pin CHASSIS)

P5KC

P5KC Chassis intrusion connector

CHASSIS

+5VSB_MB

Chassis Signal

GND

(Default)

P5KC

P5KC Analog front panel connector

AAFP

Legacy AC ‘97 audio pin definition

SENSE2_RETUR

PORT1 L

PORT2 R

PORT2 L

SENSE1_RETUR

SENSE_SEND

PORT1 RPRESENCE#

GND

MIC2

Line out_R

Line out_L

MICPWRNC

AGND

HD Audio-compliant pin definition

This connector is for a chassis-mounted intrusion detection sensor or switch. Connect one end of the chassis intrusion sensor or switch cable to this connector. The chassis intrusion sensor or switch sends a high-level signal to this connector when a chassis component is removed or replaced. The signal is then generated as a chassis intrusion event.

By default, the pin labeled “Chassis Signal” and “Ground” are shorted with a jumper cap. Remove the jumper caps only when you intend to use the chassis intrusion detection feature.

12. Front panel audio connector (10-1 pin AAFP)

This connector is for a chassis-mounted front panel audio I/O module that supports either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel audio I/O module cable to this connector.

•

We recommend that you connect a high-denition front panel audio module

to this connector to avail of the motherboard’s high-denition audio capability.

•

If you want to connect a high-denition front panel audio module to this

connector, set the Front Panel Type item in the BIOS setup to [HD Audio]; if you want to connect an AC'97 front panel audio module to this connector,

ASUS P5KC 2-37

set the item to [AC'97]. By default, this connector is set to [HD Audio]. See section 4.4.5 Onboard Devices Conguration for details.

13. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)

P5KC

P5KC ATX power connectors

EATXPWR

+3 Volts

Ground

+5 Volts

Ground

Power OK

+5V Standby

+12 Volts

-5 Volts

+5 Volts

+3 Volts

-12 Volts

Ground

Ground Ground PSON#

Ground

+5 Volts

+12 Volts

+3 Volts

+5 Volts

Ground

ATX12V

+12V DC

GND

+12V DC GND

These connectors are for ATX power supply plugs. The power supply plugs

are designed to t these connectors in only one orientation. Find the proper orientation and push down rmly until the connectors completely t.

•

For a fully congured system, we recommend that you use a power supply

unit (PSU) that complies with ATX 12 V Specication 2.0 (or later version)

and provides a minimum power of 400 W.

• Do not forget to connect the 4-pin ATX12V power plug; otherwise, the

system will not boot.

• Use of a PSU with a higher power output is recommended when

conguring a system with more power-consuming devices. The system

may become unstable or may not boot up if the power is inadequate.

• The ATX 12 V Specication 2.0-compliant (400W) PSU has been tested

to support the motherboard power requirements with the following conguration:

CPU: Intel® Pentium® Extreme 3.73GHz Memory: 512 MB DDR2 (x4) Graphics card: ASUS EAX1900XT Parallel ATA device: IDE hard disk drive Serial ATA device: SATA hard disk drive (x2) Optical drive: DVD-RW

• If you want to use two high-end PCI Express x16 cards, use a PSU with 500W to 600W power or above to ensure the system stability.

2-38 Chapter 2: Hardware information

14. System panel connector (20-8 pin PANEL)

P5KC

P5KC System panel connector

* Requires an ATX power supply.

PANEL

PLED-

PWR

+5V

Speaker

Ground

RESET

Ground

Reset

Ground

PWRSW

PLED+

IDE_LED-

IDE_LED+

IDE_LED

PLED SPEAKER

This connector supports several chassis-mounted functions.

•

System power LED (2-pin PLED)

This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode.

•

Hard disk drive activity LED (2-pin IDE_LED)

This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity

LED cable to this connector. The IDE LED lights up or ashes when data is

read from or written to the HDD.

•

System warning speaker (4-pin SPEAKER)

This 4-pin connector is for the chassis-mounted system warning speaker. The speaker allows you to hear system beeps and warnings.

•

ATX power button/soft-off button (2-pin PWRSW)

This connector is for the system power button. Pressing the power button turns the system on or puts the system in sleep or soft-off mode depending on the BIOS settings. Pressing the power switch for more than four seconds while the system is ON turns the system OFF.

•

Reset button (2-pin RESET)

This 2-pin connector is for the chassis-mounted reset button for system reboot without turning off the system power.

ASUS P5KC 2-39

Q-Connector (system panel)

You can use ASUS Q-Connector to connect / disconnect chassis front panel

cables by only a few steps. Directions below shows how to install ASUS Q-Connector.

Step1.

Connect correct front panel to ASUS

Q-Connector rst. You can refer to the

marking on Q-Connector itself to know the

detail pin denition.

Step2.

Properly install the ASUS Q-Connector to the

System panel connctor.

Step3.

Front panel functions are enabled.

2-40 Chapter 2: Hardware information

This chapter describes the power up sequence, the vocal POST messages, and ways of shutting down the system.

Powering up

Chapter summary

3.1 Starting up for the rst time ........................................................ 3-1

3.2 Turning off the computer .............................................................

3-2

ASUS P5KC

3.1 Starting up for the rst time

1. After making all the connections, replace the system case cover.

2. Be sure that all switches are off.

3. Connect the power cord to the power connector at the back of the system chassis.

4. Connect the power cord to a power outlet that is equipped with a surge protector.

5. Turn on the devices in the following order:

a. Monitor

b. External SCSI devices (starting with the last device on the chain)

c. System power

6. After applying power, the system power LED on the system front panel case lights up. For systems with ATX power supplies, the system LED lights up when you press the ATX power button. If your monitor complies with “green” standards or if it has a “power standby” feature, the monitor LED may light up or switch between orange and green after the system LED turns on.

The system then runs the power-on self tests or POST. While the tests are

running, the BIOS beeps (see BIOS beep codes table below) or additional messages appear on the screen. If you do not see anything within 30 seconds from the time you turned on the power, the system may have failed a power-on test. Check the jumper settings and connections or call your retailer for assistance.

AMI BIOS beep codes

BIOS Beep Description

One short beep VGA detected

One continuous beep followed by two short beeps then a pause (repeated)

One continuous beep followed by three short beeps

One continuous beep followed by four short beeps

Quick boot set to disabled No keyboard detected

No memory detected

No VGA detected

Hardware component failure

7. At power on, hold down the <Delete> key to enter the BIOS Setup. Follow the instructions in Chapter 4.

ASUS P5KC 3-1

3.2 Turning off the computer

3.2.1 Using the OS shut down function

If you are using Windows® XP or later version:

1. Click the

2. Click the

3. The power supply should turn off after Windows

button then select

Start

Turn Off

button to shut down the computer.

Turn Off Computer

shuts down.

If you are using Windows® Vista:

1. Click the

2. The power supply should turn off after Windows

Start button then select ShutDown.

shuts down.

3.2.2 Using the dual function power switch

While the system is ON, pressing the power switch for less than four seconds puts the system to sleep mode or to soft-off mode, depending on the BIOS setting. Pressing the power switch for more than four seconds lets the system enter the soft-off mode regardless of the BIOS setting. Refer to section “4.5 Power Menu” in Chapter 4 for details.

3-2 Chapter 3: Powering up

This chapter tells how to change the system settings through the BIOS Setup menus. Detailed descriptions of the BIOS parameters are also provided.

BIOS setup

Chapter summary

4.1 Managing and updating your BIOS ............................................ 4-1

4.2 BIOS setup program ....................................................................

4.3 Main menu ..................................................................................

4.4 Advanced menu .........................................................................

4.5 Power menu ................................................................................

4.6 Boot menu ..................................................................................

4.7 Tools menu .................................................................................

4.8 Exit menu .................................................................................... 4-37

4-9

4-12

4-16

4-26

4-30

4-35

ASUS P5KC

4.1 Managing and updating your BIOS

The following utilities allow you to manage and update the motherboard Basic Input/Output System (BIOS) setup.

ASUS Update (Updates the BIOS in Windows® environment.)

ASUS EZ Flash 2 (Updates the BIOS using a oppy disk or USB ash disk.)

ASUS AFUDOS (Updates the BIOS using a bootable oppy disk.)

ASUS CrashFree BIOS 3 (Updates the BIOS using a bootable oppy disk,

USB ash disk or the motherboard support CD when the BIOS le fails or

gets corrupted.)

Refer to the corresponding sections for details on these utilities.

Save a copy of the original motherboard BIOS le to a bootable oppy disk or USB ash disk in case you need to restore the BIOS in the future. Copy the

original motherboard BIOS using the ASUS Update or AFUDOS utilities.

4.1.1 ASUS Update utility

The ASUS Update is a utility that allows you to manage, save, and update the motherboard BIOS in Windows® environment. The ASUS Update utility allows you to:

• Save the current BIOS le

• Download the latest BIOS le from the Internet

• Update the BIOS from an updated BIOS le

• Update the BIOS directly from the Internet, and

• View the BIOS version information.

This utility is available in the support CD that comes with the motherboard package.

ASUS Update requires an Internet connection either through a network or an Internet Service Provider (ISP).

Installing ASUS Update

To install ASUS Update:

1. Place the support CD in the optical drive. The Drivers menu appears.

2. Click the Utilities tab, then click Install ASUS Update VX.XX.XX.

3. The ASUS Update utility is copied to your system.

ASUS P5KC 4-1

Quit all Windows® applications before you update the BIOS using this utility.

Updating the BIOS through the Internet

To update the BIOS through the Internet:

1. Launch the ASUS Update utility from the Windows

> Programs > ASUS > ASUSUpdate > ASUSUpdate. The ASUS Update main window appears.

desktop by clicking Start

2. Select Update BIOS from the

Internet option from the drop-down menu, then click Next.

4-2 Chapter 4: BIOS setup

3. Select the ASUS FTP site nearest

you to avoid network trafc, or

click Auto Select. Click Next.

4. From the FTP site, select the BIOS version that you wish to download. Click Next.

5. Follow the screen instructions to complete the update process.

The ASUS Update utility is capable of updating itself through the Internet. Always update the utility to avail all its features.

Updating the BIOS through a BIOS le

To update the BIOS through a BIOS le:

1. Launch the ASUS Update utility from the Windows > Programs > ASUS > ASUSUpdate > ASUSUpdate. The ASUS Update main window appears.

2. Select Update BIOS from a le

option from the drop-down menu, then click Next.

desktop by clicking Start

3. Locate the BIOS le from the Open

window, then click Open.

4. Follow the screen instructions to

P5KC.rom

complete the update process.

P5KC

ASUS P5KC 4-3

4.1.2 Creating a bootable oppy disk

1. Do either one of the following to create a bootable oppy disk.

DOS environment

a. Insert a 1.44MB oppy disk into the drive.

format

b. At the DOS prompt, type

Windows® XP environment

a. Insert a 1.44 MB oppy disk to the oppy disk drive.

b. Click

c. Select the 3 1/2 Floppy Drive icon.

d. Click File from the menu, then select

e. Select

2. Copy the original or the latest motherboard BIOS le to the bootable oppy

disk.

Start from the Windows® desktop, then select My Computer.

Disk window appears.

Create an MS-DOS startup disk from the format options eld,

then click Start.

A:/S then press <Enter>.

Format. A Format 3 1/2 Floppy

4-4 Chapter 4: BIOS setup

4.1.3 ASUS EZ Flash 2 utility

The ASUS EZ Flash 2 feature allows you to update the BIOS without having to go

through the long process of booting from a oppy disk and using a DOS-based

utility. The EZ Flash 2 utility is built-in the BIOS chip so it is accessible by pressing <Alt> + <F2> during the Power-On Self Tests (POST).

To update the BIOS using EZ Flash 2:

1. Visit the ASUS website (www.asus.com) to download the latest BIOS le for

the motherboard.

2. Save the BIOS le to a oppy disk or a USB ash disk, then restart the

system.

3. You can launch the EZ Flash 2 by two methods.

Insert the oppy disk / USB ash disk that contains the BIOS le to the

(1)

oppy disk drive or the USB port.

Press <Alt> + <F2> during POST to display the following.

ASUSTek EZ Flash 2 BIOS ROM Utility V3.03

FLASH TYPE: SST 25LF080

Current ROM

BOARD: P5KC VER: 0108 DATE: 03/06/07

PATH: C:\

Update ROM

BOARD: Unknown VER: Unknown DATE: Unknown

Note

[Enter] Select or Load [B] Backup [ESC] Exit

[Tab] Switch [Up/Down/Home/End] Move

(2) Enter BIOS setup program. Go to the

Tools menu to select EZ Flash2

and press <Enter> to enable it.

You can switch between drives by pressing <Tab> before the correct le

is found. Then press <Enter>.

4. When the correct BIOS le is found, EZ Flash 2 performs the BIOS update

process and automatically reboots the system when done.

• This function can support devices such as USB ash disk, or oppy disk

with

FAT 32/16

• Do not shut down or reset the system while updating the BIOS to prevent system boot failure!

ASUS P5KC 4-5

format and single partition only.

4.1.4 AFUDOS utility

The AFUDOS utility allows you to update the BIOS le in DOS environment using a bootable oppy disk with the updated BIOS le. This utility also allows you to copy the current BIOS le that you can use as backup when the BIOS fails or gets

corrupted during the updating process.

Copying the current BIOS

To copy the current BIOS le using the AFUDOS utility:

• Make sure that the oppy disk is not write-protected and has at least 1024KB free space to save the le.

• The succeeding BIOS screens are for reference only. The actual BIOS screen displays may not be same as shown.

1. Copy the AFUDOS utility (afudos.exe) from the motherboard support CD to

the bootable oppy disk you created earlier.

2. Boot the system in DOS mode, then at the prompt type:

afudos /o[lename]

where the [lename] is any user-assigned lename not more than eight alphanumeric characters for the main lename and three alphanumeric

characters for the extension name.

A:\>afudos /oOLDBIOS1.rom

Main lename Extension name

3. Press <Enter>. The utility copies the current BIOS le to the oppy disk.

A:\>afudos /oOLDBIOS1.rom

AMI Firmware Update Utility - Version 1.19(ASUS V2.07(03.11.24BB))

Reading ash ..... done

Write to le...... ok

A:\>

The utility returns to the DOS prompt after copying the current BIOS le.

Updating the BIOS le

To update the BIOS le using the AFUDOS utility:

1. Visit the ASUS website (www.asus.com) and download the latest BIOS le for the motherboard. Save the BIOS le to a bootable oppy disk.

4-6 Chapter 4: BIOS setup

Write the BIOS lename on a piece of paper. You need to type the exact BIOS lename at the DOS prompt.

2. Copy the AFUDOS utility (afudos.exe) from the motherboard support CD to

the bootable oppy disk you created earlier.

3. Boot the system in DOS mode, then at the prompt type:

afudos /i[lename]

where [lename] is the latest or the original BIOS le on the bootable oppy

disk.

A:\>afudos /iP5KC.ROM

4. The utility veries the le and starts updating the BIOS.

A:\>afudos /iP5KC.ROM

AMI Firmware Update Utility - Version 1.19(ASUS V2.07(03.11.24BB))

WARNING!! Do not turn off power during ash BIOS

Reading le ....... done

Reading ash ...... done

Advance Check ......

Erasing ash ...... done

Writing ash ...... 0x0008CC00 (9%)

Do not shut down or reset the system while updating the BIOS to prevent system boot failure!

5. The utility returns to the DOS prompt after the BIOS update process is completed. Reboot the system from the hard disk drive.

A:\>afudos /iP5KC.ROM

AMI Firmware Update Utility - Version 1.19(ASUS V2.07(03.11.24BB))

WARNING!! Do not turn off power during ash BIOS

Reading le ....... done

Reading ash ...... done

Advance Check ......

Erasing ash ...... done

Writing ash ...... done

Verifying ash .... done

Please restart your computer

A:\>

ASUS P5KC 4-7

4.1.5 ASUS CrashFree BIOS 3 utility

The ASUS CrashFree BIOS 3 is an auto recovery tool that allows you to restore

the BIOS le when it fails or gets corrupted during the updating process. You can update a corrupted BIOS le using the motherboard support CD, the oppy disk, or the USB ash disk that contains the updated BIOS le.

• Prepare the motherboard support CD, the oppy disk or the USB ash disk

containing the updated motherboard BIOS before using this utility.

• If you use a SATA optical drive, always connect the SATA cable to the

SATA1 / SATA 2 connector; otherwise, the utility will not function.

Recovering the BIOS from the support CD

To recover the BIOS from the support CD:

1. Turn on the system.

2. Insert the motherboard support CD to the optical drive.

3. The utility displays the following message and automatically checks the CD

for the BIOS le.

Bad BIOS checksum. Starting BIOS recovery...

Checking for oppy...

When found, the utility reads the BIOS le and starts ashing the corrupted

BIOS le.

Bad BIOS checksum. Starting BIOS recovery...

Checking for oppy...

Floppy found!

Reading le “P5KC.ROM”. Completed. Start ashing...

4. Restart the system after the utility completes the updating process.

Recovering the BIOS from the USB ash disk

To recover the BIOS from the USB ash disk:

1. Insert the USB ash disk that contains BIOS le to the USB port.

2. Turn on the system.

3. The utility will automatically checks the devices for the BIOS le When found, the utility reads the BIOS le and starts ashing the corrupted BIOS le.

4. Restart the system after the utility completes the updating process.

• Only the USB ash disk with FAT 32/16 format and single partition can support ASUS CrashFree BIOS 3. The device size should be smaller than

8GB.

• DO NOT shut down or reset the system while updating the BIOS! Doing so can cause system boot failure!

4-8 Chapter 4: BIOS setup

4.2 BIOS setup program

This motherboard supports a programmable Serial Peripheral Interface (SPI) chip that you can update using the provided utility described in section “4.1 Managing and updating your BIOS.”

Use the BIOS Setup program when you are installing a motherboard, reconguring your system, or prompted to “Run Setup.” This section explains how to congure

your system using this utility.

Even if you are not prompted to use the Setup program, you can change the

conguration of your computer in the future. For example, you can enable the

security password feature or change the power management settings. This

requires you to recongure your system using the BIOS Setup program so that the computer can recognize these changes and record them in the CMOS RAM of the

SPI chip.

The SPI chip on the motherboard stores the Setup utility. When you start up the computer, the system provides you with the opportunity to run this program. Press

<Del> during the Power-On Self-Test (POST) to enter the Setup utility; otherwise,

POST continues with its test routines.

If you wish to enter Setup after POST, restart the system by pressing <Ctrl+Alt+Delete>, or by pressing the reset button on the system chassis. You can also restart by turning the system off and then back on. Do this last option only if

the rst two failed.

The Setup program is designed to make it as easy to use as possible. Being a menu-driven program, it lets you scroll through the various sub-menus and make your selections from the available options using the navigation keys.

• The default BIOS settings for this motherboard apply for most conditions to ensure optimum performance. If the system becomes unstable after changing any BIOS settings, load the default settings to ensure system compatibility and stability. Select the Load Default Settings item under the Exit Menu. See section 4.8 Exit Menu.

• The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen.

• Visit the ASUS website (www.asus.com) to download the latest BIOS le for

this motherboard.

ASUS P5KC 4-9

4.2.1 BIOS menu screen

Menu bar

Main Advanced Power Boot Tools Exit

System Time [10:55:25] System Date [Fri 03/09/2007] Legacy Diskette A [1.44M, 3.5 in]

SATA 1 [WDC WD800JD-00LSA0] SATA 2 [Not Detected] SATA 3 [Not Detected] SATA 4 [Not Detected]

SATA Coniguration System Information

Sub-menu items

Conguration eldsMenu items

BIOS SETUP UTILITY

General help

Use [ENTER], [TAB] or [SHIFT-TAB] to select

a eld.

Use [+] or [-] to

congure system Time.

Select Screen

Select Item +- Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

Navigation keys

4.2.2 Menu bar

The menu bar on top of the screen has the following main items:

Main For changing the basic system conguration

Advanced For changing the advanced system settings

Power For changing the advanced power management (APM)

conguration

Boot For changing the system boot conguration

Tools For Conguring options for special functions

Exit For selecting the exit options and loading default

settings

To select an item on the menu bar, press the right or left arrow key on the keyboard until the desired item is highlighted.

4.2.3 Navigation keys

At the bottom right corner of a menu screen are the navigation keys for that particular menu. Use the navigation keys to select items in the menu and change the settings.

Some of the navigation keys differ from one screen to another.

4-10 Chapter 4: BIOS setup

4.2.4 Menu items

The highlighted item on the menu bar

displays the specic items for that

menu. For example, selecting Main shows the Main menu items.

The other items (Advanced, Power, Boot, and Exit) on the menu bar have their respective menu items.

System Time [06:22:54] System Date [Fri 03/09/2007] Legacy Diskette A [1.44M, 3.5 in]

SATA 1 [Not Detected] SATA 2 [Not Detected] SATA 3 [Not Detected] SATA 4 [Not Detected]

IDE Conguration

System Information

Main menu items

Use [ENTER], [TAB], or [SHIFT-TAB] to

select a eld.

Use [+] or [-] to

congure system

Time.

4.2.5 Sub-menu items

A solid triangle before each item on any menu screen means that the iteam has a sub-menu. To display the sub-menu, select the item and press <Enter>.

4.2.6 Conguration elds

These elds show the values for the menu items. If an item is user- congurable, you can change the value of the eld opposite the item. You cannot select an item that is not user-congurable.

A congurable eld is enclosed in brackets, and is highlighted when selected. To change the value of a eld, select it then press <Enter> to display a list of options.

Refer to “4.2.7 Pop-up window.”

4.2.7 Pop-up window

Select a menu item then press <Enter> to display a pop-up window with the

conguration options for that item.

4.2.8 Scroll bar

A scroll bar appears on the right side of a menu screen when there are items that do not t on the screen. Press the Up/Down arrow keys or <Page Up> /<Page Down> keys to display the other items on the screen.

4.2.9 General help

At the top right corner of the menu screen is a brief description of the selected item.

ASUS P5KC 4-11

Pop-up window

Scroll bar

4.3 Main menu

When you enter the BIOS Setup program, the Main menu screen appears, giving you an overview of the basic system information.

Refer to section 4.2.1 BIOS menu screen for information on the menu screen items and how to navigate through them.

Main Advanced Power Boot Tools Exit

System Time [10:55:25] System Date [Fri 03/09/2007] Legacy Diskette A [1.44M, 3.5 in]

SATA 1 [WDC WD800JD-00LSA0] SATA 2 [Not Detected] SATA 3 [Not Detected] SATA 4 [Not Detected]

SATA Coniguration System Information

BIOS SETUP UTILITY

Use [ENTER], [TAB] or [SHIFT-TAB] to select

a eld.

Use [+] or [-] to

congure system Time.

Select Screen

Select Item +- Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

4.3.1 System Time [xx:xx:xx]

Allows you to set the system time.

4.3.2 System Date [Day xx/xx/xxxx]

Allows you to set the system date.

4.3.3 Legacy Diskette A [1.44M, 3.5 in.]

Sets the type of oppy drive installed. Conguration options: [Disabled] [720K, 3.5 in.] [1.44M, 3.5 in.]

4-12 Chapter 4: BIOS setup

4.3.4 SATA 1~4

While entering Setup, the BIOS automatically detects the presence of IDE devices. There is a separate sub-menu for each IDE device. Select a device item then press <Enter> to display the IDE device information.

Main

SATA 1

Device : Hard Disk Vendor : WDC WD800JD-00LSA0 Size : 80.0GB LBA Mode : Supported Block Mode : 16 Sectors PIO Mode : 4 Async DMA : MultiWord DMA-2 Ultra DMA : Ultra DMA-5 SMART Monitoring: Supported

Type [Auto] LBA/Large Mode [Auto] Block(Multi-sector Transfer)M [Auto] PIO Mode [Auto] DMA Mode [Auto] SMART Monitoring [Auto] 32Bit Data Transfer [Enabled] Acoustics [Fast]

BIOS SETUP UTILITY

Select the type of device connected to the system.

Select Screen

Select Item +- Change Option F1 General Help F10 Save and Exit ESC Exit

The BIOS automatically detects the values opposite the dimmed items (Device,

Vendor, Size, LBA Mode, Block Mode, PIO Mode, Async DMA, Ultra DMA, and SMART monitoring). These values are not user-congurable. These items show

N/A if no IDE device is installed in the system.

Type [Auto]

Selects the type of IDE drive. Setting to [Auto] allows automatic selection of the

appropriate IDE device type. Select [CDROM] if you are specically conguring a

CD-ROM drive. Select [ARMD] (ATAPI Removable Media Device) if your device is either a ZIP, LS-120, or MO drive.

Conguration options: [Not Installed] [Auto] [CDROM] [ARMD]

LBA/Large Mode [Auto]

Enables or disables the LBA mode. Setting to [Auto] enables the LBA mode if the device supports this mode, and if the device was not previously formatted with LBA

mode disabled. Conguration options: [Disabled] [Auto]

Block (Multi-sector Transfer) M [Auto]

Enables or disables data multi-sectors transfers. When set to [Auto], the data transfer from and to the device occurs multiple sectors at a time if the device supports multi-sector transfer feature. When set to [Disabled], the data transfer from and to the device occurs one sector at a time.

Conguration options: [Disabled] [Auto]

ASUS P5KC 4-13

PIO Mode [Auto]

Selects the PIO mode.

Conguration options: [Auto] [0] [1] [2] [3] [4]

DMA Mode [Auto]

Selects the DMA mode. Conguration options: [Auto] [SWDMA0] [SWDMA1]

[SWDMA2] [MWDMA0] [MWDMA1] [MWDMA2] [UDMA0] [UDMA1] [UDMA2] [UDMA3] [UDMA4] [UDMA5]

SMART Monitoring [Auto]

Sets the Smart Monitoring, Analysis, and Reporting Technology.

Conguration options: [Auto] [Disabled] [Enabled]

32Bit Data Transfer [Enabled]

Enables or disables 32-bit data transfer.

Conguration options: [Disabled] [Enabled]

4.3.5 SATA Conguration

The items in this menu allow you to set or change the congurations for the SATA

devices installed in the system. Select an item then press <Enter> if you want to

congure the item.

SATA Conguration

SATA Conguraton [Enhanced] Congure SATA as [IDE]

Hard Disk Write Protect [Disabled] SATA Detect Time Out (Sec) [35]

Options

Disabled Compatiable Enhanced

SATA Conguration [Enhanced]

Conguration options: [Disabled] [Compatible] [Enhanced]

Configure SATA as [IDE]

Sets the conguration for the Serial ATA connectors supported by the Southbridge chip. Conguration options: [IDE] [AHCI]

Hard Disk Write Protect [Disabled]

Disables or enables device write protection. This will be effective only if device is

accessed throuh BIOS. Conuration option: [Disabled] [Enabled]

4-14 Chapter 4: BIOS setup

SATA Detect Time Out (Sec) [35]

Selects the time out value for detecting ATA/ATAPI devices.

Conguration options: [0] [5] [10] [15] [20] [25] [30] [35]

4.3.6 System Information

This menu gives you an overview of the general system specications. The BIOS

automatically detects the items in this menu.

Main

AMIBIOS

Version : 0104 Build Date : 03/28/07

Processor

Type : Intel(R) Core(TM)2 CPU 6300 @ 1.86GHz Speed : 1876MHz Count : 1

System Memory

Available : 512 MB

AMI BIOS

Displays the auto-detected BIOS information.

Processor

Displays the auto-detected CPU specication.

BIOS SETUP UTILITY

Select Screen

Select Item F1 General Help F10 Save and Exit ESC Exit

System Memory

Displays the auto-detected system memory.

ASUS P5KC 4-15

4.4 Advanced menu

The Advanced menu items allow you to change the settings for the CPU and other system devices.

Take caution when changing the settings of the Advanced menu items. Incorrect

eld values can cause the system to malfunction.

Main Advanced Power Boot Tools Exit

JumperFree Conguration USB Conguration

CPU Conguration

Chipset

Onboard Devices Conguration

PCIPnP

BIOS SETUP UTILITY

4.4.1 Jumperfree Conguration

Advanced

Congure System Frequency/Voltage

AI Overclocking [Auto] CPU Ratio Control [Auto]

DRAM Frequency [Auto]

DRAM Timing Control [Auto]

CPU Spread Spectrum [Auto] PCIE Spread Spectrum [Auto]

Select Screen

Select Item +- Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

Select the target CPU

frequency, and the

relevant parameters will be auto-adjusted.

Frequencies higher

than CPU manufacturer recomends are not guaranteed to be stable. If the system becomes unstable, return to the default.

AI Overclocking [Auto]

Allows selection of CPU overclocking options to achieve desired CPU internal

frequency. Selct any one of the preset overclocking conguration options:

MANUAL Allows you to individually set overclocking parameters.

Auto

Standard

N.O.S.

intelligently determines the system load and automatically boosts the performance for the most demanding tasks.

4-16 Chapter 4: BIOS setup

Loads the optimal settings for the system.

Loads the standard settings for the system.

The ASUS Non-delay Overclocking System feature

Some of the following items appear when you set AI Overclocking to [MANUAL] or [N.O.S.]. The items vary depending on which option you select.

N.O.S. Mode [Auto]

Allows you to set the Non-Delay Overclocking System mode.

Conguration options: [Auto] [Standard] [Sensitve] [Heavy Load]

Turbo N.O.S. [Overclock 5%]

Allows you to set the maximum overclock percentage for the selected N.O.S.

mode. Conguration options: [Overclock 3%] [Overclock 5%] [Overclock

10%] [Overclock 15%] [Overclock 20%] [Overclock 30%]

CPU Ratio Control [Auto]

Conguration options: [Auto] [Manual].

The following item appears when the CPU Ratio Control item is set to [Manual].

Ratio CMOS Setting [7]

This item appears only when you set the CPU Ratio Control item to [Manual]. Allows you to set the ratio between CPU Core Clock and the FSB Frequency. Use the <+> and <-> keys to adjust the ratio between 6 and 7. If an invalid ratio is set in CMOS, then actual and setpoint values may differ.

FSB Frequency [XXX]

Displays the frequency sent by the clock generator to the system bus and PCI bus. Use the <+> and <-> keys to adjust the FSB frequency. You can also type the desired FSB frequency using the numeric keypad. The values range from 200 to 800. Refer to the table below for the correct Front Side Bus and CPU External Frequency settings.

FSB/CPU External Frequency Synchronization

Front Side Bus CPU External Frequency

FSB 1333 333 MHz

FSB 1066 266 MHz

FSB 800 200 MHz

PCIE Frequency [XXX]

Allows you to set the PCI Express frequency. Use the <+> and <-> keys to adjust the PCIE frequency. You can also type the desired PCIE frequency using the numeric keypad. The values range from 100 to 150.

ASUS P5KC 4-17

DRAM Frequency [Auto]

Allows you to set the DDR2/DDR3 operating frequency. The conguration options

vary depending on the DIMMs you install on the motherboard.

(For DDR3 DIMMs) Conguration options: [Auto] [DDR3-800MHz] [DDR3-833MHz] [DDR3-1000MHz] [DDR3-1066MHz] [DDR3-1111MHz] [DDR3-1333MHz]

(For DDR2 DIMMs) Conguration options: [Auto] [DDR2-667MHz] [DDR2-800MHz] [DDR2-889MHz] [DDR2-1066MHz]

Selecting a very high DRAM frequency may cause the system to become unstable! If this happens, revert to the default setting.

DRAM Timing Control [Auto]

Conguration options: [Auto] [Manual]

•

The following sub-items apprear only when you set the DRAM Timing Control item to [Manual].

• The conguration options for some of the following items vary depending

on the DIMMs you install on the motherboard.

CAS# Latency [6]

Conguration options: [3]~[6]

RAS# to CAS# Delay [5 DRAM Clocks]

Conguration options: [3 DRAM Clocks]~[10 DRAM Clocks]

RAS# Precharge [5 DRAM Clocks]

Conguration options: [3 DRAM Clocks]~[10 DRAM Clocks]

RAS# Activate to Precharge [15 DRAM Clocks]

Conguration options: [3 DRAM Clocks]~[34 DRAM Clocks]

TWR [Auto]

Conguration options: [Auto] [1 DRAM Clocks]~[15 DRAM Clocks]

TRFC [Auto]

Conguration options: [Auto] [20 DRAM Clocks] [25 DRAM Clocks] [30 DRAM Clocks] [35 DRAM Clocks] [42 DRAM Clocks]

TWTR [Auto]

Conguration options: [Auto] [1 DRAM Clocks]~[15 DRAM Clocks]

TRRD [Auto]

Conguration options: [Auto] [1 DRAM Clocks]~[15 DRAM Clocks]

TRTP [Auto]

Conguration options: [Auto] [1 DRAM Clocks]~[15 DRAM Clocks]

4-18 Chapter 4: BIOS setup

DRAM Static Read Control [Auto]

Conguration options: [Auto] [Disabled] [Enabled]

DRAM Dynamic Write Control [Auto]

Conguration options: [Auto] [Disabled] [Enabled]

Transaction Booster [Auto]

Conguration options: [Auto] [Disabled] [Enabled]

Booster level [0]

This item appears when the Transaction Booster item is enabled.

Conguration options: [0] [1]

Clock Over-Charging Mode [Auto]

Conguration options: [Auto] [700mV] [800mV] [900mV] [1000mV]

CPU Spread Spectrum [Auto]

Allows you to disable or set to auto the CPU clock spread spectrum.

Conguration options: [Auto] [Disabled]

PCIE Spread Spectrum [Auto]

Allows you to disable or set to auto the PCI Express clock spread spectrum.

Conguration options: [Auto] [Disabled]

CPU Voltage [Auto]

Allows you to select the CPU voltage. Conguration options: [Auto] [1.7000V] [1.6875V] [1.6750V] [1.6625V] [1.6500V] [1.6375V] [1.6250V] [1.6125V] [1.6000V] [1.5875V] [1.5750V] [1.5625V] [1.5500V] [1.5375V] [1.5250V] [1.5125V] [1.5000V] [1.4875V] [1.4750V] [1.4625V] [1.4500V] [1.4375V] [1.4250V] [1.4125V] [1.4000V] [1.3875V] [1.3750V] [1.3625V] [1.3500V] [1.3375V] [1.3250V] [1.3125V] [1.3000V] [1.2875V] [1.2750V] [1.2625V] [1.2500V] [1.2375V] [1.2250V] [1.2125V] [1.2000V] [1.1875V] [1.1750V] [1.1625V] [1.1500V] [1.1375V] [1.1250V] [1.1125V] [1.1000V]

Refer to the CPU documentation before setting the CPU voltage. Setting a high voltage may damage the CPU!

CPU Voltage Reference [Auto]

Conguration options: [Auto] [0.63x] [0.61x] [0.59x] [0.57x]

CPU Voltage Damper [Auto]

Conguration options: [Auto] [Enabled]

CPU PLL Voltage [Auto]

Conguration options: [Auto] [1.50V] [1.70V]

ASUS P5KC 4-19

DRAM Voltage [Auto]

Allows you to select the DDR2/DDR3 voltage. The conguration options vary

depending on the DIMMs you install on the motherboard.

(For DDR3 DIMMs) Conguration options: [Auto] [1.50V] [1.60V] [1.70V] [1.80V]

[1.90V] [2.00V] [2.10V] [2.20V]

(For DDR2 DIMMs) Conguration options: [Auto] [1.80V] [1.90V] [2.00V] [2.10V]

[2.20V] [2.30V] [2.40V] [2.50V]

Refer to the DDR2/DDR3 documentation before adjusting the memory voltage. Setting a very high memory voltage may damage the memory module(s)!

FSB Termination Voltage [Auto]

Allows you to select the front side bus termination voltage.

Conguration options: [Auto] [1.20V] [1.30V] [1.40V] [1.50V]

Setting a high FSB termination voltage may damage the chipset and CPU.

North Bridge Voltage [Auto]

Conguration options: [Auto] [1.25V] [1.40V] [1.55V] [1.70V]

North Bridge Voltage Reference [Auto]

Conguration options: [Auto] [0.67x] [0.61x]

4.4.2 USB Conguration

The items in this menu allows you to change the USB-related features. Select an

item then press <Enter> to display the conguration options.

Advanced

USB Conguration

USB Devices Enabled: None

USB Functions [Enabled] USB 2.0 Controller [Enabled] USB 2.0 Controller Mode [HiSpeed] BIOS EHCI Hand-off [Enabled] Port 64/60 Emulation [Disabled] Legacy USB Support [Auto]

USB Mass Storage Device Conguration

BIOS SETUP UTILITY

Options

Disabled Enhanced

Select Screen

Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

The USB Devices Enabled item shows auto-detected values. If no USB device is detected, the item shows None.

4-20 Chapter 4: BIOS setup

USB Functions [Enabled]

Allows you to enable or disable the USB functions. The following sub-items appear

when this item is set to [Enabled]. Conguration options: [Disabled] [Enabled]

USB 2.0 Controller [Enabled]

Allows you to enable or disable the USB 2.0 controller.

Conguration options: [Enabled] [Disabled]

USB 2.0 Controller Mode [HiSpeed]

Allows you to set the USB 2.0 controller mode to HiSpeed (480 Mbps) or FullSpeed (12 Mbps). This item appears only when you enable the USB 2.0

Controller item. Conguration options: [FullSpeed ] [HiSpeed ]

BIOS EHCI Hand-off [Enabled]

Allows you to enable support for operating systems without an EHCI hand-off

feature. Conguration options: [Disabled] [Enabled]

Port 64/60 Emulation [Disabled]

Allows you to enable or disable the I/O port 60h/64h emulation support. This item should be enabled for the complete USB keyboard legacy support for non-USB aware OSes. Conguration options: [Disabled] [Enabled]

Legacy USB Support [Auto]

Allows you to enable or disable support for legacy USB devices. Setting to [Auto] allows the system to detect the presence of USB devices at startup. If detected, the USB controller legacy mode is enabled. If no USB device is detected, the

legacy USB support is disabled. Conguration options: [Disabled] [Enabled] [Auto]

ASUS P5KC 4-21

4.4.3 CPU Conguration

The items in this menu show the CPU-related information that the BIOS automatically detects.

Advanced

Congure advanced CPU settings

Manufacturer:Intel Brand String:Genuine Intel(R) CPU @ 2.40 GHz

Frequency :1.20GHz

FSB Speed :800 MHz Cache L1 :32 KB Cache L2 :512 KB CPUID :660 Ratio Status:Unlocked (Max:12, Min:06) Ratio Actual Value :6

CPU Ratio Control [Auto] Ratio CMOS Setting [14] C1E Support [Enabled] Max CPUID Value Limit: [Disabled] Vanderpool Technology [Enabled] CPU TM function: [Enabled] Execute Disable Bit [Enabled] PECI [Enabled] Intel(R) SpeedStep(TM)Tech. [Disabled]

CPU Ratio Control [Auto]

Conguration options: [Auto] [Manual]

The following item appears when the item CPU Ratio Control is set to [Manual].

Ratio CMOS Setting: [14]

Use the <+> and <-> keys to adjust the CMOS ratio values.

BIOS SETUP UTILITY

Options

Auto MANUAL

Select Screen

Select Item +- Change Option F1 General Help F10 Save and Exit ESC Exit

C1E Support [Enabled]

Allows you to enable or disable C1E Support.

Conguration options: [Disabled] [Enabled]

Max CPUID Value Limit [Disabled]

Setting this item to [Enabled] allows legacy operating systems to boot even without support for CPUs with extended CPUID functions.

Conguration options: [Disabled] [Enabled]

Vanderpool Technology [Enabled]

Conguration options: [Enabled] [Disabled]

CPU TM Function [Enabled]

Conguration options: [Disabled] [Enabled]

Execute Disable Bit [Enabled]

Allows you to enable or disable the No-Execution Page Protection Technology.

Setting this item to [Disabled] forces the XD feature ag to always return to zero (0). Conguration options: [Disabled] [Enabled]

4-22 Chapter 4: BIOS setup

PECI [Enabled]

Allows you to enable or disable the PECI interface.

Conguration options: [Disabled] [Enabled]

The following item appears when you set CPU Ratio Control to [Auto]

Intel(R) SpeedStep (TM) Tech. [Disabled]

Conguration options: [Disabled] [Automatic]

4.4.4 Chipset

The Chipset menu allows you to change the advanced chipset settings. Select an item then press <Enter> to display the sub-menu.

Advanced

Advanced Chipset Settings

WARMING: Setting wrong values in below sections may cause system to malfunction.

North Bridge Conguration

North Bridge Conguration

North Bridge Chipset Conguration

Memory Remap Feature [Enabled] Initiate Graphic Adapter [PEG/PCI] PEG Port Control [Auto] PEG Port Force x1 [Disabled]

ASUS C.G.I Function [Auto]

Advanced

BIOS SETUP UTILITY

Congure North Bridge features.

Options

Disabled Enabled

Memory Remap Feature [Enabled]

Allows you to enabled or disable the remapping of the overlapped PCI memory above the total physical memory. Enable this option only when you

install 64-bit operating system. Conguration options: [Disabled] [Enabled]

Initiate Graphic Adapter [PEG/PCI]

Allows you to decide which graphics controller to use as the primary boot

device. Conguration options: [PCI/PEG] [PEG/PCI]

ASUS P5KC 4-23

PEG Port Control [Auto]

Conguration options: [Auto] [Disabled]

PEG Port Force x1 [Disabled]

This item appears when the PEG Port Control item is set to [Auto].

Conguration options: [Enabled] [Disabled]

ASUS C.G.I Function [Auto]

Allows you to enable or disable the ASUS Cross Graphics Impeller function.

Conguratiton options: [Auto] [Enabled] [Disabled]

4.4.5 OnBoard Devices Conguration

Advanced

Onboard Device Conguraiton

High Denition Audio [Enabled]

Front Panel Type [HD Audio] Onboard 1394 Controller [Enabled] Onboard PCIE GbE LAN [Enabled] LAN Option ROM [Disabled] J-Micron eSATA/PATA Controller [Enabled] Controller Mode [IDE]

Serial Port1 Address [3F8/IRQ4]

High Denition Audio [Enabled]

Allows you to enable or disable the High Denition Audio. The following item

appears only when you enable this item.

Conguration options: [Enabled] [Disabled]

Front Panel Support Type [HD Audio]

Allows you to set the front panel audio connector (AAFP) mode to legacy

AC’97 or high-denition audio depending on the audio standard that the front panel audio module supports. Conguration options: [AC97] [HD Audio]

BIOS SETUP UTILITY

Enable or Disable

High Denition Audio

Controller

Select Screen

Select Item +- Change Option F1 General Help F10 Save and Exit ESC Exit

Onboard 1394 Controller [Enabled]

Allows you to disable or enable the onboard 1394 device support.

Conguration options: [Enabled] [Disabled]

Onboard PCIE GbE LAN [Enabled]

Conguration options: [Enabled] [Disabled]

LAN Option ROM [Disabled]

This item appears only when you enable the previous item.

Conguration options: [Disabled] [Enabled]

4-24 Chapter 4: BIOS setup

J-Micron eSATA/PATA Controller [Enabled]

Conguration options: [Enabled] [Disabled]

Controller Mode [IDE]

This item appears only when you enable the previous item.

Conguration options: [RAID] [IDE] [AHCI]

Serial Port1 Address [3F8/IRQ4]

Allows you to select the Serial Port1 base address.

Conguration options: [Disabled] [3F8/IRQ4] [2F8/IRQ3] [3E8/IRQ4] [2E8/IRQ3]

4.4.6 PCI PnP

The PCI PnP menu items allow you to change the advanced settings for PCI/PnP devices.

Take caution when changing the settings of the PCI PnP menu items. Incorrect

eld values can cause the system to malfunction.

Advanced

Advanced PCI/PnP Settings

WARNING: Setting wrong values in below sections may cause system to malfunction.

Plug And Play O/S [No]

BIOS SETUP UTILITY

NO: lets the BIOS

congure all the

devices in the system. YES: lets the

Select Screen

operating system

Select Item

congure Plug and Play

+- Change Option

(PnP) devices not

F1 General Help

required for boot if

F10 Save and Exit

your system has a Plug

ESC Exit

and Play operating system.

Plug And Play O/S [No]

When set to [No], BIOS congures all the devices in the system. When set to

[Yes] and if you install a Plug and Play operating system, the operating system

congures the Plug and Play devices that are not required for boot. Conguration options: [No] [Yes]

ASUS P5KC 4-25

4.5 Power menu

The Power menu items allow you to change the settings for the Advanced Power Management (APM). Select an item then press <Enter> to display the

conguration options.

Main Advanced Power Boot Tools Exit

Suspend Mode [Auto] Repost Video on S3 Resume [Disabled] ACPI Version [Disabled] ACPI APIC Support [Enabled]

APM Conguration

Hardware Monitor

4.5.1 Suspend Mode [Auto]

Allows you to select the Advanced Conguration and Power Interface (ACPI) state

to be used for system suspend.

Conguration options: [S1 (POS) Only] [S3 Only] [Auto]

4.5.2 Repost Video on S3 Resume [Disabled]

Determines whether to invoke VGA BIOS POST on S3/STR resume.

Conguration options: [Disabled] [Enabled]

BIOS SETUP UTILITY

Select the ACPI state used for System Suspend.

Select Screen

Select Item +- Change Option F1 General Help F10 Save and Exit ESC Exit

4.5.3 ACPI Version [Disabled]

Allows you to select the Advanced Conguration and Power Interface (ACPI) version supported. Conguration options: [Disabled] [Enabled]

4.5.4 ACPI APIC Support [Enabled]

Allows you to enable or disable the Advanced Conguration and Power Interface

(ACPI) support in the Advanced Programmable Interrupt Controller (APIC). When set to Enabled, the ACPI APIC table pointer is included in the RSDT pointer list.

Conguration options: [Disabled] [Enabled]

4-26 Chapter 4: BIOS setup

4.5.5 APM Conguration

Power

APM Conguration

Restore on AC Power Loss [Power Off] Power On By RTC Alarm [Disabled] Power On By External Modems [Disabled] Power On By PCI Devices [Disabled] Power On By PCIE Devices [Disabled] Power On By PS/2 Keyboard [Disabled]

Restore On AC Power Loss [Power Off]

When set to Power Off, the system goes into off state after an AC power loss. When set to Power On, the system goes on after an AC power loss. When set to Last State, the system goes into either off or on state, whatever the system state was before the AC power loss.

Conguration options: [Power Off] [Power On] [Last State]

Power On By RTC Alarm [Disabled]

Allows you to enable or disable RTC to generate a wake event. When this item is set to Enabled, the items RTC Alarm Date/ RTC Alarm Hour/ RTC Alarm Minute/

RTC Alarm Second will become user-congurable with set values. Conguration options: [Disabled] [Enabled]

BIOS SETUP UTILITY

<Enter> to select whether or not to restart the system after AC power loss.

Select Screen

Select Item +- Change Option F1 General Help F10 Save and Exit ESC Exit

Power On By External Modems [Disabled]

This allows either settings of [Enabled] or [Disabled] for powering up the computer when the external modem receives a call while the computer is in Soft-off mode.

Conguration options: [Disabled] [Enabled]

The computer cannot receive or transmit data until the computer and

applications are fully running. Thus, connection cannot be made on the rst

try. Turning an external modem off and then back on while the computer is off

causes an initialization string that turns the system power on.

Power On By PCI Devices [Disabled]

Allows you to enable or disable the PME to wake up from S5 by PCI devices.

Conguration options: [Disabled] [Enabled]

Power On By PCIE Devices [Disabled]

Allows you to enable or disable the PCIE devices to generate a wake event.

Conguration options: [Disabled] [Enabled]

ASUS P5KC 4-27

Power On By PS/2 Keyboard [Disabled]

Allows you to disable the Power On by PS/2 keyboard function or set specic keys

on the PS/2 keyboard to turn on the system. This feature requires an ATX power supply that provides at least 1A on the +5VSB lead.

Conguration options: [Disabled] [Space Bar] [Ctrl-Esc] [Power Key]

4.5.6 Hardware Monitor

Power

Hardware Monitor

CPU Temperature [51ºC/122.5ºF] MB Temperature [32ºC/89.5ºF]

CPU Fan Speed [4166RPM] CPU Q-Fan Control [Disabled] Chassis Fan 1 Speed [N/A] Chassis Fan 2 Speed [N/A] Chassis Q-Fan Control [Disabled] Power Fan Speed [N/A]

VCORE Voltage [ 1.280V]

3.3V Voltage [ 3.104V] 5V Voltage [ 4.848V] 12V Voltage [11.480V]

CPU Temperature [xxxºC/xxxºF] MB Temperature [xxxºC/xxxºF]

The onboard hardware monitor automatically detects and displays the motherboard and CPU temperatures. Select [Ignored] if you do not wish to display the detected temperatures.

BIOS SETUP UTILITY

CPU Temperature

Select Screen

Select Item +- Change Field F1 General Help F10 Save and Exit ESC Exit

CPU Fan Speed [xxxxRPM] or [Ignored] / [N/A]

The onboard hardware monitor automatically detects and displays the CPU fan speed in rotations per minute (RPM). If the fan is not connected to the

motherboard, the eld shows N/A.

CPU Q-Fan Control [Disabled]

Allows you to enable or disable the CPU Q-Fan controller.

Conguration options: [Disabled] [Enabled]

The CPU Fan Prole item appears when you enable the CPU Q-Fan Control feature.

4-28 Chapter 4: BIOS setup

CPU Fan Prole [Optimal]

Allows you to set the appropriate performance level of the CPU Q-Fan. When set to [Optimal], the CPU fan automatically adjusts depending on the CPU

temperature. Set this item to [Silent Mode] to minimize fan speed for quiet CPU fan

operation, or [Performance Mode] to achieve maximum CPU fan speed.

Conguration options: [Optimal] [Silent Mode] [Performance Mode]

Chassis Fan 1/2 Speed [xxxxRPM] or [Ignored] / [N/A]

The onboard hardware monitor automatically detects and displays the chassis fan speed in rotations per minute (RPM). If the fan is not connected to the

motherboard, the eld shows N/A.

Chassis Q-Fan Control [Disabled]

Allows you to enable or disable the chassis Q-Fan controller.

Conguration options: [Disabled] [Enabled]

The Chassis Fan Ratio item appears when you enable the Chassis Q-Fan Control feature.

Chassis Fan Ratio [Auto]

Allows you to set the appropriate fan speed ratio for the chassis Q-Fan. When set to [Auto], the chassis fan automatically adjusts depending on the chassis

temperature. Set a low ratio to minimize fan speed for quiet chassis fan operation,

or a high ratio to achieve maximum chassis fan speed.

Conguration options: [Auto] [90%] [80%] [70%] [60%]

Chassis Target Temperature [37ºC]

Adjusts the CPU fan speed to make the CPU temperature as low as the selected temperature.

Conguration options: [28ºC] [31ºC] [34ºC] [37ºC] [40ºC] [43ºC] [46ºC]

Power Fan Speed (RPM) [xxxxRPM] or [Ignored] / [N/A]

The onboard hardware monitor automatically detects and displays the power fan speed in rotations per minute (RPM). If the fan is not connected to the

motherboard, the eld shows N/A.

Vcore Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage

The onboard hardware monitor automatically detects the voltage output through the onboard voltage regulators. Select [Ignored] if you do not want to detect this item.

ASUS P5KC 4-29

4.6 Boot menu

The Boot menu items allow you to change the system boot options. Select an item then press <Enter> to display the sub-menu.

Main Advanced Power Boot Tools Exit

Boot Device Priority Removable Drives

Boot Settings Conguration

Security

4.6.1 Boot Device Priority

Boot

Boot Device Priority

1st Boot Device [1st FLOPPY DRIVE] 2nd Boot Device [HDD:PM-WDC WD800JD] 3rd Boot Device [ATAPI CD-ROM]

BIOS SETUP UTILITY

Species the Boot

Device Priority

sequence.

A virtual oppy disk

drive (Floppy Drive B:) may appear when you set the CD-ROM drive as the

rst boot device.

Select Screen

Select Item Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

Species the boot sequence from the

availabe devices.

A device enclosed in parenthesis has been disabled in the corresponding menu.

Select Screen

Select Item

Change Option

F1 General Help F10 Save and Exit ESC Exit

1st ~ xxth Boot Device [xxx Drive]

These items specify the boot device priority sequence from the available devices. The number of device items that appears on the screen depends on the number of devices installed in the system.

Conguration options: [1st FLOPPY DRIVE] [HDD:xxxxxxx] [ATAPI CD-ROM]

4-30 Chapter 4: BIOS setup

Asus PK5C User Manual
