Asus P8H61-I LX User Manual

Download

Motherboard

P8H61-I LX

E6873_P8H61-I LX.indb 1 2/15/12 6:36:49 PM

E6873

First Edition (V1) February 2012

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the

product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to infringe.

Offer to Provide Source Code of Certain Software

This product may contain copyrighted software that is licensed under the General Public License (“GPL”) and under the Lesser General Public License Version (“LGPL”). The GPL and LGPL licensed code in this product is distributed without any warranty. Copies of these licenses are included in this product.

You may obtain the complete corresponding source code (as dened in the GPL) for the GPL Software,

and/or the complete corresponding source code of the LGPL Software (with the complete machinereadable “work that uses the Library”) for a period of three years after our last shipment of the product including the GPL Software and/or LGPL Software, which will be no earlier than December 1, 2011, either

(1) for free by downloading it from http://support.asus.com/download; or (2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location where you want to have it shipped to, by sending a request to:

ASUSTeK Computer Inc. Legal Compliance Dept. 15 Li Te Rd., Beitou, Taipei 112 Taiwan

In your request please provide the name, model number and version, as stated in the About Box of the product for which you wish to obtain the corresponding source code and your contact details so that we can coordinate the terms and cost of shipment with you.

The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as the corresponding binary/object code.

This offer is valid to anyone in receipt of this information.

ASUSTeK is eager to duly provide complete source code as required under various Free Open Source Software licenses. If however you encounter any problems in obtaining the full corresponding source code

we would be much obliged if you give us a notication to the email address gpl@asus.com, stating the

product and describing the problem (please do NOT send large attachments such as source code archives etc to this email address).

E6873_P8H61-I LX.indb 2 2/15/12 6:36:50 PM

iii

Contents

Safety information ...................................................................................... vi

About this guide ......................................................................................... vi

P8H61-I LX specications summary ....................................................... viii

Chapter 1: Product introduction

1.1 Before you proceed ..................................................................... 1-1

1.2 Motherboard overview ................................................................. 1-2

1.2.1 Placement direction ........................................................ 1-2

1.2.2 Screw holes .................................................................... 1-2

1.2.3 Motherboard layout ......................................................... 1-3

1.2.4 Layout contents ............................................................... 1-3

1.3 Central Processing Unit (CPU) ................................................... 1-4

1.3.1 Installing the CPU ........................................................... 1-4

1.3.2 Installing the CPU heatsink and fan ................................ 1-7

1.3.3 Uninstalling the CPU heatsink and fan ........................... 1-8

1.4 System memory ........................................................................... 1-9

1.4.1 Overview ......................................................................... 1-9

1.4.2 Memory congurations .................................................. 1-10

1.4.3 Installing a DIMM .......................................................... 1-13

1.4.4 Removing a DIMM ........................................................ 1-13

1.5 Expansion slots .......................................................................... 1-14

1.5.1 Installing an expansion card ......................................... 1-14

1.5.2 Conguring an expansion card ..................................... 1-14

1.5.3 PCI Express 2.0 x16 slot ............................................... 1-14

1.6 Jumpers ...................................................................................... 1-15

1.7 Connectors ................................................................................. 1-16

1.7.1 Rear panel connectors .................................................. 1-16

1.7.2 Internal connectors ....................................................... 1-17

1.8 Software support ........................................................................ 1-22

1.8.1 Installing an operating system ...................................... 1-22

1.8.2 Support DVD information .............................................. 1-22

E6873_P8H61-I LX.indb 3 2/15/12 6:36:50 PM

Contents

Chapter 2: BIOS information

2.1 Managing and updating your BIOS ............................................ 2-1

2.1.1 ASUS Update utility ........................................................ 2-1

2.1.2 ASUS EZ Flash 2 ............................................................ 2-2

2.1.3 ASUS BIOS Updater ....................................................... 2-3

2.2 BIOS setup program .................................................................... 2-6

2.3 Main menu .................................................................................. 2-10

2.3.1 System Language [English] .......................................... 2-10

2.3.2 System Date [Day xx/xx/xxxx] ....................................... 2-10

2.3.3 System Time [xx:xx:xx] ................................................. 2-10

2.3.4 Security ......................................................................... 2-10

2.4 Ai Tweaker menu ........................................................................ 2-12

2.4.1 Memory Frequency [Auto] ............................................. 2-12

2.4.2 iGPU Max. Frequency [Auto] ........................................ 2-12

2.4.3 GPU Boost [OK] ............................................................ 2-13

2.4.4 DRAM Timing Control ................................................... 2-13

2.4.5 CPU Power Management ............................................. 2-13

2.5 Advanced menu ......................................................................... 2-14

2.5.1 CPU Conguration ........................................................ 2-14

2.5.2 System Agent Conguration ......................................... 2-16

2.5.3 PCH Conguration ........................................................ 2-16

2.5.4 SATA Conguration ....................................................... 2-16

2.5.5 USB Conguration ........................................................ 2-17

2.5.6 Onboard Devices Conguration .................................... 2-18

2.5.7 APM .............................................................................. 2-19

2.6 Monitor menu ............................................................................. 2-20

2.6.1 CPU Temperature / MB Temperature [xxxºC/xxxºF] ...... 2-20

2.6.2 CPU / Chassis Fan Speed [xxxx RPM]

or [Ignore] / [N/A] ........................................................... 2-20

2.6.3 CPU Q-Fan Control [Enabled] ...................................... 2-20

2.6.4 Chassis Q-Fan Control [Enabled] ................................. 2-21

2.6.5 CPU Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage .. 2-22

2.6.6 Anti Surge Support [Disabled] ....................................... 2-22

E6873_P8H61-I LX.indb 4 2/15/12 6:36:51 PM

Contents

2.7 Boot menu .................................................................................. 2-23

2.7.1 Bootup NumLock State [On] ......................................... 2-23

2.7.2 Full Screen Logo [Enabled] ........................................... 2-23

2.7.3 Wait for ‘F1’ If Error [Enabled] ....................................... 2-23

2.7.4 Option ROM Messages [Force BIOS] ........................... 2-24

2.7.5 Setup Mode [EZ Mode] ................................................. 2-24

2.7.6 Boot Option Priorities .................................................... 2-24

2.7.7 Boot Override ................................................................ 2-24

2.8 Tools menu ................................................................................. 2-25

2.8.1 ASUS EZ Flash Utility ................................................... 2-25

2.8.2 ASUS SPD Information ................................................. 2-25

2.8.3 ASUS O.C. Prole ......................................................... 2-25

2.9 Exit menu .................................................................................... 2-26

Appendices

Notices .......................................................................................................A-1

E6873_P8H61-I LX.indb 5 2/15/12 6:36:51 PM

Safety information

Electrical safety

• To prevent electric shock hazard, disconnect the power cable from the electric outlet

before relocating the system.

• When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.

• Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged.

• Seek professional assistance before using an adapter or extension cord. These devices could interrupt the grounding circuit.

• Ensure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.

• If the power supply is broken, do not try to x it by yourself. Contact a qualied service

technician or your retailer.

Operation safety

•

Before installing the motherboard and adding devices on it, carefully read all the manuals that came with the package.

•

Before using the product, ensure that all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.

•

To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.

•

Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may become wet.

•

Place the product on a stable surface.

•

If you encounter technical problems with the product, contact a qualied service

technician or your retailer.

About this guide

This user guide contains the information you need when installing and conguring the

motherboard.

How this guide is organized

This guide contains the following parts:

• Chapter 1: Product introduction

This chapter describes the features of the motherboard and the new technology it

supports.

• Chapter 2: BIOS information

This chapter tells how to change system settings through the BIOS Setup menus.

Detailed descriptions of the BIOS parameters are also provided.

E6873_P8H61-I LX.indb 6 2/15/12 6:36:51 PM

vii

Conventions used in this guide

To ensure that you perform certain tasks properly, take note of the following symbols used throughout this manual.

DANGER/WARNING: Information to prevent injury to yourself when trying to

complete a task.

CAUTION: Information to prevent damage to the components when trying to

complete a task.

NOTE: Tips and additional information to help you complete a task.

IMPORTANT: Instructions that you MUST follow to complete a task.

Where to nd more information

Refer to the following sources for additional information and for product and software updates.

1. ASUS websites

The ASUS website provides updated information on ASUS hardware and software

products. Refer to the ASUS contact information.

2. Optional documentation

Your product package may include optional documentation, such as warranty yers,

that may have been added by your dealer. These documents are not part of the standard package.

Typography

Bold text Indicates a menu or an item to select.

Italics

Used to emphasize a word or a phrase.

<Key> Keys enclosed in the less-than and greater-than sign means that you must press the enclosed key. Example: <Enter> means that you must press the Enter or Return key.

<Key1>+<Key2>+<Key3> If you must press two or more keys simultaneously, the key names are linked with a plus sign (+). Example: <Ctrl>+<Alt>+<D>

E6873_P8H61-I LX.indb 7 2/15/12 6:36:53 PM

viii

P8H61-I LX specications summary

(continued on the next page)

CPU LGA1155 socket for Intel® Second Generation processors

Supports 32nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 suppport depends on the

CPU types;

** Refer to www.asus.com for Intel® CPU support list.

Chipset Intel® H61 Express Chipset Memory 2 x U-DIMM, max. 16GB, DDR3 1333 / 1066 MHz, non-ECC,

un-buffered memory Dual-channel memory architecture * The Max. 16GB memory capacity can be supported with DIMMs of 8GB (or above). ASUS will update QVL once the DIMMs are available in the market. ** Refer to www.asus.com for the latest Memory QVL (Qualied Vendors List).

*** When you install a total memory of 4GB capacity or more,

Windows® 32-bit operating system may only recognize less than 3GB. We recommend a maximum of 3GB system memory if you are using a Windows® 32-bit operating system.

Expansion slots 1 x PCI Express 2.0 x16 slot Graphics Supports DVI with Max. Resolution 1920 x1200 @60Hz

Supports D-Sub with Max. Resolution 2048 x 1536 @75Hz Max. UMA Memory: 1748MB

Storage

Intel® H61 Express Chipset:

- 4 x Serial ATA 3.0 Gb/s connectors

LAN

Realtek® 8111E PCIe Gigabit LAN controller

Audio VIA® VT1708S 8-channel High Denition Audio CODEC

- Supports Jack-Detection, Multi-Streaming and Front Panel JackRetasking

USB 8 x USB 2.0/1.1 ports (4 ports at the mid-board, 4 ports at the back

panel)

ASUS unique features

GPU Boost ASUS Anti-Surge Protection ASUS UEFI BIOS

ASUS Q-Fan 2 ASUS EZ Flash 2 ASUS MyLogo 2

E6873_P8H61-I LX.indb 8 2/15/12 6:36:54 PM

P8H61-I LX specications summary

Rear panel ports 1 x PS/2 keyboard (Purple)

1 x PS/2 Mouse (Green) 1 x D-Sub output port 1 x DVI-D output port 1 x LAN (RJ-45) port 4 x USB 2.0/1.1 ports 3 x Audio jacks support 8-channel

Internal connectors/ switches/ buttons

2 x USB 2.0/1.1 connectors support additional 4 USB 2.0/1.1 ports 4 x SATA 3.0 Gb/s connectors 1 x CPU fan connector 1 x Chassis fan connector 1 x Front panel audio connector 1 x S/PDIF Out connector 1 x speaker connector 1 x System panel connector 1 x Clear CMOS jumper 1 x 24-pin EATX power connector 1 x 4-pin ATX 12V power connector

BIOS features 32 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM 2.0,

ACPI v2.0a, SM BIOS v2.6

Manageability

WOL, PXE, PME wake up

Accessories 2 x Serial ATA 3.0Gb/s cables

1 x I/O shield 1 x User Manual 1 x Support DVD

Support DVD Drivers

ASUS utilities ASUS Update Anti-virus software (OEM version)

Form factor

Mini-ITX form factor: 6.70 in” x 6.70 in” (17 cm x 17 cm)

* Specications are subject to change without notice.

E6873_P8H61-I LX.indb 9 2/15/12 6:36:54 PM

E6873_P8H61-I LX.indb 10 2/15/12 6:36:54 PM

1-1Chapter 1: Product introduction

Chapter 1

Product introduction

If any of the items is damaged or missing, contact your retailer.

Thank you for buying an ASUS® P8H61-I LX motherboard! Before you start installing the motherboard, and hardware devices on it, check the items in

your motherboard package. Refer to page x for the list of accessories.

1.1 Before you proceed

Take note of the following precautions before you install motherboard components or change any motherboard settings.

• Unplug the power cord from the wall socket before touching any component.

• Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity.

• Hold components by the edges to avoid touching the ICs on them.

• Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that came with the component.

• Before you install or remove any component, ensure that the ATX power supply is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, or components.

Onboard LED

This motherboard comes with a standby power LED that lights up to indicate that the system is ON, in sleep mode, or in soft-off mode. This is a reminder that you must shut down the system and unplug the power cable before removing or plugging in any motherboard component. The illustration below shows the location of the onboard LED.

8H61-

SB_PWR

Standby Power Powered Off

OFF

P8H61-I LX Onboard LED

E6873_P8H61-I LX.indb 1 2/15/12 6:36:55 PM

ASUS P8H61-I LX1-2

P8H61-I

1.2 Motherboard overview

Before you install the motherboard, study the conguration of your chassis to ensure that the motherboard ts into it.

Ensure that you unplug the power cord before installing or removing the motherboard. Failure to do so can cause you physical injury and damage motherboard components.

1.2.1 Placement direction

When installing the motherboard, ensure that you place it into the chassis in the correct orientation. The edge with external ports goes to the rear part of the chassis as indicated in the image below.

1.2.2 Screw holes

Place four screws into the holes indicated by circles to secure the motherboard to the chassis.

Do not overtighten the screws! Doing so can damage the motherboard.

Place this side towards the rear of the chassis

E6873_P8H61-I LX.indb 2 2/15/12 6:36:57 PM

1-3Chapter 1: Product introduction

1.2.3 Motherboard layout

1.2.4 Layout contents

Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page

1. Clear RTC RAM (3-pin CLRTC) 1-15 7. System panel connector (10-1 pin F-PANEL) 1-21

2. USB connectors (10-1 pin USB56, USB78) 1-19 8. Speaker connector (4-pin SPEAKER) 1-18

3. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)

1-18 9 Standby power LED (SB_PWR) 1-1

4. Intel® H61 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1/2/3/4)

1-20 10 Intel® LGA1155 CPU socket 1-4

5. CPU and chassis fan connectors (4-pin CPU_FAN, 3-pin CHA_FAN)

1-19 11. Digital audio connector (4-1 pin SPDIF_OUT) 1-20

6. DDR3 DIMM slots 1-9 12 Front panel audio connector (10-1 pin AAFP) 1-17

P8H61-I

PCIEX16

Super

I/O

F_PANEL

AAFP

ATX12V

EATXPWR

CPU_FAN CHA_FAN

USB78

USB56

Lithium Cell

CMOS Power

LAN1_USB12

USB34

RTL

8111E

VIA

VT1708S

32Mb BIOS

SB_PWR

17cm(6.7in)

Intel

H61

SATA3G_1

SATA3G_2

SATA3G_3

SATA3G_4

AUDIO

KBMS

SPDIF_OUT

SPEAKER

DDR3 DIMMA1 (64bit, 240-pin module)

DDR3 DIMMB1 (64bit, 240-pin module)

CLRTC

LGA1155

VGA

DVI

521 3

1112

8 910

E6873_P8H61-I LX.indb 3 2/15/12 6:36:58 PM

ASUS P8H61-I LX1-4

1.3 Central Processing Unit (CPU)

The motherboard comes with a surface mount LGA1155 socket designed for the Intel® Second Generation processors.

Unplug all power cables before installing the CPU.

• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and the socket contacts are not bent. Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket contacts/motherboard components. ASUS will shoulder the cost of repair only if the damage is shipment/transit-related.

• Keep the cap after installing the motherboard. ASUS will process Return Merchandise

Authorization (RMA) requests only if the motherboard comes with the cap on the

LGA1155 socket.

• The product warranty does not cover damage to the socket contacts resulting from incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP cap.

1.3.1 Installing the CPU

To install a CPU:

1. Locate the CPU socket on the motherboard.

To prevent damage to the socket pins, do not remove the PnP cap unless you are installing a CPU.

2. Press the load lever with your thumb (A), and then move it to the right (B) until it is released from the retention tab.

Load lever

Retention tab

8H61-

P8H61-I LX CPU socket LGA1155

E6873_P8H61-I LX.indb 4 2/15/12 6:37:00 PM

1-5Chapter 1: Product introduction

3. Lift the load lever in the direction of the arrow until the load plate is completely lifted.

Load plate

4. Remove the PnP cap from the CPU socket by lifting the tab only.

The CPU ts in only one correct

orientation. DO NOT force the CPU into the socket to prevent bending the connectors on the socket and damaging the CPU!

Gold

triangle

mark

Alignment keys

CPU notches

5. Position the CPU over the socket, ensuring that the gold triangle is on the bottom-left corner of the socket, and

then t the socket alignment keys into

the CPU notches.

PnP cap

E6873_P8H61-I LX.indb 5 2/15/12 6:37:01 PM

ASUS P8H61-I LX1-6

7. Close the load plate (A), and then push down the load lever (B), ensuring that the front edge of the load plate slides under the retention knob (C).

8. Insert the load lever under the retention tab.

6. Apply some Thermal Interface Material to the exposed area of the CPU that the heatsink will be in contact with, ensuring that it is spread in an even thin layer.

Some heatsinks come with preapplied thermal paste. If so, skip this step.

The Thermal Interface Material is toxic and inedible. DO NOT eat it. If it gets into your eyes or touches your skin, wash it off immediately, and seek professional medical help.

E6873_P8H61-I LX.indb 6 2/15/12 6:37:02 PM

1-7Chapter 1: Product introduction

1.3.2 Installing the CPU heatsink and fan

The Intel® LGA1155 processor requires a specially designed heatsink and fan assembly to ensure optimum thermal condition and performance.

•

When you buy a boxed Intel® processor, the package includes the CPU fan and heatsink assembly. If you buy a CPU separately, ensure that you use only Intel®-certied multi-directional heatsink and fan.

• Your Intel® LGA1155 heatsink and fan assembly comes in a push-pin design and requires no tool to install.

• Use an LGA1155-compatible CPU heatsink and fan assembly only. The LGA1155 socket

is incompatible with the LGA775 and LGA1366 sockets in size and dimension.

Ensure that you have installed the motherboard to the chassis before you install the CPU fan and heatsink assembly.

The type of CPU heatsink and fan assembly may differ, but the installation steps and functions should remain the same. The illustration above is for reference only.

To install the CPU heatsink and fan:

1. Place the heatsink on top of the installed CPU, ensuring that the four fasteners match the holes on the motherboard.

2. Push down two fasteners at a time in a diagonal sequence to secure the heatsink and fan assembly in place.

Orient the heatsink and fan assembly such that the CPU fan cable is closest to the CPU fan connector.

If you purchased a separate CPU heatsink and fan assembly, ensure that you have properly applied Thermal Interface Material to the CPU heatsink or CPU before you install the heatsink and fan assembly.

E6873_P8H61-I LX.indb 7 2/15/12 6:37:04 PM

ASUS P8H61-I LX1-8

3. Connect the CPU fan cable to the connector on the motherboard labeled CPU_FAN.

Do not forget to connect the CPU fan connector! Hardware monitoring errors can occur if you fail to plug this connector.

1.3.3 Uninstalling the CPU heatsink and fan

To uninstall the CPU heatsink and fan:

1. Disconnect the CPU fan cable from the connector on the motherboard.

2. Rotate each fastener counterclockwise.

3. Pull up two fasteners at a time in a diagonal sequence to disengage the heatsink and fan assembly from the motherboard.

8H61-

P8H61-I LX CPU fan connector

CPU_FAN

CPU FAN PWM

CPU FAN IN

CPU FAN PWR

GND

E6873_P8H61-I LX.indb 8 2/15/12 6:37:05 PM

1-9Chapter 1: Product introduction

8H61-

P8H61-I LX 240-pin DDR3 DIMM sockets

DIMMA1

DIMMB1

1.4 System memory

1.4.1 Overview

The motherboard comes with two Double Data Rate 3 (DDR3) Dual Inline Memory Modules (DIMM) sockets.

A DDR3 module has the same physical dimensions as a DDR2 DIMM but is notched differently to prevent installation on a DDR2 DIMM socket. DDR3 modules are developed for better performance with less power consumption.

The gure illustrates the location of the DDR3 DIMM sockets:

4. Carefully remove the heatsink and fan assembly from the motherboard.

5. Rotate each fastener clockwise to ensure correct orientation when reinstalling.

Channel Sockets

Channel A DIMM_A1

Channel B DIMM_B1

E6873_P8H61-I LX.indb 9 2/15/12 6:37:08 PM

ASUS P8H61-I LX1-10

1.4.2 Memory congurations

You may install 512MB, 1GB, 2GB, 4GB and 8GB unbuffered non-ECC DDR3 DIMMs into the DIMM sockets.

• The default memory operation frequency is dependent on its Serial Presence Detect (SPD), which is the standard way of accessing information from a memory module. Under the default state, some memory modules for overclocking may operate at a lower frequency than the vendor-marked value. To operate at the vendor-marked or at a higher frequency, refer to section 2.4 Ai Tweaker menu for manual memory frequency adjustment.

• The Max. 16GB memory capacity can be supported with DIMMs of 8GB (or above). ASUS will update the QVL once the DIMMs are available in the market.

• For system stability, use a more efcient memory cooling system to support a full

memory load (2 DIMMs) or overclocking condition.

• You may install varying memory sizes in Channel A and Channel B. The system maps the total size of the lower-sized channel for the dual-channel conguration. Any excess memory from the higher-sized channel is then mapped for single-channel operation.

• According to Intel CPU specication, DIMM voltage below 1.65V is recommended to

protect the CPU.

• Always install DIMMs with the same CAS latency. For optimum compatibility, we recommend that you obtain memory modules from the same vendor.

• Due to the memory address limitation on 32-bit Windows® OS, when you install 4GB or more memory on the motherboard, the actual usable memory for the OS can be about 3GB or less. For effective use of memory, we recommend that you do any of the following:

- Use a maximum of 3GB system memory if you are using a 32-bit Windows

OS.

- Install a 64-bit Windows® OS when you want to install 4GB or more on the

motherboard.

• This motherboard does not support DIMMs made up of 512Mb (64MB) chips or less.

P8H61-I LX Motherboard Qualied Vendors Lists (QVL)

DDR3-1066 MHz capability

Vendors Part No. Size

SS/DSChip

Brand

Chip NO. Timing Voltage

DIMM socket support

(Optional)

1 DIMM 2 DIMM

Crucial CT12864BA1067.8FF 1GB SS Micron 9GF22D9KPT 7 - • •

Crucial CT25664BA1067.16FF 2GB DS Micron 9HF22D9KPT 7 - • •

ELPIDA EBJ10UE8EDF0-AE-F 1GB SS ELPIDA J1108EDSE-DJ-F - 1.35V(low voltage) • •

ELPIDA EBJ21UE8EDF0-AE-F 2GB DS ELPIDA J1108EDSE-DJ-F - 1.35V(low voltage) • •

KINGSTON

KVR1066D3N7/1G(Low

prole)

1GB SS ELPIDA J1108BFSE-DJ-F 7 1.5V • •

KINGSTON KVR1066D3N7/2G 2GB DS ELPIDA J1108BDSE-DJ-F 7 1.5V • • KINGSTON KVR1066D3N7/4G 4GB DS Hynix H5TQ2G83AFR 7 1.5V • • Micron MT8JTF12864AZ-1G1F1 1GB SS Micron 9GF22D9KPT 7 - • • Micron MT16JTF25664AZ-1G1F1 2GB DS Micron 9HF22D9KPT 7 • •

E6873_P8H61-I LX.indb 10 2/15/12 6:37:09 PM

1-11Chapter 1: Product introduction

DDR3-1333 MHz capability

(continued on the next page)

Vendors Part No. Size

SS/ DS

Chip Brand Chip NO. Timing Voltage

DIMM socket

support (Optional)

1 DIMM 2 DIMM

A-Data AD31333001GOU 1GB SS A-Data

AD30908C8D-151C E0906

- - • •

A-Data AD63I1B0823EV 2GB SS A-Data 3CCA-1509A - - • • A-DATA AM2U139C2P1 2GB SS ADATA 3CCD-1509A EL1127T - - • • A-Data AD31333G001GOU 3GB(3 x 1GB) SS - - 8-8-8-24 1.65-1.85V • •

A-Data AXDU1333GC2G9-2G(XMP) 4GB(2 x 2GB) SS - - 9-9-9-24

1.25V-1.35V (low voltage)

• •

A-Data AD31333G002GMU 2GB DS - - 8-8-8-24 1.65-1.85V • • A-Data AD63I1C1624EV 4GB DS A-Data 3CCA-1509A - - • • A-DATA AM2U139C4P2 4GB DS ADATA 3CCD-1509A EL1127T - - • • A-DATA SU3U1333W8G9-B 8GB DS ELPIDA J4208BASE-DJ-F - - • • Apacer 78.A1GC6.9L1 2GB DS Apacer AM5D5808DEWSBG - - • • Apacer 78.A1GC6.9L1 2GB DS Apacer AM5D5808FEQSBG 9 - • • Apacer 78.B1GDE.9L10C 4GB DS Apacer AM5D5908CEHSBG - - • • CORSAIR CM3X1024-1333C9 1GB SS - - 9-9-9-24 1.60V • • CORSAIR TR3X3G1333C9 G 3GB(3 x 1GB) SS - - 9-9-9-24 1.50V • • CORSAIR TR3X6G1333C9 G 6GB(3x 2GB) SS - - 9-9-9-24 1.50V • • CORSAIR CMD24GX3M6A1333C9(XMP) 24GB(6x4GB) DS - - 9-9-9-24 1.60V • • CORSAIR TW3X4G1333C9D G 4GB(2 x 2GB) DS - - 9-9-9-24 1.50V • • CORSAIR CMD8GX3M4A1333C7 8GB(4 x 2GB) DS - - 7-7-7-20 1.60V • • Crucial CT12864BA1339.8FF 1GB SS Micron 9FF22D9KPT 9 - • • Crucial CT25664BA1339.16FF 2GB DS Micron 9KF27D9KPT 9 - • • Crucial BL25664BN1337.16FF (XMP) 6GB(3 x 2GB) DS - - 7-7-7-24 1.65V • •

ELPIDA EBJ10UE8EDF0-DJ-F 1GB SS ELPIDA J1108EDSE-DJ-F -

1.35V (low voltage)

• •

ELPIDA EBJ21UE8EDF0-DJ-F 2GB DS ELPIDA J1108EDSE-DJ-F -

1.35V (low voltage)

• •

G.SKILL F3-10600CL8D-2GBHK(XMP) 1GB SS G.SKILL - - - • • G.SKILL F3-10600CL9D-2GBNQ 2GB(2 x 1GB) SS - - 9-9-9-24 1.5V • • G.SKILL F3-10666CL7T-3GBPK(XMP) 3GB(3 x 1GB) SS - - 7-7-7-18 1.5~1.6V • • G.SKILL F3-10666CL8D-4GBECO(XMP) 4GB(2 x 2GB) DS - - 8-8-8-8-24 XMP 1.35V • • G.SKILL F3-10666CL7T-6GBPK(XMP) 6GB(3 x 2GB) DS - - 7-7-7-18 1.5~1.6V • • G.SKILL F3-10666CL7D-8GBRH(XMP) 8GB(2 x 4GB) DS - - 7-7-7-21 1.5V • • GEIL GET316GB1333C9QC 16GB (4x4GB) DS - - 9-9-9-24 1.5V • • GEIL GV32GB1333C9DC 2GB(2 x 1GB) DS - - 9-9-9-24 1.5V • •

GEIL GG34GB1333C9DC 4GB(2 x 2GB) DS GEIL GL1L128M88BA12N 9-9-9-24

1.3V (low voltage)

• •

GEIL GV34GB1333C9DC 4GB(2 x 2GB) DS - - 9-9-9-24 1.5V • • GEIL GVP34GB1333C7DC 4GB(2 x 2GB) DS - - 7-7-7-24 1.5V • •

Hynix HMT112U6TFR8A-H9 1GB SS Hynix H5TC1G83TFRH9A -

1.35V (low voltage)

• •

Hynix HMT325U6BFR8C-H9 2GB SS Hynix H5TQ2G83BFRH9C - - • •

Hynix HMT125U6TFR8A-H9 2GB DS Hynix H5TC1G83TFRH9A -

1.35V (low voltage)

• •

Hynix HMT351U6BFR8C-H9 4GB DS Hynix H5TQ2G83BFRH9C - - • • KINGMAX FLFD45F-B8KL9 NAES 1GB SS KINGMAX KKB8FNWBFGNX-27A - - • • KINGMAX FLFE85F-C8KF9 CAES 2GB SS KINGMAX KFC8FMFXF-DXX-15A - - • • KINGMAX FLFE85F-C8KL9 NAES 2GB SS KINGMAX KFC8FNLXF-DXX-15A - - • • KINGMAX FLFE85F-C8KM9 NAES 2GB SS KINGMAX KFC8FNMXF-BXX-15A - - • • KINGMAX FLFE85F-B8KL9 NEES 2GB DS KINGMAX KKB8FNWBFGNX-26A - - • • KINGMAX FLFF65F-C8KL9 NEES 4GB DS KINGMAX KFC8FNLXF-DXX-15A - - • • KINGMAX FLFF65F-C8KM9 NEES 4GB DS KINGMAX KFC8FNMXF-BXX-15A - - • • KINGSTON KVR1333D3N9/1G (low prole) 1GB SS ELPIDA J1108BDBG-DJ-F 9 1.5V • • KINGSTON KVR1333D3N9/2G (low prole) 2GB SS Hynix H5TQ2G83AFRH9C 9 - • • KINGSTON KVR1333D3S8N9/2G 2GB SS Micron IID77 D9LGK - 1.5V • •

KINGSTON

KVR1333D3S8N9/2G-SP(low

prole)

2GB SS ELPIDA J2108BCSE-DJ-F - 1.5V • •

KINGSTON KVR1333D3N9/2G (low prole) 2GB DS ELPIDA J1108BFBG-DJ-F 9 1.5V • •

KINGSTON KVR1333D3N9/2G 2GB DS KTC D1288JPNDPLD9U 9 1.5V • • KINGSTON KVR1333D3N9/2G 2GB DS ELPIDA J1108BDSE-DJ-F 9 1.5V • •

KINGSTON

KVR1333D3N9/2G-SP (low

prole)

2GB DS KTC D1288JEMFNGD9U - 1.5V • •

KINGSTON

KVR1333D3N9/2G-SP (low

prole)

2GB DS KINGSTON D1288JPSFPGD9U - 1.5V • •

KINGSTON KHX1333C7D3K2/4GX(XMP) 4GB(2 x 2GB) DS - - 7 1.65V • • KINGSTON KHX1333C9D3UK2/4GX(XMP) 4GB(2 x 2GB) DS - - 9 XMP 1.25V • • KINGSTON KVR1333D3N9/4G (low prole) 4GB DS ELPIDA J2108BCSE-DJ-F 9 1.5V • •

E6873_P8H61-I LX.indb 11 2/15/12 6:37:11 PM

ASUS P8H61-I LX1-12

DDR3-1333 MHz capability

SS: Single-sided / DS: Double-sided

DIMM support:

• A*: Supports one module inserted into either slot as single-channel memory

conguration.

• B*: Supports one pair of modules inserted into both slots as one pair of dual-channel

memory conguration.

Visit the ASUS website at www.asus.com for the latest QVL.

Vendors Part No. Siz

SS/

Chip Brand Chip NO. Timing Voltage

DIMM socket

support (Optional)

1 DIMM 2 DIMM

KINGSTON KVR1333D3N9/4G (low prole) 4GB DS ELPIDA J2108BCSE-DJ-F - 1.5V • • KINGSTON KVR1333D3N9/4G 4GB DS KTC D2568JENCNGD9U - 1.5V • • KINGSTON KVR1333D3N9/4G 4GB DS Hynix H5TQ2G83AFR - - • •

KINGSTON

KVR1333D3N9/4G-SP(low

prole)

4GB DS KINGSTON D2568JENCPGD9U - 1.5V • •

Micron MT4JTF12864AZ-1G4D1 1GB SS Micron OJD12D9LGQ - - • • Micron MT8JTF12864AZ-1G4F1 1GB SS Micron 9FF22D9KPT 9 - • • Micron MT8JTF25664AZ-1G4D1 2GB SS Micron OJD12D9LGK - - • • Micron MT8JTF25664AZ-1G4M1 2GB SS MICRON IJM22 D9PFJ - - • • Micron MT16JTF25664AZ-1G4F1 2GB DS Micron 9KF27D9KPT 9 - • • Micron MT16JTF51264AZ-1G4D1 4GB DS Micron OLD22D9LGK - - • • NANYA NT4GC64B8HG0NF-CG 4GB DS NANYA NT5CB256M8GN-CG - - • • OCZ OCZ3F13334GK 4GB(2 x 2GB) DS - - 9-9-9-20 1.7V • • OCZ OCZ3X13334GK(XMP) 4GB(2 x 2GB) DS - - 7-7-7-20 1.75V • • OCZ OCZ3G1333LV6GK 6GB(3 x 2GB) DS - - 9-9-9-20 1.65V • • OCZ OCZ3P1333LV6GK 6GB(3 x 2GB) DS - - 7-7-7-20 1.65V • • OCZ OCZ3X1333LV6GK(XMP) 6GB(3 x 2GB) DS - - 8-8-8-20 1.60V • • PSC AL7F8G73F-DJ2 1GB SS PSC A3P1GF3FGF - - • • PSC AL8F8G73F-DJ2 2GB DS PSC A3P1GF3FGF - - • • SAMSUNG M378B2873FHS-CH9 1GB SS SAMSUNG K4B1G0846F - - • • SAMSUNG M378B5773DH0-CH9 2GB SS SAMSUNG K4B2G0846D - - • • SAMSUNG M378B5673FH0-CH9 2GB DS SAMSUNG K4B1G0846F - - • • SAMSUNG M378B5273CH0-CH9 4GB DS SAMSUNG K4B2G0846C - - • • SAMSUNG M378B1G73AH0-CH9 8GB DS SAMSUNG K4B4G0846A-HCH9 - - • • Super Talent W1333UA1GH 1GB SS Hynix H5TQ1G83TFR 9 - • • Super Talent W1333X2G8(XMP) 1GB SS - - 8 - • • Super Talent W1333UB2GS 2GB DS SAMSUNG K4B1G0846F 9 - • • Super Talent W1333UB4GS 4GB DS SAMSUNG K4B2G0846C - - • • Super Talent W1333UX6GM 6GB(3x 2GB) DS Micron 0BF27D9KPT 9-9-9-24 1.5V • • Transcend JM1333KLN-2G 2GB SS Micron 0YD77D9LGK - - • • Transcend JM1333KLN-2G 2GB SS Hynix H5TQ2G83BZRH9C - - • • Transcend JM1333KLU-2G 2GB DS Transcend TK243PDF3 - - • • Transcend TS256MLK64V3U 2GB DS Micron 9GF27D9KPT - - • •

E6873_P8H61-I LX.indb 12 2/15/12 6:37:13 PM

1-13Chapter 1: Product introduction

1.4.3 Installing a DIMM

Unplug the power supply before adding or removing DIMMs or other system components. Failure to do so can cause severe damage to both the motherboard and the components.

1. Press the retaining clips outward to unlock a DIMM socket.

2. Align a DIMM on the socket such that the notch on the DIMM matches the DIMM slot key on the socket.

DIMM notch

A DIMM is keyed with a notch so that it ts in only one direction. DO NOT force a DIMM into

a socket in the wrong direction to avoid damaging the DIMM.

3. Firmly insert the DIMM into the socket until the retaining clips snap back in place and the DIMM is properly seated.

1.4.4 Removing a DIMM

To remove a DIMM:

1. Simultaneously press the retaining clips outward to unlock the DIMM.

2. Remove the DIMM from the socket.

Support the DIMM lightly with your

ngers when pressing the retaining

clips. The DIMM might get damaged

when it ips out with extra force.

DIMM notch

DIMM slot key

Unlocked retaining clip

Locked Retaining Clip

E6873_P8H61-I LX.indb 13 2/15/12 6:37:16 PM

ASUS P8H61-I LX1-14

1.5 Expansion slots

In the future, you may need to install expansion cards. The following sub-sections describe the slots and the expansion cards that they support.

Unplug the power cord before adding or removing expansion cards. Failure to do so may cause you physical injury and damage motherboard components.

1.5.1 Installing an expansion card

To install an expansion card:

1. Before installing the expansion card, read the documentation that came with it and make the necessary hardware settings for the card.

2. Remove the system unit cover (if your motherboard is already installed in a chassis).

3. Remove the bracket opposite the slot that you intend to use. Keep the screw for later use.

4. Align the card connector with the slot and press rmly until the card is completely

seated on the slot.

5. Secure the card to the chassis with the screw you removed earlier.

6. Replace the system cover.

1.5.2 Conguring an expansion card

After installing the expansion card, congure it by adjusting the software settings.

1. Turn on the system and change the necessary BIOS settings, if any. See Chapter 2 for information on BIOS setup.

2. Assign an IRQ to the card.

3. Install the software drivers for the expansion card.

When using PCI cards on shared slots, ensure that the drivers support “Share IRQ” or that

the cards do not need IRQ assignments. Otherwise, conicts will arise between the two PCI

groups, making the system unstable and the card inoperable.

1.5.3 PCI Express 2.0 x16 slot

This motherboard has a PCI Express 2.0 x16 slot that supports PCI Express 2.0 x16 graphic

cards complying with the PCI Express specications.

E6873_P8H61-I LX.indb 14 2/15/12 6:37:16 PM

1-15Chapter 1: Product introduction

1.6 Jumpers

Clear RTC RAM (3-pin CLRTC)

This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords.

Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default position. Removing the cap will cause system boot failure!

• If the steps above do not help, remove the onboard battery and move the jumper again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery.

• You do not need to clear the RTC when the system hangs due to overclocking. For system failure due to overclocking, use the CPU Parameter Recall (C.P.R.) feature. Shut down and reboot the system, then the BIOS automatically resets parameter settings to default values.

To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.

2. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3 for about 5-10 seconds, then move the cap back to pins 1-2.

3. Plug the power cord and turn ON the computer.

4. Hold down the <Del> key during the boot process and enter BIOS setup to re-enter data.

8H61-

P8H61-I LX Clear RTC RAM

1 2

2 3

Normal

(Default)

Clear RTC

CLRTC

E6873_P8H61-I LX.indb 15 2/15/12 6:37:18 PM

ASUS P8H61-I LX1-16

1.7 Connectors

1.7.1 Rear panel connectors

1. PS/2 Mouse (Green). This port is for a PS/2 mouse.

2. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)

through a network hub. Refer to the table below for the LAN port LED indications.

LAN port LED indications

LAN port

Speed

LED

Activity Link

LED

3. Line In port (light blue). This port connects to the tape, CD, DVD player, or other

audio sources.

4. Line Out port (lime). This port connects to a headphone or a speaker. In the 4, 6, and

8-channel congurations, the function of this port becomes Front Speaker Out.

5. Microphone port (pink). This port connects to a microphone.

Activity/Link LED Speed LED

Status Description Status Description

OFF No link OFF 10Mbps connection

ORANGE Linked ORANGE 100Mbps connection

BLINKING Data activity GREEN 1Gbps connection

Refer to the audio conguration table below for the function of the audio ports in 2, 4, 6, or 8-channel conguration.

Audio 2, 4, 6, or 8-channel conguration

Port Headset 2-channel 4-channel 6-channel 8-channel

Light Blue (Rear panel) Line In Rear Speaker Out Rear Speaker Out Rear Speaker Out

Lime (Rear panel) Line Out Front Speaker Out Front Speaker Out Front Speaker Out

Pink (Rear panel) Mic In Mic In Bass/Center Bass/Center

Lime (Front panel) – – – Side Speaker Out

To congure an 8-channel audio output:

Use a chassis with HD audio module in the front panel to support 8-channel audio output.

9 8

3 4

E6873_P8H61-I LX.indb 16 2/15/12 6:37:21 PM

1-17Chapter 1: Product introduction

6. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports are for USB

2.0/1.1 devices.

7. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports are for USB

2.0/1.1 devices.

8. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other

VGA-compatible devices.

9. DVI-D port. This port is for any DVI-D compatible device. DVI-D can’t be converted to

output RGB Signal to CRT and isn’t compatible with DVI-I.

10. PS/2 Keyboard (Purple). This port is for a PS/2 keyboard.

1.7.2 Internal connectors

1. Front panel audio connector (10-1 pin AAFP)

This connector is for a chassis-mounted front panel audio I/O module that supports either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel audio I/O module cable to this connector.

• We recommend that you connect a high-denition front panel audio module to this connector to avail of the motherboard’s high-denition audio capability.

• If you want to connect a high-denition front panel audio module to this connector, set the Front Panel Type item in the BIOS setup to [HD]. If you want to connect an AC'97 front panel audio module to this connector, set the item to [AC97]. By default, this connector is set to [HD]. See section 2.5.6 Onboard Devices Conguration for details.

8H61-

P8H61-I LX Front panel audio connector

AAFP

PIN 1

SENSE2_RETUR

SENSE1_RETUR

AGND

PORT2 L SENSE_SEND PORT2 R PORT1 R PORT1 L

HD-audio-compliant

pin definition

PIN 1

NC NC

AGND

Line out_L NC Line out_R MICPWR MIC2

Legacy ACʼ97

compliant definition

E6873_P8H61-I LX.indb 17 2/15/12 6:37:23 PM

ASUS P8H61-I LX1-18

• For a fully congured system, we recommend that you use a power supply unit (PSU) that complies with ATX 12 V Specication 2.0 (or later version) and provides a minimum

power of 350 W.

•

DO NOT forget to connect the 4-pin ATX +12V power plug. Otherwise, the system will not boot up.

• We recommend that you use a PSU with higher power output when conguring a

system with more power-consuming devices. The system may become unstable or may not boot up if the power is inadequate.

•

If you are uncertain about the minimum power supply requirement for your system, refer to the Recommended Power Supply Wattage Calculator at http://support.asus. com/PowerSupplyCalculator/PSCalculator.aspx?SLanguage=en-us for details.

2. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)

These connectors are for ATX power supply plugs. The power supply plugs are

designed to t these connectors in only one orientation. Find the proper orientation and push down rmly until the connectors completely t.

8H61-

P8H61-I LX ATX power connectors

ATX12V

PIN 1

+12V DC

GND

EATXPWR

PIN 1

GND +5 Volts +5 Volts +5 Volts

-5 Volts GND GND GND PSON# GND

-12 Volts +3 Volts

+3 Volts +12 Volts +12 Volts

+5V Standby

Power OK

GND

+5 Volts

GND

+5 Volts

GND +3 Volts +3 Volts

3. Speaker connector (4-pin SPEAKER)

The 4-pin connector is for the chassis-mounted system warning speaker. The speaker allows you to hear system beeps and warnings.

P8H61-I LX Speaker Out Connecto

+5V

GND

Speaker Out

SPEAKER

PIN 1

8H61-

E6873_P8H61-I LX.indb 18 2/15/12 6:37:24 PM

1-19Chapter 1: Product introduction

Do not forget to connect the fan cables to the fan connectors. Insufcient air ow inside the

system may damage the motherboard components. These are not jumpers! Do not place jumper caps on the fan connectors!

4. CPU and chassis fan connectors (4-pin CPU_FAN, 3-pin CHA_FAN)

Connect the fan cables to the fan connectors on the motherboard, ensuring that the black wire of each cable matches the ground pin of the connector.

The CPU_FAN connector supports a CPU fan of maximum 2A (24 W) fan power.

8H61-

P8H61-I LX fan connectors

CHA_FANCPU_FAN

CPU FAN PWM

CPU FAN IN

CPU FAN PWR

GND

Rotation

+12V

GND

5. USB connectors (10-1 pin USB56, USB78)

These connectors are for USB 2.0 ports. Connect the USB module cable to any of these connectors, then install the module to a slot opening at the back of the system

chassis. These USB connectors comply with USB 2.0 specication that supports up to

480 Mbps connection speed.

Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!

The USB module cable is purchased separately.

8H61-

P8H61-I LX USB2.0 connector

PIN 1

USB+5V USB_P8USB_P8+ GND NC

USB+5V USB_P7USB_P7+

GND

USB78

PIN 1

USB+5V USB_P6USB_P6+ GND NC

USB+5V

USB_P5-

USB_P5+

GND

USB56

E6873_P8H61-I LX.indb 19 2/15/12 6:37:27 PM

ASUS P8H61-I LX1-20

6. Intel® H61 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1~4)

These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical drives via Serial ATA 3.0 Gb/s signal cables.

• You must install Windows® XP Service Pack 3 or later version before using Serial ATA hard disk drives.

• When using hot-plug and NCQ, set the SATA Mode item in the BIOS to [AHCI Mode]. See section 2.5.4 SATA Conguration for details.

8H61-

SATA3G_1

SATA3G_2

GND

RSATA_TXP2

RSATA_TXN2

GND

RSATA_RXN2

RSATA_RXP2

GND

SATA3G_3

GND

RSATA_TXP3

RSATA_TXN3

GND

RSATA_RXN3

RSATA_RXP3

GND

SATA3G_4

GND

RSATA_TXP4

RSATA_TXN4

GND

RSATA_RXN4

RSATA_RXP4

GND

P8H61-I LX SATA 3.0Gb/s connectors

GND

RSATA_RXP1

RSATA_RXN1

GND

RSATA_TXN1

RSATA_TXP1

GND

7. Digital audio connector (4-1 pin SPDIF_OUT)

This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port. Connect the S/PDIF Out module cable to this connector, then install the module to a slot opening at the back of the system chassis.

The S/PDIF module is purchased separately.

8H61-

P8H61-I LX Digital audio connector

SPDIF_OUT

+5V

SPDIFOUT

GND

E6873_P8H61-I LX.indb 20 2/15/12 6:37:29 PM

1-21Chapter 1: Product introduction

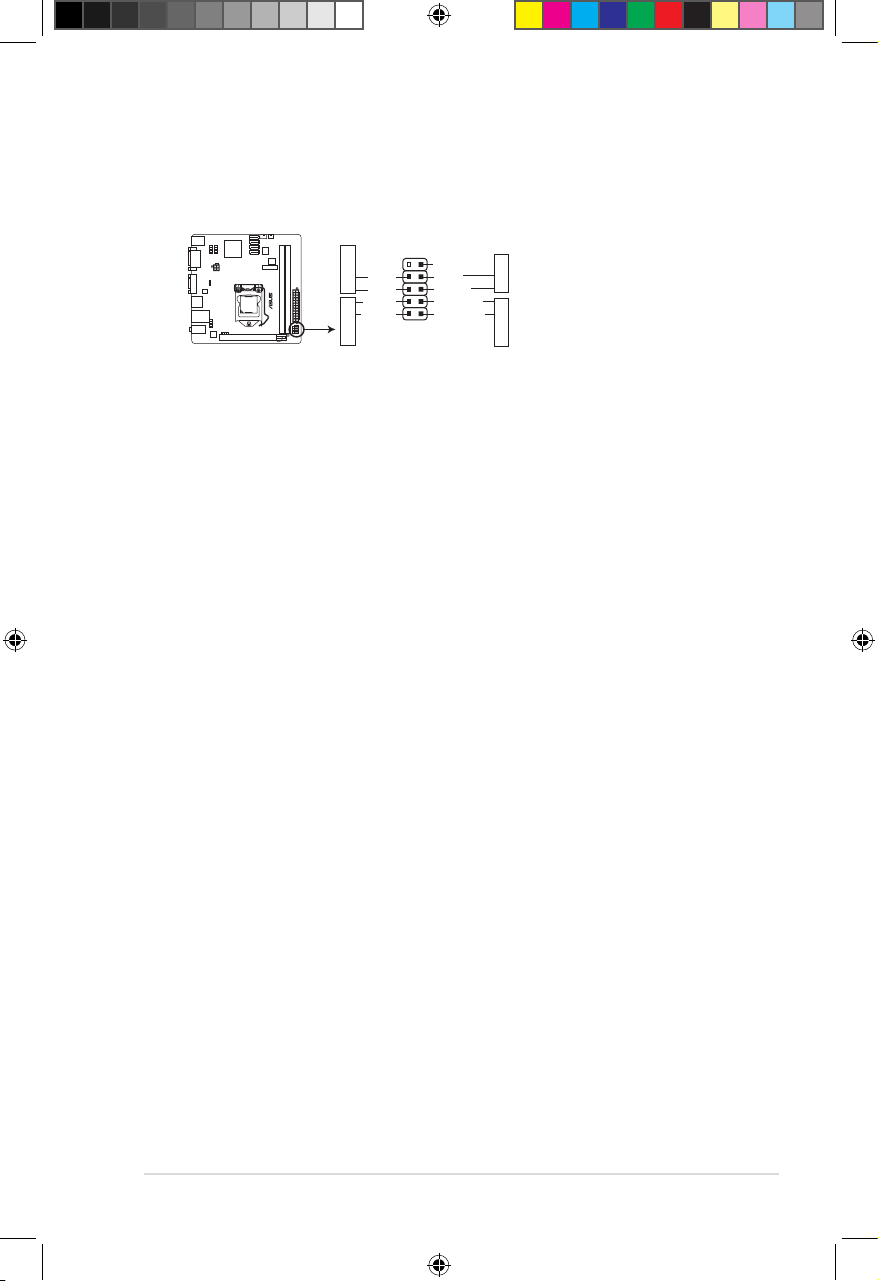

9. System panel connector (10-1 pin PANEL)

This connector supports several chassis-mounted functions.

• System power LED (2-pin PLED)

This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode.

• Hard disk drive activity LED (2-pin +HDLED)

This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable

to this connector. The IDE LED lights up or ashes when data is read from or written to

the HDD.

• Power/Soft-off button (2-pin PWRBTN)

This 2-pin connector is for the system power button.

• Reset button (2-pin RESET)

This 2-pin connector is for the chassis-mounted reset button for system reboot without turning off the system power.

8H61-

P8H61-I LX System panel connector

PIN 1

PWR BTN

GND

PWR

PLED-

PLED+

Reset Ground HD_LEDHD_LED+

F_PANEL

PWR LED

+HD_LED RESET

E6873_P8H61-I LX.indb 21 2/15/12 6:37:30 PM

ASUS P8H61-I LX1-22

1.8 Software support

1.8.1 Installing an operating system

This motherboard supports Windows® XP / Vista / 7 Operating Systems (OS). Always install

the latest OS version and corresponding updates to maximize the features of your hardware.

• Motherboard settings and hardware options vary. Refer to your OS documentation for detailed information.

• Ensure that you install Windows® XP Service Pack 3 or later versions / Windows® Vista Service Pack 1 or later versions before installing the drivers for better compatibility and system stability.

1.8.2 Support DVD information

The Support DVD that comes with the motherboard package contains the drivers, software applications, and utilities that you can install to avail all motherboard features.

If Autorun is NOT enabled in your computer, browse the contents of the Support DVD to

locate the le ASSETUP.EXE from the BIN folder. Double-click the ASSETUP.EXE to run

the DVD.

The following screen is for reference only.

The contents of the Support DVD are subject to change at any time without notice. Visit the ASUS website at www.asus.com for updates.

To run the Support DVD

Place the Support DVD into the optical drive. If Autorun is enabled in your computer, the DVD automatically displays the Specials screen. Click Drivers, Utilities, Manual, Contact, and Specials tabs to display their respective menus.

Click an item to install

Click an icon to display Support DVD/ motherboard information

E6873_P8H61-I LX.indb 22 2/15/12 6:37:31 PM

Chapter 2: BIOS information 2-1

Chapter 2

BIOS information

Save a copy of the original motherboard BIOS le to a USB ash disk in case you need to

restore the BIOS in the future. Copy the original motherboard BIOS using the ASUS Update utility.

• ASUS Update requires an Internet connection either through a network or an Internet Service Provider (ISP).

• This utility is available in the support DVD that comes with the motherboard package.

Updating the BIOS

To update the BIOS:

1. From the Windows® desktop, click Start > Programs > ASUS > AI Suite II > AI Suite

II X.XX.XX to launch the AI Suite II utility. The AI Suite II Quick Bar appears.

2. Click Update button from the Quick Bar, and then click ASUS Update from the popup menu. The ASUS Update main screen appears. From the list, select either of the following methods:

Updating from the Internet

a. Select Update BIOS from the Internet, then click Next.

b. Select the ASUS FTP site nearest you to avoid network trafc, then click Next.

c. From the FTP site, select the BIOS version that you wish to download then click

Next.

2.1.1 ASUS Update utility

The ASUS Update is a utility that allows you to manage, save, and update the motherboard BIOS in Windows® environment.

Installing ASUS Update

To install ASUS Update:

1. Place the support DVD in the optical drive. The Drivers menu appears.

2. Click the Utilities tab, then click AI Suite II.

3. Follow the onscreen instructions to complete the installation.

Quit all Windows® applications before you update the BIOS using this utility.

2.1 Managing and updating your BIOS

E6873_P8H61-I LX.indb 1 2/15/12 6:37:33 PM

2-2 ASUS P8H61-I LX

2.1.2 ASUS EZ Flash 2

The ASUS EZ Flash 2 feature allows you to update the BIOS without using an OS-based utility.

Before you start using this utility, download the latest BIOS le from the ASUS website at

www.asus.com.

To update the BIOS using EZ Flash 2:

1. Insert the USB ash disk that contains the latest BIOS le to the USB port.

2. Enter the Advanced Mode of the BIOS setup program. Go to the Tool menu to select ASUS EZ Flash Utility and press <Enter> to enable it.

The ASUS Update utility is capable of updating itself through the Internet. Always update the utility to avail all its features.

Updating from a BIOS file

a. Select Update BIOS from le, then click Next.

b. Locate the BIOS le from the Open window, then click Open.

3. Follow the onscreen instructions to complete the updating process.

Flash Info

MODEL: P8H61-I LX VER: 0103 DATE: 08/23/2011

Exit

[Enter] Select or Load [Tab] Switch [Up/Down/PageUp/PageDown/Home/End] Move [Esc] Exit [F2] Backup

File Path: fs0:\

Drive Folder Info

fs0:\ 08/23/11 10:23p 4194304 P8H61ILX.ROM

ASUSTek EZ Flash BIOS ROM Utility V00.75

File Info

MODEL: VER: DATE

Help Info

E6873_P8H61-I LX.indb 2 2/15/12 6:37:34 PM

Chapter 2: BIOS information 2-3

• This function supports USB ash disks with FAT 32/16 format and single partition only.

• DO NOT shut down or reset the system while updating the BIOS to prevent system boot failure!

3. Press <Tab> to switch to the Drive eld.

4. Press the Up/Down arrow keys to nd the USB ash disk that contains the latest BIOS,

and then press <Enter>.

5. Press <Tab> to switch to the Folder Info eld.

6. Press the Up/Down arrow keys to nd the BIOS le, and then press <Enter> to perform

the BIOS update process. Reboot the system when the update process is done.

Please select boot device:

SATA: XXXXXXXXXXXXXXXX USB XXXXXXXXXXXXXXXXX UEFI: XXXXXXXXXXXXXXXX Enter Setup

 ↑and ↓ to move selection ENTER to select boot device ESC to boot using defaults

2.1.3 ASUS BIOS Updater

The ASUS BIOS Updater allows you to update BIOS in DOS environment. This utility also

allows you to copy the current BIOS le that you can use as a backup when the BIOS fails or

gets corrupted during the updating process.

The succeeding utility screens are for reference only. The actual utility screen displays may not be same as shown.

Before updating BIOS

1. Prepare the motherboard support DVD and a USB ash drive in FAT32/16 format and

single partition.

2. Download the latest BIOS le and BIOS Updater from the ASUS website at http://support.asus.com and save them on the USB ash drive.

NTFS is not supported under DOS environment. Do not save the BIOS le and BIOS Updater to a hard disk drive or USB ash drive in NTFS format.

3. Turn off the computer and disconnect all SATA hard disk drives (optional).

Booting the system in DOS environment

1. Insert the USB ash drive with the latest BIOS le and BIOS Updater to the USB port.

2. Boot your computer. When the ASUS Logo appears, press <F8> to show the BIOS Boot Device Select Menu. Insert the support DVD into the optical drive and select the

optical drive as the boot device.

E6873_P8H61-I LX.indb 3 2/15/12 6:37:35 PM

2-4 ASUS P8H61-I LX

Welcome to FreeDOS (http://www.freedos.org)!

C:\>d:

D:\>

3. When the Make Disk menu appears, select the FreeDOS command prompt item by

pressing the item number.

4. At the FreeDOS prompt, type d: and press <Enter> to switch the disk from

Drive C (optical drive) to Drive D (USB ash drive).

2. The BIOS Updater backup screen appears indicating the BIOS backup process. When BIOS backup is done, press any key to return to the DOS prompt.

D:\>bupdater /oOLDBIOS1.rom

Filename Extension

Backing up the current BIOS

To backup the current BIOS le using the BIOS Updater

Ensure that the USB ash drive is not write-protected and has at least 4MB free space to save the le.

1. At the FreeDOS prompt, type bupdater /o[lename] and press <Enter>.

The [lename] is any user-assigned lename with no more than eight alphanumeric

characters for the lename and three alphanumeric characters for the extension.

ASUSTek BIOS Updater for DOS V1.18

Current ROM

Update ROM

Note

Saving BIOS:

PATH: A:\

BOARD: P8H61-I LX VER: 0103

DATE: 08/23/2011

BOARD: Unknown VER: Unknown

DATE: Unknown

BIOS backup is done! Press any key to continue.

E6873_P8H61-I LX.indb 4 2/15/12 6:37:36 PM

Chapter 2: BIOS information 2-5

Updating the BIOS le

To update the BIOS le using BIOS Updater

1. At the FreeDOS prompt, type bupdater /pc /g and press <Enter>.

ASUSTek BIOS Updater for DOS V1.18

Current ROM

Update ROM

Note

[Enter] Select or Load [Tab] Switch [V] Drive Info [Up/Down/Home/End] Move [B] Backup [Esc] Exit

P8H61ILX.ROM 4194304 2011-08-23 17:30:48

PATH: A:\

BOARD: P8H61-I LX VER: 0103

DATE: 08/23/2011

BOARD: Unknown VER: Unknown

DATE: Unknown

D:\>bupdater /pc /g

2. The BIOS Updater screen appears as below.

3. Press <Tab> to switch between screen elds and use the <Up/Down/Home/End> keys to select the BIOS le and press <Enter>. BIOS Updater checks the selected BIOS le and prompts you to conrm BIOS update.

Are you sure to update BIOS?

Yes No

4. Select Yes and press <Enter>. When BIOS update is done, press <ESC> to exit BIOS Updater. Restart your computer.

DO NOT shut down or reset the system while updating the BIOS to prevent system boot failure!

• For BIOS Updater version 1.04 or later, the utility automatically exits to the DOS prompt after updating BIOS.

• Ensure to load the BIOS default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu. Refer to section 2.9 Exit menu for details.

• Ensure to connect all SATA hard disk drives after updating the BIOS le if you have

disconnected them.

E6873_P8H61-I LX.indb 5 2/15/12 6:37:37 PM

2-6 ASUS P8H61-I LX

Using the power button, reset button, or the <Ctrl>+<Alt>+<Del> keys to force reset from a running operating system can cause damage to your data or system. We recommend to always shut down the system properly from the operating system.

• The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen.

• Visit the ASUS website at www.asus.com to download the latest BIOS le for this

motherboard.

• Ensure that a USB mouse is connected to your motherboard if you want to use the mouse to control the BIOS setup program.

• If the system becomes unstable after changing any BIOS setting, load the default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu. See section 2.9 Exit Menu for details.

• If the system fails to boot after changing any BIOS setting, try to clear the CMOS and reset the motherboard to the default value. See section 1.9 Jumpers for information on how to erase the RTC RAM.

2.2 BIOS setup program

Use the BIOS Setup program to update the BIOS or congure its parameters. The BIOS

screens include navigation keys and brief online help to guide you in using the BIOS Setup program.

Entering BIOS Setup at startup

To enter BIOS Setup at startup:

• Press <Delete> during the Power-On Self Test (POST). If you do not press <Delete>, POST continues with its routines.

Entering BIOS Setup after POST

To enter BIOS Setup after POST:

• Press <Ctrl>+<Alt>+<Del> simultaneously.

• Press the reset button on the system chassis.

• Press the power button to turn the system off then back on. Do this option only if you

failed to enter BIOS Setup using the rst two options.

E6873_P8H61-I LX.indb 6 2/15/12 6:37:37 PM

Chapter 2: BIOS information 2-7

BIOS menu screen

The BIOS setup program can be used under two modes: EZ Mode and Advanced Mode. You can change modes from the Exit menu or from the Exit/Advanced Mode button in the

EZ Mode/Advanced Mode screen.

EZ Mode

By default, the EZ Mode screen appears when you enter the BIOS setup program. The EZ Mode provides you an overview of the basic system information, and allows you to select

the display language, system performance mode and boot device priority. To access the Advanced Mode, click Exit/Advanced Mode, then select Advanced Mode.

The default screen for entering the BIOS setup program can be changed. Refer to the Setup Mode item in section 2.7 Boot menu for details.

• The boot device options vary depending on the devices you installed to the system.

• The Boot Menu(F8) button is available only when the boot device is installed to the

system.

P8H61-I LX

BIOS Version : 0103 Build Date : 08/23/2011

CPU Type : Intel(R) Core(TM) i5-2400 CPU @ 3.10GHz Speed : 3100 MHz

Total Memory : 1024 MB (DDR3 1333MHz)

Exit/Advanced Mode

Temperature Voltage Fan Speed

CPU +113.0ºF/+45.0ºC CPU 1.248V 5V 5.160V CPU_FAN 3325RPM CHA_FAN N/A

MB +75.2ºF/+40.0ºC 3.3V 3.344V 12V 12.248V

English

EFI BIOS Utility - EZ Mode

Friday [10/08/2010]

Normal

Boot Menu(F8)

Default(F5)

Use the mouse to drag or keyboard to navigate to decide the boot priority.

Boot Priority

Exits the BIOS setup program without saving the changes, saves the changes and resets the system, or enters the Advanced Mode

Selects the display language of the BIOS setup program

Displays the CPU/motherboard temperature, CPU/5V/3.3V/12V voltage output, CPU/chassis fan speed

Silent mode

Standard mode

Turbo mode

Loads optimized default

Selects the boot device priority

Displays the system properties of the

selected mode on the right hand side

Clicks to display all fan

speeds if available

Q-Fan Control

Quiet

Energy SavingPerformance

E6873_P8H61-I LX.indb 7 2/15/12 6:37:39 PM

2-8 ASUS P8H61-I LX

Advanced Mode

The Advanced Mode provides advanced options for experienced end-users to congure the BIOS settings. The gure below shows an example of the Advanced Mode. Refer to the following sections for the detailed congurations.

To access the EZ Mode, click Exit, then select ASUS EZ Mode.

Main

Ai Tweaker

Advanced Monitor Boot Tool

Exit

Forces a DDR3 frequency slower than the common tCK detected via SPD. According to Intel spec, ASUS H61 Series

motherboard supports 1066/1333MHz

DRAM (only).

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values

F5: Optimized Defaults

F10: Save ESC: Exit

F12: Print screen

EFI BIOS Utility - Advanced Mode

Menu bar

The menu bar on top of the screen has the following main items:

Main For changing the basic system conguration

Ai Tweaker For changing the overclocking settings

Advanced For changing the advanced system settings

Monitor For displaying the system temperature, power status, and changing the fan settings

Boot For changing the system boot conguration

Tool For conguring options for special functions

Exit For selecting the exit options and loading default settings

Navigation keys

General help

Menu bar

Conguration elds

Menu items

Scroll bar

Pop-up window

Memory Frequency

Auto

DDR3-800MHz DDR3-1066MHz DDR3-1333MHz

Target DRAM Speed : xxxxMHz

Memory Frequenct Auto

iGPU Max. Frequency Auto

> GPU Boost

> DRAM Timing Control

> CPU Power Management

Sub-menu items

E6873_P8H61-I LX.indb 8 2/15/12 6:37:41 PM

Chapter 2: BIOS information 2-9

Menu items

The highlighted item on the menu bar displays the specic items for that menu. For example,

selecting Main shows the Main menu items. The other items (Ai Tweaker, Advanced, Monitor, Boot, Tool, and Exit) on the menu bar have

their respective menu items.

Back button

This button appears when entering a submenu. Press <Esc> or use the USB mouse to click this button to return to the previous menu screen.

Submenu items

A greater than sign (>) before each item on any menu screen means that the item has a submenu. To display the submenu, select the item and press <Enter>.

Pop-up window

Select a menu item and press <Enter> to display a pop-up window with the conguration

options for that item.

Scroll bar

A scroll bar appears on the right side of a menu screen when there are items that do not t on

the screen. Press the Up/Down arrow keys or <Page Up> / <Page Down> keys to display the other items on the screen.

Navigation keys

At the bottom right corner of the menu screen are the navigation keys for the BIOS setup program. Use the navigation keys to select items in the menu and change the settings.

General help

At the top right corner of the menu screen is a brief description of the selected item.

Conguration elds

These elds show the values for the menu items. If an item is user-congurable, you can change the value of the eld opposite the item. You cannot select an item that is not user-congurable.

A congurable eld is highlighted when selected. To change the value of a eld, select it and

press <Enter> to display a list of options.

E6873_P8H61-I LX.indb 9 2/15/12 6:37:41 PM

2-10 ASUS P8H61-I LX

2.3 Main menu

The Main menu screen appears when you enter the Advanced Mode of the BIOS Setup program. The Main menu provides you an overview of the basic system information, and allows you to set the system date, time, language, and security settings.

2.3.1 System Language [English]

Allows you to choose the BIOS language version from the options. Conguration options:

[English]

2.3.2 System Date [Day xx/xx/xxxx]

Allows you to set the system date.

2.3.3 System Time [xx:xx:xx]

Allows you to set the system time.

2.3.4 Security

The Security menu items allow you to change the system security settings.

• If you have forgotten your BIOS password, erase the CMOS Real Time Clock (RTC)

RAM to clear the BIOS password. See section 1.9 Jumpers for information on how to erase the RTC RAM.

• The Administrator or User Password items on top of the screen show the default Not Installed. After you set a password, these items show Installed.

Main

Ai Tweaker

Advanced Monitor Boot Tool

Exit

EFI BIOS Utility - Advanced Mode

Choose the system default languageBIOS Information

BIOS Version 0103 x64 Build Date 08/23/2011 ME Version 7.0.4.1197 South Bridge Stepping B3 Stepping

CPU Information

Intel(R) Core(TM) i5-2400 CPU 0 @ 3.10GHz Speed 3100 MHz

Memory Information Total Memory 1024 MB

Speed 1333 MHz

System Language English

System Date [Mon 09/13/2010] System Time [16:46:15]

Access Level Administrator

> Security

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help

E6873_P8H61-I LX.indb 10 2/15/12 6:37:42 PM

Chapter 2: BIOS information 2-11

Administrator Password

If you have set an administrator password, we recommend that you enter the administrator password for accessing the system. Otherwise, you might be able to see or change only

selected elds in the BIOS setup program.

To set an administrator password:

1. Select the Administrator Password item and press <Enter>.

2. From the Create New Password box, key in a password, then press <Enter>.

3. Conrm the password when prompted.

To change an administrator password:

1. Select the Administrator Password item and press <Enter>.

2. From the Enter Current Password box, key in the current password, then press

<Enter>.

3. From the Create New Password box, key in a new password, then press <Enter>.

4. Conrm the password when prompted.

To clear the administrator password, follow the same steps as in changing an administrator

password, but press <Enter> when prompted to create/conrm the password. After you clear

the password, the Administrator Password item on top of the screen shows Not Installed.

User Password

If you have set a user password, you must enter the user password for accessing the system. The User Password item on top of the screen shows the default Not Installed. After you set a password, this item shows Installed.

To set a user password:

1. Select the User Password item and press <Enter>.

2. From the Create New Password box, key in a password, then press <Enter>.

3. Conrm the password when prompted.

To change a user password:

1. Select the User Password item and press <Enter>.

2. From the Enter Current Password box, key in the current password, then press

<Enter>.

3. From the Create New Password box, key in a new password, then press <Enter>.

4. Conrm the password when prompted.

To clear the user password, follow the same steps as in changing a user password, but press

<Enter> when prompted to create/conrm the password. After you clear the password, the

User Password item on top of the screen shows Not Installed.

E6873_P8H61-I LX.indb 11 2/15/12 6:37:42 PM

2-12 ASUS P8H61-I LX

2.4 Ai Tweaker menu

The Ai Tweaker menu items allow you to congure overclocking-related items.

Be cautious when changing the settings of the Ai Tweaker menu items. Incorrect eld

values can cause the system to malfunction.

The conguration options for this section vary depending on the CPU and DIMM model you

installed on the motherboard.

Main

Ai Tweaker

Advanced Monitor Boot Tool

Exit

Forces a DDR3 frequency slower than

the common tCK detected via SPD.

According to Intel spec, ASUS H61 Series

motherboard supports 1066/1333MHz

DRAM (only).

→←: Select Screen

↑↓: Select Item

Enter: Select

+/-: Change Opt.

F1: General Help

F2: Previous Values

F5: Optimized Defaults

F10: Save ESC: Exit

F12: Print screen

EFI BIOS Utility - Advanced Mode

Target DRAM Speed : xxxxMHz

Displays the current DRAM speed.

2.4.1 Memory Frequency [Auto]

Allows you to set the memory operating frequency. Conguration options: [Auto] [DDR3800MHz] [DDR3-1066MHz] [DDR3-1333MHz]

Selecting a very high memory frequency may cause the system to become unstable! If this happens, revert to the default setting.

2.4.2 iGPU Max. Frequency [Auto]

[Auto] The iGPU frequency may be optimized depending on the system loading.

[Manual] The input value is the optimal iGPU frequency. However, the frequency

may vary depending on the system loading.

Target DRAM Speed : xxxxMHz

Memory Frequency Auto

iGPU Max. Frequency Auto

> GPU Boost

> DRAM Timing Control

> CPU Power Management

E6873_P8H61-I LX.indb 12 2/15/12 6:37:43 PM

Chapter 2: BIOS information 2-13

2.4.3 GPU Boost [OK]

[OK] Select [OK] to automatically optimize the iGPU frequency. [Cancel] Select [Cancel] to use a xed iGPU frequency.

2.4.4 DRAM Timing Control

The sub-items in this menu allow you to set the DRAM timing control features. Use the <+> and <-> keys to adjust the value. To restore the default setting, type [auto] using the keyboard and press <Enter>.

Changing the values in this menu may cause the system to become unstable! If this happens, revert to the default settings.

2.4.5 CPU Power Management

The sub-items in this menu allow you to set the CPU ratio and features.

CPU Ratio [Auto]

Allows you to manually adjust the maximum non-turbo CPU ratio. Use <+> and <-> keys or the numeric keypad to adjust the ratio. The valid value ranges vary according to your CPU model.

Enhanced Intel SpeedStep Technology [Enabled]

Allows you to enable or disable the Enhanced Intel® SpeedStep Technology (EIST).

[Disabled] Disables this function.

[Enabled] The operating system dynamically adjusts the processor voltage and

core frequency which may result in increased average consumption and decrease average heat production.

Turbo Mode [Enabled]

This item appears only when you set the Enhanced Intel® SpeedStep Technology item to [Enabled].

[Enabled] Allows processor cores to run faster than marked frequency in specic

conditions.

[Disabled] Disables this function.

The following three items appear only when you set both the Enhanced Intel® SpeedStep Technology and Turbo Mode items to [Enabled].

Long Duration Power Limit [Auto]

Use <+>/<-> to adjust the value.

Long Duration Maintained [Auto]

Use <+>/<-> to adjust the value.

Short Duration Power Limit [Auto]

Use <+>/<-> to adjust the value.

Primary Plane Current Limit [Auto]

Use <+>/<-> to adjust the value.

Secondary Plane Current Limit [Auto]

Use <+>/<-> to adjust the value.

E6873_P8H61-I LX.indb 13 2/15/12 6:37:44 PM

2-14 ASUS P8H61-I LX

Be cautious when changing the settings of the Advanced menu items. Incorrect eld values

can cause the system to malfunction.

2.5 Advanced menu

The Advanced menu items allow you to change the settings for the CPU and other system devices.

Main

Ai Tweaker

Advanced Monitor Boot Tool

Exit

CPU Conguration Parameters

EFI BIOS Utility - Advanced Mode

→←: Select Screen

↑↓: Select Item

Enter: Select

+/-: Change Opt.

F1: General Help

F2: Previous Values

F5: Optimized Defaults

F10: Save ESC: Exit

F12: Print screen

> CPU Conguration

> System Agent Conguration

> PCH Conguration

> SATA Conguration

> USB Conguration

> Onboard Devices Conguration

> APM

2.5.1 CPU Conguration

The items in this menu show the CPU-related information that the BIOS automatically detects.

The items shown in submenu may be different due to the CPU you installed.

CPU Ratio [Auto]

Allows you to set the ratio between the CPU Core Clock and the BCLK Frequency. Use <+> and <-> keys or the numeric keypad to adjust the ratio. The valid value ranges vary according to your CPU model.

Intel Adaptive Thermal Monitor [Enabled]

[Enabled] Enables the overheated CPU to throttle its clock speed to cool down.

[Disabled] Disables the CPU thermal monitor function.

E6873_P8H61-I LX.indb 14 2/15/12 6:37:45 PM

Chapter 2: BIOS information 2-15

CPU C1E [Enabled]

[Enabled] Enables the C1E support function. This item should be enabled in order to

enable the Enhanced Halt State.

[Disabled] Disables this function.

CPU C3 Report [Enabled]

Allows you to disable or enable the CPU C3 report to the operating system. Conguration

options: [Disabled] [Enabled]

CPU C6 Report [Enabled]

Allows you to disable or enable the CPU C6 report to the operating system. Conguration

options: [Enabled] [Disabled]

Hyper-threading [Enabled]

The Intel Hyper-Threading Technology allows a hyper-threading processor to appear as two logical processors to the operating system, allowing the operating system to schedule two threads or processes simultaneously.

[Enabled] Two threads per activated core are enabled. [Disabled] Only one thread per activated core is enabled.

Active Processor Cores [All]

Allows you to choose the number of CPU cores to activate in each processor package.

Conguration options: [All] [1] [2] [3]

Limit CPUID Maximum [Disabled]

[Enabled] Allows legacy operating systems to boot even without support for CPUs

with extended CPUID functions.

[Disabled] Disables this function.

Execute Disable Bit [Enabled]

[Enabled] Enables the No-Execution Page Protection Technology.

[Disabled] Forces the XD feature ag to always return to zero (0).

Intel Virtualization Technology [Disabled]

[Enabled] Allows a hardware platform to run multiple operating systems separately

and simultaneously, enabling one system to virtually function as several systems.

[Disabled] Disables this function.

Enhanced Intel SpeedStep Technology [Enabled]

Allows you to enable or disable the Enhanced Intel® SpeedStep Technology (EIST). [Disabled] The CPU runs at its default speed.

[Enabled] The operating system controls the CPU speed.

Turbo Mode [Enabled]

This item appears only when you set the Enhanced Intel SpeedStep Technology to [Enabled] and allows you to enable or disable the Intel® Turbo Mode Technology.

[Enabled] Allows processor cores to run faster than marked frequency in specic

condition.

[Disabled] Disables this function.

E6873_P8H61-I LX.indb 15 2/15/12 6:37:46 PM

2-16 ASUS P8H61-I LX

2.5.2 System Agent Conguration

Initiate Graphic Adapter [PEG/iGPU]

Allows you to decide which graphics controller to use as the primary boot device.

Conguration options: [iGPU] [PEG/iGPU]

iGPU Memory [64M]

Allows you to set the iGPU memory size. Conguration options: [32M] [64M] [96M] [128M]

[160M] [192M] [224M] [256M] [288M] [320M] [352M] [384M] [416M] [448M] [480M] [512M]

Render Standby [Enabled]

Allows you to enable or disable Render Standby by internal graphics devices. Conguration

options: [Disabled] [Enabled]

iGPU Multi-Monitor [Disabled]

Allows you to enable or disable the internal graphics device’s multi-monitor support for

add-on VGA devices. And the memory size for internal graphics device will keep 64MB. Conguration options: [Disabled] [Enabled]

2.5.3 PCH Conguration

High Precision Timer [Enabled]

Allows you to enable or disable the High Precision Event Timer.

Conguration options: [Enabled] [Disabled]

2.5.4 SATA Conguration

While entering Setup, the BIOS automatically detects the presence of SATA devices. The SATA Port items show Not Present if no SATA device is installed to the corresponding SATA port.

SATA Mode [IDE Mode]

Allows you to set the SATA conguration.

[Disabled] Disables the SATA function.

[IDE Mode] Set to [IDE Mode] when you want to use the Serial ATA hard disk drives as

Parallel ATA physical storage devices.

[AHCI Mode] Set to [AHCI Mode] when you want the SATA hard disk drives to use the

AHCI (Advanced Host Controller Interface). The AHCI allows the onboard storage driver to enable advanced Serial ATA features that increases storage performance on random workloads by allowing the drive to

internally optimize the order of commands.

• Due to H61 chipset limitation, AHCI Mode only works on Windows® Vista / 7. Please use [IDE Mode] on Windows® XP.

• [IDE] is the default SATA type. Under Windows® XP, there is no need to change the SATA type.

E6873_P8H61-I LX.indb 16 2/15/12 6:37:46 PM

Chapter 2: BIOS information 2-17

Serial-ATA Controller 0 [Enhanced]

This item appears only when you set the SATA Mode item to [IDE Mode].

[Disabled] Disables the SATA function.

[Enhanced] Set to [Enhanced] to support more than four SATA devices.

[Compatible] Set to [Compatible] when using Windows 98/NT/2000/MS-DOS. Up to four

SATA devices are supported under these operating systems.

Serial-ATA Controller 1 [Enhanced]

This item appears only when you set the SATA Mode item to [IDE Mode].

[Disabled] Disables the SATA function.

[Enhanced] Set to [Enhanced] to support more than four SATA devices.

S.M.A.R.T. Status Check [Enabled]

S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a monitor system. This item appears only when you set the SATA Mode to [IDE Mode] or [AHCI Mode]. When read/write of your hard disk errors occur, this feature allows the hard disk to report warning

messages during the POST. Conguration options: [Enabled] [Disabled]

2.5.5 USB Conguration

The items in this menu allow you to change the USB-related features.

The USB Devices item shows the auto-detected values. If no USB device is detected, the item shows None.

Legacy USB Support [Enabled]

[Enabled] Enables the support for USB devices on legacy operating systems (OS).

[Disabled] The USB devices can be used only for the BIOS setup program.

[Auto] Allows the system to detect the presence of USB devices at startup. If

detected, the USB controller legacy mode is enabled. If no USB device is detected, the legacy USB support is disabled.

EHCI Hand-off [Disabled]

[Enabled] Enables the support for operating systems without an EHCI hand-off

feature.

[Disabled] Disables the function.

E6873_P8H61-I LX.indb 17 2/15/12 6:37:46 PM

2-18 ASUS P8H61-I LX

2.5.6 Onboard Devices Conguration

HD Audio Controller [Enabled]

[Enabled] Enables the High Denition Audio Controller.

[Disabled] Disables the controller.

The following item appears only when you set the HD Audio Controller item to [Enabled].

Panel Type [HD]

Allows you to set the front panel audio connector (AAFP) mode to legacy AC’97 or high-

denition audio depending on the audio standard that the front panel audio module supports. [HD] Sets the front panel audio connector (AAFP) mode to high denition audio.

[AC97] Sets the front panel audio connector (AAFP) mode to legacy AC’97.

Realtek LAN Controller [Enabled]

[Enabled] Enables the Realtek LAN controller.

[Disabled] Disables the controller.

2.5.6 Onboard Devices Conguration

HD Audio Controller [Enabled]

[Enabled] Enables the High Denition Audio Controller.

[Disabled] Disables the controller.

The following item appears only when you set the HD Audio Controller item to [Enabled].

Front Panel Type [HD]

Allows you to set the front panel audio connector (AAFP) mode to legacy AC’97 or high-

denition audio depending on the audio standard that the front panel audio module supports. [HD] Sets the front panel audio connector (AAFP) mode to high denition audio.

[AC97] Sets the front panel audio connector (AAFP) mode to legacy AC’97.

Realtek LAN Controller [Enabled]

[Enabled] Enables the Realtek LAN controller.

[Disabled] Disables the controller.

Realtek PXE OPROM [Disabled]

This item appears only when you set the previous item to [Enabled] and allows you to enable or disable the PXE OptionRom of the Realtek LAN controller.

Conguration options: [Enabled] [Disabled]

E6873_P8H61-I LX.indb 18 2/15/12 6:37:47 PM

Chapter 2: BIOS information 2-19

Realtek PXE OPROM [Disabled]

This item appears only when you set the previous item to [Enabled] and allows you to enable or disable the PXE OptionRom of the Realtek LAN controller.

Conguration options: [Enabled] [Disabled]

2.5.7 APM

Restore AC Power Loss [Power Off]

[Power On] The system goes into on state after an AC power loss.

[Power Off] The system goes into off state after an AC power loss.

[Last State] The system goes into either off or on state, whatever the system state was

before the AC power loss.

Power On By PS/2 Keyboard [Disabled]

[Disabled] Disables the Power On by a PS/2 keyboard.

[Space Bar] Sets the Space Bar on the PS/2 keyboard to turn on the system.

[Ctrl-Esc] Sets the Ctrl+Esc key on the PS/2 keyboard to turn on the system.

[Power Key] Sets Power key on the PS/2 keyboard to turn on the system. This feature

requires an ATX power supply that provides at least 1A on the +5VSB lead.

Power On By PS/2 Mouse [Disabled]

[Disabled] Disables the Power On by a PS/2 mouse.

[Enabled] Enables the Power On by a PS/2 mouse. This feature requires an ATX

power supply that provides at least 1A on the +5VSB lead.

Power On By PCIE [Disabled]

[Disabled] Disables the PCIE devices to generate a wake event.

[Enabled] Enables the PCIE devices to generate a wake event.

Power On By RTC [Disabled]

[Disabled] Disables RTC to generate a wake event. [Enabled] When set to [Enabled], the items RTC Alarm Date (Days) and Hour/

Minute/Second will become user-congurable with set values.

E6873_P8H61-I LX.indb 19 2/15/12 6:37:47 PM

2-20 ASUS P8H61-I LX

2.6 Monitor menu

The Monitor menu displays the system temperature/power status, and allows you to change the fan settings.

2.6.1 CPU Temperature / MB Temperature [xxx�C/xxx�F][xxx�C/xxx�F]

The onboard hardware monitor automatically detects and displays the CPU and motherboard temperatures. Select Ignore if you do not wish to display the detected temperatures.

2.6.2 CPU / Chassis Fan Speed [xxxx RPM] or [Ignore] / [N/A]

The onboard hardware monitor automatically detects and displays the CPU and chassis fan

speeds in rotations per minute (RPM). If the fan is not connected to the motherboard, the eld

shows N/A. Select Ignore if you do not wish to display the detected speed.

2.6.3 CPU Q-Fan Control [Enabled]

[Disabled] Disables the CPU Q-Fan control feature.

[Enabled] Enables the CPU Q-Fan control feature.

Main

Ai Tweaker

Advanced Monitor Boot Tool

Exit

CPU Temperature

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values

F5: Optimized Defaults

F10: Save ESC: Exit

F12: Print screen

EFI BIOS Utility - Advanced Mode

Scroll down to display the following items:

12V Voltage +12.000 V

Anti Surge Support Disabled

CPU Temperature +33ºC / +91ºF+33ºC / +91ºF

MB Temperature +34ºC / +93ºF

CPU Fan Speed 1620 RPM

Chassis Fan Speed N/A

CPU Q-Fan Control Enabled

CPU Fan Speed Low Limit 600 RPM

CPU Fan Prole Standard

Chassis Q-Fan Control Enabled

Chassis Fan Speed Low Limit 600 RPM

Chassis Fan Prole Standard

CPU Voltage +1.112 V

3.3V Voltage +3.312 V

5V Voltage +5.240 V

E6873_P8H61-I LX.indb 20 2/15/12 6:37:48 PM

Chapter 2: BIOS information 2-21

CPU Fan Speed Low Limit [600 RPM]

This item appears only when you enable the CPU Q-Fan Control feature and allows you to

disable or set the CPU fan warning speed. Conguration options: [Ignore] [200 RPM] [300

RPM] [400 RPM] [500 RPM] [600 RPM]

CPU Fan Profile [Standard]

This item appears only when you enable the CPU Q-Fan Control feature and allows you to set the appropriate performance level of the CPU fan.

[Standard] Sets to [Standard] to make the CPU fan automatically adjust depending on

the CPU temperature.

[Silent] Sets to [Silent] to minimize the fan speed for quiet CPU fan operation.

[Turbo] Sets to [Turbo] to achieve maximum CPU fan speed.

[Manual] Sets to [Manual] to assign detailed fan speed control parameters.

The following four items appear only when you set CPU Fan Prole to [Manual].

CPU Upper Temperature [70]

Use the <+> and <-> keys to adjust the upper limit of the CPU temperature. The values range from 20ºC to 75ºC.

CPU Fan Max. Duty Cycle(%) [100]

Use the <+> and <-> keys to adjust the maximum CPU fan duty cycle. The values range from 20% to 100%. When the CPU temperature reaches the upper limit, the CPU fan will operate at the maximum duty cycle.

CPU Lower Temperature [20]

Use the <+> and <-> keys to adjust the lower limit of the CPU temperature. The values range from 20ºC to 75ºC

CPU Fan Min. Duty Cycle(%) [20]

Use the <+> and <-> keys to adjust the minimum CPU fan duty cycle. The values range from 0% to 100%. When the CPU temperature is under the lower limit, the CPU fan will operate at the minimum duty cycle.

2.6.4 Chassis Q-Fan Control [Enabled]

[Disabled] Disables the Chassis Q-Fan control feature.

[Enabled] Enables the Chassis Q-Fan control feature.

Chassis Fan Speed Low Limit [600 RPM]

This item appears only when you enable the Chassis Q-Fan Control feature and

allows you to disable or set the chassis fan warning speed. Conguration options:

[Ignore] [200RPM] [300 RPM] [400 RPM] [500 RPM] [600 RPM]

Chassis Fan Profile [Standard]

This item appears only when you enable the Chassis Q-Fan Control feature and allows you to set the appropriate performance level of the chassis fan.

[Standard] Sets to [Standard] to make the chassis fan automatically adjust depending

on the chassis temperature.

[Silent] Sets to [Silent] to minimize the fan speed for quiet chassis fan operation.

[Turbo] Sets to [Turbo] to achieve maximum chassis fan speed.

[Manual] Sets to [Manual] to assign detailed fan speed control parameters.

E6873_P8H61-I LX.indb 21 2/15/12 6:37:48 PM

2-22 ASUS P8H61-I LX

The following four items appear only when you set Chassis Fan Prole to [Manual].

Chassis Upper Temperature [70]

Use the <+> and <-> keys to adjust the upper limit of the CPU temperature. The values range from 40ºC to 90ºC.

Chassis Fan Max. Duty Cycle(%) [100]

Use the <+> and <-> keys to adjust the maximum chassis fan duty cycle. The values range from 60% to 100%. When the chassis temperature reaches the upper limit, the chassis fan will operate at the maximum duty cycle.

Chassis Lower Temperature [40]

Displays the lower limit of the chassis temperature.

CPU Fan Min. Duty Cycle(%) [60]

Use the <+> and <-> keys to adjust the minimum chassis fan duty cycle. The values range from 60% to 100%. When the chassis temperature is under 40ºC, the chassis fan will operate at the

minimum duty cycle.

2.6.5 CPU Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage

The onboard hardware monitor automatically detects the voltage output through the onboard voltage regulators. Select Ignore if you do not want to detect this item.

2.6.6 Anti Surge Support [Disabled]

This item allows you to enable or disable the Anti Surge function.

Conguration options: [Disabled] [Enabled]

E6873_P8H61-I LX.indb 22 2/15/12 6:37:49 PM

Chapter 2: BIOS information 2-23

2.7 Boot menu

The Boot menu items allow you to change the system boot options.

2.7.1 Bootup NumLock State [On]

[On] Sets the power-on state of the NumLock to [On].

[Off] Sets the power-on state of the NumLock to [Off].

2.7.2 Full Screen Logo [Enabled]

[Enabled] Enables the full screen logo display feature.

[Disabled] Disables the full screen logo display feature.

Set this item to [Enabled] to use the ASUS MyLogo 2™ feature.

Post Report [5 sec]

This item appears only when the Full Screen Logo item is set to [Disabled] and allows you to

set the waiting time for the system to display the post report. Conguration options: [1 sec] [2

sec] [3 sec] [4 sec] [5 sec] [6 sec] [7 sec] [8 sec] [9 sec] [10 sec] [Until Press ESC]

2.7.3 Wait for ‘F1’ If Error [Enabled]

When this item is set to [Enabled], the system waits for the F1 key to be pressed when error

occurs. Conguration options: [Disabled] [Enabled]

Main

Ai Tweaker

Advanced Monitor Boot Tool

Exit

Select the keyboard NumLock state

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values

F5: Optimized Defaults

F10: Save ESC: Exit

F12: Print screen

EFI BIOS Utility - Advanced Mode

Bootup NumLock State On

Full Screen Logo Enabled

Wait For ‘F1’ If Error Enabled

Option ROM Messages Force BIOS

Setup Mode EZ Mode

Boot Option Priorities

Boot Option #1 SATA: xxxxxxx

Boot Option #2 SATA: xxxxxxx

Boot Override

> SATA: xxxxxxxxxxxx

> Hard Drive BBS Priorities

> CD/DVD ROM Drive BBS Priorities

E6873_P8H61-I LX.indb 23 2/15/12 6:37:50 PM

2-24 ASUS P8H61-I LX

2.7.4 Option ROM Messages [Force BIOS]

[Force BIOS] The third-party ROM messages will be forced to display during the boot

sequence.

[Keep Current] The third-party ROM messages will be displayed only if the third-party

manufacturer had set the add-on device to do so.

2.7.5 Setup Mode [EZ Mode]

[Advanced Mode] Sets Advanced Mode as the default screen for entering the BIOS setup

program.

[EZ Mode] Sets EZ Mode as the default screen for entering the BIOS setup program.

2.7.6 Boot Option Priorities

These items specify the boot device priority sequence from the available devices. The number of device items that appears on the screen depends on the number of devices installed in the system.

• To select the boot device during system startup, press <F8> when ASUS Logo appears.

• To access Windows OS in Safe Mode, do any of the following:

- Press <F5> when ASUS Logo appears.

- Press <F8> after POST.

2.7.7 Boot Override

These items displays the available devices. The number of device items that appears on the screen depends on the number of devices installed in the system. Click an item to start booting from the selected device.

E6873_P8H61-I LX.indb 24 2/15/12 6:37:50 PM

Chapter 2: BIOS information 2-25

2.8 Tools menu

The Tools menu items allow you to congure options for special functions. Select an item

then press <Enter> to display the submenu.

2.8.1 ASUS EZ Flash Utility

Allows you to run ASUS EZ Flash 2. Press [Enter] to launch the ASUS EZ Flash 2 screen.

For more details, see section 2.1.2 ASUS EZ Flash 2.

Main

Ai Tweaker

Advanced Monitor Boot Tool

Exit

Be used to update BIOS

EFI BIOS Utility - Advanced Mode

2.8.2 ASUS SPD Information

DIMM Slot # [Slot 1]

Displays the Serial Presence Detect (SPD) information of the DIMM module installed on the

selected slot. Conguration options: [Slot 1] [Slot 2]

2.8.3 ASUS O.C. Prole

This item allows you to store or load multiple BIOS settings.

The Setup Prole Status items show Not Installed if no prole is created.

• DO NOT shut down or reset the system while updating the BIOS to prevent the system boot failure!

• We recommend that you update the BIOS le only coming from the same memory/CPU conguration and BIOS version.

Save to Prole

Allows you to save the current BIOS settings to the BIOS Flash, and create a prole. Key in a prole number from one to eight, press <Enter>, and then select Yes.

Load from Prole

Allows you to load the previous BIOS settings saved in the BIOS Flash. Key in the prole

number that saved your CMOS settings, press <Enter>, and then select Yes.

> ASUS EZ Flash Utility

> ASUS SPD Information

> ASUS O.C. Prole

E6873_P8H61-I LX.indb 25 2/15/12 6:37:50 PM

2-26 ASUS P8H61-I LX

2.9 Exit menu

The Exit menu items allow you to load the optimal default values for the BIOS items, and save or discard your changes to the BIOS items. You can access the EZ Mode from the Exit menu.

Load Optimized Defaults

This option allows you to load the default values for each of the parameters on the Setup

menus. When you select this option or if you press <F5>, a conrmation window appears.

Select Yes to load the default values.

Save Changes & Reset

Once you are nished making your selections, choose this option from the Exit menu to

ensure the values you selected are saved. When you select this option or if you press <F10>,

a conrmation window appears. Select Yes to save changes and exit.

Discard Changes & Exit

This option allows you to exit the Setup program without saving your changes. When you select this option or if you press <Esc>, a conrmation window appears. Select Yes to discard changes and exit.

ASUS EZ Mode

This option allows you to enter the EZ Mode screen.

Launch EFI Shell from lesystem device

This option allows you to attempt to launch the EFI Shell application (shellx64.e) from one of the available devices that have a lesystem.

Exit

Load Optimized Defaults

Save Changes & Reset

Discard Changes & Exit

ASUS EZ Mode

Launch EFI Shell from lesystem device

E6873_P8H61-I LX.indb 26 2/15/12 6:37:51 PM

ASUS P8H61-I LX A-1

Appendices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required

to assure compliance with FCC regulations. Changes or modications to this unit not

expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

IC: Canadian Compliance Statement

Complies with the Canadian ICES-003 Class B specications. This device complies with RSS

210 of Industry Canada. This Class B device meets all the requirements of the Canadian interference-causing equipment regulations.

This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Cut appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

Cet appareil est conforme aux normes CNR exemptes de licence d’Industrie Canada. Le fonctionnement est soumis aux deux conditions suivantes :

(1) cet appareil ne doit pas provoquer d’interférences et (2) cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer

un fonctionnement non souhaité de l’appareil.

Notices

E6873_P8H61-I LX.indb 1 2/15/12 6:37:52 PM

A-2 Appendices

VCCI: Japan Compliance Statement

VCCI Class B Statement

KC: Korea Warning Statement

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

DO NOT throw the motherboard in municipal waste. This product has been designed to enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

REACH

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm.

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for the detailed recycling information in different regions.

E6873_P8H61-I LX.indb 2 2/15/12 6:37:53 PM

ASUS contact information

ASUSTeK COMPUTER INC.

Address 15 Li-Te Road, Peitou, Taipei, Taiwan 11259 Telephone +886-2-2894-3447 Fax +886-2-2890-7798

E-mail info@asus.com.tw

Web site www.asus.com.tw

Technical Support

Telephone +86-21-38429911 Online support support.asus.com

ASUS COMPUTER INTERNATIONAL (America)

Address 800 Corporate Way, Fremont, CA 94539, USA Telephone +1-510-739-3777 Fax +1-510-608-4555 Web site usa.asus.com

Technical Support

Telephone +1-812-282-2787 Support fax +1-812-284-0883 Online support support.asus.com

ASUS COMPUTER GmbH (Germany and Austria)

Address Harkort Str. 21-23, D-40880 Ratingen, Germany Fax +49-2102-959911 Web site www.asus.de Online contact www.asus.de/sales

Technical Support

Telephone (Component) +49-1805-010923

Telephone (System/Notebook/Eee/LCD) +49-1805-010920

Support Fax +49-2102-9599-11 Online support support.asus.com

* EUR 0.14/minute from a German xed landline; EUR 0.42/minute from a mobile phone.

E6873_P8H61-I LX.indb 2 2/15/12 6:37:53 PM

EC Declaration of Conformity

We, the undersigned,

Manufacturer:

ASUSTek COMPUTER INC.

Address, City:

No. 150, LI-TE RD., PEITOU, TAIPEI 112, TAIWAN R.O.C.

Country:

TAIWAN

Authorized representative in Europe:

ASUS COMPUTER GmbH

Address, City: HARKORT STR. 21-23, 40880 RATINGEN

Country:

GERMANY

declare the following apparatus:

Product name : MotherBoard

Model name : P8H61-I LX

conform with the essential requirements of the following directives:

2004/108/EC-EMC Directive

EN 55022:2006+A1:2007

EN 61000-3-2:2006

EN 55013:2001+A1:2003+A2:2006

EN 55024:1998+A1:2001+A2:2003

EN 61000-3-3:2008

EN 55020:2007

1999/5/EC-R &TTE Directive

EN 300 328 V1.7.1(2006-05)

EN 300 440-1 V1.4.1(2008-05)

EN 300 440-2 V1.2.1(2008-03)

EN 301 511 V9.0.2(2003-03)

EN 301 908-1 V3.2.1(2007-05)

EN 301 908-2 V3.2.1(2007-05)

EN 301 893 V1.4.1(2005-03)

EN 302 544-2 V1.1.1(2009-01)

EN 50360:2001

EN 50371:2002

EN 50385:2002

EN 301 489-1 V1.8.1(2008-04)

EN 301 489-3 V1.4.1(2002-08)

EN 301 489-4 V1.3.1(2002-08)

EN 301 489-7 V1.3.1(2005-11)

EN 301 489-9 V1.4.1(2007-11)

EN 301 489-17 V2.1.1(2009-05)

EN 301 489-24 V1.4.1(2007-09)

EN 302 326-2 V1.2.2(2007-06)

EN 302 326-3 V1.3.1(2007-09)

EN 301 357-2 V1.3.1(2006-05)

EN 302 623 V1.1.1(2009-01)

2006/95/EC-LVD Directive

EN 60950-1:2006

EN 60950-1:2006+A11:2009

EN 60065:2002+A1:2006+A11:2008

2009/125/EC-ErP Directive

Regulation (EC) No. 1275/2008

EN 62301:2005

Regulation (EC) No. 642/2009

EN 62301:2005

Regulation (EC) No. 278/2009

EN 62301:2005

Ver. 110101

CE marking

Declaration Date: Sep. 23, 2011

Year to begin affixing CE marking:2011

Position : CEO

Name : Jerry Shen

Signature :

__________

(

EC conformit

markin

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2. 1077(a)

Responsible Party Name:

Asus Computer International

Address: 800 Corporate Way, Fremont

, CA 94539.

Phone/Fax No: (510)739-3777/(510)608-4555

hereby declares that the product

Product Name : MotherBoard

Model Number : P8H61-I LX

Conforms to the following specifications:

FCC Part 15, Subpart B, Unintentional Radiators

FCC Part 15, Subpart C, Intentional Radiators

FCC Part 15, Subpart E, Intentional Radiators

Supplementary Information:

This device complies with part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Representative Person’s Name : Steve Chang / President

Signature :

Date : Sep. 23, 2011

Ver. 110101

E6873_P8H61-I LX.indb 3 2/15/12 6:37:54 PM

Asus P8H61-I LX User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
